IN-SYNC. V. Stellar kinematics and dynamics in the Orion A Molecular Cloud

TL;DR

This study analyzes the stellar kinematics in Orion A using APOGEE data, revealing substructures, velocity gradients, and dynamical states of young stars and clusters, providing insights into star formation and cluster evolution.

Contribution

It presents a detailed kinematic analysis of young stars in Orion A, identifying subclustering, velocity gradients, and dynamical states, advancing understanding of star formation processes.

Findings

Young stars follow a velocity gradient along the filament.

Kinematic subclustering is detected among young stars.

The ONC is near virial equilibrium, indicating an evolved dynamical state.

Abstract

The kinematics and dynamics of young stellar populations enable us to test theories of star formation. With this aim, we continue our analysis of the SDSS-III/APOGEE IN-SYNC survey, a high resolution near infrared spectroscopic survey of young clusters. We focus on the Orion A star-forming region, for which IN-SYNC obtained spectra of $\sim2700$ stars. In Paper IV we used these data to study the young stellar population. Here we study the kinematic properties through radial velocities ($v_r$). The young stellar population remains kinematically associated with the molecular gas, following a $\sim10\:{\rm{km\:s}}^{-1}$ gradient along filament. However, near the center of the region, the $v_r$ distribution is slightly blueshifted and asymmetric; we suggest that this population, which is older, is slightly in foreground. We find evidence for kinematic subclustering, detecting statistically significant groupings of co-located stars with coherent motions. These are mostly in the lower-density regions of the cloud, while the ONC radial velocities are smoothly distributed, consistent with it being an older, more dynamically evolved cluster. The velocity dispersion $\sigma_v$ varies along the filament. The ONC appears virialized, or just slightly supervirial, consistent with an old dynamical age. Here there is also some evidence for on-going expansion, from a $v_r$--extinction correlation. In the southern filament, $\sigma_v$ is $\sim2$--$3$ times larger than virial in the L1641N region, where we infer a superposition along the line of sight of stellar sub-populations, detached from the gas. On the contrary, $\sigma_v$ decreases towards L1641S, where the population is again in agreement with a virial state.

Figures

Tables

Table 1. Table 1 Substructures in p ​ p ​ v 𝑝 𝑝 𝑣 ppv space

	Measured		Random simulation
$n$	$N_{\mathrm{structures}}$	$\delta \rho$	$N_{\mathrm{structures}}$	$\delta \rho$
4	20	16.347	14.760$\pm$2.619	1.405$\pm$1.336
5	17	10.740	13.920$\pm$3.081	1.184$\pm$1.243
6	14	9.215	12.360$\pm$2.797	0.937$\pm$0.729
7	14	6.486	11.880$\pm$2.862	0.899$\pm$0.75
8	13	5.427	10.520$\pm$1.475	0.851$\pm$0.537
10	12	3.431	9.920$\pm$1.605	0.702$\pm$0.406
20	8	2.050	7.440$\pm$1.635	0.500$\pm$0.163

Table 2. Table 2 Groups of stars identified in p ​ p ​ v 𝑝 𝑝 𝑣 ppv space and comparison with random tests. See text.

${\rho }_0$	$n$	${\delta }_v$	$N_{\mathrm{groups}}$	${\sigma }_{N_{\mathrm{groups}}}$	$f$	${\sigma }_f$	$p1$	$p2$
1	5	2	36	0.4	30.22	0.87	0.285	0.372
		4	35	0.3	31.2	0.79	0.84	0.105
		8	36	0.6	30.5	0.76	0.291	0.204
	10	2	27	-0.5	38.19	-0.76	0.329	0.626
		4	25	-0.7	41.52	-0.53	0.183	0.003
		8	23	-1.2	45.26	-1.11	0.019	0.533
0.3	5	2	33	2.6	47.0	2.71	0.003	0.071
		4	30	2.2	51.73	1.93	0.173	0.245
		8	36	3.3	43.42	1.94	0.007	0.018
	10	2	29	2.8	52.62	1.88	0.0	0.008
		4	34	4.7	45.12	1.98	0.002	0.001
		8	31	3.2	49.87	1.68	0.0	0.009

Equations

$${\sigma }_{vir}\sim \sqrt{\frac{G{m}_l}{2}}$$

Full text

††slugcomment: ApJ accepted

1. Introduction

The observational study of stellar kinematics in young clusters provides critical clues on the mechanisms governing cluster formation and early evolution. The velocities of young stars, in comparison with gas kinematics, can reveal if and for how long the newly formed stellar population follows the initial/early gas flows, which may be due to turbulence, gravitational infall, cloud collisions or some other triggering mechanism. The star cluster may be forming in a quasi monolithic fashion or the process may involve merging of different sub-clusters. These mechanisms may be revealed by a study of the kinematics, including kinematic substructure, of the young stars. Subsequent dynamical evolution may involve mixing of orbits, e.g., as the star cluster virializes as a gravitationally bound system. Alternatively, depending on the overall efficiency of formation from the natal gas clump and degree of gas expulsion, the stellar population may be or become unbound and thus expand with less opportunity for stellar interactions. Depending on the rate of star formation, i.e., the efficiency per local free-fall time, these potential evolutionary pathways may be followed even while the cluster/clump system is still gas dominated. Another way to test different star formation scenarios is thus to measure the velocity dispersion of the cluster and compare it with the value expected from virial equilibrium given the gravitational potential due to the total mass (stars + gas) of the system.

Great effort has been made over the years to study the dynamical evolution of young clusters theoretically, through N-body simulations (e.g., Scally & Clarke, 2002; Goodwin & Bastian, 2006; Baumgardt & Kroupa, 2007; Fellhauer et al., 2009; Allison et al., 2009, 2010; Parker & Meyer, 2012; Parker et al., 2014; Farias et al., 2015, 2017). Results reveal a fairly complex picture, in that the dynamical state and evolution of the stellar population, the bound fraction and morphology depend on several factors: the star formation efficiency, the time of gas removal and its duration and the initial configuration of hierarchical/substructured protoclusters.

Observationally, some works have analyzed the morphology of young clusters at different ages to constrain their dynamical evolution and initial conditions (e.g., Gutermuth et al., 2005; Schmeja & Klessen, 2006; Banerjee & Kroupa, 2015; Da Rio et al., 2014b; Jaehnig et al., 2015). However, observations of radial velocities in young clusters are a more powerful tool to probe the current dynamical state, search for and parameterize binary populations, and investigate spatially coherent velocity gradients or substructure that might give clues to the initial conditions or reveal multiple populations (Fűrész et al., 2008; Tobin et al., 2009; Cottaar et al., 2012; Jeffries et al., 2006, 2014; Rigliaco et al., 2016). In many cases, these radial velocities, $v_{r}$, have been obtained from optical high-resolution spectroscopy surveys that reach radial velocity precisions of $\sim 1$ km s*-1* or better for individual sources. Such precision is needed to resolve the kinematics of nearby, relatively low-mass regions of star formation (e.g., Orion), which have velocity dispersions of a few km s*-1*. In young embedded clusters, optical spectroscopy can be limited by dust extinction, thus unable to reach stellar members affected by high extinction.

In this context, with the INfrared Spectra of Young Nebulous Clusters (IN-SYNC) project Cottaar et al. (2014), an ancillary program of the SDSS-III, we obtained multiobject, near-infrared (NIR) high-resolution spectra in 3 young clusters. This program, which used Apache Point Observatory Galactic Evolution Experiment (APOGEE) spectrograph, allowed us to derive stellar parameters and reaching radial velocity precisions to $\sim 0.3$ km s*-1* down to $H=12.5$ mag. The first part of this survey covered the Perseus cloud, through their young clusters IC348 (Cottaar et al., 2014, 2015, hereafter Paper I and Paper III) and NGC 1333 (Foster et al., 2015, hereafter Paper II). We have found evidence for a supervirial stellar population in IC 348, whereas in NGC 1333 the stars are in close agreement with virial velocities, but the diffuse gas and dense gas have significantly different velocity dispersion. Moreover, we found that stars in NGC 1333 show a similar velocity dispersion to the diffuse gas, whereas the dense cores appear in subvirial motions, unless their dynamics are significantly regulated by large scale magnetic fields.

In a second part of IN-SYNC, we covered the Orion A molecular cloud. At the distance of $\sim 400$ pc (Menten et al., 2007), this filamentary structure includes the Orion Nebula Cluster (ONC), the closest site of active massive star formation. Sparser populations are present to the north, in the upper sword and NGC 1977, and to the south, with NGC 1980 and L1641. This population has been thoroughly studied at many wavelengths through photometry and spectroscopy (Hillenbrand, 1997; Hillenbrand & Hartmann, 1998; Da Rio et al., 2010a, 2012; Robberto et al., 2010, 2013; Hsu et al., 2012, 2013; Fang et al., 2009, 2013). Memberships have been estimated through optical spectroscopy, presence of IR excess emission (Megeath et al., 2012), X-ray emission (Getman et al., 2005; Pillitteri et al., 2013). The population has a typical model dependent mean age of $\sim 2-3$ Myr throughout the region, and in spite of the large extent of the structure ($\sim 40$ pc). The only exception is the population around NGC1980 being somewhat older (Alves & Bouy, 2012; Bouy et al., 2014; Da Rio et al., 2015). In the ONC, a large age spread compared to the local free-fall time is present Da Rio et al. (2010a, 2014a, 2015), hinting to a slow star formation process relative to the dynamical timescale of this star-forming clouds (Tan et al., 2006; Krumholz & Tan, 2007).

The kinematic properties of the molecular gas in Orion A have been studied in great detail (e.g., Bally et al., 1987; Dame et al., 2001; Nishimura et al., 2015; Ishii et al., 2016) from tracers such as 12CO, 13CO and C18O. The filament shows a large $\sim 10$ km s*-1* change in radial velocity over its length, with the south end (the “tail”) blue-shifted compared to the north end. Also, based on 3D dust mapping, Schlafly et al. (2015) found evidence that the tail is several tens of pc more distant than the northern end. Unless the Orion A cloud is stretching out along its orientation in plane of the sky—which is unknown because of the lack of accurate proper motion measurements—this would suggest that the Orion A filament is compressing along its length. As for stellar kinematics, Fűrész et al. (2008) and Tobin et al. (2009) conducted an optical survey measuring $v_{r}$ in the northernmost third (\sim 2\hbox{{}^{\circ}} long) of the region, centered on the ONC. In this region, they found that young stars’ velocities follow the gas (13CO) velocity, although their distribution is slightly asymmetric with a broad blue-shifted tail not present in the gas component. They also noted that the large scale $v_{r}$ gradient steepens north of the ONC, which had been interpreted as evidence for large scale infall.

In our IN-SYNC survey, we obtained 4828 spectra of 2691 individual sources throughout the \sim 6\hbox{{}^{\circ}} long region. The spatial distribution of these sources is shown in Figure 1, left panel, together with a 13CO map from Nishimura et al. (2015). In the previous paper of this series, (Da Rio et al., 2015, ,hereafter Paper IV), we used these data to study the properties of the stellar population. We focused on the fitted stellar parameters ($T_{\rm eff}$, $A_{V}$, $\log g$, $v_{r}$), positioned the sources in the Hertzsprung-Russel diagram (HRD), and assigned stellar ages.

Our stellar sample was limited to $H<12.5$ mag, and assembled prioritizing known members from a multitude of literature estimates; additional sources with unknown membership were then added if in the luminosity range reached by our survey. Our sample reaches masses as low as $M\sim 0.15$ M*⊙* for small values of $A_{V}$, which in turn covers values up to $\sim 20$ mag with a mean $A_{V}=2$ mag. The coverage of known members within the luminosity range of the survey is nearly complete throughout the region, with the exception of the central part of the ONC, where fiber collision constraints, combined with crowding, limited us to about 50% completeness. Stellar parameters are very accurate for cool stars ($T_{\rm eff}<5000$ K), with mean uncertainties in $T_{\rm eff}$ of the order of 50 K and mean and median errors in $v_{r}$ of $\sim 1$ and $0.3$ km s*-1*. Our precision worsens at early spectral types; however, due to the IMF, only a minority of members are in this range.

We found a clear confirmation of a genuine age spread throughout the region, from the correlation between HRD ages and surface gravity-derived ages, as well as anticorrelation between ages and IR excess, and ages and extinction. We also confirmed that the non-embedded population of young stars around NGC1980 is older than the rest of the system, but suggested that it is not part of a well-separated cluster. This is because the kinematic properties of these sources are indistinguishable from those of younger, more embedded stars at the same position. Based on stellar parameters as well as radial velocities, we found $\sim 400$ new candidate members. Most of these turn out to be young diskless sources, in portions of the Orion A cloud not fully covered by previous studies to assign memberships.

In this paper we continue the analysis of our IN-SYNC dataset, focusing on the kinematics and dynamics of the population.

2. Kinematic comparison between stars and gas

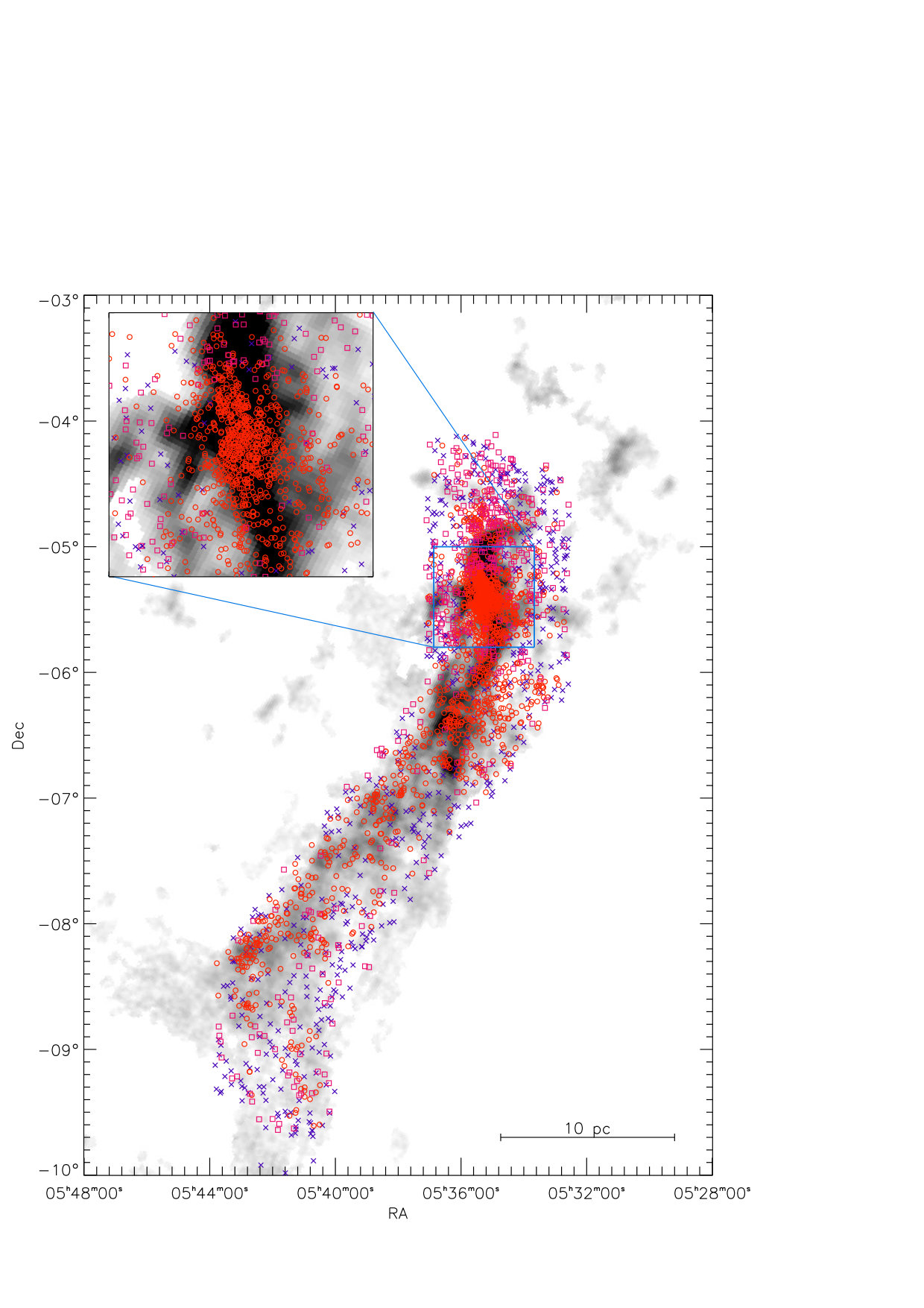

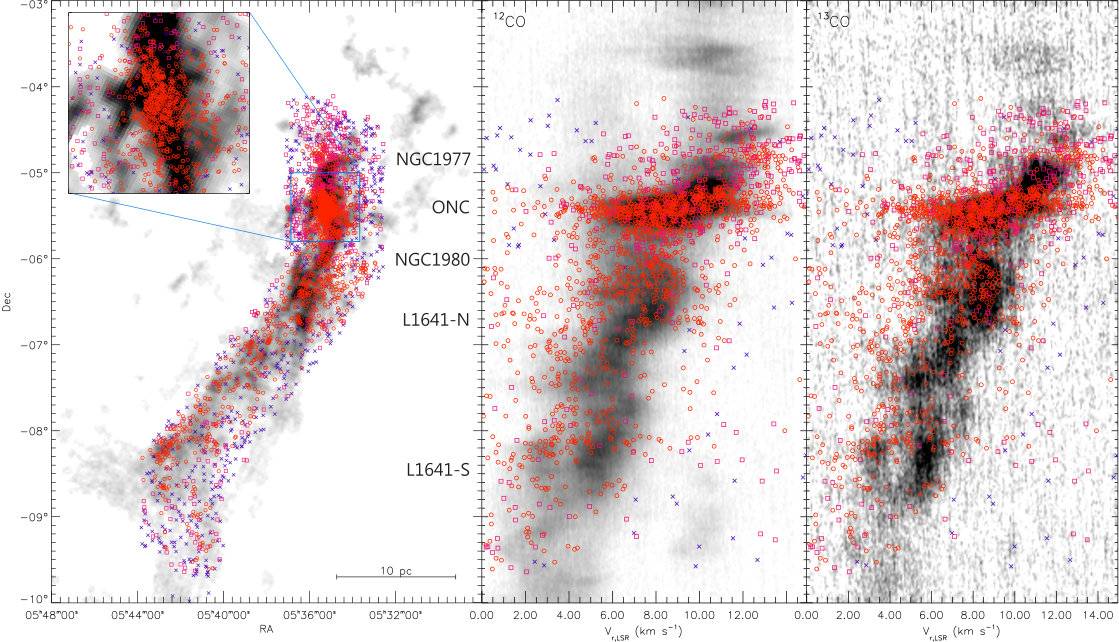

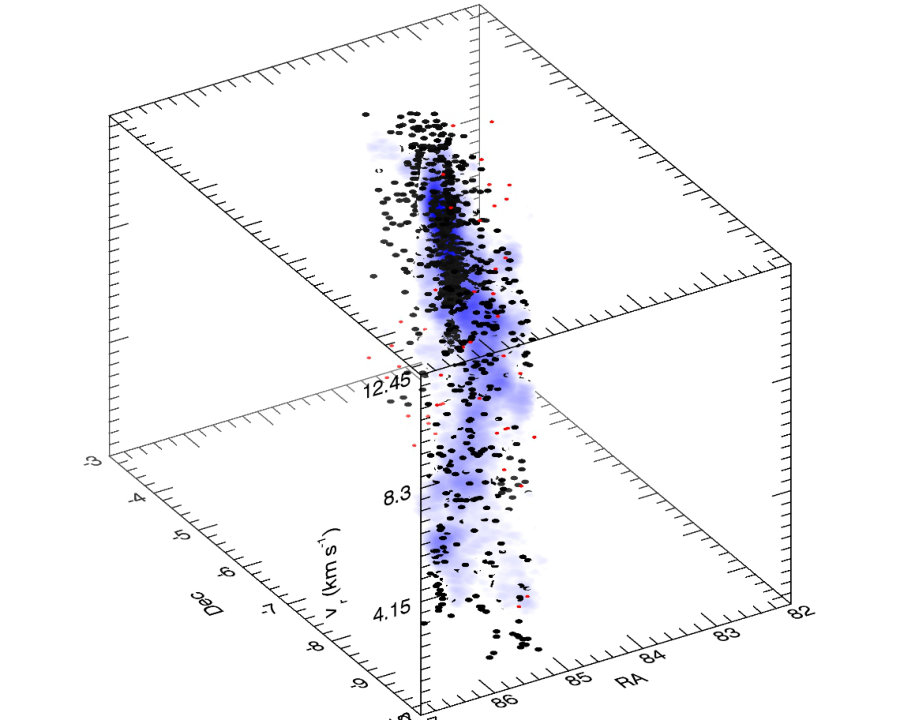

Figure 1 shows a map of the Orion region as well as a position (Dec)–velocity diagram of our IN-SYNC targets in comparison with that of the molecular gas tracers. Figure 2 shows an animation of the full 3D (R.A., Dec and $v_{r}$) cube of the data. It is qualitatively evident that stars follow the global motions of the molecular gas throughout the region, as seen before limited to the north portion of the cloud (-6\hbox{{}^{\circ}}<\delta<-4\hbox{{}^{\circ}}, Tobin et al. 2009). Also, unsurprisingly, non-members tend to have velocities that are different from the bulk of the young population. Another feature is the fact that there appear to be more members with $v_{r}$ lower than the peak value than stars with higher velocities, in line with the results from Tobin et al. (2009) that the stellar velocity distribution is asymmetric with a broader blue-shifted wing.

To investigate this possibility, we construct positional maps of mean stellar velocities. First we exclude from our analysis all non-members; we also exclude sources with velocities strongly different from that of the bulk of the population ($v_{r}<-20$ km s*-1* or $v_{r}>35$ km s*-1*), to exclude outliers that are either erroneous membership or velocity assignment, binary systems, or ejected members. Then, for every angular position in $(\alpha,\delta)$ we consider the sources within a circular aperture with radius of 20\hbox{{}^{\prime}}, provided that there are at least 30 sources in the aperture, and we compute the weighted average of their $v_{r}$ values, as well as the median and mode value. Lastly, we smooth each map with a kernel of 5\hbox{{}^{\prime}} of radius.

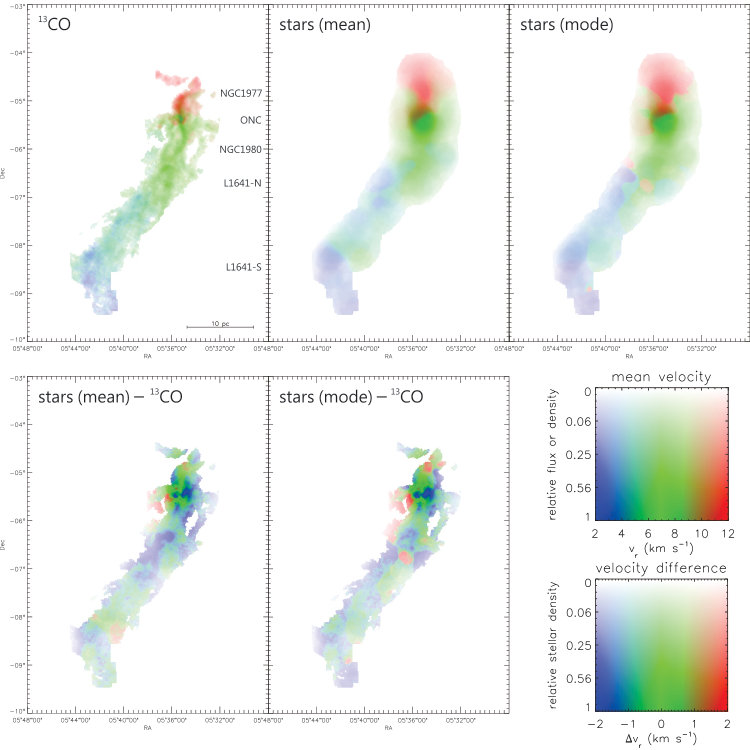

Figure 3 shows the derived maps, as well as the difference between stars and gas, color-coded according to $v_{r}$ and density or flux. Visually, it appears that the difference stars $-$ gas, which will be referred to as $\Delta v_{r}$, is on average more negative then positive, as the overall color leans toward the blue. In fact, the area-weighted mean value of $\Delta v_{r}$ using the stellar mean velocity is $-0.87$ km s*-1*, which decreases in absolute value to $-0.44$ km s*-1* weighting the result on the stellar density. These values decrease, respectively, to $-0.66$ km s*-1* and $-0.25$ km s*-1* when adopting the mode of the stellar velocities. Such difference is also evident from Figure 4, where we show the velocity distributions of stars and gas in different declination bins. Therefore, it appears that stars are systematically slightly blue-shifted compared to the gas, and this is in part due to an asymmetry in the $v_{r}$ distribution, as manifested by the difference between mode and mean $v_{r}$.

It is possible that this offset is not real, and simply due to zero-point offsets in $v_{r}$. However, by comparing our radial velocities with those from Tobin et al. (2009), for 550 matching sources, we find a difference in the values of $0.11\pm 0.05$ km s*-1*, much smaller than the offsets between stars and gas. Unless both, despite using different instrument and techniques, have a similar systematic error in $v_{r}$, this suggests that our IN-SYNC velocities are well calibrated.

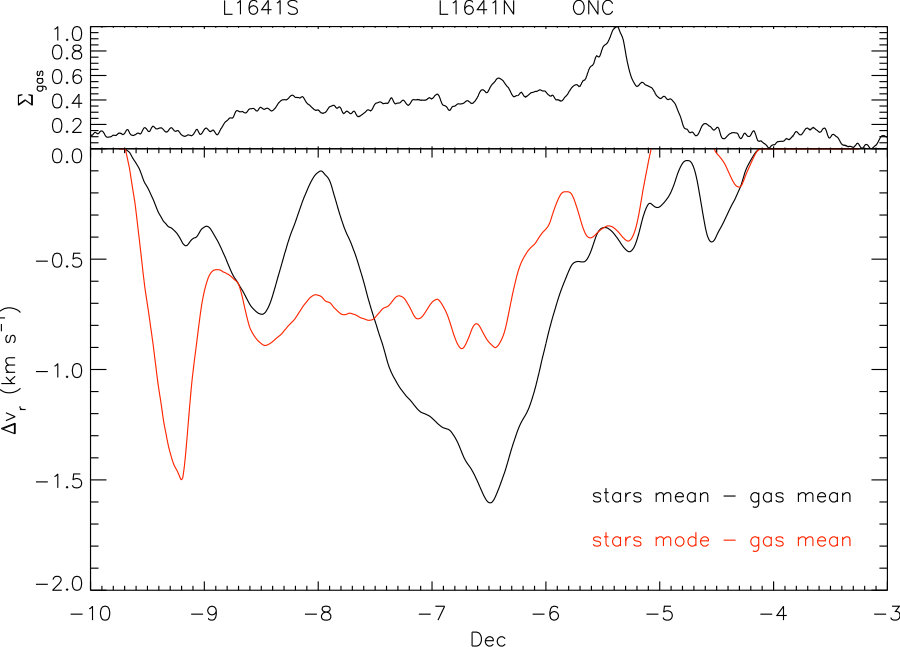

Figure 5 shows the dependence of the $\Delta v_{r}$ on position in declination, computed from the maps of Figure 3 weighting, in Right Ascension, on stellar density. The largest offset is found in the central part of the cloud, at -7\hbox{{}^{\circ}}\lesssim\delta\lesssim-6\hbox{{}^{\circ}}, around L1641-N and NGC1980. Here the mean and mode of the velocity distribution have the largest difference, suggesting a very asymmetric distribution. As anticipated, and discussed in Paper IV, this part of the Orion A stellar population is $\sim 40\%$ older than the ONC and L1641-S and is far less extincted suggesting that it is slightly in the foreground and less associated with the molecular material. A bias due to incompleteness at high $A_{V}$ is not the case, since the column density of the molecular material in this region is relatively low, up to a few magnitudes in $A_{V}$ (Lombardi et al., 2014). Thus, star formation in Orion A initiated earlier in the central part of the cloud, which is closer along the line of sight that the remaining gas in the same direction.

An offset in $v_{r}$ between stars and gas may have different origins. One possibility is that the central part of the cloud presented a primordial substructure along the line of sight, both spatially and kinematically. Gas which formed the older population of L1641-N and NGC1980 was closer and with small 1 km s*-1* blue-shifted motion than the remaining gas today. Such offset is in line with the typical turbulent motions within a molecular cloud (e.g. Hennebelle & Falgarone, 2012). However, comparison of mean velocities of 12CO(2-1) and 13CO(2-1) (expected to trace lower and higher density regions, respectively), finds only modest differences of $\sim 0.1$ km s*-1*. However, in studies of Infrared Dark Cloud (IRDC) filaments, Henshaw et al. (2013) have found offsets of similar magnitude between denser gas traced by N2H+(1-0) and lower density gas traced by C18O(1-0).

Another possibility is that prolonged stellar feedback of this foreground population pushed back on the remaining background gas, which is now receding 1 km s*-1* with respect to the stellar population.

If primordial substructure along the line of sight is present, the asymmetry of the velocity distribution could also originate from the superposition of two kinematically separated substructures of the cloud. Since, as shown in Paper IV, we found that the $v_{r}$ distribution around L1641-N does not vary with stellar age, these structures would have needed to sustain star formation at the same time, and with similar duration, which seems somewhat unlikely.

3. Kinematic subclustering

The presence of kinematic substructures in the stellar population of Orion A, and their comparison with those of the gas, can provide important clues on the primordial substructure of the parental star-forming gas. On the other hand, smooth distributions in space and velocity could indicate that dynamical evolution has occurred, since spatial and kinematic substructure is expected to be erased over time in a gravitationally bound system. Evidence of this has been found in the ONC (Da Rio et al., 2014b), where the population in the denser, more dynamically evolved core has less spatial substructure in comparison to the cluster outskirts.

An analysis of the kinematic substructure in position-position-velocity ($ppv$) in Orion A was presented by Hacar et al. (2016), using a preliminary version of our IN-SYNC data. These authors adopted a friends-of-friends algorithm that isolates groups or chains of sources in which the separation of each member of the group, in the $ppv$ space, from another member of the group is smaller than a given threshold. Imposing groups with at least 4 sources, they find 37 of such groups, most of them (30) in the northern region of the cloud (L1461N and above), significantly more than expected from random positions in $ppv$ space.

There is no optimal method to identify structures of discrete points in a 3-dimensional space, rather, different techniques can be developed depending on what one defines as a “structure”. In Sections 3.1 and 3.2 we describe two separate methods and discuss the results.

• •

ppv Peaks: this technique is based on building a 3-dimensional density map in $ppv$ space from our discrete stellar sample. On this map, then, peaks are identified as overdensities in $ppv$ space. Individual stars can be associated to one or another peak. This method is somewhat analogous to the algorithm Clumpfind (Williams et al., 1994), widely used to identify $ppv$ structures in continuous molecular line spectral cube data. This method is sensitive to centrally concentrated overdensities in $ppv$, but does not necessarily identify filamentary or very elongated structures.

• •

Connected Structures: this technique does not adopt a density map in $ppv$, but rather builds groups of stars in $ppv$ starting from the highest local density of stars in $ppv$ and adding individual stars as nearest neighbors until a given density threshold is encountered, before creating a new separate group. While this technique does not require kinematic structures to be centrally concentrated, the number and size of structures can be very sensitive on small perturbations of the position of individual sources in $ppv$ space.

3.1. $ppv$ Peaks

To construct stellar density maps in $ppv$ space, we consider each point of the $ppv$ space and find the closest $n$ stars, in $ppv$ to that point. We adopt a conversion metric such that 1\hbox{{}^{\circ}} in spatial distance in RA and Dec corresponds to 4 km s*-1* in $v_{r}$. This has been chosen so that the overall spatial extent of the region (i.e., in declination) is comparable with the broadness of the $v_{r}$ distribution. The stellar density associated to the point is then $n/V$, where $V$ is the volume of the sphere of radius equal to the distance to the $n$-th star. Therefore, our density maps naturally trace the density of groupings of stars at a given number scale defined by $n$. Lastly, coherent structures in $ppv$ space are identified as local density maxima on these density maps within a kernel size of 10′or 0.66 km s*-1*. For each structure, we also measure the density $\rho(\alpha,\delta,v_{r})$, as well as the density “contrast” $\delta\rho$ against the local background in $ppv$ space, for which we adopted the density maps obtained for $n_{\rm bg}=30$.

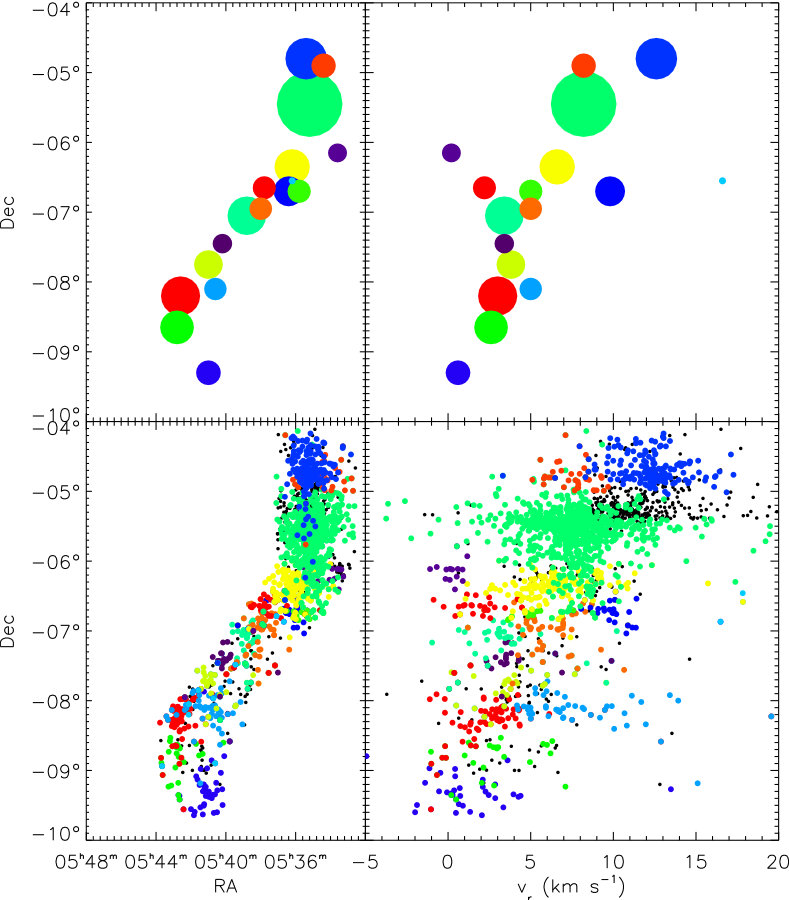

Figure 6 (upper panels) shows the result for $n=5$. It is noteworthy that the majority of these groupings are located along the filament south of the ONC, where about half of our IN-SYNC members are concentrated. On the other hand ONC as a whole, accounting for almost half of the stellar population in the cloud, is found to be a single kinematic substructure in $ppv$. Da Rio et al. (2014b) also showed the projected spatial positions of young members in the ONC, especially the central regions, have reached a relatively smooth, quasi-isotropic distribution, and that the population within the half mass radius $r_{h}\lesssim 1$ pc is at least 7 free-fall times old. This evidence, together with the lack of kinematic substructure we have now identified, points to a relatively old dynamical age for the ONC (Tan et al., 2006), suggesting that primordial structures in space and velocity may have been erased by dynamical interactions. This is in agreement with estimates that the ONC is at least 4 free-fall times older within the half-mass radius $r_{h}\simeq 1$ pc (Da Rio et al., 2014b).

Figure 6 also shows that at the location of L1641N and NGC1980 (-7.5\hbox{{}^{\circ}}\lesssim\delta\lesssim-6\hbox{{}^{\circ}}) substructure is significant: the different substructures show a large difference in velocity, more than elsewhere. In this region, as shown in Section 2, the overall stellar velocity distribution is asymmetric, thus this asymmetry is likely caused by the superposition of kinematically distinct groups of stars in the same region of the cloud.

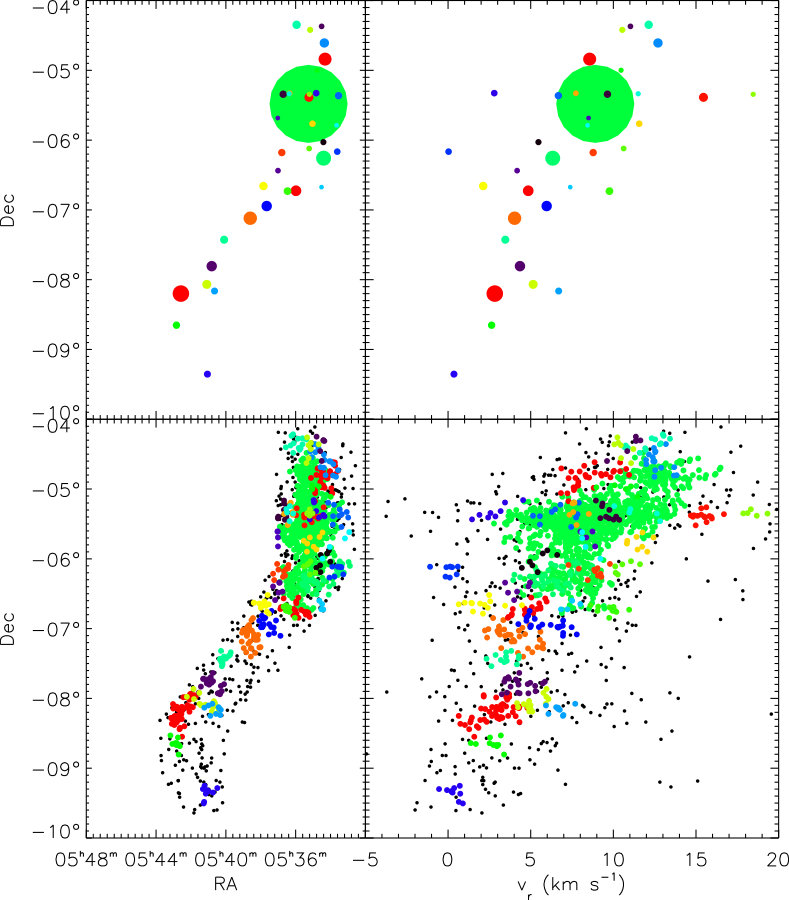

Having identified our kinematic substructures as density peaks in $ppv$, we can attempt to associate individual stars to each substructure. The criterion we chose is the following: a star belongs to a kinematic substructure if, along a segment in $ppv$ space spanning from the star to the density peak, the $ppv$ density increases monotonically. An illustration of the result is shown in Figure 6, bottom panels.

Increasing $n$ decreases the overall number of identified substructures in $ppv$ space, as individual small groupings of stars merge into larger single structures (see Table 1). For $n=20$, the only structures detected are 3 groups for L1641S, 2 for L1641N (all roughly coinciding to the densest groupings of stars in R.A.–Dec space, plus two structures in the ONC region, and one north of it.

We performed tests to evaluate the statistical significance of our detected kinematic substructures, in particular for what concerns the velocity axis of $ppv$ space. To this end, we created artificial stellar distributions in $ppv$ space, where the positions are the same as our IN-SYNC members, and the velocities are randomly drawn from the local $v_{r}$ distribution. This latter was computed, for each position in $(\alpha,\delta)$ measuring the weighted $v_{r}$ mean of the nearest 30 members, as well as the measured dispersion, after one iteration of sigma clipping, with a $3\sigma$ threshold, to remove outliers. From each realization of artificial distributions in $ppv$, density maps are created and kinematic substructures isolated, with the same method as that applied on the actual data. For each value of $n$, 50 of these artificial tests have been performed, and the results are summarized in Table 1. We find that, regardless of $n$, the number of substructures we detect is compatible with that from random artificial experiments. This, however, is in part due to the fact that our artificial tests kept the stellar positions, and randomized only the velocities. Therefore spatial groupings of sources in the Orion A may still lead to the detection of structures in $ppv$ in spite of a large degree of randomness in $v_{r}$. On the other hand, the density contrasts $\delta\rho$ resulting from our data are significantly higher than those from artificial $ppv$ distributions; this confirms that the kinematic substructures we identify in $ppv$, have a statistically significant higher coherence in velocity, when compared to the “local” velocity distribution of the nearest 30 stars for each position in the Orion A cloud.

3.2. $ppv$ Connected Structures

The method described in §3.1 is particularly sensitive to structures that appear as centrally concentrated “clumps” in $ppv$ space; coherent structures with more irregular shapes may not be detected. Thus, we introduce a conceptually different approach and analyse the different findings. In this case, we do not build a 3-dimensional map of stellar density in $ppv$, but we consider the stellar positions in such space as discrete elements. We associate to each star a local density in $ppv$, as above by measuring the volume containing the closest $n$ stars. We then begin by considering the star with the highest density peak, and use this as the starting point for a group of stars in $ppv$. We expand this group by adding iteratively one star at a time in order of closest distance in $ppv$ space from any of the group members. The growth of the group halts when the next star about to be added falls at a density below a fixed threshold, $\rho_{0}$. Next, a new group is started from the highest density star among those not yet included in a previous group, assuming it is above this threshold.

We vary three parameters: $n=5$ or 10, $\rho_{0}=1$ or $0.3$pc*-2km-1s2, and also the metric to measure the distance in $ppv$ as the interval $\delta_{v}$ on the $v_{r}$ axis, in km s-1*, corresponding a spatial interval of 1∘; in this case we assume $\delta_{v}=4$, as in §3.1, but also test values of 2 and 8. An example of the results is shown in Figure 7. Overall, we find a higher number of structures compared to the method of §3.1, as we are able now to identify smaller structures that would not have been resolved given the kernel size in $ppv$ we previously adopted. As a result of this, while the ONC remains the largest identified structure, some additional smaller substructures are now detected in its vicinity. As with the identifications of peaks in the $ppv$ density maps, even in this case we find the L1641 region to be highly substructured. Decreasing $\rho_{0}$ increases the fraction, $f$, of the total stellar sample included in some identified $ppv$ groups; however, we do not detect a clear difference in the total number of groups. No significant difference in the results is found changing $n$ or $\delta_{v}$.

As before, we run the algorithm to artificially generate distributions in $ppv$ space (see §3.1), and investigate different diagnostics to test the significance of the results. This is summarized in Table 2. For each parameter choice we compare the number of groups $N_{\rm groups}$ isolated from our data with the mean and standard deviation of this quantity from the random experiments; $\sigma_{N_{\rm groups}}$ in this context is the measured excess, in standard deviations, from the result from random experiments. Similarly, $\sigma_{f}$ is the departure in standard deviations for the fraction of stars belonging to some structure in $ppv$. Lastly, we use Kolmogorov-Smirnov test to verify if two cumulative distribution functions are significantly different between our measured values and those from randomly generated distributions. Specifically we list $p_{1}$ as the KS probability (where a low number indicates significant difference) of the distribution of peak local densities in $ppv$ of the identified groups, and $p_{2}$ that of the distribution of number of stars in the detected $N_{\rm groups}$. Results show that for high values of $\rho_{0}$, the statistical significance is relatively poor or absent. Decreasing $\rho_{0}$, thus enabling a larger number of sources to be labeled as clustered, especially in regions of low density such as L1641, leads to higher significance. Specifically, we identify a number of $ppv$ structures 2–4$\sigma$ larger than in random experiments, a fraction $f\sim 2\sigma$ higher, and probabilities $p_{1}$ and $p_{2}$ less than 1% in most cases.

The fact that we detect statistically significant overdensities in $ppv$ space adopting two conceptually different methods (§3.1 and §3.2) is highly indicative that kinematic substructure in Orion remains present, and thus may be a tracer of the original turbulent motions of the molecular material in the parental cloud. Future observations (i.e., multi-epoch) will help improve the $v_{r}$ measurements, especially enabling the identification of binaries. Proper motion measurements from the final GAIA survey will be also useful to study kinematic substructures in Orion. The degree of kinematic substructure that we measure will also be compared to the results from theoretical/numerical models of star cluster formation under different scenarios (Wu et al., 2017a, b).

4. Expansion of the ONC

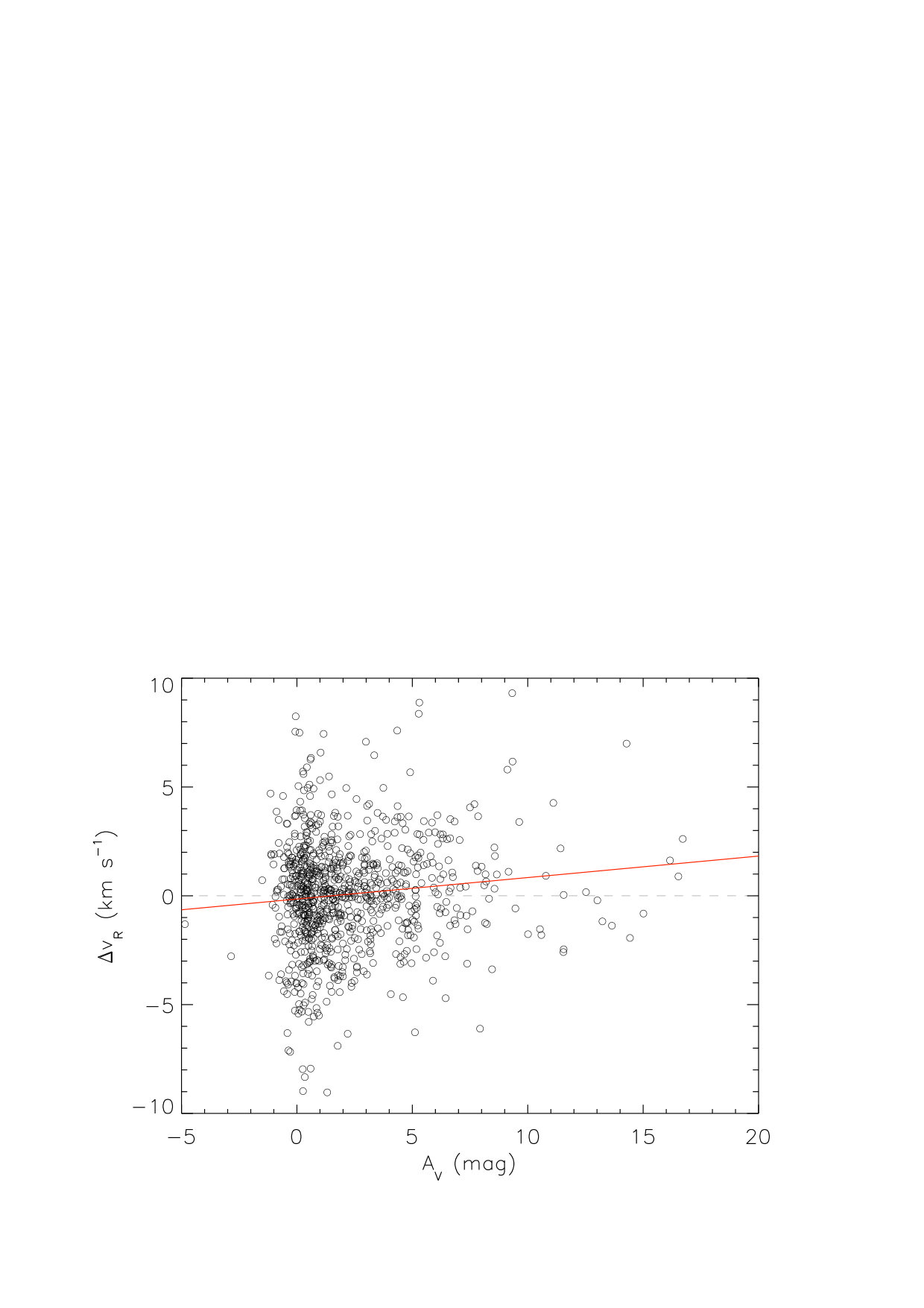

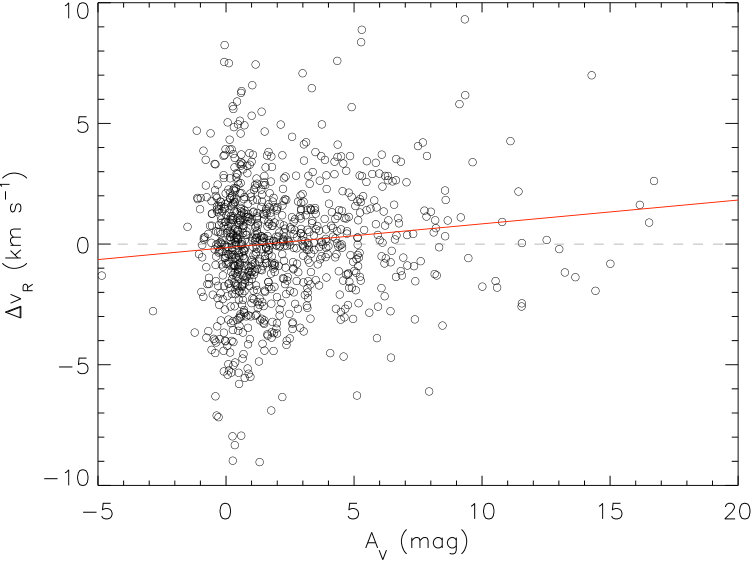

Limited to the ONC region of the system, we find evidence for a correlation between radial velocities and extinction, in that sources with higher $A_{V}$ are statistically more red-shifted compared to less embedded members. This is shown in Figure 8, where the offset $\Delta v_{r}$ from the local mean radial velocity (computed as in Section 2 and shown in Figure 3) is plotted against $A_{V}$, for all members within a circular aperture of 1\hbox{{}^{\circ}} centered on the Trapezium region that defines the center of the ONC (e.g., Da Rio et al., 2014b). We also restricted our sample to sources with $T_{\rm eff}<5000$ K, as for higher temperatures the stellar parameters—hence $A_{V}$, are more uncertain. A linear fit through the data shows an increase in $v_{r}$ of about $\sim$0.1 km s${}^{-1}/A_{V}$. A randomization test through the permutation of the values along the $y-$axis of this diagram showed that this correlation is significant at a $\sigma=3.1$ level. Both the correlation and its significance level remain unchanged varying the aperture diameter between 0.5 and 2∘; the significance reduces at smaller apertures because of low number statistics, and at larger distances outside the ONC.

Since $A_{V}$ is a tracer of the depth of a star along the line of sight—even though the distribution and volume density of the dust is spatially inhomogeneous—this result suggests a global expansion along the line of sight. We exclude that this correlation may be a spurious outcome of correlated systematic effects in the extraction of $v_{r}$ and $A_{V}$, since in Cottaar et al. (2015) an opposite trend is observed in IC 348 using APOGEE data and identical data reduction and extraction of parameters as in this work. From the relation $\Delta v_{r}/\Delta(A_{V})\sim$0.1 km s${}^{-1}/A_{V}$ it follows that the central 90% of the population along the line of sight, with $0\lesssim A_{V}\lesssim 7.4$ shows an overall $v_{r}$ spread of $\sim 0.7$ km s*-1*, or a net maximum expansion from the cluster’s midplane of $\sim 0.35$ km s*-1*. The reddening distribution is highly asymmetric, with a median $A_{V}$—which could be associated with the cluster’s midplane—of 1.3 mag. Note that this fact is not only seen in our IN-SYNC survey, but all previous studies reaching higher completeness and $A_{V}$ (Da Rio et al., 2014b; Robberto et al., 2010, e.g.); thus it is not the result of completeness limits of this work. This implies that the volume density of the molecular material increases along the line of sight. We are unable to explicitly measure the net velocity offset of two halves of the population from this midplane, as in the low-extinction limit, we do not measure any correlation of $v_{r}$ with $A_{V}$. This, however, is likely due to the fact that the typical uncertainty in $A_{V}$ is $\sim 0.4$ at all extinctions. Thus, for low $A_{V}$ the relative uncertainty is particularly high, flattening any $v_{r}$–$A_{V}$ correlation due to regression dilution.

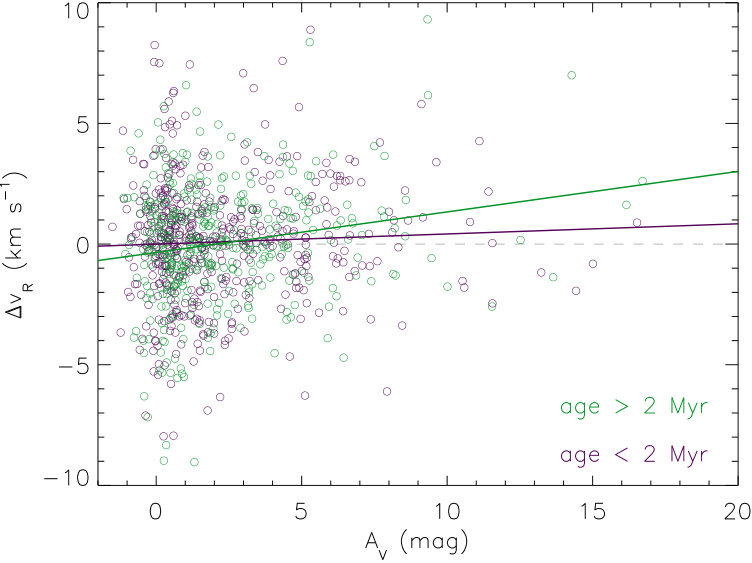

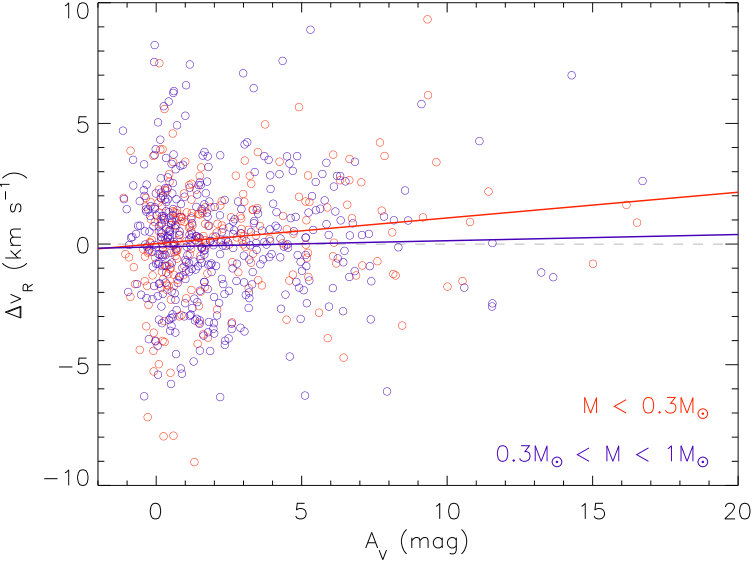

We look for variations in the measured correlation indicating expansion with mass and age, and divide the stellar samples in two mass ranges ($M<0.3M_{\odot}$ and $0.3M_{\odot}<M<1M_{\odot}$) and two age ranges on both sides of the median cluster ages. These parameters have been obtained from Siess et al. (2000) evolutionary models (Paper IV). Although there is a hint that lower-mass stars show a large velocity gradient with $A_{V}$, and so do older stars compared to younger ones (see Figure 9), these differences are not statistically significant ($\sim 1\sigma$). Future data are needed to confirm or not a mass and age dependence of the expansion of the ONC.

Finally, no correlation between radial velocity and extinction is found along the filament south of the ONC (L1641-N and L1641-S).

5. Velocity dispersion and virial state

We obtained the stellar velocity dispersion $\sigma_{v}$, for different samples of the Orion A population, in a similar fashion as in Paper II and III for NGC 1333 and IC 348, respectively, in Perseus. Specifically, we consider the observed distribution of $v_{r}$, as well as the measurement uncertainties in radial velocity, and the contribution from unresolved binarity. Unlike the IN-SYNC survey in Perseus, our $v_{r}$ values have only one epoch for the majority of our stellar sample, therefore our binarity correction has been performed statistically. We adopt a flat mass ratio distribution (Reggiani & Meyer, 2013), a flat eccentricity distribution (Duchêne & Kraus, 2013) over the whole mass range, and a log-normal period distribution from Raghavan et al. (2010). Using the tool VELBIN (Paper II), then, we generated a large number of binary orbits randomly drawn from these parameter distributions, and assuming random orientations we obtained the 1-dimensional distribution of radial velocities of the primary. We assumed a binary fraction $f_{\rm bin}=0.44$, as determined by Raghavan et al. (2010) for solar-type stars.

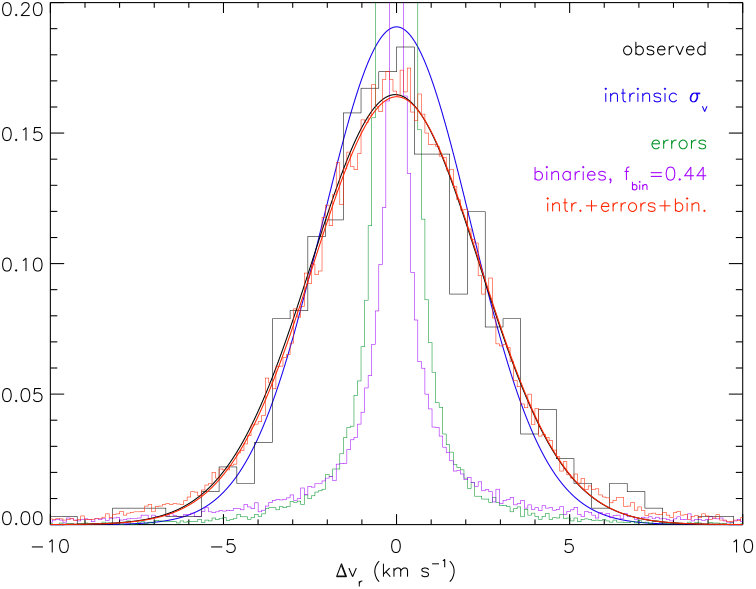

Considering a sample of $v_{r}$ and associated errors $\delta v_{r}$, we generate a large number of intrinsic velocity dispersions $\sigma_{v}$ as normal distribution of varying standard deviation. We then convolve these with the contribution due to measurement errors; to this end we add together the individual distributions of errors, all assumed normal, for each star. Since stars have different errors, the resulting distribution is not a gaussian. Last, we consider the 1-dimensional distribution of $v_{r}$ offsets from binaries for $f_{\rm bin}=1$, scale it down to our value of $f_{\rm bin}$, complement it with $(1-f_{\rm bin})$ zeros representing single stars, and convolve it to the intrinsic $\sigma_{v}$ plus measurement error distributions. The resulting simulated distributions, as well as the measured $v_{r}$ distribution are fitted with gaussian distributions after removing outliers at $3\sigma$, and the best match is found. This naturally represents the best velocity dispersion $\sigma_{v}$ which, convolved with contributions from errors and binaries, reproduced the observed $v_{r}$ distribution. An example of this procedure is shown in Figure 10, for a sample of members centered on the ONC within a radius of 0.3\hbox{{}^{\circ}} or $\sim 2.2$ pc.

Generally, the contribution of the measurement errors is far smaller than both the observed $v_{r}$ distribution, and the intrinsic $\sigma_{v}$. For example the distribution of $v_{r}$ offsets due to measurement errors, shown in Figure 10 is such that 68% of the data (i.e., equivalent to a 1$\sigma$ interval) is in the range $\pm 0.38$ km s*-1*. Furthermore, as pointed out in Paper III, the contribution from binary is even smaller (68% of $v_{r}$ offsets in the range $\pm 0.10$ km s*-1* for $f_{\rm bin}=0.44$). Therefore our results are not very sensitive to the assumptions made for the binary population, i.e., the distribution of binary parameters and $f_{\rm bin}$. This fact would be less the case for high-mass stars, both due to a higher binary fraction, and possibly a lower intrinsic $\sigma_{v}$ from dynamical energy equipartition. However, our sample is dominated by low-mass stars, with 95% of members with a mass lower than 2 M⊙.

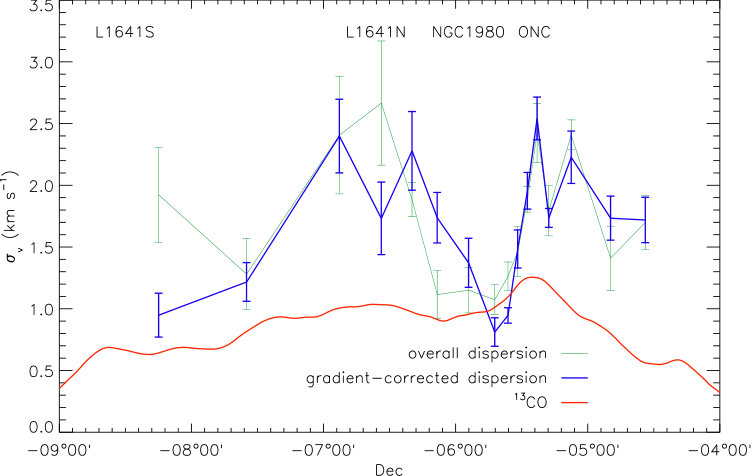

Figure 11 shows the derived, corrected, $\sigma_{v}$ in different bins in declination along the Orion A cloud. The solid line represents the dispersion as is, adopting the measured $v_{r}$ for all stars in each bin. We have also corrected for the spatial gradients in $v_{r}$ along the region (see §2), which if not accounted for, may lead to an overestimate of the overall $\sigma_{v}$ in a region. To this end we adopted the radial velocities as the difference, star by star, between the measured $v_{r}$ and the local mean radial velocity in that position, as computed in §2 and shown in Figure 3, second panel. We refer to these two dispersions as “standard” and “gradient-corrected”. The result is shown in Figure 11 as a dashed line. Overall, $\sigma_{v}$ varies in the range 1–2.5 km s*-1*. The most striking feature is a broad peak in $\sigma_{v}$ in L1641N; this is consistent with the detected asymmetry of the velocity distribution and the presence of kinematic substructure in this region, possibly indicating spatial structure along the line of sight (see Section 3). Thus a larger $\sigma_{v}$ could be the result of superposition of stellar systems with relative bulk mean motions. Just south of the ONC we detect the most prominent drop in velocity dispersion. The ONC also reveals itself as a local peak in $\sigma_{v}$ at values 2–2.5 km s*-1*. Moving north of the ONC, in the region of NGC 1980 and NGC 1977/OMC 2-3, $\sigma_{v}$ remains roughly constant at values $\sim 2$ km s*-1*. These results are in fair agreement with the optical radial velocity survey of Tobin et al. (2009), which covered a declination range -6\hbox{{}^{\circ}}<\delta<-4\hbox{{}^{\circ}}. The velocity dispersion of 13CO gas is also shown in Figure 11; the stellar $\sigma_{v}$ is higher than that of the gas the regions of L1641N and around the ONC, whereas between these two, as well as in the southern end of the filament (L1641S), stars show velocity dispersion that are in more agreement with the CO.

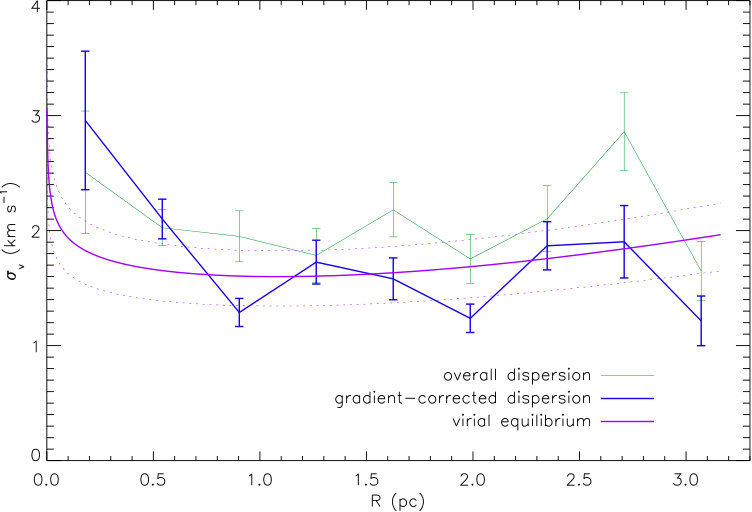

Next we focus in more detail on the ONC. Figure 12 shows the radial dependence of $\sigma_{v}$ from the center of the cluster. Again, we compute both the “standard” and “gradient-corrected” dispersions. These average at $\sim 2.1$ and $\sim 1.7$ km s*-1* respectively. Notice, however, that given the small spatial size of the ONC compared to the Orion A cloud, or the width of the declination bins in Figure 11 (3pc correspond to $\sim 0.4$∘), large scale gradients in $v_{r}$ have a smaller effect on the measured velocity distribution. Still, we do compute the “gradient-corrected” $\sigma_{v}$ along with the “standard one”. Our measured standard $\sigma_{v}$ is in fairly good agreement with the dispersion of $\sim 2.3$ km s*-1* measured in the ONC by of Tobin et al. (2009), as well as the stellar proper motion study of (Jones & Walker, 1988); none of these studies, however, had derived $\sigma_{v}$ after accounting for spatial variations in the mean $\sigma_{v}$, hence our lower value for the gradient-corrected dispersion.

In Figure 12 we also show the predicted velocity dispersion profile required for dynamical virial equilibrium, as derived in Da Rio et al. (2014b) from the total mass profile of the ONC. This was obtained combining estimates of the total stellar mass profile, from censuses of stellar parameters from the literature, complemented by X-ray and infrared surveys, and estimates of the gas volume density within the ONC. Specifically, the stellar component describes a power-law profile slightly steeper than a single isothermal sphere, and the gas was assumed to be at a constant volume density of 22 M⊙pc*-3*. This gas density was derived from the stellar $A_{V}$ distribution, which averages at $A_{V}\sim 3$ mag, and not from, e.g., the total column density of molecular material; this is because the vast majority of the ISM along the line of sight of the ONC, reaching up to 100 mag (Bergin et al., 1996; Lombardi et al., 2014), lies behind the cluster. The gas contribution is negligible compared to the stellar mass up to a few half mass radii ($r_{h}\simeq 1$ pc, Da Rio et al. 2014b), and is responsible for the increase of the equilibrium $\sigma_{v}$ at increasing distances from the center. The mean $\sigma_{v}$ in the ONC required for virial equilibrium based on the total mass is $\sim 1.73$ km s*-1* (Da Rio et al., 2014b), which, compared to the measured $2.2$ km s*-1* indicates that the ONC is supervirial with a virial parameter (Bertoldi & McKee, 1992) $\alpha_{\rm vir}\simeq 1.5$. On the other hand, our gradient corrected $\sigma_{v}$ indicates a fully virialized system. The predicted virial velocity is not without uncertainties: in Figure 12 we also show the range in the radial profile of the expected virial velocities assuming an uncertainty of 30% in the estimated mass. This uncertainty is likely quite large for the stellar component, being derived from deep samples at different wavelengths. On the other hand, a higher uncertainty may come from the gas component, especially if the distribution of the material along the line of sight—hence the conversion from column densities to volume density—is quite different than in the orthogonal directions, specifically, if the system is more flattened along the line of sight.

Our results show that the ONC population appears in very good agreement with a virial state when considering the gradient-corrected $\sigma_{v}$, i.e., correcting for local variations in the mean $v_{r}$. On the other hand, adopting the standard $\sigma_{v}$, stars are slightly supervirial. Even in this case, however, velocities are well into the boundness regime ($\sigma_{\rm bound}=\sqrt{2}\sigma_{\rm vir}$).

Even though our results are consisten with a virial state for the ONC, we comment the scenario of a moderately supervirial scenario. This would be compatible with our presented evidence that the cluster is currently expanding (see §4); however a small population of expanding stars can be present even with the bulk of the cluster being virialized. This could be attribute the some missing mass from recent gas expulsion from the cluster location. Numerical simulations (e.g., Farias et al., 2015), however, have shown that the virial state of a cluster fluctuates significantly during the early evolution of a stellar system, and the fraction of the stellar population which remains subsequently bound strongly depends on the dynamical state at the time of gas removal. Additional data, such as a scheduled continuation of the IN-SYNC Orion survey, to increase the stellar sample and obtain additional epochs for our IN-SYNC targets, as well proper motions from HST photometry (HST program GO13826, PI M. Robberto) or GAIA for the bright end of the population will allow us to better characterize this potential expansion of the ONC. It is also important to stress that a possible infall of material (gas and stars) along the filament may affect the future fate of the system. In fact, Tobin et al. (2009) suggested that the large velocity gradient, for both stars and gas, observed to the north of the ONC (see Figure 1) could indicate an infall of material towards the ONC.

On the other hand, the ONC being close to or fully virialized, is compatible with the evidence that the system is dynamically evolved (Da Rio et al., 2014b). The fact that $\sigma_{v}$ for stars in the ONC is larger than the molecular gas dispersion (see Figure 11) is not of concern. This is because, as anticipated earlier, most of the molecular material in this region of the cloud is located behind the young stellar population, as confirmed by the very low extinction affecting the cluster.

We do not find variations of $\sigma_{v}$ as a function of stellar mass in the ONC. However, we stress that the IN-SYNC survey does not cover massive stars, as the sample is limited to below a few $M_{\odot}$. We do measure a slight variation with age: stars younger than the median age show a $\sigma_{v}$ which is $0.2$ km s*-1* smaller than older stars; this is however significant only at a 1.5$\sigma$ level, and could originate from biases. On the one hand, older PMS stars are fainter and thus affected by larger errors; small systematics in the estimate of the errors in $v_{r}$ may therefore be responsible for the detected difference. Also, as shown in Da Rio et al. (2012), at fainter luminosities contamination from background sources increases. Even though we restricted our analysis to known or probable members, these membership estimates are heterogenous and based on methods with a range of reliabilities in excluding false candidates.

Returning to the L1641, south of the ONC, Figure 11 showed that the stellar velocity dispersion in the northern region (L1641N) is in the range $2$–$2.5$ km s*-1*, not very dissimilar from that of the ONC, whereas $\sigma_{v}$ drops to values $\sim 1$ km s*-1* in L1641S. In both these regions, the total density is much lower than that in the ONC, so that the stellar population should not be bound by its own mass. The average stellar density at declinations \delta<-6\hbox{{}^{\circ}} is $\sim 10$ pc*-2*. Assuming a depth of the population along the line of sight comparable to the width of the filament in the plane of the sky (\sim 1.5\hbox{{}^{\circ}} or 10 pc), this results in a stellar number volume density of $n\lesssim 1$ pc*-3* or $\rho_{*}<1\>M_{\odot}$ pc*-3*. This is more than 2 orders of magnitude lower than in the ONC, where $\rho_{*}\simeq 250\>M_{\odot}$ pc*-3* within $r_{h}$.

As for the gas density, we adopt the extinction map from Lombardi et al. (2014); within the Orion A southern filament (\delta<-6\hbox{{}^{\circ}}) the mean extinction is $A_{V}\simeq 1$ mag. As shown in Da Rio et al. (2014b), this corresponds to a mass column density of $\sim 22\>M_{\odot}$ pc, which again, assuming a depth of the filament of $\sim 10$ pc results in a volume density of molecular material $\sim 2\>M_{\odot}$ pc*-3*.

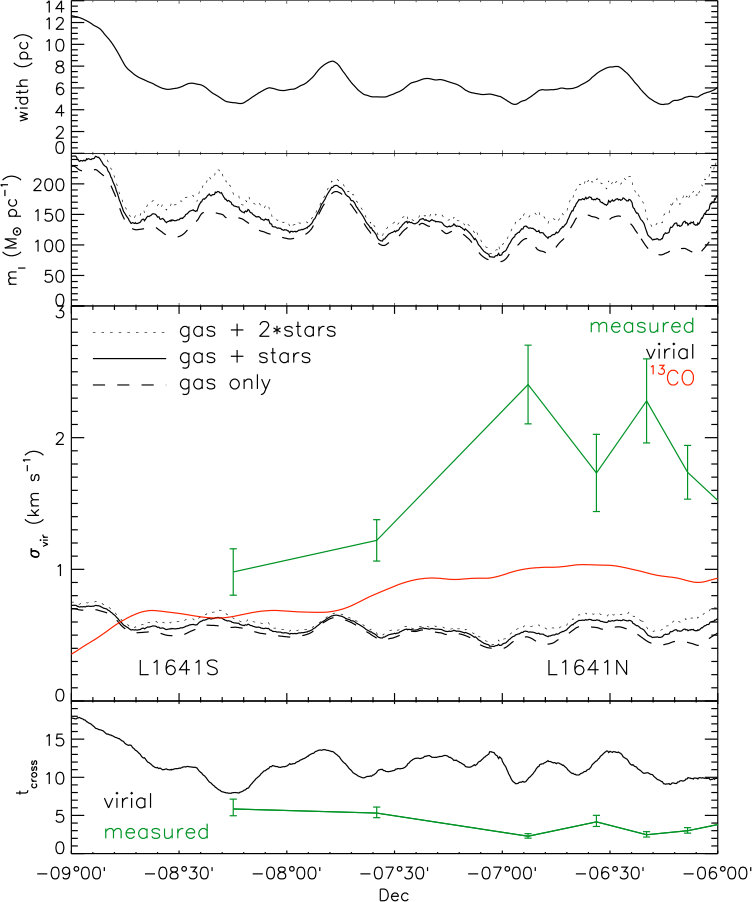

We compare these estimates with the condition for virial equilibrium of a filamentary structure from Fiege & Pudritz (2000), i.e.,

[TABLE]

where $m_{l}$ is the mass per unit of length. Considering a width of the L1641 filament of $\lesssim 10$ pc, we obtain a typical $m_{l}\sim 200\>M_{\odot}\>$pc*-1*, resulting in $\sigma_{\rm vir}\simeq 0.65$ km s*-1*. This is smaller than our measured $\sigma_{v}$ throughout the L1641 region. We perform a more rigorous analysis of these quantities in different positions of the filament. This is shown in Figure 13, where the displayed quantities, as a function of declination, have been computed within moving strips of 1 pc in width in the plane of the sky perpendicular to the filament. The width of the filament has been measured imposing lateral boundaries where the extinction drops to $A_{V}=0.3$ mag according to the map of Lombardi et al. (2014). For the stellar masses at each position we adopted the values derived in Paper IV; for guidance we also include the results doubling the stellar masses, as an extreme case to account for residual incompleteness in our IN-SYNC sample. This is largely irrelevant, as the total mass is gas-dominated.

The value $\sigma_{\rm vir}\sim 0.6$ km s*-1* is roughly constant along the filament; such virial dispersion is several times smaller than the observed $\sigma_{v}$ in L1641N, indicating that this region is highly unbound. As shown in Paper IV, here the dust extinction affecting stars is $A_{V}<1$ mag, and the velocity dispersion highly asymmetric (Section 2). Therefore the population here is mostly in foreground of the remaining molecular material, and possibly populated by substructured groups along the line of sight, showing an overall velocity dispersion consistent with being unbound. On the other hand $\sigma_{v}$ in L1641S, while being somewhat higher than the virial one, is not incompatible with it, given the uncertainties.

Assuming the present $\sigma_{v}$, the crossing time $t_{\rm cross}$ (see Figure 13) ranges from $\sim 3$ Myr in L1641N to $\sim 6$ Myr in L1641S. This is somewhat older than than the age of the system, therefore compatible with the fact that the young population remains fairly well spatially associated with the molecular material. As we emphasized above, however, our poor knowledge of the distribution of material, and in particular molecular gas, along the line of sight may affect our estimate for the virial equilibrium velocity predicted for L1641.

If the filament is regarded as being a single dynamic entity, then this can explain why the 13CO velocity dispersion is quite close to the expected virial velocity dispersion. However, then it unclear how the stellar component would have gained such a higher kinetic energy. First, the relatively high dynamical time in the region grants that the stellar population is dynamically young, thus stellar interactions and binary star evolution are nor responsible for the observed velocity dispersion. Also, the L1641 region is deficient of massive stars (Hsu et al., 2012, 2013), thus a rapid removal of gas from stellar feedback should be ruled out. (Stutz & Gould, 2016) recently proposed a model that aims to explain how velocities of young stars can be larger than that of dense gas. They noted that young, but already-formed, stars in Orion A appear more spread out than forming protostars both in the plane of the sky, as well as in their radial velocities (based on IN-SYNC data). The protostars are spatially and kinematically associated to the filaments of molecular gas. They suggested that magnetically induced tangential oscillation of the filament may be taking place. In this scenario, stars are formed coupled with the dense gas, and then gently ejected as the molecular material oscillates back to its original position. However, it is difficult to see how this scenario could lead to observed line of sight velocity dispersions of the 13CO traced dense gas that are consistently much smaller than those of the ejected stars along the entire filament.

6. Summary and Conclusions

We have continued our analysis of the IN-SYNC Orion survey, a high-resolution near infrared spectroscopic survey of about 2700 stars in the Orion A star forming region, obtained with the SDSS APOGEE spectrograph. It covers \sim 6\hbox{{}^{\circ}} in the plane of the sky, or $\sim 40$ pc, thus covering the entire cloud from NGC 1977, the ONC, L1641N down to L1641S. We cover a mass range from $\sim 0.1\>M_{\odot}$ to a few solar masses and extinctions up to about $20$ mag. In the previous paper of this series (Paper IV) we presented the derived stellar parameters, studied the age and age spread of the system, the reddening law, and assigned new membership estimates for sources without a previous membership confirmation.

Here we have focussed on the stellar kinematics and dynamics in the region, from the analysis of radial velocities. Here we summarize the main results.

• •

We find that young stars have average radial velocities that are very similar to those of the molecular gas throughout the region as traced by CO, following a $\sim 10$ km s*-1* variation from north to south, with the northern region redshifted and the southern region blueshifted.

• •

In the central part of the cloud, corresponding to L1641N, stars appear slightly blueshifted with respect to the gas. In this region, however, stars are older and affected by little extinction, suggesting that the molecular gas is located behind the population along the line of sight, and receding with respect to the stars.

• •

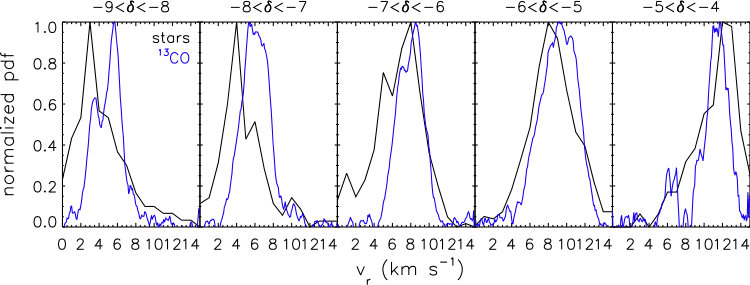

In the region of L1641N the distribution of radial velocities $v_{r}$ appears asymmetric, with a broader blue-shifted tail. We interpret this as a possible superposition of stellar substructures along the line of sight in relative motion with each other.

• •

We find the presence of spatial and kinematic substructures in the young population throughout the region, as statistically significant overdensities in position-position-velocity space. These may indicate groupings of stars that have preserved the turbulent motions of their natal gas. In the L1641N region, these structures show the largest relative offsets in radial velocity, corroborating the possibility of a highly structured stellar distribution along the line of sight. The ONC, on the other hand, does not present significant kinematic substructure, in agreement with previous findings for this system to have undergone some degree of dynamical evolution, expecting to lead to phase mixing of stellar orbits.

• •

We find indications that the ONC may be currently expanding, from the correlation between radial velocities and $A_{V}$, with the low-extinction end of the population, closer to the observer along the line of sight, blueshifted, and, on the contrary, the high-extinction stars redshifted.

• •

In the ONC, we measure a velocity dispersion $\sigma_{v}\simeq 2.2$ km s*-1*, when considering the measured $v_{r}$, in agreement with previous findings in the region based on radial velocities or proper motions. On the other hand, when correcting for spatial variations in the mean $v_{r}$ – which is critical for large scale gradients in $v_{r}$, but does marginally affect the results at small scales – $\sigma_{v}$ decreases to $\sim 1.7$ km s*-1*. Comparing these values with estimates of the total mass in the system, they result in the ONC being, respectively, slightly supervirial (but bound), or in good agreement with a virialized state. Therefore we cannot exclude that the ONC has reached a virial equilibrium.

• •

The southern part of the Orion A cloud, L1641, shows two separate behaviors. The northern part, L1641N, has a velocity dispersion in the range 2–2.5 km s*-1*, similar to that of the ONC. However, considering the much lower density of stars and gas (a few $M_{\odot}$ pc*-3*) compared to the ONC, this is a few times higher than the velocity dispersion required for (filamentary) virial equilibrium ($\sim 0.6$ km s*-1*), pointing to an unbound population. The low $A_{V}$ in this region suggests that stars have decoupled from the gas, which is located mostly in the background and had velocities consistent with a virial. In the southern end of the region, L1641S, on the other hand, $\sigma_{v}$ is lower and in approximate agreement with (or slightly greater than), both a virial state, and the velocity dispersion of the gas.

J.J.T acknowledges support from the University of Oklahoma, the Homer L. Dodge endowed chair, and grant 639.041.439 from the Netherlands Organisation for Scientific Research (NWO).
