Coupled Atomic Wires in a Synthetic Magnetic Field

TL;DR

This paper proposes coupled atomic wire systems in synthetic magnetic fields to realize exotic quantum phases, including fractional quantum Hall states, with detailed theoretical analysis and experimental proposals for cold atom setups.

Contribution

It introduces a novel coupled wire platform combining continuous and discrete dimensions to explore topological and many-body quantum phenomena.

Findings

Enhanced energy scales via sub-wavelength wire spacing enable observation of Lifshitz transitions.

Emergence of Chern bands with tunable flatness in many-wire arrays.

Feasible realization of complex geometries like cylinders and tori using Laguerre-Gauss beams.

Abstract

We propose and study systems of coupled atomic wires in a perpendicular synthetic magnetic field as a platform to realize exotic phases of quantum matter. This includes (fractional) quantum Hall states in arrays of many wires inspired by the pioneering work [Kane et al. PRL {\bf{88}}, 036401 (2002)], as well as Meissner phases and Vortex phases in double-wires. With one continuous and one discrete spatial dimension, the proposed setup naturally complements recently realized discrete counterparts, i.e. the Harper-Hofstadter model and the two leg flux ladder, respectively. We present both an in-depth theoretical study and a detailed experimental proposal to make the unique properties of the semi-continuous Harper-Hofstadter model accessible with cold atom experiments. For the minimal setup of a double-wire, we explore how a sub-wavelength spacing of the wires can be implemented. This construction increases the relevant energy scales by at least an order of magnitude compared to ordinary optical lattices, thus rendering subtle many-body phenomena such as Lifshitz transitions in Fermi gases observable in an experimentally realistic parameter regime. For arrays of many wires, we discuss the emergence of Chern bands with readily tunable flatness of the dispersion and show how fractional quantum Hall states can be stabilized in such systems. Using for the creation of optical potentials Laguerre-Gauss beams that carry orbital angular momentum, we detail how the coupled atomic wire setups can be realized in non-planar geometries such as cylinders, discs, and tori.

Figures

Equations

$$H_0=\sum _y\int \text{d}x\left[{\psi }_{x,y}^{†}\frac{p_x^2}{2m}{\psi }_{x,y}+(J_x{\psi }_{x,y}^{†}{\psi }_{x,y+a}+\text{h.c.})\right].$$

$$H=H_0+H_I.$$

$$h_{x,k_y}=-\frac{{\hslash }^2}{2m}\frac{d^2}{d{x}^2}+2J\cos (\varphi x+k_{y}a).$$

$${\mathcal{C}}^{\alpha }=\frac{i}{2\pi }{\int }_{BZ}{\text{d}}^{2}k\text{Tr}\left\{P_k^{\alpha }\left[({\partial }_{k_x}{P}_k^{\alpha }),({\partial }_{k_y}{P}_k^{\alpha })\right]\right\}=1$$

$$|\psi ⟩=\sum _{j=1}^N{c}_j|y_j,k_x+\varphi (j-j_0)⟩,k_x\in [-\varphi /2,\varphi /2)$$

$$E_{\pm }(k_x)=\frac{{\hslash }^2{k}_x^2}{2m}+\frac{{\hslash }^2{\varphi }^2}{2m}\left(\frac{1}{4}\pm \sqrt{\frac{k_x^2}{{\varphi }^2}+{\tilde{J}}^2}\right).$$

$${\Psi }_{k_x}^{(\pm )}(x)={\left[2\sqrt{1+{\left(\frac{k_x}{\tilde{J}\varphi }\right)}^2}\right]}^{-\frac{1}{2}}\left(\begin{array}{c}{f}^{\pm \frac{1}{2}}{e}^{-i\frac{\varphi }{2}x}\\ \pm f^{\mp \frac{1}{2}}{e}^{i\frac{\varphi }{2}x}\end{array}\right)e^{i{k}_{x}x}$$

$$\varrho (x)$$

$$\sim \cos (2k_{g}x-\theta )+\text{const},$$

$$j_C(x)=j_L(x)-j_R(x)\sim \tilde{J}\cos (2k_{g}x-\theta )+2{\tilde{J}}^2,$$

$$H_I=U\sum _{i<j}\delta (x_i-x_j){\delta }_{y_i,y_j}.$$

$$E_R^M\sim J<J_{\text{bare}}\ll E_c(a=\lambda /2)=E_R,$$

$$a=\ell \ll \lambda /2\iff E_c(a=\ell )\gg E_R.$$

$$V_{na}(y)=E_R\frac{{ϵ}^2{\cos }^2(k(y-y_0))}{{\left[{ϵ}^2+{\sin }^2(k(y-y_0))\right]}^2}$$

$$H_D(x,y)=-\left(\frac{{\hslash }^2{\partial }_x^2}{2m}+\frac{{\hslash }^2{\partial }_y^2}{2m}\right)+V_L(y)+V_{na}(y).$$

$$H_{RM}(x,y,t)=\Omega \cos \left(\delta k_{x}x+\delta k_{y}y-\delta \omega t\right),$$

$$J_x\approx \frac{\Omega }{2}⟨L⟩e^{-i\delta k_y\hat{y}}R{e}^{-i\delta k_{x}x}\equiv J{e}^{i\varphi x}.$$

$${\mathbf{E}}_0(\rho ,\phi ,y)={\mathbf{ϵ}}_{0}E{f}_{p,l}(\rho ,y)e^{il\phi }{e}^{iky},$$

$$f_{p,l}(\rho ,y)=\frac{w_0}{w_y}\sqrt{\frac{2p!}{\pi (p+|l|)!}}{\xi }^{|l|}{L}_p^{|l|}({\xi }^2)e^{-{\xi }^2/2},$$

$$V_L(\mathbf{r})=V_m|f_{p,l}(\rho ,y){|}^2,V_m<0.$$

$$E_y=V_m\left[1-\frac{y^2}{y_R^2}+\frac{y^4}{y_R^4}+\mathcal{O}\left(\frac{y^6}{y_R^6}\right)\right]+\Delta \frac{y}{a}+\hslash {\omega }_T.$$

$${\tilde{\delta }}_y\ll J.$$

$$BG\approx \sqrt{2J{E}_R^M}$$

$$BW\approx 16E_R^M(J/2E_R^M{)}^{3/4}{e}^{-2\sqrt{J/2E_R^M}}/\sqrt{\pi }.$$

$$H=\sum _{j=1}^N{E}_j{\hat{n}}_j+J\sum _{j=1}^{N-1}{a}_{j+1}^{†}{a}_j+H.c.$$

$$\Delta n=\sqrt{⟨(Y-Y_{\text{edge}}{)}^2⟩}/a=\sqrt{3/2\sqrt{J/E_R^M}}.$$

$$H_{\text{ext}}(x,y)=-\left(\frac{{\hslash }^2{\partial }_x^2}{2m}+\frac{{\hslash }^2{\partial }_y^2}{2m}\right)+\frac{1}{2}m{\omega }_T^2{y}^2.$$

$$H_{\text{int}}(x,y)=-\tilde{\Delta }|e⟩⟨e|$$

$$+\cos (\delta \mathbf{k}\cdot \mathbf{r}-\delta \omega t)\left(\Omega |g⟩⟨g|+{\Omega }^{\prime }|g^{\prime }⟩⟨g^{\prime }|\right)$$

$$+\frac{1}{2}\left({\Omega }_P|e⟩⟨g|+{\Omega }_C(y)|e⟩⟨g^{\prime }|+\text{h.c.}\right)$$

$$\mathcal{P}(y)$$

$$\cdot \left(\Omega +({\Omega }^{\prime }-\Omega ){\cos }^2\alpha (y)\right)|D(y)⟩⟨D(y)|.$$

Full text

I Introduction

Synthetic matter based on ultracold atomic gases in optical potentials Bloch2008 has established itself as one of the most promising experimental routes to realize exotic quantum matter Lewenstein2012 ; NathanReview . Recent theoretical Jaksch2003 ; Duan2006 ; GerbierDalibard ; DalibardReview ; Cooper2011 ; Cooper2013 ; GoldmanReview and seminal experimental Aidelsburger2011 ; Sengstock ; Ketterle2013 ; Aidelsburger2013 ; Atala2014 ; Aidelsburger2015 results on the implementation of synthetic magnetic fields and even non-Abelian gauge fields such as synthetic spin-orbit coupling Galitski2013 have paved the way towards realizing topological insulators HasanKane2010 ; QiZhang2011 with ultracold atoms NathanReview . In particular, the Harper Hofstadter (HH) Hamiltonian Hofstadter1976 , introduced to describe the motion of electrons in a 2D square lattice exposed to a perpendicular magnetic field has recently been experimentally realized with cold atoms in optical lattices Aidelsburger2013 ; Ketterle2013 .

In the present work, we propose and present a detailed study of ultracold atomic gases confined to an array of coupled wires forming a 2D system with one continuous and one discrete dimension with synthetic magnetic fields. Employing Raman-assisted tunneling techniques Jaksch2003 ; GerbierDalibard ; Cooper2011 to generate artificial magnetic fluxes, we introduce an experimentally feasible scheme for the implementation of a semi-continuous generalization of the HH model. We are interested in particular in a physical realization of this model for various geometries: this includes a planar setup (see Fig. 1(a)), which can be realized as a variant of existing cold atom experiments with optical lattices, or as disks, cylinders, or tori (see Fig. 1 (b)-(c)), which is achieved by employing optical potentials created from Laguerre-Gauss laser beams carrying orbital angular momentum (OAM) Allen1992 ; Allen2003 ; Padget2008 . Below, we will consider both bosonic and fermionic atomic quantum many-body systems, and we will explore the rich variety of exotic phases of matter that can be realized in such coupled atomic wires.

The non-interacting part $H_{0}$ of the Hamiltonian describing an array of coupled wires is given by

[TABLE]

Here, $\psi_{x,y}$ annihilates a particle at position $\mathbf{r}=(x,y)$, and $J_{x}=J\text{e}^{i\phi x}$ ($J>0$) denotes the complex hopping amplitude in the discrete $y$-direction for atoms of mass $m$, where $\phi$ determines the homogeneous synthetic magnetic flux of the system, defining a magnetic length $l_{B}\equiv 2\pi/\phi$, and $a$ denotes the lattice spacing in $y$-direction. We note that for non-planar geometries (see Fig. 1 (b)-(c)), the coordinates $x,y$ should be understood as local coordinates tangent to the curved 2D system, where $x$ always represents the continuous (i.e. for coupled rings circumferential) direction, and $y$ refers to sites in the discrete direction. In the atomic context, $H_{0}$ can be realized both with fermionic and bosonic atoms. The long-wavelength scattering between the atoms gives rise to a (two-body) interaction $H_{I}$, and the total Hamiltonian is hence given by

[TABLE]

As the relevant scattering channels differ for bosons and fermions thus giving rise to different forms of $H_{I}$, we will specify $H_{I}$ for the individual examples considered in this work.

In a condensed matter context, similar models have been introduced by Kane et al. KaneCoupledWires2002 ; TeoKane2014 for electronic systems to study fractional quantum Hall (FQH) physics Tsui1982 ; Laughlin1983 ; Prange1990 in tunnel-coupled nano-wires, known as the coupled wire construction. There, the relevance in the renormalization group sense of specific tunnel-coupling terms occurring as perturbations to the strongly correlated uncoupled 1D wires is investigated. Here, we focus on a different limit, where the strongly tunnel-coupled wires form quasi-flat partially filled Chern bands Bauer2015 which, adding interactions, host FQH states. Below, we argue how FQH states such as Laughlin states Laughlin1983 can be stabilized in this setup and present a numerical analysis for realistic parameters in support of these claims. Remarkably, here the flatness of the lowest band can be directly tuned by changing the hopping strength $J$. While the controlled realization of coupled wire systems in conventional materials is challenging, the remarkable flexibility and tunability of ultracold atomic gases may open a new playground for the synthetic realization of topological phases of quantum matter.

For a minimal system of two coupled wires, we compare for both bosonic and fermionic gases the phase diagram to that of a two-leg ladder – the well studied discrete analog Orignac2001 ; Atala2014 ; Hugel2014 ; Mancini2015 ; Piraud2015 ; Wei2014 . From an experimental point of view, a key challenge is a sufficiently strong couplings $J$ (with Raman schemes to realize the artificial gauge field) in relation to the temperature. We will address this problem by proposing a setup of a double wire with subwavelength separation extending recent work Zoller2016 (see also Ref. Gorshkov2016 ), which allows a strong enhancement by Raman-induced tunneling orders of magnitude of the relevant couplings over standard optical lattices schemes with spacing $a=\lambda/2$ , where $\lambda$ is the wavelength of the light. In the case of a weakly or non-interacting gas of fermionic atoms, subwavelength double wires promise observation of chiral edge currents with non-analytic behavior for atoms at Lifshitz transitions of the Fermi surface.

The remainder of this paper is structured as follows. In Section II, we theoretically analyze the model of coupled wires, focusing on geometries and parameter regimes that are of immediate relevance for the proposed implementation with ultracold atomic gases that is detailed in Section III. Finally, in Section IV we provide a concluding discussion of our results.

II Chern bands and topological phases in coupled atomic wires

In this Section, we discuss the properties of systems described by the discrete-continuous Hamiltonian with artificial gauge fields given in Eqs. (1) and (2) in various geometries such as planar, cylindrical and toroidal, the experimental implementation of which is discussed in detail in the subsequent Sec. III. In anticipation of the atomic physics analysis, we will identify the relevant physical parameters and energy scales, to be compared with the experimentally achievable parameters for various setups in Sec. III. In Sec.  II.1, we discuss the topological band structure of the Hamiltonian (1) in the presence of translation invariance, i.e. in the geometry of an infinite plane or a (finite) torus. In Sec. II.2, we turn to a cylindric or planar ribbon geometry of $N$ wires, and investigate the occurrence of edge states. In Sec. II.3, a minimal, analytically treatable case of $N=2$ parallel wires or rings is analyzed. Adding interactions, we study in Sec. II.4 a strongly correlated bosonic gas. In the framework of exact diagonalization, we discuss the realization of robust fractional Quantum Hall physics in flat-band systems.

II.1 Translation invariant model

We start by considering the free Hamiltonian in Eq. (1). Assuming translation invariance in $y$-direction, we can separate the corresponding motion by using the plane waves with a quasimomentum $k_{y}\in[-\pi/a,\pi/a]$ with $a$ the lattice spacing in the $y$-direction. For a given $k_{y}$, the first quantized Hamiltonian in the $x$-direction takes the form

[TABLE]

Eq. (3) describes a 1D particle moving in a potential with a period given by the magnetic length $l_{B}=2\pi/\phi$. The corresponding energy scale is given by the magnetic (recoil) energy $E_{R}^{M}\equiv\hbar^{2}\phi^{2}/2m$. The form of Eq. (3) parametrically depends on $k_{y}$ in a way that makes the Hall response of the system intuitively clear. Varying $k_{y}$ by $2\pi/a$, i.e. once around the Brillouin zone (BZ), the potential slides $\ell_{B}=2\pi/\phi$ in $x$-direction, i.e. by one period of the potential in Eq. (3). In agreement with this intuitive picture, the Chern number $\mathcal{C}^{\alpha}$ of a Bloch band $\alpha$ TKNN1982 , defined in terms of the projection $P_{k}^{\alpha}$ onto the Bloch state $\lvert u_{k}^{\alpha}\rangle$ at lattice momentum $k=(k_{x},k_{y})$ as

[TABLE]

is always one, irrespective of the parameter values as long as the band is separated by an energy gap from the other bands. As is clear from the translational symmetry of Eq. (3), the spectrum of the system is independent of $k_{y}$ and so is the concomitant Berry curvature $\mathcal{F}_{k}^{\alpha}=i\text{Tr}\left\{P_{k}^{\alpha}\left[(\partial_{k_{x}}P_{k}^{\alpha}),(\partial_{k_{y}}P_{k}^{\alpha})\right]\right\}$.

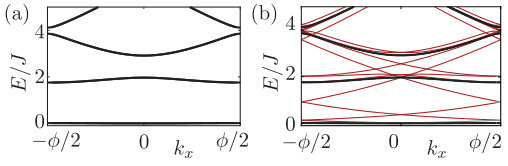

An example of the $k_{x}$-dependent band structure is shown in Fig. 2. Interestingly, and in contrast to the discrete HH model, increasing the hopping strength $J$ here provides a simple knob to make the energy spectrum flat as soon as the dimensionless parameter $\tilde{J}\equiv J/E_{R}^{M}\gtrsim 1$. The flatness is characterized by the ratio of the gap to the first excited state to the width of the lowest band. For the specific parameters in Fig. 2 we achieve a flatness ratio of 137 already for $\tilde{J}=0.8$ (for scaling of the flatness, and of the Berry curvature we refer to Appendix A).

II.2 Finite number of wires

We now consider the case of open boundary conditions in the discrete direction, reflecting a finite number $N$ of infinitely long wires in a planar geometry or $N$ parallel rings in a cylindrical geometry. In this case, $k_{y}$ is not a good quantum number. However, each individual wire or ring still possesses $k_{x}$-eigenstates $|y,k_{x}\rangle$, labeled by $y=y_{1},\ldots,y_{N}.$ The eigenvectors of the Hamiltonian (1) are then of the form

[TABLE]

for some $j_{0}\in\mathbb{Z}.$ For the eigenvectors where the $c_{j}$’s are supported mostly in the bulk of the system, the eigenenergies are similar (for $N\gg 1$) to those for an infinite case. In particular, they are independent of the actual position of the wavefunction in the bulk and feature the same band flatness. Reflecting the unit Chern number of the bands, there are also edge states. For them, the $|c_{j}|$ are localized on a few ($\sim\sqrt[4]{\tilde{J}}$) wires, or rings at the boundary and their energies cross the bulk gap between different bands.

Probing such edge modes is possible by inducing a Hall response to a time-dependent magnetic flux along the lines of the Laughlin argument Laughlin1981 . To that end, in a many-particle system of non-interacting ultracold fermions a synthetic magnetic probe field $\mathbf{B}=B_{0}{\mathbf{e}_{y}}$ is induced by increasing, in a time-dependent manner, the velocity of the gas in the $x$ direction. This can be done either by direct stirring Philips2013 or transfer of optical momentum Philips2007 . The result is a measurable transfer of population between edge-modes Zoller2016a , which allows to verify the topological nature of the Hamiltonian (1).

II.3 Minimal setup: Two coupled wires

In this Section, we analyze the minimal setup consisting of only $N=2$ coupled wires. It represents the simplest system showing non-trivial artificial magnetic field effects and is readily realized experimentally (see Sec. III) Schmiedmayer2006 ; Schmiedmayer2006b ; Atala2014 . The physics of many particles in the discrete analog of our system, the two-leg ladder, has been studied intensively theoretically and experimentally Orignac2001 ; Atala2014 ; Hugel2014 ; Mancini2015 ; Piraud2015 ; Wei2014 . For bosonic particles, the two-leg ladder mimics to some extent the behavior of a Type-II superconductor, exhibiting Meissner and vortex phases in a weak and strong external magnetic field, respectively Orignac2001 ; Hugel2014 ; Piraud2015 . These phases have been demonstrated experimentally Atala2014 . Here, we find similar phenomena in the bosonic continuous double wire. For fermions, by contrast, we show that no vortex phase is present. Instead, weak and strong field regimes are distinguished by the presence or absence of Lifshitz transitions, respectively, manifesting themselves in non-analyticities of the chiral current.

In the absence of interactions, the physics of the double wire system is governed by the Hamiltonian (1) where the sum in the discrete direction $y$ is reduced to two wires, labeled with $L$ (left) and $R$ (right), respectively. The resulting Hamiltonian (1) can be easily diagonalized in Fourier space for the continuous $x$-direction, exhibiting two energy bands

[TABLE]

Here, $\tilde{J}=J/E_{R}^{M}$ is the dimensionless interwire coupling introduced above. The wave functions are given by

[TABLE]

with $f=\sqrt{1+(k_{x}/\tilde{J}\phi)^{2}}-(k_{x}/\tilde{J}\phi)$, where upper (lower) component corresponds to the right ${\Psi}_{R}(x)$ [left ${\Psi}_{L}(x)$] wire.

The upper band $E_{+}(k_{x})$ has in the entire parameter regime a single global minimum at $k_{x}=0$. The form of the lower band $E_{-}(k_{x})$ depends on $\tilde{J}$. For $\tilde{J}<1/2$, it exhibits two degenerate minima at $k_{x}^{(1,2)}=\pm k_{g}$ with $k_{g}=(\phi/2)\sqrt{1-4\tilde{J}^{2}}$ and corresponding eigenstates $\ket{\pm k_{g}}=\ket{\pm k_{g}}_{-}$. From Eq. (7) for their wave functions $\Psi_{\pm k_{g}}^{(-)}(x)$ we see that the state $\ket{+k_{g}}$ is mostly located on the right wire, while the state $\ket{-k_{g}}$ on the left one. For $\tilde{J}\geq 1/2$, the two minima merge into a single global minimum, located at $k_{x}^{(0)}=0$ (see inset of Fig. 3).

Non-interacting bosons at zero temperature occupy for $\tilde{J}<1/2$ an equally weighted superposition of the two lowest-energy states $\ket{\pm k_{g}}$ [we assume the same number of particles in each wire, see Eq. (7)]. Hence, the ground state for total particle number $M$ is given by $\ket{G}=2^{-M/2}\left(\ket{k_{g}}+e^{i\theta}\ket{-k_{g}}\right)^{\otimes M}$ with an arbitrary phase $\theta$. The difference $2k_{g}$ of the momentum components of this state introduces a length scale in the $x$-direction, leading to a periodic spatial modulation of the particle density

[TABLE]

and of the chiral current

[TABLE]

where $j_{L(R)}$ denotes the probability current in left (right) wire. This represents the vortex phase. On the contrary, for $\tilde{J}\geq 1/2$, we find a Meissner phase with constant particle densities in both wires, and the constant chiral current $j_{C}$ reaching its maximum.

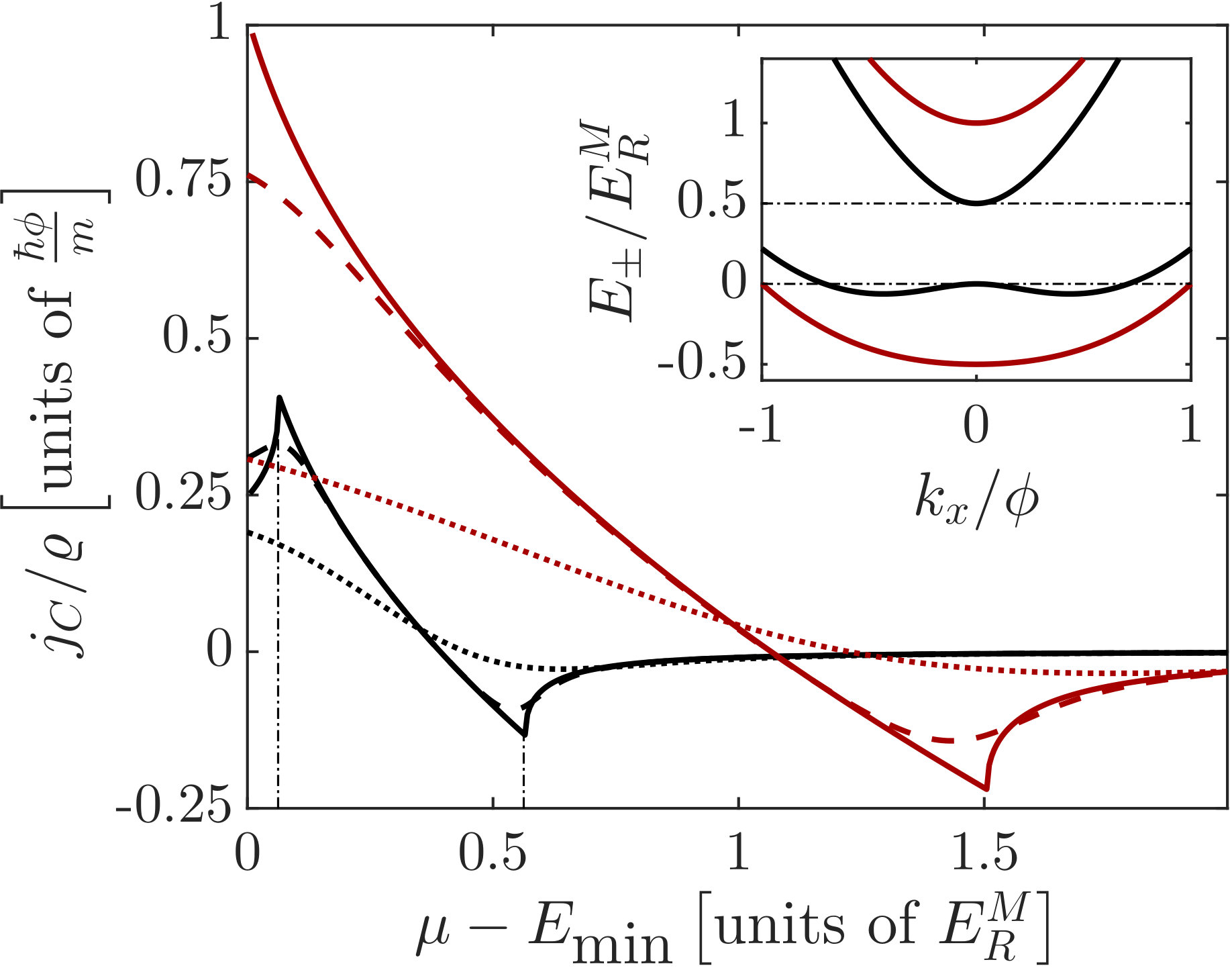

Non-interacting fermions at zero temperature occupy all states with energies below the chemical potential $\mu$, and their density $\varrho$ is always constant such that no vortex phase is present. However, the chiral current, depending on the chemical potential $\mu$, allows to distinguish the fermionic analog of the two bosonic phases. In Fig. 3, the chiral current is shown as a function of $\mu$, normalized by the particle density $\varrho$ (solid lines for zero temperature). We observe a non-analytic behavior of the current at values of $\mu$ where the Fermi surface changes its topology, i.e. the system undergoes a Lifshitz transition Lif1960 . For $\tilde{J}<1/2$, which for particles with bosonic statistics would correspond to a vortex phase, two such Lifshitz transitions occur. The first one, which is only present for $\tilde{J}<1/2$, takes place when the chemical potential touches the maximum of the lower band. The second one, existing for any non-vanishing coupling $\tilde{J}$, occurs when the chemical potential touches the bottom of the upper band. Hence, the presence and absence of the first Lifshitz transition determined by the form of the lowest band represents the fermionic analog to the bosonic vortex and Meissner phase, respectively.

At finite temperatures the non-analyticities in the chiral current are smeared out, but still visible for temperatures much smaller than the band gap (see dashed lines in Fig. 3). To resolve the non-analyticities in the chiral current in an experiment, the temperature has to be sufficiently low compared to energy scales set by coupling $J$ and flux $\phi$. For the double wire with subwavelength separation discussed in Sec. III.2.1, these non-analyticities should be observable with current experimental technology (dashed lines in Fig. 3). On the contrary, for smaller couplings strengths, typical for standard setups with wire separation $\lambda/2$, the chiral current is featureless. For details on the achievable coupling parameters, we refer to Sections III.1 and III.2.2 note1 .

Finally, we note that the phase distinction for both, the fermionic and the bosonic case, is determined by low momentum properties of the bands. Hence, it can be found likewise in the continuous double wire and in the discrete two-leg ladder.

II.4 Fractional quantum Hall states in coupled atomic wires

The FQH effect is the paradigmatic example of strongly correlated phases of matter that can emerge in topological bands. It typically occurs when a band with a non-zero Chern number is partially filled by strongly interacting particles. For certain rational filling factors of the band, interactions lead to incompressible states that can host anyonic fractionally charged excitations. The typical hierarchy of energy scales where this occurs is characterized by an interaction strength that is much larger than the band width but much smaller than the band gap, hence the interest in flat bands. While this phenomenon can occur both for fermionic and bosonic particles, the filling factor at which FQH states appear depends on the statistics of the particles. For example, the most prominent FQH state for fermions appears at filling $1/3$ whereas its bosonic counterpart emerges at filling $1/2$. While the FQH effect was experimentally discovered in partially filled Landau levels of a 2D electron gas exposed to a strong perpendicular magnetic field, i.e., for electrons, many theoretical studies showed its realization in the context of cold atomic gases, both for bosons and fermions, in various setups such as rotating traps Cooper2001 ; Regnault2004 ; Baranov2005 , optical lattices with an artificial gauge field Lukin2005 ; Lukin2007 , optical flux lattices Cooper2013 ; Sterdyniak2015 , and in Chern insulators Neupert2011 ; Sheng2011 ; Regnault2011 (for reviews see Cooper2008 ; Bergholtz2013 ; Parameswaran2013 ).

Below, we investigate the realization of bosonic FQH states such as Laughlin states Laughlin1983 in an array of coupled wires where the non-interacting part of the Hamiltonian is given by Eq. (1). The natural interaction between the bosonic atoms, microscopically stemming from $s$-wave scattering, is an on-site interaction in the discrete $y$-direction and a contact-interaction in the $x$ direction. In first quantization, $H_{I}$ is hence given by

[TABLE]

Physically, this model is in between the HH model for bosons with on-site interactions and a model of bosons with contact interactions in a rotating trap, which both were shown to host the $\nu=1/2$ Laughlin state in Ref. Lukin2005 ; Lukin2007 and Ref. Cooper2001 , respectively. Intuitively, we hence also expect this to be the case in the present model.

Interestingly, the present model is also from a formal analytical perspective in between the lowest Landau level (LLL) in the continuum and the HH on a lattice. Relating the lattice to the continuum problem, a modified HH model with longer ranged hopping known as the Kapit-Mueller model has been constructed in Ref. KapitMueller . It features an exactly flat lowest band spanned by the same single-particle states as the lowest Landau level, simply restricted to the discrete positions of the lattice sites. Then, as the bosonic $1/2$ Laughlin state is the exact ground state of the half filled LLL annihilating the contact interactions, its restriction to the discrete lattice is the exact ground state of the bosonic Kapit-Mueller model with on-site interactions KapitMueller . For the present semi-continuous HH model, the lowest band is exactly flat in the limit $J\rightarrow\infty$, i.e. without introducing longer range hoppings, and the single particle states that span it are those of the LLL, restricted to the semi-continuous geometry of the coupled wires. As $H_{I}$ in Eq. (9) is simply the contact interaction from the continuum restricted to the coupled wires, the concomitant restriction of the $1/2$ Laughlin state from the LLL annihilates these interactions and thus must become the ground state of our present model for large $J$.

For finite systems and with the experimentally realistic parameters $J=0.05E_{R},l_{B}=4\lambda$, the occurrence of a Laughlin state is hard to assess analytically. In the remainder of this section, using exact diagonalization, we hence numerically investigate this situation, focusing on the emergence of the $\nu=1/2$ Laughlin state in a system with periodic boundary conditions. We provide strong evidence for the occurrence of this state using both energy and entanglement spectroscopy, and give a physical picture for the resulting phase diagram of the model as a function of $J$. As an additional probe for the robustness of the Laughlin phase, we carefully checked that the groundstate manifold is stable under flux insertion in both directions.

II.4.1 Energy spectroscopy

As commonly done in the study of FQH systems both in the continuum and on a lattice Regnault2011 , we use the so called flat band approximation: we project the interacting Hamiltonian to the lowest band of the single-particle model, neglecting the admixture of all other bands as well as the band dispersion. This is a valid approximation as long as the interaction strength is much larger compared to the band width and much smaller than the band gap. We consider $N_{B}$ bosons in a system of $N_{y}$ coupled wires of length $N_{x}l_{B}$, so that the system is pierced by $N_{x}N_{y}$ magnetic flux quanta and the filling of the lowest band is given by $\nu=\frac{N_{B}}{N_{x}N_{y}}$. This allows us to diagonalize simultaneously the Hamiltonian and the total momentum operator in both directions, defining thus two quantum numbers $(K_{x},K_{y})$ for every state.

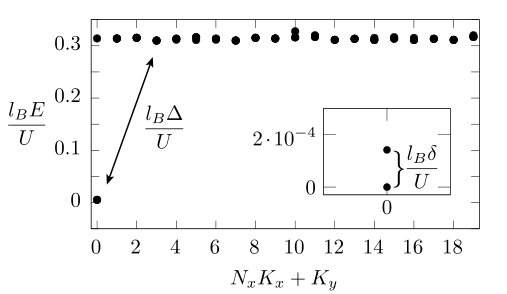

We focus on the $\nu=1/2$ filling where the bosonic Laughlin state is a natural candidate for describing the ground state. On the torus, it exhibits a characteristic two-fold degeneracy due to many-body magnetic translation invariance Haldane1985 . However, this degeneracy is lifted in finite lattice systems, such as the one considered here and the energy splitting $\delta$ between the two lowest energy states should be much smaller than the energy gap $\Delta$ to the third lowest energy state. A typical energy spectrum for the parameters identified in Section III is shown in Fig. 4 for $N_{B}=10$, $N_{x}=2$ and $N_{y}=10$. It shows the expected quasi two-fold degenerate ground state manifold (with an energy splitting $\delta=1.4~{}10^{-4}~{}U/l_{B}$) separated by a gap $\Delta=0.3~{}U/l_{B}$ from higher energy states. Depending on the geometry investigated, the ground states appear in different momentum sectors. These momentum sectors can be predicted Regnault2011 and we checked that our numerical results match these predictions.

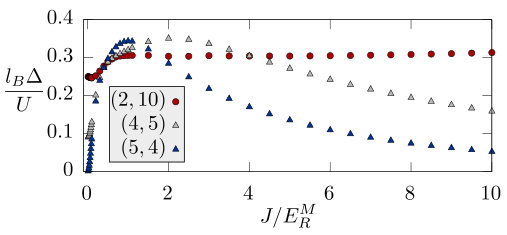

To investigate more generically the role of interaction in our model, we restrict ourselves to the case $\phi=2\pi/a$ in Eq. (3). This can be done without loss of generality since a generic $\phi$ can be mapped onto the $\phi=2\pi/a$ case via a rescaling of the length in the $x$ direction and a change of the recoil energy. For this case, we show the energy gap as a function of the hopping between the wires for $N_{B}=10$ and different aspect ratios in Fig. 5. The aspect ratio seems to have an important effect on the stability of the Laughlin phase. Indeed, while for $(N_{x}=2,N_{y}=10)$ the gap is much more stable with increasingly large $J$, the gap decreases clearly for $(N_{x}=4,N_{y}=5)$ and even more for $(N_{x}=5,N_{y}=4)$. As we explain below, the crucial figure in this context is actually not the aspect ratio, but only $N_{y}$. The ostensible dependence on the aspect ratio is simply due to the fact that, for computational reasons, we cannot increase $N_{y}$ without decreasing $N_{x}$ at the same time.

The $N_{y}$ dependence in the stability of the FQH phase can be physically understood at an intuitive level when looking at Eq. (3). With increasing $J$, the localization length of the lowest Wannier function in $x$-direction (at a given $k_{y}$) decreases as $J^{-(1/4)}$. The number $N_{y}$ then determines how many such equidistantly spaced orbitals there are per magnetic length $l_{B}$ in $x$-direction. At small enough $N_{y}$, these Wannier orbitals have virtually no overlap in $x$-direction, and hence allow the bosons to avoid the contact interaction, even in trivial product states forming a charge density wave (CDW). We hence expect in agreement with Fig. 5 that in finite systems with a given $N_{y}$, the Laughlin phase breaks down with increasing $J$, at a critical $J_{c}$ that increases with $N_{y}$. This picture will be corroborated by the subsequent entanglement spectroscopy. Note that these findings are by no means in contrast to the above analytical arguments stating that for $J\rightarrow\infty$ the ground state in the thermodynamic limit will be the exact Laughlin wave-function, but rather reflect a simple order of limits problem. This is because for $N_{y}$ going to infinity, the discrete $k_{y}$ values will become dense, and thus there will be an overlap of neighboring Wannier functions for arbitrary $J$.

II.4.2 Entanglement spectroscopy

The two-fold degeneracy of the ground state is only a necessary condition for the system to be in the Laughlin phase. Indeed, a charge density wave (CDW), breaking translational symmetry, would also exhibit the same ground state degeneracy and is a known competing phase. Unlike symmetry breaking phases, topological phases do not possess a local order parameter that could be computed to probe the nature of the phase and are, thus, difficult to identify unambiguously, especially in numerical studies. To solve this issue, building upon the concept of entanglement entropy, Haldane and Li introduced the orbital entanglement spectrum (OES) Haldane2008 , i.e. the spectrum of the reduced density matrix of a subsystem defined by a subset of the single particle orbitals. It allows to identify the edge theory of the ground state and, in many cases, the corresponding topological phase. For torus geometries and lattice systems, the particle entanglement spectrum (PES), a concept closely related to the OES, is a very practical tool to identify FQH states Sterdyniak2011 . It is defined through a partition of the system in two subgroups $A$ and $B$, made of $N_{A}$ and $N_{B}-N_{A}$ particles. The PES is the spectrum of $H_{A}=-\log\rho_{A}$ where $\rho_{A}$ is the reduced density matrix obtained by tracing out the $B$ particles and $H_{A}$ is called the entanglement Hamiltonian. As $\rho_{A}$ commutes with the total momentum operators for particles in the $A$ part, we use these operators quantum numbers $(K_{x,A},K_{y,A})$ to block-diagonalize $\rho_{A}$. Unlike the OES in which the geometry of the system is altered, the geometry is unchanged by this procedure and the PES allows to access the physics of the bulk excitations.

For ideal FQH model states, such as the Laughlin wave-function, the PES is made of a number of levels equal to the number of quasihole-states corresponding to the system size under investigation. For example, if we consider the $\nu=1/2$ Laughlin state on the torus with $4$ particles and trace over two of them, the PES will reflect the Laughlin quasihole states with two particles and four quasiholes: not only the number of levels in the PES is then equal to $20$, i.e. the number of quasihole-states, but the eigenstates of $H_{A}$ are precisely quasihole-states as they are zero energy states of the contact interaction. All other eigenstates of the reduced density matrix have zero eigenvalues and are thus associated with levels at infinite entanglement energy in $H_{A}$. For any given number of particles and quasiholes, the number of quasihole states can be predicted using Haldane’s generalized exclusion principle Haldane1991 and are thus direct fingerprints of the anyonic nature of the excitations. For the $\nu=1/2$ Laughlin state on the torus, the number of such states with $N$ particles in $N_{\phi}$ flux quanta is given by $\mathcal{N}(N,N_{\phi})=N_{\phi}\frac{(N+n-1)!}{N!n!}$, where $n=N_{\phi}-2N$ is the number of quasiholes Fayyazuddin1996 . In the PES framework, $N$ should be replaced by $N_{A}$ and $N_{\phi}$ by $2N$ in the previous formula.

Away from ideal model states but still in the same FQH phase, the PES generically does not exhibit levels at infinite energy, but still displays a significant gap below which the number of states is still given by the number of quasihole-states. When this is the case, we conclude that the state is in the same topological phase as the model state. Unlike the counting of quasihole-states in the energy spectrum, the entanglement spectrum was shown to be able to distinguish between a CDW and a FQH state Bernevig2012 . Indeed, in the case of a CDW ground state at filling $1/2$, the total number of states in the PES is given by $2{N\choose N_{A}}$, which in the previous example gives only $12$ states.

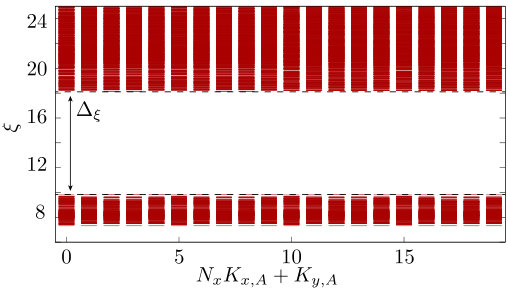

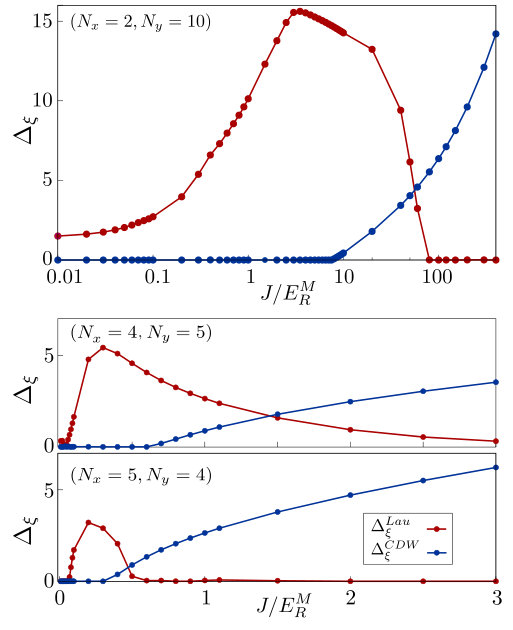

The entanglement spectrum for the quasi two-fold degenerate ground states of Fig. 4 for $N_{A}=5$ is shown in Fig. 6. It exhibits a clear entanglement gap below which there are $4004$ entanglement levels, which is precisely the expected counting for the $\nu=1/2$ Laughlin state with $5$ particles and $10$ quasiholes. This is a strong evidence for the realization of the Laughlin phase in our model at these parameters. As we did for the energy gap, we can assess the robustness of the FQH phases by looking how the entanglement gap, both the one corresponding to the Laughlin state and the one of the CDW state, changes as the aspect ratio and the hopping strength is changed. This is shown in Fig. 7 for $N_{B}=10$ and $N_{A}=4$. In agreement with Fig. 4 and our aforementioned arguments, for $(N_{x}=2,N_{y}=10)$, the Laughlin gap dominates up to comparably large values of $J$, while for $(N_{x}=4,N_{y}=5)$ and $(N_{x}=5,N_{y}=4)$, in decreasing order of $N_{y}$, it breaks down at smaller and smaller $J$. We note that the maximum entanglement gap of the Laughlin state occurs at increasing $J$ and assumes a larger value as $N_{y}$ grows. This is in line with our analytical argument that the ground state should converge towards the ideal Laughlin state with infinite entanglement gap for $N_{x},N_{y},J\rightarrow\infty$.

III Implementation with ultracold atomic gases

In this Section we discuss the implementation of the semi-continuous Harper-Hofstadter model described by Eqs. (1) and (2) with ultracold atomic gases in optical lattices (OL) Bloch2008 ; Lewenstein2012 . We start in Sec. III.1 with a discussion of the planar geometry, where the discrete direction is realized as an ordinary $a=\lambda/2$ lattice with $\lambda$ the optical wavelength of the laser, and coupled by laser assisted tunneling as a Raman process, which allows us to write the position dependent hopping $J_{x}=Je^{i\phi x}$ with laser phases. In Sec. III.2, we show how the relevant energy scales, in particular $J$, can be significantly increased for a double-wire (DW) with subwavelength separation. The construction of more complex, non-planar trapping geometries like arrays of rings forming cylinders or tori is discussed in Sec. III.3. We show explicitly the implementation of the laser assisted tunneling in such geometries, providing the possibility to induce a large, tunable magnetic flux.

III.1 Planar geometry with optical $\lambda/2$-lattice

A planar array of parallel wires is readily constructed with OL potentials (for the implementation of an array of parallel planes see, for example Gideminas ). Such optical potentials for atomic motion arise as AC Stark shifts in an off-resonant laser beam in a standing wave configuration. In particular, wires with distance $\lambda/2$ are formed by an OL potential of the form $V_{L}(y,z)=V_{y}\sin^{2}(ky)+V_{z}\sin^{2}(kz)$ ($k=2\pi/\lambda$). We assume the motion in $z$-direction to be frozen to the lowest mode by very tight trapping. Hence, the atoms move freely in the $x$-direction and tunnel with an amplitude $J_{\text{bare}}>0$ between the wires in the transverse $y$-direction [see Fig. 1(a)]. We note that the assumption of a tight binding model implies $J_{\text{bare}}\ll E_{c}(a)={h^{2}}/{2ma^{2}}$ for a lattice spacing $a$. For an ordinary OL, this energy scale is the recoil energy $E_{R}=E_{c}(\lambda/2)$ associated with the wavelength of the laser Zoller1998 .

A complex interwire hopping $J_{x}=J\exp(i\phi x)$ with a position-dependent phase is induced with the help of Raman-assisted tunneling Jaksch2003 ; Arimondo2010 ; Aidelsburger2013 ; Ketterle2013 : First, the natural tunneling is rendered off-resonant by means of an energy off-set $\Delta$ between adjacent wires, i.e. a tilting of the lattice, created for example by an external magnetic field gradient. Second, resonant tunneling is restored employing a far-detuned two-photon Raman process (see Appendix C). As a result, we find the complex Raman assisted hopping $J_{x}$ will be constrained by $|J_{x}|=J<J_{\text{bare}}$ (see also Refs. Arimondo2010 ; Ketterle2013 ; Goldman2014 ). Its phase $\phi$ is determined by the momentum transfer in $x$-direction during the two-photon Raman process and can be adjusted by variation of the incidence angle of the two Raman lasers with respect to each other (see Sec. III.2.2 and Appendix C for a more detailed description of the laser configurations). In this Raman scheme the magnetic length $l_{B}=2\pi/\phi\gtrsim\tilde{\lambda}/2$ is bounded from below by the wavelength $\tilde{\lambda}$ of the Raman lasers note4 .

As discussed in Sec. II, to create quasi-flat Chern bands we require an inter-wire tunneling amplitude $J$ on the order of the magnetic (recoil) energy $E_{R}^{M}=\hbar^{2}\phi^{2}/2m$, i.e. $J/E_{R}^{M}=\mathcal{O}(1)$. In practice, this ratio should be tunable in a range from $J/E_{R}^{M}\lesssim 0.5$ to $J/E_{R}^{M}\gtrsim 2$. It is not desirable to increase this ratio by simply decreasing $E_{R}^{M}$, as this would increase the magnetic length $l_{B}=2\pi/\phi$ and thus reduce the particle density at a given filling along with the relevant many-body interaction energies. Hence, the larger $J$ the better, which is, however, bounded from above by $J_{\text{bare}}\ll E_{R}$. In summary, using ordinary OLs, we are constrained by the set of inequalities

[TABLE]

and as a realistic compromise, a possible choice of parameters is $J=0.05E_{R},l_{B}=4\lambda$. Then, the ratio $J/E_{R}^{M}=0.8$ and the flatness ratio of the lowest band is $137$.

From an experimental viewpoint, larger energy scales $E_{R}^{M}\sim J\sim E_{R}\gg k_{B}T$ can be crucial due to finite temperature $T$ (see also Sec. II.3). It is thus desirable to design schemes with subwavelength interwire spacing. We will discuss this in the following Subsection for the case of a DW.

III.2 Enhanced energy scales in a subwavelength double wire

In the following, we demonstrate the enhancement of the Raman assisted interwire hopping (see also Sec. III.2.2) in a DW setup with wire separation $a=\ell\ll\lambda/2$ far below the laser wavelength, where

[TABLE]

The construction (Sec. III.2.1) is based on the nanoscale ‘dark state’ optical potentials introduced in Ref. Zoller2016 (see also Ref. Gorshkov2016 ). We will show that Raman assisted hopping amplitudes for typical parameters can reach values $J\sim E_{R}$ (Sec.  III.2.2), more than one order of magnitude larger than those obtained in standard OL setups Ketterle2013 ; Aidelsburger2013 . Furthermore, this represents by no means a fundamental upper limit for setups featuring subwavelength structures. In parallel to this enhancement of the Raman assisted interwire hopping, the magnetic flux has to be increased to satisfy the requirement $J/E_{R}^{M}=\mathcal{O}(1)$. In our concrete example, a magnetic length $l_{B}\sim\lambda$ is sufficient to obtain $E_{R}^{M}\sim J\sim E_{R}$ (see below). This can be achieved by ordinary Raman assisted tunneling techniques (see Sec. III.2.2).

III.2.1 Subwavelength double wire

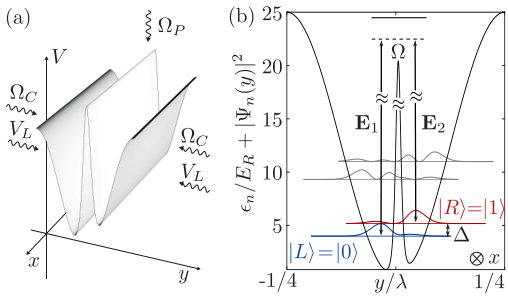

A DW separated by a subwavelength distance is obtained using the nanoscale ‘dark state’ optical potentials introduced recently in Ref. Zoller2016 (see also Ref. Gorshkov2016 ). Inserting such a barrier into a potential well, created, for example, as a 1D optical wire in a standard OL setup, we can split this wire into two subwires (see Fig. 8(a)). These subwires feature a spatial separation far below the laser wavelength, comparable to the typical size of the groundstate wave function of the potential well of the original OL (see Fig. 8(b)).

To produce a DW configuration extending in the $x$-direction, we consider, in the $y$-direction, a single potential well of a standard 1D off-resonant OL $V_{L}(y)=V_{y}\sin^{2}\left(ky\right)$ with height $V_{y}$ (see Fig. 8). In the harmonic approximation, this potential well is characterized by the trapping frequency $\hbar\omega_{T}\approx\sqrt{4V_{y}E_{R}}$ and by the size of the ground state wave function $a_{H}=\sqrt{\hbar/(2m\omega_{T})}$. Following reference Zoller2016 , the nanoscale barrier is added as a nonadiabatic optical potential

[TABLE]

for the dark state in an atomic $\Lambda$-system created using two additionally applied lasers, a moving wave with Rabi frequency $\Omega_{P}$ constant in the $x$-$y$-plane and a standing wave $\Omega_{C}(y)=\Omega_{C}\sin(k(y-y_{0}))$ (see the Appendix C for details on the atomic level scheme). Hereby, $\epsilon=\Omega_{P}/\Omega_{C}\ll 1$ is an external parameter, controlled by the lasers. It determines the subwavelength width ($\ell\sim\epsilon/k\ll\lambda/2$) and the height ($\sim E_{R}/\epsilon^{2}$) of the barrier which appears around $y_{0}$. Physically, this potential barrier is caused by the rapid change of the identity of the dark state in the subwavelength region of width $\ell$, see the Appendix C and Ref. Zoller2016 for details. Ignoring the frozen motion in the $z$-direction for which we assume tight confinement, the dark state Hamiltonian takes the form

[TABLE]

For $\epsilon\ll 1$, the eigenstates of $H_{D}$ are grouped into pairs of states with small energy offset $\Delta\ll\hbar\omega_{T}$. Different pairs are separated by a large gap $E_{\text{gap}}\approx 2\hbar\omega_{T}$. In the following, we can hence restrict to the lowest pair formed by ground $\ket{0}$ and first excited state $\ket{1}$. Due to a small displacement $y_{0}\ll a_{H}$ of the barrier with respect to the center of the harmonic trap, one of these two states (as in every pair) is mostly localized on the left, one on the right of the barrier, with only a small fraction leaking through. We hence identify a DW system consisting of distinct left $\ket{L}\equiv\ket{0}$ and right $\ket{R}\equiv\ket{1}$ wire, respectively (for the configuration shown in Fig. 8 with the barrier displaced to the right, i.e. $y_{0}>0$). We are interested in a situation where the wires are well separated. This means that the localization parameter $\text{Loc}\equiv 1/2\left(P_{L}+P_{R}\right)$ with $P_{L}\equiv\int_{-\infty}^{y_{0}}\text{d}y|\braket{y}{L}|^{2}$, $P_{R}\equiv\int_{y_{0}}^{\infty}\text{d}y|\braket{y}{R}|^{2}$ has to be close to unity. In the following, we hence keep $\text{Loc}>0.9$, balancing between the spatial separation of the wires and the strength of the interwire coupling (see below) related to the spatial overlap of their wave functions.

Summarizing, we have created a double wire with interwire distance $\ell\ll\lambda/2$ far below the laser wavelength. This provides the opportunity to obtain Raman-assisted interwire couplings much larger than in a familiar optical lattice, because the a priori bare hopping amplitudes can be much larger than for a standard OL, as shown in the following subsection.

III.2.2 Enhanced Raman-assisted tunneling amplitude

We now discuss a Raman-assisted tunneling scheme for the subwavelength DW, where complex tunneling phases can be obtained in a Raman assisted tunneling scheme as described above. Our goal is to maximize the Raman assisted tunneling amplitude $J$ and to achieve simultaneously a large magnetic flux $E_{R}^{M}/J=\mathcal{O}(1)$. We compare to previous results obtained in ordinary OLs Aidelsburger2013 ; Ketterle2013 .

The tunnel coupling between the wires is generated by two additional Raman beams $\mathbf{E}_{1}$, $\mathbf{E}_{2}$ with frequencies $\omega_{1}$, $\omega_{2}$ and wave vectors $\mathbf{k}_{1}$, $\mathbf{k}_{2}$ located in the $x$-$y$-plane. They drive a far-detuned two-photon transition via an auxiliary level (Figure 8, detailed in Appendix C). Adiabatic elimination of the auxiliary level leads to an additional time-dependent driving term

[TABLE]

in the full Hamiltonian $H(t)=H_{D}+H_{RM}(t)$, where $\Omega$ is the effective two-photon Rabi frequency, $\delta\omega=\omega_{1}-\omega_{2}$ the frequency detuning and $\delta\mathbf{k}=\mathbf{k}_{1}-\mathbf{k}_{2}$ the momentum transfer. Choosing $\delta\omega\approx\Delta/\hbar$, $H_{RM}$ induces resonant tunneling between the two wires whose amplitude is in the perturbative regime $\Omega\ll\hbar\delta\omega$ given by

[TABLE]

Importantly, the matrix element $|\braket{L}{e^{-i\delta k_{y}\hat{y}}}{R}|=\mathcal{O}(1)$ is increased in our setup by at least one order of magnitude compared standard OLs where we have $|\braket{L}{\exp({-i\delta k_{y}\hat{y}}}{R})|\sim J_{\text{bare}}^{\text{OL}}/E_{R}\lesssim\mathcal{O}(1/10)$ between any two adjacent wires $L$ and $R$ Ketterle2013 . This is caused by the larger spatial overlap of the wave functions and leads to the strongly enhanced tunneling amplitudes in the subwavelength DW.

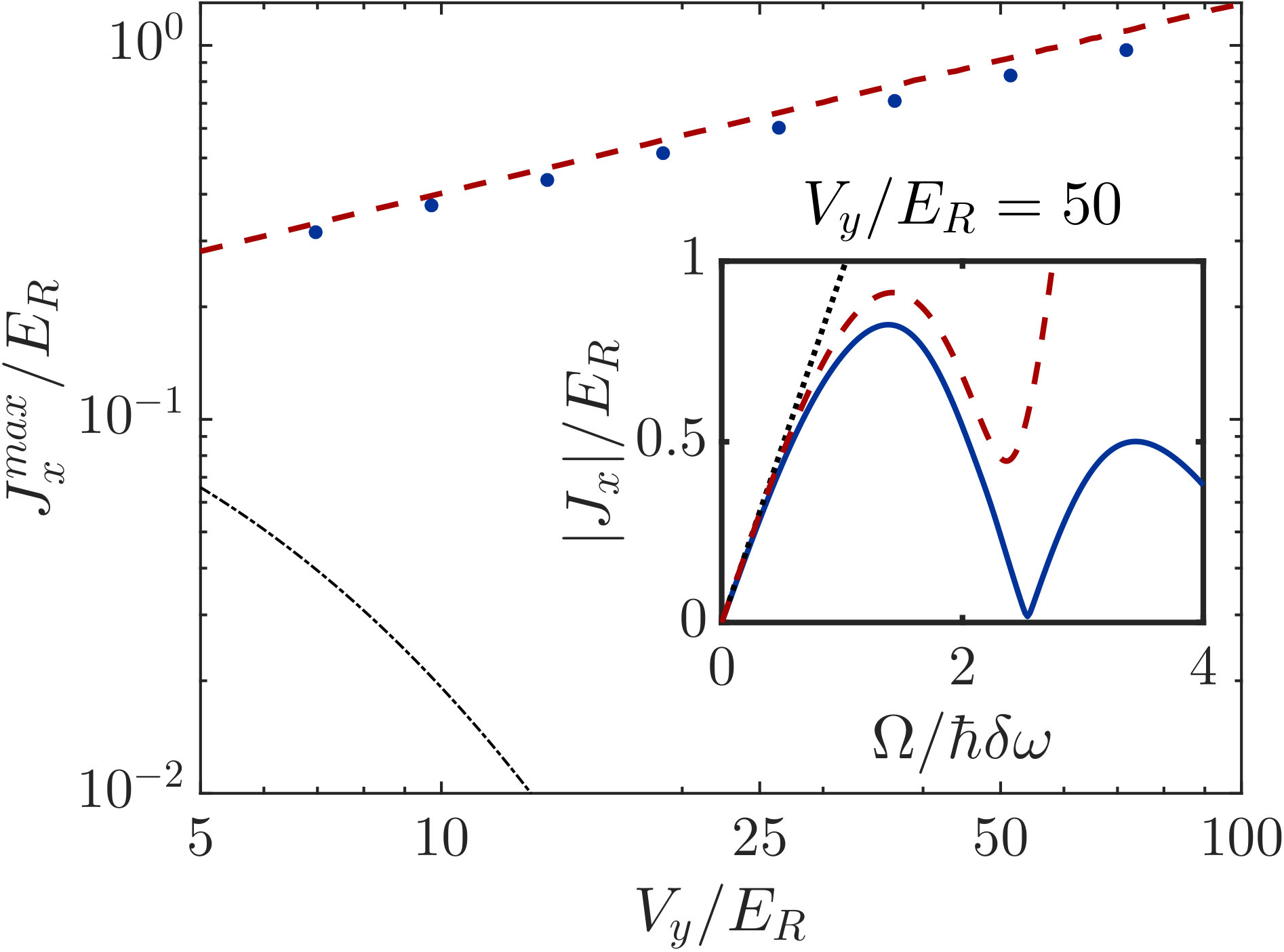

Our goal is now to find the maximum possible Raman assisted tunneling amplitude (c.f. Fig. 9). Here, we investigate the overall behavior of the tunneling amplitude as a function of the driving strength $\Omega$. This requires to access the non-perturbative strong driving regime using a numerical Floquet analysis. As shown in the inset of Fig. 9, the tunneling amplitude follows the common trend Arimondo2010 ; Ketterle2013 ; Goldman2014 : A linear growth with the driving in the perturbative regime before the onset of higher order effects diminishing the coupling for strong driving $\Omega\gtrsim\hbar\delta\omega$. It is renormalized due to time-dependent AC-Stark shifts of the individual levels $\ket{L}$ and $\ket{R}$. For details on this higher order effects, a systematic perturbation theory in powers of $\Omega/\hbar\delta\omega$ and the numerical procedure, we refer to Appendix D.

Due to the large tunneling matrix element in Eq. (15), the maximum amplitude of the tunnel coupling between the wires is strongly enhanced compared to the results of Ref. Ketterle2013 for the standard setup with a tilted OL. As an example, for the tilted OL with the amplitude $V_{0}=9E_{R}$, the amplitude of the Raman assisted tunneling between the nearest sites is bounded by the bare tunneling $J_{b}=0.02E_{R}$ Ketterle2013 . Using the same OL with the subwavelength barrier placed in one of its wells, one can achieve an order of magnitude increase, $J_{x}\approx 0.2E_{R}$, of the tunneling amplitude (see Fig. 9).

In contrast to standard OLs, the Raman assisted tunneling amplitude in our setup can be further enhanced by increasing the amplitude of the trapping potentials $V_{y}$, as shown in Fig. 9. This results in the increase of the level separation $\Delta$ leading to a larger value $\Omega_{\textrm{max}}\sim\hbar\delta\omega\sim\Delta$ where the maximum tunneling amplitude $J_{x}\sim\Omega_{\textrm{max}}$ is reached. This overcomes a decrease of the tunneling matrix element $\braket{L}{e^{-i\delta k_{y}\hat{y}}}{R}$. Quite remarkably, the tunneling amplitude $J_{x}$ reaches the values of $\sim\!1E_{R}$ for $V_{y}=100E_{R}$ (c.f. Fig. 9).

At the same time, a large flux $(\hbar^{2}\phi^{2}/2m)/J=\mathcal{O}(1)$ is achieved using the following laser configurations: We take laser $\mathbf{E}_{1}$ to be $\sigma_{+}=-({\mathbf{e}_{z}}+i{\mathbf{e}_{x}})/\sqrt{2}$ polarized and propagating along the $y$-direction. The laser $\mathbf{E}_{2}$ propagates the $x$-$y$-plane with an incidence angle $\theta$ with respect to $\mathbf{E}_{1}$. The momentum transfer during the two-photon process is thus $\delta\mathbf{k}=\mathbf{k}_{1}-\mathbf{k}_{2}$. By variation of $\theta$, we can hence adjust the phase $\phi=\delta k_{x}$, up to large fluxes $(\hbar^{2}\phi^{2}/2m)/E_{R}=\mathcal{O}(1)$ (for $\theta\approx\pi/2$).

To summarize, our discussion shows that tunneling amplitudes $J\sim E_{R}$ can be reached in a subwavelength DW, which are enhanced by more than one order of magnitude compared to familiar OLs. In addition, this scheme allows one to achieve fluxes $E_{R}^{M}\sim J$ compatible with the enhanced hopping.

III.3 Non-planar trapping geometries: cylinder and torus

Below we describe the realization of optical potentials for ultracold atoms with cylindric rotational symmetry — the cylinder consisting of an array of rings (Sec. III.3.1) and the torus (Sec. III.3.3). The construction is based on Laguerre-Gaussian (LG) laser beams. Similar beams allow also to thread artificial magnetic field flux through the surface of each geometry and realize the scenario of the flat band Hamiltonian (1). All beams are set deep in the paraxial regime, where beam waist $w_{0}$ satisfy $w_{0}\gg\lambda$, and the constructed lattices will feature standard interwire separations of $a=\lambda/2$.

III.3.1 Cylindric array of rings

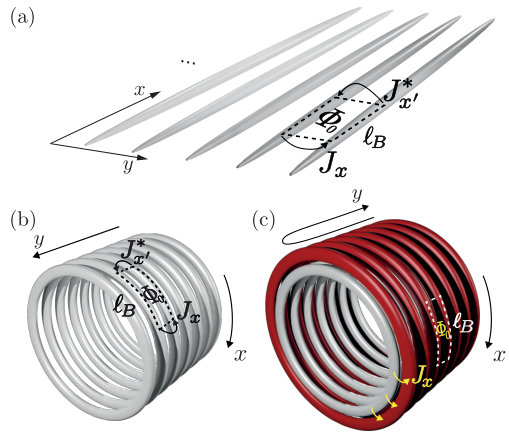

The cylinder geometry [see Fig. 1(b)] can be naturally obtained using a laser mode with a cylindric symmetry, such as a LG beam (see Refs. Allen1992 ; Allen2003 ; Padget2008 ; Zeilinger2012 ; Andrews2011 ; Andrews2012 for theory description and Refs. Thirugnanasambandam2010 ; Senatsky2012 ; Zupancic2013 ; Preiss2015 for the experimental state of the art). The spatial mode of the LG beams is indexed by integers $l$ and $p$ (we consider here $p=0$) which we refer to as $LG_{p,l}$. Its electric field amplitude is

[TABLE]

where the $\mathbf{{\epsilon}}_{0}$ is the polarization vector, taken to be $\sigma_{+}=-({\mathbf{e}_{z}}+i{\mathbf{e}_{x}})/\sqrt{2}$. Here $E$ denotes the field strength. We have chosen cylindrical coordinates with azimuthal angle $\varphi$ and $\rho=\sqrt{x^{2}+z^{2}}$ the distance to the symmetry axis ${\mathbf{e}_{y}}$. The rotationally invariant field amplitude is

[TABLE]

with $\xi=\sqrt{2}{\rho}/{w_{y}},$ $w_{y}=w_{0}\sqrt{1+\left({y}/{y_{R}}\right)^{2}},$ and $w_{0}$ is the paraxial waist of the beam. Further, the Rayleigh range $y_{R}={w_{0}^{2}\pi}/{\lambda}$ and $L_{p}^{|l|}$ is a generalized Laguerre polynomial (for $p=0:L_{0}^{l}(\xi)=1)$. The plane $y=0$ in this description is the focal plane of the LG beam.

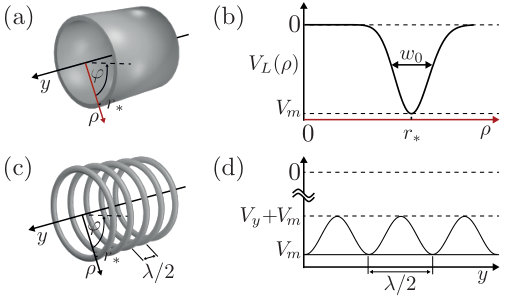

The LG beam creates a potential [see Fig. 10(a)]

[TABLE]

which in radial direction contains a Gaussian minimum located at finite position of $r_{*}=w_{0}\sqrt{{l}/{2}},$ thus realizing a potential well corresponding to the side surface of a cylinder, when $y/y_{R}\ll 1$ [see Fig. 10(b)].

On top of the cylindrical potential we add a lattice potential $V_{L}(y)=V_{y}\sin^{2}(ky)$ splitting the cylindric landscape into a series of parallel ring traps separated by $a=\lambda/2$ distance [see Fig. 10(c),(d)]. It should be noted that the LG beams may be used in a fashion similar to Sec. III.2.1 to create a subwavelength barrier with ring shape and in the end the two parallel rings with subwavelength separation $\ell\ll\lambda$.

III.3.2 Raman-assisted tunneling

Below we discuss specific features of the Raman-induced hopping in the cylindric geometry. We start by explaining the creation of a synthetic magnetic field. Then, we discuss how to couple many rings using just two lasers, addressing residual focusing effects. They define a maximal achievable total size of the system, allowing to couple together several tens of rings for which the Hamitonian (1) is realized.

The Raman scheme for laser-assisted hopping proceeds in analogy to the one discussed in Section III.2. First, a magnetic field gradient creates a local energy offset between neighboring rings. Second, the rings are coupled via a Raman process tuned to that offset. The non-standard part is however the choice of the LG laser beams for the lasers creating the two-photon transition.

We employ two $\sigma_{+}$ polarized LG beams: $LG_{0,l_{1}}$ and $LG_{0,l_{2}}$, counterpropagating in the $y$-direction. The azimuthal complex phase carried by the LG beams [see Eq. (16)] amounts to a total angular momentum transfer during the two-photon process. In analogy to Eq. (15), this leads to a tunneling phase of $\phi=(l_{1}-l_{2})/R$ where $R$ denotes the radius of the cylinder. The fundamental limit for the complex phase $\phi$ is the diffraction limit, which is bounded by $\phi^{-1}>\phi_{c}^{-1}=\lambda_{R}/2$ with $\lambda_{R}$ the wavelength of the Raman lasers Zoller2016a . Even far from the diffraction limit, for $\phi/\phi_{c}=1/8$, we obtain $\hbar^{2}\phi^{2}/2m=1/16E_{R}$ and hence $J/(\hbar^{2}\phi^{2}/2m)=\mathcal{O}(1)$ in the desired regime (for realistic $J=0.05E_{R}$, see Section II).

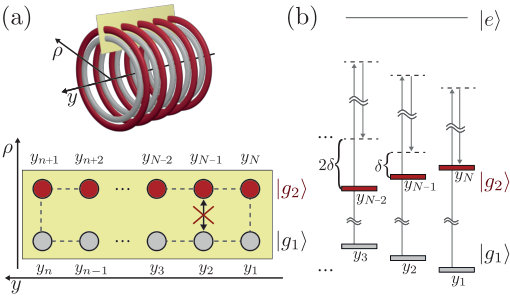

To simultaneously Raman-couple many wires resonantly using just two lasers with the desired amplitude $J$, one needs to assure that a global choice of detuning of the two lasers $\delta\omega=\omega_{1}-\omega_{2}$ [as discussed in Section III.2.2] can be made. In the cylindric geometry case, the local energies $E_{y}$ of the rings are determined by the cylindric optical potential (18), by the trap frequency $\hbar\omega_{T}\approx\sqrt{4V_{y}E_{R}}$ of the lattice potential $V_{L}(y)$ and by an additional external magnetic field gradient giving rise to an offset $\Delta$ between adjacent rings. They read as

[TABLE]

Hence, the total difference between neighbouring rings is $\Delta_{y}=E_{y+a}-E_{y}=\Delta+\delta_{y}$ where $\delta_{y}$ depends non-linearly on $y/y_{R}$. This is in contrast to the planar case where $\Delta_{y}=\Delta=\text{const.}$, i.e. $\delta_{y}=0$.

In the effective Hamiltonian (1) the presence of $\delta_{y}\neq 0$ adds an extra local energy term $\sum_{y}\tilde{\delta}_{y}\hat{n}_{y}$ where $\tilde{\delta}_{y}=\sum_{y^{\prime}\geq y}\delta_{y}$. To keep this extra term negligible, we hence require that

[TABLE]

This defines the maximal number $\sim y_{R}\sqrt{J/V_{m}}/a$ of lattice rings to be resonantly coupled. This number is enlarged if the quadratic part $\sim y^{2}/y^{2}_{R}$ in equation (19) is compensated by an additional anti-trapping potential, allowing $\sim y_{R}\sqrt[4]{J/V_{m}}/a$ lattice rings to be coupled simultaneously by a Raman process. Here $y_{R}$ is limited by the separation between radial, transverse modes of $\Delta E_{\rho}=\sqrt{8\hbar^{2}V_{m}/mw_{0}^{2}}$ where $w_{R}$ is the waist of the LG beams creating the cylinder. For realistic values of parameters one can construct 20 or more parallel rings.

III.3.3 Torus geometry

To realize a torus geometry of coupled rings, we create two copies of cylinders nested into each other. Only at the rings located at the edges, inner and outer cylinder are coupled (by laser-assisted tunneling), closing the geometry to a torus [see Fig. 1 and 11]. To suppress the hopping between the cylinders at other positions, the cylinders are implemented as state-dependent potentials for ultracold atom gas populating two hyperfine ground states $g_{1}$ and $g_{2}$ Gerbier2010 ; Yi2008 ; Belmechri2013 . The potential felt by each atomic state contains just a single cylinder. Any hopping of atoms between the two cylinders involves a change of atomic configuration which prohibits the occurrence of (bare) tunneling processes. By a specially constructed laser-assisted hopping Raman scheme Aidelsburger2013 ; Ketterle2013 , inner and outer cylinder can be coupled. Crucially, the state dependent potentials allows us to keep the spatial separation of the cylinders $\sim\lambda$, which is necessary for a non-negligible hopping amplitude between the two rings (see Eq. (15)).

In more detail, the laser-assisted tunneling scheme coupling only rings at the edge is constructed as follows. Since each cylinder is populated by a different atomic state, the tilts of the local energies due to external magnetic field gradient can be chosen differently [see two gradients of energies for silver and red states in Fig. 11(b)]. Two rings indexed as $j$ and $N-j+1$ have the same position $y_{j}=y_{N-j+1}$ in $y$-direction and are concentric. The difference of local energies of the outer and inner ring $\Delta_{j}=E_{N-j+1}-E_{j}$ depends nontrivially on the position $y_{j}=y_{N-j+1}$. When engineering a Raman process, it is therefore possible to adjust the relative detuning of the Raman lasers $\delta\omega$ to be resonant only with a single $\Delta_{j}$ and off-resonant for all others [see Fig. 11(b)]. This allows to couple inner and ring only at the edges of the cylinder, i.e. at positions $y_{j=1}=y_{j=N}$ and $y_{j=N/2}=y_{j=N/2+1}$, respectively. In this way, the two cylinders are closed into a torus geometry. For further details, we refer to Appendix B.

IV Conclusions

In this work we have proposed and studied the realization of a semi-continuous Harper-Hofstadter model with cold atoms in optical lattices. This model is defined in the semi-continuous position space of an array of wires. It hence naturally combines key physical aspects of recently observed lattice systems, such as the Harper-Hofstadter (HH) model Jaksch2003 ; Aidelsburger2013 and the two leg ladder Atala2014 , with continuum systems such as Landau levels and rotating condensates Cooper2001 , respectively.

In the continuous lowest Landau level, both the energy dispersion and the Berry curvature are exactly flat, and the energy gap to the next higher Landau level is determined by the magnetic cyclotron frequency $\omega_{c}=eB/m$, i.e. proportional to the magnetic field $B$. Here instead, in Hamiltonian (3), there are two independent knobs for tuning (i) the magnetic length by varying the synthetic flux $\phi=2\pi/l_{B}$ , and (ii) tuning the gap along with the flatness by varying the hopping strength $J$. Both these knobs are readily accessible experimentally in present experiments with ultracold atomic gases, thus allowing to realize various parameter regimes.

This situation is also strikingly different from the HH on a lattice, where the flatness of the lowest (Chern) band is determined by the magnetic flux per plaquette rather than by the hopping strength, and flat bands resembling the lowest Landau level are achieved in the limit of large magnetic length. To overcome this issue, Ref. KapitMueller proposed an extension of the HH model with flat bands at the expense of longer range hopping, and subsequently quite some effort has been devoted to identifying various mechanisms that generate approximately flat Chern bands Bergholtz2013 ; NathanReview . In this context, the semi-continuous HH model provides a particularly easy route towards flat Chern bands with ultracold atomic gases, where the flatness is simply tuned by the nearest neighbor hopping $J$.

As an illustration of how FQH states can be stabilized in the coupled wire setting, we have shown with both analytical arguments and a numerical analysis the emergence of a Laughlin phase in a system for experimentally realistic parameters. In the limit of a small $J$ acting as a perturbative coupling between strongly correlated wires (Luttinger liquids), it is well known from renormalization group arguments how various more complex FQH states can be appear in coupled wires TeoKane2014 . In the present atomic setting with flat Chern bands in the limit of large $J$, we identify the search for specific longer range interactions stabilizing non-Abelian FQH states in arrays of coupled wires, and their experimental realization with the cold atom toolbox as an interesting subject of future research.

We note that synthetic dimensions, where an internal degree of freedom of the atom Celi2014 or harmonic oscillator states of a confining potential Goldman2016 are interpreted as the discrete dimension, may provide an alternative route towards experimentally realizing coupled wires. Regarding quantum Hall physics, a first study in this context SaitoPreprint indicates that no FQH states are stabilized there due to the strongly anisotropic nature of the two-body interactions. A possible way around this issue is provided by the approach of using the angular variable of a photonic ring cavity Ozawa2017 as a synthetic dimension, which results in spatially local interactions.

For the double-wire – the minimal setting hosting a synthetic magnetic flux – we have proposed the realization of a pair of atomic nanowires with sub-wavelength separation, which significantly increases the relevant energy scales over existing OL realizations. At effective temperatures already realized in state of the art cold atom experiments, we argue that this crucial enhancement enables the visibility of intriguing quantum phenomena in Fermi gases such as Lifshitz transitions. Generalizing these techniques to the case on more than two wires would open up entirely new possibilities for the experimental observation of strongly correlated phenomena.

The use of Laguerre-Gauss beams allows us to create non-planar coupled wire systems in cylinder- disk- and torus-geometries. A counterpart of this construction for the HH lattice model has recently been presented in Ref. Zoller2016a . We conclude by stressing another key advantage of the present semi-continuous HH model as compared to its lattice counterpart, in the context of such non-planar geometries. In the lattice version, we proposed to use tightly focused beams (see Ref. Zoller2016a and references cited there) in order to achieve lattice constants in the circumferential direction on the order of optical wavelengths. This was important to achieve energy scales – in particular band gaps – that are on the order of those found in conventional OLs. Here, as such band gaps are simply tuned by the hopping $J$ in the discrete axial direction (see Fig. 1 (b)), where the lattice spacing is anyway (at most) the one of a conventional OL, there is no need for the additional experimental effort of tight focusing.

Acknowledgments

We thank E. Bergholtz, J. Dalibard, N. Goldman, and H. Pichler for discussions and feedback on the manuscript. Work at Innsbruck is supported by the European Research Council (ERC) Synergy Grant UQUAM, the Austrian Science Fund through SFB FOQUS (FWF Project No. F4016-N23), and EU FET Proactive Initiative SIQS. A.S. acknowledges funding by the European Research Council (ERC) grant WASCOSYS (No. 636201).

Appendix A Band flatness and Berry curvature of the Hamiltonian (1)

In this appendix we provide further details on the flatness ratio and Berry curvature of the band structure, and the localization properties of the edge modes associated with the Hamiltonian (1). The characteristic energy scales are the coupling $J$ and the magnetic recoil energy $E_{R}^{M}=\hbar^{2}\phi^{2}/2m$.

The flatness of the bands (as described in Sec. III.3.1) is described by the ratio $F\equiv BG/BW$ of the bandwidth $BW$ of the lowest Bloch band to the band gap $BG$ between the lowest and the first excited band. In the limit $J/E_{R}^{M}\gg 1$ we obtain by analogy to the standard optical lattice Bloch2008 approximate expressions for the band gap

[TABLE]

and bandwidth

[TABLE]

Hence, in this limit $J/E_{R}^{M}\gg 1$, the flatness ratio $F$ is exponentially large. For intermediate values $J/E_{R}^{M}=\mathcal{O}(1)$, $F$ can be calculated numerically, as shown in Fig. 12(a) (note the logarithmic scale). Even for $J/E_{R}^{M}=1$ the flatness radio $F\sim 300$ is already very large. Further, together with increasing flatness of the lowest band, also its Berry curvature $\mathcal{F}_{k}^{\alpha}=i\text{Tr}\left\{P_{k}^{\alpha}\left[(\partial_{k_{x}}P_{k}^{\alpha}),(\partial_{k_{y}}P_{k}^{\alpha})\right]\right\}$ (see also Eq. (4)) shows increasing flatness, as indicated in Fig. 12(b).

The form of single particle wavefunctions is given by Eq. (5). The corresponding momentum sector of the Hamiltonian (3) is

[TABLE]

where $E_{j}=\hbar^{2}k_{j}^{2}/2m,k_{j}=k_{x}+\phi(j-j_{0})$. The $E_{j}$ form a parabolic energy barrier. In particular, edge modes correspond to the case of $j_{0}\approx 1$ or $j_{0}\approx N$. For large $J/E_{R}^{M}$ the above Hamiltonian is formally identical to the harmonic oscillator problem $H=\frac{d^{2}}{dy^{2}}+\alpha y^{2}$ on the positive real axis. Mapping it to the discrete case given by (23), for $J/E_{R}^{M}\gg 1$ the width of the edge mode wavefunction is $\langle(Y-Y_{\textrm{edge}})^{2}\rangle_{GS}/a^{2}\approx 3/2\sqrt{J/E_{R}^{M}}$. Thus the width of the edge mode is

[TABLE]

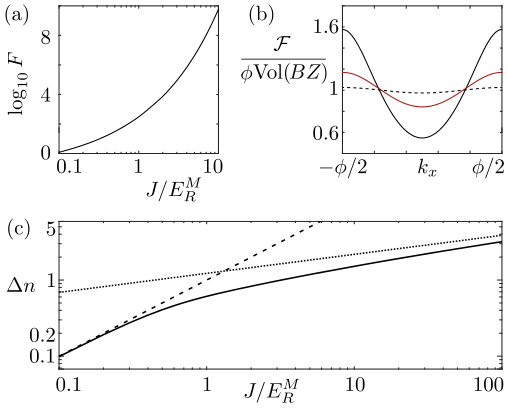

This scaling behaviour with $J/E_{R}^{M}$ is verified numerically in Fig. 12(c) and indicates that well localized edge modes occur when $J/E_{R}^{M}\lesssim{\cal O}(1)$.

In summary, for $J/E_{R}^{M}\approx 1$, the system described by Hamiltonian (1) features both (very) flat bands and well-localized edge modes. Keeping $J$ constant and decreasing $E_{R}^{M}$ has the effect of exponentially increasing the flatness ratio of the Bloch bands at the price of algebraic increase of the width of the edge modes given by Eq. (24). Another effect is the decrease of the gap between the topological bands of Hamiltonian (1) as indicated by Eq. (21), which however allows to utilize the flat band regime.

Appendix B Spin-dependent lattice for the torus geometry

Two coaxial, independent series of parallel rings coupled at their ends, create the torus geometry as described in Sec. III.3.3. In this Appendix we detail the possible implementation with state-dependent potentials.

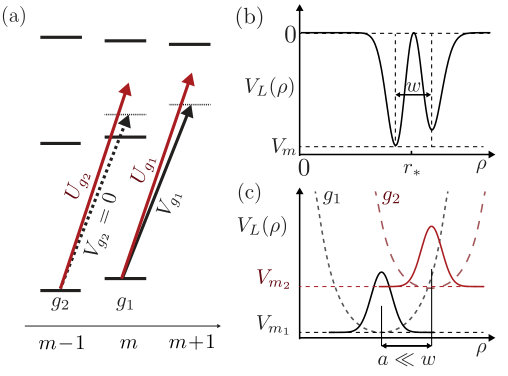

The radial cut through the optical potential created by the LG beams (for $p=0$), has just a single Gaussian potential well with width given by the waist $w\gg\lambda/2$ (see Sec. III.3.1). Although taking $p=1$ would create two ring-shaped potentials [see Fig. 13(b)], their large radial separation of order $\sim w$ would make Raman coupling of rings of each cylinder very small.

Instead we create each ring as a state-dependent potential for atom gas in two stable states $g_{1}$ and $g_{2}$ which are extremal atomic states of the hyperfine manifold (similar to Ref. Kuhr2011 ). Such a gas is then coupled to the manifold of excited states by a $\sigma_{+}$ polarized laser light in Laguerre-Gaussian mode $LG_{l,p}$ [see Fig. 13(a)

• coupling due to that laser are indicated black]. Its wavelength is chosen as a ’magic’ wavelength meaning the AC-Stark shift and the created optical potential for a $g_{2}$ state is zero $V_{g_{2}}(\mathbf{r})=0$, and nonzero for the state $g_{1}$: $V_{g_{1}}(\mathbf{r})$. Low heating rates for state-dependent potentials can be reached for atoms with large fine-structure splitting such as dysprosium and erbium DyEr . A second laser beam (with a different wavelength, in 13(a) marked red) also in a LG mode creates then optical potentials for both components: $U_{g_{1}}(\mathbf{r})$ and $U_{g_{2}}(\mathbf{r})$.

The potentials $V_{g_{i}}$ and $U_{g_{i}}(\mathbf{r}),i=1,2$ can be chosen to have different radii realizing the minimum of the potential in the radial direction. This allows to microadjust the radial separation of the minima of felt by each of the components $g_{1}$ and $g_{2}$ on distances $\ll w$ [see Fig. 13(c)]. As made clear in Appendices C and D this condition is sufficient and necessary to be able to reach Raman hopping amplitudes just as between two neighboring wires of the same cylinder (with a separation $a=\lambda/2$).

Appendix C Microscopic derivation of the ‘dark state’ Hamiltonian

In this Appendix, we present the derivation of the dark state Hamiltonian $H_{D}$ [Eq. (13)] and the time dependent potential $H_{RM}(t)$ [Eq. (14)] resulting from a far-detuned two-photon Raman transition to an auxiliary level. For a detailed analysis of the nanoscale dark state potentials, we refer to Ref. Zoller2016 (see also Ref. Gorshkov2016 ).

Assuming a very tight confinement in the $z$-direction, we consider a single atom moving in the $x$-$y$-plane. Whereas it moves freely in $x$-direction, we introduce a harmonic confinement potential in $y$-direction, e.g. as a potential well of a standard 1D optical lattice with depth $V_{y}$ and effective trapping frequency $\omega_{T}\approx\sqrt{4V_{y}E_{R}}$ in harmonic approximation. We obtain

[TABLE]

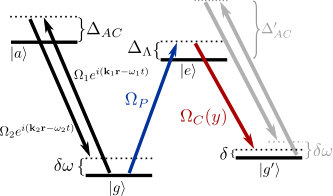

Internally, we consider an atomic $\Lambda$-type configuration where two long lived ground states $\ket{g}$ and $\ket{g^{\prime}}$ are coupled to an excited state $\ket{e}$ via a weak probe laser with Rabi frequency $\Omega_{P}$ (constant in the $x$-$y$-plane) and a strong control laser, a standing wave with Rabi frequency $\Omega_{C}(y)=\Omega_{C}\sin(k(y-y_{0}))$ (see Fig. 14). Further, we couple the ground state $\ket{g}$ to an auxiliary level $\ket{a}$ via two moving waves with Rabi frequencies $\Omega_{1}\exp(i(\mathbf{k_{1}}\cdot\mathbf{r}-\omega_{1}t))$ and $\Omega_{2}\exp(i(\mathbf{k_{2}}\cdot\mathbf{r}-\omega_{2}t))$ incident in the $x$-$y$-plane. Choosing a large detuning $|\Delta_{AC}|\gg|\Omega_{1,2}|$, we inevitably introduce a similar off-resonant coupling of $\ket{g^{\prime}}$ and $\ket{e}$ with possibly slightly different Rabi frequency amplitudes $\Omega^{\prime}_{1,2}$ and detuning $|\Delta^{\prime}_{AC}|\gg|\Omega^{\prime}_{1,2}|$. Adiabatic elimination of both transitions leads to AC-Stark shifts of the ground states $\ket{g}$ and $\ket{g^{\prime}}$ whose static part can be absorbed into an appropriate choice of the detunings $\delta=\Omega^{\prime}-\Omega$, $\tilde{\Delta}=\Delta_{\Lambda}+\Omega$. The resulting internal Hamiltonian of the $\Lambda$-system in a rotating frame is given by

[TABLE]

where $\Omega=\Omega_{1}\Omega_{2}/(2\Delta_{AC})$ (resp. $\Omega^{\prime}=\Omega^{\prime}_{1}\Omega^{\prime}_{2}/(2\Delta^{\prime}_{AC})$) denote the two-photon Rabi frequencies and $\delta\omega=\omega_{1}-\omega_{2}$ ($\delta\mathbf{k}=\mathbf{k}_{1}-\mathbf{k}_{2}$) the two-photon detuning. For $\Omega=\Omega^{\prime}=0$, the $\Lambda$-system possesses a position dependent dark state $\ket{E_{0}(y)}=\sin\alpha(y)\ket{g}-\cos\alpha(y)\ket{g^{\prime}}$ where $\tan\alpha(y)=\Omega_{C}(y)/\Omega_{P}$. For simplicity, we consider in the following the resonant case $\tilde{\Delta}=0$. Then, for $\Omega_{C},\Omega_{P}\gg\Omega,\Omega^{\prime}$ the dark state decouples and we find after projection with $\mathcal{P}(y)=\ket{D(y)}\bra{D(y)}$

[TABLE]

Due to the position dependence of the dark state, the projection of the kinetic part contained in $\mathcal{P}(y)H_{\textrm{ext}}(x,y)\mathcal{P}(y)$ is non-trivial. Assuming small kinetic energy, $E_{R}/\epsilon^{2},\hbar\omega_{T}\ll\Omega_{P},\Omega_{C}$, additionally introduced couplings to the bright states can be neglected Zoller2016 . However, the dark state is still subject to an additional conservative potential, the first non-adiabatic correction Zoller2016

[TABLE]

This potential represents the nanoscale barrier appearing where $\Omega_{C}(y)\approx 0$, whose height $E_{R}/\epsilon^{2}$ and width $\epsilon/k$ is determined by the ratio of amplitudes $\epsilon=\Omega_{P}/\Omega_{C}\ll 1$ of the Rabi frequencies constituting the $\Lambda$-system. Physically, the potential reflects the rapid change of the dark state identity populating the state $\ket{g^{\prime}}$ only inside the nanoscale region of width $\epsilon/k$. Since the second term $\sim\cos^{2}\alpha(y)=|\braket{g^{\prime}}{D(y)}|^{2}$ in equation (27) results from the additional Raman coupling of $\ket{g^{\prime}}$ to $\ket{e}$, it accordingly contributes to any relevant hopping matrix element $B_{nn^{\prime}}$ (equation (38)) only to order $\mathcal{O}(\epsilon^{2})$. We neglect it to arrive at the full dark state Hamiltonian $H(t)=H_{D}+H_{RM}(t)$ [equations (13) and (14)].

Appendix D Floquet analysis of two coupled wires

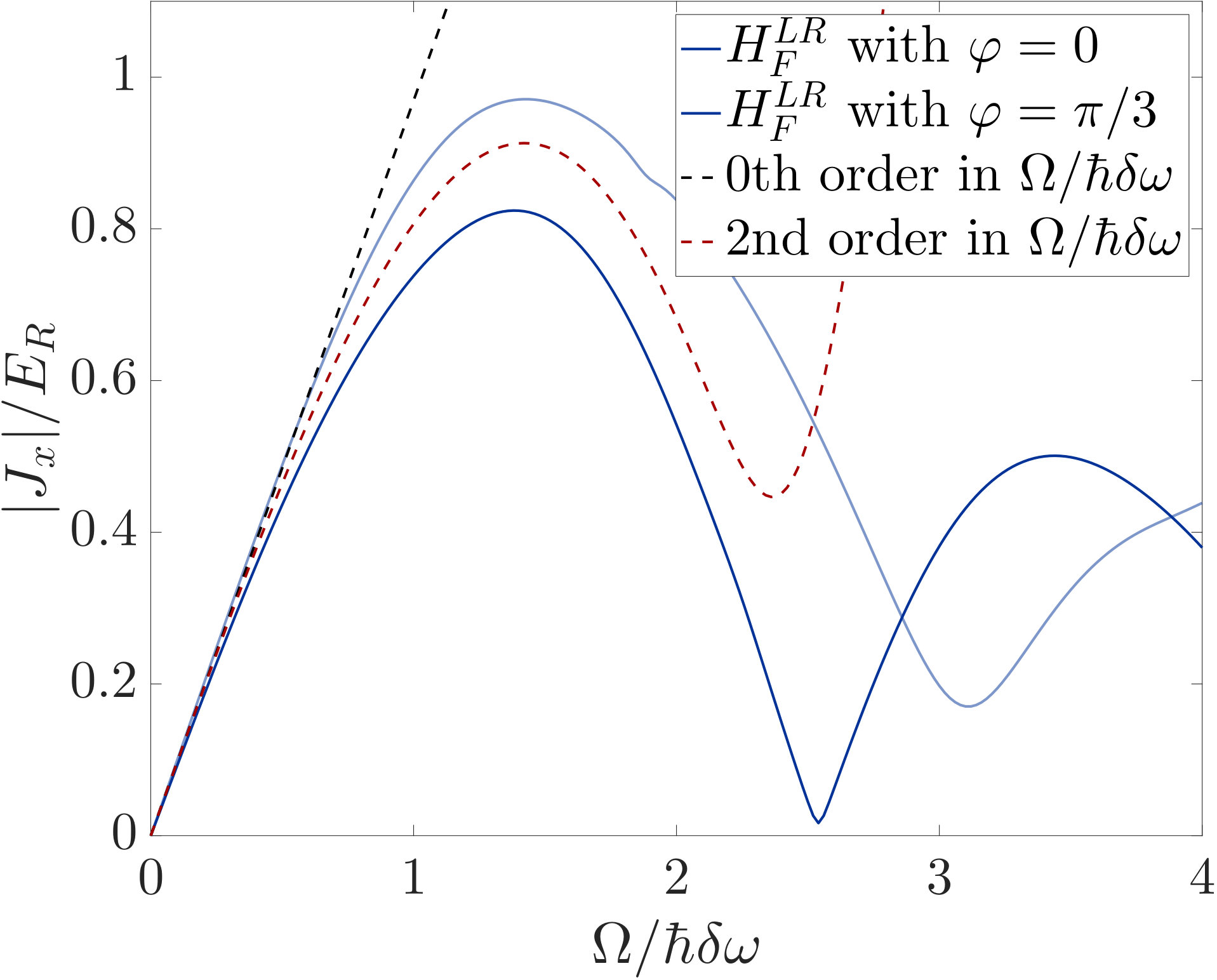

In this Appendix, we describe the numerical and perturbative calculation of the Raman assisted tunneling amplitude in the nanoscale double wire introduced in Sec. III.2. The full Hamiltonian of this system $H(t)=H_{D}+H_{RM}(t)$ [equations (13) and (14)] is fundamentally characterized by its discrete time translation symmetry $H(t)=H(t+T)$ with period $T=2\pi/\delta\omega$ and frequency $\delta\omega$. It describes a periodically driven system for which Floquet’s theorem yields a representation of its time evolution operator

[TABLE]

Here, $P(t)=P(t+T)$ is a unitary, periodic operator with $P(t_{0})=\mathbbm{1}$ and $H_{F}[t_{0}]$ the so called Floquet Hamiltonian. $P(t)$ describes the micromotion within a single period whereas $H_{F}[t_{0}]$ describes the effective dynamics after full periods of the driving (starting at $t_{0}$), the macromotion, in which we are mainly interested in Eckardt2016 .

Truncating the Fourier expansion of its eigenstates $H_{F}[t_{0}]$ can be computed numerically. Concretely, we use an expansion up to frequencies of $\pm 25\delta\omega$ and truncate the Hilbert space of the unperturbed Hamiltonian to the $n=15$ lowest eigenstates to calculate the effective time-averaged coupling $J\equiv H_{F}^{LR}$ of left and right wire. The result is displayed in Fig. 15 (solid blue line) and shows clearly the higher order effects bounding the coupling for large driving amplitude after a linear rise in the perturbative regime (see also main text). The driving frequency $\delta\omega$ is thereby adjusted self-consistently, such that it compensates the energy mismatch $\Delta$ between the bare states $\ket{L}$ and $\ket{R}$ and static AC Stark shifts, which are caused by the periodic driving and hence depends on $\Omega$ and $\delta\omega$, at the maximum of $J$.

So far, we considered a driving of the system starting at definite time $t_{0}=0$ with vanishing phase at the origin (see equation (14)). However, the effect of a periodic driving and therefore $H_{F}[t_{0}]$ typically depend on its phase at initial time Goldman2014 ; Goldman2015 . To quantify how these effect alter the maximal achievable coupling we include a phase $\varphi_{0}$ to the Hamiltonian, i.e. replace equation (14) with

[TABLE]

As shown in figure 15, the coupling, i.e. the Floquet Hamiltonian $H_{F}$, depends strongly on the initial phase in the strong driving regime. However, the maximal achievable coupling varies only in the range of a few percent. To quantify this and distill the time averaged dynamics resulting purely from the periodicity of the driving, we follow an approach developed in Refs. Goldman2014 ; Goldman2015 ; Eckardt2015 ; Eckardt2016 .

Via a unitary transformation, the phase dependence of $H_{F}$ can be absorbed into so called kick operators $K(t)$ yielding the representation of the time evolution operator

[TABLE]

where the effective Hamiltonian $H_{\text{eff}}$ is by definition constant in time and independent of the phase of the driving at initial time. It captures only time averaged effects due to the periodicity of the driving. In contrast, the periodic kick operators $K(t)=K(t+T)$ describe the micromotion within one period. For small driving $\Omega\lesssim\hbar\delta\omega$, a perturbative expansion in powers of $(\Omega/\hbar\delta\omega)$ is applicable to compute $H_{\text{eff}}$ and $K$. Using the Fourier decomposition

[TABLE]

with $H_{0}=\langle H(t)\rangle_{T=1/\delta\omega}$ one finds for the effective Hamiltonian Goldman2014 ; Eckardt2015 :

[TABLE]

The kick operator is given by

[TABLE]

which is first order in $1/\delta\omega$. Hence, initial time or phase dependent effects enter only for strong driving, as shown in figure 15. To calculate $H_{\text{eff}}$ we move into a rotating frame defined by

[TABLE]

For our concrete setup, only the first $V^{(j=\pm 1)}$ and second $V^{(j=\pm 2)}$ harmonics of the potential are non-vanishing. We find the effective Hamilton $H_{\textrm{eff}}$ to second order in $\Omega/\hbar\delta\omega$ in the basis spanned by wave functions in left and right wire $(\Psi_{L}(x),\Psi_{R}(x))$ to be

[TABLE]

where $\sigma_{L}\equiv 1$ and $\sigma_{R}\equiv-1$. With the hopping matrix elements $B_{nn^{\prime}}$

[TABLE]

we have obtained a constant second order gauge potential

[TABLE]

AC stark shifts of the individual levels

[TABLE]

and the Raman induced couplings

[TABLE]

The absolute value of the coupling $J=H_{\textrm{eff}}^{01}=e^{-i\delta k_{x}x}\left[\kappa^{(0)}+\frac{\Omega^{2}}{(\hbar\delta\omega)^{2}}\kappa^{(2)}\right]$ is shown to zeroth and second order in $\Omega/\hbar\delta\omega$ in Fig. 15. The bounding effect of the higher order processes which involve on-site and multiple intersite hopping processes is clearly visible. The driving frequency has been chosen to obtain resonant tunneling at the maximal amplitude, i.e. such the Stark shifts $\epsilon_{1}$ and $\epsilon_{2}$ are canceled when $\Omega$ is chosen to maximize $J$. Note that the initial phase $\varphi_{0}$ does not enter the effective Hamiltonian $H_{\text{eff}}$. In contrast, the kick operator depends explicitly on $\varphi_{0}$ and is given by

[TABLE]

It leads to phase dependent effects of order $\Omega/\hbar\delta\omega$. To conclude, we compare our result (37) to an approach presented in Ref. Ketterle2013 . Here, a non-perturbative resummation of on-site hopping processes mediated by the matrix elements $B_{nn}$ was performed via a transformation to another rotating frame. Time-averaging in this frame yields the well-known Bessel function renormalization of the coupling, keeps however only terms linear in $B_{LR}$. In our case, all matrix elements $B_{nn^{\prime}}$ are of order unity. Hence, a selective resummation of on-site processes does not improve the agreement to the non-perturbative numerical analysis. On the contrary, the inclusion of the last term in (41), neglected in Ref. Ketterle2013 , leads in our case to a better agreement of the second order perturbation theory than the partially resummed result of Ref. Ketterle2013 .
