Femtosecond Self-Reconfiguration of Laser-Induced Plasma Patterns in Dielectrics

TL;DR

This paper presents a numerical model demonstrating that femtosecond laser pulses can cause ultrafast, self-reconfiguring plasma patterns in dielectrics, explaining nanograting formation and orientation changes.

Contribution

It introduces a self-consistent dynamic approach to model plasma-light interactions, revealing how plasma patterns reconfigure rapidly and grow into the material bulk, aligning with experimental observations.

Findings

Plasma patterns reconfigure within a field-cycle time scale.

Pattern orientation depends on laser energy density threshold.

Self-organization leads to volume nanogratings with half-wavelength periodicity.

Abstract

Laser-induced modification of transparent solids by intense femtosecond laser pulses allows fast integration of nanophotonic and nanofluidic devices with controlled optical properties. So far, the local and dynamic nature of the interactions between plasma and light needed to correctly explain nanograting fabrication on dielectric surfaces has been missing in the theoretical models. With our numerical approach, we show that a self-consistent dynamic treatment of the plasma formation and its interaction with light triggers an ultrafast reconfiguration of the periodic plasma patterns on a field-cycle time scale. Within this framework, a simple stability analysis of the local interactions explains how the laser-induced plasma patterns change their orientation with respect to the incident light polarization, when a certain energy density threshold is reached. Moreover, the reconfigured sub-wavelength plasma structures grow into the bulk of the sample and agree with the experimental findings of self-organized volume nanogratings. Mode coupling of the incident and transversally scattered light with the periodic plasma structures is sufficient to initiate the growth and the self-organization of the characteristic pattern with a periodicity of a half-wavelength in the medium.

Figures

Equations

$$\nabla \times \vec{E}=-{\mu }_0\frac{\partial \vec{H}}{\partial t},$$

$$\nabla \times \vec{H}={ϵ}_0\frac{\partial \vec{E}}{\partial t}+\vec{J},$$

$${\vec{J}}_b={ϵ}_0\frac{\partial }{\partial t}\left({\chi }^{(1)}\vec{E}+{\chi }^{(3)}|\vec{E}{|}^2\vec{E}\right)$$

$$\frac{\partial {\vec{J}}_f}{\partial t}=-\gamma {\vec{J}}_f+{ϵ}_0{\omega }_p^2\vec{E}$$

$${\vec{J}}_f^{m+1}=\frac{g_1}{g_2}{\vec{J}}_f^m+\frac{{ϵ}_0{\omega }_p^2{\delta }_t}{g_2}{\vec{E}}^m,$$

$${\vec{J}}_K=\frac{{\mathcal{E}}_g{\nu }_K({\rho }_{\mathrm{mol}}-\rho )}{|\vec{E}{|}^2}\vec{E}.$$

$$\frac{\partial \bar{\rho }}{\partial t}=\left({\nu }_K+{\nu }_C\right)(1-\bar{\rho }),$$

$$\vec{E}(t){|}_{\mathrm{source}}=E_0{e}^{-(t/\tau {)}^2}\sin (\omega t){\hat{e}}_x,$$

$$F={\int }_{-\infty }^{\infty }I(t)\mathrm{d}t=\sqrt{\frac{\pi }{2}}\frac{c{ϵ}_0\tau }{2}{E}_0^2,$$

Full text

I Introduction

Laser micro-machining of transparent material by femtosecond pulses promises fast integration of 2D and 3D nanophotonic and nanofluidic devices with tailored properties Tan et al. (2016); Gattass and Mazur (2008); Taylor et al. (2008); Qiu et al. (2008). Exposition of solid materials to intense laser radiation typically gives rise to complex light-matter interaction processes like high harmonic generation Vampa et al. (2015), ionization avalanche breakdown Stuart et al. (1995), and ultrafast plasma dynamics Varin et al. (2012). Such nonlinear light-matter interaction processes are often associated with instabilities that lead to the formation of periodic surface and bulk patterns Bhardwaj et al. (2006); Bonse et al. (2017). Thus far, static surface mode analysis has successfully explained the origin and characteristics of periodic patterns formed on laser-processed metals and semi-conductors Bonse et al. (2017, 2012). However, better understanding of femtosecond laser-plasma interaction dynamics is necessary to explain nanograting formation in dielectrics, where predictions from current theoretical models are inconsistent with respect to experimental observations on several important aspects.

Extensive experimental and theoretical studies have examined a number of laser-induced nanostructures that arise from the interaction between intense femtosecond laser pulses and materials. In particular, laser-induced periodic surface structures (LIPSS) have been studied with a model proposed by Sipe Sipe et al. (1983) and explained as the result of interference patterns between the incident light and static surface modes triggered by surface inhomogeneities. A large number of experimentally observed LIPSS on lossy materials are correctly described within this framework Bonse et al. (2012). However, it lacks proper account of the plasma dynamics that characterizes the interaction of intense femtosecond pulses with dielectrics. To account for the plasma formation, an extended Sipe theory has been explored Bonse et al. (2009); Höhm et al. (2012), but in these studies the plasma is assumed to be static and homogeneous, whereas during the ionization of transparent materials the carrier density changes rapidly in time and can exhibit significant spatial variations. For a rigorous analysis, transient optical properties, referred to as intrapulse feedback, have to be taken into account to allow for self-interaction and therefore, self-organization of plasma patterns while the plasma is being formed.

Light-matter interaction feedback can also occur between subsequent laser pulses, referred to as interpulse feedback Skolski et al. (2014). The target can be structurally modified by each laser pulse by mechanisms like ion removal, chemical bonding reconfiguration, melting, hydrodynamic flow, crystallization, amorphization, and so on Gamaly et al. (2002); Costache et al. (2004). The next laser pulses then interact with these permanent modifications and interfere constructively or destructively with them Déziel et al. (2016). Interpulse mechanisms result from the inhomogeneous energy distribution after irradiation, itself determined by intrapulse dynamics. Therefore, laser-plasma interplay on the single-pulse scale has to be fully understood first, before attempting a complete description of nanostructures fabricated with multiple laser pulses.

In the accepted interpretation, single-pulse energy deposition in metals or ionized materials occurs in two steps, where energy is first transferred to free or nearly-free electrons and then from the free electrons to the lattice (see, e.g., Gamaly and Rode (2013); Tan et al. (2016)). Accurate knowledge of the plasma distribution and dynamics is therefore important to understand the entire light-matter process. This is particularly true in dielectrics, where the electron density changes in time and is spatially inhomogeneous due to the local nature of the underlying ionization processes.

Studies that accounted for the time and space dependence of the plasma density reported self-organization of plasma patterns in the bulk of dielectric materials Bhardwaj et al. (2006); Bulgakova et al. (2013). However, computer simulations with the proposed theoretical nanoplasmonic model predict plasma growth in the direction opposite to the laser propagation, with periodic width oscillations along the same axis Buschlinger et al. (2014); Rudenko et al. (2016). In contrast, experiments show that structures grow towards the laser propagation direction with a constant width Taylor et al. (2008).

In this work, we present a self-consistent dynamic treatment of the interaction of a femtosecond laser pulse with a dielectric medium. The spatio-temporal dependence of the light-induced near-surface plasma density build-up and patterning was studied within a three-dimensional electromagnetic framework. An important result of this research is the observation of an ultrafast reconfiguration of the plasma distribution, when the conditions for self-organization are met. Moreover, through an extended analysis, we obtain a bulk growth of the plasma patterns in the same direction as the laser propagation with constant width, in agreement with experimental observations of volume nanogratings Taylor et al. (2008). This correct plasma growth is observed when intrapulse self-organization is dominated by transverse scattering against transient plasma structures. In comparison, in the current nanoplasmonic model, longitudinal scattering is dominant, which seems to lead to incorrect predictions. Our work confirms that a three-dimensional dynamical treatment of the plasma density is crucial to extend the LIPSS theory to transparent medium.

The paper is divided as follows. First in Sec. II, we present the details of the numerical model and provide specific simulation parameters. Then in Sec. III, we show how early-interaction plasma patterns aligned along the laser pulse electric field reorient themselves within only a few femtoseconds, when a certain fluence threshold is reached. In Sec. III.1, we discuss the robustness of the self-reorganisation phenomena with respect to various parameters and the simple ionization model introduced in Sec. II. We further discuss in Sec. III.2 the origin of the reorganized plasma patterns and show how they grow in the bulk. In Sec. III.3, we present a spectral analysis and identify four distinct categories of patterns, some of which can be explained with Sipe theory, whereas others are characteristic of the electromadynamic model we present. Finally, conclusions are given in Sec. IV.

II Numerical model

II.1 Electromagnetic fields and currents

For this work, we build a phenomenological model of the interaction of an intense femtosecond laser pulse with a dielectric material. We used the finite-difference time-domain (FDTD) method Taflove and Hagness (2005) to solve Maxwell equations

[TABLE]

$\vec{E}$, $\vec{H}$ and $\vec{J}$ are respectively the electric field, the magnetic field and the total electric current density. Self-consistent material effects were included via three contributing currents. (i) A current density from bound electrons

[TABLE]

accounts for first and third order susceptibilities (see Varin et al. (2015, 2018) for details). (ii) The free-carrier current density

[TABLE]

accounts for the plasma optical response with $\omega_{p}^{2}=q^{2}\rho/(\epsilon_{0}m_{e}^{*})$, where $m_{e}^{*}$ is the effective mass of the electron and $\rho$ is the time and space dependent plasma density. The time integration of $\vec{J}_{f}$ is explicitly implemented in our finite difference calculation with

[TABLE]

where $m$ is the time step index, $g_{1}=(1-\gamma\delta_{t}/2)$, $g_{2}=(1+\gamma\delta_{t}/2)$ and $\delta_{t}$ is the temporal discretization parameter. (iii) The third current accounts for field energy losses due to field ionization, calculated with

[TABLE]

Where $\mathcal{E}_{g}$ is the bandgap of the transparent material, $\nu_{K}$ is the field ionization rate and $\rho_{\mathrm{mol}}$ is the molecular density. The total current density is then calculated with $\vec{J}=\vec{J}_{b}+\vec{J}_{f}+\vec{J}_{K}$.

II.2 Ionization mechanisms

Hereafter, we use a dimensionless plasma density by normalizing with respect to the molecular density $\bar{\rho}=\rho/\rho_{\mathrm{mol}}$. Considering only the first ionization state, the plasma formation is calculated with

[TABLE]

where the factor $(1-\bar{\rho})$ ensures that saturation is reached when all molecules are ionized. The field ionization rate $\nu_{K}$ accounts for multiphoton and tunnel ionization mechanisms and is calculated with the Keldysh model adapted for transparent material Keldysh (1965). In our simulations, the Keldysh parameter $\gamma_{K}=\omega\sqrt{m^{*}\mathcal{E}_{g}}/(q|\vec{E}|)$ extends from values much larger than 1 and $\gamma_{K}\sim 0.4$, which respectively belong within the multiphoton and the tunnel ionization regimes. This means that both field ionization mechanisms are relevant and must be accounted for.

A simple approach to calculate the collisional ionization rate $\nu_{C}$, the Single Rate Equation (SRE) Stuart et al. (1995), considers that every free electron can contribute to $\nu_{C}$ proportionally with the local light intensity $I(t)=c\epsilon_{0}n|\vec{E}(t)|^{2}$, thus, $\nu_{C}=\alpha\bar{\rho}I(t)/2$ with the collisional cross-section $\alpha$ 111The factor $1/2$ is added in the definition of $\nu_{C}$ for consistency with Stuart et al. (1995) in which the intensity is period averaged, therefore, half the instantaneous intensity we use.. A more accurate model, the Multiple Rate Equations (MRE) Rethfeld (2004), accounts for the transient energy distribution of the electrons in the conduction band (CB) and the impact rate between the most energetic free electrons and neutral molecules that leads to collisional ionization. The main difference when using MRE over SRE is the inhibition of collisional ionization for very short pulse durations, for which free electrons do not have the time to build up enough energy. Practically, this results in an implicit dependency between the collisional cross-section $\alpha$ and the pulse duration $\tau$. Because we do not study multiple pulse durations, the use of MRE is not required here. We stress that values of $\alpha$ used in the literature vary considerably. This particular aspect is assessed in Sec. III.1.

II.3 Material, geometry and laser source

In our simulations, material parameters are chosen to reproduce the optical properties of fused silica; first and third order susceptibilities $\chi^{(1)}=1.1025$ (refractive index $n=1.45$), $\chi^{(3)}=2\cdot 10^{-18}$ cm${}^{2}/$V2, plasma damping $\gamma=10^{15}$ s*-1*, effective mass of the electron $m_{e}^{*}=0.8m_{e}$, molecular density $\rho_{\mathrm{mol}}=2.2\cdot 10^{22}$ cm*-3* and band-gap $\mathcal{E}_{g}=9$ eV Christensen and Balling (2009); Jia and Zhao (2017). For the collisional cross-section, we first use the highest value found in the literature, $\alpha=10$ cm2/J from Stuart et al. (1995), and then compare with the results obtained when using $\alpha=0$ cm2/J.

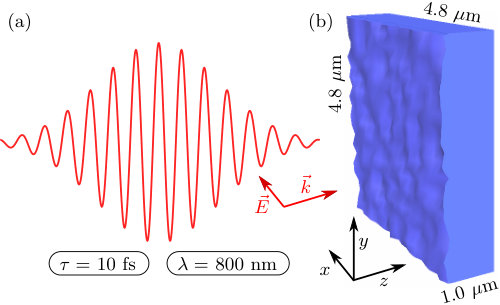

The geometry of the simulations is schematized in Fig. 1. The target is a square of side 4.8 $\mu$m with a thickness of 1 $\mu$m. The laser source, expressed as

[TABLE]

is a plane wave linearly polarized along the $x$-axis propagating along the $+z$-axis with a wavelength of $\lambda=2\pi c/\omega=800$ nm. Laser pulses have a gaussian time envelope of duration $\tau=10$ fs. The laser fluence, defined as

[TABLE]

is the energy per unit area. We ran simulations using fluence values from 0.7 to 5 J/cm2.

Spatial discretization parameters are $\delta_{x,y}=20$ nm and $\delta_{z}=2$ nm. Surface roughness is mimicked by randomly adding 0 to 20 nm of material over every discrete coordinate of the surface, for an average height of 10 nm. The temporal discretization $\delta_{t}=6.33\cdot 10^{-3}$ fs is chosen to be below the instability regime of the FDTD algorithm. The time domain extends from $t=-1.5\tau$ to $t=+1.5\tau$. To run the simulations, we used the open software EPOCH Arber et al. (2015), extended to include the Eqs. (3) to (7).

III Self-reconfiguration of plasma patterns

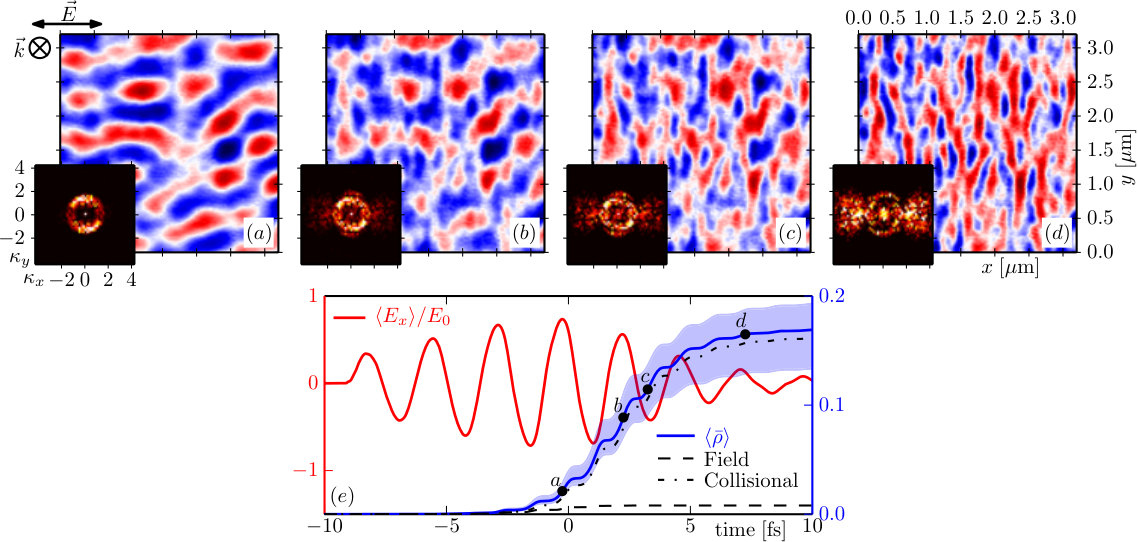

The most striking result obtained with the electrodynamic model presented in Sec. II is the observation of an ultrafast reconfiguration of the plasma pattern occurring during ionization (see Fig. 2). The plasma structures initially oriented parallel ($\parallel$) to the laser polarization and with a periodicity $\Lambda_{\parallel}\sim\lambda/n$ change to orthogonal ($\perp$) structures with $\Lambda_{\perp}\sim\lambda/2n$ within a few optical cycles, where $n$ is the refractive index. This transition occurs approximatively when the laser fluence is high enough for the plasma to reach critical density $\bar{\rho}_{c}=\epsilon_{0}m^{*}\omega^{2}/q^{2}\sim 6.3$% (corresponding to $\omega_{p}=\omega$), defining as such a fluence threshold $F_{\mathrm{th}}$. These two patterns are commonly observed in experiments with dielectrics and the theory has never been able to account for both in a single framework. Whereas LIPSS theory predicts the former pattern ($\Lambda_{\parallel}\sim\lambda/n$), the nanoplasmonic model predicts the latter ($\Lambda_{\perp}\sim\lambda/2n$).

In the early stage of the interaction [see Fig. 2(a)], the plasma density is too low for the transient optical properties to cause noticeable feedback and induce self-reorganisation. In this regime, Sipe’s static surface mode analysis Sipe et al. (1983) describes correctly the early plasma growth and emergence of periodic plasma patterns with $\Lambda_{\parallel}\sim\lambda/n$. These structures result from the interference between the incident light and the scattered radiation off the surface inhomogeneities. However, as the average carrier density increases and intrapulse feedback gets stronger, these characteristic patterns gradually disappear [see Fig. 2(b)-(d)], ultimately to leave the stage to patterns perpendicular to the laser polarization with $\Lambda_{\perp}\sim\lambda/2n$. This peculiar transition from one type of pattern to the other is a direct consequence of the intrapulse feedback allowed by our model. The origin and mechanisms behind this ultrafast reorganisation of the plasma is further discussed in section III.2.

III.1 Robustness

The results presented in this work are representative of a broad parameter space. With wavelengths between 400 and 1200 nm, pulse durations between 5 and 250 fs, plasma damping between 1014 and 1016 s*-1* and effective mass of the electron between 0.5$m_{e}$ and 1.0$m_{e}$, we find that self-reconfiguration consistently occurs for $F>F_{\mathrm{th}}$. These parameter variations can indeed shift the absolute value of $F_{\mathrm{th}}$, but this does not affect the occurrence of the events around the threshold, wherever it may be.

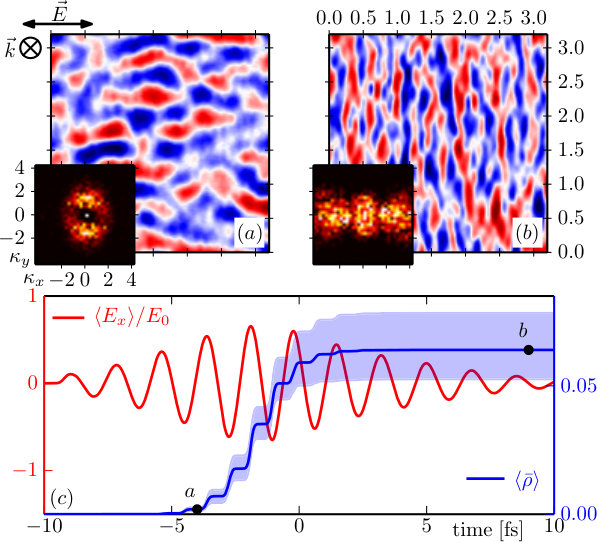

As shown in Fig. 2(e), most of the plasma is generated through collisional ionization, which might be questionable for such a short pulse duration $\tau$ Rethfeld (2006). However, we find that the nature of the dominant ionization mechanism does not affect significantly the self-reconfiguration process as the same phenomena occurs at $F>F_{\mathrm{th}}$ after setting $\alpha=0$ cm2/J. The same structures are indeed present in Fig. 3 where only field ionization was possible. The value $\alpha=10$ cm2/J is therefore used in the following sections.

As for field ionization, more advanced descriptions that account for sub-cycle effects Yudin and Ivanov (2001); Zhokhov and Zheltikov (2014) that are absent from the Keldysh formalism are under studies. However, the fact that the self-reconfiguration is consistently occurring, even when driven by vastly different ionization mechanisms (field or collisional ionization), suggests that it has a weak dependence upon the specific description of plasma formation. Moreover, the plasma structures obtained in our simulations agree with experimental observations and results from previous models (in their respective limits), which also suggests that sub-cycle ionization effects should not have a significant impact.

III.2 The role of reflections off the inhomogeneous plasma density

The electrostatic, nanoplasmonic model currently used to explain the formation of periodic patterns in the bulk relies on an initial distribution of nanovoids to initiate the growth of self-organized plasma patterns with $\Lambda_{\perp}\sim\lambda/2n$ Bhardwaj et al. (2006). Recent simulations Buschlinger et al. (2014); Rudenko et al. (2016) have shown that around these nanovoids spherical nanoplasmas initially grow, causing strong optical reflections and the formation of standing waves along the longitudinal direction. These standing waves are responsible for further plasma growth in the direction opposite to the laser propagation, in contradiction with experiments Taylor et al. (2008).

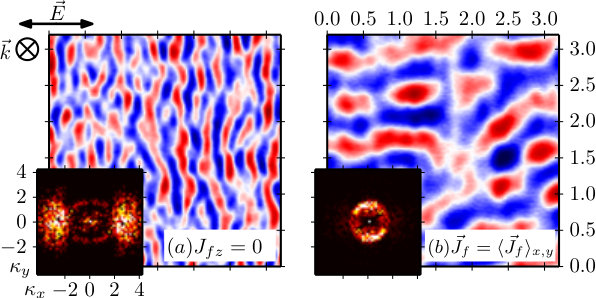

To test the role of longitudinal reflections in our simulations, we have excluded the $z$ component of $\vec{J}_{f}$ in the full simulation and obtained Fig. 4(a), where the self-organized and reconfigured plasma structures of Fig. 2(d) are still present. This means that self-organization can be achieved without the contribution from longitudinal reflections, previously thought to be necessary for the formation of bulk patterns Rudenko et al. (2016). In contrast, transverse reflections along both orthogonal directions $x$ and $y$ can also be turned off by averaging the free currents $\vec{J}_{f}(x,y,z)$ over the $(x,y)$ plane, at every time step of the simulation. The corresponding final plasma distribution is shown in Fig. 4(b). It is almost identical to Fig. 2(a), which indicates that without transverse reflections, pattern reconfiguration does not occur.

Reflections against local maxima in the plasma density scatter light in the transverse plane. This scattered light couples to the natural modes associated with the plasma density patterns. The interplay between this transversely scattered light, the plasma density, and the incident light may be additive (positive feedback) or subtractive (negative feedback), which leads to the growth or inhibition of periodic structures in both $x$ and $y$ directions. Therefore, the ultrafast pattern reorganization shown in Fig. 2 can be explained by a metallic waveguide approach, already believed to be linked to self-organized plasma patterns (see, e.g., Rajeev et al. (2007)).

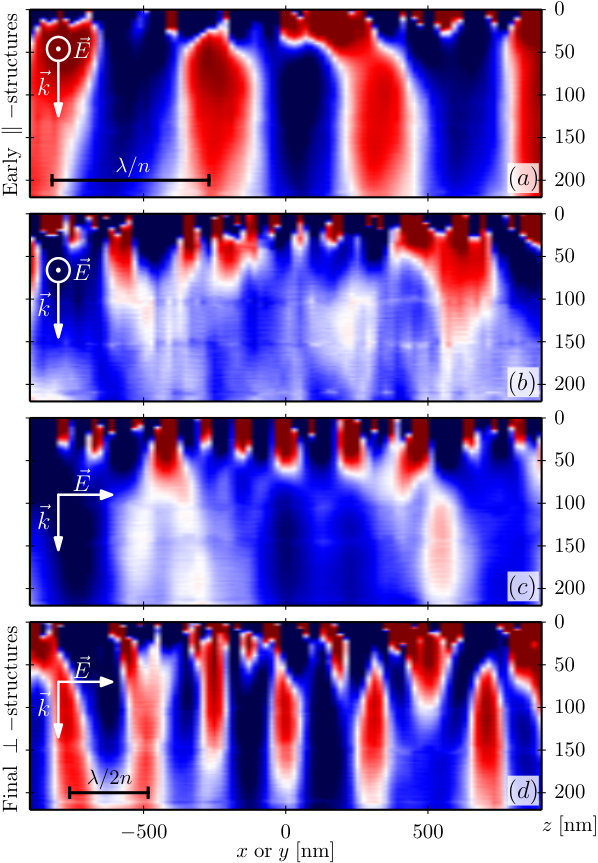

A consequence of the dynamic laser-plasma interplay just described is the self-inhibition, during ionization avalanche, of the early $\parallel$-structures shown in Figs. 2(a) and 5(a). We recall that this type of structures, whose origin is explained by Sipe Sipe et al. (1983), appears when the plasma density is low and intrapulse interaction feedback is negligible. However, our simulations show that these structures are dynamically suppressed when the plasma approaches critical density. Our interpretation is the following. (i) The local maxima of the early $\parallel$-structures effectively serve as waveguide boundaries within which the lowest-order transverse electric (TE1) resonant modes develop. (ii) The field distribution of these TE1 modes is maximum halfway between the walls, where ionization is locally enhanced. The early plasma density distribution then becomes anti-correlated with ionization, i.e., a negative feedback loop drives the distribution towards a nearly-flat equilibrium [see Figs. 2(b,c) and 5(b) where the $\parallel$-structures have essentially vanished].

In the orthogonal orientation, the plasma distribution is initially flat in the bulk, as shown in Fig. 5(c). However, this equilibrium becomes unstable when feedback starts to manifest. As soon as the symmetry of the incident plane wave breaks, some energy falls into the lowest-order non-uniform transverse magnetic (TM1) resonant mode. Since the TM1 mode has antinodes located at the maxima of the local plasma density, a positive feedback loop is thereby created, amplifying $\perp$-structures [see Fig. 5(d)].

In the present simulations, the symmetry is broken when light interacts with the surface roughness of the sample. In real bulk interactions, volume defects could also break the symmetry of the incident plane wave to deviate from the initial and unstable flat plasma distribution. However, volume defects can not be responsible for most of the initial plasma formation, as in the nanoplasmonic model, without causing the formation of a strong standing wave along the propagation axis.

In summary, the early plasma structures grow without feedback and with a pattern correctly described by the Sipe theory for transparent medium, that is $\Lambda_{\parallel}\sim\lambda/n$. When the plasma approaches the critical density, transverse reflections gain in importance and drive the formation of transverse resonant light modes. Negative feedback between $\parallel$-structures and a TE mode essentially cancels the early plasma patterns. At the same time, positive feedback between $\perp$-structures and a TM mode amplifies structural growth in a direction perpendicular to the original orientation [see, again, Fig 2(a)-(d)].

III.3 The characteristics of the plasma patterns

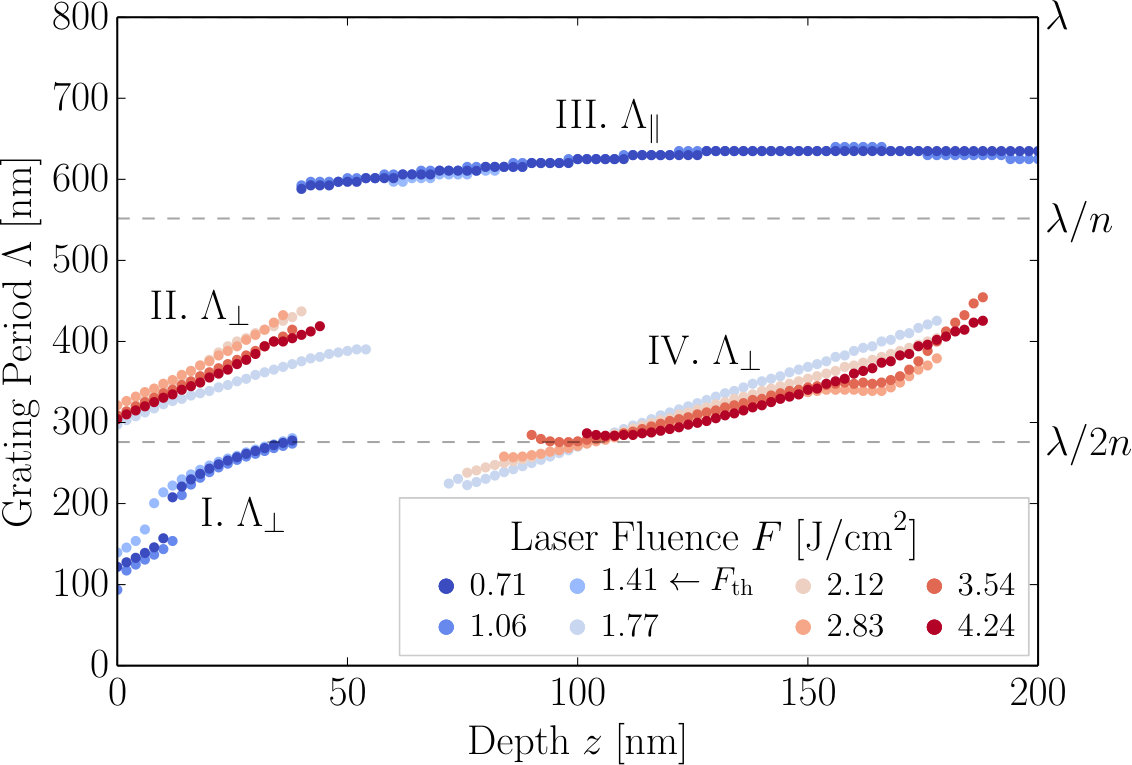

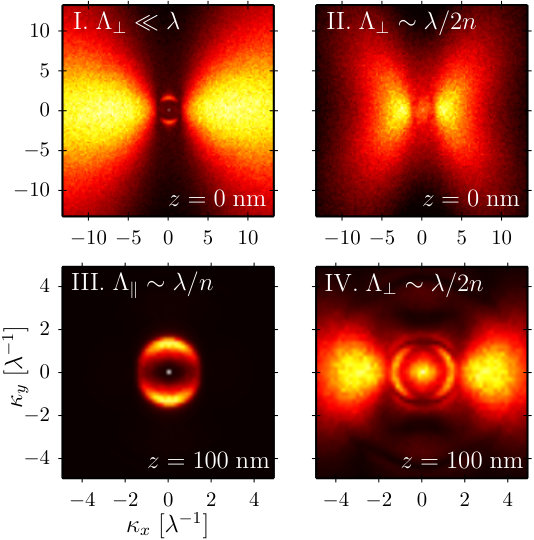

We investigated the dependence of the plasma patterns periods with respect to the laser fluence. To precisely measure $\Lambda_{\perp}$ and $\Lambda_{\parallel}$, we first reduce the noise in the Fourier transforms by averaging over 100 simulations, each with a reshuffled surface roughness, for several values of laser fluence. We then use the maximal values along the $\kappa_{x}$ and $\kappa_{y}$ axes to calculate the dominant periods $\Lambda_{\parallel}=\lambda/(\kappa_{y}|_{\mathrm{max}})$ or $\Lambda_{\perp}=\lambda/(\kappa_{x}|_{\mathrm{max}})$. The results are displayed in Fig. 6 in which four qualitatively distinct patterns are identified. Averaged Fourier transforms of each distinct structure are displayed in Fig. 7.

From our numerical analysis, it is clear that the nature of the final plasma patterns qualitatively changes around a fluence threshold $F_{\mathrm{th}}\sim 1.41$ J/cm2. Below threshold, where feedback is weak and static mode analysis applies, we observe two distinct patterns (see Fig. 6). For $z<50$ nm, we find structures with $\Lambda_{\perp}\ll\lambda$ (I) that fit the near-field interference patterns Zhang et al. (2015), also present in the Sipe theory Skolski et al. (2012). Deeper in the sample, for $z>50$ nm, structures with $\Lambda_{\parallel}\sim\lambda/n$ (III) fit the far-field interference patterns in transparent media. Spectral signature of these patterns is found in Fig. 7.

Above threshold, both near-field and far-field patterns shift towards a preferred periodicity of $\Lambda_{\perp}\sim\lambda/2n$ (II and IV). Since the plasma pattern self-reconfiguration is then dominated by transverse reflections, the natural explanation for this periodicity shift is the formation of standing waves along the $x$-axis Buividas et al. (2011). Light deflected towards $+x$ and $-x$ interfere to form a standing wave with antinodes separated by half wavelengths $\lambda/2n$ at every maxima of the plasma density. The condition for positive feedback is then met at this periodicity. It is important to note that the standing wave explanation is only valid for single or few-pulse expositions. In the multiple pulse regime, interpulse feedback mechanisms come into play and have to be included explicitly.

IV Conclusions

In conclusion, we have simulated the growth of laser-induced plasma in the presence of dynamical intrapulse feedback, absent from the current LIPSS theory. We have demonstrated how the local and dynamic nature of the interactions between plasma and light in a transparent medium is responsible for an ultrafast femtosecond self-reconfiguration of the near-surface periodic patterns. Our analysis suggests that a 3D dynamical treatment of the plasma density is necessary to properly describe laser-induced surface patterns on dielectrics and the intrapulse feedback. We have provided a plausible mechanism, based on a simple stability analysis of the local feedback effects, that explains both the orientation and the periodicity of the laser-induced plasma patterns. Finally, we have demonstrated that self-organization of plasma structures, in agreement with the characteristics of laser-induced volume nanogratings, is possible without volume defects. We have shown that transverse mode coupling is enough to initiate the growth of the self-organized plasma structures when transverse reflections dominate over longitudinal ones.
