Fano Resonance in a cavity-reflector hybrid system

TL;DR

This paper reports on the observation of Fano resonance in a hybrid quantum system comprising a quantum point contact and a reflector, highlighting its dependence on magnetic field and temperature, with potential applications in quantum information devices.

Contribution

It demonstrates the experimental realization of Fano resonance in a cavity-reflector hybrid system and analyzes its behavior under magnetic field and temperature variations.

Findings

Fano resonance observed at the 1D-2D transition

Resonance weakens with increasing magnetic field and temperature

Resonance shape depends strongly on reflector voltage

Abstract

We present the results of transport measurements in a hybrid system consisting of an arch-shaped quantum point contact (QPC) and a reflector; together, they form an electronic cavity in between them. On tuning the arch-QPC and the reflector, asymmetric resonance peak in resistance is observed at the one-dimension to two-dimension transition. Moreover, a dip in resistance near the pinch-off of the QPC is found to be strongly dependent on the reflector voltage. These two structures fit very well with the Fano line shape. The Fano resonance was found to get weakened on applying a transverse magnetic field, and it smeared out at 100 mT. In addition, the Fano like shape exhibited a strong temperature dependence and gradually smeared out when the temperature was increased from 1.5 to 20 K. The results might be useful in realising device for quantum information processing.

Figures

Equations

$$R=R_0\frac{(q+\gamma (V-V_0){)}^2}{1+{\gamma }^2(V-V_0{)}^2}+R_{inc}$$

$$R=R_1{e}^{(\frac{T_0}{T}{)}^{\frac{1}{2}}}+R_2{e}^{(\frac{T_0}{T}{)}^{\frac{1}{3}}}$$

$$T_0\propto \frac{1}{k_{B}N(E_F){\xi }^3}$$

Full text

††preprint: APS/123-QED

There is a growing interest in realising the electrical analog of photonic-cavity devices in condensed matter as they form the fundamental basis of tomorrow’s quantum technologies for realising building blocks for quantum information processing and quantum circuits. Much success with photonic cavityRauschenbeutel et al. (1999); Hennessy et al. (2007); Niemczyk et al. (2010); Duan and Kimble (2004) based system could be attributed to a better control over manipulating photons and achieving entanglement over a larger distance for information processingKwiat et al. (1995); Yoshie et al. (2004); Carter et al. (2013); Englund et al. (2010). Electronic devices have not enjoyed a similar level of success due to limited advancement in controlling the quantum states of electrons. Recently, an electronic cavity coupled to a quantum dot was demonstrated with the observation of spin coherent state in the regime of dot-cavity coupling due to Kondo effectRössler et al. (2015). There have been experimental attempts in the past in coupling an electronic cavity with one-dimensional (1D) electrons using a quantum point contact (QPC)Wharam et al. (1988); van Wees et al. (1988), however, in such cases the oscillations in the conductanceSaito et al. (1994); Katine et al. (1997); Duncan et al. (2001); Díaz et al. (2005) were primarily due to quantum interference rather than coupling between the 1D-cavity states. Therefore, direct evidence of coupling between the 1D states of a QPC and the cavity states would be crucial in creating a platform for realising cavity based tunable electronic devices.

In the present work, we demonstrate a cavity-reflector hybrid quantum device consisting of a QPC as the source of 1D electrons and an electronic cavity of 2D electrons, and show that when these states couple, they give rise to a Fano resonanceYSM (a).

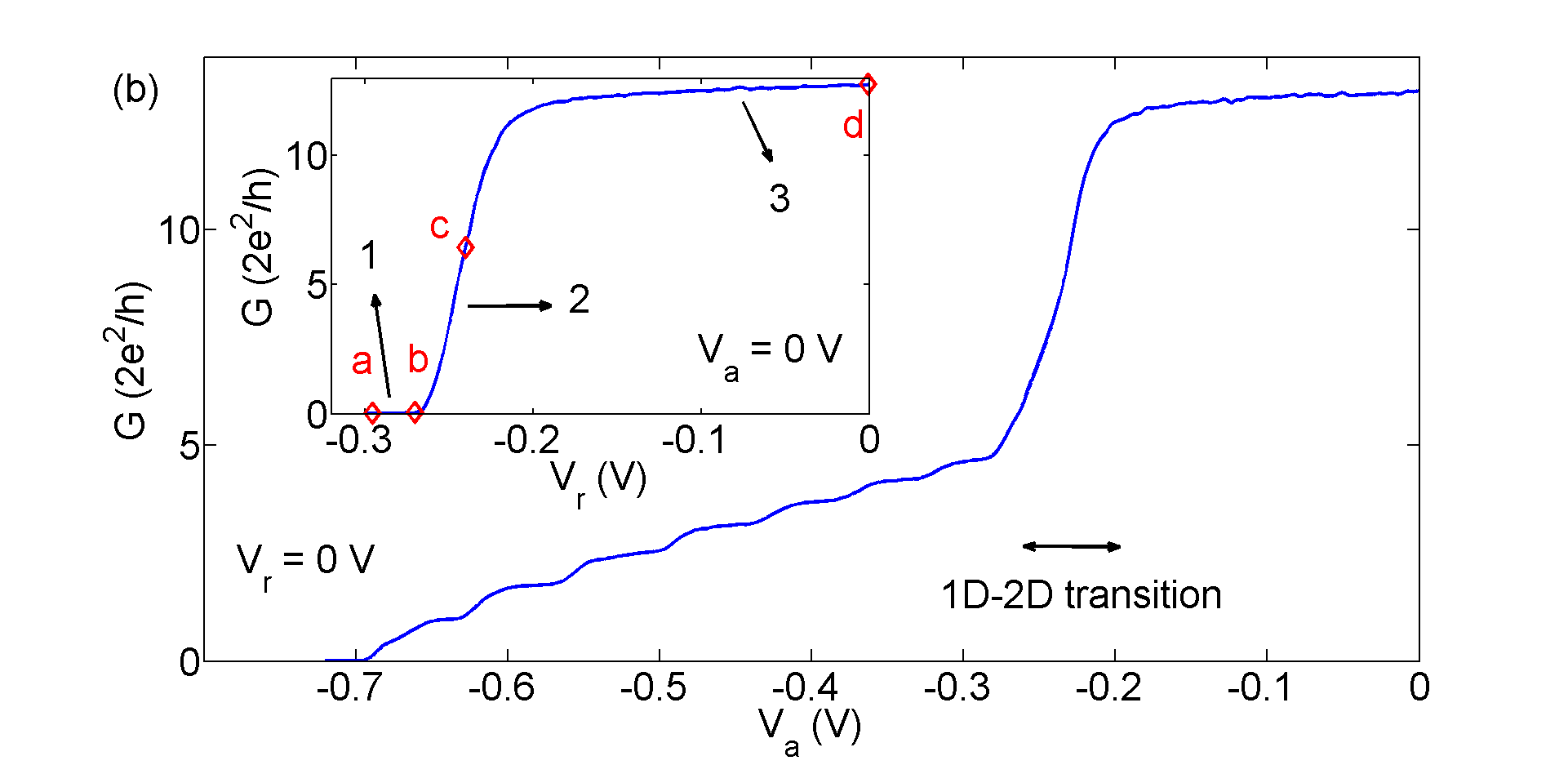

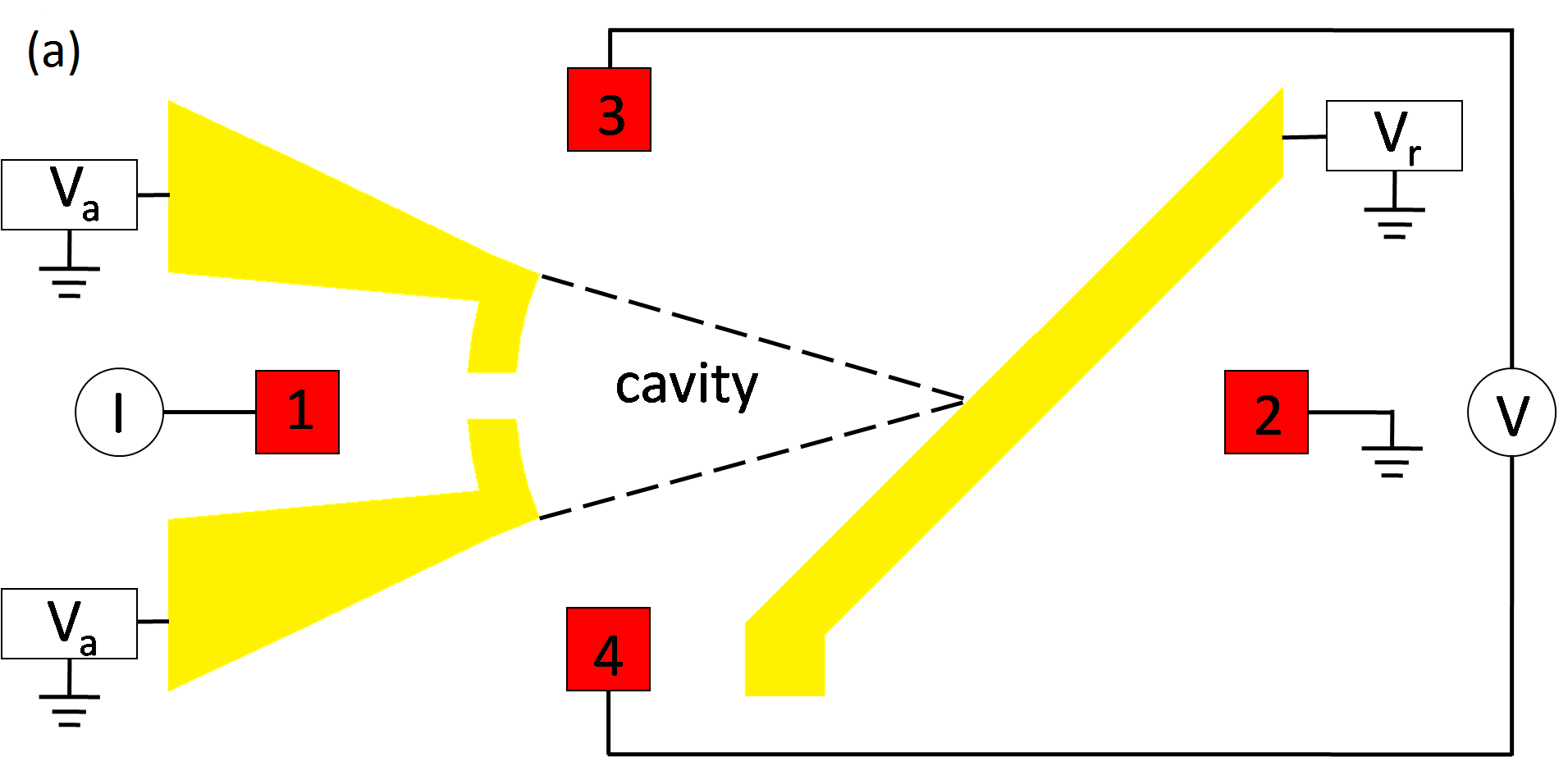

The samples studied in the present work consist of a pair of arch-shaped gates, with QPC forming in the centre of the arch, and a reflector inclined at 75∘ against the current flow direction such that centre of the QPC and the reflector are aligned as shown in Fig. 1(a)YSM (b). With this geometry the interference between incident and reflected electrons which contribute to oscillations reported previouslyKatine et al. (1997); Hersch et al. (1999, 2000) is significantly reduced because the incident and reflected electrons are spatially separated, thus all the features observed here are due to the coupling effect. The hybrid devices were fabricated on a high mobility two-dimensional electron gas (2DEG) formed at the interface of GaAs/Al0.33Ga0.67As heterostructure. The 2DEG is situated 90 nm from the surface where the gates are deposited. The electron density (mobility) measured at 1.5 K was 1.80$\times$1011cm*-2* (2.1$\times$106cm2V*-1s-1*) therefore both the mean free path and phase coherence length were over 10 $\mu$m which is much larger than the distance between the QPC and the reflector (1.5 $\mu$m). All the measurements were performed with standard lock-in technique in a cryofree pulsed-tube cryostat with a base temperature of 1.5 K. For the four terminal resistance measurement, a 10 nA at 77 Hz ac current was applied while an ac voltage of 10 $\mu$V at 77 Hz was used for two terminal conductance measurement. Figure 1(b) shows the conductance plot of the QPC with well defined conductance plateaus; on the other hand, the conductance of the reflector drops, when measured separately, around - 0.2 V, which indicates a sharp change in the transmission probability (Fig. 1(b), inset). The three regimes identified from the characteristic of the reflector are labelled as regime 1-3, as shown in the inset.

To highlight the effect of the cavity states, we studied the non-local four terminal resistance $R_{12,34}=V_{34}/I_{12}$ (hereafter denoted as R) as shown in Fig. 2. This measurement configuration allows one to study the interference between reflected electrons which propagate towards Ohmic 3 directly without being affected by the cavity states, and those go through cavity and get modulated.

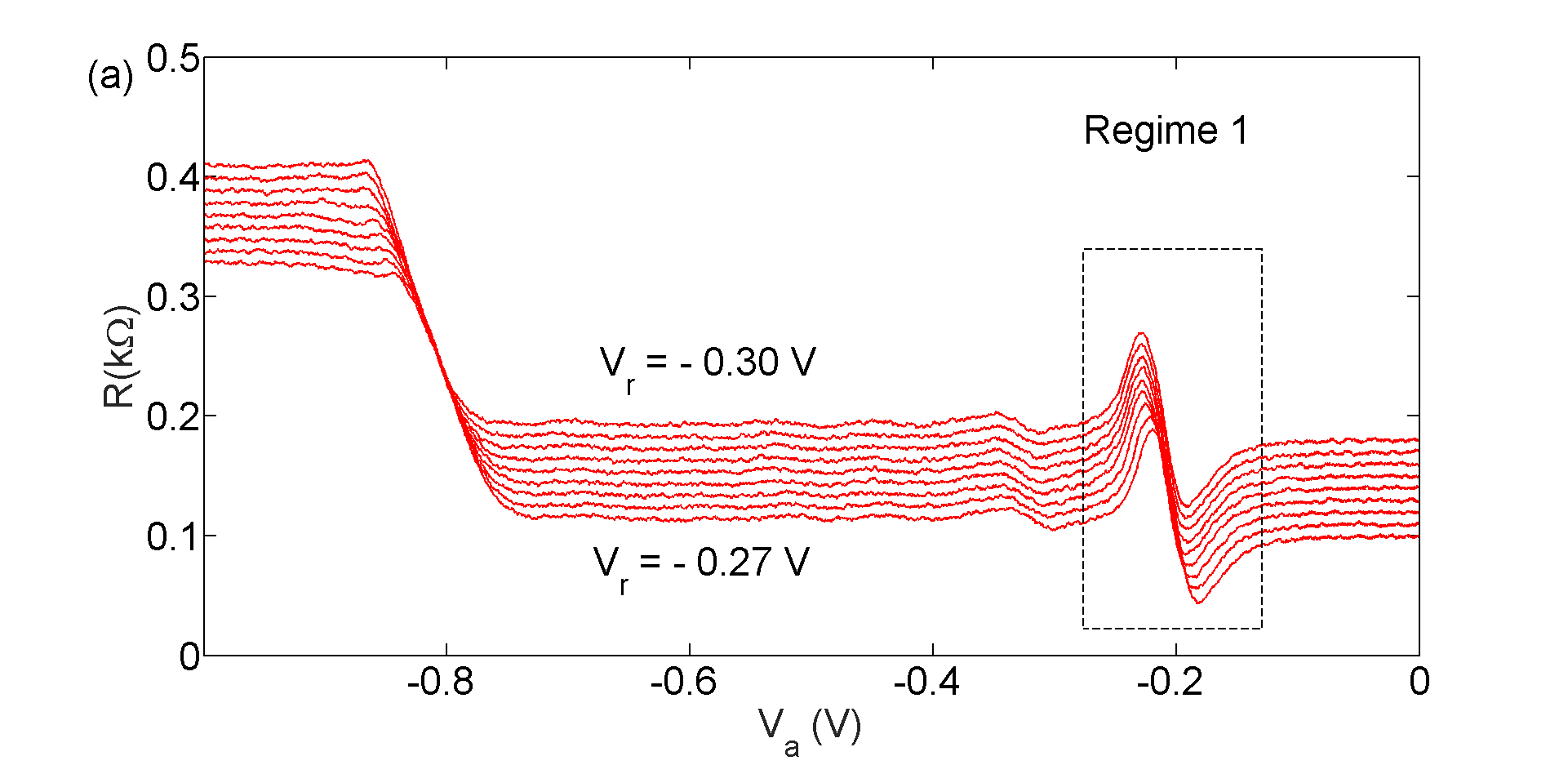

In regime 1, where the reflector voltage Vr was swept from - 0.30 (top trace) to - 0.27 V (bottom trace), a pronounced asymmetric resonance structure, which shows a peak at more negative arch-QPC voltage Va and valley at less negative end, centred around Va= - 0.2 V was observed, which is also the centre of the 1D to 2D transition regime of arch-QPC [as shown by a dotted rectangular box in Fig. 2(a)].

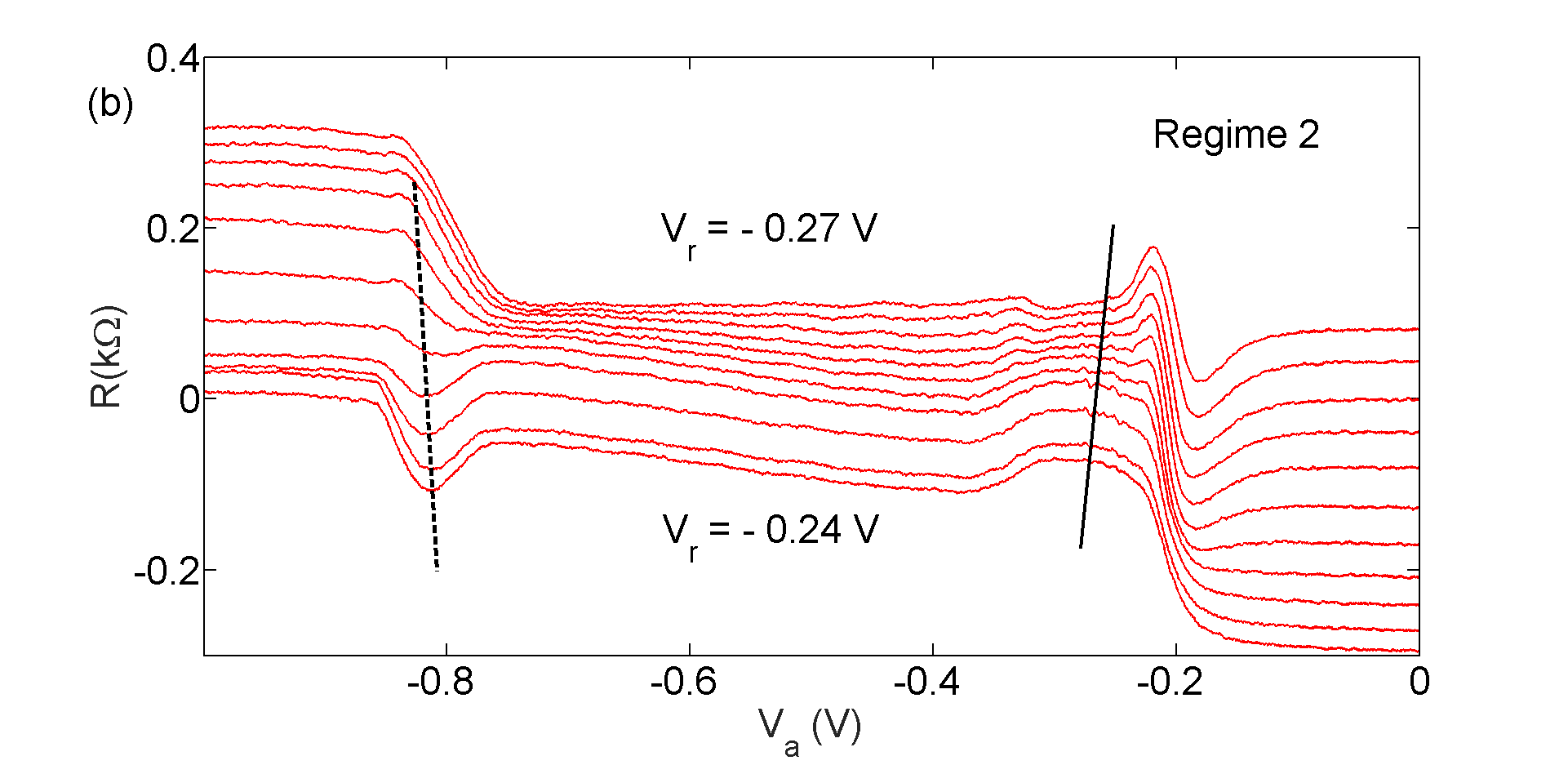

When the reflector was set to regime 2, Vr increases from -0.27 to -0.24 V (Fig. 2(b)), the asymmetric resonance structure slowly evolves into a broad-shoulder structure, and a dip gradually forms at the pinch-off regime of the QPC. It is interesting to notice that the dip starts forming when the asymmetric resonance structure fully smears out. In addition, the centre of the shoulder structure shifts towards a more negative Va with increasing Vr (see the solid line), on the contrary, the dip structure moves to a less negative Va (see the dashed line).

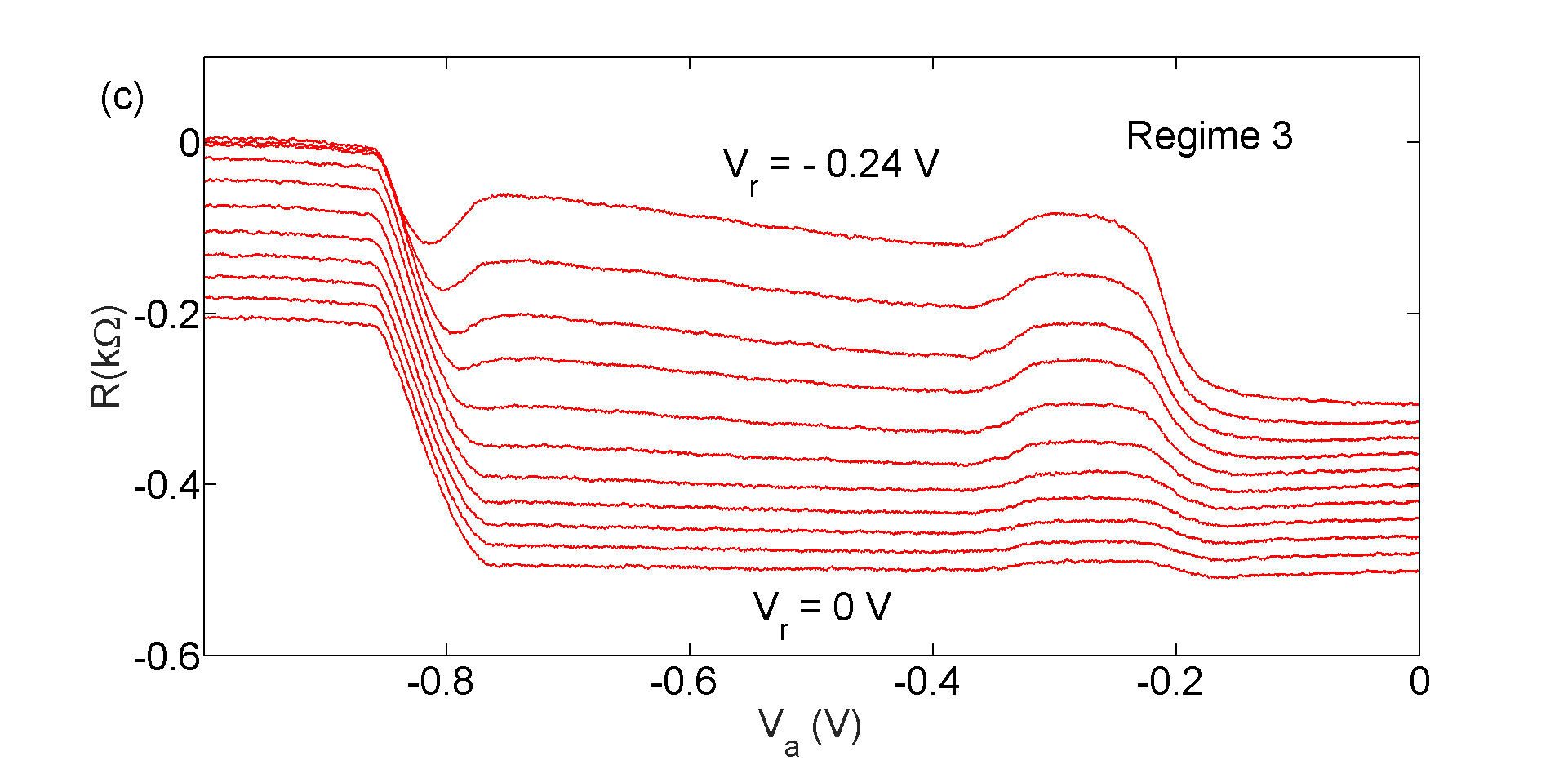

In regime 3 (- 0.24 V $\leq$ Va $\leq$ 0), the intensity of both the shoulder structure and the dip decreases with less negative reflector voltage and finally smears out (Fig. 2(c) ).

The asymmetric resonance structure observed at the 1D-2D transition regime and the dip structure in the pinch-off regime seem to arise from dramatic change in the density of states (DOS) in the QPC in these regimes. However, such changes in DOS is independent of $V_{r}$ while the resonance and the dip structure are highly sensitive to $V_{r}$. In the present device, the angle of the reflector is properly designed to avoid back refection of the electrons, so that it is unlikely that reflected electrons would enter the QPC and perturb the DOS directly.

A similar dip structure was reported in a double-QPC experiments when the intruder QPC was swept into pinch-off regimeYoon et al. (2009); Fransson et al. (2014); the effect was attributed to Fano resonance which arises from the interference between the discrete states and the continuumFano (1961), where the role of the intruder was to provide the continuum. In our system, the electronic cavity which is defined using the arch-gate and the reflector, having its states filled up to chemical potential, hosts the continuum while the electrons injected from the arch-QPC are energetically discrete; thus the coupling between the QPC and the cavity states results in Fano resonance at the two regimes, (1) near the pinch-off and (2) at the 1D-2D transition. In addition, weak oscillations are observed in the resistance in the 1D regime of the arch-QPC (Fig. 2(a)) which could be a consequence of interference of 1D electrons with the cavity states. A detailed study in this regime will be published elsewhereYan et al. (shed).

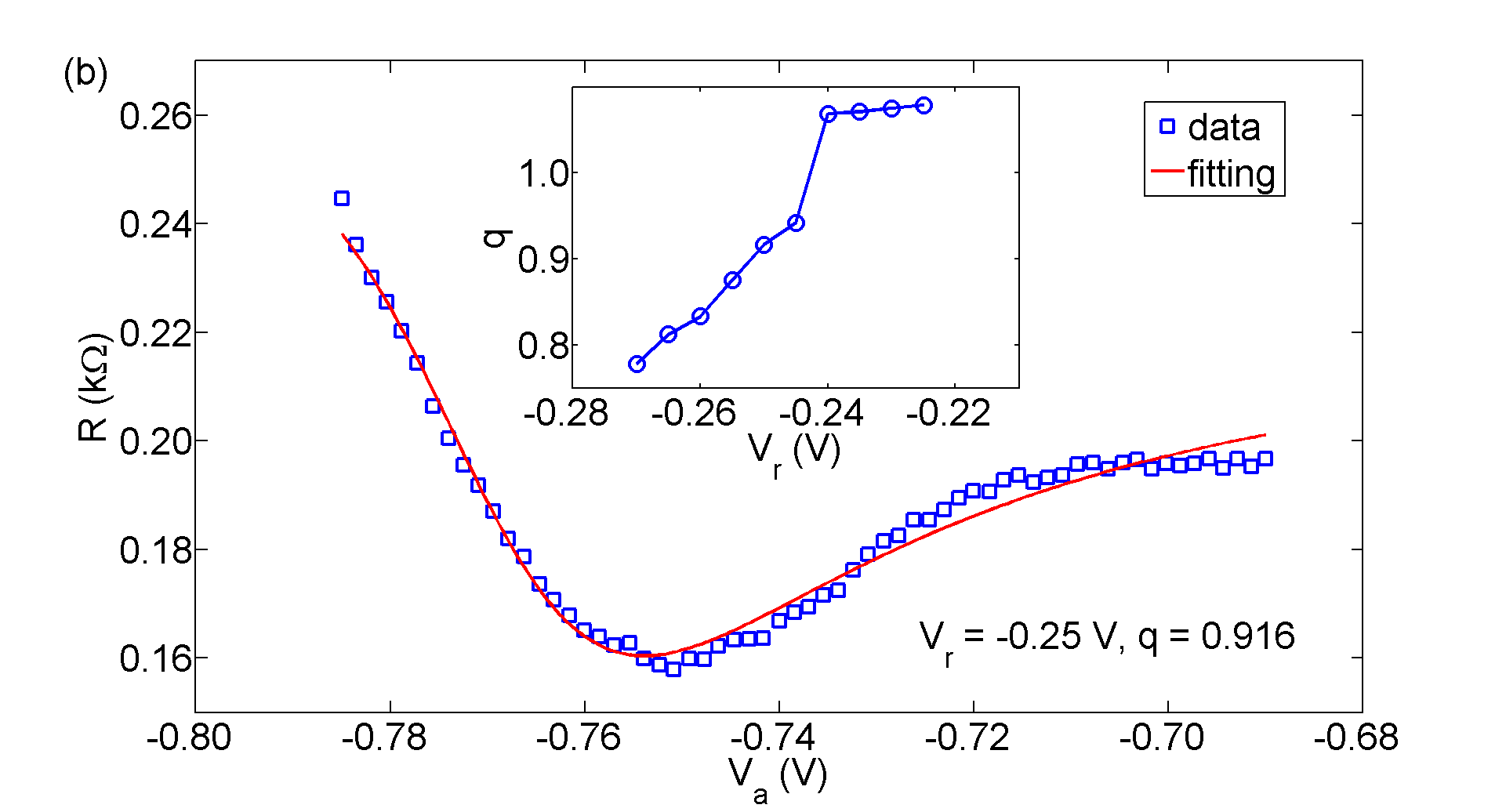

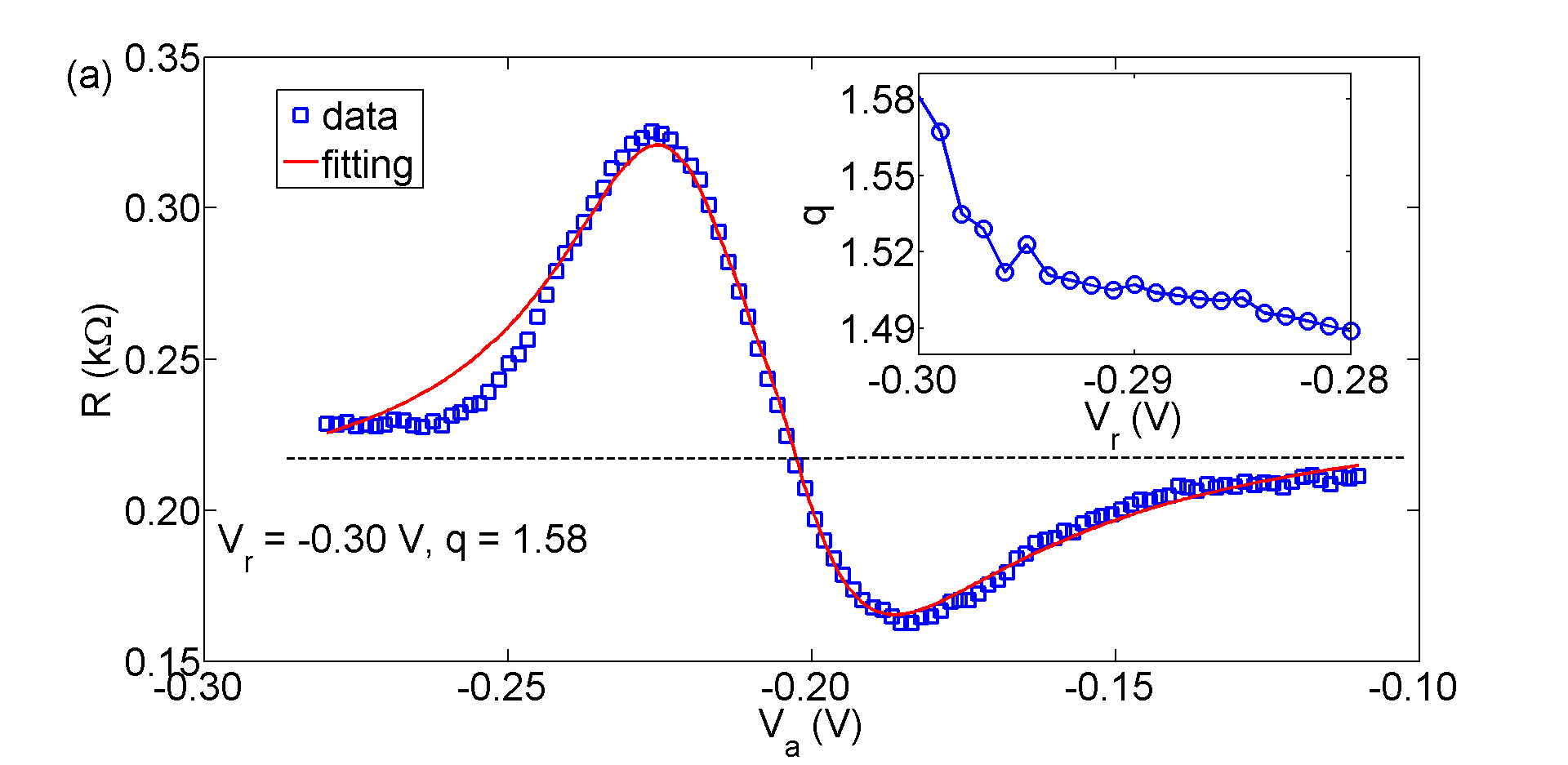

Figure 3 shows the fitting of the asymmetric resonance and the dip structures. It is remarkable that both the structures follow well defined Fano line shapeFano (1961); Göres et al. (2000),

[TABLE]

where R is the measured resistance, R0 is a constant representing the amplitude of the resonance, q is the Fano factor which decides the asymmetry of the line shape, $\gamma=20V^{-1}$ (estimated from the Fermi energy and the pinch-off voltage), $V_{0}$ is the arch-gate voltage at the center of the resonance (dip), and Rinc denotes the intrinsic contribution from the backgroundGöres et al. (2000). However, it is noted that the fitting matches with the experimental result in the centre while it diverges at both ends for Fig. 3(a) and (b), which is likely due to the fact that R changes as a function of Va even in the absence of the quantum correction, because electrons are collimated when the QPC is operating in the 1D regime, whereas they spread out when the QPC is in the 2D regimeMolenkamp et al. (1990). Moreover, the divergence in the pinch-off regime is due to the fact that once the 1D channel is pinched-off the detected signal will not change any further. The inset in Fig. 3(a) and (b) shows Fano factor q as a function of Vr. It was seen that q, which represents the coupling between the QPC and the cavity, changes rapidly in both the regimes, which is most likely due to a sharp change in DOS of the QPCYoon et al. (2009); Fransson et al. (2014) in the 1D-2D transition and pinch-off regime, respectively. Concerning the fitting in Fig. 3(b), the structure occurs in the pinch-off regime where making Va even more negative will not change the signal, therefore, this leaves an open question whether the data at the pinch-off are the dip of Fano resonance or do they a Breit-Wigner line shape. It is to be noted that an asymmetric Fano line shape is observed whenever resonant and nonresonant scattering paths interfere. However, when there is no interference between them, a symmetric Breit-Wigner resonance is expectedGöres et al. (2000). If we look at Fig. 2(b) and focus on the dip in resistance at Va = - 0.8 V as a function of Vr, it seems that the dip structure takes a symmetric shape before finally settling at Vr=- 0.24 V to reflect an asymmetric line shape. It may be possible that the lower dip at the pinch-off is moving through the Breit-Wigner line shape to the Fano line shape, depending on the coupling factor q. However, such observations need a detailed study and it is difficult to comment on them at the moment.

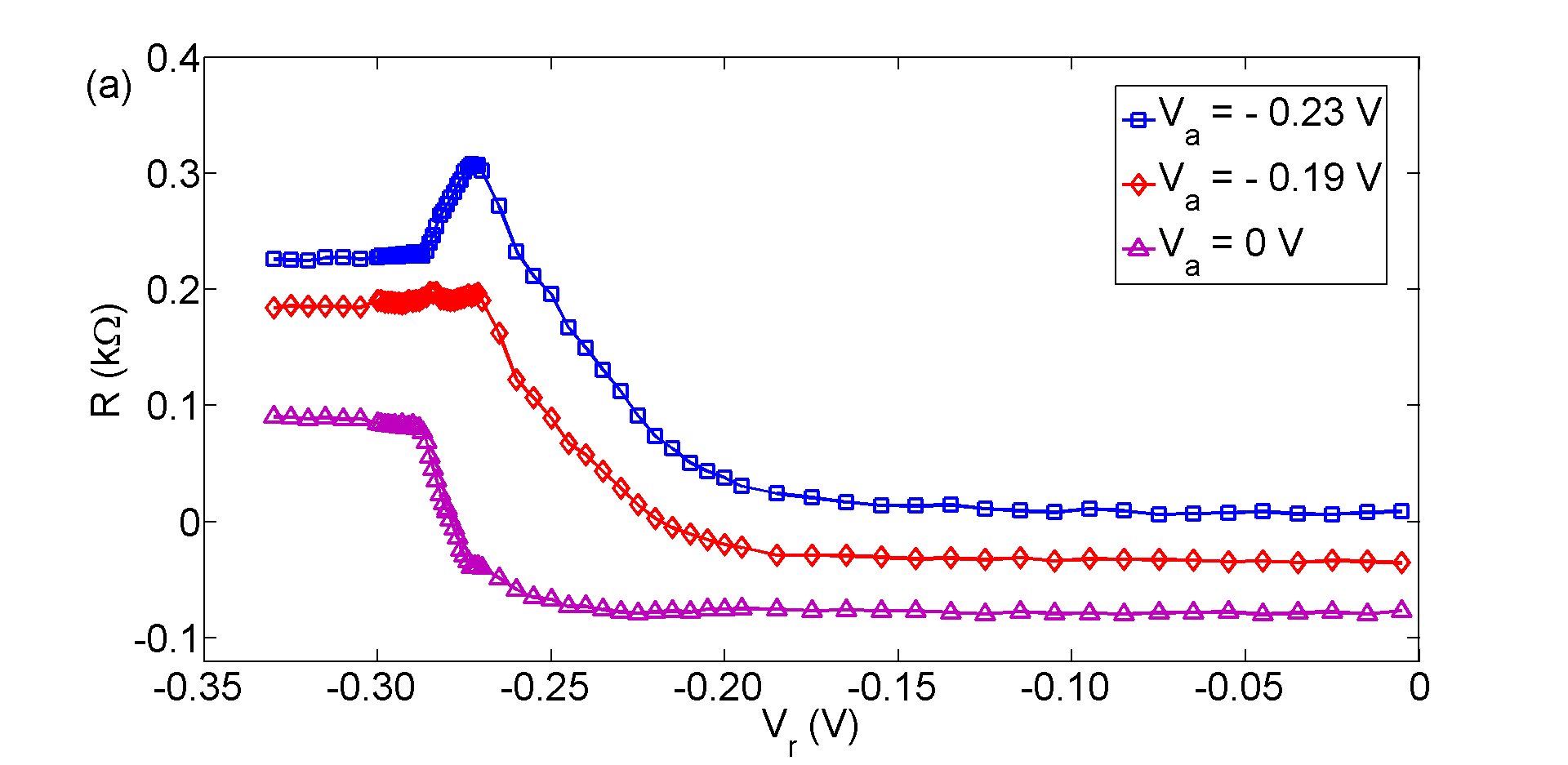

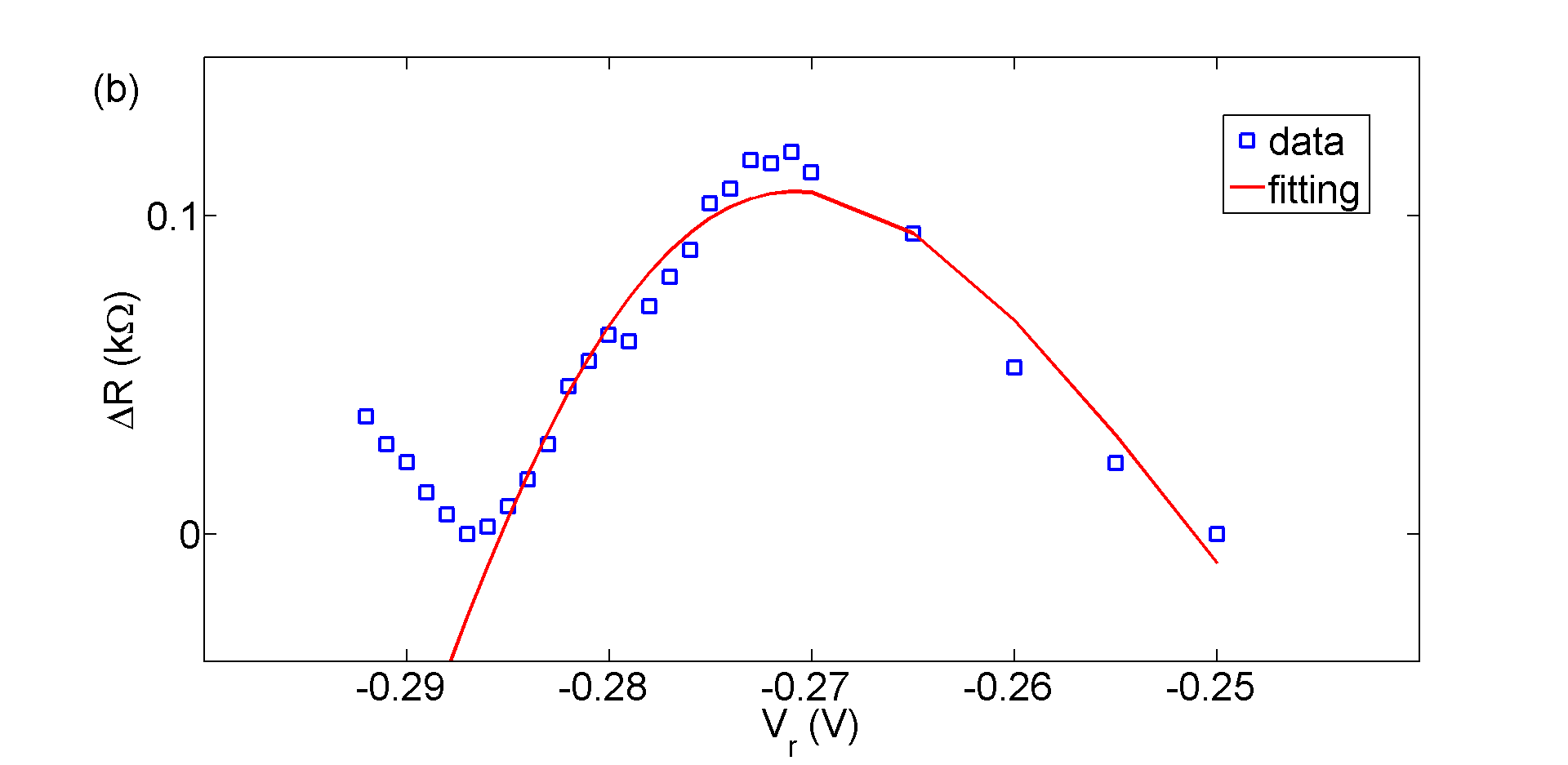

The Fano line shape arising from coupling between the QPC and the cavity states can be modulated by either tuning the QPC states while fixing the cavity states as already shown in Fig. 2, or in a complementary way by adjusting the cavity states and holding the QPC states as shown in Fig. 4(a). In this measurement, the reflector voltage was swept which allows one to control the energy spacing of the cavity states while $V_{a}$ was set to - 0.23 (the peak of asymmetric resonance structure), - 0.19 (the dip of asymmetric resonance structure) and 0 V, respectively, as shown in figure 4(a). When $V_{a}$ was set to - 0.19 and 0 V, respectively, where the cavity was not defined, it was seen that the resistance R was initially almost constant when the reflector voltage $V_{r}>-0.20$ V. On decreasing V${}_{r}<-0.20$ V a rise in resistance occurs simultaneously when the reflector conductance drops where the reflection probability r increases rapidly, and then R saturates when r becomes unity (see inset, Fig. 1(b)). When Va was set to - 0.23 V , R follows a similar trend as previous case when $V_{r}>-0.20$ V where the cavity was not activated. After the cavity was switched on, an anomalous peak in R occurs when - 0.28 V $\leq$ Vr $\leq$ - 0.25 V. The relative peak intensity, $\Delta$R(Vr,Va) = R(Vr,Va) - R(Vr,0), fits very well with Fano line shape, as shown in Fig. 4(b) using Eq.(1), here R(Vr,0) is taken as background signal because it accounts for the change in R due to the change in reflection probability only, and it is always present as the background signal regardless of Va, and the resonance structure superposes on such a background; therefore, to highlight the resonance, we subtracted the background.

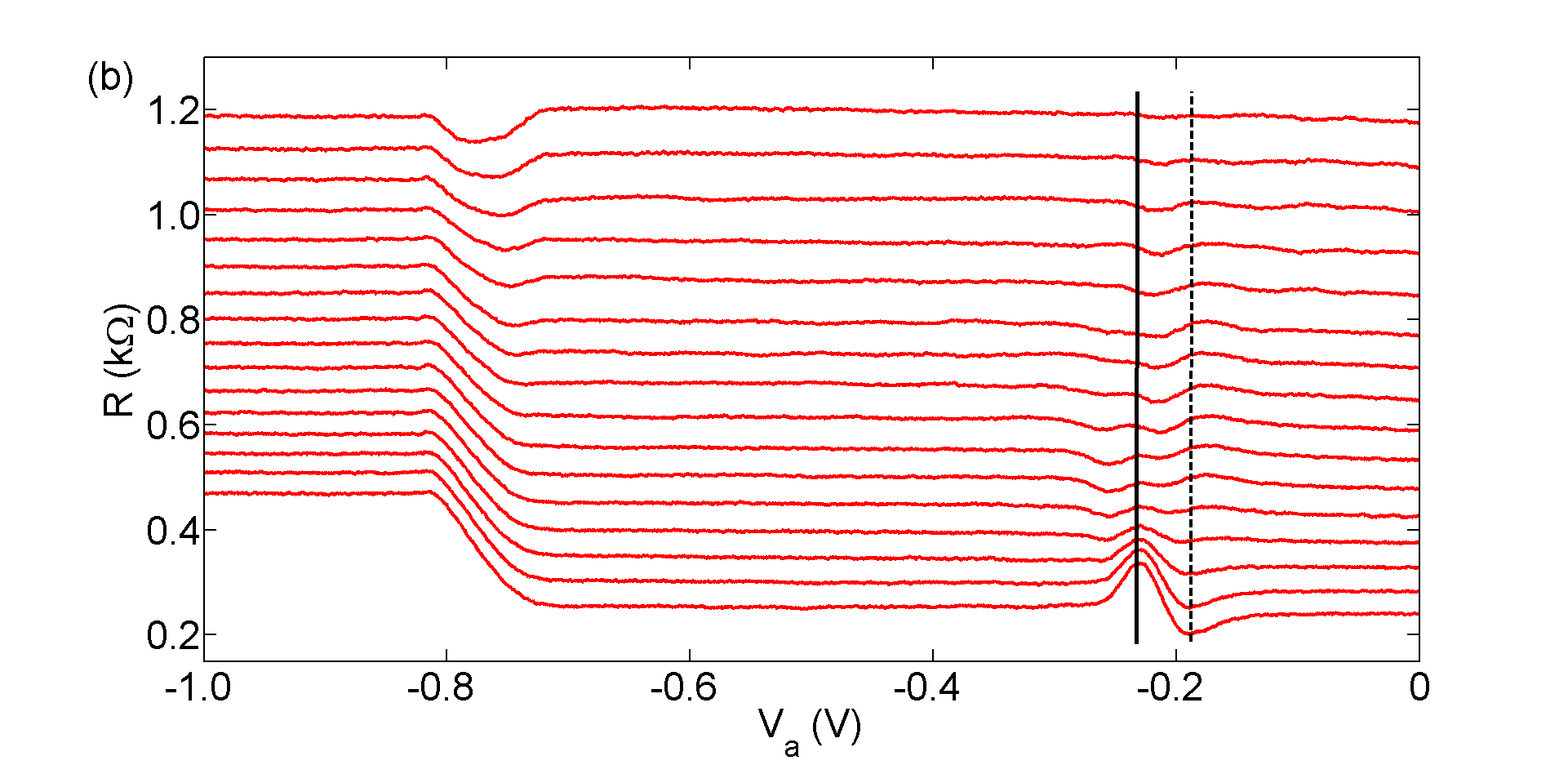

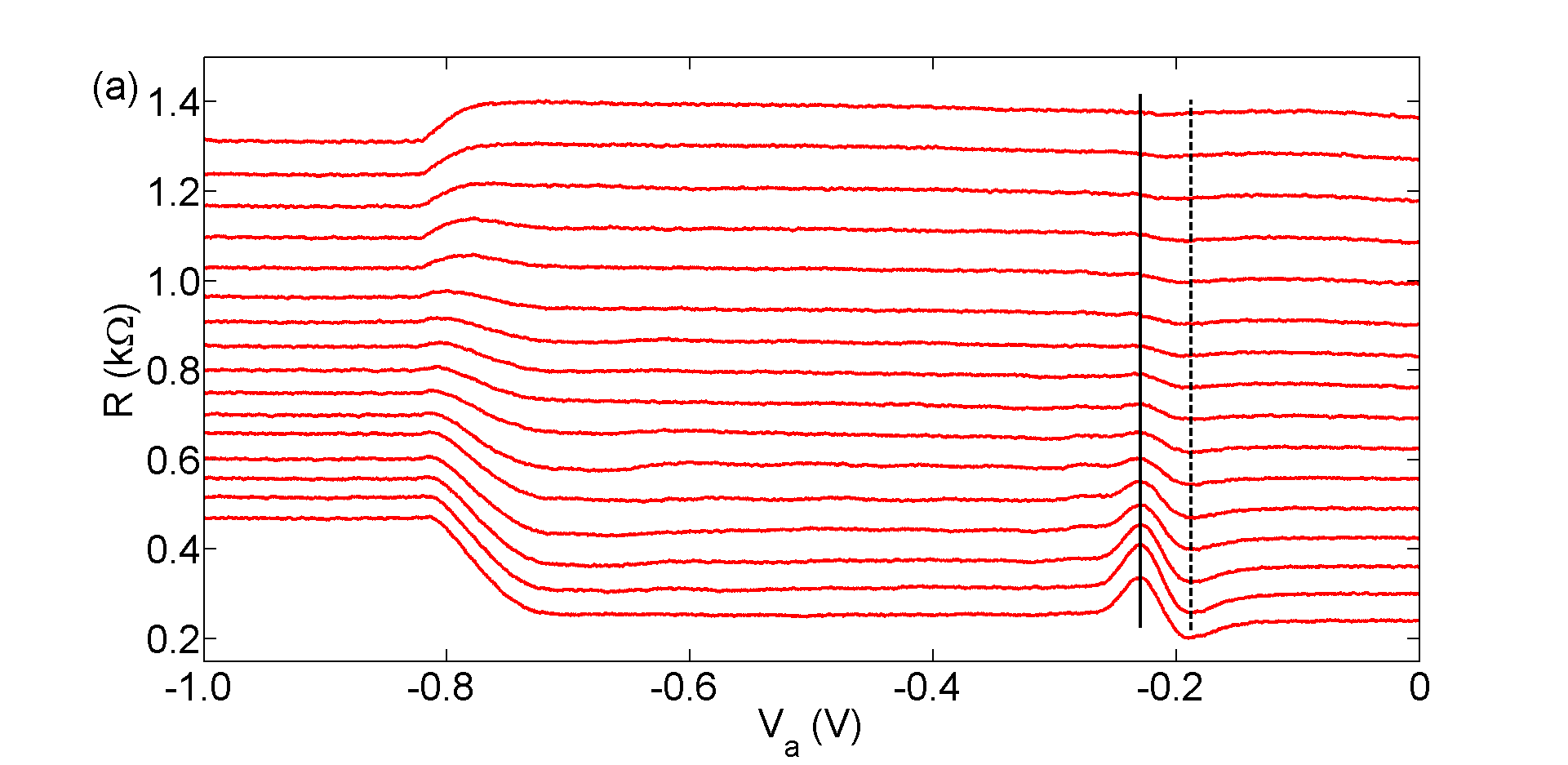

Coupling and decoupling between discrete and continuum states lead to Fano resonance, thus parameters which affect the coupling, apart from electrostatic confinement, are expected to influence the line shape dramaticallyFransson et al. (2014). Here, we present the effect of both negative and positive transverse magnetic field as shown in Fig. 5(a) and (b). The intensity of the asymmetric resonance structure is highly sensitive to the magnetic field in both field orientations, and almost smears out at a field of $\pm$ 100 mT. The reason for the the reduction of the intensity against magnetic field is three-fold: first, the chance of electron entering the cavity is magnetic field dependent; second, the cavity states, which represent the quantization of standing waves in the cavity, are highly dependent on the trajectory of electrons, with large magnetic field the electrons in the cavity become more localized and therefore coupling between 1D and cavity state is weakened; third, the perpendicular magnetic field also leads to a reduction of phase coherence length and thereby weakens the interference effectKaveh et al. (1981); McPhail et al. (2004). A slight difference in the line shape for negative and positive field is likely to arise from the fact that both the inclined reflector and the negative field favor Ohmic 3, while a positive field prefers guiding electrons to Ohmic 4.

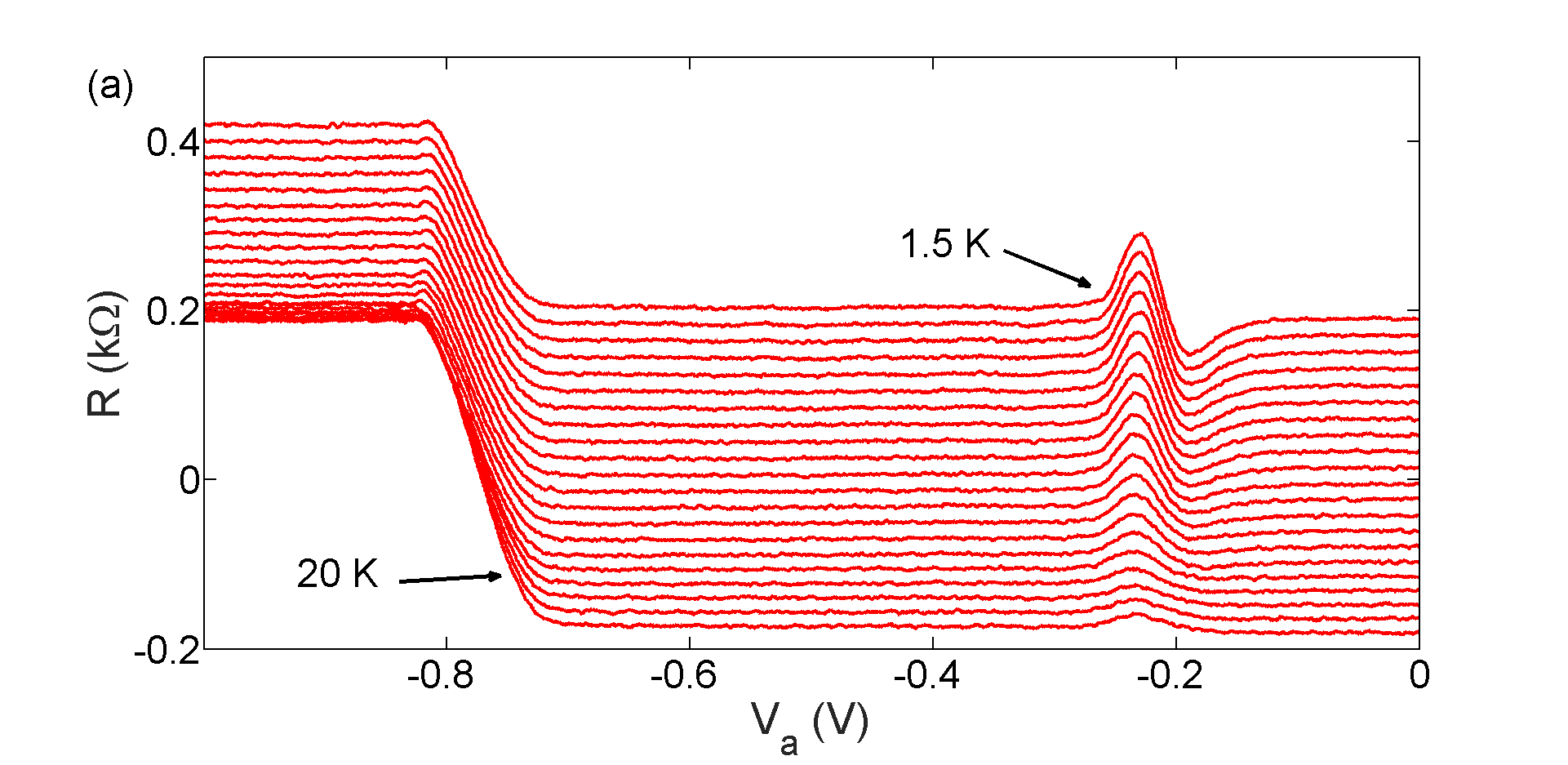

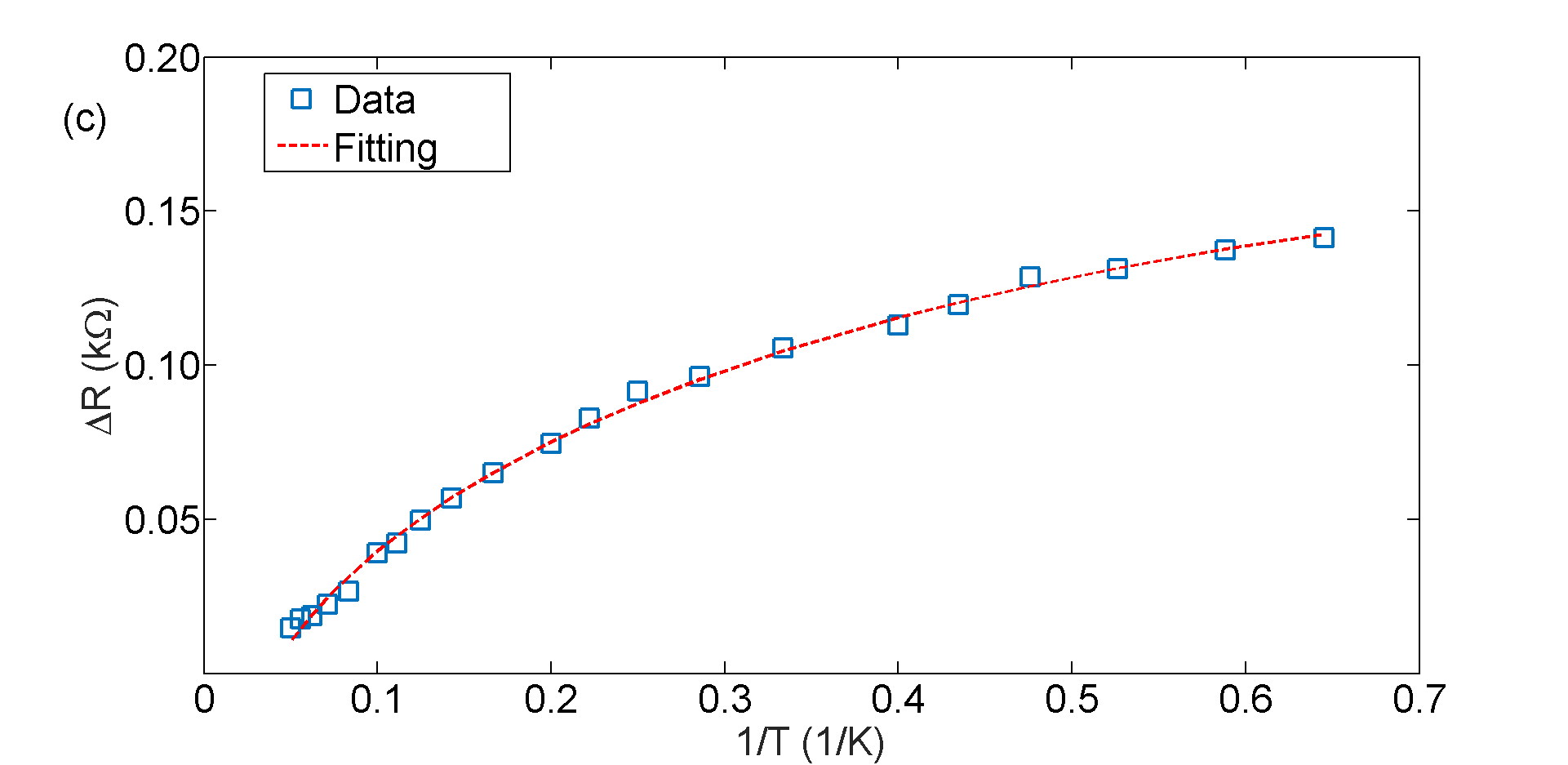

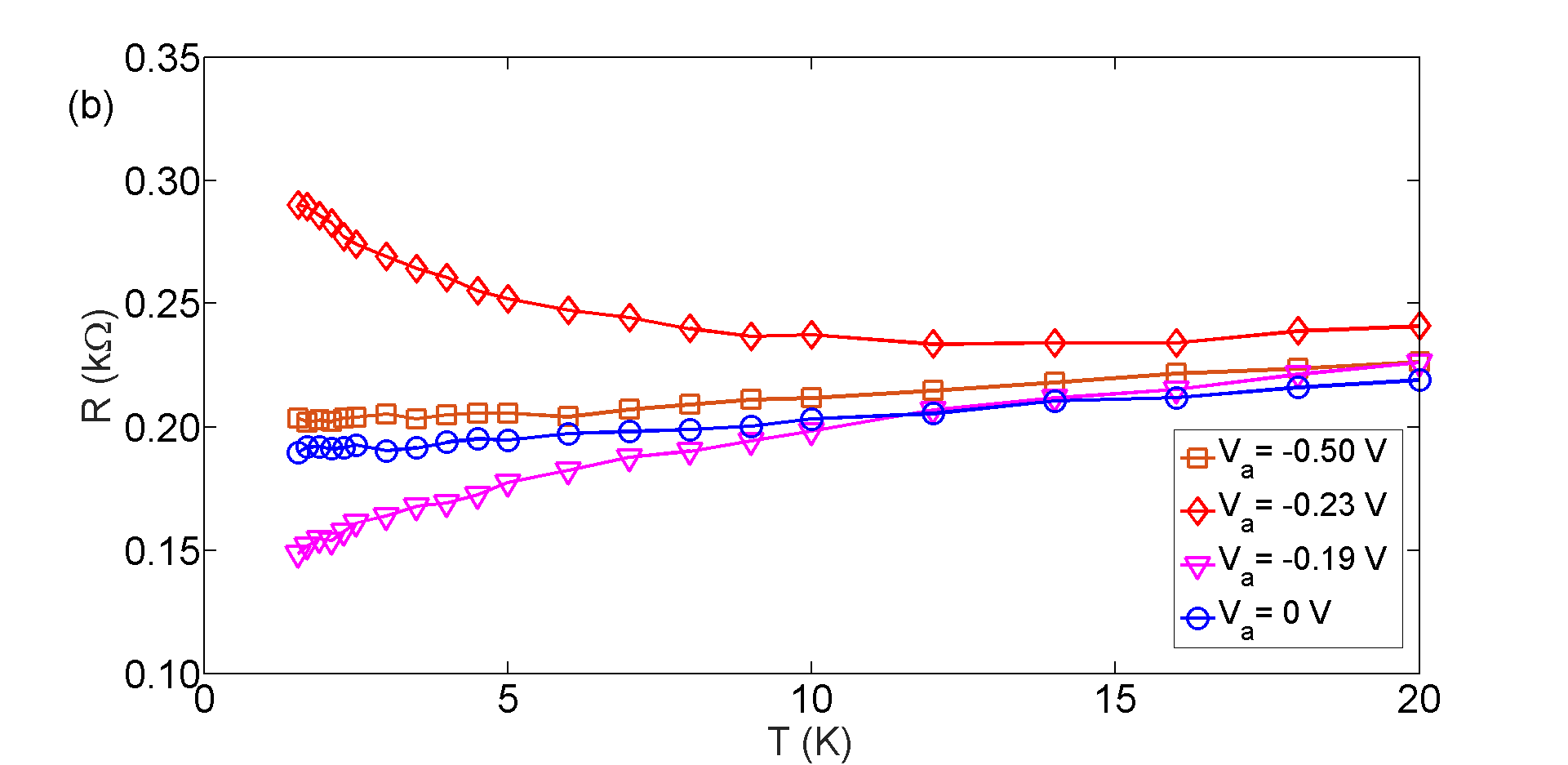

We studied temperature dependence of R as shown in Fig. 6. The reflector voltage was set to - 0.3 V, where both peak and dip of the asymmetric resonance structure are pronounced. It is found that the intensity of the peak and the dip decreases against increasing temperature, the dip structure smears out at around 16 K while the peak survives up to 20 K (although the height drops significantly). The evolution of line shape against temperature is clearer in Fig. 6(b), it is seen that R increases slowly and almost linearly against temperature when Va is set to - 0.50 or 0 V, while the peak structure (Va = - 0.23 V) and the dip structure (Va = - 0.19 V ) change rapidly with increasing temperature. The fitting of temperature dependence of relative intensity of the peak structure, $\Delta R(V_{a},T)=R(V_{a},T)-R(0,T)$ where Va = -0.23 V, resembles a Mott line shapeMott (1969) as shown in Fig. 6(c), using the relation,

[TABLE]

where R1, R2 are fitting parameters while T0 is defined as

[TABLE]

where $k_{B}$ is Boltzmann constant, $N(E_{F})$ is the density of state in the absence of electron-electron interaction and $\xi$ is the localization lengthMott and Davis (1979), $T_{0}$ = 1.2 K is extracted from the fitting. The $\frac{1}{2}$ and $\frac{1}{3}$ terms arise from the contribution of 1D and 2D, respectively. This agrees with the fact the Fano resonance is a direct manifestation of coupling between the QPC and the cavity states.

Mott’s law was initially proposed for random hopping in disordered systemMott (1969), whereas the clean systems generally do not follow Mott’s law explicitly (e.g. see the trace for $V_{a}$ = 0 V in Fig. 6(b)). Random hopping accounts for the compromise between the spatial and energetic separation. It is possible that with the cavity switched on the multiple reflection process is a mimic of random hopping process, because the energy changing process in the cavity is accompanied with the spacial changeHersch et al. (1999) (states in the cavity are sensitive to the confinement length, the confinement length, in turn, is coordinate sensitive).

In conclusions, we have shown the operation of a hybrid quantum device consisting of an arch-shaped QPC coupled to an electronic cavity, whose states can be tuned using a reflector gate. We have shown that, upon reducing the width of the QPC and increasing the reflection probability, Fano resonance can be produced at the 1D-2D transition and near the pinch off regime. The Fano resonant structure is very sensitive to the transverse magnetic field, and exhibits Mott line-shape temperature dependence. Such systems show the potential of hybrid devices in realising tools for quantum information processing.

This work was supported by the Engineering and Physical Sciences Research Council (EPSRC), U.K.
