Phenomenology of $\Lambda_b \to \Lambda_c \tau \bar{\nu}_{\tau}$ using lattice QCD calculations

TL;DR

This paper uses lattice QCD to calculate form factors for the $ ext{Lambda}_b o ext{Lambda}_c$ decay, including tensor form factors, and explores how these can constrain new physics models related to the $R(D^{(*)})$ puzzle.

Contribution

It provides the first lattice QCD calculations of tensor form factors for $ ext{Lambda}_b o ext{Lambda}_c$ decay and analyzes their implications for new physics constraints.

Findings

Calculated tensor form factors using lattice QCD.

Showed $R( ext{Lambda}_c)$ measurement constrains new physics models.

Enhanced understanding of $ ext{Lambda}_b o ext{Lambda}_c$ decay observables.

Abstract

In a recent paper we studied the effect of new-physics operators with different Lorentz structures on the semileptonic $\Lambda_b \to \Lambda_c \tau \bar{\nu}_{\tau}$ decay. This decay is of interest in light of the $R({D^{(*)}})$ puzzle in the semileptonic $\bar{B} \to D^{(*)} \tau {\bar\nu}_\tau$ decays. In this work we add tensor operators to extend our previous results and consider both model-independent new physics (NP) and specific classes of models proposed to address the $R({D^{(*)}})$ puzzle. We show that a measurement of $R(\Lambda_c) = {\cal B}[\Lambda_b \to \Lambda_c \tau \bar{\nu}_{\tau}] / {\cal B}[\Lambda_b \to \Lambda_c \ell \bar{\nu}_{\ell}]$ can strongly constrain the NP parameters of models discussed for the $R({D^{(*)}})$ puzzle. We use form factors from lattice QCD to calculate all $\Lambda_b \to \Lambda_c \tau \bar{\nu}_{\tau}$ observables. The $\Lambda_b \to \Lambda_c$ tensor form factors had not previously been determined in lattice QCD, and we present new lattice results for these form factors here.

Figures

Tables

Table 1. Table 1: Values of the pole masses for the tensor form factors.

$f$	$J^P$	$m_{\mathrm{pole}}^f$ (GeV)
$h_{+}$, $h_{⟂}$	$1^{-}$	6.332
${\tilde{h}}_{+}$, ${\tilde{h}}_{⟂}$	$1^{+}$	6.768

Table 2. Table 2: Results for the z 𝑧 z -expansion parameters describing the Λ b → Λ c → subscript Λ 𝑏 subscript Λ 𝑐 \Lambda_{b}\to\Lambda_{c} tensor form factors in the physical limit (in the MS ¯ ¯ MS \overline{\text{MS}} scheme at the renormalization scale μ = m b 𝜇 subscript 𝑚 𝑏 \mu=m_{b} ). Files containing the values and covariances of the parameters of all ten Λ b → Λ c → subscript Λ 𝑏 subscript Λ 𝑐 \Lambda_{b}\to\Lambda_{c} form factors are provided as supplemental material.

	Nominal fit		Higher-order fit
$a_0^{h_{+}}$	$0.9752\pm 0.0303$		$0.9668\pm 0.0567$
$a_1^{h_{+}}$	$-5.5000\pm 1.2361$		$-4.5258\pm 1.7538$
$a_2^{h_{+}}$			$2.2006\pm 10.724$
$a_0^{h_{⟂}}$	$0.7054\pm 0.0137$		$0.7052\pm 0.0362$
$a_1^{h_{⟂}}$	$-4.3578\pm 0.5114$		$-4.1050\pm 0.8391$
$a_2^{h_{⟂}}$			$3.0100\pm 7.8351$
$a_0^{{\tilde{h}}_{⟂},{\tilde{h}}_{+}}$	$0.6728\pm 0.0088$		$0.6763\pm 0.0328$
$a_1^{{\tilde{h}}_{+}}$	$-4.4322\pm 0.3882$		$-4.3634\pm 0.7509$
$a_2^{{\tilde{h}}_{+}}$			$2.2739\pm 8.0769$
$a_1^{{\tilde{h}}_{⟂}}$	$-4.4928\pm 0.3584$		$-4.5543\pm 0.7370$
$a_2^{{\tilde{h}}_{⟂}}$			$3.0851\pm 7.9037$

Table 3. Table 3: The values of R ​ ( Λ c ) 𝑅 subscript Λ 𝑐 R(\Lambda_{c}) and R Λ c R ​ a ​ t ​ i ​ o superscript subscript 𝑅 subscript Λ 𝑐 𝑅 𝑎 𝑡 𝑖 𝑜 R_{\Lambda_{c}}^{Ratio} for two example choices (real-valued and complex-valued) of the new-physics couplings. The standard-model value of R ​ ( Λ c ) 𝑅 subscript Λ 𝑐 R(\Lambda_{c}) is 0.333 ± 0.010 plus-or-minus 0.333 0.010 0.333\pm 0.010 Detmold:2015aaa . The uncertainties given are due to the form factor uncertainties.

	$g_S$ only	$g_P$ only	$g_L$ only	$g_R$ only	$g_T$ only
	$-0.4$	$0.3$	$-2.2$	$-0.044$	$0.4$
$R\left({\Lambda }_c\right)$	$0.290\pm 0.009$	$0.342\pm 0.010$	$0.479\pm 0.014$	$0.344\pm 0.011$	$0.475\pm 0.037$
$R_{{\Lambda }_c}^{Ratio}$	$0.872\pm 0.007$	$1.026\pm 0.001$	$1.44$	$1.033\pm 0.003$	$1.426\pm 0.100$
	$-1.5-0.3i$	$0.4-0.4i$	$0.15-0.3i$	$0.08-0.67i$	$0.2-0.2i$
$R\left({\Lambda }_c\right)$	$0.384\pm 0.013$	$0.346\pm 0.011$	$0.470\pm 0.014$	$0.465\pm 0.014$	$0.404\pm 0.021$
$R_{{\Lambda }_c}^{Ratio}$	$1.154\pm 0.008$	$1.040\pm 0.002$	$1.412$	$1.397\pm 0.005$	$1.213\pm 0.050$

Table 4. Table 4: The maximum and minimum values of R ​ ( Λ c ) 𝑅 subscript Λ 𝑐 R(\Lambda_{c}) and R Λ c R ​ a ​ t ​ i ​ o superscript subscript 𝑅 subscript Λ 𝑐 𝑅 𝑎 𝑡 𝑖 𝑜 R_{\Lambda_{c}}^{Ratio} allowed by the mesonic constraints for each new-physics coupling, and the coupling values at which these extrema are reached.

Coupling	$R{\left({\Lambda }_c\right)}_{max}$	$R_{{\Lambda }_c,max}^{Ratio}$	coupling value	$R{\left({\Lambda }_c\right)}_{min}$	$R_{{\Lambda }_c,min}^{Ratio}$	coupling value
$g_S$ only	$0.405$	$1.217$	$0.363$	$0.314$	$0.942$	$-1.14$
$g_P$ only	$0.354$	$1.062$	$0.658$	$0.337$	$1.014$	$0.168$
$g_L$ only	$0.495$	$1.486$	$0.094+0.538i$	$0.340$	$1.022$	$-0.070+0.395i$
$g_R$ only	$0.525$	$1.576$	$0.085+0.793i$	$0.336$	$1.009$	$-0.012$
$g_T$ only	$0.526$	$1.581$	$0.428$	$0.338$	$1.015$	$-0.005$

Table 5. Table 5: Quantum numbers of scalar and vector leptoquarks.

	spin	$SU{\left(3\right)}_c$	$SU{\left(2\right)}_L$	$U{\left(1\right)}_{Y=Q-T_3}$
$S_1$	$0$	$3^{\ast }$	$1$	$1/3$
${𝑺}_3$	$0$	$3^{\ast }$	$3$	$1/3$
$R_2$	$0$	$3$	$2$	$7/6$
$V_2$	$1$	$3^{\ast }$	$2$	$5/6$
$U_1$	$1$	$3$	$1$	$2/3$
${𝑼}_3$	$1$	$3$	$3$	$2/3$

Table 6. Table 6: The values of the R ​ ( Λ c ) 𝑅 subscript Λ 𝑐 R(\Lambda_{c}) and R Λ c R ​ a ​ t ​ i ​ o superscript subscript 𝑅 subscript Λ 𝑐 𝑅 𝑎 𝑡 𝑖 𝑜 R_{\Lambda_{c}}^{Ratio} ratios for two representative cases of the couplings of the different leptoquark models. Above, the index i = 1 , 2 𝑖 1 2 i=1,2 denotes the electron and muon neutrinos. The Standard-model value of the ratio is R ​ ( Λ c ) = 0.333 ± 0.010 𝑅 subscript Λ 𝑐 plus-or-minus 0.333 0.010 R(\Lambda_{c})=0.333\pm 0.010 Detmold:2015aaa . The uncertainties given are due to the Λ b → Λ c → subscript Λ 𝑏 subscript Λ 𝑐 \Lambda_{b}\to\Lambda_{c} form factor uncertainties.

Model	Case	Couplings	$R\left({\Lambda }_c\right)$	$R_{{\Lambda }_c}^{Ratio}$
$S_1$	1	$g_{1L}^{33}{g}_{1R}^{23\ast }=0.332+0.403i$, $g_{1L}^{3i}{g}_{1R}^{23\ast }=0.417-0.311i$, $g_{1L}^{33}{g}_{1L}^{23\ast }=0.015-0.037i$, $g_{1L}^{3i}{g}_{1L}^{23\ast }=-0.079-0.002i$	$0.343\pm 0.011$	$1.032\pm 0.004$
$S_1$	2	$g_{1L}^{33}{g}_{1R}^{23\ast }=0.064-0.142i$, $g_{1L}^{3i}{g}_{1R}^{23\ast }=-1.05+0.638i$, $g_{1L}^{33}{g}_{1L}^{23\ast }=0.116-0.043i$, $g_{1L}^{3i}{g}_{1L}^{23\ast }=0.018+0.104i$	$0.549\pm 0.020$	$1.648\pm 0.025$
$R_2$	1	$h_{2L}^{23}{h}_{2R}^{33\ast }=0.373-0.118i$, $h_{2L}^{2i}{h}_{2R}^{33\ast }=-0.846-0.191i$	$0.445\pm 0.016$	$1.337\pm 0.016$
$R_2$	2	$h_{2L}^{23}{h}_{2R}^{33\ast }=0.753-0.199i$, $h_{2L}^{2i}{h}_{2R}^{33\ast }=0.897-0.031i$	$0.485\pm 0.018$	$1.455\pm 0.025$
$U_1$	1	$h_{1L}^{23}{h}_{1R}^{33\ast }=-0.115-0.021i$, $h_{1L}^{2i}{h}_{1R}^{33\ast }=0.049+0.159i$, $h_{1L}^{23}{h}_{1L}^{33\ast }=-1.468+0.271i$, $h_{1L}^{2i}{h}_{1L}^{33\ast }=1.116+0.744i$	$0.605\pm 0.019$	$1.818\pm 0.008$
$U_1$	2	$h_{1L}^{23}{h}_{1R}^{33\ast }=-0.059+0.236i$, $h_{1L}^{2i}{h}_{1R}^{33\ast }=0.234+0.105i$, $h_{1L}^{23}{h}_{1L}^{33\ast }=-2.002+0.854i$, $h_{1L}^{2i}{h}_{1L}^{33\ast }=-0.135+0.940i$	$0.553\pm 0.018$	$1.663\pm 0.005$
${𝑺}_3$	1	$g_{3L}^{33}{g}_{3L}^{23\ast }=-0.035+0.032i$, $g_{3L}^{3i}{g}_{3L}^{23\ast }=0.061+0.041i$	$0.342\pm 0.010$	$1.027$
${𝑺}_3$	2	$g_{3L}^{33}{g}_{3L}^{23\ast }=-0.049-0.038i$, $g_{3L}^{3i}{g}_{3L}^{23\ast }=-0.01-0.019i$	$0.345\pm 0.011$	$1.037$
${𝑼}_3$	1	$h_{3L}^{23}{h}_{3L}^{33\ast }=-0.032-0.014i$, $h_{3L}^{2i}{h}_{3L}^{33\ast }=0.003+0.002i$	$0.349\pm 0.011$	$1.047$
${𝑼}_3$	2	$h_{3L}^{23}{h}_{3L}^{33\ast }=-0.014-0.006i$, $h_{3L}^{2i}{h}_{3L}^{33\ast }=0.017-0.007i$	$0.340\pm 0.010$	$1.022$

Equations

$$R(D{)}_{SM}$$

$$R(D^{\ast }{)}_{SM}$$

$$R(D{)}_{exp}$$

$$R(D^{\ast }{)}_{exp}$$

$$R_D^{Ratio}$$

$$R_{D^{\ast }}^{Ratio}$$

$$R({\Lambda }_c)$$

$$B_{{\Lambda }_c}(q^2)$$

$$R_{{\Lambda }_c}^{Ratio}$$

$$A_{FB}(q^2)$$

$${\mathcal{H}}_{eff}$$

$${\Lambda }_b(p_{{\Lambda }_b})\to {\tau }^{-}(p_{\tau })+{\bar{\nu }}_{\tau }(p_{{\bar{\nu }}_{\tau }})+{\Lambda }_c(p_{{\Lambda }_c}).$$

$$\frac{d\Gamma }{d{q}^{2}d\cos {\theta }_{\tau }}$$

$$q$$

$$Q_{\pm }$$

$${\mathcal{M}}_{{\lambda }_{{\Lambda }_c}}^{{\lambda }_{\tau }}$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda =0}^{SP}$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda =0}^S$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda =0}^P$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda }^{VA}$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda }^V$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda }^A$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda ,{\lambda }^{\prime }}^{(T){\lambda }_{{\Lambda }_b}}$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda ,{\lambda }^{\prime }}^{(T1){\lambda }_{{\Lambda }_b}}$$

$$H_{{\lambda }_{{\Lambda }_c},\lambda ,{\lambda }^{\prime }}^{(T2){\lambda }_{{\Lambda }_b}}$$

$$L^{{\lambda }_{\tau }}$$

$$L_{\lambda }^{{\lambda }_{\tau }}$$

$$L_{\lambda ,{\lambda }^{\prime }}^{{\lambda }_{\tau }}$$

$$⟨{\Lambda }_c|\bar{c}{\gamma }^{\mu }b|{\Lambda }_b⟩$$

$$⟨{\Lambda }_c|\bar{c}{\gamma }^{\mu }{\gamma }_{5}b|{\Lambda }_b⟩$$

$$⟨{\Lambda }_c|\bar{c}b|{\Lambda }_b⟩$$

$$⟨{\Lambda }_c|\bar{c}{\gamma }_{5}b|{\Lambda }_b⟩$$

$$\displaystyle\left\langle\Lambda_{c}\right|\bar{c}i\sigma^{\mu\nu}b\left|\Lambda_{b}\right\rangle=\bar{u}_{\Lambda_{c}}\Big{[}2h_{+}(q^{2})\frac{p_{\Lambda_{b}}^{\mu}p_{\Lambda_{c}}^{\nu}-p_{\Lambda_{b}}^{\nu}p_{\Lambda_{c}}^{\mu}}{Q_{+}}$$

$$\displaystyle+h_{\perp}(q^{2})\Big{(}\frac{m_{\Lambda_{b}}+m_{\Lambda_{c}}}{q^{2}}(q^{\mu}\gamma^{\nu}-q^{\nu}\gamma^{\mu})-2(\frac{1}{q^{2}}+\frac{1}{Q_{+}})(p_{\Lambda_{b}}^{\mu}p_{\Lambda_{c}}^{\nu}-p_{\Lambda_{b}}^{\nu}p_{\Lambda_{c}}^{\mu})\Big{)}$$

$$\displaystyle+\widetilde{h}_{+}(q^{2})\Big{(}i\sigma^{\mu\nu}-\frac{2}{Q_{-}}(m_{\Lambda_{b}}(p_{\Lambda_{c}}^{\mu}\gamma^{\nu}-p_{\Lambda_{c}}^{\nu}\gamma^{\mu})$$

$$\displaystyle-m_{\Lambda_{c}}(p_{\Lambda_{b}}^{\mu}\gamma^{\nu}-p_{\Lambda_{b}}^{\nu}\gamma^{\mu})+p_{\Lambda_{b}}^{\mu}p_{\Lambda_{c}}^{\nu}-p_{\Lambda_{b}}^{\nu}p_{\Lambda_{c}}^{\mu})\Big{)}$$

$$\displaystyle+\widetilde{h}_{\perp}(q^{2})\frac{m_{\Lambda_{b}}-m_{\Lambda_{c}}}{q^{2}Q_{-}}\Big{(}(m_{\Lambda_{b}}^{2}-m_{\Lambda_{c}}^{2}-q^{2})(\gamma^{\mu}p_{\Lambda_{b}}^{\nu}-\gamma^{\nu}p_{\Lambda_{b}}^{\mu})$$

Full text

UMISS-HEP-2017-01

RBRC-1228

1 Introduction

A major part of particle physics research is focused on searching for physics beyond the standard model (SM). In the flavor sector a key property of the SM gauge interactions is that they are lepton flavor universal. Evidence for violation of this property would be a clear sign of new physics (NP) beyond the SM. In the search for NP, the second and third generation quarks and leptons are quite special because they are comparatively heavier and are expected to be relatively more sensitive to NP. As an example, in certain versions of the two Higgs doublet models (2HDM) the couplings of the new Higgs bosons are proportional to the masses and so NP effects are more pronounced for the heavier generations. Moreover, the constraints on new physics, especially involving the third generation leptons and quarks, are somewhat weaker allowing for larger new physics effects.

The charged-current decays $\bar{B}\to D^{(*)}\ell^{-}{\bar{\nu}}_{\ell}$ have been measured by the BaBar Lees:2013uzd , Belle Huschle:2015rga ; Abdesselam:2016cgx and LHCb Aaij:2015yra Collaborations. It is found that the values of the ratios $R({D^{(*)}})\equiv{\cal B}(\bar{B}\to D^{(*)}\tau^{-}{\bar{\nu}}_{\tau})/{\cal B}(\bar{B}\to D^{(*)}\ell^{-}{\bar{\nu}}_{\ell})$, where $\ell=e,\mu$, considerably exceed their SM predictions.

This ratio of branching fractions has certain advantages over the absolute branching fraction measurement of $B\to D^{(\ast)}\tau\nu_{\tau}$ decays, as this is relatively less sensitive to form factor variations and several systematic uncertainties, such as those on the experimental efficiency, as well as the dependence on the value of $|V_{cb}|$, cancel in the ratio.

There are lattice QCD predictions for the ratio $R(D)_{SM}$ in the Standard Model Bailey:2012jg ; Bailey:2015rga ; Na:2015kha that are in good agreement with one another,

[TABLE]

These values are also in good agreement with the phenomenological prediction Sakaki:2013bfa

[TABLE]

which is based on form factors extracted from experimental data for the $B\to D\ell\bar{\nu}$ differential decay rates using heavy-quark effective theory. See also Ref. Wang:2017jow for a recent analysis of $B\to D$ form factors using light-cone sum rules.

A calculation of ${R}(D^{\ast})_{SM}$ is not yet available from lattice QCD. The phenomenological prediction using form factors extracted from $B\to D^{*}\ell\bar{\nu}$ experimental data is Fajfer:2012vx

[TABLE]

The averages of $R(D)$ and $R(D^{\ast})$ measurements, evaluated by the Heavy-Flavor Averaging Group, are HFAGWinter2016

[TABLE]

where the first uncertainty is statistical and the second is systematic. $R(D^{\ast})$ and $R(D)$ exceed the SM predictions by 3.3$\sigma$ and 1.9$\sigma$, respectively. The combined analysis of $R(D^{\ast})$ and $R(D)$, taking into account measurement correlations, finds that the deviation is 4$\sigma$ from the SM prediction HFAGWinter2016 ; Ricciardi:2016pmh .

Since lattice QCD results are not yet available for the $B\to D^{*}$ form factors at nonzero recoil and for the $B\to D$ tensor form factor, we use the phenomenological form factors from Ref. Sakaki:2013bfa for both channels in our analysis. For $B\to D$, we have compared the phenomenological results for $f_{0}$ and $f_{+}$ to the results obtained from a joint BGL $z$-expansion fit DeTar to the FNAL/MILC lattice QCD results Bailey:2015rga and Babar Aubert:2009ac and Belle experimental data Glattauer:2015teq , and we found that the differences between both sets of form factors are below 5% across the entire kinematic range. The constraints on the new-physics couplings from the experimental measurement of $R(D)$ obtained with both sets of form factors are practically identical.

We also construct the ratios of the experimental results (5) and (6) to the phenomenological SM predictions (3) and (4):

[TABLE]

There have been numerous analyses examining NP explanations of the $R(D^{(*)})$ measurements Fajfer:2012jt ; Crivellin:2012ye ; Datta:2012qk ; Becirevic:2012jf ; Deshpande:2012rr ; Celis:2012dk ; Choudhury:2012hn ; Tanaka:2012nw ; Ko:2012sv ; Fan:2013qz ; Biancofiore:2013ki ; Celis:2013jha ; Duraisamy:2013kcw ; Dorsner:2013tla ; Sakaki:2013bfa ; Sakaki:2014sea ; Bhattacharya:2014wla . The new physics involves new charged-current interactions. In the neutral-current sector, data from $b\to s\ell^{+}\ell^{-}$ decays also hint at lepton flavor non-universality – the so called $R_{K}$ puzzle: the LHCb Collaboration has found a 2.6$\sigma$ deviation from the SM prediction for the ratio $R_{K}\equiv{\cal B}(B^{+}\to K^{+}\mu^{+}\mu^{-})/{\cal B}(B^{+}\to K^{+}e^{+}e^{-})$ in the dilepton invariant mass-squared range 1 GeV2 $\leq q^{2}\leq 6$ GeV2 Aaij:2014ora . There are also other, not necessarily lepton-flavor non-universal anomalies in $b\to s\ell^{+}\ell^{-}$ decays, most significantly in the $B^{0}\to K^{*0}\mu^{+}\mu^{-}$ angular observable $P_{5}^{\prime}$ Aaij:2013qta ; Aaij:2015oid . Global fits of the experimental data prefer a negative shift in one of the $b\to s\mu^{+}\mu^{-}$ Wilson coefficients, $C_{9}$ Blake:2016olu . Common explanations of the $b\to c\tau^{-}{\bar{\nu}}_{\tau}$ and $b\to s\mu^{+}\mu^{-}$ anomalies have been proposed in Refs. Bhattacharya:2014wla ; Calibbi:2015kma ; Greljo:2015mma ; Boucenna:2016wpr ; Bhattacharya:2016mcc ; Barbieri:2016las .

The underlying quark level transition $b\to c\tau^{-}{\bar{\nu}}_{\tau}$ in the $R({D^{(*)}})$ puzzle can be probed in both $B$ and $\Lambda_{b}$ decays. Recently, the decay $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ was discussed in the standard model and with new physics in Ref. Gutsche:2015mxa ; Woloshyn:2014hka ; Shivashankara:2015cta ; Dutta:2015ueb ; Faustov:2016pal ; Li:2016pdv ; Celis:2016azn . $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ decays could be useful to confirm possible new physics in the $R({D^{(*)}})$ puzzle and to point to the correct model of new physics.

In Ref. Shivashankara:2015cta the following quantities were calculated within the SM and with various new physics operators:

[TABLE]

and

[TABLE]

where $\ell$ represents $\mu$ or $e$. In this paper we work with the ratio $R_{\Lambda_{c}}^{Ratio}$, defined as

[TABLE]

We also consider the forward-backward asymmetry

[TABLE]

where $\theta_{\tau}$ is the angle between the momenta of the $\tau$ lepton and $\Lambda_{c}$ baryon in the dilepton rest frame.

This paper improves upon the earlier work Shivashankara:2015cta in several ways:

• •

We add tensor interactions in the effective Lagrangian.

• •

Instead of a quark model, we use form factors from lattice QCD to calculate all $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ observable. The vector and axial vector form factors are taken from Ref. Detmold:2015aaa , and we extend the analysis of Ref. Detmold:2015aaa to obtain lattice QCD results for the tensor form factors as well.

• •

In addition to $R(\Lambda_{c})$ and $B_{\Lambda_{c}}(q^{2})$, we also calculate the forward-backward asymmetry (12) in the SM and with new physics.

• •

We include new constraints from the $B_{c}$ lifetime Li:2016vvp ; Alonso:2016oyd ; Celis:2016azn in our analysis.

• •

In addition to analyzing the effects of individual new physics-couplings, we study specific models that introduce multiple new-physics couplings simultaneously. We consider a 2-Higgs doublet model, models with new vector bosons, and several leptoquark models.

The paper is organized in the following manner: In Sec. 2 we introduce the effective Lagrangian to parametrize the NP operators and give the expressions for the decay distribution in terms of helicity amplitudes. In Sec. 3, we present the new lattice QCD results for the tensor form factors. The model-independent phenomenological analysis of individual new-physics couplings is discussed in Sec. 4, while explicit models are considered in Sec. 5. We conclude in Sec. 6.

2 Formalism

2.1 Effective Hamiltonian

In the presence of NP, the effective Hamiltonian for the quark-level transition $b\to c\tau^{-}\bar{\nu}_{\tau}$ can be written in the form Chen:2005gr ; Bhattacharya:2011qm

[TABLE]

where $G_{F}$ is the Fermi constant, $V_{cb}$ is the Cabibbo-Kobayashi-Maskawa (CKM) matrix element, and we use $\sigma_{\mu\nu}=i[\gamma_{\mu},\gamma_{\nu}]/2$. We consider that the above Hamiltonian is written at the $m_{b}$ energy scale.

If the effective interaction is written at the cut-ff scale $\Lambda$ then running down to the $m_{b}$ scale will generate new operators and new contributions, which have been discussed in Refs. Feruglio:2016gvd ; Feruglio:2017rjo . These new contributions can strongly constrain models but to really calculate their true impacts we have to consider specific models where there might be cancellations between various terms.

The SM effective Hamiltonian corresponds to $g_{L}=g_{R}=g_{S}=g_{P}=g_{T}=0$. In Eq. (LABEL:eq:Heff), we have assumed the neutrinos to be always left chiral. In general, with NP the neutrino associated with the $\tau$ lepton does not have to carry the same flavor. In the model-independent analysis of individual couplings (Sec. 4) we will not consider this possibility. Specific models will be discussed in Sec. 5.

2.2 Decay process

The process under consideration is

[TABLE]

The differential decay rate for this process can be represented as Tanaka:2012nw

[TABLE]

where

[TABLE]

and the helicity amplitude $\mathcal{M}_{\lambda_{\Lambda_{c}}}^{\lambda_{\tau}}$ is written as

[TABLE]

Here, ($\lambda$, $\lambda^{\prime}$) indicate the helicity of the virtual vector boson (see Appendix A), $\lambda_{\Lambda_{c}}$ and $\lambda_{\tau}$ are the helicities of the $\Lambda_{c}$ baryon and $\tau$ lepton, respectively, and $\eta_{\lambda}=1$ for $\lambda=t$ and $\eta_{\lambda}=-1$ for $\lambda=0,\pm 1$.

The scalar-type, vector/axial-vector-type, and tensor-type hadronic helicity amplitudes are defined as

[TABLE]

[TABLE]

and

[TABLE]

The leptonic amplitudes are defined as

[TABLE]

Above, $\epsilon^{\mu}$ are the polarization vectors of the virtual vector boson (see Appendix A). The explicit expressions for the hadronic and leptonic helicity amplitudes are presented in the following.

2.2.1 Hadronic helicity amplitudes

In this paper, we use the helicity-based definition of the $\Lambda_{b}\to\Lambda_{c}$ form factors, which was introduced in Feldmann:2011xf . The matrix elements of the vector and axial vector currents can be written in terms of six helicity form factors $F_{+}$, $F_{\perp}$, $F_{0}$, $G_{+}$, $G_{\perp}$, and $G_{0}$ as follows:

[TABLE]

The matrix elements of the scalar and pseudoscalar currents can be obtained from the vector and axial vector matrix elements using the equations of motion:

[TABLE]

In our numerical analysis, we use $m_{b}=4.18(4)$ GeV, $m_{c}=1.27(3)$ GeV Olive:2016xmw . The matrix elements of the tensor currents can be written in terms of four form factors $h_{+}$, $h_{\perp}$, $\widetilde{h}_{+}$, $\widetilde{h}_{\perp}$,

[TABLE]

The matrix elements of the current $\bar{c}i\sigma^{\mu\nu}\gamma_{5}b$ can be obtained from the above equation by using the identity

[TABLE]

In the following, only the non-vanishing helicity amplitudes are given. The scalar and pseudo-scalar helicity amplitudes associated with the new physics scalar and pseudo-scalar interactions are

[TABLE]

The parity-related amplitudes are

[TABLE]

For the vector and axial-vector helicity amplitudes, we find

[TABLE]

We also have the relations

[TABLE]

The tensor helicity amplitudes are

[TABLE]

The other non-vanishing helicity amplitudes of tensor type are related to the above by

[TABLE]

2.2.2 Leptonic helicity amplitudes

In the following, we define

[TABLE]

The scalar and pseudoscalar leptonic helicity amplitudes are

[TABLE]

the vector and axial-vector amplitudes are

[TABLE]

and the tensor amplitudes are

[TABLE]

Here we have the relation

[TABLE]

The angle $\theta_{\tau}$ is defined as the angle between the momenta of the $\tau$ lepton and $\Lambda_{c}$ baryon in the dilepton rest frame.

2.3 Differential decay rate and forward-backward asymmetry

From the twofold decay distribution (14), we obtain the following expression for the differential decay rate by integrating over $\cos{\theta_{\tau}}$:

[TABLE]

where

[TABLE]

Here, $A_{1}^{VA}$ and $A_{2}^{VA}$ are the (axial-)vector non-spin-flip and spin-flip terms respectively, $A_{3}^{SP}$ and $A_{4}^{T}$ are the pure (pseudo-)scalar and tensor terms respectively; and $A_{5}^{VA-SP}$ and $A_{6}^{VA-T}$ are interference terms. The scalar-tensor interference term is proportional to $\cos{\theta_{\tau}}$ and vanishes after integration over $\cos{\theta_{\tau}}$.

For the forward-backward asymmetry (12) we have

[TABLE]

where

[TABLE]

There is no contribution from pure (pseudo-)scalar operators to the forward-backward asymmetry, but all possible interference terms are present.

3 $\Lambda_{b}\to\Lambda_{c}$ tensor form factors from lattice QCD

This work uses $\Lambda_{b}\to\Lambda_{c}$ form factors computed in lattice QCD. The vector and axial vector form factors defined in Eqs. (22) and (23) are taken from Ref. Detmold:2015aaa . For the purposes of the present work, one of us (SM) extended the analysis of Ref. Detmold:2015aaa to include the tensor form factors defined in Eq. (26). The tensor form factors were extracted from the lattice QCD correlation functions using ratios defined as in Ref. Detmold:2016pkz . The lattice parameters are identical to those in Ref. Detmold:2015aaa , except that for the tensor form factors the “residual matching factors” $\rho_{T^{\mu\nu}}$ and the $\mathcal{O}(a)$-improvement coefficients were set to their tree-level values, with appropriately increased estimates for the resulting systematic uncertainties as detailed further below. Following Ref. Detmold:2015aaa , two separate fits were performed to the lattice QCD data using BCL $z$-expansions Bourrely:2008za augmented with additional terms to describe the dependence on the lattice spacing and quark masses. The “nominal fit” is used to evaluate the central values and statistical uncertainties of the form factors (and of any observables depending on the form factors), while the “higher-order fit” is used in conjunction with the nominal fit to evaluate the combined systematic uncertainty associated with the continuum extrapolation, chiral extrapolation, $z$ expansion, renormalization, scale setting, $b$-quark parameter tuning, finite volume, and missing isospin symmetry breaking/QED. The procedure for evaluating the systematic uncertainties is given in Eqs. (82)-(84) of Ref. Detmold:2015aaa . The renormalization uncertainty in the tensor form factors is dominated by the use of the tree-level values, $\rho_{T^{\mu\nu}}=1$, for the residual matching factors in the mostly nonperturbative renormalization procedure. We estimate the systematic uncertainty in $\rho_{T^{\mu\nu}}$ to be 2 times the maximum value of $|\rho_{V^{\mu}}-1|$, $|\rho_{A^{\mu}}-1|$, which is equal to $0.0404$ Detmold:2015aaa . Note that the tensor form factors are scale-dependent, and our results and estimates of systematic uncertainties should be interpreted as corresponding to $\mu=m_{b}$ in the $\overline{\text{MS}}$ scheme. To account for the renormalization uncertainty in the higher-order fit, we introduced nuisance parameters multiplying the form factors, with Gaussian priors equal to $1\pm 0.0404$.

In the physical limit (zero lattice spacing and physical quark masses), the nominal fit function for a form factor $f$ reduces to the form

[TABLE]

while the higher-order fit function is given by

[TABLE]

The values of the pole masses are given in Table 1, and the kinematic variables $z^{f}$ are defined as

[TABLE]

As in Ref. Detmold:2015aaa , in the fits to the lattice data we evaluated the pole masses as $am_{\rm pole}^{f}=am_{B_{c}}^{(\rm lat)}+a\Delta^{f}$, where $am_{B_{c}}^{(\rm lat)}$ are the lattice QCD results for the pseudoscalar $B_{c}$ mass on each individual data set, and the splittings $\Delta^{f}$ are fixed to their physical values $\Delta^{h_{+},h_{\perp}}=56$ MeV and $\Delta^{\widetilde{h}_{+},\widetilde{h}_{\perp}}=492$ MeV. The form factor results are very insensitive to the choices of $\Delta^{f}$ (as expected for poles far above $q^{2}_{\rm max}$). When varying $\Delta^{f}$ by $\pm 10\%$, the $z$-expansion parameters returned from the fit are found to change in such a way that the changes in the form factors themselves are below $0.2\%$ in the entire semileptonic region.

Plots of the lattice QCD data for the tensor form factors, along with the nominal fit functions in the physical limit, are shown in Fig. 1. The same fit functions are plotted in the entire kinematic range in Fig. 2, where also the total (statistical plus systematic) uncertainties are shown. The form factor $h_{+}$ has larger uncertainties than the other form factors because of larger excited-state contributions in the lattice QCD correlation functions.

The values of the nominal and higher-order fit parameters for the tensor form factors are given in Table 2. Because of the kinematic constraint

[TABLE]

which is at the point $z=0$, the form factors $\widetilde{h}_{\perp}$ and $\widetilde{h}_{+}$ share the common parameters $a_{0}^{\widetilde{h}_{\perp},\widetilde{h}_{+}}$. To evaluate the uncertainties of the form factors and of any observables depending on the form factors, it is essential to include the (cross-)correlations between all form factor parameters. The full covariance matrices of the nominal and higher-order parameters of all ten $\Lambda_{b}\to\Lambda_{c}$ form factors (vector, axial vector, and tensor) are provided as supplemental files.

4 Model-independent analysis of individual new-physics couplings

In this section we consider one new-physics coupling at a time. We first compute the constraints from the existing measurements with mesons, and then study the impact of a future measurement of $R(\Lambda_{c})$.

4.1 Constraints from the existing measurements of $R(D)$, $R(D^{*})$, and $\tau_{B_{c}}$

We require the NP couplings to reproduce the measurements (7) and (8) of $R_{D}^{Ratio}$ and $R_{D^{\ast}}^{Ratio}$ within the $3\sigma$ range. The coupling $g_{S}(g_{P})$ only contributes to $R_{D}^{Ratio}(R_{D^{\ast}}^{Ratio})$ while the other couplings contribute to both channels. If only $g_{L}$ is nonzero, the SM contribution gets rescaled by an overall factor $|1+g_{L}|^{2}$, so that Bhattacharya:2014wla

[TABLE]

which is consistent with the present measurements (7) and (8). Note that in the $g_{L}$-only scenario the forward-backward asymmetry (12) is unmodified, $A_{FB}=A_{FB}^{SM}$.

There is also a measurement of the $\tau$ polarization by Belle Abdesselam:2016xqt with the result $P_{\tau}=-0.44\pm 0.47^{+0.20}_{-0.17}$. The uncertainties of this measurement are presently too large to provide a significant additional constraint and we therefore do not include $P_{\tau}$ in our analysis.

It was recently pointed out Li:2016vvp ; Alonso:2016oyd ; Celis:2016azn that the measured lifetime of the $B_{c}$ meson, $\tau_{B_{c}}=0.507(9)\>\>{\rm ps}$ Olive:2016xmw , provides an upper bound on the $B_{c}\to\tau^{-}\bar{\nu}_{\tau}$ decay rate, which yields a strong constraint on the $g_{P}$ coupling. According to SM calculations using an operator product expansion Beneke:1996xe , only about $5\%$ (for the central value) of the total width of the $B_{c}$, $\Gamma_{B_{c}}=1/\tau_{B_{c}}$, can be attributed to purely tauonic and semi-tauonic modes. This can be relaxed as the parameters in the calculations are varied. In our analysis, we use an upper limit of $\mathcal{B}(B_{c}\to\tau^{-}\bar{\nu}_{\tau})\leq 30\%$ to put constraints on the new-physics couplings. We use $f_{B_{c}}=0.434(15)\>{\rm GeV}$ from lattice QCD Colquhoun:2015oha .

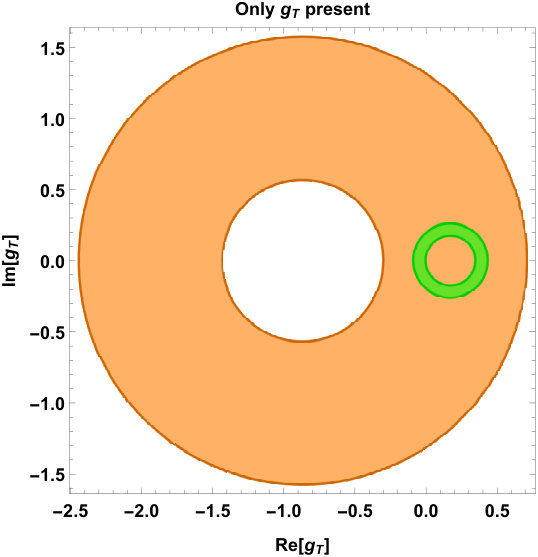

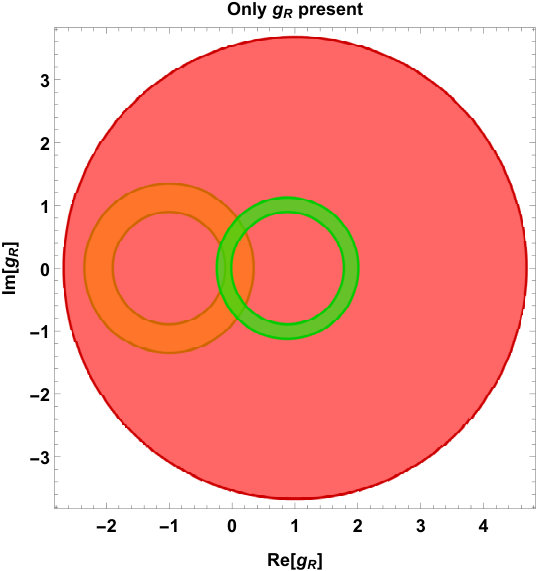

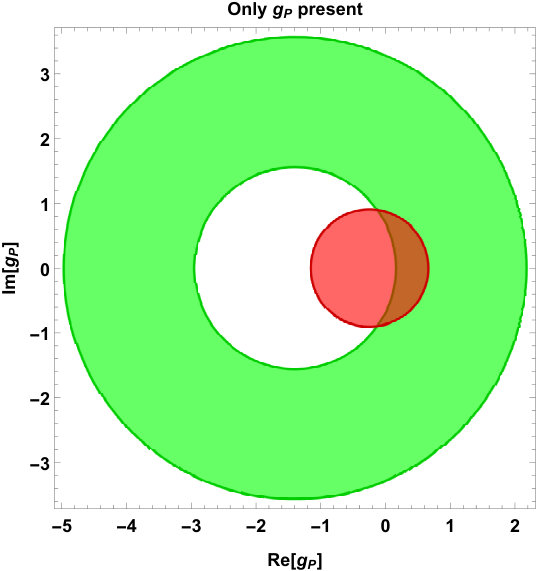

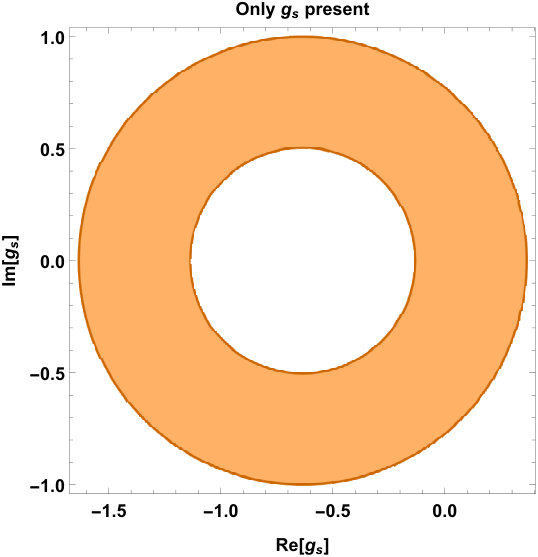

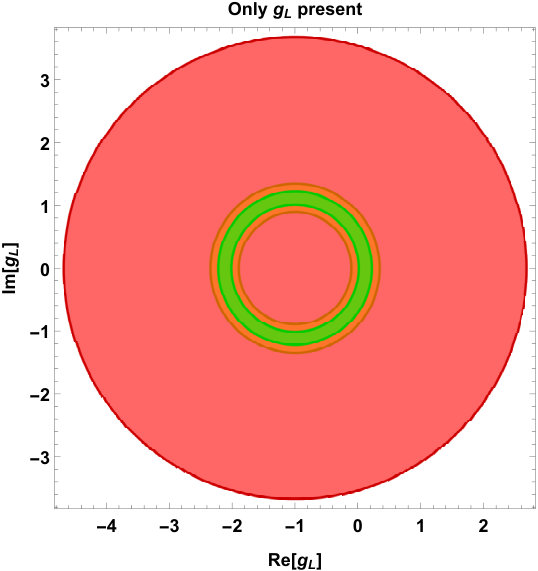

In Fig. 3, we present the constraints on the new-physics couplings coming from the measurements of $R_{D}^{Ratio}$, $R_{D^{\ast}}^{Ratio}$, and $\tau_{B_{c}}$. We see that $\tau_{B_{c}}$ puts a strong constraint on $g_{P}$, and weak constraints on $g_{L}$ and $g_{R}$. The tensor coupling $g_{T}$ is strongly constrained by $R_{D^{\ast}}^{Ratio}$, and only weakly constrained by $R_{D}^{Ratio}$.

Example values of the ratios $R(\Lambda_{c})$ and $R_{\Lambda_{c}}^{Ratio}=R(\Lambda_{c})/R(\Lambda_{c})^{SM}$ for representative allowed values of the NP couplings are given in Table 3. The standard-model prediction for $R(\Lambda_{c})$ is $0.333\pm 0.010$ Detmold:2015aaa . We find that large deviations from this value are possible with the present mesonic constraints. In Table 4, we present the maximum and minimum allowed values of $R_{\Lambda_{c}}^{Ratio}=R(\Lambda_{c})/R(\Lambda_{c})^{SM}$ in the presence of each individual new-physics coupling, and the corresponding values of the coupling at which these occur.

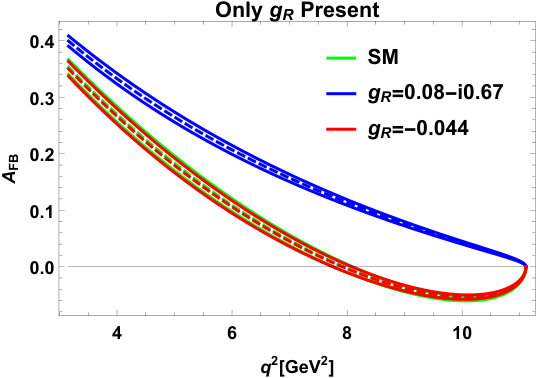

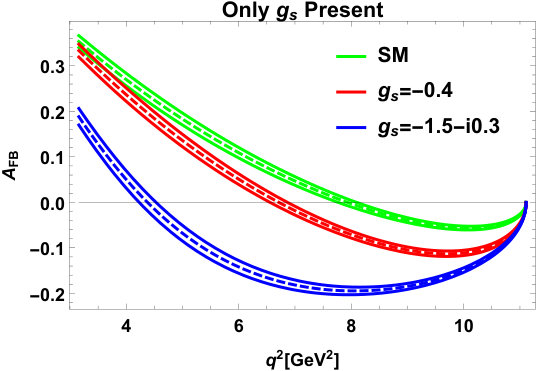

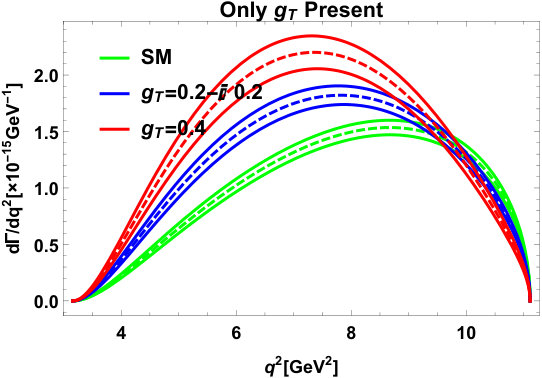

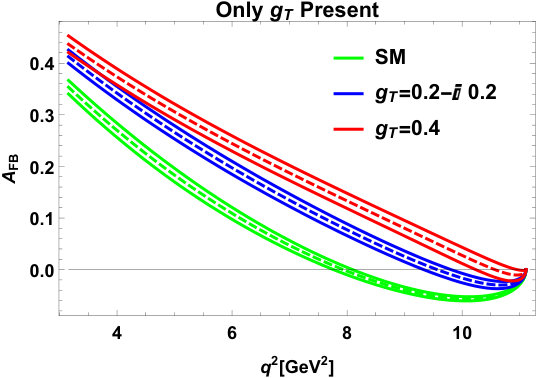

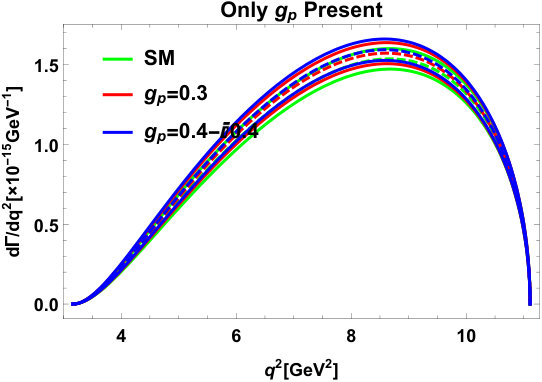

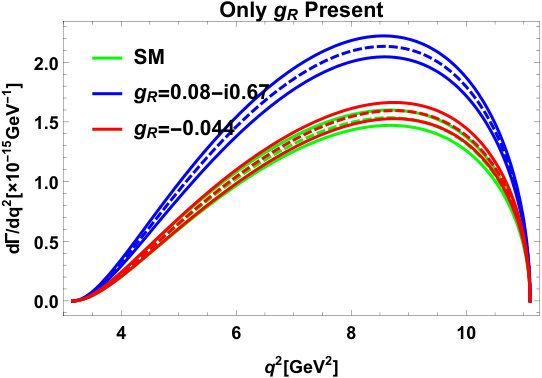

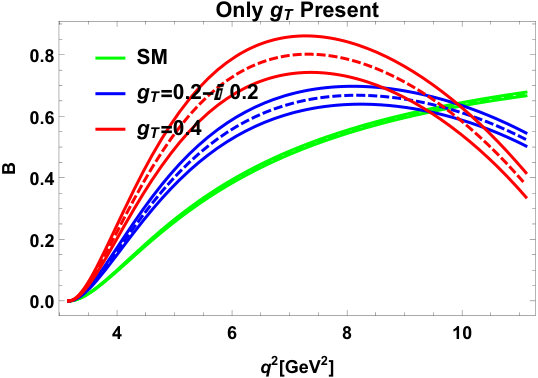

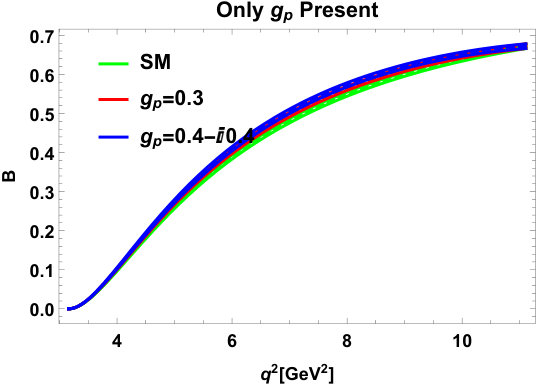

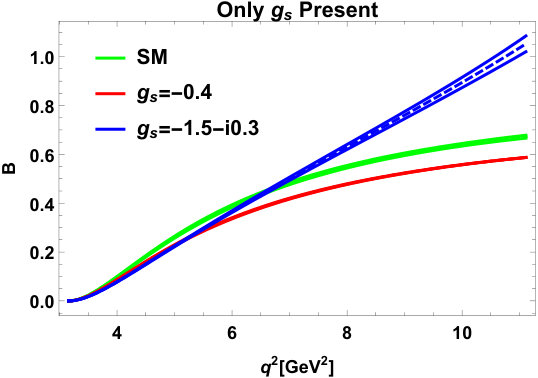

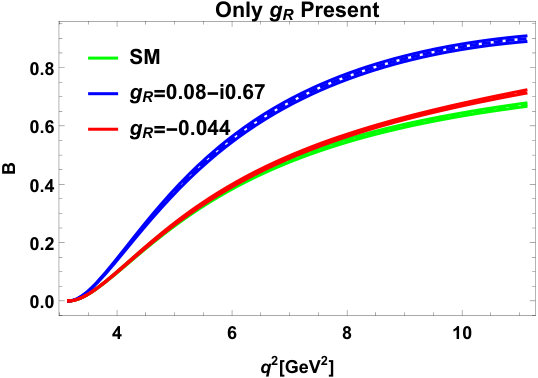

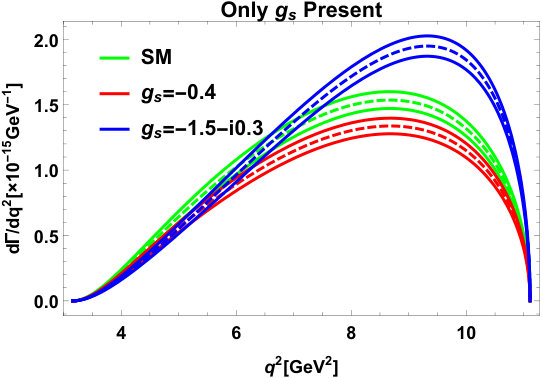

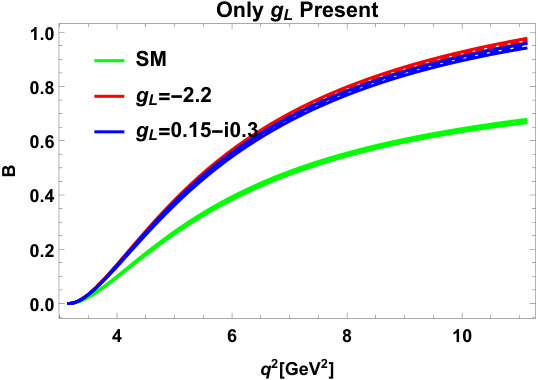

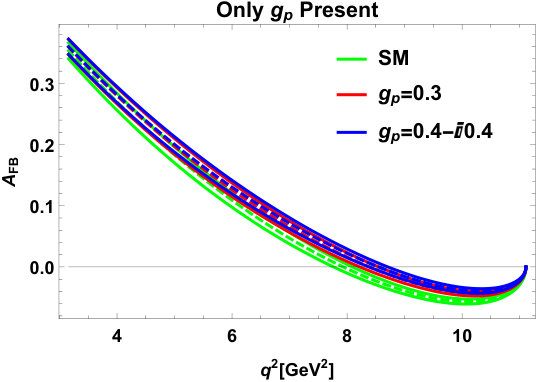

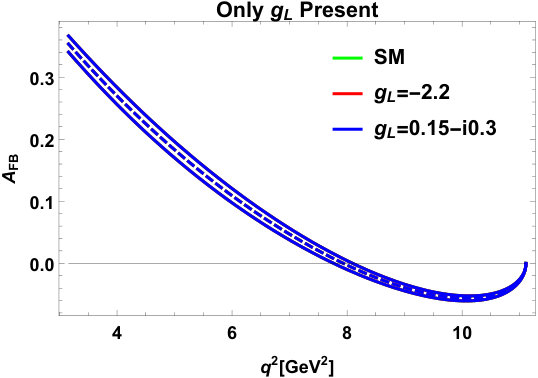

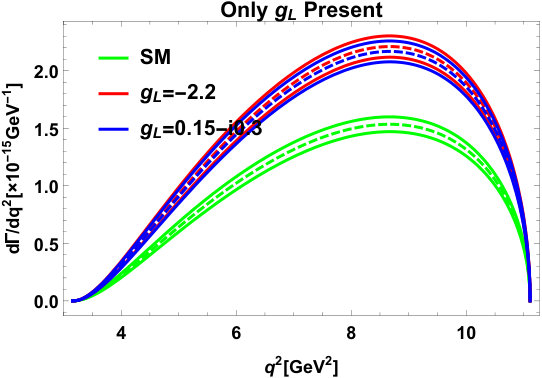

Figure 4 shows the effect of representative values of the individual NP couplings on the $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ differential decay rate (evaluated assuming $|V_{cb}|=0.041$) as well as $B_{\Lambda_{c}}(q^{2})$ [defined in Eq. (10)] and $A_{FB}(q^{2})$. In all cases, except for the strongly constrained pure $g_{P}$ coupling, substantial deviations from the SM predictions are allowed. We notice that $A_{FB}$ is typically above the SM prediction in the presence of $g_{R}$ or $g_{T}$, while it is typically below the SM prediction in the presence of $g_{S}$. Hence, it is possible to use $A_{FB}$ to distinguish between the different couplings.

4.2 Impact of a future $R(\Lambda_{c})$ measurement

In this subsection we present the effect of possible future measurements of $R(\Lambda_{c})$ on the NP couplings constraints. We consider two cases, one in which the measured value is near the SM prediction and one with measured value far from SM. For the first case we take $R_{\Lambda_{c}}^{Ratio}=1\pm 3\times 0.05$, and for the second case $R_{\Lambda_{c}}^{Ratio}=1.3\pm 3\times 0.05$ (the same central values as $R_{D}^{Ratio}$). Note that we take the $1\sigma$ uncertainty as $0.05$. Figures 5 and 6 show the allowed regions of the parameter space for the first and second case, respectively. We observe the following when adding the $R_{\Lambda_{c}}^{Ratio}$ constraints to the mesonic constraints:

• •

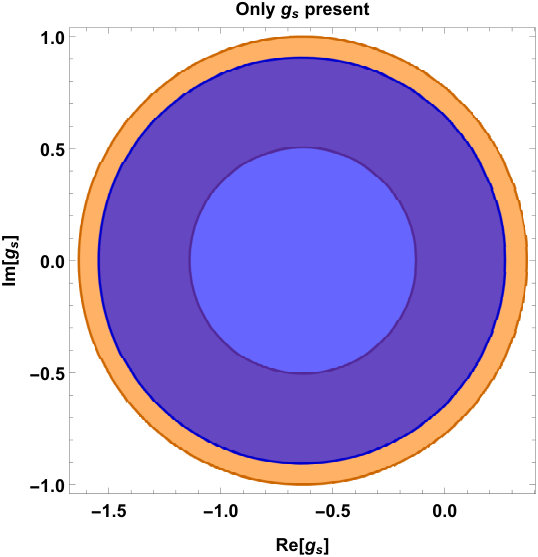

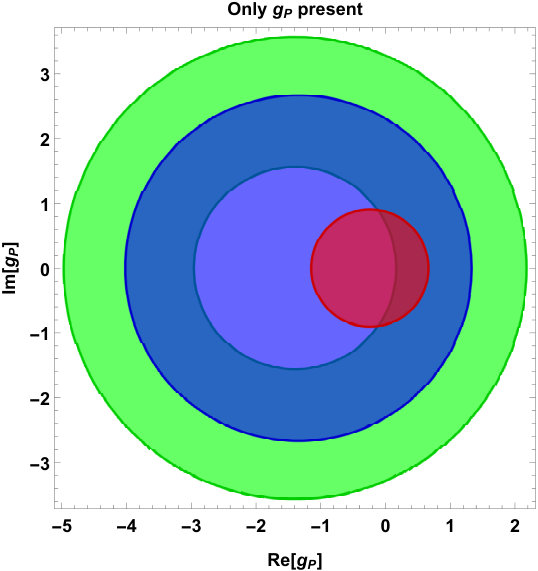

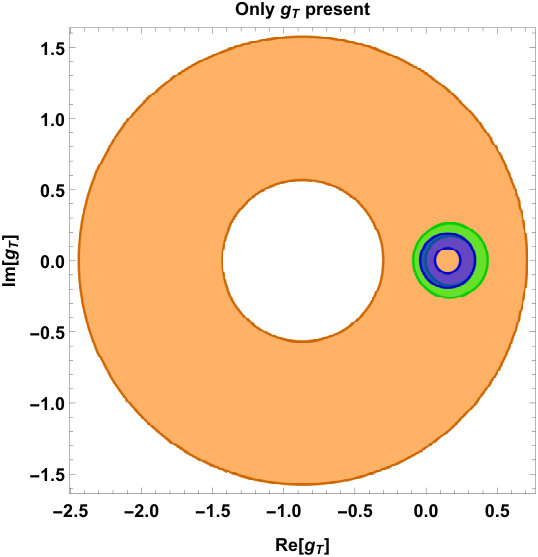

For $R(\Lambda_{c})$ near the SM (Fig. 5), the allowed regions for $(g_{L},\;g_{R},\;g_{T})$ are reduced significantly, the allowed region for $g_{S}$ shrinks only slightly, and the allowed region for $g_{P}$ remains the same (as it is dominantly constrained by $\tau_{B_{c}}$).

• •

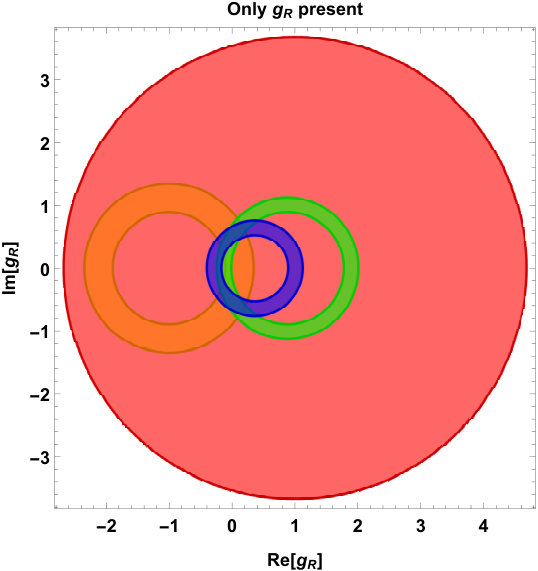

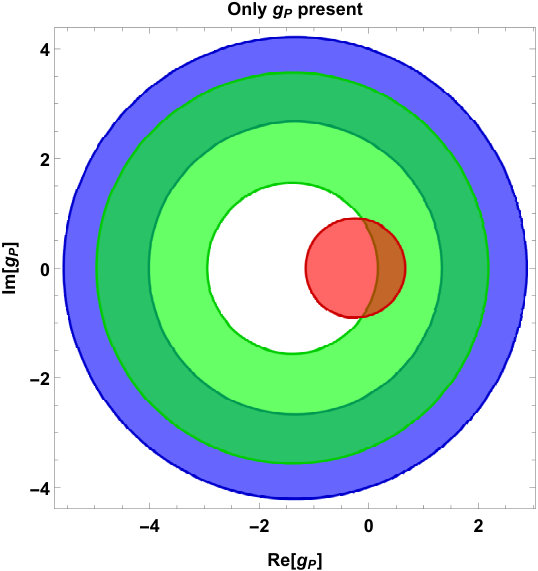

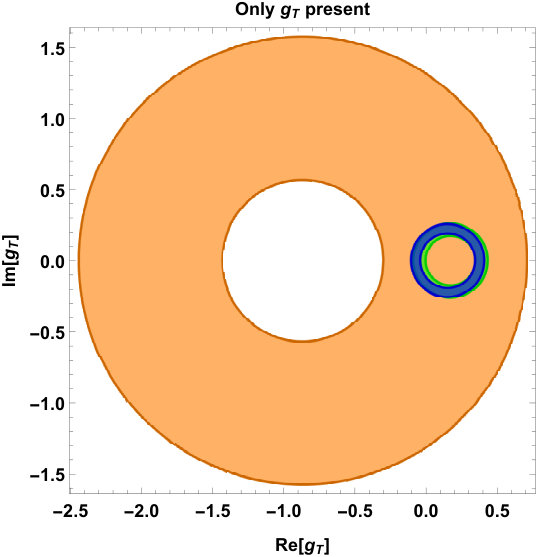

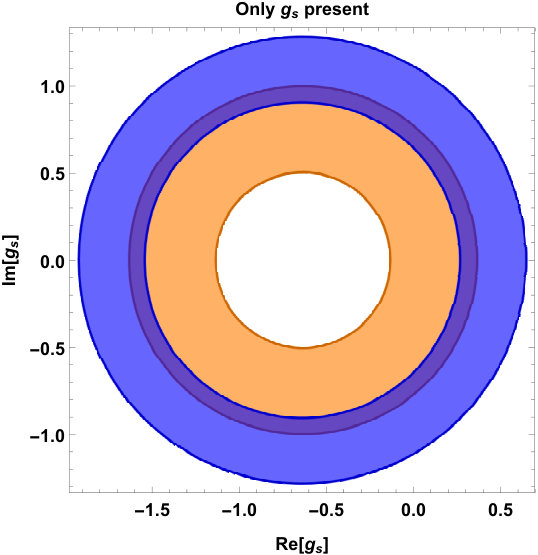

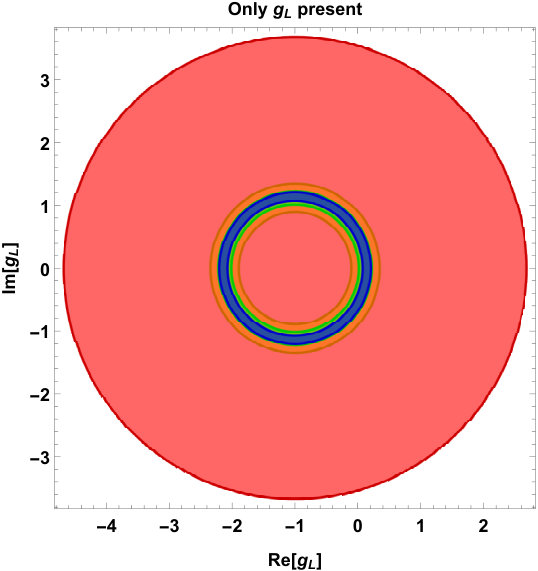

For $R(\Lambda_{c})$ far from the SM (Fig. 6), most of the previously allowed region for $g_{S}$ becomes excluded by $R(\Lambda_{c})$. Even more importantly, the $g_{P}$-only scenario becomes ruled out. In this case, $R(\Lambda_{c})$ also provides strong constraints on $(g_{L},\;g_{R},\;g_{T})$, but these constraints still overlap with the mesonic constraints.

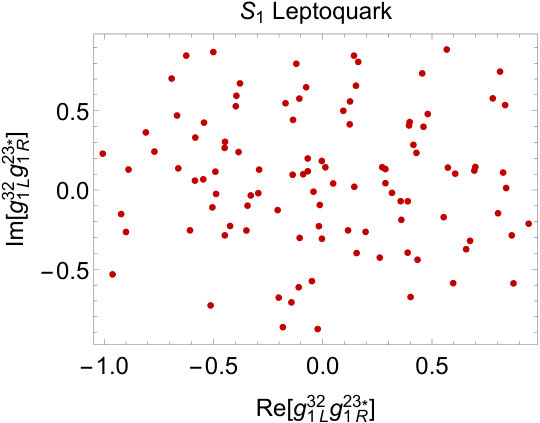

5 Explicit models

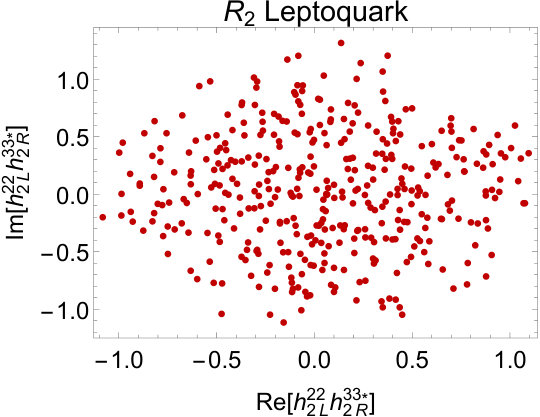

In this section we will discuss explicit models that can generate the couplings in the effective Hamiltonian (2.1). We will consider three categories: Two-Higgs-doublet models which generate ($g_{S}$, $g_{P}$), $SU(2)$ models which generate $g_{L}$, and leptoquark models which generate ($g_{S}$, $g_{P}$, $g_{L}$, $g_{T}$). We do not consider models that generate $g_{R}$, as in the standard-model-effective-theory picture it is difficult to have a $g_{R}$ coupling that leads to lepton universality violation effects Alonso:2015sja .

5.1 Two-Higgs-doublet models

The simplest scalar extensions of the SM are the two-Higgs-doublet models (2HDM). The 2HDM of type II is disfavored by experiment Lees:2013uzd . We will consider the Aligned Two-Higgs-Doublet Model (A2HDM) from Ref. Celis:2012dk . The Lagrangian of the model is

[TABLE]

where $u$, $d$, and $l$ denote all three generations of up-type quarks, down-type quarks, and charged leptons, $M_{u}$ and $M_{d}$ are the quark mass matrices, and $V$ is the CKM matrix. Above, $\xi_{f}$ ($f=u,d,l$) are the proportionality parameters in the so-called “Higgs basis”, in which only one scalar doublet acquires a nonzero vacuum expectation value. The cases $\xi_{d}=\xi_{l}=-1/\xi_{u}=-\tan\beta$ and $\xi_{u}=\xi_{d}=\xi_{l}=\cot\beta$ correspond to the Type-II and Type-I models, respectively. The general effective couplings in Eq. (2.1) read

[TABLE]

where

[TABLE]

The scenario in which the $\xi_{u,d,l}$ parameters are universal for all three generations is ruled out Celis:2012dk . We therefore assume that Eq. (76) only gives the couplings for processes involving the $b$ quark, while the couplings for the first two generations are considered independently. In this model we find significant deviation from the standard model contribution to the decay $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$, but for a more complete analysis RGE evolution should be considered. The RGE evolution of the couplings of the A2HDM has been discussed in Ref. Ferreira:2010xe . The alignment condition, which guarantees the absence of tree-level FCNC processes, is preserved by the RGE only in the case of the standard type-I, II, X, and Y models which are discussed in Pich:2009sp . However, our framework requires non-universal flavor dependent couplings and the RGE evolution has not been worked out and is not included in the analysis. Keeping in mind that RGE effects could change the phenomenology of the model, the discussion of the full numerical analysis of the model is not included in this work.

5.2 $SU(2)$ and Leptoquark models

The analysis of the $R({D^{(*)}})$ and $R_{K}$ anomalies could favor the left-handed operator $g_{L}$. In Ref. Bhattacharya:2014wla , it was pointed out that, assuming that the scale of NP is much higher than the weak scale, the $g_{L}$ operator should be invariant under the full $SU(3)_{C}\times SU(2)_{L}\times U(1)_{Y}$ gauge group. There are two possibilities:

[TABLE]

where $G_{1}$ and $G_{2}$ are both $O(1)$, and the $\sigma^{I}$ are the Pauli matrices. Here $Q^{\prime}\equiv(t^{\prime},b^{\prime})^{T}$ and $L^{\prime}\equiv(\nu^{\prime}_{\tau},\tau^{\prime})^{T}$. The key point is that ${\cal O}_{2}^{NP}$ contains both neutral-current (NC) and charged-current (CC) interactions. The NC and CC pieces can be used to respectively explain the $R_{K}$ and $R(D^{(*)})$ puzzles. In the following, we briefly review the literature on models of this type.

In Ref. Calibbi:2015kma , UV completions that can give rise to ${\cal O}_{1,2}^{NP}$ [Eq. (77)], were discussed. One among the four possibilities for the underlying NP model is a vector boson (VB) that transforms as $({\bf 1},{\bf 3},0)$ under $SU(3)_{C}\times SU(2)_{L}\times U(1)_{Y}$, as in the SM.

Concrete VB models were discussed in Ref. Greljo:2015mma ; Boucenna:2016wpr and the simplest VB model was considered in Ref. Bhattacharya:2016mcc . We refer to the VBs as $V=W^{\prime}$, $Z^{\prime}$. In the gauge basis, the Lagrangian describing the couplings of the VBs to left-handed third-generation fermions is

[TABLE]

where $\sigma^{I}$ ($I=1,2,3$) are the Pauli matrices. Once the heavy VB is integrated out, one obtains the following effective Lagrangian, relevant for $b\to s\ell^{+}\ell^{-}$, $b\to c\tau^{-}{\bar{\nu}}$ and $b\to s\nu{\bar{\nu}}$ decays:

[TABLE]

One can study the phenomenology of the model with an ansatz for the mixing matrices. The assumption of Ref. Calibbi:2015kma ; Bhattacharya:2016mcc is that the transformations $D$ and $L$ involve only the second and third generations. The key observation in Ref. Bhattacharya:2016mcc is the $Z^{\prime}$ interaction also contributes to $B_{s}$ mixing and the model becomes highly constrained. If fact only a few percent deviation from the SM is allowed in the $R({D^{(*)}})$ observables. For this reason, we do not present a detailed numerical analysis of the $SU(2)$ models for the $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ decay.

We next move to leptoquark models. In Ref. Dumont:2016xpj , several leptoquark models are considered that generate scalar, vector, and tensor operators. The $SU(3)\times SU(2)\times U(1)$ quantum numbers of these models are summarized in Table 5. We can group the leptoquarks as vector or scalar leptoquarks. These leptoquarks can in turn be $SU(2)$ singlets, doublets, or triplets.

The Lagrangians for the various leptoquarks are

[TABLE]

where $h^{ij}$ and $g^{ij}$ are dimensionless couplings, $S_{1}$, ${\bm{S}}_{3}$, and $R_{2}$ are the scalar leptoquark bosons, $U_{1}^{\mu}$, ${\bm{U}}_{3}^{\mu}$, and $V_{2}^{\mu}$ are the vector leptoquark bosons, and the index $i$ ($j$) indicates the generation of quarks (leptons).

The leptoquark Lagrangian generates the following couplings in Eq. (2.1):

[TABLE]

where the Wilson coefficients in the leptoquark models are given by

[TABLE]

These Wilson coefficients are defined at the energy scale $\mu=M_{X}$, where $X$ represents a leptoquark. Above, $V_{k3}$ denotes the relevant CKM matrix element, where the $3$ corresponds to the bottom quark. In the following, we neglect the CKM-suppressed contributions from $k=1$ and $k=2$ in the sums. Because the neutrino is not observed, we have $l=1,2,3$. Note that there is a Standard-Model contribution for $l=3$ but not for $l=1,2$; hence, the constraints for different $l$ will be different.

The renormalization-group running of the scalar and tensor Wilson coefficients from $\mu=M_{X}$ to $\mu=\mu_{b}$, where $\mu_{b}$ is the mass scale of the bottom quark, is given by

[TABLE]

where $\alpha_{s}(\mu)$ is the QCD coupling at scale $\mu$. Because the anomalous dimensions of the vector and axial-vector currents are zero, the Wilson coefficients for $\mathcal{V}_{1,2}$ are scale-independent.

The different leptoquarks produce different effective operators as summarized below:

• •

The $S_{1}$ leptoquark with nonzero $(g_{1L},g_{1R}^{*})$ generates $C_{\mathcal{V}_{1}}^{l}$, $C_{\mathcal{S}_{2}}^{l}$, and $C_{\mathcal{T}}^{l}$, with the relation $C_{\mathcal{S}_{2}}^{l}=-4C_{\mathcal{T}}^{l}$.

• •

The $R_{2}$ leptoquark with $(h_{2L},h_{2R}^{*})$ generates $C_{\mathcal{S}_{2}}^{l}$ and $C_{\mathcal{T}}^{l}$ with the relation $C_{\mathcal{S}_{2}}^{l}=4C_{\mathcal{T}}^{l}$.

• •

The $V_{2}$ leptoquark generates $C_{\mathcal{S}_{1}}^{l}$ and is tightly constrained, so we do not consider this model.

• •

The $U_{1}$ leptoquark with nonzero $(g_{2L},g_{2R}^{*})$ generates $C_{\mathcal{S}_{1}}^{l}$ and $C_{\mathcal{V}_{1}}^{l}$.

• •

The ${\bm{S}}_{3}$ and ${\bm{U}}_{3}$ leptoquarks with nonzero values of $(g_{3L},g_{3L}^{*})$ and $(h_{3L},h_{3L}^{*})$ generate $C_{\mathcal{V}_{1}}^{l}$.

The leptoquark couplings can also be constrained using $b\to s\nu\bar{\nu}$ decays. As pointed out in Ref. Bhattacharya:2016mcc , the exclusive decays $\bar{B}\to K\nu\bar{\nu}$ and $\bar{B}\to K^{*}\nu\bar{\nu}$ provide more stringent bounds than the inclusive mode $B\to X_{s}\nu\bar{\nu}$. The $U_{1}$ and $R_{2}$ leptoquarks do not contribute to $b\to s\nu\bar{\nu}$, while the left-handed couplings of $S_{1}$, ${\bm{S}}_{3}$, and ${\bm{U}}_{3}$ do. (The $V_{2}$ leptoquark also contributes to $b\to s\nu\bar{\nu}$, but we do not consider this model.) The BaBar and Belle Collaborations give the following 90% C.L. upper limits Lees:2013kla ; Lutz:2013ftz :

[TABLE]

In Ref. Buras:2014fpa , these are compared with the SM predictions

[TABLE]

Taking into account the theoretical uncertainties Buras:2014fpa , the 90% C.L. upper bounds on the NP contributions are

[TABLE]

Following Ref. Sakaki:2013bfa , the $b\to s\nu_{j}\bar{\nu}_{i}$ process can be described by the effective Hamiltonian

[TABLE]

where the left-handed and right-handed operators are defined as

[TABLE]

The SM Wilson coefficient $C_{L}^{(\rm SM)}$ receives contributions from box and $Z$-penguin diagrams, which yield

[TABLE]

where the loop function $X(x_{t})$ can be found e.g. in Ref. Buras:1998raa . The leptoquarks that we consider produce contributions to $C_{L}^{ij}$ which, to leading order, are equal to Sakaki:2013bfa

[TABLE]

We obtain common coefficients for $b\to c\tau\bar{\nu}_{l}$ and $b\to s\nu_{\tau}\bar{\nu}_{l}$ processes,

[TABLE]

Hence, for $l=3$ we obtain

[TABLE]

while for $l=1,2$ we have

[TABLE]

When considering nonzero values only for one coupling at a time ($l=1,2,3$), the experimental measurements of $R_{D}^{Ratio}$, $R_{D^{\ast}}^{Ratio}$, $\tau_{B_{c}}$, and ${\cal B}(B\to K^{(*)}\nu\bar{\nu})$ yield the constraints shown in Figures 7, 8, and 9. The cases with $g_{3L}^{3i}g_{3L}^{23*}$ in the ${\bm{S}}_{3}$ model, $g_{1L}^{3i}g_{1L}^{23*}$ in the $S_{1}$ model, and $h_{3L}^{2i}h_{3L}^{23*}$ in the ${\bm{U}}_{3}$ model are ruled out for $i=1,2$.

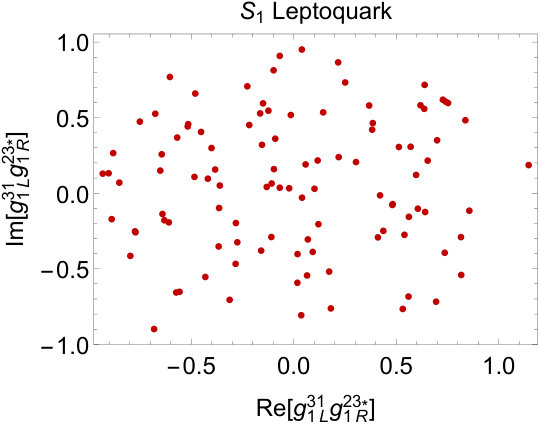

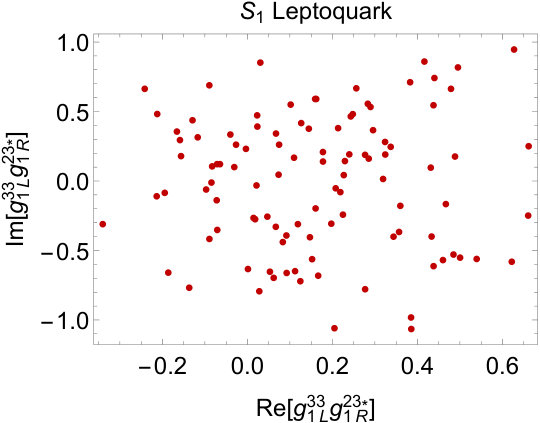

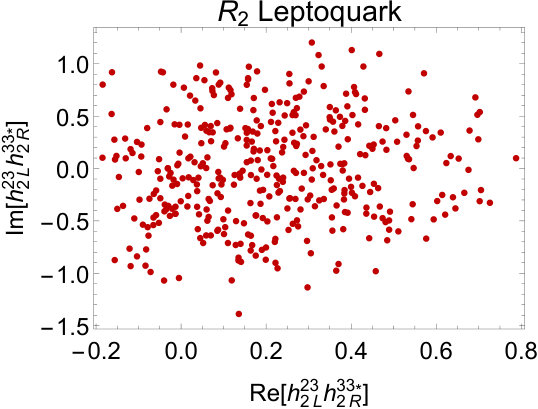

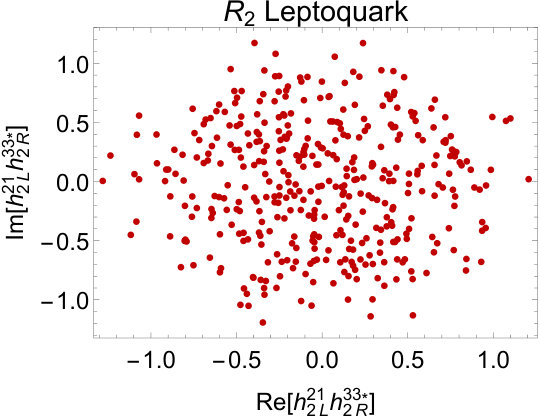

Allowing all relevant couplings in each model to be nonzero simultaneously, we obtain the coupling regions sampled by the random points in Figs. 10 and 11. The corresponding allowed regions in the $R_{\Lambda_{c}}^{Ratio}-R_{D}^{Ratio}$ and $R_{\Lambda_{c}}^{Ratio}-R_{D^{*}}^{Ratio}$ planes are shown in Fig. 12. Since the ${\bm{S}}_{3}$ and ${\bm{U}}_{3}$ leptoquarks produce only the vector coupling $g_{L}$, all ratios get rescaled by the common factor of $|1+g_{L}|^{2}$. The ${\bm{S}}_{3}$ and ${\bm{U}}_{3}$ models are tighly constrained and only small effects are allowed. The other leptoquark models can produce substantial effects in $R_{\Lambda_{c}}^{Ratio}$, with varying degrees of correlation between the mesonic and baryonic observables.

The values of $R(\Lambda_{c})$ and $R_{\Lambda_{c}}^{Ratio}$ for two typical allowed combinations of the couplings in each model are given in Table 6. In Fig. 13, we present plots of the observables $(d\Gamma/dq^{2},\;B_{\Lambda_{c}},\;A_{FB})$ for the same values of the couplings.

6 Conclusions

The baryonic decay $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ has the potential to shed new light on the $R({D^{(*)}})$ puzzle. Here, we studied the phenomenology of $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ in the presence of new-physics couplings with all relevant Dirac structures. In contrast to the mesonic decays, the $\Lambda_{b}\to\Lambda_{c}$ form factors have not yet been determined from experimental data, and it is even more important to use form factors from lattice QCD. Here, we presented new lattice QCD results for the $\Lambda_{b}\to\Lambda_{c}$ tensor form factors, extending the analysis of Ref. Detmold:2015aaa . The parameters and covariance matrices of the complete set of $\Lambda_{b}\to\Lambda_{c}$ form factors are provided as supplemental material.

In the first part of our phenomenological analysis, we considered individual new-physics couplings in the effective Hamiltonian in a model-independent way. After constraining these couplings using the $R({D^{(*)}})$ measurements and the $B_{c}$ lifetime, we calculated the effects of the NP couplings in $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ decays, focusing on the observables $R(\Lambda_{c})$, $B_{\Lambda_{c}}(q^{2})$, and $A_{FB}(q^{2})$. Measurements of these observables can help in distinguishing among the different NP operators. For instance, the forward-backward asymmetry $A_{FB}(q^{2})$ tends to be mostly above the SM value in the presence of right-handed ($g_{R}$) or tensor ($g_{T}$) couplings, but is lower than the SM value for most allowed values of the scalar ($g_{S}$) coupling. To illustrate the impact of a future $R(\Lambda_{c})$ measurement, we presented the constraints on all couplings resulting from two possible ranges of $R(\Lambda_{c})$. The baryonic decay can tightly constrain all of the couplings $g_{L}$, $g_{R}$, $g_{S}$, $g_{P}$, and $g_{T}$. For example, we have shown that if $R_{\Lambda_{c}}^{Ratio}=R(\Lambda_{c})/R(\Lambda_{c})^{SM}$ is observed to have a value around 1.3, the scenario with only $g_{P}$ becomes ruled out by the combined constraints from $R(\Lambda_{c})$ and $\tau_{B_{c}}$.

In the second part of our phenomenological analysis, we considered explicit models in which multiple NP operators are present. For the two-Higgs-doublet model we found significant contribution to $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$. However, the full numerical analysis was not included in this work as we did not consider RGE evolution which could impact the phenomenology of the model. Models with $SU(2)$ gauge symmetry generally cannot produce large effects in $b\to c\tau\bar{\nu}_{\tau}$ transitions without violating bounds from other observables such as $B_{s}$ mixing, and we therefore did not present their effects on $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$. On the other hand, we have demonstrated that some of the leptoquark models can produce large effects in the $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$ observables, in particular through scalar and tensor couplings. We have presented correlation plots of $R_{D}^{Ratio}$ and $R_{D^{*}}^{Ratio}$ versus $R_{\Lambda_{c}}^{Ratio}$, which may be helpful in discriminating among the various models.

Acknowledgments: We thank Shanmuka Shivashankara for early work on this project. This work was financially supported by the National Science Foundation under Grant Nos. PHY-1414345 (AD and AR) and PHY-1520996 (SM). SM is also supported by the RHIC Physics Fellow Program of the RIKEN BNL Research Center. AD acknowledges the hospitality of the Department of Physics and Astronomy, University of Hawaii, where part of the work was done. The lattice QCD calculations were carried out using high-performance computing resources provided by XSEDE (supported by National Science Foundation Grant No. OCI-1053575) and NERSC (supported by U.S. Department of Energy Grant No. DE-AC02-05CH11231).

Appendix A Helicity spinors and polarization vectors

In this appendix, we give explicit expressions for the spinors and polarization vectors used to calculate the helicity amplitudes for the decay $\Lambda_{b}\to\Lambda_{c}\tau\bar{\nu}_{\tau}$.

A.1 $\Lambda_{b}$ rest frame

To calculate the hadronic helicity amplitudes, we work in the $\Lambda_{b}$ rest frame and take the three-momentum of the $\Lambda_{c}$ along the $+z$ direction and the three-momentum of the virtual vector boson along the $-z$ direction. The baryon spinors are then given by Auvil:1966eao

[TABLE]

where \chi_{+}=\left(\begin{array}[]{c}1\\ 0\end{array}\right) and \chi_{-}=\left(\begin{array}[]{c}0\\ 1\end{array}\right) are the usual Pauli two-spinors. The polarization vectors of the virtual vector boson are Auvil:1966eao

[TABLE]

where $q^{\mu}=(q_{0};0,0,-|\mathbf{q}|)$ is the four-momentum of the virtual vector boson in the $\Lambda_{b}$ rest frame. We have

[TABLE]

where

[TABLE]

A.2 Dilepton rest frame

In the calculation of the lepton helicity amplitudes, we work in the rest frame of the virtual vector boson boson, which is equal to the rest frame of the $\tau\bar{\nu}_{\tau}$ dilepton system. We define the angle $\theta_{\tau}$ as the angle between the three-momenta of the $\tau$ and the $\Lambda_{c}$ in this frame.

The lepton spinors for $\mathbf{p}_{\tau}$ pointing in the $+z$ direction and $\mathbf{p}_{\bar{\nu}_{\tau}}$ pointing in the $-z$ direction are

[TABLE]

We then rotate about the $y$ axis by the angle $\theta_{\tau}$ so that after the rotation, the three-momentum of the $\Lambda_{c}$ points in the $+z$ direction. The two-spinors transform as

[TABLE]

and

[TABLE]

and the full lepton spinors after the rotation are

[TABLE]

The polarization vectors of the virtual vector boson in this frame are

[TABLE]

The three-momentum and energy of the $\tau$ lepton in this frame can be written as

[TABLE]

where

[TABLE]
