High-precision optical polarimetry of the accreting black hole V404 Cyg during the June 2015 outburst

TL;DR

This study presents high-precision optical polarimetry of the black hole binary V404 Cyg during its 2015 outburst, revealing intrinsic polarization changes that suggest scattering processes rather than jet emission.

Contribution

First detailed polarimetric analysis of V404 Cyg during outburst, distinguishing between interstellar and intrinsic polarization components and proposing scattering mechanisms.

Findings

Intrinsic polarization peaks in V-band at 1.1%

Polarization position angle varies during outburst

Wavelength dependence suggests scattering, not jet emission

Abstract

Our simultaneous three-colour ($BVR$) polarimetric observations of the low-mass black hole X-ray binary V404 Cyg show a small but statistically significant change of polarization degree ($\Delta p \sim 1$ per cent) between the outburst in June 2015 and the quiescence. The polarization of V404 Cyg in the quiescent state agrees within the errors with that of the visually close (1\farcs4) companion ($p_{R} = 7.3\pm 0.1$ per cent), indicating that it is predominantly of interstellar origin. The polarization pattern of the surrounding field stars supports this conclusion. From the observed variable polarization during the outburst we show that polarization degree of the intrinsic component peaks in the $V$-band, $p_{V} = 1.1\pm 0.1$ per cent, at the polarization position angle of $\theta_{V}= -7\deg\pm 2\deg$, which is consistent in all three passbands. We detect significant variations in the position angle of the intrinsic polarization in $R$ band from $-30\deg$ to $\sim 0\deg$ during the outburst peak. The observed wavelength dependence of the intrinsic polarization does not support non-thermal synchrotron emission from a jet as a plausible mechanism, but is in better agreement with the combined effect of electron (Thomson) scattering and absorption in a flattened plasma envelope or outflow surrounding the illuminating source. Alternatively, the polarization signal can be produced by scattering of the disc radiation in a mildly relativistic polar outflow. The position angle of the intrinsic polarization, nearly parallel to the jet direction (i.e. perpendicular to the accretion disc plane), is in agreement with these interpretations.

Figures

Tables

Table 1. Table 1: A log of observations of V404 Cyg.

	$B$		$V$		$R$
MJD	$p$	$\theta$	$p$	$\theta$	$p$	$\theta$	Telescope
	(per cent)	(deg)	(per cent)	(deg)	(per cent)	(deg)
57195.16	–	–	$7.22\pm 0.18$	$7.7\pm 0.7$	$7.29\pm 0.07$	$5.3\pm 0.3$	KVA
57196.15	–	–	–	–	$7.55\pm 0.23$	$5.1\pm 0.9$	KVA
57197.15	$8.40\pm 0.21$	$6.6\pm 0.7$	$7.64\pm 0.08$	$8.6\pm 0.3$	$7.66\pm 0.03$	$6.9\pm 0.1$	KVA
57199.14	$9.57\pm 0.55$	$8.0\pm 1.6$	$7.28\pm 0.10$	$9.1\pm 0.4$	$7.31\pm 0.06$	$7.5\pm 0.2$	KVA
57200.14	–	–	–	–	$7.37\pm 0.10$	$7.5\pm 0.4$	KVA
57206.01	$7.66\pm 0.29$	$8.6\pm 1.1$	$6.63\pm 0.09$	$10.5\pm 0.4$	$7.13\pm 0.05$	$7.9\pm 0.2$	WHT
57207.12	$8.28\pm 0.43$	$6.7\pm 1.5$	$6.52\pm 0.09$	$11.5\pm 0.4$	$7.16\pm 0.07$	$7.5\pm 0.3$	WHT
57208.11	$7.88\pm 0.22$	$6.9\pm 0.8$	$6.68\pm 0.11$	$11.0\pm 0.5$	$7.16\pm 0.08$	$7.4\pm 0.3$	WHT
57209.10	$7.94\pm 0.49$	$11.8\pm 1.8$	$6.64\pm 0.14$	$11.8\pm 0.6$	$6.95\pm 0.09$	$7.3\pm 0.4$	WHT
57210.11	$7.38\pm 0.75$	$8.4\pm 2.9$	$6.41\pm 0.14$	$11.3\pm 0.6$	$7.17\pm 0.10$	$8.2\pm 0.4$	WHT
57651.37	–	–	$6.81\pm 0.46$	$10.5\pm 1.9$	$7.25\pm 0.31$	$5.4\pm 1.2$	UH88
57652.31	–	–	$8.23\pm 0.60$	$8.5\pm 2.1$	$7.49\pm 0.26$	$8.5\pm 1.0$	UH88
Combined data
57195–57200	$8.55\pm 0.20$	$6.7\pm 0.7$	$7.47\pm 0.06$	$8.6\pm 0.2$	$7.51\pm 0.03$	$6.8\pm 0.1$	KVA
57206–57210	$7.84\pm 0.16$	$7.9\pm 0.6$	$6.58\pm 0.05$	$11.1\pm 0.2$	$7.13\pm 0.03$	$7.7\pm 0.1$	WHT
57651–57652	–	–	$7.32\pm 0.38$	$9.7\pm 1.5$	$7.37\pm 0.21$	$7.2\pm 0.8$	UH88
Companion star
57206–57210	–	–	$6.64\pm 0.21$	$11.9\pm 0.9$	$7.28\pm 0.09$	$8.5\pm 0.4$	WHT
57651–57652	–	–	–	–	$7.25\pm 0.35$	$8.3\pm 1.4$	UH88

Table 2. Table 2: Coordinates of the observed field stars in the direct vicinity of V404 Cyg.

Star	RA (J2000)	Dec. (J2000)	Name
404	20:24:03.83	33:52:02.2	V404 Cyg
4040	20:24:03.80	33:52:03.6	Close companion
4041	20:24:03.00	33:51:29.3
4042	20:23:57.13	33:52:39.3
4043	20:24:10.23	33:53:02.8
4044	20:23:49.22	33:50:09.4
4045	20:23:49.69	33:48:24.6
4046	20:24:12.84	33:50:11.7
4047	20:24:19.96	33:47:44.1
4048	20:23:49.92	33:54:49.7
4049	20:24:19.63	33:52:42.4
40405	20:24:02.35	33:54:04.8	USNO-B1.0 1239-00424177
40408	20:23:43.00	33:51:12.9	USNO-B1.0 1238-00434864
40409	20:24:25.29	33:53:24.4	TYC 2693-1473-1
40410	20:24:28.28	33:51:13.2	TYC 2693-1457-1
40411	20:23:59.44	33:46:53.9	EM* VES 209
40412	20:24:00.09	33:46:35.3	2MASS J20240008+3346353
40413	20:24:20.44	33:56:25.7	HD332228
40416	20:24:24.17	33:47:17.7	TYC 2693-1483-1
40417	20:24:18.09	33:57:56.6	TYC 2693-483-1
40418	20:23:39.00	33:56:33.0	TYC 2680-177-1
40420	20:23:26.24	33:50:05.2	TYC 2680-419-1
40421	20:24:32.62	33:57:59.0	TYC 2693-573-1
40423	20:23:49.02	33:43:15.5	TYC 2676-7-1
40425	20:23:17.95	33:51:57.6	TYC 2680-329-1
40427	20:23:29.85	33:45:19.6	TYC 2680-269-1

Table 3. Table 3: Polarimetric observations of field stars in the B 𝐵 B , V 𝑉 V , and R 𝑅 R bands with UH88. Errors are 1 σ 𝜎 \sigma .

	$B$		$V$		$R$
Star	$p$	$\theta$	$p$	$\theta$	$p$	$\theta$
	(per cent)	(deg)	(per cent)	(deg)	(per cent)	(deg)
4040	–	–	$6.64\pm 0.22$	$11.9\pm 0.9$	$7.28\pm 0.09$	$8.5\pm 0.4$
4041	–	–	$6.33\pm 0.14$	$10.9\pm 0.6$	$7.08\pm 0.08$	$7.9\pm 0.3$
4042	–	–	$7.09\pm 0.42$	$11.0\pm 1.8$	$8.47\pm 0.17$	$9.1\pm 0.6$
4043	$6.92\pm 0.29$	$3.1\pm 1.2$	$5.20\pm 0.15$	$10.5\pm 0.8$	$6.47\pm 0.07$	$10.8\pm 0.3$
4044	$5.05\pm 0.42$	$178.9\pm 2.4$	$5.14\pm 0.02$	$10.9\pm 0.1$	$6.04\pm 0.01$	$6.2\pm 0.1$
4045	$0.77\pm 0.02$	$32.2\pm 0.7$	$0.85\pm 0.03$	$34.5\pm 1.0$	$0.80\pm 0.02$	$33.0\pm 0.9$
4046	–	–	$5.95\pm 0.45$	$10.5\pm 2.3$	$7.40\pm 0.13$	$5.8\pm 0.5$
4047	$6.68\pm 0.55$	$18.3\pm 2.3$	$6.22\pm 0.12$	$24.6\pm 0.6$	$6.91\pm 0.07$	$22.6\pm 0.3$
4048	$6.53\pm 0.20$	$6.2\pm 0.9$	$5.98\pm 0.04$	$11.5\pm 0.2$	$6.49\pm 0.02$	$9.3\pm 0.1$
4049	–	–	$6.74\pm 0.16$	$19.2\pm 0.7$	$7.49\pm 0.05$	$15.6\pm 0.2$
40405	$5.85\pm 0.36$	$5.8\pm 1.8$	$5.68\pm 0.05$	$13.2\pm 0.3$	$6.21\pm 0.02$	$11.9\pm 0.1$
40408	$0.41\pm 0.07$	$57.4\pm 4.9$	$0.36\pm 0.03$	$69.8\pm 2.1$	$0.53\pm 0.05$	$69.4\pm 2.6$
40409	$1.22\pm 0.02$	$17.1\pm 0.6$	$1.13\pm 0.01$	$16.9\pm 0.2$	$1.19\pm 0.01$	$15.6\pm 0.2$
40410	$0.18\pm 0.01$	$57.1\pm 1.9$	$0.17\pm 0.01$	$52.3\pm 2.5$	$0.17\pm 0.01$	$51.1\pm 1.4$
40411	$2.01\pm 0.03$	$166.2\pm 0.4$	$2.06\pm 0.03$	$166.7\pm 0.4$	$2.03\pm 0.02$	$165.4\pm 0.2$
40412	$6.28\pm 0.12$	$2.5\pm 0.6$	$3.06\pm 0.01$	$13.4\pm 0.1$	$3.50\pm 0.01$	$8.8\pm 0.1$
40413	$0.82\pm 0.01$	$56.8\pm 0.2$	$0.86\pm 0.01$	$56.9\pm 0.5$	$0.84\pm 0.01$	$57.5\pm 0.4$
40416	$0.23\pm 0.02$	$67.0\pm 2.8$	$0.20\pm 0.02$	$65.0\pm 2.5$	$0.23\pm 0.01$	$66.5\pm 1.8$
40417	$0.13\pm 0.02$	$80.5\pm 3.7$	$0.16\pm 0.01$	$80.9\pm 2.1$	$0.13\pm 0.01$	$67.7\pm 1.5$
40418	$0.98\pm 0.02$	$167.7\pm 0.7$	$1.01\pm 0.02$	$168.8\pm 0.5$	$0.98\pm 0.01$	$169.6\pm 0.4$
40420	$0.60\pm 0.02$	$54.3\pm 1.1$	$0.57\pm 0.02$	$56.3\pm 1.1$	$0.55\pm 0.01$	$53.8\pm 0.8$
40421	$0.68\pm 0.02$	$46.0\pm 1.0$	$0.61\pm 0.01$	$48.5\pm 0.5$	$0.64\pm 0.01$	$46.7\pm 0.2$
40423	$0.63\pm 0.02$	$58.2\pm 0.7$	$0.67\pm 0.01$	$59.6\pm 0.5$	$0.69\pm 0.01$	$59.6\pm 0.5$
40425	$0.75\pm 0.03$	$51.9\pm 1.0$	$0.76\pm 0.01$	$51.4\pm 0.5$	$0.76\pm 0.02$	$50.4\pm 0.7$
40427	$0.82\pm 0.03$	$60.0\pm 0.9$	$0.85\pm 0.01$	$59.5\pm 0.3$	$0.85\pm 0.01$	$60.1\pm 0.3$

Table 4. Table 4: Intrinsic polarization degree and angle of V404 Cyg in the B ​ V ​ R 𝐵 𝑉 𝑅 BVR bands for five nights during the outburst and for the combined data.

	$B$		$V$		$R$
MJD	$p$	$\theta$	$p$	$\theta$	$p$	$\theta$
	(per cent)	(deg)	(per cent)	(deg)	(per cent)	(deg)
57195.16	–	–	$1.04\pm 0.19$	$-16.7\pm 5.2$	$0.62\pm 0.07$	$-30.8\pm 3.3$
57196.15	–	–	–	–	$0.78\pm 0.23$	$-22.1\pm 8.4$
57197.15	$0.68\pm 0.26$	$-9.6\pm 11.0$	$1.23\pm 0.09$	$-5.4\pm 2.1$	$0.57\pm 0.04$	$-3.1\pm 2.3$
57199.14	$1.73\pm 0.57$	$8.4\pm 9.4$	$0.86\pm 0.11$	$-7.1\pm 3.7$	$0.19\pm 0.07$	$-0.3\pm 9.9$
57200.14	–	–	–	–	$0.25\pm 0.10$	$1.7\pm 11.3$
57195 – 57200	$0.79\pm 0.26$	$-5.1\pm 9.3$	$1.07\pm 0.08$	$-7.0\pm 2.1$	$0.46\pm 0.04$	$-7.6\pm 2.7$

Equations

$${ϵ}_p=\sqrt{({ϵ}_q^2+{ϵ}_u^2)/2}.$$

$${ϵ}_{\theta }=28\text{aas@@fstack}\circ 65{ϵ}_p/p.$$

Full text

††pubyear: 2017††pagerange: High-precision optical polarimetry of the accreting black hole V404 Cyg during the June 2015 outburst–High-precision optical polarimetry of the accreting black hole V404 Cyg during the June 2015 outburst

1 Introduction

V404 Cyg is a low-mass X-ray binary (LMXBs) consisting of a black hole (BH) and a late K-type companion star with masses $(8-12){\rm M}_{\sun}$ and $(0.5-0.8){\rm M}_{\sun}$, respectively (Shahbaz et al., 1994; Khargharia et al., 2010; Casares & Jonker, 2014), with the error being dominated by the uncertainty in the orbital inclination. The distance to this source is known to a high precision $2.39\pm 0.14\ \mathrm{kpc}$ (Miller-Jones et al., 2009). V404 Cyg had been known as Nova Cyg 1938 and went into outbursts also in 1956 and 1989 (Richter, 1989). On the latter occasion the source was also detected in the X-rays as an X-ray nova GS 2023+338 (Makino et al., 1989).

One of the last outbursts of the source took place in 2015 June (Barthelmy et al., 2015) after 27 years of quiescence. In the peak of the outburst, the object showed very erratic behaviour with flares reaching a few tens of Crab in the hard X-ray domain; accounting for bolometric correction, this would correspond to the Eddington luminosity for a 10 M*☉* BH (Segreto et al., 2015; Rodriguez et al., 2015b, a). The X-ray luminosity, however, still might be only a small fraction of the total one. The presence of the narrow iron K$\alpha$ line with the equivalent width of about 1 keV and a hard continuum imply that the central engine might not be observed directly but only through transmission in a powerful, optically thick outflows (King et al., 2015). Thus the actual luminosity in the peak was likely in excess of Eddington. This interpretation is supported by the fast optical and X-ray variability (Kimura et al., 2016, see Figs 1 and 2) that can be associated with the disc thermal instabilities as well as with the absorption in the clumpy wind, both are characteristic of the accretion rates approaching the critical Eddington value.

Polarimetry is a powerful tool that can probe the geometry and the physical mechanisms producing optical – near infrared (ONIR) radiation in LMXBs. There were several reports of ONIR polarization observations of V404 Cyg during its outburst and shortly after it had ended (Tanaka et al., 2016; Shahbaz et al., 2016; Itoh et al., 2016). However, the presented results do not agree with each other: Tanaka et al. (2016) argued in favour of non-variable polarization predominantly of interstellar origin, while Shahbaz et al. (2016) observed high and strongly variable intrinsic polarization. The main source of the optical emission of V404 Cyg in the quiescent state is the late K-type star (Hynes et al., 2009; Khargharia et al., 2010) and therefore is unlikely to be polarized. Thus polarization observed in this state can be used to estimate the effects of the interstellar medium (ISM).

During the outburst, the ONIR luminosity of the compact object increases by several orders of magnitude, completely outshining the second component of the system. The polarized emission can be produced by a number of mechanisms (see also Veledina et al., 2013). First, radiation from the outer parts of the standard accretion disc, irradiated by the X-ray emission from the BH vicinity, can be polarized by scattering in the disc atmosphere, with the polarization degree being dependent on the ratio of the absorption to scattering opacity (Nagirner, 1962). Second, the jets detected in the BH X-ray binaries (see review by Fender & Gallo, 2014) including V404 Cyg (J. Miller-Jones et al., in prep.) can become a source of variable polarized light (e.g. Zdziarski et al., 2014) due to the nature of synchrotron radiation in ordered magnetic field. Third, the non-thermal electrons accelerated within the hot inner accretion flow may emit synchrotron radiation, which in principle can be polarized depending on the magnetic field structure (Poutanen & Veledina, 2014). Fourth, the accretion disc radiation can be scattered in the mildly relativistic outflow emanating from the central BH (Beloborodov, 1998; Beloborodov & Poutanen, 1999). Finally, as the X-ray luminosity of V404 Cyg was super-Eddington during flares in the outburst peak, powerful outflows can be formed (Shakura & Sunyaev, 1973; Poutanen et al., 2007) blocking radiation produced in the BH vicinity and reprocessing its large fraction into softer radiation in an extended envelope. There are also observational evidence that rather strong outflows are present in V404 Cyg (King et al., 2015; Muñoz-Darias et al., 2016). The radiation from the outflow may be also polarized if the spherical symmetry is broken (Dolginov et al., 1995).

The aim of the present paper was to study polarized ONIR emission with a high-precision polarimeter which does not have instrumental polarization. The high polarimetric accuracy and exceptional care is required in the case of V404 Cyg because of a large interstellar polarization and a need to carefully subtract it from the full signal to unveil a weaker intrinsic polarization. In Section 2, we present our polarimetric observations in $BVR$ filters of V404 Cyg during and after its outburst in 2015 June complemented by polarimetry of a sample of the field stars. We also present the X-ray data obtained with Swift satellite. Section 3 is devoted to the analysis of the polarimetric data of the source and of the field stars with the subsequent derivation of the intrinsic polarization of V404 Cyg. We discuss the obtained results and compare them with previously published polarimetric data in Section 4, where we also present our interpretation of the results. We conclude in Section 5.

2 Observations and Data Analysis

2.1 Polarimetry

We have made polarimetric observations of V404 Cyg during the outburst on 5 nights in 2015 June 21–26 with the KVA 60 cm telescope at Observatorio del Roque de los Muchachos (ORM), La Palma, and during quiescence on five nights in 2015 July 2–7 with the 4.2 m William Herschel Telescope (WHT) at ORM using the polarimeter Dipol-2 (Piirola et al., 2014). Polarimetry of V404 Cyg was carried out in the quiescence also at the 2.2 m University of Hawai’i telescope (UH88) at Mauna Kea on two nights of 2016 September 19–20, using another copy of Dipol-2, identical to that used at ORM. Journal of the observations of V404 Cyg is given in Table 1 and the main results are shown in Fig. 1.

The polarimeter, Dipol-2, is capable of making simultaneous measurements in three passbands ($BVR$) with high sensitivity. The detection limit of polarization is at the level of $10^{-5}$, set in practice by photon noise. An important asset of the instrument is that the sky background polarization is directly (optically) eliminated. The perpendicularly polarized components of sky are superimposed by the plane parallel calcite beam splitter, and sky polarization is thereby canceled (Piirola, 1973). This is essential, as the polarized flux from scattered skylight can exceed by orders of magnitude the signal from the target, particularly in bright Moon conditions. Dipol-2 has been found to be very stable and reliable instrument as demonstrated recently by detection of the variable polarization at 0.1 per cent level from a massive binary HD 48099 (Berdyugin et al., 2016).

The Dipol-2 polarimetry routine consists of cycles of 16 exposures at different orientations of the superachromatic half-wave retarder (22$\aas@@fstack{\circ}$5 steps), corresponding to a full (360°) rotation of the retarder. Each successive 4 exposures give one independent measurement of the normalized Stokes parameters $q$ and $u$. Accordingly, one cycle provides four independent measurements of $q$ and $u$. Typically, either two or four cycles were carried out on each observing night for V404 Cyg, yielding either 8 or 16 measurements of $q$ and $u$, used then to compute the nightly average polarization. The error estimate of the polarization degree was computed as the quadratic mean of the standard errors of the mean values for $q$ and $u$:

[TABLE]

This formula is valid under conditions when the normalized Stokes parameters $q$ and $u$ are measured simultaneously and $\epsilon_{p}\ll p$, which is always the case in our observations of V404 Cyg. In the ideal case, when $\epsilon_{q}=\epsilon_{u}$ (see e.g. Serkowski, 1962; Clarke & Grainger, 1971) equation (1) gives $\epsilon_{p}=\epsilon_{q}=\epsilon_{u}$. The error estimate for the polarization angle can then be expressed in terms of polarization degree and its error as

[TABLE]

With typical exposure times of 15 s on the WHT and UH88 and 30–45 s on the KVA and a $\sim$3 s readout time between the exposures (3 cameras operating simultaneously), the total telescope time used for V404 Cyg on each night was about 10–20 min at WHT and UH88 and 20–40 min at KVA.

Standard CCD reduction procedures (bias and dark subtraction, flat fielding) were applied prior to extracting the fluxes from the double images of the target, formed onto the CCD by the polarizing calcite beam splitter. Special centering algorithm and subframing procedures were used to facilitate processing a large number, up to several hundred, of exposures at the same time. In computing the mean values of $q$ and $u$ we applied a “2$\sigma$” iterative weighting algorithm. The initial mean and standard deviation were obtained applying equal weights to all points. Then on each step individual points deviating more than two standard deviations from the mean ($d>2\sigma$) were given a lower weight, proportional to the inverse square of the error estimate, $\epsilon_{x}$. The value $\epsilon_{x}=\sigma$ for $d<2\sigma$ was assumed to increase linearly from $\epsilon_{x}=1\sigma$ to $3\sigma$ with $d$ increasing from $2\sigma$ to $3\sigma$. Points with $d>3\sigma$ were rejected. The procedure converges fast and values of mean and standard deviation are obtained within a few iterations. Under normal conditions, 6–8 per cent of individual points deviated more than $2\sigma$ and were given lower weight ($W<1$). The remaining 92–94 per cent of points were equally weighted ($W=1$). The weighting procedure helps to suppress effects from transient clouds, moments of bad seeing, cosmic ray events, etc.

The instrumental polarization produced by the telescope was determined by observing a number (10–20) of unpolarized nearby stars. The Stokes parameters of the instrumental polarization ($q_{\mathrm{tel}},u_{\mathrm{tel}}$) were obtained as the average from the sample, with an uncertainty of less than $3\times 10^{-6}$ in each passband, and were subtracted from the measured values of the Stokes parameters $q$ and $u$. For each of the three telescopes, Cassegrain focus was used and the instrumental polarization was negligible (less than $10^{-4}$) in the present context. Polarization position angle zero-point was determined by observations of large polarization standard stars: HD25443, HD161056, HD204827, BD+25 727, and BD+59 389. We also checked for possible scale correction factors of the polarization degree, and found evidence of small calibration coefficients (1.02–1.04) needed in the $V$ and $R$ passbands. Though these differences can be partially due to systematic errors in the published values (Hsu & Breger, 1982; Turnshek et al., 1990; Schmidt et al., 1992), we have applied the corrections to bring our data into the system commonly used by other investigators. Careful determination of the angle zero-point rules out a possibility of systematic difference in determination of polarization angle made with the different telescopes.

To study interstellar polarization in the direction of V404 Cyg, we have measured polarization of a sample of stars in the $10\arcmin\times 10\arcmin$ area of the sky around V404 Cyg (see Table 2). These observations have been done with the UH88 telescope in 2016 June 16-27 and September 18–25. Exposure time was set in the range of 5–15 s, depending on the brightness of the star. Mean values of Stokes parameters $q$ and $u$ for each star have been obtained by averaging 8–16 single measurements. Polarization of the close visual companion star, located at 1$\aas@@fstack{\prime\prime}$4 north of V404 Cyg (Udalski & Kaluzny, 1991), was measured on four nights of the WHT observing run (Table 1). For very faint and red stars, polarization in the $B$-band cannot be determined with sufficient level of confidence. We emphasize that our study of polarization of V404 Cyg at the outburst and after it, as well as the observations of the field stars, have been done with the same instrument. The same methods of observation, calibration and data reduction have been applied to all data allowing us to avoid any systematic biases and/or offsets which may appear when polarization data obtained with the different instruments at different wavelengths are combined together. This is a major difference between our and recently published studies of polarization in V404 Cyg (Tanaka et al., 2016; Shahbaz et al., 2016).

2.2 X-ray data

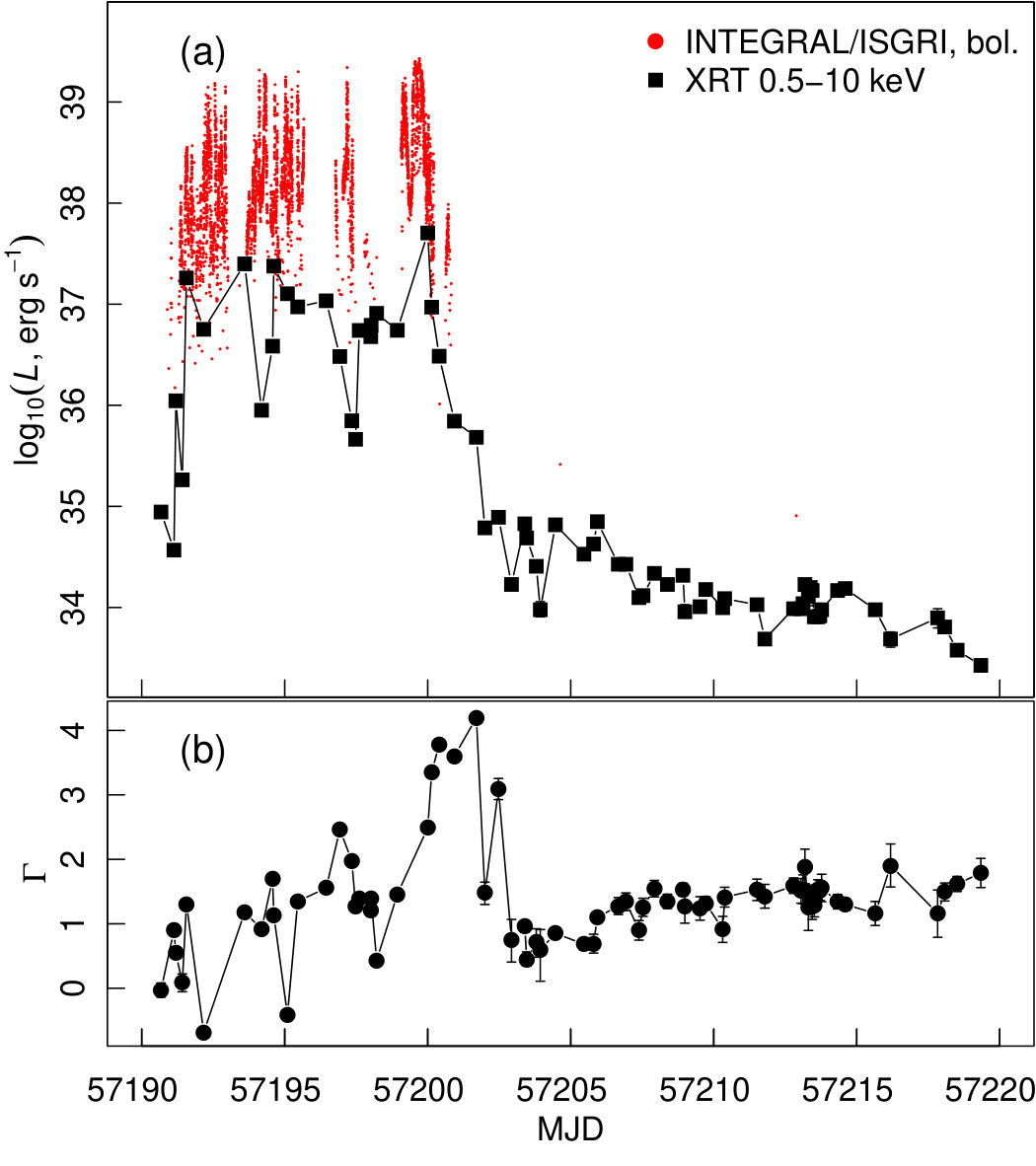

V404 Cyg shows fast variability in all spectral ranges. To search for possible correlations with polarization, we were interested in monitoring data in both soft and hard X-ray energy bands. Such data were collected by the Swift observatory (Gehrels et al., 2004) and the INTEGRAL (Winkler et al., 2003) which monitored V404 Cyg during the outburst.

The Swift/XRT telescope (Burrows et al., 2005) covering soft X-ray band (0.2–10 keV) performed observations both in photon counting (PC) and windowed timing (WT) modes. We used all observations during the active phase of the outburst available in the archive. The spectrum for each observation was extracted using the online tools provided by the UK Swift Science Data Centre (Evans et al., 2009).111http://www.swift.ac.uk/user_objects/ The obtained spectra were grouped to have at least one count per bin and were fitted in 0.5–10 keV band in XSPEC package using Cash statistics (Cash, 1979). The simplest spectral model (absorbed power-law, i.e. phabs$\times$power in xspec) was used for the fitting procedure. The hydrogen column density $N_{\mathrm{H}}$ was found to be variable between $\sim 0.5\times 10^{22}$ and $\sim 5\times 10^{22}$ cm*-2*. The latter value is higher than the Galactic absorption value in this direction, $N_{\mathrm{H}}=0.7\times 10^{22}$ cm*-2*, given by Kalberla et al. (2005). However, an independent determination of the absorption value and photon index $\Gamma$ results in a substantial increase of uncertainty on both parameters due to narrowness of the Swift/XRT energy band. On the other side, we checked that the X-ray flux (see Fig. 2(a)) depends on $N_{\mathrm{H}}$ only weakly and the Galactic absorption value can be used for the robustness. Such approach is valid for this work because we are interested only in general trends in the X-ray flux and its correlation with the polarization behaviour. V404 Cyg shows strong variability of the X-ray spectrum (see Fig. 2(b)) being first very hard, then becoming very soft by the end of the outburst around MJD 57200–57202 and suddenly becoming hard again on MJD 57203 with the simultaneous drop of the X-ray flux by orders of magnitude, which would correspond to the transition to the hard state (Zdziarski & Gierliński, 2004).

In hard X-ray band (25–60 keV) V404 Cyg was monitored by the INTEGRAL IBIS/ISGRI telescope (Ubertini et al., 2003) during the revolutions 1554–1563 (MJD 57190–57216). The light curves in the 25–60 keV energy range were obtained from the INTEGRAL Science Data Centre222http://www.isdc.unige.ch/integral/Operations/Shift/QLAsources/V404_Cygni/V404_Cygni.php; Kuulkers (2015). and converted to the bolometric luminosity assuming a constant count rate from the Crab Nebula of 147 cnt s*-1* in the same energy range and a bolometric correction factor of $L_{\rm bol}/L_{25-60}=9.97$ (Kimura et al., 2016). We see strong variations in the hard X-ray flux in 25–60 keV energy band by almost three orders of magnitude on the timescale of hours (see red dots in Fig. 2(a)), with the peak (bolometric) luminosities reaching the Eddington value for a 10 M*☉* BH.

3 Results

3.1 Polarization of V404 Cyg

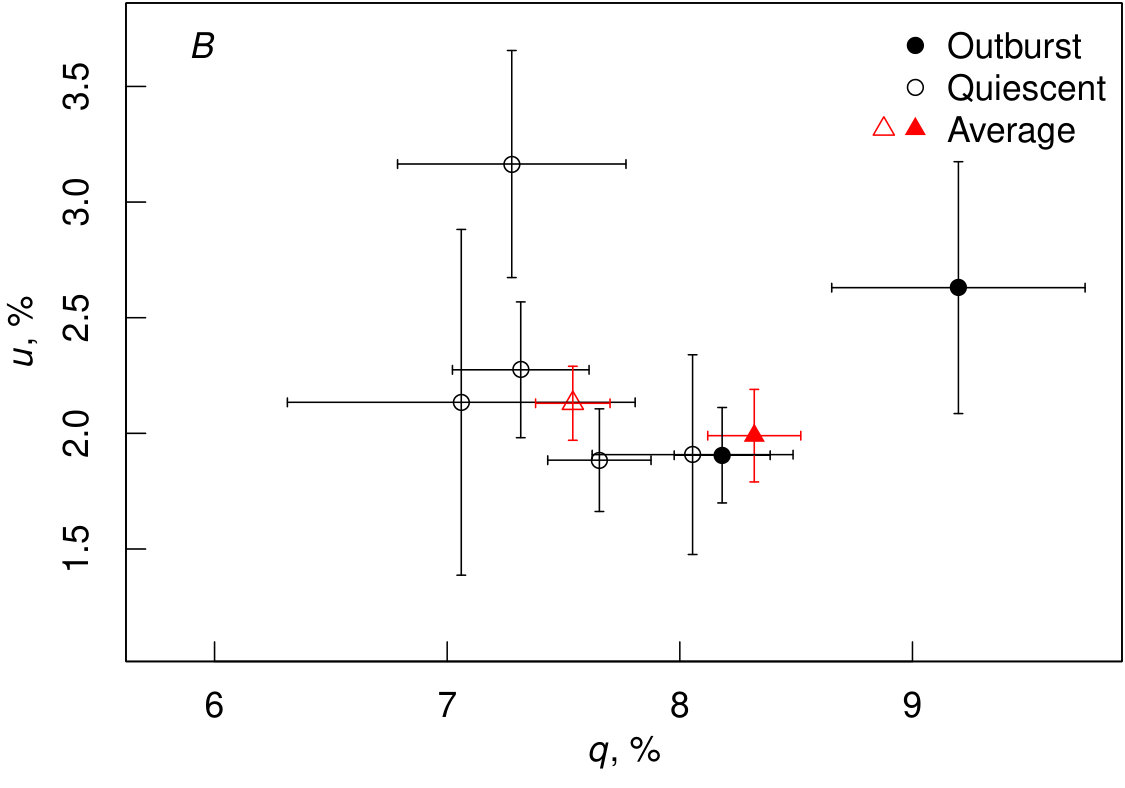

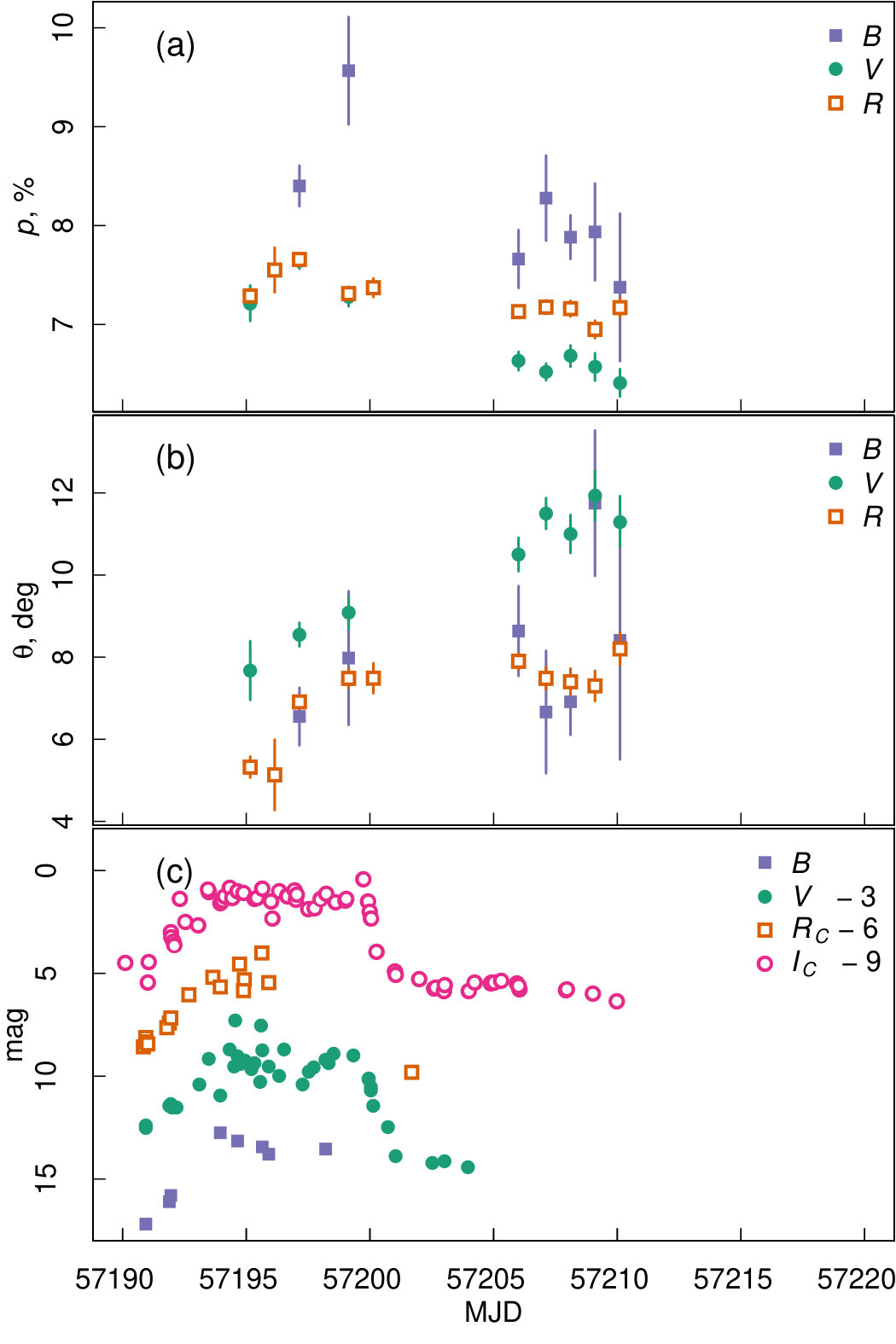

Fig. 1 shows the degree of polarization, $p$, and the polarization position angle, $\theta$, of V404 Cyg in the $BVR$ bands, as well as the light curves in several passbands. The first set of our polarization observations was obtained with the 60 cm KVA telescope during the peak of the outburst (MJD 57195–57200). The brightness of the source was in the range of $m_{V}=11.5-14.5$, strongly variable on the time scale of several hours (Kimura et al., 2016). Nearly equal average polarization is observed in the $R$ and $V$ bands, $p_{R}=7.47\pm 0.06$ and $p_{V}=7.51\pm 0.03$ per cent, while in the $B$ band $p$ is significantly larger (up to $9.57\pm 0.55$ per cent on MJD 57199). The position angle $\theta$ has increased by $1\degr-2\degr$ during these 5 days.

Polarimetric observations continued on MJD 57206–57210 at the WHT when the source was already in the quiescent state: the ONIR brightness had dropped by 5 magnitudes and the X-ray flux was lower by 3 orders of magnitude (Fig. 1c and Fig. 2a). The second set of observations gives evidence of a change between the outburst and the quiescence, both in the degree of polarization and the position angle, with $p_{B}$, $p_{V}$ and $p_{R}$ reduced to $7.84\pm 0.16$, $6.58\pm 0.05$, $7.13\pm 0.03$ per cent on MJD 57206–57210, respectively.

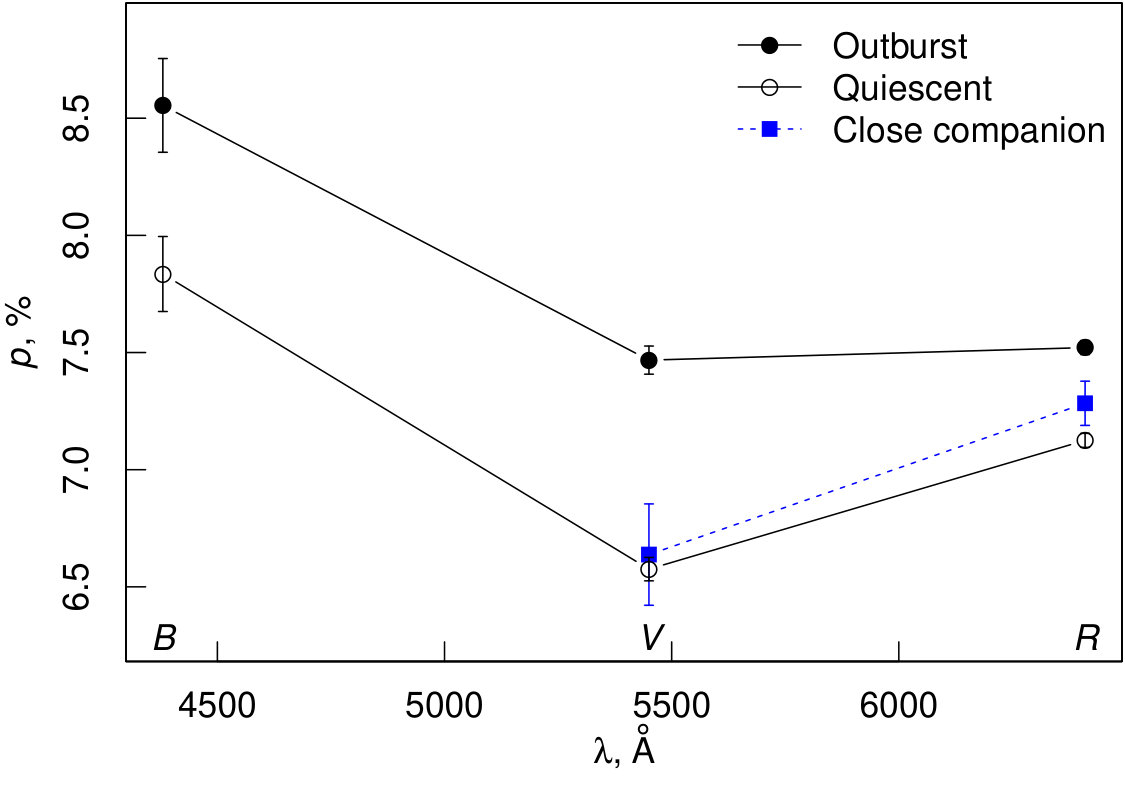

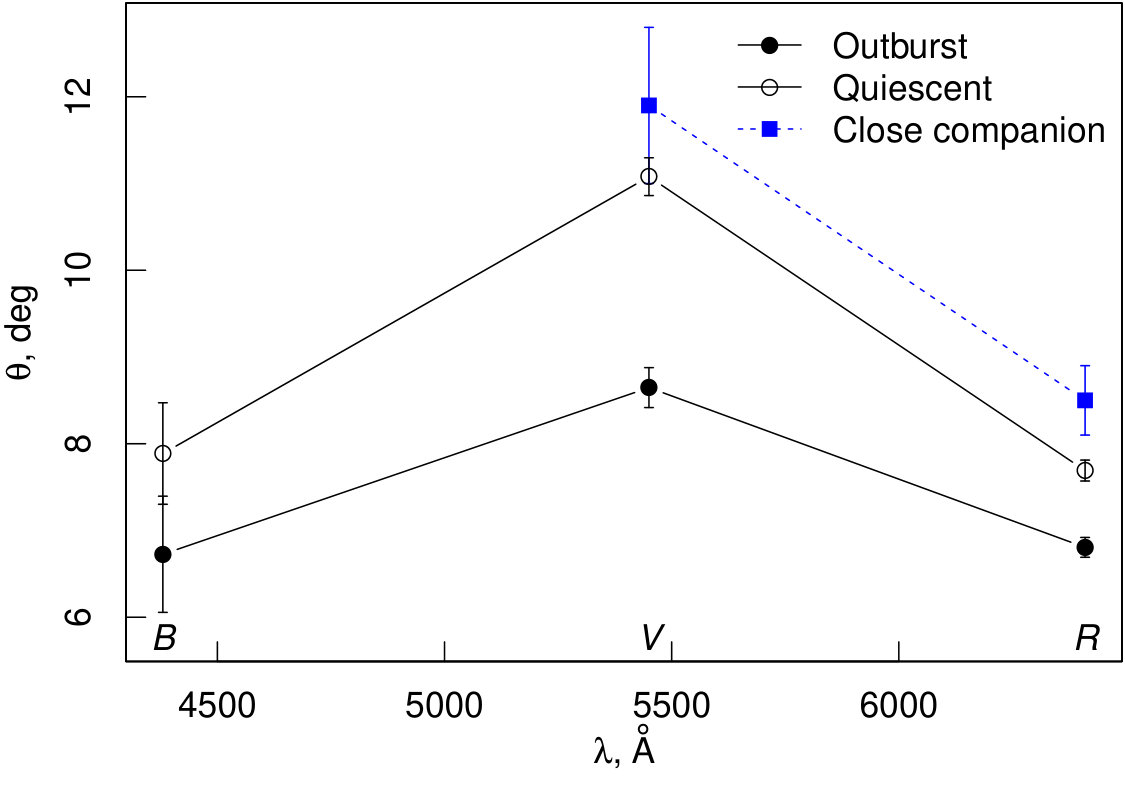

The wavelength dependence of $p$ and $\theta$ of V404 Cyg shows a peculiar profile with a significant dip in polarization longward of the $B$-band, as can be seen in Fig. 3, where the average values of $p$ and $\theta$ during and after the outburst are presented. V404 Cyg polarization in quiescence is remarkably similar to that of its close companion, for which we have obtained measurements in the $V$ and $R$ bands (Table 1). This indicates that the polarization of V404 Cyg in quiescence is very likely of interstellar origin (Fig. 3). The difference between the activity states is also shown on the ($q,u$) plane (Fig. 4). Red triangles denote mean values, averaged over periods of the same BH state. There is also evidence of night-to-night variability of the polarization during the active phase.

Because of the large distance, the location close to the galactic plane, and therefore large extinction, $A_{V}$ = 2.8 – 4.4 (Shahbaz et al., 2003), one can expect a strong interstellar component in the observed polarization of V404 Cyg. In the case of V404 Cyg, a significant dip in polarization in the $V$ band, which appears both in the outburst and quiescence ($p_{B}>p_{V}$ and $p_{V}<p_{R}$, see Fig. 3), is unusual and cannot be explained by light scattering in the disc or synchrotron emission from a jet. Such a behaviour is neither consistent with dominant contribution of a single ISM component approximated by Serkowski’s law (Coyne et al., 1974). The wavelength-dependence of the position angle of both V404 Cyg in quiescence and the companion is also not consistent with being produced in single ISM cloud. This strongly suggests that the ISM on the line of sight has a complex structure, consisting of several screens with different particle size distributions and directions of the magnetic field. Their combined contribution to polarization can produce the observed wavelength dependence of $p$ and $\theta$.

3.2 Polarization of the field stars

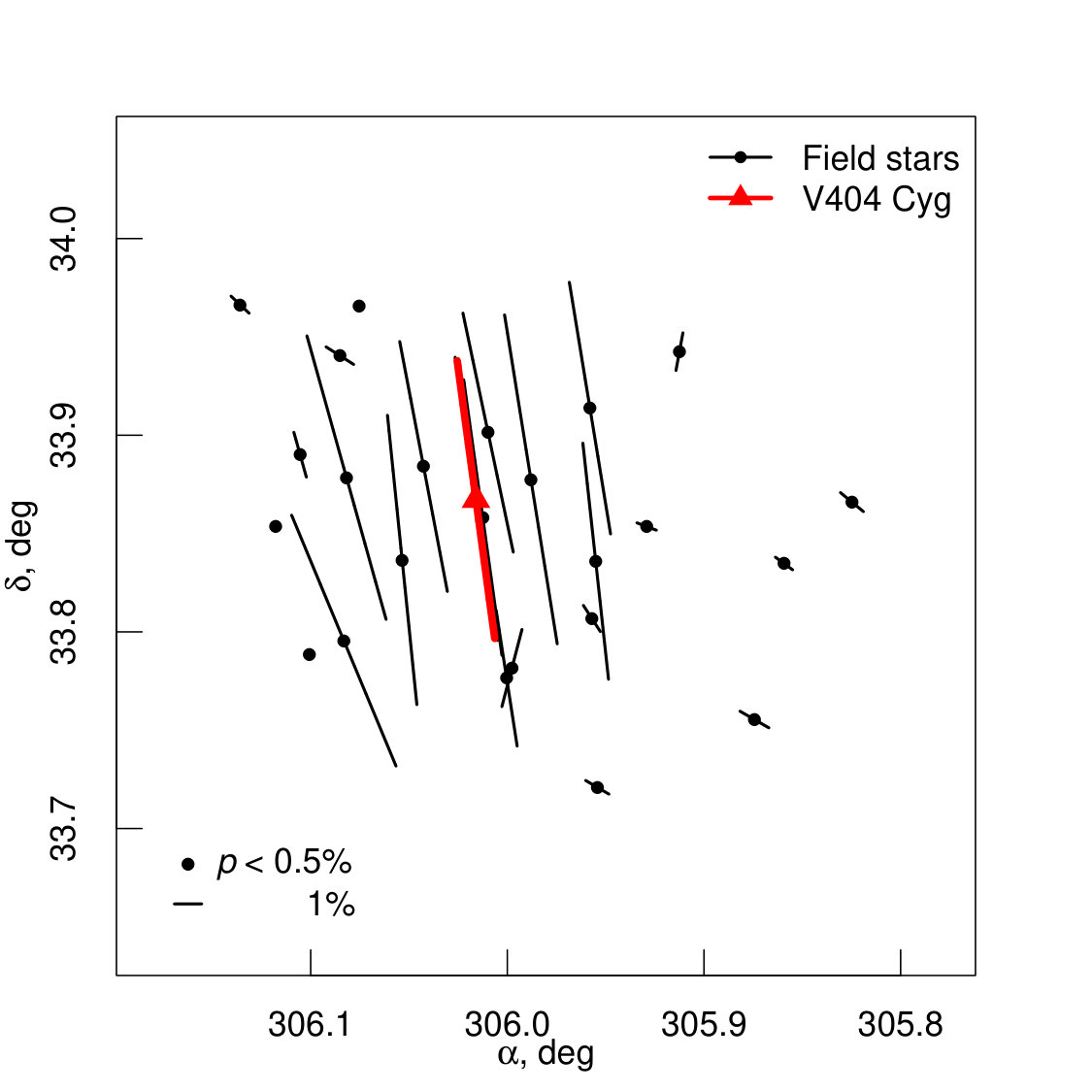

In order to estimate the interstellar polarization in the direction of V404 Cyg, we have carried out a polarization study of the stars in the field of V404 Cyg. The same method has been used by Tanaka et al. (2016) and Itoh et al. (2016), but both these studies have been done mostly in the near-IR wavelength range (from $R$ to $K_{s}$). Our polarimeter has an important advantage of providing the data in the $B$ (for most of the observed field stars) and $V$ bands (for all stars). This allows us to study not only the degree and direction of the ISM polarization, but also its wavelength dependence in the ONIR range. Fig. 5 shows polarization of stars in a region around V404 Cyg in the $R$ band. Most of the stars with relatively high polarization have the same $\theta$ as V404 Cyg and its close companion. This correlation is also seen in the $B$ and $V$ bands. Stars with relatively small polarization ($p\leq 1$ per cent), however, show directions of polarization, which differ from $\theta$ of V404 Cyg by $40\degr-50\degr$. This can be seen also in Fig. 6, where $\theta$–$p$ diagram is presented. The same effect is clearly seen in fig. 3 of Tanaka et al. (2016).

From our analysis of the polarization of the field stars we can draw several important conclusions on the nature of the ISM polarization in the direction of V404 Cyg:

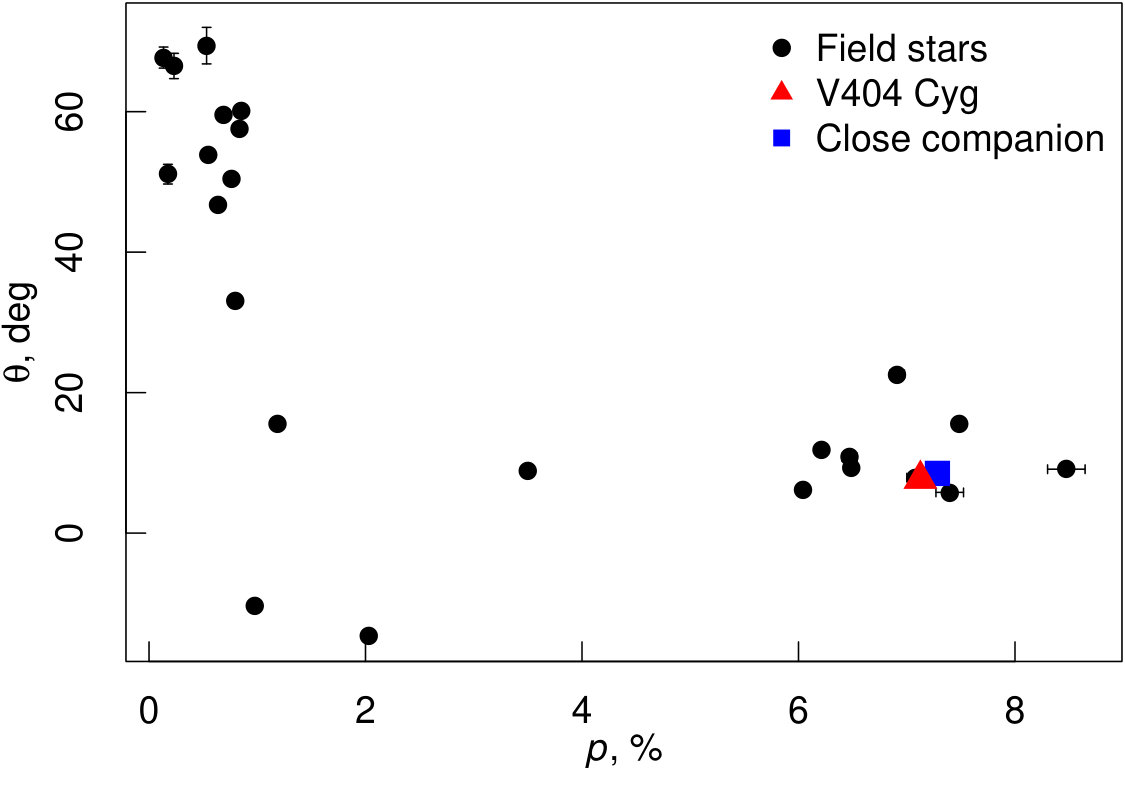

All field stars observed by us with $p$ exceeding 5 per cent have $\theta$ in the range of $0\degr-25\degr$. The similar picture is seen on Figure 3 of (Tanaka et al., 2016) for all stars with $p>2$ per cent. The stars from our sample with $p>5$ per cent (including V404 Cyg itself) also share peculiar wavelength dependence of polarization. To emphasize this, we have plotted a wavelength dependence of polarization degree and polarization angle for the stars in a small region of $2\aas@@fstack{\prime}1\times 2\aas@@fstack{\prime}1$ with the center at V404 Cyg position. The results are shown in Fig. 7. 2. 2.

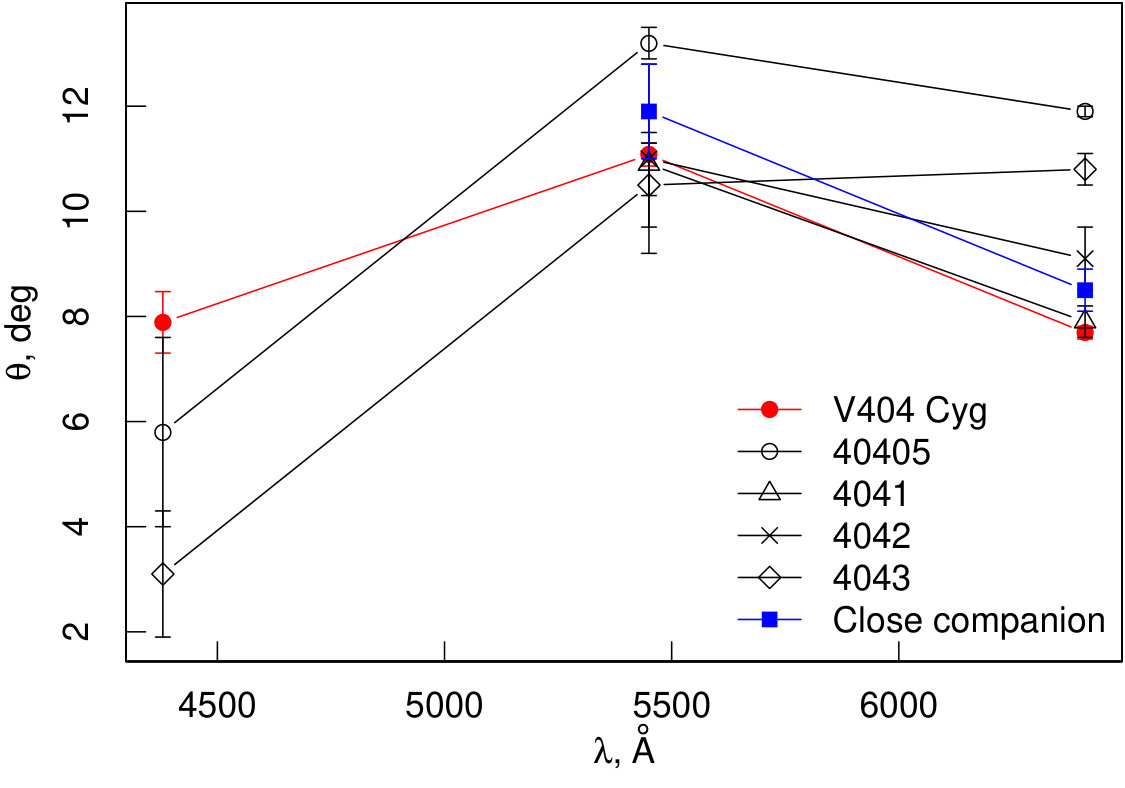

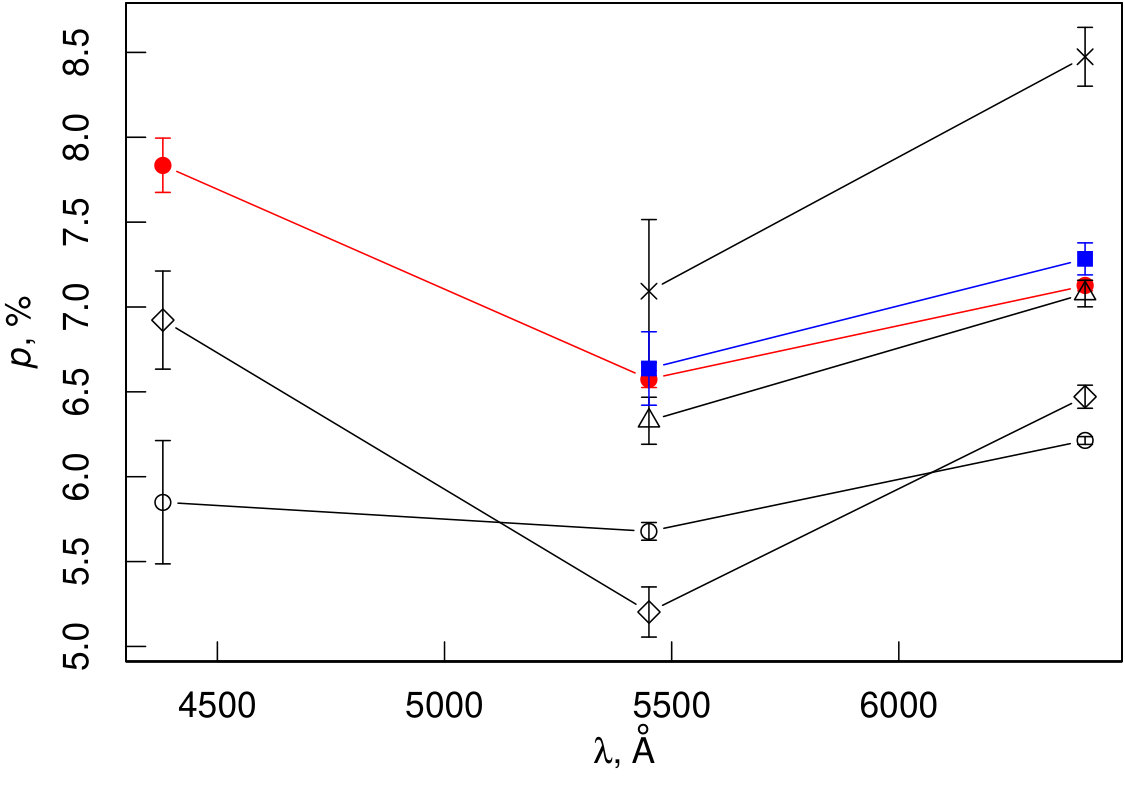

The peculiar wavelength dependence of $p$ and $\theta$ is likely a result of the presence on the line of sight towards V404 Cyg of (at least) two screens (clouds) with different properties of the interstellar dust and different directions of the magnetic field. Large interstellar polarization of the distant stars and V404 Cyg is produced by the propagation of light through these multiple clouds. 3. 3.

Due to the complex nature of the screens, ISM polarization towards V404 Cyg cannot be approximated by Serkowski’s law. Therefore, the parameters of the Serkowski’s law, $p_{\max}$ and $\lambda_{\max}$, derived by Shahbaz et al. (2016) from the polarization measurements of V404 Cyg in the quiescence and Itoh et al. (2016) in the outburst (both without knowing the value of polarization in the blue wavelengths) are meaningless. 4. 4.

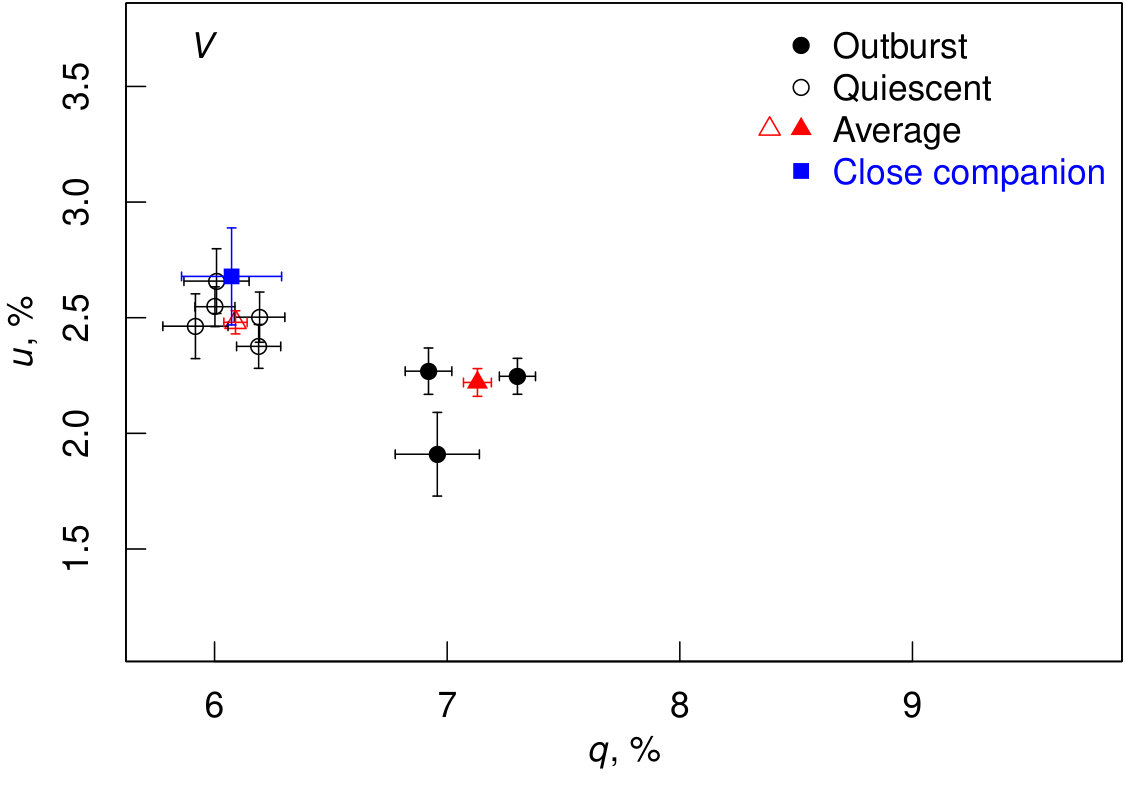

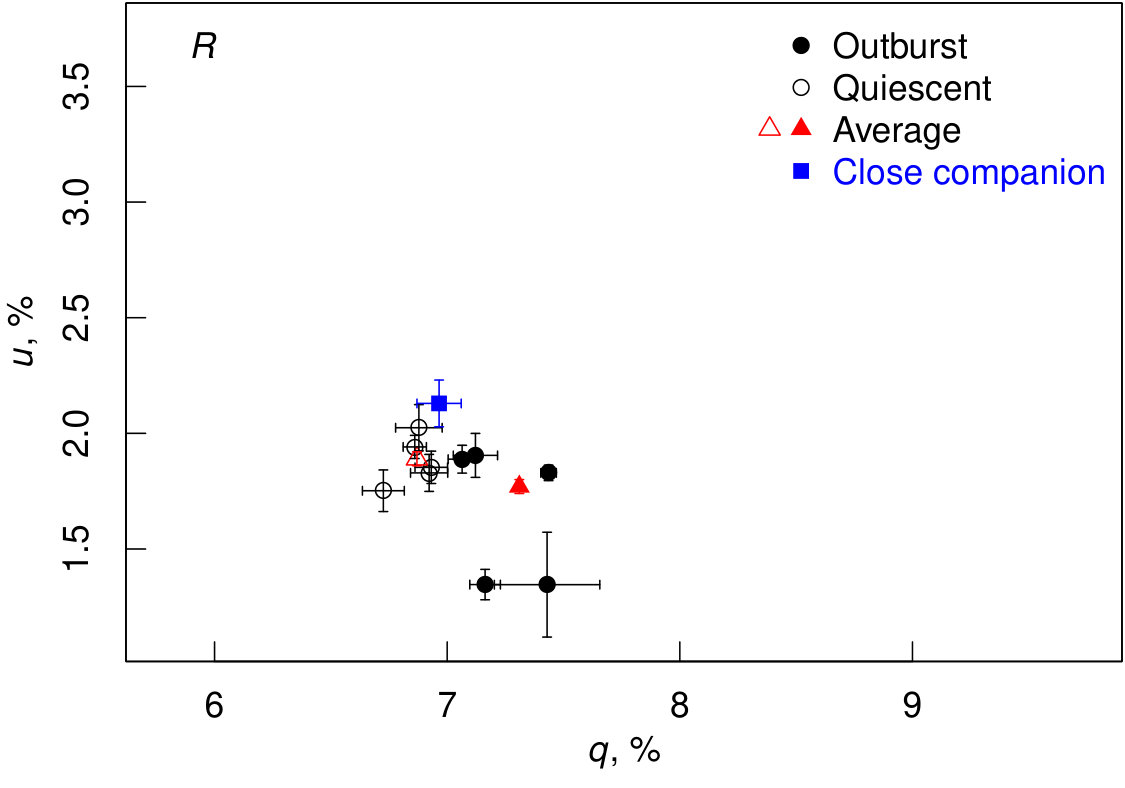

The polarization of the close visual companion of V404 Cyg (star 4040) measured in the $V$ and $R$ bands agrees within the errors with the polarization obtained for V404 Cyg in the quiescence, which indicates that the observed polarization of V404 Cyg after the outburst is indeed predominantly interstellar. This fact also allows us to suggest that visual companion is spatially close to V404 Cyg and might be physically bound (with separation of $\sim$3500 AU). 5. 5.

The results obtained by us on the ISM polarization in the direction of V404 Cyg emphasize the importance of multiwavelength polarimetry, which, preferably, should be done also in the blue passband.

Among the field stars we have detected an object with strongly peculiar polarization, peaking in the blue. This star, 40412 (2MASS J20240008+3346353), is also very red, with $B-R=4.1$ mag. We conclude this object is most likely intrinsically polarized. The sharp increase of polarization in the $B$-band is probably due to the Rayleigh scattering by dust particles in a circumstellar envelope.

3.3 Intrinsic polarization of V404 Cyg

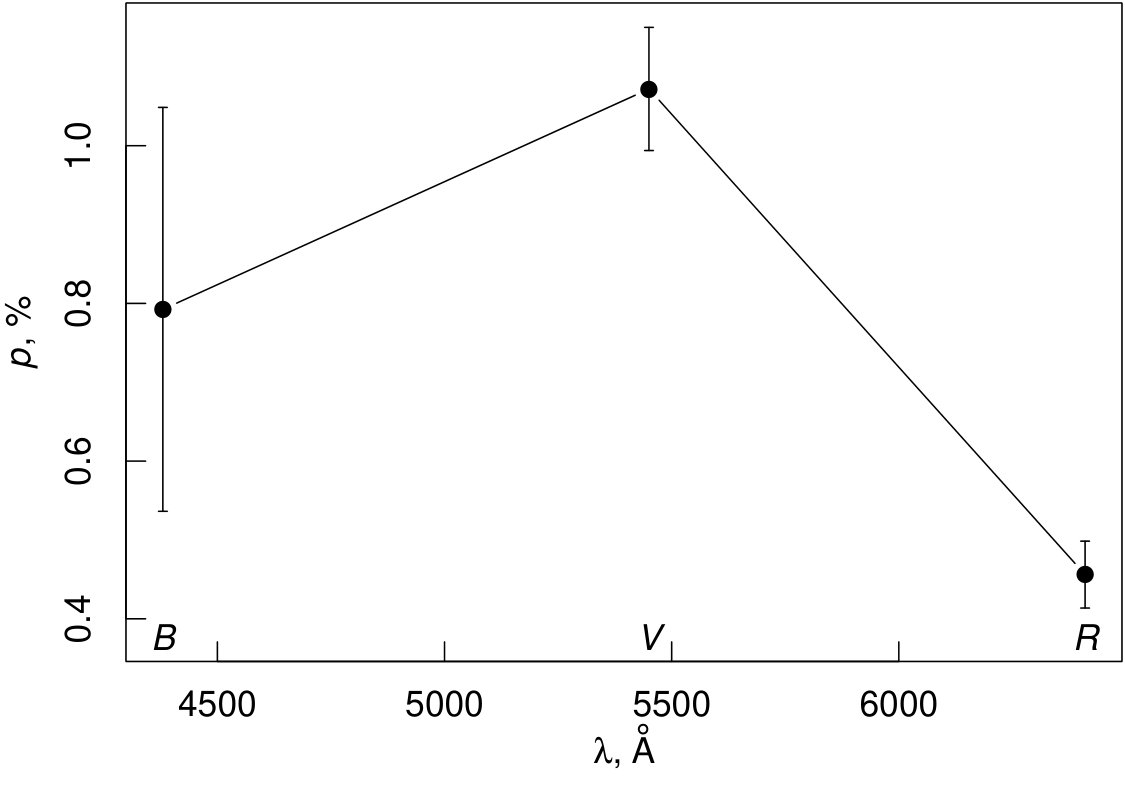

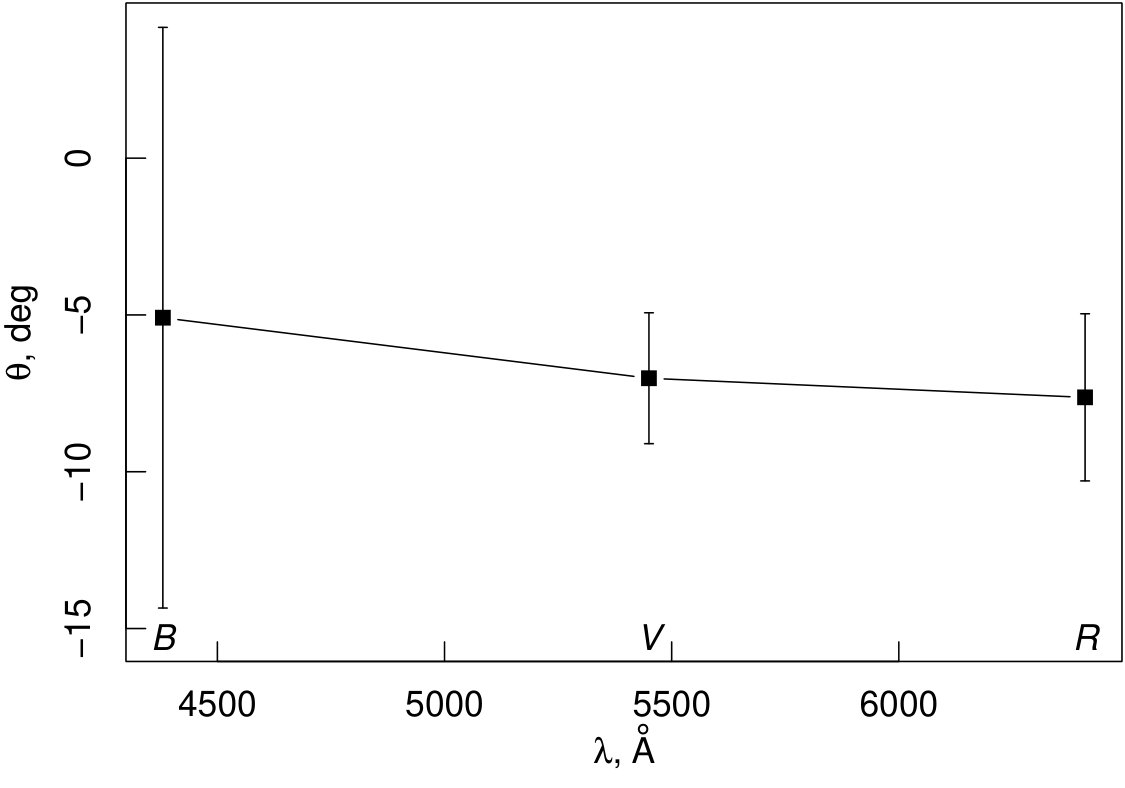

Polarization of V404 Cyg changes with time as the luminosity drops down after the peak around MJD 57200 (see Figs 1 and 2). We split our observations into two groups, one containing observations before MJD 57200.5 and another after that date. Fig. 4 show changes in the ($q,u$) parameters of V404 Cyg during the transition from one state to another. We have shown above that the polarization in the quiescence aligns well with the polarization of the close companion and the nearby stars (Fig. 7). Accordingly, there seems to be an intrinsic source of polarization that is only present during an active phase, contributing about 1 per cent to the net observed polarization of V404 Cyg. Assuming that the polarization in the quiescence is produced by the ISM, we then can obtain the intrinsic polarization of V404 Cyg in the active phase by subtracting the average ($q,u$) of the quiescent state from the ($q,u$) obtained during the outburst (see Fig. 4, bottom right panel).

The error estimate of the intrinsic polarization was computed as $\epsilon_{\rm in}=\sqrt{\epsilon_{\rm out}^{2}+\epsilon_{\rm qui}^{2}}$, where $\epsilon_{\rm out}$ and $\epsilon_{\rm qui}$ are the errors of the outburst and quiescence polarizations, respectively, and is based on a standard error propagation method. This formula is applied to $q$ and $u$ parameters as well as to the polarization degree $p$. The error on polarization angle is given by equation (2). The average intrinsic polarization $p$ has the maximum of about $1$ per cent in the $V$ band. The position angles obtained in the $BVR$ bands are consistent with each other.

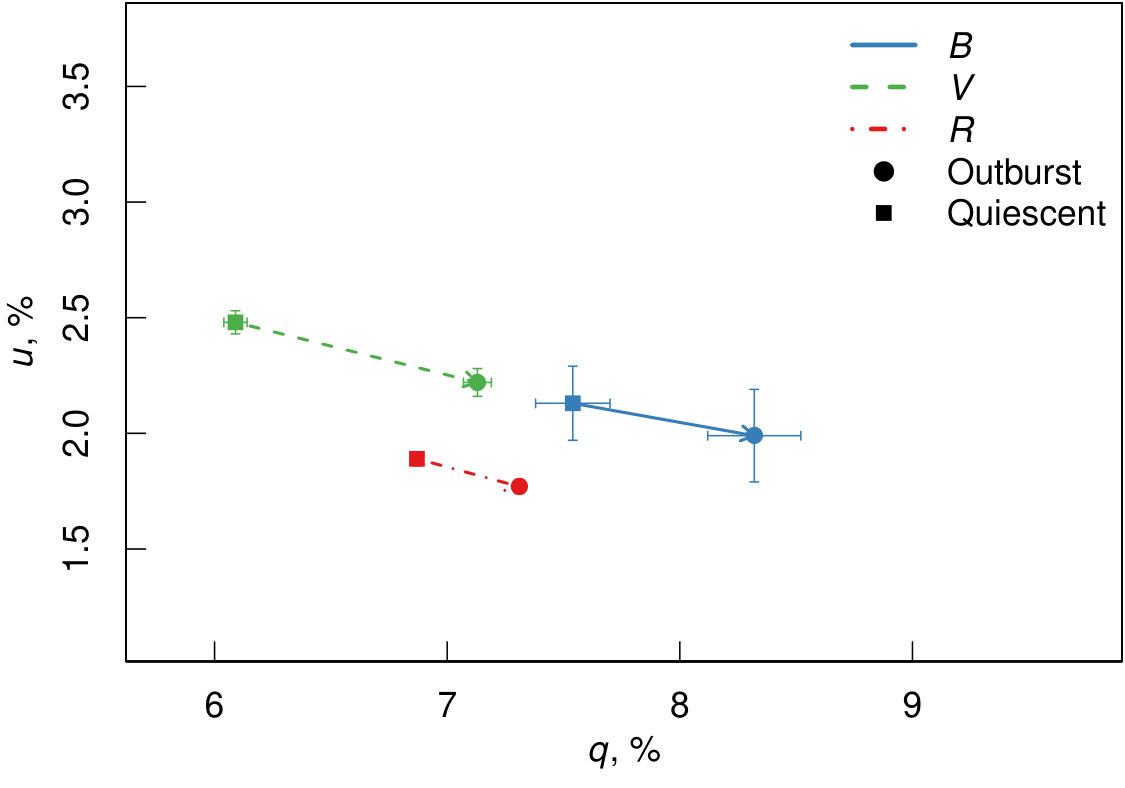

To prove the significance of change in polarization between outburst and quiescence, a statistical test should be applied. However, as polarization is a derived quantity and is not averaged directly, it is incorrect to test the change in polarization degree. Instead, one needs to consider averaged $q$ and $u$ Stokes parameters of combined data. The multivariate Hotelling’s $T^{2}$ test (Hotelling, 1931) can be used to estimate significance of difference between averaged $(q,u)$ parameters of two datasets. The smallest value of $t^{2}$ is expectedly obtained in $B$ band ($t^{2}_{B}=8$), while $t^{2}$ in other bands are much larger ($t^{2}_{V}=178$, $t^{2}_{R}=115$). The random variable $f=\frac{n_{1}+n_{2}-k-1}{k(n_{1}+n_{2}-2)}t^{2}$ has an $F$-distribution with parameters $k$ and $n=n_{1}+n_{2}-1-k$. Here $k=2$ is the number of variables and $n_{1},n_{2}$ are sizes of the combined data sets of observations made during the outburst and in quiescence, with $n_{1}+n_{2}$ being equal to $110,122,150$ in $B$, $V$ and $R$ bands, respectively. The obtained $f$-values in each band are $f_{B}=3.9$, $f_{V}=88$ and $f_{R}=57$. The significance can then be easily estimated using the regularized incomplete beta-function as $1-I_{x}(k/2=1,n/2)=(1-x)^{n/2}$, where $x=kf/(n+kf)$. Thus we get the probabilities of the outburst polarization being equal to the quiescence polarization of $0.022$, $4\times 10^{-24}$ and $5\times 10^{-19}$.

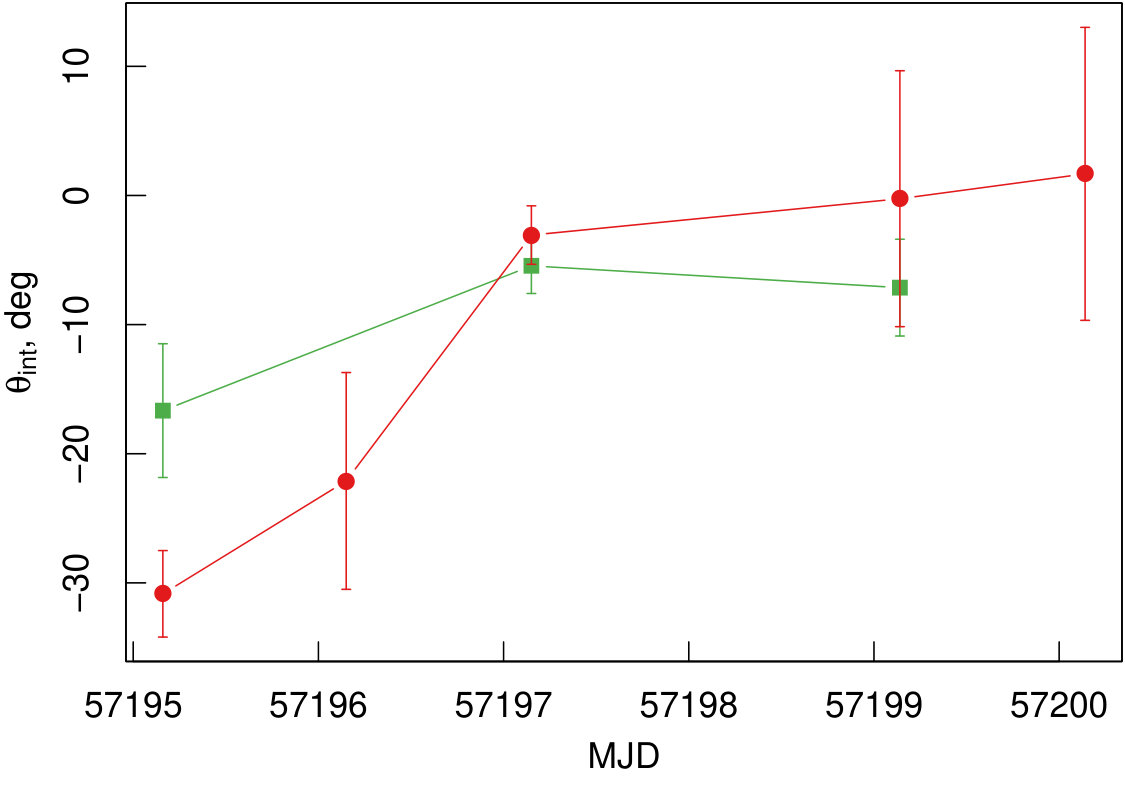

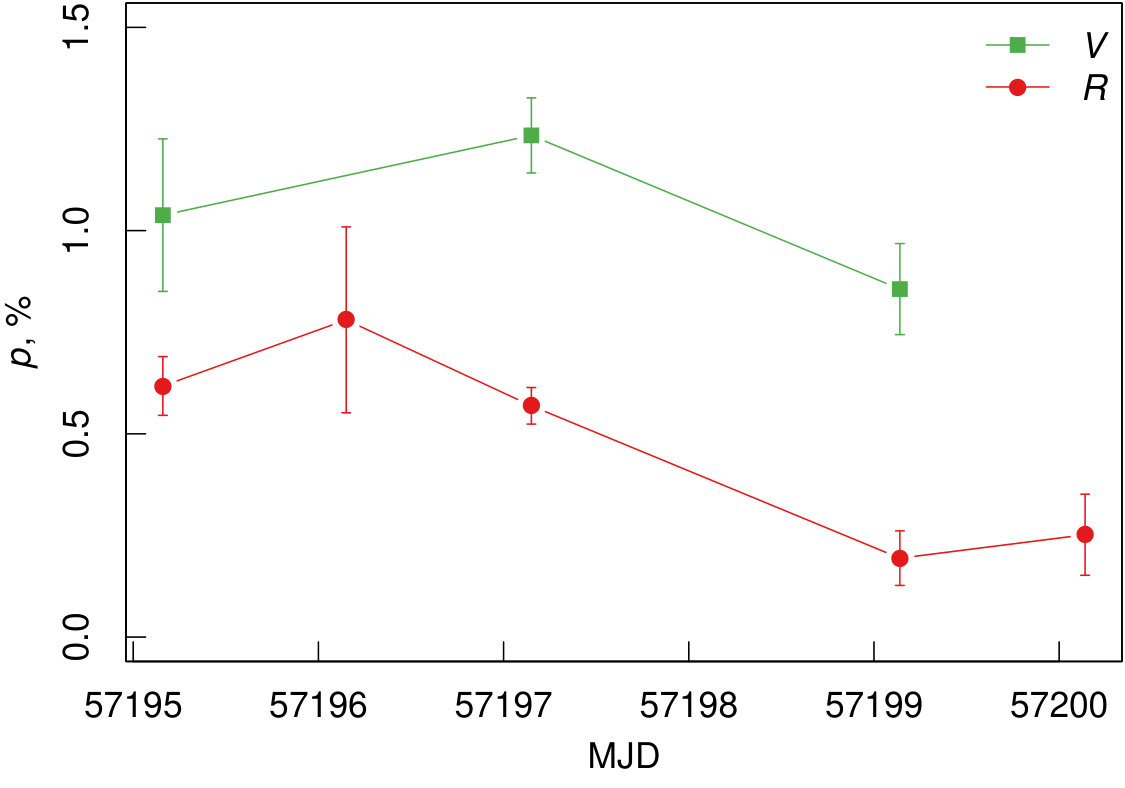

Fig. 9 depicts changes in the intrinsic polarization with time during the active phase (see also Table 4). The position angle $\theta$ in the $R$ band gradually changes with time from $-31\degr$ on MJD 57195 to $\approx 0\degr$ on MJD 57197 and further on. Similar variations are seen in the $V$ band, with $\theta$ varying from $-17\degr$ to $-7\degr$ during the same time span. Due to the large errors on position angles it is not obvious whether the observed trends are significant. We tested the deviation of intrinsic angle from the weighted mean over 5 nights and obtained $\chi^{2}$ for $V$ and $R$ bands. With weighted means equal to $-7\degr[173\degr]$ and $-12\degr[168\degr]$ in $V$- and $R$-bands, respectively, $\chi^{2}_{V}=4$ with 2 degrees of freedom and $\chi^{2}_{R}=51$ with 4 degrees of freedom. These values of $\chi^{2}$ correspond to the probabilities that $\theta$ does not change equal to 0.135 and $2\times 10^{-10}$ in $V$- and $R$-bands, respectively. Thus variations in $V$ are not significant, but changes in $R$ are highly significant.

3.4 Summary of the main results

Our ONIR polarization observations of V404 Cyg during the June 2015 outburst and the quiescence have showed that there is a highly significant difference in the Stokes parameters ($q,u$) between the activity states in all three passbands used (Fig. 4, lower right panel). The variable polarization of V404 Cyg  indicates there is an intrinsic source of polarization responsible for the observed changes in $p$ and $\theta$. As was discussed in Section 3.2, the polarization profile of the field stars in the direction of V404 Cyg and the visually close (1$\aas@@fstack{\prime\prime}$4) companion match the profiles of V404 Cyg during its quiescence, indicating that the quiescence polarization is of interstellar origin.

The intrinsic source of polarization, which was present during the active phase, contributes 0.5–1.0 per cent to the overall observed polarization of the object, reaching the maximum in the $V$ band. The polarization angle of the average intrinsic component does not significantly depend on wavelength. However, there is some evidence of variation of the intrinsic polarization during the active period. Although the degree of the intrinsic polarization, $p$, seems to remain almost constant in both $V$ and $R$ bands, the position angle $\theta$ shows gradual changes with time from $-17\degr[163\degr]\pm 5\degr$ to $-5\degr[175\degr]\pm 2\degr$ in $V$ and very significant variations from $-31\degr[149\degr]\pm 3\degr$ to $-3\degr[177\degr]\pm 2\degr$ in $R$ in two days (MJD 57195–57197) with $\theta_{R}$ being nearly constant after that until MJD 57200 (see Table 4).

4 Discussion

4.1 Comparison with other observations

Several reports of polarization observations of V404 Cyg during its active phase have been published. However, the time intervals when the observations were made differ, and it is not always possible to directly compare the results. Furthermore, because V404 Cyg appears quite red, accurate data are reported mostly in the $R$ band.

Tanaka et al. (2016) observed V404 Cyg starting from MJD 57190 for 4 nights using two instruments, in the $R$ and the $K_{\mathrm{s}}$ bands. On night of MJD 57194, observations in the $VR_{\mathrm{c}}I_{\mathrm{c}}JHK_{\mathrm{s}}$ have been made. The data obtained show that there was no significant variability in $p$ and $\theta$ in the $R$ band, at least during the nights of MJD 57193 and MJD 57194. Polarization degree and polarization angle obtained at Pirka/MSI ($p_{R}=7.77\pm 0.01$ per cent, $\theta_{R}=6\aas@@fstack{\circ}19\pm 0\aas@@fstack{\circ}03$ on MJD 57193) are consistent with our results (Fig. 1ab). Polarization in the $V$-band of $8.9\pm 0.1$ per cent, however, measured on MJD 57194 (Itoh et al., 2016) is significantly higher than $p_{V}=7.22\pm 0.18$ per cent measured by us on the next day. An extensive polarization survey of the field stars in the near-IR, with the few stars measured also in the $V$-band, have been done by Itoh et al. (2016). Main results of this survey agree with our data obtained on the field stars very well (compare fig. 3 from Tanaka et al. 2016 with our Fig. 6). The authors concluded that V404 Cyg polarization is predominantly of interstellar origin, with possible contribution from intrinsic component of not more than few percent, which again agrees with our estimations of intrinsic polarization, $p_{R}=0.46\pm 0.04$ to $p_{V}=1.07\pm 0.08$ per cent.

Shahbaz et al. (2016) observed variable polarization during the active phase. However, even though their observations at the TNG were made on the same night MJD 57197 as one of our sets, we are unable to compare them directly with our measurements, because the original polarization data obtained in the $r^{\prime}$ band were not given in their paper. The intrinsic polarization derived by Shahbaz et al. (2016) is 3.5–4.5 per cent, which is significantly higher than the intrinsic $R$ band polarization ($0.46\pm 0.04$ per cent) obtained by us. If one takes into account the value of the subtracted ISM polarization adopted by Shahbaz et al. (2016), $p_{R}^{\mathrm{IS}}=7.41\pm 0.32$ per cent and $\theta_{R}^{\mathrm{IS}}=7\aas@@fstack{\circ}2\pm 1\aas@@fstack{\circ}1$ (see their Table 1), and add the respective Stokes parameters to the ones obtained from polarization data (shown on their fig. 3), the estimate of the observed (measured at the TNG) polarization is $p_{R}^{\mathrm{obs}}=10-12$ per cent.

This is much higher than polarization in the R-band measured by us ($p_{R}=7.66\pm 0.03$ per cent on MJD 57197). We cannot explain this difference between our and TNG measurements made on the same night MJD 57197. We can only note that TNG polarimeter, installed in the Nasmyth focus, has the variable instrumental polarization of about 2–3 per cent which must be carefully calibrated and removed (Giro et al., 2003). Our instrument, the Dipol-2, benefits from being free of any instrumental polarization at the level of less than 0.01 per cent.

The observed polarization of V404 Cyg, measured at the TNG, also appears to be much higher than all other measurements obtained in the outburst by other observers: $p_{{R}}=7-8$ per cent (see Section 3.1 in Shahbaz et al. 2016 where these values of polarization are given). At the same time, the intrinsic mean polarization angle $\theta=-9\degr[171\degr]$ presented in Shahbaz et al. (2016) is consistent with what we observed: from $-5\degr[175\degr]\pm 9\degr$ in $B$ to $-8\degr[172\degr]\pm 3\degr$ in $R$ (see Fig. 8).

Lipunov et al. (2016) have reported a detection of variable polarization in V404 Cyg with the amplitude of 4–6 per cent over a timescale of approximately 1 hr on two epochs during the outburst. The setup which was used by for polarimetry of V404 Cyg with the MASTER robotic net does not allow to measure a true polarization (i.e. Stokes parameters $q$ and $u$) with a single telescope, but rather a difference in fluxes recorded with two different CCD detectors on two different telescopes, equipped with orthogonally oriented polarizing filter. This difference, as they argue, allows to measure a lower limit of the true polarization. Obviously, this setup makes the accurate calibration of instrumental polarization, which can be field dependent, literally impossible. It can neither effectively eliminate the influence of sky polarization, clouds, etc. Therefore Lipunov et al. (2016) must rely on the comparison of polarization of V404 Cyg with the field-star polarization, assumed to be of interstellar origin and therefore constant. We note that in addition to V404 Cyg  there is at least one field star which clearly shows fast polarization variability with the amplitude of at least 2 per cent, which exceeds the error bar by a factor of $\sim$10 (see the uppermost green symbols for the field stars in their fig. 1). We can compare this with the variablity of V404 Cyg itself, shown on the same figure: the amplitude is $\sim$4 per cent, and the error bar of $>1$ per cent (i.e. exceeding 10 times the error for the abovementioned field star). It is thus obvious that there is at least one more star in the field which shows very fast variability at much higher confidence level than V404 Cyg. This raises the doubts on the quality of the data coming from MASTER polarimetry and the reality of the claimed polarization flares.

4.2 Interpretation

The data show variations of the polarization angle $\theta$ with time which is the most pronounced in the $R$-band (see Fig. 9). Interestingly, the range of measured $\theta$ (from $-30\degr$ to $0\degr$) coincides with the position angles of jet ejections that are resolved by the VLBI (J. Miller-Jones et al. 2017, in prep.). Because our observations are rather short and not strictly simultaneous with the VLBI observations, we cannot claim here that there is a definite relation between the polarization position angle and the jet directions. However, the coincidence is intriguing.

Do these observations then imply that ONIR polarized emission is produced by the jet? Not at all. The intrinsic spectral polarization profile of V404 Cyg shows a maximum in the $V$-band with $p_{V}$ reaching $1.23\pm 0.09$ per cent on MJD 57197 and polarization drops towards $R$-band by a factor of two to $p_{R}=0.57\pm 0.05$ per cent measured on the same day (see Fig. 9). If the jet were the source of polarized flux, we would expect exactly opposite behaviour with the polarization growing toward the red just because the ONIR jet spectrum is much softer (redder) than the accretion disc spectrum (see e.g. Gandhi et al., 2011; Russell et al., 2013). Furthermore, the radio flux observed by RATAN and NOEMA on MJD 57199–57200 is very low (see fig. 10 in Rahoui et al., 2017) implying the jet contribution of at least two orders of magnitude below the observed flux in the ONIR range. This clearly shows that the jet cannot be responsible for observed polarization.

On the other hand, the observed wavelength dependence of polarization resembles that of Be stars, where electron scattering in a circumstellar disc leads to the intrinsic polarization of about 1.0–1.5 per cent (Poeckert et al., 1979). Although Thomson scattering opacity is independent of the wavelength, the degree of polarization is reduced and the spectral shape of the polarized flux is modified by hydrogen absorption in Balmer and Paschen series (Nagirner, 1962; Poeckert & Marlborough, 1978). Also dilution by unpolarized free-free and dust emission from the envelope around the accretion disc may contribute towards the red; such a component has indeed been observed as an NIR excess above the Rayleigh-Jeans tail (Rahoui et al., 2017).

Studies of Be stars show that the degree of intrinsic polarization decreases in hydrogen lines and across hydrogen series limits. Our observations in the $BVR$ bands are made between the Balmer and Paschen limits, but Hγ ($\lambda=4341$ Å) and Hα ($\lambda=6563$ Å) lines are within the $B$- and $R_{\rm c}$-filter, respectively. The lines may be partially responsible for the decrease of polarization in these bands. However, during the outburst the line contribution to the continuum flux does not exceed 10 per cent (Muñoz-Darias et al., 2016), implying that the observed form of $p(\lambda)$ is not related to the lines. If our interpretation of the wavelength dependence is correct, we expect that the polarization degree will be strongly reduced to the blue of the Balmer limit and slightly increased to the red of the Paschen limit (Poeckert & Marlborough, 1978). Decrease of polarization in the $B$-band could also be partly due to the relatively low signal-to-noise ratio of our polarimetry in the blue wavelengths.

Geometrical properties of the emitting region and its optical depth also play a significant role in polarizing the radiation. The degree of polarization depends on the ellipticity of the source. Spherical regions produce no polarization, while slab-like structures may produce significantly linearly polarized radiation up to tens of per cent, depending on optical depth and the role of electron scattering. For optically thick, electron-scattering dominated envelopes the intrinsic polarization is $<12$ per cent and is parallel to the disc plane (i.e. perpendicular to the disc normal) and the equatorial plane of a flattened ellipsoidal shell (Chandrasekhar & Breen, 1947; Chandrasekhar, 1960; Sobolev, 1949, 1963). In the optically thin case, polarization is parallel to the disc normal and can reach higher values (Sunyaev & Titarchuk, 1985; Beloborodov & Poutanen, 1999; Viironen & Poutanen, 2004). Intermediate ellipsoids introduce small polarizations of the order of a few percent (Dolginov et al., 1995; Gnedin & Silant’ev, 1997), which is the case of Be stars.

The ONIR emitting region, of course, does not need to have an ellipsoidal shape. A slow accretion disc wind may be concentrated to the equatorial plane. The presence of such a wind occupying a rather large solid angle is supported by the observed very broad P Cyg profiles in the optical (Muñoz-Darias et al., 2016) as well as in the X-ray (King et al., 2015) lines. In this case, the polar scattering region which induces polarization parallel to the disc plane might be completely missing. This would result in the net polarization parallel to the disc normal.

Scattering in the polar region may also induce parallel polarization if the outflow is mildly relativistic (Beloborodov, 1998; Beloborodov & Poutanen, 1999), because relativistic aberration causes a limb brightening of the disc radiation in the outflow frame. The wavelength dependence of the polarization degree can be reproduced in this case if the scattered radiation is blue-shifted relative to the seed disc radiation (which is actually expected if the electron temperature or the bulk motion of the outflow is mildly relativistic) and there is a diluting red unpolarized component coming from the wind (Rahoui et al., 2017).

The impact of absorption opacity can also be significant, reducing importance of scattering and leading to a rotation of the polarization plane by $90\degr$ (relative to the case of pure scattering) at some (typically close to the slab normal) viewing angles known as Nagirner effect (Nagirner, 1962; Dolginov et al., 1995; Gnedin & Silant’ev, 1997). Thus both optically thin, electron-scattering-dominated envelopes and those with significant absorption produce polarization parallel to the disc normal (and therefore the jet direction). A small observed value of polarization and a strong wavelength dependence, however, imply that it is the interplay of scattering and absorption in a flattened envelope that might be responsible for the observed properties.

Because of the high source luminosity likely above the Eddington at least on some occations during the outburst (see Fig. 2a and Segreto et al. 2015; Rodriguez et al. 2015a, b) and the evidence of a strong wind (King et al., 2015; Muñoz-Darias et al., 2016), it is very likely that a significant fraction of the ONIR radiation is produced in the outflow (Poutanen et al., 2007). In many respects V404 Cyg is similar to V4641 Sgr, which also showed bright optical emission which was interpreted as evidence of a large envelope enshrouding the central BH accreting at super-Eddington rate (Revnivtsev et al., 2002a, b). The strong iron line observed in both cases (King et al., 2015; Revnivtsev et al., 2002b) implies that the X-rays from the central source have to diffuse through an envelope. The picture thus emerges that the best model describing the orientation of the polarization angle along the jet direction and the wavelength dependence of the polarization degree together with the sharp variability in the optical and X-ray bands is the equatorial, clumpy, not fully ionized wind. Alternatively, the polarized signal may also be produced in the polar mildly relativistic outflow in combination with a diluting red unpolarized component. The data at hand do not allow to differentiate between the models.

5 Conclusion

We observed V404 Cyg polarization during the 2015 June outburst and in the quiescence, in the broad $BVR$ bands. Variable source polarization was detected in the active phase. We carried out a survey of surrounding field stars in order to determine the properties of interstellar polarization in the vicinity of V404 Cyg.

The magnitude and direction of polarization of V404 Cyg in the $V$ and $R$ bands in quiescence are very close to those of the visually close (1$\aas@@fstack{\prime\prime}$4) companion. We consider this as an evidence that these two stars are spatially close and might be physically bound. Polarization direction and wavelength dependence of V404 Cyg  in quiescence are similar to those of the nearby field stars. Therefore, it must be predominantly of interstellar origin. The obtained intrinsic polarization during outburst shows variability with the polarization angle changing on the time scale of 2–3 days from $-31\degr$ to $\sim 0\degr$, in the range of the position angle of the multiple ejections observed with the VLBI on the same days. The wavelength dependence of the intrinsic polarization, peaking in the $V$ band and decreasing towards the red, indicates that the source of the intrinsic polarization most likely is not the synchrotron emission from the jet. On the other hand, the data are consistent with the interpretation that polarization arises in a flattened envelope (outflow) that fully enshrouds the accretion disc around the BH or, alternatively, by scattering of the disc radiation in the mildly relativistic polar outflow.
