Latest studies on the reaction e+ e- --> K + K- gamma

TL;DR

This paper reviews recent theoretical models of the e+ e- --> K+ K- gamma process, analyzing reaction mechanisms, mass distributions, and proposing a new multichannel model for similar radiative meson production processes.

Contribution

It introduces a new multichannel model for e+ e- --> M_1 M_2 gamma reactions, expanding analysis capabilities for radiative meson production.

Findings

Derived K+ K- effective mass distributions for three models

Presented numerical results for angular photon and kaon distributions

Outlined a new multichannel reaction model

Abstract

Recent theoretical studies of the e+ e- --> K + K- gamma process are described. Three main reaction mechanisms are considered: the initial state radiation, the final state radiation and the strong interaction between the outgoing K+ K- mesons. The K+ K- effective mass distributions are derived for three different models which in past have been used for a description of the e+ e- --> pi+ pi- gamma data. Also the numerical results for the angular photon and kaon distributions are presented. A new model of the e+ e- --> M_1 M_2 gamma reactions is outlined which can serve for multichannel analyses of the radiative processes with a production of two pseudoscalar mesons M_1 and M_2.

Figures

Tables

Table 1. Table 1: The cross sections integrated over the K + ​ K − superscript 𝐾 superscript 𝐾 K^{+}K^{-} effective mass from the threshold up to 1009 MeV for two ranges of the photon emission angle θ γ subscript 𝜃 𝛾 \theta_{\gamma} .

reaction mechanism
FSR	0.330 nb	0.238 nb
NS	0.0020 nb	0.0014 nb
Int(NS-FSR)	-0.021 nb	-0.015 nb
ISR	0.183 nb	0.104 nb
total	0.494 nb	0.328 nb

Table 2. Table 2: Numbers of events for the K + ​ K − superscript 𝐾 superscript 𝐾 K^{+}K^{-} effective mass up to 1009 MeV and for two ranges of θ γ subscript 𝜃 𝛾 \theta_{\gamma} for two photon angle ranges.

reaction mechanism
FSR	5.6$\cdot {10}^5$	4.0$\cdot {10}^5$
NS	3.4$\cdot {10}^3$	2.4$\cdot {10}^3$
Int(NS-FSR)	-3.6$\cdot {10}^4$	-2.5$\cdot {10}^4$
ISR	3.1$\cdot {10}^5$	1.8$\cdot {10}^5$
total	8.4$\cdot {10}^5$	5.6$\cdot {10}^5$

Equations

$$M=A(ISR)+A(FSR)+A(KL),$$

$$|M{|}^2=|A(ISR){|}^2+|A(FSR){|}^2+|A(KL){|}^2+2Re[A^{\ast }(ISR)\text{leavevmode}A(FSR)]$$

$$+2Re[A^{\ast }(ISR)\text{leavevmode}A(KL)]+2Re[A^{\ast }(FSR)\text{leavevmode}A(KL)].$$

$$d\sigma (total)=d\sigma (ISR)+d\sigma (FSR)+d\sigma (KL)+Int(ISR-FSR)+Int(ISR-KL)+Int(FSR-KL).$$

$$d\sigma =\frac{(2\pi {)}^4}{2\sqrt{s(s-4m_e^2)}}|M{|}^{2}d{\Phi }_3.$$

$$m^2=(p_{K^{+}}+p_{K^{-}}{)}^2,\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}{m}_{K^{-}\gamma }^2=(p_{K^{-}}+q{)}^2$$

$$t=(p_{e^{-}}-q{)}^2,\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}\text{leavevmode}{t}_1=(p_{e^{-}}-p_{K^{-}}{)}^2.$$

$$\frac{d\sigma }{d{m}^{2}d{m}_{K^{-}\gamma }^{2}dtd{t}_1}=\frac{|M{|}^2}{(2\pi {)}^{4}16s(s-4m_e^2)(s-m^2)r(t_1)}.$$

$$r(t_1)=\sqrt{-(t_1-t_{1min})(t_1-t_{1max})},$$

$$t_{1min}=r_0+r_{1}t-b\sqrt{-t(t+s-m^2)},\text{leavevmode}\text{leavevmode}\text{leavevmode}{t}_{1max}=r_0+r_{1}t+b\sqrt{-t(t+s-m^2)}.$$

$$r_0=m_K^2-\frac{1}{2}s(1-v\text{leavevmode}z),\text{leavevmode}\text{leavevmode}\text{leavevmode}{r}_1=-\frac{1}{2}+\frac{(s+m^2)\text{leavevmode}v\text{leavevmode}z}{2(s-m^2)},\text{leavevmode}\text{leavevmode}\text{leavevmode}b=\frac{m\sqrt{s}\text{leavevmode}v\sqrt{1-z^2}}{s-m^2}.$$

$$m_{K^{-}\gamma }^2=m_K^2+\frac{1}{2}(s-m^2)(1-v\text{leavevmode}z).$$

Full text

1 Introduction

Strong interactions of the strange mesons $K^{+}$ and $K^{-}$at low energies are not well known. Since the $K^{+}K^{-}$ threshold lies quite close to the DA$\Phi$NE accelerator energy, the low energy $K^{+}K^{-}$ interactions can be studied using data collected by the KLOE experiment. Masses of the scalar resonances $f_{0}(980)$ and $a_{0}(980)$ are close to 1 GeV. There are, however, large uncertainties in their values. According to the Particle Data Group estimations PDG the $f_{0}(980)$ mass equals to 990 $\pm$ 20 MeV and its width lies between 10 and 100 MeV, while the $a_{0}(980)$ mass is 980 $\pm$ 20 MeV and the width value varies between 50 and 100 MeV. Let us stress here that the parameters of the scalar resonances found in experimental analyses are very much model dependent.

As an example let us consider the reaction $e^{+}e^{-}\rightarrow\pi^{+}\pi^{-}\gamma$ studied by the KLOE Collaboration in 2006 KLOE2006 . Fits to the experimental data done using the following two models: the kaon-loop model KL and the so-called no-structure model NS , gave quite different values of the $f_{0}(980)$ mass ranges: 980-987 MeV in the first case and 973-981 MeV in the second case. The intervals of the maximal variations of the $f_{0}(980)$ coupling constants to $K^{+}K^{-}$ were: 5.0-6.3 GeV for the first model and 1.6-2.3 GeV for the second one. The corresponding numbers for the $f_{0}(980)$ coupling constants to $\pi^{+}\pi^{-}$ were: 3.0-4.2 GeV and 0.9-1.1 GeV, respectively. One can attribute the differences between the resonance parameters to different parameterizations of the production amplitude P(m) which describes formation of the $f_{0}(980)$ resonance in the first step transition $e^{+}e^{-}\rightarrow f_{0}(980)\gamma$ ($m$ being the $\pi^{+}\pi^{-}$ effective mass). Let us assume that the full reaction amplitude A(m) is schematically written as a product A(m)= P(m) $\cdot$ D(m), where D(m) is the resonant $f_{0}(980)\rightarrow\pi^{+}\pi^{-}$ decay amplitude. If the fits to data are performed with two different production functions P(m) then the fitted parameters of the resonant amplitude D(m) could be different as well. This is one possible source of the model dependence found in experimental analyses.

Let us enumerate some other problems frequently encountered in the data analyses of the reactions in which the scalar mesons are produced:

1. application of the Breit-Wigner formulae with constant widths of scalar mesons,

2. reduction of a number of scalar resonances to one (for example, assuming that near the $K\bar{K}$ threshold only the $f_{0}(980)$ resonance is present),

3. too simplified treatment of the final-state meson-meson interactions,

4. existence of two closed thresholds $K^{+}K^{-}$ and $K^{0}\bar{K}^{0}$.

1.1 Motivation to study the the $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$ reaction

Below we give some additional arguments in favour of further studies on the $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$ reaction. The branching fraction of the $\Phi(1020)$ meson decay into $\pi^{+}\pi^{-}\gamma$ has been measured CMD2 but the branching fraction for the $\Phi(1020)\rightarrow K^{+}K^{-}\gamma$ channel is yet unknown. There are data for the radiative decay of the $\Phi(1020)$ meson into two scalar resonances. The corresponding ratios of the widths are: $\Gamma(f_{0}(980)\gamma)/\Gamma_{total}=(3.22\pm 0.19)\cdot 10^{-4}$ and $\Gamma(a_{0}(980)\gamma)/\Gamma_{total}=(7.6\pm 0.6)\cdot 10^{-5}$ PDG . Since both scalar resonances decay into $K^{+}K^{-}$ mesons, one should experimentally observe the reaction $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$. For the decay $\Phi\rightarrow K^{0}\bar{K}^{0}\gamma$ only the upper limit $1.9\cdot 10^{-8}$ is known KLOE2009 . In the final state of the transition process $e^{+}e^{-}\rightarrow\Phi\rightarrow K^{+}K^{-}\gamma$ the $K^{+}$ and $K^{-}$ mesons can interact so a new information about the $K^{+}K^{-}$ strong interactions could be obtained from data. Thus the proposed experimental analysis could provide us with potentially interesting results.

2 Reaction mechanisms

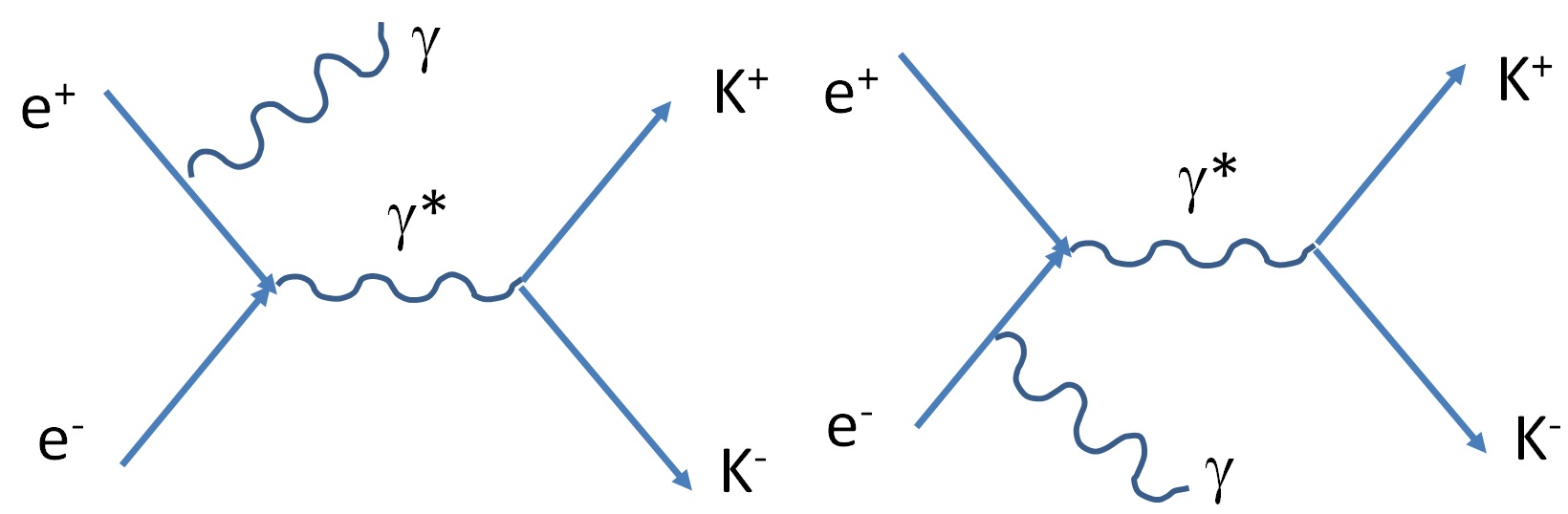

There are several transition mechanisms processes which can lead to the same $K^{+}K^{-}\gamma$ final state. In the first one, called the initial state radiation (ISR) a photon is emitted from an electron or a positron in the $e^{+}e^{-}$ collision associated with the production of strange mesons $K^{+}$ and $K^{-}$. As shown in Fig. 1 the two mesons are emitted from an intermediate photon $\gamma^{*}$.

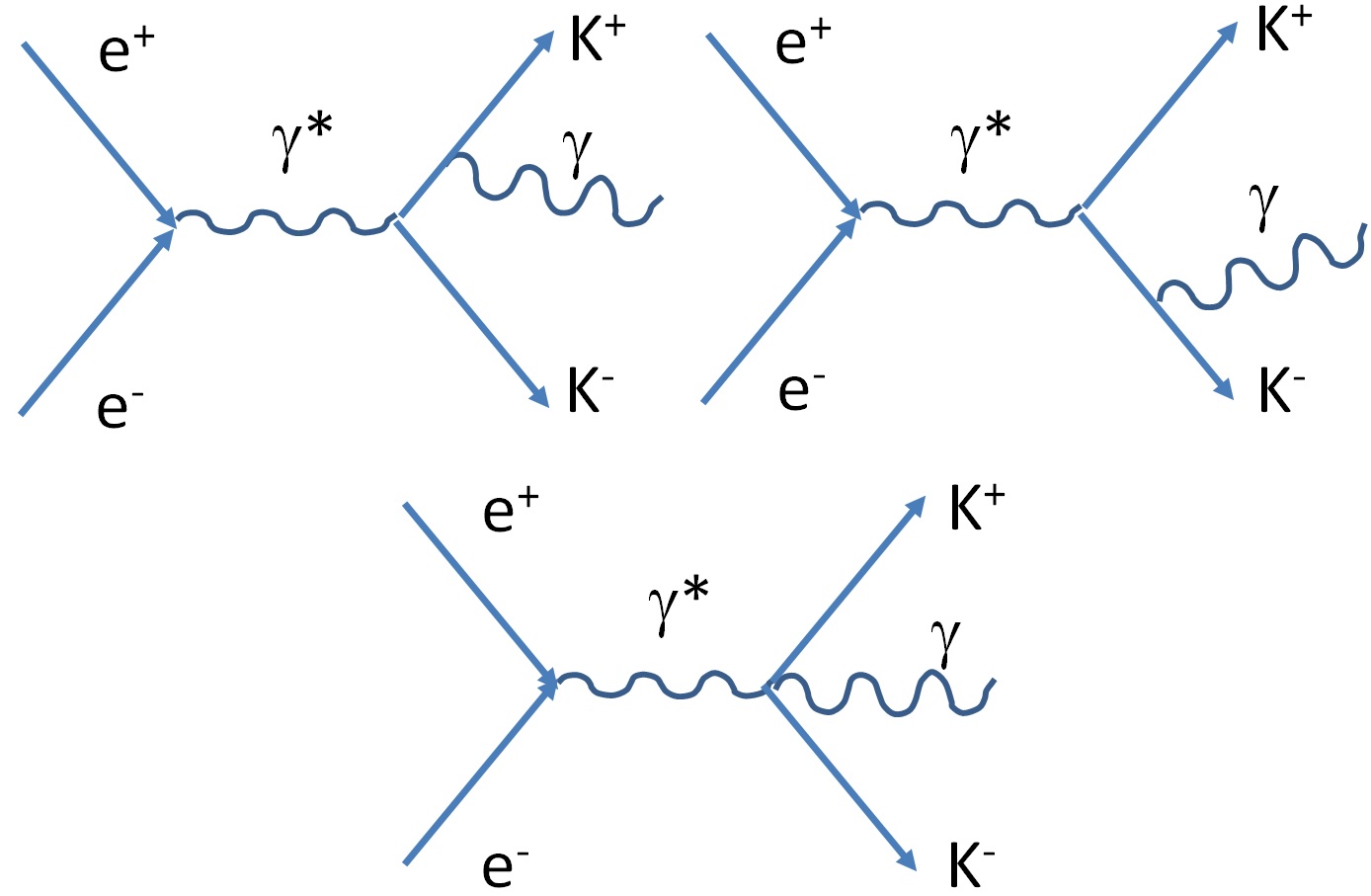

In other process, called the final state radiation (FSR), the outgoing photon is emitted from the $K^{+}$ or from the $K^{-}$ meson, or directly from the same vertex connecting $K^{+}$ and $K^{-}$ with $\gamma^{*}$. In Fig. 2 the third diagram of the FSR process is called the contact term.

Both the ISR and FSR amplitudes can be calculated using the methods of quantum electrodynamics.

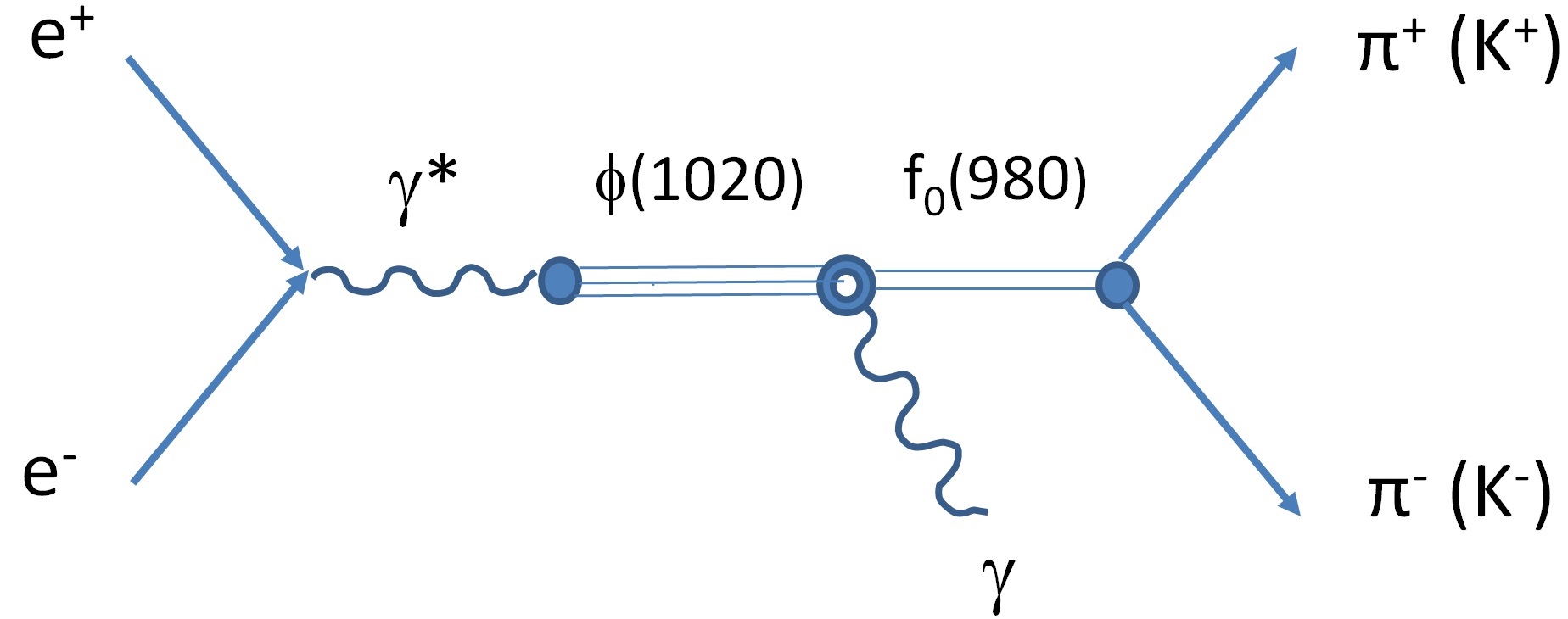

The mesons $K^{+}$ and $K^{-}$ can interact strongly and in a case where the $K^{+}K^{-}$ effective mass is close to 1 GeV this interaction has a resonant character. Two scalar resonances can be formed: isoscalar $f_{0}(980)$ and isovector $a_{0}(980)$. The $f_{0}(980)$ resonance can decay into $\pi^{+}$ and $\pi^{-}$ mesons. For a description of the reaction $e^{+}e^{-}\rightarrow\pi^{+}\pi^{-}\gamma$ the no-structure model (NS) has been formulated by Isidori, Maiani, Nicolaci and Pacetti NS . In this model an essential role is played by the $\Phi(1020)$ meson point-like coupling to $f_{0}(980)\gamma$ (see Fig. 3).

The model can be extended to describe the $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$ reaction since the $f_{0}(980)$ resonance decays also to the $K^{+}K^{-}$ state.

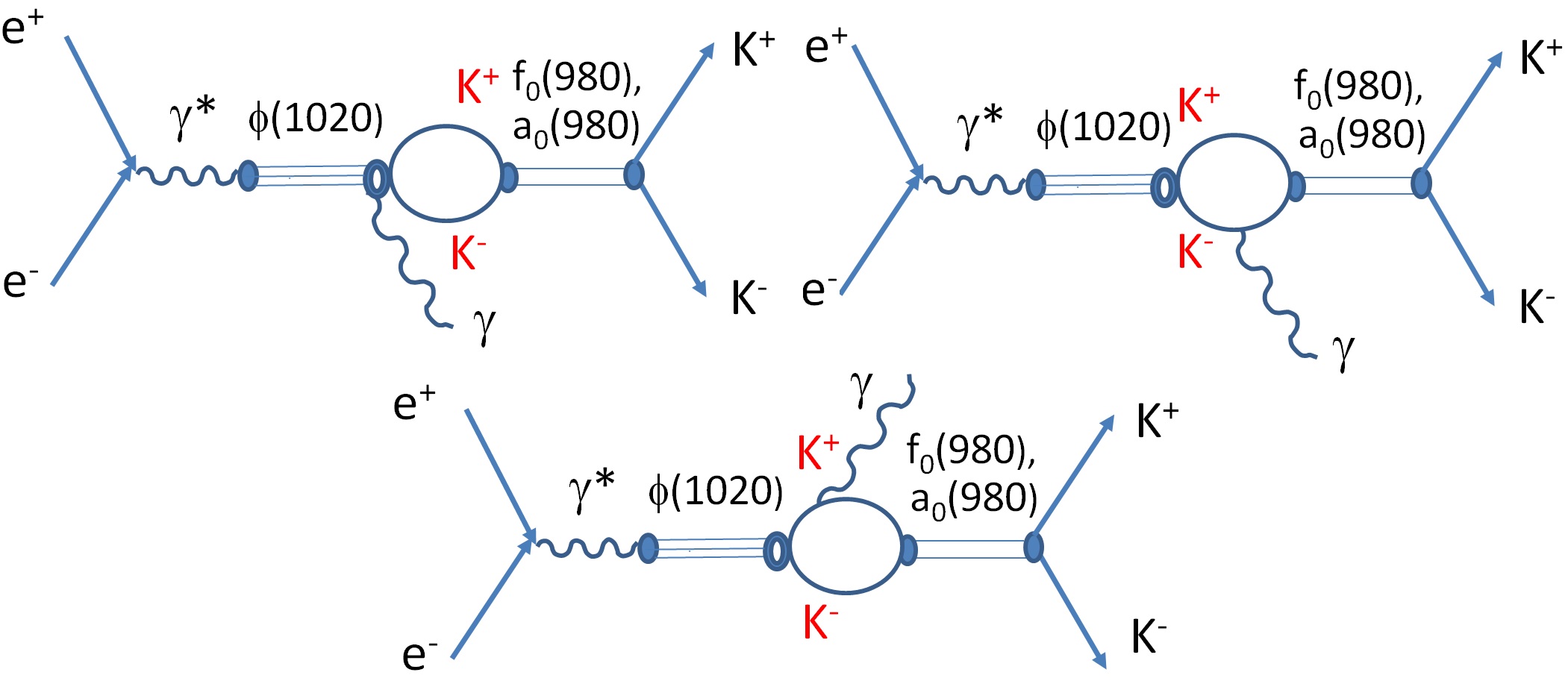

Another model of the radiative $\Phi(1020)$ meson decays with a formation of kaon pairs has been developed by Achasov, Gubin and Shevchenko in Ref. KL . In this model one calculates the amplitudes related to three diagrams shown in Fig. 4. In each of these diagrams the $\Phi$ meson is coupled to the scalar mesons $f_{0}(980)$ or $a_{0}(980)$ through the charged kaon-loop (KL model). Both no-structure and kaon-loop models have been used in analysis of the KLOE Collaboration for the $e^{+}e^{-}\rightarrow\pi^{+}\pi^{-}\gamma$ reaction KLOE2006 .

2.1 Reaction amplitudes

We have just discussed a few reaction mechanisms leading to the same final state of $K^{+}K^{-}\gamma$. Therefore the corresponding amplitudes have to be added in the total reaction amplitude $M$:

[TABLE]

where $A(ISR)$ is the initial state radiation amplitude, $A(FSR)$ is the final state radiation amplitude and as an example we have added the amplitude $A(KL)$ describing the final state interaction between kaons in the kaon-loop approach. The modulus of the total amplitude squared reads:

[TABLE]

Therefore the total differential cross-section can be witten as a sum of six terms:

[TABLE]

The first three terms are the cross-sections proportional to the moduli of the amplitudes squared like $d\sigma(ISR)\propto|A(ISR)|^{2}$. The three inteference terms are also present, for example, Int(FSR-KL) is the term corresponding to the interference of the FSR amplitude with the kaon-loop model amplitude. Let us notice that if the experimental cuts are chosen symmetrically with respect to an interchange of the $K^{+}$ and $K^{-}$ mesons, then the two interference terms vanish: Int(ISR-FSR)=Int(ISR-KL)=0.

2.2 Differential cross-cection

Let us consider the differential cross-section of the reaction $e^{+}(p_{e^{+}})e^{-}(p_{e^{-}})\rightarrow K^{+}(p_{K^{+}})K^{-}(p_{K^{-}})\gamma(q)$, where the particle four momenta are indicated by $p$ or $q$:

[TABLE]

In the formula above $s$ is the Mandelstam invariant $s=(p_{e^{+}}+p_{e^{-}})^{2}$, $m_{e}$ is the electron mass, $M$ denotes the total reaction amplitude and $\Phi_{3}$ is the final state tree-body phase space. Next we define the $K^{+}K^{-}$ and $K^{-}\gamma$ effective masses squared

[TABLE]

and two momentum transfers squared

[TABLE]

Then the four-fold differential cross-section can be written as

[TABLE]

Here

[TABLE]

where $t_{1min}$ and $t_{1max}$ are the lower and upper limits of $t_{1}$ which depend on $m$, $m_{K^{-}\gamma}$ and $t$ in the following way:

[TABLE]

The coefficients $r_{0}$, $r_{1}$ and $b$ are expressed as

[TABLE]

In the above equations $m_{K}$ is the charged kaon mass, $v=\sqrt{1-4m_{K}^{2}/m^{2}}$ is the $K^{-}$ velocity in the $K^{+}K^{-}$ center-of-mass frame and $z$ is the cosine of the angle between $K^{-}$ momentum and the photon momentum in the same frame. In Eq. (10) we have neglected a small value of the electron mass squared. The variable $z$ is directly related to the $K^{-}\gamma$ effective mass:

[TABLE]

3 $K^{+}K^{-}$ effective mass distributions

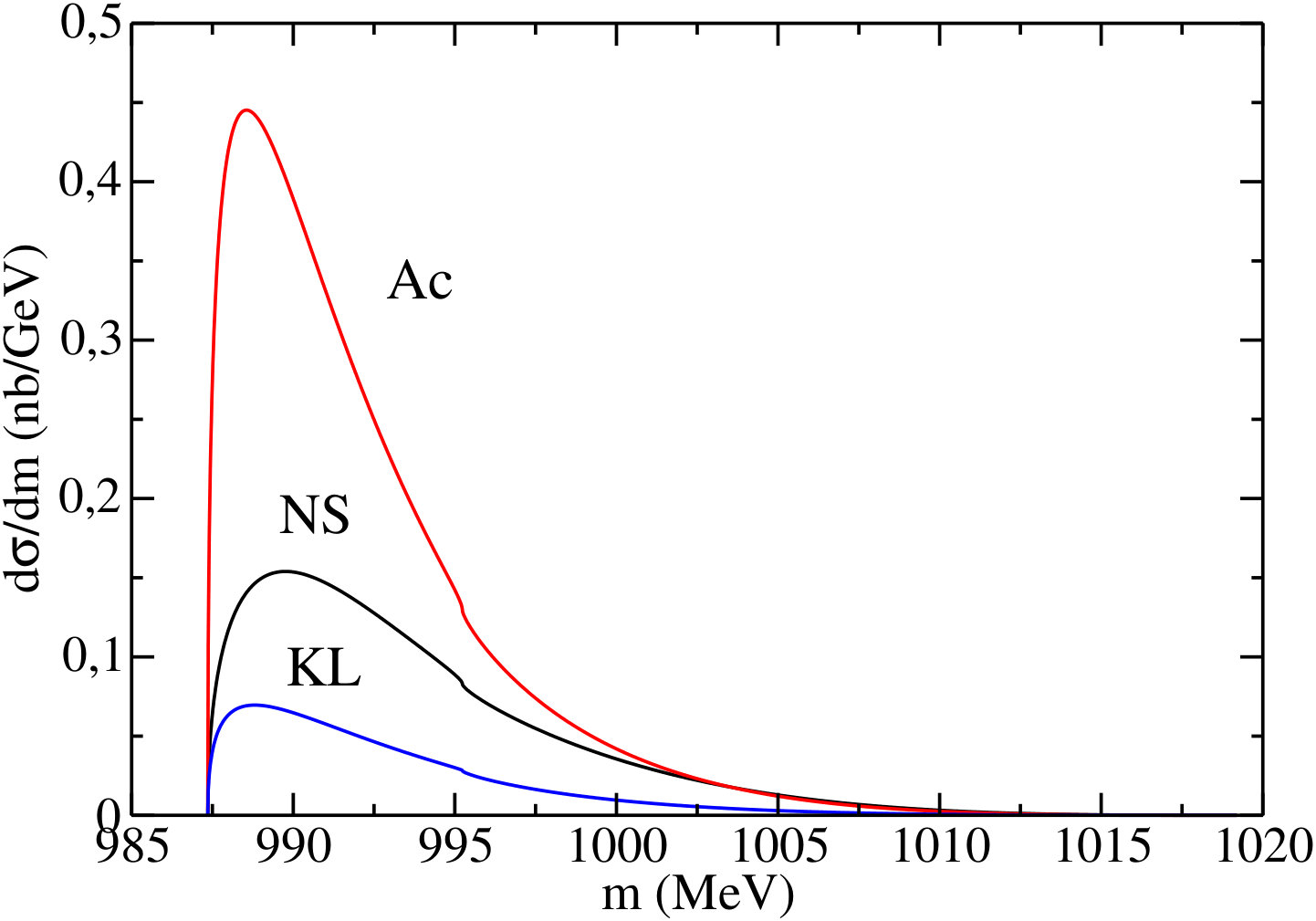

As mentioned in the previous section, the KLOE data for the $e^{+}e^{-}\rightarrow\pi^{+}\pi^{-}\gamma$ process  KLOE2006 have been described using the no-structure NS and the kaon-loop models KL . We have extended these models and calculated the $K^{+}K^{-}$ effective mass distributions in the $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$ reaction. The distributions we are going to discuss now correspond to the third term written in Eq. (2.1) and denoted for the KL model as $|A(KL)|^{2}$. The parameters of the kaon-loop model (KL) and the no-structure model (NS) have been taken from Table 1 of Ref. KLOE2006 . In this reference only the $K^{+}K^{-}$ coupling to one scalar resonance $f_{0}(980)$ is present. We have also done calculations using somewhat different parameters of the two scalar resonances $f_{0}(980)$ and $a_{0}(980)$ as used earlier in Ref. KL . In this case the masses of the $f_{0}(980)$ and $a_{0}(980)$ were equal to 980 MeV and the coupling constants to the $K^{+}K^{-}$ system were equal. The corresponding results are shown in Fig. 5. The differential cross-section calculated for the model of Achasov, Gubin and Shevchenko is larger than the two other cross-sections. This can be simply explained by the fact that adding coherently two equal amplitudes related to the $f_{0}(980)$ and $a_{0}(980)$ resonances with the same parameters leads to an enhancement by a factor four in comparison with models that have only one scalar resonance.

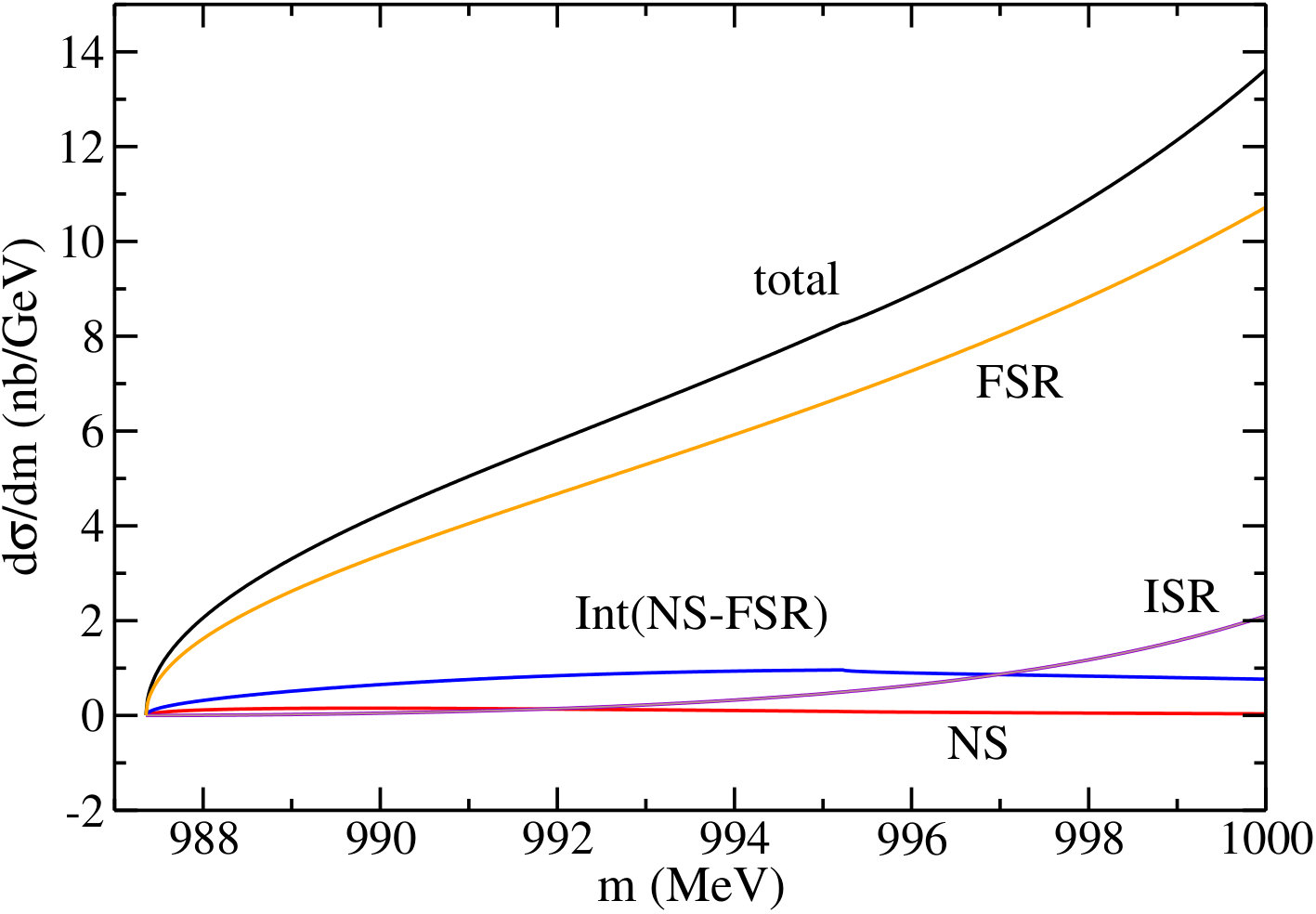

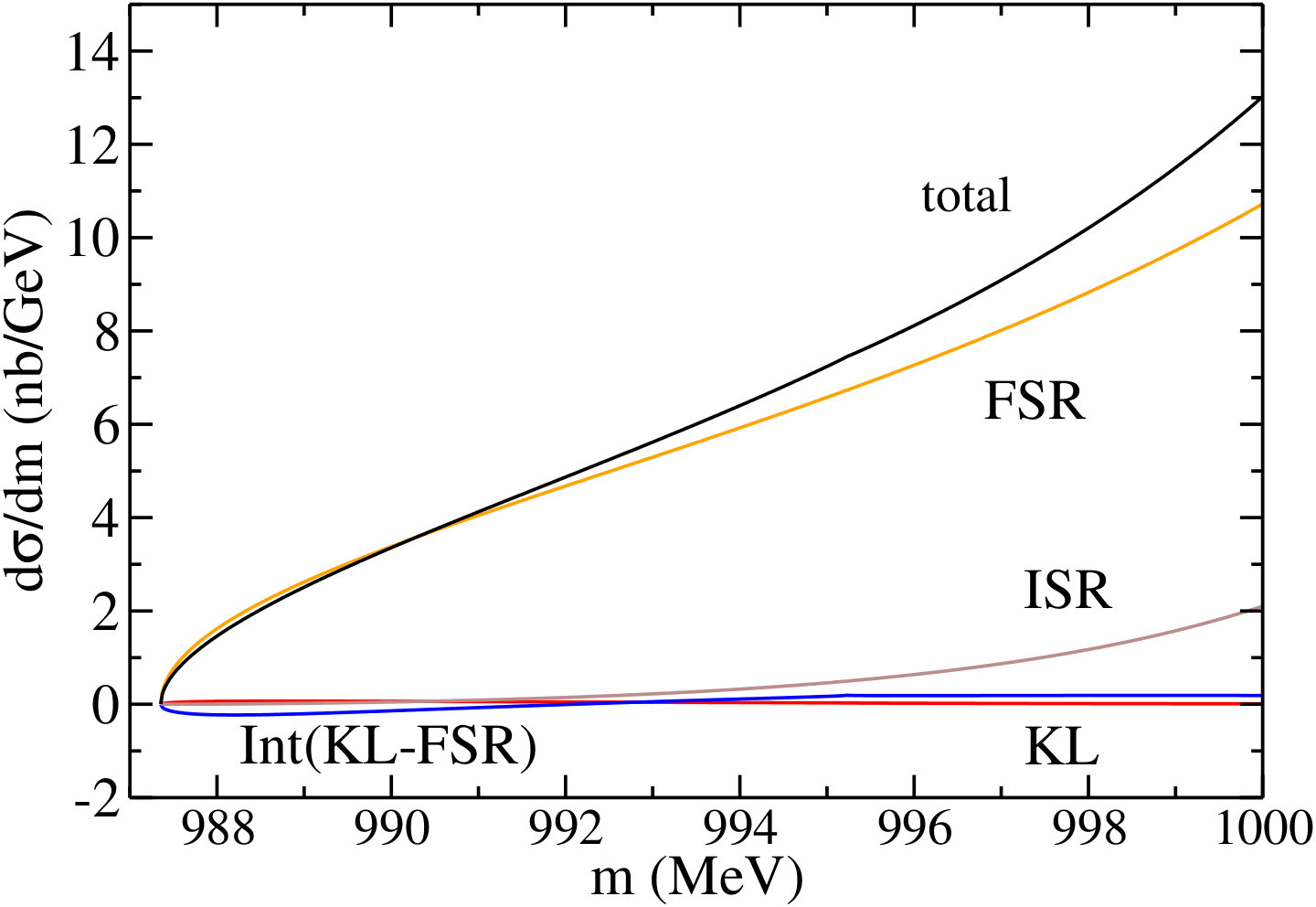

Now let us discuss other terms giving non-zero contributions to the differential cross-section $d\sigma/dm$. Here we have chosen symmetric cuts on the photon emission angle $\theta_{\gamma}$ in the centre-of-mass $e^{+}e^{-}$ frame ($45^{0}<\theta_{\gamma}<135^{0}$). At the beginning let us take the NS model and make a comparison of its $K^{+}K^{-}$ effective mass distribution with the ISR and FSR ones. Apart of the NS, ISR and FSR distributions we show in Fig. 6 lines of the NS-FSR interference term and the total differential cross-section. One sees that in the range of the effective mass $m$ limited to 1000 MeV the FSR contribution dominates while the ISR cross-section is largely suppressed by the cuts put on the angle $\theta_{\gamma}$. The NS contribution is quite small but the interference term of the NS model amplitude with the FSR amplitude is not negligible in comparison with the FSR one which gives some hope to be measured in experiment. Similar results are shown in Fig. 7 for the kaon-loop model with parameters fixed in Ref. KLOE2006 . It is interesting to see the negative contribution of the interference term in a part of the spectrum where $m$ is larger than about 993 MeV.

4 $K^{-}$ angular distributions

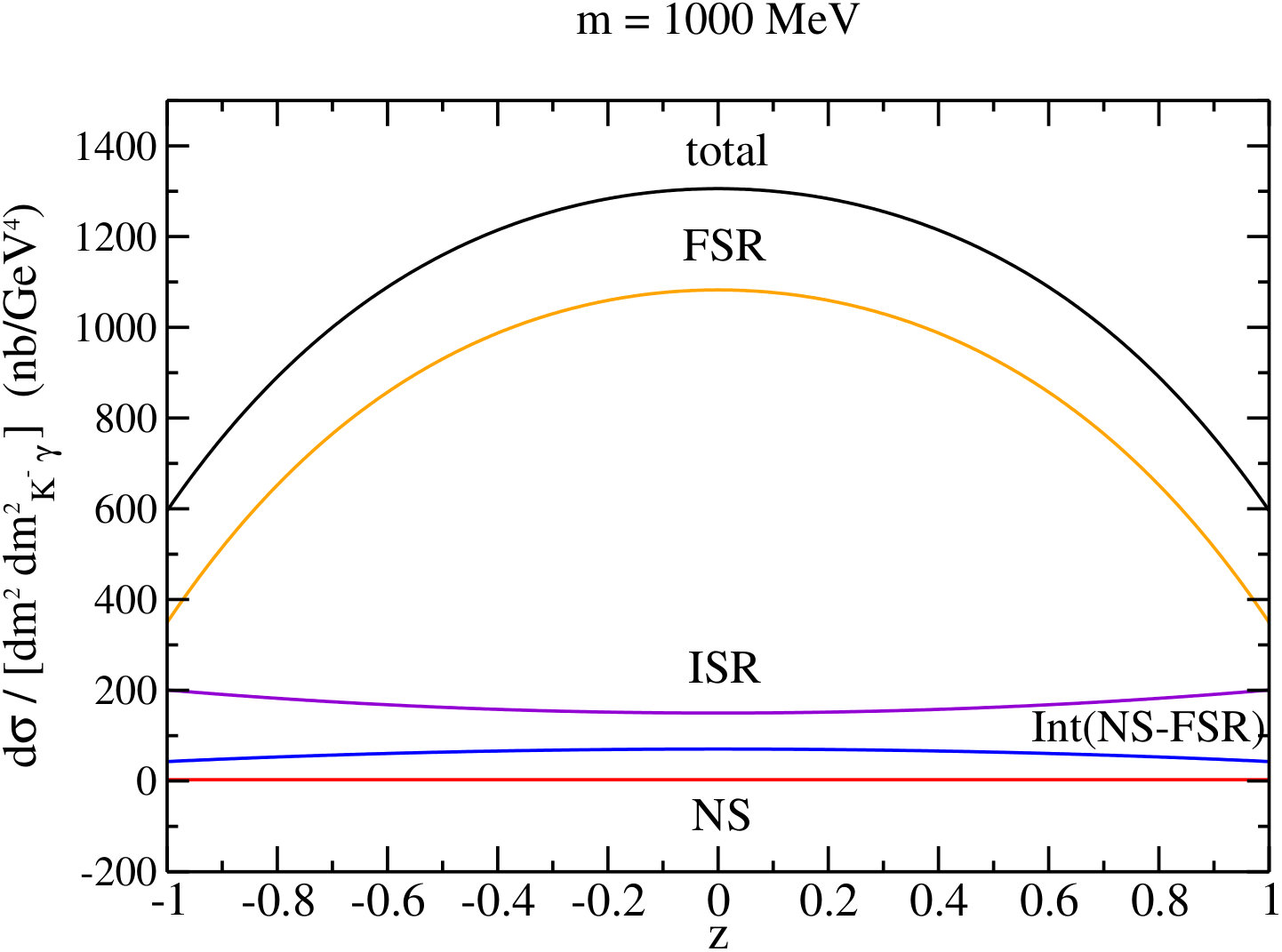

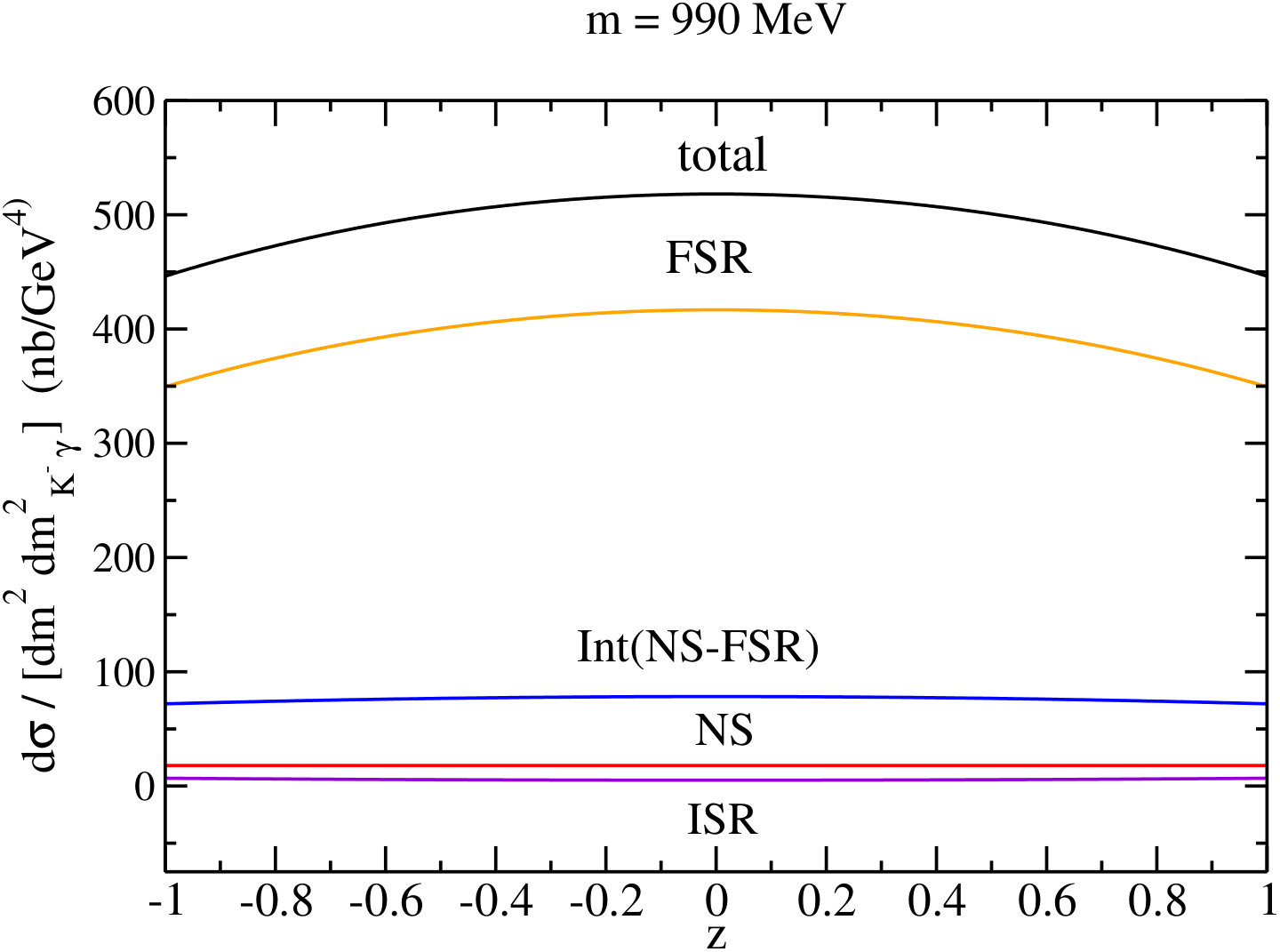

In this section we first pass to a study of the double differential cross-section $d\sigma/[dm^{2}dm^{2}_{K^{-}\gamma}]$ at fixed $m$. As seen in Eq. (11) the variation of the $K^{-}\gamma$ effective mass $m$ while keeping the $K^{+}K^{-}$ effective mass fixed, is equivalent to a variation of $z$ which is the cosine of the angle between $K^{-}$ momentum and the photon momentum in the $K^{+}K^{-}$ center-of-mass frame. The $z$ distributions for two $m$ values are presented in Fig. 8. Here one sees maxima at $z=0$ for the FSR and minima for the interference terms. The ISR function has a minimum at $z=0$ for the $\theta_{\gamma}$ range between $45^{0}$ and $135^{0}$. The distribution (NS) of the no-structure model is flat. This feature is common to all the models in which the $K^{+}$ and $K^{-}$ mesons interact in the $S$-wave.

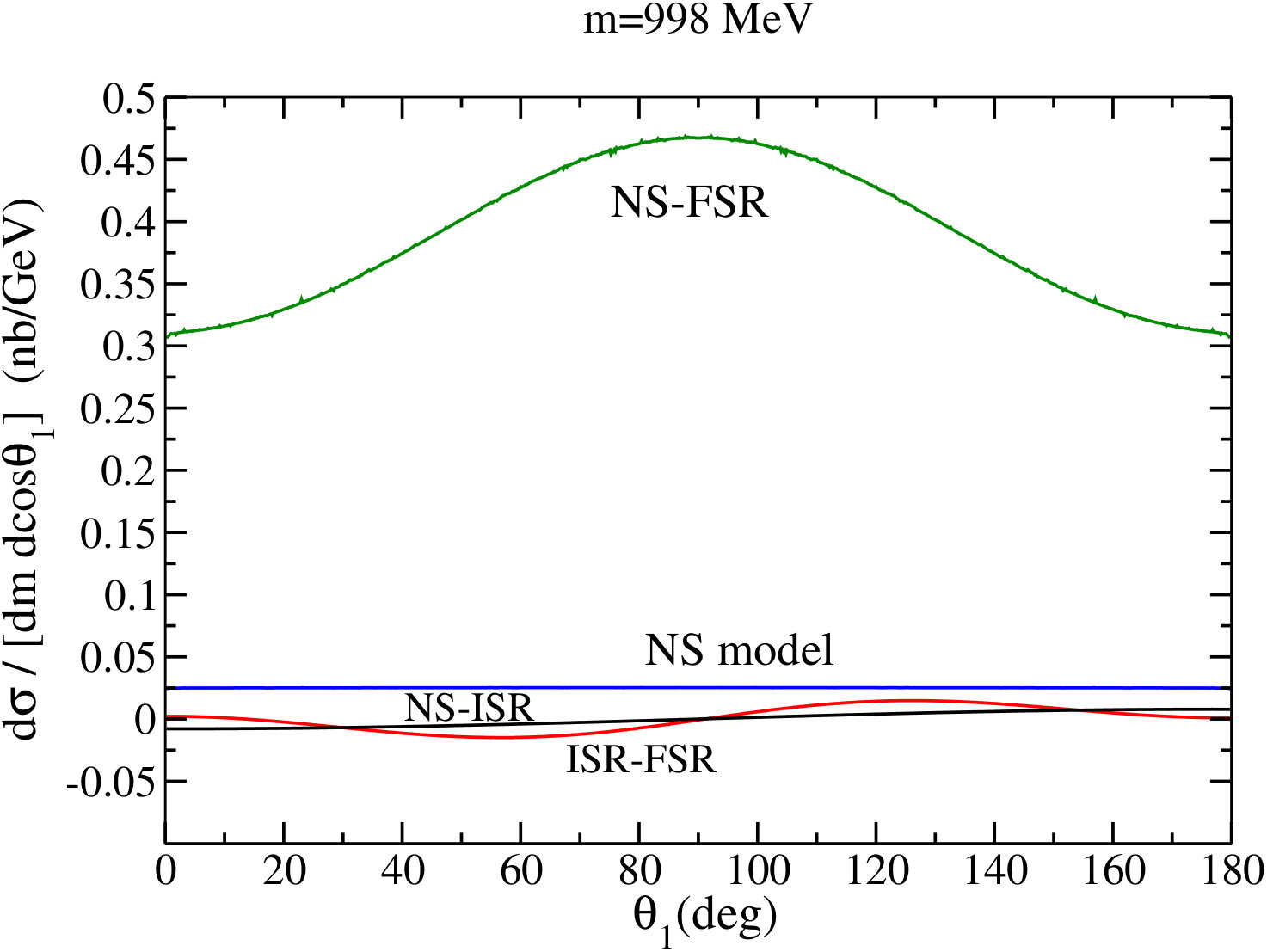

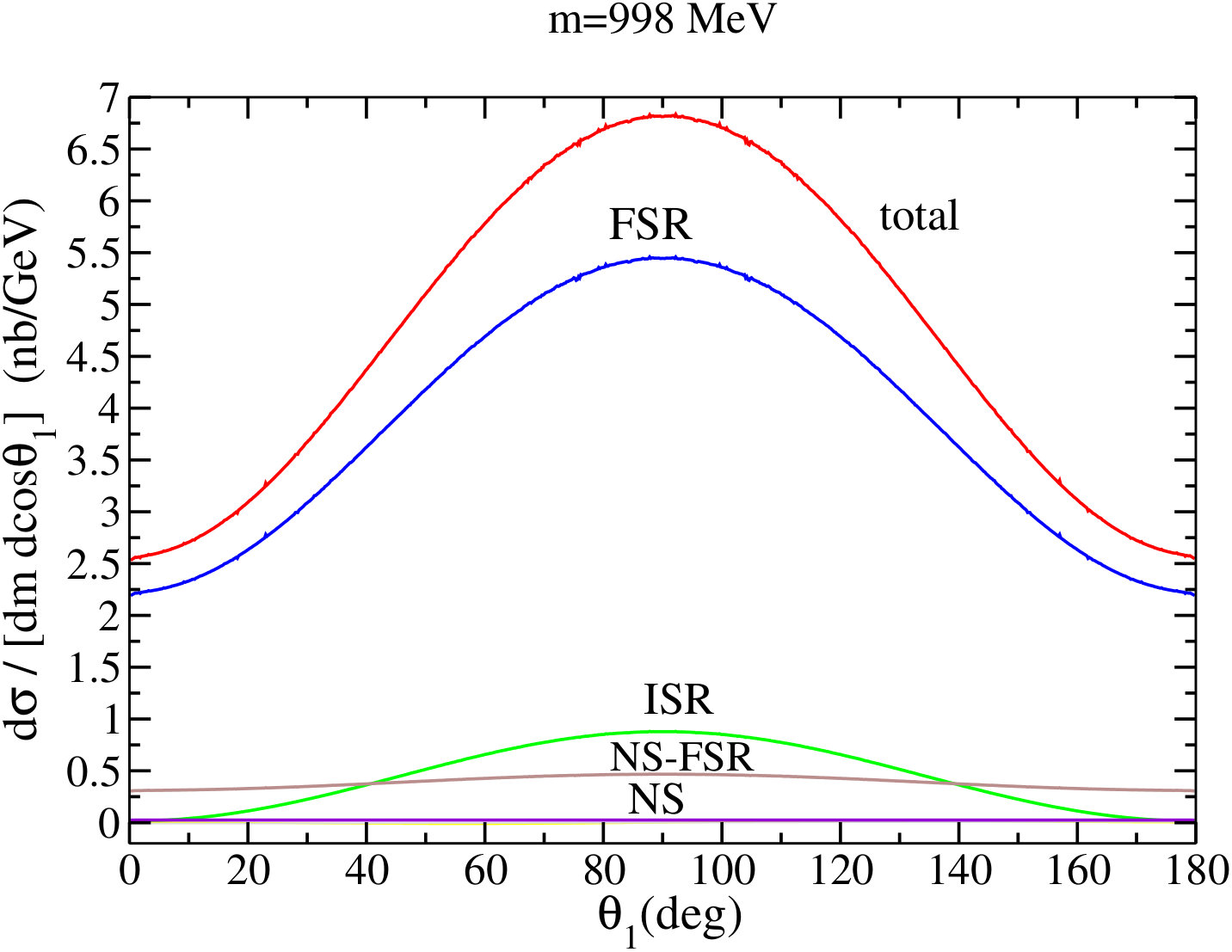

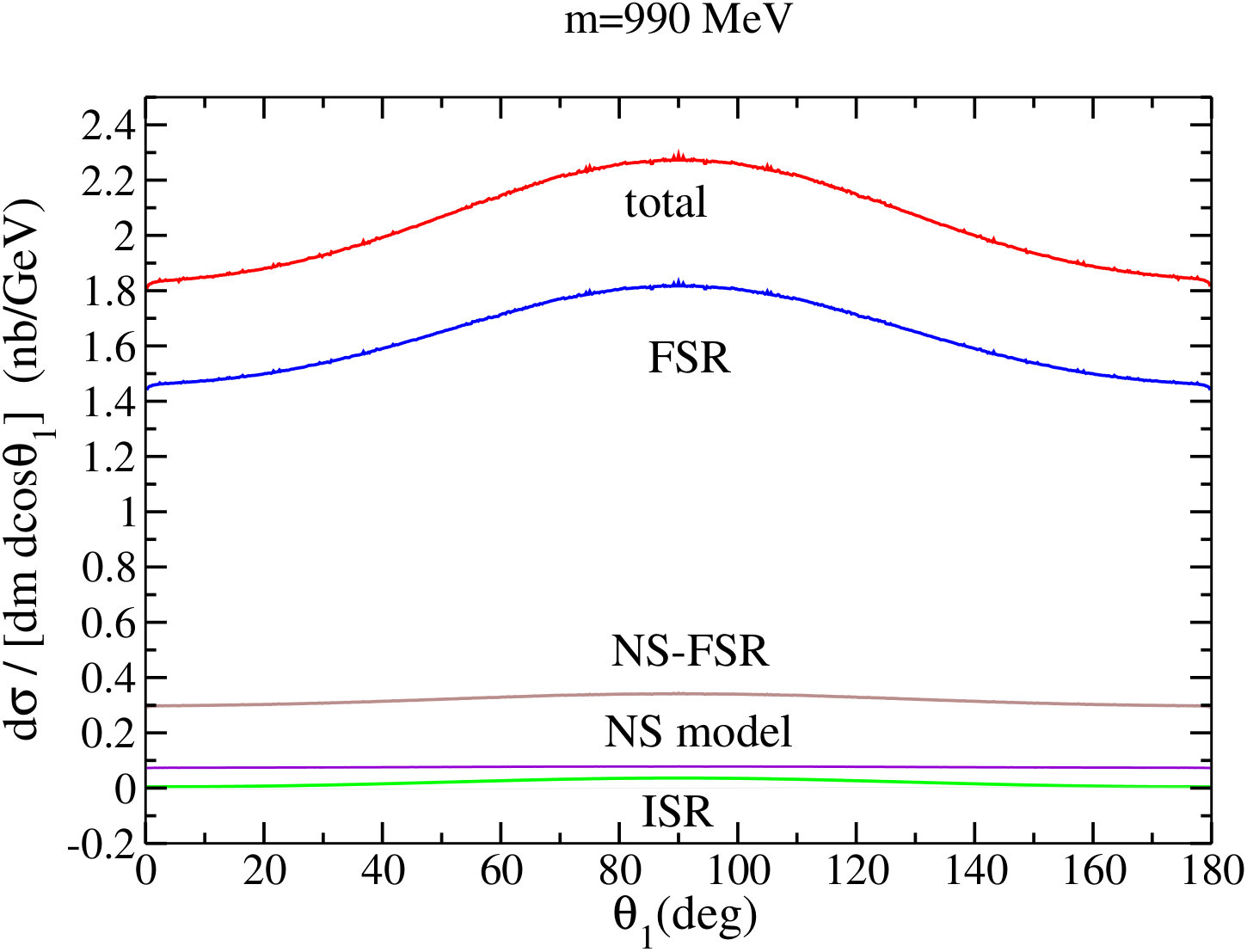

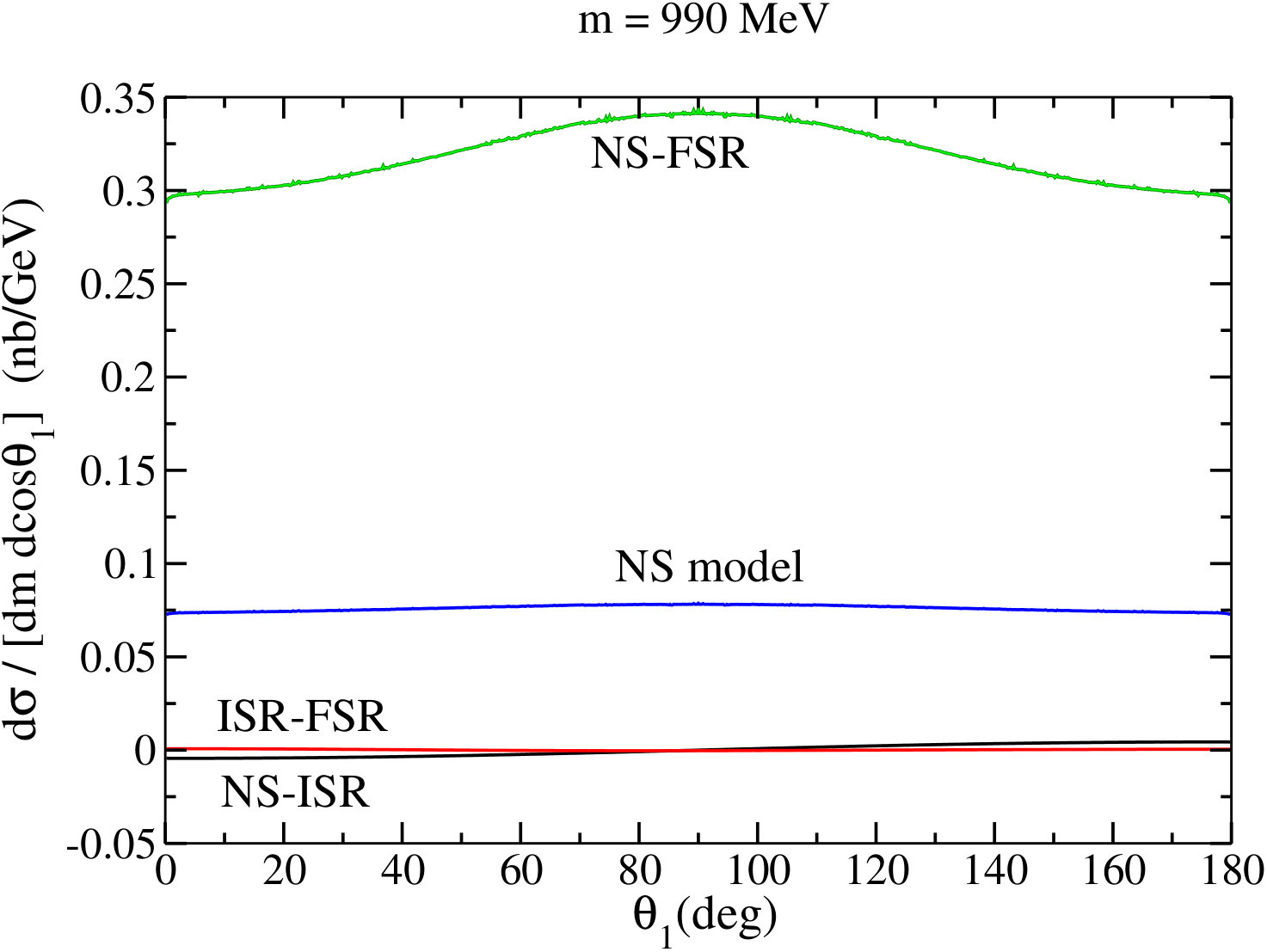

Angular distributions of the $K^{-}$ mesons with respect to the electron momentum in the $e^{-}e^{+}$ center-of-mass frame have also been studied. The relevant $K^{-}$ angle is denoted by $\theta_{1}$. Once again using the no-structure model we have calculated all the six contributions to the double differential cross-section $d\sigma/[dm\leavevmode\nobreak\ dcos\theta_{1}]$ seen in Eq. (3). So in Fig. 9 we notice two small interference terms ISR-FSR and NS-ISR in addition to other five lines labelled similarly as in Fig. 8. These two terms are asymmetric as they change sign when the angle $\theta_{1}$ is changed into $180^{0}-\theta_{1}$. Therefore they vanish after the integration over the full range of $\theta_{1}$. Let us also notice that the shape of curves changes when one increases the $K^{+}K^{-}$ effective mass from 990 MeV to 998 MeV.

5 Photon angular distributions

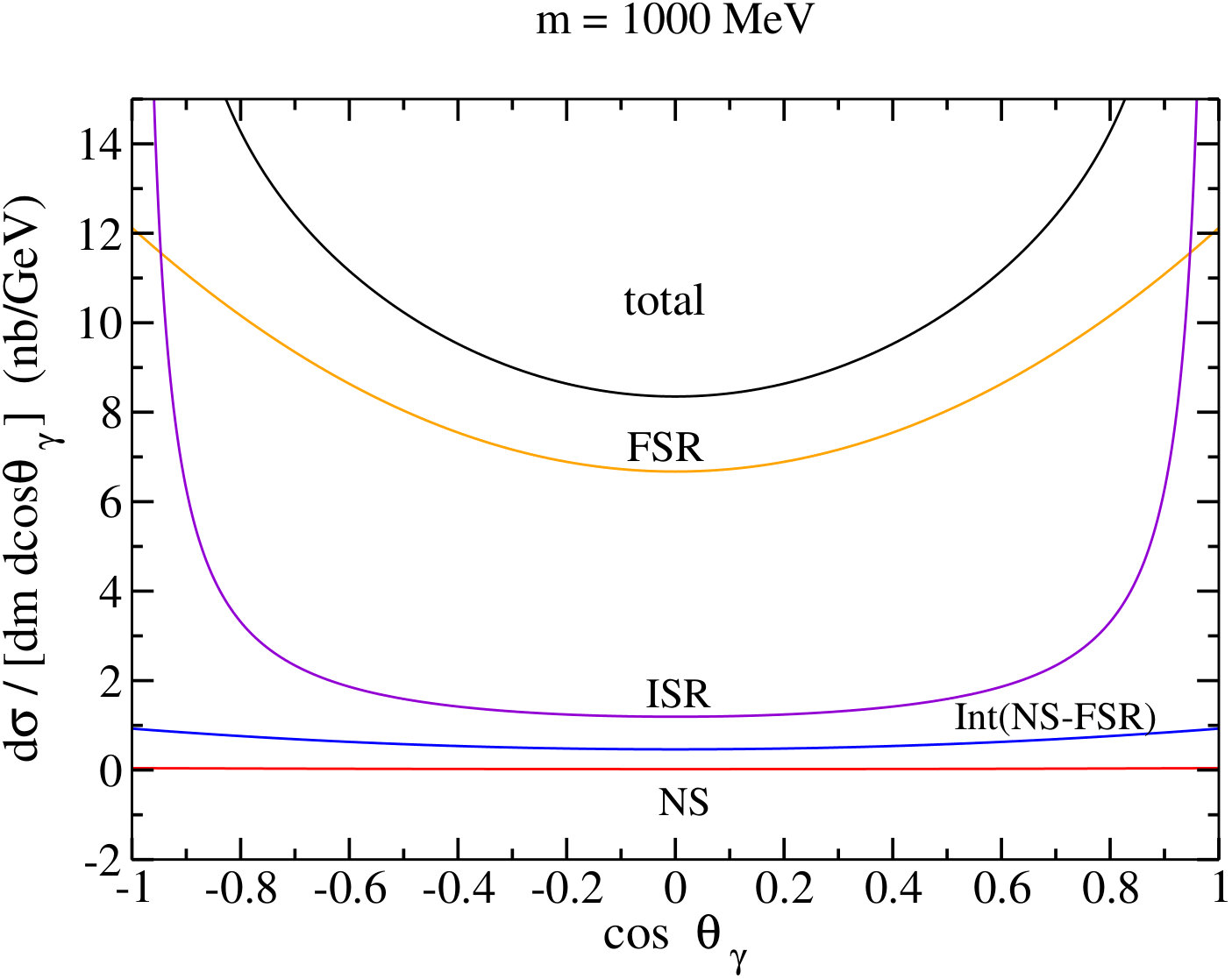

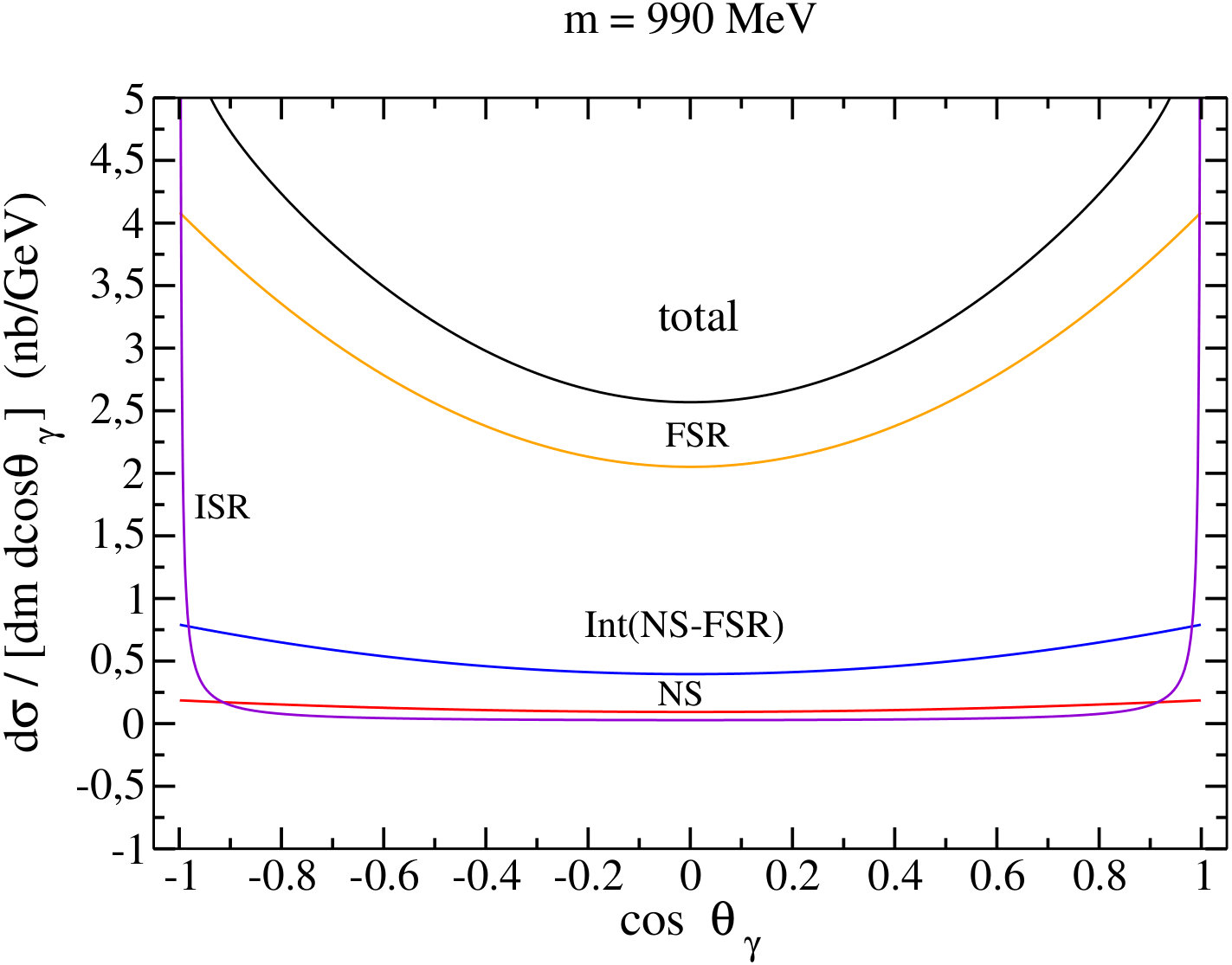

Finally we consider the photon angular distributions with respect to the $e^{-}$ momentum in the $e^{-}e^{+}$ center-of-mass frame. We calculate the double differential cross-section $d\sigma/[dm\leavevmode\nobreak\ dcos\leavevmode\nobreak\ \theta_{\gamma}]$ at fixed values of $m$. As previously we use the no-structure model. Fig. 10 shows the five lines for two masses $m=990$ MeV and $m=1000$ MeV. Its labelling is that as in Fig. 8 caption. The most spectacular behaviour is a rise of the ISR term when $cos\leavevmode\nobreak\ \theta_{\gamma}$ approaches to 1 or to -1. At these two values the ISR cross-section goes to infinity and therefore in experimental studies the cuts on the values of $cos\leavevmode\nobreak\ \theta_{\gamma}$ are put in order to diminish the ISR background. For example, in Figs. 6-8 we have cut the range of the photon angles from 00 to 450 and from 1350 to 1800.

6 Multichannel model of the $e^{+}e^{-}\rightarrow M_{1}M_{2}\gamma$ reactions

In this chapter we briefly outline basic properties of a special model which can be formulated for a simultaneous description of the reactions $e^{+}e^{-}\rightarrow M_{1}M_{2}\gamma$ in which $M_{1}$ and $M_{2}$ are the pseudoscalar mesons coupled to the $K^{+}K^{-}$ mesons. Here one can enumerate the following set of reactions:

1. $e^{+}e^{-}\rightarrow\pi^{+}\pi^{-}\gamma$,

2. $e^{+}e^{-}\rightarrow\pi^{0}\pi^{0}\gamma$,

3 $e^{+}e^{-}\rightarrow\pi^{0}\eta\gamma$,

4. $e^{+}e^{-}\rightarrow K^{0}_{S}K^{0}_{S}\gamma$,

5. $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$.

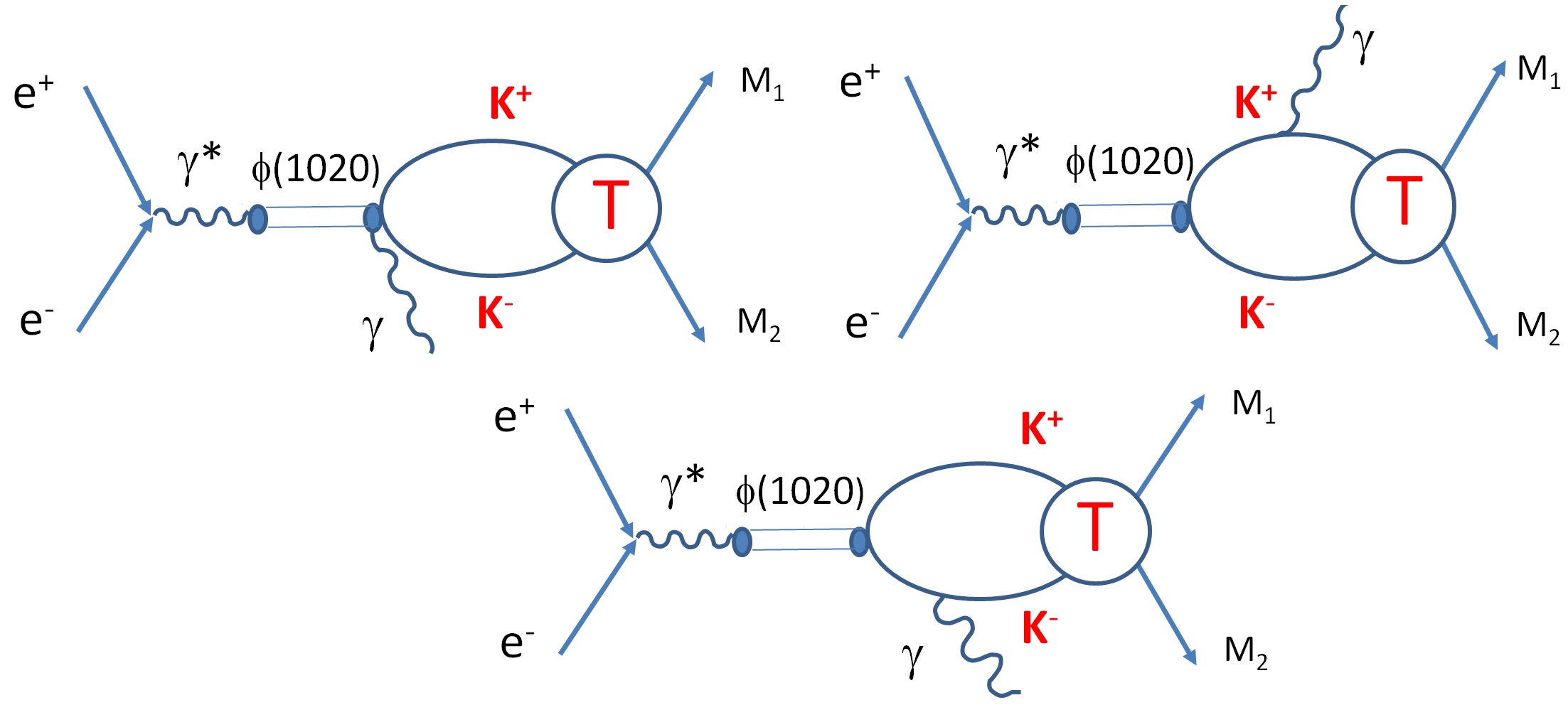

The diagrams corresponding to the proposed model are shown in Fig. 11. In the first step of the production process two charged kaons $K^{+}$ and $K^{-}$ and a photon are created. Then in the second reaction stage the kaons interact forming a sytem of two mesons $M_{1}$ and $M_{2}$. We denote by $T$ the corresponding set of transition amplitudes. A specific model of these $K^{+}K^{-}\rightarrow M_{1}M_{2}$ transitions should be unitary. Its desirable feature is analyticity of the transition amplitudes which relates different coupled channels. For a practical future description of the data all the transition amplitudes should have the same poles corresponding to the relevant scalar mesons present in the energy range close to 1 GeV.

7 Experimental implications

The differential cross-sections which have been calculated for different reaction mechanisms leading to the same final state $K^{+}K^{-}\gamma$ can be integrated within some experimental limits put on the photon minimum energy and on the photon polar angle defined with respect to the electron beam axis. If the minimum photon energy is equal to 10 MeV in the $e^{+}e^{-}$ center-of-mass frame then the maximum efective $K^{+}K^{-}$ mass is close to 1009 MeV. In Table 1 the reaction cross sections are given. Abbreviations for the reaction mechanisms are the same as in Fig. 6 caption.

Assuming integrated luminosity of 1.7 fb*-1* one can obtain expected numbers of events. In Table 2 we show values of the expected number of events obtained for two different cuts on the photon angles $\theta_{\gamma}$ and for the minimum photon energy of 10 MeV in the $e^{+}e^{-}$ center-of-mass frame. These numbers are not yet corrected for the experimental efficiency.

8 Summary

Three theoretical models have been extended in order to make predictions for the reaction $e^{+}e^{-}\rightarrow K^{+}K^{-}\gamma$. The resulting effective mass and angular distributions can be used in future experimental data analyses. Some features of the new model of the multichannel coupled reactions $e^{+}e^{-}\rightarrow M_{1}M_{2}\gamma$, where $M_{1}$ and $M_{2}$ are pseudoscalar mesons, have been outlined. This model can be applied in a combined analysis of the radiative $\Phi(1020)$ resonance decays into two mesons. It can also serve in determination of the threshold parameters of the $K^{+}K^{-}$ strong interaction amplitudes as well as in a better specification of the properties of the scalar meson resonances $f_{0}(980)$ and $a_{0}(980)$.

{acknowledgement}

This work has been supported by the Polish National Science Centre (grant no 2013/11/B/ST2/04245).
