EMRIs and the relativistic loss-cone: The curious case of the fortunate coincidence

TL;DR

This paper discusses how a specific hierarchy of relativistic and Newtonian effects can allow EMRIs to avoid stellar perturbations, leading to detectable gravitational wave signals, with implications for astrophysics and local stellar dynamics.

Contribution

It reviews recent theoretical developments confirming the fortunate coincidence enabling EMRIs to decouple from stellar perturbations.

Findings

Resonant torques can decouple EMRIs from stellar background.

Hierarchical effects allow semi-periodic gravitational wave signals.

Implications for EMRI rates and local stellar dynamics.

Abstract

Extreme mass ratio inspiral (EMRI) events are vulnerable to perturbations by the stellar background, which can abort them prematurely by deflecting EMRI orbits to plunging ones that fall directly into the massive black hole (MBH), or to less eccentric ones that no longer interact strongly with the MBH. A coincidental hierarchy between the collective resonant Newtonian torques due to the stellar background, and the relative magnitudes of the leading-order post-Newtonian precessional and radiative terms of the general relativistic 2-body problem, allows EMRIs to decouple from the background and produce semi-periodic gravitational wave signals. I review the recent theoretical developments that confirm this conjectured fortunate coincidence, and briefly discuss the implications for EMRI rates, and show how these dynamical effects can be probed locally by stars near the Galactic MBH.

Figures

Equations

$$j_{AI}(a)=\sqrt{T_c(a){\nu }_{GR}(a,j=1)/2\pi }.$$

Full text

1 Introduction

Extreme mass ratio inspiral (EMRI) gravitational wave (GW) emission events, where a stellar mass black hole (BH) of mass $M_{\star}$ gradually inspirals into a massive BH (MBH) of mass $M_{\bullet}$, are one of the main classes of anticipated extra-galactic low-frequency GW sources. Since $Q=M_{\bullet}/M_{\star}\gg 1$, such BHs probe spacetime near the MBH almost as test particles, and thereby offer an opportunity to test general relativity (GR) under theoretically favorable conditions.

However, the inspiral process is not simply a 2-body problem in the strong gravity regime. The MBH is surrounded by ${\cal O}(Q)$ background stars inside its radius of dynamical influence $r_{h}\sim GM_{\bullet}/\sigma^{2}$, where $\sigma^{2}$ is the stellar velocity dispersion in the host galaxy’s spheroidal. The complex dynamics of the stellar cluster around the MBH, that supplies stars that fall into the MBH, whether directly on plunging orbits, or indirectly on inspiraling ones, also interferes with the idealized 2-body motion of the light BH relative to the MBH, and can even suppress inspiral altogether.

I show here that EMRIs are in fact possible by virtue of a three-way fortunate coincidence between the magnitude and timescale of collective Newtonian effects due to the background stars, which give rise to strong resonant gravitational torques, and those of the leading-order precessional and radiative post-Newtonian (PN) terms of GR [2]. This curious coincidence raises several questions: How fine-tuned is it? Is this a specific feature of Einstein’s GR, or is it generic to a larger class of theories of strong gravity? Do still-viable alternatives to GR predict substantially different plunge / inspiral branching ratios? Could the very detection of an EMRI in the future rule out some of them? These questions remain open at this time.

Another consequence of the fortunate coincidence is that rapid relaxation by resonant torques in the symmetric potential near a MBH [3], which can dominate slow 2-body relaxation in some regions of phase space [4], is ultimately not very important in determining the steady-state loss-rates (e.g. by tidal disruption or GW inspiral). By a coincidence that can only be understood in the context of the relativistic loss-cone dynamics, early naive estimates that included only a partial treatment of Newtonian dynamics (2-body relaxation, but not resonant torques) and of GR dynamics (GW dissipation but not in-plane Schwarzschild precession), yielded correct order of magnitude loss-rates estimates [5].

Here I briefly review the recent developments in the understanding and modeling of the relativistic loss-cone that lead to these insights, focusing on the relevance for EMRI rates, and on the prospects of probing these dynamical mechanisms locally, near the Milky Way’s MBH $\mathrm{Sgr\,}A^{\star}$.

1.1 The loss-cone problem

Orbits whose periapse lies inside the tidal radius $r_{t}=R_{\star}Q^{1/3}$ (where $R_{\star}$ is the stellar radius) or inside the last stable orbit $r_{\bullet}\simeq 8r_{g}$ (where $r_{g}=GM_{\bullet}/c^{2})$ are classified as plunges. In terms of the normalized angular momentum $j=J/\sqrt{GM_{\bullet}a}=1-e^{2}$ (where $a$ is the orbital semimajor axis (sma) and $e$ the eccentricity), the corresponding plunge conditions are $j<j_{lc}=j_{t}\simeq\sqrt{2r_{t}/a}$ or $j<j_{lc}=j_{\bullet}=\sqrt{16r_{g}/a}$. Since the set of velocity vectors that take a star from position $\boldsymbol{r}$ to the MBH span a cone, the set of such orbits are called the loss-cone. Stars in the loss-cone are destroyed in less than an orbital period. In steady state, new stars have to be deflected to loss-cone orbits, and therefore the loss-cone problem is the problem of how a stellar system around a MBH randomizes. In a spherical potential, where the angular momentum of individual orbits is conserved in collisionless motion, randomization is achieved by dynamical relaxation.

1.2 Loss-cone replenishment by dynamical relaxation

The classical treatments of the loss-cone problem considered only slow 2-body relaxation (denoted here also non-resonant relaxation, NR), which is inherent to any system composed of discrete interacting particles [6, 7, 8, 9]. A relaxed stellar system around a MBH settles into a high density powerlaw stellar cusp, $n_{\star}\propto r^{-\alpha}$. For a single mass population, which we consider here for simplicity, $\alpha=7/4$ [7]. Near a MBH, the 2-body relaxation timescale can be expressed as $T_{NR}(a)\sim Q^{2}P(a)/N_{\star}(a)\log Q$, where $P$ is the orbital period, $N_{\star}(a)\sim Q(a/r_{h})^{3-\alpha}$ is the number of stars with sma $<a$, and $\log Q$ is the Coulomb factor [1].

Generally, the 2-body relaxation timescale for changing the angular momentum $J$ by order of itself, $T_{J}$, is related to the relaxation timescale for changing the energy $E$ by order of itself, $T_{E}$, by $T_{J}\sim j^{2}T_{E}$ [5]. It is therefore faster to reach the MBH by relaxation of angular momentum than by relaxation of energy (equivalently, relaxation of the sma, since $E=GM_{\bullet}/2a$, using the stellar dynamical convention $E>0$ for bound orbits).

In the presence of orbital dissipation (e.g. by the emission of GWs, by tidal deformations of the star close to the MBH, or by hydrodynamical interactions with a massive accretion disk), the star can also fall into the MBH by gradually loosing orbital energy. Such orbits are classified as inspirals. Because inspiral, unlike a plunge, requires many consecutive periapse passages, such orbits are much more susceptible to perturbations by the stellar background, unless the inspiral already starts from a tight orbit around the MBH. phase space is therefore separated into two regimes (Fig. 1). Close to the MBH, below some critical sma $a_{GW}$ (here we consider only dissipation by GWs), stars are statistically much more likely to reach the MBH by inspiral, whereas above $a_{GW}$ and up to $a\sim r_{h}$, plunges are much more likely. The transition is sharp [10]. The plunge rate is $R_{p}\sim N_{\star}(r_{h})/\log(1/j_{lc})T_{E}(r_{h})$, while the inspiral rate is $R_{i}\sim N_{\star}(a_{GW})/\log(1/j_{lc})T_{E}(a_{GW})$ [11]. Since the relaxation timescale is typically not a strong function of distance, the branching ratio $R_{i}/R_{p}\sim N_{\star}(a_{GW})/N_{\star}(r_{h})$ reflects the relative number of sources in the small phase space volume interior to $a_{GW}$ and the much larger one inside $r_{h}$. For that reason inspiral events are generally much rarer than plunges, $R_{i}\sim{\cal O}(0.01)R_{p}$ [12].

Resonant relaxation [3, 2] is a form of rapid relaxation of angular momentum that occurs in potentials with a high degree of symmetry, which restrict orbital evolution (e.g. fixed Keplerian ellipses in the Newtonian potential of a point mass; fixed orbital planes in a spherical potential). The approximately spherical, point mass-dominated potential around a MBH is such a potential. Far enough from the MBH where GR effects are small, but close enough to it, where deviations from Keplerian motion due to the distributed stellar mass are also small, the orbits are nearly-Keplerian ellipses (for $\mathrm{Sgr\,}A^{\star}$ this distance scale corresponds to $0.01-0.1$ pc [2]), which persist over a long coherence time $T_{c}\gg P$. On that timescale, the $N_{\star}$ background stars can be viewed as fixed elliptical mass “wires”. A test star orbiting the MBH with sma $a$ in the potential generated by the background, will conserve its energy (since the wires are stationary), but will be subject to a non-zero residual force of order $F_{N}\sim{\cal O}(\sqrt{N_{\star}(a)}GM_{\star}/a^{2})$, which translates to a coherent torque $\tau_{N}\sim{\cal O}(\sqrt{N_{\star}(a)}GM_{\star}/a)$. This torque persists in magnitude and direction over time $T_{c}$, until the small deviations from perfect symmetry accumulate and randomize the background. The change in angular momentum over the coherence time, $(\Delta J)_{c}=\tau_{N}T_{c}$ then becomes the mean free path in $J$-space for a random walk on timescale $t\gg T_{c}$: $\Delta J=(\Delta J)_{c}\sqrt{t/T_{c}}\to\Delta j=\sqrt{t/T_{RR}}$, where the RR relaxation timescale is $T_{RR}\sim[Q^{2}/N_{\star}(a)]P^{2}(a)/T_{c}(a)$.

The ratio between the RR and NR relaxation times, $T_{RR}/T_{NR}\sim\log Q(P/T_{c})$ reflects the fact that NR occurs by point-point interactions, and is boosted by the closest strong interactions, whereas RR occurs by orbit-orbit interactions, which as extended objects cannot approach each other arbitrarily close, but are boosted by the long coherence time. The relevance of RR to the loss-cone problem is due to the fact that near a MBH, it is possible to have $T_{RR}/T_{NR}\ll 1$. This implies very rapid angular momentum evolution, and specifically $j\to 0$, which allows strong interactions with the MBH.

1.3 The fortunate coincidence

The strong RR torques inside $a_{GW}\ll a\ll r_{h}$, if unquenched, would drive all stars directly into the MBH on plunge orbits and the EMRI rate would drop to zero. Hopman & Alexander conjectured in 2006 [2] that EMRIs will in fact occur because the PN1 ${\cal O}(\beta^{2}j^{-2})$ GR precession becomes significant enough to quench RR before the PN2.5 ${\cal O}(\beta^{5}j^{-7}Q^{-1})$ GW dissipation rate becomes fast (here $\beta=v/c$). This was later confirmed in $N$-body simulations [13, 14] (but see Sec. 1.4), and was also demonstrated by Monte Carlo (MC) simulations of diffusion in the relativistic loss-cone [4] (Sec. 2). Fig. (2) shows that GR Schwarzschild precession has a drastic effect on the steady state phase space densities and rates. EMRIs exist because of a fortunate coincidence in the ranking and phase space dependence of the magnitude of the RR torques, which are a collective Newtonian effect, and the magnitudes of GR’s leading order precessional and radiative terms, which are post-Newtonian 2-body effects.

1.4 An unexpected result

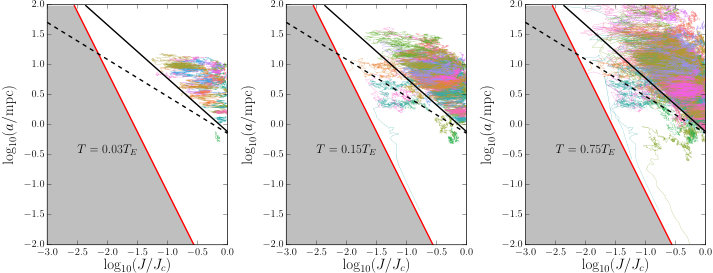

The first direct $N$-body simulation with self-consistent post-Newtonian terms (up to PN2.5, the lowest-order radiative term) [13] yielded an unanticipated result. Not only did GR precession quench RR on eccentric orbits, as conjectured, but in fact it appeared that a barrier in phase space, the “Schwarzschild Barrier” (SB), prevented stars from reaching either the LSO or the GW line (cf Fig. 3). The phase space trajectories of stars seemed to linger near the SB for about a coherence time, while their orbital parameters oscillated at at the Schwarzschild precession frequency, before being reflected back to less eccentric orbits. Larger-scale $N$-body simulations subsequently confirmed the quenching of RR by GR precession near the SB [14]. Although an early analysis indicated that the SB is related to precession under the influence of a randomly changing uniform force [15, 13], the nature and implications of the SB phenomenon remained controversial.

2 The $\boldsymbol{\eta}$-formalism for relativistic loss-cone dynamics

Relativistic loss-cone dynamics, and in particular the interplay between secular precession, the coherent RR torques, and uncorrelated NR, lie in the difficult-to-treat interface between deterministic Hamiltonian dynamics and stochastic kinetic theory. The $\boldsymbol{\eta}$-formalism [1] provides a formal framework for treating this regime by stochastic equations of motion (EOMs) that describe the dynamics, by identifying the relevant features of the stochastic effects of the stellar background on the test star, and importantly, by enabling the description of RR dynamics by effective diffusion coefficients, in spite of the fact that the long RR coherence time makes it a manifestly non-Markovian process that cannot be described, as is, by diffusion.

The key idea of the $\boldsymbol{\eta}$-formalism is to describe the effect of the background stars in terms of a time-correlated noise model. A perturbative expansion of the phase-averaged post-Newtonian Hamiltonian to leading order shows that the symmetries of the noise are those of a vector in angular momentum space, $\boldsymbol{\eta}(t)$111The noise can be approximated as independent of $j$ because the mean free path in $j$ due to RR is small.. The dynamics of the system are then primarily determined by the temporal smoothness (differentiability) of the noise, and by its coherence time $T_{c}$. Neither of these properties are known at present from first principles or from $N$-body simulations. However, since the collective effect of the background is due to the superposition of many smooth orbital motions, it is likely that the noise is smooth (infinitely differentiable). A smooth noise must have an maximal frequency $\nu_{\max}\propto 1/T_{c}$, beyond which its power decays rapidly.

When the GR precession frequency, $\nu_{GR}(a,j)=3(c/r_{g})(r_{g}/a)^{5/2}j^{-2}$ (where $r_{g}=GM_{\bullet}/c^{2}$) is higher than $1/T_{c}$ (i.e. when the precession period is much shorter than the coherence time), the residual RR force is effectively constant over a precession period, so the RR torque on the precessing eccentric star is reversed every half cycle. Therefore, the net change in $j$ per period is canceled to high precision—the rapidly precessing eccentric orbit is decoupled from the slowly varying stellar background by adiabatic invariance (AI). This happens along the phase space locus

[TABLE]

The stochastic EOMs allow to evolve in time the phase space trajectory of a test star, for a given random realization of the background noise. The fact that the noise is approximately a function of time only, makes it possible to formally derive an effective diffusion coefficient for RR, $D_{jj}(a,j),$ which is proportional to the power of the noise at $\nu_{GR}(a,j)$, and is therefore strongly suppressed below the AI locus. This then makes it possible to directly evolve the stellar distribution function by the Fokker-Planck (FP) equation. The great practical advantage of an effective RR diffusion formulation is that it is then possible to model the dynamics of the loss-cone in the realistic $N_{\star}\to\infty$ limit by an MC procedure that solves the FP equation statistically, and where it is easy to include also NR, the secular precessions due to GR and the enclosed stellar mass, and dissipation by GW (and by tidal heating, when relevant). The MC results are able to reproduce the SB phenomenology observed in the $N$-body simulations, as well as the plunge and inspiral rates [4]. Fig. (3) shows how the AI/SB phenomenon is reproduced by effective RR diffusion, and also how on long timescales the NR dominates the dynamics, and the system asymptotes to the maximal entropy solution, as it must irrespective of the randomization mechanism222The fact the the system is not closed, and there is a small stellar flux into the less cone, makes possible small deviations from the maximal entropy solution..

2.1 How fine-tuned is the fortunate coincidence?

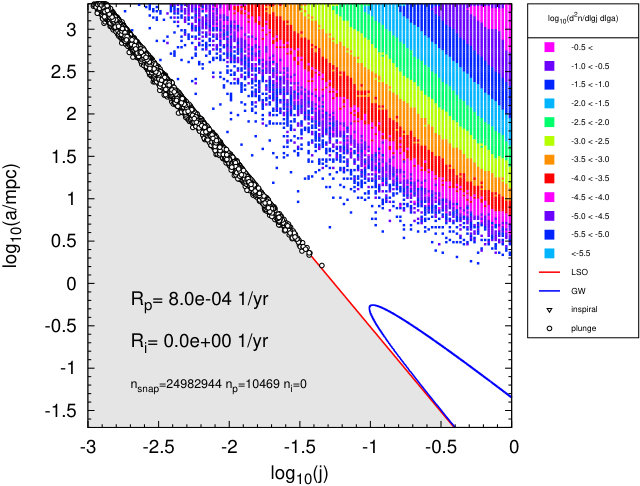

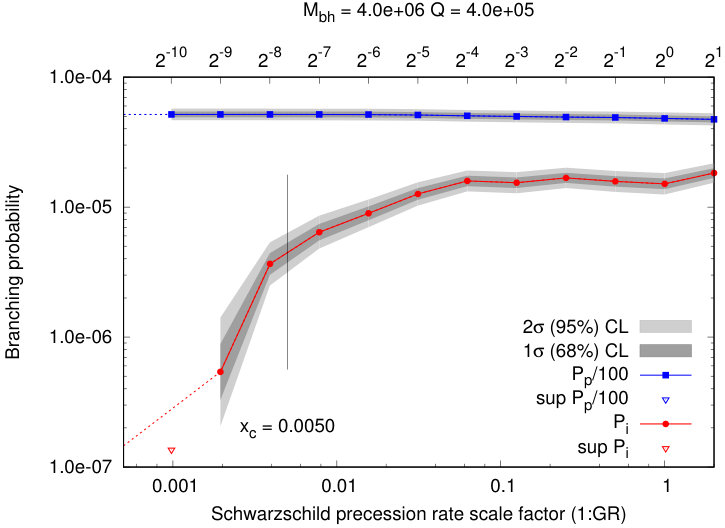

A simple estimate for the degree of fine-tuning needed for the fortunate coincidence can be derived by artificially varying the Schwarzschild precession frequency by a constant factor, $\nu_{x}=x\nu_{GR}$ ($x\geq 0$), and testing how this affects the branching ratio between plunges and inspirals. In terms of the phase space shown in Fig. (1), a scaling factor $x<1$ shifts the AI line parallel to itself downward, and extends the region where RR is effective. A simple criterion for predicting the effect of the scale factor is the position of the intersection point of the AI locus and the LSO line relative to the the critical sma for EMRIs, $a_{GW}$ (Figure 1). EMRIs are no longer possible when RR is effective at all values of $j_{lc}\leq j\leq 1$ down to the critical sma for EMRIs, $a_{GW}$, since then all stars are swept into the MBH on plunging trajectories before they can diffuse below $a_{GW}$. This occurs when the AI locus $j_{0}(a;x)=\sqrt{T_{c}(a)\nu_{x}(a,j=1)/2\pi}$,, crosses the plunge loss cone $j_{\bullet}(a)$ below $a_{GW}\simeq 0.03(\log Q)^{-4/5}r_{h}$ [4], where a relaxed cusp with $\alpha=7/4$ is assumed, and where the numeric prefactor depends on the approximation of the GW dissipation. The scaling of $r_{h}$ with $Q$ (assuming an $M_{\bullet}/\sigma$ relation $M_{\bullet}\propto\sigma^{4}$ and fixed $M_{\star}$) is $r_{h}\propto Q^{1/2}$, and so $a_{GW}\propto(\log Q)^{-4/5}Q^{1/2}$. The condition $j_{0}(a_{GW};x_{c})/j_{lc}(a_{GW})=1$ then defines a critical value $x_{c}$ such that for $x<x_{c}$, RR remains unquenched everywhere above $a_{GW}$. Fig. (4) shows the run of the branching ratio with $x$ for the Milky Way model of Fig. (1). The ratio changes in favor of plunges (cf. Fig. 2) for $x<x_{c}\sim{\cal O}(5\times 10^{-3})$. This suggests that EMRIs are robust in the context of Einstein’s GR.

3 Applications of the $\eta$-formalism

3.1 Cosmic loss-rates

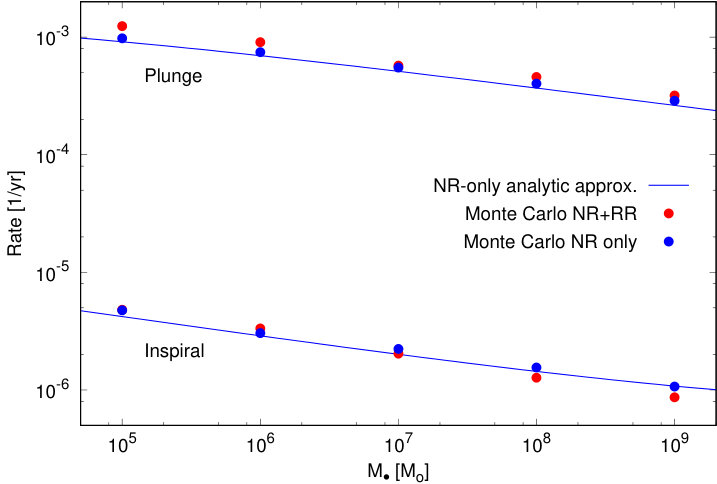

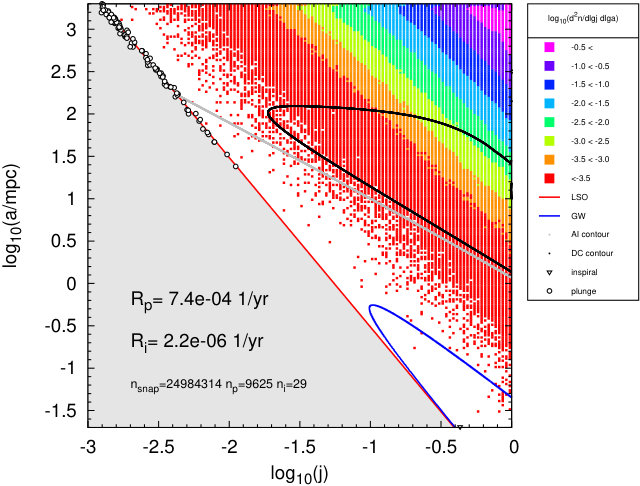

MC simulations such as the one presented in Fig. (2) for $M_{\bullet}=4\times 10^{6}\,M_{\odot}$ can be carried out for any value of $M_{\bullet}$ once the properties of the galactic nucleus are related to the MBH mass via the $M_{\bullet}/\sigma$ relation. Fig. (5) Shows the run of the steady state plunge and EMRI inspiral rates as function of the MBH mass [4], and demonstrates the fact that RR plays only a small role in the rates, due to the very effective AI suppression of RR well away from the plunge and inspiral loss-lines (Fig. 1).

3.2 Loss-cone dynamics around the MBH of the Milky Way

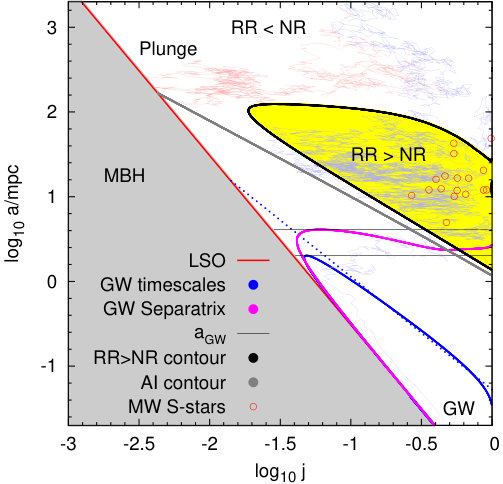

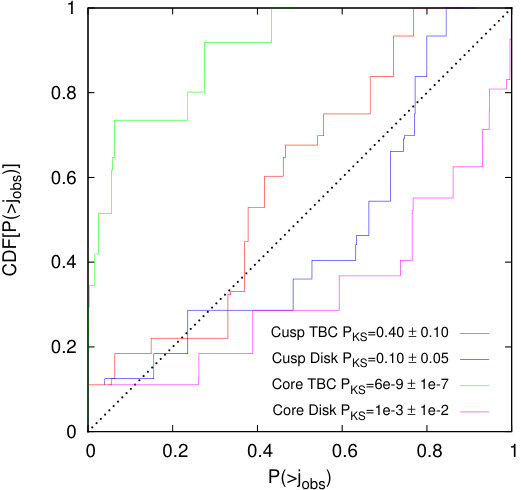

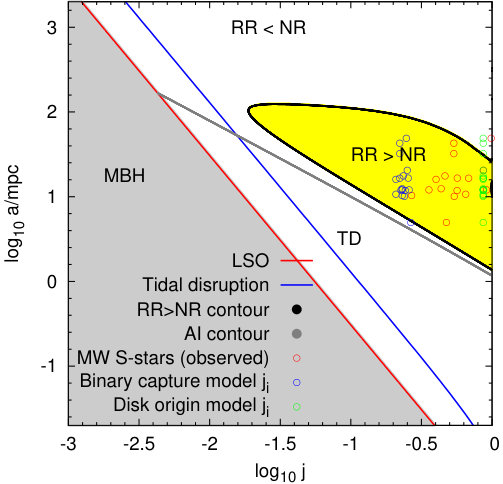

One intriguing result that follows from the formal treatment of effective RR diffusion, and of the identification of the phase space region where RR dominates the dynamics, is that almost all the observed S-stars around $\mathrm{Sgr\,}A^{\star}$ [16] (main sequence B stars, with masses $\sim 5-20\,M_{\odot}$ and lifespans $\sim 10^{7}-10^{8}$ yr) are found inside the strong RR region (Fig. 6). This suggests that whatever the unknown formation (or capture, or migration) process that is responsible for the puzzling presence of young massive stars so deep in the potential of a MBH, it is likely that they have undergone strong post-formation $j$-evolution. Fig. (6) shows a preliminary attempt to discriminate between the two leading models for the origin of the S-stars: Capture by a 3-body tidal interaction of the MBH with an incoming massive stellar binary [17, 18] (tidal binary capture, or the Hills mechanism [19]), or migration from the observed stellar disk around $\mathrm{Sgr\,}A^{\star}$ [20]. In addition, such models also probe the unobserved population of faint stars and remnants around the MBH, which are necessary for generating the RR torques, but whose presence is observationally controversial [21, 22, 23] (but see recent detection of a cusp of faint low mass stars in the Galactic Center [24, 25]). The MC experiments indicate that the likeliest scenario is that the S-stars were captured in tidal binary separation events, and their orbits subsequently evolved in the presence of high density “dark” stellar cusp.

4 Summary

The complex dynamics that ultimately lead stars and compact remnants to fall into the MBH can be modeled by MC simulations that introduce RR by effective diffusion coefficients that are derived from the $\boldsymbol{\eta}$-formalism. Phase space is clearly separated into a restricted region where RR dominates the dynamics, and a region where AI strongly suppresses RR due to fast precession. Elsewhere, RR exists, but NR is faster. Importantly, both the the loss-lines for plunges (LSO) and for GW EMRIs lie below the AI locus, and so RR has only a small effect on the loss-rates. This situation appears to be a fortunate coincidence for the prospects of detecting EMRIs. It is a result of a three-way competition between RR torques that tend to push stars to plunge orbits, GR Schwarzschild precession, which suppresses RR, and GR GW dissipation, which when fast enough, can be completed before the stellar background interferes. This coincidence appears robust in the context of Einstein’s GR. It is however still unclear how general it is in the wider context of theories of strong gravity.

The dynamical processes that play part in EMRI dynamics can be probed by the puzzling S-stars observed near the MBH of the Galactic Center, which are at the RR-dominated region of the phase space around $\mathrm{Sgr\,}A^{\star}$.

\ack

This work was supported by the I-CORE Program of the Planning and Budgeting Committee and The Israel Science Foundation (grant No 1829/12).
