The autophoretic torus

TL;DR

This paper derives an exact analytical solution for the flow around an axisymmetric phoretic torus, revealing its potential as a micro-pump and optimizing its swimming capabilities based on surface chemistry and geometry.

Contribution

It provides the first analytical solution for phoretic flow around a torus and explores its applications as a pump and swimmer, extending beyond spheroidal shapes.

Findings

A torus can act as a micro-pump due to confinement effects.

Optimal swimming tori do not occur when the central hole vanishes.

Analytical solutions agree with boundary element computations.

Abstract

Phoretic swimmers provide new avenues to study non-equilibrium statistical physics and are also hailed as a promising technology for bioengineering at the cellular scale. Exact solutions for the locomotion of such swimmers have been restricted so far to spheroidal shapes. In this paper we solve for the flow induced by the canonical non-simply connected shape, namely an axisymmetric phoretic torus. The analytical solution takes the form of an infinite series solution, which we validate against boundary element computations. For a torus of uniform chemical activity, confinement effects in the hole allow the torus to act as a pump, which we optimize subject to fixed particle surface area. Under the same constraint, we next characterize the fastest swimming Janus torus for a variety of assumptions on the surface chemistry. Perhaps surprisingly, none of the optimal tori occur in the limit where the central hole vanishes.

Figures

Equations

$$-D\mathbf{n}\cdot \nabla c=A(\mathbf{x}),$$

$${\nabla }^{2}c=0\text{ outside S},c\to 0\text{as r→∞},$$

$${\mathbf{u}}_s=M(\mathbf{x})\left(1-\mathbf{nn}\right)\cdot \nabla c\text{on S},$$

$$\mu {\nabla }^2\mathbf{u}$$

$$\nabla \cdot \mathbf{u}$$

$$\mathbf{u}={\mathbf{u}}_s\text{ on S,}\mathbf{u}\sim -U{\mathbf{e}}_z\text{ as r→∞.}$$

$$\rho =d\frac{\sinh \xi }{\cosh \xi -\cos \eta },z=d\frac{\sin \eta }{\cosh \xi -\cos \eta },$$

$$h_i{\mathbf{e}}_i=\frac{\partial \mathbf{x}}{\partial q_i},\text{mbox}sothat{h}_{\xi }=h_{\eta }=\frac{d}{\cosh \xi -\cos \eta },h_{\varphi }=\frac{d\sinh \xi }{\cosh \xi -\cos \eta },$$

$${\mathbf{e}}_{\xi }$$

$${\mathbf{e}}_{\eta }$$

$$\tan \theta =\frac{z}{\rho -b}\cdot$$

$$0=\frac{\partial }{\partial \xi }\left(\frac{\sinh \xi }{\cosh \xi -\cos \eta }\frac{\partial c}{\partial \xi }\right)+\frac{\partial }{\partial \eta }\left(\frac{\sinh \xi }{\cosh \xi -\cos \eta }\frac{\partial c}{\partial \eta }\right).$$

$$c(\xi ,\eta )=\sqrt{s-t}\sum _{n=0}^{\infty }{}^{\prime }\left(A_n\cos n\eta +B_n\sin n\eta \right)P_{n-1/2}(s),$$

$${\mathbf{e}}_{\xi }\cdot \nabla c=\frac{1}{h_{\xi }}\frac{\partial c}{\partial \xi }=A(\eta )\text{ on }\xi ={\xi }_0.$$

$$\frac{A(\eta )d}{\sinh {\xi }_0\sqrt{s_0-t}}$$

$$=\sum _{n=0}^{\infty }{}^{\prime }\left(C_n\cos n\eta +D_n\sin n\eta \right).$$

$${\mathbf{u}}_s$$

$$\displaystyle=\frac{M}{d}\Big{[}\tfrac{1}{2}c(\xi_{0},\eta)\sin{\eta}+\left(s_{0}-\cos{\eta}\right)^{3/2}\sum_{n=1}^{\infty}\left(-nA_{n}\sin{n\eta}+nB_{n}\cos{n\eta}\right)P_{n-1/2}(s_{0})\Big{]}\mathbf{e}_{\eta}.$$

$$u_{\rho }$$

$$u_{\xi }$$

$$L_k=\frac{{\partial }^2}{\partial {\rho }^2}+\frac{{\partial }^2}{\partial z^2}+\frac{k}{\rho }\frac{\partial }{\partial \rho }\cdot$$

$$\psi$$

$$\phi$$

$$\psi =\frac{1}{2}{\rho }^2(s-t{)}^{1/2}\sum _{n=0}^{\infty }{}^{\prime }\left(W_n^1(s)\cos n\eta +W_n^2(s)\sin n\eta \right),$$

$$W_n^1(s)$$

$$W_n^2(s)$$

$$\frac{1}{\sqrt{s-\cos \eta }}=\frac{\sqrt{2}}{\pi }{Q}_{-1/2}(s)+\frac{2\sqrt{2}}{\pi }\sum _{n=1}^{\infty }{Q}_{n-1/2}(s)\cos n\eta ,$$

$$W_n^1(s_0)$$

$$W_n^2(s_0)$$

$$\phi =\frac{{\rho }^2}{d^2}(s-t{)}^{1/2}\sum _{n=0}^{\infty }{}^{\prime }\left(e_n{P}_{n-1/2}(s)+f_{n}s{P}_{n-1/2}^{\prime }(s)\right)\cos n\eta ,$$

$$f_n{s}_0{P}_{n-1/2}^{\prime }(s_0)+e_n{P}_{n-1/2}(s_0)=\frac{3}{\pi \sqrt{2}}{Q}_{n-1/2}^{-2}(s_0),$$

$$f_n\frac{d}{d{s}_0}\left(s_0{P}_{n-1/2}^{\prime }(s_0)\right)+e_n{P}_{n-1/2}^{\prime }(s_0)=\frac{3}{\pi \sqrt{2}}\frac{d}{d{s}_0}\left(Q_{n-1/2}^{-2}(s_0)\right).$$

$$\chi =-\frac{d^2{\sum }_{n=0}^{\infty }{}^{\prime }(U{c}_n^{(g)}+c_n^{(p)})}{2{\sum }_{n=0}^{\infty }{}^{\prime }{f}_n}\equiv -\frac{d^2}{2}(U\alpha +\beta ).$$

$$\frac{F}{8\pi \mu }=\underset{r\to \infty }{\lim }\frac{r(\psi +\chi \phi )}{{\rho }^2},$$

$$U=-\frac{{\sum }_{n=0}^{\infty }{}^{\prime }\left(\left(n^2-\frac{1}{4}\right)\left(c_n^{(p)}-\beta f_n\right)+2\left(a_n^{(p)}-\beta e_n\right)\right)}{{\sum }_{n=0}^{\infty }{}^{\prime }\left(\left(n^2-\frac{1}{4}\right)\left(c_n^{(g)}-\alpha f_n\right)+2\left(a_n^{(g)}-\alpha e_n\right)\right)}\cdot$$

Full text

I Introduction

Autophoretic microswimmers are artificial microscale particles that self propel via slip flows at their surface created through self-generated, rather than externally imposed anderson1991 ; khair2013 , field gradients such as heat jiang2010 ; bickel2013 or solute concentration golestanian2005 . Such particles have potential biomedical BJN1 and microfluidics applications (maggi2016self, ), and may perform intricate microscale tasks, for example directed cargo transport and assembly (popescu2011, ; baraban2012transport, ).

In this study, we focus on neutral solute self-diffusiophoresis, in the absence of electrokinetic effects ebbens2014 ; brown2014 , whereby solute chemical reaction differentially catalysed at the swimmer surface leads to local concentration gradients around the swimmer; this property is know as the swimmer’s activity. Local pressure imbalances arising from this differential interaction between the particle surface and the solute in a thin layer drive surface slip flows, propelling the swimmer forward; this property is known as the swimmer’s mobility anderson1991 .

The trajectory of autophoretic microswimmers thus results from the coupled interactions of solute concentration and hydrodynamics, which are in turn strongly influenced by physical conditions such as particle shape popescu2010 and domain boundaries. As such, autophoretic microswimmers exhibit a range of remarkable and complex dynamics, such as self-assembly with neighbouring particles sharifimood2016 into “living crystals” palacci2013 or rotors and swimmers wykes2016dynamic , phase separation IB1 , swarming behaviour thutupalli2011 , boundary-following das2015boundaries ; simmchen2016topographical and rheotaxis uspal2015rheotaxis .

The self-generation of concentration gradients is typically achieved either through chemical patterning paxton2004 , solute advection michelin2013spontaneous , or geometric effects such as varying particle curvature shklyaev2014non or through confinement interactions, for instance with a boundary wall uspal2015self ; YI1 ; mozaffari2016self . The canonical patterned autophoretic microswimmer is the Janus particle AW1 ; an inert sphere or rod, for instance a polymer, is half-coated in a catalyst for the solute, such as platinum in hydrogen peroxide howse2007 ; Ebbens2011 .

Previous theoretical studies on autophoretic motion in three dimensions (3D) have focused on simply connected particle geometries, such as spheres SM1 or rods RG1 . Theoretical and numerical studies examining the effects of confinement have typically focused upon the prototypical problem of a Janus particle over a plane boundary uspal2015self ; YI1 ; mozaffari2016self , or in the form of multi-particle interactions thakur2012collective . In this paper, we explore the phoretic motion of the canonical shape which is not simply connected: the torus. The central hole of the torus provides an example of intrinsic geometric confinement SM2 , allowing the consequences of this physical effect to be explored, and optimized popescu2011 , within an analytical framework. Confinement leads to locally higher concentrations, generating a pumping flow even for uniform surface chemistry. This is similar to the method of generating concentration gradients via changes in surface curvature leading to swimming for axisymmetric shapes where front-back symmetry is broken shklyaev2014non . This is in contrast to isolated spherical particles, which can only pump flow via chemical patterning (eg Janus particles golestanian2005 ; RG1 ), interactions with neighbours SM1 , or solute advection michelin2013spontaneous .

In this paper, we consider the continuum framework for phoretic motion at zero Péclet number developed by Golestanian et al golestanian2005 ; for an alternative framework, see cordova2008 ; brady2011 ; cordova2013 . Using toroidal coordinates, we derive the analytical solution for the phoretic torus with axisymmetric boundary conditions in terms of an infinite sum of Legendre polynomials of half-integer order. We consider several cases, with specific solutions validated against 3D regularized boundary element code TDMJ1 . We find optimal tori of fixed surface area, an important constraint for controlling reaction rates TDMJ2 , that either produce the most pumping or maximize swimming speed. In contrast to previous studies SM1 ; SM2 ; ML1 , these optima do not occur when confinement is maximized (i.e. where the hole is infinitely small).

II The autophoretic Torus

II.1 Continuum framework

We consider the autophoretic motion of a torus $\mathcal{S}$, with axisymmetric surface chemistry, in the continuum framework golestanian2005 ; RG1 . The torus interacts with a solute fuel $S$. Catalysis at the surface of the torus converts the fuel to a product $P$, which has a local concentration $c$ and is dissolved in a fluid of dynamic viscosity ${\mu}$ and a density $\rho$. The torus has surface activity $\mathcal{A}(\mathbf{x})$, such that the flux of product through the surface is

[TABLE]

where $\mathbf{n}$ is the unit normal pointing into the fluid, $D$ denotes the diffusivity of the product, and $c$ is the concentration difference against the far field. If the Péclet number $\text{Pe}=\mathcal{U}\mathcal{R}/D$ is small, with $\mathcal{U}$ and $\mathcal{R}$ being characteristic velocity and length scales of the problem, the concentration $c$ satisfies

[TABLE]

together with the Neumann boundary condition (1), appropriate when the ratio of diffusive to reactive timescales, the Damköhler number, is small michelin2014phoretic . The interaction between $\mathcal{S}$ and the solute can be modelled as giving rise to a slip velocity along the surface

[TABLE]

with $\mathcal{M}(\mathbf{x})$ the local surface mobility of $\mathcal{S}$. Neglecting inertial effects, due to typical particle size and flow speeds being small, the flow around the torus is then governed by the Stokes flow equations

[TABLE]

For the axisymmmetric torus, the swimming velocity is $\mathbf{U}=U\mathbf{e}_{z}$, which can be obtained by requiring there to be zero net force on $\mathcal{S}$. Working in the reference frame centered on the torus, the boundary conditions for the Stokes flow problem become

[TABLE]

Taking $\mathcal{A}$ and $\mathcal{M}$ to be typical magnitudes of the surface activity and mobility respectively, we nondimensionalize the problem by setting $\mathcal{A}\mathcal{R}/D$ to be the characteristic size of concentration fluctuations, $\mathcal{M}\mathcal{A}/D$ the characteristic size of the slip velocity, and ${\mu}\mathcal{M}\mathcal{A}/(\mathcal{R}D)$ as the characteristic size of the dynamic pressure.

II.2 Toroidal coordinates

Let $(\rho,\phi,z)$ be standard cylindrical coordinates. For this problem we introduce toroidal coordinates AML1 ; PM1 $(\xi,\eta,\phi)$, which are related to cylindrical coordinates through the transformation

[TABLE]

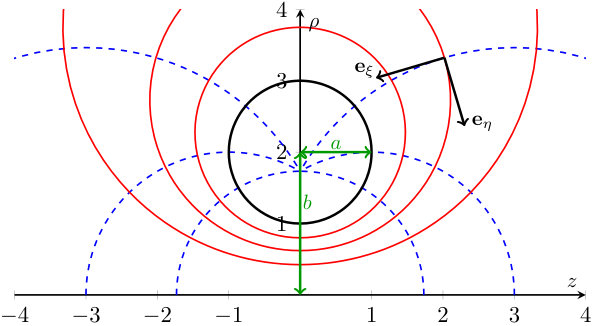

where $d>0$, $0\leq\xi<\infty$ and $0\leq\eta<2\pi$. In this coordinate system, shown in Fig. 1, curves of constant $\xi$ correspond to circles in the $(\rho,z)$ plane with radius $a=d/\sinh{\xi}$, centred at $(b,0)$, where $b=d\cosh{\xi}/\sinh{\xi}$. Rotating by $2\pi$ around the $z$ axis, the curves of constant $\xi$ become tori. The scale factors $h_{i}$ and the unit vectors $\mathbf{e}_{i}$ are given by

[TABLE]

and the unit vectors $\mathbf{e}_{\xi}$ and $\mathbf{e}_{\eta}$ are

[TABLE]

We take the torus $\mathcal{S}$ to be the surface $\xi=\xi_{0}$, with aspect ratio $s_{0}=\cosh{\xi_{0}}=b/a$, then the unit normal pointing into the fluid $\mathbf{n}=-\mathbf{e}_{\xi_{0}}$, and spatial infinity corresponds to $\xi,\eta\to 0$. Note that we can relate the toroidal coordinates to the poloidal angle $\theta\in[0,2\pi)$ on the surface of the torus; a point on the torus’ surface is specified by $\rho=b+a\cos{\theta}$ and $z=a\sin{\theta}$, so that $\theta$ is related to $\xi,\eta$ through (6) and

[TABLE]

II.3 Flow field around a phoretic torus

The tori considered in this work have axisymmetric surface chemistry, and hence the nondimensional surface activity and surface mobility $A=A(\eta)$ and $M=M(\eta)$ respectively are solely functions of $\eta$.

II.3.1 Product concentration

In the case of fixed-flux, we can think equivalently in terms of solute reducing at the boundary, or product increasing at the boundary, the solutions differing by a minus sign. Here we work in terms of positive product concentrations relative to a zero concentration at infinity. The axisymmetric activity gives rise to $c=c(\xi,\eta)$, and hence Laplace’s equation,(2), becomes

[TABLE]

Let $s=\cosh{\xi}$, $t=\cos{\eta}$, and let $P_{m-1/2},Q_{m-1/2}$ denote Legendre functions of the first and second kind of degree $m-1/2$ respectively. Then eq. (10) admits a solution, which decays at spatial infinity and is $2\pi$ periodic in $\eta$, of the form PM1

[TABLE]

where $\sum_{n=0}^{\infty}{\vphantom{\sum}}^{\prime}$ indicates that the term with $n=0$ is multiplied by $1/2$. Imposing the Neumann boundary condition (1) then requires

[TABLE]

Using the form of the concentration (11), we can rearrange the above to give

[TABLE]

The Fourier coefficients $(C_{n},D_{n})$ can be related to the $(A_{i},B_{i})$ through standard trigonometric identities. The coefficients $A_{n}$ and $B_{n}$ can be calculated numerically after truncating the system.

II.3.2 Slip velocity

Once the concentration has been calculated, the slip velocity can be obtained from eqs. (3) and (11) in terms of the nondimensional surface mobility $M$ as

[TABLE]

As the $A_{n}$ are linear in $d$, the slip velocity depends on the geometry of the system only through the aspect ratio $s_{0}$ and not the absolute size of the torus, in an analagous manner to the size independent swimming velocity of spherical Janus particles in the fixed flux limit RG1 .

II.3.3 Stokes streamfunction

The Stokes flow problem for a torus has been solved by Pell and Payne WHP1 for a fixed torus in uniform flow, and by Leshansky and Kenneth AML1 for a torus with slip velocity symmetric about $\eta=\pi$. In this section, we summarize the results and apply them to the case that the slip velocity is given by eq. (14). To identically solve the continuity equation (4b), we introduce the vector potential $\mathbf{A}$ such that $\mathbf{u}=\bm{\nabla}\times\mathbf{A}$. For axisymmetric flows we may take $\mathbf{A}=\Psi\mathbf{e}_{\phi}/\rho$, and then the velocity components are given, in cylindrical and toroidal coordinates respectively,

[TABLE]

The stream function $\Psi$ satisfies $L_{-1}^{2}\Psi=0$, where the operator $L_{k}$ is given by

[TABLE]

For the boundary conditions on the streamfunction, we ask that the surface $\xi=\xi_{0}$ be a streamline $\Psi=\chi$, where $\chi$ is a constant, and that on the surface there is a slip velocity $\mathbf{u}=u_{s}(\eta)\mathbf{e}_{\eta}$ given by eq. (15b). Working in the reference frame where the torus is fixed, we require the background flow at infinity to be uniform with $\Psi\sim-\frac{1}{2}U\rho^{2}$ as $r\to\infty$, where $U$ is the swimming velocity of the torus. Writing $\Psi=-\frac{1}{2}U\rho^{2}+\psi+\chi\varphi$, the boundary conditions become, as in AML1 ,

[TABLE]

on the surface $\xi=\xi_{0}$. Setting $\psi^{k}$ to be solutions to $L_{k}\psi^{k}=0$, we can represent $\psi=\tfrac{1}{2}\rho^{2}\left(\psi^{1}+(r^{2}+d^{2})\psi^{3}\right)$ WHP1 ; LEP1 . We can then solve for $\psi^{3}$ and $\psi^{1}$, which decay at infinity and are $2\pi$ periodic in $\eta$, using separation of variables to get

[TABLE]

where the coefficient functions $W_{m}^{i}$ are

[TABLE]

Making use of Heine’s identity EH1 ,

[TABLE]

the boundary conditions (17a) become

[TABLE]

where the $E_{n}$ and $F_{n}$ are the cosine and sine Fourier coefficients of $u_{s}/\left(s_{0}-t\right)^{1/2}$, which can be obtained from the expression for the slip velocity (14). The boundary conditions for $\varphi$ (17b) are exactly as in AML1 ; WHP1 (given as $\psi_{1}$ in the references), whence

[TABLE]

with the coefficients $f_{n}$ and $e_{n}$ given by

[TABLE]

Following Leshansky and Kenneth AML1 , linearity allows us to split $\psi$ into the contributions from the uniform background flow and the slip velocity, $\psi=U\psi^{(g)}+\psi^{(p)}$, where $U$ is the undetermined non-dimensional swimming velocity. Here $\psi^{(p)}$ is the streamfunction appropriate for a fixed torus with slip velocity $u_{s}$, and $\psi^{(g)}$ solves the problem of a torus with no slip velocity in a background flow with $U=1$. This has the effect that $a_{n}=Ua_{n}^{(g)}+a_{n}^{(p)}$ and similarly for other coefficients. The coefficients $b_{n},d_{n}$ depend only on the slip velocity and hence do not pick up contributions from the background flow. The constant $\chi$ is found from the requirement that the pressure is single valued, see AML1 ; WHP1 ; LEP1 for details, as

[TABLE]

Finally, to determine $U$, we impose that the force on the torus must vanish. We find the force on the torus, which by symmetry is along the $z$ axis, from

[TABLE]

which is equivalent to evaluating the fraction at $\eta=\xi=0$. Using the split form of $\psi$ and setting $F=0$ in (25), we can derive the expression for the swimming velocity of the torus as in AML1

[TABLE]

We now apply the solution to analyse special cases of particular interest.

III Results

III.1 The optimal uniform toroidal pump

First, we consider the chemically-uniform case where both activity $A$ and mobility $M$ are constants, $\pm 1$. We can use Heine’s identity (20) in the expressions for the concentration coefficients (13a) to set $B_{n}=D_{n}=0$, and then the $A_{n}$ are determined through

[TABLE]

Truncating the system (27a, 27) at an appropriately chosen $n$ enables numerical computation of the $A_{i}$. Throughout this study we take between $n=45$ and $n=5$ coefficients for aspect ratios in the range $s_{0}=1.1$ and $s_{0}=30$, similar to the numbers used by Leshansky and Kenneth AML1 . To check the numerical accuracy, we compare the surface concentration calculated from the analytical solution against the surface concentration obtained from a 3D regularized boundary element method TDMJ1 . The comparison (Fig. 2, left) shows the surface concentrations to be in good agreement with a maximal percentage difference of less than $0.5\%$ for $a=0.8$ and $b=1$.

In contrast to isolated spherical particles, where a uniform surface chemistry is unable to drive flow RG1 ; SM1 , a uniform phoretic torus generates a pumping flow field. When the torus releases product, confinement causes this product to build-up in the central hole (see Figs. 2 and 3, left), and the resulting concentration gradients give rise to the slip velocities on the surface (see Fig. 2, right) which drive the overall flow. The confining effect becomes more pronounced in the limit where the central hole shrinks and the aspect ratio $s_{0}=b/a\to 1$. In this limit, the concentration becomes increasingly localized in the central hole, leading to large peaks in the slip velocity moving closer to either side of $\theta=\pi$ as the differences in the confining effect between neighbouring points becomes greater.

However, on the outer edge of the torus, the largest slip velocities do not occur in the limit where the central hole vanishes (Fig. 2, right). Since the strength of pumping will depend in some sense on an integral of slip velocities over the toroidal surface, this result suggests that for fixed surface area, there may be a non-trivial optimal pump.

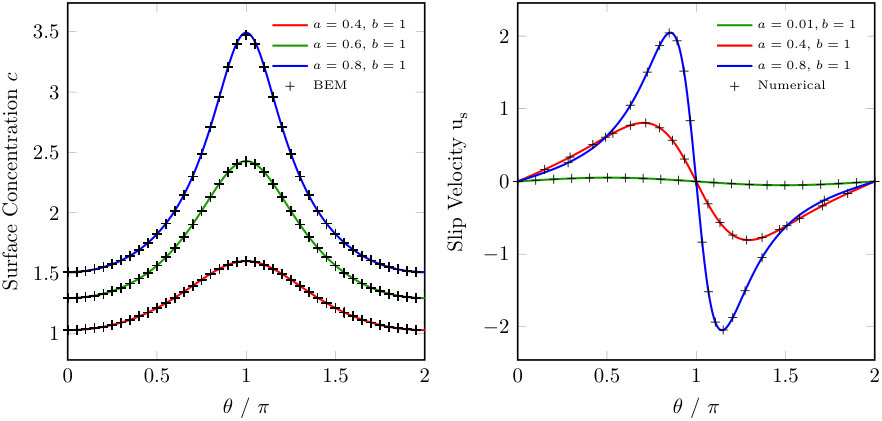

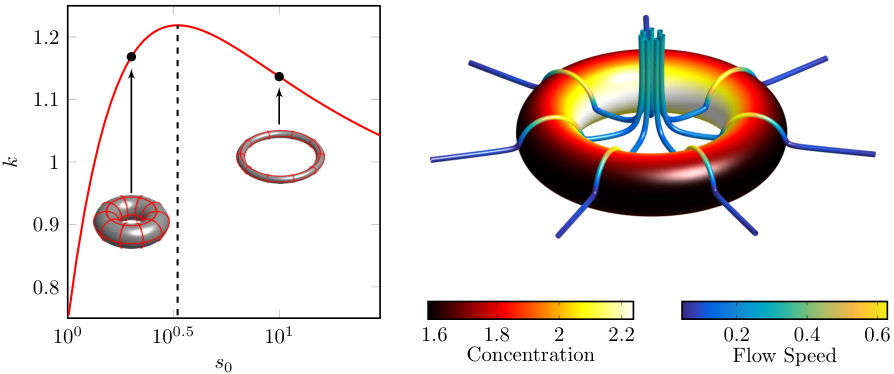

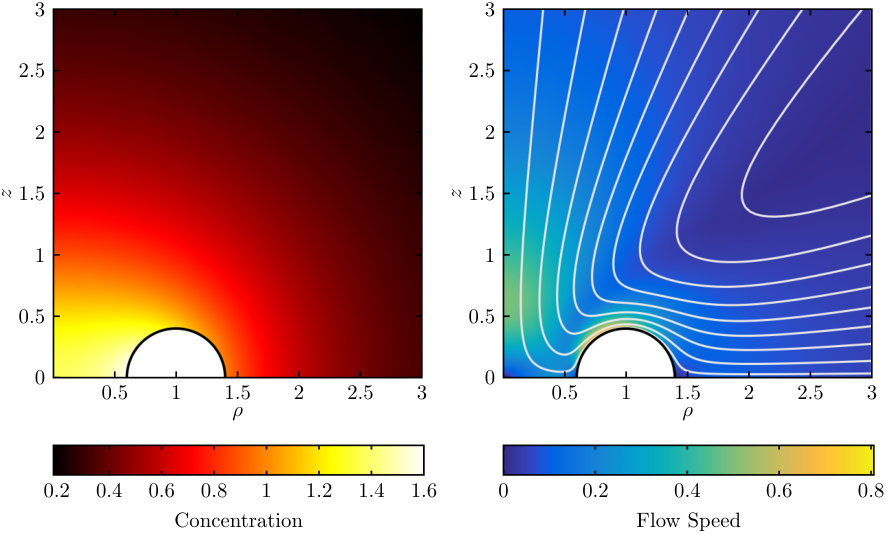

We test this notion by calculating the flow in the bulk of the fluid via the streamfunction $\Psi$. For uniform surface chemistry, symmetry prevents the system from swimming, thus $U=0$. Additionally we require that $\Psi$ is antisymmetric in $\eta$ around $\eta=\pi$, which forces $\chi=0$, and hence $\Psi=\psi$ with $W_{n}^{1}(s)=0$. The Fourier coefficients $F_{n}$ in (21b) can be found from the slip velocity (14) in terms of the concentration coefficients $A_{i}$ as

[TABLE]

Using equations (15b), these coefficients then allow us to compute the flow. The right of Fig. 3 shows the flow speed $u=(u_{\xi}^{2}+u_{\eta}^{2})^{1/2}$ and corresponding streamlines. When $AM=1$, the fluid comes in along the $\rho$ direction and is pushed out again along the $z$ direction (if $AM=-1$ the flow direction is reversed).

By symmetry the pumping torus is force-free, thus we expect the far-field flow to behave like a stresslet, i.e. the solution to Stokes flow driven by a point stress GKB1 . As such, we predict flow decays like $u\propto 1/r^{2}$ away from the torus. Considering the flow speed along the $\rho$ axis, we should therefore see

[TABLE]

Along $z=0$, we have $\eta=0$ and $|\mathbf{u}|=|u_{\xi}|$. From eqs. (18) and (15b) we find that along $\eta=0$

[TABLE]

Using $\sinh{\xi}=\sqrt{(s-1)(s+1)}$, $(s-1)\sim 2\frac{d^{2}}{\rho^{2}}$ along $\eta=0$ as $s\to 1$, and the asymptotic forms of the toroidal harmonics MA1 as $s\to 1$ in (30) we find that

[TABLE]

giving the strength of the pumping $k$ for a given torus in terms of the stream function coefficients $b_{n}$ and $d_{n}$. We can use this expression to optimize the torus to maximize the pumping.

The area of the active surface on the torus governs the net flux of product into the solution TDMJ2 . Fixing the surface area $A_{s}=4\pi^{2}ab$, we still have the freedom to vary the aspect ratio of the torus $s_{0}=b/a=\cosh{\xi_{0}}$. Measuring the pumping strength of the uniform torus through $k(s_{0})$ of (29), we seek the optimal aspect ratio which maximizes the pumping. From the left of Fig. 4, we see that there is a peak in the stresslet strength with an optimal aspect ratio at $s_{0}=3.31$. The corresponding optimal torus is shown on the right of Fig. 4, notice in particular that the optimum interestingly occurs for a torus with a central hole, so that pumping is not maximized for the aspect ratio which maximizes geometric confinement.

III.2 Optimal smooth-activity Janus torus

We consider next a smoothed approximation to a Janus torus. We take the differentiable surface activity of the form

[TABLE]

while the surface mobility is kept constant $M=\pm 1$ (nourhani2016geometrical, ). Such smooth activity functions are numerically convenient, and may be employed YI1 for studies of spherical Janus particles, which in reality have discontinuities in the surface activity at the boundary of the active and inert portions of their surfaces. The top-bottom asymmetry in the surface activity produces asymmetric concentration gradients and slip velocities (see Fig. 5) which allow the torus to have a nonzero swimming velocity. For $M=1$, swimming occurs along the negative $z$ direction ($M=-1$ reverses flow and swimming directions).

The confinement and changes in the surface activity lead to two areas on the surface of the torus where there are significant slip velocities, visible on the right of Fig. 5. The first area of large slip velocities occurs on lower half of the central hole, due to the decrease in the value of the activity, while the second occurs towards the outer edge of the torus as a result of the increased freedom for the product to diffuse. As before we validate the accuracy of these solutions by comparing the results obtained by truncating the analytical expressions against the boundary element method, the details of which are described in Ref. TDMJ1 . Over the range $1.1\leq s_{0}\leq 10$, with fixed $A_{s}=4\pi^{2}$, we obtain percentage differences between the concentrations calculated using the two methods of at most than $1.1\%$ for $s_{0}=1.1$. However, this error is likely attributable to the difficulty of modelling small aspect ratio tori accurately with the boundary element method; larger aspect ratios, which are easier to model with boundary elements, give smaller percentage differences; for example, for $s_{0}=2.81$ the difference calculated was less than $0.03\%$.

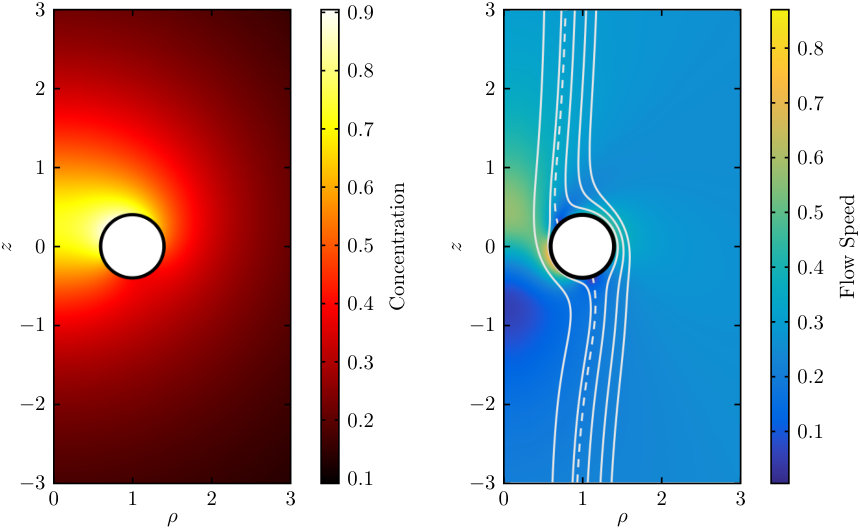

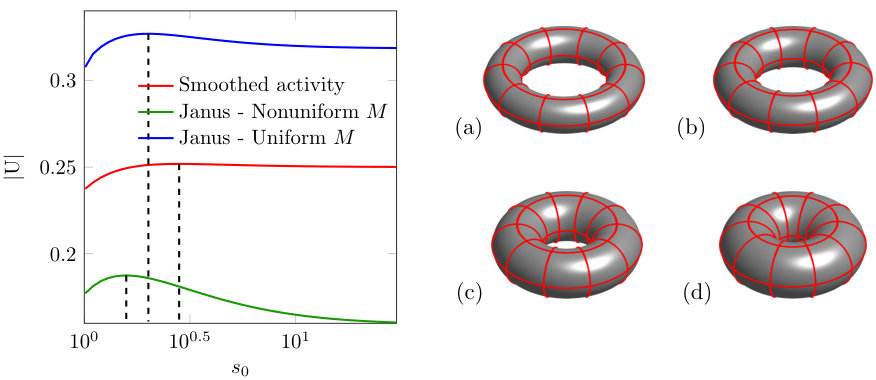

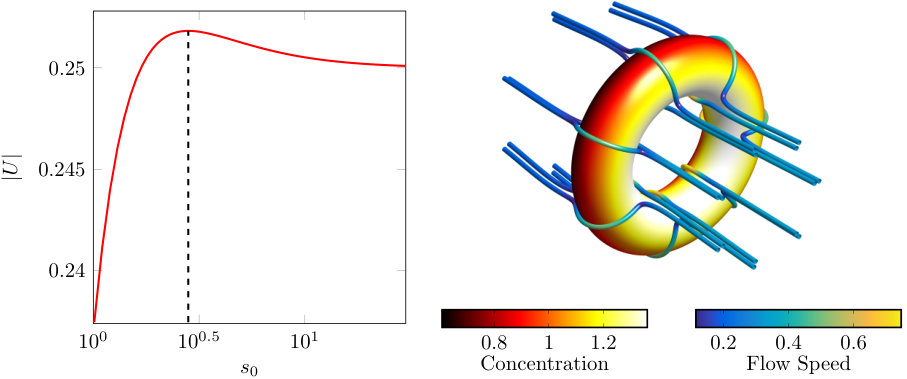

As in §III.2, we compute $|U|$ as we vary the aspect ratio $s_{0}$ (Fig. 6, left). There is a peak at $s_{0}=2.81$, with swimming speed $|U|=0.2518$, before the swimming velocity appears to tend towards an asymptote for larger $s_{0}$. In the large $s_{0}$ limit, there is no self-interaction between the opposing ends of the torus. The swimming speed being independent of the torus shape in this limit is similar to the result for spherical Janus particles, whose swimming speed is independent of their size in this classical phoretic framework RG1 .

The optimal smooth-activity torus, shown on the right of Fig. 6, has a smaller aspect ratio $s_{0}=2.81$ than the optimal toroidal pump $s_{0}=3.31$. This difference arises because the swimming optimum arises from the balance of two physical effects; maximising surface chemical gradients/slip flow, as with the pump, and minimising drag via hydrodynamic interactions. The proximity of the opposing side of the torus reduces drag by pulling its neighbouring segments along, an effect which is also observed for groups of sedimenting spheres KOLFJ1 . Thus, the swimming optimum has a smaller central hole than the pump; suboptimal slip generation is balanced by reduced drag in this fatter torus.

III.3 Optimal Janus torus

Finally, we consider a Janus torus, with both the surface activity and surface mobility having a step-discontinuity at $\theta=\pi$, given by

[TABLE]

The set of linear equations for the concentration coefficients (11) becomes ill conditioned when attempting to solve for a large number of coefficients. This makes it difficult to accurately resolve the step discontinuities in the activity and mobility using the series solution. However, due to the dissipative nature of Stokes flow, the wiggles in the boundary condition are smoothed out quickly in the fluid, and the swimming velocity is dependent upon an integral of the boundary slip. Thus we expect the error introduced by the low number of coefficients to be small, and we check the error introduced by comparing the computed results against the boundary element method TDMJ1 . The swimming speeds calculated using the two methods have percentage differences of at most $3\%$.

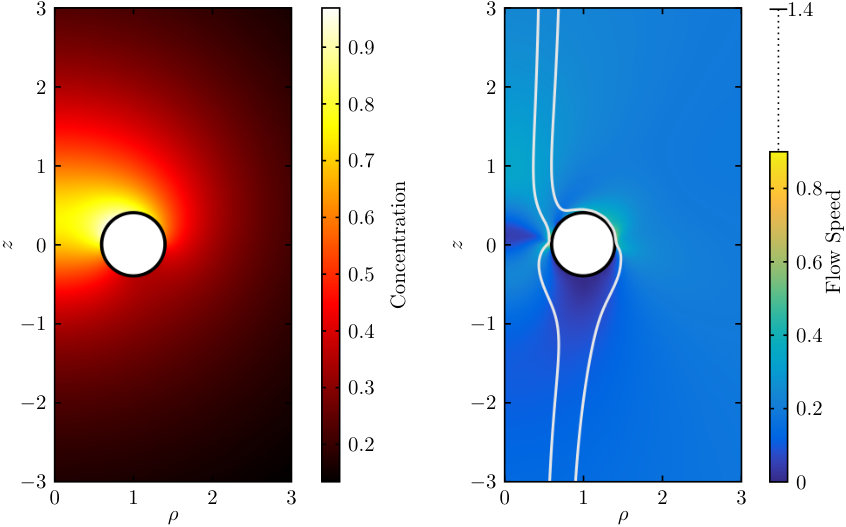

The concentration around the Janus torus (Fig. 7, left) is similar to concentration found for the first-mode approximation in §III.2, with the product slightly more evenly distributed around the smooth-activity torus. These differences can produce larger changes in the slip velocity, and thus in the swimming speed. Away from the surface of the torus the flow fields (Fig. 7, right) calculated using the two methods described are in good agreement. Notice that the colorbar has been truncated at $u=0.9$, highlighting the structure of the flow field. The most prominent difference, compared with the previously considered torus, is that the area of large surface slip velocities on the lower half of the central hole in Fig. 5 no longer appears for the Janus torus with discontinuous mobility.

We again aim to determine the optimal aspect ratio which maximizes the swimming speed of the Janus torus. The green line on Fig. 8 shows the swimming speed of the Janus torus with nonuniform mobility (33). There is a pronounced peak at $s_{0}=1.58$, which corresponds to a torus with a smaller central hole than found for the first-mode smooth-activity Janus torus, shown as the red line.

To determine whether this difference is solely due to the change in mobility or whether it is also affected by the surface activity, we repeat the calculation for a Janus torus with uniform mobility $M=1$, shown as the blue line on Fig. 8. Whilst perhaps not experimentally relevant, the uniform mobility case has been considered in previous studies uspal2015self ; nourhani2016geometrical and provides an indication of the behaviour of tori with intermediate non-zero mobilities on the inert cap. For the Janus torus with uniform mobility, the optimal swimming speed is achieved for $s_{0}=2.01$, for a swimming speed $|U|=0.3268$, greater than for the smooth-activity Janus torus. Additionally, the peak in the swimming velocity is much sharper than for the first-mode smooth-activity Janus torus. Notably, in the fixed-flux limit which we consider, the swimming speed of a spherical Janus particle is independent of size with $|U|=0.25$ for uniform mobility RG1 , so that the optimal Janus torus is 31% faster.

For the Janus torus, the swimming speed in the case of nonuniform mobility is lower than for uniform mobility, and there is a much sharper peak around the optimum than for the other cases. This is because concentration gradients after $\theta=\pi$ cannot contribute to the swimming velocity. The product concentration (Fig. 7, left) shows that there are large surface concentration gradients on the inside of the torus, around $\theta=\pi$, which do not all contribute to $U$. The position and extent of these concentration gradients depend on $s_{0}$, giving rise to the sharper peak for the nonuniform mobility.

IV Discussion

In this paper we computed the analytical solution for the autophoretic motion of an axisymmetric torus in a neutral solute, in the purely diffusive limit and following the continuum framework of Golestanian et al golestanian2005 . Using separation of variables in toroidal coordinates, we solved for the product concentration outside of the torus in the case of axisymmetric surface activity. In the central hole, geometric confinement leads to locally higher product concentrations, creating surface concentration gradients that drive slip flow even in the absence of chemical patterning. Upon optimizing swimming and pumping with respect to fixed surface area, we found that maximal confinement is not optimal, demonstrating a qualitative difference to the optima of other autophoretic systems driven purely by geometric confinement SM2 ; ML1 .

For the chemically uniform torus (i.e. $A,M=\pm 1$) symmetry prevents swimming, but concentration gradients from the central hole generate a pumping flow. We characterized this pumping flow by the strength of the resulting stresslet singularity. Fixing the surface area, we varied the aspect ratio $s_{0}$; for vanishing central holes, $s_{0}\to 1$, the concentration is very large around $\theta=\pi$, however these large local concentrations do not necessarily lead to large concentration gradients across the torus surface. Meanwhile, for large $s_{0}$, the distance between opposing ends of the torus means confinement weakens, correspondingly there are smaller concentration variations over the surface of the torus. These effects lead to an optimal torus with nonvanishing central hole at $s_{0}=3.31$, which maximizes the strength of the pumping flow, and yields the stresslet with the highest coefficient $k$.

We next considered nonuniform tori where the up-down symmetry of the system is broken, resulting in swimming. We examined a smoothed approximation to the activity of a Janus torus, as such first-mode regularizations of Janus particles are used in the study of spherical Janus particles YI1 , and then we compared it against a full Janus torus where we took both the surface activity and mobility to have step discontinuities at $\theta=0$ and $\pi$. In maximising the swimming velocity of the nonuniform tori with respect to fixed surface area, we found (Fig. 8) that (b) the optimal smoothed-activity torus, has a larger aspect ratio than the optimum for the full Janus torus with the same uniform mobility, (c). The optimal swimmers, (b), (c), and (d), all have smaller aspect ratios than (a) the optimal phoretic pump; unlike the pump, swimmers must not only maximize surface concentration gradients, but also minimize drag. The smaller aspect ratios result from the balance of these two effects.

While our study focused on neutral solutes and self-diffusiophoresis, if suitably modified the results may be applied to other phoretic mechanisms. For instance, the auto-thermophoretic torus may be studied provided that both the mechanism of heating is axisymmetric, and additionally the interior problem of heat conduction through the torus is solved. The slip-velocity is then the gradient of the temperature field at the torus surface kroy2016hot , and the flow solution proceeds as before. For electrophoresis, the situation is more complex as in general it also involves charge transport through the material; slip velocity would then be proportional to the electric field on the torus surface anderson1989colloid , with activity corresponding to electrical current injected into the flow at the surface RG1 .

The torus is arguably the simplest system that naturally exhibits geometric confinement, an important property that can influence the motion of diffusiophoretic particles leading to physical effects such as boundary steering das2015boundaries ; simmchen2016topographical and dynamic self assembly wykes2016dynamic . Our results provide a means of probing confinement effects analytically, demonstrating key differences between pumps and swimmers.

Acknowledgements.

This work was undertaken as part of EPSRC-funded UROP project. EL is supported in part by the European Union through a Marie Curie CIG grant and an ERC Consolidator grant. TDM-J is supported by a Royal Commission for the Exhibition of 1851 Research Fellowship. The authors are thankful to Sébastien Michelin for fruitful discussions, and to the anonymous referees for useful feedback.
