Charming new physics in rare B-decays and mixing?

TL;DR

This paper explores how new physics affecting specific quark transitions could explain anomalies in rare B-decays and lifetime measurements, highlighting the importance of combined observables and renormalization effects.

Contribution

It systematically analyzes the impact of new physics in $b o c ar{c} s$ transitions on B-physics, proposing viable scenarios consistent with current experimental constraints.

Findings

Possible sizable effects in rare semileptonic B-decays.

Renormalization-group effects can enhance impact on semileptonic decays.

Lifetime observables at LHCb can test these scenarios.

Abstract

We conduct a systematic study of the impact of new physics in quark-level $b \to c \bar{c} s$ transitions on $B$-physics, in particular rare $B$-decays and $B$-meson lifetime observables. We find viable scenarios where a sizable effect in rare semileptonic $B$-decays can be generated, compatible with experimental indications and with a possible dependence on the dilepton invariant mass, while being consistent with constraints from radiative $B$-decay and the measured $B_s$ width difference. We show how, if the effect is generated at the weak scale or beyond, strong renormalisation-group effects can enhance the impact on semileptonic decays while leaving radiative $B$-decay largely unaffected. A good complementarity of the different $B$-physics observables implies that precise measurements of lifetime observables at LHCb may be able to confirm, refine, or rule out this scenario.

Figures

Equations

$${\mathcal{H}}_{\mathrm{eff}}^{c\bar{c}}=\frac{4G_F}{\sqrt{2}}{V}_{cs}^{\ast }{V}_{cb}\sum _{i=1}^{10}(C_i^c{Q}_i^c+C_i^{c\prime }{Q}_i^{c\prime }).$$

$$Q_1^c$$

$$Q_3^c$$

$$Q_5^c$$

$$Q_7^c$$

$$Q_9^c$$

$$C_i^c(\mu )=C_i^{c,\mathrm{SM}}(\mu )+\Delta C_i(\mu ),$$

$${\mathcal{H}}_{\mathrm{eff}}^{rsl}$$

$$Q_{7\gamma }=\frac{e{m}_b}{16{\pi }^2}({\bar{s}}_L{\sigma }_{\mu \nu }{b}_R)F^{\mu \nu },Q_{9V}=\frac{\alpha }{4\pi }({\bar{s}}_L{\gamma }_{\mu }{b}_L)(\bar{\ell }{\gamma }^{\mu }\ell ).$$

$$\Delta C_9^{\mathrm{eff}}(q^2)$$

$$\Delta C_7^{\mathrm{eff}}(q^2)$$

$$h(q^2,m_c,\mu )$$

$$y(q^2,m_c,\mu )$$

$$\Delta C_7^{\mathrm{eff}}$$

$$\Delta C_9^{\mathrm{eff}}$$

$$\begin{split}\Gamma_{12}^{cc}&=-G_{F}^{2}(V_{cs}^{*}V_{cb})^{2}m_{b}^{2}M_{B_{s}}f_{B_{s}}^{2}\frac{\sqrt{1\!-\!4x_{c}^{2}}}{576\pi}\times\\ &\Bigg{\{}\Big{[}16(1-x_{c}^{2})(4C_{2}^{c,2}+C_{4}^{c,2})+8(1-4x_{c}^{2})\times\\ &(12C_{1}^{c,2}+8C_{1}^{c}C_{2}^{c}+2C_{3}^{c}C_{4}^{c}+3C_{3}^{c,2})-192x_{c}^{2}\times\\ &(3C_{1}^{c}C_{3}^{c}+C_{1}^{c}C_{4}^{c}+C_{2}^{c}C_{3}^{c}+C_{2}^{c}C_{4}^{c})\Big{]}B+2(1+2x_{c}^{2})\times\\ &(4C_{2}^{c,2}\!-8C_{1}^{c}C_{2}^{c}-12C_{1}^{c,2}\!-3C_{3}^{c,2}\!-2C_{3}^{c}C_{4}^{c}+C_{4}^{c,2})\tilde{B_{S}^{\prime}}\Bigg{\}},\end{split}$$

$$⟨B_s|({\bar{s}}_L{\gamma }_{\mu }{b}_L)({\bar{s}}_L{\gamma }^{\mu }{b}_L){\bar{B}}_s⟩$$

$$⟨B_s|({\bar{s}}_L^i{b}_R^j)({\bar{s}}_L^j{b}_R^i)|{\bar{B}}_s⟩$$

$$\frac{{\tau }_{B_s}}{{\tau }_{B_d}}={\left(\frac{{\tau }_{B_s}}{{\tau }_{B_d}}\right)}_{\mathrm{SM}}+{\left(\frac{{\tau }_{B_s}}{{\tau }_{B_d}}\right)}_{\mathrm{NP}},$$

$${\left(\frac{{\tau }_{B_s}}{{\tau }_{B_d}}\right)}_{\mathrm{NP}}=G_F^2|V_{cb}{V}_{cs}{|}^2{m}_b^2{M}_{B_s}{f}_{B_s}^2{\tau }_{B_s}\frac{\sqrt{1-4x_c^2}}{144\pi }\times$$

$$⟨B_s|({\bar{b}}_L{\gamma }_{\mu }{s}_L)({\bar{s}}_L{\gamma }^{\mu }{b}_L)|B_s⟩=\frac{1}{4}{f}_{B_s}^2{M}_{B_s}^2{B}_1,$$

$$⟨B_s|({\bar{b}}_R{s}_L)({\bar{s}}_L{b}_R)|B_s⟩=\frac{1}{4}{\left[\frac{M_{B_s}}{(m_b+m_s)}\right]}^2{f}_{B_s}^2{M}_{B_s}^2{B}_2,$$

$$⟨B_s|({\bar{b}}_L{\gamma }_{\mu }{T}^A{s}_L)({\bar{s}}_L{\gamma }^{\mu }{T}^A{b}_L)|B_s⟩=\frac{1}{4}{f}_{B_s}^2{M}_{B_s}^2{ϵ}_1,$$

$$⟨B_s|({\bar{b}}_R{T}^A{s}_L)({\bar{s}}_L{T}^A{b}_R)|B_s⟩=\frac{1}{4}{\left[\frac{M_{B_s}}{(m_b+m_s)}\right]}^2{f}_{B_s}^2{M}_{B_s}^2{ϵ}_2,$$

$$\mu \frac{d{C}_j}{d\mu }(\mu )={\gamma }_{ij}(\mu )C_i(\mu ),$$

$${\gamma }_{Q_i^c{\tilde{Q}}_9}^{(0)}={\left(\frac{4}{3},\frac{4}{9}\right)}_i,{\gamma }_{Q_i^c{P}_4}^{(0)}={\left(0,-\frac{2}{3}\right)}_i,{\gamma }_{Q_i^c{Q}_7}^{\mathrm{eff}(0)}={\left(0,\frac{224}{81}\right)}_i,$$

$$\left(\!\!\begin{array}[]{c}\Delta C_{1}(\mu)\\ \Delta C_{2}(\mu)\\ \Delta C_{3}(\mu)\\ \Delta C_{4}(\mu)\end{array}\!\!\right)\!\!=\!\!\left(\!\!\!\begin{array}[]{cccc}1.12&-0.27&0&0\\ -0.27&1.12&0&0\\ 0&0&0.92&0\\ 0&0&0.33&1.91\end{array}\!\right)\!\!\!\left(\!\!\begin{array}[]{c}\Delta C_{1}(\mu_{0})\\ \Delta C_{2}(\mu_{0})\\ \Delta C_{3}(\mu_{0})\\ \Delta C_{4}(\mu_{0})\end{array}\!\right)\!\!.$$

$$\Lambda \sim {\left(\frac{4G_F}{\sqrt{2}}|V_{cs}^{\ast }{V}_{cb}|\times 0.1\right)}^{-1/2}\sim 3\text{mbox}TeV.$$

$$C_7^{\mathrm{eff}}$$

$$C_8^{\mathrm{eff}}$$

$$⟨s\gamma |Q_i|b⟩$$

$$⟨sg|Q_i|b⟩$$

$${\gamma }_{Q_i^c{\tilde{Q}}_9}^{(0)}={\left(-\frac{8}{3},-\frac{8}{9},\frac{4}{3},\frac{4}{9}\right)}_i,{\gamma }_{Q_i^c{P}_4}^{(0)}={\left(0,\frac{4}{3},0,-\frac{2}{3}\right)}_i,$$

$${\gamma }_{Q_i^c{Q}_7}^{\mathrm{eff}(0)}={\left(0,\frac{416}{81},0,\frac{224}{81}\right)}_i(i=1,2,3,4).$$

Full text

††preprint: IPPP/17/5

I Introduction

Rare $B$ decays are excellent probes of new physics at the electroweak scale and beyond, due to their strong suppression in the Standard Model (SM). Interestingly, experimental data on rare branching ratios Aaij et al. (2014a, 2015a); *Khachatryan:2015isa and angular distributions for $B\to K^{(*)}\mu^{+}\mu^{-}$ decay Aaij et al. (2015a); *Khachatryan:2015isa; Lees et al. (2016); *Wei:2009zv; *Aaltonen:2011ja; *Aaij:2015oid; *Abdesselam:2016llu; *Wehle:2016yoi; *ATLAS:2017dlm; *Sirunyan:2017dhj may hint at a beyond-SM (BSM) contact interaction of the form $(\bar{s}_{L}\gamma^{\mu}b_{L})(\bar{\mu}\gamma_{\mu}\mu),$ which would destructively interfere with the corresponding SM (effective) coupling $C_{9}$ Descotes-Genon et al. (2013); *Beaujean:2013soa; *Altmannshofer:2014rta; *Descotes-Genon:2015uva; *Hurth:2016fbr; Geng et al. (2017); Altmannshofer et al. (2017); *Ciuchini:2017mik; *Capdevila:2017bsm, although the significance of the effect is somewhat uncertain because of form-factor uncertainties as well as uncertain long-distance virtual charm contributions Jäger and Martin Camalich (2013); *Jager:2014rwa; *Ciuchini:2015qxb; *Chobanova:2017ghn; *Capdevila:2017ert; *Bobeth:2017vxj. However, if the BSM interpretation is correct, it requires reducing $C_{9}$ by ${\cal O}(20\%)$ in magnitude. Such an effect might arise from new particles (see e.g. Buras and Girrbach (2013); *Gauld:2013qja; *Buras:2013dea; *Datta:2013kja; *Altmannshofer:2014cfa; *Hiller:2014yaa; *Gripaios:2014tna; *Crivellin:2015mga; *Varzielas:2015iva; *Crivellin:2015lwa; *Becirevic:2015asa; *Celis:2015ara; *Alonso:2015sja; *Belanger:2015nma; *Falkowski:2015zwa; *Gripaios:2015gra; *Bauer:2015knc; *Fajfer:2015ycq; *Boucenna:2016qad; *Arnan:2016cpy; *Becirevic:2016yqi; *Crivellin:2016ejn; *GarciaGarcia:2016nvr; *Cline:2017aed; *Baek:2017sew; *Cline:2017ihf; *Kawamura:2017ecz; *DiChiara:2017cjq; *Kamenik:2017tnu; *Crivellin:2017zlb; *Ko:2017lzd; *Ko:2017yrd; *DiLuzio:2017vat), which might in turn be part of a more comprehensive new dynamics. Noting that in the SM, about half of $C_{9}$ comes from (short-distance) virtual-charm contributions, in this article we ask whether new physics affecting the quark-level $b\to c\bar{c}s$ transitions could cause the anomalies, affecting rare $B$ decays through a loop. The bulk of these effects would also be captured through an effective shift $\Delta C_{9}(q^{2})$, with a possible dependence on the dilepton mass $q^{2}$. At the same time, such a scenario offers the exciting prospect of confirming the rare $B$-decay anomalies through correlated effects in hadronic $B$ decays into charm, with “mixing” observables such as the $B_{s}$-meson width difference standing out as precisely measured Aad et al. (2016); *Khachatryan:2015nza; *Aaij:2014zsa; *Aaij:2014owa and under reasonable theoretical control. This is in contrast with the $Z^{\prime}$ and leptoquark models usually considered, where correlated effects are typically restricted to other rare processes and are highly model dependent. Specific scenarios of hadronic new physics in the $B$ widths have been considered previously Bobeth et al. (2014); *Bobeth:2014rra; *Brod:2014bfa; *Bauer:2010dga, while the possibility of virtual charm BSM physics in rare semileptonic decay has been raised in Lyon and Zwicky (2014) (see also He et al. (2009)). As we will show, viable scenarios exist, which can mimic a shift $\Delta C_{9}=-{\cal O}(1)$ while being consistent with all other observables. In particular, very strong renormalization-group effects can generate large shifts in the (low-energy) effective $C_{9}$ coupling from small $b\to c\bar{c}s$ couplings at a high scale without conflicting with the measured $\bar{B}\to X_{s}\gamma$ decay rate Chen et al. (2001); *Abe:2001hk; *Aubert:2007my; *Limosani:2009qg; *Lees:2012ym; *Lees:2012ufa; *Lees:2012wg; *Saito:2014das.

II Charming new physics scenario

We consider a scenario where new physics affects the $b\to c\bar{c}s$ transitions. This could be the case in models containing new scalars or new gauge bosons, or strongly coupled new physics. Such models will typically affect other observables, but in a model-dependent manner. For this paper, we restrict ourselves to studying the new effects induced by modified $b\to c\bar{c}s$ couplings, leaving construction and phenomenology of concrete models for future work. We refer to this as the “charming BSM” (CBSM) scenario. As long as the mass scale $M$ of new physics satisfies $M\gg m_{B}$, the modifications to the $b\to c\bar{c}s$ transitions can be accounted for through a local effective Hamiltonian,

[TABLE]

We choose our operator basis and renormalization scheme to agree with Buras et al. (2000) upon the substitution $d\to b$, $\bar{s}\to\bar{c}$, $\bar{u}\to\bar{s}$:

[TABLE]

The $Q_{i}^{c\prime}$ are obtained by changing all the quark chiralities. We leave a discussion of such “right-handed current” effects for future work Jäger et al. and discard the $Q_{i}^{c\prime}$ below. We split the Wilson coefficients into SM and BSM parts,

[TABLE]

where $C_{i}^{c,\rm SM}=0$ except for $i=1,2$ and $\mu$ is the renormalization scale.

III Rare $B$ decays

The leading-order (LO), one-loop CBSM effects in radiative and rare semileptonic decays may be expressed through “effective” Wilson coefficient contributions $\Delta C_{9}^{\rm eff}(q^{2})$ and $\Delta C_{7}^{\rm eff}(q^{2})$ in an effective local Hamiltonian

[TABLE]

where $q^{2}$ is the dilepton mass and

[TABLE]

For $q^{2}$ small (in particular, well below the charm resonances), $\Delta C_{9}^{\rm eff}(q^{2})$ and $\Delta C_{7}^{\rm eff}(q^{2})$ govern the theoretical predictions for both exclusive ($B\to K^{(*)}\ell^{+}\ell^{-},B_{s}\to\phi\ell^{+}\ell^{-}$, etc.) and inclusive $B\to X_{s}\ell^{+}\ell^{-}$ decay, up to ${\cal O}(\alpha_{s})$ QCD corrections and power corrections to the heavy-quark limit that we neglect in our leading-order analysis. Similarly, $\Delta C_{7}^{\rm eff}(0)$ determines radiative $B$-decay rates. We will neglect the small CKM combination $V_{us}^{*}V_{ub}$, implying $V_{cs}^{*}V_{cb}=-V_{ts}^{*}V_{tb}$, and focus on real (CP-conserving) values for the $C_{i}^{c}$. From the diagram shown in Fig. 1 (left) we then obtain

[TABLE]

with $C_{x,y}^{c}=3\Delta C_{x}+\Delta C_{y}$ and the loop functions

[TABLE]

where $a(z)=\sqrt{|z-1|}\arctan\frac{1}{\sqrt{z-1}}$ and $z=4m_{c}^{2}/q^{2}$. Our numerical evaluation employs the charm pole mass.

We note that only the four Wilson coefficients $\Delta C_{1\dots 4}$ enter $\Delta C_{9}^{\rm eff}(q^{2})$. Conversely, $\Delta C_{7}^{\rm eff}(q^{2})$ is given in terms of the other six Wilson coefficients $\Delta C_{5\dots 10}$. The appearance of a one-loop, $q^{2}$-dependent contribution to $C_{7}^{\rm eff}$ is a novel feature in the CBSM scenario. Numerically, the loop function $a(z)$ equals one at $q^{2}=0$ and vanishes at $q^{2}=(2m_{c})^{2}$. The constant terms and the logarithm accompanying $y(q^{2},m_{c})$ partially cancel the contribution from $a(z)$ and they introduce a sizable dependence on the renormalization scale $\mu$ and the charm quark mass. Since a shift of $\Delta C_{7}^{\rm eff}(q^{2})$ is strongly constrained by the measured $B\to X_{s}\gamma$ decay rate, we do not consider the coefficients $\Delta C_{5\dots 10}$ in the remainder and focus on the four coefficients $\Delta C_{1\dots 4}$, which do not contribute to $B\to X_{s}\gamma$ at 1-loop order. Higher-order contributions can be important if new physics generates $\Delta C_{i}$ at the weak scale or beyond, as is typically expected. In this case large logarithms $\ln M/m_{B}$ occur, requiring resummation. To leading-logarithmic accuracy, we find

[TABLE]

if $\Delta C_{i}$ are understood to be renormalized at $\mu=M_{W}$ and $\Delta C_{7,9}^{\rm eff}$ at $\mu=4.2$ GeV. It is clear that $\Delta C_{1}$ and $\Delta C_{3}$ contribute (strongly) to rare semileptonic decay but only weakly to $B\to X_{s}\gamma$.

IV Mixing and lifetime observables

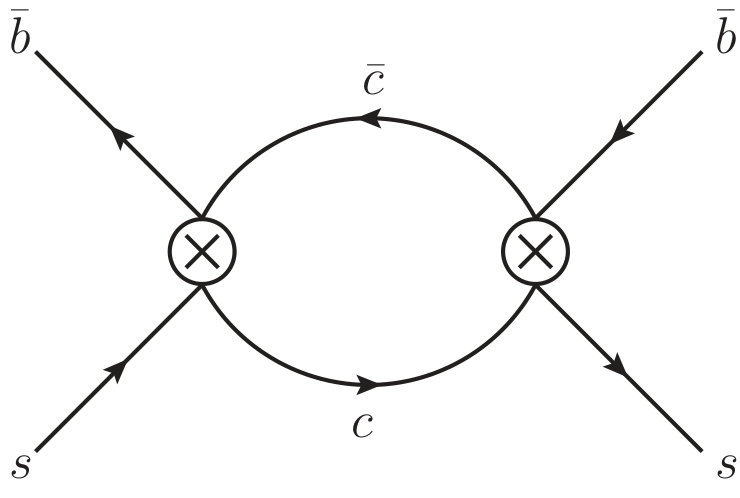

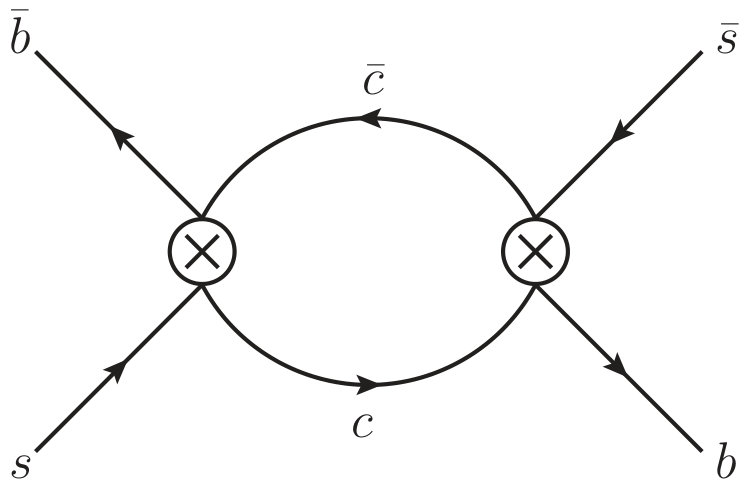

A distinctive feature of the CBSM scenario is that nonzero $\Delta C_{i}$ affect not only radiative and rare semileptonic decays, but also tree-level hadronic $b\to c\bar{c}s$ transitions. While the theoretical control over exclusive $b\to c\bar{c}s$ modes is very limited at present, the decay width difference $\Delta\Gamma_{s}$ and the lifetime ratio $\tau(B_{s})/\tau(B_{d})$ stand out as being calculable in a heavy-quark expansion Khoze and Shifman (1983); *Shifman:1984wx; *Bigi:1992su; see Fig. 1 (right). For both observables, the heavy-quark expansion gives rise to an operator product expansion in terms of local $\Delta B=2$ (for the width difference) or $\Delta B=0$ (for the lifetime ratio) operators. The formalism is reviewed in Lenz (2015) and applies to both SM and CBSM contributions. For the $B_{s}$ width difference, we have Artuso et al. (2016) $\Delta\Gamma_{s}=2|\Gamma_{12}^{s,\rm SM}+\Gamma_{12}^{c\bar{c}}|\cos\phi_{12}^{s},$ where the phase $\phi_{12}^{s}$ is small. Neglecting the strange-quark mass, we find

[TABLE]

with $x_{c}=m_{c}/m_{b}$. $B$, $\tilde{B}_{S}^{\prime}$ are defined through

[TABLE]

with values taken from Aoki et al. (2014). For our numerical evaluation of $\Gamma_{12}^{cc}$, we split the Wilson coefficients according to (3), subtract from the LO expression (11) the pure SM contribution and add the NLO SM expressions from Beneke et al. (1996); *Dighe:2001gc; *Beneke:1998sy; *Beneke:2003az; *Ciuchini:2003ww; *Lenz:2006hd. In general, a modification of $\Gamma_{12}^{cc}$ also affects the semi-leptonic CP asymmetries. However, since we consider CP-conserving new physics in this paper and since the corresponding experimental uncertainties are still large, the semi-leptonic asymmetries will not lead to an additional constraint.

In a similar manner, for the the lifetime ratio, we find

[TABLE]

where the SM contribution is taken from Franco et al. (2002) and

[TABLE]

subtracting the SM part and defining $B_{1}$, $B_{2}$, $\epsilon_{1}$, $\epsilon_{2}$ as

[TABLE]

with values taken from Kirk et al. (2017). We interpret the quark masses as $\overline{\rm MS}$ parameters at $\mu=4.2$ GeV.

V Rare decays versus lifetimes—low-scale scenario

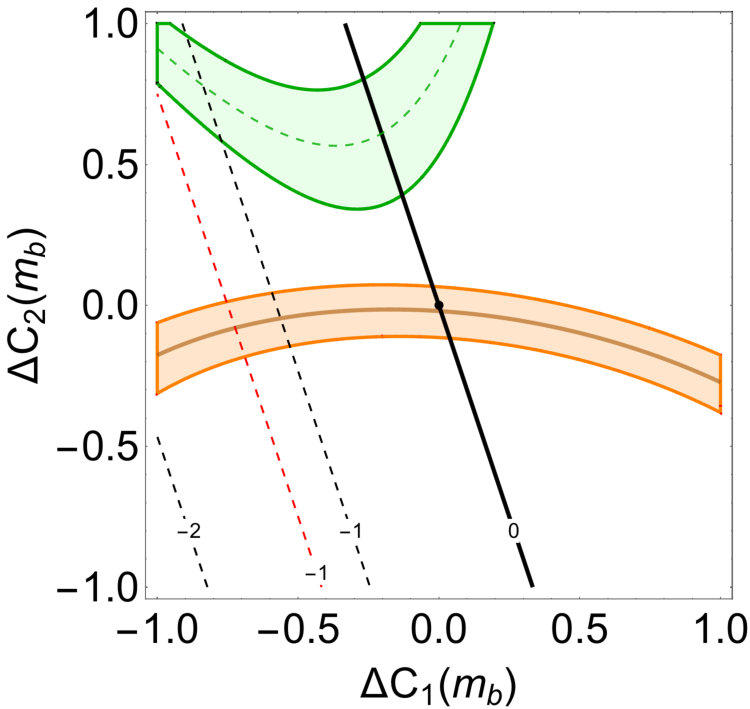

We are now in a position to confront the CBSM scenario with rare decay and mixing observables, as long as we consider renormalization scales $\mu\sim m_{B}$. Then the logarithms inside the $h$ function entering (5) are small and our leading-order calculation should be accurate. Such a scenario is directly applicable if the mass scale $M$ of the physics generating the $\Delta C_{i}$ is not too far above $m_{B}$, such that $\ln(M/m_{B})$ is small. Fig. 2 (left) shows the experimental $1\sigma$ allowed regions for the width difference and lifetime ratio (from the web update of Amhis et al. (2016)) in the $(\Delta C_{1},\Delta C_{2})$ plane.

The central values are attained on the brown (solid) and green (dashed) curves, respectively. The measured lifetime ratio and the width difference measurement can be simultaneously accommodated for different values of the Wilson coefficients: in the $\Delta C_{1}$-$\Delta C_{2}$ plane, we find the SM solution, as well as a solution around $\Delta C_{1}=-0.5$ and $\Delta C_{2}\approx 0$. In the $\Delta C_{3}$-$\Delta C_{4}$ plane, we have a relatively broad allowed range, roughly covering the interval $[-0.9,+0.7]$ for $\Delta C_{3}$ and $[-0.6,+1.1]$ for $\Delta C_{4}$. For further conclusions, a considerably higher precision in experiment and theory is required for $\Delta\Gamma_{s}$ and $\tau_{B_{s}}/\tau_{B_{d}}$. Also shown in the plot are contour lines for the contribution to the effective semileptonic coefficient $\Delta C_{9}^{\rm eff}(q^{2})$, both for $q^{2}=2\,{\rm GeV}^{2}$ and $q^{2}=5\,{\rm GeV}^{2}$ We see that sizable negative shifts are possible while respecting the measured width difference and the lifetime ratio. For example, a shift $\Delta C_{9}^{\rm eff}\sim-1$ as data may suggest could be achieved through $\Delta C_{1}\sim-0.5$ alone. Such a value for $\Delta C_{1}$ may well be consistent with CP-conserving exclusive $b\to c\bar{c}s$ decay data, where no accurate theoretical predictions exist. On the other hand, $\Delta C_{9}^{\rm eff}$ only exhibits a mild $q^{2}$-dependence. Distinguishing this from possible long-distance contributions would require substantial progress on the theoretical understanding of the latter.

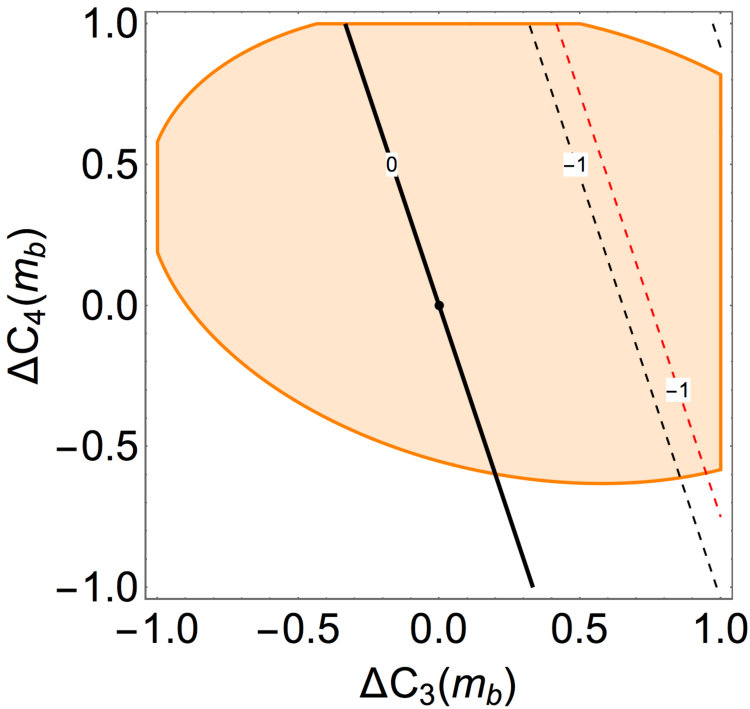

We can also consider other Wilson coefficients, such as the pair $(\Delta C_{3},\Delta C_{4})$ (right panel in Fig. 2). A shift $\Delta C_{9}^{\rm eff}\sim-1$ is equally possible and consistent with the width difference, requiring only $\Delta C_{3}\sim 0.5$.

VI High-scale scenario and RGE

VI.1 RG enhancement of $\Delta C_{9}^{\rm eff}$

If the CBSM operators are generated at a high scale then large logarithms $\ln M/m_{B}$ appear. Their resummation is achieved by evolving the initial (matching) conditions $C_{i}(\mu_{0}\sim M)$ to a scale $\mu\sim M_{B}$ according to the coupled renormalization-group equations (RGE),

[TABLE]

where $\gamma_{ij}$ is the anomalous-dimension matrix. As is well known, the operators $Q_{i}^{c}$ mix not only with $Q_{7}$ and $Q_{9}$, but also with the 4 QCD penguin operators $P_{3\dots 6}$ and the chromodipole operator $Q_{8g}$ (defined as in Chetyrkin et al. (1997)), which in turn mix into $Q_{7}$. Hence the index $j$ runs over 11 operators with $\Delta B=-\Delta S=1$ flavor quantum numbers in order to account for all contributions to $C_{7}(\mu)$ that are proportional to $\Delta C_{i}(\mu_{0})$. Most entries of $\gamma_{ij}$ are known at LO Gaillard and Lee (1974); *Altarelli:1974exa; *Gilman:1979bc; *Shifman:1976ge; Gilman and Wise (1980); Guberina and Peccei (1980); Chetyrkin et al. (1997); Ciuchini et al. (1993); *Ciuchini:1994xa; *Ciuchini:1993fk; Buras et al. (2000); Bertolini et al. (1987); *Grinstein:1987vj; *Grinstein:1990tj; *Misiak:1991dj; Gilman and Wise (1980); Chetyrkin et al. (1997, 1998); our novel results are ($i=3,4$)

[TABLE]

where $\tilde{Q}_{9}=(4\pi/\alpha_{s})Q_{9V}(\mu)$ and $\gamma_{Q_{i}^{c}Q_{7}}^{\rm eff(0)}$ requires a two-loop calculation. (See appendix for further technical information.) Solving the RGE for $\mu_{0}=M_{W}$, $\mu=4.2$ GeV, and $\alpha_{s}(M_{Z})=0.1181$, results in the CBSM contributions to $\Delta C_{7}^{\rm eff}$ and $\Delta C_{9}^{\rm eff}$ in (9),(10) as well as

[TABLE]

A striking feature are the large coefficients in the $\Delta C_{9}^{\rm eff}$ case, which are ${\cal O}(1/\alpha_{s})$ in the logarithmic counting. The largest coefficients appear for $\Delta C_{1}$ and $\Delta C_{3}$, which at the same time practically do not mix into $C_{7}^{\rm eff}$. This means that small values $\Delta C_{1}\sim-0.1$ or $\Delta C_{3}\sim 0.2$ can generate $\Delta C_{9}^{\rm eff}(\mu)\sim-1$ while having essentially no impact on the $B\to X_{s}\gamma$ decay rate. Conversely, values for $\Delta C_{2}$ or $\Delta C_{4}$ that lead to $\Delta C_{9}^{\rm eff}\sim-1$ lead to large effects in $C_{7}^{\rm eff}$ and $B\to X_{s}\gamma$.

VI.2 Phenomenology for high NP scale

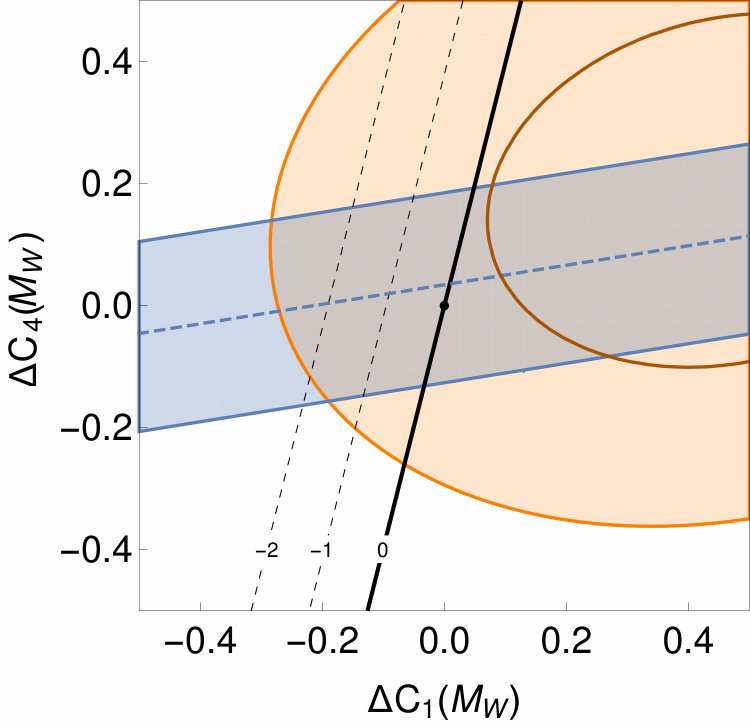

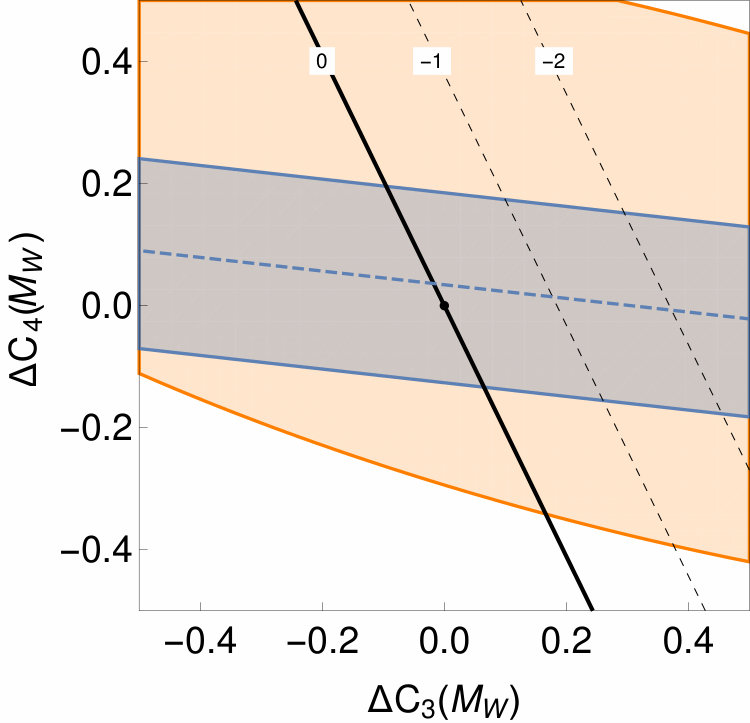

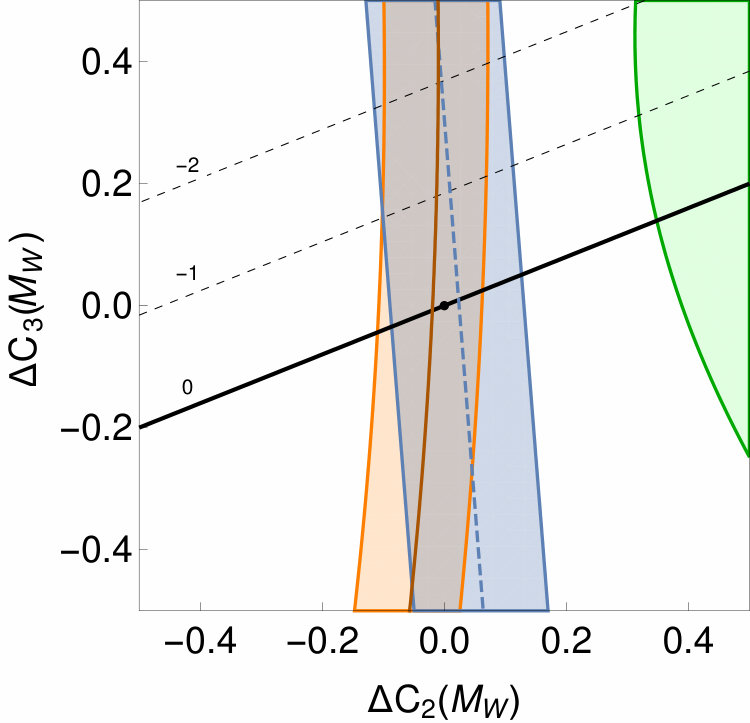

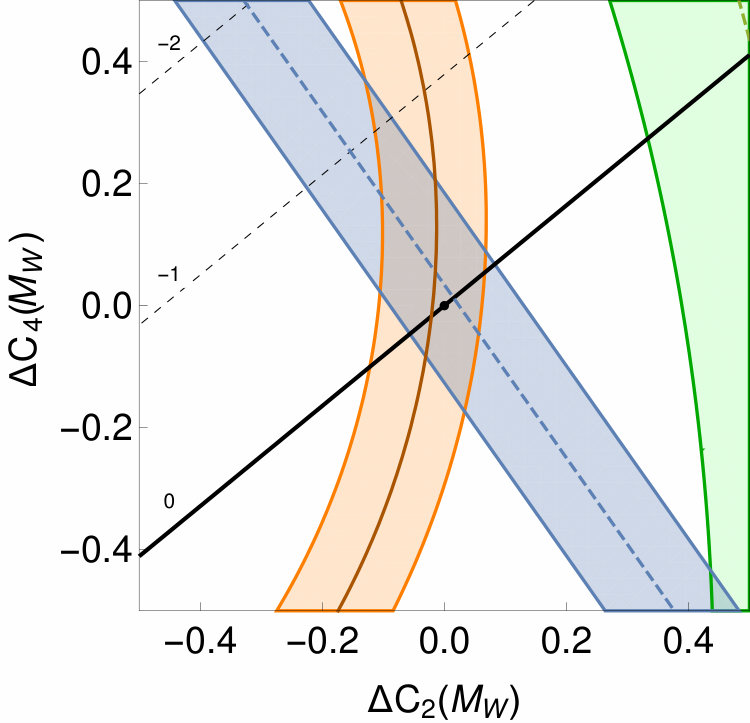

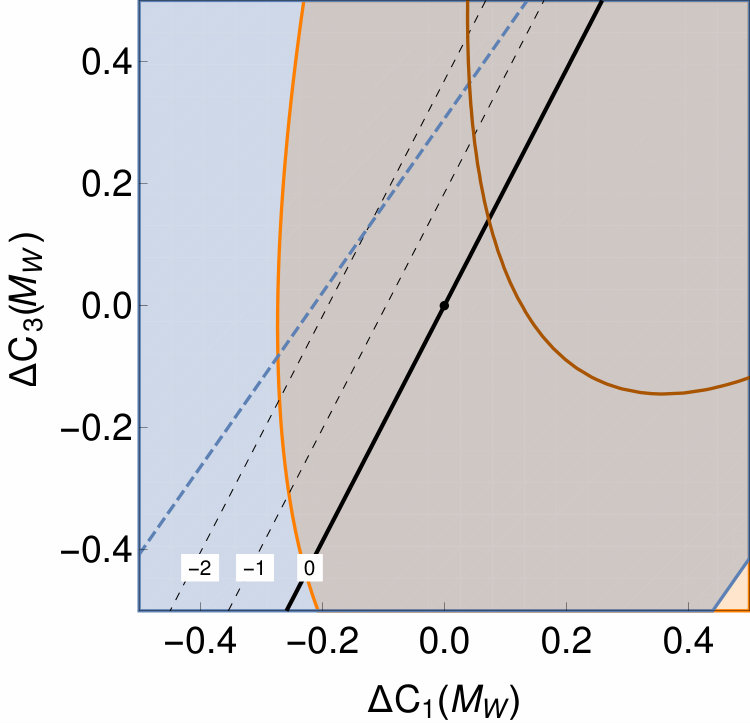

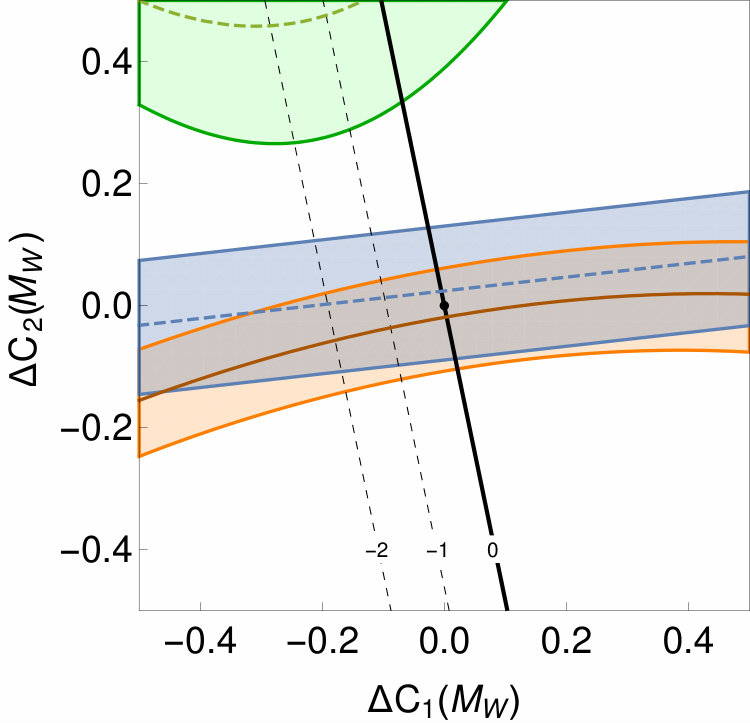

The situation in various two-parameter planes is depicted in Fig. 3, where the $1\sigma$ constraint from $B\to X_{s}\gamma$ is shown as blue, straight bands. (We implement it by splitting $BR(B\to X_{s}\gamma)$ into SM and BSM parts and employ the numerical result and theory error from Misiak et al. (2015) for the former. The experimental result is taken from the web update of Amhis et al. (2016).) The top row corresponds to Fig. 2, but contours of given $\Delta C_{9}$ lie much closer to the origin. All six panels testify to the fact that the SM is consistent with all data when leaving aside the question of rare semileptonic $B$ decays—the largest pull stems from the fact that the experimental value for $\tau_{B_{s}}/\tau_{B_{d}}$ is just under 1.5 standard deviations below the SM expectation, such that the black (SM) point is less than $0.5\sigma$ outside the green area. Our main question is now: can we have a new contribution $\Delta C_{9}^{\rm eff}\sim-1$ to rare semileptonic decays, while being consistent with the bounds stemming from $b\to s\gamma$, $\Delta\Gamma_{s}$ and $\tau_{B_{s}}/\tau_{B_{d}}$? This is clearly possible (indicated by the yellow star in the plots) if we have a new contribution $\Delta C_{3}\approx 0.2$, see the three plots of the $\Delta C_{i}-\Delta C_{3}$ planes in Fig. 3 (right on the top row, left on the middle row and left on the lower row). In these cases, the $\Delta C_{9}^{\rm eff}\sim-1$ solution is even favored compared to the SM solution. A joint effect in $\Delta C_{2}\approx-0.1$ and $\Delta C_{4}\approx 0.3$ can also accommodate our desired scenario, see the right plot on the lower row, while new BSM effects in the pairs $\Delta C_{1},\Delta C_{2}$ and $\Delta C_{1},\Delta C_{4}$ alone are less favored. One could also consider three or all four $\Delta C_{i}$ simultaneously.

VI.3 Implications for UV physics

Our model-independent results are well suited to study the rare $B$-decay and lifetime phenomenology of ultraviolet (UV) completions of the Standard Model. Any such completion may include extra UV contributions to $C_{7}(M)$ and $C_{9}(M)$, correlations with other flavor observables, collider phenomenology, etc.; the details are highly model-dependent and beyond the scope of our model-independent analysis. Here we restrict ourselves to some basic sanity checks.

Taking the case of $\Delta C_{1}(M)\sim-0.1$ corresponds to a naive ultraviolet scale

[TABLE]

This effective scale could arise in a weakly-coupled scenario from tree-level exchange of new scalar or vector mediators, or at loop level in addition from fermions; or the effective operator could arise from strongly-coupled new physics. For a tree-level exchange, $\Lambda\sim M/g_{*}$ where $g_{*}=\sqrt{g_{1}g_{2}}$ is the geometric mean of the relevant couplings. For weak coupling $g_{*}\sim 1$, this then gives $M\sim 3$ TeV. Particles of such mass are certainly allowed by collider searches if they do not couple (or only sufficiently weakly) to leptons and first-generation quarks. Multi-TeV weakly coupled particles also generically are not in violation of electroweak precision tests of the SM. Loop-level mediation would require mediators close to the weak scale which may be problematic and would require a specific investigation; this is of course unsurprising given that $b\to c\bar{c}s$ transitions are mediated at tree level in the SM. The same would be true in a BSM scenario that mimics the flavor suppressions in the SM (such as MFV models). Conversely, in a strongly-coupled scenario we would have $M\sim g_{*}\Lambda\sim 4\pi\Lambda\sim 30$ TeV. This is again safe from generic collider and precision constraints, and a model-specific analysis would be required to say more.

Finally, as all CBSM effects are lepton-flavor-universal, they cannot on their own account for departures of the lepton flavor universality parameters $R_{K^{(*)}}$ Hiller and Kruger (2004) from the SM values as suggested by current experimental measurements Aaij et al. (2014c); *Aaij:2017vbb; *Aaij:2017tyk. However, even if those departures are real, they may still be caused by direct UV contributions to $\Delta C_{9}$. For example, as shown in Geng et al. (2017), a scenario with a muon-specific contribution $\Delta C_{9}^{\mu}=-\Delta C_{10}^{\mu}\sim-0.6$ and in addition a lepton-universal contribution $\Delta C_{9}\sim-0.6$, which may have a CBSM origin, is perfectly consistent with all rare-$B$-decay data, and in fact marginally preferred.

VII Prospects and summary

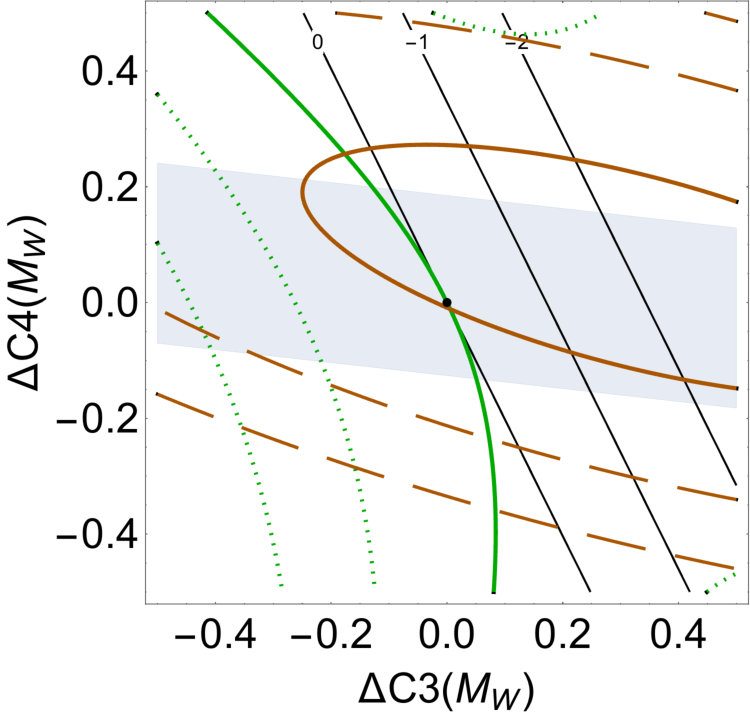

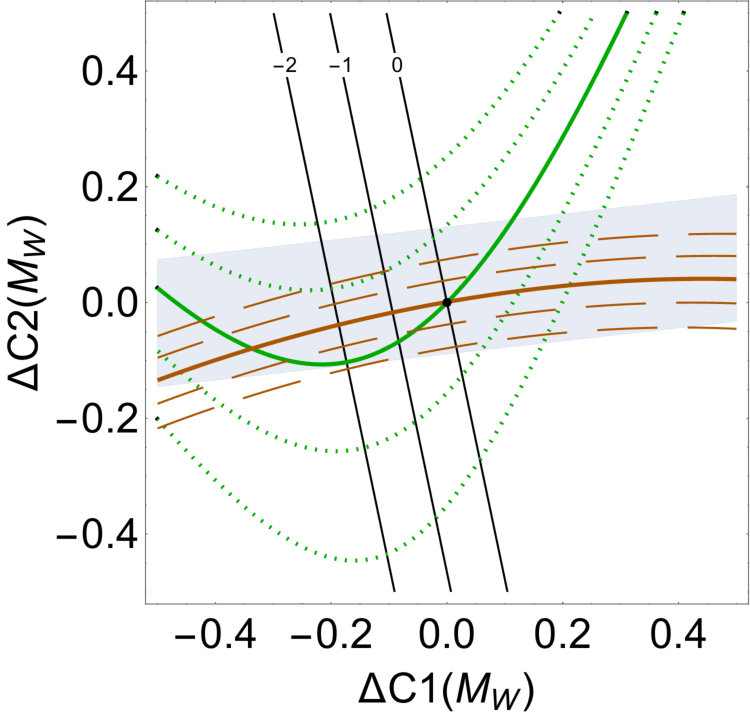

The preceding discussion suggests that a precise knowledge of width difference and lifetime ratio, as well as $BR(B\to X_{s}\gamma)$, can have the potential to identify and discriminate between different CBSM scenarios, or rule them out altogether. This is illustrated in Fig. 4, showing contour values for future precision both in mixing and lifetime observables. In each panel, the solid (brown and green) contours correspond to the SM central values of the width difference and lifetime ratio (respectively). The spacing of the accompanying contours is such that the area between any two neighboring contours corresponds to a prospective $1\sigma$-region, assuming a combined (theoretical and experimental) error on the lifetime ratio of 0.001 and a combined error on $\Delta\Gamma_{s}$ of $5\%$. The assumed future errors are ambitious but seem feasible with expected experimental and theoretical progress. Overlaid is the (current) $B\to X_{s}\gamma$ constraint (blue). The figure indicates that a discrimination between the SM and the scenario where $\Delta C_{9}\approx-1$, while $BR(B\to X_{s}\gamma)$ is SM-like is clearly possible. A crucial role is played by the lifetime ratio $\tau_{B_{s}}/\tau_{B_{d}}$: in e.g. the $\Delta C_{3}-\Delta C_{4}$ case a 1 $\sigma$ deviation of the lifetime ratio almost coincides with the $\Delta C_{9}=-1$ contour line; a further precise determination of $\Delta\Gamma_{s}$ could then identify the point on this line chosen by nature. Further progress on $B\to X_{s}\gamma$ in the Belle II era would provide complementary information.

In summary, we have given a comprehensive, model-independent analysis of BSM effects in partonic $b\to c\bar{c}s$ transitions (CBSM scenario) in the CP conserving case, focusing on those observables that can be computed in a heavy-quark expansion. An effect in rare semileptonic $B$ decays compatible with hints from current LHCb and $B$-factory data can be generated, while satisfying the $B\to X_{s}\gamma$ constraint. It can originate from different combinations of $b\to c\bar{c}s$ operators. The required Wilson coefficients are so small that constraints from $B$ decays into charm are not effective, particularly if new physics enters at a high scale; then large renormalization-group enhancements are present. Likewise, there are no obvious model-independent conflicts with collider searches or electroweak precision observables. A more precise measurement of mixing observables and lifetime ratios, at a level achievable at LHCb, may be able to confirm (or rule out) the CBSM scenario, and to discriminate between different BSM couplings. Finally, all CBSM effects are lepton-flavor-universal; the current $R_{K}$ and $R_{K^{*}}$ anomalies would either have to be mismeasurements or require additional lepton-flavor-specific UV contribution to $C_{9}$; such a combined scenario has been shown elsewhere to be consistent with all rare $B$-decay data and also presents the most generic way for UV physics to affect rare decays. With the stated caveats, our conclusions are rather model independent. It would be interesting to construct concrete UV realizations of the CBSM scenario, which almost certainly will affect other observables in a correlated, but model-dependent manner.

VIII Acknowledgments

We would like to thank C. Bobeth, P. Gambino, M. Gorbahn, and especially M. Misiak for discussions. This work was supported by an IPPP Associateship. S.J. and K.L. acknowledge support by STFC Consolidated Grant No. ST/L000504/1, an STFC studentship, and a Weizmann Institute “Weizmann-UK Making Connections” grant. A.L. and M.K. are supported by the STFC IPPP grant.

IX Appendix: Technical aspects of the anomalous-dimension calculation

Here we provide additional technical information regarding our results on anomalous dimensions entering in the RGE (20).

A set of Wilson coefficients that contains $C_{7}$, $C_{9}$, and $C^{c}_{1\dots 4}$ and is closed under renormalization necessarily also contains four QCD-penguin coefficients $C_{P_{i}}$ multiplying the operators $P_{3\dots 6}$ (we define them as in Chetyrkin et al. (1997)) and the chromodipole coefficient $C_{8g}$, resulting in an $11\times 11$ anomalous-dimension matrix $\gamma$. If the rescaled semileptonic operator $\tilde{Q}_{9}(\mu)=(4\pi/\alpha_{s}(\mu))Q_{9V}(\mu)$ is used then to leading order $\gamma_{ij}(\mu)=\alpha_{s}(\mu)/(4\pi)\gamma^{(0)}_{ij}$, with constant $\gamma^{(0)}_{ij}$. As is well known, this matrix is scheme-dependent already at LO Ciuchini et al. (1993); *Ciuchini:1994xa; *Ciuchini:1993fk. A scheme-independent matrix $\gamma^{\rm eff(0)}$ can be achieved by replacing $C_{7}$ and $C_{8}$ by the scheme-independent combinations

[TABLE]

where

[TABLE]

to lowest order and the sums run over all four-quark operators. We find that $y_{i}$ and $z_{i}$ vanish for $Q_{1\dots 4}^{c}$, leaving only the known coefficients $y_{P_{i}}=(-1/3,-4/9,-20/3,-80/9)_{i}$ and $z_{P_{i}}=(1,-1/6,20,-10/3)_{i}$ ($i=3\dots 6$) Chetyrkin et al. (1997). The BSM correction $\Delta C_{9}^{\rm eff}$ in (5),(10) coincides with the (BSM correction to the) coefficient $C_{9}$ of $Q_{9V}$ to LL accuracy.

Many of the elements of $\gamma^{\rm eff(0)}$ are known Gaillard and Lee (1974); *Altarelli:1974exa; *Gilman:1979bc; *Shifman:1976ge; Gilman and Wise (1980); Guberina and Peccei (1980); Ciuchini et al. (1993); *Ciuchini:1994xa; Buras et al. (2000), except for $\gamma^{\rm eff(0)}_{Q_{i}^{c}Q_{7\gamma}}$, $\gamma^{\rm eff(0)}_{Q_{i}^{c}Q_{8g}}$, $\gamma^{\rm eff(0)}_{Q_{i}^{c}P_{j}}$, and $\gamma^{\rm eff(0)}_{Q_{i}^{c}\tilde{Q}_{9}}$, for $i=3,4$. The latter can be read off from the logarithmic terms in (5), and the mixing into $P_{i}$ follows from substituting gauge coupling and color factors in diagram Fig. 1 (left). This gives

[TABLE]

for $i=1,2,3,4$, with the mixing into $C_{P_{3,5,6}}$ vanishing.

The leading mixing into $C_{7}^{\rm eff}$ arises at two loops Bertolini et al. (1987); *Grinstein:1987vj; *Grinstein:1990tj; *Misiak:1991dj and is the technically most challenging aspect of this work. Our calculation employs the 1PI (off-shell) formalism and the method of Chetyrkin et al. (1998) for computing UV divergences, which involves an infrared-regulator mass and the appearance of a set of gauge-non-invariant counterterms. The result is

[TABLE]

Our stated results for $i=1,2$ agree with the results in Gilman and Wise (1980); Chetyrkin et al. (1997), which constitutes a cross-check of our calculation.

We have not obtained the 2-loop mixing of $C_{3,4}^{c}$ into $C_{8g}$ and set these anomalous dimension elements to zero. For the case of $C_{1,2}^{c}$ where this mixing is known, the impact of neglecting $\gamma^{\rm eff(0)}_{i8}$ on $\Delta C_{7}^{\rm eff}(\mu)$ is small [the only change being $-0.19\Delta C_{2}\to-0.18\Delta C_{2}$ in (9)]. We expect a similarly small error in the case of $\Delta C_{3,4}$.
