Landau's criterion for an anisotropic Bose-Einstein condensate

TL;DR

This paper investigates Landau's criterion for anisotropic superfluidity in Bose-Einstein condensates with dipole interactions or spin-orbit coupling, revealing how anisotropy affects critical velocities and dissipation.

Contribution

It introduces a detailed analysis of Landau's criterion in anisotropic BECs with dipole and spin-orbit interactions, providing explicit calculations of energy dissipation and critical velocities.

Findings

Critical velocity is generally smaller than sound velocity in the moving direction.

Dissipation rate is explicitly calculated beyond the critical velocity.

Raman coupling suppresses dissipationless motion in spin-orbit coupled BECs.

Abstract

In this work, we discuss the Landau's criterion for anisotropic superfluidity. To this end, we consider a point-like impurity moving in a uniform Bose-Einstein condensate with either interparticle dipole-dipole interaction or Raman induced spin-orbit coupling. In both cases, we find that the Landau critical velocity $v_{\rm c}$ is generally smaller than the sound velocity in the moving direction. Beyond $v_{\rm c}$, the energy dissipation rate is explicitly calculated via a perturbation approach. In the plane-wave phase of a spin-orbit coupled Bose gas, the dissipationless motion is suppressed by the Raman coupling even in the direction orthogonal to the recoil momentum. Our predictions can be tested in the experiments with ultracold atoms.

Figures

Equations

$$v_{\mathrm{c}}=\min \left(\frac{E_{\mathbf{q}}}{q}\right),$$

$$v_{\mathrm{c}}=\min \left(\frac{E_{\mathbf{q}}}{\mathbf{q}\cdot \hat{\mathbf{v}}}\right),$$

$$\mathbf{q}\cdot \mathbf{v}=E_{\mathbf{q}},$$

$${\mathcal{H}}_{\mathrm{pert}}=\sum _{j=1}^{N}U({\mathbf{r}}_j-\mathbf{v}t)=\int \frac{{\mathrm{d}}^{3}q}{(2\pi {)}^3}{\rho }_{\mathbf{q}}^{†}{U}_{\mathbf{q}}{e}^{-i\mathbf{q}\cdot \mathbf{v}t}$$

$$P=\frac{U_0^{2}n}{4{\pi }^{2}N}\int {\mathrm{d}}^{3}q\int \mathrm{d}\omega \omega S(\mathbf{q},\omega )\delta (\omega -\mathbf{q}\cdot \mathbf{v})$$

$${\mathcal{V}}_{\mathrm{int}}(\mathbf{r})=g\left[\delta (\mathbf{r})+3{ϵ}_{\mathrm{dd}}(1-3{\cos }^2\theta )/(4\pi r^3)\right],$$

$$E_{\mathbf{q}}$$

$$c({\theta }_{\mathbf{q}})$$

$$v_{\mathrm{c}}({\theta }_{\mathbf{v}})=\min \left[\frac{c({\theta }_{\mathbf{q}})}{\cos ({\theta }_{\mathbf{q}}-{\theta }_{\mathbf{v}})}\right],$$

$$c_{\perp }^2\tan {\theta }_{\mathbf{q}}=c_{\parallel }^2\tan {\theta }_{\mathbf{v}}.$$

$$v_{\mathrm{c}}({\theta }_{\mathbf{v}})=c_{\parallel }{c}_{\perp }{\left({\sin }^2{\theta }_{\mathbf{v}}{c}_{\parallel }^2+{\cos }^2{\theta }_{\mathbf{v}}{c}_{\perp }^2\right)}^{-1/2}.$$

$$v_{\mathrm{c}}({\theta }_{\mathbf{v}})⩽c({\theta }_{\mathbf{v}}),$$

$$P=\frac{U_0^{2}n}{8{\pi }^2}\int {\mathrm{d}}^{3}q\frac{q^2}{m}\delta (E_{\mathbf{q}}-\mathbf{q}\cdot \mathbf{v}),$$

$${\mathcal{H}}_{\mathrm{SO}}=\frac{(\mathbf{p}-{\mathbf{k}}_{\mathrm{r}}{\sigma }_z{)}^2}{2m}+\frac{\Omega }{2}{\sigma }_x+\frac{\delta }{2}{\sigma }_z,$$

Full text

One of the manifestations of superfluidity is the ability to support dissipationless motion. An impurity immersed in a superfluid can move without friction when its velocity is below a critical value. This phenomenon is explained by the famous Landau’s criterion LevSandroBook ; LeggettBook , according to which, the critical velocity is given by

[TABLE]

with $E_{\bf q}$ being the elementary excitation spectrum of the superfluid. The Landau critical velocity had been observed in liquid He-II and Bose-Einstein condensate (BEC) of a dilute gas, where the onset of dissipation is due to the creation of roton He_exp and phonon vc_exp1 , respectively.

Recently, two new types of BEC were realized in the ultracold atomic gases: One was achieved in magnetic atoms of 52Cr Cr_BEC , 164Dy Dy_BEC and 168Er Er_BEC with interparticle dipole-dipole interaction (DDI); the other was achieved in alkali atoms of 87Rb NIST2011 and 23Na Ketterle2016 with synthetic spin-orbit (SO) coupling. Remarkably, the excitation spectra of these superfluids are anisotropic and can be tuned by an external magnetic field or laser field. While anisotropic dynamics and collective excitations have been experimentally observed in these systems dipole_exp1 ; dipole_exp2 ; dipole_exp3 ; dipole_exp4 ; dipole_exp5 ; soc_exp1 ; soc_exp5 ; soc_exp6 , the critical velocity has not been measured so far.

The application of the Landau’s criterion to an anisotropic superfluid is not a trivial problem. In this work, we show that the anisotropic critical velocity, along a certain direction $\bf\hat{v}$, is given by

[TABLE]

where the minimum is calculated over all the values of momentum $\bf q$ under the constraint ${\bf q\cdot\hat{v}}>0$. The condition $v<v_{\rm c}$, with $v_{\rm c}$ given by (2), can be recognized as a generalized Landau’s criterion for anisotropic superfluidity, and its consequence is discussed later in both dipolar and SO coupled Bose gases.

Critical velocity (2) can be derived in the standard way similar to the isotropic case LeggettBook . Consider a heavy point-like impurity moving in a uniform superfluid at zero temperature. The impurity can lose its kinetic energy by creating one or more excitations in the superfluid, and the onset of dissipation only involves the processes of creating a single excitation note9 . Such processes conserve energy and momentum, thus, satisfy the relation

[TABLE]

where $\bf v$ is the velocity of the impurity, $\bf q$ is the momentum of the excitation, and we have assumed that the mass of impurity is very large compared to that of atoms in the superfluid. If condition (3) cannot be satisfied by any $\bf q$, no excitation will be created. As a result, when $v<v_{\rm c}$, the motion (in the $\bf\hat{v}$ direction ) is dissipationless.

The difference between (1) and (2) is not insignificant. In an isotropic system, the minimum value of $E_{\bf q}/({\bf q\cdot\hat{v}})$ always appears at a momentum in the $\bf\hat{v}$ direction, consequently, $v_{\rm c}$ reduces to its well-known form (1). In an anisotropic system, however, the minimization in (2) is complicated, and in general, $v_{\rm c}$ is not determined by the dispersion relation in the moving direction (see examples below). Physically, (1) and (2) correspond to distinct scenarios of creating excitations at the threshold velocity. In an isotropic system, the excitation created at $v_{\rm c}$ propagates in the same direction as $\bf\hat{v}$. In contrast, in an anisotropic system, the excitation could propagate in a different direction other than $\bf\hat{v}$. Geometrically, for a given $\bf\hat{v}$, one can determine $v_{\rm c}$ as follows: Plot the set of curves of $E_{\bf q}$ versus ${\bf q}\cdot{\bf\hat{v}}$ along different directions of momentum; then, from the origin, draw tangent lines to each of the curves and find the line with the smallest positive slope; this slope is just equal to $v_{\rm c}$.

For the system with Galilean invariance, the condition $v<v_{\rm c}$ also ensures the stability of a supercurrent state, as first proposed by Landau LevSandroBook ; LeggettBook . Suppose a fluid flows at a constant velocity in the $-\bf\hat{v}$ direction. The appearance of an excitation at momentum $\bf q$ costs an energy $E_{\bf q}+{\bf q}\cdot{\bf v}_{\rm flow}$. Therefore, the flow suffers an energetic instability once $v_{\rm flow}$ exceeds $v_{\rm c}$. It should be noted that if the Galilean invariance is broken, the maximum velocity of the stable superflow would be different from the critical velocity (2).

Beyond $v_{\rm c}$, the motion of the impurity becomes dissipative. To calculate the energy dissipation rate, we assume the interaction between the impurity and the condensate is weak and treat it as a perturbation (set $\hbar=1$),

[TABLE]

where $U({\bf r})$ is the interaction potential between the impurity and the atoms of the superfluid, $\rho_{\bf q}=\sum_{j=1}^{N}e^{-i{\bf q}\cdot{\bf r}_{j}}$ is the density fluctuation operator, $N$ is the atoms number, and $U_{\bf q}=\int{\rm d}^{3}r\,U({\bf r})e^{-i{\bf q}\cdot{\bf r}}$. For convenience, we take $U({\bf r})$ as a contact potential and set $U_{\bf q}=U_{0}$. The dissipation rate of the impurity $P$ equals to the energy transferred to the condensate in the per unit time $d\mathcal{E_{\rm SF}}/dt$. In the linear response regime, we have LevSandroBook

[TABLE]

where $n$ is the average density of atoms, and $S({\bf q},\omega)=\left|\langle\Phi_{\bf q}|\rho_{\bf q}^{\dagger}|\Phi_{0}\rangle\right|^{2}\delta(\omega-E_{\bf q})$ is the dynamic structure factor of the superfluid, with $|\Phi_{0}\rangle$ and $|\Phi_{\bf q}\rangle$ being the ground state and the excited state respectively. Since $S({\bf q},\omega)$ is non-zero only at the resonant frequencies $\omega=E_{\bf q}$, the energy dissipation vanishes for $v<v_{\rm c}$, which is consistent with the Landau’s criterion. In experiments, the dissipation can be observed through the heating of the superfluid.

The dissipation rate (5) can be also written as $P=-{\bf F}\cdot{\bf v}$, where ${\bf F}=U_{0}^{2}n/(4\pi^{2}N)\int{\rm d}^{3}q\,S({\bf q},{\bf q}\cdot{\bf v}){\bf q}$ is the drag force acting on the impurity Pitaevskii2004 . The drag force arises for $v>v_{\rm c}$. In an isotropic superfluid, from a symmetry argument, one can show that $\bf F$ is always in the direction of $-\bf\hat{v}$. This conclusion no longer holds in an anisotropic system note_drag . Nevertheless, only the projection $\bf F\cdot\hat{v}$ contributes to the energy dissipation.

Now we apply the above general results to a dipolar BEC note_dipole . The interparticle interactions in a dipolar gas consist of two parts: the short range van der Waals interaction and the long-range DDI. Assuming all the dipoles aligned along the $\bf\hat{z}$ axis, the effective interaction potential reads dipole_review

[TABLE]

where $m$ is the atomic mass, $g$ is the coupling constant of the $s$-wave contact interaction, $\theta$ is the angle between the dipole axis and the interatomic distance $\bf r$, and $\epsilon_{\rm dd}$ is a dimensionless parameter quantifying the relative strength of the DDI. In experiments, $\epsilon_{\rm dd}$ can be tuned via the technique of Feshbach resonance.

The Bogoliubov excitation spectrum of a polarized dipolar BEC is given by dipole_review

[TABLE]

where $c(\theta_{\bf q})$ is the anisotropic sound velocity depending on the polar angle of the momentum $\bf q$,

[TABLE]

The sound velocity reaches its minimum $c_{\perp}=c_{0}\sqrt{1-\epsilon_{\rm dd}}$ at $\theta_{\bf q}=\pi/2$ and reaches its maximum $c_{\parallel}=c_{0}\sqrt{1+2\epsilon_{\rm dd}}$ at $\theta_{\bf q}=0$ or $\pi$, where $c_{0}=\sqrt{gn/m}$ is the sound velocity with a pure $s$-wave interaction. Below, we restrict our discussion in the regime $0<\epsilon_{\rm dd}<1$ and $g>0$ to make sure the excitation spectrum is stable.

Since the system possesses a rotation symmetry about the dipole axis, the anisotropic critical velocity only depends on the polar angle of the moving direction $\theta_{\bf v}$. From the dispersion relation (7), it is readily shown that the onset of dissipation is due to the creation of a phonon, and the critical velocity (2) can be written as

[TABLE]

where the minimum is calculated over all the values of $\theta_{\bf q}$ under the constraint $\theta_{\bf v}-\pi/2<\theta_{\bf q}<\theta_{\bf v}+\pi/2$. After a straightforward algebra, we find that the phonon created at $v_{\rm c}$ carries a momentum with $\theta_{\bf q}$ satisfying

[TABLE]

Clearly, except for the special cases of $\theta_{\bf v}=0,\pi/2$ and $\pi$, the propagating direction of the phonon is different from the moving direction of the impurity, in accordance with the scenario we discussed previously. Substituting (10) into (9), we obtain the critical velocity

[TABLE]

Unlike the condensate with a pure $s$-wave interaction, the critical velocity of the dipolar BEC is generally smaller than the sound velocity in the moving direction note2

[TABLE]

where the equality holds only for the motion in the direction either parallel or perpendicular to the dipole axis. The difference between the values of $v_{\rm c}$ and $c$ is illustrated in Fig. 1. For a given $\epsilon_{\rm dd}$, the ratio $v_{\rm c}/c$ takes the minimum value at $\theta_{\bf v}=\pi/4$.

Beyond $v_{\rm c}$, the dissipation rate (5) can be written as

[TABLE]

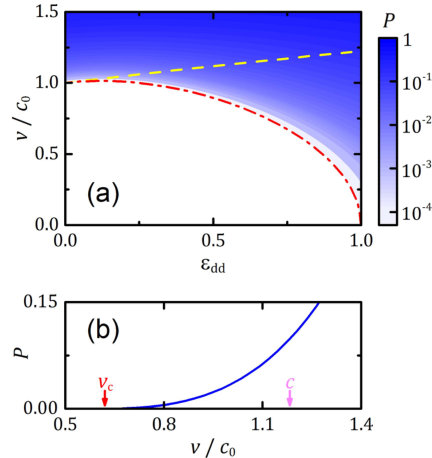

where we have used the $f$-sum rule $\int{\rm d}\omega\,\omega S({\bf q},\omega)=Nq^{2}/(2m)$ to simplify the expression. For $\epsilon_{\rm dd}=0$, Eq. (13) recovers the previous result with a pure $s$-wave interaction, $P=U_{0}^{2}nm^{3}(v^{2}-c_{0}^{2})^{2}\Theta(v-c_{0})/(\pi v)$ Pitaevskii2004 ; Kovrizhin2001 . For $\epsilon_{\rm dd}>0$, the dissipation rate is numerically calculated as a function of velocity $v$, and the results for $\theta_{\bf v}=\pi/4$ are displayed in Fig. 2. Obviously, the energy dissipation arises even in the subsonic regime ($v<c$), which is in contrast to isotropic weakly interacting bosons. In the limit $\epsilon_{\rm dd}\rightarrow 1$, $v_{\rm c}$ approaches to zero due to the vanishing $c_{\perp}$. However, in this case, the dissipation rate increases very slowly at small $v$, because the phase space contributing to the integral in (13) is quite limited.

Next, we turn to another anisotropic superfluid – a SO coupled BEC. The synthetic SO coupling had been successfully realized in ultracold atoms using the technique of the two-photon Raman transition soc_review . Here, we consider the spin-half bosons subjected to the equal contributions of Rashba and Dresselhaus SO coupling. The single-particle Hamiltonian is given by NIST2011

[TABLE]

where ${\bf k}_{\rm r}$ is the recoil momentum of the Raman lasers, $\Omega$ is the Raman coupling strength, $\delta$ is the detuning of the Raman transition, and $\sigma_{x}$ and $\sigma_{z}$ are the Pauli matrices. Below, we assume ${\bf k}_{\rm r}$ to be oriented along the $\bf\hat{z}$ axis and set the detuning $\delta$ equal to zero. The term $\sim{\bf p}\cdot{\bf k}_{\rm r}\sigma_{z}$ represents the SO coupling, which breaks the symmetry of Galilean invariance note7 . The interactions between atoms can be written as $\mathcal{H}_{\rm int}=g/2\int{\rm d}^{3}r\,n^{2}({\bf r})$, where we have assumed the equal coupling constants in the different spin-channels with $g>0$. Such a choice is relevant to the current experiments with 87Rb atoms NIST2011 ; soc_exp1 ; soc_exp5 ; soc_exp6 , in which the spin-dependent interaction is very weak.

The ground state phase diagram of a SO coupled Bose gas has been studied previously NIST2011 ; Ho ; Trento1 . When the interparticle interaction is spin-independent, the ground state is the plane-wave (PW) phase for $\Omega<\Omega_{\rm c}$ and the zero-momentum (ZM) phase for $\Omega>\Omega_{\rm c}$, where $\Omega_{\rm c}=4E_{\rm r}$, and $E_{\rm r}=k_{\rm r}^{2}/(2m)$ is the recoil momentum. In the PW phase, the ground state spontaneously breaks the Z2 symmetry, and the condensate occupies a non-zero momentum with a finite spin magnetization. Without loss of generality, we assume the magnetization to be positive. In the ZM phase, bosons condense at ${\bf p}=0$ with a balanced spin population. The transition between these two phases is of second-order nature with a divergent magnetic susceptibility at the critical point $\Omega_{\rm c}$ Trento3 .

The excitation spectrum of a SO coupled BEC consists of two branches Trento2 ; Zhengwei , and the critical velocity is determined by the lower branch. In the long wave-length limit, the lower branch excitation is a phonon mode with anisotropic sound velocity. Remarkably, the orientation dependence of the sound velocity is similar to the dipolar BEC, and it can be written in the form of (8) note3 . In the PW phase, $c_{\parallel}=c_{0}\sqrt{1-\Omega^{2}/\Omega_{\rm c}^{2}}$; in the ZM phase, $c_{\parallel}=c_{0}\sqrt{1-\Omega_{\rm c}/\Omega}$; and in both phases, $c_{\perp}=c_{0}$ is independent of $\Omega$. Following the procedure as shown before, we find the critical velocity obtained in (11) is also valid for the SO coupled BEC as long as the onset of dissipation is due to the emission of a phonon. This is indeed the case of the ZM phase, and it is also true in the PW phase when $\Omega$ is close to $\Omega_{\rm c}$. At the critical point $\Omega_{\rm c}$, $c_{\parallel}$ vanishes, and $v_{\rm c}$ equals zero in all the directions except $\theta_{\bf v}=\pi/2$ note4 , which is similar to the situation of the dipolar BEC when $\epsilon_{\rm dd}\rightarrow 1$ note5 .

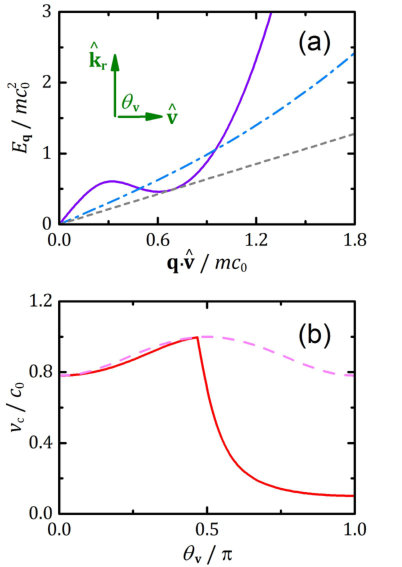

For the smaller values of $\Omega$, roton-like excitations emerge Trento2 ; Zhengwei ; Higbie and give rise to a dramatic influence on the anisotropic superfluidity. As an example, in Fig. 3(a), we show how the critical velocity in the direction perpendicular to ${\bf k}_{\rm r}$ is affected by the roton structure. The non-monotonic behavior of $E_{\bf q}$ only appears for $\theta_{\bf q}$ close to $\pi$. For the motion in the direction with a small $\theta_{\bf v}$, $v_{\rm c}$ is not affected by the roton structure because the minimization in (2) is under the constraint ${\bf q}\cdot{\bf\hat{v}}>0$. In Fig. 3(b), $v_{\rm c}$ is plotted as a function of $\theta_{\bf v}$ for $\Omega=2.5E_{\rm r}$, and there is a kink at $\theta_{\star}\simeq 0.47\pi$. For $\theta_{\bf v}<\theta_{\star}$, $v_{\rm c}$ is determined by the sound velocity of the phonon [Eq. (11)]; for $\theta_{\bf v}>\theta_{\star}$, $v_{\rm c}$ is determined by the dispersion near the roton.

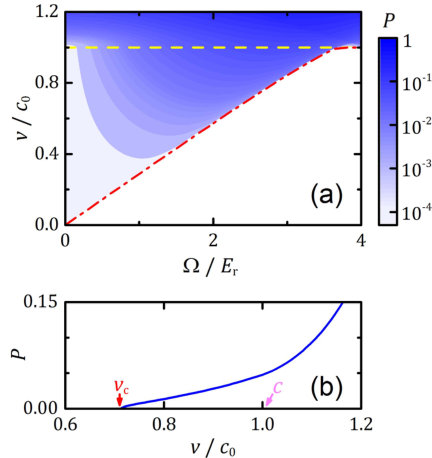

Beyond $v_{\rm c}$, the dissipation rate (5) is numerically calculated within the Bogoliubov approximation note6 . Remarkably, when the roton-like excitation emerges, the dissipationless motion is suppressed by the Raman coupling even in the direction orthogonal to ${\bf k}_{\rm r}$, although the excitation spectrum in this direction remains unchanged. As shown in Fig. 4, for the intermediate values of $\Omega$, visible dissipation arises at velocities between $v_{\rm c}$ and $c_{0}$. For $\Omega\lesssim 0.5E_{\rm r}$, the dissipation in the subsonic regime becomes negligibly small. This is because, in this case, the roton exhibits a dominant spin-flip nature, and it produces a very weak response to the density fluctuation [see Eq. (5)]. In the limit $\Omega\rightarrow 0$, while $v_{\rm c}$ vanishes due to the closing of the roton gap, dissipation only arises for $v>c_{0}$ note8 .

Finally, we make some remarks on the normal fluid density, which concerns another aspect of superfluidity. For He-II and ordinary Bose gases, the dissipationless motion below $v_{\rm c}$ is associated with the fact that normal fluid density $\rho_{\rm n}$ vanishes at zero temperature. More precisely, a finite value of $v_{\rm c}$ rules out the existence of low-energy excitations of transverse nature LevSandroBook . This conclusion also holds for the anisotropic systems investigated here. On the other hand, for a SO coupled BEC, the high-energy branch of the excitations has a nontrivial contribution to the transverse current response function, which gives rise to a finite $\rho_{\rm n}$ even at zero temperature soc_normal_density1 ; soc_normal_density2 .

In summary, in this work, we discussed the Landau’s criterion for anisotropic superfluidity and investigated its consequence in both dipolar and SO coupled Bose gases. Our predictions can be tested in the experiments with ultracold atoms by moving a microscopic object through a condensate vc_exp1 . The general result for critical velocity can be also applied to fermionic superfluids.

The author thanks Hui Zhai, Wei Yi, Bo Liu and Lan Yin for helpful discussions. This work is supported by NSFC under Grant No. 11674202.
