Freestanding transparent terahertz half-wave plate using subwavelength cut-wire pairs

TL;DR

This paper presents a novel transparent terahertz half-wave plate made from a subwavelength cut-wire-pair metasurface, achieving high transmission and efficient polarization control with a compact, flexible design.

Contribution

The work introduces a new metasurface design that functions as a transparent, flexible terahertz half-wave plate with high helicity conversion efficiency, validated through experiments and simulations.

Findings

Achieved over 80% helicity conversion rate.

Demonstrated high transmission with large phase shift.

Fabricated on a flexible film for practical applications.

Abstract

We designed a cut-wire-pair metasurface that works as a transparent terahertz half-wave plate, by matching the electric and magnetic resonances of the structure. Due to the impedance matching nature of the resonances, a large transmission phase shift between the orthogonal polarizations was achieved, while permitting a high transmission. The electric and magnetic responses of the proposed structure were confirmed by evaluating the electric admittance and magnetic impedance. The structure was fabricated on a flexible film and its helicity-conversion function in the terahertz frequency range was experimentally demonstrated. The thickness of the device is less than 1/10 of the working vacuum wavelength, and a high amplitude helicity conversion rate over 80% was achieved. Finally, using simulations, we demonstrate the feasibility of the gradually rotating cut-wire-pair array in terahertz wave-front control.

Figures

Tables

Table 1. Table 1: Calculated eigenfrequencies for cut-wire pairs on 40 ​ μ ​ Ω ​ μ ​ m 40 𝜇 Ω μ m 40\,{\mu\Omega\mathrm{\upmu m}} -thick cyclo olefin copolymer substrate with a = 585 ​ μ ​ Ω ​ μ ​ m 𝑎 585 𝜇 Ω μ m a=585\,{\mu\Omega\mathrm{\upmu m}} , l = 215 ​ μ ​ Ω ​ μ ​ m 𝑙 215 𝜇 Ω μ m l=215\,{\mu\Omega\mathrm{\upmu m}} , and w = 169 ​ μ ​ Ω ​ μ ​ m 𝑤 169 𝜇 Ω μ m w=169\,{\mu\Omega\mathrm{\upmu m}} .

	electric mode	magnetic mode
current $\parallel x$	$0.473\mu \Omega \mathrm{THz}$	$0.422\mu \Omega \mathrm{THz}$
current $\parallel y$	$0.514\mu \Omega \mathrm{THz}$	$0.510\mu \Omega \mathrm{THz}$

Equations

$$\frac{Y_{\text{mbox}e}}{Y_0}=2\frac{1-r-t}{1+r+t},\frac{Z_{\text{mbox}m}}{Z_0}=2\frac{1+r-t}{1-r+t}.$$

Full text

OCIS codes: (160.3918) Metamaterials; (130.5440) Polarization-selective devices; (300.6495) Spectroscopy, terahertz.

References and links

• [1]

Y.-S. Lee, Principles of Terahertz Science and Technology (Springer, 2008).

• [2]

T. Kampfrath, K. Tanaka, and K. A. Nelson, “Resonant and nonresonant control over matter and light by intense terahertz transients,” Nat. Photon. 7, 680–690 (2013).

• [3]

R. Fukasawa, “Terahertz imaging: Widespread industrial application in non-destructive inspection and chemical analysis,” IEEE Trans. THz Sci. Technol. 5, 1121–1127 (2015).

• [4]

J.-B. Masson and G. Gallot, “Terahertz achromatic quarter-wave plate,” Opt. Lett. 31, 265–267 (2006).

• [5]

M. Nagai, N. Mukai, Y. Minowa, M. Ashida, J. Takayanagi, and H. Ohtake, “Achromatic THz wave plate composed of stacked parallel metal plates,” Opt. Lett. 39, 146–149 (2014).

• [6]

H. Tao, W. J. Padilla, X. Zhang, and R. D. Averitt, “Recent progress in electromagnetic metamaterial devices for terahertz applications,” IEEE J. Sel. Top. Quantum Electron. 17, 92–101 (2011).

• [7]

H.-T. Chen, A. J. Taylor, and N. Yu, “A review of metasurfaces: physics and applications,” Rep. Prog. Phys. 79, 076401 (2016).

• [8]

Y. He and G. V. Eleftheriades, “Design of thin infrared quarter-wave and half-wave plates using antenna-array sheets,” Opt. Express 21, 24468–24474 (2013).

• [9]

P. E. Sieber and D. H. Werner, “Infrared broadband quarter-wave and half-wave plates synthesized from anisotropic Bézier metasurfaces,” Opt. Express 22, 32371–32383 (2014).

• [10]

D. Wang, Y. Gu, Y. Gong, C.-W. Qiu, and M. Hong, “An ultrathin terahertz quarter-wave plate using planar babinet-inverted metasurface,” Opt. Express 23, 11114–11122 (2015).

• [11]

L. Cong, N. Xu, J. Gu, R. Singh, J. Han, and W. Zhang, “Highly flexible broadband terahertz metamaterial quarter-wave plate,” Laser Photon. Rev. 8, 626–632 (2014).

• [12]

X. Ding, F. Monticone, K. Zhang, L. Zhang, D. Gao, S. N. Burokur, A. de Lustrac, Q. Wu, C.-W. Qiu, and A. Alù, “Ultrathin Pancharatnam-Berry metasurface with maximal cross-polarization efficiency,” Adv. Mater. 27, 1195–1200 (2015).

• [13]

X. Wu, Y. Meng, L. Wang, J. Tian, S. Dai, and W. Wen, “Anisotropic metasurface with near-unity circular polarization conversion,” Appl. Phys. Lett. 108, 183502 (2016).

• [14]

C. Pfeiffer and A. Grbic, “Metamaterial Huygens’ surfaces: tailoring wave fronts with reflectionless sheets,” Phys. Rev. Lett. 110, 197401 (2013).

• [15]

G. Dolling, C. Enkrich, M. Wegener, J. F. Zhou, C. M. Soukoulis, and S. Linden, “Cut-wire pairs and plate pairs as magnetic atoms for optical metamaterials,” Opt. Lett. 30, 3198–3200 (2005).

• [16]

V. M. Shalaev, W. Cai, U. K. Chettiar, H.-K. Yuan, A. K. Sarychev, V. P. Drachev, and A. V. Kildishev, “Negative index of refraction in optical metamaterials,” Opt. Lett. 30, 3356–3358 (2005).

• [17]

V. D. Lam, J. B. Kim, S. J. Lee, Y. P. Lee, and J. Y. Rhee, “Dependence of the magnetic-resonance frequency on the cut-wire width of cut-wire pair medium,” Opt. Express 15, 16651–16656 (2007).

• [18]

V. D. Lam, J. B. Kim, N. T. Tung, S. J. Lee, Y. P. Lee, and J. Y. Rhee, “Dependence of the distance between cut-wire-pair layers on resonance frequencies,” Opt. Express 16, 5934–5941 (2008).

• [19]

T. T. Nguyen, P. Lievens, Y. P. Lee, and D. L. Vu, “Computational studies of a cut-wire pair and combined metamaterials,” Adv. Nat. Sci.: Nanosci. Nanotechnol. 2, 033001 (2011).

• [20]

D. T. Viet, N. V. Hieu, V. D. Lam, and N. T. Tung, “Isotropic metamaterial absorber using cut-wire-pair structures,” Appl. Phys. Express 8, 032001 (2015).

• [21]

S. Wietzke, C. Jansen, M. Reuter, T. Jung, D. Kraft, S. Chatterjee, B. M. Fischer, and M. Koch, “Terahertz spectroscopy on polymers: A review of morphological studies,” J. Mol. Struct. 1006, 41–51 (2011).

• [22]

N. Laman and D. Grischkowsky, “Terahertz conductivity of thin metal films,” Appl. Phys. Lett. 93, 051105 (2008).

• [23]

R. Singh, Z. Tian, J. Han, C. Rockstuhl, J. Gu, and W. Zhang, “Cryogenic temperatures as a path toward high-Q terahertz metamaterials,” Appl. Phys. Lett. 96, 071114 (2010).

• [24]

O. Morikawa, A. Quema, S. Nashima, H. Sumikura, T. Nagashima, and M. Hangyo, “Faraday ellipticity and Faraday rotation of a doped-silicon wafer studied by terahertz time-domain spectroscopy,” J. Appl. Phys. 100, 033105 (2006).

• [25]

G. Zheng, H. Mühlenbernd, M. Kenney, G. Li, T. Zentgraf, and S. Zhang, “Metasurface holograms reaching 80% efficiency,” Nat. Nanotech. 10, 308–312 (2015).

• [26]

F. Ding, Z. Wang, S. He, V. M. Shalaev, and A. V. Kildishev, “Broadband high-efficiency half-wave plate: a supercell-based plasmonic metasurface approach,” ACS Nano 9, 4111–4119 (2015).

• [27]

H.-X. Xu, G.-M. Wang, T. Cai, J. Xiao, and Y.-Q. Zhuang, “Tunable Pancharatnam–Berry metasurface for dynamical and high-efficiency anomalous reflection,” Opt. Express 24, 27836–27848 (2016).

• [28]

Y. He and G. V. Eleftheriades, “Rotated infrared antenna transmitarray for the manipulation of circularly polarized wavefronts,” EPJ Appl. Metamat. 1, 8 (2014).

• [29]

W. Zhao, H. Jiang, B. Liu, J. Song, and Y. Jiang, “High-efficiency beam manipulation combining geometric phase with anisotropic Huygens surface,” Appl. Phys. Lett. 108, 181102 (2016).

1 Introduction

During the last two decades, there has been rapid progress in terahertz spectroscopy techniques and they have been applied in several fields [1]. Especially, the recent progress in the development of high-power terahertz sources has accelerated the growth of terahertz nonlinear spectroscopy [2], and imaging technologies [3]. In spite of these remarkable developments, commercially available devices to control terahertz waves are still lacking. The progress of terahertz polarization-dependent spectroscopy and imaging applications demand terahertz waveplates.

Although achromatic terahertz waveplates have been developed [4, 5], the size of conventional terahertz devices is typically much larger than the terahertz wavelength. To make the terahertz system compact, it is highly desirable to develop ultrathin waveplates. Artificially designed materials, or metamaterials, have been developed to overcome this problem [6]. Two-dimensional metamaterials called metasurfaces, which have thicknesses much less than working wavelengths, and their ability to control electromagnetic waves have been studied intensively [7]. So far, the application of terahertz metasurfaces in quarter wave plates have been investigated [8, 9, 10, 11].

A half-wave plate has the ability to convert helicity, e.g. from right-circular polarization (RCP) to left-circular polarization (LCP). However, in principle, a highly transparent half-wave plate with an amplitude conversion efficiency from LCP to RCP (RCP to LCP) over $50\,{\mu\Omega\mathrm{\%}}$ cannot be realized using a single-layer metasurface [12]. Therefore, multilayer designs are required to achieve this functionality. Recently, Wu et al. discovered that two layers of double-cut split ring resonators work as a highly transparent subwavelength half-wave plate, and experimentally realized them in the microwave frequency range [13]; however, the guiding principle used to design the structure is unclear. Another approach to realize a highly transparent half-wave plate is the use of a multilayer dipole array. Y. He et al. proposed the use of three-layer dipole structures to implement an infrared half-wave plate, based on the microwave phase-shifter theory [8]. However, in order to make the fabrication process simpler. it is desirable have a lower number of dipole layers.

In this paper, we show that a metasurface composed of cut-wire pairs, interacting with each other, can act as a highly transparent half-wave plate in the terahertz frequency range. Theoretically, the metasurface is designed by matching the electric and magnetic resonances of cut-wire pairs. In spite of the extremely simple design of the metasurface, it exhibited broadband impedance matching during simulations. We fabricated the structure on a flexible film, and demonstrated its helicity-conversion capability in the terahertz frequency range. The application of a metasurface in terahertz wave-front control is also discussed.

2 Design

From a macroscopic point of view, an isotropic metasurface can be characterized by a zero-thickness surface with an effective electric sheet admittance $Y_{\mbox{\scriptsize e}}$ and and magnetic sheet impedance $Z_{\mbox{\scriptsize m}}$. We assume that this surface is located at $z=0$. The macroscopic parameters relate the effective surface electric current density $K$ and the magnetic current density {\mathchoice{\mbox{\boldmathK}}{\mbox{\boldmathK}}{\mbox{\scriptsize\boldmathK}}{\mbox{\scriptsize\boldmathK}}}_{\mbox{\scriptsize m}}, flowing on $z=0$, with the coarse grained electric field $E$ and magnetic field $H$ at $z=0$, as {\mathchoice{\mbox{\boldmathK}}{\mbox{\boldmathK}}{\mbox{\scriptsize\boldmathK}}{\mbox{\scriptsize\boldmathK}}}=Y_{\mbox{\scriptsize e}}{\mathchoice{\mbox{\boldmathE}}{\mbox{\boldmathE}}{\mbox{\scriptsize\boldmathE}}{\mbox{\scriptsize\boldmathE}}}_{\mbox{\scriptsize av}},{\mathchoice{\mbox{\boldmathK}}{\mbox{\boldmathK}}{\mbox{\scriptsize\boldmathK}}{\mbox{\scriptsize\boldmathK}}}_{\mbox{\scriptsize m}}=Z_{\mbox{\scriptsize m}}{\mathchoice{\mbox{\boldmathH}}{\mbox{\boldmathH}}{\mbox{\scriptsize\boldmathH}}{\mbox{\scriptsize\boldmathH}}}_{\mbox{\scriptsize av}}, where “av” indicates that the fields on the upside ($z=+0$) and downside ($z=-0$) are averaged. For a normally incident plane wave, the complex electric amplitude transmission and reflection coefficients are denoted as $t$ and $r$, respectively. The effective parameters $Y_{\mbox{\scriptsize e}}$ and $Z_{\mbox{\scriptsize m}}$ can be given by the following equations [14]:

[TABLE]

Here, $Z_{0}=\sqrt{\mu_{0}/\varepsilon_{0}}(=1/Y_{0})$ is the impedance of free space. Defining $y_{\mbox{\scriptsize e}}=Y_{\mbox{\scriptsize e}}/(2Y_{0})$ and $z_{\mbox{\scriptsize m}}=Z_{\mbox{\scriptsize m}}/(2Z_{0})$, we also have $t=(1-y_{\mbox{\scriptsize e}}z_{\mbox{\scriptsize m}})/[(1+y_{\mbox{\scriptsize e}})(1+z_{\mbox{\scriptsize m}})],r=(z_{\mbox{\scriptsize m}}-y_{\mbox{\scriptsize e}})/[(1+y_{\mbox{\scriptsize e}})(1+z_{\mbox{\scriptsize m}})].$ From these equations, the impedance matching $z_{\mbox{\scriptsize m}}=y_{\mbox{\scriptsize e}}$ leads to zero reflection, although the phase of $t$ could be an arbitrary value. For example, $t=(1-\,\mathrm{j}b)/(1+\,\mathrm{j}b)$ induces the phase $\varphi=-2\arctan b$ for $y_{\mbox{\scriptsize e}}=z_{\mbox{\scriptsize m}}=\,\mathrm{j}b$, $b\in\mathbb{R}$.

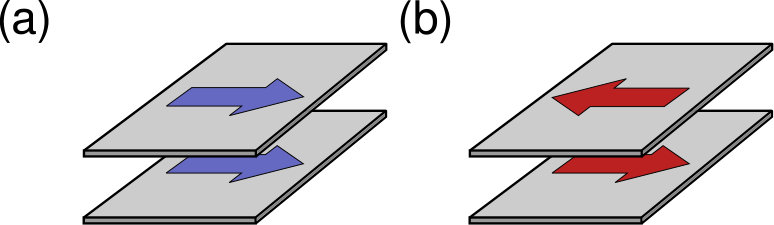

Now, we consider a metasurface composed of metallic cut-wire pairs [15, 16, 17, 18, 19, 20]. A pair of parallel cut wires coupled with each other has two resonant modes: an electric mode formed by the symmetrically flowing currents [Fig. 1(a)], and a magnetic mode formed by the antisymmetrically flowing currents [Fig. 1(b)]. The electric mode can be induced by an oscillating electric field parallel to the current. On the other hand, a time-varying magnetic flux penetrating the cut-wire pair will excite the magnetic mode composed of rotating currents in the cut-wire pair. Thus, the electric and magnetic modes affect $Y_{\mbox{\scriptsize e}}$ and $Z_{\mbox{\scriptsize m}}$, respectively. Matching the resonant frequencies of these modes could induce a large phase shift, while permitting a high transmission. Based on this idea, the structure was designed using the finite element method with COMSOL. For this, we considered the cut-wire pairs to be arranged in the form of hexagonal lattices. Note the following design strategy is applicable to other lattice symmetries including square lattices. The unit cell of the structure is depicted in Figs. 2(a) and 2(b). Periodic boundary conditions were utilized for the simulation. The metallic cut wires were placed on both sides of the substrate, which was made of cyclic olefin copolymers (COC) having a thickness $t=40\,{\mu\Omega\mathrm{\upmu m}}$ and refractive index $\tilde{n}=1.53-0.001\,\mathrm{j}$ [21].

First, the eigenfrequencies of the electric and magnetic modes were matched. The eigenfrequencies of the metasurface were calculated by using the eigensolver function in COMSOL. In order to reduce the simulation complexity for the eigenfrequency analysis, metallic cut wires were assumed to be zero-thick perfect electric conductor (PEC), and only the $z\geq 0$ domain was considered. For the magnetic modes, the PEC boundary condition was imposed on $z=0$. For the electric modes, the perfectly magnetic conductor boundary condition was imposed on $z=0$. The perfectly matched layers were attached to the upper boundary of the air domain, so that there would be a proper absorption of the leakage radiation in the $z$ direction. After optimization, we obtained $a=585\,{\mu\Omega\mathrm{\upmu m}}$, $l=215\,{\mu\Omega\mathrm{\upmu m}}$, and $w=169\,{\mu\Omega\mathrm{\upmu m}}$. The calculated eigenfrequencies of the structure are shown in Table 1. It can be seen that both the electric and magnetic modes of the current $\parallel y$ exist around $0.51\,{\mu\Omega\mathrm{THz}}$. These modes may lead to the impedance matching of the structure, and could induce a large phase shift while maintaining a high transmission.

Next, we calculated the transmission property of the metasurface. A plane wave normally enters the metasurface from $z>0$ to $z<0$. The metallic cut wire was treated as a transition boundary equivalent to a $0.5\,{\mu\Omega\mathrm{\upmu m}}$-thick silver film having a conductivity of $46\,{\mu\Omega\mathrm{S/\upmu m}}$ [22]. For comparison, we also calculated transmission spectra of a lossless metasurface composed of PEC cut-wire pairs with a lossless substrate having a refractive index $\tilde{n}=1.53$. For a $\beta$-polarized incident electric field E_{0}{\mathchoice{\mbox{\boldmathe}}{\mbox{\boldmathe}}{\mbox{\scriptsize\boldmathe}}{\mbox{\scriptsize\boldmathe}}}_{\beta}\exp(\,\mathrm{j}kz) in $z>0$, the $\alpha$-polarized component of the transmitting electric field in $z<0$ is represented by E_{0}{\mathchoice{\mbox{\boldmathe}}{\mbox{\boldmathe}}{\mbox{\scriptsize\boldmathe}}{\mbox{\scriptsize\boldmathe}}}_{\alpha}t_{\alpha\beta}\exp(\,\mathrm{j}kz), using amplitude transmission coefficients $t_{\alpha\beta}$, a constant $E_{0}$, the wavevector $k$ $(>0)$ in air, and two orthonormal vectors {\mathchoice{\mbox{\boldmathe}}{\mbox{\boldmathe}}{\mbox{\scriptsize\boldmathe}}{\mbox{\scriptsize\boldmathe}}}_{\alpha} $(\alpha=1,2)$ perpendicular to the $z$-axis. The calculated amplitude and phase transmission spectra of the optimized metasurface for $x$ and $y$ polarized plane waves are shown in Figs. 2(c) and 2(d). At $0.506\,{\mu\Omega\mathrm{THz}}$, the functions of the half-wave plate can be observed to be $|t_{xx}|\approx 0.99$, $|t_{yy}|\approx 0.85$, and $\mathrm{arg}(t_{xx})-\mathrm{arg}(t_{yy})\approx 3.2$ for the silver metasurface. Surprisingly, a high transmission amplitude $|t_{yy}|$ over 0.8 is observed in the broadband region. This indicates that the oscillator strength and line width of the electric and magnetic resonant modes are approximately balanced. In comparison with the lossless metasurface, $|t_{yy}|$ of the silver metasurface at the working frequency is degraded by the metal and substrate loss. Cryogenic temperatures can be a path towards decreasing unavoidable loss effect [23].

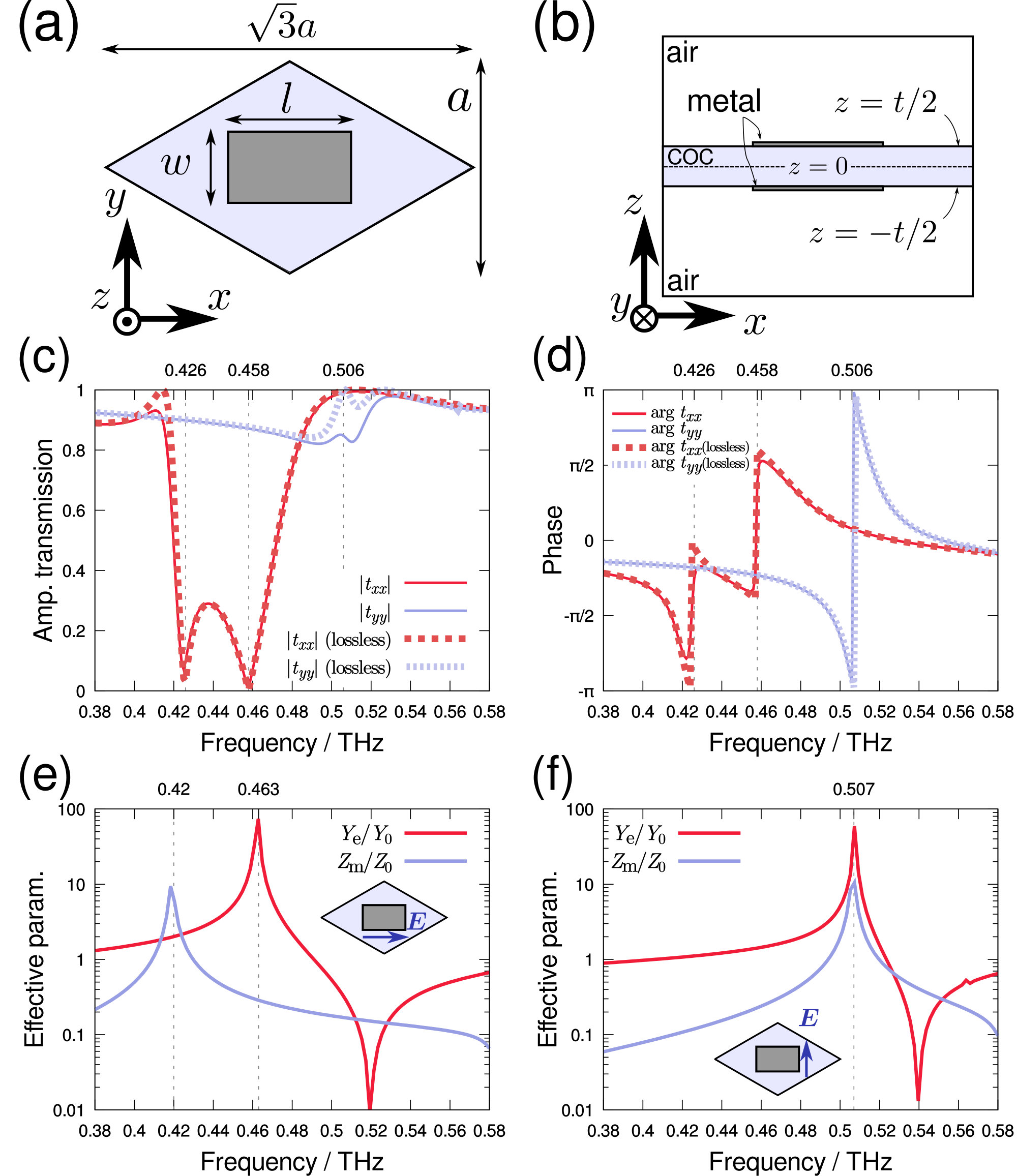

The electric and magnetic responses of the silver metasurface for each polarization, $|Y_{\mbox{\scriptsize e}}|$ and $|Z_{\mbox{\scriptsize m}}|$, calculated by Eq. (1), are shown in Figs. 2(e) and 2(f). For an $x$-polarized wave, it can be seen that the frequencies of $|Y_{\mbox{\scriptsize e}}|$ and $|Z_{\mbox{\scriptsize m}}|$ peaks are different, and they are far-off-resonant from the operation frequency $0.506\,{\mu\Omega\mathrm{THz}}$. Alternatively, for a $y$-polarized wave, the peak frequencies are almost same, and impedance matching is approximately achieved in the broad band region. Therefore, we can realize not only a half-wave plate, but also an efficient phase plate with different phase shifts for different working frequencies.

3 Experimental demonstration of terahertz helicity conversion

The experimental demonstration of the function of the terahertz half-wave plate is described below. The sample was prepared as follows: (i) A $10\,{\mu\Omega\mathrm{nm}}$ titanium adhesion layer followed by a $1.4\,{\mu\Omega\mathrm{\upmu m}}$ aluminum layer were deposited on both sides of the $40\,{\mu\Omega\mathrm{\upmu m}}$ COC (ZEONOR${}^{\text{\textregistered}}$, Zeon Corp.) by electron-beam evaporation at room temperature, (ii) cut-wire-pair structures were formed on both sides of the substrate using a femtosecond laser ablation process. Note that we deposited a $1.4\,{\mu\Omega\mathrm{\upmu m}}$-thick aluminum layer to avoid the skin effect as much as possible, but a thickness sufficiently larger than the skin depth $\approx 150\,{\mu\Omega\mathrm{nm}}$ of aluminum at $0.5\,{\mu\Omega\mathrm{THz}}$ could be enough. The fabricated sample is shown in Figs. 3(a)–(c). In Figs. 3(b) and 3(c), it can be seen that the boundary of the unit cell is whiter than the other parts. This is because the boundary is shaved twice by the scanning laser beam. From the microphotographs of the sample, the measured dimensions are $l=217\,{\mu\Omega\mathrm{\upmu m}}$ and $w=174\,{\mu\Omega\mathrm{\upmu m}}$, with a deviation of $1\,{\mu\Omega\mathrm{\upmu m}}$.

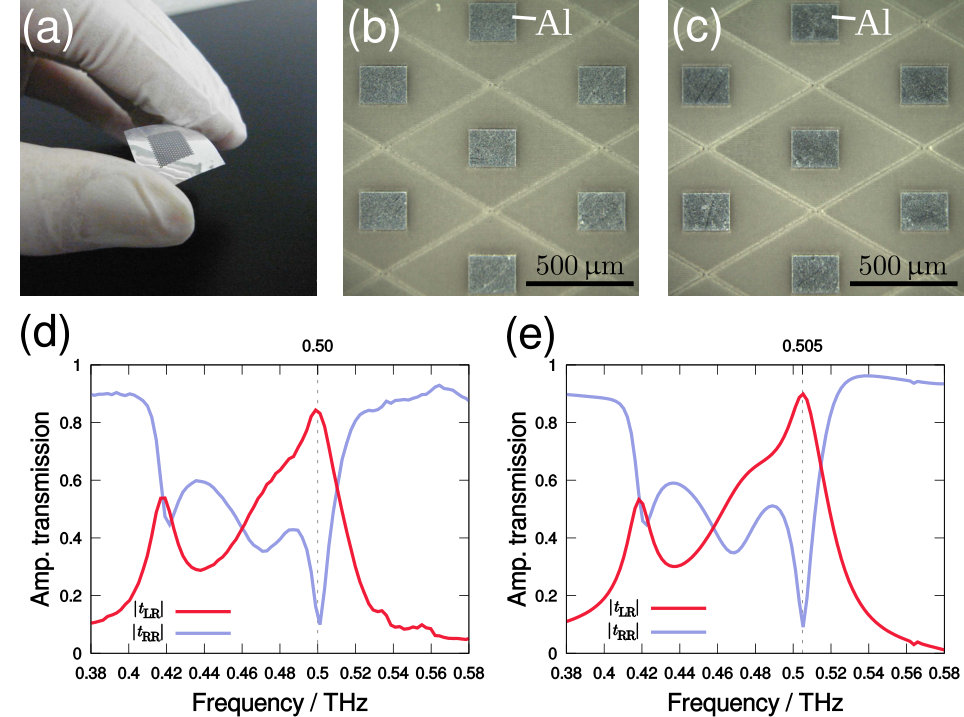

Next, using a terahertz time-domain spectroscopy system, we demonstrated the helicity conversion function of the half-wave plate, which is applicable to the wave-front control discussed in Sec. 4. Here, the co- and cross-polarized amplitude transmissions $t_{xx}$ and $t_{yx}$ ($t_{yy}$ and $t_{xy}$) for normally incident $x$ ($y$) polarized waves were measured using a standard cross ellipsometry polarization probing setup [24], and the values of $|t_{\mbox{\scriptsize LR}}|$ and $|t_{\mbox{\scriptsize RR}}|$ were calculated, where $\mathrm{R}$ and $\mathrm{L}$ represent RCP and LCP (rotating direction as seen from the detector side), respectively. The plots of the experimentally obtained $|t_{\mbox{\scriptsize LR}}|$ and $|t_{\mbox{\scriptsize RR}}|$ are shown in Fig. 3(d). In this figure, it can be observed that $|t_{\mbox{\scriptsize LR}}|$ peaks over 0.8, which is beyond the limit of conversion efficiency of a single-layer metasurface [12], at $0.50\,{\mu\Omega\mathrm{THz}}$. For comparison, the numerically calculated $|t_{\mbox{\scriptsize LR}}|$ and $|t_{\mbox{\scriptsize RR}}|$ for cut-wire pairs of $1.4\,{\mu\Omega\mathrm{\upmu m}}$-thick aluminum having a conductivity $22\,{\mu\Omega\mathrm{S/\upmu m}}$ [22] with $a=585\,{\mu\Omega\mathrm{\upmu m}}$, $l=217\,{\mu\Omega\mathrm{\upmu m}}$, $w=174\,{\mu\Omega\mathrm{\upmu m}}$, and $t=40\,{\mu\Omega\mathrm{\upmu m}}$, are shown in Fig. 3(e), where the thin titanium layer was ignored in the simulation. Simulated maximum conversion efficiency is 0.9, which is degraded by the loss effect discussed in Sec. 2. The experimentally obtained spectra agrees well with the simulated spectra, although the experimentally obtained peak value of helicity conversion is not as high as the simulated one. This can be attributed to fabrication error including over shaving of the substrate. There is still room for device optimization; however, the basic function of the half-wave plate was demonstrated, and the thickness of the device is less than $1/10$ of the working vacuum wavelength.

4 Towards terahertz wave-front control

In this section, we discuss the applicability of the cut-wire pairs to wave-front control. If the structures that convert helicity are rotated, the converted wave attains the Pancharatnam–Berry phase. Therefore, it is possible to control the wave front by gradually rotating the structures [12]. The Pancharatnam–Berry phase induced for reflected circular-polarized waves is utilized for the highly efficient control of wave fronts in the near-infrared region [25, 26]. Recently, active control of the working frequency for reflected circular-polarized microwaves was theoretically proposed [27]. The wave-front control for transmitting circular-polarized waves using three-layer metallic dipoles [28] and dielectric resonators [29] has been studied with the help of simulations.

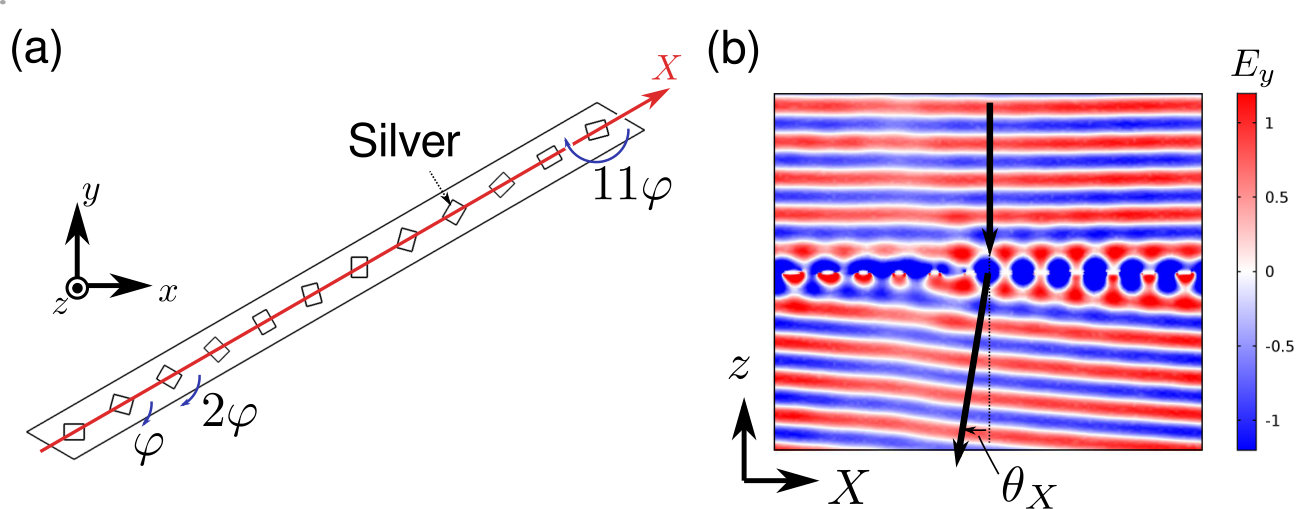

To investigate the possibility of controlling a terahertz wave front, we also performed a simulation using COMSOL for implementing a beam deflector. For this, 12 unit cells [shown in Fig. 1(a)] were connected and each meta-atom was rotated, as shown in Fig. 4(a). The basic setup for the simulation was the same as that in Sec. 2. The angle of rotation of each unit cell was increased by $\varphi$ from the previous adjacent unit cell, with $\varphi=15^{\circ}$. The periodic boundary conditions were applied to the side of the simulation domain. From $z>0$, an RCP wave enters the $0.5\,{\mu\Omega\mathrm{\upmu m}}$-thick silver cut-wire array on the surfaces ($z=-t/2,\ t/2$) of a COC substrate with a refractive index $\tilde{n}=1.53-0.001\,\mathrm{j}$. Perfectly matched layers were attached to the upper and bottom boundaries of the air domain for the proper absorption of diffracted waves. The calculated $E_{y}$ at $0.504\,{\mu\Omega\mathrm{THz}}$ on the $X$–$z$ plane is shown in Fig. 4(b). In Fig. 4(b), we can see the beam is deflected by $\theta_{X}$ on the $X$–$z$ plane, although the equiphase lines of the transmitted wave are not perfectly straight lines. The observed $\theta_{X}\approx 5^{\circ}$ shows good agreement with the theoretically calculated value $\theta_{X}^{\mbox{\scriptsize(theo)}}\approx 4.9^{\circ}$. The transmitting power evaluated by the integration of the Poynting vector is $73\,\%$. In order to experimentally demonstrate this functionality in the terahertz frequency range, accurate fabrication and terahertz imaging to evaluate the sample are required.
