Antiferromagnetic textures and dynamics on the surface of a heavy metal

TL;DR

This paper explores how antiferromagnetic textures form and behave on heavy metal surfaces, revealing ultrafast dynamics driven by spin currents and proposing new experimental approaches for Terahertz spin-torque oscillators.

Contribution

It demonstrates the formation of nontrivial antiferromagnetic textures and ultrafast dynamics induced by spin currents, and introduces a new geometry for experimental realization.

Findings

Ultrafast (THz) oscillations of Néel order driven by current

Effective anisotropy and Dzyaloshinskii-Moriya interactions influence textures

Proposed alternative geometry for ultrafast antiferromagnetic dynamics

Abstract

We investigate the formation and dynamics of spin textures in antiferromagnetic insulators adjacent to a heavy-metal substrate with strong spin-orbit interactions. Exchange coupling to conduction electrons engenders an effective anisotropy, Dzyaloshinskii-Moriya interactions, and a magnetoelectric effect for the N\'{e}el order, which can conspire to produce nontrivial antiferromagnetic textures. Current-driven spin transfer enabled by the heavy metal, furthermore, triggers ultrafast (THz) oscillations of the N\'{e}el order for dc currents exceeding a critical threshold, opening up the possibility of Terahertz spin-torque self-oscillators. For a commonly invoked antidamping-torque geometry, however, the instability current scales with the energy gap of the antiferromagnetic insulator and, therefore, may be challenging to reach experimentally. We propose an alternative generic geometry for inducing ultrafast autonomous antiferromagnetic dynamics.

Figures

Equations

$${\mathcal{L}}_{\text{AFM}}[t;\mathbf{l},\mathbf{m}]$$

$${\mathcal{F}}_{\text{AFM}}[\mathbf{l},\mathbf{m}]$$

$${\mathcal{L}}_{\text{kin}}[t;\mathbf{l},\mathbf{m}]=s\mathbf{m}\cdot (\mathbf{l}\times {\partial }_t\mathbf{l})$$

$${\mathcal{F}}_{\text{int}}[\mathbf{l}]=-\frac{K^{\prime }}{2}{l}_z^2-L_1\mathbf{l}\cdot \mathbf{E}+\frac{L_2}{2}\left[\mathbf{l}\cdot \nabla l_z-l_z\nabla \cdot \mathbf{l}\right],$$

$$s\dot{\mathbf{l}}$$

$$s(\dot{\mathbf{m}}+\mathbf{l}\times \hat{\alpha }\dot{\mathbf{l}})$$

$${\mathbf{\tau }}_m={\vartheta }_2\mathbf{l}\times ({\hat{e}}_z\times \mathbf{j})\times \mathbf{l}+{\vartheta }_3\mathbf{l}\times (\mathbf{j}\cdot \nabla )\mathbf{l},$$

$$\mathbf{l}$$

$$\displaystyle-\vartheta_{2}(\hat{e}_{z}\times\bm{j})\times\bm{l}-\vartheta_{3}(\bm{j}\cdot\nabla)\bm{l}\,\Big{]}-2s\chi(\bm{l}\cdot\mathcal{B})\dot{\bm{l}}=\bm{0},$$

$$s^2\chi \ddot{\mathbf{l}}+s{\alpha }_{\text{eff}}\dot{\mathbf{l}}$$

$$+\left[s^2\chi {\dot{\mathbf{l}}}^2+K_{\text{eff}}{l}_z^2\right]\mathbf{l}=0,$$

$${\mathbf{l}}_{\text{FP},i}$$

$${\mathbf{l}}_{\text{FP},3}$$

$${\hat{\mathcal{H}}}_{\text{int}}=J_{\parallel }(l_x{\hat{\sigma }}_x+l_y{\hat{\sigma }}_y)+J_{\perp }{l}_z{\hat{\sigma }}_z,$$

$$L_1=J_{\parallel }e\frac{{\zeta }_1+{\chi }_1}{4\pi \hslash v},L_2=J_{\parallel }{J}_{\perp }\frac{{\zeta }_2+{\chi }_2}{4\pi \hslash v},$$

$${\chi }_1(l_z,\beta ,\mu )=\frac{\sinh (\beta J_{\perp }{l}_z)}{\cosh (\beta J_{\perp }{l}_z)+\cosh (\beta \mu )},{\chi }_2(l_z,\beta ,\mu )=\frac{\sinh (\beta \mu )}{\cosh (\beta J_{\perp }{l}_z)+\cosh (\beta \mu )}.$$

Full text

Introduction.—Antiferromagnetic spin textures produce minimal stray fields, are robust against electromagnetic perturbations, and display ultrafast spin dynamics, three features that make them attractive as potential active elements in next-generation spin-transport and memory-storage devices.AFM-spintronics Recent years have witnessed a growing interest in the inherently antiferromagnetic (spin) transport properties.AHE ; SSE ; AFM-superfluidity ; AFM-T However, the Néel order is relatively hidden from electromagnetic fields and, therefore, generally not easy to drive or read out. In this regard, spin-transfer torques are well suited to trigger antiferromagnetic excitationsSTT1 ; STT2 and may be as effective for this purpose as in ferromagnets.AFM-T ; Cheng-PRL2014 It appears particularly attractive to manipulate the staggered order parameter through the spin Hall effect. In the usual antidamping-torque geometry,Cheng-PRL2016a however, the effective spin accumulation induced by the spin Hall effect must overcome the large gap in the antiferromagnetic spectrum (typically in the range of THz for common materials), translating into prohibitively large charge currents. Therefore, further insights concerning the antiferromagnetic equilibrium states and their spin Hall induced dynamics, in the presence of strong spin-orbit interactions, are desired for further progress.

In this Rapid Communication, we construct a phenomenological theory for antiferromagnetic insulators subjected to spin exchange and spin-orbit coupling with an adjacent heavy metal. We focus on energy terms that favor spin textures, with an eye on nontrivial topologies. Furthermore, we study the Néel order driven out of equilibrium by spin-transfer torques and find the thresholds for current-driven magnetic instabilities for several scenarios, classifying the ensuing nonlinear dynamics. Our primary interest here is in ultrafast self-oscillations of a uniform staggered order, which can be sustained by feasible charge currents (as in, e.g., the ferromagnetic counterparts).

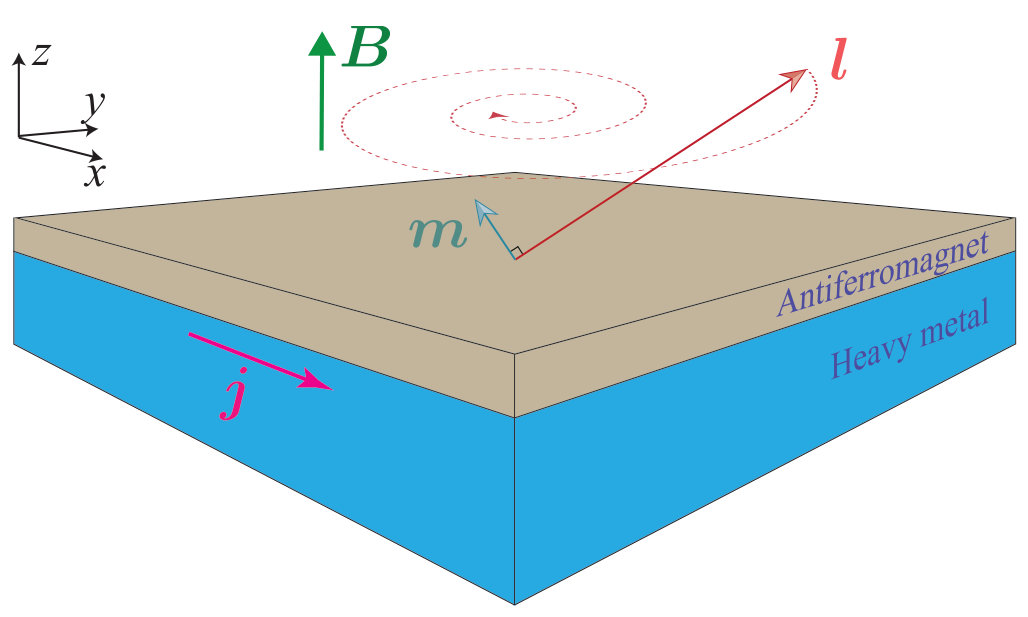

Effective theory.—We regard the heterostructure as a quasi-two-dimensional (2D) system along the xy plane, which we take to be isotropic at the coarse-grained level, see Fig. 1. The reflection symmetry along the $z$ axis is structurally broken and the time-reversal symmetry is also broken due to the existence of the Néel phase. We focus on bipartite antiferromagnetic insulators, where the two spin sublattices can be transformed into each other by a space-group symmetry of the crystal, and we restrict ourselves to smooth and slowly-varying spin textures. An effective long-wavelength theory for this class of antiferromagnets can be developed in terms of two continuum coarse-grained fields: the (staggered) Néel field $\bm{l}$ and the normalized spin density $\bm{m}$.AFM These fields satisfy the nonlinear local constraints $\bm{l}^{2}\equiv 1$, $\bm{l}\cdot\bm{m}\equiv 0$, and the presence of a well-developed Néel order implies (at reasonable fields) $|\bm{m}|\ll 1$. The corresponding (2D) Lagrangian density in the continuum limit becomes

[TABLE]

to quadratic order in both $\bm{l}$ and $\bm{m}$, where $\mathcal{F}_{\textrm{AFM}}[\bm{l},\bm{m}]$ denotes the free-energy density of the antiferromagnet, $\chi$ is the (transverse) spin susceptibility, $\mathcal{B}=\gamma s\bm{B}$ represents the normalized magnetic field, and $s$ is the saturated (2D) spin density.Comm1 The kinetic (Berry-phase) Lagrangian

[TABLE]

establishes the canonical conjugacy between $\bm{l}$ and $s\bm{m}\times\bm{l}$. The functional $\mathcal{F}_{\textrm{stag}}[\bm{l}]$ stands for the exchange and anisotropy contributions to the energy of the antiferromagnet. In the case of isotropic exchange and uniaxial anisotropy, we have $\mathcal{F}_{\textrm{stag}}[\bm{l}]=\frac{A}{2}\sum_{\mu=1,2}(\partial_{x_{\mu}}\bm{l})^{2}-\frac{1}{2}Kl_{z}^{2}$, where $A$, $K$ are the stiffness and anisotropy constants, respectively. $K<0$ ($K>0$) describes easy (hard) xy plane. Both $A$ and $\chi^{-1}$ are proportional to $JS^{2}$, with $J$ being the microscopic exchange energy.

Phenomenologically, the exchange coupling of the Néel order to conduction electrons of the heavy-metal substrate yields the following contributions to the effective energy of the combined system:

[TABLE]

where $K^{\prime}$, $L_{1}$, and $L_{2}$ are material-dependent phenomenological coefficients and $\bm{E}$ is the static (in-plane) electric field acting on electrons (here, in equilibrium). Notice that, according to the time-reversal symmetry, $L_{1}$ $(L_{2})$ must be an odd (even) function of the out-of-plane component $l_{z}$ of the Néel order. The first two terms in Eq. (3) account for an effective axial anisotropy and a magnetoelectric effect for the Néel order, respectively. The last term can arise due to structural reflection-symmetry breaking at the interface,Fert-PRL1980 and describes an inhomogeneous Dzyaloshinskii-Moriya interaction.DMI ; Dzyaloshinskii-JETP1964

In the absence of the electromagnetic fields, $\bm{E},\bm{B}\rightarrow 0$, the above free energy for the Néel order reproduces that of a ferromagnetic film with the broken reflection symmetry with respect to the basal plane.Bogdanov-JMMM1994 In particular, a spiral ground state would arise for values of the parameter $L_{2}/\sqrt{AK_{\textrm{eff}}}$ exceeding the critical value $4/\pi$, where $K_{\textrm{eff}}\equiv K+K^{\prime}$ is the effective anisotropy constant.yt1 As a specific illustrative example, in the Supplemental MaterialSUP we complement our effective theory with microscopic results for the case of a strong three-dimensional topological insulator (TI) as a heavy (semi)metal.

Nonequilibrium dynamics.—Undamped Landau-Lifshitz dynamics of the insulating antiferromagnet are described by the Euler-Lagrange equations for the total Lagrangian $\mathcal{L}_{\textrm{AFM}}-\mathcal{F}_{\textrm{int}}$, subject to the local constraints $\bm{l}\,^{2}\equiv 1$ and $\bm{l}\cdot\bm{m}\equiv 0$.LoM A phenomenological approach well suited to incorporate dissipation into these equations considers a Gilbert-Rayleigh function,Gilbert-1955 whose dominant term is given by $\frac{1}{2}s\alpha_{ij}\dot{l}_{i}\dot{l}_{j}$ in the low-frequency (compared to the microscopic exchange $J$) regime,kimPRB15 where $\hat{\alpha}$ denotes the Gilbert-damping tensor.Comm4 The resulting Landau-Lifshitz-Gilbert-type equations read

[TABLE]

where $\mathcal{F}_{\textrm{eff}}\equiv\mathcal{F}_{\textrm{stag}}+\mathcal{F}_{\textrm{int}}$ is the effective energy and the spin-transfer torques $\bm{\tau}_{l},\bm{\tau}_{m}$ account for the additional, nonequilibrium electric current-induced spin transport across the interface.

As usual, we can obtain a dynamical equation for the Néel order alone by solving for $\bm{m}$ according to Eq. (4) and substituting it in Eq. (5). Notice that the effect of the torque $\bm{\tau}_{l}$ is in general reduced relative to $\bm{\tau}_{m}$ by the small parameters $\hbar\omega/J$ (with $\omega$ denoting the characteristic frequency of the antiferromagnetic excitations), which, again,yt1 is rooted in the smallness of the susceptibility $\chi\propto J^{-1}$. In the spirit of our low-frequency long-wavelength treatment, we, therefore, disregard this spin-transfer torque (i.e., $\bm{\tau}_{l}$) in what follows.

The spin torque $\bm{\tau}_{m}$ has two (dissipative) components: the first, so-called spin-orbit torque, is rooted phenomenologically in the spin-Hall effect.SHE The second is the texture-induced spin-transfer torque,Hals-PRL2011 which originates in the spin mistracking of conduction electrons (of the heavy metal) propagating in proximity to the Néel texture.STextT According to the structural symmetries of the heterostructure, they have the form:Tserkovnyak-PRB2014 ; Hals-PRL2011 ; Comm5

[TABLE]

where the coupling constants $\vartheta_{2}$ and $\vartheta_{3}$ depend on the interplay of spin-orbit and spin-transfer physics at the interface.

Another contribution to the net transfer of spin angular momentum onto the antiferromagnetic texture is provided by the spin-pumping mechanism,Tserkovnyak-RMP2005 which can be absorbed into the (effective) damping tensor as an interface term, $\hat{\alpha}_{\textrm{eff}}\equiv\hat{\alpha}+\vartheta_{1}/s$.AFM-T Here, $\vartheta_{1}$ is the (dissipative) spin-pumping parameter (taken, for simplicity, to be isotropic) related to the spin-mixing conductance of the interface. The combination of Eqs. (4)-(6) yields the following second-order differential equation for the Néel order:Comm6

[TABLE]

which is the central equation and one of the main results of this Rapid Communication. It is worth mentioning that in order to integrate this equation, it needs to be complemented with the trivial vector identity: $\bm{l}\cdot\ddot{\bm{l}}=(d/dt)^{2}\bm{l}^{2}/2-\dot{\bm{l}}^{2}=-\dot{\bm{l}}^{2}$, since $\bm{l}^{2}\equiv 1$.

Current-driven monodomain dynamics.—Magnetic fields may not optimally be suited to manipulate antiferromagnetic textures, as the staggered order suppresses the coarse-grained magnetization in the Néel phase. In this regard, spin-transfer torques offer an attractive alternative to trigger and control fast antiferromagnetic dynamics, of particular interest being current-induced magnetic instabilities and switching. Starting with the simplest out-of-equilibrium scenario, we consider a uniform state and, therefore, disregard the magnetic torques resulting from the magnetoelectric and inhomogeneous Dzyaloshinskii-Moriya terms in Eq. (3), and the texture-induced spin-transfer torque in Eq. (6). Furthermore, we suppose an easy-$z$-axis anisotropy (i.e., $K_{\rm eff}>0$), absence of an applied magnetic field, and a uniform dc charge-current density injected (without loss of generality) along the $x$ direction, $\bm{j}=j\hat{e}_{x}$. Consequently, Eq. (7) becomes

[TABLE]

where, for simplicity, we have taken the full damping tensor to be isotropic.

Stability of the above dynamical system can be analyzed in terms of the parameter $\lambda=\vartheta_{2}j/K_{\textrm{eff}}$: in equilibrium ($\lambda=0$), the fixed points (FPs) are $\bm{l}_{\textrm{FP},1}=\pm\hat{e}_{z}$ along with any $xy$-plane orientation of the Néel order. See Fig. 2(a). From a simple stability analysis,Hirch we conclude that $\bm{l}_{\textrm{FP},1}$ are the only stable FPs, and, therefore, any slight out-of-plane perturbation would turn the staggered order from any initial $xy$-plane configuration to a normal direction. See Fig. 2(d). When the current is ramped up within the range $0<\lambda\leq\frac{1}{2}$, the set of FPs becomes discrete and reads

[TABLE]

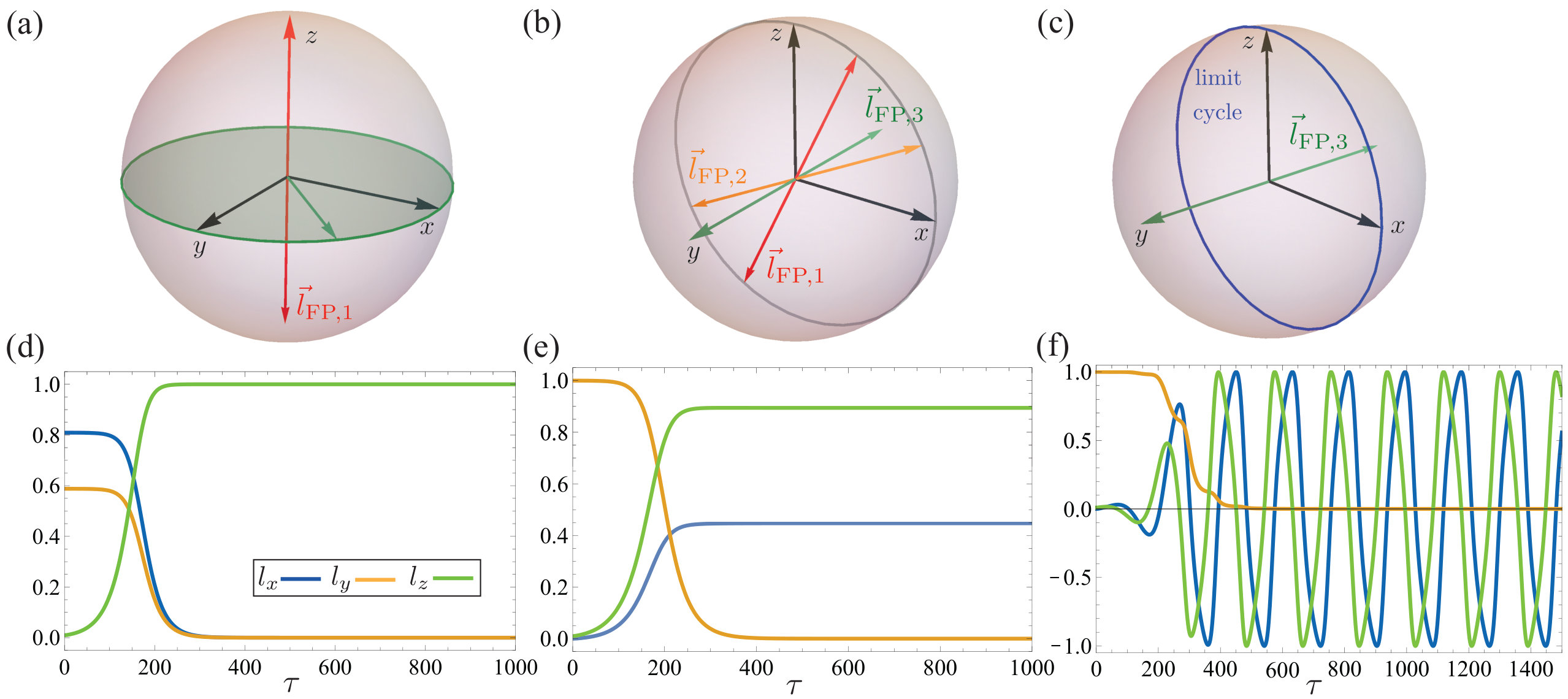

where $p_{i}=(-1)^{i}$ and $i=1,2$. Stability theory applied to this case indicates that the $\bm{l}_{\textrm{FP},1}$ are stable FPs whereas the $\bm{l}_{\textrm{FP},2(3)}$ are unstable. See Fig. 2(b). Therefore, any slight perturbation acting on $\bm{l}_{\textrm{FP},3}$ will drive the staggered field into one of the fixed points $\bm{l}_{\textrm{FP},1}$. See Fig. 2(e). The limiting orientation of the Néel order depends on the signs of the $x$ and $z$ components of the perturbation. The FPs of Eq. (Antiferromagnetic textures and dynamics on the surface of a heavy metal) for $\lambda>\frac{1}{2}$ are $\bm{l}_{\textrm{FP},3}$ and unstable. This leads to the formation of an attractive limit cycle in the $xz$ plane. See Figs. 2(c),(f). We thus conclude that the instability threshold of our dynamical system towards self-oscillations is determined by the critical current $j_{c}=\frac{1}{2\vartheta_{2}}K_{\textrm{eff}}$. The frequency corresponding to this limit cycle is in the range of $\omega=\frac{1}{2s}\sqrt{K_{\textrm{eff}}/\chi}$, which agrees with the values obtained from the numerical solution of the full Eq. (Antiferromagnetic textures and dynamics on the surface of a heavy metal).SUP It is also instructive to consider a different geometry, in which an in-plane easy-axis anisotropy $K$ is oriented along the $y$ axis (i.e., perpendicular to the direction of the injected current). This is a typical antidamping-torque geometry.Cheng-PRL2016a ; Tserkovnyak-PRB2014 Neglecting $K^{\prime}$, a precessional instability arises at the critical current $j_{c}^{\star}=\frac{\alpha_{\textrm{eff}}}{\vartheta_{2}}\sqrt{K/\chi}$, and the corresponding antiferromagnetic dynamics have a characteristic frequency of $\omega^{\star}\simeq\frac{1}{s}\sqrt{K/2\chi}$.

The instability thresholds $j_{c}$ and $j_{c}^{\star}$ scale qualitatively differently with the system parameters, but both appear substantially higher than the typical ferromagnetic instability threshold ofTserkovnyak-PRB2014 $\sim\frac{\alpha_{\rm eff}}{\vartheta_{2}}K$ if $\alpha_{\rm eff}\ll 1$. Regarding $j_{c}^{\star}$, we need to recognize that the quantity $\sqrt{K/\chi}\sim\sqrt{KJ}$ setting the antiferromagnetic resonance frequency is typically much larger than the ferromagnetic resonance frequency, which is governed by $K$ and unaffected by $J$, as the exchange (which is nonrelativistic) is generally stronger than the anisotropy (which is relativistic). Comparing $j_{c}$ and $j_{c}^{\star}$, we thus see that the former scales with the anisotropy, but is not reduced by the damping, as in the ferromagnetic case, while the latter scales with the exchange-enhanced resonance frequency. Note that the scaling of $j_{c}^{\star}$ with the energy gap of the antiferromagnet is in agreement with the entropic argument given in Ref. Bender-PRL2012, (according to which, the effective spin accumulation induced by the spin Hall effect must overcome the magnon gap). The ratio $j_{c}/j_{c}^{\star}=\sqrt{K\chi}/2\alpha_{\textrm{eff}}$ is governed by two small parameters: $\sqrt{K/J}$ and $\alpha_{\textrm{eff}}$. In the desirable limit of strong spin-orbit effects, and thus large $\alpha_{\textrm{eff}}$ and $\vartheta_{2}$, as is the case, for example, in a magnetically-doped TI,TI-SOC we may have $j_{c}<j_{c}^{\star}$.

The phenomenological parameters of our effective theory can be evaluated in a simple diffusive model with weak spin-orbit interactionsTserkovnyak-PRB2002 ; Tserkovnyak-PRB2014 ; Cheng-PRL2016b as $\vartheta_{1}=\frac{\hbar^{2}}{2a_{M}}\frac{\sigma g^{\uparrow\downarrow}}{h\sigma+2\lambda e^{2}g^{\uparrow\downarrow}\coth(a_{N}/\lambda)}$ and $\vartheta_{2}=\theta_{s}\frac{\hbar e}{a_{M}}\frac{\lambda g^{\uparrow\downarrow}\tanh(a_{N}/2\lambda)}{h\sigma+2\lambda e^{2}g^{\uparrow\downarrow}\coth(a_{N}/\lambda)}$, where $a_{M}$ is the thickness of the antiferromagnetic layer, $g^{\uparrow\downarrow}$ is the spin-mixing conductance (per unit area) of the interface, and $a_{N}$, $\sigma$, $\lambda$, $\theta_{s}$ denote the thickness, conductivity, spin-diffusion length, and the bulk spin Hall angle of the heavy metal, respectively. These expressions coincide with the ferromagnetic case, subject to a generalized understanding of the spin-mixing conductance.AFM-T ; Cheng-PRL2014 An appropriate engineering of the heterostructure (with strong spin-orbit coupling and thin magnetic layer), together with optimizing the switching geometry, are necessary to produce feasible values of the critical currents.

Discussion and outlook.—Dzyaloshinskii-Moriya interactions in this paper are endowed in the antiferromagnetic insulator by the interface.Comm7 We have already discussed how our effective theory incorporates an inhomogeneous Dzyaloshinskii-Moriya coupling in response to the proximity of a heavy-metal substrate, giving rise to magnetic superstructures.Dzyaloshinskii-JETP1964 ; Bogdanov-JMMM1994 Another possible manifestation of spin-orbit coupling in antiferromagnets is a weak ferromagnetism.DMI Whether it is compatible with the sublattice symmetry, $\{\bm{l}\to-\bm{l},\bm{m}\to\bm{m}\}$, depends on the crystallographic structure of the antiferromagnet and its surface. In the Supplemental materialSUP we illustrate two examples of quasi-2D crystal lattices for which a homogeneous Dzyaloshinskii-Moriya term $\mathcal{F}_{\textrm{DM}}[\bm{l},\bm{m}]=\bm{d}\cdot(\bm{l}\times\bm{m})$ is allowed, where $\bm{d}=d\hat{e}_{z}$ is the Dzyaloshinskii vector along the normal to the interface. Addition of this term to the effective energy $\mathcal{F}_{\textrm{eff}}$ results in a redefinition of the normalized magnetic field $\mathcal{B}\rightarrow\mathcal{B}+\bm{l}\times\bm{d}$ in the equation (1) for the free-energy density. It can be shown, however, that its effect on the antiferromagnetic dynamics at the level of Eq. (Antiferromagnetic textures and dynamics on the surface of a heavy metal) can be absorbed by a small shift in the anisotropy constant: $K^{\prime}\rightarrow K^{\prime}-\chi d^{2}$.

Self-oscillations, in the form of limit cycles, are sustained above the critical current $j_{c}$ in the case of the easy-$z$-axis anisotropy. For the easy-$y$-axis geometry, the nature of the autonomous dynamics beyond the threshold $j_{c}^{\star}$ was shownCheng-PRL2016a to be sensitive to the details of the Gilbert-damping tensor, which can acquire, in particular, an anisotropic form $\propto\bm{l}\times(l_{z}^{2}\dot{\bm{l}}+\dot{l}_{z}\hat{e}_{z})$. The resultant self-oscillation frequencies belong to the THz range for typical insulating antiferromagnets. In order to realize spin-transfer THz auto-oscillators, however, appropriate materials and geometries need to be identified to yield feasible bias currents.

Supplemental Material

I A three-dimensional topological insulator as a heavy (semi)metal

Strong three-dimensional topological insulators (TIs) represent an extreme case of strong spin-orbit interactions at the interface,TI-SOC which relatively easily yields microscopic (model) expressions for the phenomenological parameters of the effective theory. It is worth mentioning that recent advances in electrical gating of magnetically-doped TIsFan-NatNano2016 promise great tunability of these coupling coefficients (that govern the magnetic configuration).

We regard the conducting TI surface as a uniform 2D gas of electronic excitations with linearly-dispersing bands,Comm3 which couple to the antiferromagnetic texture through a local axially-symmetric (single-particle) exchange. This coupling can introduce the following time-reversal symmetry-breaking term into the effective Hamiltonian:SFN1

[TABLE]

where $J_{\parallel},J_{\perp}$ are the corresponding exchange constants. This term can be absorbed into the Dirac-like description of the surface states,ExHam whose integration outTserkovnyak-PRBRC2015 yields the following expressions for the phenomenological coefficients:

[TABLE]

where $\zeta_{1},\zeta_{2}$ are offsets reflecting valence-band physics far away from the Dirac point, and

[TABLE]

Here $\beta$, $\mu$ are the thermal factor $1/k_{\textrm{B}}T$ and the chemical potential of Dirac electrons, respectively, and $v$ is the electron speed. According to the time-reversal symmetry considerations, the function $\zeta_{1}$ must be odd in $l_{z}$, whereas $\zeta_{2}$ is an even function (taken constant for simplicity).

II Numerical approach

Solutions of Eq. (8) are calculated numerically by the following method: we first recast this second-order differential equation as a first-order dynamical system, $\dot{\bm{X}}=F[\bm{X}]$, with $\bm{X}^{\top}=(\bm{l},\dot{\bm{l}}\,)$. Secondly, the trajectories of the Néel order in the phase space are obtained by integrating this dynamical system with the appropriate initial conditions and subject to the nonlinear constraint $\bm{l}^{2}\equiv 1$. These numerical trajectories are consistent with the fixed points, the limit cycles and the (attractive/repulsive) nearby dynamics predicted by the stability theory. The frequency $\omega$ characterizes the time evolution of the order parameter in a close vicinity of the two points $\bm{l}_{\textrm{FP},3}$, since its analytical expression is obtained from the linearization of the dynamical system at these (unstable) fixed points. It gives, however, a good approximation of the frequency of the self-oscillations of the Néel order beyond the current threshold $j_{c}$, which is extracted from the long-term dynamics of the numerical solutions.

III Homogeneous Dzyaloshinskii-Moriya interaction in films and bilayers

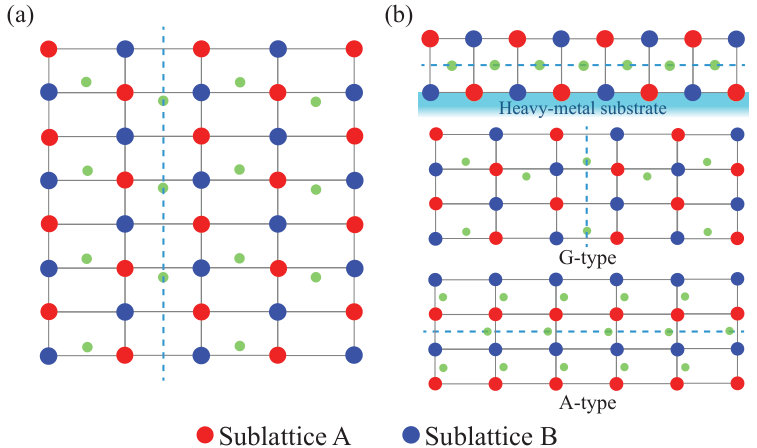

In Fig. 3, we show two examples of quasi-2D crystal lattices for which a homogeneous Dzyaloshinskii-Moriya term $\mathcal{F}_{\textrm{DM}}[\bm{l},\bm{m}]=\bm{d}\cdot(\bm{l}\times\bm{m})$ is allowed, where $\bm{d}=d\hat{e}_{z}$ is the Dzyaloshinskii vector along the normal to the interface. In the first example, (a), the magnitude $d$ may be amplified by the presence of the heavy-metal substrate. In the second example, (b), no such interaction would exist without the inversion-symmetry-breaking substrate.
