Contact Mechanics of a Small Icosahedral Virus

TL;DR

This study investigates how substrate-induced deformation affects the mechanical response of small icosahedral viruses upon adsorption, using atomic force microscopy and a continuum model to estimate elastic properties and interfacial energy.

Contribution

It introduces a continuum model to analyze virus deformation during adsorption, providing a new method to estimate elastic properties without indentation.

Findings

Height change distributions reveal virus deformation upon adsorption.

The model accurately fits experimental data to estimate elastic properties.

Interfacial energy between virus and substrate is quantified.

Abstract

Virus binding to a surface results at least locally, at the contact area, in stress and potential structural perturbation of the virus cage. Here we address the question of the role of substrate-induced deformation in the overall virus mechanical response to the adsorption event. This question may be especially important for the broad category of viruses that have their shells stabilized by weak, non-covalent interactions. We utilize atomic force microscopy to measure the height change distributions of the brome mosaic virus upon adsorption from liquid on atomically flat substrates and present a continuum model which captures well the behavior. Height data fitting according the model provides, without recourse to indentation, estimates of virus elastic properties and of the interfacial energy.

Figures

Tables

Table 1. Table 1: Fit parameter values for data in Fig. 3

Parameters:	$\kappa$	$\gamma$	$\tau$
	$\left(k_{B}T\right)$	$\left(k_{B}T/n{m}^2\right)$	$\left(k_{B}T/nm\right)$
HOPG	32	0.16	0.09
Mica	32	0.10	-0.30

Equations

$$a=\sqrt{\frac{4r_0^2-h^2}{2}}$$

$$r=\frac{4r_0^2+h^2}{4h}$$

$$F=\frac{1}{2}\kappa {\left(\frac{2}{r}-\frac{2}{r_0}\right)}^{2}2\pi rh+2\pi {\kappa }_G\frac{h}{r}-\gamma \pi a^2+\tau 2\pi a$$

$$\kappa ={\kappa }_s\cdot \frac{w^2}{\alpha }$$

Full text

The problem of how adhesion of a deformable object to a surface is driven by interfacial energy and opposed by elasticity is at the center of modern contact mechanicsMaugis (1999). Cell membranes are naturally impermeable to virus particles. For viruses to cross plasma, endosomal, or nuclear membranes, the virus-cell interface has to change drastically after virus adsorption. This is often done in a system-specific manner. Nevertheless, before specific transformations to take place, virus particles must stick at the apical cell surface via generic interactions, e.g., hydrophobic or electrostaticMercer et al. (2010). Could this initial, random binding event already perturb the mechanochemistry of the virus particle in a way that would prime it for the next sequence in the entry process? Gao et al. have suggested a model for the clathrin-independent endocytosis mechanism by which interactions between ligands fixed on the particle surface and free receptors on the plasma membrane would result in bringing more of the membrane into contact with the particle, which in turn would lead to the particle being eventually engulfed by the plasma membraneGao et al. (2005). This receptor-mediated wrapping mechanism model was revisited by Yi et al. who allowed particles to deform under the influence of adhesion to the flexible membrane surface and pointed out the possibility of a strong effect of the elastic deformation of particles on their cellular uptakeYi et al. (2011). Furthermore, more recent experimental studies provided indication that, at least in certain cases, virus stiffness may regulate entryPang et al. (2013).

In contact mechanics of small soft-material particles, solid surface tension dominates elasticityStyle et al. (2013). Yet, this aspect has not been considered so far in approaches to mechanical measurements of viruses by atomic force microscopy (AFM) nanoindentation. Here we report on a case study aiming to determine how virus mechanics responds to virus adsorption to a surface. We find that a small icosahedral plant virus, the brome mosaic virus (BMV), will bind to atomically flat surfaces predominantly in one orientation, and that in order to achieve this preferred orientation it will deform, mainly at the contact interface. Moreover, in indentation experiments, the spring constant of the virus was independent of substrate-induced deformation. In other words, local stresses due to surface binding and distortion do not seem to propagate to the top, where the measurement is done. Interestingly, this would also be expected within the framework of thin shell theoryBuenemann and Lenz (2007). Furthermore, with the aid of an elastic model, we show how the distribution of particle heights on the substrate informs on the magnitudes of elastic moduli and of the contact surface energy, without recourse to indentation experiments.

Viruses are obligated biological systems much smaller in size than cells, but still composed of hundreds to tens of thousands of molecules working together. A complete understanding of their dynamic behavior requires a unifying framework including contributions from scale-dependent and scale-independent phenomenaPhillips and Quake (2006). In recent years, studies of virus mechanics under the influence of an external perturbation have begun to shed light on how energy flows between the different degrees of freedom describing these complex molecular assemblies. Osmotic pressure assays have provided important clues on how chemical energy is transformed into mechanical energy for phage genome injectionGelbart and Knobler (2008) and single molecule pulling experiments with optical tweezers have helped elucidating the mechanisms of phage genome packagingSmith et al. (2001); Purohit et al. (2003); Smith (2011).

In the category of in singulo methods based on mechanical force application, AFM indentationMichel et al. (2006) has allowed the measurement of virus and protein cage deformation under uniaxial loadRoos et al. (2010a); Carrasco et al. (2011), and of the relationship between virus mechanics and chemistry, which includes contributions from environmental factors such as pH or hydrationWilts et al. (2015), and from the nucleic acid cargoMichel et al. (2006); Carrasco et al. (2006); Vaughan et al. (2014); Ahadi et al. (2013). For sufficient imaging resolution and to perform reproducible indentation experiments, particles have to be immobilized strongly enough to resist lateral forces exerted by the AFM probeBaclayon et al. (2010). Compared with contact modes, non-contact modesHansma et al. (1994); Moreno-Herrero et al. (2003); Martinez-Martin et al. (2012) are generally considered as being the least intrusive. Even then, while mean forces during imaging are usually below 0.1 nN, peak force estimates in “tapping” mode can exceed 0.1 nN (albeit for only $\sim$1 ms per pixel)Xu et al. (2008). Such forces require either virus immobilization in a crystalline latticeKuznetsov et al. (1997) or, when single virus measurements are sought, strong adhesion forces between virus and substrate. This is why substrates are usually prepared by coating with molecules imparting a hydrophobic or charged character to the surface Müller et al. (1997); Roos (2011). Thus, when the virus binds to the surface through, say, hydrophobic interactions, an equilibrium is established between virus-substrate adhesive interactions and the cohesive interactions of the virus. Adhesion-related deformation was observed beforeKnez et al. (2004), but very little is actually known about this equilibrium. How does the balance between adhesion and mechanical stresses affect particle shape? How large is the adhesion area at equilibrium? What is the magnitude of surface energy? Does surface adhesion result in local structural perturbations that propagate through the virus lattice up to the top, at the indentation area? This study takes on the task of addressing these questions on one of the most-studied virus systems adsorbed on chemically well-defined, atomically flat substrates.

BMV was the first virus to be imaged by AFM at molecular resolutionKuznetsov et al. (2001). It is an established modelKao and Sivakumaran (2000) for small (+) single–stranded RNA icosahedral viruses, the most plentiful viruses on this planetFlint et al. (2009). BMV has a non-enveloped capsid formed from 180 copies of the same coat protein (CP), organized in a T=3 lattice with an average outer diameter of 284 ÅWang et al. (2014). The outer surface of the BMV capsid is studded with hydrophobic patches surrounded by polar residues (Fig. SI-1) and thus BMV readily adsorbs on both hydrophobic surfaces and polar surfaces.

In this work, we study the distributions of maximum particle heights measured by AC-mode AFM on two substrate materials that readily yield atomically flat surfaces: highly-oriented pyrolytic graphite (HOPG), and mica. The idea is that adhesion forces will tend to maximize the contact area by locally flattening the virus at the contact point. Assuming that, for small perturbations, the virus particle behaves approximately as an elastic shellRoos et al. (2010a), an increase in contact area can be accomplished at the energetic cost of bending the shell and of forming a rim, defined as the locus where the fluid, the substrate, and the shell outer surface meet. As a result, the maximum height of the virus over the surface support would change upon adsorption. Since measuring height is done relative to the substrate, it is beneficial to chemically homogeneous, atomically flat substrates for this work, as opposed to functionalized etched glass substrates customarily used in indentation experiments, which have higher local roughnessRoos (2011).

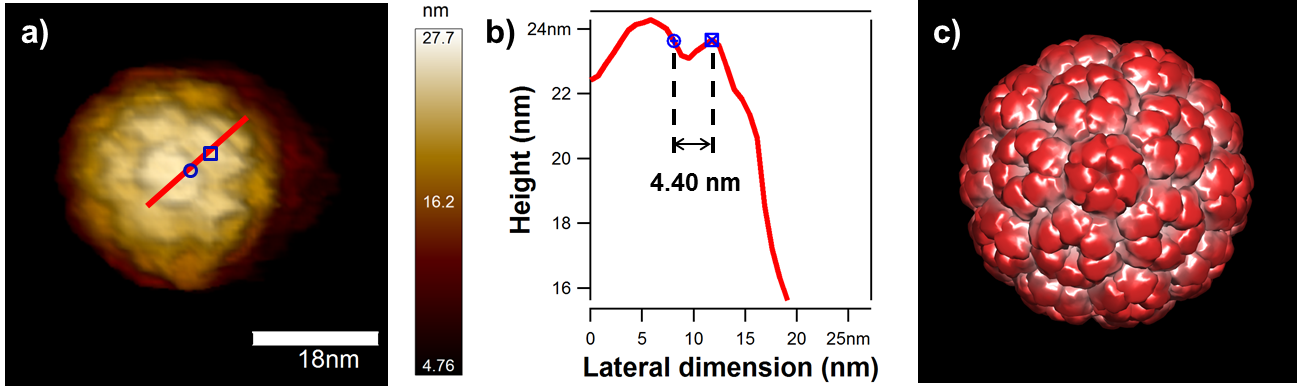

Height measurements can be affected not only by substrate roughness, but also by virus shell anisotropy. For BMV, the root-mean-square deviation (rmsd) from a spherical surface is $\sim$ 20ÅLucas et al. (2002). Since the measurement is made top-down, it is important to record the orientation of the virus particle relative to the substrate. Imaging at the experimental conditions reported here (see Supporting Information) leads to sufficient lateral resolution (Fig. SI-2) to distinguish not only broad icosahedral symmetry features, but individual capsomers on the virus surface, Fig. 1. In these conditions, we find a clear orientational bias, on both substrates. The most frequent orientation is with a three-fold axis normal to the substrate ($\sim 70\%$ from a total of 38 particles which had enough resolution to be unambiguously analyzed). Note that, if particles were adsorbed with random orientation, one would expect the three-fold axis orientation to be observed significantly less often. Early work on cowpea chlorotic mottle virus done on KOH etched glass and silanized glass found random capsid orientations, in contrast with our findingsMichel et al. (2006). The difference is likely coming from the fact that etched glass is rough and chemically heterogeneous. As a consequence, particles may bind upon landing with an enhanced initial contact area, and hence with strong initial adhesion and without subsequent reorientation. The situation is likely different on atomically flat, chemically homogenous surfaces, where an initial small contact would require reorientation to avoid desorption. Orientational selection could come from the most exposed areas on the virus surface having a pronounced hydrophobic character and affinity for nonpolar surfaces such as HOPG, Fig. SI-1. Moreover, anionic residue patches bordering these areas may bind to divalent cations (such as Mg(II) present in buffer solution) and adsorbed on the mica surfaceHansma and Laney (1996).

Histograms of BMV maximum heights on HOPG and mica are presented in Fig. 2 a). A small (5 Å) correction to the apparent height values was made to account for compression under the imaging force (Supporting Information)Roos (2011). There are two notable observationss: (1) On both substrates, height histograms are peaked at values 1.5-2.0 nm below the nominal 28.4 nm for BMV. (2) Histograms are asymmetric, with the longer tail extending towards lower heights, while the greater heights wing ends abruptly in the vicinity of the nominal BMV diameter. Height distribution peak position and peak width depend on the substrate, suggesting a chemical effect.

Lower heights than the nominal diameter suggest particle deformation upon adhesion, Fig. 2 b). BMV particles have elastic constants of $\sim$ 0.2 N/m. The compression force that would have to act on the virus to obtain a deformation associated with the observed drop in height of $\sim$ 2 nm, is $\sim$ 400 pN. This value gives an order of magnitude estimate of substrate-induced interactions at work.

An analytical model was setup that captures in a formal, albeit heuristic way, the interplay between elastic properties, capsid deformation, and adhesion. The model is inspired by the Helfrich treatment of the elastic properties of lipid bilayersHelfrich (1973), but with significant differences as a viral shell is a very different object than a lipid vesicle. A specific assumption is made that, upon landing on a surface, adhesion can increase by local deformation and formation of a flat contact area (base) with circular symmetry, Fig. SI-3. In other words, there is a sharp boundary or fracture between the flat surface base and the spherical cap, in solution. We opted for this geometry instead of the one assuming continuous deformation of membrane vesicles adsorbed on a surfaceSeifert and Lipowsky (1990) because due to the discrete nature of shell subunits, line fracture rather than continuous deformation is a reasonable assumption. Moreover, a continuously-deformed particle should become pre-stressed by adsorption and presumably, show changes in apparent stiffness, a situation which, as we will see later, we do not observe.

Stretching would imply deformation of the proteins and/or increase in capsomeric surface-to-surface distances. Both processes are expensive, the latter on account of the short-ranged nature of the interactionsBuenemann and Lenz (2007). Moreover, attempts to fit the data including stretching/compression of the surface area either failed or showed that the contribution of stretching energy is negligible. Area conservation upon deformation is thus assumed, which leads to a relationship between height and the cap radius:

[TABLE]

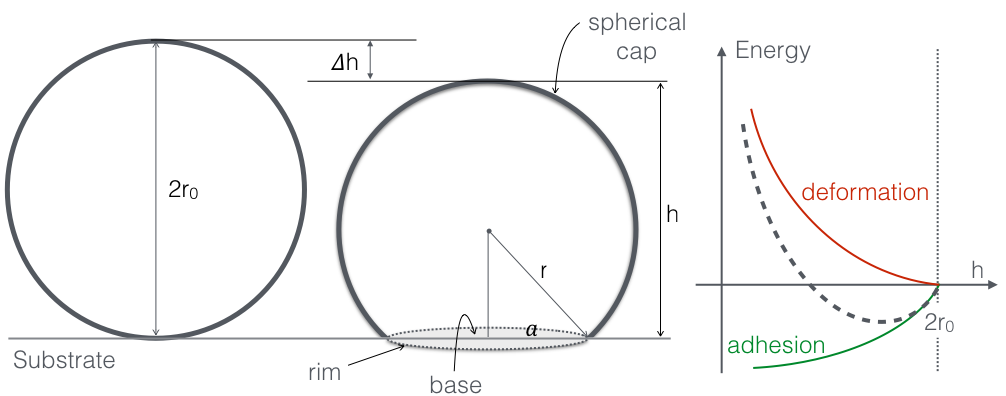

where $r_{0}$ is the initial particle radius, and $h$ is the height on the surface after binding and deformation (Fig. SI-3). The spherical cap radius then obeys (Fig. SI-3):

[TABLE]

The total energy is partitioned into contributions from the bending and Gauss energies, as well as a surface energy associated with the contact area, and a line or rim energy associated with the contact perimeter. The total energy is (see Supporting Information):

[TABLE]

where: $\kappa$ is the bending modulus, $\kappa_{G}$ is the Gauss modulus, $\gamma$ is the surface energy, and $\tau$ is the rim energy.

We emphasize that we attempted to fit the data without the Gaussian term and in the presence of stretching energy, see below and the SI. The expression given in Eq. 3 is the simplest equation with which we are able to fit the experimental data

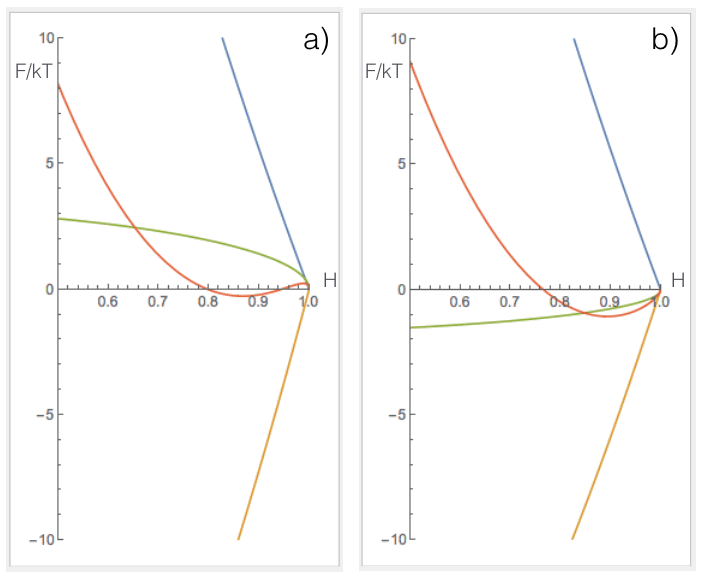

Within the thin shell approximation, the Gauss and bending moduli are related via Poisson’s ratioLandau and Lifshitz (1984): $\kappa_{G}=\kappa(\nu-1)$. For small icosahedral ssRNA viruses, $\nu\approx 0.3-0.4$Ahadi et al. (2013); Michel et al. (2006); Gibbons and Klug (2008). Here we take the value $\nu=0.3$. The free energy change upon adsorption can be then written as a sole function of the reduced height, $H=h/2r_{0}$. Parameters $\kappa$, $\kappa_{G}$, $\gamma$, and $\tau$ can be then in principle found from fitting experimental data with a Boltzmann distribution derived from the free energy as a function of $H$ (eq. 3).

Note that the Gauss term would have a vanishing contribution on a continuous surface topologically equivalent to a sphereSeifert and Lipowsky (1990). In our case the surface is not differentiable everywhere, and hence the Gauss term does contribute. Interestingly, if we remove the Gauss term, we obtain a substrate-dependent bending modulus, which should have been a property determined by the nature of the virus rather than the underlying surface. Furthermore, unreasonably high values for the bending modulus were also observed (see Supporting Information). If we keep the Gauss term, then our data could be fitted using same values for the bending modulus on different substrates. The fitting results and parameters for these conditions are summarized in Fig. 3 and Table 1. As discussed in the following, parameter values agree well with those previously reported by other methods.

Since the bending of a shell involves compression of the inner surface and extension of the outer surface, the bending modulus, $\kappa$, is related to the stretching modulus, $\kappa_{s}$ through:

[TABLE]

where: $w$ is the shell thickness, and $\alpha=$ 12, 24, or 48 depending on the shell model (12 for a uniform plateLandau and Lifshitz (1984), 24 for a polymer brushRawicz et al. (2000), 48 for a two-leaflet structureBoal (2002)). For virus capsids, $\alpha=$ 12 has been previously usedGibbons and Klug (2007); Cuellar et al. (2010); Roos et al. (2010b), which in our case leads to $\kappa_{s}\approx 43\ k_{B}T/nm^{2}$. In an examination of the low-frequency modes of a very similar virus to BMV, the chlorotic cowpea mosaic virus (CCMV), May et al. calculated, in the context of a spherical harmonic basis set, $\kappa_{s}$ values for the $l=0$ and $l=1$ modes at $81\ k_{B}T/nm^{2}$ and $60\ k_{B}T/nm^{2}$, respectivelyMay et al. (2011). Note that while in AFM indentation experiments the $l=1$ is the dominating mode, both $l=0$ and $l=1$ modes are likely to be required in order to describe deformation in our case. Thus, estimates for the bending modulus from the particle height data lead to comparable values with those previously reported from similar systems.

From the relation between the particle height, initial radius and radius of the flat part of the adsorbed virus, we can find the base area that corresponds to the most probable particle height. The base radius for HOPG is $\approx$ 9 nm and the corresponding base area is $\approx$ 250 nm2. Creating the base lowers the particle energy by $\approx 40\ k_{B}T$ with a rim contribution of $\approx\ 5\ k_{B}T$. Note that different contributions dominate at different height ranges. For instance, the rim contribution dominates when the contact area is small. Populations at $h\approx 2r_{0}$ are determined by the magnitude (and sign) of $\tau$. More specifically, a barrier to adsorption would occur if $\tau$ is positive (see Fig. SI-3). Such seems to be the case on HOPG, but not on mica (see Table 1). Because we would naively expect a positive line tension, we cannot explain this.

As area conservation is assumed, it is not necessary to include a stretching term in our model. However, to verify how reliable this assumption is, we relaxed the constant area constraint (see Supporting Information for details). This necessitates the introduction of a stretching term in the free energy expression in order to account for the energy cost associated with any changes in the surface area. For simplicity, uniform stretching was assumed for the entire shell and the stretching modulus, $\kappa_{s}$, was related to bending modulus as we have seen above (eq. 4). Fitting of the height histogram with the relaxed area constraint leads to a total surface area decrease for both HOPG and mica substrates. Still, the bending modulus showed negligible change. These results suggest that the contribution from stretching is minimal and that the assumption of constant surface area is valid.

Together, our findings on the orientation bias and the estimates for the contact area suggest a possible mechanism for adsorption. We have seen that the most probable orientation on HOPG is with a 3-fold axis normal to the substrate. Considering the magnitude of the radius for the contact area, pentamers should be located on its circumference, i.e. touching the substrate.

Keeping in mind that previous indentation experiments suggest compression to occur more readily along a 3-fold than along a 5-fold axisRoos et al. (2010b) and that hexameric interfaces are thought to fail more readily than pentameric onesZandi and Reguera (2005); Krishnamani et al. (2016), we propose that the main displacement upon adsorption occurs along the three-fold axis, with the hexamer at the center radially shifting its position from the surface towards the particle center, and with the stiffer pentamers acting as a stabilizing tripod. As the interfacial area grows, a point is reached where the cost of continuing the flattening of the shell is greater than the energy drop due to adhesion, at which point the virus shell is stabilized. It is worth noting that, normal mode analysis of the mechanical properties of icosahedral virus capsidsTama and Brooks (2005) predicts pentamers to have greater propensity to move freely. However, continuum approaches based on elastic theory predict in certain cases the opposite, i.e., pentamers being stiffer than hexamersBuenemann and Lenz (2008). The latter is valid for large ratios between elastic and bending energy contributions, for large viruses and when spontaneous curvature effects can be neglectedLidmar et al. (2003). It would be interesting to see how inclusion of substrate effects might affect these analyses. In any case, our experiments seem to support a scenario with stiffer pentamers, for a small virus.

An issue of practical importance from a measurement perspective, is wether interactions at the substrate-virus interface affect readings of the virus stiffness in AFM indentation experiments. We have performed AFM indentation on BMV adsorbed on HOPG in SAMA buffer and plotted the elastic constants as a function of particle height. Within the framework of the proposed model, the smaller the height, the larger the virus-substrate interaction. Do particle height and elastic constants correlate? As expected, the joint histogram presented in Fig. 4 suggests that, within the experimental uncertainty, this is not the case. The particle height varied independently of the measured elastic constant $K_{v}$, which remained constant at $0.20\pm 0.06$ N/m. Note that, for the simple thin shell model, the elastic constant $K_{v}$ is proportional to the Young’s modulus, which in turn is directly proportional to the bending modulus $\kappa$. To avoid inhomogeneous broadening of $K_{v}$ in this experiment, and keep experimental uncertainty low, we produced a nearly homogeneous BMV virion population containing mainly a subset of the viral genome ($\sim$90% of RNA3/4) via an engineered Agrobacterium expression systemNi et al. (2014). Moreover, natural variation in the average radius of the virus particle (from cryo-electron microscopy measurements) is $\sim$1 nm, much smaller than the deviations measured here.

In conclusion, we have utilized AFM imaging in liquid on flat, chemically homogeneous substrates to show that orientation and height of viruses adsorbed on a substrate depend on the virus-substrate interaction. BMV was found to adsorb preferentially with a three-fold axis parallel to the surface normal. Local deformation, measurable as a change in virus height ensues as elastic and adhesive forces equilibrate. A simple model fitting experimental data suggests that interfacial energies of tens of $k_{B}T$ accompany the encounter of BMV with both charged and nonpolar model substrates. As we used the simplest possible free energy to obtain insights into the contribution of different elastic energies, our model is highly approximate, and it cannot reproduce the long tail in the distribution. Further investigations are required. However, local deformation at the contact area does not change the apparent elastic constant as measured by AFM indentation, which suggests that curvature elastic stress does not change upon adsorption. Since it appears that virus orientation and deformation at the surface stabilize interfacial interactions, an interesting question that might be raised is that of anisotropic deformability as yet another biologically beneficial facet of icosahedral symmetry in viruses.

I Figure Captions

Figure 1. a) AFM images of BMV particles adsorbed on HOPG and mica. Several capsomers per capsid are observable at sufficient resolution to see broad morphological features of a single capsomer \sim\6 nm in size. Scale bars: 10 nm. b) Orientations of the model icosahedron that correspond to virus orientations in a), respectively. c) Corresponding orientations of the BMV crystallographic model. d) and e) Distribution of surface normal directions, represented as colored lines from single measurements, with respect to an icosahedron attached to each particle and to the molecular model, on HOPG (N = 17 particles, green) and mica (N = 21 particles, blue).

Figure 2. Particle height distributions for adsorbed BMV at equilibrium in SAMA buffer, at pH 4.5 (a), and cartoon representation of the mechanism by which particle heights may acquire a distribution when adsorbed on a surface (b).

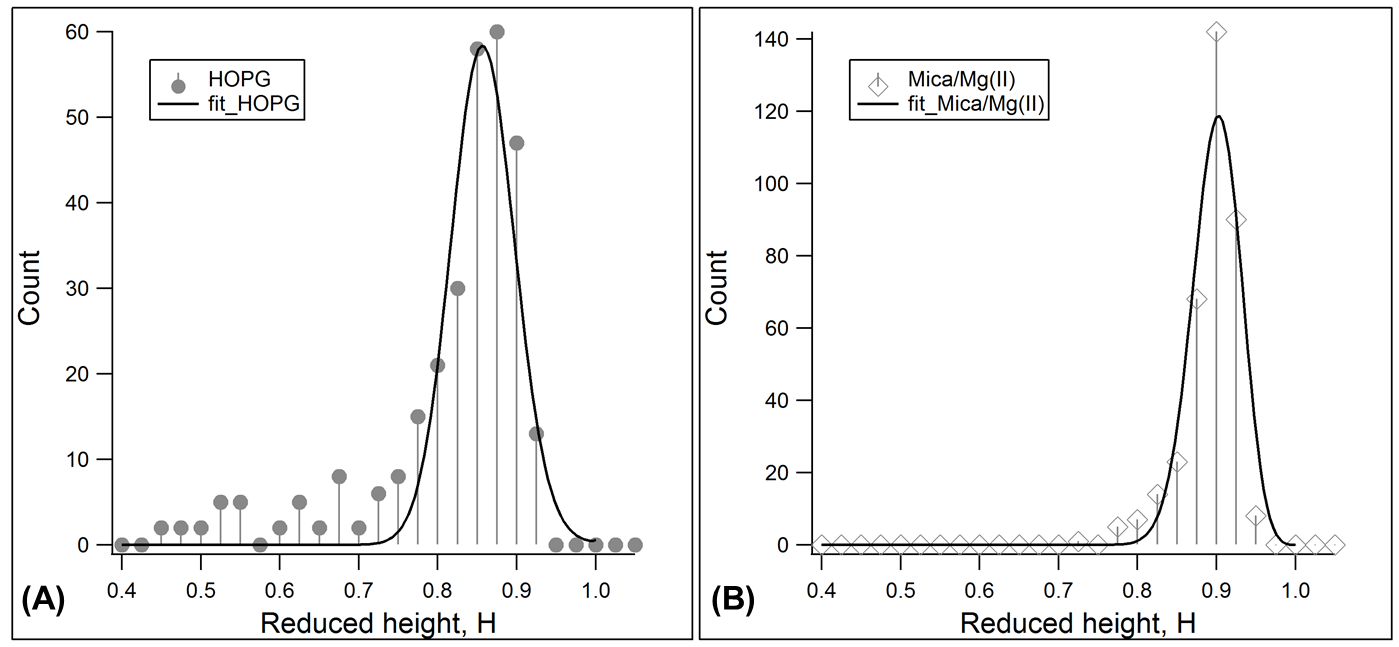

Figure 3. Model fit of the particle height distribution on HOPG (a) and mica (b). At close to nominal heights ($H=1$) contact area is minimal and likelihood of desorption increased, thus populations are low. At smaller heights, adhesion comes at the cost of structural perturbation, modeled here as elastic.

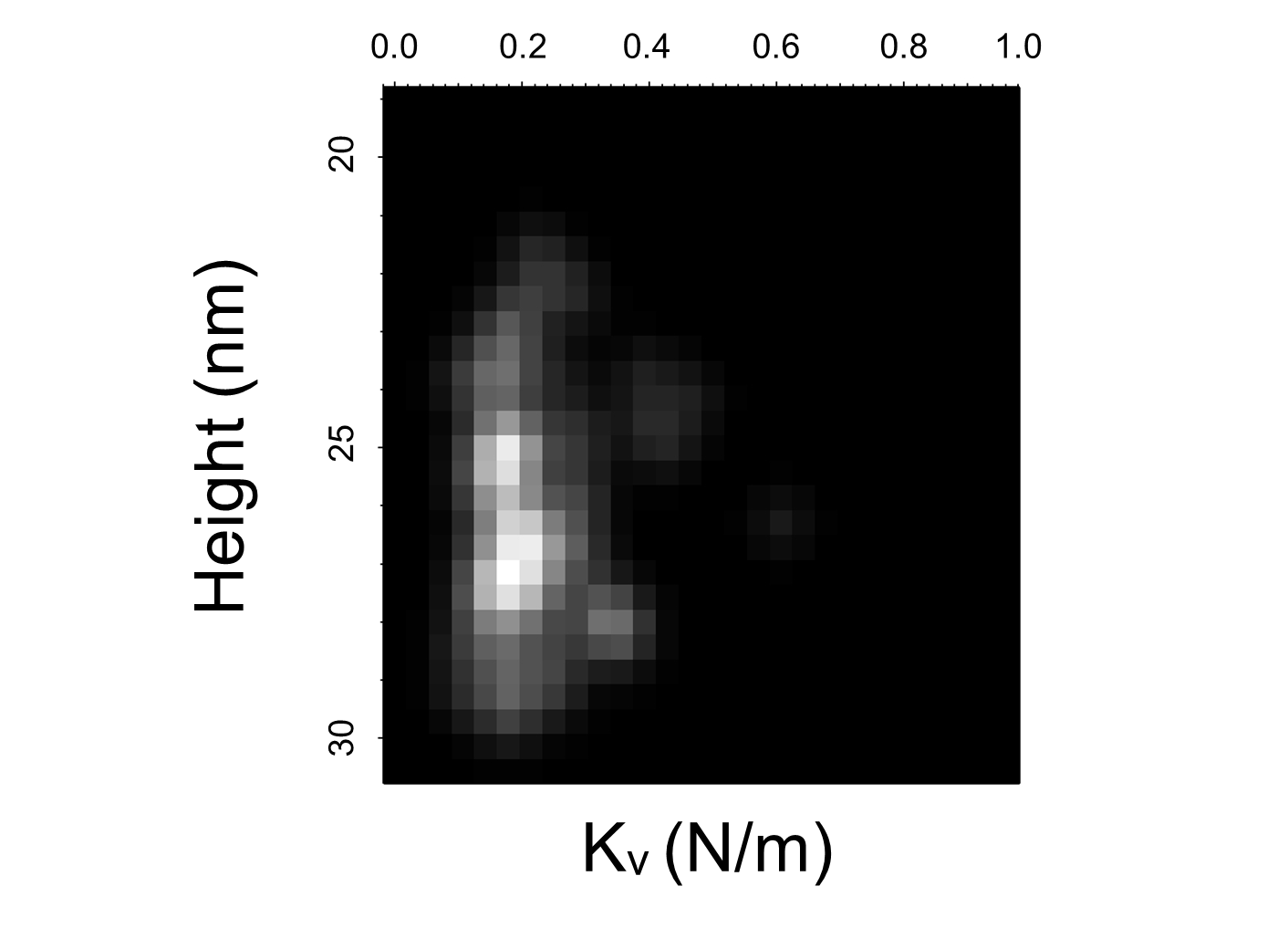

Figure 4. Joint probability density histogram of heights and elastic constants for a homogeneous sample of BMV (N = 138) containing a genomic subset. The vertical streak aspect suggests negligible correlation between height variations due to adsorption and the magnitude of the elastic constant.
