The Crab pulsar at VHE

TL;DR

Recent observations of the Crab Pulsar reveal a very-high-energy tail extending up to TeV energies, challenging existing models and suggesting gamma-ray production near the light cylinder via inverse Compton scattering.

Contribution

This paper presents new MAGIC measurements extending the Crab Pulsar spectrum into the TeV regime, providing evidence for inverse Compton processes close to the light cylinder.

Findings

Detection of pulsed emission up to TeV energies

Dominance of inter-pulse at higher energies

Implication of ultra-relativistic particles with Lorentz factors > 5×10^6

Abstract

The last six years have witnessed major revisions of our knowledge about the Crab Pulsar. The consensus scenario for the origin of the high-energy pulsed emission has been challenged with the discovery of a very-high-energy power law tail extending up to 400 GeV, above the expected spectral cut off at a few GeV. Now, new measurements obtained by the MAGIC collaboration extend the energy spectrum of the Crab Pulsar even further, on the TeV regime. Above 400 GeV the pulsed emission comes mainly from the inter-pulse, which becomes more prominent with energy due to a harder spectral index. These findings require gamma-ray production via inverse Compton scattering close to or beyond the light cylinder radius by an underlying particle population with Lorentz factors greater than 5 times 106. We will present those new results and discuss the implications in our current knowledge concerning pulsar environments.

Figures

Full text

1 Introduction

Pulsars are rapidly rotating neutron stars (NS) which form highly magnetized magnetospheres, usually described as magnetic dipoles. The magnetosphere is filled with charged particles, mainly electrons and positrons, extracted from the stellar surface by the induced electric fields. The original model for pulsar magnetospheres foresees that these charged particles satisfy the ideal magnetohydrodynamic (MHD) ($E\cdot B$=0) and the free-force (FF, $\rho E+J\times B$=0) conditions Goldreich:1969 . In this view, the magnetic field lines cannot remained closed beyond the light cylinder (LC, with a radius RLC), where the angular velocity of the NS is equal to the speed of light. Along the open field lines the plasma flows along asymptotically monopole field lines Michel:1973 forming the pulsar wind region. Nowadays it is commonly accepted that the ideal MHD and FF conditions cannot be fulfilled everywhere inside the magnetosphere. In the past years regions where the electric field is not totally screened by the plasma were invoked as possible sites of particle accelerations. They are referred as to gaps. Recently current sheets are taking over though. They are current carrying surfaces where particles can be accelerated via relativistic reconnection and radiate synchrotron emission from optical to $\gamma$-ray wavelengths. In particular, an equatorial current sheet was proposed by Contopoulos to ensure the closure of the large-scale currents flowing from the star to infinity and back Contopoulos:1999 , but only recent particle-in-cell (PIC) simulations of plasma-filled magnetospheres have provided the evidence for its existence, as well as its possible extension down to the NS surface, separating the open and closed field lines (this names them separatrix) Spitkovsky:2006 ; Kalapotharakos:2009 ; Tchekhovskoy:2013 ; Cerutti:2015 . The equatorial current sheet separates the field lines that originate from the two pulsar magnetic poles. When the rotation and magnetic axes are not aligned (oblique pulsars), this current sheet develops corrugation whose amplitude increases linearly with the distance from the star. The equatorial plan is then divided into stripes of magnetic field of opposite polarities, hence the name stripped wind Coroniti:1990 ; Bogovalov:1999 ; Kirk:2002 .

In this new paradigma of the pulsar magnetosphere, two classes of pulsars are defined depending on the particle density inside the magnetosphere: the high-multiplicity pulsars where pair production takes place within the magnetosphere, that are the young pulsars with high stellar magnetic fields, and the low-density pulsars where particles are supplied only from the NS surface and are identified with the old pulsars. For the first class of pulsars the FF solution is a good approximation of their magnetosphere characterized by the presence of the separatrices and the equatorial current sheet. They are weakly dissipative Cerutti:2015 ; Contopoulos:2016 . The low-density pulsars exhibit a charged separated magnetosphere with no separatrices since the equatorial sheet is electrostatically supported. They show high dissipation ($>$40%) beyond the LC Cerutti:2015 ; Contopoulos:2016 .

Pulsars are observed from radio frequencies up to $\gamma$ rays. Radio emission is believed to be produced at low-altitudes, close to the stellar magnetic poles, by a a coherent process either maser amplification or coordinated motion of group of charges. At higher frequencies pulsed emission is incoherent, most likely synchrotron radiation produced by relativistic electron-positron pairs. At high energies, pulsed emission was long attributed to synchro-curvature by particles accelerated in magnetospheric gaps. According to the location of the gap inside the magnetosphere, $\gamma$-ray pulsar models were classified into polar caps, if close to the magnetic poles, Harding:1978 , outer gaps if at high altitudes Cheng:1986 , or slot gaps, if along the last open field lines Muslimov:2003 . In particular, such a synchro-curvature emission has a maximum energy limited by radiation losses or magnetic and $\gamma$-$\gamma$ pair absorption. The recent advances on the high-energy pulsar physics due to discovery of more than 150 $\gamma$-ray pulsars by Fermi/LAT 2PC suggest that pulsed $\gamma$ rays are produced at high altitudes favouring the outer gaps models. This conclusion is mainly drawn by two observational facts: 1) The spectral cutoff at a few GeV is exponential, and often even subexponetial for young pulsars. The smoother spectral break is interpreted as the overlapping of emission beams coming from different regions and/or with different cutoff energies. 2) The majority of the $\gamma$-ray pulsars present a double-peaked pulsar profile, which in low-altitude emission models would require a specific geometric configuration (both viewing and inclination angles close to 90*∘*), too special to meet the observed numbers Romani:2010 . However, in the context of the new paradigma of the pulsar magnetosphere, the high-energy emission could entirely or partially be of synchrotron origin produced in the equatorial current sheet beyond the light cylinder Petri:2012 ; Mochol:2015 ; Cerutti:2016 .

2 The Crab pulsar

The Crab pulsar is the second most powerful pulsar known so far with a spin-down luminosity $\dot{E}=3.8\times 10^{38}$ erg/s and the only pulsar whose age is known with precision. It is, in fact, the leftover of an historical supernova explosion occurred in 1054 AD which was in detail documented by Chinese astronomers.

Its pulse profile is characterised by two peaks almost aligned at almost all wavelengths, even though their amplitudes change with energy Kuiper:2001 ; bridge . The main peak at low radio frequencies (0.1–5 GHz), by definition set at phase 0, is usually referred to as P1, whereas P2 or interpulse is located $\sim$ 0.4*∘* away. The emission in between the two peak is called bridge.

2.1 Recent results at VHE

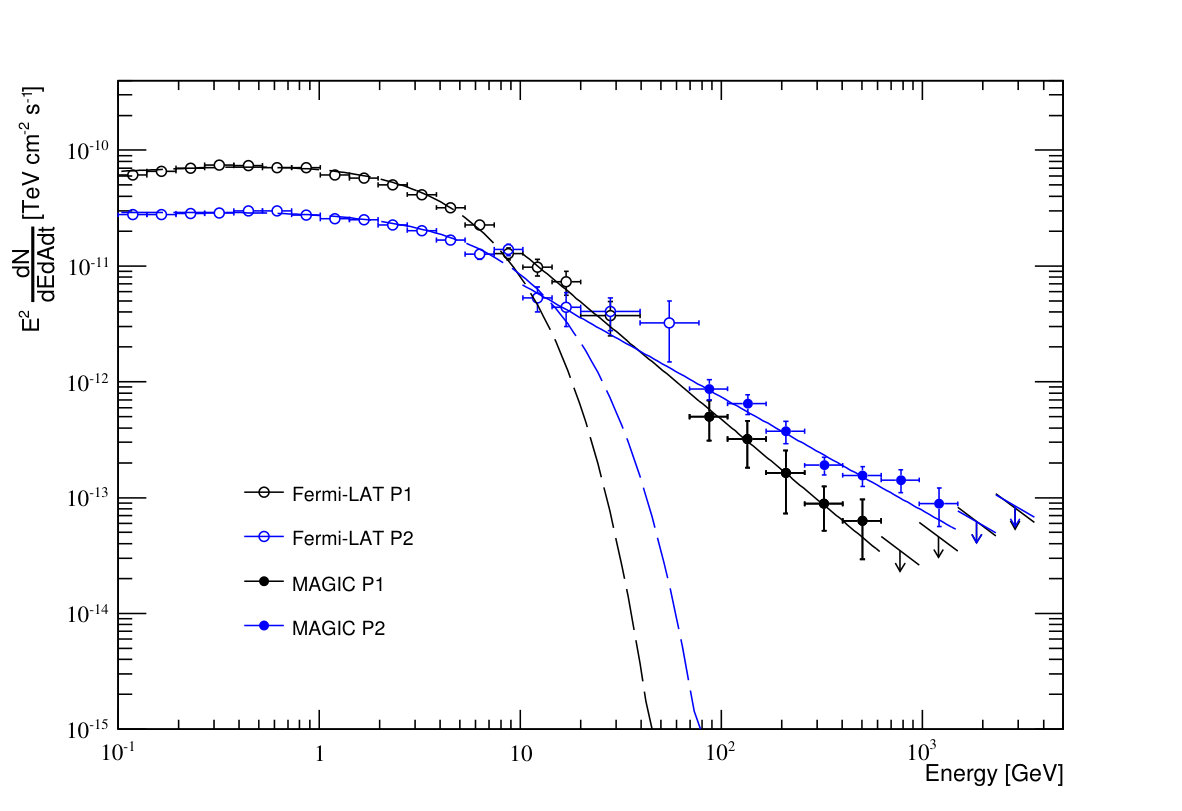

All the 160 $\gamma$-ray pulsars detected by Fermi/LAT show a spectral break at $\sim$few GeV in agreement with the synchro-curvature scenario 2PC , but one: the Crab pulsar. The spectrum of the Crab pulsar between 0.1-100 GeV is well parametrized by a power-law function with a sub-exponential cutoff (b$<$1). The best-fit value for the photon index is $\gamma$=1.59$\pm$0.01, for the energy break is (5.09$\pm$0.63) GeV and for the curvature index b=0.43$\pm$0.01 buehler:2012 . Recent measurements of the Crab pulsar by imaging atmospheric Cherenkov telescopes showed a totally unexpected power-law component emerging above the synchro-curvature cutoff and extending above 100 GeV Aliu:2011 ; Aleksic:2011 ; Aleksic:2012 . This new spectral component, that is excluding the spectral break at more than than 6$\sigma$ Aliu:2011 , is a common feature of both peaks and the bridge. A joint fit of the Fermi/LAT data above 10 GeV and the MAGIC ones indicates that P2 is significantly harder than P1 with a difference between the photon indices of 0.5$\pm$0.1. Whereas the steeper P1 ($\Gamma$=3.5$\pm$0.1) spectrum cannot be detected beyond 600 GeV, P2 becomes the dominant component above 50 GeV Aleksic:2011 and extends up to 1.5 TeV without any sign of cutoff MioPSR:2016 . A lower limit on the spectral cutoff is estimated at 700 GeV. On the other hand, the spectrum of the bridge is as soft as P1 and fades out already at 150 GeV bridge .

This VHE pulsed emission is very unlikely to be synchro-curvature radiation: the production of 1 TeV photon would require, in fact, a curvature radius of the magnetic field lines one order of magnitude larger than the usual adopted one. If emission up to few hundreds of GeV could be also synchrotron radiation from the equatorial current sheet Petri:2012 ; Mochol:2015 , the emission at higher energies is accredited to be produced via inverse Compton scattering. In this view several models have been put forward. Some of them are listed in the following:

• •

inverse Compton scattering of relativistic wind electrons off pulsed optical/X-ray photons with magnetospheric origin Bogovalov:2000 ; Aharonian:2012 . This model was proposed to explain the emission up to 400 GeV and can well reproduce the pulse profile by assuming an anisotropic pulsar wind. Nevertheless, it fails in reproducing the spectrum up to 1 TeV. The production of these energetic photons would require electron parent population with a Lorentz factor larger than $5\times 10^{6}$, hence a continuos acceleration from the LC up to $\sim$100RLC which in turn results in an overestimation of the GeV flux.

• •

synchrotron-self-Compton scattering off synchrotron photons produced in the current sheet by the same population of synchrotron-emitting electrons. This model reproduces the spectrum up to VHE as a sum of two distinct components: the synchrotron power-law up to few hundreds of GeV and the SSC as an extra bump fading out at a few TeV Mochol:2015 . However, the model cannot explain the pulse profile.

• •

inverse Compton scattering off either photons in particle cascading inside the magnetospheric gaps Lyutikov:2012 ; Aleksic:2011 ; Hirotani:2015 .

So far none of the existing model can explain simultaneously the spectrum and the pulse profile with its narrow peaks at VHE. In addition there is no comprehensive theoretical model reproducing all the observable of the pulsed emission i.e. the broadband spectrum with its spectral changes across the pulse-phase in X- and $\gamma$ rays, and the pulse profile with its energy-dependent peak amplitude and width.
