HI absorption in nearby compact radio galaxies

M. Glowacki; J. R. Allison; E. M. Sadler; V. A. Moss; S. J. Curran; A.; Musaeva; C. Deng; R. Parry; M. C. Sligo

arXiv:1701.07036·astro-ph.GA·February 1, 2017

HI absorption in nearby compact radio galaxies

M. Glowacki, J. R. Allison, E. M. Sadler, V. A. Moss, S. J. Curran, A., Musaeva, C. Deng, R. Parry, M. C. Sligo

PDF

TL;DR

This study investigates neutral hydrogen absorption in 66 nearby compact radio galaxies, revealing diverse gas kinematics and linking HI features to galaxy type and activity, thus enhancing understanding of AGN-gas interactions.

Contribution

It provides new HI absorption data for low-luminosity, nearby compact radio galaxies, expanding previous surveys and linking HI features to galaxy properties and X-ray absorption.

Findings

01

71% of detections show disturbed gas kinematics

02

Narrow, deep HI features are linked to late-type, high-excitation galaxies

03

Absorbed X-ray sources may indicate higher HI content in hosts

Abstract

HI absorption studies yield information on both AGN feeding and feedback processes. This AGN activity interacts with the neutral gas in compact radio sources, which are believed to represent the young or recently re-triggered AGN population. We present the results of a survey for HI absorption in a sample of 66 compact radio sources at 0.040 < z < 0.096 with the Australia Telescope Compact Array. In total, we obtained seven detections, five of which are new, with a large range of peak optical depths (3% to 87%). Of the detections, 71% exhibit asymmetric, broad ( $Δ v_{FWHM}$ > 100 km s $^{- 1}$ ) features, indicative of disturbed gas kinematics. Such broad, shallow and offset features are also found within low-excitation radio galaxies which is attributed to disturbed circumnuclear gas, consistent with early-type galaxies typically devoid of a gas-rich disk. Comparing…

Figures40

Click any figure to enlarge with its caption.

Tables6

Table 1. Table 1 : Summary of observations, including those made by Allison et al . ( 2012a ) . In order of column, we list the observing group ID (obs. ID), observing dates, the ATCA array configuration, central frequency of the zoom channel, average integration time per source in hours, the number of observed sources, the average 1- σ 𝜎 \sigma noise in the channels, and notes.

Obs. ID	Dates	Array config	$ν$	t_int	n	$σ_{chan}$	Notes
			MHz	hr		mJy/beam
A	2011 Feb 03-06	6A	1342	3.5	14	4.0	Published by Allison et al. (2012a).
B	2011 Apr 23-26	6A	1342	3.5	15	4.0	Published by Allison et al. (2012a).
C	2013 Feb 13-16	6A	1342	4.0	14	6.3	Carried out in 3 contiguous 24 hour periods.
D	2013 June 08-10	6C	1310	1.5	9	7.4	Made across three separate periods of 6–10 hours.
E	2014 Sept 25-28	6A	1340	4.0	14	3.4	Carried out in 3 contiguous 24 hour periods.

Table 2. Table 2 : The inferred values for parameters from fitting a multiple Gaussian spectral-line model for the new sources we detect H i absorption. See Allison et al . ( 2012a ) for parameters on the other H i detections. z centre subscript 𝑧 centre z_{\mathrm{centre}} is the redshift of the centre of the absorption component; Δ v FWHM , i Δ subscript 𝑣 FWHM 𝑖 \Delta{v}_{\mathrm{FWHM},i} is the FWHM; Δ S i Δ subscript 𝑆 𝑖 \Delta{S}_{i} is the depth and R 𝑅 R is the natural logarithm of the ratio of probability for this model versus the no spectral-line model (the Bayes odds ratio).

AT20G name	$z_{centre}$	$Δ v_{FWHM, i}$	1 $σ$ error	$Δ S_{i}$	1 $σ$ error	$R$
		(km s^-1)	(km s^-1)	(mJy)	(mJy)
J031552-190644	0.0671	29	${}_{- 6}^{+ 4}$	26	${}_{- 5}^{+ 2}$	284.6 $\pm$ 0.3
	0.0672	19	${}_{- 5}^{+ 22}$	12	${}_{- 2}^{+ 3}$
J060555-392905	0.0448	50	${}_{- 1}^{+ 1}$	51	${}_{- 1}^{+ 1}$	471.4 $\pm$ 0.3
J084452-100059	0.0423	450	${}_{- 80}^{+ 40}$	4	${}_{- 1}^{+ 1}$	13.8 $\pm$ 0.3
J125711-172434	0.0474	100	${}_{- 30}^{+ 110}$	8	${}_{- 2}^{+ 1}$	91.1 $\pm$ 0.4
	0.0477	210	${}_{- 120}^{+ 10}$	5	${}_{- 1}^{+ 2}$

Table 3. Table 3 : A summary of derived H i absorption properties from model fitting for our 2013 and 2014 observing runs. See Allison et al . ( 2012a ) for information on the other observations. σ chan subscript 𝜎 chan \sigma_{\mathrm{chan}} is the estimated uncertainty per channel; S C subscript 𝑆 C S_{\mathrm{C}} is the spectral flux density of the continuum model at either the position of peak absorption or the optical redshift estimate; 1 σ 𝜎 \sigma error is the continuum model’s flux density error, Δ S line Δ subscript 𝑆 line \Delta{S}_{\mathrm{line}} is the peak spectral-line depth; τ obs , peak subscript 𝜏 obs peak \tau_{\mathrm{obs,peak}} is the observed peak optical depth and ∫ τ obs d v subscript 𝜏 obs differential-d 𝑣 \int{\tau_{\mathrm{obs}}\mathrm{d}v} is the observed velocity integrated optical depth. Upper limits assumed a single Gaussian spectral line of FWHM = 30 kms -1 , and peak depth = 3 σ chan subscript 𝜎 chan \sigma_{\mathrm{chan}} .

AT20G name	$σ_{chan}$	$S_{C}$	1 $σ$ error	$Δ S_{line}$	$τ_{obs, peak}$	$\int τ_{obs} d v$	$\log_{10} (\frac{N_{HI} f}{T_{spin}})$
	(mJy)	(mJy)	(mJy)	(mJy)		(km s^-1)	cm^-2 K^-1
J005734-012328	3.70	677.2	${}_{- 0.5}^{+ 0.5}$	<11.1	<0.02	<0.52	<18.0
J011132-730209	2.96	66.5	${}_{- 0.1}^{+ 0.1}$	<8.9	<0.13	<4.26	<18.9
J025955-123635	4.93	452.1	${}_{- 0.2}^{+ 0.2}$	<14.8	<0.03	<1.04	<18.3
J031357-395403	7.79	521.4	${}_{- 0.2}^{+ 0.2}$	<23.4	<0.04	<1.43	<18.4
J031552-190644	2.00	44.5	${}_{- 0.1}^{+ 0.1}$	25.9 ${}_{- 1.6}^{+ 1.5}$	0.87 ${}_{- 0.08}^{+ 0.09}$	31.16 ${}_{- 1.76}^{+ 1.73}$	19.75 ${}_{- 0.02}^{+ 0.02}$
J033114-524148	2.66	29.4	${}_{- 0.1}^{+ 0.1}$	<8.0	<0.27	<8.66	<19.2
J033913-173600	2.40	123.4	${}_{- 0.1}^{+ 0.1}$	<7.2	<0.06	<1.86	<18.5
J034630-342246	2.99	57.1	${}_{- 0.1}^{+ 0.1}$	<9.0	<0.16	<5.01	<19.0
J035145-274311	2.84	12.0	${}_{- 0.2}^{+ 0.1}$	<8.5	<0.71	<22.76	<19.6
J035257-683117	4.33	149.0	${}_{- 0.2}^{+ 0.2}$	<13.0	<0.09	<2.78	<18.7

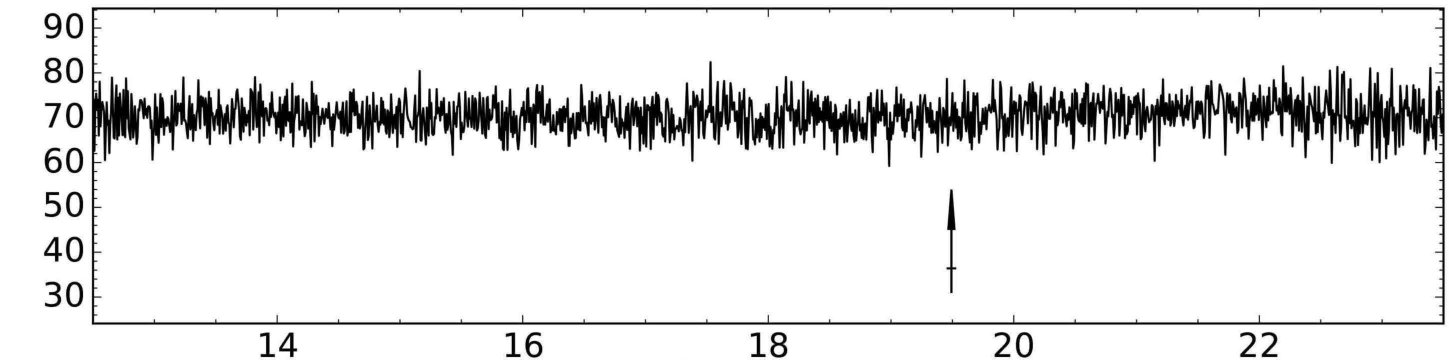

J035410-265013	3.26	70.5	${}_{- 0.1}^{+ 0.1}$	<9.8	<0.14	<4.43	<18.9
J043022-613201	3.29	181.0	${}_{- 0.1}^{+ 0.1}$	<9.9	<0.05	<1.74	<18.5
J060555-392905	2.96	106.4	${}_{- 0.1}^{+ 0.1}$	34.8 ${}_{- 1.5}^{+ 1.4}$	0.40 ${}_{- 0.02}^{+ 0.02}$	31.86 ${}_{- 1.44}^{+ 1.41}$	19.76 ${}_{- 0.02}^{+ 0.02}$
J065359-415144	7.49	159.4	${}_{- 0.3}^{+ 0.3}$	<22.5	<0.14	<4.50	<18.9
J084452-100059	2.65	134.3	${}_{- 0.2}^{+ 0.2}$	4.1 ${}_{- 0.7}^{+ 0.6}$	0.03 ${}_{- 0.01}^{+ 0.01}$	14.20 ${}_{- 2.71}^{+ 2.64}$	19.41 ${}_{- 0.08}^{+ 0.08}$
J090802-095937	2.57	137.0	${}_{- 0.1}^{+ 0.1}$	<7.7	<0.06	<1.80	<18.5
J091856-243829	2.04	53.1	${}_{- 0.1}^{+ 0.1}$	<6.1	<0.12	<3.68	<18.8
J114539-105350	3.75	46.7	${}_{- 0.1}^{+ 0.1}$	<11.2	<0.24	<7.69	<19.1
J123148-321314	8.71	146.9	${}_{- 0.3}^{+ 0.3}$	<26.1	<0.18	<5.68	<19.0
J125615-114635	2.82	89.5	${}_{- 0.1}^{+ 0.1}$	<8.5	<0.09	<3.02	<18.7
J125711-172434	2.83	111.9	${}_{- 0.1}^{+ 0.1}$	10.8 ${}_{- 1.3}^{+ 1.2}$	0.10 ${}_{- 0.01}^{+ 0.01}$	18.46 ${}_{- 1.65}^{+ 1.76}$	19.53 ${}_{- 0.04}^{+ 0.04}$
J135036-163449	8.44	35.6	${}_{- 0.3}^{+ 0.3}$	<25.3	<0.71	<22.72	<19.6
J135607-172433	2.70	185.2	${}_{- 0.1}^{+ 0.1}$	<8.1	<0.04	<1.40	<18.4
J140912-231550	11.40	583.4	${}_{- 0.4}^{+ 0.4}$	<34.2	<0.06	<1.87	<18.5
J151741-242220	3.22	2336.3	${}_{- 0.2}^{+ 0.2}$	<9.7	<0.01	<0.13	<17.4
J165710-735544	2.48	58.4	${}_{- 0.1}^{+ 0.1}$	<7.4	<0.13	<4.07	<18.9
J181857-550815	2.37	35.8	${}_{- 0.1}^{+ 0.1}$	<7.1	<0.20	<6.33	<19.1
J191457-255202	2.99	189.4	${}_{- 0.1}^{+ 0.1}$	<9.0	<0.05	<1.51	<18.4
J204552-510627	3.52	64.7	${}_{- 0.1}^{+ 0.1}$	<10.6	<0.16	<5.21	<19.0
J205306-162007	2.41	69.2	${}_{- 0.1}^{+ 0.1}$	<7.2	<0.10	<3.34	<18.8
J205754-662919	2.29	46.0	${}_{- 0.1}^{+ 0.1}$	<6.9	<0.15	<4.77	<18.9
J212222-560014	2.43	19.2	${}_{- 0.1}^{+ 0.1}$	<7.3	<0.38	<12.15	<19.3
J214824-571351	8.84	90.1	${}_{- 0.3}^{+ 0.3}$	<26.5	<0.29	<9.40	<19.2
J220538-053531	2.94	157.1	${}_{- 0.1}^{+ 0.1}$	<8.8	<0.06	<1.79	<18.5
J221220-251829	4.57	145.6	${}_{- 0.1}^{+ 0.1}$	<13.7	<0.09	<3.01	<18.7
J234205-160840	2.78	52.2	${}_{- 0.1}^{+ 0.1}$	<8.3	<0.16	<5.10	<19.0

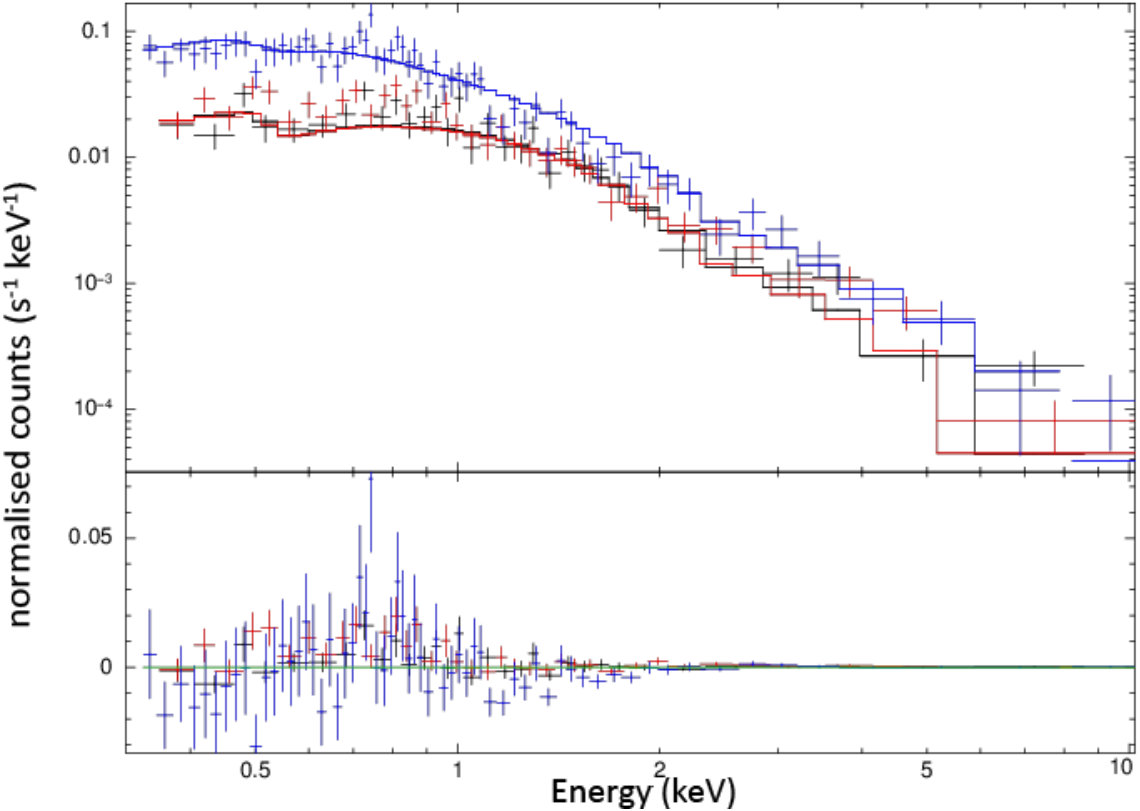

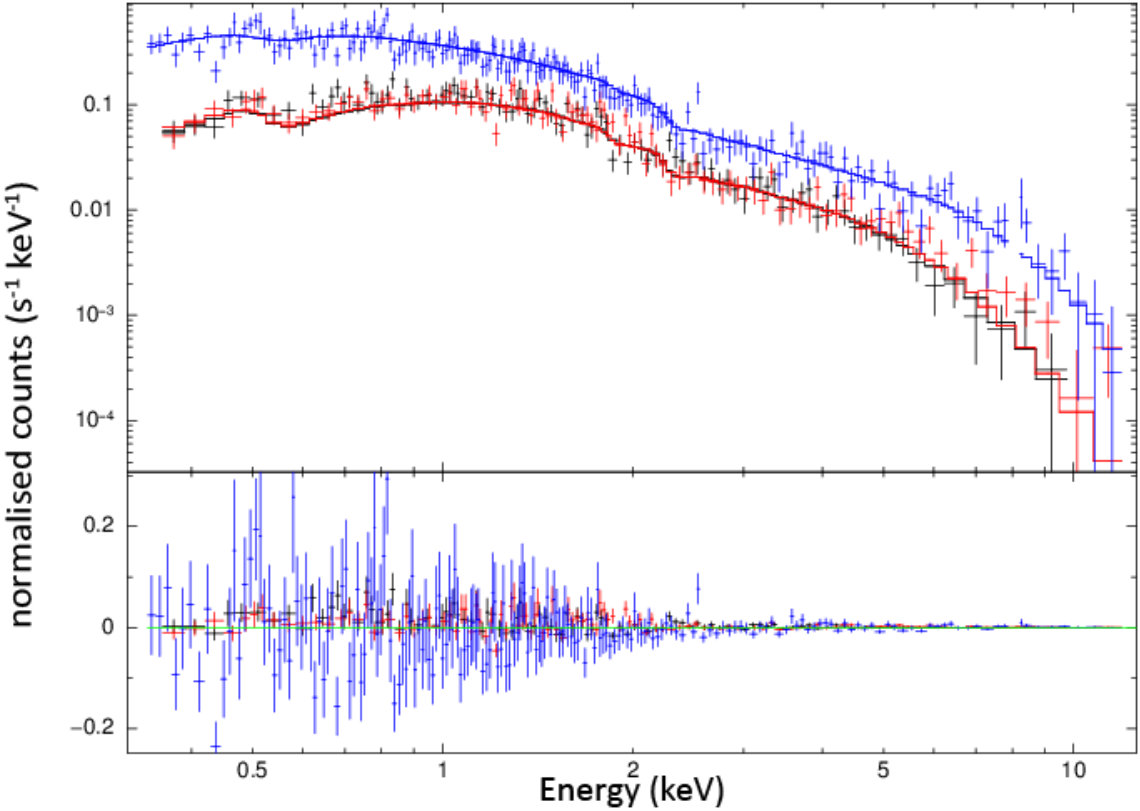

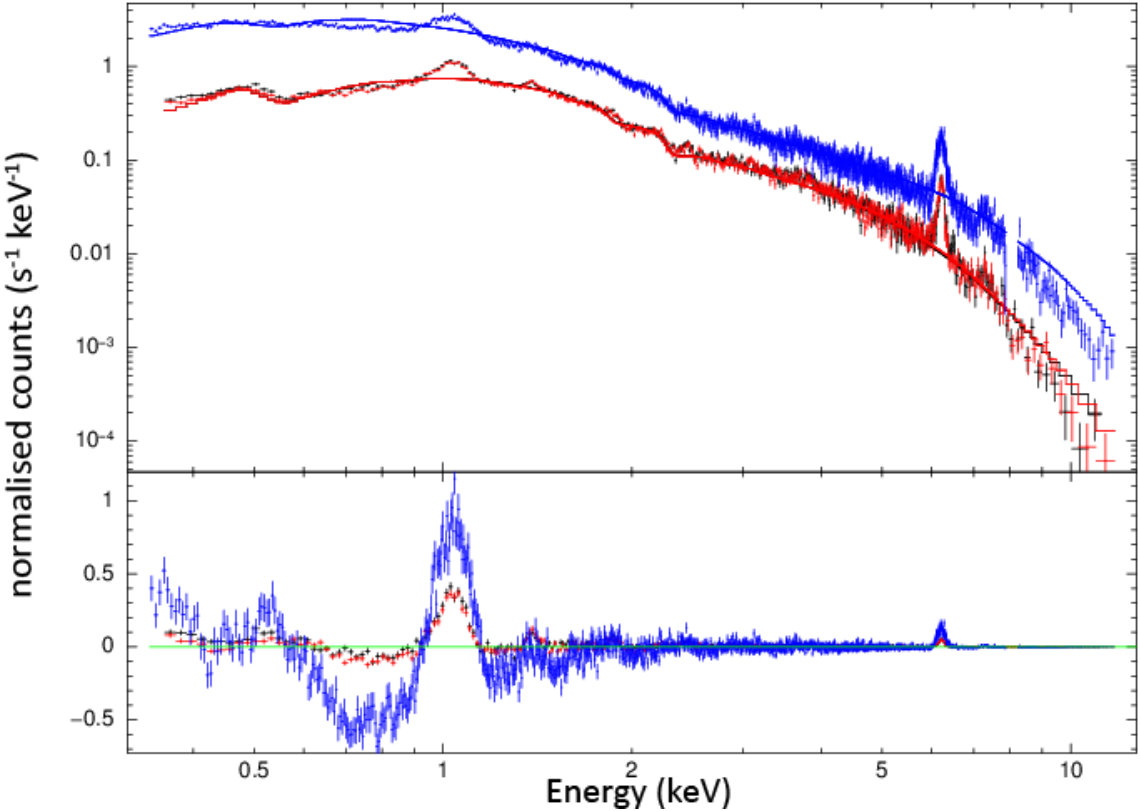

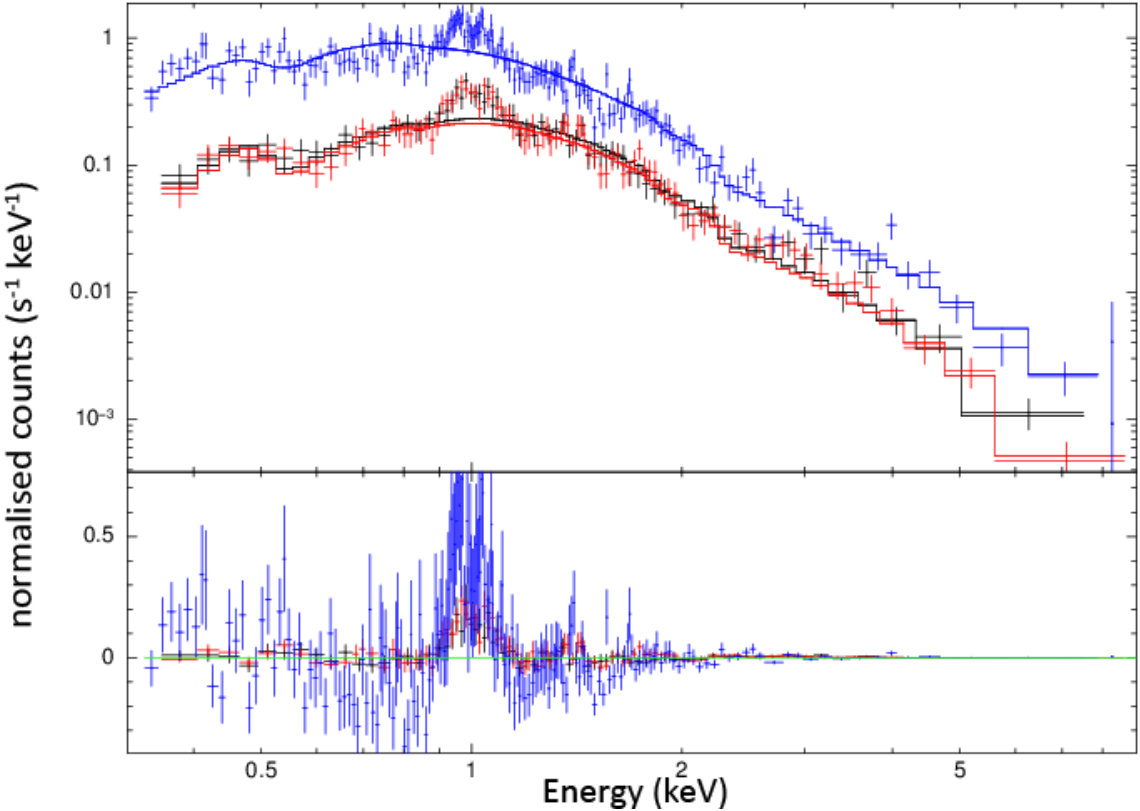

Table 4. Table 4 : Radio and X-ray luminosities, and column densities for hydrogen and specifically neutral hydrogen for our sample found to have X-ray emission. These include J125711-172434 and J181934-634548, our two H i absorption detections, for which we have a X-ray spectrum (indicated with a *). N H , X subscript N H X \mathrm{N}_{\mathrm{H,X}} is the elemental hydrogen column density estimate as given by xspec from the XMM spectra; ( N HI f T spin ) subscript N HI 𝑓 subscript 𝑇 spin {\left(\mathrm{N}_{\mathrm{HI}}f\over T_{\mathrm{spin}}\right)} is our measured H i column density with no assumed value for the covering factor f and gas spin temperature of T spin subscript 𝑇 spin T_{\mathrm{spin}} ; we then give an upper limit for T spin subscript 𝑇 spin T_{\mathrm{spin}} given N H , X subscript N H X \mathrm{N}_{\mathrm{H,X}} and assuming a covering factor of f = 1 (Section 4.2); Γ Γ \Gamma is the measured photon index of the X-ray spectra; L 5 G H z subscript 𝐿 5 G H z L_{\mathrm{5GHz}} the luminosity at 5 GHz (from the AT20G flux; Murphy et al . , 2010 ) ; L X subscript 𝐿 X L_{\mathrm{X}} the X-ray luminosity, and log 10 ( L X subscript 𝐿 X L_{\mathrm{X}} / L 5 G H z subscript 𝐿 5 G H z L_{\mathrm{5GHz}} ) the logarithmic ratio of the X-ray and 5 GHz luminosities. A value of log 10 ( L X subscript 𝐿 X L_{\mathrm{X}} / L 5 G H z subscript 𝐿 5 G H z L_{\mathrm{5GHz}} ) < < 1.8 matches with observed values for FR-I sources ( Tengstrand et al . , 2009 ) , suggesting these may be FR-I radio galaxies, or GPS sources for which we haven’t yet observed a turnover in the spectrum at lower frequencies. Source J033114-524148 had an exceedingly low estimate of its hydrogen column density ( < < 1.00 × \times 10 14 cm -2 ), and so was excluded from the T spin subscript 𝑇 spin T_{\mathrm{spin}} given the non-physical upper limit this value provides.

Name	$N_{H, X}$	$(\frac{N_{HI} f}{T_{spin}})$	$T_{spin}$	$Γ$	$L_{5 G H z}$	$L_{X}$	log₁₀( $\frac{L_{X}}{L_{5 G H z}}$ )
	cm^-2	cm^-2 K^-1	K		erg s^-1	erg s^-1

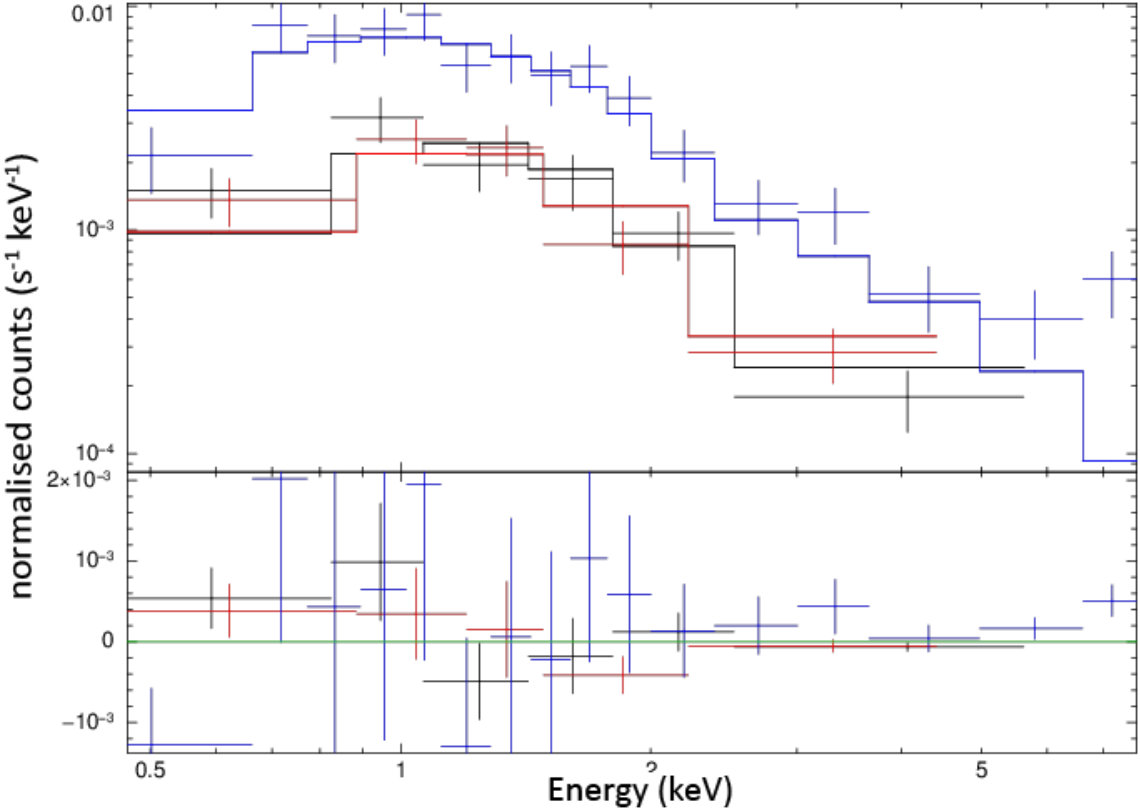

J011132-730209	3.2 $\pm$ 0.6 $\times$ 10²¹	$<$ 7.94 $\times$ 10¹⁸	$<$ 410	2.13	3.55 $\times$ 10⁴⁰	6.36 $\times$ 10⁴¹	1.25
J031757-441416	1.3 $\pm$ 0.1 $\times$ 10²¹	$<$ 5.89 $\times$ 10¹⁷	$<$ 2254	2.21	3.98 $\times$ 10⁴¹	8.34 $\times$ 10⁴³	2.32

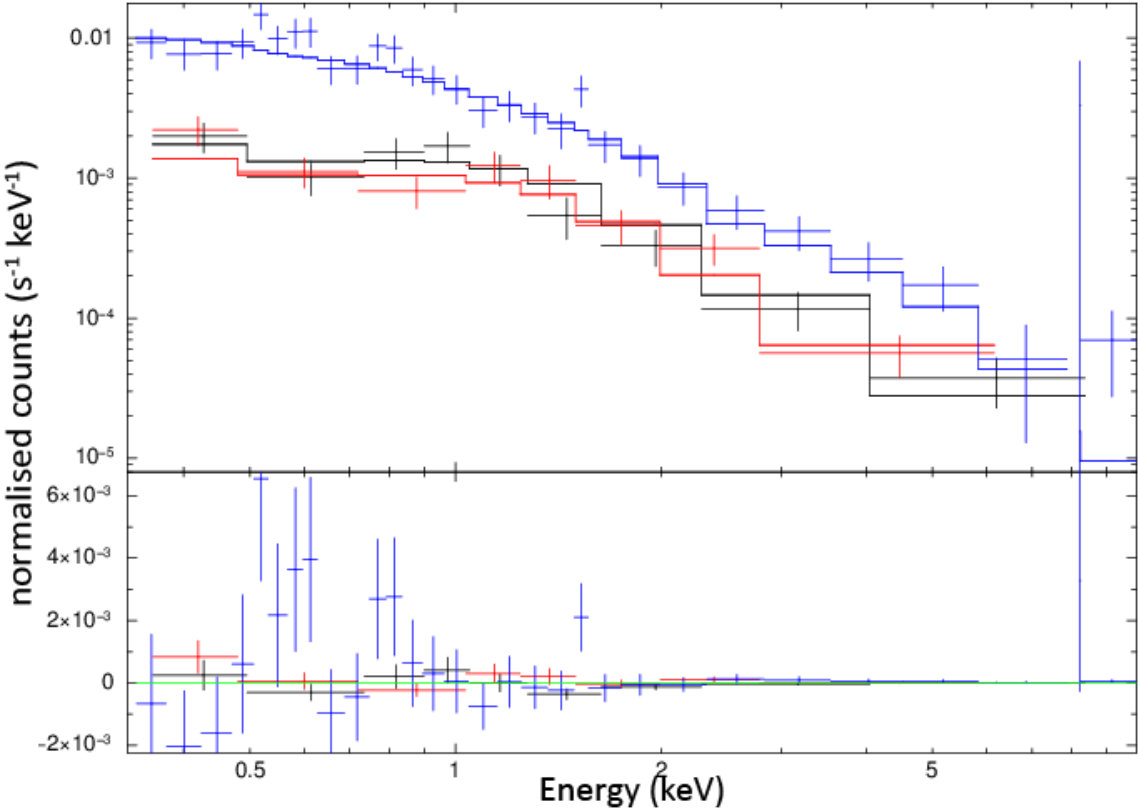

J033114-524148	-	$<$ 1.58 $\times$ 10¹⁹	-	1.83	2.76 $\times$ 10⁴⁰	6.21 $\times$ 10⁴¹	1.35
J043022-613201	8.7 $\pm$ 0.1 $\times$ 10²⁰	$<$ 3.16 $\times$ 10¹⁸	$<$ 274	2.68	5.24 $\times$ 10⁴⁰	4.99 $\times$ 10⁴¹	0.98

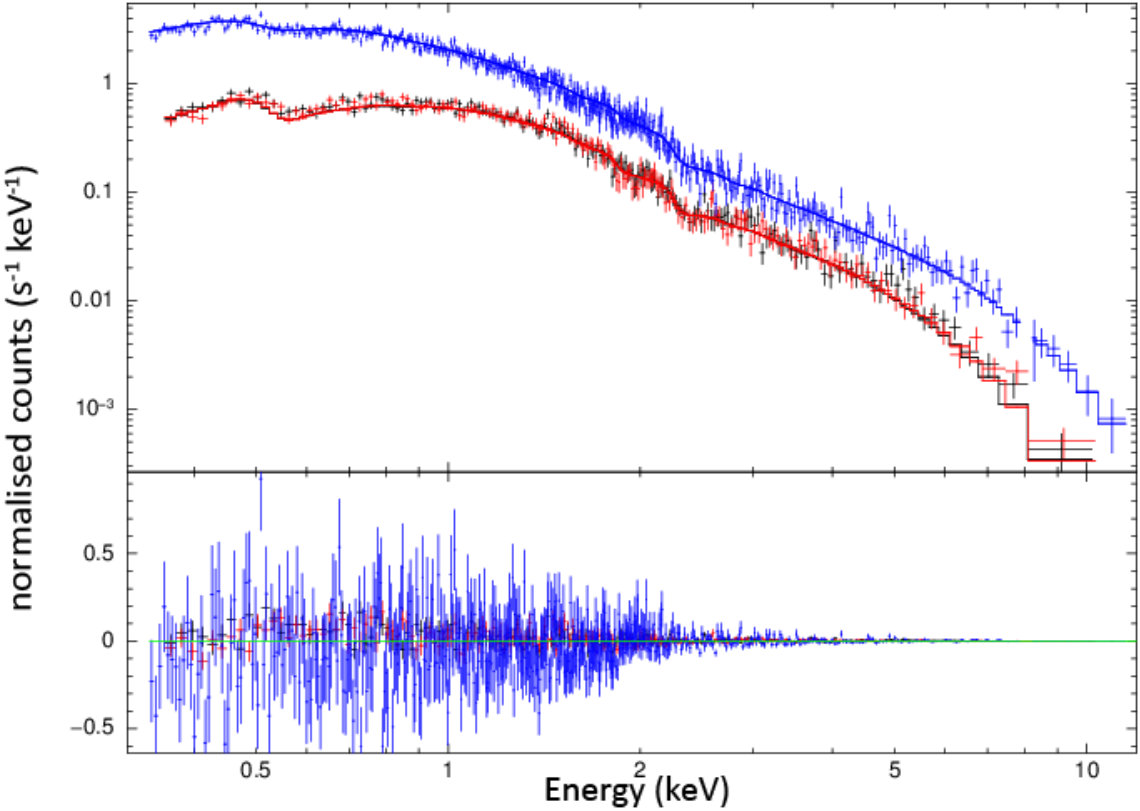

J062706-352916	9.6 $\pm$ 0.3 $\times$ 10²⁰	$<$ 3.70 $\times$ 10¹⁷	$<$ 2582	2.56	4.33 $\times$ 10⁴¹	1.90 $\times$ 10⁴³	1.64
J092338-213544	3.5 $\pm$ 0.3 $\times$ 10²⁰	$<$ 3.39 $\times$ 10¹⁸	$<$ 102	1.75	9.46 $\times$ 10⁴⁰	4.16 $\times$ 10⁴³	2.64

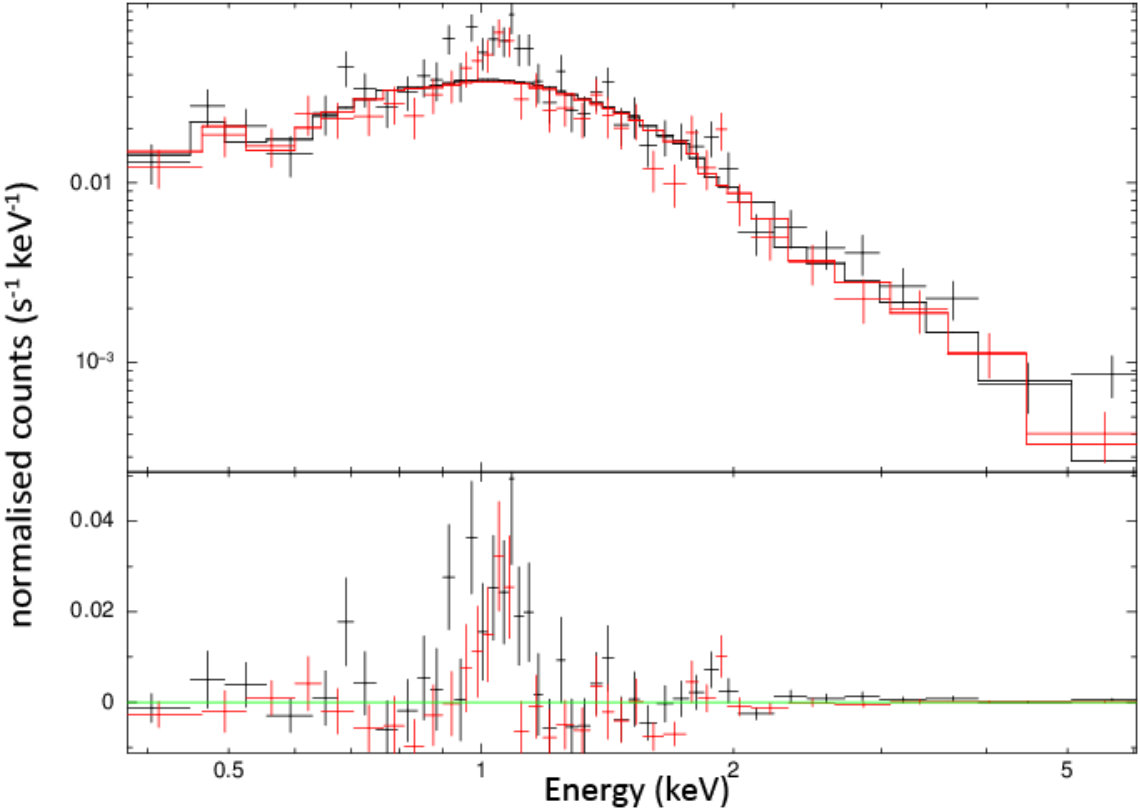

J125711-172439*	3.1 $\pm$ 0.3 $\times$ 10²¹	3.39 $\times$ 10¹⁹	$<$ 92	3.00	4.20 $\times$ 10⁴⁰	1.20 $\times$ 10⁴²	1.46
J164416-771548	8.2 $\pm$ 0.8 $\times$ 10²⁰	$<$ 2.59 $\times$ 10¹⁸	$<$ 315	1.83	4.86 $\times$ 10⁴⁰	5.91 $\times$ 10⁴²	2.09
J181934-634548*	2.1 $\pm$ 0.1 $\times$ 10²²	2.17 $\times$ 10¹⁹	$<$ 961	1.41	2.59 $\times$ 10⁴²	4.31 $\times$ 10⁴³	1.22
J220538-053531	3.1 $\pm$ 0.1 $\times$ 10²¹	$<$ 3.16 $\times$ 10¹⁸	$<$ 944	3.08	5.66 $\times$ 10⁴⁰	6.31 $\times$ 10⁴²	2.05
J231905-420648	6.8 $\pm$ 0.9 $\times$ 10²⁰	$<$ 2.19 $\times$ 10¹⁸	$<$ 306	2.59	1.71 $\times$ 10⁴¹	6.64 $\times$ 10⁴²	1.59

Table 5. Table 5 : H i detection rates for sources within each sector of the WISE two-colour plot (Fig. 7). Both rates for our AT20G compact core sample and the sample of Geréb et al . ( 2015 ) are given. As measured by the mid-infrared, objects in the elliptical (early-type) sector have lower values of star formation rates than typical spiral (late-type) galaxies. QSOs have both higher star formation and AGN gas accretion rates, and were found to have the highest H i detection rate. The standard error for each IR type is given.

Study	Early	Late	QSO
	IR type	IR type	IR type
This work	13% $\pm$ 7%	6% $\pm$ 4%	22% $\pm$ 14%
Geréb et al. 2015	13% $\pm$ 7%	33% $\pm$ 6%	53% $\pm$ 12%

Table 6. Table 6 : Optical spectroscopic identifications made by Mahony et al . ( 2011 ) for our sample (see Table 2). Aa represents AGN absorption lines only, while Aae have both absorption and emission lines - both fall into the low-excitation radio galaxy (LERG) population. High-excitation radio galaxies (HERGs) are seen as Ae (with only emission lines) and AeB (broad emission lines). 12 sources did not have sufficient information to identify any optical absorption or emission lines. The standard error for each identification is given.

Type	Sources	Hi detections	Detection rate
Aa	25	3	12% $\pm$ 6%
Aae	18	1	6% $\pm$ 5%
LERG	43	4	9% $\pm$ 4%
Ae	10	3	30% $\pm$ 14%
AeB	1	0	0%
HERG	11	3	27% $\pm$ 13%
N/A	12	0	0%

Equations8

τ (ν) = - ln (1 - \frac{Δ S _{line} ( ν )}{f S _{C} ( ν )}),

τ (ν) = - ln (1 - \frac{Δ S _{line} ( ν )}{f S _{C} ( ν )}),

τ (ν) \approx \frac{Δ S _{line} ( ν )}{f S _{C}} \approx \frac{τ _{obs} ( ν )}{f},

τ (ν) \approx \frac{Δ S _{line} ( ν )}{f S _{C}} \approx \frac{τ _{obs} ( ν )}{f},

N_{HI}

N_{HI}

T_{spin} < 5485 [\frac{N _{H, X}}{1 0 ^{22} cm ^{- 2}}] [\frac{\int τ _{21} ( v ) d v}{1 km s ^{- 1}}]^{- 1} [\frac{1}{f}] K,

T_{spin} < 5485 [\frac{N _{H, X}}{1 0 ^{22} cm ^{- 2}}] [\frac{\int τ _{21} ( v ) d v}{1 km s ^{- 1}}]^{- 1} [\frac{1}{f}] K,

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

Hi absorption in nearby compact radio galaxies

M. Glowacki1,2,3, J. R. Allison2,3, E. M. Sadler1,2, V. A. Moss1,2, S. J. Curran4, A. Musaeva1, C. Deng1, R. Parry1, M. C. Sligo1

1Sydney Institute for Astronomy, School of Physics A28, University of Sydney, NSW 2006, Australia

2ARC Centre of Excellence for All-sky Astrophysics (CAASTRO), Australia

3CSIRO Astronomy & Space Science, PO Box 76, Epping NSW 1710, Australia

4School of Chemical and Physical Sciences, Victoria University of Wellington, Wellington 6140, New Zealand E-mail: [email protected]

Abstract

Hi absorption studies yield information on both AGN feeding and feedback processes. This AGN activity interacts with the neutral gas in compact radio sources, which are believed to represent the young or recently re-triggered AGN population. We present the results of a survey for Hi absorption in a sample of 66 compact radio sources at 0.040 $<$ z $<$ 0.096 with the Australia Telescope Compact Array. In total, we obtained seven detections, five of which are new, with a large range of peak optical depths (3% to 87%). Of the detections, 71% exhibit asymmetric, broad ( $\Delta{v}_{\mathrm{FWHM}}$ $>$ 100 km s*-1*) features, indicative of disturbed gas kinematics. Such broad, shallow and offset features are also found within low-excitation radio galaxies which is attributed to disturbed circumnuclear gas, consistent with early-type galaxies typically devoid of a gas-rich disk. Comparing mid-infrared colours of our galaxies with Hi detections indicates that narrow and deep absorption features are preferentially found in late-type and high-excitation radio galaxies in our sample. These features are attributed to gas in galactic disks. By combining XMM-Newton archival data with 21-cm data, we find support that absorbed X-ray sources may be good tracers of HI content within the host galaxy. This sample extends previous Hi surveys in compact radio galaxies to lower radio luminosities and provides a basis for future work exploring the higher redshift universe.

keywords:

galaxies: active – galaxies: ISM – galaxies: nuclei – radio lines: galaxies.

††pagerange: Hi absorption in nearby compact radio galaxies–References††pubyear: 2002

1 Introduction

Compact radio galaxies are thought to represent the youngest or most recently triggered active galactic nuclei (AGN Fanti et al., 1995; Readhead et al., 1996; Owsianik & Conway, 1998). Studies are ongoing on the significant effects AGN feedback have on the host galaxy, such as whether this activity triggers or suppresses star-formation, and what its role is in galaxy evolution (see review by Heckman & Best, 2014). This can be examined via the kinematics of circumnuclear neutral gas, sometimes exhibiting fast ( $>$ 1000 km s*-1*) and massive (up to 50 M*⨀* yr*-1*) outflows created by interactions from radio-loud AGN (e.g. Morganti et al., 2005).

The 21-cm line of atomic hydrogen (HI) is a useful tool for tracing the neutral gas within galaxies in emission to study the diffuse neutral gas in galaxies (see Giovanelli & Haynes, 2016, and references therein). However, due to flux limitations, it is currently difficult to detect Hi in emission beyond redshifts of z $>$ 0.2 (e.g. Verheijen et al., 2007; Catinella et al., 2008; Freudling et al., 2011).

There is no such redshift limit for detecting the transition in absorption, as the line strength only depends on the brightness of the background source, and the spin temperature and column density of Hi along the line of sight. Therefore, Hi can be detected towards sufficiently strong continuum radio sources regardless of gas redshift (e.g. Morganti et al., 2005). Absorption from Hi gas located in front of an AGN is a good tracer for the kinematics of gas, and hence Hi associated absorption surveys allow us to investigate how AGN feedback directly interacts with the clumpy medium in the host galaxy in compact radio sources (e.g. Wagner et al., 2012).

It was suggested that intrinsically compact sources - primarily, gigahertz peaked spectrum (GPS) ( $\leq$ 1 kpc in size) and compact steep-spectrum (CSS) radio sources ( $\sim$ 1 - 10 kpc) - have higher detection rates of Hi than extended sources (e.g. with detection rates of $\sim$ 20 - 40% in Vermeulen et al., 2003; Gupta et al., 2006; Chandola et al., 2011). Furthermore, Curran et al. (2016c) shows that the Hi detection rate is proportional to the turnover frequency, which is inversely proportional to source size. Morganti et al. (2001) searched for Hi in 23 nearby (z $<$ 0.22) radio galaxies and found a detection rate of Hi of 23% in the compact sources, higher than that of a subset of extended Fanaroff-Riley type I and II (FR-I, FR-II) sources (10%). Pihlström, Conway, & Vermeulen (2003) also suggest an anti-correlation between the Hi column density and source size. Curran et al. (2013a) attributed this to a source size anti-correlation with optical depth, proposing this is due to an effect of geometry with a larger covering factor for smaller source sizes.

These studies reveal evidence for disturbed neutral gas kinematics near young AGN. Geréb et al. (2015) found that asymmetric, broad absorption features appear more often in compact sources, suggesting a greater interplay between the AGN feedback of the host galaxy and the neutral gas environment. Such interplay, where the ultra-violet luminosity of the active nucleus has a direct impact on the neutral gas in the host, has been suggested by Curran et al. (2008), who first noted a decrease in the detection of associated Hi absorption with redshift. They attributed this to the flux limitations of optical surveys, biasing towards increasingly UV luminous sources (further demonstrated by Curran & Whiting, 2010). The detection rate reaches zero at ionising photon rates of $Q_{\text{H{\sc i}}}\sim 3\times 10^{56}$ sec*-1* ( $L_{\rm UV}\sim 10^{23}$ W Hz*-1* at $\lambda=912$ Å), at which point all of the neutral gas in the host galaxy is believed to be ionised (Curran & Whiting, 2012). This critical UV luminosity limit has been observed several times since, through the non-detection of Hi above this value (Curran et al., 2011a, 2013b, 2013c, 2016a; Grasha & Darling, 2011; Allison et al., 2012a; Geréb et al., 2015; Aditya et al., 2016).

Here we present the results of the search of Hi absorption complementrary to Allison et al. (2012a), who searched for Hi in 29 targets as part of a sample of 66 nearby (0.04 $<$ z $<$ 0.08) compact sources selected from the Australia Telescope 20 GHz survey (AT20G; Murphy et al., 2010), with the Australian Telescope Compact Array (ATCA) on the Broadband Backend (CABB). A total of three detections were made by Allison et al. (2012a), two of which were previously unknown. The sample explores the Hi content within nearby compact radio galaxies with young or newly triggered AGN. We also present our analysis made through consideration of infrared and X-ray properties.

This work also involved the development of a data reduction pipeline for wide-band data, and an automated spectral-line finding method based on Bayesian inference. These tools are part of preparation for the First Large Absorption Survey in Hi (FLASH) with the Australian SKA Pathfinder (ASKAP; Deboer et al., 2009; Johnston et al., 2009; Schinckel et al., 2012), and has been successfully employed in the ongoing ASKAP-FLASH commissioning survey (e.g. Allison et al., 2015). FLASH’s redshift regime of 0.4 $<$ z $<$ 1.0 will explore both associated and intervening (within another galaxy along the line of sight) Hi absorption, and allow us to extensively examine how the Hi content has evolved with redshift in a largely unexplored epoch.

In this paper the standard cosmological model is used, with parameters $\Omega_{\mathrm{M}}=0.27$ , $\Omega_{\Lambda}=0.73$ and $\mathrm{H}_{0}~{}=~{}71$ km s*-1* Mpc*-1*. All uncertainties refer to the 68.3 per cent confidence interval, unless otherwise stated.

2 Sample Selection, Observations and Data Reduction

2.1 Observations

2.1.1 Sample Selection

To study the Hi content of the inner circumnuclear regions of galaxies, we chose radio galaxies known to have a bright, compact core. Targets were selected at 20 GHz from the AT20G survey catalogue (Murphy et al., 2010), which were cross-matched with the 6dF Galaxy Survey (Jones et al., 2009) to obtain redshift information (Sadler et al., 2014). In order to select compact sources, those with extended radio emission on scales greater than 15 arcseconds at 20 GHz were removed. Following this, the sample was restricted to 45 sources south of declination $\delta~{}=~{}-20\degree$ , within the redshift range of 0.04 $<$ z $<$ 0.08. This range was chosen to search for the 21-cm Hi line within a convenient and available frequency range of the ATCA, and to avoid contaminating the spectra with Hi emission lines by probing sufficiently nearby galaxies. The instruments also imposed a minimum flux density limit of 50 mJy at 1.4 GHz (as absorption line strength depends on the brightness of the background source).

The results from observations of 29 sources were reported by Allison et al. (2012a). Two sources within our sample (J062706–352916 and J164416–771548) were previously observed by Morganti et al. (2001) to optical depths upper limits of $\tau~{}<$ 4.7%, and so were not re-observed by us. These observations have since been extended by three separate observation runs made with the ATCA in order to expand to the sample:

•

14 targets in February 2013 with the same selection criteria as that by Allison et al. (2012a). Of these targets, the source J091856–243829 was included for an intervening Hi search, but while we give its spectrum, it is not part of our sample.

•

9 targets in June 2013, in a higher redshift range (0.080 $<$ z $<$ 0.096). This redshift range was within the receiver limits and avoided specific radio frequency interference (RFI).

•

14 targets in September 2014. These were part of a separate sample of 68 compact GPS sources imaged with the Very Long Baseline Array (VLBA). They had also been selected from the AT20G survey with redshifts identified in the 6dF Galaxy Survey. These targets had additional constraints of declinations of $\delta>$ -40 $\degree$ , redshifts of 0.04 $<$ z $<$ 0.08, a minimum flux density of 50 mJy at 1.4 GHz, and an angular size of 0.2 arcseconds or less at 20 GHz.

Several of the VLBA-imaged sources had been detected in the continuum with the Australian Long Baseline Array (LBA) by Hancock et al. (2009) at 4.8 GHz, where all targets were observed but unresolved on scales of $\sim$ 100 mas, implying linear sizes of less than 100 pc. The VLBA imaging spatial resolution is 0.5 mas, and hence will allow for a comprehensive study of the radio source morphology on parsec scales.

In total our sample consisted of 66 targets which are detailed in Table 2. A short description of each of the columns follows.

Column (1): The AT20G source name.

Columns (2) & (3): The right ascension and declination of the source at J2000.

Column (4): The AT20G 20 GHz flux density (Murphy et al., 2010).

Column (5): $S_{1.4}$ is the NVSS 1.4 GHz flux density (Condon et al., 1998).

Column (6): $S_{0.843}$ is the SUMSS 843 MHz flux density (Mauch et al., 2003).

Columns (7) & (8): The corresponding spectral indices between the two lower-frequencies and 20 GHz are given by $\alpha_{1.4}^{20}$ and $\alpha_{0.843}^{20}$ respectively.

Column (9): Observation ID. Refer to Table 1 for the details of each run.

Column (10): $z_{\mathrm{opt}}$ is the optical spectroscopic redshift.

Column (11): SC is the optical spectroscopic classification as defined by Mahony et al. (2011). Aa means only absorption lines were detected, Ae corresponds to only emission lines, AeB broad emission lines, and Aae means both were observed.

Column (12): $\mathrm{M}_{K}$ is the Two Micron All Sky Survey (2MASS) $K$ -band absolute magnitude (Skrutskie et al., 2006).

Column (13): The 20 GHz compactness, $6\mathrm{km}_{\mathrm{vis}}$ , defined as the ratio of the measured visibility amplitude on the longest ATCA baselines to that on the shortest baselines (Chhetri et al., 2013). They find a lower limit of 0.86 for unresolved sources.

Column (14): FR is the Fanaroff-Riley type at low frequency (1.4 GHz) (Fanaroff & Riley, 1974; Baldi & Capetti, 2009; Ghisellini, 2011).

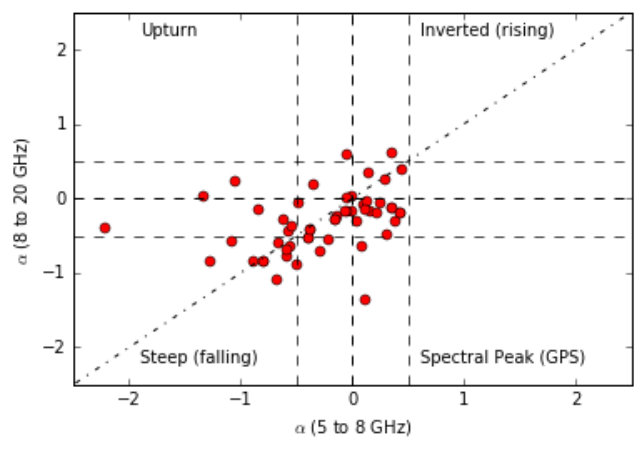

2.1.2 Spectral indices of radio sources

Instead of selecting by spectral index, our survey targeted compact radio galaxies selected at 20 GHz, including both steep and flat-spectrum sources, and so our source selection differed from similar surveys, such as Gupta et al. (2006) and Chandola et al. (2011), which targeted GPS and CSS radio sources. Of the full sample, 38 (58%) are classified as flat-spectrum sources (-0.5 $<\alpha<$ 0.5 between 1.4/0.843 GHz and 20 GHz; Table 2).

We examined additional flux density measurements to confirm how many of our compact core-selected sources are classified as flat-spectrum. Fig. 1 shows the spectral indices from the AT20G survey (Murphy et al., 2010) for 49 of our sources with flux measurements at 20 GHz, 8.4 GHz and 4.8 GHz. Considering only these flux measurements, the majority have flat spectral indices. Most were found to have either a decreasing spectral energy distribution with frequency (steep/falling) or with a spectral peak between 4.8 and 20 GHz (GPS).

2.1.3 ATCA Observations

All observations were made using the CABB system (Ferris & Wilson, 2002), with a 64 MHz zoom-band across 2048 channels. This band was centred at either 1310, 1340 or 1342 MHz to allow a simultaneous search for associated Hi absorption over the respective redshift ranges for each set of targets within a single zoom-band. The ATCA observations are detailed in Table 2.

Like the survey of Allison et al. (2012a), sources were observed in 20 or 30 minute scans and interleaved with 1.5 or 2 minute observations of a nearby bright calibrator for gain and phase calibration. PKS 1934–638 (Reynolds, 1994)111http://www.narrabri.atnf.csiro.au/calibrators/ was observed regularly as the primary bandpass and flux calibrator, and for some nearby targets as a secondary calibrator. All 2048 zoom channels were used corresponding to a bandwidth of 64 MHz, although channels affected by RFI were removed during data reduction.

2.2 Data Reduction

All flagging, calibration and imaging of the data were performed using tasks from the miriad222www.atnf.csiro.au/computing/software/miriad/ package (Sault, Teuben, & Wright, 1995) and implemented using a purpose-built Hi data reduction pipeline written in Python (Allison et al., 2012a). Channels that are known to contain significant RFI (e.g. birdies, CABB-generated self-interference due to clock harmonics) were flagged out on the fly by the correlator and applied when data was loaded using atlod. pgflag and blflag were used both before and after calibration for each target and calibrator to identify and flag out remaining RFI. Care was taken to avoid excessive flagging of data and hence the removal of any putative spectral lines, and comparisons were made between flagged and unflagged data. Typically less than 0.1% of data was flagged by the correlator, and less than 2% in total, although the spectra for the June 2013 observations were far more corrupted by RFI (upward of 10% removed in a few cases).

The absolute flux scale and spectral index corrections based on the flux model of PKS 1934-638 (Reynolds, 1994) were applied to each of the secondary calibrators. We then calculated the time-varying bandpass and gain corrections for the amplitude and phase for each of these, and applied their calibration solutions to their paired target sources. We repeated the remaining methods and process described by Allison et al. (2012a) for obtaining the source spectra. Fig. 1 displays the extracted spectrum for each of the targets sources, where the arrow below the spectra indicates the expected position for any associated 21-cm Hi absorption lines, calculated using the known optical spectroscopic redshift of the target.

We analysed the spectra through a Bayesian linefinder and parameterisation pipeline (Allison et al., 2012b). Improvements made to the pipeline made since Allison et al. (2012b) have allowed for higher-order polynomial model fits to be made for the continuum, to account for any spectral artefacts that could not be successfully removed, e.g. bandpass calibrator ripples. As a result, there are now fewer false positive detections.

3 Results

3.1 Detections of HI

We obtained four detections of Hi absorption (three previously unknown) in addition to those obtained by Allison et al. (2012a). Fig. 4 shows the optical SuperCosmos Sky Survey (Hambly et al., 2001) and our observed radio continuum images for the targets with Hi absorption, and results of spectral model fitting. Table 3 summarises the properties of the individual Gaussian components which were fitted using Bayesian model comparisons of the new detections.

These four detections add to the previous three (Allison et al., 2012a), giving a total of 7/66 detections, or a detection rate of 11%. Of these seven detections, four have been categorised as a flat-spectrum source (-0.5 $<\alpha<$ 0.5 between 1.4/0.843 GHz and 20 GHz; Table 2; also seen in Fig. 1 for 5 to 8 GHz and 8 to 20 GHz). We have a Hi absorption detection rate of $\sim$ 10% within both the flat-spectrum and steep-spectrum sources (indicated in Table 2).

Table 4 gives the optical depth and Hi column density for each of the sources observed in 2013-2014. The 21-cm optical depth is given by

[TABLE]

where $S_{\mathrm{C}}$ is the continuum flux density at the optical spectroscopic redshift, $\Delta{S_{\mathrm{line}}}$ is the spectral-line depth (detection) or 3- $\sigma$ rms noise (non-detection), and $f$ is the covering factor of the background source. In the optically thin regime ( $\Delta{S_{\mathrm{line}}}/S_{\mathrm{C}}\lesssim$ 0.3), the above expression reduces to:

[TABLE]

where $\tau_{\mathrm{obs}}(v)\equiv{\Delta{S_{\mathrm{line}}}\over S_{\mathrm{C}}}$ is the observed optical depth as a function of velocity. The Hi column density (in cm*-2*) is related to the integrated optical depth (km s*-1*) as follows (e.g. Wolfe & Burbidge, 1975):

[TABLE]

where $T_{\mathrm{spin}}$ is the harmonic mean spin temperature of the gas (in K).

3.2 Notes on detections

Our four new Hi detections have a large range of peak optical depths (from as high as $\tau_{\rm{obs}}\sim$ 87% to a tentative detection at $\tau_{\rm{obs}}\sim$ 3%). Our non-detections show a similar range of upper limits on the peak optical depths (Table 4), an expected result given the range of flux densities and sensitivity of our survey (Fig. 3). Some sources had higher upper limits found for their line strengths due to shorter integration times in the June 2013 observation run (Table 2).

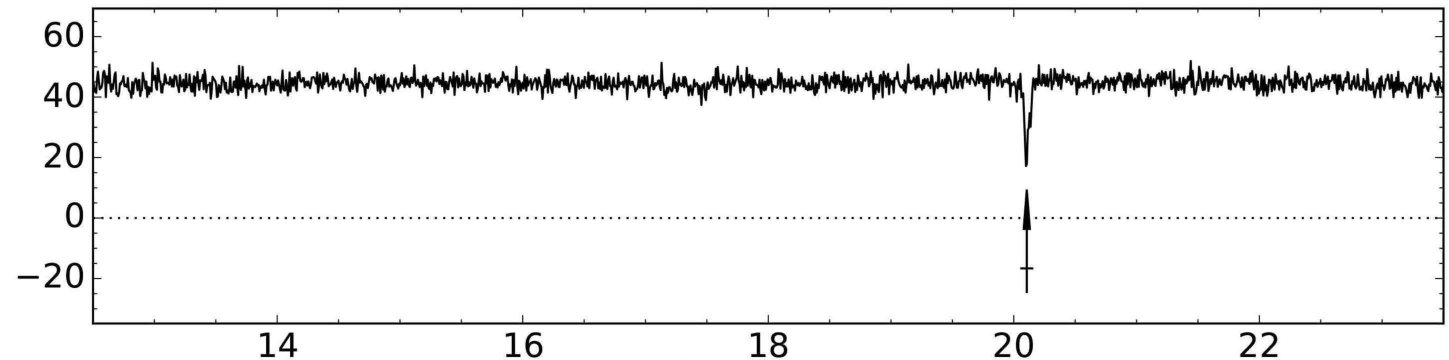

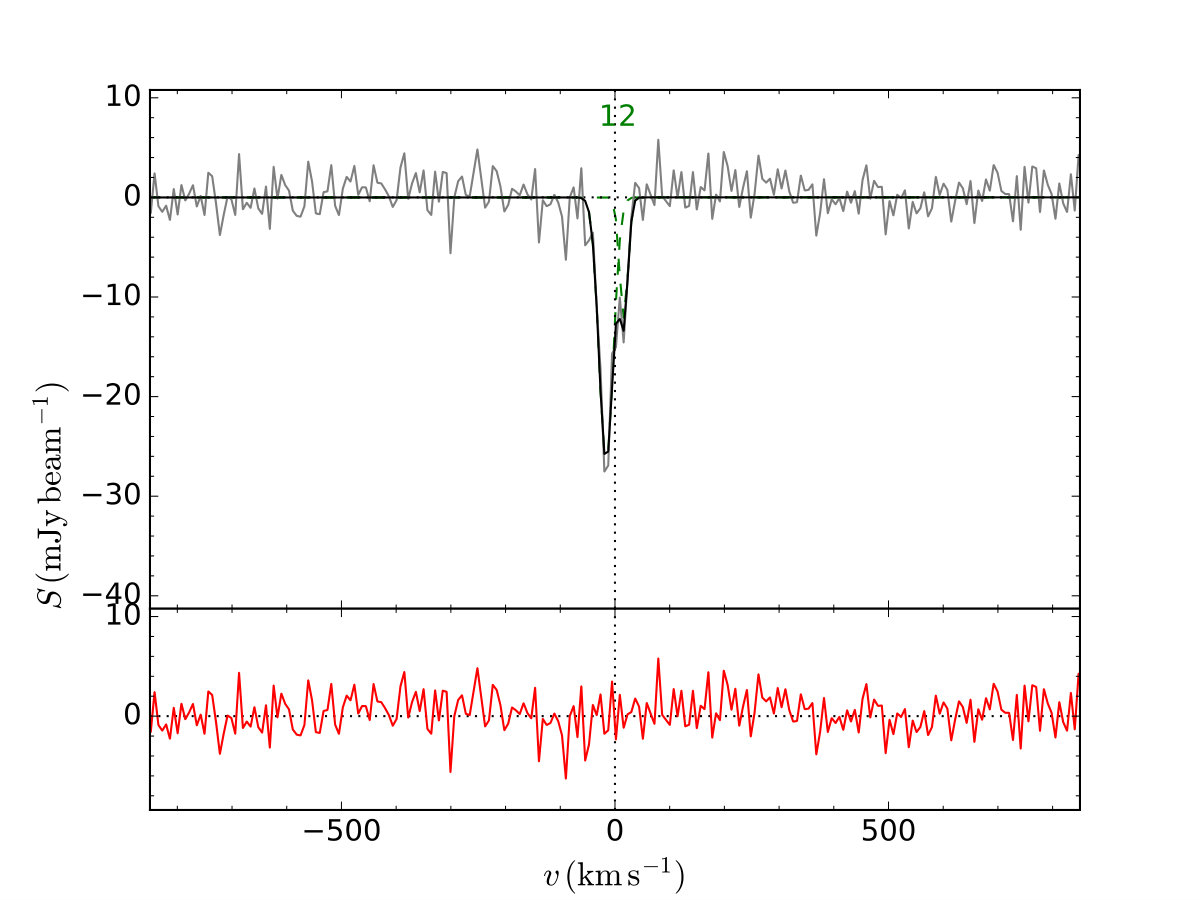

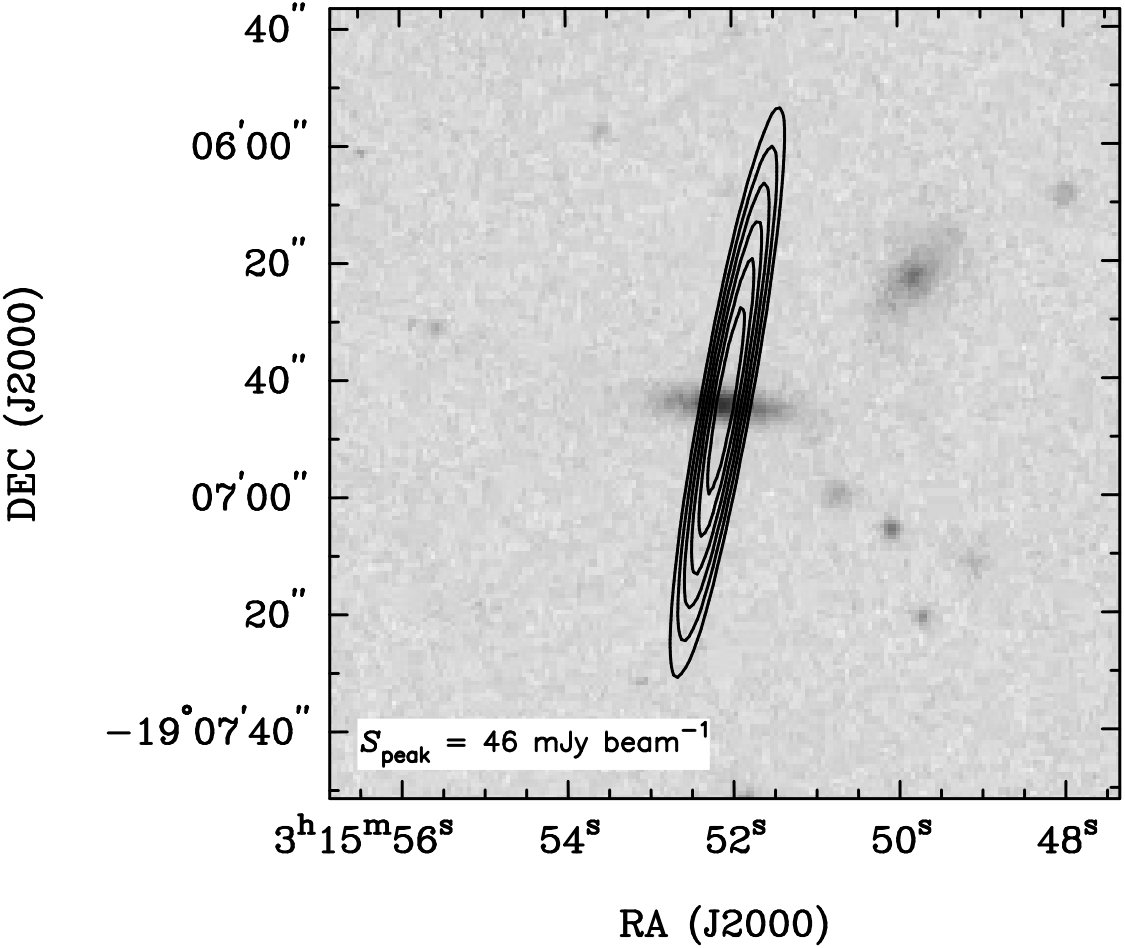

J031552-190644 (z = 0.0671) - A previously known strong Hi absorption feature (Ledlow et al., 2001) is detected against the compact flat spectrum core of this well-studied FR-I radio source. The AGN is hosted by a disc-dominated spiral galaxy (Ledlow et al., 1998). The host galaxy is located close to the centre of the galaxy cluster A428.

Ledlow et al. (2001) found that the very narrow peak absorption in the host galaxy gave a large apparent optical depth of 0.98 $\pm$ 0.06 that is only seen against the radio core and not against either of the two observed radio jets, hence ruling out a large, diffuse Hi halo. They measure a column density of NHI $\simeq$ 1.82 $\times$ 10 ${}^{18}\rm{\frac{T_{S}}{f}\tau}\Delta\nu_{\rm{FWHM}}$ cm*-2*, with a FWHM velocity width of $\Delta\nu_{\rm{FWHM}}$ = 34 km s*-1* giving a value of NHI $\simeq$ 6.19 $\times$ 10 ${}^{19}\rm{\frac{T_{S}}{f}\tau}$ cm*-2*. Ledlow et al. (2001) suggests that, given this high optical depth, the absorbing gas is either of a high density, or the sightline goes through the disc in such a way to maximise the amount of absorbing gas (e.g. through a spiral arm or very dense cloud, possibly originating in the ISM of the host galaxy due to the narrow linewidth they observe).

Our measurement of the peak optical depth is similar to that of Ledlow et al. (2001); we find the Hi column density to be NHI = 5.62 ( $\pm$ 0.27) $\times$ 10 ${}^{19}\frac{T_{S}}{f}$ cm*-2* (Table 4). The absorption line feature in our spectrum is best fitted by two narrow Gaussians, both located around the spectroscopic optical redshift, and matches the narrow, deep feature that Ledlow et al. (2001) observed.

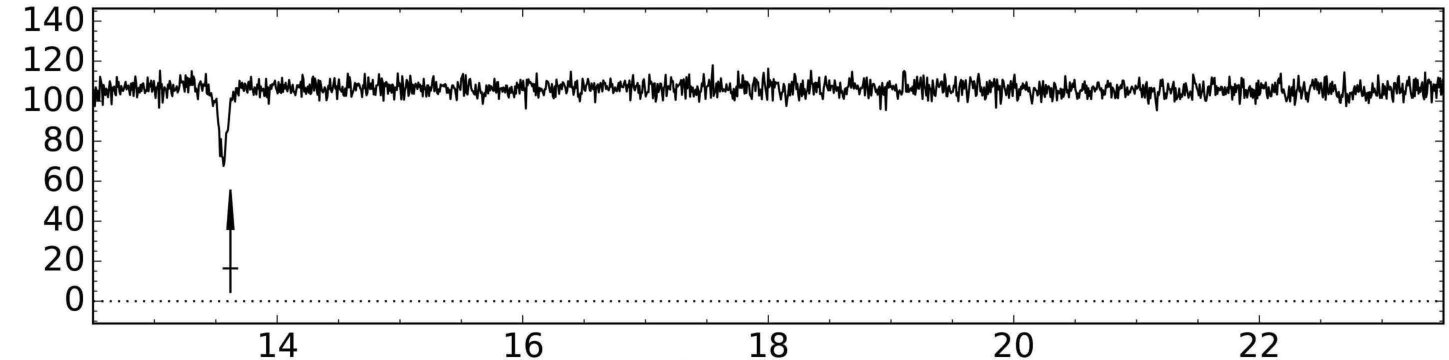

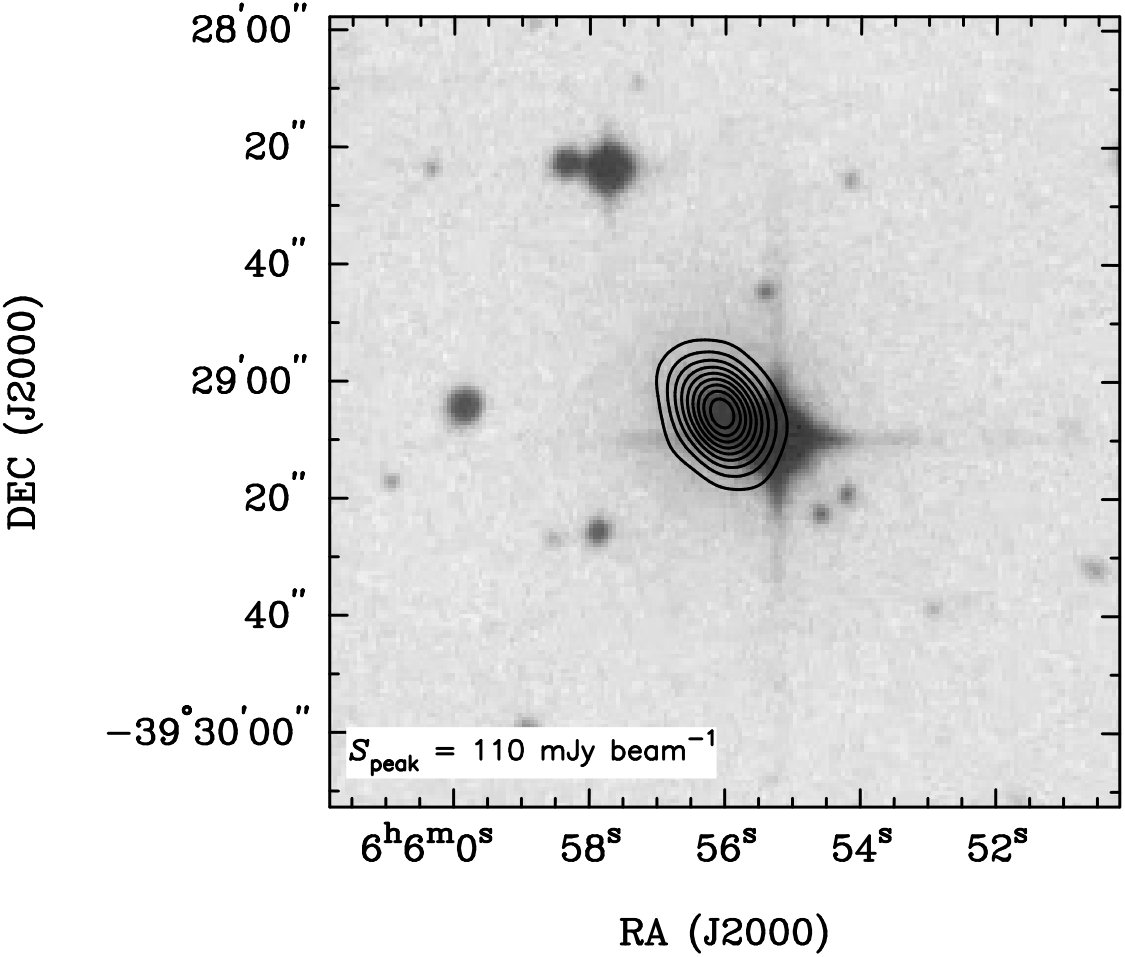

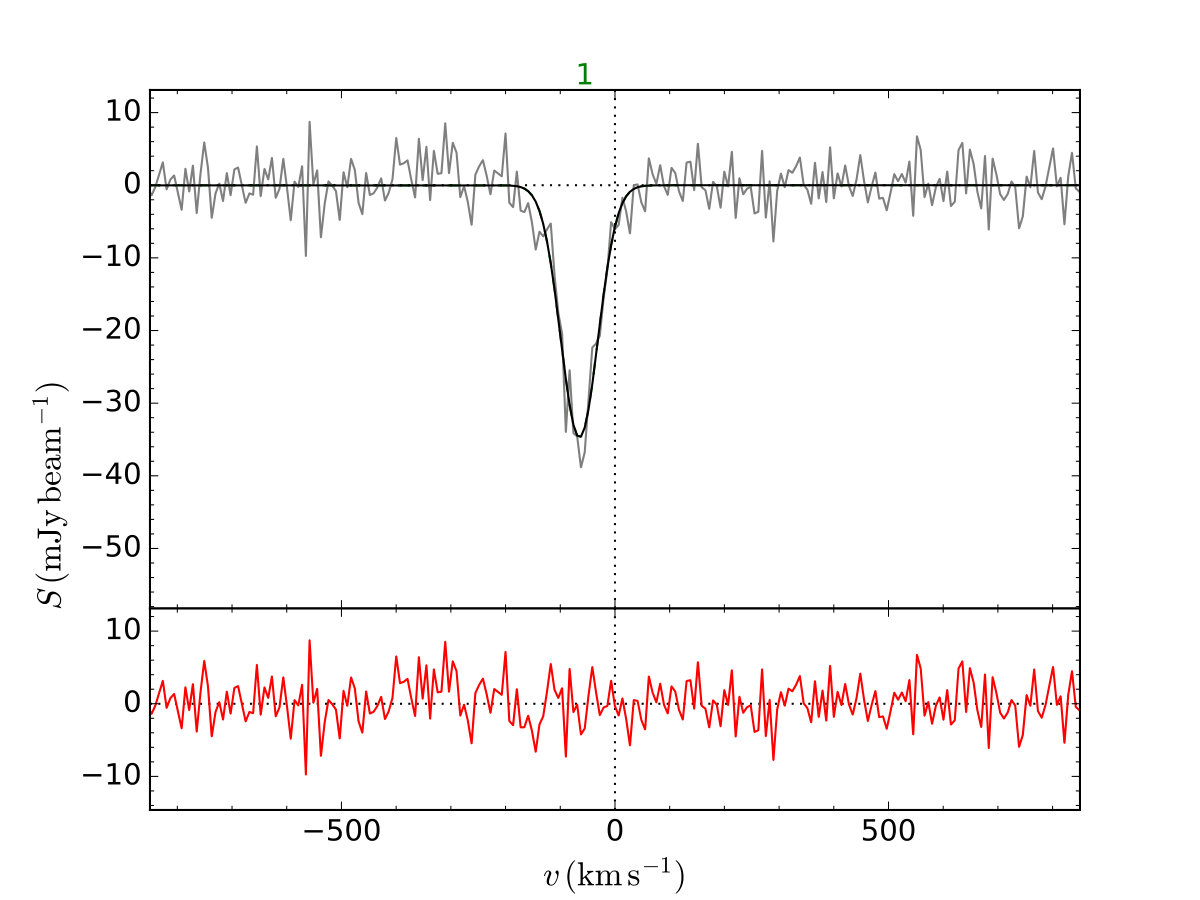

J060555-392905 (z = 0.0452) - This is a flat-spectrum radio source with a new Hi detection. It was spectroscopically classified as an AGN source with only absorption features (Aa) within its optical spectrum by Mahony et al. (2011). The presence of a foreground star affects both the spectrum and the visual classification of the morphology of the host galaxy (Fig. 4).

A one-component, narrow Gaussian fit slightly blueshifted ( $\sim$ 68 $\pm$ 4 km s*-1*) from the spectroscopic optical redshift was the most statistically likely in modelling (Table 3). Given the narrow absorption line and its slightly blueshifted location, the cold Hi gas we observe could be located close to the host galaxy’s AGN, and perhaps be an outflow of a clump of gas. However, the galaxy’s mid-infrared colours suggest at a star-forming host galaxy with a low AGN accretion rate (Section 5.1.1), and hence the absorption could be due to a gas-rich galactic disc. More information about the morphology of this host galaxy is required to aid this interpretation.

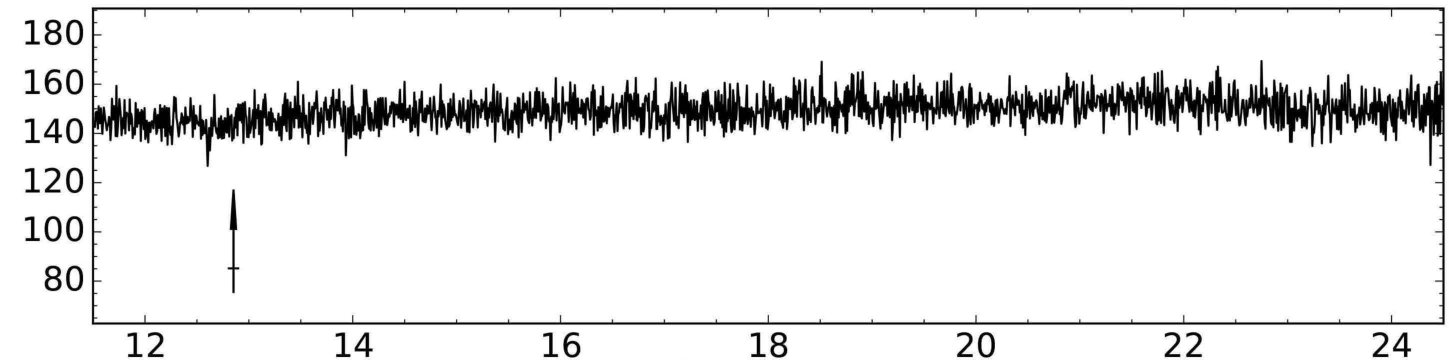

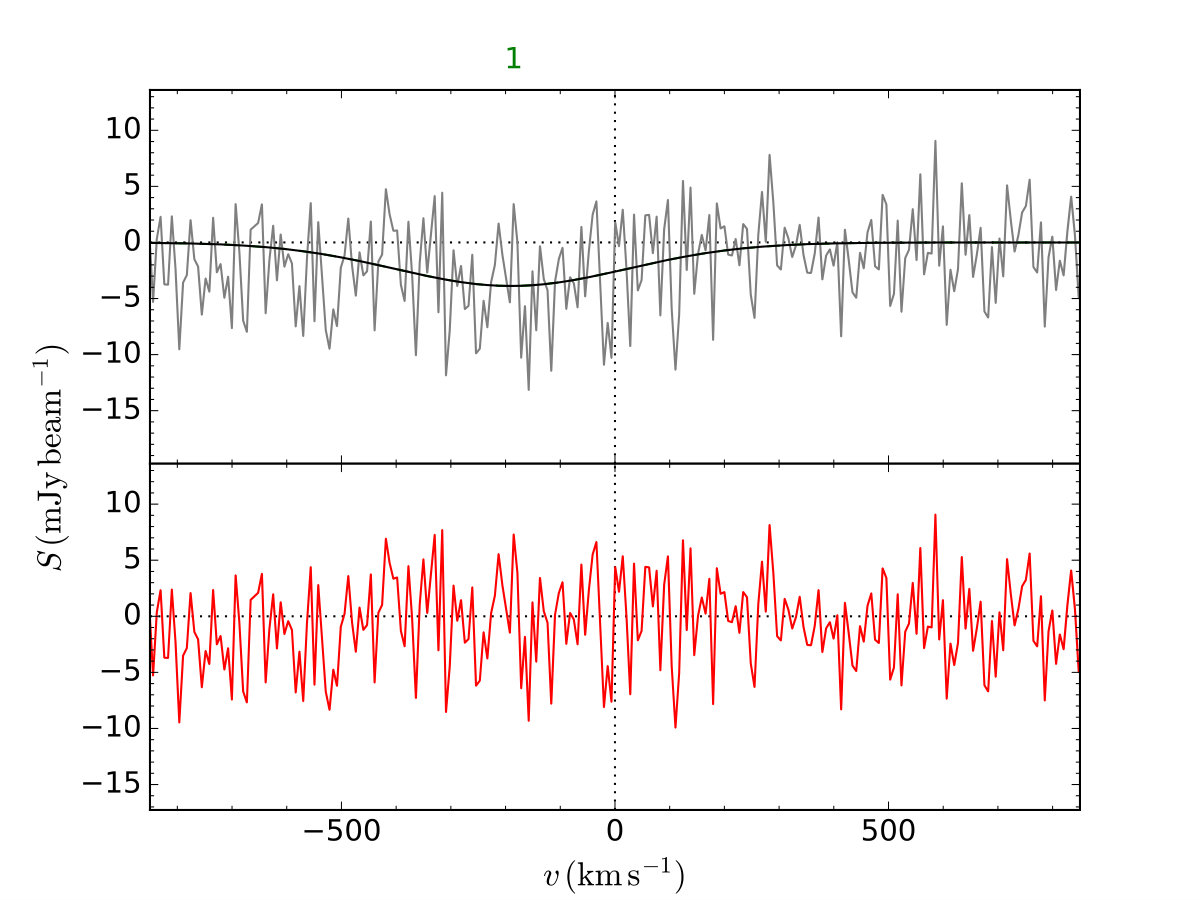

J084452-100059 (z = 0.0423) - We find a tentative new detection of a weak broad line against this steep-spectrum source (spectral index of $\alpha=-0.7$ ). As with J060555-392905, it was spectroscopically identified as an Aa galaxy in Mahony et al. (2011). It is classified as a FR-I type galaxy due to its extended low-frequency emission in NVSS. Beyond that there is a lack of information regarding the morphology of the galaxy within the literature. Its infrared colours are similar to those of elliptical galaxies, and its optical image suggests this morphology as well (Fig. 2).

The feature is best modelled by a wide, weak absorption line centred slightly blueward of the source galaxy’s optical redshift (shifted by $\sim$ 180 km s*-1*). This detection has low significance compared to the other detections (Table 3). However, the logarithmic odds ratio of R = 13.9 $\pm$ 0.3 means the spectral line model is favoured over the continuum fit (where there is a higher probability for a model to be true relative to another if it has a (log) Bayes odds ratio R $>$ 1).

It is a rare broad feature without an associated narrow, deeper line. Like the previously reported Hi detection in J205401-424238 (Allison et al., 2012a), this line is apparent throughout the observation in both polarization feeds, and does not appear in spectra that are extracted from spatial positions significantly off the source. If real, this is the second such feature within our sample (Fig. 4, and Allison et al., 2013) that may have been dismissed by visual inspection if not for our spectral line detection technique. To fully verify this detection however, we require further more sensitive 21-cm observations.

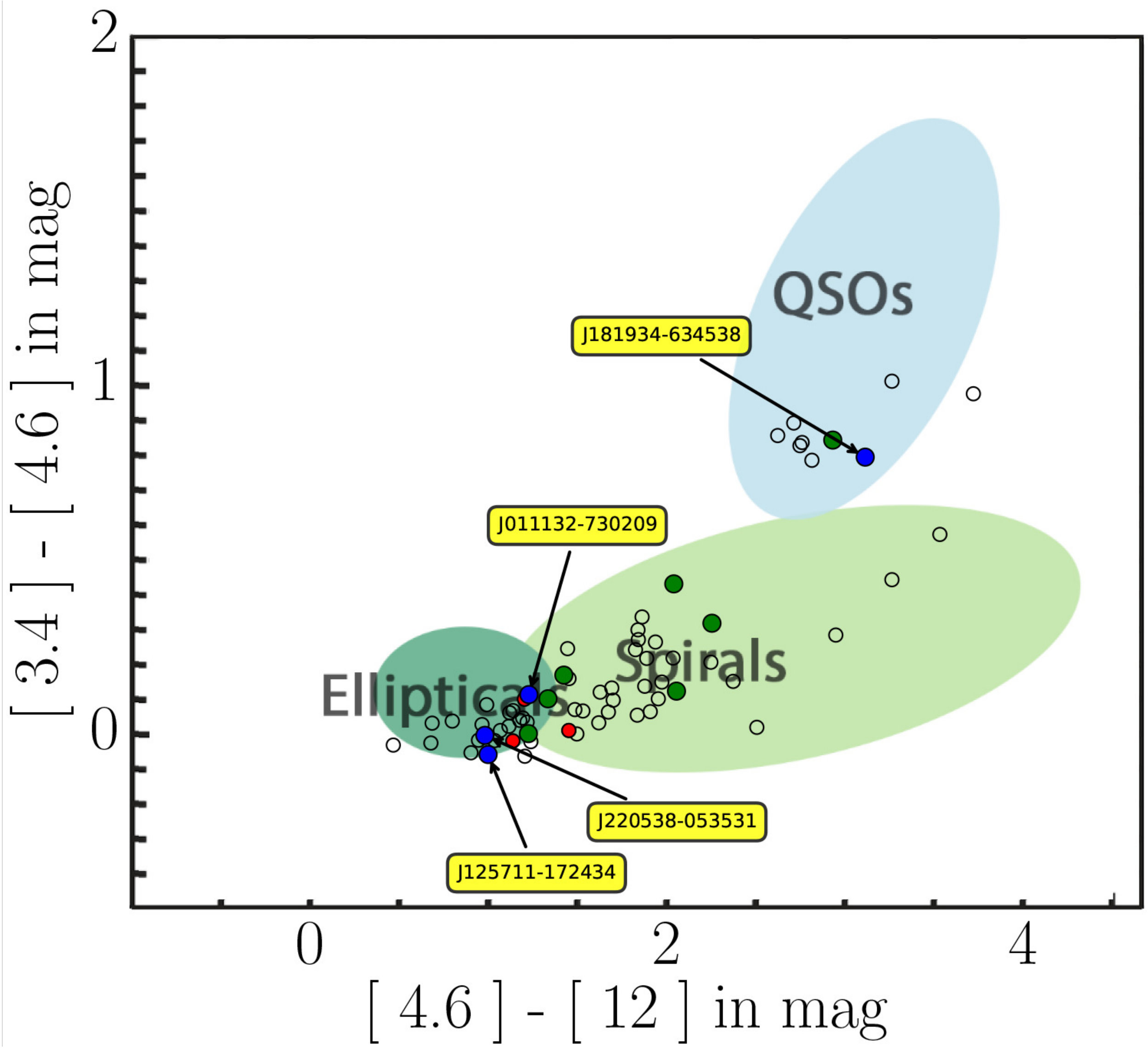

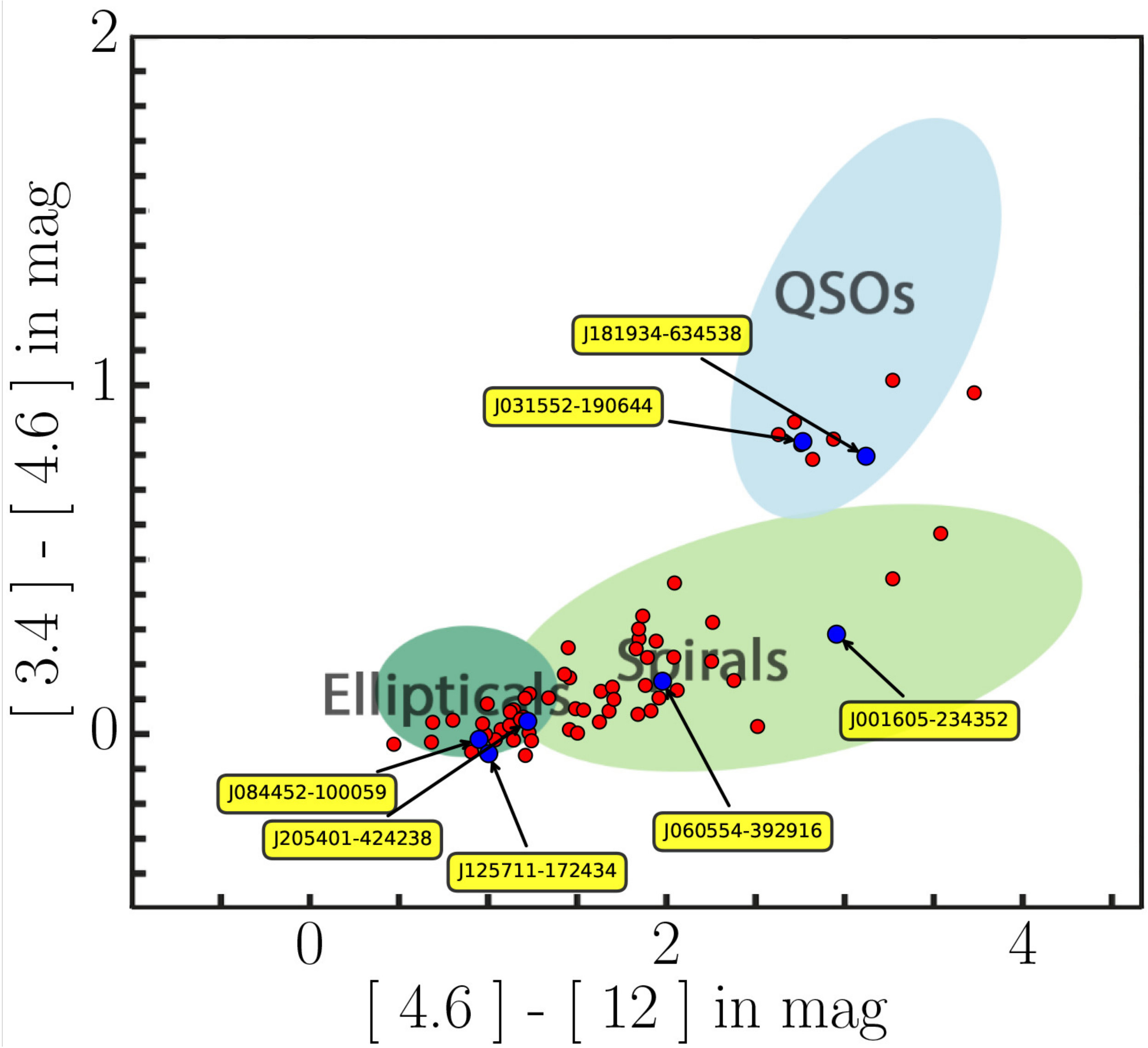

As the WISE mid-infrared colours indicate this galaxy has a low star formation rate, the absorbing gas we observe may only lie close to the AGN rather than being distributed throughout the galaxy, possibly fuelling the radio AGN (Maccagni et al., 2014, 2016). It may also represent an outflow of gas created by the AGN feedback, given the blueward offset of the line peak.

J125711-172434 (z = 0.0475) - We find a new detection against this flat spectrum radio source, which is classified as a cD4 elliptical galaxy with a very faint yet significantly extended corona (de Vaucouleurs et al., 1991). It is also the brightest source in the cluster A1644 (Hoessel et al., 1980; Postman & Lauer, 1995). This cluster is the host of a few X-ray sources, including 3XMM J125712.0-172431 which has a X-ray flux of 1.39 $\times$ 10*-13* ergs cm*-2* s*-1* (Rosen et al., 2015). This X-ray activity could be attributed to the AGN in the host galaxy, or with the cluster’s hot intergalactic gas. The galaxy was found to only have absorption line features within its optical spectrum (Mahony et al., 2011), which contrasts with the X-ray emission detected.

We find two separate components in our spectral line modelling. The first is a narrow feature centred slightly blueward ( $\sim$ 35 km s*-1*) of the optical spectroscopic redshift with $\Delta v_{\rm{FWHM}}$ = 133.5 ${}^{+100.4}_{-64.5}$ , and a broader component slightly redshifted by $\sim$ 24 km s*-1* with $\Delta v_{\rm{FWHM}}$ = 154.1 ${}^{+84.3}_{-85.1}$ km s*-1* (Table 3). As this is an elliptical host galaxy whose mid-infrared WISE colours indicate a low star formation rate (Section 5.1.1), the features here may be tracing gas close to the AGN, and as we find a broad line, the gas may be unsettled to be distributed across such scales.

3.3 Testing for a statistical detection in the stacked non-detected galaxies

As in the study by Allison et al. (2012a), we searched for a statistical detection of Hi absorption by stacking the 57 individual spectra which were not found to individually exhibit absorption. We also separately stacked spectra of two subsets - the steep spectrum (SS) and flat spectrum (FS) sources, as defined by their spectral index (Table 2, columns 4-8). As before, a velocity bin size was also used to match the uncertainty in the optical spectroscopic redshift (typically less than zerr = 0.0002, or 0.5% of the known redshift) for the sample to account for potential smearing of any spectral line.

Using the spectral-line finding method as outlined in Section 3, we find that there is no evidence of a statistical detection of 21-cm associated Hi absorption in the stacked non-detections, nor in the separate subsets. Our optical depth upper limit of $\tau<$ 0.004 is consistent with the stacking result by Geréb et al. (2014), of $\tau<$ 0.002 for 66 sources (Fig. 5). This supports their argument that some of these sources may be genuinely depleted of cold gas, while orientation effects of a disk-like distribution of Hi may be also partially responsible for this non-detection.

4 Relationship between X-ray and Hi

From here on, we consider all sources listed in Table 2, including those observed by Allison et al. (2012a).

4.1 Absorbed X-ray spectra

AGN activity can be traced by X-ray emission produced by Compton scattering from a corona of hot electrons close to the super-massive black hole. X-ray spectra exhibit a dip in the lower energy end (soft X-rays) when there is a high column density of opaque material within the host galaxy due to photoelectric absorption and Compton scattering effects.

There is observational evidence that X-ray absorption may be correlated with Hi absorption, and previous work has examined whether X-rays and radio trace gas in the spatially co-located regions (e.g. Siemiginowska et al., 2008; Siemiginowska, 2009; Ostorero et al., 2010, 2016, Moss et al., in prep.).

The radio galaxy PKS 1740-517 (Allison et al., 2015) at redshift z = 0.44 was found to be a X-ray bright source whose X-ray spectrum was well modelled by a standard absorbed power-law. Investigating the potential of X-ray absorption as a proxy for Hi absorption is a work in progress using ASKAP commissioning data (Moss et al., in prep).

In order to investigate the link between X-ray and Hi absorption in our sample, we cross-matched our sample against the 3XMM-DR5 catalogue (Third XMM-Newton Serendipitous Source Catalog, Fifth Data Release; Rosen et al., 2015). In total, 14 galaxies were within the XMM fields, with 11 detected in X-ray emission. Two of these sources also have detections of Hi absorption through our radio observations. Some sources also had noticeable Mg emission lines in their X-ray spectrum at $\sim$ 1.2 keV, and J031757-441416 has a strong Fe emission line at $\sim$ 6 keV, a typical AGN line attributed to a torus region around the AGN seen to match the source redshift.

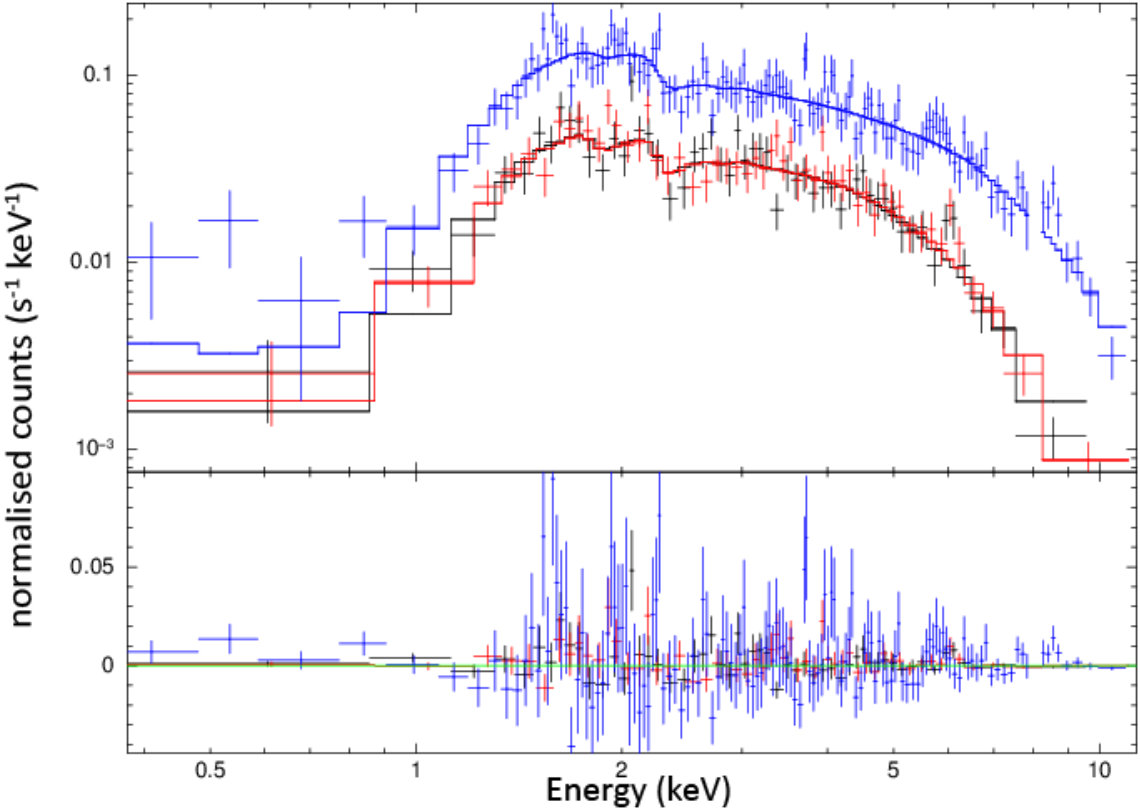

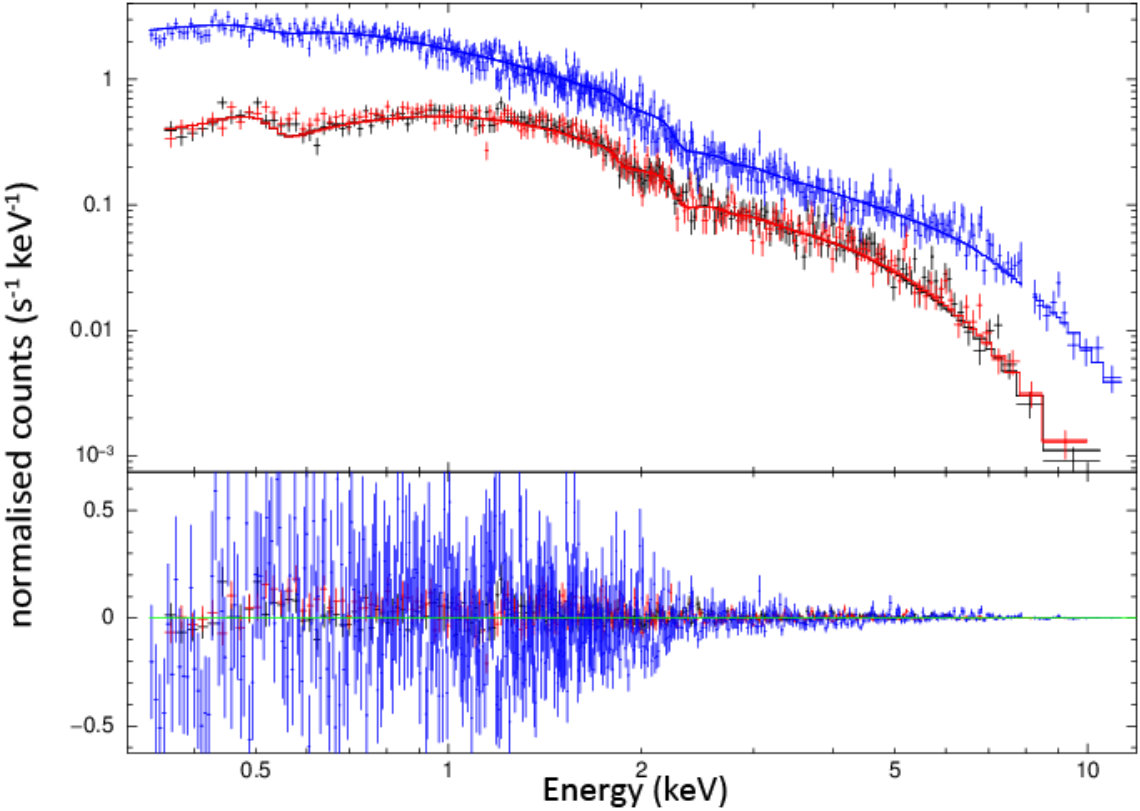

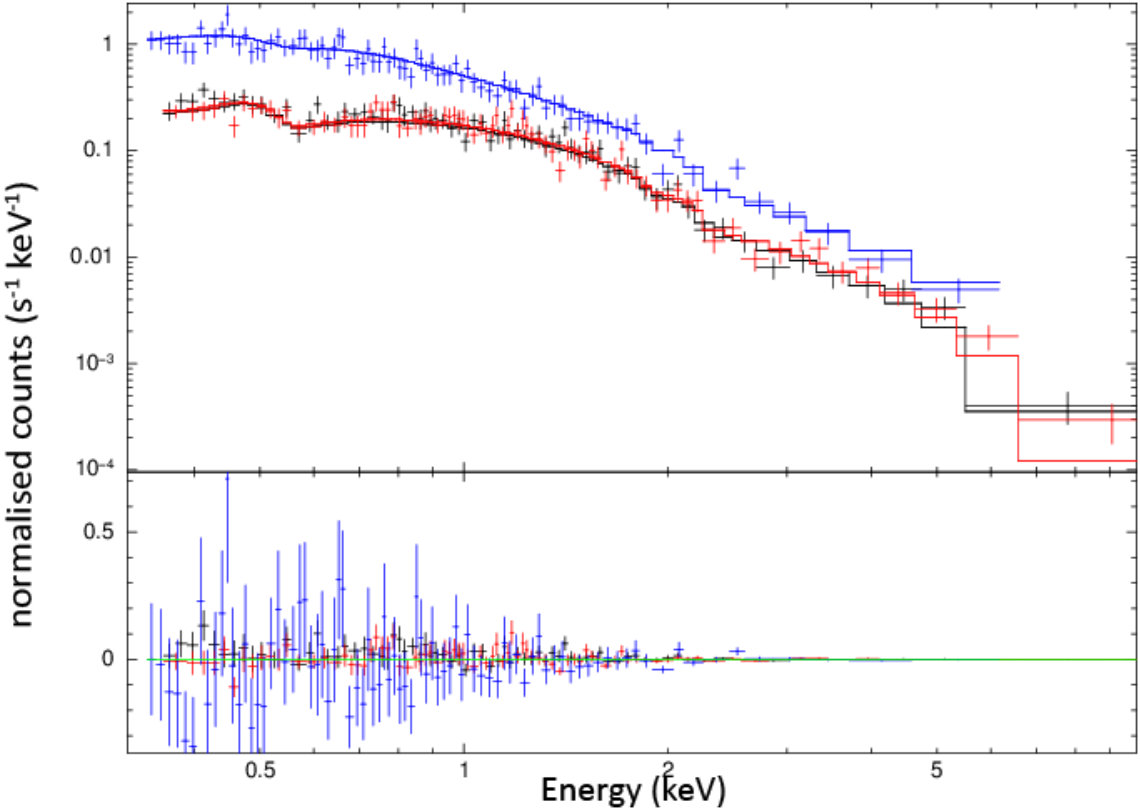

A standard absorbed power law model was fitted and compared to all X-ray spectra in the program xspec. These models were compared against non-absorbed models and were consistently preferred by xspec. From the absorbed power law models, we obtained estimates for the column density of hydrogen (neutral, elemental and ionised), with the assumption made of there being some hydrogen at the known optical redshifts for the host galaxies.

Four of these sources have a decrease in their normalised counts of at least a factor of two between the model’s lowest-energy value (typically $\sim$ 0.5 keV) and the peak value (Fig. 6, first set). The remaining seven sources lacked a matching visible dip in the soft X-ray end (Fig. 6, second and third set); unlike the other galaxies, these sources’ absorbed power law models have a very minor dip in normalised count from their peak to the lowest energy value, if any. In line with these observations, the four absorbed X-ray sources have a correspondingly higher estimate for their hydrogen column densities relative to the other X-ray emitting sources with no visible dip (Table 5).

Of these soft X-ray absorbed galaxies, two (J011132-730209 and J220538-053531) have total hydrogen column densities of N ${}_{\rm{H}}\sim$ 3 $\times$ 1021 cm*-2* (Table 5), but no Hi detected in their radio spectra. At these densities the hydrogen could be mostly molecular (Schaye, 2001), ionised, or located (at least partially) in an intervening system. It could also be due to a geometric effect, where we miss the Hi content but not the X-ray emission. This is discussed further in Section 5.1.3. Of the remaining two galaxies with Hi absorption detected, J125711-172434 has a hydrogen column density of NH = 3.1 $\times$ 1021 cm*-2*. This value is similar to the highest NH values found for the Hi non-detections. J181934-634548 meanwhile has a considerably higher value of NH = 2.1 $\times$ 1022 cm*-2*. This supports the idea that absorbed X-ray sources are potentially good tracers of Hi content within the host galaxy or near the AGN.

4.2 Upper limits on Hi spin temperature from X-ray data

We can compare the estimated Hi and X-ray column densities to learn about the composition of the overall hydrogen content within these galaxies with X-ray emission. We obtained upper limits on the Hi spin temperature, by assuming all of the hydrogen gas is atomic, through the relationship

[TABLE]

where $N_{\rm H,X}$ is the total column density of hydrogen (in atomic, ionised and molecular form) estimated from the XMM-Newton spectra, and f is the covering factor, assumed here to be a complete covering factor of 1 (motivated by the compact radio source sizes of our sample resulting in higher covering fractions). A lower covering factor would further decrease this upper limit. It is also assumed that the X-ray emission is from the host AGN and not an intervening system.

Most of our upper limits give $T_{\rm spin}<1000$ K, and hence the gas seen in Hi absorption is unlikely to lie in a hot halo (Table 5). In considering the two sources with Hi detections, J181934-634548 has the largest column density of hydrogen in our sample. We obtain a high upper limit on its spin temperature of $T_{\rm spin}<$ 961 K for its neutral hydrogen content. J125711-172439 has a comparable column density of hydrogen and Hi, with an upper spin temperature of $T_{\rm spin}<$ 92 K, indicating this source has cold neutral gas close to its AGN.

4.3 Radio and X-ray luminosities

In order to learn more about the sources with X-ray emission, particularly those also with Hi detections, we compared the X-ray and radio luminosities (Table 5). GPS galaxies - which are typically compact - have a higher radio luminosity than their X-ray luminosity. The reverse is true for extended FR-II radio galaxies (those with brighter radio lobes than their core component) and blazars (Fossati et al., 1998). Such luminosity ratios seen for GPS sources also match those observed in FR-I galaxies (for which the radio brightness decreases with distance from the core; Tengstrand et al., 2009). A comparison between their X-ray luminosities, calculated through values obtained from xspec and their 5 GHz radio luminosity suggests that seven of our sources, including both sources with Hi absorption detections, have ratios consistent with the FR-I population (where log( $L_{\mathrm{X}}$ / $L_{\mathrm{5GHz}}$ ) $<$ 1.8; Tengstrand et al., 2009). Not all these sources appear to be GPS from their SEDs in the literature, such as with J125711-172434, which we classify as a flat-spectrum source; see Table 2 and Section 5.2.3. It is possible that a turn-over exists at frequencies lower than the minimum observed.

5 Discussion

5.1 Host galaxy properties

Our sample was selected based on the radio properties of each galaxy. While we considered optical information, it was primarily to select targets within an appropriate redshift range for our choice of telescope. We now look at other host galaxy properties that can not be considered from radio data alone, in particular the information provided by mid-infrared data.

5.1.1 Mid-infrared colour information

The mid-infrared wavelength colour information from the WISE survey (Wide-field Infrared Survey Explorer; Wright et al., 2010) can provide an indication of both the AGN gas accretion rate and the star formation rate.

Fig. 7 shows a two-colour plot from the first three WISE bands, overlaid with a schematic which gives the general mid-infrared colour characteristics of classes of extragalactic objects (derived from fig. 12, Wright et al., 2010). Higher values of W1-W2 (WISE band 1 [3.4 $\mathrm{\mu}$ m] - WISE band 2 [4.6 $\mathrm{\mu}$ m]) typically corresponds to a larger AGN gas accretion rate, while higher magnitudes on the W2-W3 axis correspond to a higher star formation rate (e.g. Donoso et al., 2012). For example, spiral (late IR type) galaxies, typically with higher star formation rates than the quiescent elliptical (early IR type) galaxies, are redder in W2-W3, and quasi-stellar objects (QSO IR type) are red in both axes.

It should be stressed that the schematic only applies to typical galaxies; the optical host galaxy morphology and that indicated by infrared colours does not necessarily match in individual cases. For example, J031552-190644 is known to have a spiral host galaxy (Ledlow et al., 1998) and found to have Hi gas by Ledlow et al. (2001) within a galactic disc. However, the WISE data indicate that this galaxy lies in the QSO segment, with a higher AGN gas accretion rate than more ‘typical’ late IR type galaxies.

The left panel of Fig. 7 shows our sample, and Table 6 lists the Hi absorption detection rate within each sector of the figure. The detection rate is highest for QSO IR type sources, which makes sense, as an increase in both rates (particularly the star formation rate) means a greater amount of gas either within the galactic disc or fuelling the AGN, leading to a larger column density of Hi.

Surprisingly we find that the detection rate is higher in early IR type (3/23) versus late IR type (2/34) galaxies, albeit with low number statistics. We discuss some possible reasons in Section 5.1.2.

J084452-100059 and J205401-424238 (both found with only a weak, broad absorption line), as well as J125711-172434 (which has both a narrow and broad absorption), all fall within the early IR type area of the WISE colour diagram. These had optical depths in the range of only 3% to 11%. The host galaxies with only narrow absorption and a range of higher optical depths (17% to 87%) do not fall into this region. Host galaxies with small star formation rates may have a corresponding lacking fuel supply (Hi gas) that is too low to detect. The Hi gas we do trace in these early IR type galaxies may be close to the AGN rather than within the host galaxy’s disc, and hence this gas may be influenced by the feedback or fuelling of such newly born or triggered AGN (supported by their asymmetric features and the broad widths, some $>$ 400 km s*-1*, of these lines).

5.1.2 Mid-infrared comparison with the Geréb et al. study

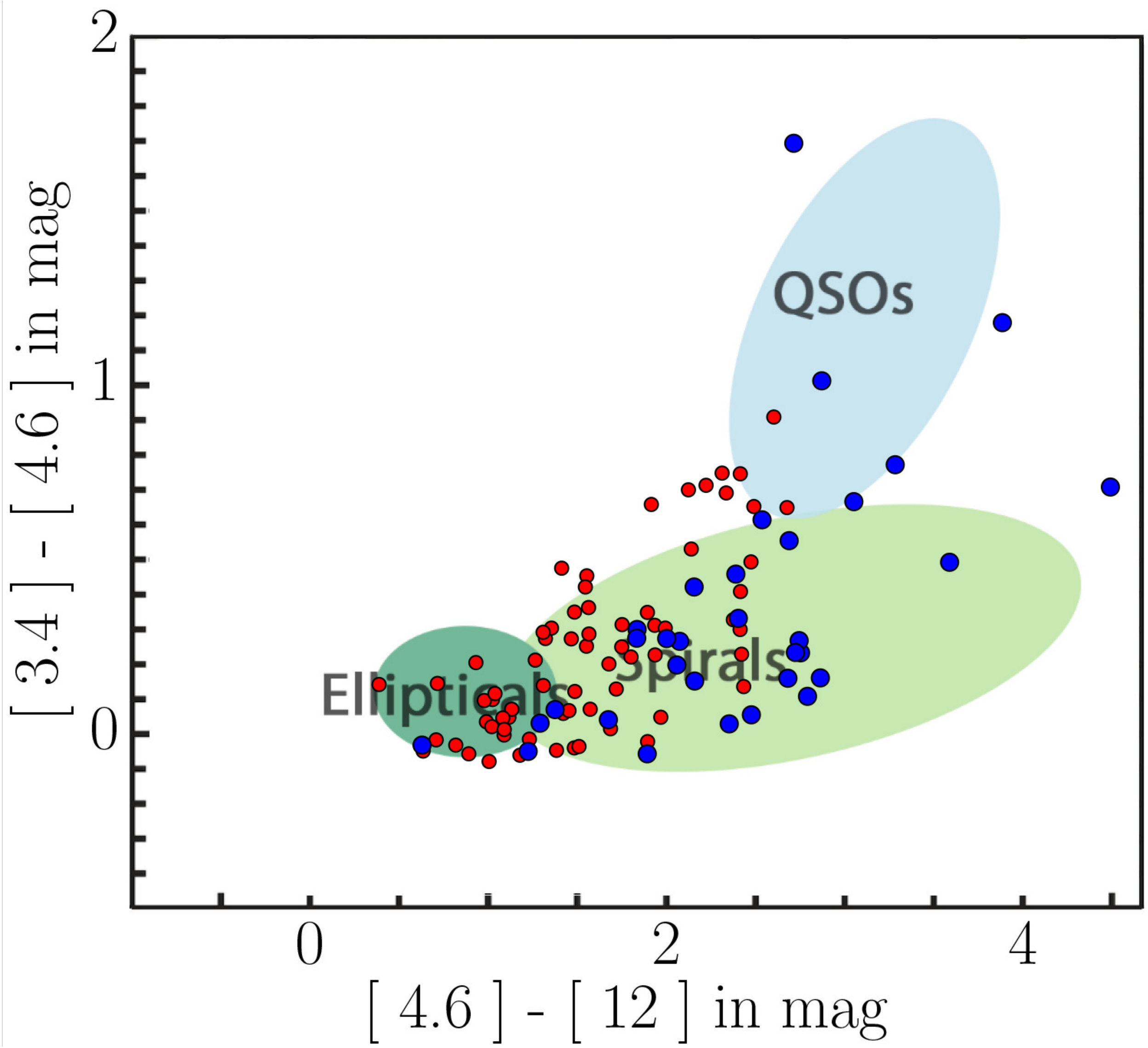

The right panel of Fig. 7 shows the WISE two-colour information for the survey by Geréb et al. (2015). This study includes both compact and extended sources and so does not directly compare to our work featuring mainly compact core radio galaxies; their source selection was only redshift and radio flux density limited. Nonetheless, it is also useful to investigate whether the mid-infrared information could have predicted the findings of this study. In studying the WISE colours of the Geréb et al. (2015) sample, Chandola & Saikia (2017) found that the detection rate of Hi absorption was highest in compact galaxies with WISE infrared colours W2-W3 $>$ 2, i.e. those with high star formation rates. Meanwhile, extended radio sources in the sample and those with W2-W3 $<$ 2 were found to have very low Hi detection rates.

Unlike our sample, there is a clear increase in Hi absorption detection rate from the late IR type to the early IR type galaxies in the study by Geréb et al. (2015). This may be attributed to the fact that their study was more sensitive to lower Hi column densities than our work (Section 5.2; Fig. 9). Comparing the non-detections, Geréb et al. (2015) reached average upper limits of NHI = 4.70 $\times$ 1018 $\rm{\frac{T_{S}}{f}}$ cm*-2*, compared to our average upper limit of NHI = 6.88 $\times$ 1018 $\rm{\frac{T_{S}}{f}}$ cm*-2*. Scaling our value for the different velocity resolution and FWHM assumed between the two surveys (Curran, 2012), our average upper limit becomes NHI = 8.31 $\times$ 1018 $\rm{\frac{T_{S}}{f}}$ cm*-2*. These limits and our lowest detection made at NHI $=$ 2.17 $\times$ 1019 $\rm{\frac{T_{S}}{f}}$ cm*-2* suggests we would not have detected gas in the discs of other late IR type galaxies. The low Hi detection rate of 13% for early IR type galaxies is seen in both surveys.

It is noted that the finding by Chandola & Saikia (2017) applies to our sample. 4 out of 44 (9%) are detected in Hi for sources with W2-W3 $<$ 2, while above this colour limit 3 out of 22 (14%) sources are detected. As two-thirds of our sample are found to have W2-W3 $<$ 2, this may contribute to the lower overall detection rate of our survey. Furthermore, we find a weak positive correlation between the column density values and upper limits, and the W2-W3 magnitude (Spearman rank correlation coefficient of 0.225 $\pm$ 0.078).

5.1.3 HI detection rate versus AGN gas accretion rate

All Geréb et al. (2015) sources with W2-W3 $\geq$ 2.7 are detected in Hi absorption. However, at any fixed W2-W3 value below 2.7, Hi absorption was detected more frequently in galaxies with a lower W1-W2 value (Fig. 7). The linear fit equations for the Hi detections at W2-W3 $<$ 2.7 is W1-W2 = 0.23 ( $\pm$ 0.07) $\times$ W2-W3 - 0.25 ( $\pm$ 0.14), and non-detections W1-W2 = 0.31 ( $\pm$ 0.04) $\times$ W2-W3 - 0.26 ( $\pm$ 0.06). This suggests that it may be harder to detect Hi gas in galaxies with higher W1-W2 colour, i.e. higher AGN activity.

There is no one clear definitive explanation for this result. A higher AGN gas accretion rate in the host galaxy would correspond to a higher AGN feedback rate, which could ionise nearby neutral gas at sufficient luminosities (Curran & Whiting, 2012). However, this is at odds with the high Hi detection rate made for the QSO IR type galaxies which have high W1-W2 colour. We consider the other potential reasons below.

From fig. 2 of Chandola & Saikia (2017), the extended sources in the Geréb et al. (2015) sample have higher magnitudes of W1-W2 for any particular value of W2-W3, compared to the compact sources. This is consistent with the scenario of a larger covering factor for compact radio sources, claimed to lead to higher detection rates (e.g. Section 1, and Curran et al., 2013a).

Additionally, fig. 9 of Pace & Salim (2016) shows a correlation between the W1-W2 colour and the log of the specific radio luminosity (SRL; radio luminosity divided by the galaxy’s stellar mass) for low-excitation radio galaxies (LERGs). Furthermore, fig. 5 and 6 of Chandola & Saikia (2017) shows that the Hi non-detections have higher specific star formation rates (sSFR) than the Hi detections, albeit only at 1 $\sigma$ significance.

Hence, the non-detections in the study by Geréb et al. (2015) with higher W1-W2 magnitudes may be LERGs depleted of gas, due to higher radio AGN activity, higher SFR, or a combination (also see Section 5.5). Given the various possible explanations, a study of a larger homogeneous sample is required to further explore both this result and these relations.

5.1.4 Mid-infrared colours with X-ray emitting sources

Fig. 8 shows the mid-infrared colours for our sample, where those found to be X-ray emitting sources are indicated in green (with low hydrogen column densities) and blue points (with hydrogen column densities of N ${}_{\rm{H}}>$ 2 $\times$ 1021 cm*-2*; Section 4). One of the two X-ray emitting sources in the QSO sector has a high column density of hydrogen (and a Hi detection). The other three sources with high hydrogen column densities are found at the lower ends of both AGN gas accretion and star formation rates. These are low number statistics; however, like with our radio observations, it appears that a range of extragalactic sources can be probed using X-ray information in tracing the gas content within the host galaxy, despite different rates of AGN feeding or star formation.

5.2 Detection rate of Hi absorption

The findings (and detection rates) of other Hi absorption surveys vary, due to differing source selection methods of radio galaxies and hence different studied samples. For instance, there is mounting evidence in the literature that the detection rate of Hi absorption in compact ‘FR-0’ radio galaxies is higher than that of their older, extended FR-I/II counterparts (e.g. Pihlström et al., 2003; Curran et al., 2013a; Geréb et al., 2015; Aditya et al., 2016). Curran et al. proposed that this is due to a higher covering factor for compact sources, although different levels of sensitivity reached between surveys is another consideration. We compare our study on compact core radio galaxies with these other Hi absorption surveys to see how our sample selection compares with other studies.

5.3 Flux density of sources with associated Hi absorption

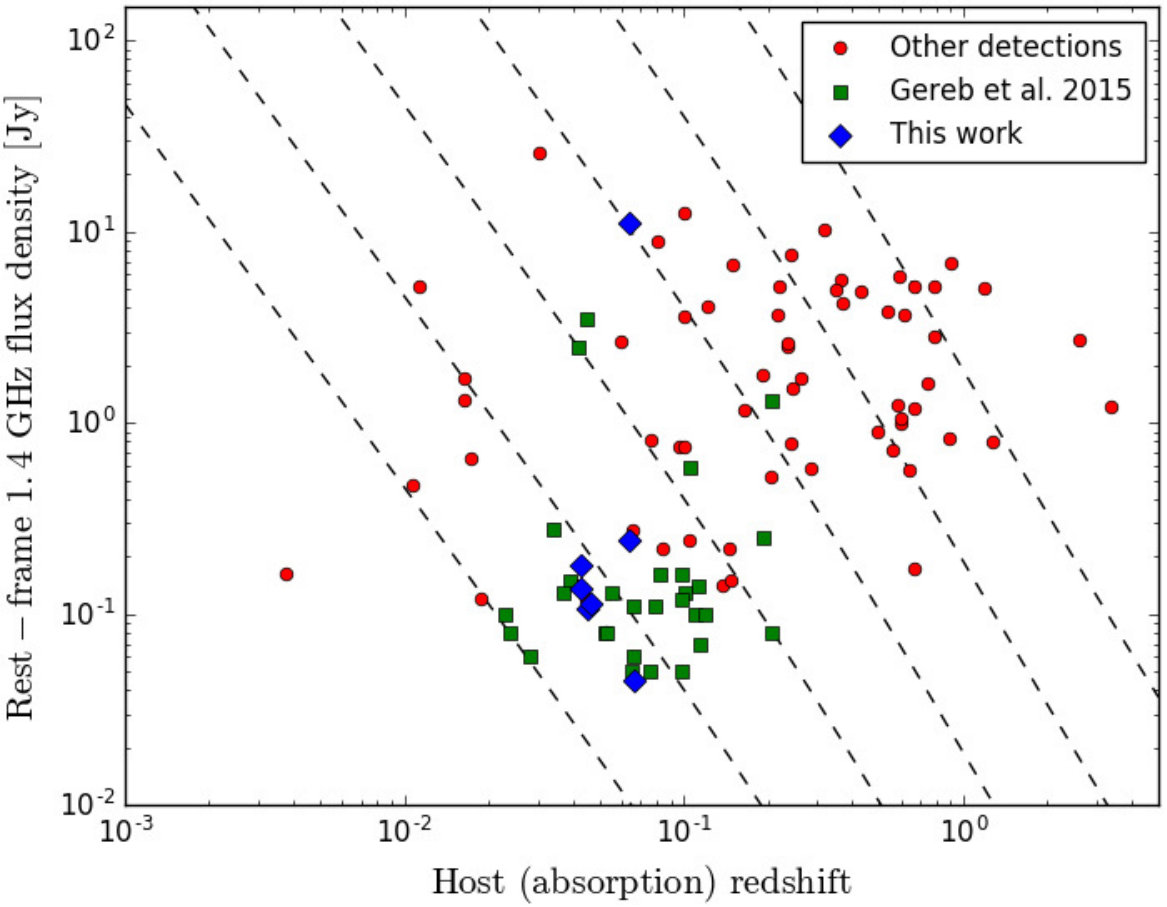

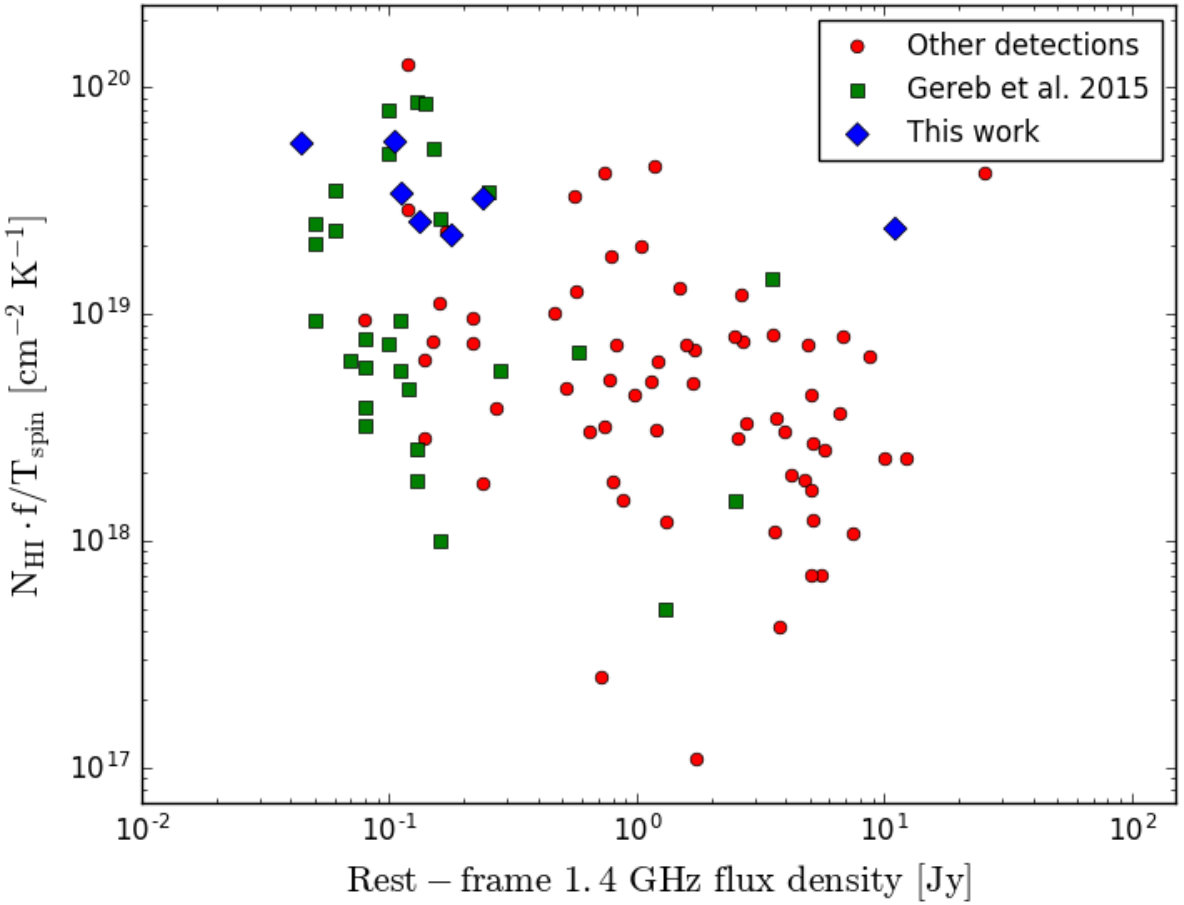

Fig. 9 plots integrated optical depth against rest-frame flux density, and the flux density against the absorption feature redshift for existing Hi absorption surveys. In the top panel, our detections have comparatively higher Hi column densities than other surveys. In the bottom panel, lines of constant radio luminosity strengths, depicting the associated flux density change with redshift, are overlaid, from luminosities of 1023 to 1028 W Hz*-1*. Our study probes a lower range in radio luminosity ( $<$ 1025 W Hz*-1* for most detected sources) than other samples. This results in a potentially lower sensitivity to column densities of Hi for our work, and explains the comparatively higher column densities of our detections.

5.4 Disturbed gas kinematics in compact galaxies

Geréb et al. (2015) had a flux-selected sample with a mixture of host galaxy types within their sample of compact and extended radio sources. They found 32 detections in their sample of 101. Their compact sources exhibited the broadest line features and were more often seen to have asymmetric lines. Geréb et al. (2014) suggest that this trend in compact sources is due to the presence of unsettled gas, which is typically traced by asymmetric and redshifted/blueshifted lines. These properties point to interactions between the AGN and the circumnuclear medium in such compact galaxies - the feedback from the newly triggered AGN which is still propagating through this medium would be the cause of the unsettled gas.

We find a similar trend in the line features; 5 of our 7 detections have a broad feature (where ${v}_{\mathrm{FWHM}}$ $>$ 100 km s*-1*). Furthermore, an exception in J031552-190644, a source with only a narrow feature, is a known FR-I galaxy with extended low-frequency radio emission.

5.5 Distinguishing AGN accretion

There exists two classes of radio galaxies; the low-excitation radio galaxies (LERGs) and high-excitation radio galaxies (HERGs). LERGs lack AGN emission lines in their optical spectra, and are believed to have inefficient accretion processes from the hot-gas halo. HERGs however have efficient AGN accretion processes, and are found to have emission lines in their optical spectra.

21-cm absorption preferentially traces the colder gas. Chandola & Saikia (2017) investigated the difference in the cold gas in LERGs and HERGs for the sample studied in Hi by Geréb et al. (2015) of compact and extended radio sources. The LERGs yielded a lower Hi detection rate. The Hi features that were detected had large velocity shifts to the optical spectroscopic redshift (blueshifts of $\sim$ -300 km s*-1*) and broad profiles. This Hi could hence be within accreting circumnuclear gas instead of being within a gas-rich galaxy disc for most of these LERGs. Meanwhile, Chandola & Saikia (2017) found that almost all HERGs in the same sample also had high star formation rates. The three compact HERGs in the study (all detected in Hi) each had absorption profiles with small ( $<$ 100 km s*-1*) velocity shifts. In these cases, the Hi was attributed to a gas and dust-rich ISM in the host galaxy. Another potential source for the Hi is a central dusty torus in HERGs.

Following this analysis, a similar examination can be applied to our sample. We consider the optical spectroscopic information available for our sample in Table 7 (Mahony et al., 2011). We find 25 with only absorption lines (Aa) and 18 with both absorption and emission lines (Aae). We classify both sets as LERGs. 10 sources were found to only have emission lines (Ae) and one with broad emission lines (AeB), with these considered to be HERGs. We have a higher Hi detection rate in HERGs, but the small-number statistics should be noted.

Of the 12 sources in our sample with no optical spectroscopic information, only one had a WISE W1-W2 colour $>$ 0.8, corresponding to a high AGN gas accretion rate (Section 5.1). This source can hence be attributed to a HERG, and the remaining 11 sources to LERGs. As no Hi was detected in these 12 sources, if these assumptions are made the Hi detection rates would drop to 7% for LERGs and 25% for HERGs.

Four Hi detections were made in LERGs. Three of these had broad line widths ( $\Delta{v}_{\mathrm{FWHM}}$ $>$ 100 km s*-1*) and shallow features significantly offset from the optical spectroscopic redshift were found in LERGs. Our proposed explanations for the gas kinematics for these sources (Allison et al., 2012a, 2013, and Section 3.2) include gas inflows/outflows and gas rotating in a disc around the AGN. J060555-392905 is the only Aa source for which the narrow absorption feature seen at the optical spectroscopic redshift is thought to be within a galactic disc rather than in a dusty torus around the AGN. This source also has a high star formation rate (W2-W3 $>$ 2.5) unlike the other three sources. Therefore, most of our LERGs detected in Hi appear to have disturbed circumnuclear gas.

Furthermore, all of our HERGs (Ae sources) were found to have narrow deep absorption features close to or at the optical spectroscopic redshift. Therefore, our observed absorption features found within HERGs and LERGS appears to match the findings by Chandola & Saikia (2017).

It has been demonstrated (Geréb et al., 2015; Chandola & Saikia, 2017, and references therein) that sources with higher radio luminosities are found to have more asymmetric Hi features at greater offsets. While most of our sources with Hi detections have similar radio luminosities (Fig. 9), we note that the two sources with just narrow absorption features near the optical spectroscopic redshift have relatively lower radio luminosities, and hence gives some support for this result. We note that it is easier to detect Hi absorption features against brighter radio galaxies, including shallow broad components with low optical depth typically offset from the spectroscopic redshift. This is seen in J181934-634548 (Fig. 4), which has the highest flux density of our sample at 1.4 GHz and has both deep and shallow Hi components. This factor hence may contribute to this finding.

6 Summary

We have searched for Hi absorption associated with 66 compact, core-dominated sources selected from the AT20G catalogue within the redshift range 0.04 $<$ z $<$ 0.096, with the aim to examine cold gas in the youngest and most recently triggered radio AGN within our local Universe.

We detect four associated absorption systems in addition to that by Allison et al. (2012a), three of which were previously unknown. Two of these new absorption systems only exhibit narrow deep components close to the optical spectroscopic redshift which we attribute to gas within the galactic disc. The third contains broader, offset velocity components at a lower optical depth, which may represent disturbed gas close to the AGN. The fourth detection we make is tentative, and of a rare weak, broad absorption feature with no associated narrow component. This is the second such feature we find in our survey, with the other verified by Allison et al. (2013). Our survey probed a source population with lower radio luminosities than many other literature surveys, reflected in the flux densities of sources with Hi detections (Fig. 9).

We find that the absorbed X-ray sources, with high column densities of elemental hydrogen, appear to correlate with galaxies with detectable amounts of Hi gas in absorption. This connection between X-ray absorption and Hi absorption is currently being investigated at higher redshifts using ASKAP (Moss et al., in prep). From the mid-infrared colour information, we find a higher detection rate in objects that host a QSO-like source (those with higher AGN gas accretion rates and a covering factor of f $\approx$ 1). This trend is also seen in Curran et al. (2016c).

The Hi detection rate in our sample is higher for early-type host galaxies than the late-type galaxies despite their generally higher star formation rates, suggesting we can probe different gas kinematics in various host galaxies and may not be sensitive enough to detect sufficiently lower column densities of Hi in star-forming discs. Spectra with only narrow, deep absorption features, which can be attributed to a galactic disc, are not found within the early IR type galaxy sector of the WISE colour plot, while the broader components ( $\Delta{v}_{\mathrm{FWHM}}$ $>$ 100 km s*-1*) are within the early IR type host sector and thought to be attributed to e.g. AGN feedback driving an outflow of gas. This shows that the mid-infrared colours can indicate the expected distribution of Hi for a given galaxy. We also find the sources with broader offset (by $>$ 100 km s*-1*) components to be LERGs, and those with narrow features near the optical spectroscopic redshift in HERGs, in line with the result by Chandola & Saikia (2017).

We see mostly disturbed gas kinematics among our detections of Hi absorption in compact core radio galaxies, indicating that young or recently triggered AGN create outflows (jets) that disrupt the interstellar medium within these galaxies. We see shallow, broad components occur more often in early-type galaxies, as modelled in Curran et al. (2016b). Two of our detections against such early-type galaxies lack any narrow and deep component [here and Allison et al. (2013)], an attribute not seen in e.g. Geréb et al. (2015). Hence, given the Hi gas kinematics, and combining with multi-wavelength information, we can better understand the dynamics of a host system to a young AGN.

The upcoming ASKAP-FLASH survey will provide a significantly larger sample size to any previous Hi survey (an expected number of $\sim$ 1,000 new Hi detections in the southern sky in the redshift space 0.4 $<$ z $<$ 1.0, against $\sim$ 150,000 sightlines), and hence will offer a greater wealth of information about the classes of radio objects with Hi absorption systems. The expected minimum flux density in which FLASH is expected to detect Hi absorption is $\sim$ 50 mJy (Morganti et al., 2015); however, at greater redshifts than our sample (z $>$ 0.1), such sources will have a higher radio luminosity (above radio luminosity strengths of 1025 W Hz*-1*; Fig. 9). This means that FLASH will probe more high excitation (high luminosity) objects than what we explored in our sample. Direct comparisons between results of this work and that of FLASH will need to take this into consideration.

Acknowledgements

We thank the anonymous referee for useful comments that helped to improve the paper. The Australia Telescope Compact Array is part of the Australia Telescope National Facility which is funded by the Australian Government for operation as a National Facility managed by CSIRO. This research was conducted by the Australian Research Council Centre of Excellence for All-sky Astrophysics (CAASTRO), through project number CE110001020. This research has made use of the NASA/IPAC Extragalactic Database (NED) which is operated by the Jet Propulsion Laboratory, California Institute of Technology, under contract with the National Aeronautics and Space Administration. This research has also made use of NASA’s Astrophysics Data System Bibliographic Services. This research made use of Astropy, a community-developed core Python package for Astronomy (Astropy Collaboration, 2013).

Bibliography96

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Aditya et al . (2016) Aditya J. N. H. S., Kanekar N., Kurapati S., 2016, MNRAS, 455, 4000
2Allison et al . (2012 a) Allison J. R. et al., 2012 a, MNRAS, 423, 2601
3Allison et al . (2013) Allison J. R., Curran S. J., Sadler E. M., Reeves S. N., 2013, MNRAS, 430, 157
4Allison et al . (2015) Allison J. R. et al., 2015, MNRAS, 453, 1249
5Allison et al . (2012 b) Allison J. R. A., Sadler E. M. A., Whiting M. T. C., 2012 b, PASA, 29, 221
6Baldi & Capetti (2009) Baldi R. D., Capetti A., 2009, A&A, 508, 603
7Carilli et al . (1998) Carilli C. L., Menten K. M., Reid M. J., Rupen M. P., Yun M. S., 1998, Ap J, 494, 175
8Carilli et al . (1992) Carilli C. L., Perlman E. S., Stocke J. T., 1992, Ap J, 400, L 13
