Characterization of spatiotemporal chaos in Kerr optical frequency {comb generators} and in fiber cavity

TL;DR

This paper investigates the complex spatiotemporal chaos in Kerr optical frequency comb generators and fiber cavities, using numerical methods to analyze their dynamical behavior and bifurcations.

Contribution

It introduces a numerical characterization of spatiotemporal chaos in Kerr microresonators and fiber cavities, including Lyapunov spectra and front dynamics analysis.

Findings

Identification of regimes with coexistence of chaos, localized oscillations, and steady states.

Analysis of front propagation during destabilization of localized states.

Quantitative relationship between pump intensity and front speed.

Abstract

Complex spatiotemporal dynamics have been a subject of recent experimental investigations in optical frequency comb microresonators and in driven fiber cavities with a Kerr-type media. We show that this complex behavior has a spatiotemporal chaotic nature. We determine numerically the Lyapunov spectra, allowing to characterize different dynamical behavior occurring in these simple devices. The Yorke-Kaplan dimension is used as an order parameter to characterize the bifurcation diagram. We identify a wide regime of parameters where the system exhibits a coexistence between the spatiotemporal chaos, the oscillatory localized structure, and the homogeneous steady state. The destabilization of an oscillatory localized state through radiation of counter propagative fronts between the homogeneous and the spatiotemporal chaotic states is analyzed. To characterize better the spatiotemporal chaos, we estimate the front speed as a function of the pump intensity.

Figures

Equations

$$\frac{\partial \psi }{\partial t}=S-(\alpha +i\delta )\psi +\frac{i}{2}\frac{{\partial }^2\psi }{\partial {\tau }^2}+i|\psi {|}^2\psi ,$$

$$D_{YK}\equiv p+\frac{{\sum }_{i=1}^p{\lambda }_i}{{\lambda }_{p+1}},$$

Full text

Experiments supported by numerical simulations of driven cavities such as whispering-gallery-mode microresonators leading to optical frequency comb generation have demonstrated the existence of complex spatiotemporal dynamics Chembo_10 . Similar complex dynamics have been observed in all fiber cavity Mitschke96 ; Mitschke96b ; Coen_Optica_15 . In most of these studies, complex behaviors are characterized by a power spectrum Chembo_10 , filtering spatiotemporal diagrams Coen_Optica_15 , embedding dimension, and time series analysis Mitschke96 ; Mitschke96b . However, these tools are inadequate to distinguish between spatiotemporal chaos, low dimensional chaos, and turbulence. A classification of these phenomena has been reported in the literature (see for instance Ruelle ; Manneville90 ; Pikovsky ; Nicolis ; Marcel2013 ; SSM2016 ). In the case of spatiotemporal chaos, the Lyapunov spectrum has a continuous set of positive values. This matches the definition that has been proposed in Manneville90 ; Pikovsky . In the case of a low dimensional chaos, the Lyapunov spectrum possesses a discrete set of positive values. However, the turbulence or weak turbulence are characterized by a power law cascade of a scalar quantity such as energy, norm, etc Frisch . On the basis of the Lyapunov spectrum, we cannot conclude that the system develops a turbulence.

In this letter, we characterize the complex behavior reported in the paradigmatic Lugiato-Lefever equation (LLE, Lugiato1987 ) that describes Kerr optical frequency combs and fiber cavities. For this purpose, we use a rigorous tools of dynamical systems theory. We show that this complex behavior has a spatiotemporal chaotic nature. We estimate the Lyapunov spectra. The Yorke-Kaplan dimension ($D_{YK}$) is used as an order parameter to establish the bifurcation diagram of the spatiotemporal chaos. In addition, we show that the spatiotemporal chaos, the oscillatory localized state and the homogeneous steady state (HSS) can coexist in a finite range of the pumping intensity. The destabilization of an oscillatory localized state through radiation of counter propagative fronts between the HSS and the spatiotemporal chaotic state is also discussed by estimating the front speed as a function of the pump intensity.

Driven Kerr cavities with a high Fresnel number assuming that the cavity is much shorter than the diffraction and the nonlinearity spatial scales—is described in the mean field limit by the LLE Lugiato1987 . This equation has been extended to model both fiber cavities Haelterman92 ; Haelterman92a and optical frequency combs generation Chembo_13 ; Wabnitz2013 ; Chembo2014 , in which the diffraction is replaced by dispersion. This model reads

[TABLE]

where $\psi(t,\tau)$ is the normalized slowly varying envelope of the electric field that circulates within the cavity and $S$ is the amplitude of the injected field which is real and constant. The time variable $t$ corresponds to the slow evolution of $\psi$ over successive round-trips. $\tau$ accounts for the fast dynamics that describes how the electric field envelop changes along the fiber Haelterman92 ; Haelterman92a ; Chembo_13 . The parameters $\alpha$ and $\delta$ are the cavity losses, and the cavity detuning, respectively. In addition, Eq. (1) has been derived in the context of left-handed materials Kockaert_2006 . Note that, Eq. (1) has been derived in early reports to describe the plasma driven by an radio frequency field DDNLS-Plasma ; DDNLS and the condensate in the presence of an applied ac field DDNLS-Condensate .

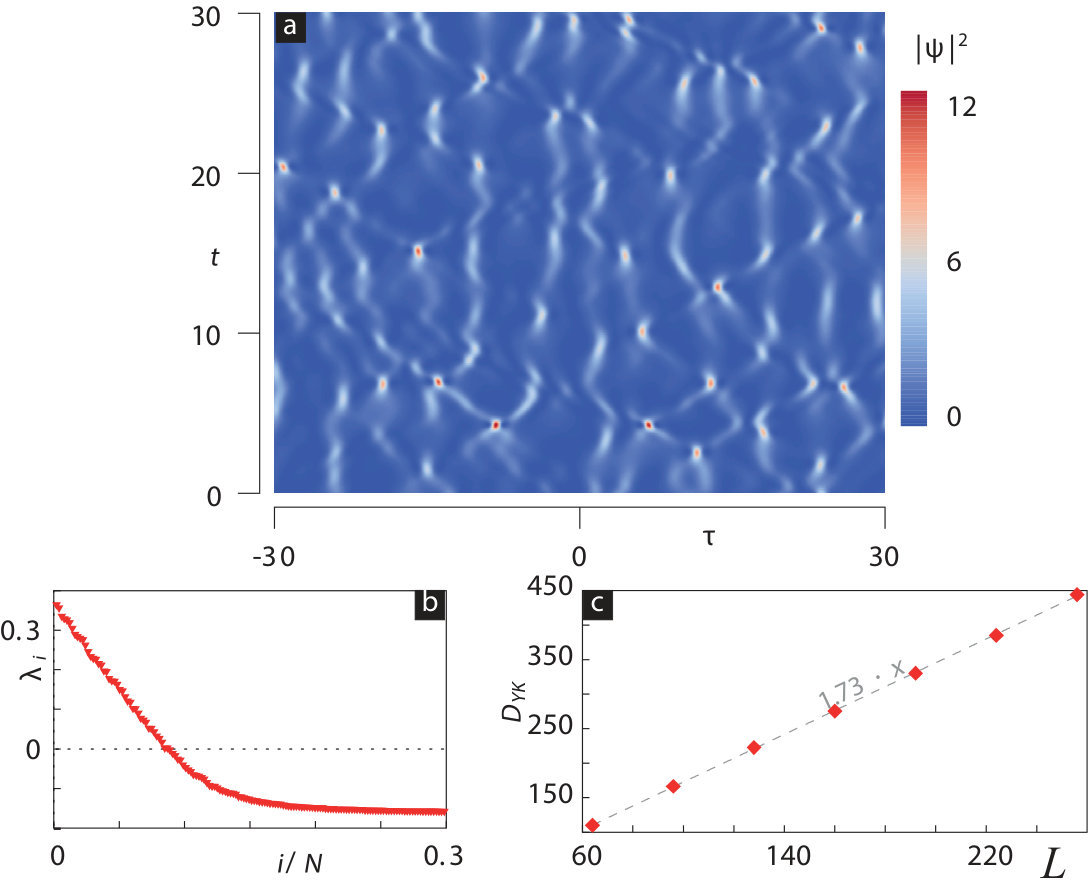

The model (1) supports stationary localized Scorggie_csf94 and self-pulsating localized Vladimirov structures. In the conservative limit, $(\alpha,S)\to(0,0)$, localized structures have analytical solutions Nozaki1985 ; Nozaki1986 ; Taki1989 ; Wabnitz93 . It has been also shown that in this limit, localized structures can exhibit regular time oscillations and display a complex behavior Nozaki1985 ; Nozaki1986 ; Taki1989 . An example of complex spatiotemporal behavior is plotted in the $\tau$-$t$ map of Fig. 1 (a). The time evolution of the field amplitude that circulates inside the cavity exhibits large amplitude localized pulses. These pulses have irregular distribution along the $\tau$ coordinate (cf. Fig. 1(a)). The characterization of this behavior can be achieved by means of Lyapunov exponents, which provide an information about the sensitivity of close initial conditions Pikovsky . When the largest Lyapunov exponent is positive, the system develops chaos but not necessarily a spatiotemporal chaos. To distinguish between these two complex dynamical behavior, it is necessary to compute the Lyapunov spectra composed by a set of exponents Ruelle ; Pikovsky ; Manneville90 . Spatiotemporal chaos has a Lyapunov spectrum with a continuous set of positive values. In contrast, chaos possesses a Lyapunov spectrum with discrete set of positive values. The Lyapunov exponents is denoted by $\{\lambda_{i}\}$, where $i$ labels the exponents ($i=1,...,N$) and $\lambda_{p}\leq\lambda_{q}$ ($p\geq q$). By using the strategy proposed in Lyapunov , we compute numerically the Lyapunov spectrum for large $N$. The numerical simulations are obtained by using periodic boundary conditions that are compatible with both Kerr optical frequency combs and fiber cavities geometries. Figure 1(b) shows a typical continuous Lyapunov spectrum. Hence, we infer that the complex dynamical behavior shown in Fig. 1(a) is a spatiotemporal chaos.

The main feature of the Lyapunov spectra is that they are proportional to the physical system size. This implies that the upper limit of the strange attractor dimension of spatiotemporal chaos—the Kaplan-Yorke dimension ($D_{YK}$)—is an extensive quantity that increases with the physical system size Ruelle . This latter quantity provides an information on the level of the strange attractor complexity and is defined by Ott2002

[TABLE]

where $p$ is the largest integer that satisfies $\sum_{i=1}^{p}\lambda_{i}>0$. Figure 1(c) displays $D_{YK}$ as function of the number of discretization points, which shows that this dimension is indeed an extensive physical quantity as it linearly increases with the system size. Therefore, as one increases the system size, the dimension of the strange attractor grows proportionally.

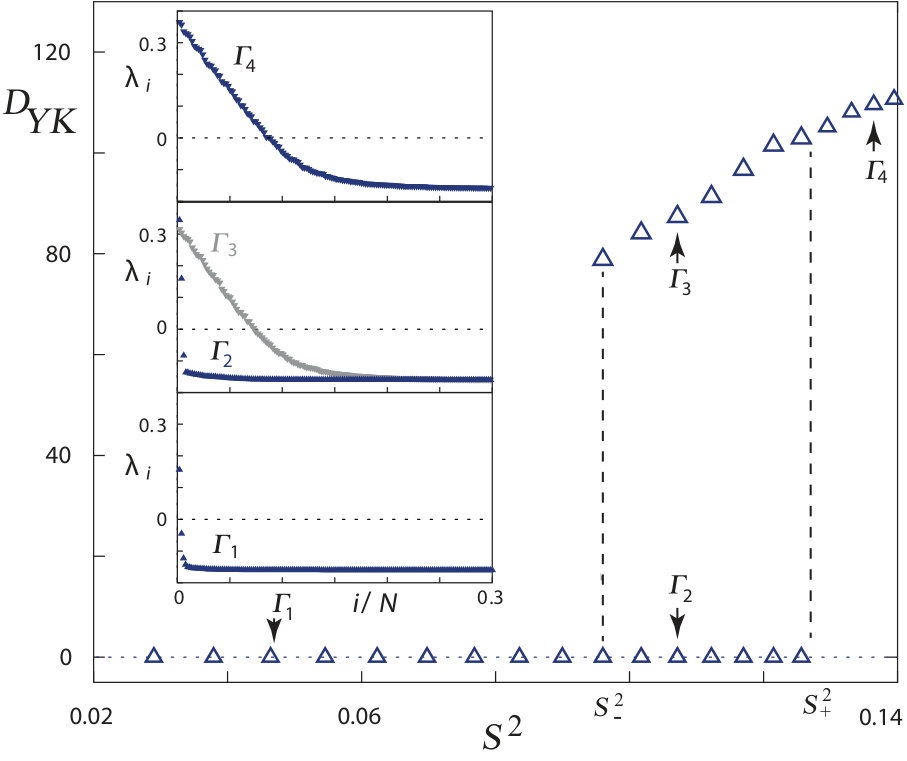

To establish the bifurcation diagram of the spatiotemporal chaos, we fix the detuning and the dissipation values and we numerically estimate $D_{YK}$ by varying the pumping intensity. The initial condition consists of a single peak localized structure. The summary of the results is illustrated in figure 2. When increasing pump intensity, the LLE has a zero York-Kaplan dimension, i.e., $D_{YK}=0$ until the system reaches $S^{2}\equiv S_{+}^{2}$. For $S^{2}>S_{+}^{2}$, the system exhibits a transition towards a spatiotemporal chaos, i.e., $D_{YK}>0$. This behavior lasts for large pumping intensity values. When decreasing $S^{2}$, the spatiotemporal chaos persists down to the point $S^{2}\equiv S_{-}^{2}$ as shown in figure 2. From this figure, we clearly see an hysteresis loop involving a spatiotemporal chaos, a pulsating localized structure and a HSS in the range $S_{-}^{2}<S^{2}<S_{+}^{2}$. The inset in Fig. 2 shows the continuous Lyapunov spectra for different values of the pump intensity. Remarkably, the middle panel of the inset shows two Lyapunov spectra $(\Gamma_{2}$ and $\Gamma_{3})$ obtained for the same parameters values indicating the coexistence of two qualitatively different dynamical behaviors.

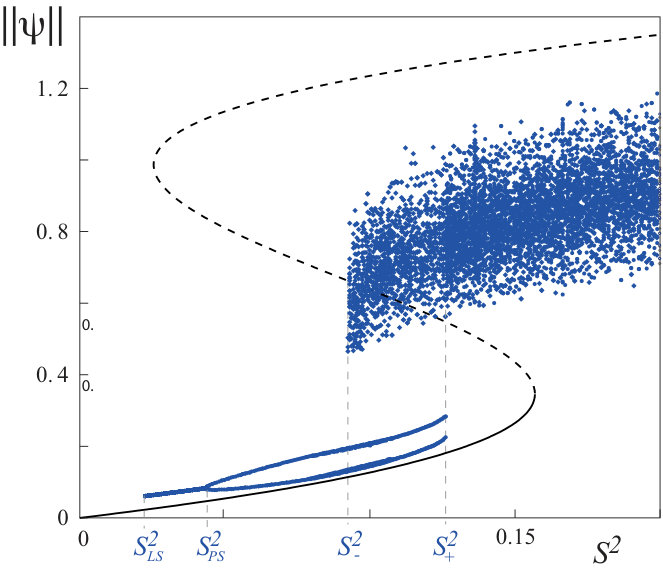

In what follows, we establish a bifurcation diagram showing a coexistence between the spatiotemporal chaos, the oscillatory localized structure, and the HSS. In order to show different operating regimes, the total intracavity field amplitude $||\psi||\equiv\int|\psi(t,\tau)|^{2}d\tau$ as a function of the pumping intensity is shown in the bifurcation diagram figure 3. The upper (lower) HSS branch indicated by dashed (solid) line is modulationally unstable (stable) Lugiato1987 . For small pumping intensity, the system has stationary stable localized state in the range $S_{LS}^{2}<S^{2}<S_{PS}^{2}$ (see Fig. 3). When increasing the pumping intensity the localized state becomes self-pulsating in the range $S_{PS}^{2}\leq S^{2}<S_{+}^{2}$. When further increasing $S^{2}$, the system exhibits spatiotemporal chaos. When decreasing $S^{2}$, the spatiotemporal chaos persist s down to $S_{-}^{2}$. As in the bifurcation diagram of $D_{YK}$ (cf. fig. 2), the system presents an hysteresis loop involving three different robust states: HSS, pulsating localized structures, and spatiotemporal chaos.

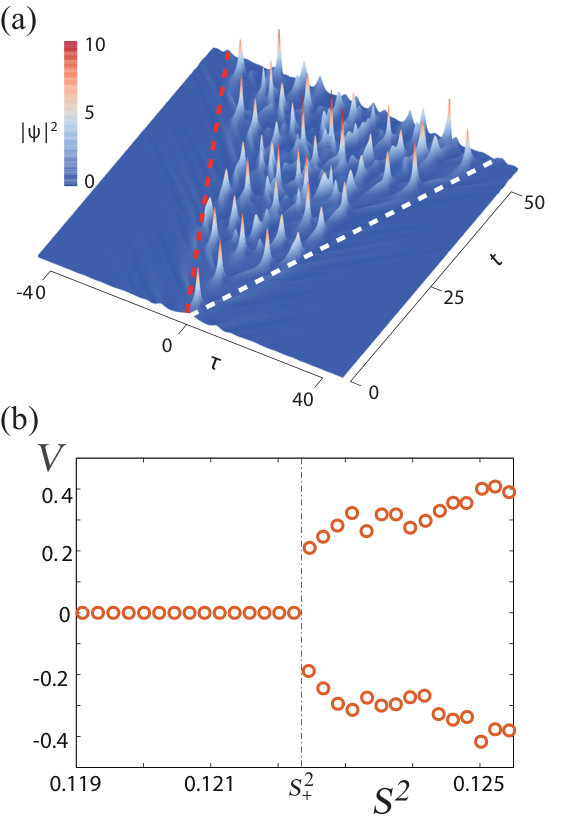

It is well known that model (1) exhibits radiation from a localized state of two counter-propagative fronts between the homogeneous and the complex spatiotemporal states LeoCoen . An example of this behavior is depicted in the $\tau$-$t$ map shown in figure 4(a). To characterize this transition, we estimate numerically the front speed. Figure 4(b) shows the front speed as a function of the pump intensity in the vicinity of the instability associated with localized states. Right and left fronts propagate with almost the same speed. As the pumping intensity is increased, the front speed continues to increase until the system reaches the lower limit point of bistable HSSs. Similar behavior has been reported in pattern forming systems where front propagates between a HSS and a periodic pattern Pomeau ; ClercFalcon ; ClercFalcon2 or between either two HSSs Coulibaly1 ; Coulibaly2 or even between a HSS and the spatiotemporal intermittency Michel2016 .

From practical point of view, a driven ring cavity made with an optical fiber could support a spatiotemporal regime. However, by using constant injected beam, i.e., cw operation, it is hard to reach the high intensity regime where we can observe the spatiotemporal chaos and its coexistence with a homogeneous background. To overcome this limitation, it is necessary to drive the cavity with a synchronously pumping with a pulsed laser. The time-of-flight of the light pulses in the cavity should be adjusted to the laser repetition time. All experiments using this simple device with pulse laser have shown evidence of complex spatiotemporal behaviors Mitschke96 ; Mitschke96b ; Coen_Optica_15 ; Mitschke98 . Therefore, the phenomenon described in this letter should be observed experimentally.

In conclusion, by using rigorous tools of dynamical system theory, such as Lyapunov spectra, we have quantitatively shown that the complex behavior observed experimentally in the Kerr optical frequency combs Chembo_10 and in the fiber cavity Mitschke96 ; Mitschke96b ; Coen_Optica_15 is of a spatiotemporal chaos nature. We have also shown that the Yorke-Kaplan dimension can be considered as a good order-parameter to characterize the bifurcation diagram associated with spatiotemporal chaos. Finally, we have identified different operating regimes, in particular the coexistence between spatiotemporal chaos, the self-pulsating localized structure, and the homogeneous steady state. The observed complex states are exponentially sensitive to the initial conditions, exhibit complex spatiotemporal chaos, and have exponential power spectrum. Hence, this behavior is not of turbulent nature. Our finding is therefore important for the analysis, classification of the various complex spatiotemporal behaviors observed in practical dissipative systems.

M.G.C. thanks for the financial support of FONDECYT projects 1150507. Z.L, S.C and M.T thank the Interuniversity Attraction Poles program of the Belgian Science Policy Office under the grant IAPP7-35, the French Project ANR Blanc OptiRoc N12-BS04-0011, and the ”Laboratoire d’Excellence: Centre Européen pour les Mathématiques, la Physique et leurs Interactions” CEMPI. M.Tlidi received support from the Fonds National de la Recherche Scientifique (Belgium).
