We can't hear the shape of drum: revisited in 3D case

TL;DR

This paper explores the construction of 3D isospectral models, extending the concept of iso-spectral domains from 2D to 3D, and verifies their spectral equivalence through numerical methods.

Contribution

It introduces a novel method for constructing 3D isospectral models based on reflection rules and validates their spectral properties numerically.

Findings

Successfully constructed 3D isospectral models

Validated isospectrality through numerical verification

Extended the reflection rule concept to 3D models

Abstract

Can one hear the shape of a drum? was proposed by Kac in 1966. The simple answer is NO as shown through the construction of iso-spectral domains. There already exists 17 families of planar domains which are non-isometric but display the same spectra of frequencies. These frequencies, deduced from the eigenvalues of the Laplacian, are determined by solving the wave equation in a domain, which is subject to Dirichlet boundary conditions. This paper revisits the serials of reflection rule inherent in the 17 families of iso-spectral domains. In accordance with the reflection rule visualized by red-blue-black, we construct real 3D isospectral models successfully. What is more, accompanying with the proof of transplantation method, we also use the numerical method to verify the isospectrality of the 3D models.

Figures

Tables

Table 1. Table 1: The first 25 approximated eigenvalues of the 3D iso-spectral pair: Class 7 1 subscript 7 1 7_{1} # A and Class 7 1 subscript 7 1 7_{1} # B , using the simple finite difference method ( please also see [ 39 ] ) with mesh size h = 1 / 20 ℎ 1 20 h=1/20 . The Difference refers to the absolute difference between the eigenvalues.

Eigenvalue	Class $7_1$ #A	Class $7_1$ #B	Difference ($\times {10}^{-12}$)
1	44.4718	44.4718	0.0568
2	62.8210	62.8210	0.0426
3	68.9764	68.9764	0
4	80.4222	80.4222	0.1279
5	86.0231	86.0231	0.0284
6	103.2302	103.2302	0.1279
7	105.6904	105.6904	0.1847
8	110.1293	110.1293	0.0284
9	117.5639	117.5639	0.3411
10	126.6846	126.6846	0.0853
11	130.2792	130.2792	0.3126
12	136.1989	136.1989	0.2842
13	136.5769	136.5769	0.3695
14	142.5582	142.5582	0.6253
15	147.9829	147.9829	0
16	154.1811	154.1811	0.0853
17	161.1378	161.1378	0.1990
18	164.5301	164.5301	0.3979
19	169.0497	169.0497	0.5969
20	172.1153	172.1153	0.3979
21	176.0983	176.0983	0.1705
22	180.6497	180.6497	0.1705
23	185.0137	185.0137	0.0568
24	190.4692	190.4692	0.0284
25	194.8700	194.8700	0.5116

Table 2. Table 2: The first 25 approximated eigenvalues of the 3D iso-spectral pair: Class 7 2 subscript 7 2 7_{2} # A and Class 7 2 subscript 7 2 7_{2} # B , using the simple finite difference method (please also see [ 39 ] ) with mesh size h = 1 / 20 ℎ 1 20 h=1/20 . The Difference refers to the absolute difference between the eigenvalues.

Eigenvalue	Class $7_2$ #A	Class $7_2$ #B	Difference ($\times {10}^{-12}$)
1	44.9835	44.9835	0.1137
2	61.4888	61.4888	0.1208
3	70.0240	70.0240	0.3837
4	80.6794	80.6794	0.1705
5	86.2937	86.2937	0.2700
6	102.1243	102.1243	0.1990
7	104.7903	104.7903	0.0711
8	110.7750	110.7750	0.1847
9	121.5084	121.5084	0.2416
10	124.1022	124.1022	0.1279
11	129.6075	129.6075	0.6821
12	136.1989	136.1989	0.0568
13	137.0019	137.0019	0.1421
14	142.1820	142.1820	0.2842
15	146.8989	146.8989	0.0853
16	157.7060	157.7060	0.2842
17	160.9049	160.9049	0.3695
18	163.9460	163.9460	0.1421
19	165.5862	165.5862	0.3411
20	171.1039	171.1039	0.3695
21	178.3842	178.3842	0.3979
22	183.0443	183.0443	0.4547
23	185.0180	185.0180	0.1137
24	191.9694	191.9694	0.2274
25	195.6234	195.6234	0.0284

Table 3. Table 3: The first 25 approximated eigenvalues of the 3D iso-spectral pair: Class 7 3 subscript 7 3 7_{3} # A and Class 7 3 subscript 7 3 7_{3} # B , using the simple finite difference method ( please also see [ 39 ] ) with mesh size h = 1 / 20 ℎ 1 20 h=1/20 . The Difference refers to the absolute difference between the eigenvalues.

Eigenvalue	Class $7_3$ #A	Class $7_3$ #B	Difference ($\times {10}^{-12}$)
1	49.2289	49.2289	0.0213
2	56.0467	56.0467	0.0284
3	72.6396	72.6396	0.1847
4	79.9743	79.9743	0.1137
5	92.0586	92.0586	0.1847
6	99.5111	99.5111	0.3837
7	104.0452	104.0452	0.2274
8	113.2988	113.2988	0.2984
9	120.5720	120.5720	0.1137
10	124.4357	124.4357	0.5542
11	131.7220	131.7220	0
12	133.3562	133.3562	0.3411
13	136.1989	136.1989	0.3695
14	144.0266	144.0266	0.4547
15	152.4877	152.4877	0.1705
16	156.3340	156.3340	0.1137
17	156.5645	156.5645	0.0568
18	162.8653	162.8653	0.3979
19	169.5866	169.5866	0.0853
20	173.2912	173.2912	0.3695
21	179.6543	179.6543	0.0853
22	185.0656	185.0656	0.3979
23	186.5775	186.5775	0.4263
24	190.4249	190.4249	0.1137
25	193.5350	193.5350	0.6821

Equations

$$\frac{{\partial }^2\nu }{\partial t^2}-\left(\frac{{\partial }^2\nu }{\partial x^2}+\frac{{\partial }^2\nu }{\partial y^2}\right)=0,\text{in}\Omega ,$$

$$\nu =0,\text{on}\partial \Omega ,$$

$$\Delta u+\lambda u=0,\text{in}\Omega ,$$

$$u=0,\text{on}\partial \Omega .$$

$$0<{\lambda }_1<{\lambda }_2\le \dots \le {\lambda }_k\dots ;{\lambda }_k\to +\infty ,\text{if}k\to +\infty .$$

$$T{A}^{\nu }=B^{\nu }T,\nu =1(\text{red}),2(\text{blue}),3(\text{black}).$$

$$T=\left(\begin{array}[]{ccccccc}C_{11}&-C_{13}&C_{13}&-C_{13}&-C_{11}&C_{11}&C_{13}\\ -C_{13}&C_{11}&-C_{13}&C_{13}&C_{13}&-C_{11}&-C_{11}\\ C_{13}&-C_{13}&C_{11}&-C_{13}&-C_{11}&C_{13}&C_{11}\\ -C_{11}&C_{13}&-C_{13}&C_{11}&C_{13}&-C_{13}&-C_{11}\\ C_{13}&-C_{11}&C_{13}&-C_{11}&-C_{11}&C_{13}&C_{13}\\ -C_{11}&C_{11}&-C_{11}&C_{13}&C_{13}&-C_{13}&-C_{13}\\ -C_{13}&C_{13}&-C_{11}&C_{11}&C_{13}&-C_{11}&-C_{13}\\ \end{array}\right).$$

$$T=C_{11}{T}_3+C_{13}{T}_4,C_{11}\ne C_{13}.$$

$${\phi }_i=\mathcal{C}\sum _{j=1}^N{T}_{ij}{\varphi }_j,i=1,2,\dots ,N.$$

$$Q_0=P_0+2Q_{0}P,Q_{0}P={\alpha }_1{P}_1+{\alpha }_2{P}_2+{\alpha }_3{P}_3,$$

$$(Q_{0}P-P_0)\cdot (P_2-P_1)=0,(Q_{0}P-P_0)\cdot (P_2-P_3)=0,{\alpha }_1+{\alpha }_2+{\alpha }_3=1.$$

$$Q_1=\text{Mirror}(P_1;P_0,P_2,P_3),Q_2=\text{Mirror}(P_2;P_0,P_1,P_3).$$

$$\{P_0,P_1,P_2,P_3\},\{Q_0,P_1,P_2,P_3\},\{P_0,Q_1,P_2,P_3\},\{P_0,P_1,Q_2,P_3\}.$$

$$Q_0{P}_1$$

$$Q_0{P}_2$$

$$\underset{1\le k\le 25}{\max }|{\lambda }_k-{\mu }_k|=6.2528\times 10^{-13},\Vert {\lambda }_k-{\mu }_k{\Vert }_{L_2}=1.4503\times 10^{-12}.$$

$$\underset{1\le k\le 25}{\max }|{\lambda }_k-{\mu }_k|=0.6821\times 10^{-12},\Vert {\lambda }_k-{\mu }_k{\Vert }_{L_2}=1.4167\times 10^{-12}.$$

$$\underset{1\le k\le 25}{\max }|{\lambda }_k-{\mu }_k|=0.6821\times 10^{-12},\Vert {\lambda }_k-{\mu }_k{\Vert }_{L_2}=1.6766\times 10^{-12}.$$

$$P_0=\{0,0,0\},P_1=\{1,0,0\},P_2=\{0,1,0\},P_3=\{0,0,1\}.$$

$$\small{A^{1}=\left(\begin{array}[]{ccccccc}0&1&0&0&0&0&0\\ 1&0&0&0&0&0&0\\ 0&0&1&0&0&0&0\\ 0&0&0&0&0&0&1\\ 0&0&0&0&1&0&0\\ 0&0&0&0&0&1&0\\ 0&0&0&1&0&0&0\\ \end{array}\right),A^{2}=\left(\begin{array}[]{ccccccc}0&0&1&0&0&0&0\\ 0&0&0&0&1&0&0\\ 1&0&0&0&0&0&0\\ 0&0&0&1&0&0&0\\ 0&1&0&0&0&0&0\\ 0&0&0&0&0&1&0\\ 0&0&0&0&0&0&1\\ \end{array}\right),A^{3}=\left(\begin{array}[]{ccccccc}0&0&0&1&0&0&0\\ 0&1&0&0&0&0&0\\ 0&0&0&0&0&1&0\\ 1&0&0&0&0&0&0\\ 0&0&0&0&1&0&0\\ 0&0&1&0&0&0&0\\ 0&0&0&0&0&0&1\\ \end{array}\right)};$$

$$\small{B^{1}=\left(\begin{array}[]{ccccccc}0&1&0&0&0&0&0\\ 1&0&0&0&0&0&0\\ 0&0&0&0&0&1&0\\ 0&0&0&1&0&0&0\\ 0&0&0&0&1&0&0\\ 0&0&1&0&0&0&0\\ 0&0&0&0&0&0&1\\ \end{array}\right),B^{2}=\left(\begin{array}[]{ccccccc}0&0&1&0&0&0&0\\ 0&1&0&0&0&0&0\\ 1&0&0&0&0&0&0\\ 0&0&0&0&0&0&1\\ 0&0&0&0&1&0&0\\ 0&0&0&0&0&1&0\\ 0&0&0&1&0&0&0\\ \end{array}\right),B^{3}=\left(\begin{array}[]{ccccccc}0&0&0&1&0&0&0\\ 0&0&0&0&1&0&0\\ 0&0&1&0&0&0&0\\ 1&0&0&0&0&0&0\\ 0&1&0&0&0&0&0\\ 0&0&0&0&0&1&0\\ 0&0&0&0&0&0&1\\ \end{array}\right)}.$$

Full text

Keywords:17 families of iso-spectral pairs; Reflection rule; Transplantation method; 3D iso-spectral models.

AMS Subject Classification (2000): 65N25

1 Introduction

The famous question as to whether the shape of a drum can be heard has existed for half a century[1], which deduces to the eigenvalues problem of a vibrating membrane in the Euclidean space. Thus if you know the frequencies at which a drum vibrates, can you determine its shape? As we know, the vibration of a drum which spans a domain $\Omega$ in $\mathbb{R}^{2}$ is governed by the wave equation with Dirichlet boundary

[TABLE]

[TABLE]

where $\nu=\nu(x,y,t)$ denotes the transverse displacement of a point $(x,y)$ in $\Omega$ at time $t$. Seeking a solution by separation of variables $\nu(x,y,t)=F(t)u(x,y)$, we obtain the stationary equation

[TABLE]

[TABLE]

It is classical that there is an ordered set $\{\lambda_{k},~{}k=1,2,\ldots\}$ known as eigenvalue spectrum.

[TABLE]

The value $\lambda_{k}$ relates to the frequency of the drum with corresponding eigenfunction $u_{k}$. Two bounded domains, $\Omega_{1}$ and $\Omega_{2}$, which have the same set of eigenvalues are called iso-spectral. Additionally, $\Omega_{1}$ and $\Omega_{2}$ are termed isometric if they are congruent in the sense of Euclidean geometry. It is the popularization of Kac’s question as to whether there can exist two iso-spectral but non-isometric domains in the real face. It wasn’t until 1992 that Gordon et al. [12] answered negatively by finding a pair of non-isometric planar domains with the same Laplace spectrum.

Actually at Kac’s time it was known that the answer is NO in the realm of Riemannian manifolds. J. Milnor had constructed two flat tori of dimension 16 which are iso-spectral but not isometric [2]. In the ensuing 25 years many examples of iso-spectral manifolds mathematically were found, whose dimensions, topology, and curvature properties were discussed. For more detailed specification, please see [3, 4, 5, 6, 7, 8, 9]. The crucial step was achieved in 1985 by Sunada [10]. The simplest, but abstract theorem gives a sufficient condition for building pairs of iso-spectral manifolds. So, the paradigmatic example given by Gordon et al. was also generated from Sunada’s theorem. In fact, the other examples which were constructed after 1992 all followed Sunada’s theorem. Buser et al. gave 17 families of iso-spectral pairs in planar case, and a particularly simple method called transplantation technique for detecting iso-spectrality [16]. Interestingly, Chapman has visualized the transplantation map in terms of “paper-folding” [23]. With the paper-folding method, it is clear that what matters is the way how the building blocks are glued together (i.e. reflection rule), irrespective of their shape. More exotic iso-spectral shapes can be made just following the same patten of reflection rule.

It should be remarked that the transplantation method is not independent of the Sunada’s theorem. In a summary paper [17], Brooks present four proofs of the Sunada’s theorem including the alternative proof based on the transplantation method. Continuously, Okada and Shudo employed the transplantation method to verify the equivalence between iso-spectrality and iso-length [18]. 17 families of iso-length graph called “transplantation pairs” were enumerated to compare with the preexisting planar iso-spectral pairs. Following the edged-graph proposed in [18], theoretical physicist Giraud made a C program to exhaust all possible pairs numerically [25][26]. He blazed a trial combining with the finite projective plane approach to explain the reasons for the existence of iso-spectral pairs. Still, essentially only 17 families of examples that say no to Kac’s question were constructed in a 50 year period. Thus far, all examples of non-congruent iso-spectral domains in Euclidean space are non-convex. Please see [13, 14] for the convex domain in hyperbolic plane. Giraud and Thas [27] have done good job by reviewing mathematical and physical aspects of iso-spectrality, covering wide range of knowledge including also pioneering contributions of the authors.

Although iso-spectrality is proved on mathematical grounds, the knowledge of exact eigenvalues and eigenfunctions can not be obtained analytically for such systems. Experiments including numerical investigation and physical implementation contribute a lot. Early in 1994, Wu and Sprung [28] verified the iso-spectrality of the first pair (termed as GWW ) numerically by an extrapolated mode-matching method. The “analytical” 9$th$ and 21$st$ modes there, corresponding to known simple modes of the underlying triangles, were not only emphasized but were taken at their exact values to 4-5 digits. Subsequently, Driscoll [30], using a much more accurate modified domain-decomposition method [31], verified iso-spectrality to 12 significant digits for the first 25 modes, including the two “analytical” modes. In 2005, the same or better accuracy was achieved by Betcke and Trefethen with a simple approach [32]. They modified the famous method–Method of Particular Solutions [33], and revived it to calculate eigenvalues and eigenmodes of the Laplacian in planar regions.

On the experimental side, Sridhar and Kudrolli [29] performed measurements on thin microwave cavities shaped like GWW. The measured spectrum has subsequently been confirmed by Wu’s numerical simulation [28]. Then Even and Pieranski [34] constructed actual shaped small “drums”–membranes made from liquid crystal smectic films, and measured their vibrations. To see earlier physical results, please refer [19, 20, 21] and references therein. More recently, Moon et al. [36] utilized the iso-spectrality of the electronic nanostructures to extract the quantum phase distributions. Interestingly, they checked that one could indeed “hear” iso-spectrality by converting the average measured spectra into audio frequencies. For more details, please see the movie caption in [36]. Later, phase extraction in disordered iso-spectral shapes was numerically emphasized in [37]. Furthermore, P. Amore [38] extended the iso-spectrality to a wider class of physical problems, including the cases of heterogeneous drums and of quantum billiards in an external field.

The most basic known planar iso-spectral domains (GWW) are nine-sided polygons that have also been termed as Bilby and Hawk [35]. Each is a polyform composed of seven identical triangles and created via a specific series of reflections, such that every triangle is the mirror image of its neighbors. Actually, they are a simplified version of the pair $7_{3}$. Previously based on the reflection rule of $7_{3}$, Cox [40] constructed three dimensional iso-spectral domains. In addition, 45 shapes assembled by unit cube, square-based prism and right-angled wedge were depicted to show non-isospectrality in Moorhead’s Ph.D. thesis [39]. While the GWW solid iso-spectral prisms (please also see [37]) take the equal eigenvalues, they are just constructed from GWW by sweeping the face into a third orthogonal direction for the same distance. We revisit the serials of reflection rule inherent in the 17 families of iso-spectral domains, and visualize the rule in color red-blue-black. Figure 1 depicts the specific shape in 2D case. In accordance with the reflection rule, we successfully construct real 3D iso-spectral models assembled by seven tetrahedrons. The eigenfunctions of our 3D models are not only transplantable, but also numerically equal .

In Section 2 we will study the transplantation method that guarantees the isospectrality of the 17 planar pairs. In Section 3 we show how to construct the iso-spectral models in 3D space. In Section 4 we present some visualized 3D pairs which are iso-spectral and non-isometric. Finally, conclusion remark briefly shows that the extension of constructing iso-spectral pairs can also be used in higher dimensions.

The classifications are illustrated below:

• •

7 tiles with 3 pairs:  $7_{1}$, $7_{2}$, $7_{3}$;

• •

13 tiles with 9 pairs:  $13_{1}$, $13_{2}$, $\cdots$, $13_{9}$;

• •

15 tiles with 4 pairs:  $15_{1}$, $15_{2}$, $15_{3}$, $15_{4}$;

• •

21 tiles with 1 pairs:  $21_{1}$.

2 Transplantation method

The transplantation proof was first applied to Riemann surfaces by Buser [11], and to reexamine iso-spectrality of planar domains given in [16]. Quoting sentence from Buser “We shall show that the eigenfunctions on the first surface can be suitable transplanted to yield eigenfunctions with the same eigenvalue on the second surface and vice-versa”, we know suitable transplantation is important. Bérard [15] followed this versatile method to reproof the iso-spectrality of the pair constructed by Gordon et al.. Okada and Shudo [18] formalised the matrix representation (i.e. transplantation matrix $T$) of transplantation of eigenfunctions. In fact, it turns out that the matrix $T$ is just the incidence matrix of the graph associated with a certain finite projective space [25] [26]. Giraud and Thas [27] reviewed the fascinating relation between the iso-spectral pairs and geometry of vector spaces over finite fields. Illustrating one simple method to obtain transplantation matrix of the 17 pairs, we follow the definition mentioned in [18, 25, 26, 27], and describe it with red-blue-black reflection rule.

Definition 2.1**.**

The transplantation matrix $T$ must be such that

[TABLE]

In Equation (2.1), matrices $A^{\nu}$ and $B^{\nu}$ describe how the tiles are glued togethers (i.e. reflection rule). For example,

• •

$A^{\nu}_{i,j}=1$ if and only if the edge number (color) $\nu$ of $i$ glues tile $i$ to tile $j$;

• •

$A^{\nu}_{i,i}=-1$ if the edge number $\nu$ of $i$ glues nothing (boundary);

• •

0, otherwise.

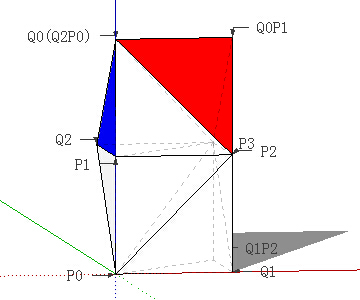

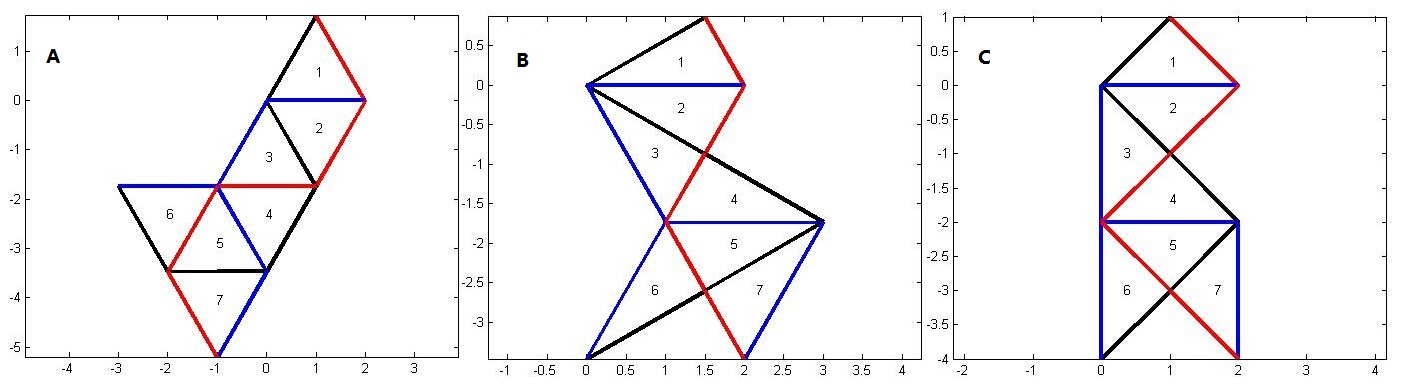

For special pair of $21_{1}$ depicted in Figure 2 , $\nu$ runs form 1 to 3 (red to black). That is also alternatively corresponding with middle, long and short edge. If you keep the labels of Aye-Aye and Beluga shape, line $i$ contains a 1 at the column $j$ where $i$ and $j$ are glued by their red side; Otherwise the red side is the boundary of the tile, line $i$ contains a -1. So for the red side, the matrix $A^{1}$ (associated with the Aye-Aye shape) would be that $A^{1}_{1,2}=1,~{}A^{1}_{2,1}=1,~{}A^{1}_{3,3}=-1,~{}A^{1}_{4,5}=1,~{}A^{1}_{5,4}=1$ and so on. Similarly the $B^{1}$ matrix would be associate with the Beluga shape and yields $B^{1}_{1,2}=1,B^{1}_{2,1}=1,\ldots,B^{1}_{6,6}=-1$ and so on. Then once you have all matrices $A^{\nu}$ and $B^{\nu}$ for the three sides, finding $T$ just amounts to solving a system of equation.

If we keep the notations that $T:=\{C_{ij}\}_{N\times N}$ ($N$ represents 7, 13, 15, 21), combining reflection rule in Figure 3 with definition 2.1, $T$ can be calculated in the following form:

[TABLE]

$C_{11}$ and $C_{13}$ are the two remaining degrees of freedom after solving Equations (2.1). Extracting $C_{11}$ and $C_{13}$ from Equation (2.2), hence $T$ is simplified like this

[TABLE]

$T_{k}$ has only $k$ nonzero entries in each row and each column. In Buser’s words [16], $T_{3}$ is the original mapping while $T_{4}$ is the complementary mapping. Any linear combination like Equation (2.3) will also be a transplantation mapping. Once $C_{11}$ is equal to $C_{13}$, there will be the nodal line case (i.e. eigenfunctions will vanish, see book [41] for the explaination), in which the “analytical” solutions appear.

One can show that transplantation is a sufficient condition to guarantee iso-spectrality (if the matrix $T$ is not merely a permutation matrix, in which case the two domains would just have the same shape). The underlying idea is that if $\phi$ is an eigenfunction of the first domain and $\phi_{i}$ its restriction to tile $i$, then one can build an eigenfunction $\varphi$ of the second domain as

[TABLE]

$\mathcal{C}$ is some normalization factor in Equation (2.4). The smoothness of $\varphi_{i}$ can be easily checked on all reflecting sides and zero boundary conditions of the second domain, if the above conditions are satisfied. Following this procedure, the two domains discussed will then be iso-spectral, since the same map transposing eigenfunctions of the second domain onto the first domain will work as before. For more mathematical proof, please see pp. 8 in review [27]. Simultaneously, you can also refer Chapman’s paper-folding for the visualization of transplantation.

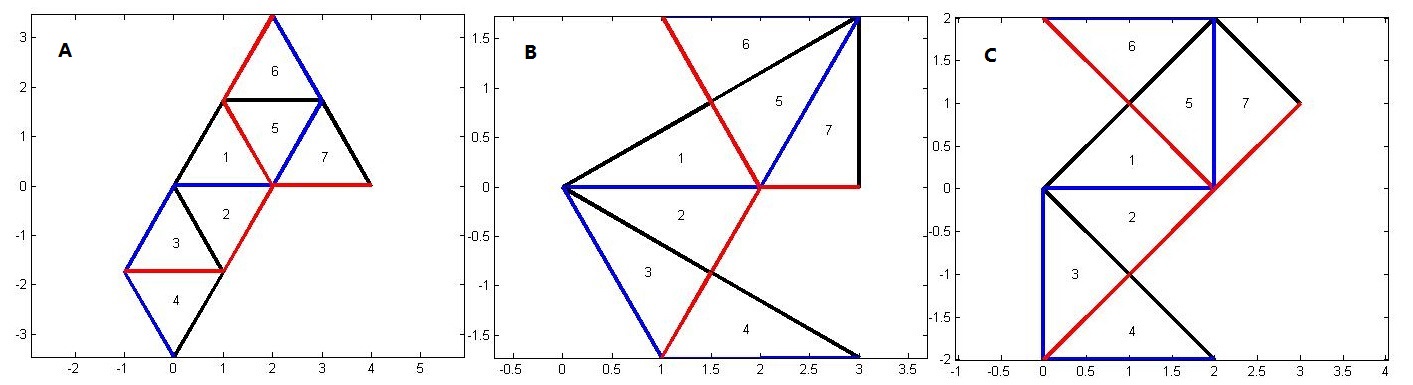

As previously described, it is not even necessary for the basic tile to be a triangle. Arbitrary shape with at least three edges will work. We simply choose a triangle with three sides to represent the three edges, on which we will reflect the shape. Experiments drawn on frames of arbitrary shapes were conducted by Even and Pieranski [34] using vibrations of smectic films. Meanwhile, two series of reflections generating from $7_{3}$ were highly emphasized. Taking the words of Even and Pieranski, If one broke the reflection rule, the consequences on the spectrum are drastic. Moon et al. [27] also designed one “Broken Hawk” violating the rule, which led significantly difference compared with the spectrum of Bilby and Hawk. In summary, specific reflection rules inherent in the 17 iso-spectral pairs are very important, when associating with transplantation matrix to transplant eigenfunctions. Although this theorem considers the 2D case only, the 3D case is similar.

With notations $\alpha$ and $\beta$ meaning formal parameters, the calculating results of transplantation matrix for 17 iso-spectral pairs are given below:

• •

7 tiles: $T=\alpha T_{3}+\beta T_{4},~{}\alpha\neq\beta$;

• •

13 tiles: $T=\alpha T_{4}+\beta T_{9},~{}\alpha\neq\beta$;

• •

15 tiles: $T=\alpha T_{7}+\beta T_{8},~{}\alpha\neq\beta$;

• •

21 tiles: $T=\alpha T_{5}+\beta T_{16},~{}\alpha\neq\beta$.

Remark 2.2**.**

It is easy to obtain similar relations for Neumann boundary conditions by conjugating all matrices $A^{\nu}$ and $B^{\nu}$ in definition 2.1, with a diagonal entry $A^{\nu}_{i,i}=1$ according to whether tile $i$ glues nothing (boundary).

3 How to construct the 3D iso-spectral models

In this section, we explain the idea of constructing iso-spectral pairs in 3D space, which also can be seen as a real extension of the 2D pairs. There are a number of options for selecting basic tile in 3D space, such as parallelepiped, tetrahedron, etc. Once you have selected the basic tile (tetrahedron for example), you only need to fix one of its faces (meaning that you just forget about it) and color the three other faces by red, blue and black. Then you do the mirror reflection with respect to red, blue and black according to the rule. That will automatically generate many 3D iso-spectral pairs.

3.1 Extensions of $7_{1}$ for instance

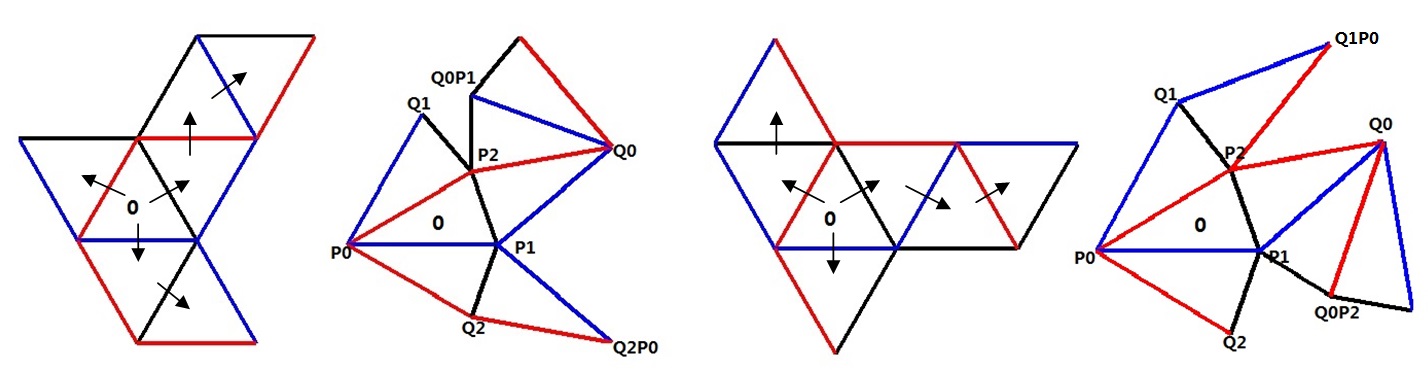

In order to facilitate the description of this extension, we first discuss the propeller-shaped example [16], generated from the $7_{1}$ pair. In both propellers the central triangle labelled “0” has a distinguishing property: its sides connect the three inward corners of the propeller. Based on this property, we choose one basic tetrahedron placing the position “0” of Figure 4. Following the same orientation, we only need to perform the series of reflections rule depicted in Figure 4. It is remarked that the biggest difference between 2D and 3D is that 2D is reflected by edges, while 3D is reflected by faces. The following steps describe how to build up 3D iso-spectral models.

• •

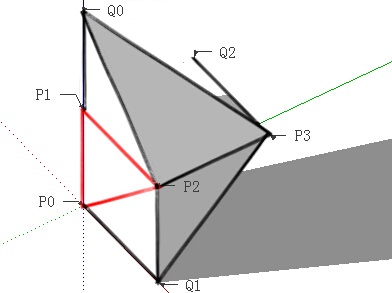

Step 1: Given four 3D vertices to form a basic tetrahedron tile $\{P_{0},P_{1},P_{2},P_{3}\}$.

$P_{0}=(x_{0},y_{0},z_{0}),~{}P_{1}=(x_{1},y_{1},z_{1}),~{}P_{2}=(x_{2},y_{2},z_{2}),~{}P_{3}=(x_{3},y_{3},z_{3})$.

• •

Step 2: Given 3D face $(P_{1},P_{2},P_{3})$, for a point $P_{0}$, its mirror reflection mapping can be expressed as $Q_{0}=\emph{{Mirror}}(P_{0};~{}P_{1},P_{2},P_{3})$. The relevant calculation formulas are

[TABLE]

where $Q_{0}P$ is the projection point of $P_{0}$ on the face with three constrains

[TABLE]

• •

Step 3: Fix or forget one 3D face (e.g. $(P_{0},P_{1},P_{2})$). Then we can obtain the other two reflection points $Q_{1}$ and $Q_{2}$ with respect to faces $(P_{0},P_{2},P_{3})$ and $(P_{0},P_{1},P_{3})$.

[TABLE]

So far, four tetrahedrons assembled in our 3D model are as follows.

[TABLE]

They are all glued by “colored” faces. With further multilevel mirror operation, the next step is to construct two models by adding three tetrahedrons in two different ways (Class $7_{1}$ for example).

• •

Class $7_{1}$ #A: $\{Q_{0},Q_{0}P_{1},P_{2},P_{3}\},~{}~{}\{P_{0},Q_{1},Q_{1}P_{2},P_{3}\},~{}~{}\{Q_{2}P_{0},P_{1},Q_{2},P_{3}\}$;

[TABLE]

• •

Class $7_{1}$ #B: $\{Q_{0},P_{1},Q_{0}P_{2},P_{3}\},~{}~{}\{Q_{1}P_{0},Q_{1},P_{2},P_{3}\},~{}~{}\{P_{0},Q_{2}P_{1},Q_{2},P_{3}\}$;

[TABLE]

Remark 3.1**.**

Sometimes, there will be isometric models in 3D space. In Appendix, we present 3D models constructed by seven unit cubes. Because of the symmetry in unit cube, the models in Figure 16 and 17 are isometric. Okada and Shudo [18] demonstrated that in 2D case, if one destructs the symmetry by changing the shape of the building block, such an “accidental” situation can be avoided. That is also useful in 3D case.

3.2 Extensions of $7_{2}$, $7_{3}$ for instance

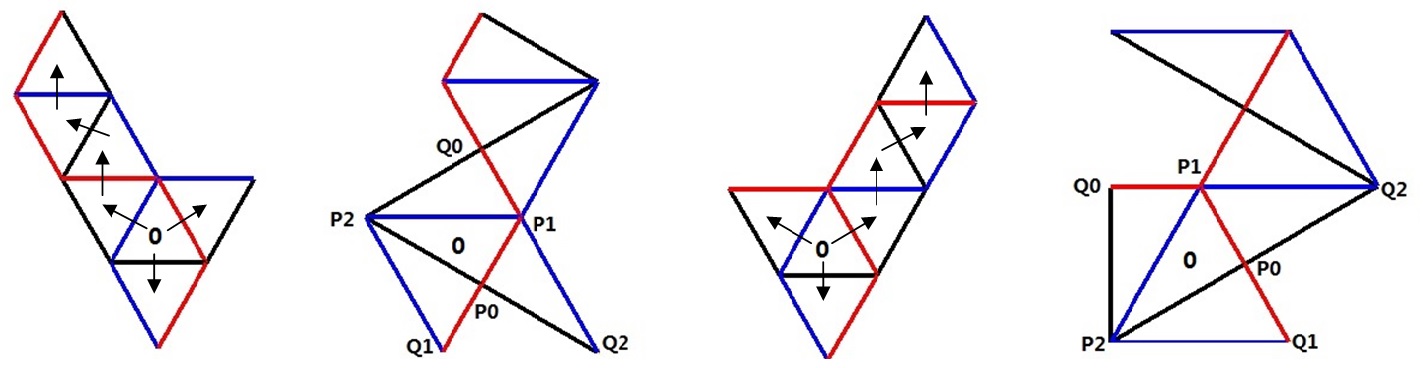

Here, following the arrows’ indications depicted in Figure 5, we can easily construct 3D iso-spectral models as an extension of $7_{2}$. We choose the basic tetrahedron to replae the position “0” of Figure 5, and perform the reflection rule continuously. Figure 6 depicts the same situation of $7_{3}$. The remaining tetrahedrons will be obtained with further multilevel mirror operation. For the other 14 families of iso-spectral pairs, their extensions of constructing 3D models are similar with $7_{1}$, $7_{2}$ and $7_{3}$, so we omit it.

4 3D examples—Basic Simplex Tetrahedron—Numerical tests

In this section, we shall present 3D iso-spectral models constructed by seven Basic Simplex Tetrahedrons ($0\leq y\leq x\leq z\leq 1$). Numerical method finite difference is emphasized to verify the iso-spectrality of the 3D models.

• •

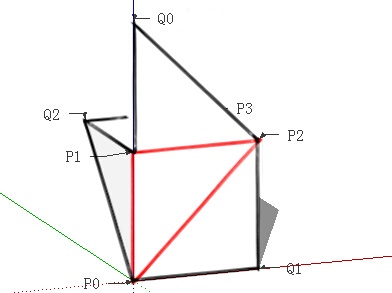

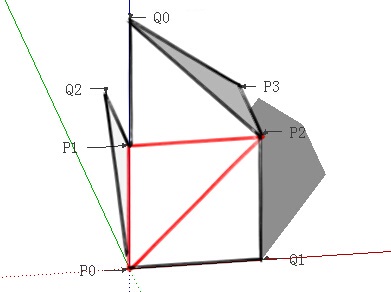

Step 1. Given four 3D vertices of the Basic Simplex with coordinate,

$P_{0}=\{0,0,0\},\quad P_{1}=\{0,0,1\},\quad P_{2}=\{1,0,1\},\quad P_{3}=\{1,1,1\};$

• •

Step 2. Find three mirror points,

$Q_{0}=\{0,0,2\},\quad Q_{1}=\{1,0,0\},\quad Q_{2}=\{0,1,1\}$;

• •

Step 3. Illustrate the four tetrahedrons assembled,

• –

Simplex 0: $\{P_{0},P_{1},P_{2},P_{3}\}$,  $0\leq y\leq x\leq z\leq 1$;

• –

Simplex 1: $\{Q_{0},P_{1},P_{2},P_{3}\}$,  $0\leq y\leq x\leq 2-z\leq 1$;

• –

Simplex 2: $\{P_{0},Q_{1},P_{2},P_{3}\}$,  $0\leq y\leq z\leq x\leq 1$;

• –

Simplex 3: $\{P_{0},P_{1},Q_{2},P_{3}\}$,  $0\leq x\leq y\leq z\leq 1$.

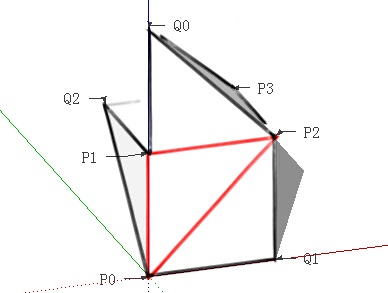

As a foundation of constructing non-isometric 3D models, kernel Simplex (depicted in Fig. 7) plays quite an important role, especially for the extension of $7_{1}$, $7_{2}$ and $7_{3}$. Following the reflection rule, we just conduct the multilevel mirror operation on the kernel Simplex, which is just adding some tetrahedrons. The following step is to classify two non-isometric models generated from $7_{1}$.

• •

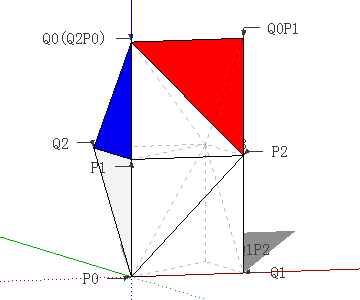

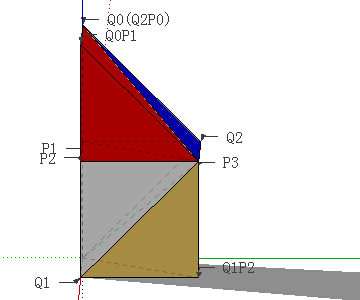

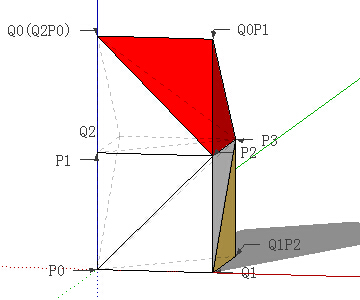

Class $7_{1}$ #A, three mirror points: $Q_{0}P_{1}=\{1,0,2\},~{}Q_{1}P_{2}=\{1,1,0\},~{}Q_{2}P_{0}=\{0,0,2\}.$

• –

Simplex 4: $\{Q_{0},Q_{0}P_{1},P_{2},P_{3}\}$,  $0\leq y\leq 2-z\leq x\leq 1$;

• –

Simplex 5: $\{P_{0},Q_{1},Q_{1}P_{2},P_{3}\}$,  $0\leq z\leq y\leq x\leq 1$;

• –

Simplex 6: $\{Q_{2}P_{0},P_{1},Q_{2},P_{3}\}$,  $0\leq x\leq y\leq 2-z\leq 1$.

• •

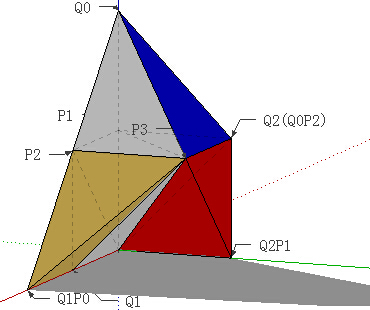

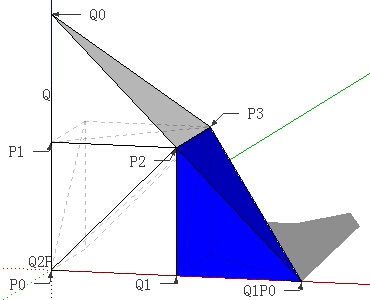

Class $7_{1}$ #B, three mirror points: $Q_{0}P_{2}=\{0,1,1\},~{}Q_{1}P_{0}=\{2,0,0\},~{}Q_{2}P_{1}=\{0,1,0\}$.

• –

Simplex 4: $\{Q_{0},P_{1},Q_{0}P_{2},P_{3}\}$,  $0\leq x\leq y\leq 2-z\leq 1$;

• –

Simplex 5: $\{Q_{1}P_{0},Q_{1},P_{2},P_{3}\}$,  $0\leq y\leq z\leq 2-x\leq 1$;

• –

Simplex 6: $\{P_{0},Q_{2}P_{1},Q_{2},P_{3}\}$,  $0\leq x\leq z\leq y\leq 1$.

Remark 4.1**.**

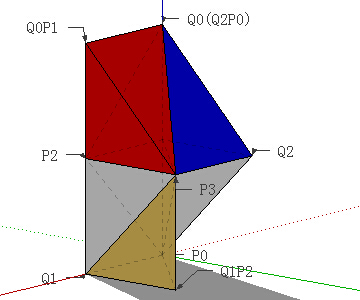

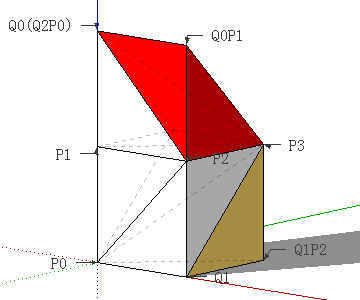

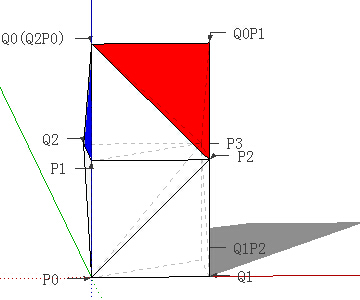

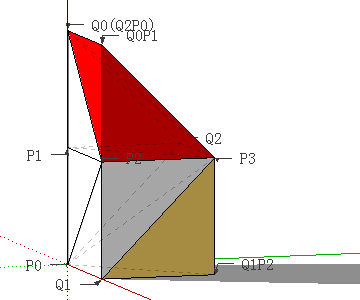

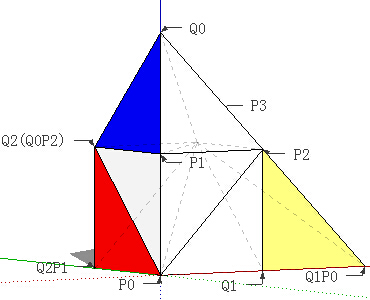

Figure 8 and 9 depict one 3D iso-spectral pair termed as Class $7_{1}$ #A and Class $7_{1}$ #B respectively. They are all assembled by seven Simplex Tetrahedrons in different ways. Because of the symmetry in the Simplex Tetrahedron, faces $(P_{1},P_{3},Q_{0})$ and $(P_{1},P_{3},Q_{2}P_{0})$ coincide in Class $7_{1}$ #A. Similarly, faces $(P_{0},P_{3},Q_{2})$ and $(P_{0},P_{3},Q_{0}P_{2})$ coincide in Class $7_{1}$ #B. For this case, we should also consider these faces as the boundary face.

Remark 4.2**.**

Class $7_{1}$ #A and Class $7_{1}$ #B are non-isometric. With the aid of the 3D Printing technique111Please see Wiki: https://en.wikipedia.org/wiki/3D_printing, we obtain two models which are obviously non-congruent. Moreover, utilizing their distance matrix (the matrix of distances between all vertices), we can also judge they are non-isometric.

In Moorhead’s Ph.D thesis [39], he present 45 shapes to discuss iso-spectrality, using a simple finite difference scheme to calculate eigenvalues. We are also interested in applying finite difference method to our 3D iso-spectral models. For more detailed results, please see Table 1. That is if we let $\lambda_{k}$ be the approximated $k$-th eigenvalue for the first Class $7_{1}$ #A and $\mu_{k}$ be the approximated $k$-th eigenvalue for the second Class $7_{1}$ #B then

[TABLE]

The following step is to classify two non-isometric models generated from $7_{2}$. You can see the 3D view in Figure 10 and 11.

• •

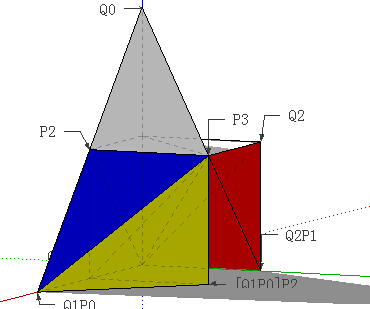

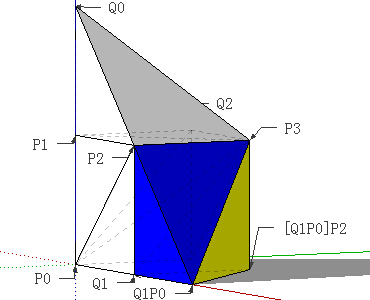

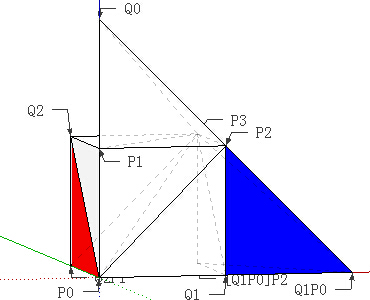

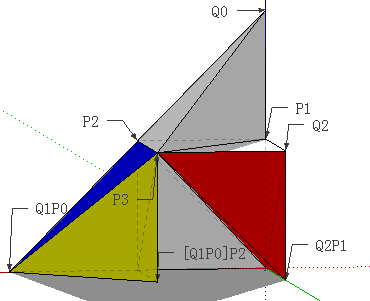

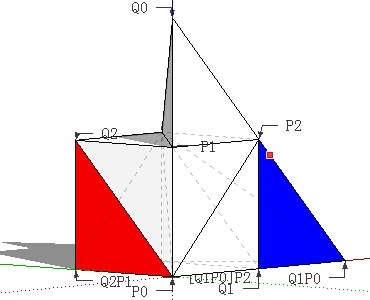

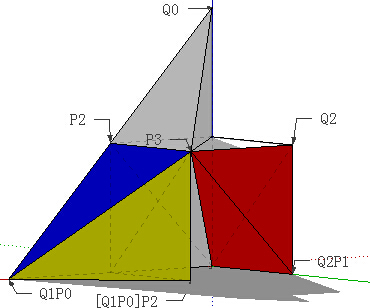

Class $7_{2}$ #A, three mirror points: $Q_{2}P_{1}=\{0,1,0\},~{}Q_{1}P_{0}=\{2,0,0\},~{}[Q_{1}P_{0}]P_{2}=\{1,1,0\}.$

• –

Simplex 4: $\{P_{0},Q_{2}P_{1},Q_{2},P_{3}\}$,  $0\leq x\leq z\leq y\leq 1$;

• –

Simplex 5: $\{Q_{1}P_{0},Q_{1},P_{2},P_{3}\}$,  $0\leq y\leq z\leq 2-x\leq 1$;

• –

Simplex 6: $\{Q_{1}P_{0},Q_{1},[Q_{1}P_{0}]P_{2},P_{3}\}$,  $0\leq z\leq y\leq 2-x\leq 1$.

• •

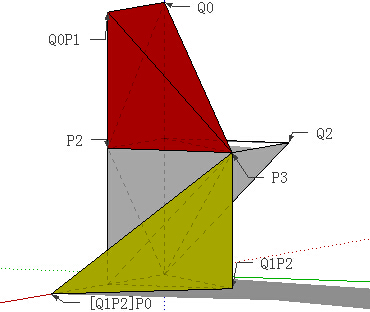

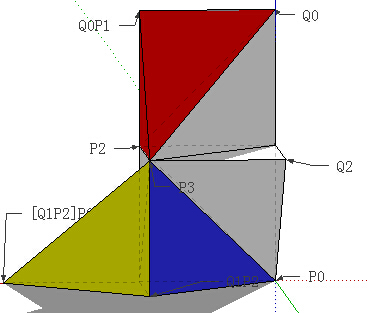

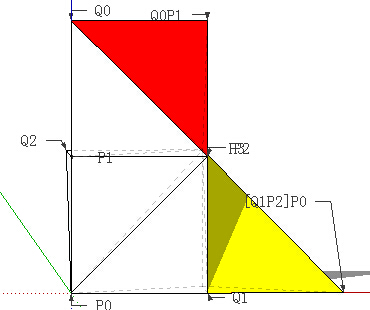

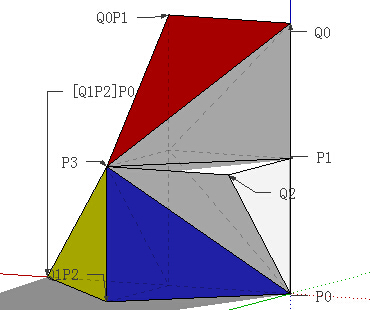

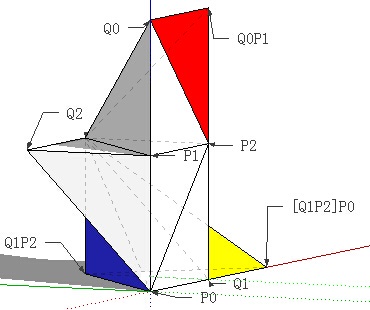

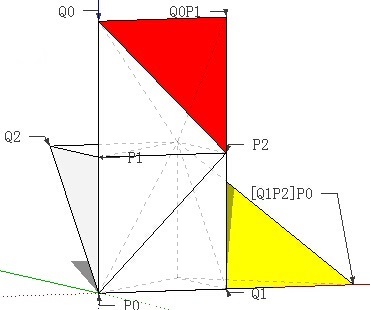

Class $7_{2}$ #B, three mirror points: $Q_{0}P_{1}=\{1,0,2\},~{}Q_{1}P_{2}=\{1,1,0\},~{}[Q_{1}P_{2}]P_{0}=\{2,0,0\}$.

• –

Simplex 4: $\{Q_{0},Q_{0}P_{1},P_{2},P_{3}\}$,  $0\leq y\leq 2-z\leq x\leq 1$;

• –

Simplex 5: $\{P_{0},Q_{1},Q_{1}P_{2},P_{3}\}$,  $0\leq z\leq y\leq x\leq 1$;

• –

Simplex 6: $\{[Q_{1}P_{2}]P_{0},Q_{1},Q_{1}P_{2},P_{3}\}$,  $0\leq z\leq y\leq 2-x\leq 1$.

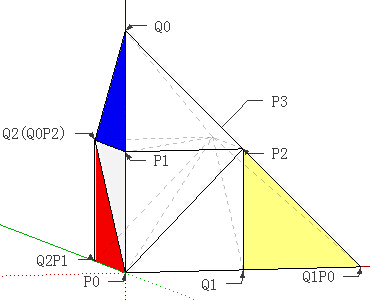

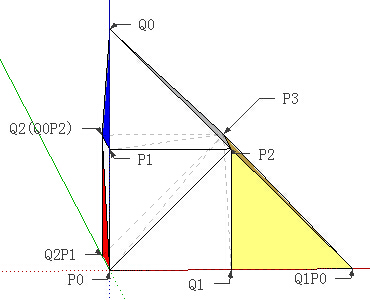

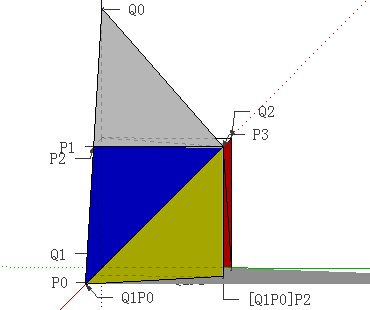

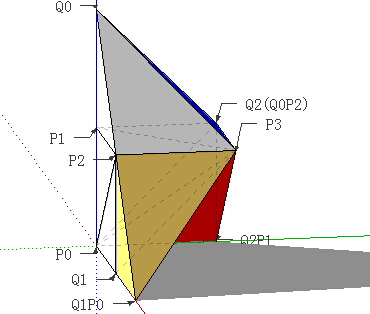

The 3D views in Figure 10 and 11 shows Class $7_{2}$ #A and $7_{2}$ #B are non-isometric. Please also see Table 2 for the approximated eigenvalues of this 3D iso-spectral pair. The maximum difference and $L_{2}$-norm error are as follows.

[TABLE]

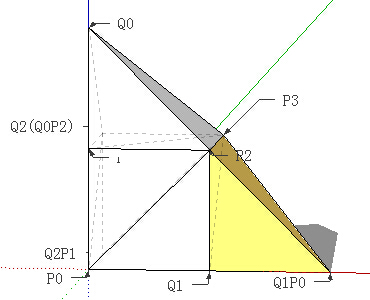

Figure 12 shows the GWW prisms which are iso-spectral. They are just constructed from GWW by sweeping the face into a third orthogonal direction for the same distance.

Table 3 shows the detailed results of the first 25 approximated eigenvalues of Class $7_{3}$ #A and Class $7_{3}$ #B. Similarly, we also calculate the maximum difference and $L_{2}$-norm error.

[TABLE]

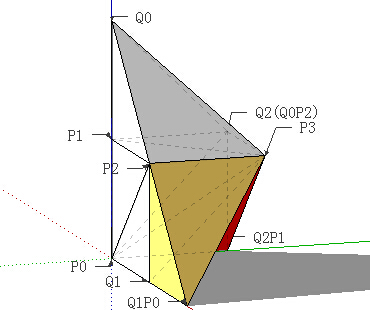

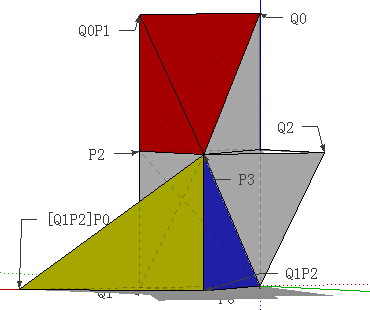

Figure 13 depicts the 3D X-ray form of Class $7_{3}$ #A and $7_{3}$ #B. At the same time, we also illustrate other 3D iso-spectral models constructed by Wall Tetrahedrons. Different from the construction of Class $7_{3}$ #A and $7_{3}$ #B, we fix or forget face $(P_{0},P_{1},P_{3})$ and do multilevel mirror reflection following the rule of $7_{3}$. Given four 3D vertices of the Basic Wall Tetrahedrons with coordinate:

[TABLE]

We can calculate the mirror points according to Equation (• ‣ 3.1) and Equation (3.2). Figure 14 depicts the two 3D iso-spectral models.

Remark 4.3**.**

For Basic Simplex Tetrahedron ($0\leq y\leq x\leq z\leq 1$) , there exists “analytical” eigenmodes (please refer the explanation of the GWW’s eigenmodes in [30]). The first eigenmode is expressed in Simplex Tetrahedron of $\mathbf{(1^{2}+2^{2}+3^{2})\large{\pi}}$. The first approximated eigenmodes calculated by finite difference method are marked in red color, see Table 1-3. Numerical techniques are therefore employed to approximate such eigenvalues, but even this has its own problems (e.g. the way to deal with reentrant corners).

Remark 4.4**.**

Note that if the colors of faces are permuted the resulting 3D pairs also become iso-spectral. For example, the pair $7_{1}$ represents three distinguishable pairs of models for a fixed tetrahedron.

5 Conclusion

Milnor’s work is not a direct answer to the original version of Kac’s question because it is not concerned with the planar domains. But from Milnor’s example one learned that there really exists non-congruent domains with the same eigenvalue spectrum. From a mathematical point of view, the spectrum of a drum corresponds to the set of eigenvalues of the negative Laplacian on a given planar domain, where the solutions vanish at the border (Dirichlet boundary conditions). Sunada’s idea was to reduce the problem of finding iso-spectral manifolds to a group-theoretical problem, namely, constructing triplets of groups having a certain property. Based on the Sunada’s method, Buser et al. constructed 17 families of iso-spectral pairs, and confirmed their iso-spectrality by the transplantation method. Giraud and Thas reviewed the highlighting mathematical and physical aspects of iso-spectrality.

We revisit the serials of reflection rule inherent in the 17 families of planar iso-spectral domains. Following the reflection rule visualized by red-blue-black, many 3D iso-spectral models can be constructed. Especially for the tetrahedron as the basic building block, we present some visualized 3D pairs which are iso-spectral and non-isometric. This extension of constructing iso-spectral pairs can also be used in higher dimensions, with transplantation method to guarantee the respective iso-spectrality.

6 Acknowledgements

This work was supported by the National Science Foundation of China (NSFC 91230109). The first author would like to thank Professor Olivier Giraud for illuminating email indication and would also like to thank Professor Hua Li, introducing me the software Google SketchUp to draw the 3D Figures.

Appendix A Appendix

First, we show the details of how to obtain the transplantation matrix of Class $7_{1}$ #A and #B.

• •

Class $7_{1}$ #A, seven Simplex Tetrahedrons labelled by $i,~{}i=0,1,\ldots,6$.

• –

Face: $\{P_{1},P_{2},P_{3}\}=\{P_{1},Q_{2},P_{3}\}$,  (0 1)   (3 6);

• –

Face: $\{P_{0},P_{2},P_{3}\}=\{Q_{0},P_{2},P_{3}\}$,  (0 2)   (1 4);

• –

Face: $\{P_{0},P_{1},P_{3}\}=\{P_{0},Q_{1},P_{3}\}$,  (0 3)   (2 5).

• •

Class $7_{1}$ #B, seven Simplex Tetrahedrons labelled by $i,~{}i=0,1,\ldots,6$.

• –

Face: $\{P_{1},P_{2},P_{3}\}=\{Q_{1},P_{2},P_{3}\}$,  (0 1)   (2 5);

• –

Face: $\{P_{0},P_{2},P_{3}\}=\{P_{0},Q_{2},P_{3}\}$,  (0 2)   (3 6);

• –

Face: $\{P_{0},P_{1},P_{3}\}=\{Q_{0},P_{1},P_{3}\}$,  (0 3)   (1 4).

[TABLE]

[TABLE]

By the definition 2.1 in Section 2, we obtain all the commutation relations (permutation matrices $A^{\nu}$ and $B^{\nu}$). Finding $T$ just amounts to solving a system of Equation (2.1).

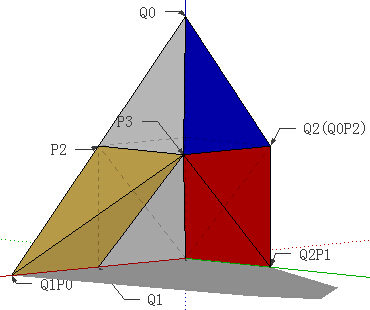

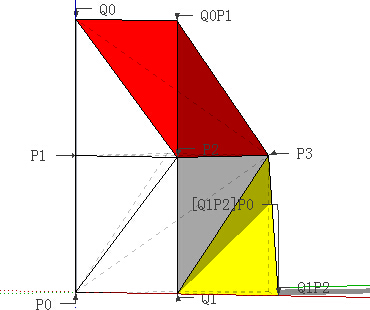

Second,we present two isometric models generated from the Class $7_{1}$. They are constructed by seven unit cubes depicted in Figure 16 and 17. The gaps between some cubes are to be interpreted as having zero boundary.
