Custom-tailored spatial mode sorting by controlled random scattering

TL;DR

This paper presents a novel method for customizing the sorting of arbitrary spatial light modes using controlled random scattering, enabling full access to encoded information while preserving coherence, with applications in quantum and classical photonics.

Contribution

The authors introduce a new technique to tailor spatial mode sorting through phase preshaping of incident light, overcoming previous limitations in mode access and control.

Findings

Successfully sorted various spatial modes into desired output channels

Maintained coherence in complex mode transformations

Demonstrated applicability to both classical and quantum information processing

Abstract

The need to increase data transfer rates constitutes a key challenge in modern information-driven societies. Taking advantage of the transverse spatial modes of light to encode more information is a promising avenue for both classical and quantum photonics. However, to ease access to the encoded information, it is essential to be able to sort spatial modes into different output channels. Here, we introduce a novel way to customize the sorting of arbitrary spatial light modes. Our method relies on the high degree of control over random scattering processes by preshaping of the phase structure of the incident light. We demonstrate experimentally that various sets of modes, irrespective of their specific modal structure, can be transformed to any output channel arrangement. Thus, our method enables full access to all of the information encoded in the transverse structure of the field, for example, azimuthal and radial modes. We also demonstrate that coherence is retained in this complex mode transformation, which opens up applications in quantum and classical information science.

Figures

Full text

Transverse spatial light modes have attracted a much attention because of their special properties and the subsequent broad range of applications Andrews and Babiker (2012); Rubinsztein-Dunlop et al. (2016). One particularly promising approach uses spatial modes of light to increase data rates in optical communication schemes. By not only harnessing the polarization or frequency of light but also the transverse spatial degree of freedom, a dramatic improvement in the multiplexing of information can be achieved Wang et al. (2012); Willner et al. (2015). In quantum physics spatial light modes are successfully utilized as laboratory realizations of high-dimensional quantum states Mair et al. (2001); Krenn et al. (2014), which are advantageous for quantum secure communication schemes Mirhosseini et al. (2015), quantum simulation tasks Cardano et al. (2015) and foundational investigations Malik et al. (2016). However, to fully take advantage of the potential that spatial light modes offer, technologies to manipulate and measure them are essential. Although mature technologies to generate complex spatial modes are available today Forbes et al. (2016), complex transformations of such modes are still rare and challenging to implement Morizur et al. (2010); Leach et al. (2002); Schlederer et al. (2016). The transformation from a given spatial mode to a specific position in a transverse plane, that is, mode sorting or demultiplexing, is an especially interesting transformation in quantum Mirhosseini et al. (2015); Fickler et al. (2014); Malik et al. (2014) and classical information schemes Willner et al. (2015); Labroille et al. (2014). A specific example, namely a sorter for modes that differ by their azimuthal structure, has recently been established Berkhout et al. (2010); Mirhosseini et al. (2013) and successfully implemented Mirhosseini et al. (2015); Fickler et al. (2014); Malik et al. (2014); Willner et al. (2015).

Here we show that sorting of this type can be implemented through the control of strong scattering processes, a topic that has recently attracted much attention Mosk et al. (2012). Such control can allow one to realize complex modulation tasks that have thus far been impossible. Earlier experiments presage the enormous potential that the control over random scattering processes can offer, by e.g. showing enhanced transmission and focusing through opaque, scattering media in the spatial Vellekoop et al. (2010); Bertolotti et al. (2012); Katz et al. (2012) and temporal domains Katz et al. (2011). More importantly, it was also demonstrated that controlled scattering can be used to realize a programmable beam splitter Huisman et al. (2015) or to investigate complex quantum walks Defienne et al. (2016).

.1 The custom-tailored sorting scheme

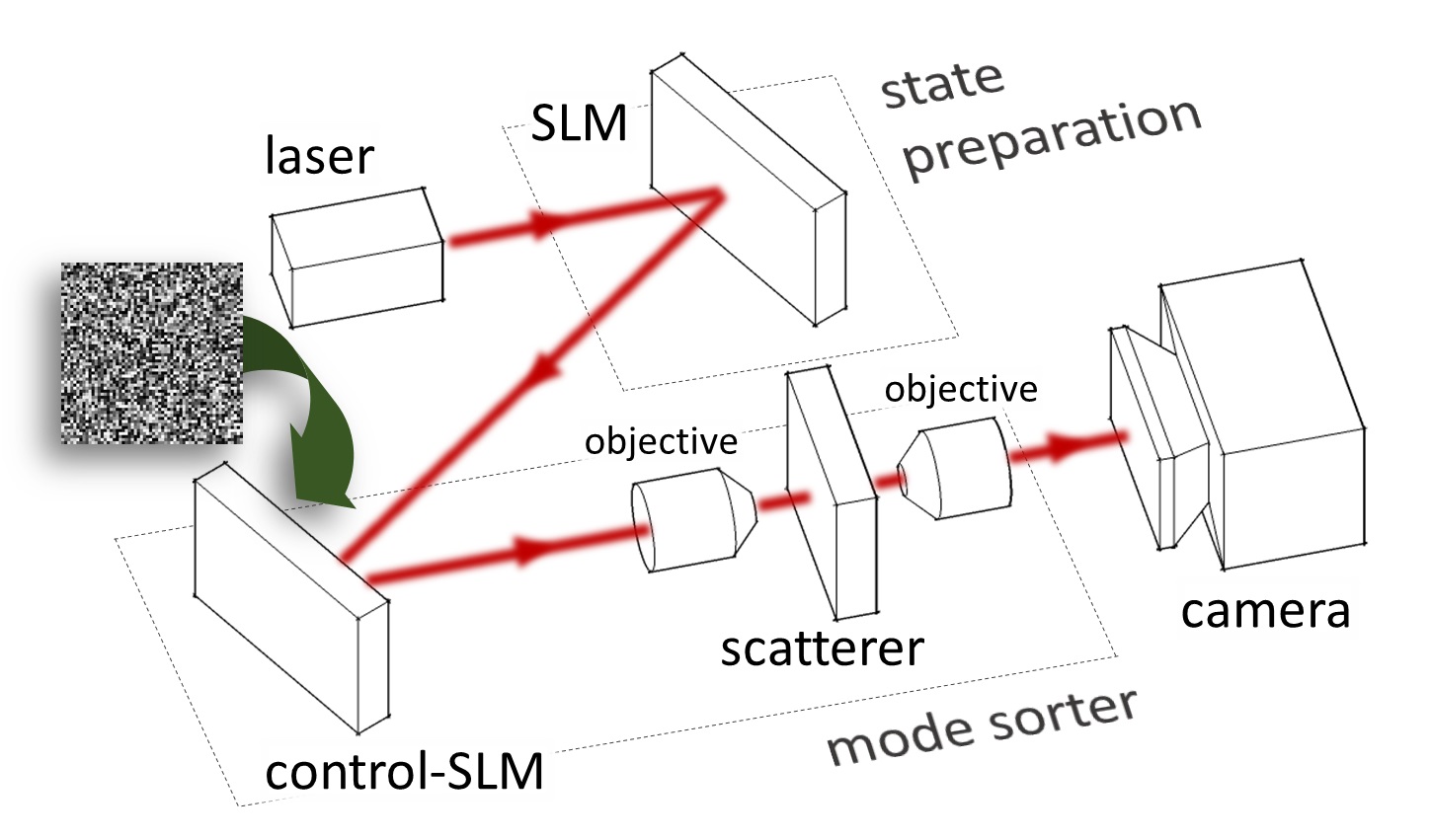

In our experimental setup (shown in Fig. 1) we first generate spatial light modes by diffracting a laser beam of a computer-generated hologram displayed on a phase-only spatial light modulator (SLM). With this technique, we can imprint any desired phase structure onto beams in the first diffraction order and thus can prepare the desired light modes and their superpositions Forbes et al. (2016). When the beams have a radial profile (see examples in Fig. 5a), we additionally modify the radial structure the amplitude of the beam by appropriate shaping of the grating efficiency Bolduc et al. (2013). After generating the modes we send them onto another SLM, the control-SLM, which modulates only the phase and thereby controls the scattering process. We then image the plane of the control-SLM onto the input aperture of a microscope objective (60x), which focuses the light into the scattering sample. The scatterer consists of a layer of TiO2 powder of $11.3\pm 0.9$ $\mu$m thickness leading to multiple scattering processes (estimated mean free path on the order of 0.5 $\mu$m - 1 $\mu$m Kop et al. (1997)), which causes strong coupling between the different input channels and thus complex modulations. The scattered light is collected by a second microscope objective (20x) and recorded by a CMOS camera. Following earlier experiments Mosk et al. (2012); Vellekoop et al. (2010); Bertolotti et al. (2012); Katz et al. (2012, 2011); Huisman et al. (2015); Defienne et al. (2016), we use a feedback signal, in our case the recorded image, and a genetic algorithm Conkey et al. (2012) to optimize the modulation of the control-SLM for the best sorting of the input light modes.

An experimental optimization run contains the following steps: We first generate 30 different random patterns (population), each consisting of 60x60 squares which in turn are built of 10x10 pixels (see example in Fig. 1 inset on the left). Each square modulates the phase between 0 and 2$\pi$ individually in the course of the optimization process. Moreover, a blazed grating with a grating period of 15 pixels is overlaid over the whole phase modulation such that only the controllable first diffraction order is focused onto the scatterer. We then display all patterns on the SLM to evaluate their sorting abilities (fitness). The evaluation of each fitness is done by sending all modes sequentially through the sorter, i.e. the combination of control-SLM displaying the pattern and the scatterer, and recording the scattered intensities at all pre-defined sorting locations (each approx. 21 $\mu$m x 21 $\mu$m or 4x4 pixels in size) with the camera. The algorithm then calculates the fitness for the control pattern as the sum over all intensities found at the different locations to which the modes should be sorted. Additionally, it subtracts the undesirable overlap to the other sorting channels, i.e. intensities found at the sorting locations for the other modes. With this subtraction we optimize not only for maximal sorting efficiency but also for minimal overlap between the sorted modes. After this initial evaluation the algorithm optimizes autonomously for best sorting in a typical genetic-algorithm manner, i.e. by combining the best patterns, adding slight mutations, evaluating the fitness, and replacing the patterns if the newly generated ones are superior. In general, we find that after approximately 5000 iterations the sorting ability saturates leading to an optimal sorting. However, whenever 5 or more modes are sorted up to 15000 iterations were required. The speed of this optimization was mainly limited by the refresh rate of the SLMs (max. 50 Hz) and the read out of the camera. The latter required an averaging over many snapshots to compensate for an intensity beating induced by the flickering of two sequentially used SLMs.

.2 Sorting of modes with different azimuthal structure

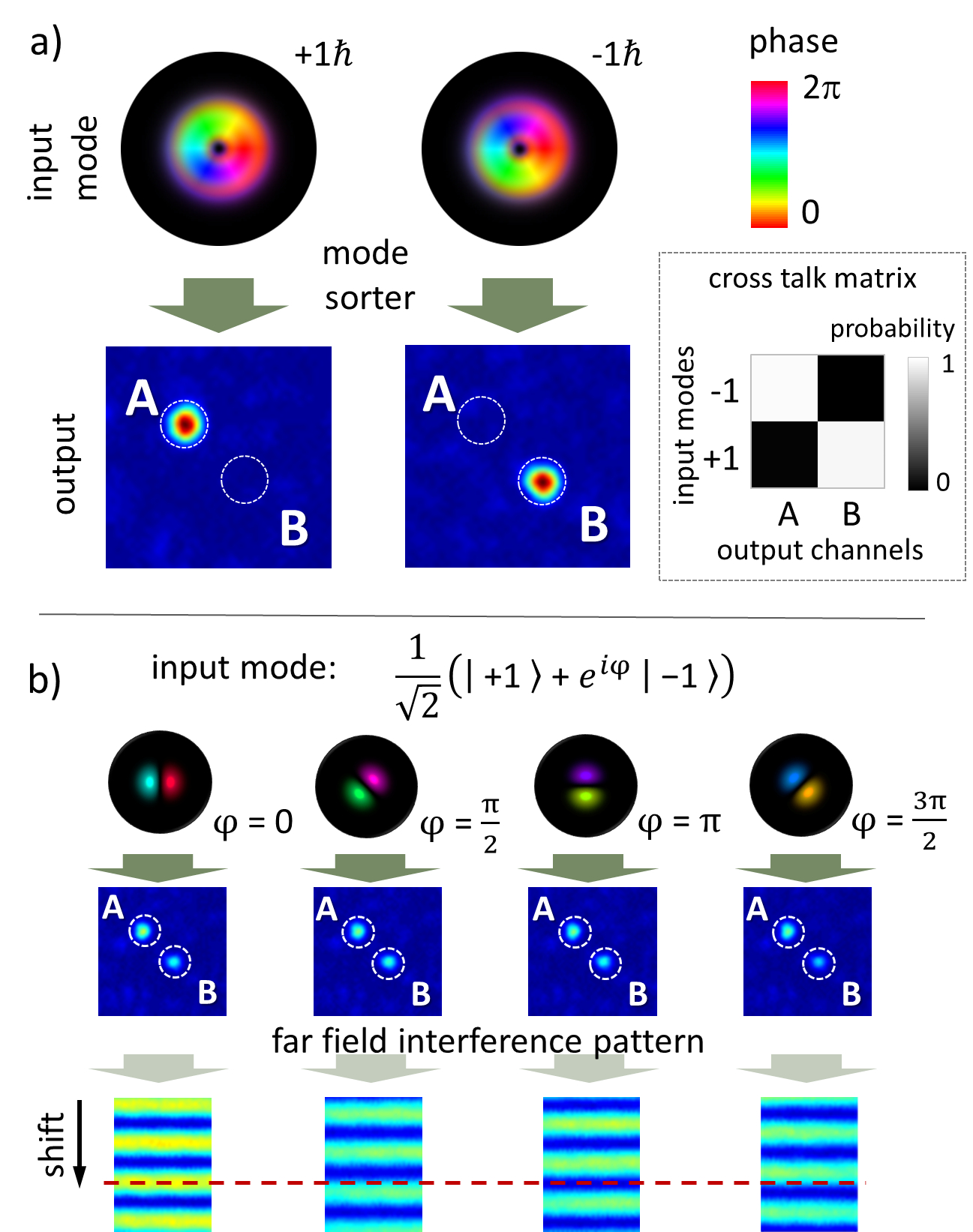

As a first example, we generate and sort up to 7 orthogonal modes each having a specific helical phase front $e^{il\phi}$, with $\phi$ being the angle and $l$ an integer value between -3 and 3 describing the orbital angular momentum (OAM) quantum number Mair et al. (2001). To quantify the achieved sorting we evaluate the sorting probability $P_{n}$ for each mode out of the set of $m$ different modes: $P_{n}=\frac{I_{n}}{\Sigma_{m}I_{m}}$. Here $I_{n}$ stands for the intensity at the $n^{th}$ sorting positions, which is measured as the sum over all intensities found in the target region in the recorded camera image. We define the average over all sorting probabilities as the sorting ability, which is used to quantify the sorting process. We start by sorting only two modes ($\pm$1 OAM), and we obtain a sorting ability of 97.7$\pm$0.6% into the predefined output channels after 5000 iterations, i.e. 20 minutes of optimization time, (see Fig. 2a). We then test the coherence of the process by sending equally weighted coherent superpositions of the two modes through the sorter. Irrespective of the phase between the two superimposed modes, we find equal intensities in the two output channels, (see Fig. 2b). To investigate if the phases are conserved, we place two pinholes at the output channel locations and interfere the sorted light with the help of a lens placed behind the pinholes. The resulting interference pattern in the focal plane, i.e. far-field, shows a visibility of approximately 88%. The slight deviations from a perfect visibility stem from residual stray light and imperfect mode sorting. More importantly, a change of the phase between the two OAM modes before sorting, which gives rise to a different rotation angle of the superposition structure, leads to a clear shift of the interference fringes (see Fig. 2b). Thus the process preserves coherence among the sorted modes, an essential feature for quantum or classical information processing.

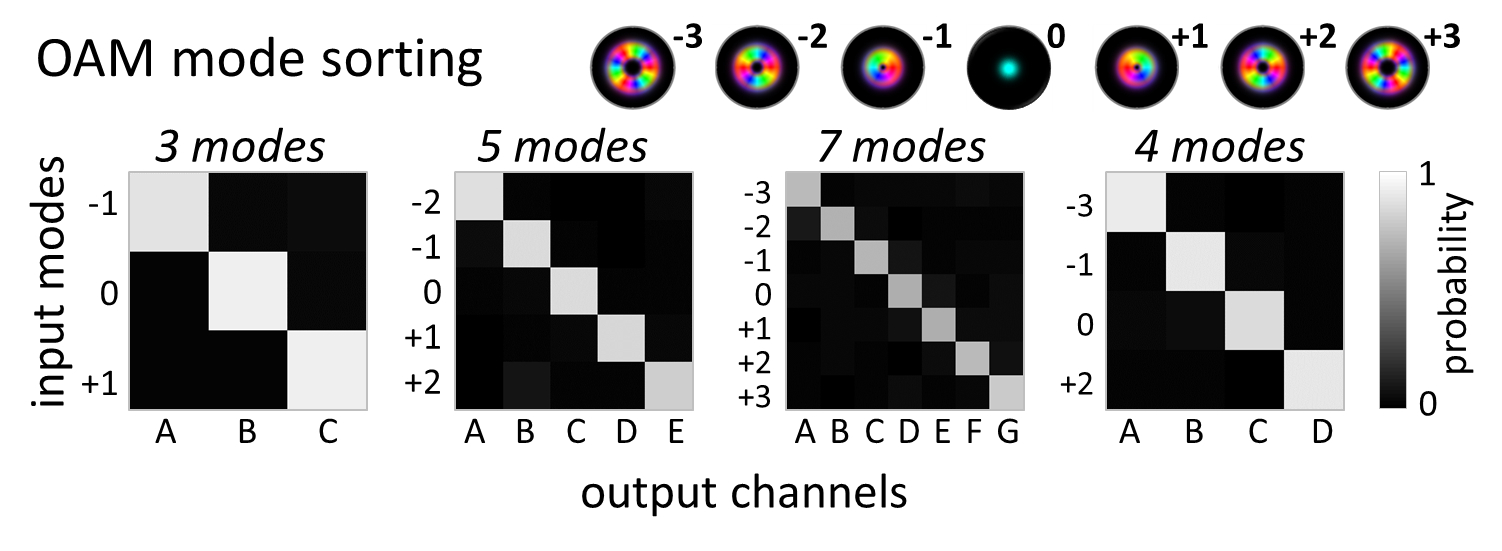

Moreover, we investigated the ability to sort a greater number of modes and to analyze the stability of our device. We are able to sort the three, five, and seven lowest-order OAM modes as well as 4 randomly chosen modes with a 2 sorting ability of 94$\pm$1%, 85$\pm$3%, 72$\pm$4% and 90$\pm$3%, respectively (see Fig. 3). Note that the decreased sorting ability for a larger number of modes originates from the increased number of output channels, which all have a small but non-zero overlap to the other modes. If the sorting ability of only two modes out of the seven modes is evaluated, we find similar results as before of around 95% sorting ability. Additionally, sorting a larger number of modes requires a larger optimization time of around 45 min, 90 min, 240 min and 60 min, respectively. To investigate the long-time stability of this sorting scheme, we measure the sorting ability for 5 modes over the course of 24 hours without re-optimization, and we find a small decrease from 85% to 84%. This result demonstrates the very high stability of our scheme. It also opens the possibility to implement different sorting configurations (for different modes or different output channel geometries, see below) in one setup between which one can switch in real-time with the speed of the refresh rate of the control-SLM.

.3 Flexibility of output channel geometry

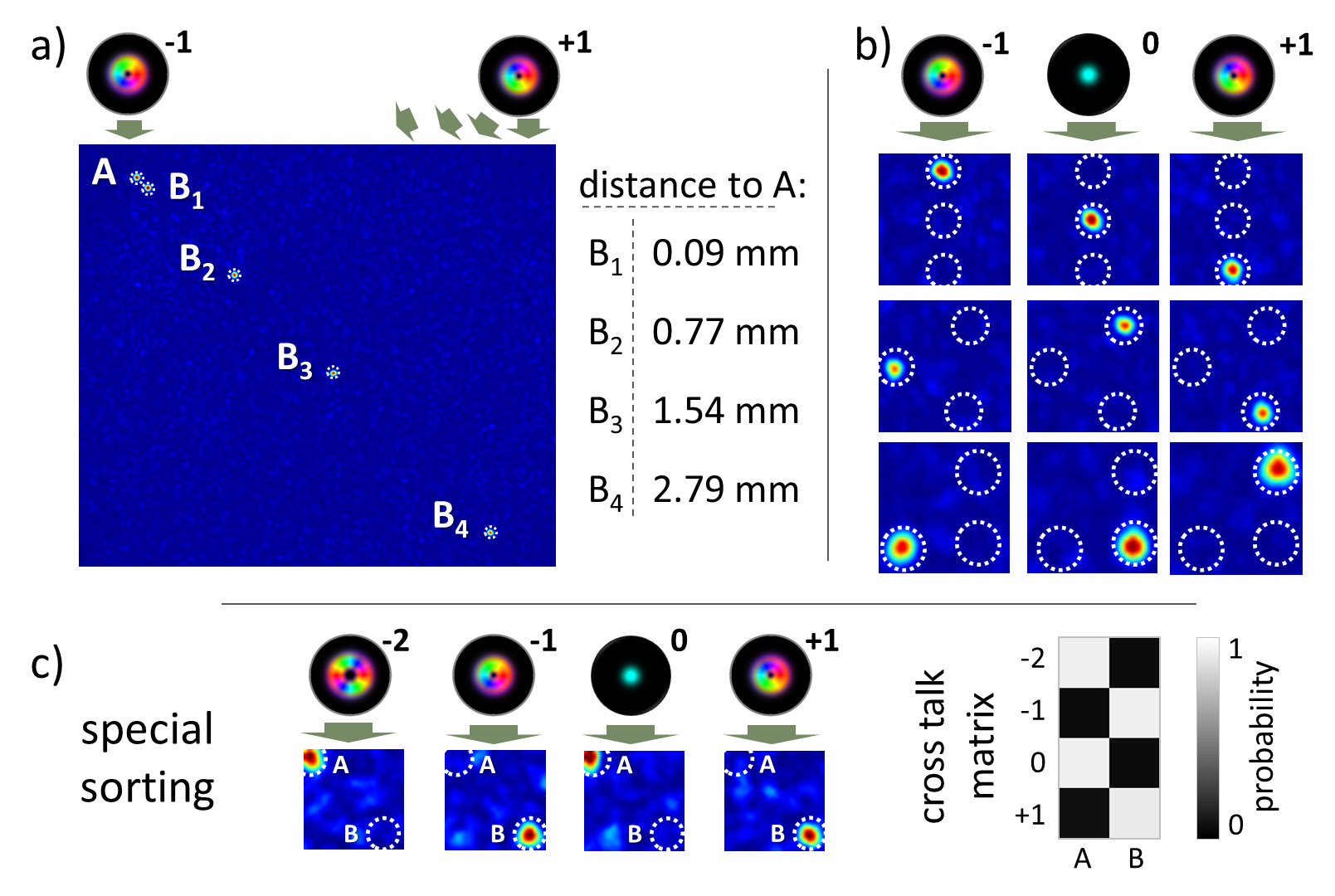

In a second series of measurements, we test the flexibility of the output channel geometry, that is, the distance between output channels and their arrangement. We start again by sorting two modes ($\pm$1 OAM) and optimize for different distances between the sorting locations (see Fig. 4a). With almost the same sorting ability (around 97% -98%) we can change the distance of the output ports from 88 $\mu$m up to 2.8 mm. The minimum distance is limited by the achievable spot size after scattering and the technical limitation of the feedback, that is, the pixel size of the camera, while the collection aperture of the second microscope objective restricts the maximum distance between the spots. We then test different output channel arrangements for three modes (0$\hbar$, $\pm$1$\hbar$ OAM). All tested arrangements, vertical, triangular and corner-shape geometries (see Fig. 4b), show similar sorting abilities (around 93%), thus the sorter can be adjusted to any specific experimental requirements. Interestingly, different modes can even be sorted into the same location (see Fig. 4c). Although outside the scope of this demonstration, it will be interesting to investigate whether this sorting scheme requires scattering losses that lead to a reduced overall efficiency. In our case only up to 1% of the input intensity was sorted into the desired output channels. The use of multimode fibers, which have also been used to achieve complex scattering Defienne et al. (2016), should reduce the losses substantially, however, with a possible expense of losing stability.

.4 Sorting of radial modes and Hermite Gauss modes

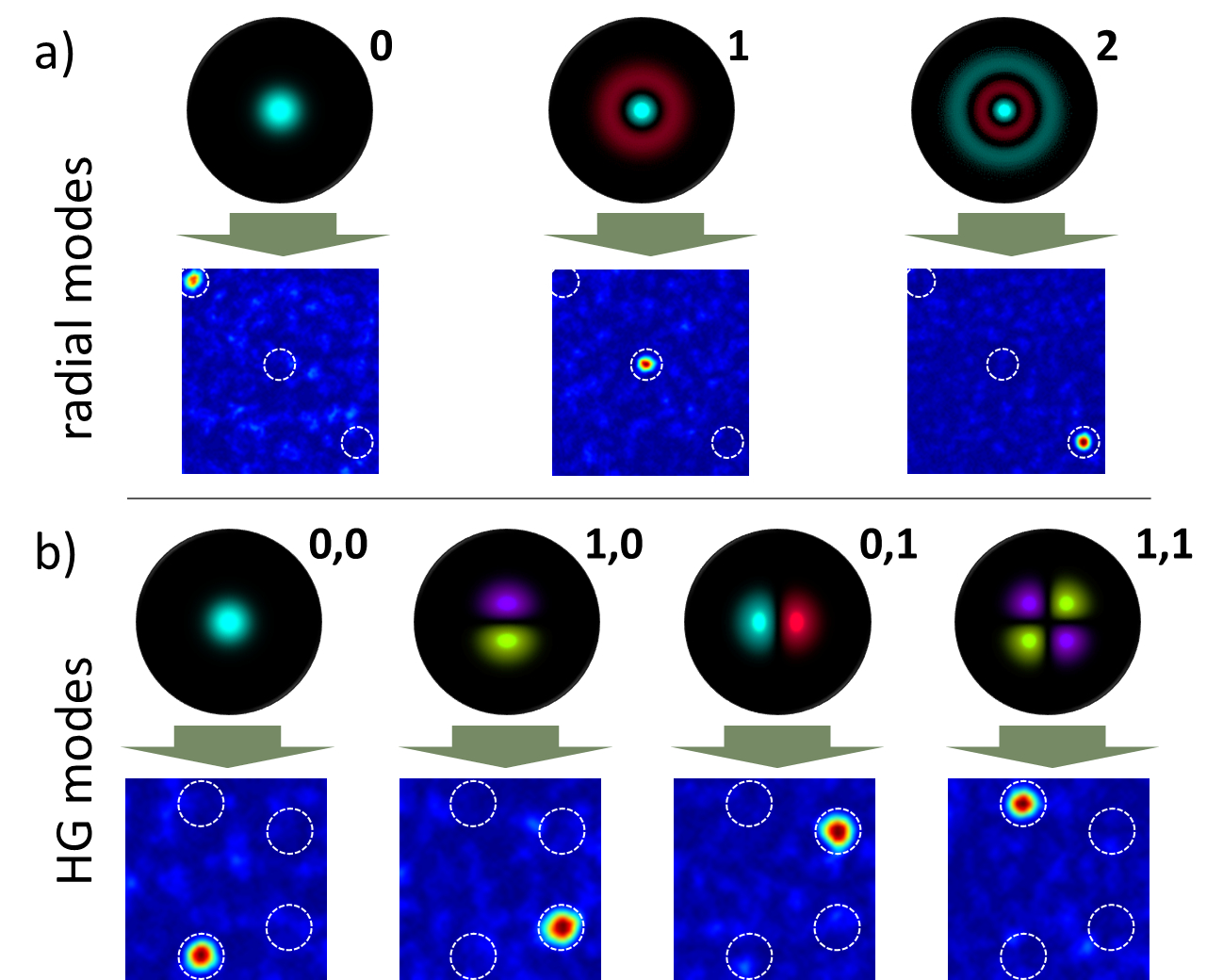

So far we sorted different twisted light modes, that is, modes that differ by their azimuthal phase structure, for which, as mentioned earlier, a highly efficient sorter already exists Berkhout et al. (2010); Mirhosseini et al. (2013). However, our technique is not limited to modes with different azimuthal phases but works for all orthogonal spatial modes of light. To demonstrate this feature, we investigate modes that have no helical phase dependence and differ only by their radial structure (radial $\pi$-phase steps), i.e. radial modes. Together with the azimuthal degree of freedom, they complete the Laguerre-Gauss (LG) mode basis, which is a preferred mode set in a system with cylindrical symmetry Zhao et al. (2015); Kahn et al. (2016). To generate the three lowest-order radial modes, we use an amplitude- and phase-modulation technique Bolduc et al. (2013) before sending them through the scatterer. Similarly as before, the genetic algorithm is capable of determining a phase pattern for the control-SLM that leads to high sorting ability of 92$\pm$2% (see Fig. 5a). Thus, we show that our technique is capable of decomposing light fields into a complete set of modes, e.g., its LG modes. As a last test, we generate and sort four modes of a different mode family and symmetry: Hermite-Gauss modes, which differ by vertical or horizontal p-phase steps (see Fig. 5b). The sorting ability of 85$\pm$3% is comparable to the results for four twisted-light modes and demonstrates that not only LG modes but also different mode families can be sorted.

In summary, we have shown that it is possible to realize custom-tailored mode sorting by means of manipulating strong scattering processes by placing an appropriate phase structure onto the input light field. We used the high degree of control over strongly scattering media to custom-tailor the sorting process with respect to the number and type of input spatial light modes as well as to the output channel arrangement. Our results might be beneficially applied in the various different fields of classical and quantum optics using structured light Andrews and Babiker (2012); Rubinsztein-Dunlop et al. (2016). By having access to information encoded in the radial and azimuthal degrees of freedom, the full potential of transverse light modes to increase data rates can be exploited Wang et al. (2012); Willner et al. (2015); Zhao et al. (2015); Kahn et al. (2016). The demonstrated coherence also paves the path to applications in quantum information science, where photons residing in a high-dimensional state space might also benefit from such transformations. For such applications, it will be important to increase the overall efficiency of the process, e.g. by using multi-mode fibers as complex scattering media Defienne et al. (2016). Other fascinating open questions are the relation among transformation abilities, precision of the control, and influence of losses.
