Is well-tempered neutralino in MSSM still alive after 2016 LUX results?

TL;DR

This paper examines the viability of well-tempered neutralinos in the MSSM after 2016 LUX results, identifying constrained parameter regions that will be tested by future experiments.

Contribution

It provides updated constraints on the MSSM parameter space for well-tempered neutralinos considering recent LUX and LHC results, highlighting the remaining viable regions.

Findings

LUX constraints limit bino-dominated neutralinos to small tanβ (<3) unless non-SM Higgs are light.

Heavy stop masses (>25 TeV) are required for certain parameter regions to satisfy constraints.

Future experiments will probe the small remaining viable parameter space.

Abstract

It is pointed out that a bino-dominated well-tempered bino-higgsino in the Minimal Supersymmetric Standard Model (MSSM) with heavy non-SM- like scalars can satisfy the 2016 LUX constraints on the scattering cross-section of dark matter on nuclei only if $\tan\beta$ is smaller than about 3. This, together with the Higgs mass constraint, sets a lower bound on the stops masses of about 25 TeV. The LUX constraints can be satisfied for larger $\tan\beta$ if the non-SM-like Higgs bosons are light enough. However, this region of parameter space is strongly constrained by recent LHC results of the Higgs boson searches. Satisfying both the LUX and LHC constraints requires the non-SM-like Higgs bosons to be lighter than about 400 GeV and $\tan\beta$ below about 8. This implies a lower bound on the stop masses of about 1.5 TeV. This small corner of the parameter space will be probed in the near future by the direct detection experiments, the LHC Higgs searches and precision Higgs coupling measurements. The recent LUX constraints improved also the lower mass limit on higgsino-dominated well-tempered neutralino to about 950 (900) GeV with heavy (light) MSSM-like Higgs doublet, assuming the stop masses below 10 TeV.

Figures

Tables

Table 1. Table 1: List of benchmark points with Ω ​ h 2 ≈ 0.12 Ω superscript ℎ 2 0.12 \Omega h^{2}\approx 0.12 that have the SI scattering cross-section just below the current LUX bound σ SI LUX superscript subscript 𝜎 SI LUX \sigma_{\rm SI}^{\rm LUX} . For points P1 and P2, the value of M SUSY subscript 𝑀 SUSY M_{\rm SUSY} that gives m h = 125 subscript 𝑚 ℎ 125 m_{h}=125 GeV was computed with SUSYHD , while for P3 the whole SUSY spectrum is computed with SuSpect .

	P1	P2	P3
$\mu$ [GeV]	-310	-1032	-346
$M_1$ [GeV]	280	1137	306
$M_2$, $M_3$ [GeV]	7000	7000	2000
$\tan \beta$	2.6	4	6.9
$m_A$ [GeV]	6000	6000	350
$m_h$ [GeV]	125	125	125.5
$m_{\mathrm{LSP}}$ [GeV]	275	1050	300
$m_{{\tilde{\chi }}_1^{\pm }}$ [GeV]	322	1056	353
$M_{\mathrm{SUSY}}$ [TeV]	54	8.5	1.5
$\Omega h^2$	0.12	0.12	0.12
${\sigma }_{\mathrm{SI}}$ [cm2]	$3.9\times {10}^{-46}$	$1.4\times {10}^{-45}$	$4.3\times {10}^{-46}$
${\sigma }_{\mathrm{SI}}^{\mathrm{LUX}}$ [cm2]	$4.0\times {10}^{-46}$	$1.6\times {10}^{-45}$	$4.4\times {10}^{-46}$
${\sigma }_{\mathrm{SD}}$ [cm2]	$6.6\times {10}^{-41}$	$3.1\times {10}^{-42}$	$6.4\times {10}^{-41}$
${\sigma }_{\mathrm{SD}}^{\mathrm{LUX}}$ [cm2]	$7.1\times {10}^{-41}$	$2.5\times {10}^{-40}$	$7.7\times {10}^{-41}$

Equations

$${M_{\chi^{0}}}=\left(\begin{array}[]{ccc}M_{1}&-M_{Z}s_{W}\cos\beta&M_{Z}s_{W}\sin\beta\\[4.0pt] -M_{Z}s_{W}\cos\beta&0&-\mu\\[4.0pt] M_{Z}s_{W}\sin\beta&-\mu&0\\ \end{array}\right)\,,$$

$$\frac{N_{j3}}{N_{j1}}=-\frac{M_Z{s}_W}{\mu }\frac{(m_{{\chi }_j}/\mu )\sin \beta +\cos \beta }{1-{\left(m_{{\chi }_j}/\mu \right)}^2},$$

$$\frac{N_{j4}}{N_{j1}}=-\frac{M_Z{s}_W}{\mu }\frac{(m_{{\chi }_j}/\mu )\cos \beta +\sin \beta }{1-{\left(m_{{\chi }_j}/\mu \right)}^2},$$

$${\sigma }_{\mathrm{SI}}=\frac{4{\mu }_{\mathrm{red}}^2}{\pi }\frac{{\left[Z{f}^{(p)}+(A-Z)f^{(n)}\right]}^2}{A^2},$$

$$f^{(N)}\approx \sum _{i=1}^2{f}_{h_i}^{(N)}\equiv \sum _{i=1}^2\frac{{\alpha }_{h_i\chi \chi }{\alpha }_{h_{i}NN}}{2m_{h_i}^2},$$

$${\alpha }_{h\chi \chi }\approx \sqrt{2}{g}_1\left[N_{11}\left(N_{13}\sin \beta +N_{14}\cos \beta \right)\right],$$

$${\alpha }_{h\chi \chi }\approx -\sqrt{2}{g}_1{N}_{11}^2\frac{M_Z{s}_W}{\mu }\frac{m_{\chi }/\mu +\sin (2\beta )}{1-{\left(m_{\chi }/\mu \right)}^2}.$$

$${\alpha }_{hNN}\approx \frac{m_N{F}_d^{(N)}}{\sqrt{2}v\cos \beta },$$

$$\frac{m_{\chi }}{\mu }=-\sin (2\beta ).$$

$${\alpha }_{H\chi \chi }\approx \sqrt{2}{g}_1\left[N_{11}\left(N_{14}\sin \beta -N_{13}\cos \beta \right)\right]=\sqrt{2}{g}_1{N}_{11}^2\frac{M_Z{s}_W}{\mu }\frac{\cos (2\beta )}{1-{\left(m_{\chi }/\mu \right)}^2}.$$

$${\sigma }_{\mathrm{SI}}\sim {\left[\frac{2}{m_h^2}\left(m_{\chi }+\mu \sin (2\beta )\right)+\mu \cos (2\beta )\left(-\tan \beta +1/\tan \beta \right)\frac{1}{m_H^2}\right]}^2.$$

$$\frac{m_{\chi }}{\mu }\approx -\sin (2\beta )-\frac{m_h^2}{m_H^2}\frac{\tan \beta }{2}.$$

$$\sigma v=\frac{\alpha }{(s-M^2{)}^2+{\Gamma }^2{M}^2}.$$

$$\sigma v=\frac{\alpha /M^4}{(\delta +v^2/4{)}^2+{\gamma }^2}.$$

$$\frac{1}{Y(\infty )}-\frac{1}{Y(x_d)}=m{M}_{\mathrm{Pl}}\frac{g_s}{\sqrt{g}}\sqrt{\frac{\pi }{45}}{\int }_{x_d}^{\infty }\frac{⟨\sigma v⟩}{x^2}\mathrm{d}x.$$

$$\Omega h^2$$

$$\approx \frac{2.82\cdot 10^8}{\mathrm{GeV}}\frac{1}{M_{\mathrm{Pl}}}\frac{\sqrt{g}}{g_s}\sqrt{\frac{45}{\pi }}{\left[\frac{1}{2\sqrt{\pi }}{\int }_0^{\infty }(\sigma v)v^2\mathrm{d}v{\int }_{x_d}^{\infty }\frac{e^{-v^{2}x/4}}{\sqrt{x}}\mathrm{d}x\right]}^{-1}.$$

$$\frac{1}{2\sqrt{\pi }}{\int }_0^{\infty }(\sigma v)v^2\mathrm{d}v{\int }_{x_d}^{\infty }\frac{e^{-v^{2}x/4}}{\sqrt{x}}\mathrm{d}x={\int }_0^{\infty }(\sigma v)v\mathrm{erfc}(v\sqrt{x_d}/2)\mathrm{d}v.$$

$$\eta =\frac{{\Omega }_{\mathrm{no}res.}}{{\Omega }_{res.}}={\int }_0^{\infty }\frac{v\mathrm{erfc}(v\sqrt{x_d}/2)}{(\delta +v^2/4{)}^2+{\gamma }^2}\mathrm{d}v{\left({\int }_0^{\infty }16m^4(\sigma v)v\mathrm{erfc}(v\sqrt{x_d}/2)\mathrm{d}v\right)}^{-1},$$

Full text

Is well-tempered neutralino in MSSM still alive after 2016 LUX results?

**Marcin Badziaka,b,111mbadziak@fuw.edu.pl, Marek Olechowskia,222Marek.Olechowski@fuw.edu.pl, Paweł Szczerbiaka,333Pawel.Szczerbiak@fuw.edu.pl

a**Institute of Theoretical Physics, Faculty of Physics, University of Warsaw

ul. Pasteura 5, PL–02–093 Warsaw, Poland

b**Berkeley Center for Theoretical Physics, Department of Physics,

and Theoretical Physics Group, Lawrence Berkeley National Laboratory,

University of California, Berkeley, CA 94720, USA

Abstract

It is pointed out that a bino-dominated well-tempered bino-higgsino in the Minimal Supersymmetric Standard Model (MSSM) with heavy non-SM-like scalars can satisfy the 2016 LUX constraints on the scattering cross-section of dark matter on nuclei only if $\tan\beta$ is smaller than about 3. This, together with the Higgs mass constraint, sets a lower bound on the stops masses of about 25 TeV. The LUX constraints can be satisfied for larger $\tan\beta$ if the non-SM-like Higgs bosons are light enough. However, this region of parameter space is strongly constrained by recent LHC results of the Higgs boson searches. Satisfying both the LUX and LHC constraints requires the non-SM-like Higgs bosons to be lighter than about 400 GeV and $\tan\beta$ below about 8. This implies a lower bound on the stop masses of about 1.5 TeV. This small corner of the parameter space will be probed in the near future by the direct detection experiments, the LHC Higgs searches and precision Higgs coupling measurements. The recent LUX constraints improved also the lower mass limit on higgsino-dominated well-tempered neutralino to about 950 (900) GeV with heavy (light) MSSM-like Higgs doublet, assuming the stop masses below 10 TeV.

1 Introduction

One of many motivations for supersymmetric extensions of the Standard Model (SM) is the presence of a stable Lightest Supersymmetric Particle (LSP) which is generically neutral and weakly interacting which makes it a good candidate for dark matter (DM). Most schemes of SUSY breaking predict that neutralino, composed of superpartners of gauge and Higgs bosons, is the LSP. Neutralino belongs to the category of Weakly Interacting Massive Particles (WIMPs) which generically have the right magnitude of thermal relic abundance to play the role of the dark matter in the Universe if its mass is relatively close to the electroweak (EW) scale. This motivated a great amount of articles, see ref. [1] for a review and refs. [2]-[24] and references therein for some recent representative studies on this topic. In the last two decades there have been plenty of experiments that directly or indirectly put constraints on the neutralino dark matter. First of all, gradually improving measurements of the Cosmic Microwave Background (CMB) anisotropies, especially the results delivered by the Planck satellite [25], resulted in a very precise determination of the dark matter density: $\Omega h^{2}\approx 0.12$ (with precision of a few percent). Secondly, searches for supersymmetric particles at the LEP [26] and the LHC experiments have set strong constraints on the SUSY parameters that affect the LSP annihilation cross-sections and determine its relic abundance. In particular, lower bounds on the sfermion masses imply that a pure bino has generically too large relic abundance, while a lower bounds on the chargino mass require a pure higgsino to have mass around 1 TeV to accommodate the Planck results [27, 28, 29]. The required pure wino mass is even larger, of about 3 TeV [30, 31]. Since other SUSY particles are, by definition, heavier than the LSP, more natural realizations of SUSY prefer lighter LSP. This intuitive expectation was recently confirmed by detailed analysis of the interplay of DM and EW fine-tuning [32]. Lighter LSP gives also better prospects for discovery of SUSY at the LHC.

In the Minimal Supersymmetric Standard Model (MSSM) there are essentially three classes of scenarios in which the LSP may be consistent with the Planck measurements. First: resonant LSP annihilation via exchange of the Higgs scalars or the $Z$ boson. Second: efficient co-annihilation with sfermions with masses only slightly bigger than the LSP mass. Third: a well-tempered neutralino defined as such mixture of bino and higgsino (and possibly wino) that gives the correct thermal relic abundance without invoking any mechanism mentioned in the first two classes [29].

Another class of experiments that put neutralino DM into the test are the direct detection (DD) experiments. Their sensitivity to the DM-nucleon interactions has improved in the last decade by many orders of magnitude. Recently, the LUX experiment presented results of the analysis based on its full data-set [33]. The limits on the spin-independent (SI) scattering cross-section of DM on nucleons, in the mass range of interest for the MSSM neutralino dark matter, are by a factor of about four stronger than the previous LUX [34] results. The LUX exclusions were confirmed by the Panda experiment [35] which provides only slightly weaker constraints than LUX. The main goal of this paper is to assess the impact of the 2016 LUX results on a well-tempered neutralino in the MSSM which is a mixture of bino and higgsino (with wino decoupled). 111The bino-higgsino LSP is a SUSY example of singlet-doublet DM. Non-SUSY models of singlet-doublet DM have been investigated in Refs. [36]-[39] before the new LUX results appeared. In the present paper we discuss the effects of non-SM Higgs boson on DM phenomenology which were not taken into account in Refs. [36]-[39]. It was claimed in Ref. [18] that a well-tempered neutralino in MSSM is excluded. However, that statement was derived for the case of the parameter space of well-tempered neutralino restricting to a region giving the bino-higgsino mixing close to the maximal one. More importantly, the conclusion of Ref. [18] was based on the results of a pMSSM numerical scan. Such scans typically disfavour small values of $\tan\beta$ because for such values it is difficult to accommodate the 125 GeV Higgs mass using standard SUSY spectrum calculators [40, 41, 42]. In the present paper we emphasize that for small values of $\tan\beta$ a well-tempered neutralino can be consistent with the latest LUX constraints. In the limit of decoupled non-SM-like scalars, we find an upper bound on $\tan\beta$ of about 3. This results in a strong lower bound on the MSSM stop mass scale of at least about 25 TeV which favours split SUSY [43, 27] realization of the MSSM well-tempered neutralino.

We also point out that relatively light stops and well-tempered neutralino may be still consistent with the LUX constraints and the SM-like Higgs mass provided that heavier Higgs particles, $H$ and $A$, are relatively light, with masses below about 400 GeV. Such region of the parameter space arises due to destructive interference between the $h$- and $H$-exchange contributions to the SI LSP-nucleon scattering amplitude. This small corner of the parameter space is expected to be covered by the LHC searches for MSSM Higgses in the $\tau\tau$ decay channel with the data already collected in 2016 that are being analyzed.

We also discuss a well-tempered neutralino dominated by higgsino and show that the 2016 LUX results pushed the lower mass limit of such LSP to about 950 GeV under the assumption of relatively light MSSM stops. In the presence of light MSSM Higgs particles this limit is relaxed to about 900 GeV.

This paper is organized as follows. In section 2 we review how a well-tempered neutralino may obtain the correct thermal relic abundance. In section 3, we analyze current and future constraints on a well-tempered neutralino with a special emphasizes on the dependence on $\tan\beta$ and derive lower bounds on the MSSM stop masses as a function of the LSP mass. In section 4 we discuss the impact of not-decoupled heavy Higgs doublet on the LUX constraints and resulting relaxed lower bounds on the stop mass scale. We reserve section 5 for concluding remarks on our results.

2 Thermal relic abundance of well-tempered neutralino

We start with a review of the MSSM well-tempered neutralinos. In the present work we focus on well-tempered neutralinos which are such mixtures of bino and higgsinos which give the value of thermal relic abundance as inferred from experiments without substantial contribution from any resonances or co-annihilations other than those with the neutralinos and charginos. In such a case the thermal relic density is solely determined by the LSP mass and composition.

After decoupling of wino (assumed in this work) the neutralino mass sub-matrix describing the three lightest states takes the form:

[TABLE]

where $s_{W}\equiv\sin\theta_{W}$. Trading $M_{1}$ for one of the eigenvalues, $m_{\chi_{j}}$, of the above neutralino mass matrix we find the following (exact at the tree level) relations for the neutralino diagonalization matrix elements:

[TABLE]

where $N_{j3}$, $N_{j4}$ and $N_{j1}$ denote, respectively, the two higgsino and the bino components of the $j$-th neutralino mass eigenstate while $j=1,2,3$ and $|m_{\chi_{1}}|\leq|m_{\chi_{2}}|\leq|m_{\chi_{3}}|$. The last two equations are enough to fully determine the composition of the three lighter neutralinos ($N_{j2}\approx 0$ for decoupled wino) and express it in terms of: $M_{Z}/\mu$, $m_{\chi_{j}}/\mu$ and $\tan\beta$. Later we will be interested mainly in the LSP corresponding to $j=1$, so to simplify the notation we will use $m_{\chi}\equiv m_{\chi_{1}}$. The physical (positive) LSP mass is given by $m_{\rm LSP}\equiv|m_{\chi}|$.

Under the assumptions specified above $\Omega h^{2}\gg 0.12$ for the pure bino. On the other hand, the pure higgsino LSP annihilates very efficiently into $W^{+}W^{-}$ and $t\bar{t}$. Moreover, since the higgsino neutralino is almost degenerate with the chargino the co-annihilation is also very important. All these imply that the pure higgsino has too small relic abundance to explain all of the dark matter of the Universe if its mass is below about 1.1 TeV. Smaller masses of the LSP are possible only if a non-negligible bino component of the LSP is also present. The amount of required bino admixture depends on the LSP mass, as well as on $\tan\beta$ and ${\rm sgn}(\mu M_{1})$, as can be seen from the left panel of Fig. 1. Throughout the paper, we calculate the MSSM spectrum using SuSpect 2.41 [40] unless stated otherwise while we always use MicrOMEGAs 4.3.1 [44] to calculate the relic abundance and LSP scattering cross-section on nuclei. In our numerical calculations (with one exception mentioned later) we choose the gaugino mass parameters $M_{2}=M_{3}=7$ TeV.

For the following discussion it is useful to introduce distinction between two regions of the well-tempered neutralino parameter space:

• •

$N_{11}^{2}\geq 0.5$ $\Leftrightarrow$ well-tempered bino-higgsino

• •

$N_{11}^{2}<0.5$ $\Leftrightarrow$ well-tempered higgsino-bino

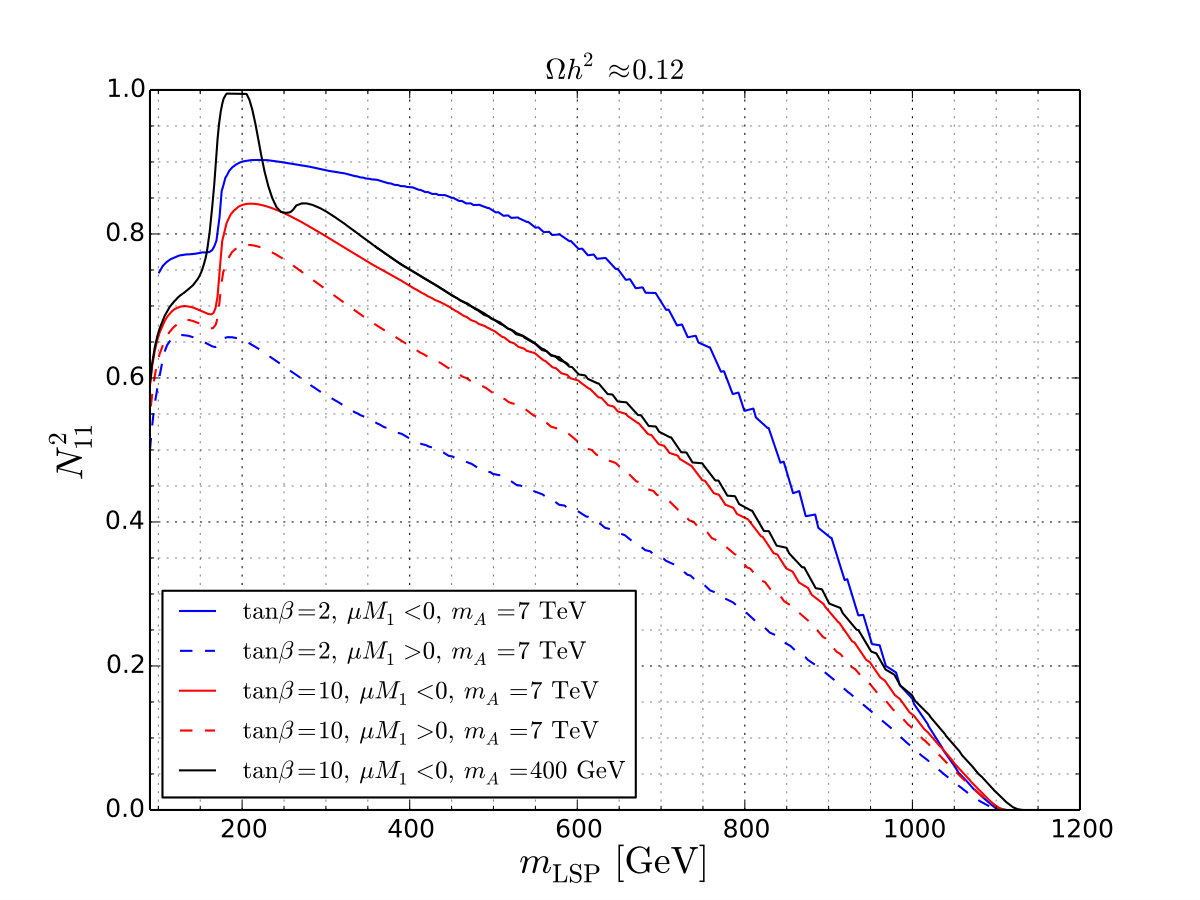

The above two types of LSP are qualitatively different in several respects. As can be seen from Fig. 1, a well-tempered bino-higgsino is generally lighter than a well-tempered higgsino-bino. The transition occurs for $m_{\rm LSP}$ in the range of $700\div 900$ ($400\div 600$) GeV for negative (positive) $\mu M_{1}$, as seen in Fig. 1. The limiting case of a well-tempered higgsino-bino is the pure higgsino with mass of about 1.1 TeV while there is no corresponding limiting case for a well-tempered bino-higgsino since the pure bino leads to overabundance. For a bino-higgsino the annihilation to $t\bar{t}$ is the dominant mechanism that washes out LSP in the Early Universe, while for a higgsino-bino it is the co-annihilation between the higgsino states.

For the discussion of direct detection constraints in the next section, it is also important to note that for a well-tempered higgsino-bino $|m_{\rm\chi}/\mu|\gtrsim 0.95\,(0.9)$ if $\mu M_{1}$ is negative (positive), as seen from the right panel of Fig. 1. For a well-tempered bino-higgsino $|m_{\rm\chi}/\mu|$ can be lower but still above about 0.7 (0.65) for negative (positive) $\mu M_{1}$.

3 Scattering of dark matter on nuclei

The lightest neutralino in MSSM has spin-independent interactions with nuclei via exchange of squarks and Higgs scalars and spin-dependent (SD) ones via exchange of $Z$ boson and squarks. The SI cross-section is given by

[TABLE]

where $\mu^{2}_{\rm red}$ is the reduced mass of the nucleus and the LSP. The effective couplings $f^{(N)}$ ($N=p,n$) are dominated by the t-channel exchange of the CP-even scalars [1]:

[TABLE]

where $h_{i}=h,H$ are two CP-even scalar mass eigenstates. The contributions from squarks have been neglected which is a good approximation due to the strong LHC constraints on their masses. In the limit of decoupled non-SM-like scalar, $H$, the SI scattering cross-section is entirely determined by the LSP mass and its coupling to the SM-like Higgs, $h$, given by the following function of the LSP composition:

[TABLE]

where we neglected the mixing between $h$ and $H$ which must be small in order to comply with the LHC Higgs measurements [45]. Using eqs. (2) and (3) this coupling may be rewritten in the form

[TABLE]

Since ${\rm sgn}(m_{\chi})={\rm sgn}(M_{1})$ the above formula shows that the SI scattering cross-section is larger for positive $\mu M_{1}$ than in the opposite case since there is no (partial) cancellation between the two terms in the numerator of eq. (7). For negligible $h$-$H$ mixing the Higgs-nucleon coupling depends only on $\tan\beta$:

[TABLE]

where the form factors may be approximated by $F_{d}^{(p)}\approx 0.132$, $F_{d}^{(n)}\approx 0.140$ [44].

Before we present our results one comment regarding our numerical procedure to compute the SI scattering cross-section is in order. For small values of $\tan\beta$ SuSpect is not able to compute the Higgs mass for very heavy stops required to get the 125 GeV Higgs mass. Therefore, in our calculation of the SUSY spectrum (that is an input for MicrOMEGAs) we set all squark masses to 6 TeV and rescale the SI scattering cross-section obtained from MicrOMEGAs by a factor $(m_{h}^{\rm M}/125\ {\rm GeV})^{4}$, where $(m_{h}^{\rm M}$ is the output of the Higgs mass from MicrOMEGAs (calculated by SuSpect).

As can be seen from the above equations, the SI LSP scattering cross-section on nuclei depends on three parameters: $\mu$, $m_{\chi}$ and $\tan\beta$. The requirement that such LSP accounts for the observed DM density fixes one of these relevant parameters. This allows us to plot constraints from direct detection experiments in a two-dimensional plane. From our perspective it is most interesting to choose the LSP mass and $\tan\beta$ as the two independent variables. The current [33] and previous LUX [34] constraints, as well as projections for XENON1T [46] and LZ [47] experiments, for both signs of $\mu M_{1}$ are presented in Fig. 2. One can see that, as expected from eq. (6), the SI scattering cross-section is larger for positive $\mu M_{1}$ than in the opposite case. For positive $\mu M_{1}$ a well-tempered bino-higgsino was already excluded by the previous LUX results while the lower limit on the mass of a well-tempered higgsino-bino was improved by the new LUX results by more than 100 (200) GeV for small (large) values of $\tan\beta$. The present lower bound is almost $\tan\beta$-independent. Its precise position depends on the size of assumed uncertainties of the relic abundance calculation. For the values of $\Omega$ returned by MicrOMEGAs 4.3.1 this bound is about 1070 GeV. It drops by about 100 GeV if 20% theoretical uncertainty in $\Omega h^{2}$ is allowed. Independently of these theoretical uncertainties, for $\mu M_{1}>0$ only an almost pure higgsino is allowed. Some region of higgsino-bino will never be probed by DD experiments since the SI scattering cross-section for a pure higgsino is only loop generated and is below the neutrino background due to some cancellations between the one- and two-loop diagrams [53, 54].222 Some part of this region of the parameter space may be covered by future indirect detection experiments such as Cherenkov Telescope Array [6].

The case of negative $\mu M_{1}$ is less constrained because of the existence of a blind spot in which the LSP-Higgs coupling vanishes in spite of non-vanishing higgsino-bino mixing [7]:

[TABLE]

However, $|m_{\chi}|$ can not be much smaller than $|\mu|$ if the thermal relic abundance of the LSP is to be close to the value measured by Planck. Thus, the above blind spot occurs for very low values of $\tan\beta$: close to 1 for a well-tempered higgsino-bino and at most 2 for a well-tempered bino-higgsino. The SI cross-section increases when we move in the parameter space away from a blind spot e.g. by increasing $\tan\beta$. However, $\sigma_{\rm SI}$ may stay below a given DD experimental bound if we do not move too far. The allowed range of $\tan\beta$ values shrunk substantially after the latest LUX results. While the previous LUX results allowed a well-tempered bino-higgsino with $\tan\beta$ as large as about 10, the 2016 results set an upper bound of about 2.7 after taking into account also the latest LUX constraints on $\sigma_{\rm SD}$ which exclude the LSP mass below about 260 GeV. Point P1 in Table 1 is a representative benchmark for well-tempered bino-higgsino with the SI and SD scattering cross-section just below the LUX upper limits. 333The constraints on $\sigma_{\rm SD}$ from PandaX [49] and IceCube [51] are slightly weaker than the latest LUX constraints. The sensitivity of XENON1T experiment to the SI interactions may be high enough to move further this upper bound to about $2.2$.

Constraints on the SD scattering cross-section provided by near future experiments will be a powerful complementary probe of a well-tempered bino-higgsino. XENON1T may improve the upper bound on $\tan\beta$ to about 1.7. when constraints on both SI and SD scattering cross-section are taken into account. The future LZ sensitivity may be enough to probe the remaining part of the parameter space of well-tempered bino-higgsino.

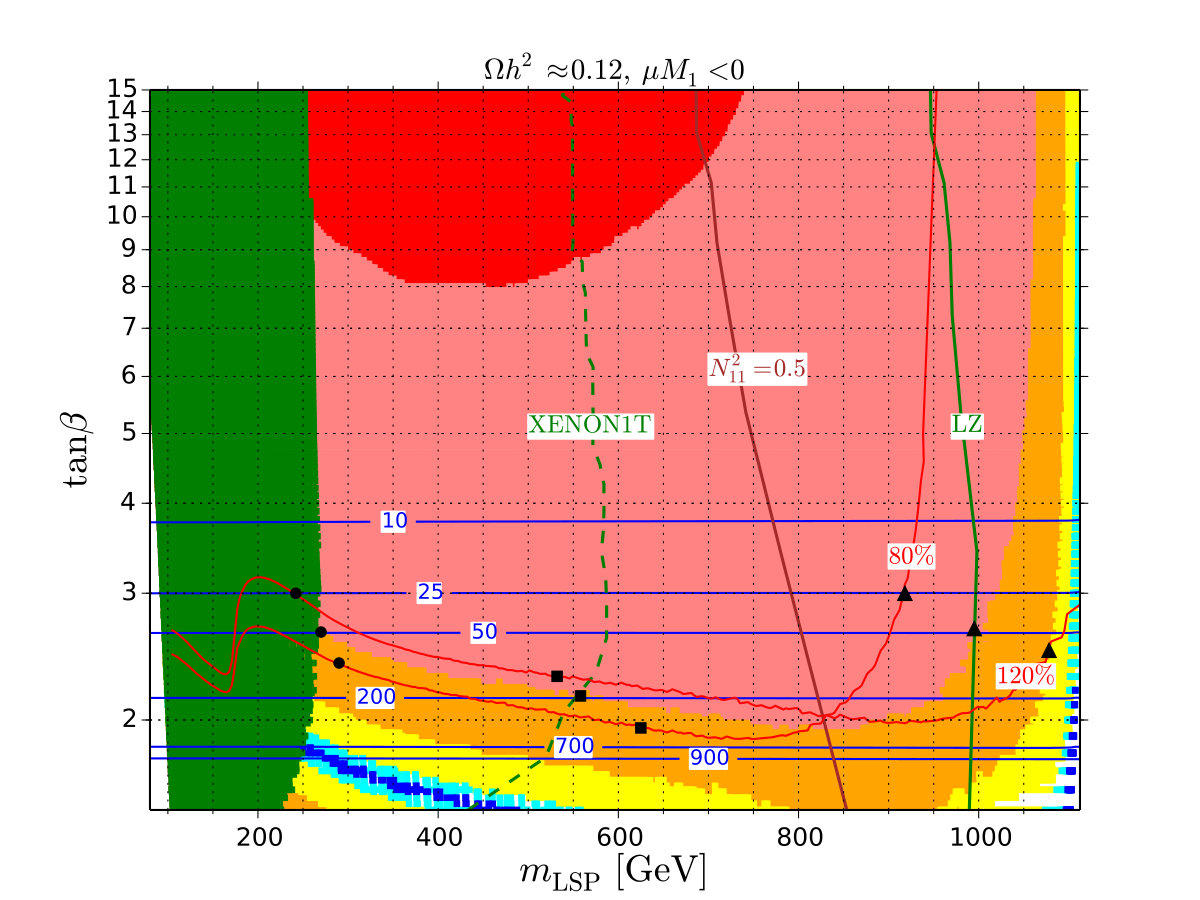

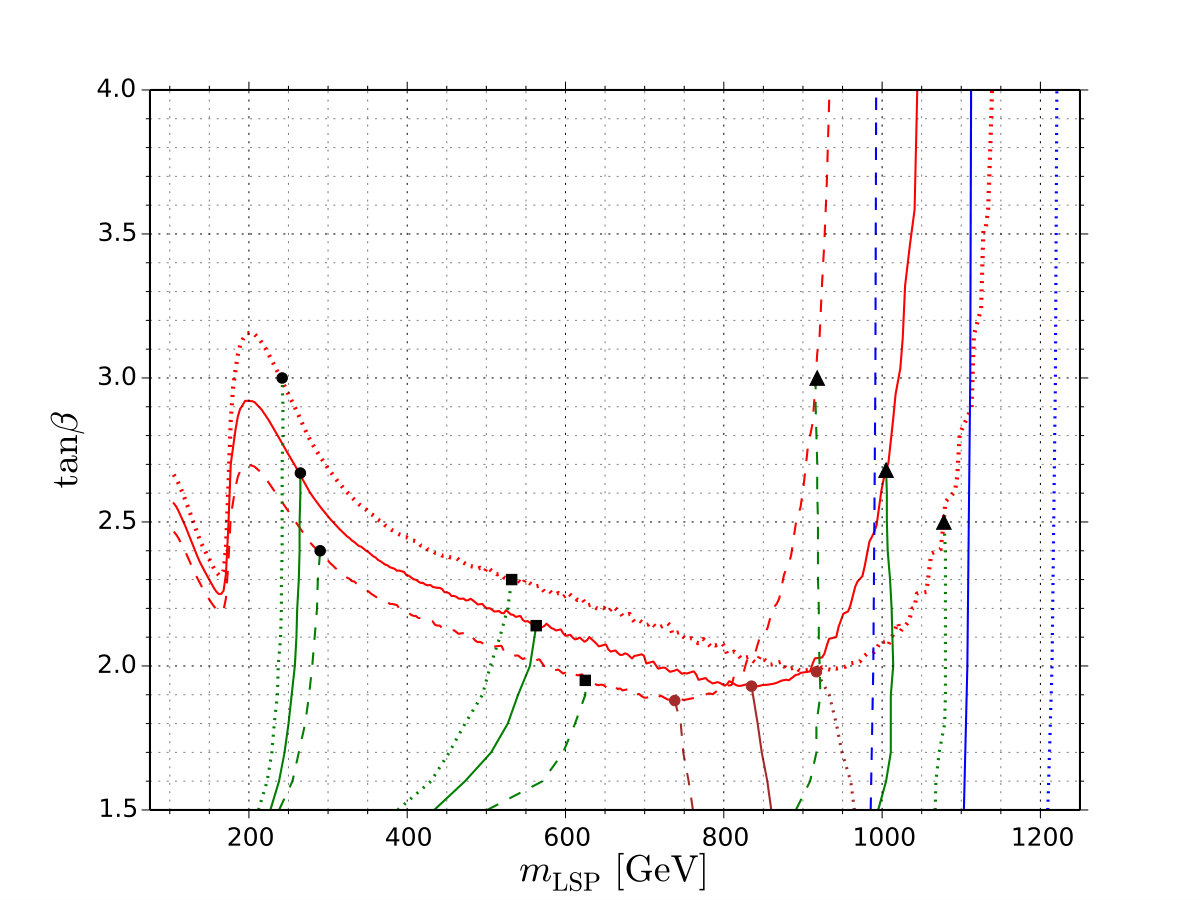

All the above discussed (and color-coded in Fig. 2) constraints in the $m_{\rm LSP}$-$\tan\beta$ plane were obtained for such points in the MSSM parameter space for which $\Omega h^{2}$ calculated with MicrOMEGAs 4.3.1 equals 0.12. The experimental error on $\Omega h^{2}$ is quite small but there are some theoretical uncertainties in the corresponding calculations. In order to estimate the sensitivity of our results to such uncertainties we repeated our analysis allowing for $\pm 20$% errors on $\Omega h^{2}$. In Fig. 3 we present the impact of the uncertainty in $\Omega h^{2}$ on current and future experimental constraints from DD. We also showed the impact of uncertainty in $\Omega h^{2}$ on the most relevant constraints in Fig. 2. These uncertainties do not affect our general conclusions but they somewhat change numerical values for the bounds quoted above. In particular, the upper bound on $\tan\beta$ can be relaxed to about 3.

In the right panel of Fig. 3 we show how this upper bound depend on $\Omega h^{2}$ for fixed values of $\mu$ parameter. Typically it is relaxed (strengthened) by less than about 0.2 when $\Omega h^{2}$ is 20% bigger (smaller). The only exception is for large values of $\mu$ which is related to the fact that the relic density of (almost) pure higgsino depends quite strongly on its mass so also on $\mu$. It is also clear from Fig. 3 that relation between value of $\mu$ and the LSP mass very weakly depends on uncertainties in $\Omega h^{2}$.

A strong upper bound on $\tan\beta$ for a well-tempered bino-higgsino implies a strong lower bound on the stop masses since the radiative corrections to the Higgs mass must be huge to account for the observed value of 125 GeV [55]. In order to compute such lower bounds in the region of small $\tan\beta$ we used a program SUSYHD 1.0.2 [56] which calculates the Higgs mass in the MSSM using the Effective Field Theory framework which gives much more reliable results than the standard SUSY spectrum calculators in the region of multi-TeV stop masses.444 Typical estimate of theoretical uncertainty by SUSYHD is about 1 GeV. In our calculation of a lower bound on the stop masses we use the central value of the Higgs mass returned by SUSYHD.

In Fig. 2, contours of lower bounds on $M_{\rm SUSY}\equiv\sqrt{m_{Q_{3}}m_{U_{3}}}\approx\sqrt{m_{t_{1}}m_{t_{2}}}$ in the plane of $m_{\rm LSP}$-$\tan\beta$ are presented. We see that the 2016 LUX results impose a lower bound on the stop masses of about 50 TeV (25 TeV if uncertainty on $\Omega h^{2}$ is taken into account) for the LSP mass of about 260 GeV and quickly gets stronger when going away from this mass.555 The exact value of this bound may vary by up to 30% depending on the choice of $M_{2}$ and $M_{3}$ which do not influence dark matter phenomenology as long as wino is much heavier than higgsinos.

Future XENON1T may improve the lower bound on the stop masses to about 900 TeV (for the LSP mass of about 500 GeV). As mentioned above, by the time the neutrino background is reached the well-tempered bino-higgsino should be already excluded or discovered by its SD scattering with nuclei at the LZ experiment. In calculating these bounds we used the stop mixing value giving the maximal correction to the Higgs mass i.e. $X_{t}\equiv A_{t}-\mu/\tan\beta=\sqrt{6}M_{\rm SUSY}$. Therefore, for generic stop mixing the lower bound on the stop masses is much stronger.

Such a strong lower bound may be an indication for split SUSY [43, 27]. Interestingly the upper bound on $\tan\beta$ gives also a strong upper bound on the smuon mass if MSSM is responsible for the explanation of the long-standing muon $g-2$ anomaly [57, 58, 59, 60]. This upper bound would force smuon to be the LSP which means that a well-tempered bino-higgsino is not consistent with the MSSM solution to the muon $g-2$ anomaly. This conclusion may change if the blind spot condition is modified in such a way that it may be fulfilled for $|m_{\chi}/\mu|\sim 1$ not only for small $\tan\beta$. We discuss this possibility in the next section.

The lower limit on the well-tempered higgsino-bino mass for values of $\tan\beta$ that allows for light MSSM stops and is consistent with 2016 LUX results is similar as for the $\mu M_{1}>0$ case and is pushed to the region of almost pure higgsino. Since for the pure higgsino LSP the correct relic abundance is obtained for $m_{\rm LSP}\approx 1.1$ TeV with the uncertainty of about 100 GeV there is uncertainty of similar size in the lower bound on the well-tempered higgsino-bino mass. For example, for $\tan\beta=4$, corresponding to a lower bound on stops masses of about 10 TeV, the lower bound on the mass of the LSP is about $1050\pm 100$ GeV, as seen from Fig. 3, see also point P2 in Table 1. There is also an upper bound slightly above $1100\pm 100$ GeV due to the fact that even pure higgsinos have too large relic abundance if they are heavier.

If one insists on a natural realization of SUSY with rather light stops then a well-tempered bino-higgsino with decoupled MSSM-like Higgs boson requires such extension of the MSSM which leads to additional contributions to the Higgs mass for small $\tan\beta$. A prime example of such a model is the Next-To-Minimal Supersymmetric Standard Model (NMSSM) [61]. In NMSSM, there is much more flexibility to accommodate a well-tempered neutralino consistently with the current data because the light singlet scalar which mixes with the Higgs may substantially modify the blind spot condition [22] and the LSP can be also a mixture of singlino and higgsino [62]. However, as we show in the next section there is still some small region of the MSSM parameter space in which a well-tempered neutralino can be consistent with relatively light stops.

4 Well-tempered neutralino with light $H$

The question that we would like to address in this section is whether a well-tempered bino-higgsino or higgsino-bino with a significant bino component may still be consistent with all constraints in the framework of MSSM with not very heavy stops. This may happen if the blind spot condition is modified in such a way that it has solutions with $|m_{\chi}|\approx|\mu|$ for not too small $\tan\beta$. It was pointed out in Ref. [8] that this may be possible provided that the heavier MSSM Higgs boson, $H$, is relatively light and its effective coupling to nucleons is large enough. The $H$ coupling to LSPs is approximately given by

[TABLE]

The $H$ coupling to down quarks is enhanced by $\tan\beta$ which may compensate the mass-suppression of the effective $H$ coupling to nucleons. The SI cross-section is then approximately proportional to

[TABLE]

Vanishing of the above cross-section leads at large $\tan\beta$ to the following blind spot condition:

[TABLE]

We see that also in this case the blind spot condition may be satisfied only for $\mu M_{1}<0$. A well-tempered neutralino implies $|m_{\chi}|\sim|\mu|$ so the r.h.s. of the above equation has to be close to 1 in order for the SI cross-section to be strongly suppressed. The first term of the r.h.s. of (12) originates from the $h$-exchange amplitude and is suppressed if $\tan\beta$ is not small. The second term originates from the interference between the $h$ and $H$ contributions to the scattering amplitude. The $H$ contribution is enhanced by $\tan\beta$ so it may compete with the contribution from the lighter Higgs.666 Another contribution to the SI scattering amplitude which is enhanced by $\tan\beta$ may originate from light sbottoms [9]. However, this contribution may compete with the Higgs contribution only for $|\mu|\gg|M_{1}|$ and/or very small mass splitting between bino and sbottom that would lead to strong sbottom co-annihilations. Therefore, for a well-tempered neutralino this contribution can be safely neglected.

It turns out, however, that the $H$ contribution is always smaller than the $h$ contribution due to the LHC constraints on the Higgs sector. The main constraint on this scenario comes from direct $H/A$ searches in the $\tau\tau$ decay channel that set a lower bound on $m_{A}\approx m_{H}$ as a function of $\tan\beta$ [63, 64]. The limits for $H/A$ masses are stronger for larger $\tan\beta$ and the second term on r.h.s. of eq. (12), with constraints for $m_{H}$ saturated, decreases with $\tan\beta$. This is because for a given $m_{A}$ the production cross-section, dominated at large $\tan\beta$ by the bottom fusion mode, grows as $\tan^{2}\beta$. In the most relevant part of parameter space the CMS constraints are stronger than the ATLAS one mainly due to some small deficit (excess) in the CMS (ATLAS) data for $m_{A}$ around 400 GeV. For $\tan\beta\lesssim 7$ the production cross-section is small enough that the LHC searches in the $\tau\tau$ channel still allow relatively light $H$. However, it cannot be arbitrary light because small values of $m_{A}$ generically lead to an enhanced $hb\bar{b}$ coupling which results in suppressed Higgs signals in the gauge boson final states which are relatively well measured and found to be close to the SM predictions. Indeed, the ATLAS Higgs measurements set a lower bound on $m_{A}$ of 375 GeV for moderate and large $\tan\beta$ [65]. This limit, however, should be interpreted with care. The expected ATLAS lower limit on $m_{A}$ is about 315 GeV. The much stronger limit observed by ATLAS comes mainly from the fact that central values for $\gamma\gamma$ and $ZZ^{*}$ rates at Run I are above the SM prediction. The preliminary results of Run II data exhibit suppression of the $\gamma\gamma$ rate [66] so somewhat smaller values of $m_{A}$ than 375 GeV should not be considered as definitely excluded. For example, during the recent Moriond conference CMS presented a result of $1.05\pm 0.17$ for the $ZZ^{*}$ Higgs signal rate which is experimentally the cleanest channel [67]. This is the most accurate single measurement of the Higgs signal rate (even more precise than the corresponding result of the ATLAS and CMS combination of the 8 TeV data) and we found that it sets a lower bound on $m_{A}$ at 95 % CL of about 320 GeV for moderate and large $\tan\beta$. Thus, there is complementarity between the Higgs properties measurements and the $\tau\tau$ searches at the LHC which lead to the upper bound on the r.h.s. of eq. (12) of about 0.7 (0.8) if the ATLAS (conservative) limit of $m_{A}>375$ (320) GeV is used. This is too small to put a well-tempered neutralino at a blind spot for values of $\tan\beta$ that allow light stops. On the other hand, it can be large enough to avoid the current LUX constraints.

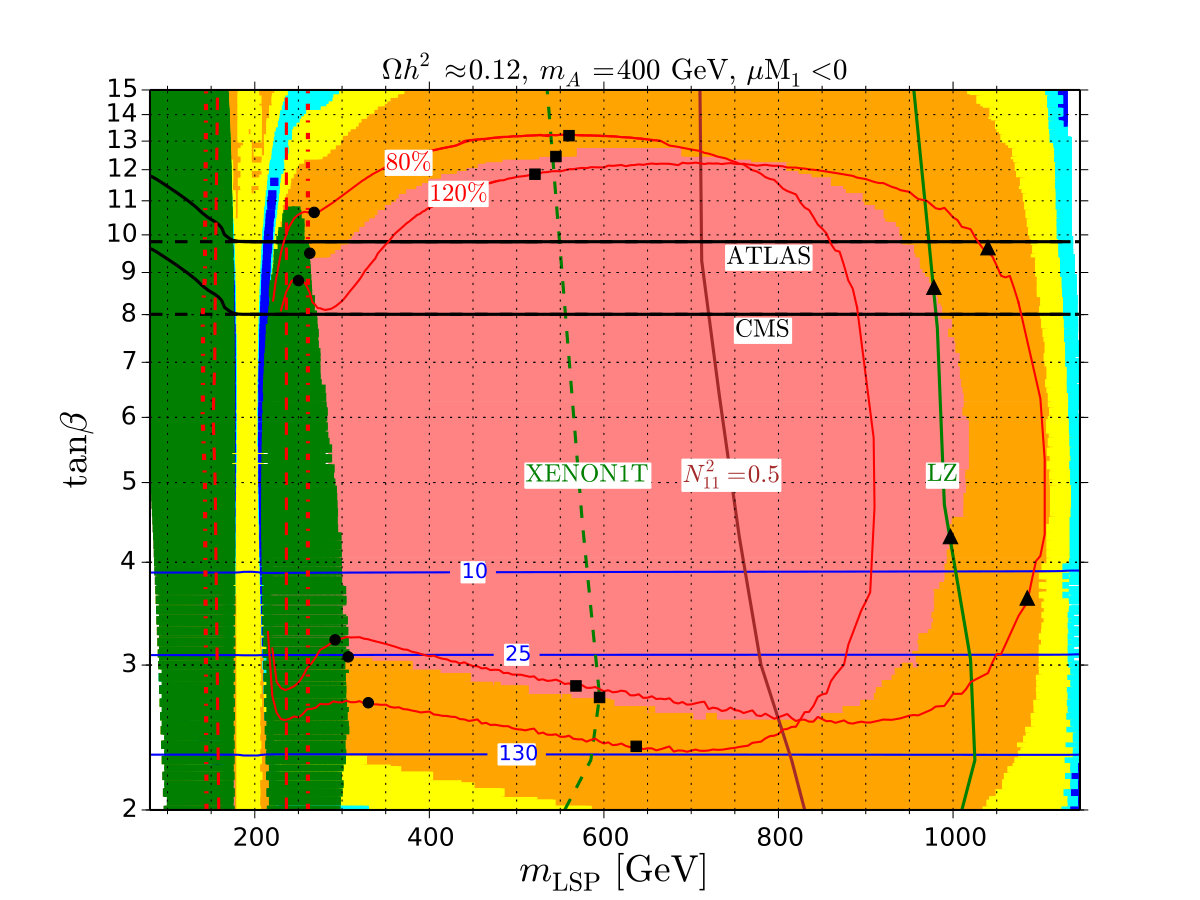

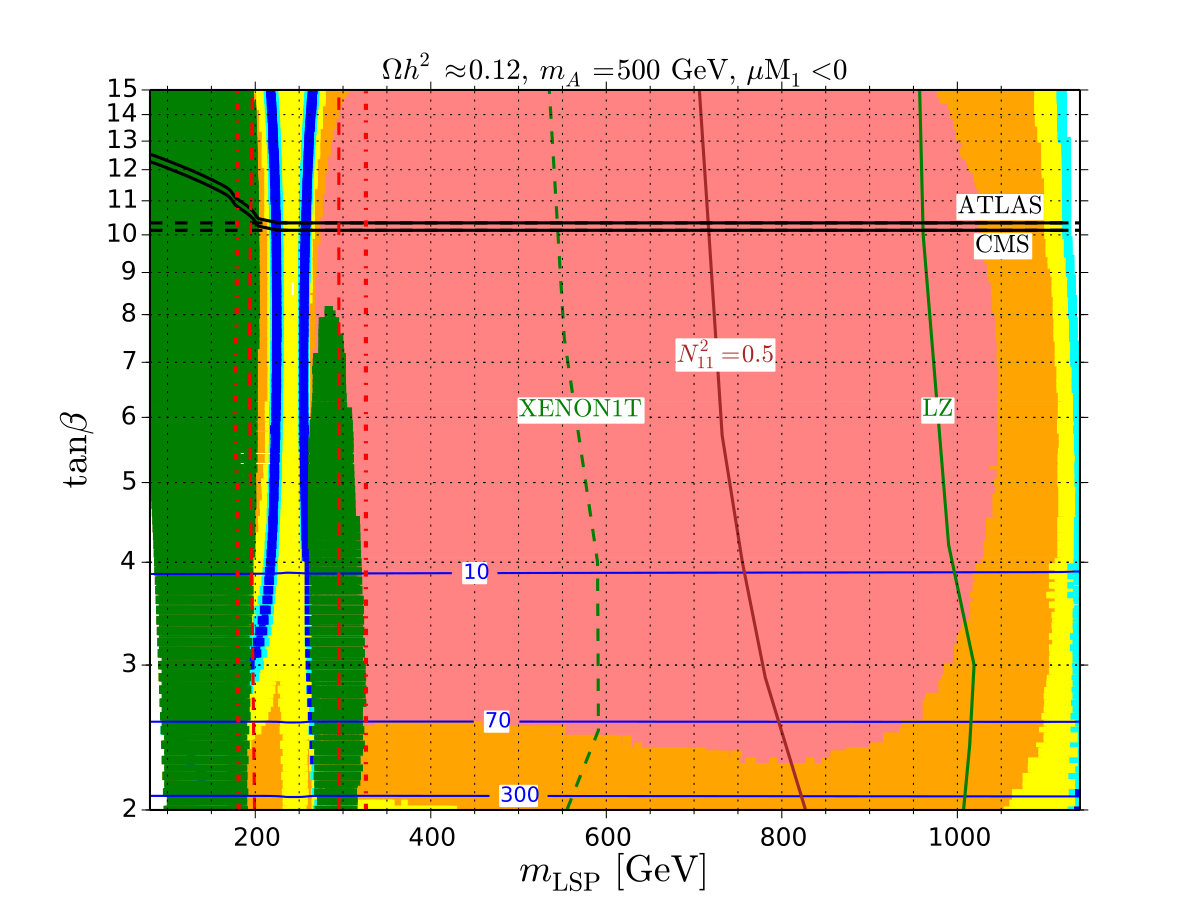

In Fig. 4 we present the current and future constraints in the plane of $m_{\rm LSP}$-$\tan\beta$ for $m_{A}$ equal 400 and 500 GeV. It is interesting how much the situation is changed by the LUX 2016 bounds. No part of the parameter space shown in Fig. 4 is inconsistent with the previous LUX results. On the other hand, the new results, together with the bounds from the $\tau\tau$ channel, exclude most of the shown parameter space for a bino-higgsino LSP and big part for a higgsino-bino LSP.

In the well-tempered bino-higgsino case $m_{A}$ as light as 400 GeV is still not sufficient to satisfy the new LUX constraints for moderate or large $\tan\beta$ without violating the CMS $\tau\tau$ constraints even after taking into account the uncertainty in $\Omega h^{2}$. Note also that decays of $H/A$ to the neutralinos and charginos can not relax the $\tau\tau$ constraints because such decays are relevant only for LSP masses below 200 GeV which are excluded by SD LUX constraints. For $m_{A}=400$ GeV the upper bound on small $\tan\beta$ is relaxed to slightly above 3 but this still requires very heavy stops. For the central value of $\Omega h^{2}$ the lower bound on the stop masses are relaxed to about 25 GeV from 50 GeV in the case with decoupled $H/A$. With uncertainties in $\Omega h^{2}$ taken into account such relaxation is even weaker.

Light $H$ and $A$ can also somewhat relax a lower bound on a well-tempered higgsino-bino LSP. Comparing Figs. 2 and 4 we see that the lower bound on $m_{\rm LSP}$ (for stop masses below 10 TeV) decreases from about 1050 GeV in the case of decoupled MSSM-like Higgses to about 1 TeV for $m_{A}=400$ GeV. These numbers vary by about 100 GeV if $\Omega h^{2}$ is varied within 20 % percent of the central value.

It is important to note that the presence of light $H$ and $A$ leads to resonant annihilation for $m_{\rm LSP}$ in the vicinity of $m_{A}/2$. In such a case a much smaller higgsino component, or equivalently much smaller $|m_{\chi}/\mu|$, is required to obtain $\Omega h^{2}\approx 0.12$, as can be seen from Fig. 1. In consequence, close to the resonance the SI cross-section is much smaller and can be even below the neutrino background. Such regions of very small SI cross-sections for $m_{\rm LSP}\sim m_{A}/2$ are clearly visible in both panels of Fig. 4. However, they clearly violate the definition of a well-tempered neutralino. The criterion we use to separate the resonant annihilation from a well-tempered neutralino is discussed in Appendix A.

In order to obtain viable well-tempered bino-higgsino with relatively light stops one needs to consider $m_{A}$ below 400 GeV. In Fig. 5 we present current and future constraints in the plane of $m_{A}$-$\tan\beta$ for the LSP mass of 300 GeV for which the new SI LUX constraints are the weakest. The constraints from the previous LUX results were irrelevant for the presented parameter space. The bounds become much stronger when the 2016 LUX results are taken into account. For example, taking the ATLAS limit on $m_{A}>375$ GeV at face value and using the result for $\Omega h^{2}$ without theoretical uncertainty a well-tempered bino-higgsino is excluded for moderate and large $\tan\beta$. If the uncertainty in $\Omega h^{2}$ is taken into account values of $m_{A}$ up to about 390 GeV for $\tan\beta\approx 8$ satisfy the latest LUX constraints on the SI cross-section with the stop masses not much bigger than 1 TeV. Point P3 in Table 1 is a representative benchmark with relatively light stops that satisfies the $\tau\tau$ constraints, the conservative limit on $m_{A}$ from the Higgs coupling measurements and has the SI scattering cross-section just below the LUX upper limit. 777We computed the Higgs mass at large (small) $\tan\beta$ with Suspect (SUSYHD). The line for $\tan\beta>5$ in Fig. 5 was obtained for $M_{2}=M_{3}=2$ TeV (and not 7 TeV as in all other cases) because for large values of $\tan\beta$ lighter gauginos lead to slightly heavier Higgs without influencing strongly the LSP properties. The whole allowed region is within reach of XENON1T. The LHC searches in the $\tau\tau$ channel may cover the remaining parts of the parameter space even sooner than XENON1T experiment

• already with the data collected in 2016 which is about 40 fb*-1*. It is noteworthy that for $m_{A}$ below about 340 GeV (or 360 GeV if the uncertainty on $\Omega h^{2}$ is taken into account) the SI LUX constraints are satisfied for all $\tan\beta$ consistent with the $\tau\tau$ constraints. We should also note that the new SD LUX constraints rule out some range of $m_{A}$ for small and moderate $\tan\beta$, mostly in the transition region between well-tempered neutralino and resonant annihilation. This is partly because in that region there is destructive interference in the LSP annihilation into $t\bar{t}$ between the $Z$-mediated and $A$-mediated contributions so bigger higgsino component is needed to obtain correct relic density.

5 Conclusions

We have systematically assessed the impact of 2016 LUX results on the MSSM well-tempered neutralino that is a mixture of bino and higgsino which gives the correct thermal relic abundance without help of resonant annihilation or co-annihilation with sfermions. We found that in the limit of decoupled non-SM-like scalars the new LUX results set a very strong upper bound on $\tan\beta$, hence also a strong lower bound on the stop mass scale, if LSP mass is below about 1 TeV. For a well-tempered bino-higgsino $\tan\beta$ must be below about 3 which implies a lower bound on the stop mass scale of about 25 TeV when the correction from stop mixing to the Higgs mass is maximized and when theoretical uncertainties in calculating DM relic abundance are taken into account. Well-tempered higgsino-bino can still be compatible with light MSSM stops but only for almost pure higgsino in a small range of masses between about 1050 and 1100 GeV. Uncertainties of $\Omega h^{2}$ may move this range up or down by up to about 100 GeV.

The only way to save the well-tempered bino-higgsino with light MSSM stops is to consider the MSSM-like Higgs doublet to be relatively light. In such a case the contribution to the SI LSP-nucleon interaction from the $H$ exchange may partially cancel the SM-like Higgs contribution. We have shown that the latest LUX constraints on the well-tempered bino-higgsino can be satisfied with $\tan\beta$ up to about 8 in a small part of the parameter space that will be entirely probed by XENON1T. Accommodating the LUX constraints requires $m_{A}$ below about 400 GeV which will be covered by the LHC search for $H/A\to\tau\tau$ with the data that have already been recorded and are being analyzed. Such small values of $m_{A}$ are in some tension with the LHC Higgs coupling measurements which currently set a lower bound on $m_{A}$ around 350 GeV.

We also pointed out that new LUX constraints on the SD scattering cross-section that have just been presented at the Moriond conference rule out the well-tempered neutralino mass at least below 250 GeV for almost any value of $\tan\beta$.

Our findings indicate that the well-tempered bino-higgsino scenario prefers split SUSY realization of the MSSM unless heavy Higgs doublets are around the corner. On the other hand, a well-tempered bino-higgsino may be consistent with light stops in NMSSM for which low values of $\tan\beta$ are preferred by the measured Higgs mass. Moreover, the presence of the singlet in NMSSM provides important modifications to the SI blind spot condition [22] and substantially relaxes the constraints on $m_{A}$ from the LHC $\tau\tau$ searches as well as from the Higgs coupling measurements [68, 69, 70], hence allowing for large $H$ contribution to the SI scattering amplitude. Since in both, split SUSY and NMSSM, the SI scattering cross-section may be below the irreducible neutrino background the ultimate test of the well-tempered bino-higgsino will be provided by searches for SD interactions between the LSP and nucleons. In this kind of search LZ will cover the entire parameter space of the well-tempered bino-higgsino.

Note Added: During completion of this work Ref. [71] appeared which partially overlaps with some of the results of the present article.

Acknowledgements

MB thanks Simon Knapen for interesting discussions. This work has been partially supported by National Science Centre, Poland, under research grants DEC-2014/15/B/ST2/02157, DEC-2015/18/M/ST2/00054 and DEC-2012/04/A/ST2/00099, by the Office of High Energy Physics of the U.S. Department of Energy under Contract DE-AC02-05CH11231, and by the National Science Foundation under grant PHY-1316783. MB acknowledges support from the Polish Ministry of Science and Higher Education through its programme Mobility Plus (decision no. 1266/MOB/IV/2015/0). PS acknowledges support from National Science Centre, Poland, grant DEC-2015/19/N/ST2/01697.

Appendix A Criterion for resonant annihilation

The presence of relatively light $H$ and $A$ may affect the value of $\Omega h^{2}$ very strongly if we are close to the resonance $m_{\rm LSP}\approx m_{H}/2\,\,(m_{A}/2)$. The contribution to the LSP annihilation cross-section from the $H$ and $A$ exchange decreases when we move away from the resonance. However, it decreases smoothly and may be non-negligible for a very wide range of the LSP masses. So, the LSP with relic abundance dominated by a resonant annihilation goes smoothly into a well-tempered LSP. In this Appendix we propose a simple criterion to define a border between the well-tempered and resonant regions.

A given LSP should no longer be considered as well-tempered if two conditions are fulfilled simultaneously. Firstly, the mass of the particle exchanged in the s channel ($H$ or $A$ in the present case) is close to $m_{\rm LSP}/2$. Secondly, the contribution from the considered s channel exchange influences the LSP relic abundance in a substantial way. In order to quantify the above (qualitative) conditions we calculate ratios of the LSP relic abundance using some limits. For the first condition we calculate $\Omega$ using two forms of the propagator of the exchange particle: the actual one and the asymptotic form valid far away from the resonance (more details below). For the second condition we compare actual $\Omega$ with that obtained for decoupled $H/A$.

The method described below may be found in [72]. Let us consider a dark matter particle (with mass $m$) annihilating via $s$ channel exchange of a particle with mass $M$ and total decay width $\Gamma$:

[TABLE]

For simplicity we assume $\alpha=\rm const$, which is generally not the case, however we are mainly focused on the effect on $\Omega h^{2}$ coming from the denominator in (13). Using dimensionless quantities $\delta\equiv 4m^{2}/M^{2}-1$, $\gamma\equiv\Gamma/M$ and considering non-relativistic approximation $s=4m^{2}/(1-v^{2}/4)\approx 4m^{2}(1+v^{2}/4)$ we get:

[TABLE]

Let us now define $Y(x)\equiv\frac{n}{s}$, where $x=m/T$, and write

[TABLE]

Parameter $x_{d}$ is defined as a moment in thermal evolution of DM when the term $1/Y(x_{d})$ starts to be small and can be safely neglected (we take $x_{d}=20$ however different values may influence slightly the results, especially for wide resonance). Dark matter relic abundance can be then calculated by double integration over $v$ and $x$:

[TABLE]

Note that we changed the usual order of integration. We will now perform the simpler integral over $x$, obtaining:

[TABLE]

Now we can estimate the effect coming from the exchange of the resonant particle by taking the following ratio

[TABLE]

where $\Omega_{\rm res.}$ refers to (16) while $\Omega_{\rm no\;res.}$ to $\sigma v$ being $\frac{\alpha}{M^{4}}$ for $m<\frac{M}{2}$ or $\frac{\alpha}{s^{2}}$ for $m>\frac{M}{2}$. As we already mentioned, there is no sharp border between the well-tempered and resonant regions. So, there is no one well defined value of $\eta$ from which the resonance should be considered to be important. In the present work (see red dashed-dotted and dashed lines in Figs. 4 and 5) we used $\eta=5,10$ to differentiate the well-tempered scenario from a resonant annihilation via $H/A$ exchange.
