A geometric Iwatsuka type effect in quantum layers

TL;DR

This paper investigates how geometric modifications to quantum layers influence magnetic transport, showing conditions under which the spectrum becomes absolutely continuous, enabling particle movement in a magnetic field.

Contribution

It introduces new conditions for magnetic transport in quantum layers with geometric perturbations, extending understanding of spectral properties in such systems.

Findings

Geometric perturbations can induce absolutely continuous spectrum.

Conditions for magnetic transport depend on layer geometry.

Spectrum can transition from degenerate to absolutely continuous.

Abstract

We study motion of a charged particle confined to Dirichlet layer of a fixed width placed into a homogeneous magnetic field. If the layer is planar and the field is perpendicular to it the spectrum consists of infinitely degenerate eigenvalues. We consider translationally invariant geometric perturbations and derive several sufficient conditions under which a magnetic transport is possible, that is, the spectrum, in its entirety or a part of it, becomes absolutely continuous.

Figures

Equations

$${\mathcal{L}}_0(s,y)=(x(s),y,z(s))$$

$$\dot{x}(s{)}^2+\dot{z}(s{)}^2=1,$$

$$\kappa (s)=\dot{x}(s)\ddot{z}(s)-\ddot{x}(s)\dot{z}(s)$$

$$n(s,y)\equiv n(s)=(-\dot{z}(s),0,\dot{x}(s)).$$

$$\Vert \kappa {\Vert }_{\infty }<\infty .$$

$$(g_{\mu \nu })=\left(\begin{array}{cc}1& 0\\ 0& 1\end{array}\right);\mu ,\nu \in \{s,y\}.$$

$$\mathcal{L}:{\mathbb{R}}^2\times I\to {\mathbb{R}}^3:\left\{(s,y,u)\mapsto {\mathcal{L}}_0(s,y)+aun(s)\right\},$$

$$a<{\varrho }_m:=\Vert \kappa {\Vert }_{\infty }^{-1}\text{and }\Omega \text{ does not intersect itself}.$$

$$(G_{ij})=\left(\begin{array}{cc}(G_{\mu \nu })& 0\\ 0& a^2\end{array}\right),(G_{\mu \nu })=\left(\begin{array}{cc}{f}_a(s,u{)}^2& 0\\ 0& 1\end{array}\right);i,j\in \{s,y,u\},$$

$$-{\Delta }_{D,A}^{\Omega }=(-i\nabla +A{)}^2\text{ (in the form sense)},Q(-{\Delta }_{D,A}^{\Omega })={\mathcal{H}}_{A,0}^1(\Omega ,\mathrm{d}x\mathrm{d}y\mathrm{d}z),$$

$$\hat{H}=$$

$$-a^{-2}{f}_a(s,u{)}^{-1}{\partial }_u{f}_a(s,u){\partial }_u,$$

$$\tilde{A}_{2}(s,u)=B_{0}\big{(}x(s)-au\dot{z}(s)\big{)}.$$

$$\tilde{H}=U\hat{H}{U}^{-1}=-{\partial }_s{f}_a(s,u{)}^{-2}{\partial }_s+(-i{\partial }_y+{\tilde{A}}_2(s,u){)}^2-a^{-2}{\partial }_u^2+V(s,u),$$

$$V(s,u)=-\frac{1}{4}\frac{\kappa (s{)}^2}{f_a(s,u{)}^2}-\frac{1}{2}\frac{au\ddot{\kappa }(s)}{f_a(s,u{)}^3}-\frac{5}{4}\frac{a^2{u}^2\dot{\kappa }(s{)}^2}{f_a(s,u{)}^4}.$$

$$({\mathcal{F}}_{y\to \xi }\psi )(s,\xi ,u)=(2\pi {)}^{-1/2}{\int }_{\mathbb{R}}{\mathrm{e}}^{-iy\xi }\psi (s,y,u)\mathrm{d}y,$$

$$H:={\mathcal{F}}_{y\to \xi }\tilde{H}{\mathcal{F}}_{y\to \xi }^{-1}=-{\partial }_s{f}_a(s,u{)}^{-2}{\partial }_s+(\xi +{\tilde{A}}_2(s,u){)}^2-a^{-2}{\partial }_u^2+V(s,u).$$

$$H[\xi ]:=-{\partial }_s{f}_a(s,u{)}^{-2}{\partial }_s+(\xi +{\tilde{A}}_2(s,u){)}^2-a^{-2}{\partial }_u^2+V(s,u),$$

$$H={\int }_{\mathbb{R}}^{\oplus }H[\xi ]\mathrm{d}\xi ,$$

$$H[\xi ]=H[{\xi }_0]\dotplus p_{\xi },$$

$$p_{\xi }(\psi )=(\xi -{\xi }_0{)}^2\Vert \psi {\Vert }^2+2(\xi -{\xi }_0)⟨\psi ,({\xi }_0+{\tilde{A}}_2)\psi ⟩.$$

$$\begin{array}{rl}|p_{\xi }(\psi )|& \le (\xi -{\xi }_0{)}^2(1+{\delta }^{-1})\Vert \psi {\Vert }^2+\delta \Vert ({\xi }_0+{\tilde{A}}_2)\psi {\Vert }^2\\ & \le (\xi -{\xi }_0{)}^2(1+{\delta }^{-1})\Vert \psi {\Vert }^2+\delta ⟨\psi ,H[{\xi }_0]\psi ⟩+\delta ⟨\psi ,V_{-}\psi ⟩,\end{array}$$

$$V_{-}\text{ is relatively form bounded by }H[0],$$

$$\big{|}\!\lim_{s\to\pm\infty}x(s)\big{|}=+\infty,\quad V_{-}\in L^{\infty}({\mathord{\mathbb{R}}}\times I,\mathrm{d}s\mathrm{d}u).$$

$${\mathcal{C}}_{H[\xi ],b}:=\{\psi \in Q(H[\xi ])\mid \Vert \psi \Vert \le 1,⟨\psi ,H[\xi ]\psi ⟩\le b\}$$

$$H[\xi ]\ge -d^{-2}{\partial }_s^2+(\xi +{\tilde{A}}_2{)}^2-a^{-2}{\partial }_u^2-\Vert V_{-}{\Vert }_{\infty }.$$

$$(\xi +{\tilde{A}}_2{)}^2\ge {\left(\xi +\frac{B_0}{2}x(s)\right)}^2.$$

$$K:=\underset{|s|<\tilde{s},u\in I}{\sup }\left|(\xi +{\tilde{A}}_2(s,u){)}^2-{\left(\xi +\frac{B_0}{2}x(s)\right)}^2\right|,$$

$$H[\xi ]\ge -d^{-2}{\partial }_s^2+{\left(\xi +\frac{B_0}{2}x(s)\right)}^2-a^{-2}{\partial }_u^2-K-\Vert V_{-}{\Vert }_{\infty }=:H_{-}-K-\Vert V_{-}{\Vert }_{\infty }.$$

$$\underset{s\to \pm \infty }{\lim }{\tilde{A}}_2(s,u)=+\infty$$

$$(\xi +{\tilde{A}}_2{)}^2\ge {\xi }^2+{\tilde{A}}_2^2-2\xi \Vert ({\tilde{A}}_2{)}_{-}{\Vert }_{\infty },$$

Full text

I Introduction

A homogeneous magnetic field acting on charged particles has a localizing effect, both classically and quantum mechanically. Since numerous physical effects are based on moving electrons between different places, mechanisms that can produce transport in the presence of a magnetic field are of great interest. They typically require presence of an infinitely extended perturbation, a standard example being a barrier or a potential wall producing edge states, cf. Ref. DoGeRa_11, ; DoHiSo_14, ; GeSe_97, ; HiPoRaSu_16, ; HiSo_08a, ; HiSo_08, ; HiSo_15, and references therein. This is not the only possibility, though. In his classical paper Iw_85 Iwatsuka demonstrated that a transport can be induced by a modification of the magnetic field itself under the assumption of a translational invariance, see also Ref. CFKS, . This is what we call the Iwatsuka effect.

The aim of the present paper is to show still another mechanism which can produce transport in a homogeneous field for particles confined to a layer with hard walls. As in the case of the Iwatsuka model we will express the effect in spectral terms seeking perturbations that change the Hamiltonian spectrum to absolutely continuous. Our departing point is a flat layer of width $2a$ to which a charged particle is confined and which is exposed to the homogeneous magnetic field perpendicular to the layer plane. The spectrum of such a system is easily found by separation of variables. It combines the Landau levels with the Dirichlet Laplacian eigenvalues in the perpendicular direction, and needless to say that all the resulting eigenvalues are infinitely degenerate, see Sec. IV.2.1 below for more details.

We are going to discuss geometric perturbations of such a system, in particular, deformations of the layer which are invariant with respect to translation in a fixed direction. Such layers can be described, e.g., as a set of points satisfying $\mathrm{dist}(x,\Sigma)<a$ where $\Sigma$ is a surface obtained by shifting a smooth curve which can be parametrized by relation (1) below. We are going to derive several conditions which ensure that the unperturbed pure point spectrum will change into an absolutely continuous one. Let us stress that this effect is purely geometrical and has not been described so far. As a tribute to the original work of Iwatsuka, we decided to call it the geometric Iwatsuka type effect. Our main results can be summarized in the following assertion.

Theorem I.1**.**

Let $H$ be the Hamiltonian of a charged quantum particle confined to a layer $\Omega$ of a constant width $2a$ in ${\mathord{\mathbb{R}}}^{3}$ built over a $C^{4}$-smooth, translationally invariant surface (1), $(s,y)\mapsto(x(s),y,z(s))$, and exposed to a nonzero homogeneous magnetic field pointing in the $z$-direction. The spectrum of $H$ is purely absolutely continuous if together with technical assumptions (3) and (4) any of the following conditions is satisfied:

1. (i)

$\Omega$* is a one-sided-fold layer, $\lim_{s\to\pm\infty}x(s)=+\infty$ or $\lim_{s\to\pm\infty}x(s)=-\infty$. Furthermore, we suppose that the second part of (9) is fulfilled. (See Fig. 1 for an example.)* 2. (ii)

$\Omega$* is bent and asymptotically flat, $\dot{x}(s)=\alpha_{\pm}$ for all large enough positive and negative $s$, respectively, where $\alpha_{\pm}\in(0,1]$. Furthermore, one requires that $\alpha_{+}\neq\alpha_{-}$ and the halfwidth $a$ satisfies the bound described in Lemma IV.3 and Remark IV.4 below. (See Fig. 2 for examples.)*

Moreover, for a fixed $E\in{\mathord{\mathbb{R}}}$, the spectrum of $H$ below $E+\left(\frac{\pi}{2a}\right)^{2}$ is absolutely continuous if $\Omega$ is thin, i.e. the halfwidth $a$ is sufficiently small, and the generating surface satisfies additional conditions specified in Proposition IV.7.

The proof of the theorem will be given in Sec. IV, before coming to it we will describe the geometry of the layer and explain the main steps of the argument. Let us add a few remarks. First of all, in Sec. IV.2.1 we demonstrate that the perturbation must be geometrically nontrivial, because a mere tilt of the layer with respect to the field direction is not enough, with one notable exception. Furthermore, except the claim (i) our condition impose restrictions on the layer thickness. On the other hand, the thinner the layer, the more general deformations we can treat. In particular, the last claim covers perturbations which are compact with respect to the $x$ variable, cf. Proposition IV.7. Note also that the shift by $\left(\frac{\pi}{2a}\right)^{2}$ in the last claim is needed; without it the claim would be trivial because in a thin layer the spectral threshold is pushed up due to the Dirichlet boundaries.

The method used to treat thin layers is also useful with respect to the original Iwatsuka model and its generalization including addition of a potential perturbation. Recall, in particular, the conjecture stated in Ref. CFKS, according to which any nontrivial translationally invariant magnetic perturbation gives rise to the purely absolutely continuous spectrum. Despite a number of sufficient conditions derived after the original Iwatsuka paper MaPu_97 ; ExKo_00 ; Tu_16 to which we add a new one in Theorem V.1, the question in its generality remains open. In a similar vein, we are convinced that the sufficient conditions we find in this paper are by far not necessary. Particularly, any new result on the original two-dimensional Iwatsuka Hamiltonian with an additional translationally invariant scalar potential may give rise to a new sufficient condition on absolute continuity of the Hamiltonian on a thin layer, cf. Remark IV.9.

II Preliminaries

II.1 Geometry of the layer

Let $\Sigma$ be a surface in ${\mathord{\mathbb{R}}}^{3}$ invariant with respect to translation in the $y$ direction and described by means of the following parametrization,

[TABLE]

with $s,y\in{\mathord{\mathbb{R}}}$. The functions $x$ and $z$ here are assumed to be smooth enough, unless said otherwise we suppose they are $C^{4}$, and such that

[TABLE]

where the dot stands for the derivative with respect to $s$. The last condition means that the curve $\Gamma:s\mapsto(x(s),z(s))$ in the $xz$ plane is parametrized by its arc length measured from some reference point on the curve. Therefore the (signed) curvature $\kappa$ of $\Gamma$ is given by

[TABLE]

and the corresponding unit normal vector to $\Sigma$ is

[TABLE]

Let us stress that throughout the paper we assume that

[TABLE]

If we regard $\Sigma$ as a Riemannian manifold, then the metric induced by the immersion $\mathscr{L}_{0}$ is

[TABLE]

Let $a>0$ and $I:=(-1,1)$. We define the layer $\Omega$ of width $2a$ built over the surface $\Sigma$ as the image of

[TABLE]

see Fig. 3.

We will always assume that

[TABLE]

Under these conditions, $\mathscr{L}$ is a diffeomorphism onto $\Omega$ as one can see, e.g., from the formula for the metric $G$ on $\Omega$, induced by the immersion $\mathscr{L}$, that reads

[TABLE]

where $f_{a}(s,u):=1-au\kappa(s)$. The assumption (4) implies, in particular, that $f_{a}(s,u)>1-a\|\kappa\|_{\infty}>0$ holds for all $(s,u)\in\mathbb{R}\times I$.

Remark II.1**.**

Note that one can use $v=au\in(-a,a)$ as a natural transverse variable. The choice we made is suitable in situations when we want to discuss asymptotic properties of thin layers.

II.2 Dirichlet magnetic Laplacian

The main object of our interest is the magnetic Laplacian on $\Omega$ subject to the Dirichlet boundary condition,

[TABLE]

with a special choice of the vector potential, $A=(0,B_{0}x,0),\ B_{0}>0$, that corresponds to the homogeneous magnetic field $B=(0,0,B_{0})$. Using the unitary transform $\tilde{U}:\,L^{2}(\Omega,\mathrm{d}x\mathrm{d}y\mathrm{d}z)\to L^{2}({\mathord{\mathbb{R}}}^{2}\times I,\mathrm{d}\Omega)$, $\,\psi\mapsto\psi\circ\mathscr{L}$, we may identify $-\Delta_{D,A}^{\Omega}$ with the self-adjoint operator $\hat{H}$ defined, in the form sense, on $L^{2}({\mathord{\mathbb{R}}}^{2}\times I,\mathrm{d}\Omega)$ by

[TABLE]

where $\tilde{A}=(D\mathscr{L})^{T}A\circ\mathscr{L}=(0,\tilde{A}_{2},0)$ with

[TABLE]

By another unitary transform, $U:L^{2}({\mathord{\mathbb{R}}}^{2}\times I,\mathrm{d}\Omega)\to L^{2}({\mathord{\mathbb{R}}}^{2}\times I,\mathrm{d}\Sigma\mathrm{d}u)$, $\,\psi\mapsto a^{1/2}f_{a}^{1/2}\psi$, we pass to the unitarily equivalent operator defined, again in the form sense, as

[TABLE]

where

[TABLE]

These formulæ are easy to derive, see e.g. Ref. DuExKr_01, ; KrRaTu_15, or Ref. EK, , Sec. 1.1. Remark that we needed $C^{4}$–smoothness of $\Sigma$ to write $V$ down as an operator. Nevertheless, $\tilde{H}$ may be introduced via its quadratic form for any $C^{3}$ surface.

The translational invariance of $\Omega$ makes it possible to pass finally to still another unitarily equivalent form of the operator by means of the Fourier–Plancherel transform in the $y$ variable,

[TABLE]

which yields

[TABLE]

For a fixed $\xi\in{\mathord{\mathbb{R}}}$, we define

[TABLE]

which allows us to write our Hamiltonian in the form of a direct integral,

[TABLE]

where $\xi$ is the momentum of the motion in the $y$ direction. Note that since $\mathrm{d}\Sigma=\mathrm{d}s\wedge\mathrm{d}y$, the operator $H$ and its fiber $H[\xi]$ act in $L^{2}({\mathord{\mathbb{R}}}^{2}\times I,\mathrm{d}s\mathrm{d}\xi\mathrm{d}u)$ and $L^{2}({\mathord{\mathbb{R}}}\times I,\mathrm{d}s\mathrm{d}u)$, respectively.

III Absolute continuity of the magnetic Laplacian

As mentioned in the introduction we are interested in situations when the confinement causes a magnetic transport manifested through the absolute continuity of the spectrum. Our aim is to describe several classes of layers $\Omega$ for which the spectrum $-\Delta_{D,A}^{\Omega}$ is purely absolutely continuous. Since this operator is unitarily equivalent to the above described $H$ which in turn decomposes into a direct integral with fibers $H[\xi]$, by Ref. RS4, , Thm XIII.86, it is sufficient to prove that

1. (a)

the family $\{H[\xi]\mid\xi\in{\mathord{\mathbb{R}}}\}$ is analytic with respect to $\xi$ in the sense of Kato, 2. (b)

the resolvent of $H[\xi]$ is compact for any $\xi\in{\mathord{\mathbb{R}}}$, 3. (c)

no eigenvalue branch of $H[\xi]$ is constant in the variable $\xi$.

In the following subsections, we address consecutively each of these points.

Remark III.1**.**

In fact, to see that (a)–(c) are sufficient conditions for the absolute continuity of $H$, we have to modify Theorem XIII.86 in Ref. RS4, slightly. In particular, the variable $\xi$ in the direct integral (6) runs over a non-compact interval and the eigenvalue branches are not necessarily bounded. An alternative short proof is based on the main result of Ref. FiSo_06, which says that under (a) and (b), $\sigma_{sc}(H)=\emptyset$ and $\sigma_{p}(H)$ may consist of isolated points without finite accumulation point only, and moreover, each one of these eigenvalues is of infinite multiplicity.

Since there are no finite accumulation points in $\sigma_{p}(H)$ and $\sigma_{sc}(H)=\emptyset$, we have $\sigma(H)=\sigma_{p}(H)\cup\sigma_{ac}(H)$, and consequently, it remains to check that $\sigma_{p}(H)=\emptyset$. By Ref. RS4, , Thm XIII.85, $\lambda$ is an eigenvalue of $H$ if and only if $\mathrm{meas}_{1}\{\xi\in{\mathord{\mathbb{R}}}|\,\lambda\in\sigma_{p}(H[\xi])\}>0$, where $\mathrm{meas}_{1}$ stands for the one-dimensional Lebesgue measure. Since $H[\xi]$ has compact resolvent by (b) and it is unbounded but lower bounded, its spectrum consists of a sequence of eigenvalues of finite multiplicity which can accumulate only at $+\infty$. This together with (a) implies that there are countably many eigenvalue branches. Consequently, $\lambda\in\sigma_{p}(H)$ if and only if there is an eigenvalue branch, say $\lambda_{p}[\xi]$, such that $\mathrm{meas}_{1}\{\xi\in{\mathord{\mathbb{R}}}|\,\lambda_{p}[\xi]=\lambda\}>0$. By (a), the function $\lambda_{p}[\cdot]-\lambda$ is real analytic, and by (c), it is non-constant. This means that the equation $\lambda_{p}[\xi]=\lambda$ may have at most countable number of solutions and proves thus the claim.

III.1 Analyticity in $\xi$

For any $\xi_{0}\in{\mathord{\mathbb{R}}}$, we have in the form sense

[TABLE]

where the quadratic form $p_{\xi}$ is given by

[TABLE]

For any $\delta>0$, one easily gets from here

[TABLE]

where $V_{-}$ stands for the negative part of $V=:V_{+}-V_{-}$. If we assume that

[TABLE]

which is equivalent to the assumption that $V_{-}$ is relatively form bounded by $H[\xi_{0}]$, then $H[\xi]$ is lower bounded and $p_{\xi}$ is infinitesimally form bounded by $H[\xi_{0}]$. In combination with (7) this implies that $H[\xi]$ forms an analytic family of type (B), in particular, that $H[\xi]$ is an analytic family in the sense of Kato kato .

III.2 Compactness of the resolvent

Assume now, in addition, that

[TABLE]

Remark that under the second assumption, (8) is trivially satisfied. By Ref. RS4, , Thm XIII.64, the fiber $H[\xi]$ has compact resolvent if and only if the set

[TABLE]

is compact for all $b$. By (4) we have $f_{a}(s,u)\leq 1+a\|\kappa\|_{\infty}=:d$, and therefore

[TABLE]

Moreover, there exists clearly an $\tilde{s}$ such that for all $s:\,|s|\geq\tilde{s}$, we have

[TABLE]

If we introduce the constant

[TABLE]

then we can estimate $H[\xi]$ from below as follows,

[TABLE]

The operator $H_{-}$ on the right-hand side decomposes into a sum of a one-dimensional operator which has compact resolvent due to (9), cf. Ref. RS4, , Thm XIII.67, and the Dirichlet Laplacian on $I$. Hence, according to Ref. RS4, , Thm XIII.64, it has compact resolvent too. Consequently, $\mathscr{C}_{H_{-},b}$ is compact for any $b$. Clearly, $\mathscr{C}_{H[\xi],b}\subset\mathscr{C}_{H_{-},b+K+\|V_{-}\|_{\infty}}$, which means that $\mathscr{C}_{H[\xi],b}$ has to be precompact, but at the same time $\mathscr{C}_{H[\xi],b}$ is closed, cf. the proof of Theorem XIII.64 in Ref. RS4, , and thus compact.

III.3 Non-constancy of the eigenvalues

In the following section, we will study this property for several special but still rather wide classes of layers indicated in the introduction. Specifically, we will be concerned with the following cases:

1. (i)

a one-sided-fold layer: $\lim_{s\to\pm\infty}x(s)=+\infty$ or $\lim_{s\to\pm\infty}x(s)=-\infty$, 2. (ii)

a bent, asymptotically flat layer: $\dot{x}(s)=\alpha_{+}$ for all large enough positive $s$ and $\dot{x}(s)=\alpha_{-}$ for all large enough negative $s$, where $\alpha_{\pm}\in(0,1],\,\alpha_{+}\neq\alpha_{-}$, 3. (iii)

a thin non-planar layer: $a$ is sufficiently small.

Let us remark that there are basically two methods how to demonstrate non-constancy of the eigenvalues. The first relies on the Feynman-Hellmann formula that gives the derivative of an eigenvalue with respect to a parameter. It is useful in situations when the curvature is compactly supported. The other method is based on some type of a comparison argument that should give asymptotic behavior of the eigenvalues at $\pm\infty$. It is usually applied in situations when the curvature behaves differently at $\pm\infty$.

IV Special classes of layers

Recall that throughout the paper we assume (3) and (4). In this section, we will suppose that (9) (which in turn implies (8)) is always satisfied, too.

IV.1 One-sided-fold layer

For the sake of definiteness, assume that $\lim_{s\to\pm\infty}x(s)=+\infty$. Then

[TABLE]

holds for all $u\in I$. Using (2) we obtain $\tilde{A}_{2}(s,u)\geq B_{0}(x(s)-a)$. This in turn implies that $(\tilde{A}_{2})_{-}$ is compactly supported. For any $\xi>0$ we have

[TABLE]

and therefore

[TABLE]

The first three terms on the right-hand side are positive and for the remaining part, independent of $s$ and $u$, we have

[TABLE]

Thus to any $C>0$ there is a $\xi_{C}\in{\mathord{\mathbb{R}}}$ such that $H[\xi]>C$ holds for all $\xi>\xi_{C}$, and consequently, no eigenvalue branch may be constant as a function of $\xi$. This together with the general results of Sec. III.1 and III.2 means that the spectrum of $H$ is purely absolutely continuous. Due to unitary equivalence, the same holds true for $-\Delta_{D,A}^{\Omega}$.

IV.2 A digression: flat layers

Before proceeding further we are going to show that a mere rotation of the layer around an axis perpendicular to the magnetic field is not sufficient – with one notable exception – to produce a transport in the considered system. The decisive quantity is the tilt angle between the field direction and the layer.

IV.2.1 Inclined layer not parallel with the magnetic field

Let $\gamma$ stand for the angle between the magnetic field $B$ and the normal vector to the layer $n$. In the case of the unperturbed system, a planar layer with a perpendicular field ($\gamma=0$), it is straightforward to see by separation of variables in the cylindrical coordinates that the spectrum of $H$ is purely point. The same is true if $\dot{x}(s)=\cos{\gamma},\ \gamma\in(-\frac{\pi}{2},\frac{\pi}{2})\setminus\{0\},$ holds for all $s\in{\mathord{\mathbb{R}}}$. Indeed, each of the fiber operators

[TABLE]

is unitarily equivalent to $H[0]$, as one can verify employing a unitary transform $\psi(s,u)\mapsto\psi(s+\xi/(B_{0}\cos{\gamma}),u).$ Using then Ref. RS4, , Thm XIII.85, in combination with the fact that $H[0]$ has compact resolvent, we conclude that $\sigma(H)=\sigma_{p}(H)=\sigma(H[0])$ consists of infinitely degenerate eigenvalues.

For $\gamma=0$, this yields an alternative way to determine the spectral character in the unperturbed case by observing that

[TABLE]

decomposes then into the sum of the Hamiltonian of the harmonic oscillator with the origin shifted by $-\xi/B_{0}$ and the Dirichlet Hamiltonian on the line segment $I$. For its eigenpairs, $(\lambda_{m,n}[\xi],\psi_{m,n}[\xi])$, we have

[TABLE]

with

[TABLE]

where $H_{m}$ stands for the $m$th Hermite polynomial, and

[TABLE]

Here $m\in{\mathord{\mathbb{N}}}_{0},\,n\in{\mathord{\mathbb{N}}}$ and all the eigenfunctions are normalized to one in the respective Hilbert spaces.

Since $\lambda_{m,n}[\xi]$ is independent of $\xi$, all the eigenvalues of $H$ have infinite multiplicity. Let us ask about additional degeneracies, that is, about the multiplicity of eigenvalues of $H[\xi]$. Assume that $\lambda_{m,n}=\lambda_{\tilde{m},\tilde{n}}$ for some $m,\tilde{m}\in{\mathord{\mathbb{N}}}_{0}$ and $n,\tilde{n}\in{\mathord{\mathbb{N}}}$ such that $m\neq\tilde{m}$ and $n\neq\tilde{n}$. This means that

[TABLE]

where $\theta:=8B_{0}(a/\pi)^{2}$, which implies that $\theta$ is a positive rational, $\theta\in{\mathord{\mathbb{Q}}}_{+}$. Conversely, if this is the case then $\theta=p/q$, for some $p,q\in{\mathord{\mathbb{N}}}$, and the equation

[TABLE]

has an infinite number of solutions $\{m,\tilde{m},n,\tilde{n}\}\in{\mathord{\mathbb{N}}}_{0}^{2}\times{\mathord{\mathbb{N}}}^{2}$ satisfying

[TABLE]

in other words, every eigenvalue of $H[\xi]$ has infinite multiplicity.

On the other hand, in the case $\theta\in{\mathord{\mathbb{R}}}_{+}\setminus{\mathord{\mathbb{Q}}}$ the spectrum $H[\xi]$ is simple but it becomes ‘denser’ as the energy increases. In other words, the eigenvalue gaps have no positive lower bound. Indeed, by Dirichlet’s approximation theorem, for all $N\in{\mathord{\mathbb{N}}}$ there exist $p,q\in{\mathord{\mathbb{N}}}$ such that $q\leq N$ and $|q\theta-p|\leq(N+1)^{-1}$. We will be concerned about large values of $N$, so we may assume that $p\geq 3$. The equation (11) has a infinite number of solutions $\{m,\tilde{m},n,\tilde{n}\}\in{\mathord{\mathbb{N}}}_{0}^{2}\times{\mathord{\mathbb{N}}}^{2}$ satisfying

[TABLE]

For any of these solutions we obtain

[TABLE]

We infer that for any $\varepsilon>0$ there are infinitely many pairs of eigenvalues $\lambda_{m,n},\,\lambda_{\tilde{m},\tilde{n}}$ with the property that

[TABLE]

which proves our claim.

IV.2.2 Inclined layer parallel with the magnetic field

The situation changes when the tilted layer has the right angle with the original one becoming thus parallel to the field direction. Then we have $\gamma=\frac{\pi}{2}$, and therefore

[TABLE]

where

[TABLE]

and we decomposed $L^{2}({\mathord{\mathbb{R}}}\times I,\mathrm{d}s\mathrm{d}u)=L^{2}({\mathord{\mathbb{R}}},\mathrm{d}s)\otimes L^{2}(I,\mathrm{d}u)=:\mathscr{H}_{1}\otimes\mathscr{H}_{2}$. The other choice $\gamma=-\frac{\pi}{2}$ gives rise to a unitarily equivalent operator. Since $\sigma(T_{1})=\sigma_{ac}(T_{1})=[0,+\infty)$ and $T_{2}[\xi]$ has a positive simple pure point spectrum, $\sigma(H[\xi])=[\inf\sigma(T_{2}[\xi]),+\infty)$ for all $\xi\in{\mathord{\mathbb{R}}}$. Moreover according to Ref. Da_06, the absolute continuity of one of the operators in the decomposition (12) implies the absolute continuity of the full operator. Since Ref. Da_06, does not contain any proof of this claim nor any references to it, we decided to include the following simple reasoning.

Let $E_{1},\,E_{2}$, and $E$ be spectral families of the operators $T_{1},\,T_{2}[\xi]$ and $H[\xi]$, respectively. Then for all decomposable vectors $f_{1}\otimes f_{2}\in\mathscr{H}_{1}\otimes\mathscr{H}_{2}$ we have

[TABLE]

for the first equality we refer here to the proof of Theorem 8.34 in Ref. weidmann, . Using the Fubini theorem it is easy to check that the convolution of an absolutely continuous measure with another (Borel) measure is also absolutely continuous. Consequently, the absolutely continuous subspace of $\mathscr{H}_{1}\otimes\mathscr{H}_{2}$ contains all finite linear combinations of the decomposable vectors. However, these functions form a dense subspace, and moreover, the absolutely continuous subspace is always closed. This allows us to infer that $H[\xi]$ is purely absolutely continuous.

Let $(\mu_{n}[\xi],\varphi_{n}[\xi]),\,n\in{\mathord{\mathbb{N}}}$, denote the eigenpairs of $T_{2}[\xi]$, where the eigenvalues are numbered in the ascending order. Some important properties of the $\mu_{n}[\xi]$’s are reviewed in Ref. GeSe_97, . In particular, they are even and strictly increasing for $\xi>0$, thus they have the only stationary point at $\xi=0$. Since $\sigma(H[\xi])=[\mu_{1}[\xi],+\infty)$, $\sigma(H)=\sigma_{ac}(H)=[\mu_{1}[0],+\infty)$. Hence the bottom of $\sigma(H)$ is given by the first eigenvalue of the harmonic oscillator constrained to the line segment $I$. This question was addressed repeatedly in the literature, see e.g. Ref. De_66, , and it is easy to see that the answer is given by the smallest solution of the equation

[TABLE]

with respect to $\mu$. Here ${}_{1}F_{1}$ stands for the Kummer confluent hypergeometric function. If we denote this solution $\mu(B_{0},a)$, then $\mu(B_{0},a)=a^{-2}\mu(B_{0}a^{2},1)$, hence it is sufficient to inspect the dependence of $\mu$ on one of the parameters. The solution to the spectral condition (13) cannot be written in a closed form but can be found numerically, see Fig. 4. Moreover, using known asymptotic properties of the Kummer functions De_66 one can find the behavior of $\mu(B_{0},1)$,

[TABLE]

as $B_{0}\to 0$.

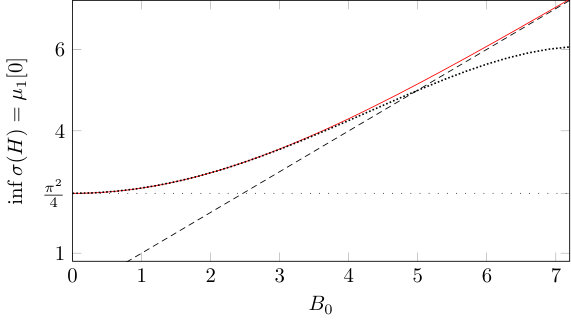

To derive the asymptotic behavior of $\mu(B_{0},1)$ for large values of $B_{0}$ we begin with the variational characterization of the lowest eigenvalue,

[TABLE]

Let $\psi_{0}$ be the ground state of the one-dimensional harmonic oscillator, see (10) for its explicit normalized form, then clearly

[TABLE]

If we put $\tilde{\psi}(u):=\psi_{0}(u)-\psi_{0}(1),\,u\in I,$ then $\tilde{\psi}\geq 0,\ \tilde{\psi}_{0}\in H_{0}^{1}(I)$ and

[TABLE]

Next, for any fixed $\delta\in(0,1)$ we have

[TABLE]

provided $B_{0}$ is sufficiently large. We conclude that, for any $\tilde{\delta}>0$,

[TABLE]

as $B_{0}\to+\infty$. Putting this together with (15) we arrive at the expansion

[TABLE]

valid as $B_{0}\to+\infty$.

In turn, $H$ is also purely absolutely continuous by Ref. RS4, , Thm XIII.85. The present situation is particular because $H$ is also invariant with respect to $s$-translations, i.e. in the $z$ direction. Using the partial Fourier–Plancherel transform in $s$, we find that $\tilde{H}$ is unitarily equivalent to the operator having the following direct integral decomposition

[TABLE]

The physical contents of this decomposition is obvious: $T[0]$ is a purely absolutely continuous operator describing the edge-state-induced transport in a two-dimensional Dirichlet strip due to the perpendicular magnetic field BrRaSo_07 ; GeSe_97 ; HiSo_08 , and so is $T[\eta]$. The difference between $T[\eta]$ and $T[0]$ which ‘adds’ to the absolute continuity of $H$ is the square of the momentum in the $z$ direction where the motion is free.

The decomposition (6) is also reflected in the unitary propagator for $H$ which is given by a direct integral of the unitary propagators for $H[\xi],\,\xi\in{\mathord{\mathbb{R}}}$. Since each $H[\xi]$ is separated, we have

[TABLE]

by Ref. weidmann, , Thm 8.35. In the $z$ direction the evolution governed by the propagator with the well-known kernel

[TABLE]

while the second propagator in the tensor product decomposition can be expressed in terms of the eigenpairs of $T_{2}[\xi]$ describing the edge states as

[TABLE]

The latter describes the well-known edge-current dynamics HiSo_08 , the additional degree of freedom is a free motion of the wavepackets in the $z$ direction having the usual properties, in particular, the spreading with time (BEH, , Sec. 9.3).

IV.3 Bent and asymptotically flat layers

Let us return now to geometrically nontrivial perturbations of the layer and assume they are localized at any fixed $y$ cut, i.e., that the layer is flat for $s$ outside a bounded interval $(\tilde{s}_{0},s_{0})$. Specifically, we suppose that $\dot{x}(s)=\alpha_{+}>0$ holds for all $s\geq s_{0}$ and $\dot{x}(s)=\alpha_{-}>0$ holds for all $s\leq\tilde{s}_{0}$. Due to (2), $\alpha_{\pm}\leq 1$ and we may put $\dot{z}(s)=\sqrt{1-\alpha_{+}^{2}}$ and $\dot{z}(s)=\sqrt{1-\alpha_{-}^{2}}$ for all $s\geq s_{0}$ and $s\leq\tilde{s}_{0}$, respectively. Here we have chosen the signs of $\dot{z}(s)$ outside $(\tilde{s}_{0},s_{0})$ just for definiteness – with other choices the considerations below would be exactly the same. Therefore, we have

[TABLE]

Note that the positivity of $\alpha_{\pm}$ means that we exclude the situation where the layer is asymptotically parallel with the magnetic field. With the future purpose in mind we also assume that $\alpha_{+}\neq\alpha_{-}$; without loss of generality we may suppose that $\alpha_{-}>\alpha_{+}$, since in the case $\alpha_{-}<\alpha_{+}$ it is sufficient to change the layer parametrization replacing $s$ by $-s$.

Let $s_{1}=s_{1}(\xi)$ be the unique solution of the equation

[TABLE]

It is straightforward to check that $\lim_{\xi\to-\infty}s_{1}(\xi)=+\infty$ and

[TABLE]

holds for all $s\geq s_{0}$. Consequently, the fiber $H[\xi]$ acts for all $s\geq s_{0}$ in the same way as the following positive operator,

[TABLE]

Next we introduce the unitary transform $U_{s_{1}}:\,\psi(s,u)\mapsto\psi(s-s_{1},u)$, then

[TABLE]

and $H_{+}[\xi]:=U_{s_{1}}^{-1}H[\xi]U_{s_{1}}$ acts as

[TABLE]

Lemma IV.1**.**

Let $s_{1}=s_{1}(\xi)$ be as above. Then, for all $\xi$ sufficiently negative, there exist constants $C_{\pm}(\xi)$ and $K_{\pm}\in{\mathord{\mathbb{R}}}$, the latter being independent of $\xi$, such that $0<C_{-}(\xi)<C_{+}(\xi)$,

[TABLE]

and the $C_{\pm}(\xi)$ have finite positive limits as $\xi\to-\infty$.

Proof.

For all $s<s_{0}-s_{1}$ we have

[TABLE]

Since $V$ is continuous and compactly supported, $\|V\|_{\infty}<+\infty$. Given $s\in{\mathord{\mathbb{R}}}$, put $f(s):=\xi+\tilde{A}_{2}(s+s_{1},0)$, then $f(0)=0$, $f(s)=B_{0}\alpha_{+}s$ on $(s_{0}-s_{1},+\infty)$, $f(s)=f(\tilde{s}_{0}-s_{1})+B_{0}\alpha_{-}(s-\tilde{s}_{0}+s_{1})$ on $(-\infty,\tilde{s}_{0}-s_{1})$, and $\sup_{s,s^{\prime}\in(\tilde{s}_{0}-s_{1},s_{0}-s_{1})}|f(s)-f(s^{\prime})|=\sup_{s,s^{\prime}\in(\tilde{s}_{0},s_{0})}|\tilde{A}_{2}(s,0)-\tilde{A}_{2}(s^{\prime},0)|<+\infty$. Hence for all $\xi$ large enough negative, i.e. for $s_{1}$ sufficiently large there exist $\tilde{C}_{\pm}=\tilde{C}_{\pm}(\xi)$ such that $0<\tilde{C}_{-}<\tilde{C}_{+}$ and $\tilde{C}_{+}s\leq f(s)\leq\tilde{C}_{-}s$ on $(-\infty,0)$. Moreover, since $\sup_{s\in{\mathord{\mathbb{R}}},u\in I}|\xi+\tilde{A}_{2}(s+s_{1},u)-f(s)|=\sup_{s\in{\mathord{\mathbb{R}}},u\in I}|\tilde{A}_{2}(s,u)-\tilde{A}_{2}(s,0)|<+\infty$, we conclude that for all $\xi$ sufficiently large negative there are $\hat{C}_{\pm}=\hat{C}_{\pm}(\xi)$ such that $0<\hat{C}_{-}<1<\hat{C}_{+}$, and

[TABLE]

holds on $(-\infty,s_{0}-s_{1})\times I$. A closer inspection shows that $\hat{C}_{\pm}$ may be chosen in such a way that

[TABLE]

holds as $\xi\to-\infty$. Now we can proceed with estimate (18),

[TABLE]

for all $s<s_{0}-s_{1}$. For $s\geq s_{0}-s_{1}$, this bound holds trivially, too. In a similar manner one can estimate $H_{+}[\xi]$ from below putting

[TABLE]

If $\xi$ is sufficiently large positive the argument is a simple modification of the above one. We define $\tilde{s}_{1}=\tilde{s}_{1}(\xi)$ as the unique solution of the equation

[TABLE]

Clearly, $\lim_{\xi\to+\infty}\tilde{s}_{1}(\xi)=-\infty$ and the operator $H_{-}[\xi]:=U_{\tilde{s}_{1}}^{-1}H[\xi]U_{\tilde{s}_{1}}$ acts as

[TABLE]

The operator pair $H_{-}[\xi]$ and $H_{\alpha_{-}}$ satisfies an estimate analogous to (17).

Now we are in position to prove an important convergence result.

Proposition IV.2**.**

Let $\mu>\|V_{-}\|_{\infty}$, then we have

[TABLE]

Proof.

It is sufficient to apply Theorem 2.3 of Ref. Tu_16, . To make the paper self-contained we reproduce this result here: let $\{A[\alpha]|\,\alpha\in(-\infty,+\infty]\}$ be a one parametric family of lower–bounded self-adjoint operators on $L^{2}(M)$, where $M\subset{\mathord{\mathbb{R}}}^{n}$ is open, with the following properties

1. (i)

$C_{0}^{\infty}(M)$ is a core of $A[\alpha]$ for all $\alpha\in(-\infty,+\infty]$. 2. (ii)

There exist $C>0$ and $K,\,\alpha_{0}\in{\mathord{\mathbb{R}}}$ such that, for all $\alpha\geq\alpha_{0}$, $CA[+\infty]+K\leq A[\alpha]$. 3. (iii)

For any compact set $\mathcal{K}\subset M$, there exists $\alpha_{\mathcal{K}}$ such that, for all $\alpha\geq\alpha_{\mathcal{K}}$, $A[\alpha]|_{C_{0}^{\infty}(\mathcal{K})}=A[+\infty]|_{C_{0}^{\infty}(\mathcal{K})}$. 4. (iv)

$A[+\infty]$ has compact resolvent.

Then, for any $z\in\mathrm{Res}(A[+\infty])$ and $\varepsilon>0$, there exists $\alpha_{z,\varepsilon}$ such that for all $\alpha>\alpha_{z,\varepsilon}$, $z\in\mathrm{Res}(A[\alpha])$ and

[TABLE]

To deal with the limit $\xi\to-\infty$ we put $\alpha=-\xi,\,M={\mathord{\mathbb{R}}}\times I,\,A[\alpha]=H_{+}[-\xi],$ and $A[+\infty]=H_{\alpha_{+}}$. The properties (i) and (ii) above are direct consequences of Lemma IV.1, (iii) is obvious from the definition of $H_{+}[\xi]$, and (iv) was proved in Sec. III.2. The limit $\xi\to+\infty$ is treated in a similar manner. ∎

Let us denote the eigenvalues of $H_{\alpha_{+}}$, arranged in the ascending order with the multiplicity taken into account, by $\sigma_{n}(\alpha_{+})\equiv\sigma_{n}(\alpha_{+},B_{0})$. Since the norm-resolvent convergence implies the convergence of eigenvalues, we see that in any neighborhood of $\sigma_{n}(\alpha_{+})$, there is exactly the same number of eigenvalues of $H[\xi]$ as is the multiplicity of $\sigma_{n}(\alpha_{+})$ in the spectrum of $H_{\alpha_{+}}$, provided $\xi$ is chosen sufficiently large negative. Similarly, in any neighborhood of $\sigma_{n}(\alpha_{-})$, there is exactly the same number of eigenvalues of $H[\xi]$ as is the multiplicity of $\sigma_{n}(\alpha_{-})$ in the spectrum of $H_{\alpha_{-}}$, provided $\xi$ is positive and sufficiently large. Moreover, if we fix $E>0$ then for all $\sigma_{n}(\alpha_{+})$ less than $E$ we may choose the said neighborhoods to be disjoint and to prove that in the remaining gaps there are no eigenvalues of $H[\xi]$ for all $\xi$ sufficiently large negative. Again, a similar statement holds true for large positive values of $\xi$.

In general, it may occur that the eigenvalue branches of $H[\xi]$ cross. It cannot happen, however, that a non-constant eigenvalue branch crosses a constant branch. In fact, if there is a constant eigenvalue branch then it has to be isolated from the rest of the spectrum, cf. Remark III.1 above. Hence it makes sense to denote it as $\lambda_{m}[\xi]$, since it is indeed the $m$th eigenvalue of $H[\xi]$, with the multiplicity taken into account, for some $m\in{\mathord{\mathbb{N}}}$ and all $\xi\in{\mathord{\mathbb{R}}}$. If it is independent of $\xi$ we would have $\lambda_{m}[\xi]=\sigma_{m}(\alpha_{+},B_{0})=\sigma_{m}(\alpha_{-},B_{0})$; our aim now is to find a sufficient condition under which this cannot happen.

To this aim, let us denote

[TABLE]

and fix an $\varepsilon>0$. Then, since

[TABLE]

we get the inequalities

[TABLE]

This allows us to infer that

[TABLE]

where $g(\alpha,\varepsilon):=\sqrt{\alpha^{2}+\alpha\sqrt{1-\alpha^{2}}\,\varepsilon}$.

With respect to the first terms on the right-hand sides of the above inequalities, recall that $\sigma_{m}(1,B)=\lambda_{\tilde{m},\tilde{n}}(B)=B(2\tilde{m}+1)+a^{-2}E_{\tilde{n}}$ for some $\tilde{m}\in{\mathord{\mathbb{N}}}_{0}$ and $\tilde{n}\in{\mathord{\mathbb{N}}}$, where

[TABLE]

Here, $E_{\tilde{n}}$ is the $\tilde{n}$th ‘transverse’ Dirichlet eigenvalue for $a=1$. Furthermore, note the monotonicity with respect to the field: if $B<\tilde{B}$, then

[TABLE]

holds for all $m\in{\mathord{\mathbb{N}}}$. This follows from the fact that we have

[TABLE]

for all $E>0$ and $n\in{\mathord{\mathbb{N}}}$, where $|\cdot|$ stands for the cardinality of a set. Now using the minimax principle we obtain

[TABLE]

Combining this with (20) we arrive at the following claim.

Lemma IV.3**.**

Let $\alpha_{-}>\alpha_{+}>0$ and

[TABLE]

Then we have $g(\alpha_{-},-\varepsilon)>g(\alpha_{+},\varepsilon)$ for all positive $\varepsilon<\varepsilon_{0}$. If, in addition,

[TABLE]

holds for some $\varepsilon<\varepsilon_{0}$, then $\sigma_{m}(\alpha_{+},B_{0})<\sigma_{m}(\alpha_{-},B_{0})$.

Remark IV.4**.**

One cannot maximize the threshold $a_{0}$ with respect to $\varepsilon\in(0,\varepsilon_{0})$ analytically. However, it is possible to find a closed-form estimate by maximizing a lower bound. First of all, note that $0\leq\alpha_{\pm}\sqrt{1-\alpha_{\pm}^{2}}\leq 1/2$ holds for all $\alpha_{\pm}\in(0,1]$. Hence $\varepsilon_{0}\geq\tilde{\varepsilon}_{0}:=\alpha_{-}^{2}-\alpha_{+}^{2}$, where $\tilde{\varepsilon}_{0}<1$, and

[TABLE]

for all $\varepsilon<\tilde{\varepsilon}_{0}$. The bound is maximal for $\varepsilon=(\alpha_{-}^{2}-\alpha_{+}^{2})/2<\tilde{\varepsilon}_{0}$, so we arrive at

[TABLE]

By a reductio ad absurdum we can thus make the following conclusion.

Proposition IV.5**.**

Under the assumptions of Lemma IV.3, there are no constant eigenvalue branches of $H[\xi]$. Therefore, the spectrum of $-\Delta_{D,A}^{\Omega}$ is purely absolutely continuous.

IV.4 Thin layers

The result of Sec. IV.3 involved already a restriction on the layer thickness possibly going beyond the assumption (4), the severity of which depended on how much the layer was ‘broken’. Now we will go further and look what sufficient condition can be derived if the layer is very thin.

To begin with, recall that it was proved in Ref. KrRaTu_15, that if, in addition to (3) and (4),

[TABLE]

then for any $k$ large enough,

[TABLE]

holds as $a\to 0+$, with

[TABLE]

acting on $L^{2}({\mathord{\mathbb{R}}}^{2},\mathrm{d}s\mathrm{d}y)$. Recall that $E_{1}$ is given by (19). Also remark that (3) combined with (21) yields $V\in L^{\infty}$, i.e., the second part of (9). Since we assume that the curvature $\kappa$ is bounded, $\tilde{h}_{\mathrm{eff}}$ is essentially self-adjoint on $C_{0}^{\infty}({\mathord{\mathbb{R}}}^{2})$ and self-adjoint on

[TABLE]

see Ref. LeSi_81, .

Remark IV.6** (Magnetic field).**

The vector potential in the operator $\tilde{h}_{\mathrm{eff}}$ is $\tilde{A}_{\mathrm{eff}}=(0,B_{0}x(s))$, and consequently,

[TABLE]

Using the partial Fourier–Plancherel transform in the $y$ variable, we turn the operator $\tilde{h}_{\mathrm{eff}}$ into

[TABLE]

It is self-adjoint on its definition domain,

[TABLE]

and decomposes into a direct integral,

[TABLE]

where the fiber is given by

[TABLE]

as an operator on $L^{2}({\mathord{\mathbb{R}}},\mathrm{d}s)$. Using Ref. KrRaTu_15, , Thm 6.3, we obtain further

[TABLE]

as $a\to 0+$, where $\tilde{H}_{0}$ is the ‘leading term’,

[TABLE]

and $k$ has to be, of course, chosen large enough. In view of the unitarity of the Fourier–Plancherel transform, this implies

[TABLE]

where $H_{0}$ is defined similarly as $\tilde{H}_{0}$ but now with the help of $h_{\mathrm{eff}}$. Since this operator also decomposes into a direct integral,

[TABLE]

we obtain the corresponding limiting relation for the fibers,

[TABLE]

as $a\to 0+$. This follows from the fact that $\|\int^{\oplus}_{M}A[\xi]\|=\operatorname*{ess\,sup}_{M}\|A[\xi]\|$, cf. Ref. RS4, , Thm XIII.83, which also implies, in particular, that the error term on the right-hand side of (22) is uniform in $\xi\in{\mathord{\mathbb{R}}}$.

Assume that the operator $h_{\mathrm{eff}}[\xi]$ has compact resolvent and all its eigenvalues are simple and analytic in $\xi$. This is fulfilled if, for instance, in addition to (3), which is sufficient for analyticity, we have $\underline{\dot{x}}_{\pm}>0$, which beside compactness of the resolvent assures simplicity of the spectrumTu_16 . Here we employ for the sake of brevity the notation

[TABLE]

for a given $f\in L^{\infty}({\mathord{\mathbb{R}}};{\mathord{\mathbb{R}}})$. We denote the eigenvalues of $h_{\mathrm{eff}}[\xi]$, arranged in the ascending order, as $\nu_{m}[\xi],\,m\in{\mathord{\mathbb{N}}}$. Assume that they are non-constant as functions of $\xi$.

Under the stated assumptions on $h_{\mathrm{eff}}[\xi]$, the spectrum of $H_{0}[\xi]-a^{-2}E_{1}$ consists of isolated eigenvalues

[TABLE]

By the minimax principle, $\nu_{m}[\xi]\geq-\frac{1}{4}\,\|\kappa^{2}\|_{\infty}$. We fix an energy value $E\in{\mathord{\mathbb{R}}}$ which we will refer to for brevity as threshold, then there exists an $a_{E}>0$ such that

[TABLE]

holds for all $a<a_{E}$. Consequently, for these values of $a$, the spectrum of $H_{0}[\xi]-a^{-2}E_{1}$ strictly below $E$ consists of the simple eigenvalues $\gamma_{m,1}[\xi]=\nu_{m}[\xi],\,m=1,2,\ldots,N[\xi]$, only. Note that $\max_{\xi\in{\mathord{\mathbb{R}}}}N[\xi]=:N_{E}<+\infty$.

There exist at least one compact interval $I_{E}$ and a $\delta_{E}>0$ such that $\nu_{N_{E}}[\xi]<E-3\delta_{E}$ holds for all $\xi\in I_{E}$, because $\nu_{N_{E}}[\xi]$ is by assumption non-constant and analytic. For a fixed $m=1,\ldots,N_{E}$ we can then construct a tubular neighborhood $\mathcal{T}_{m}(\delta):=\{\nu_{m}[\xi]+t|\>\xi\in I_{m},\,t\in(-\delta,\delta)\}$ with $\delta<\min\{\delta_{E},\tilde{\delta}_{E}\}$, where

[TABLE]

is strictly positive. Furthermore, one can find an $\tilde{a}_{E}\in(0,a_{E})$ such that for all $a<\tilde{a}_{E}$ there is exactly one eigenvalue branch of $H-a^{-2}E_{1}$ passing through each of the neighborhoods $\mathcal{T}_{m}(\delta)$, $m=1,\ldots,N_{E}$. Since $\nu_{m}[\xi]$ are non-constant, these eigenvalue branches must be non-constant as well, if we choose $\delta$ and consequently also $\tilde{a}_{E}$ small enough.

Assume that there is a constant eigenvalue branch of $H-a^{-2}E_{1}$ below $E-\delta_{E}$. Then it must be, in particular, constant in the interval $I_{E}$, and thus it could not intersect with any of $\mathcal{T}_{m}(\delta)$, provided we chose $\delta$ and $a$ as above. Moreover, by an easy perturbation theory consideration there are no eigenvalues of $H[\xi]-a^{-2}E_{1}$ in the remaining gaps whenever $a$ is small enough. From this we can conclude that for any fixed threshold $E$, all the eigenvalue branches of $H$ that lie (at least partially) below $E+a^{-2}E_{1}$ are non-constant provided the layer halfwidth $a$ is sufficiently small.

In the argument above, it was crucial that all the $\nu_{m}$’s were non-constant as functions of $\xi$. A sufficient condition for this may be found in Ref. Tu_16, ,

[TABLE]

(Alternatively, one can change the $\pm$ indices to $\mp$ everywhere in (23).) One can think, e.g., about a layer that is asymptotically flat with different magnitudes of the asymptotic slopes at $x=\pm\infty$.

Now, we are going to derive another condition for non-constancy of $\nu_{m}$’s. Let us assume that, in addition to (3),

[TABLE]

It is convenient to write $x(s)=s+r(s)$, where $r(s)=\theta(s)r(s)$ with $\theta$ being the Heaviside step function. Clearly, $r(s)\leq 0$ and it is not identically zero. Note that this includes any perturbation of the planar layer that is compact in the $x$ direction, since without loss of generality we may always suppose that such a perturbation is supported to the right of the origin. (See Fig. 5 for examples.)

We have

[TABLE]

For any $\xi\geq 0$, $h_{\mathrm{eff}}[\xi]$ is thus a non-positive perturbation of the shifted harmonic oscillator Hamiltonian $h_{\text{HO}}[\xi]$. Let us estimate the eigenvalue $\nu_{m}[0]$.

Let $\psi_{j}$ be the $j$th eigenfunction of the harmonic oscillator Hamiltonian $h_{\text{HO}}[0]$ given by (10) and $S_{m}:=\text{span}\{\psi_{j}|\>j=1,\ldots,m\}$; note that every function in $S_{m}$ is real analytic on ${\mathord{\mathbb{R}}}$. Now, by the minimax principle,

[TABLE]

The last term on the right-hand side is negative, because the sub-integral function is non-positive everywhere and strictly negative on some interval, and the maximum of the integral is attained for some $\psi_{\text{max}}\in S_{m}$. Indeed, if the maximum was zero then $\psi_{\text{max}}$ would be zero on the mentioned interval, and therefore due to the analyticity it would vanish on ${\mathord{\mathbb{R}}}$, which is a contradiction. We conclude that the sharp inequality $\nu_{m}[0]<B_{0}(2m+1)$ holds for all $m\in{\mathord{\mathbb{N}}}$.

On the other hand, we have $\lim_{\xi\to+\infty}\nu_{m}[\xi]=B_{0}(2m+1)$. To prove this claim we start with the unitary transform $U_{\xi}:\psi(s)\mapsto\psi(s-\xi/B_{0})$ and introduce

[TABLE]

and put $\hat{h}_{\mathrm{eff}}[+\infty]:=h_{\text{HO}}[0]$. Now we may apply the result of Ref. Tu_16, , Thm 2.3, which we have reproduced here as a part of the proof of Proposition IV.2, to the family $\{\hat{h}_{\mathrm{eff}}[\xi]|\>\xi\in(-\infty,+\infty]\}$. Let us focus on the assumption (ii) of the theorem. For all $s$ sufficiently large we have $\dot{x}(s)>\frac{1}{2}\underline{\dot{x}}_{+}$, and consequently, there is a $\xi_{0}>0$ such that for all $\xi>\xi_{0}$ and $s>0$,

[TABLE]

Using this estimate on the interval $(\xi/B_{0},+\infty)$, we obtain

[TABLE]

The remaining assumptions are easy to verify. This makes it possible to infer that

[TABLE]

which in turn implies that $\lim_{\xi\to+\infty}\nu_{m}[\xi]$ is just the $m$th eigenvalue of $h_{\text{HO}}[0]$. Our findings are summarized in the following claim.

Proposition IV.7**.**

Let the assumptions (3), (4), and (21) hold together with either (23) or (24). Then to any $E\in{\mathord{\mathbb{R}}}$ one can find an $a_{E}>0$ such that no eigenvalue branch of the total Hamiltonian $H$ that lies at least partially below $E+a^{-2}E_{1}$ can be constant as a function of $\xi$ whenever $a<a_{E}$.

Corollary IV.8**.**

Under the assumptions of Proposition IV.7, for any $E\in{\mathord{\mathbb{R}}}$ there exists $a_{E}>0$ such that if $a<a_{E}$ then the spectral measure of $-\Delta_{D,A}^{\Omega}$ on $(-\infty,E+a^{-2}E_{1})$ is purely absolutely continuous, i.e., the spectrum of $-\Delta_{D,A}^{\Omega}$ below $E+a^{-2}E_{1}$ is absolutely continuous. (Note that without shifting $E$ by $a^{-2}E_{1}$ the result would be void because $\inf\sigma(-\Delta_{D,A}^{\Omega})=a^{-2}E_{1}+\mathcal{O}(1)$ as $a\to 0+$.)

Remark IV.9**.**

Let us stress that, in Proposition IV.7, instead of (23) or (24) one could impose any other condition that would imply that at least those eigenvalues of $h_{\mathrm{eff}}[\xi]$ which lie below $E$ are not constant as functions of $\xi$.

V An extension of the Iwatsuka model

While our main interest concerns magnetic transport in the Dirichlet layers, the considerations at the end of Sec. IV.4, in particular, the decomposition of the type (25) can be in combination with the minimax principle applied also to the classic Iwatsuka model. We start with the two-dimensional Hamiltonian

[TABLE]

where

[TABLE]

Fix a $B_{0}>0$ and assume that $B(t)=B_{0}(1+b(t))$ with

1. (i)

$b\in L^{2}_{\text{loc}}({\mathord{\mathbb{R}}})$, 2. (ii)

$b(t)=0$ for all $t<0$, 3. (iii)

$\int_{0}^{x}b(t)\mathrm{d}t\leq 0$ holds for all $x\geq 0$, 4. (iv)

there are $\alpha\in(-1,0)$, $x_{1}\geq 0$ such that $\int_{0}^{x}b(t)\mathrm{d}t>\alpha x$ holds for all $x\geq x_{1}$.

The potential $W\in L^{\infty}({\mathord{\mathbb{R}}})\cap C({\mathord{\mathbb{R}}})$ is such that $W(x)=\theta(x)W(x)\leq 0$. Under the stated integrability assumptions on $b$ and $W$, the operator $h_{\mathrm{Iw}}$ is essentially self-adjoint on $C_{0}^{\infty}({\mathord{\mathbb{R}}}^{2})$LeSi_81 .

Theorem V.1**.**

Adopt the above assumptions together with $b\not\equiv 0\vee W\not\equiv 0$, then $h_{\mathrm{Iw}}$ is purely absolutely continuous.

Proof.

As in the seminal paper of Iwatsuka Iw_85 we start with a direct integral decomposition into fiber operators

[TABLE]

on $L^{2}({\mathord{\mathbb{R}}},\mathrm{d}x)$. In the same manner as in Ref. Tu_16, we show that $h_{\mathrm{Iw}}[\xi]$ has compact resolvent and all its eigenvalues numbered in the ascending order as $\lambda_{m}[\xi],\,m\in{\mathord{\mathbb{N}}},$ are simple and analytic on ${\mathord{\mathbb{R}}}$ as functions of $\xi$. To prove the absolute continuity of $h_{\mathrm{Iw}}$ it suffices to demonstrate that no $\lambda_{m}[\cdot]$ is constant. We have

[TABLE]

where $h_{\text{HO}}[\xi]$ was introduced in $\eqref{eq:HO_pert_decomp}$ and

[TABLE]

Note that $r(x)$ is in view of (i) (absolutely) continuous. Using (iv), we find

[TABLE]

for all $x\geq 0$, where $R:=\min_{x\in[0,x_{1}]}r(x)\leq 0$. Hence, if we set $\xi=-\frac{1}{2}\,B_{0}R$ then $2\xi+B_{0}(2x+r(x))=B_{0}(2x+r(x)-R)\geq 0$ holds for all $x\geq 0$. Taking the non-positivity of $r$ and $W$ into the account, we conclude that the second term in (28) is also non-positive. Moreover, the assumption $b\not\equiv 0\vee W\not\equiv 0$ implies that it is strictly negative on some interval.

Mimicking the estimates in (26) with $S_{m}$ being the span of first $m$ eigenfunctions of $h_{\text{HO}}[-B_{0}R/2]$, we arrive at $\lambda_{m}[-B_{0}R/2]<B_{0}(2m+1)$. Due to (iv), the second assumption of Theorem 2.3 in Ref. Tu_16, is fulfilled which finally implies that $\lim_{\xi\to+\infty}\lambda_{m}[\xi]=B_{0}(2m+1)$. ∎

Let us recall that the family of magnetic fields considered above has a non-empty intersection with all the families studied earlier in Ref. Iw_85, ; MaPu_97, ; ExKo_00, ; Tu_16, which, with the exception of the last one, treat the original Iwatsuka model, $W\equiv 0$. Hence we obtain a nontrivial extension of the known results, with notably weak regularity assumptions comparing to the other sources. Note also the assumption (iii) crucial for the use of the minimax principle does not mean that the perturbation $b$ of the constant magnetic field must be everywhere negative; it may be sign-changing and negative on a compact set only.

Acknowledgments

The research has been partially supported by the Czech Science Foundation (GAČR) within the project No. 17-01706S.
