Nucleon Charges from 2+1+1-flavor HISQ and 2+1-flavor clover lattices

TL;DR

This paper presents high-precision calculations of nucleon charges using advanced lattice QCD techniques on multiple ensembles, achieving controlled excited-state contamination and reliable continuum and chiral extrapolations.

Contribution

The study introduces a combined analysis of 2+1+1-flavor HISQ and 2+1-flavor clover lattices with high statistics and improved methods for excited-state control, providing precise nucleon charge estimates.

Findings

Consistent nucleon charge results across different lattice ensembles.

Effective use of truncated solver and coherent source techniques for high statistics.

Controlled excited-state contamination with multi-state fits.

Abstract

Precise estimates of the nucleon charges $g_A$, $g_S$ and $g_T$ are needed in many phenomenological analyses of SM and BSM physics. In this talk, we present results from two sets of calculations using clover fermions on 9 ensembles of 2+1+1-flavor HISQ and 4 ensembles of 2+1-flavor clover lattices. We show that high statistics can be obtained cost-effectively using the truncated solver method with bias correction and the coherent source sequential propagator technique. By performing simulations at 4--5 values of the source-sink separation $t_{\rm sep}$, we demonstrate control over excited-state contamination using 2- and 3-state fits. Using the high-precision 2+1+1-flavor data, we perform a simultaneous fit in $a$, $M_\pi$ and $M_\pi L$ to obtain our final results for the charges.

Figures

Tables

Table 1. Table 1 : Summary of the ensembles used in the clover-on-HISQ study. For the a06m130 ensemble, preliminary results on form factors only were presented by Y-P Jang at this conference.

Ensemble ID	$a$ (fm)	$M_{\pi }^{\mathrm{sea}}$ (MeV)	$M_{\pi }^{\mathrm{val}}$ (MeV)	$L^3\times T$	$M_{\pi }^{\mathrm{val}}L$	$N_{\text{conf}}$	$N_{\mathrm{meas}}^{\mathrm{HP}}$	$N_{\mathrm{meas}}^{\mathrm{AMA}}$
a12m310	0.1207(11)	305.3(4)	310(3)	${24}^3\times 64$	4.55	1013	8104	64832
a12m220S	0.1202(12)	218.1(4)	225(2)	${24}^3\times 64$	3.29	1000	24000
a12m220	0.1184(10)	216.9(2)	228(2)	${32}^3\times 64$	4.38	958	7664
a12m220L	0.1189(9)	217.0(2)	228(2)	${40}^3\times 64$	5.49	1010	8080	68680
a09m310	0.0888(8)	312.7(6)	313(3)	${32}^3\times 96$	4.51	881	7048
a09m220	0.0872(7)	220.3(2)	226(2)	${48}^3\times 96$	4.79	890	7120
a09m130	0.0871(6)	128.2(1)	138(1)	${64}^3\times 96$	3.90	883	7064	84768
a06m310	0.0582(4)	319.3(5)	320(2)	${48}^3\times 144$	4.52	1000	8000	64000
a06m220	0.0578(4)	229.2(4)	235(2)	${64}^3\times 144$	4.41	650	2600	41600
a06m135	0.0568(1)	135.5(2)	136(2)	${96}^3\times 192$	3.74	229	1145	36640

Table 2. Table 2 : Summary of the ensembles used in the clover-on-HISQ study. Here M π sea = M π val superscript subscript 𝑀 𝜋 sea superscript subscript 𝑀 𝜋 val M_{\pi}^{\rm sea}=M_{\pi}^{\rm val}

Ensemble ID	$a$ (fm)	$M_{\pi }^{\mathrm{sea}}$ (MeV)	$L^3\times T$	$M_{\pi }^{\mathrm{val}}L$	$N_{\text{conf}}$	$N_{\mathrm{meas}}^{\mathrm{HP}}$	$N_{\mathrm{meas}}^{\mathrm{AMA}}$
a127m285	0.127(2)	285(3)	${32}^3\times 96$	5.85	1000	4020	128480
a094m280	0.094(1)	278(3)	${32}^3\times 64$	4.11	1005	3015	96480
a091m170	0.091(1)	166(2)	${48}^3\times 96$	3.7	629	2516	80512
a091m170L	0.091(1)	172(6)	${64}^3\times 128$	5.08	467	2335	74720

Equations

$$C^{\text{imp}}=\frac{1}{N_{\text{LP}}}\sum _{i=1}^{N_{\text{LP}}}{C}_{\text{LP}}({\mathbf{x}}_i^{\text{LP}})+\frac{1}{N_{\text{HP}}}\sum _{i=1}^{N_{\text{HP}}}\left[C_{\text{HP}}({\mathbf{x}}_i^{\text{HP}})-C_{\text{LP}}({\mathbf{x}}_i^{\text{HP}})\right],$$

$$C^{\text{2pt}}(t_f,t_i)=$$

$$C_{\Gamma }^{\text{3pt}}(t_f,\tau ,t_i)=$$

$${\mathcal{A}}_0{\mathcal{A}}_1^{\ast }⟨0|{\mathcal{O}}_{\Gamma }|1⟩e^{-M_0(\tau -t_i)}{e}^{-M_1(t_f-\tau )}+{\mathcal{A}}_0^{\ast }{\mathcal{A}}_1⟨1|{\mathcal{O}}_{\Gamma }|0⟩e^{-M_1(\tau -t_i)}{e}^{-M_0(t_f-\tau )},$$

$$g_{A,T}(a,M_{\pi },L)$$

$$g_S(a,M_{\pi },L)$$

$$g_A^{u-d}=1.195(33)(20);g_S^{u-d}=0.97(12)(6);g_A^{u-d}=0.987(51)(20).$$

$$(M_N-M_P{)}^{\mathrm{QCD}}=g_S^{u-d}(m_d-m_u)/g_V^{u-d}=2.59(49)\mathrm{MeV}.$$

$$g_T^u=0.792(42);g_T^d=-0.194(14);g_T^s=0.007(8).$$

Full text

1 Introduction

In this talk, we highlight three areas in which significant progress has been made to extract matrix elements of quark bilinear operators within nucleon states. (i) cost-effective increase of statistics using the truncated solver method with bias correction and the coherent source sequential propagator technique; (ii) inclusion of up to 4-states (3-states) in the analysis of 2-point (3-point) correlation functions; and (iii) a simultaneous fit in $a$, $M_{\pi}$ and $M_{\pi}L$ to data at different $a$, $M_{\pi}$ and $L$ to get the physical value. The results presented here are based on Refs. [10, 3, 11]. A summary of the lattice ensembles used and measurements made in the clover-on-HISQ study is given in Table 1 and in the clover-on-clover study in Table 2. Associated results for the isovector form factors: $G_{E}(q^{2})$, $G_{M}(q^{2})$,$G_{A}(q^{2})$, and $G_{S}^{s}(Q^{2})$ were presented by Yong-Chull Jang at this conference [8].

2 Increasing Statisitics Cost-effectively

The various systematic uncertainties in the calculation of matrix elements (ME) of local quark bilinear operators within nucleon states are at the 5% level [3]. In order to isolate, understand and address these systematics, one needs data with statistical errors that are significantly smaller. To reduce statistical errors, one needs to make measurements on significant numbers of decorrelated lattices that adequately importance sample the phase space of the path integral. We have found the following three techniques to be cost-effective ways of reducing the statistical errors.

Lattices with $M_{\pi}L\geq 4$ can be regarded as consisting of a large number of uncorrelated regions, i.e., measurements of nucleon correlation functions in different sub-regions are statistically uncorrelated. Since the generation of lattices with dynamical fermions is expensive, one should assess the dimensions of these sub-regions. For ME within nucleon states we find that $O(100)$ measurements per lattice of size $M_{\pi}L=4$ are cost-effective [10]. Furthermore, choosing the source points randomly within these sub-regions of a lattice and between lattices reduces correlations.

Computer time can be reduced significantly by using the coherent source sequential propagator method [10]. For example, if $N_{\rm meas}$ measurements on a given lattice are done in a single computer job, then the number of quark propagators that need to be calculated using coherent sources reduces to $N_{\rm meas}+2$ from $N_{\rm meas}+2\times N_{\rm meas}$ in the standard approach.

Lastly, in a given measurement, one has the freedom to choose the precision with which quark propagators are calculated. The truncated solver method [1] with bias correction [5] significantly reduces the computational time. In Ref. [3], we show that a stopping residue $r_{\rm LP}\equiv|{\rm residue}|_{\rm LP}/|{\rm source}|=10^{-3}$ reduces cost by a factor of about 17 compared to $r_{\rm HP}=10^{-10}$. Possible bias is corrected for using

[TABLE]

where $C_{\text{LP}}$ and $C_{\text{HP}}$ are the 2- and 3-point correlation functions calculated in low- (LP) and high-precision (HP), respectively, and $\mathbf{x}_{i}^{\text{LP}}$ and $\mathbf{x}_{i}^{\text{HP}}$ are the two kinds of source positions. Bias, given by the second term, if present, was much smaller than the statistical errors. Speedup is achieved because we need 1 HP and LP measurement for bias correction for every 32 LP used for statisitcs.

3 Reducing Systematic Uncertainties

The above techniques allowed us to make, on each ensemble, $O(10^{5})$ measurements on $O(1000)$ lattices. In these measurements of 2- and 3-point correlation functions, two systematics need to be addressed in order to extract the charges, form factors, and other ME: removing excited-state contamination (ESC) and precise determination of the renormalization factor connecting the lattice operator to some phenomenological scheme such as the $\overline{\text{MS}}$ scheme at $\mu=2\mathop{\rm GeV}\nolimits$.

ESC arises because typical interpolating operators used to create and annihilate meson and baryon states on the lattice couple to the ground state, all its excitations and multiparticle states with the same quantum numbers. Thus, contributions of all higher states have to be removed to obtain the desired ME within the ground state. The behavior of the 2- and 3-point correlation functions, given by the spectral decomposition, has contributions from a tower of intermediate states in terms of unknown amplitudes ${\cal A}_{i}$, energies $M_{i}$ and ME $\langle f|\mathcal{O}_{\Gamma}|i\rangle$ that are extracted from fits. Formally, the ground state ME $\langle 0|\mathcal{O}_{\Gamma}|0\rangle$ can be obtained by calculating the 3-point functions with very large source-sink separation $\mathop{t_{\rm sep}}\nolimits$. For baryons, the signal in 2- and 3-point function degrades exponentially, and for values of $\mathop{t_{\rm sep}}\nolimits$ accessible with $O(10^{5})$ measurements, the ESC is found to be significant. Thus, methods to miminize ESC in calculations with 1\raisebox{-3.01385pt}{\stackrel{{\scriptstyle\textstyle<}}{{\sim}} }\mathop{t_{\rm sep}}\nolimits\raisebox{-3.01385pt}{\stackrel{{\scriptstyle\textstyle<}}{{\sim}} }1.5 fm are needed.

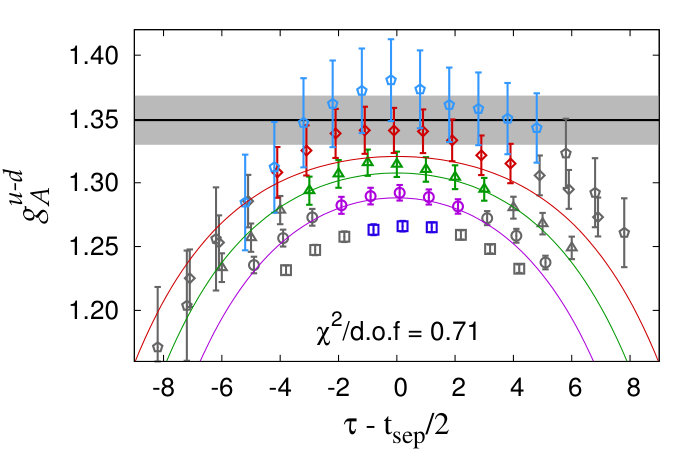

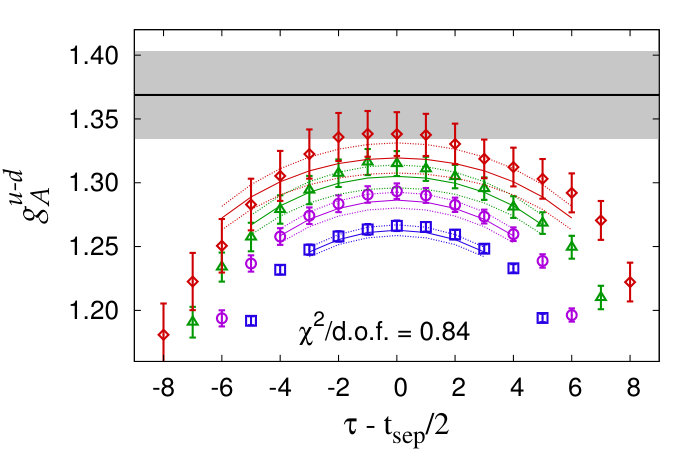

We demonstrate control over ESC by (i) constructing the interpolating operators using tuned smeared sources in the generation of the quark propagators; (ii) performing the calculation at multiple values of $\mathop{t_{\rm sep}}\nolimits$; (iii) inserting the operator at all intermediate timeslices $\tau$ between the source and sink; (iv) analyzing the 2- and 3-point correlators by including increasing number of intermediate states. For example, the 2-state truncation of the zero-momentum correlation functions is

[TABLE]

where $\tau$ is the operator insertion time and $t_{f}-t_{i}=t_{\text{sep}}$ in the 3-point function calculation. The states $|0\rangle$ and $|1\rangle$ represent the ground and “first excited” nucleon states, respectively. In 2-state analysis, the four parameters, $M_{0}$, $M_{1}$, ${\cal A}_{0}$ and ${\cal A}_{1}$ are estimated first from fits to the 2-point data and then used as input in fits to 3-point functions to obtain the three ME $\langle 0|\mathcal{O}_{\Gamma}|0\rangle$, $\langle 0|\mathcal{O}_{\Gamma}|1\rangle$ and $\langle 1|\mathcal{O}_{\Gamma}|1\rangle$. The estimate of the charge $g_{\Gamma}=\langle 0|\mathcal{O}_{\Gamma}|0\rangle$ improves with number of $\mathop{t_{\rm sep}}\nolimits$, the precision of the data, and the number of states included in the fits. We find that with $O(10^{5})$ measurements, fits with 4 states (3 states) to the 2-point (3 point) functions with full covariance matrix can be made. Stable and consistent estimates of the charges in the $\mathop{t_{\rm sep}\to\infty}\nolimits$ limit are obtained using data with 4–5 values of $\mathop{t_{\rm sep}}\nolimits$ in the range 1–1.5 fm. A comparison of the 2- and 3-state fits, and the consistency of the $\mathop{t_{\rm sep}\to\infty}\nolimits$ value obtained for the isovector axial charge $g_{A}^{u-d}$ is illustrated in Fig. 1.

Results for the various ME are then renormalized by multiplicative factors $Z_{\Gamma}$ calculated using the RI-sMOM scheme as discussed in Ref. [3]. Errors in the ME and $Z_{\Gamma}$ are combined in quadratures. This gives us a set of renomalized lattice estimates as functions of $a$, $M_{\pi}$ and $M_{\pi}L$.

4 Simultaneous fit in $a$, $M_{\pi}$ and $M_{\pi}L$

With the renormalized estimates, calculated as functions of $a$, $M_{\pi}$ and $M_{\pi}L$, in hand, results in the limit $a\to 0$, $M_{\pi}=135$ MeV and $M_{\pi}L\to\infty$, are obtained using a simultaneous fit in the three variables. With the current 9 clover-on-HISQ data points, fits are sensitive to only the lowest order correction terms  [3]:

[TABLE]

Adding next order terms such as chiral logs did not improve the fits (based on the Akaike Information Criteria) and their coefficients were poorly determined. Variation in estimates on including chiral logs were, nevertheless, used to obtain first estimates of the possible systematic uncertainty due to using the lowest order fit ansatz. Our final fits using Eqs. (3)and (4) are shown in Fig. 2.

The Clover-on-clover esimates on 4 ensembles are consistent with those from clover-on-HISQ at similar values of the lattice parameters. To perform analogous fits to obtain results at $a\to 0$ and $M_{\pi}=135$ MeV, clover-on-clover calculations are being extended to additional values of $a$ and $M_{\pi}$.

5 Results: Nucleon Charges to quark EDM

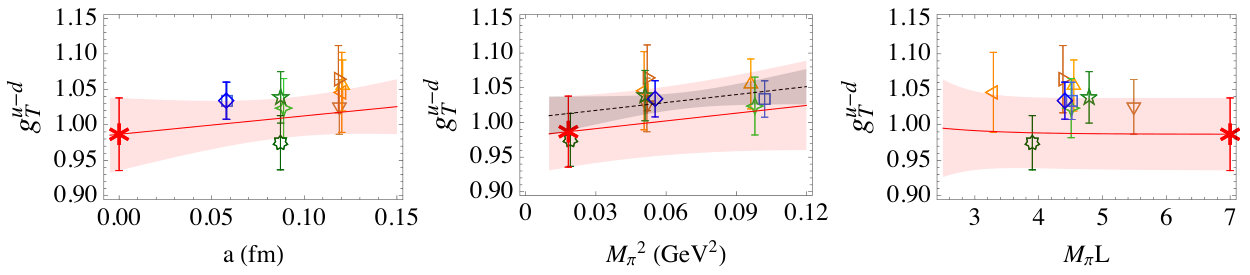

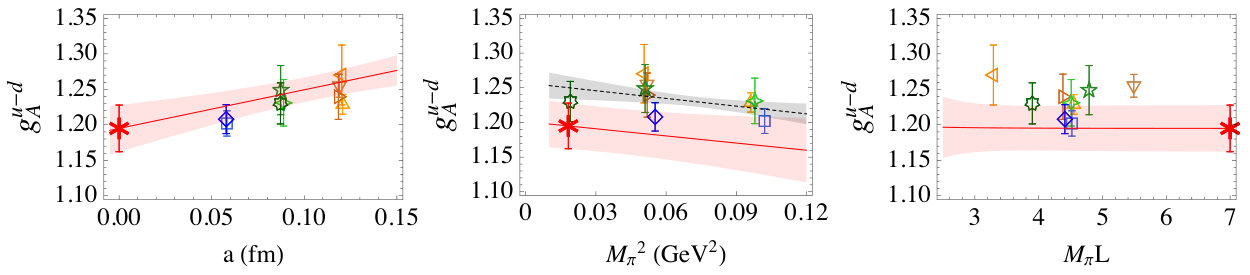

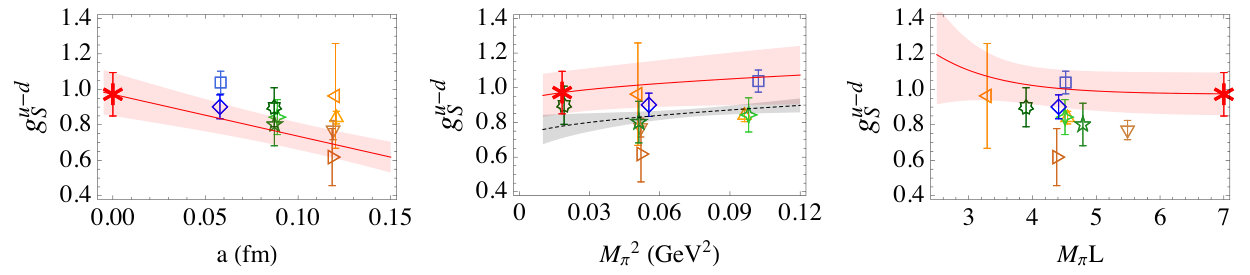

(I) Our results for the isovector nucleon charges, using the simultaneous fit ansatz defined in Eqs. (3) and (4) to the 9 clover-on-HISQ data points, are shown in Fig. 2 and give [3]

[TABLE]

(II) Using the conserved vector current relation $\partial_{\mu}({\overline{d}}\gamma_{\mu}u)=(m_{d}-m_{u}){\overline{d}}u$, lattice estimates of $m_{d}-m_{u}=2.67(35)$ given by FLAG [9], and our result for $g_{S}^{u-d}/g_{V}^{u-d}$ we obtain

[TABLE]

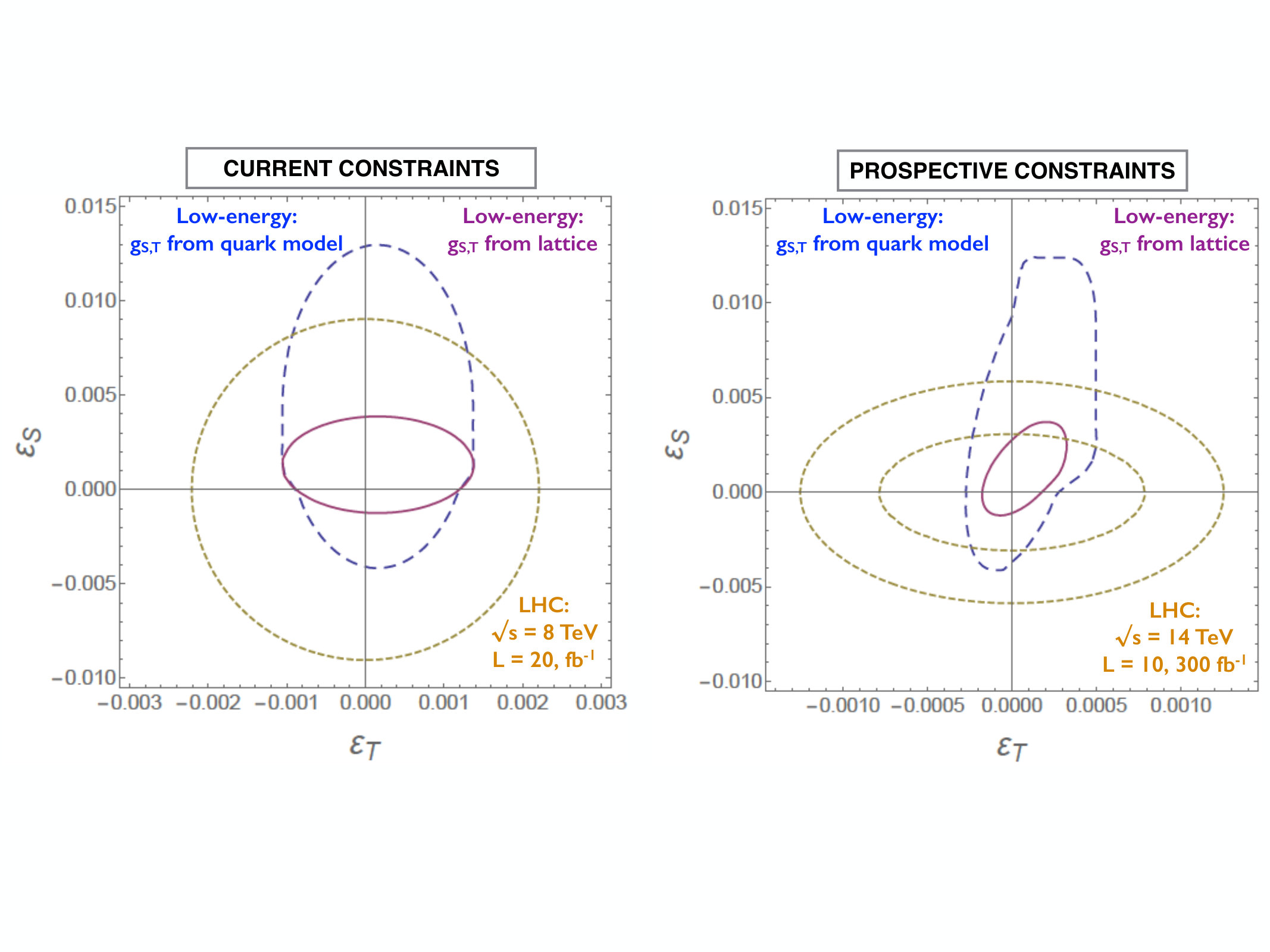

(III) Constraints on novel scalar and tensor couplings, $\epsilon_{S}$ and $\epsilon_{T}$, at the TeV scale using low-energy experiments and our $g_{S}^{u-d}$ and $g_{T}^{u-d}$ are derived and compared with those from the LHC in Fig. 3.

(IV) The leading opertors in a low-energy effective theory that contribute to the neutron electric dipole moment (nEDM) are the $\Theta$-term, the quark EDM operator and the quark chromo EDM operators. The ME of the quark EDM operator, same as the flavor diagonal tensor charges $g_{T}^{u,d,s}$, are determined to be [2]

[TABLE]

In these estimates, the disconnected contributions to $g_{T}^{u}$ and $g_{T}^{d}$ have been neglected as they were $O(1\%)$ (smaller than the quoted errors) and poorly determined. Using these results and the experimental bound on the neutron EDM, we performed a first analysis of constraints on possible quark EDM couplings generated at the TeV scale and implications for a split SUSY model in Ref. [2, 4].

6 Conclusions and Outlook

Our goal is to calculate the charges and the form factors with $O(1\%)$ uncertainty on each ensemble and obtain results in the $a\to 0$, $M_{\pi}=135$ MeV limit with a total error of $2\%$. This will require simulations with $O(10^{6})$ measurements at 4–5 values of the lattice spacing and on multiple values of the light quark masses close to the physical pion mass. To achieve this goal over the next 5–10 years will require further improvements in algorithms for generating lattices, physics analysis, and the calculation of renormalization factors. Work towards these three goals is ongoing.
