Obliquity evolution of the minor satellites of Pluto and Charon

TL;DR

This study investigates the obliquity evolution of Pluto's small satellites using simulations, revealing that mean motion resonances and past orbital migrations could explain their high obliquities, which are not solely due to tidal effects.

Contribution

It introduces a novel simulation approach combining a damped mass-spring model with N-body dynamics to analyze obliquity evolution of circumbinary satellites.

Findings

Tidal dissipation alone does not cause large obliquity variations.

Mean motion resonance interactions can induce high obliquities.

Past orbital migration likely contributed to current obliquity states.

Abstract

New Horizons mission observations show that the small satellites Styx, Nix, Kerberos and Hydra, of the Pluto-Charon system, have not tidally spun-down to near synchronous spin states and have high obliquities with respect to their orbit about the Pluto-Charon binary (Weaver et al. 2016). We use a damped mass-spring model within an N-body simulation to study spin and obliquity evolution for single spinning non-round bodies in circumbinary orbit. Simulations with tidal dissipation alone do not show strong obliquity variations from tidally induced spin-orbit resonance crossing and this we attribute to the high satellite spin rates and low orbital eccentricities. However, a tidally evolving Styx exhibits intermittent obliquity variations and episodes of tumbling. During a previous epoch where Charon migrated away from Pluto, the minor satellites could have been trapped in orbital mean motion inclination resonances. An outward migrating Charon induces large variations in Nix and Styx's obliquities. The cause is a commensurability between the mean motion resonance frequency and the spin precession rate of the spinning body. As the minor satellites are near mean motion resonances, this mechanism could have lifted the obliquities of all four minor satellites. The high obliquities need not be primordial if the minor satellites were at one time captured into mean motion resonances.

Figures

Tables

Table 1. Table 1: Pluto-Charon binary

$G{M}_{PC}$	$975.5\pm 1.5$ km3 s-2
$G{M}_C$	$105.88\pm 1.0$ km3 s-2
$M_C/M_P$	0.12
${\mu }_{PC}/M_{PC}$	0.0967
$P_C$	6.3872 days
$a_C$	19596 km
${\mu }_B{a}_C^2/m_{PC}$	$3.715\times {10}^7$ km2

Table 2. Table 2: Pluto and Charon’s minor satellites

	Styx	Nix	Kerberos	Hydra
Size (km)	$16\times 9\times 8$	$50\times 35\times 33$	$19\times 10\times 9$	$65\times 45\times 25$
Body axis ratio $b/a$	0.56	0.70	0.53	0.69
Body axis ratio $c/a$	0.50	0.66	0.47	0.38
Volumetric Radius $R_v$(km)	5.2	19.3	6.0	20.9
Orbital period $P_o$ (days)	$20.16155\pm 0.00027$	$24.85463\pm 0.00003$	$32.16756\pm 0.00014$	$38.20177\pm 0.00003$
Orbital Semi-major axis $a_o$ (km)	42,656	48,694	57,783	64,738
Spin period $P_s$ (days)	$3.24\pm 0.07$	$1.829\pm 0.009$	$5.31\pm 0.10$	$0.4295\pm 0.0008$
Period ratio $P_o/P_s$	6.2	13.6	6.06	88.8
Period ratio $P_C/P_s$	1.97	3.49	1.20	14.9
Period ratio $P_o/P_C$	3.1566	3.8913	5.0363	5.9810
Obliquity ${ϵ}_B$ (deg)	91	123	96	110
Spin $w$	0.0424	0.0752	0.026	0.320
Mass ratio $M/M_{PC}$	$1\times {10}^{-7}$	$3\times {10}^{-6}$	$8\times {10}^{-7}$	$4\times {10}^{-6}$
$e_g$ (GPa)	$3.2\times {10}^{-5}$	$4.5\times {10}^{-4}$	$4.3\times {10}^{-5}$	$5.2\times {10}^{-4}$
Love number $k_2$	$3\times {10}^{-7}$	$4\times {10}^{-6}$	$4\times {10}^{-7}$	$5\times {10}^{-6}$
${\log }_{10}{t}_{despin}$ (yr)	12.7	11.6	14.4	12.2
${\log }_{10}{t}_{wobble}$ (yr)	10.5	8.0	12.2	5.4
Asphericity $\alpha$	1.25	1.01	1.30	1.03
Oblateness parameter $q_{eff}$	0.31	0.21	0.33	0.40
Binary quad ratio $\left({\mu }_{PC}/M_{PC}\right){\left(a_B/a_o\right)}^2$	0.0204	0.0157	0.0111	0.0089

Table 3. Table 3: Common simulation parameters

Binary mass	$M_B$	${10}^6$
Time step	$dt$	0.004
Simulation outputs	$t_{print}$	100
Total integration time	$T_{int}$	1 –$3\times {10}^6$
Minimum particle spacing	$d_I$	0.47
Maximum spring length	$d_s$	$2.55d_I$
Spring constant	$k_s$	0.05
Number of particles	$N$	$\sim 40$
Number of springs	$N_S$	$\sim 375$
Young’s modulus	$E/e_g$	$\sim 0.6$

Table 4. Table 4: Simulation parameters for each simulated satellite

Simulated satellite		Styx	Nix	Kerberos
Body axis ratio	$b/a$	0.56	0.70	0.53
Body axis ratio	$c/a$	0.47	0.67	0.47
initial spin	$w_{init}$	0.5	0.72	0.5
Initial orbital semi-major axis	$a_o$	600	830	600
Initial mean motion	$n_o$	0.068	0.042	0.068
Initial orbital period	$P_{o,init}$	93.0	151.1	92.7

Table 5. Table 5: Parameters for simulations with tidal dissipation alone

Simulation name		Styx-t1	Styx-t2	Styx-t3	Styx-t4	Nix-t1	Nix-t2	Ker-t1	Ker-t2
Spring damping rate	${\gamma }_s$	0.01	0.01	0.01	0.01	0.1	0.1	0.01	0.1
Tidal frequency	$\overline{\chi }$	0.002	0.002	0.002	0.002	0.04	0.04	0.002	0.02
Initial binary semi-major axis	$a_B$	290	290	185	305	340	326	206	206
Binary mass ratio	$q_B$	0.12	${10}^{-9}$	1	0.12	0.12	0.12	0.12	0.12

Table 6. Table 6: Parameters for simulations with a migrating binary

Simulation name		Styx-b1	Styx-b2	Nix-b1	Nix-b2
Spring damping rate	${\gamma }_s$	0.001	0.001	0.1	0.1
Tidal frequency	$\overline{\chi }$	$2\times {10}^{-4}$	$2\times {10}^{-4}$	0.04	0.04
Initial obliquity	${ϵ}_{init}$	$5^{\circ }$	${20}^{\circ }$	$5^{\circ }$	${20}^{\circ }$
Initial binary semi-major axis	$a_B$	275	275	324	324

Equations

$$T=\frac{3}{2a_o}G{M}_{\ast }^2\frac{R^5}{a_o^5}{k}_2({\sigma }_t)\sin {ϵ}_2({\sigma }_t)$$

$$k_2=\frac{3/2}{1+\tilde{\mu }}$$

$$\tilde{\mu }=\frac{19\mu \ast }{2\rho gR}=\frac{38\pi }{3}\frac{\mu \ast }{e_g}$$

$$e_g\equiv \frac{G{M}^2}{R^4}=1.2\mathrm{GPa}{\left(\frac{R}{1000\mathrm{km}}\right)}^2{\left(\frac{\rho }{1{\mathrm{g}\mathrm{cm}}^{-3}}\right)}^2$$

$$k_2\approx 0.038\frac{e_g}{\mu \ast }.$$

$$t_{despin}\approx \frac{I{w}_{init}{a}_o}{3G{M}_{\ast }^2}{\left(\frac{a_o}{R}\right)}^5\frac{Q}{k_2}$$

$$\frac{t_{despin}}{P_o}\approx \frac{1}{15\pi }{\left(\frac{M}{M_{\ast }}\right)}^{\frac{3}{2}}{\left(\frac{a_o}{R}\right)}^{\frac{9}{2}}\frac{Q}{k_2},$$

$$t_g$$

$$t_{wobble}\approx \frac{3GCQ}{w_{init}^3{k}_2{R}^5}$$

$$t_{wobble}/t_{despin}\approx 9(n_o/w_{init}{)}^4$$

$$\alpha \equiv \sqrt{3(B-A)/C}$$

$$\alpha =\sqrt{\frac{3(a^2-b^2)}{a^2+b^2}}=\sqrt{\frac{3(1-(b/a{)}^2)}{1+(b/a{)}^2}}.$$

$${\dot{\Omega }}_s\approx -\frac{S}{w}\cos {ϵ}_o,$$

$$S\equiv \frac{3}{2}{n}_o^2\frac{C-(A+B)/2}{C}.$$

$$q_{eff}\equiv \frac{C-(A+B)/2}{C}=\frac{(1+(b/a{)}^2)/2-(c/a{)}^2}{1+(b/a{)}^2}$$

$$\frac{{\dot{\Omega }}_s}{n_o}\approx -\frac{3}{2}{q}_{eff}\frac{n_o}{w}\cos {ϵ}_o\approx -\frac{3}{2}{q}_{eff}\frac{P_s}{P_o}\cos {ϵ}_o$$

$$J_2^{eff,B}=\frac{1}{2}\frac{{\mu }_B}{M_B}$$

$$n$$

$${\dot{\Omega }}_o$$

$${\dot{\varpi }}_o$$

$$n_o\equiv \sqrt{\frac{G{M}_B}{a_o^3}}.$$

$$w=n_o+\frac{k_B}{2}(n_B-n_o)$$

$${\varphi }_{o2}=3{\lambda }_o-{\lambda }_B-2{\Omega }_o$$

$$\frac{P_o}{P_B}\sim 3-2\frac{{\dot{\Omega }}_o}{n_o}.$$

$$\frac{d^2\gamma }{d{t}^2}+\frac{n_o^2{\alpha }^2}{2}\sum _{p}H(p,e)\sin (2\gamma )=T$$

$${\omega }_{so,p}=n_o\alpha \sqrt{H(p,e)}.$$

$$w-n_o=\frac{k_B}{2}(n_B-n)$$

$${\omega }_{sb,k_B=2}$$

$${\omega }_{sb,k_B=3}$$

$${\omega }_{sb,k_B}\approx \sqrt{\frac{{\mu }_B}{M_B}}{\left(\frac{a_B}{a_o}\right)}^{\frac{k_B}{2}}{n}_o\alpha .$$

$$\frac{\dot{\phi }}{w}\sim \frac{I_{\parallel }}{I_{\perp }}$$

$$\frac{\dot{\phi }}{w}\sim \frac{2C}{A+B}.$$

Full text

1 Introduction

The five satellites of Pluto are Charon, Styx, Nix, Kerberos, and Hydra, in order of distance from Pluto (Weaver et al., 2006; Showalter et al., 2011, 2012). The satellite system is nearly coplanar with orbital periods near ratios of 1:3:4:5:6, but sufficiently distinct from integer ratios relative to Charon’s orbital period that the small satellites are not presently in mean-motion resonances with Charon (e.g., Buie et al. 2013). As the masses of Pluto and Charon vastly exceed the masses of the other satellites, we refer to Pluto and Charon as a binary (following Stern 1992) and Styx, Nix, Kerberos and Hydra as minor satellites of the Pluto-Charon binary.

Over 1–10 Myr, tidal evolution should have synchronized the rotation of Pluto and Charon and then circularized their orbit, expanding the binary to its present separation (Farinella et al., 1979). Tidal evolution of Pluto-Charon would lead to capture of the minor satellites into mean motion orbital resonances. However numerical integrations have shown that this often causes such wide-scale dynamical instability that resonant transport (migration) of minor satellites to their current location probably did not take place (Cheung et al., 2014). Alternatively the smaller satellites could have formed from a circumbinary disk, and after the formation of the Pluto-Charon binary (Lithwick & Wu, 2008; Kenyon & Bromley, 2014).

Prior to the arrival of the New Horizons mission at Pluto, Showalter & Hamilton (2015) explored possible spin states for the minor satellites. They speculated that the minor satellites would have tidally spun down and so would be slowly spinning, with angular spin rate $w$ a similar size as the orbital mean motion $n_{o}$. Showalter & Hamilton (2015) speculated that the minor satellites would be chaotically wobbling or tumbling due to instability associated with spin-orbit resonances (Colombo, 1965; Goldreich & Peale, 1966; Wisdom et al., 1984; Celletti, 1990; Melnikov & Shevchenko, 2010) (resonances where $2w$ is a multiple of $n_{o}$). Showalter & Hamilton (2015) also suggested that perturbations from Charon could affect the rotation state of the minor satellites, contributing to chaotic tumbling, in analogy to how an orbital resonance between Titan and Hyperion could affect the rotational state of Hyperion. A dynamical mechanism for the chaotic behavior was proposed by Correia et al. (2015) who showed that for slowly spinning satellites, spin-binary resonances from Charon’s periodic perturbations are sufficiently strong to cause chaotic tumbling. However, New Horizons observations showed that the low mass satellites are spinning faster than considered by Showalter & Hamilton (2015); Correia et al. (2015), with angular spin rates $w\ga 6n_{o}$, many times greater than their orbital mean motions, implying that despinning due to tidal dissipation has not taken place (Weaver et al., 2016). At higher spin states, spin-orbit and spin-binary resonances may not be as strong, so chaotically tumbling is not assured.

1.1 Obliquities

The obliquity is the angle between the spin vector of satellite and its orbit normal. For the four minor satellites, Weaver et al. (2016) measured the angle between minor satellite spin vector and the orbit normal of the Pluto-Charon binary and at low orbital inclination this angle is equal to the obliquity. Weaver et al. (2016) found that all four minor satellites have obliquities near 90 degrees, with spin vector lying nearly in their orbital planes.

Are the high obliquities surprising? If the minor satellites have not tidally spun-down then tidal evolution may not have varied their obliquities. The high obliquities could be primordial and acquired during formation. The minor satellite orbital inclinations and eccentricities are all low, with all inclinations below 0.5∘ and eccentricities all below that of Hydra at 0.00554 (Brozovic et al., 2015). The low orbital inclinations and eccentricities suggest that the minor satellites were formed in situ, in a circumbinary disk. Postulated is minor satellite formation in ring of debris comprised of material ejected during the impact that formed the Pluto-Charon binary (see Kenyon & Bromley 2014).

Perhaps we can compare the obliquities of Pluto and Charon’s minor satellites with other satellites that have high spin rates. Among satellites with known rotation states Melnikov & Shevchenko (2010) found only seven rapidly rotating satellites, with periods less than a day. All of them are irregular satellites, with a possible exception of Nereid (Sheppard et al., 2006). Peale (1977) showed that irregular satellites should reside close to their initial (and rapid) rotation states. We make the distinction between regular and irregular satellites as an irregular satellite can be a captured object whereas a regular satellite could be formed in a circum-planetary disk. We would expect the primordial spin of a captured object to be randomly oriented whereas a regular satellite, like a planet, could be formed at zero obliquity (we will discuss this assumption for Pluto and Charon’s minor satellites below). Nereid with eccentricity 0.75 has a low inclination ($7^{\circ}$ with respect to Neptune’s Laplace plane). However, a multiple year photometric study of Nereid’s light curve (Shaefer et al., 2008) suggests that the rotation rate is not as fast as originally measured (at 0.48 days; Grav et al. 2003) but could be much slower and the body could be tumbling. Even if Nereid was originally a regular satellite, it may not currently be rapidly spinning.

The majority of regular planetary satellites with known rotation states rotate synchronously. The remaining regular satellites with known rotation states are tumbling with spin similar in magnitude (within a factor of a few) as the orbital mean motion (Peale, 1977; Melnikov & Shevchenko, 2010). Thus the solar system lacks rapidly spinning regular satellites. Placed in this context the minor satellites of Pluto and Charon are unique (though see Hastings et al. 2016 on Haumea’s satellites). Styx, Nix, Kerberos and Hydra are similar to regular satellites of planets as they have low eccentricities and inclinations, yet their spin periods are much shorter than their orbital periods and so they can be considered rapid rotators (as classified by Melnikov & Shevchenko 2010).

What primordial obliquity distribution is predicted for Pluto and Charon’s minor satellites? A proto-planet that forms in a disk via accretion of gas and small planetesimals is expected to form at low obliquity (Lissauer & Kary, 1991; Johansen & Lacerda, 2010). However, if planets accrete at late stages from a distribution of massive non-interacting planetesimals, their obliquity distribution can be consistent random spin orientations (Dones & Tremaine, 1993; Kokubo & Ida, 2007). The low inclinations and eccentricities of Pluto and Charon’s minor satellites and inferred epoch of radial migration suggest that a circumbinary ring of small particles was present after minor satellite formation (Kenyon & Bromley, 2014) and implying that some fraction of accreted material incorporated into these satellites originated from low mass particles. We cannot rule out the possibility that the primordial spin states were randomly oriented, but neither is this assured.

We consider the possibility that four randomly oriented spinning bodies have obliquity distribution similar to Pluto and Charon’s minor satellites. Weaver et al. (2016) measured obliquities of $\epsilon=$ 91, 123, 96, 110∘ for Styx, Nix, Kerberos and Hydra, respectively, with an estimated error of $\pm 10^{\circ}$. The probability distribution for randomly oriented spin directions peaks at an obliquity of $90^{\circ}$ and obeys probability distribution $P(\epsilon)=\frac{1}{2}\sin\epsilon$. All four obliquities are within an equatorial band $\epsilon\in[90,123]$. Integrating the probability distribution between the two boundaries gives a probability of $0.5\cos 123^{\circ}=0.272$. The probability that 4 randomly oriented objects are all found in this same band is $P\sim 0.272^{4}=0.0055$. In an ensemble of 1000 systems of four randomly oriented minor satellites only 6 systems would have all four satellite obliquities in the band between 90 and 123∘. Pluto and Charon’s minor satellites are a single system so this is not a meaningful statistical result. Nonetheless the low probability does motivate study of mechanisms for tilting the spin axes after formation, away from their primordial values.

1.2 Evolution of spin states

As a satellite despins due to tidal dissipation, it may be captured in spin-orbit resonant states (Colombo, 1965; Goldreich & Peale, 1966; Peale, 1977; Wisdom et al., 1984; Celletti, 2010). However a body that is only very slowly spinning down due to tidal dissipation could cross spin-orbit resonances or spin-binary resonances if there is a drift in the satellite’s semi-major axis, known as ‘orbital migration’. Attitude instability, leading to obliquity variations and chaotic behavior, is common within spin-orbit resonance (Wisdom et al., 1984; Melnikov & Shevchenko, 2008, 2010) and expected in spin-binary resonance (Correia et al., 2015). There may be a connection between the minor satellite obliquities and previous episodes of spin-orbit or spin-binary resonance crossing or capture.

External to spin-orbit resonance, tidal dissipation causes a spherical body initially at low obliquity and $w/n_{o}\ga 6$ to slowly increase in obliquity (Goldreich & Peale, 1970; Ward, 1975; Gladman et al., 1996), unless the viscoelastic relaxation timescale and eccentricity are both high (Boué et al., 2016). However, the obliquity drift rate due to tidal dissipation is slower than but a similar size as the tidal spin-down rate (Goldreich & Peale, 1970). Our numerical integrations have confirmed that this remains true for elongated non-spherical bodies. If the minor satellites have not spun down, then neither should their obliquities have approached $90^{\circ}$. As long as minor satellite primordial obliquities were not all near $90^{\circ}$, then it is unlikely that the current near $90^{\circ}$ minor satellite obliquities in the Pluto-Charon system are due to tidal secular (non-resonant) obliquity evolution alone.

With near integer orbital period ratios between satellites, the Pluto-Charon satellite system is near orbital mean motion resonances and may have crossed or been captured into these resonances in the past. Migration could have take place due to tidal evolution of Pluto and Charon but also due to interactions with a previous and now absent circumbinary disk (Lithwick & Wu, 2008; Cheung et al., 2014; Kenyon & Bromley, 2014). The minor satellites themselves could have been embedded in a disk and migrated by driving spiral density waves into the disk. Inwards or outwards migration could have taken place (e.g., Lubow & Ida 2010).

Planetary orbits have small inclinations and undergo precession (a rate of change of the longitude of the ascending node) due to mutual planet/planet gravitational perturbations. A similarity in a body’s spin precession rate and a precession rate of its orbit or the orbit of a perturber can cause obliquity variations, (Ward & Hamilton, 2004; Correia et al., 2016), a mechanism described as ‘secular spin-orbit resonance’. Secular spin-orbit resonant mechanisms may have operated in the Pluto-Charon system. Capture in a mean motion resonance with the Pluto-Charon binary can lift the orbital inclination of a minor satellite and perturb its orbital precession frequencies. The obliquities of the minor satellites could have been influenced by past proximity or capture in the mean motion resonances.

To investigate these mechanisms and their possible role in influencing the obliquities of Pluto and Charon’s minor satellites we carry out a numerical study of the spin and obliquity evolution of a non-spherical body in orbit about a binary system. Because of their simplicity and speed, compared to more computationally intensive grid-based or finite element methods, mass-spring computations are an attractive method for simulating deformable bodies. By including spring damping forces they can model viscoelastic tidal deformation. We previously used a mass-spring model to study tidal encounters (Quillen et al., 2016a), measure tidal spin down for spherical bodies over a range of viscoelastic relaxation timescales (Frouard et al., 2016), and spin-down of triaxial bodies spinning about a principal body axis aligned with the orbit normal (Quillen et al., 2016b). Here we use the same type of simulations to study longer timescale obliquity and spin evolution. Like Mardling & Lin (2002); Boué & Laskar (2009), we compute torques on spinning bodies that are in orbit about point masses. Rather than averaging over body shape or orbit, we can take into account viscous dissipation in the extended simulated body directly (using our damped springs). The four minor satellites are not round so we simulate bodies with body axis ratios based on observed and measured values. For other simulation techniques integrating orbits and body rotation see Showalter & Hamilton (2015); Correia et al. (2015, 2016); Hou et al. (2016); Boué (2017).

Before we begin our numerical study we tabulate and estimate parameters for Pluto and Charon and their minor satellites. We reexamine estimates for the tidally induced spin-down time, then estimate the wobble decay time and an asphericity parameter used to characterize the strength or libration frequency of spin-orbit resonances. We also compute precession frequencies for the spin axis and the orbital longitude of the ascending node. These parameters will help us interpret our simulations. Our simulations are described in section 3. Simulations with tidal dissipation alone are described in section 4 and those allowing the binary to drift in section 5. A possible mechanism for lifting the minor satellite obliquities (from initially low values) is identified from the simulations and discussed further in our final section 6.

2 Parameters, time-scales and frequencies

2.1 Tidal spin-down times

Spin-down timescales are often computed for spherical bodies in orbit about a single mass. We start with a spherical body of radius $R$, mass $M$ in orbit with orbital semi-major axis $a_{o}$ about a body of mass $M_{*}$. We use $a_{o}$ to denote orbital semi-major axis and $a$ to denote body semi-major axis. After discussing the tidal spin-down timescales for a spherical body in orbit about a point mass, we will consider non-spherical bodies described by the radius of the equivalent volume sphere, $R_{v}$, and in orbit about a binary rather than single mass.

The secular part of the semi-diurnal ($l=2$) term in the Fourier expansion of the perturbing potential (e.g., see the appendix by Frouard et al. 2016) gives a tidally induced torque on the spherical body

[TABLE]

(also see Kaula 1964; Goldreich 1963; Goldreich & Peale 1968; Murray & Dermott 1999; Efroimsky & Makarov 2013), with $G$ the gravitational constant. Here the tidal frequency $\sigma_{t}=2(n_{o}-\dot{\vartheta})=2(n_{o}-w)$ where $n_{o}$ is the orbital mean motion. When spinning about a principal axis, with spin axis perpendicular to the orbital plane and $\vartheta$ giving the orientation angle of principal body axis in the orbital plane, the angular spin of the body $\dot{\vartheta}=w$. The quality function is $k_{2}(\sigma_{t})\sin(\epsilon_{2}(\sigma_{t}))$ and is often approximated as $2k_{2}/Q$ with $Q$ a tidal dissipation factor (e.g., Kaula 1964) and $k_{2}$ a Love number.

The Love number for an incompressible homogeneous elastic body

[TABLE]

with

[TABLE]

(Murray & Dermott, 1999; Burns, 1977) where $\rho$ is the mean density, $g=GM/R^{2}$ is the gravitational acceleration at the surface, and $\mu*$ is the elastic shear modulus or rigidity. We use

[TABLE]

for a unit of central pressure or gravitational energy density. It is common to estimate $\mu*\approx 4\times 10^{9}{\rm N\ m}^{-2}=4~{}{\rm GPa}$ for icy bodies (e.g., see Nimmo & Schenk 2006; Murray & Dermott 1999). Inserting equation 3 into equation 2 for a small icy body ($R<1000$ km; $\tilde{\mu}>1$) gives

[TABLE]

The spin-down time can be estimated from the body’s moment of inertia, $I$, and an initial spin $w_{init}$ giving $t_{despin}\sim Iw_{init}/T$ or

[TABLE]

(see equation 9 by Gladman et al. 1996; Peale 1977). Using the moment of inertia for a spherical body, $I=\frac{2}{5}MR^{2}$, and setting the initial spin to be that of centrifugal breakup $w_{init}=\sqrt{GM/R^{3}}$, the spin-down time

[TABLE]

where $P_{o}$ is the orbital period. Here the spin-down time is estimated for a spherical body with prograde spin axis perpendicular to the orbit plane.

To approximate the spin down times for non-spherical bodies, we replace the body radius with the radius of the equivalent volume sphere, $R_{v}$ (see Quillen et al. 2016b). It is convenient to define a gravitational timescale

[TABLE]

Following Quillen et al. (2016b) our parameter $e_{g}$ (equation 4) for non-spherical bodies has radius $R$ replaced by $R_{v}$.

To estimate spin down times for objects in orbit about a binary rather than single mass, we replace $M$ with $M_{B}$, the total mass of the binary. The orbital semi-major axis $a_{o}$ of the spinning body is computed with respect to the center of mass of the binary (see Figure 1) and using the total binary mass. It can be called an osculating orbital element (Renner & Sicardy, 2006). The osculating mean motion $n_{o}\equiv\sqrt{GM_{B}/a_{o}^{3}}$.

We tabulate properties of the Pluto-Charon binary in Table 1. Values for the binary or Charon’s period, $P_{C}$, binary or Charon’s semi-major axis, $a_{C}$, mass of the binary, Charon to Pluto mass ratio, and binary reduced mass are based on those measured by Brozovic et al. (2015).

In Table 2 we list properties of the the 4 minor satellites of the Pluto-Charon system based on measurements by Showalter & Hamilton (2015) and improved measurements by Weaver et al. (2016). The radii of the equivalent volume spheres, $R_{v}$ are listed, and these we compute using the body axis diameters from Table 2 by Weaver et al. (2016). The spin angular rotation rates, $w$, are computed from the spin periods and are given in units of $t_{g}$ for a density of 1 g cm*-3* (see equation 2.1). If the actual satellite densities are higher then the spins in dimensionless units would be lower. The time $t_{g}^{-1}$ is equal to the angular rotation rate of an orbiting particle just grazing the surface of a spherical body with radius $R_{v}$. In dimensionless units we notice that only Hydra is spinning rapidly (at 1/3 of centrifugal breakup). compared to a maximum value of approximately 1. In Table 2 we also list the ratio of the orbital to spin periods, $P_{o}/P_{s}$. Kerberos and Styx have $P_{o}/P_{s}\sim 6$ whereas Nix and Hydra have ratios of 13.6 and 89. All four of the small satellites are spinning much more rapidly than $w\sim n_{o}$, or $P_{o}/P_{s}\sim 1$.

The masses of the small satellites are not well constrained. In Table 2 the mass ratios $M/M_{PC}$ (satellite mass divided by Pluto-Charon binary mass) are computed using preferred (or boldface) values from Table 1 by Showalter & Hamilton (2015). These are masses within 1 standard deviation of their dynamical mass constraints (based on their orbit integrations).

For the minor satellites, we compute values for energy density $e_{g}$, Love number $k_{2}$ and tidal spin-down times $t_{despin}$ and list them in Table 2. The energy density $e_{g}$ is computed using equation 4 (but with $R_{v}$ replacing $R$), the volumetric radii $R_{v}$ listed in Table 2 and assuming a density of 1 g/cc. We computed the Love number $k_{2}$ using our values for $e_{g}$, a shear modulus for ice of $\mu*=4$ GPa and equation 5.

Tidal spin down times $t_{despin}$ are computed using equation 7, a tidal dissipation factor $Q=100$, the $k_{2}$, orbital periods and mass ratios listed in the Table. The estimated spin down times (see bottom of Table 2) exceed the age of the Solar system and imply that the satellite spins should not have significantly decreased due to tidal dissipation. This contrasts with the expectation by Showalter & Hamilton (2015); Correia et al. (2015) that the minor satellites of Pluto would be spinning slowly enough to be chaotically tumbling. The high spin values found by Weaver et al. (2016) led them to conclude that tidal spin down has not yet taken place and the spin down time estimates we have computed here support this conclusion (also see Hastings et al. 2016).

The actual spin-down times would be shorter than those listed in Table 2 if $Q<100$, corresponding to higher dissipation. The times would be longer for higher density bodies; $\rho>1$g/cc and for stronger bodies. The spin down times are estimated for spheres but the torque would only be about twice as large for bodies with the axis ratios of these satellites (see Quillen et al. 2016b). During a previous epoch of higher orbital eccentricity the torque might have been higher. The spin-down time scale estimate also neglects perturbations by the Pluto-Charon binary and assumes that the spin rate starts near the maximum value. The current spin values are 23, 13, 39 and 3 times slower than $t_{g}^{-1}$ for Styx, Nix, Kerberos and Hydra, respectively. The satellite with the shortest spin down time is Nix at $t_{despin}\sim 10^{11.6}$ years exceeding the age of the Solar system, even if we divide this by 10 to take into account that the spin may have originally been 10 times lower than $t_{g}^{-1}$. Our estimated spin down time is for a spinning body at zero obliquity. Our simulations (not presented here but similar to those presented by Quillen et al. 2016b) show that spin-down times are longer at higher obliquity (approximately an order of magnitude higher for a prolate body with axis ratio 0.5 at obliquity $90^{\circ}$) so if the body spends much time at high obliquity it would not have spun down as far.

2.2 Wobble decay times

It is common to assume that bodies are spinning about a principal axis because the timescale for wobble to decay is shorter than the spin-down time (see Burns & Safronov 1973; Peale 1977; Harris 1994; Frouard et al. 2016). Due to tidal dissipation the wobble decays approximately on an timescale

[TABLE]

(Peale, 1977) where $C$ is the maximum moment of inertia about a principal body axis. The ratio of the wobble decay to spin-down time

[TABLE]

(the ratio of equation 9 and 6; Gladman et al. 1996). We compute $t_{wobble}/t_{despin}$ from the ratio of current spin and orbital periods finding $t_{wobble}/t_{despin}\sim 6\times 10^{-3}$ for Styx, and Kerberos, $3\times 10^{-4}$ for Nix and $10^{-7}$ for Hydra. The wobble decay timescales, computed using the breakup angular rotation rate, are also listed Table 2. Hydra and Nix are spinning fast enough that their wobble decay times are much shorter than the age of the Solar system. Taking spins near their current values (rather than a near breakup value), reduces the spin-down time by 20 for Styx and Kerberos. This reduces the wobble decay time for Styx to near the age of the Solar system, but not Kerberos. Kerberos could be wobbling. Keeping in mind that equation 9 is approximate, only Nix and Hydra are likely to be spinning about a principal body axis. If tumbling in one of the minor satellites was excited by an encounter (collision or tidal encounter) or a spin resonance at some time well after formation, the long wobble decay timescales imply that the body could still be tumbling today (and this is particularly relevant for Kerberos).

2.3 Asphericity

The width of spin-orbit resonances depends on an asphericity parameter

[TABLE]

(Wisdom et al., 1984) where $A<B\leq C$ are the three moments of inertia (eigenvalues of the moment of inertia matrix). The frequency $\omega_{so}=\alpha n_{o}$ is the frequency of small-amplitude oscillations (librations) of a satellite in synchronous resonance (see Wisdom et al. 1984). For a homogeneous triaxial ellipsoid with body axes $a>b>c$, the moments of inertia are $C=\frac{M}{5}(a^{2}+b^{2})$, $B=\frac{M}{5}(a^{2}+c^{2})$, and $A=\frac{M}{5}(b^{2}+c^{2})$ giving

[TABLE]

This only depends on the body axis ratios in the orbital plane (assuming a body with parallel spin and orbital normal and spinning about a principal axis). An oblate body has $\alpha=0$. We compute asphericities for Pluto’s minor satellites from the body axis ratios by Weaver et al. (2016), and they are listed in Table 2. The minor satellites are all sufficiently elongated that $\alpha\ga 1$.

2.4 Spin Precession Frequency

The spin axis of a non-spherical body spinning about its principal axis in orbit about a central mass precesses. Using equation 1 by Gladman et al. (1996) the tidally induced precession rate

[TABLE]

where $\epsilon_{o}$ is the obliquity (angle between spin axis and orbit normal) and

[TABLE]

When the body is spinning about a principal body axis, the angles $\Omega_{s},\epsilon_{o}$ are Euler angles and the precession rate $\dot{\Omega}_{s}$ is the rate the spin vector precesses about the orbit normal. It is convenient to define a parameter related to an effective oblateness of the body averaged over its spin (when spinning about the maximum principal axis)

[TABLE]

where we have used ellipsoidal body semi-major axis ratios $a,b,c$. The parameter $q_{eff}$ for each of Pluto and Charon’s minor satellites are also listed in Table 2 and range from 0.2 (Nix) to 0.4 (Hydra). Using $S$ and $q_{eff}$ the body spin precession rate divided by the orbit mean motion

[TABLE]

and on the right we have written the precession rate in terms of the ratio of spin and orbit periods where the spin period $P_{s}=2\pi/w$ and the orbital period $P_{o}\approx 2\pi/n_{o}$. At low obliquity and for $q_{eff}=0.3$, the precession rate is rapid, at $\frac{\dot{\Omega}_{s}}{n_{o}}\approx\frac{1}{2}\frac{P_{s}}{P_{o}}$. For a spinning body orbiting about a binary rather than a point mass, equation 16 likely underestimates the precession rate by a factor that depends on the quadrupole moment of the averaged binary gravitational potential. This moment is given in the next subsection and is small for Pluto and Charon’s satellites (only 1–2% of the monopole) so equation 16 is a pretty good estimate.

The spin precession rate is independent of body size or $R_{v}/a_{o}$. For numerical convenience we can increase the spin in units of $t_{g}$ and this is equivalent to reducing the density of the simulated spinning satellite. As long as we maintain the period ratios (orbital to binary to spin) the secular precession frequencies are not modified.

2.5 Orbit Precession Frequencies

Resonance location often depends on secular frequencies such as the precession rate of the longitude of the ascending node. The gravitational potential of the binary averaged over its orbit is similar to an oblate body. It has a quadrupole gravitational moment giving an effective gravitational harmonic coefficient

[TABLE]

(see problem 6.3 by Murray & Dermott 1999) where $\mu_{B}$ is the reduced mass of the binary and $M_{B}$ is the total mass of the binary. Inserting this $J_{2}$ into equations for orbital precession frequencies (Greenberg, 1981) and taking lowest order terms

[TABLE]

with

[TABLE]

Here $\dot{\Omega}_{o}$ is the precession rate for the longitude of the ascending node, $\Omega_{o}$, and $\dot{\varpi}_{o}$ is the apsidal precession rate or the precession for the longitude of pericenter, $\varpi_{o}$. We have subscripted orbital parameters and frequencies with an $o$ so as to differentiate them from spin related quantities, but we also use the subscript to denote quantities that are based on osculating orbital elements. Here $n$ is intended to approximate the sidereal mean motion whereas the osculating $n_{o}$ is dependent on the osculating semi-major axis $a_{o}$. For a particle in the binary orbital plane, the orbital period is computed from $n$ not $n_{o}$. The osculating orbital semi-major axis, $a_{o}$, is computed for a particle in the binary plane assuming a Keplerian orbit and with respect to the mass and center of mass of the binary (see discussion by Greenberg 1981 and Renner & Sicardy 2006). As the orbital period and orbital precession frequencies depend on the ratio $\frac{\mu_{B}}{M_{B}}\left(\frac{a_{B}}{a_{o}}\right)^{2}$ we have computed this for the four minor satellites using values for the binary in Table 1 and semi-major axes of the satellites in Table 2 and we include the computed values for this ratio at the bottom of Table 2.

3 Simulations of the Spinning Minor Satellites

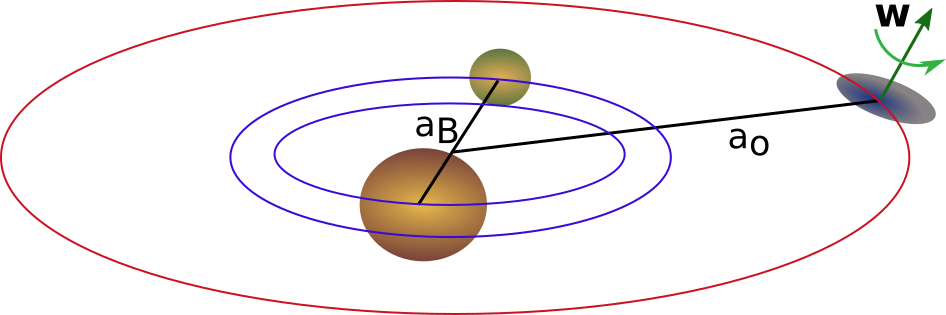

We begin by describing our simulation technique. Two types of simulations are carried out, simulations with tidal dissipation alone (discussed in section 4) and simulations with a slowly drifting apart central binary (discussed in section 5). In both settings we track the spin and orbital evolution of a spinning satellite in orbit about a binary that represents Pluto and Charon.

3.1 Description of mass-spring model simulations

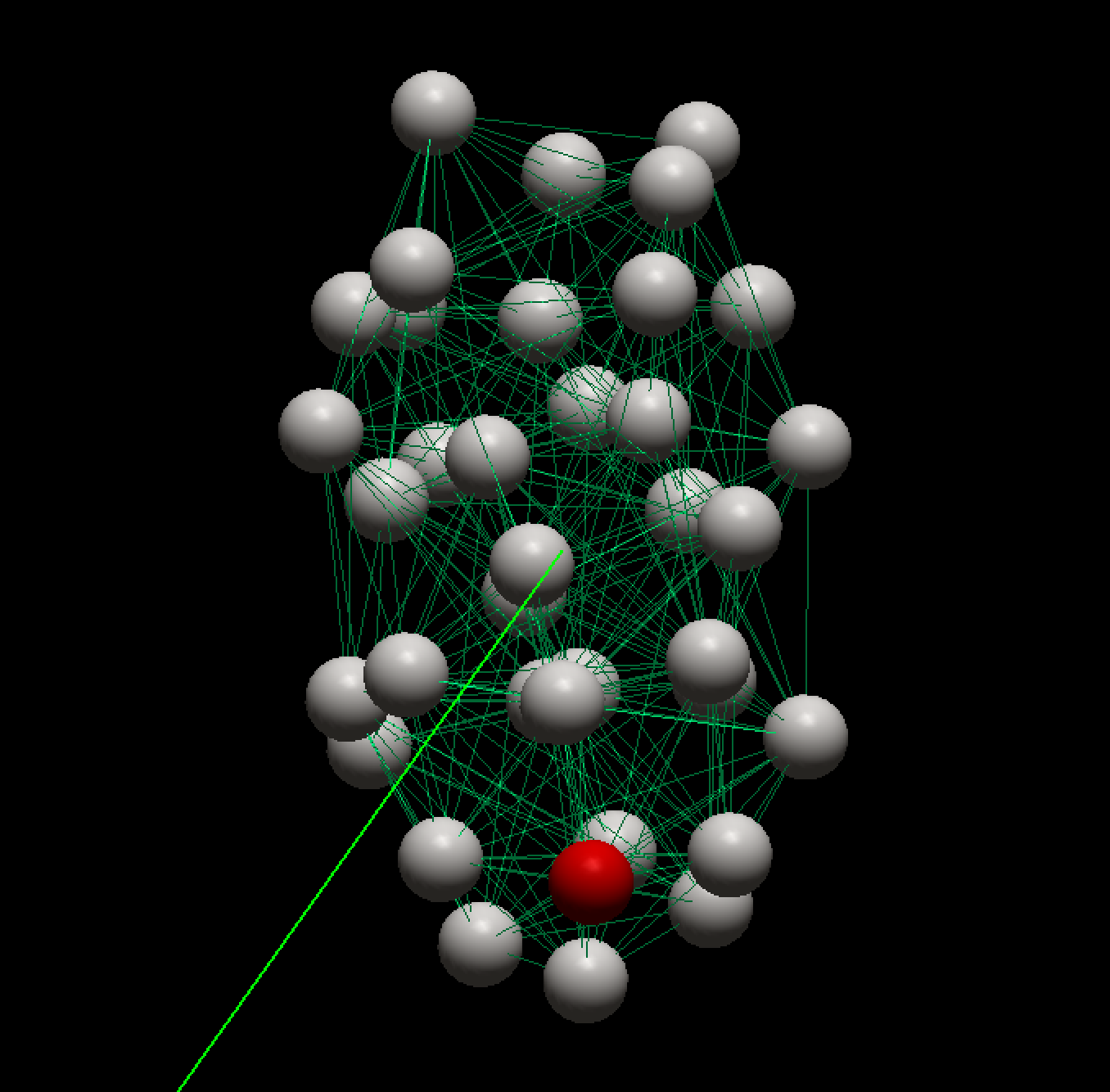

To simulate tidal viscoelastic response of non-spherical bodies we use a mass-spring model (Quillen et al., 2016a; Frouard et al., 2016; Quillen et al., 2016b) that is built on the modular N-body code rebound (Rein & Liu, 2012). Springs between mass nodes are damped and so the spring network approximates the behavior of a Kelvin-Voigt viscoelastic solid with Poisson ratio of 1/4 (Kot et al., 2015). Frouard et al. (2016); Quillen et al. (2016b) considered a binary in a circular orbit. One of the masses was a spinning body resolved with masses and springs. The other body (the tidal perturber) was modeled as a point mass. Here we consider three bodies, a spinning body resolved with masses and spring in orbit about a binary comprised of two point masses (representing Pluto and Charon); see Figure 1. The total binary mass is $M_{B}$ and the ratio of the smaller to larger mass in the binary, $q_{B}$. For our simulations we set the mass ratio $q_{B}=0.12$ to be equal to the Charon to Pluto mass ratio. The total binary mass is set to $10^{6}$ in units of $M$ and is about the right order of magnitude for the ratio of a minor satellite to the sum of Pluto and Charon’s mass, though Nix and Hydra are more massive than Kerberos and all three more massive than Styx (see Table 2 for mass ratios). Each simulation only tracks three masses, the binary and the resolved spinning body, so our simulations neglect dynamical interactions between the minor satellites themselves and tidal interaction between Pluto and Charon.

The mass particles in the resolved spinning body are subjected to three types of forces: the gravitational forces acting on every pair of particles in the body and with two massive point mass companions, and the elastic and damping spring forces acting only between sufficiently close particle pairs. Springs have a spring constant $k_{s}$ and a damping rate parameter $\gamma_{s}$. When a large number of particles is used to resolve the spinning body the mass-spring model behaves like a continuum solid. The number density of springs, spring constants and spring lengths set the shear modulus, $\mu$, whereas the spring damping rate, $\gamma_{s}$, allows one to adjust the shear viscosity, $\eta$, and viscoelastic relaxation time, $\tau_{relax}=\eta/\mu$. The tidal frequency in units of the relaxation time $\bar{\chi}=|\sigma_{t}|\tau_{relax}$ (see section 2.3 by Frouard et al. 2016) and for $\bar{\chi}<1$, the quality function for our mass-spring model has $k_{2}(\sigma_{t})\epsilon_{2}(\sigma_{t})\approx k_{2}\bar{\chi}$. The attenuation properties of cold icy bodies is dependent on composition, porosity, temperature and frequency (Castillo-Rogez et al. 2012; McCarthy & Castillo-Rogez 2013) and so is not well constrained. In our simulations we chose $\gamma$ so as to remain in the linear regime where the quality function is proportional to $\bar{\chi}$ (and approximately giving a constant time lag tidal dissipation model).

Our previous studies (Frouard et al., 2016; Quillen et al., 2016b) were restricted to bodies spinning about their principal axes and with parallel spin and orbital axes. Here we allow the spinning object to have an initial non-zero obliquity. We measure the tilt of the spinning body in two ways. The obliquity $\epsilon_{o}$ is the angle between the spin angular momentum vector of the resolved body and its orbit normal (the direction of orbital angular momentum). The orbit normal and orbital elements for the spinning body such as its inclination, eccentricity and semi-major axis, $a_{o}$, are measured with respect to the center of mass of the Pluto-Charon binary (and using the vector between the center of mass of the spinning body and the center of mass of the binary). The obliquity $\epsilon_{B}$ is the angle between the spin angular momentum vector of the resolved body and the binary orbit normal. The binary’s mean motion, $n_{B}$, and semi-major axis, $a_{B}$, are computed neglecting the much lower mass spinning body. The orbital semi-major axis is computed using the total mass of the binary and coordinates measured from the center of mass of the binary. The two sets of coordinates are essentially Jacobi coordinates (see Figure 1).

In our previous studies, we measured instantaneous tidal torques and so we resolved the spinning body with numerous particles. Here we aim to explore longer timescale behavior. Instead of maintaining or increasing the number of particles in the resolved body, we decrease it. Rather than a thousand or more particles in the resolved body we typically have only 40. The particle number does not change during a simulation, however different simulations have slightly different numbers of particles as particle positions are initially randomly generated. A simulation snap shot is shown in Figure 2. The small number of particles or mass nodes allows us to run for many thousands of spin rotation periods. Frouard et al. (2016) measured a 30% difference between the drift rate computed from the simulations and that computed analytically. We do not try to resolve this discrepancy here but instead study the long timescale evolution of spin and obliquity with the goal of trying to understand processes that would have affected minor satellite obliquity.

We work with mass in units of $M$, the mass of the spinning body, distances in units of volumetric radius, $R_{v}$, the radius of a spherical body with the same volume, time in units of $t_{g}$ (equation 2.1) and elastic modulus $E$ in units of $e_{g}$ (equation 4) which scales with the gravitational energy density or central pressure. Initial node distribution and spring network are those of the triaxial ellipsoid random spring model described by Quillen et al. (2016b). For the random spring model, particle positions are drawn from an isotropic uniform distribution but only accepted into the spring network if they are within the surface bounding a triaxial ellipsoid, $x^{2}/a^{2}+y^{2}/b^{2}+z^{2}/c^{2}=1$, and if they are more distant than $d_{I}$ from every other previously generated particle. Here $a,b,c$ are the body’s semi-major axes. Once the particle positions have been generated, every pair of particles within $d_{s}$ of each other are connected with a single spring. Springs are initiated at their rest lengths. The body is initially a triaxial ellipsoid and if it were not rotating it would remain a triaxial ellipsoid. For the mass spring model, Young’s modulus, $E$, is computed using equation 29 by Frouard et al. (2016) and using the entire triaxial ellipsoid volume (bounded by $x^{2}/a^{2}+y^{2}/b^{2}+z^{2}/c^{2}=1$), however with only 40 or so particles this value is approximate. With only about 40 particles and about 400 springs, the spinning body does not well approximate a continuum solid with its material properties. However our simulation technique can show spin-orbit resonance capture and tumbling and it accurately computes time dependent torques arising from the Pluto-Charon binary.

A fairly low value of Young’s modulus (in units of $e_{g}$) was used so that the body was soft, reducing the integration time required to see tidal drifts in orbital semi-major axis, spin and obliquity due to dissipation in the springs. The viscoelastic relaxation timescale and associated tidal frequency $\bar{\chi}$ are computed as done previously (Frouard et al., 2016; Quillen et al., 2016b). The orbital periods are about 100 times larger than $t_{g}$, however our time-step $dt$ is set by the time it takes elastic waves to travel between particles in the resolved body and so are much smaller than the orbital period. Each simulation required a few hours of computation time on a 2.4 GHz Intel Core 2 Duo from 2010.

3.1.1 Description of Simulation Figures

We begin with simulations intended to be near current orbital period and spin ratios and with spinning body exhibiting tidal spin-down due to dissipation in our simulated springs. Common simulation parameters are listed in Table 3. Our simulations are labelled according to which body is simulated and parameters that depend upon which body is simulated are listed in Table 4. The different body semi-major axis ratios, appropriate for Styx, Nix and Kerberos are the same as in Table 2. The simulations have different initial spins and semi-major axes. The spin values are chosen so the initial spin to orbit periods are similar to (but slightly higher than) the values listed in Table 2 and measured by Weaver et al. (2016). As time is given in units of $t_{g}$, Table 4 also lists the initial orbital period of the minor satellite (the resolved spinning body) about the center of mass of the binary.

The initial conditions are chosen to have ratios of spin to orbital period, orbital to binary period and spin precession to orbital period similar to Pluto and Charon’s minor satellites. However, we set the orbital semi-major axes, in units of minor satellite radius $R_{v}$, smaller than the actual ratios so as to decrease the timescale required for tidal evolution to take place and allow us to see long timescale phenomena associated with spin-down in the simulations. This means that the spin rates in units of $t_{g}^{-1}$ are larger than their actual values though we approximately maintain the ratio of spin and orbital period and ratio of orbit and binary period. Increasing the spin (in units of $t_{g}^{-1}$) is equivalent to simulating a larger lower density body as $t_{g}$ depends on density. Because $w/n_{o}$ is larger for Nix than for Kerberos and Styx, the Nix simulations required larger initial semi-major axis (in units of $R_{v}$) so as to keep the ratios $w/n_{o}$ and $n_{o}/n_{B}$ similar to the actual values for this satellite. We don’t simulate Hydra because of its high actual spin value. To maintain its spin to orbit period rate and keep its spin below breakup we would require a large semi-major axis and much longer numerical integration times.

Parameters that differ for simulations with tidal dissipation alone are listed in Table 5. Dissipation is set by the spring damping parameter, $\gamma_{s}$ and adjusted so that the tidal frequency $\bar{\chi}$ (listed in Table 5) is less than 1, so as to remain in a linear regime where the quality function is proportional to $\bar{\chi}$ (a constant time lag regime, but not constant dissipation $Q$ or constant phase lag regime). The Styx simulations have initial orbital period to binary period ratio about 3, that for Nix about 4 and those for Kerberos about 5.

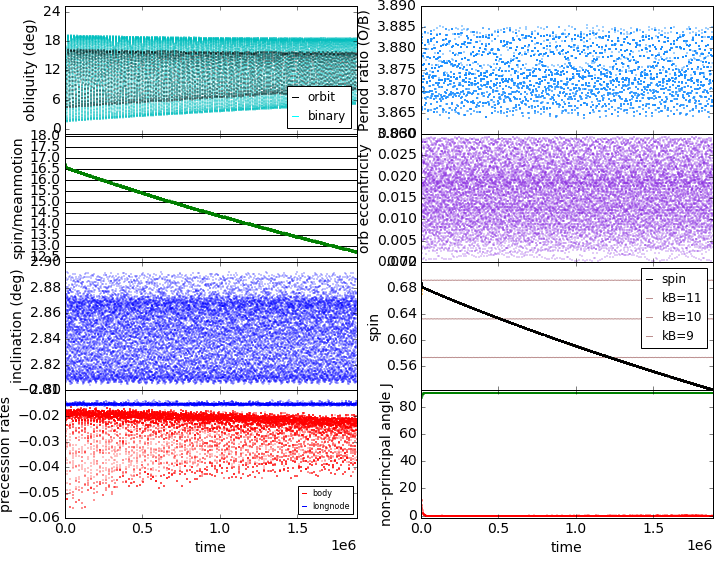

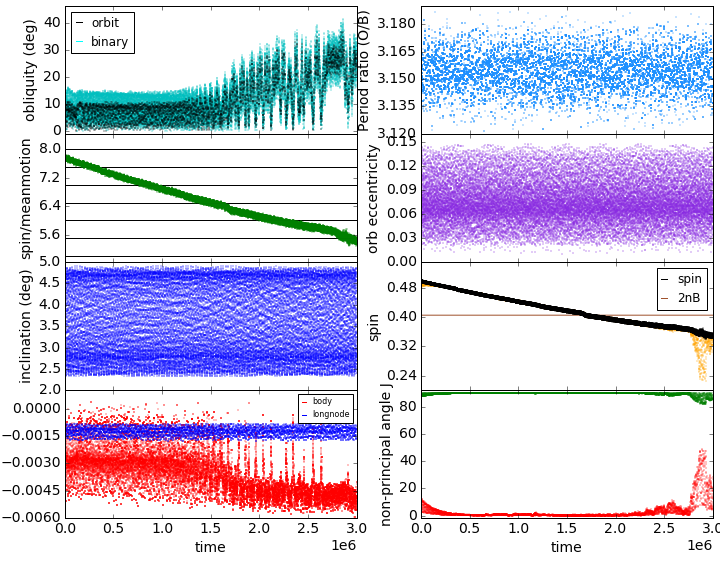

In Figure 3 we plot quantities as a function of time measured from the outputs of a simulation for Styx. Points are plotted each simulation output, ($t_{print}$ in Table 3). The horizontal axes for each panel are the same and in units of $t_{g}$. Orbital elements for the spinning satellite are computed using the initial orientation of the binary as a fixed reference frame (with the binary orbital plane defining zero inclination) and using the mass of the binary. We compute the osculating orbital elements at each simulation output using the center of mass position and velocity of the spinning satellite measured with respect to the center of mass of the binary. Orbital inclination in degrees is shown in the third (from top)-left panel, and orbital eccentricity is shown on the second (from top)-right panel of the figure. The top right panel shows the ratio of the orbital period (for the spinning body) divided by that of the binary.

The angular momentum of the spinning body, ${\bf L}_{s}$, is computed at each simulation output by summing the angular momentum of each particle node, using node positions and velocities measured with respect to the center of mass of the body. The moment of inertia matrix of the spinning body, in the fixed reference frame, $\bf I$, is similarly computed. The instantaneous spin vector $\bf w$ is computed by multiplying the spin angular momentum vector by the inverse of the moment of inertial matrix, ${\bf w}={\bf I}^{-1}{\bf L}_{s}$. The spin $w=|{\bf w}|$ is the magnitude of this spin vector and shown divided by the osculating orbital mean motion, $n_{o}$, in the second (from top)-left panel. Black horizontal lines show the location of spin-orbit resonances on the same panel.

Correia et al. (2015) identified spin-binary resonances at spins

[TABLE]

for each non-zero integer $k_{B}$. The spin itself is shown in the third (from top)-right panel (in units of $t_{g}^{-1}$) along with spin-binary resonances, plotted in brown, and labelled with integer $k_{B}$.

The dot product of the spinning body’s spin angular momentum vector and current orbit normal gives $\cos\epsilon_{o}$ where $\epsilon_{o}$ is an obliquity with respect to the orbit normal. This is shown with black dots in the top, left panel. The obliquity computed from the dot product of the spin angular momentum vector and binary orbit normal, $\epsilon_{B}$, is plotted with blue dots on the same panel. A comparison of the two obliquities can determine whether the object is in a Cassini state where the body’s spin precession rate matches that of the longitude of the ascending node, $\dot{\Omega}_{s}\sim\dot{\Omega}_{o}$.

At each simulation output we diagonalize the moment of inertia matrix and identify the eigenvectors (directions) associated with each principal body axis. The angle between the body’s spin angular momentum and the direction of the maximum principal axis in degrees is shown with red dots on the bottom right panel. This angle, $J$, is sometimes called the non-principal angle and it is one of the Andoyer-Deprit variables (Celletti, 2010). The angle between the spin angular momentum and the direction of the the minimum principal axis is plotted on the same panel with green dots. When the body is spinning about the principal axis $J=0$ and the other angle is $90^{\circ}$. Only when the body is tumbling do these angles differ from 0 and $90^{\circ}$. Also plotted in the third (from top)-right panel (in orange) is the component of the spin vector in the direction of the maximum principal axis. Only when the satellite is spinning about the maximum principal axis is this equal to the spin.

At each simulation output we compute the osculating orbital longitude of the ascending node, $\Omega_{o}$. The time derivative of this (computed from the simulation output differences) is used to compute instantaneous measurements of the orbit precession rate $\dot{\Omega}_{o}$. The precession rate divided by the initial mean motion $\dot{\Omega}_{o}/n_{o,init}$ is plotted with blue dots in the bottom left panel where $n_{o,init}$ is the osculating mean motion at the beginning of the simulation. At each simulation output the body spin angular momentum is projected into the initial orbital plane of the binary and the time derivative of the angle in this plane used to compute the spin precession rate $\dot{\Omega}_{s}$. The angle $\Omega_{s}$ is that between the x-axis and the spin angular momentum ${\bf L}_{s}$ vector after projection into the binary orbital plane, $\Omega_{s}={\rm atan2}(({\bf L}_{s}\cdot\hat{\bf y}),({\bf L}_{s}\cdot\hat{\bf x}))$ where $x,y$ coordinates span the binary’s orbital plane. The spin precession rate divided by $n_{o,init}$ is plotted with red dots in the same panel as $\dot{\Omega}_{o}$. When the two precession rates coincide, the body is in a Cassini state. The body spin precession rate curve (red line in bottom left panel) usually resembles the obliquity trajectory because the body precession rate is sensitive to obliquity, though $|\dot{\Omega}_{s}|$ also slowly increases as the body spins down (see equation 16).

When the body is spinning about a principal body axis, the angles $\Omega_{s},\epsilon_{B}$ are Euler angles in a coordinate system defined by the binary orbital plane and using the initial binary orientation to give an $x$ coordinate axis direction.

4 Tidal spin down alone

In Figures 3 - 5 we show simulations for tidal evolution (spin-down) for Styx, Nix and Kerberos. The spinning bodies are begun at an obliquity near $20^{\circ}$ and at small orbital inclinations of a few degrees. Tidal dissipation, set by the spring damping rate $\gamma_{s}$, is chosen to be low enough that the bodies do not spin down completely during the integration. Nix has a higher spin with $w/n_{o}\sim 14$. Figure 4a shows that Nix crosses spin-orbit resonances without much affect on body spin or obliquity (see second from top left panel). Neither is a spin resonance with the binary important (see third from top right panel). Obliquity oscillations arise due to precession of the spinning body with respect to the quadrupole potential of the binary, the small but non-zero orbital inclinations and the proximity to the 4:1 resonance with the binary.

4.1 Styx’s obliquity intermittency

With spin rate lower than for Nix, Styx (see Figure 3) might be affected by passage through spin-orbit or spin-binary resonances. The ratio of spin to mean motion exhibits kinks (see second from top and left panel) near spin-orbit resonances and near spin-binary resonances (see third right panel). The body also experiences episodes of tumbling (see bottom two right panels) though these might be due to resonant perturbation exciting a tumbling or nutation frequency rather than a spin-orbit or spin-binary resonance or an instability associated with a secular spin resonance.

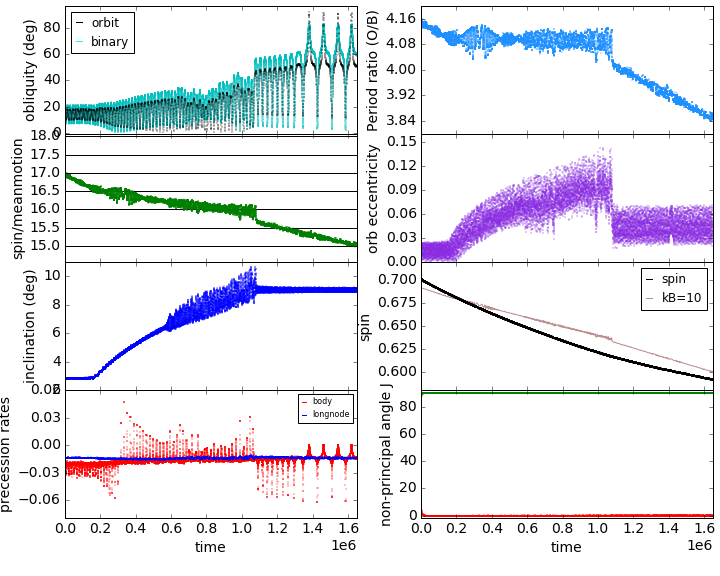

Obliquity variations are intermittent in the Styx-t1 simulation. The regime of weak resonance overlap is often associated with intermittent chaotic behavior. By comparing this simulation to similar ones, we attempt to identify the source of the chaotic behavior. We first checked that a similar simulation but starting at lower obliquity shows same phenomena as the Styx-t1 simulation. It does but it takes longer to reach high obliquity.

Does the binary play a role in causing Styx’s obliquity intermittency? A simulation with identical parameters but with an extremely low mass binary (the Styx-t2 simulation with mass ratio $q_{B}=10^{-9}$) does not show intermittent obliquity variations and the simulation lacks jumps or kinks in the spin decay trajectory as spin-orbit resonances are crossed.

The binary also affects secular precession frequencies so perhaps the weak spin-orbit and spin-binary resonances and strong obliquity variations imply that multiple secular resonances affecting spin are responsible for Styx’s high current obliquity. To test this possibility we ran the Styx-t3 simulation, similar to the Styx-t1 simulation but with a higher binary mass ratio $q_{B}=1$ and a smaller binary semi-major axis so that binary quadrupole moment is the same as in the Styx-t1 simulation. The binary is more compact in the Styx-t3 simulation and $n_{B}$ about twice that of the Styx-t1 simulation. This simulation was dull, lacking chaotic behavior. Spin-orbit resonances when crossed did not affect spin or body orientation, though because the binary period was shorter, the spin-binary resonance with $k_{B}=2$ was noticeable; it caused a jump in spin as it was crossed. We conclude that secular perturbations alone (due to only the quadrupole moment of the binary) do not account for the obliquity intermittency in the Styx-t1 simulation and that frequency of the binary perturbations or proximity to the mean motion resonance are important.

We note that the orbital period to binary period ratio for Styx is near 3. Two degree oscillations in the orbital inclination are apparent in the third from top panel in Figure 3 that we attribute to proximity to the 3:1 orbital resonance, with $3n_{o}\sim n_{B}$. Expansion of the disturbing function gives a series of arguments that depend on $3\lambda_{o}-\lambda_{B}$ and also include some angles $\varpi_{B},\varpi_{o},\Omega_{B},\Omega_{o}$ (e.g., Murray & Dermott 1999). Here $\lambda_{B},\varpi_{B},\Omega_{B}$ are the mean longitude, longitude of pericenter and longitude of the ascending node of the binary and $\lambda_{o},\varpi_{o},\Omega_{o}$ are similar orbital elements but for the satellite. The binary induced $J_{2}$ causes $\dot{\Omega}_{o}$ to be negative and $\dot{\varpi}_{o}$ to be positive (see equations 19, 20). The resonance term with argument

[TABLE]

is sometimes called the $I^{2}$ resonance as it is second order in orbital inclination (e.g., section 8.12 of Murray & Dermott 1999). It has frequency $\dot{\phi}=3n_{o}-n_{B}-2\dot{\Omega}_{o}$ giving commensurability where

[TABLE]

As $\dot{\Omega}_{o}<0$ this implies that the inclination sensitive resonant subterm is encountered at $P_{o}/P_{B}>3$, whereas as $\dot{\varpi}_{o}>0$ the eccentricity subterms are encountered at $P_{o}/P_{B}<3$. Styx, with $P_{o}/P_{B}\approx 3.15$, is near the inclination sensitive part of the resonance as $\dot{\Omega}_{o}/n_{o}\sim-0.015$ (using equation 19 and Styx’s value for $\mu_{B}/M_{B}(a_{B}/a_{o})^{2}$ from Table 2). The oscillations in orbital inclination in Figure 3 are from that resonance.

Are the intermittent obliquity variations caused by proximity to the 3:1 resonance, and in particular proximity to the inclination sensitive part of the resonance and so on the sign of $P_{o}/P_{B}-3$? We ran an additional simulation Styx-t4, similar to the Styx-t1 simulation but with a somewhat wider binary. This simulation has larger eccentricity oscillations because the system is outside the 3:1 resonance, rather than inside it. $P_{o}/P_{B}-3$ is negative rather than positive, and so the satellite is near the eccentricity sensitive region of the resonance rather than the inclination sensitive region. The trajectory of the spin/mean-motion ratio exhibits some waviness but there are no strong obliquity variations. We also ran a simulation identical to the Styx-t1 simulation but starting with zero orbital inclination. This simulation exhibits few degree variations in inclination, consistent with proximity to the inclination sensitive part of the 3:1 mean motion resonance but lacks intermittency and large swings in the obliquity. The obliquity intermittency seen in the Styx-t1 simulation requires proximity to the inclination sensitive parts of the 3:1 orbital resonance with the binary and a few degrees of orbital inclination.

4.2 Kerberos

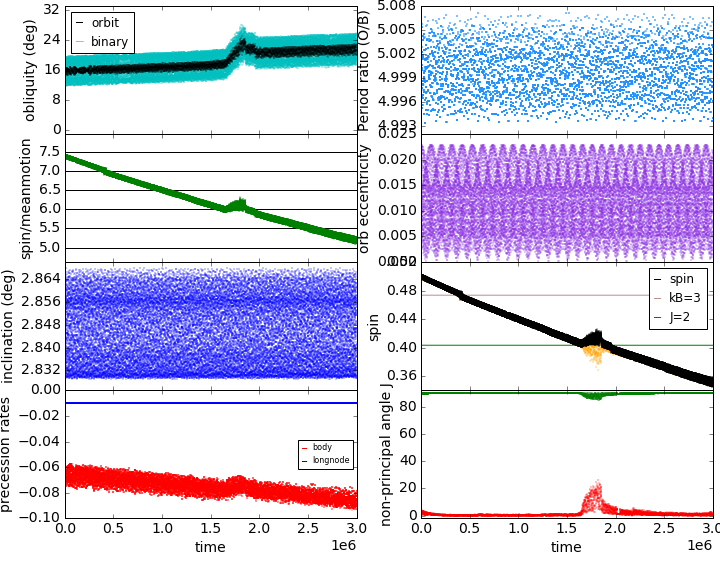

In terms of the ratio $w/n_{o}$, Kerberos is spinning about as fast as Styx. We show a simulation for its spin-down evolution in Figure 5. Two simulations are shown, the first (Ker-t1) with a slower rate of tidal dissipation than the second. The Ker-t1 simulation (Figure 5a) shows a short spin resonance capture in the middle the simulation, evident from the leveling of $w/n_{o}$ in the second-left panel at $t\sim 1.8\times 10^{6}$. During the event, the body started tumbling (see bottom right two panels) and the body was not stable in attitude; the obliquity increased by about $5^{\circ}$. Inspection of third right panel shows that the spin itself was not exactly constant, in fact the spin increased while the obliquity increased. Also plotted in the third-right panel (in orange) is the component of the spin vector in the direction of the maximum principal axis. While the spin increases, this component on average is level, implying that a resonance maintained the magnitude of this component rather than the total spin. The tumbling episode appears to be associated with a spin-orbit resonance as this occurred at $w/n_{o}\sim 6$. However, as we will discuss below this resonance should be extremely weak due to the low orbital eccentricity. The third from top and right panel shows that we failed to find a spin-binary resonance in the form given by equation 22 at this spin value. Below (section 4.6) we consider the possibility that the resonance involved the precession rate of a wobbling or tumbling body.

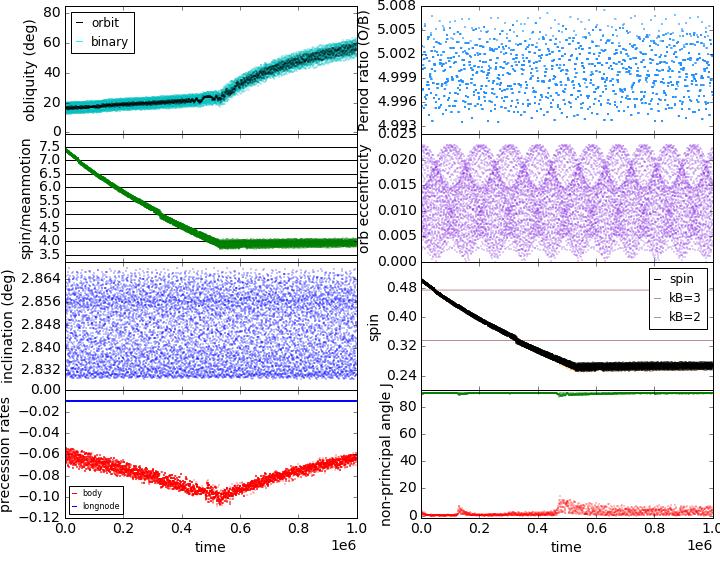

The spin down rate was higher in the Ker-t2 simulation (Figure 5b) and the spin dropped to $w/n_{o}\approx 4$ where it appeared to be captured into spin-orbit resonance. This spin value is much lower than Kerberos’s current spin rate, but we include the simulation here to illustrate a long lived spin-resonance capture event where the obliquity increased significantly, in this case to $60^{\circ}$. The low orbital eccentricity again implies that the spin orbit resonance should be very weak. The ratio $w/n_{o}$ is slightly lower than 4 suggesting that the resonance is not a spin-orbit resonance but another type, though again there is no spin-binary resonance in the form given by equation 22 at this spin value. A similar simulation that was run longer than the Ker-t2 simulation showed that the body eventually escapes the resonance, leaving the obliquity near $85^{\circ}$.

Spin-binary resonances were crossed in both Ker-t1 and Ker-t2 simulations with indices $k_{B}=2,3$ (see equation 22) giving kinks in the spin rate plots as they were crossed. Kerberos’s spin rate is similar to the binary mean motion, and these resonances are among the strongest of the spin-binary resonances (see Correia et al. 2015). These two simulations show that long lived spin-orbit resonance or spin-binary resonance capture (and associated large obliquity variation) are unlikely for $w/n_{o}\sim 6$ at Kerberos’s current spin value.

Because the spin to mean motion ratio $w/n_{B}$ for Styx and Kerberos are similar, the Styx and Kerberos simulations listed in Table 5 have almost identical parameters. The body axis ratios are also similar. The primary difference between the Styx-t1 and Ker-t1,t2 simulations is in the binary semi-major axis (compared to the orbital semi-major axis) placing Styx near the 3:1 mean motion resonance and Kerberos near the 5:1 resonance. Relative to the orbital semi-major axis, the binary semi-major axis is larger for the Styx simulations than the Kerberos simulations and so the binary quadrupole moment is larger and the binary is a stronger perturber. The secular precession frequencies (in the longitude of ascending node) induced by the binary quadrupole also differ in the two simulations. We ran a series of simulations for Kerberos varying the binary semi-major axis ratio and proximity to and side of the 5:1 resonance, but none exhibited the obliquity intermittent variations of the Styx-t1 simulation.

4.3 More on Nix

The simulation Nix-t1 has orbit to binary period ratio slightly smaller than 4, similar to that observed. In contrast the orbit to binary period ratio of Styx is greater than 3, and we suspect that obliquity variation in the Styx-t1 simulation is related to the proximity of the 3:1 inclination resonance with the binary. We are curious to see if a Nix simulation on the other side of the 4:1 resonance might exhibit larger obliquity variation. The Nix-t2 simulation is similar to the Nix-t1 simulation but has a smaller binary semi-major axis. This simulation exhibits obliquity oscillations of about 6 degrees in amplitude that seem to be coupled with variations in inclination. However large swings in obliquity are not seen and spin-orbit and spin-binary resonances have no visible effect on the satellite spin when they are crossed.

4.4 Spin-orbit resonances

Inspection of the second from top and left most panels in Figures 3 - Figure 5 shows that spin-orbit resonances predominantly do not cause large jumps in spin. At the high spin rates of Pluto’s minor satellites the spinning body is not likely to be captured into one of them. Spin orbit resonance is most simply described for a satellite spinning about a principal body axis that is aligned with the orbit normal. The orientation of the satellite’s long body axis is specified with angle $\vartheta$ and $\vartheta-f$ specifies the orientation of the satellite’s long axis with respect to the planet-satellite center line, with $f$ the orbital true anomaly. Expanding in a Fourier series, the equation of motion

[TABLE]

(Goldreich & Peale, 1968; Wisdom et al., 1984), where $\gamma=\vartheta-p\lambda$ with $\lambda$ the orbital mean longitude, $p$ is a half integer and $\alpha$ is the asphericity dependent on body shape (equation 11). The time averaged torque from tides (averaged over the orbit) is $T$ and $\alpha$ is the asphericity defined in equation 12. The coefficient $H(p,e)$ is a power series in orbital eccentricity $e$ and for $p>1$, the coefficient $H(p,e)=O\left(e^{p-2}\right)$ (Cayley 1859; also see Celletti 2010 Table 5.1). The $p$-th spin orbit resonance width can be described with the frequency

[TABLE]

(Wisdom et al., 1984). This frequency also characterizes the size of a jump in spin for a system crossing the resonance and influences the likelihood of resonance capture. If $p$ is large and the eccentricity is low then the resonance is narrow and weak and the system unlikely to be captured into resonance. Pluto and Charon’s minor satellites have $w/n_{o}$ spin to mean motion ratios greater than 6 requiring half integer index $p>12$ and resonance widths $\propto e^{5}$ or higher. We can attribute the unimportance of the spin-orbit resonances to the high satellite spins, requiring high orders in eccentricity for the spin-orbit resonance strengths and making them weak.

4.5 Spin-binary Resonances

Correia et al. (2015) identified spin-binary resonances where

[TABLE]

with integer $k_{B}$. We have slightly rearranged equation 22 so that it is clearer that in a frame rotating with the satellite in its orbit (at angular rotation rate $n_{o}$) the satellite body rotation rate is a multiple $k_{B}/2$ of the binary rotation rate. Correia et al. (2015) estimated the strengths of the lowest order (in eccentricity) spin-binary resonances of this form. General expressions for resonant potential interaction terms are given in terms of Hansen coefficients (see equation 6 by Correia et al. 2015). The derivations by Correia et al. (2015) could in future be generalized to depend on additional angles (all three Andoyer-Deprit angles), however the complexity of the gravitational potential (Ashenberg, 2007; Boué, 2017) makes this a daunting prospect.

Taking only the $k_{B}=2,3$ terms in their equation 7, and with an unequal mass binary, the spin-binary resonance libration frequencies are

[TABLE]

The libration frequencies (and resonance strengths) do not strongly depend on orbital eccentricity, as do spin-orbit resonances, and their resonance strength falls only weakly with orbital radius or semi-major axis. As a consequence spin-binary resonances might be fairly strong in the Pluto-Charon minor satellite system.

The dependence on semi-major axis of the spin-binary libration frequencies (and the commensurability equation 27) implies that the $k_{B}=2$ spin-binary resonance arises from the quadrupole gravitational moment of the binary. The $k_{B}=3$ spin-binary resonance strength is probably from the binary’s octupole gravitational moment. Figure 5b, showing the Ker-t2 simulation, illustrates that the $k_{B}=3$ resonance is somewhat weaker than the $k_{B}=2$ resonance, as we would expect from the higher power dependence on the semi-major axis ratio for the $k_{B}=3$ resonance. Based on dependence on semi-major axis for the $k_{B}=2,3$ spin-binary resonances, we expect that the larger $k_{B}$ spin-binary resonances consecutively depend on higher order gravitational moments. Since each gravitational potential moment gains a factor of the semi-major axis and the libration frequency depends on the square root of the perturbation potential energy, we guess that the libration frequency depends on $k_{B}$ as

[TABLE]

The increased sensitivity to distance from the binary makes the higher $k_{B}$ spin-binary resonances weaker but perhaps not as weak as high index spin-orbit resonances that depend on high powers of orbital eccentricity. At higher satellite spin values, the only nearby spin-binary resonances have higher $k_{B}$ indices. The Nix simulation Nix-t1 shown in Figure 4 shows the body crossing a $k_{B}$ = 9, 10 and 11 resonances with no effect on any quantity we measured during the simulation. The $k_{B}=$ 5, 6 spin-binary resonances might have affected Styx’s spin in the Styx-t1 simulation with a small jumps in spin when they were crossed (see Figure 3, third-right panel). The weakness of spin-binary resonances at Nix’s higher spin, compared to their relative strength in Kerberos’s simulations is consistent with our hypothesis that the higher $k_{B}$ spin-binary resonances are weaker than the lower ones. A consequence is that spin-binary resonance overlap is not assured at the higher observed satellite spins. The binary mediated mechanism causing tumbling proposed by Correia et al. (2015) may not operate at the higher spin values.

Pluto and Charon’s minor satellites have asphericity $\alpha\sim 1$, mass ratio $\mu_{B}/M_{B}\sim 0.1$, and semi-major axis ratio $\sim 2.5$ giving $\omega_{sb,k_{B}=2}/n_{o}\sim 0.1$, far exceeding the high $p$ spin-orbit resonance strengths that depend on high powers of the eccentricity. Kerberos currently has ratio of binary to spin period of 1.2 and so is near the $k_{B}=2$ resonance and Figure 5b shows evidence of this resonance affecting satellite spin with a small jump in spin as this resonance was crossed. The jump in spin was about $\delta w=0.02$, at $w\sim 0.33$ and $w/n_{o}\sim 5$ giving $\delta w/n_{o}\sim 0.02\times 5/0.33\sim 0.3$. The jump size in spin should be and is approximately the same size as the estimated libration frequency, and as expected.

4.6 Excitation of Wobble

As some resonant features have not yet been identified, we consider excitation of wobble, where the spin axis and body principal axis are not aligned. In this setting, a torque free axisymmetric body has body principal axis and spin axis both precessing about the spin angular momentum vector. With all axes nearly aligned a precession or wobble frequency as seen by an inertial observer is

[TABLE]

where $I_{\parallel}$ is the moment of inertia about the body’s symmetry axis and $I_{\perp}$ is that around an axis perpendicular to the symmetry axis. Here $\varphi$ is the Euler precession angle measured in a coordinate system aligned with $z$ axis in the direction of the angular momentum vector.

Pluto and Charon’s satellites are not axisymmetric, however they are spinning rapidly. We approximate the precession rate by replacing $I_{\perp}$ with an average value $(B+A)/2$ and setting $I_{\parallel}=C$ where $C\geq B\geq A$ are the body’s moments of inertia;

[TABLE]

In analogy to equation 27 for the spin resonances associated with the binary we guess that tumbling could be excited where

[TABLE]

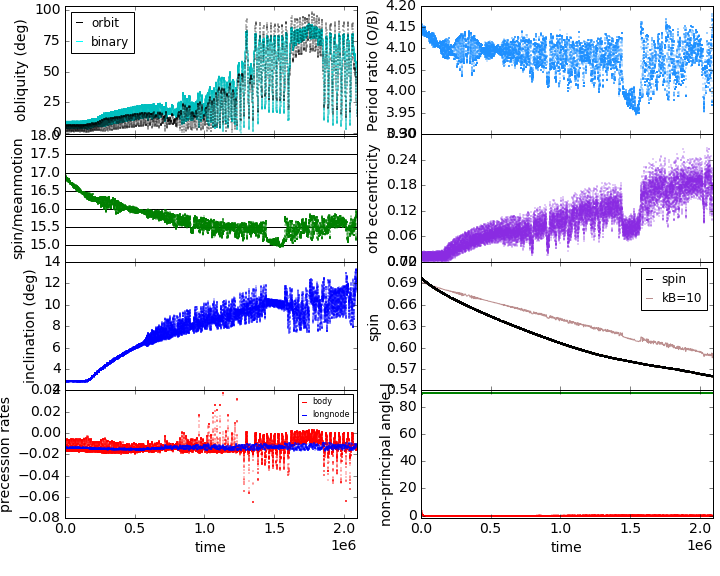

We plotted the location for $w$ for a tumbling resonance with index $j_{\varphi}=2$ (using equation 33 and 32) as a green horizontal line on Figure 5a. We found that the tumbling episode at $t=1.8\times 10^{6}$ in the Ker-t1 simulation is likely caused by excitation of tumbling with a binary perturbation frequency matching the wobble or precession frequency. We searched for but failed to find a similar resonance accounting for the resonance seen at $t>0.5\times 10^{6}$ in Figure 5b.

5 Simulations with an outwards migrating binary

With tidal dissipation alone and a moderate level of spin-down we can only explain the high obliquity of Styx. We now explore the possibility that the satellites could have been captured into mean-motion resonance due to outward migration of Charon with respect to Pluto. Slow separation of the Pluto-Charon binary could have been caused by tidal interaction between Pluto and Charon (Farinella et al., 1979). Mean motion resonant capture can also take place if a minor satellite migrates inward, and this could have occurred via interaction with a circumstellar disk.

To migrate the binary (slowly separate Pluto and Charon) we apply small velocity kicks to each body in the binary using the recipe for migration given in equations 8-11 by Beaugé et al. (2006). The kicks are applied so as to keep the center of mass velocity fixed. The migration rate, $\dot{a}_{B}$, depends on an exponential timescale $\tau_{a}$ (the parameter $A$ in the equation 9 by Beaugé et al. 2006). The migration rate depends on $\tau_{a}^{-1}$ with $\dot{a}_{B}\sim a_{B}\tau_{a}^{-1}$. We adopt a convention $\tau_{a}>0$ corresponding to outward migration which allows an external minor satellite to be captured into mean-motion resonance.

We ran a series of simulations with a migrating binary and with parameters listed in Tables 3, 4, and 6 that are shown in Figures 6 – 7. Initial conditions are similar to those listed in Table 5 except the initial binary semi-major axis is smaller so as to let the binary approach the current satellite values. The body axis ratios are identical, but the dissipation in the spinning body is lower (reducing tidal drift), and the initial obliquities are $5^{\circ}$.

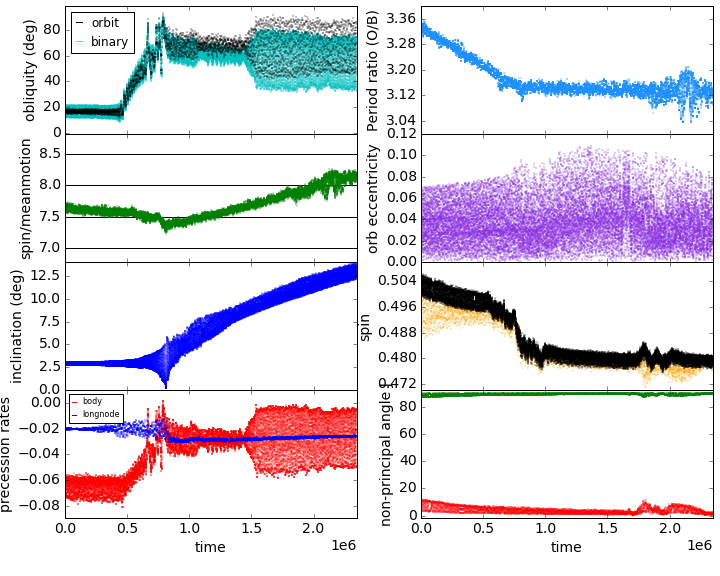

Figure 6 – 7 show that as the binary separates, the minor satellite captured into mean motion resonance. In the Styx-b1,b2 simulations it is the 3:1 mean motion resonance and initially only the inclination increases, whereas for the Nix simulations the mean motion resonance is the 4:1 and both eccentricity and inclination increase. The 4:1 resonance is a third order resonance (in eccentricity) and its lowest order resonant arguments all contain the longitude of pericenter, $\varpi$ (see the appendices by Murray & Dermott 1999). All resonant subterms affect the eccentricity. The 3:1 resonance is second order and does contain subterms with arguments that lack the longitude of pericenter and so one of these causes an increase in the inclination and not the eccentricity. In both cases the minor satellite obliquity is lifted to high values, near $90^{\circ}$. The lift in obliquity for Nix is particularly interesting because it is a mechanism for lifting obliquity that functions even at Nix’s high spin rate. The mechanism also works for Styx even though we found previously that Styx can undergo intermittent obliquity without mean motion resonance capture.

We ran similar simulations for Kerberos drifting the binary apart, but none of our simulations illustrated capture into 5:1 mean motion resonance. Kerberos is more easily captured into mean motion resonance by Nix and that could have lifted its orbital inclination. We suspect that a similar obliquity lifting mechanism might work for Kerberos but it would involve at least four bodies; Nix to capture Kerberos into mean motion resonance and a simultaneous commensurability with Kerberos’s spin precession rate and the Pluto-Charon binary to lift Kerberos’s obliquity.

5.1 Obliquity increase near mean-motion resonance

Because Nix is spinning more rapidly than Styx, its spin precession rate, $\dot{\Omega}_{s}$, is closer to $\dot{\Omega}_{o}$, its precession rate of the longitude of the ascending node. The Nix-t1 simulation (Figure 4a) begins with the spinning body in a Cassini state with $\dot{\Omega}_{o}\approx\dot{\Omega}_{s}$ and the system remains in a Cassini state except for a brief period near $t=1.7\times 10^{6}$. That $\dot{\Omega}_{o}\approx\dot{\Omega}_{s}$ means that in mean motion resonance the spin precession rate lines up with the mean motion resonant angle and this coupled with the binary inclination is likely to account for the large obliquity variations. In resonance the binary perturbations are in phase with the tilt angle of the body. A similar simulation but with an initial obliquity of $20^{\circ}$, the Nix-t2 simulation, (Figure 7b) starts outside Cassini state ($\dot{\Omega}_{s}\neq\dot{\Omega}_{o}$) but moves into it after mean-motion resonance capture, probably because of the orbital inclination increase caused by the mean motion resonance. In that simulation the satellite exits mean motion resonance leaving the body in a state similar to that at the end of the Nix-b1 simulation (Figure 7a) with high obliquity oscillations.

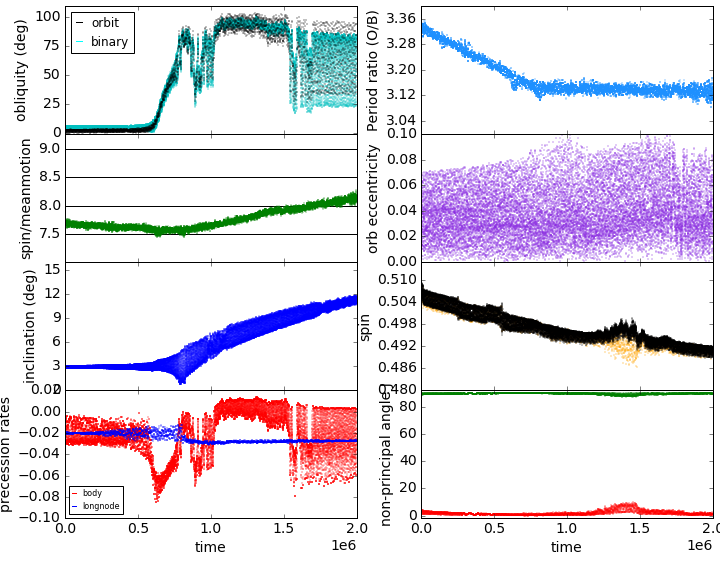

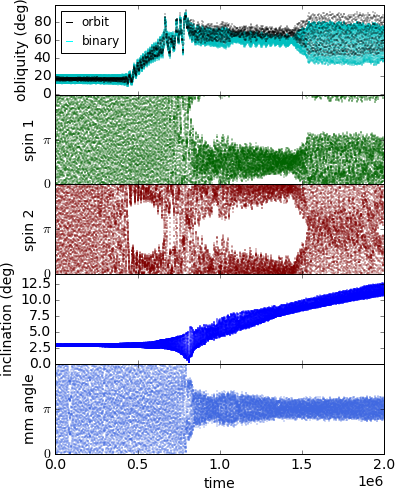

The Styx-b1 simulation (Figure 6a) also begins in a Cassini state. As the system approaches mean motion resonance there is a large increase in obliquity. Mean motion resonance is entered about $t=0.8\times 10^{6}$ whereas the obliquity increase begins at about $t=0.6\times 10^{6}$ at which time the satellite also exits Cassini state. Outside of the Cassini state the body spin precession rate is about 3 times higher (in amplitude) than the rate of precession of the longitude of the ascending node. As the mean motion resonance is approached the body spin precession rate would be commensurate with the rate of change of the mean motion resonance angle before the longitude of ascending node is commensurate. In other words $2\dot{\Omega}_{s}\sim 3n_{o}-n_{B}$ prior to $2\dot{\Omega}_{o}\sim 3n_{o}-n_{B}$. The increase in obliquity prior to entering the mean motion resonance is more clearly seen in the Styx-b2 simulation (Figure 6b) as it only enters Cassini state after capture into the mean motion resonance.

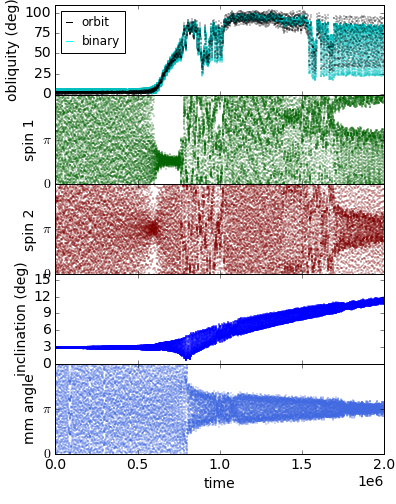

We suspect that the obliquity increases prior to entering mean motion resonance are due to a subresonance involving the Euler angle $\Omega_{s}$. To check this possibility we plot inclination and obliquity for the Styx simulations along with resonant angles in Figure 8 for simulations Styx-b1 and Styx-b2. In these figures three resonant arguments are plotted:

[TABLE]

where $\lambda_{o},\lambda_{B}$ are the mean longitude of satellite and binary, respectively, $\Omega_{o}$ is the longitude of the ascending node of the satellite and $\Omega_{s}$ is the precession angle of the spinning satellite. The last of these arguments, $\phi_{o2}$, is the argument associated with the $I^{2}$ (inclination squared) part of the 3:1 mean motion resonance. The top two arguments involve the precession angle of the satellite. Figure 8a, showing the Styx-b1 simulation, shows $\phi_{s1}$ freezing (or librating about a fixed value) during the same time period that the obliquity increases, whereas Figure 8b showing the Styx-b2 simulation, shows $\phi_{s2}$ freezing (librating about 0) during the time period that the obliquity increases. The freezing of these angles in the simulations suggests that these resonances are responsible for the large obliquity variations. In both Styx-b1,b2 simulations, $\phi_{o2}$, associated with the mean motion resonances, is only librating when the orbital inclination increases and after the obliquity has reached a high value.

The simulations shown in Figures 6 - 8 with an outward drifting binary suggest that obliquity variation is associated with an increase in orbital inclination and proximity or capture into mean motion resonance. However the obliquity increases tend to take place just before entering resonance implying that a subresonance involving the spin precession is responsible. Since this type of resonance is associated with the spin precession we could call it a three-body secular resonance, except with such elongated bodies as Pluto’s minor satellites the spin precession frequency at low obliquity is not particular slow. And since such a commensurability involves a mean motion resonance, in terms of its orbital properties it is not secular (it depends on mean longitudes which are usually averaged for secular resonances). The resonance (involving spin precession and mean motions) might be important precisely because the spin precession frequencies are fast.

The argument $\phi_{s2}$ in equation 34 can be written

[TABLE]

In a frame moving with the spinning body (here Styx) in its orbit, but not rotating with the spinning body, angles are subtracted by $\lambda_{o}$. This picture is similar to those used to explore Lindblad resonances. In this frame, and with $\phi_{s2}$ nearly constant, the Pluto-Charon binary appears to rotate twice during the same time that Styx precesses a full periods.

We lack a model for resonances with arguments given by $\phi_{s1},\phi_{s2}$ in equation 34, but we can estimate a timescale associated with obliquity increase in resonance. We suspect that a torque in resonance would be a few times lower than the torque in a spin-binary resonance – a few times lower because we must average the effect of the spin-binary resonance over the orbit while in mean motion resonance and because the strength also depends on the obliquity. Ignoring these dependencies (and using equation 28) the torque in our spin resonance is of order $T\sim n_{o}^{2}\alpha^{2}\frac{\mu_{B}}{M_{B}}\left(\frac{a_{B}}{a_{o}}\right)^{2}I$ with moment of inertia $I$. We estimate a timescale for obliquity change with $t_{obl}\sim Iw/T$ giving

[TABLE]

Taking $w/n_{o}\sim 6$ and $\frac{\mu_{B}}{M_{B}}\left(\frac{a_{B}}{a_{o}}\right)^{2}\sim 0.01$ (from the bottom of Table 2) we estimate a timescale for a large obliquity change $t_{obl}n_{o}\sim 600$ or about 100 orbital periods. In units of $t_{g}$ (like our simulations) an orbital period is about 100 giving $t_{obl}\sim 10^{4}$. The timescale for obliquity change seen for Styx (see Figures 6) is about $10^{5}$ and for Nix, with higher spin, is slower a few times $10^{5}$ (see Figures 7). This an order of magnitude higher than estimated with equation 36. The discrepancy is comfortably wide, wide enough that drift within resonance, reduction in strength from averaging over fast angles and body angular orientation (obliquity) and inclination dependence can probably be taken into account still giving the resonance enough strength to lift the obliquity. As long as the drift rate is adiabatic, the system can be captured into and stay in resonance. In analogy to mean motion resonance capture, a canonical momentum variable, dependent on obliquity, rises to maintain the resonant angle, with rise time set by the drift rate rather than the resonance strength. The condition for adiabatic drift is dependent on the resonance libration frequency (Quillen, 2006) with slower drifts than the adiabatic limit allowing resonant capture and evolution. Our rough comparison between estimated and numerical obliquity rise times suggests that this type of resonance is capable of lifting the obliquities.

Our simulations do not exhibit obliquity $\epsilon_{B}$, with respect to the binary orbit, greater than $90^{\circ}$, corresponding to retrograde spin. Styx and Kerberos have near $90^{\circ}$ obliquities whereas Nix and Hydra have higher obliquities of 123∘ and 110∘, respectively. We notice from Table 2 that Styx and Kerberos have period ratio $P_{o}/P_{C}-j>0$ where $j$ is the nearest integer (3 and 5 respectively), whereas Nix and Hydra have period ratio subtracted by the nearest integer $j$ (4 and 6 respectively) less than zero. Styx and Kerberos have $j\dot{n}_{o}-\dot{n}_{B}<0$ whereas $j\dot{n}_{o}-\dot{n}_{B}>0$ for Nix and Hydra. The two satellites with the highest, and retrograde obliquities also have positive $j\dot{n}_{o}-\dot{n}_{B}$. Perhaps there is a connection between the obliquity and the side of the orbital resonance. With retrograde spin (or $\epsilon_{B}>90^{\circ}$), the spin precession rate $\dot{\Omega}_{s}>0$ rather than negative (as is true for Styx and Kerberos). Thus Nix and Hydra could be near commensurability with fixed or librating resonant argument $\phi_{2s}$ or $\phi_{1s}$.

With initial conditions at low obliquity, our simulations did not ever exhibit retrograde obliquities, but perhaps with additional orbital migration retrograde spins could be induced. The one simulation where the system leaves mean motion resonance and crosses to the side of mean motion resonance that Nix and Hydra are on is the Nix-b2 simulation (Figure 7b). However, in this simulation, the satellite did not stay in spin resonance when exiting the mean motion resonance though the satellite did stay in a Cassini state. The spin state exhibits high obliquity swings and perhaps further evolution could induce retrograde spin, or there may be a diversity of ways that the body can exit the mean motion resonance in the full N-body system including all minor satellites. The exit state seen in Figure 7b is not unique. Similar simulations exited the mean motion resonance also at high mean obliquity but with different amplitudes of oscillation about a mean value.

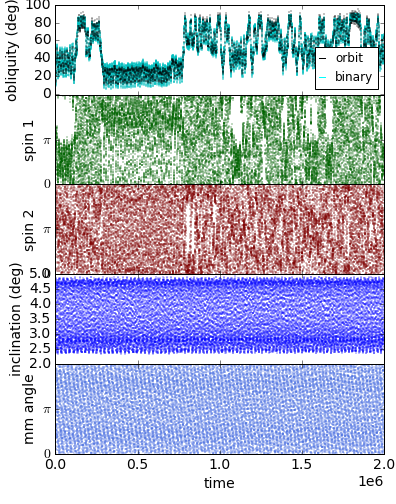

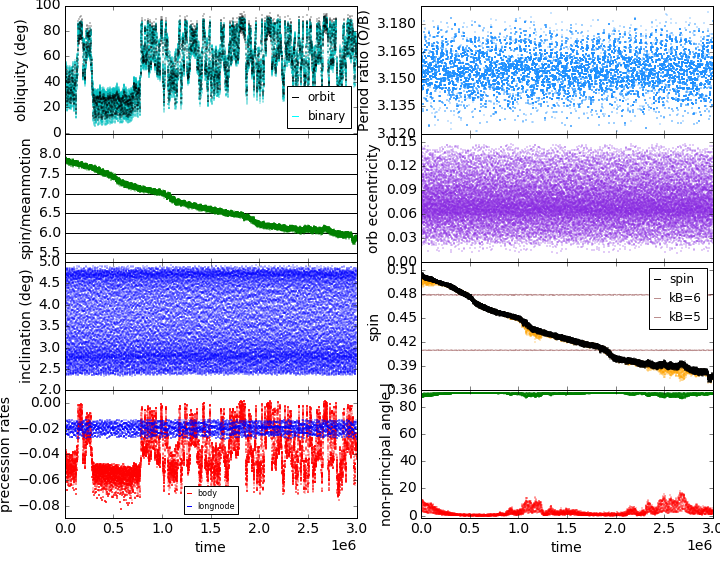

We reexamine the intermittent obliquity variations shown in simulation Styx-t1 (Figure 3) lacking binary migration. The obliquity panel (top left) shows that when the obliquity is high, the body is in a Cassini state and when the obliquity is low it is not in one. When the obliquity is low, the precession rate is high enough that it might be commensurate with the 3:1 mean motion resonant angle. To see if this is the case we created a figure, Figure 9, similar to Figure 8 but for the Styx-t1 simulation that lacks binary migration. Resonant angles $\phi_{s1},\phi_{s2}$ show librating regions and these do occur during obliquity variations. We might attribute the intermittent chaotic obliquity evolution to perturbations from multiple terms involving the mean motion resonance and the body’s spin precession angle.

The resonant mechanism seen here for obliquity increase differs from the mechanism proposed by Brunini (2006a) that was retracted (Brunini, 2006b). The scenario is as follows: When Jupiter and Saturn crossed the 2:1 mean-motion resonance, their orbital eccentricities were excited and the orbits of Uranus and Neptune were destabilized. This caused a series of close encounters between the giant planets that generated high obliquities and giving a possible scenario accounting for Uranus’ high obliquity. Lee et al. (2007) presented simple analytic argument showing why close encounters between planets could not cause permanent and large obliquity variations. The change in the spin direction of a planet relative to an inertial frame during an encounter between the planets is very small. The change in the obliquity is due to the change in the orbital inclination. As inclinations would be damped by planetesimal interactions on timescales shorter than the timescales on which the spins precess, the obliquities should return to small values if they are small prior to the encounters.

Our mechanism is based on a spin-resonance and does not require close encounters. The spin-secular resonance (Ward & Hamilton, 2004) is capable of causing large obliquity variations and also does not involve encounters. The obliquity variations are not tightly coupled to orbital inclination because a third body is involved. Once captured into the spin resonance, adiabatic drift within resonance pushes the spin to high obliquity and this is also the case for the spin-secular resonance. If the system exits the resonance slowly and in the same way as it entered the resonance, the body would return to low obliquity. However our simulations illustrate that the body can exit resonance abruptly rather than adiabatically, leaving the spinning body at much higher obliquity than when it entered the resonance (see Figure 7b). In our setting the obliquity and orbital inclination are not tightly coupled and this is because the inclination of the binary varies, though very slightly as the binary is massive compared to the spinning satellite. Unless the system remains in the spin resonance, subsequent damping of the orbital inclination by a circumbinary disk would not be expected to simultaneously return the obliquity to its original value. The spin-resonant mechanism seen here, involving mean-motion resonance and an Euler angle that can cause large obliquity changes, differs from the mechanism proposed by Brunini and should not suffer from the flaw (Lee et al., 2007) that invalidates Brunini’s mechanism.

6 Summary and Discussion

Estimates of tidal spin-down time suggest that none of Pluto and Charon’s minor satellites have had time during the age of the Solar system to reach near spin-synchronous states and this is consistent with the high observed spin rates (Weaver et al., 2016). As tidal evolution is slow, the minor satellites could have retained their primordial obliquities. If the minor satellites accreted from a circumbinary disk comprised of small particles then their primordial obliquities would have been low. Alternatively if they accreted from or suffered impacts with massive bodies then their primordial obliquities would be randomly oriented. The current obliquities of the minor satellites are all near enough to $90^{\circ}$ that the spins are unlikely to be consistent with four randomly oriented spins and so motivate a study of obliquity evolution after formation.

Mass spring model simulations with tidal dissipation, but allowing only moderate spin-down, show that only minor changes in minor satellite obliquity are caused by crossing spin-orbit resonances, though our simulation method does exhibit spin-orbit resonance capture at lower spin rates. The high spin rates makes the spin-orbit resonances sensitive to orbital eccentricity to a high power and so very weak. Spin-binary resonances, as they depend on gravitational multipole moments of the binary, are stronger at the high spin rates. Nevertheless, only small jumps in spin are seen when crossing them. We have found that capture into them is rare, with the possible exception of Kerberos that has spin rate similar to the binary mean motion. Only Styx experiences large and intermittent obliquity variations when evolving tidally. Proximity to the 3:1 mean motion resonance and few degree orbital inclination seem to be required for Styx to show large and intermittent obliquity variations.

Simulations allowing the Pluto-Charon binary to slowly drift apart cause Styx to be captured into 3:1 mean motion resonance with the binary and Nix to be captured into 4:1 resonance. Inclination sensitive parts of these resonances are encountered first, and these increase the orbital inclination. The satellite obliquities are lifted to near $90^{\circ}$ either on approach to or in mean motion resonance, depending upon whether the satellite is in a Cassini state or not. We suspect that the obliquity increases are caused by a commensurability between the mean motion resonance argument frequency and the satellite spin precession rate. This resonance is likely because the satellites are sufficiently elongated that the spin precession rates at low obliquity are fairly fast. Re-examination of the Styx simulation showing intermittent obliquity variations suggests that this type of resonance could contribute to Styx’s chaotic behavior. The mechanism for lifting obliquity, involving mean motion resonance and spin precession, functions for both Nix and Styx even though Nix is spinning much faster than Styx.

We have explored only three-body integrations, the binary and a single resolved elongated spinning body. Our mechanism lifting Styx and Nix’s obliquities was not effective in our simulations for Kerberos that failed to capture into 5:1 mean motion resonance. Simulations involving 4 or more satellites might succeed in lifting Kerberos’s obliquity with a similar mechanism. Kerberos’s orbital inclination could be increased via capture into 5:4 resonance with Nix and its obliquity lifted at about the same time. Since this mechanism is not strongly dependent on the satellite spin rate, it may also work for the more rapidly spinning Hydra, perhaps via a 3:2 mean motion resonance with Nix. As all four satellites are near mean motion resonances, a mechanism that involves mean motion resonances and the body Euler precession angle and lifts obliquities (via matching spin precession) could operate effectively on all four minor satellites perhaps explaining why all of them are near $90^{\circ}$.

Styx and Kerberos, both inside mean motion resonance with Charon, have lower obliquities than Nix and Hydra, that are outside of mean motion resonance with Charon. There may be a connection between the direction of spin, prograde or retrograde, and the side of mean motion resonance. While our simulations did not induce retrograde spins, perhaps later orbital migration or tidal evolution in the full N-body system (with all 4 minor satellites) could induce these spin end-states.

We started our simulations with minor satellite spinning along a principal body axis, however Kerberos’s tumbling decay timescale might be long enough that it could experience orbital evolution before its wobble decays. In future we could explore spin evolution of initially tumbling states; perhaps Kerberos is more likely to capture into spin resonances if it is tumbling.

The current obliquities of the minor satellites need not be near their primordial values if a spin resonance lifted them to high values. If the current high obliquities are related to mean motion resonances then we could infer that all of the minor satellites were previous captured into or in mean motion resonance. However this would conflict with dynamical studies of the orbital evolution showing that this causes instability (Cheung et al., 2014). Perhaps migration, resonance capture and associated obliquity increases could have taken place when a circumbinary disk was still present that could damp inclinations and eccentricities and stabilize the orbits – or the system may have actually experienced episodes of instability and reformation. Hybrid scenarios are also possible, for example with Styx experiencing obliquity variations due to spin-binary or spin-mean motion resonance, Kerberos experiencing obliquity variations due to spin-binary resonance and Nix and Hydra, at higher spin rates, retaining their primordial obliquities. Investigation of these possibilities could explore whether high obliquities are maintained as orbital inclinations are damped after exiting mean motion resonance.

We lack simple dynamical models for phenomena seen in our simulations, such as excitation of tumbling. The complexity of the potential (dependence on at least 3 angles) for quadrupole/quadrupole body gravitational interactions (Ashenberg, 2007; Boué, 2017) implies that constructing a more general model for spin-binary resonance (beyond Correia et al. 2015) that includes obliquity and tumbling would be challenging. Though we suspect a spin-precession/mean motion resonance mechanism for obliquity increase, we lack a dynamical model that would allow us to assess the resonance strength.

Our obliquity lifting mechanism seems to require past orbital misalignments with non-zero but few degree satellite orbital inclinations with respect to the binary. Future observations or ongoing analysis of New Horizons observations should determine whether such inclinations are currently ruled out. After escape from resonance in the Nix-b2 simulation (Figure 7b) Nix exhibits large obliquity swings from near 0 to near $90^{\circ}$ at a period of about $t=10^{5}$ or corresponding to order $10^{3}$ orbital periods or a few years in real time. If Nix or Styx is currently in such a spin state, large obliquity variations might be observed.

The obliquity lifting mechanism seen here involves fast precession rates (due to body elongation) and mean motion resonance with a massive binary and does not involve obliquity variations due to close encounters between bodies (as discussed by Brunini 2006a, b; Lee et al. 2007). It would be interesting to explore other settings where a similar spin resonance might operate. Uranus is more nearly spherical but in the past might have been in mean motion resonance with Saturn or Jupiter. Perhaps Uranus’s high obliquity could have been lifted because of its past interaction with mean motion resonance, as seen here, rather than due to secular resonance (Rogoszinski & Hamilton, 2016) or collisions (e.g., Parisi & Brunini 1997).

Lastly higher quality and more accurate simulations can be carried out to check, confirm, correct and extend our findings. Simulations can be improved by including all the minor satellites, taking into account the shapes of Pluto and Charon and tidal dissipation in the binary, increasing the time integrated so that slower tidal evolution can be studied, better resolving the spinning bodies with more particles and with correct satellite radii, using a different type of rotational body simulation technique, taking into account perturbations due to the Sun and other planets, using updated viscoelastic material properties and more complex simulated rheology and using improved masses, shapes, orbital parameters and spins as observational measurements continue to improve upon measurements.

Acknowledgements.

We thank David Trilling, Rob French, Alexandre Correia, Darin Ragozzine, and Mark Showalter for helpful discussions and correspondence. This work was in part supported by the NASA grant NNX13AI27G to ACQ. BN is funded by the contract Prodex CR90253 from the Belgian Science Policy (BELSPO)"
