Topological Magnetic Excitations on the Distorted Kagome Antiferromagnets: Applications to Volborthite, Vesignieite, and Edwardsite

TL;DR

This paper investigates topological magnetic excitations in distorted kagome antiferromagnets induced by magnetic fields, explaining recent thermal Hall effects observed in materials like volborthite without relying on Dzyaloshinskii-Moriya interactions.

Contribution

It introduces a noncoplanar chiral spin texture in distorted kagome antiferromagnets caused by magnetic fields, revealing topological excitations and thermal Hall responses independent of DM interactions.

Findings

Identification of noncoplanar chiral spin textures under magnetic fields.

Observation of topological magnetic excitations and thermal Hall effect.

Explanation of experimental thermal Hall conductivity in volborthite without DM interactions.

Abstract

In this Letter, we identify a noncoplanar chiral spin texture on the distorted kagom\'e-lattice antiferromagnets induced by the presence of a magnetic field applied perpendicular to the distorted kagom\'e plane. The noncoplanar chiral spin texture has a nonzero scalar spin chirality similar to a chiral quantum spin liquid with broken time-reversal symmetry. In the noncoplanar regime we observe nontrivial topological magnetic excitations and thermal Hall response through the emergent field-induced scalar spin chirality in contrast to collinear ferromagnets in which the Dzyaloshinskii-Moriya (DM) spin-orbit interaction is the driving force. Our results shed light on recent observation of thermal Hall conductivity in distorted kagom\'e volborthite at nonzero magnetic field with no signal of DM spin-orbit interaction, and the results also apply to other distorted kagom\'e antiferromagnets such as vesignieite and edwardsite.

Figures

Equations

$$\mathcal{H}$$

$$\mathcal{H}=\frac{J\delta }{2}\sum _{\Delta }{\left(\frac{1}{\delta }{\mathbf{S}}_A+{\mathbf{S}}_B+{\mathbf{S}}_C\right)}^2-\text{const.},$$

$$e_0(\varphi )$$

$$-4D_{\perp }{\sin }^2\varphi \sin \vartheta (1-\cos \vartheta )-3h\cos \varphi ,$$

$$\displaystyle h_{s}=\frac{\left(1-\cos\vartheta\right)}{3}\big{[}4J(2+\delta)+8D_{\perp}\sin\vartheta\big{]}.$$

$${\mathcal{H}}_{\varphi }=J_{\varphi }\sum _{i,j,k,\Delta }{\chi }_{ijk},$$

Full text

I Introduction

A chiral spin liquid (CSL) is a particular type of spin liquids in which time-reversal symmetry (TRS) is broken macroscopically kal ; bas ; wen . The scalar spin chirality $\langle\chi_{ijk}\rangle=\langle{\mathbb{S}}_{i}\cdot\left(\mathbb{S}_{j}\times\mathbb{S}_{k}\right)\rangle$ measures broken TRS and defines the hallmark of a CSL. It is also generally believed that the magnetic excitations in any quantum spin liquid (QSL) are bosonic spin-$1/2$ spinons in which the conventional bosonic spin-$1$ magnons fractionalize. According to Kalmeyer and Laughlin kal a CSL can be thought of as a bosonic version of $\nu=1/2$ Laughlin state in fractional quantum Hall effect. In recent years, a plethora of theoretical models has been proposed in which a CSL phase can be stabilized. The recent theoretical numerical work shows that a CSL can emerge in a kagomé lattice Mott insulator in which a magnetic field induces an explicit spin chirality interaction in a $t/U$ perturbative expansion of the Hubbard model at half filling bau , hence TRS is broken explicitly. In other numerical works a spontaneously broken TRS CSL is found away from the isotropic kagomé-lattice antiferromagnet by adding additional second and third nearest neighbour interactions shou ; shou1 ; shou2 ; shou3 ; mes2 or Ising anisotropy shou4 .

In real materials, however, a CSL has remained elusive because material synthesis usually comes with defects such as structural distortion and perturbative anisotropy like the intrinsic DM spin-orbit interaction dm ; dm1 , which tend to destabilize disordered QSL and induce a magnetic long-range order. For quantum kagomé antiferomagnets (QKAF), various experimentally accessible materials such as iron jarosites sup1a ; men4a ; dan ; men1 , vesignieite BaCu3V2O8(OH)2 oka ; oka1 ; oka2 ; okaa ; okaa1 ; men0 ; men2 , edwardsite Cd2Cu3(SO4)2(OH)6.$4$H2O oka3 , and volborthite Cu3V2O7(OH)2$\cdot$2H2O wat1 ; Yo ; Yo1 ; Yo2 have long-range magnetic orders below certain temperatures and they are generally attributed to the presence of DM spin-orbit interaction. The recent proposals of QSL materials are herbertsmithite ZnCu3(OH)6Cl2 nor ; zor and the calcium-chromium oxide Ca10Cr7O28 balz which show a continuum of spinon excitations in inelastic neutron scattering experiment tia ; balz . Nevertheless, an applied magnetic field or pressure destabilizes the QSL nature of these materials and leads to an induced magnetic order at low temperatures jeo ; koz ; balz .

The emerging experimental technique to probe the nature of magnetic excitations in quantum magnets with possible QSL ground states is the measurement of thermal Hall effect. For quantum magnets with magnetic long-range order the thermal Hall effect has been realized in the collinear kagomé ferromagnet Cu(1-3, bdc) alex6 and a number of collinear pyrochlore ferromagnets alex1 ; alex1a . In this case the transverse thermal Hall conductivity ($\kappa_{xy}$) can be explained in terms of Berry curvature induced by the DM spin-orbit interaction alex0 ; alex2 ; shin1 leading to topological magnons alex4 ; alex44 ; zhh ; alex6a ; sol ; sol1 ; kwon ; jun ; chen and Weyl magnons su ; mok similar to spin-orbit coupling electronic systems kane ; kane1 ; aab1 ; aab2 ; aab3 . In a recent experiment wat , a nonzero $\kappa_{xy}$ has been observed in a frustrated distorted kagomé volborthite at a strong magnetic field of $15~{}\text{T}$ with no signs of the DM spin-orbit interaction and no discernible thermal Hall signal was observed at zero magnetic field fot . The authors attributed the presence of $\kappa_{xy}$ to nontrivial elementary excitations in the gapless QSL phase, however a strong field of $15~{}\text{T}$ causes low-temperature magnetic phases in volborthite Yo ; Yo1 ; Yo2 . Nevertheless, the exact nature of the low-temperature magnetic phases at $15~{}\text{T}$ is poorly understood, but the intrinsic DM spin-orbit anisotropy suggests a $\mathbb{Q=0}$ coplanar/noncollinear Néel order.

In previous exact diagonalization study, it has been established that the out-of-plane DM spin-orbit anisotropy can induce a quantum critical point (QCP) in spin-$1/2$ QKAF at $D_{\perp}^{c}/J\sim 0.1$ men3 . A moment free QSL phase is predicted for $D_{\perp}<D_{\perp}^{c}$ and a $\mathbb{Q=0}$ Néel phase exists for $D_{\perp}>D_{\perp}^{c}$. From different experimental inspections, it is generally believed that both edwardsite and vesignieite are located in the ordered regime below certain temperature with $0.1<D_{\perp}/J<0.16$ oka1 ; okaa1 , and there is a possibility that volborthite also belongs to the ordered regime at low temperatures. But herbertsmithite ZnCu3(OH)6Cl2 has $D_{\perp}/J\sim 0.08$ zor , thus remain a QSL. An applied magnetic field (H $\perp$ 2D plane) can induce noncoplanar spin textures with a nonzero scalar spin chirality. The emergent scalar spin chirality due to noncoplanar spins might be different from the spontaneous scalar spin chirality in the CSL, but their effects on the magnetic excitations should be the same. In this Letter we show that a nonzero Berry curvature can be induced by a chiral spin texture in real space rather than the DM spin-orbit interaction. The Berry curvature stems from the emergent scalar spin chirality which measures the solid angle subtended by three noncoplanar spins in a unit triangular plaquette of the kagomé lattice. The Berry curvature of the chiral spin texture is the driving force of the thermal Hall effect in frustrated distorted QKAF with/without magnetic long-range order.

II Model

We consider the microscopic spin Hamiltonian on the distorted QKAF subject to a magnetic field perpendicular to the kagomé plane. The Hamiltonian is given by

[TABLE]

where ${\bf S}_{i}$ is the magnetic spin moment at site $i$, and the summation runs over nearest-neighbour spins. $J_{ij}=J>0$ on the diagonal bonds, and $J_{ij}=J^{\prime}=J\delta$ on the horizontal bonds with $\delta\neq 1$ as shown in Fig. 1. The inversion symmetry breaking between the bonds on the kagomé lattice allows a DM vector ${\bf D}_{ij}=-D_{\perp}\mathbb{\hat{z}}$ and they lie at the midpoints between two magnetic ions as shown in Fig. 1. The last term is the out-of-plane external magnetic field $\mathbb{H}=h\mathbb{\hat{z}}$ and $h=g\mu_{B}H$. The Hamiltonian (1) is applicable to volborthite Yo4 ; fa ; lii ; apel ; par and other forms of Hamiltonian have also been proposed for volborthite Yo3a ; andr ; Yo3 . The out-of-plane DM interaction is always present on the kagomé lattice and it stabilizes the coplanar/noncollinear spin configuration men1 . In some kagomé materials an in-plane DM interaction $D_{\parallel}$ may be present due to lack of mirror planes. It leads to weak out-of-plane ferromagnetism with small ferromagnetic moment. However, it is usually negligible compared to the out-of-plane component for most spin-$1/2$ kagomé antiferromagnetic materials men3 ; zor and can be removed by gauge transformation. For kagomé volborthite wat , there was no signal of both in-plane and out-of-plane DM interaction on the observed $\kappa_{xy}$. Also, for potassium Fe-jarosite with spin-$5/2$ the in-plane DM interaction (or the DM interaction in general) does not necessarily induce topological magnetic excitations men4a . Therefore, we will neglect the small in-plane DM component at the moment and comment on its effects in the subsequent sections.

Let us start from what is known for distorted kagomé antiferromagnets at ${\bf D}_{ij}=h=0$ fa . In this case, the Hamiltonian can be written as

[TABLE]

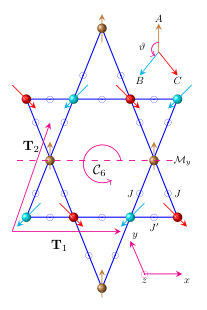

where ${\bf S}_{A,B,C}$ form a triad as depicted in Fig. 1. It is easily seen that the classical energy is minimized for $\frac{1}{\delta}{\bf S}_{A}+{\bf S}_{B}+{\bf S}_{C}=0$, yielding $\vartheta=\arccos(-1/2\delta)\neq 120^{\circ}$ for $\delta\neq 1$. The classical configuration is now a canted coplanar/noncollinear spins for $\delta>1/2$ fa . However, it also has an extensive degeneracy as in the ideal kagomé Heisenberg antiferromagnets. There are several limiting cases in which the system is either bipartite with collinear magnetic order or non-bipartite with non-collinear magnetic order. The limiting case $\delta\to 0$ maps to a bipartite square lattice with collinear magnetic order and $\delta\to\infty$ maps to a decoupled antiferromagnetic chains. For $\delta<1/2$ it has been established that the classical ground state is collinear (up-down-down state) and there is no degeneracy except a global spin rotation about the $z$-axis, and for $\delta>1/2$ the classical ground state is non-collinear but coplanar. The collinear phases are trivial. In the present study, we focus on the canted coplanar/noncollinear regime $(\delta>1/2)$ as the ground state properties of volborthite, vesignieite, and edwardsite are believed to live in this regime.

III Classical Ground State

Now, we consider the classical ground state of the full Hamiltonian (1). In the classical limit, the spin operators can be approximated as classical vectors, written as $\mathbb{S}_{i}=S\mathbb{n}_{i}$, where $\mathbb{n}_{i}=\left(\sin\phi\cos\theta_{i},\sin\phi\sin\theta_{i},\cos\phi\right)$ is a unit vector and $\theta_{i}$ labels the spin oriented angles on the spin triad and $\phi$ is the magnetic-field-induced canting angle. For $\delta>1/2$ the ground state is the canted coplanar/noncollinear spin configuration in Fig. 1. The classical energy is given by

[TABLE]

where $e_{0}(\phi)=E(\phi)/NS^{2}$, and $N$ is the number of sites per unit cell. The magnetic field is rescaled in unit of $S$. The minimization of $e_{0}(\phi)$ yields the magnetic-field-induced canting angle $\cos\phi=h/h_{s}$ where

[TABLE]

As can be seen from Eq. 3 the classical energy depends on the DM interaction as it contributes to the stability of the coplanar/noncollinear spin configuration. In collinear spin configurations, the DM interaction does not contribute to the classical energy, instead it provides TMDs, e.g. in kagomé ferromagnets alex0 ; alex1 ; alex1a ; jun ; alex4 ; alex6a ; alex6 ; alex44 ; alex2 ; mok ; su ; zhh ; chen .

IV Topological Magnetic Excitations

The magnetic excitations of frustrated QKAF can be studied in different formalisms. In real materials the intrinsic DM spin-orbit interaction and an external applied magnetic field are very likely to induce a magnetic long-range order in frustrated QKAF Yo ; Yo1 ; Yo2 ; jeo ; koz . Therefore, we will employ the Holstein-Primakoff (HP) transformation HP valid in the low temperature regime. In the Supplemental Material (SM), we have shown that a magnetic field (H $\perp$ 2D plane) can induce a chiral noncoplanar spin texture with an emergent scalar spin chirality

[TABLE]

where $J_{\phi}=\cos\phi\propto h$. As we previously mentioned, the scalar spin chirality breaks time-reversal ($\mathcal{T}$) symmetry macroscopically and can be spontaneously developed in CSL kal ; wen ; bau ; bas ; shou ; shou1 ; shou2 ; shou3 . Its effects on the magnetic excitations should be the same in the ordered and disordered phases. In the magnetic-field-induced noncoplanar regime the DM interaction is not necessarily needed. Its main effect on QKAF is to induced a long-range magnetic order. The system exhibits nontrivial topological effects through real space Berry curvature of the chiral noncoplanar spin texture.

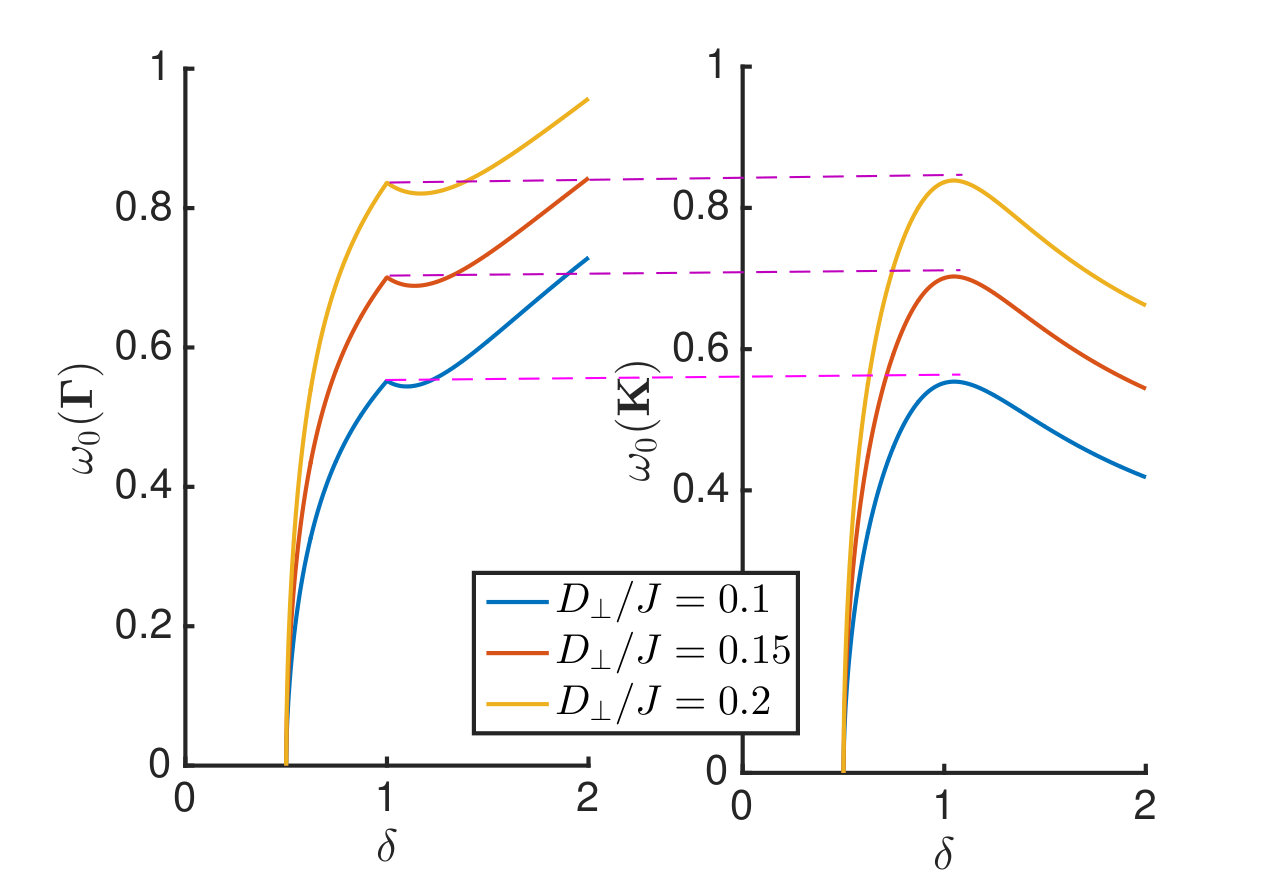

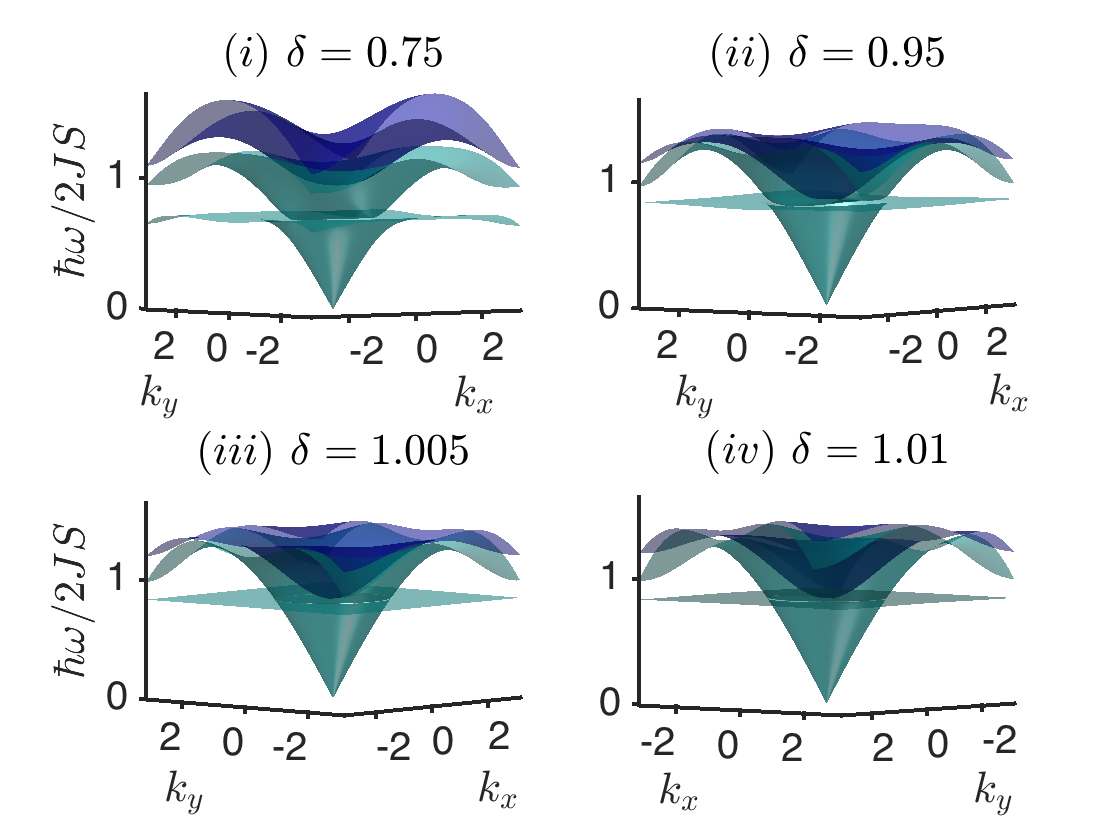

The magnetic excitations at zero magnetic field and zero DM interaction with $\delta\neq 1$ still exhibit a zero energy mode $\omega_{0}=0$ (not shown). Lattice distortion is unable to lift the zero energy mode. In addition, there are two non-degenerate dispersive modes $\omega_{1}\neq\omega_{2}$ (not shown) induced by lattice distortion in contrast to undistorted kagomé antiferromagnets with degenerate modes $\omega_{1}=\omega_{2}$. Although the exact parameter values of volborthite are not known, an out-of-plane DM interaction is intrinsic to the kagomé lattice. A moderate DM interaction ($D_{\perp}/J=0.2$) lifts the zero energy mode and stabilizes the coplanar/noncollinear spin configuration as shown in Fig. 2. We find that the lifted zero mode is no longer a constant flat band but varies in the BZ (see SM), that is $\omega_{0}({\bf\Gamma})\neq\omega_{0}({\bf K})$, where ${\bf\Gamma}=(0,0)$ and ${\bf K}=(2\pi/3,~{}0)$ see Fig. 3. This is one of the differences between distorted and undistorted kagomé antiferromagnets at finite DM interaction.

The symmetry group of the kagomé lattice is generated by lattice translation $\mathbb{T}$, $6$-fold rotation $\mathcal{C}_{6}$ ( $\pi/3$ rotation about the center of the hexagonal plaquettes), and mirror reflection symmetry $\mathcal{M}$ (see Fig. (1)). Several combinations of the space group symmetry and $\mathcal{T}$-symmetry can lead to identity in the coplanar order phase. For instance, $\mathcal{M}$-symmetry is a good symmetry of the kagomé lattice, but it flips the in-plane spins and $\mathcal{T}$-symmetry flips the spins again and leaves the magnetic order invariant. Hence $\mathcal{T}\mathcal{M}$ is a symmetry of the coplanar/noncollinear magnetic order. Since the lattice distortion and the out-of-plane DM interaction preserve this combined symmetry the system should be topologically trivial as we will show below. Therefore, we expect this model to be topologically nontrivial when either $\mathcal{T}$-symmetry or $\mathcal{M}$-symmetry is broken.

The combined symmetry can be broken in two ways:

$(1)$ If the kagomé lattice lacks $\mathcal{M}$-symmetry, an in-plane DM component $D_{\parallel}$ can be allowed according to the Moriya rules dm1 . The in-plane DM component preserves $\mathcal{T}$-symmetry but breaks $\mathcal{M}$-symmetry, hence $\mathcal{T}\mathcal{M}$ will be broken. This leads to weak out-of-plane ferromagnetism or noncoplanar spin canting with scalar spin chirality and weak ferromagnetic moment men1 ; mes1 . Thus, for kagomé antiferromagnetic materials with $D_{\perp}\ll D_{\parallel}$ we expect the out-of-plane ferromagnetism to be dominant and hence the (in-plane) DM interaction should be the primary source of topological spin excitations as we already know in collinear ferromagnets with out-of-plane DM interaction. However, most kagomé antiferromagnetic materials have a dominant intrinsic out-of-plane component $D_{\perp}\gg D_{\parallel}$ and the weak ferromagnetism induced by $D_{\parallel}$ can be negligible. In fact, there was no signal of any DM interaction on the observed $\kappa_{xy}$ in kagomé volborthite wat . Therefore, there must be another source of topological spin excitations apart from the DM interactions.

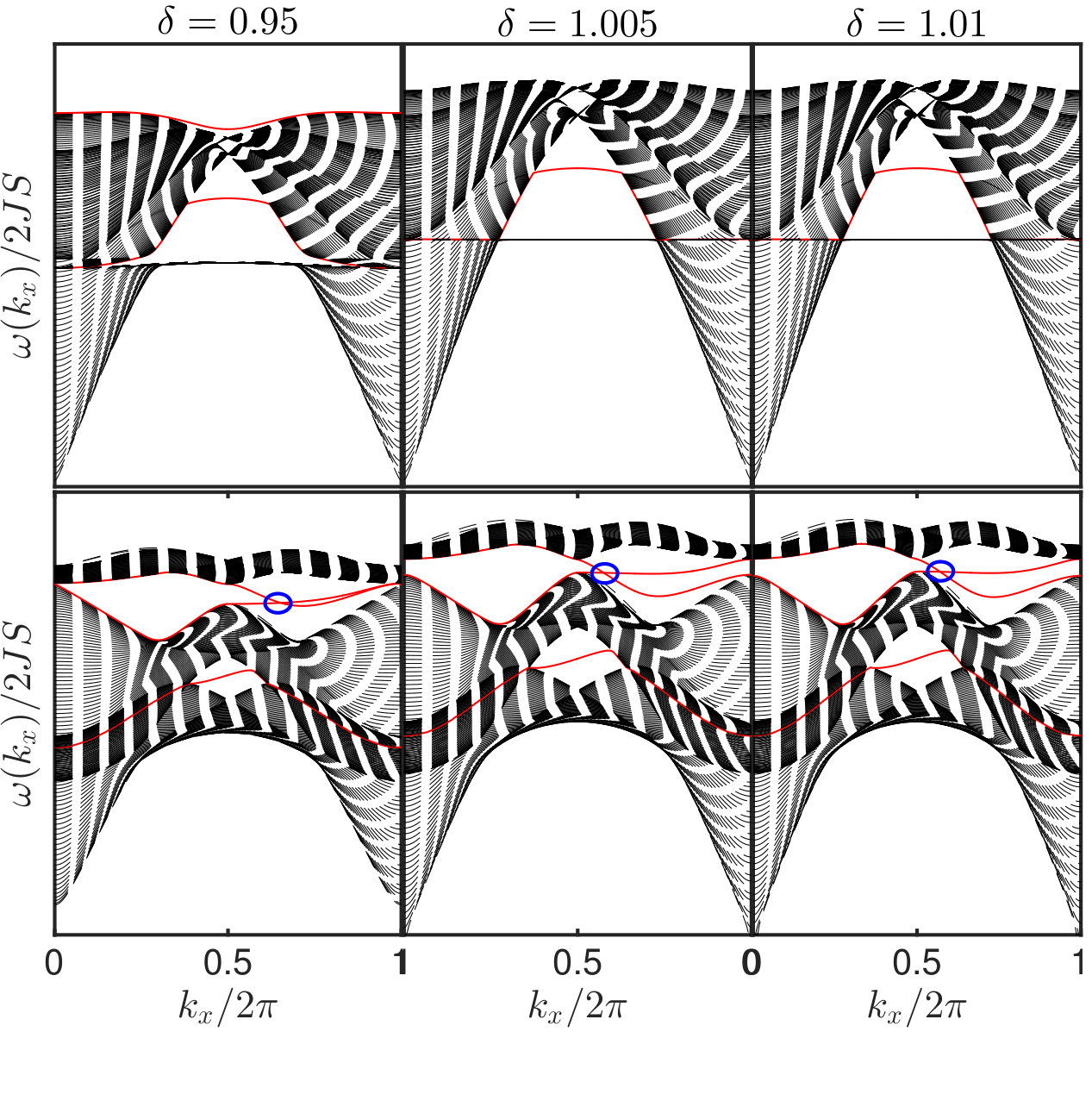

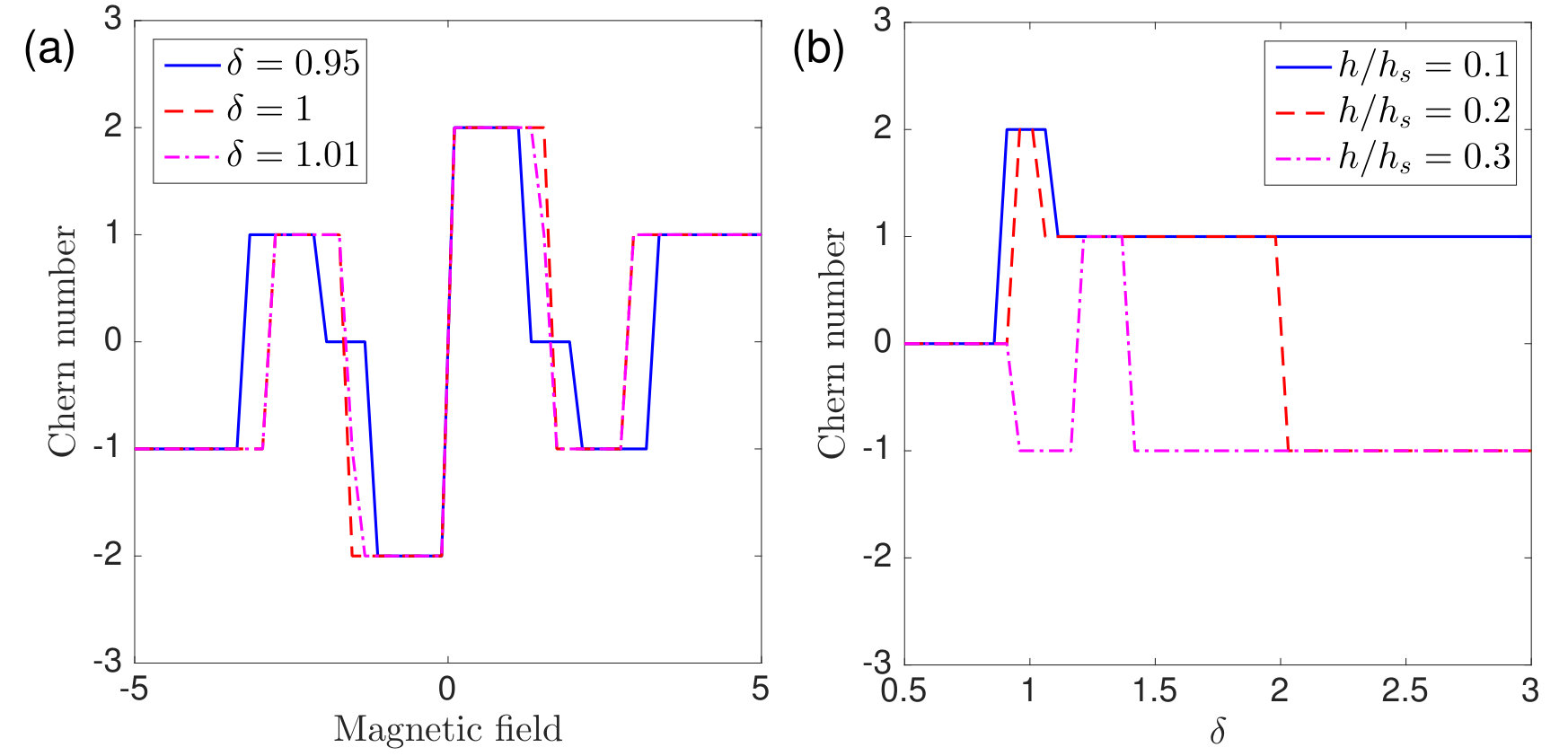

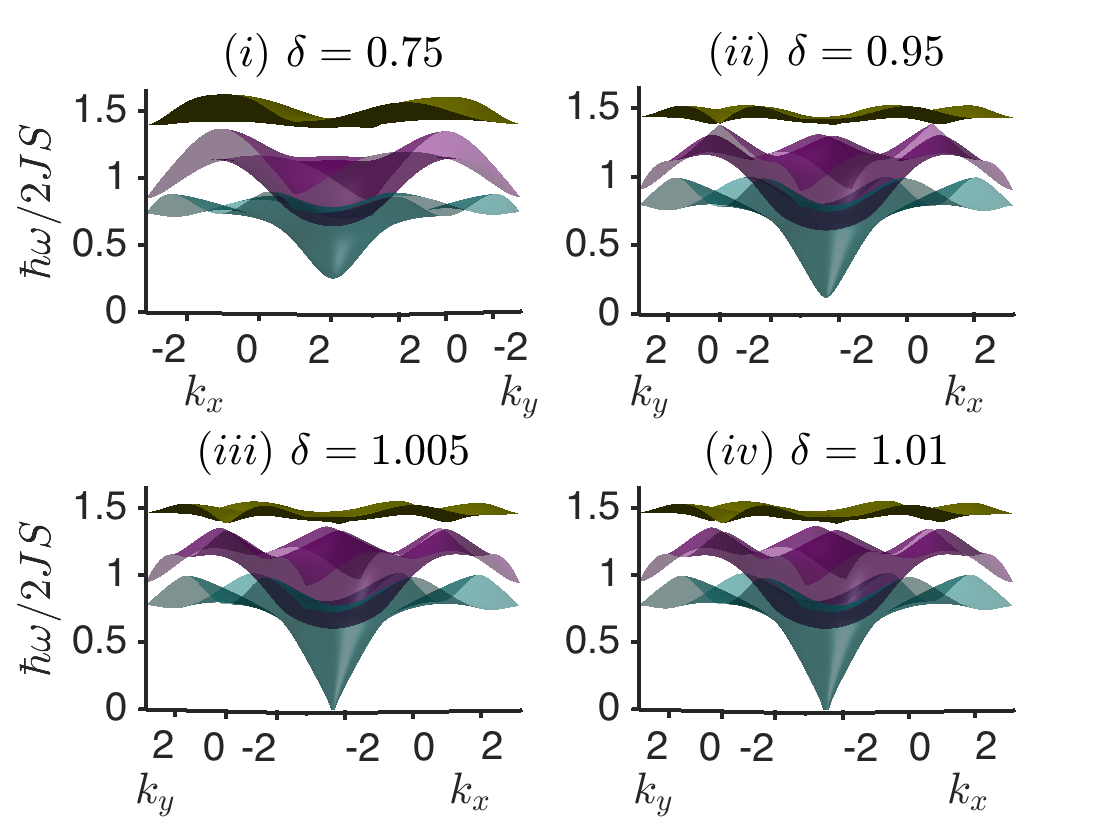

$(2)$ An alternative way to break $\mathcal{T}\mathcal{M}$ symmetry is by applying an external magnetic field perpendicular to the kagomé plane (H $\perp$ 2D plane). A finite out-of-plane magnetic field breaks $\mathcal{T}$-symmetry but preserves $\mathcal{M}$-symmetry. It induces a noncoplanar spin texture with a nonzero scalar spin chirality (see SM). The magnon dispersions are also gapped as depicted in Fig. 4 similar to the case without magnetic field. However, the gap excitations with and without the magnetic field are different which can be shown by solving for the chiral edge modes. The magnon edge modes for a strip geometry with open boundary conditions along the $y$-direction and infinite along $x$-direction are shown in Fig. 5 at zero magnetic field (top panel). We see that the system does not possess topologically protected gapless edge modes and the Chern number vanishes (see SM). On the other hand, the edge modes at finite magnetic field shown in bottom panel of Fig. 5 are gapless — an indication of a topological system. We have also shown the variation of the Chern number of the lowest magnon band in Fig. 6. The magnetic-field-induced noncoplanar chiral spin texture does not require a DM interaction in general as long-range order can be induced through other interactions such as a second-nearest neighbour. Besides, the scalar spin chirality $\chi_{ijk}$ should have the same effects on magnetic excitations in the CSL.

V Topological Thermal Hall Effect

The mechanism that gives rise to a nonzero thermal Hall effect in insulating frustrated magnets has remained an open question. In electronic (metallic) systems there is a concept of the topological Hall effect in which an unconventional anomalous Hall conductivity is induced by the scalar spin chirality resulting from the configuration of the chiral spin textures rather than the spin-orbit interaction as reported in several electronic materials ele0 ; ele1 ; ele2 ; ele . In this section, we will show that this mechanism can be observed also in charge-neutral magnetic excitations on the frustrated QKAF. In this case the appropriate transport measurement is the thermal Hall effect in which a temperature gradient $-\boldsymbol{\nabla}T$ induces a heat current $\boldsymbol{\mathcal{J}}^{Q}$. From linear response theory, one obtains $\mathcal{J}_{\alpha}^{Q}=-\sum_{\beta}\kappa_{\alpha\beta}\nabla_{\beta}T$, where $\kappa_{\alpha\beta}$ is the thermal conductivity and the transverse component $\kappa_{xy}$ is associated with the thermal Hall conductivity given explicitly in Ref. shin1 .

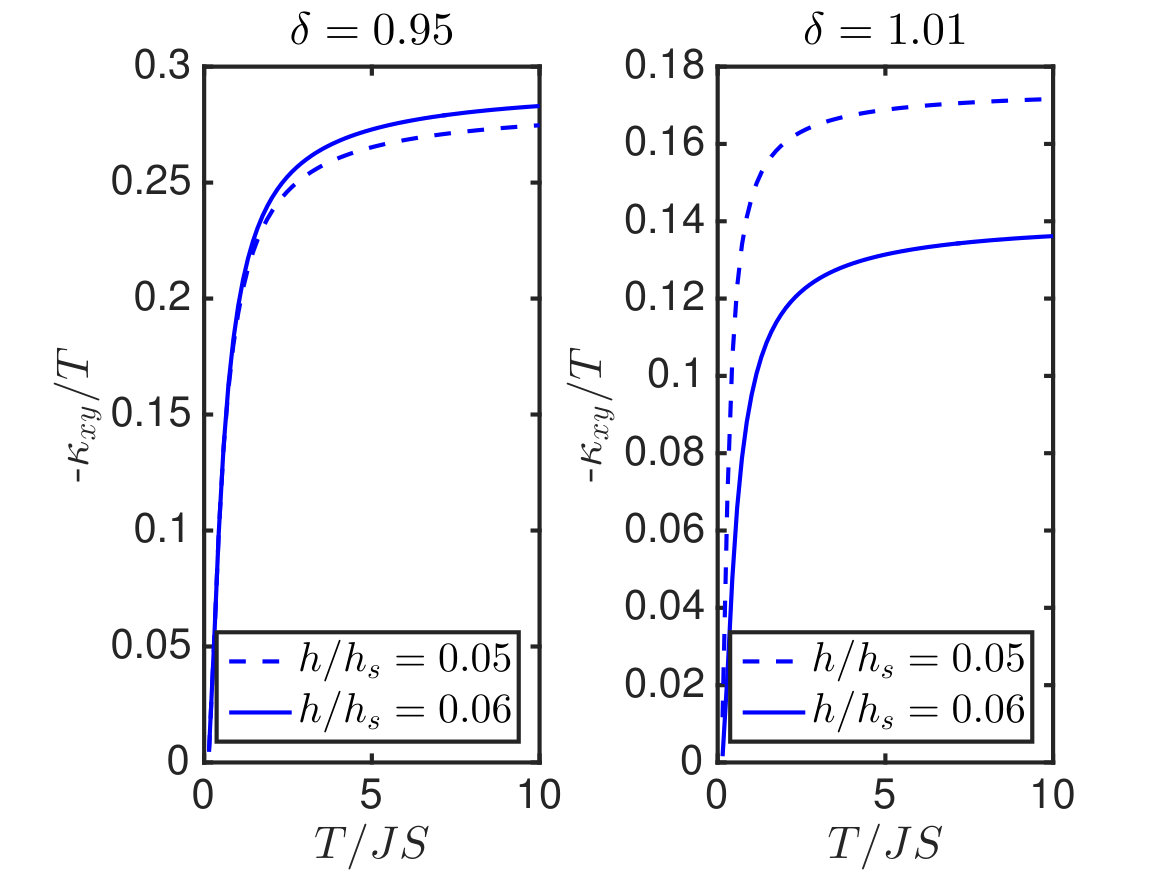

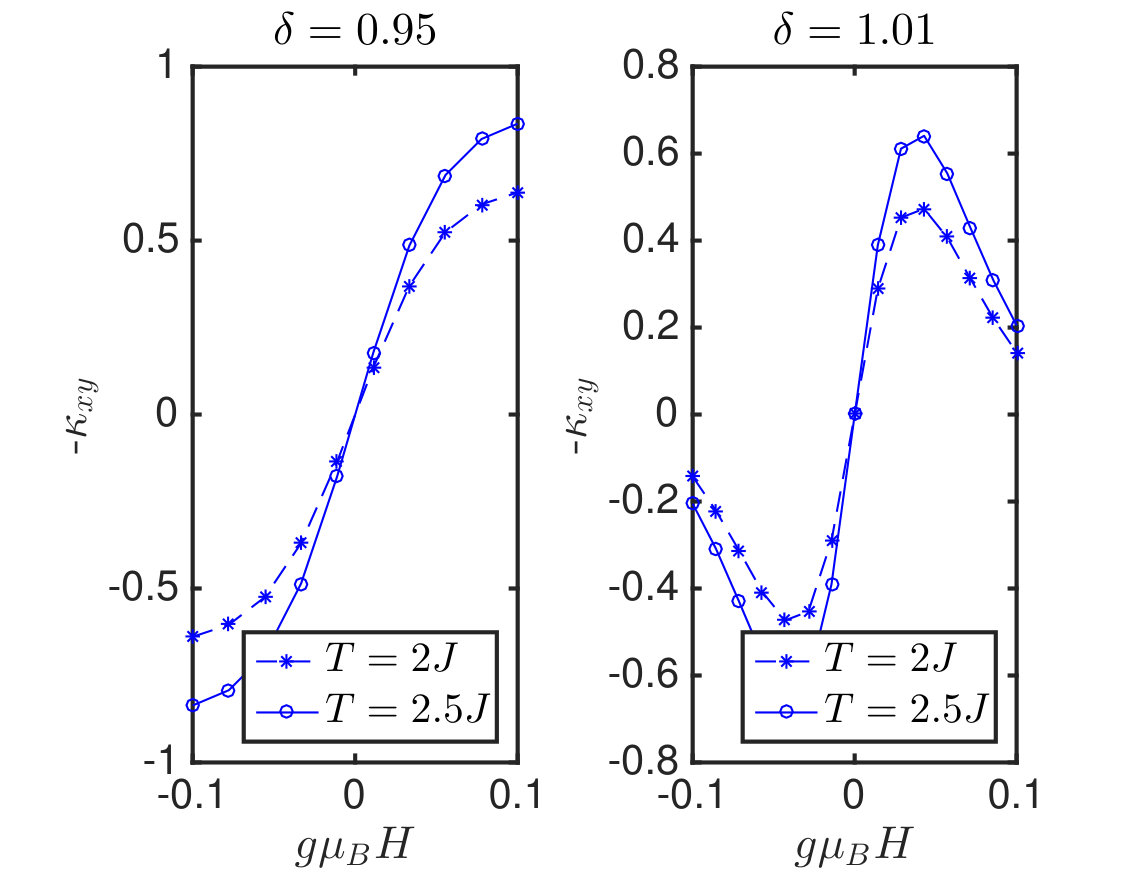

Figure 7 shows the low-temperature dependence of $\kappa_{xy}$ (in units of $k_{B}/\hbar$) for two values of the lattice distortion and the magnetic field. The topological Hall conductivity captures a negative value in both regimes $\delta<1$ and $\delta>1$ and the thermal Hall conductivity is suppressed in the latter. As we previously noted the thermal Hall conductivity does not originate from the DM spin-orbit interaction but from the chiral spin texture of the noncoplanar spins induced by the magnetic field. The DM spin-orbit interaction is only necessary to stabilize the coplanar order but a second-nearest neighbour antiferromagnetic interaction or an easy-plane anisotropy also stabilizes the coplanar/noncollinear Néel order. Therefore, kagomé antiferromagnetic materials with a weak (negligible) DM interaction can possess a thermal Hall conductivity from the real space Berry curvature of the chiral spin texture and this should be possible in the CSL phase even at zero magnetic field. This is an analog of topological Hall effect in electronic systems ele0 ; ele1 ; ele2 ; ele . On the other hand, Fig. 8 shows the magnetic field dependence of $\kappa_{xy}$ which shows a symmetric sign change as the magnetic field is reversed as can be understood from the rotation of the spins and the corresponding sign change in the spin chirality. We note that the role of magnetic field in the QKAF is different from the triplon bands in a dimerized quantum magnet jud , where no scalar spin chirality was induced $\chi_{ijk}=0$, therefore topological magnetic excitations and thermal Hall effect stem from the DM interaction jud .

VI Conclusion

In summary, we have studied topological magnetic excitations and thermal Hall effect induced by the real space Berry curvature of the chiral spin texture on the distorted kagomé antiferromagnets applicable to vesignieite, edwardsite, and volborthite. The lack of inversion symmetry on the kagomé lattice allows a Dzyaloshinskii-Moriya (DM) interaction. However, in contrast to ferromagnets the DM interaction is only necessary to stabilize the coplanar/noncollinear magnetic spin structure. We showed that lattice distortion and DM interaction introduce gap magnetic excitations, but the system remains topologically trivial with neither protected chiral edge modes nor finite thermal Hall conductivity. By turning on an out-of-plane external magnetic field, we showed that a finite scalar spin chirality is induced from the noncoplanar chiral spin texture. This gives rise to a real space Berry curvature which measures the solid angle subtended by three noncoplanar spins independent of the DM interaction. We note that the real space Berry curvature of the chiral spin texture should persist in the chiral spin liquid (CSL) phase due to the presence of the spontaneous scalar spin chirality.

The results of this Letter suggest that the experimental result of thermal Hall response in volborthite can be best described using a distorted Heisenberg model as opposed to a frustrated alternating spin chain. It is noted that the DM interaction can be removed by a gauge transformation for frustrated one-dimensional (1D) spin chain zyu and an ideal 1D system should not have a chiral noncoplanar magnetic order and scalar spin chirality should be absent. An alternative approach is the Schwinger boson formalism, however the scalar spin chirality does not appear explicitly in this formalism. Instead the DM interaction generates a magnetic flux leading to topological spin excitations even in the absence of an applied magnetic field mes ; alex44 . This is reminiscent of collinear ferromagnets and thus sharply contrast with the present results.

These results also call for further investigation of thermal Hall effect in the kagomé volborthite and other distorted quantum kagomé antiferromagnets such as vesignieite oka ; oka1 ; oka2 ; okaa ; okaa1 ; men0 ; men2 and edwardsite oka3 . Although we captured a negative thermal Hall conductivity ($\kappa_{xy}$) as seen in experiment wat , it would be interesting to determine the parameter values of volborthite and also measure the magnetic field dependence of $\kappa_{xy}$ and possibly the topological magnetic excitations at various magnetic field and temperature ranges. Furthermore, experiment should also try to measure the spontaneous or magnetic-field-induced scalar spin chirality that gives rise to topological magnetic excitations and thermal Hall response. We believe that the results of this Letter have shed some light on recent observation of thermal Hall conductivity in volborthite wat .
