Improved magneto-optical trapping of Ca

TL;DR

This paper improves calcium magneto-optical traps by exploring and experimentally validating alternative repumping schemes, significantly increasing trap lifetime, atom number, and density, approaching fundamental limits.

Contribution

It identifies limiting factors in Ca MOTs and demonstrates new repumping schemes that substantially enhance trap performance.

Findings

Trap lifetime increased up to ~5 seconds.

Atom number and density improved by up to ~20x and ~6x.

One repumping transition at 453 nm approaches the fundamental limit.

Abstract

We investigate the limiting factors in the standard implementation of the Ca magneto-optical trap. We find that intercombination transitions from the 4s5p 1P1 state used to repump electronic population from the 3d4s 1D2 state severely reduce the trap lifetime. We explore seven alternative repumping schemes theoretically and investigate five of them experimentally. We find all five of these schemes yield a significant increase in trap lifetime and consequently improve the number of atoms and peak atom density by as much as ~20x and ~6x, respectively. One of these transitions, at 453 nm, is shown to approach the fundamental limit for a Ca magneto-optical trap with repumping only from the 3d4s 1D2 state, yielding a trap lifetime of ~5 s.

Figures

Tables

Table 1. Table 1: Comparison of selected NIST recommended and theoretical CI+MBPT values. The recommended values of | ⟨ f | | ​ D ​ | | i ⟩ | bra 𝑓 𝐷 ket 𝑖 \left|\langle f||D||i\rangle\right| are derived from transition rates compiled in the NIST atomic spectra database  Ralchenko  et al. ( 2016 ) as 1.5 × 10 − 8 ​ A f ​ i ​ λ 3 ​ g f / 303.8 1.5 superscript 10 8 subscript 𝐴 𝑓 𝑖 superscript 𝜆 3 subscript 𝑔 𝑓 303.8 \sqrt{1.5\times 10^{-8}A_{fi}\lambda^{3}g_{f}/303.8} , where A f ​ i subscript 𝐴 𝑓 𝑖 A_{fi} is transition rate in 10 8 superscript 10 8 10^{8} /s, λ 𝜆 \lambda is wavelength in Å italic-Å \AA , g f = ( 2 ​ J f + 1 ) subscript 𝑔 𝑓 2 subscript 𝐽 𝑓 1 g_{f}=(2J_{f}+1) with J f subscript 𝐽 𝑓 J_{f} being the final state angular momentum.

States		$\Delta E$, ${\mathrm{cm}}^{-1}$		$\left|⟨f|\right|D\left||i⟩\right|$, a.u.
initial	final	CI+MBPT	NIST	CI+MBPT	NIST
$4s4p{}_{}{}^{1}P_1^{}$	$4s^2{}_{}{}^{1}S_0^{}$	23491	23652	4.9	4.9
$4s5s{}_{}{}^{3}S_1^{}$	$4s4p{}_{}{}^{3}P_0^{}$	16604	16382	1.8	1.8
$4s5s{}_{}{}^{3}S_1^{}$	$4s4p{}_{}{}^{3}P_1^{}$	16550	16329	3.1	3.2
$4s5s{}_{}{}^{3}S_1^{}$	$4s4p{}_{}{}^{3}P_2^{}$	16440	16224	4.0	4.1
$4s5p{}_{}{}^{1}P_1^{}$	$3d4s{}_{}{}^{1}D_2^{}$	14259	14882	2.4	2.3
$4p^2{}_{}{}^{1}D_2^{}$	$4s4p{}_{}{}^{1}P_1^{}$	17691	17068	5.6	5.7
$4s6p{}_{}{}^{1}P_1^{}$	$4s^2{}_{}{}^{1}S_0^{}$	41788	41679	0.4	0.6
$4s4f{}_{}{}^{1}F_3^{}$	$3d4s{}_{}{}^{1}D_2^{}$	19943	20494	3.5	2.8
$4s5f{}_{}{}^{1}F_3^{}$	$3d4s{}_{}{}^{1}D_2^{}$	22421	22955	2.3	2.3
$4s7p{}_{}{}^{1}P_1^{}$	$4s^2{}_{}{}^{1}S_0^{}$	46975	45425	0.6	0.5
$4snp{}_{}{}^{1}P_1^{}$	$4s^2{}_{}{}^{1}S_0^{}$	44383	43933	0.8	0.7

Table 2. Table 2: Summary of the results of this work. Each row of this table lists the calculated and measured properties of an individual repumping scheme, with the most efficient repump transition to the 4 ​ s ​ n ​ p 4 𝑠 𝑛 𝑝 4snp P 1 1 superscript subscript 𝑃 1 1 {}^{1}P_{1}  state bolded. We attribute deviations between the rate model prediction for the MOT lifetime and the measured lifetime to inaccuracies in the calculated transition amplitudes. These inaccuracies are expected to be higher for the high-lying F 𝐹 F -states, in agreement with the larger deviations seen between model and data for these states.

State	$\lambda$ (nm)	$f$ (THz)	${\rho }_0$ (cm-3)	N	$\tau$(s), model	$\tau$ (s), exp.	T (mK)	Ca+ Production (relative)
$4s5p$ ${}_{}{}^{1}P_1^{}$	672	446.150768(10)	7.5$\times$109	3.7$\times$106	0.098	0.093(6)	4	1.0
$3d4p$ ${}_{}{}^{1}F_3^{}$	535	–	–	–	0.24	–	–	–
$4s6p$ ${}_{}{}^{1}P_1^{}$	504	–	–	–	2.0	–	–	–
$4s4f$ ${}_{}{}^{1}F_3^{}$	488	614.393358(20)	2.1$\times$1010	2.7$\times$107	0.76	1.35(6)	5	0.9
$4snp$ ${}_{}{}^{1}P_1^{}$	453	662.057094(20)	5.0$\times$1010	7.8$\times$107	2.3	2.48(8)	5	0.8
$4s5f$ ${}_{}{}^{1}F_3^{}$	436	688.180792(20)	2.8$\times$1010	2.8$\times$107	0.94	1.86(7)	4	1.4
$4s7p$ ${}_{}{}^{1}P_1^{}$	424	706.782952(4)	2.9$\times$1010	5.9$\times$107	2.3	1.77(6)	5	1.7
$4s6f$ ${}_{}{}^{1}F_3^{}$	411	729.478276(20)	2.5$\times$1010	1.6$\times$107	0.48	0.96(3)	4	3.1
Ideal	–	–	–	–	3.0	–	–	–

Equations

$$\begin{gathered} \frac{d}{dt}{N}_i=\sum _{j>i}{A}_{ji}{N}_j-\sum _{j<i}{A}_{ij}{N}_i \\ +A_{ki}\frac{{\pi }^2{c}^3}{\hslash {\omega }_{ik}^3}\frac{I_l}{2\pi c}\frac{{\Gamma }_k}{({\omega }_{ik}-{\omega }_l{)}^2+\frac{{\Gamma }_k^2}{4}}\left(N_k-\frac{2j_k+1}{2j_i+1}{N}_i\right) \end{gathered}$$

Full text

I Introduction

The magneto-optical trap (MOT) Raab et al. (1987) is an integral part of atomic and molecular physics, where it is the starting point for a variety of experiments including precision tests of fundamental physics Hamilton et al. (2015), studies of quantum many-body physics Kaufman et al. (2016), and production of ultracold molecules Rellergert et al. (2013); Barry et al (2014). At present, atomic MOTs have been constructed for atoms within Groups 1, 2, 6, 12, and 18, as well as the lanthanides. Extension to atoms in other Groups is often limited by the availability of appropriate laser technology for driving the necessary cooling transitions and complications due to the electronic structure of the atom. For example, if there are multiple electronic states below the upper electronic state of the primary laser cooling transition, then radiative decay into these lower levels can severely reduce, and even eliminate, the laser cooling force. For these reasons, the Group 1 atoms, with their lone optically active, unpaired electron, provide the simplest, and often best performing, MOTs.

Nonetheless, the same ‘complications’ that can limit the laser cooling process often host interesting and useful phenomena. A prime example of this are the ${}^{3}P$ states of Group 2(-like) atoms, which, while detrimental to the performance of a standard MOT, allow the construction of next-generation optical atomic clocks that outperform the Cesium standard Ludlow et al. (2015). One such MOT of this type is the Ca MOT. Calcium MOTs have been utilized in atomic optical clock experiments using the 657 nm ${}^{3}P_{1}~{}\leftarrow~{}^{1}S_{0}$ intercombination line (Sterr et al., 2004; Degenhardt et al., 2005; Wilpers et al., 2006) and have significant appeal due to their simplicity of construction as portable optical frequency standards Vutha (2015). However, despite this appeal, the details of the Ca electronic structure lead to relatively poor performance of Ca MOTs, including a short trap lifetime limited by optical pumping into dark states and a low achievable peak atomic density. For these reasons, other Group 2(-like) atoms such as Sr, Yb, and Hg have become more popular choices for optical frequency standards Ludlow et al. (2015); Derevianko and Katori (2011).

Given the potential of Ca as a portable frequency standard, as well as its utility in our own experiments as a sympathetic coolant for molecular ions Rellergert et al. (2013), we have performed a detailed combined experimental and theoretical study of Ca MOT operation. Specifically, relativistic many-body calculations are performed for the first 75 energy levels of the Ca atom, providing reliable electronic structure and transition matrix elements for this multi-electron atom. The results of this calculation are incorporated into a rate equation model for the populations in the Ca atom, which is used to evaluate specific repumping schemes and identify seven promising transitions. In total, we experimentally investigate five alternative repumping schemes and find that all of them yield Ca MOTs with lifetimes and atom numbers improved by $\sim 10\times$ over the traditional scheme described in Ref. (Grünert and Hemmerich, 2001). The best of these schemes, which utilizes repumping to a highly configuration-mixed state with a 453 nm repumping laser, produces a Ca MOT with lifetime, number, and density improved over the standard MOT by $\sim 25\times$, $\sim 20\times$, and $\sim 6\times$, respectively.

In the remainder of this paper, we first present the details of the relativistic many-body calculation of the Ca energy levels and the resulting rate equation model of the Ca populations. We then use this rate equation model to explain the poor performance of the traditional Ca MOT. From this work, we propose seven alternative MOT operation schemes and experimentally investigate five of them. We characterize the differences in these MOT operation schemes, reporting the achievable MOT lifetimes, density, and trapped atom numbers, as well as the necessary repumping laser frequencies. We conclude with discussion of the ideal repumping scheme for Ca MOT operation and possible extension to other Group 2(-like) atoms.

II Relativistic many-body calculations of atomic structure

The analysis of MOT performance requires estimates of electric-dipole transition rates between the 75 lowest-energy levels of Ca, including both spin-allowed and spin-forbidden (intercombination) transitions. While the energy levels are well established, transition rates (811 possible channels) are generally unknown, and we evaluated them using methods of relativistic many-body theory. Ab initio relativistic calculations are necessary as the analysis requires inclusion of transition amplitudes that are forbidden at the non-relativistic level.

Calcium is an atom with two valence electrons outside a tightly bound core. We employ a systematic formalism that combines advantages of both the configuration interaction (CI) method and many-body perturbation theory (MBPT), the CI+MBPT method Dzuba et al. (1996). The CI+MBPT method has been used extensively for evaluation of atomic properties (see, e.g., review Derevianko and Porsev (2011) for optical lattice clock applications and references therein). Relativistic effects are included exactly, as the formalism starts from the Dirac equation and employs relativistic bi-spinor wave functions throughout the entire calculation. In our treatment, the CI model space is limited to excitations of valence electrons. Contributions involving excitations of core electrons are treated within MBPT. In this approach, we first solve for the valence electron orbitals and energies in the field of core electrons. The one-electron effective potential includes both the frozen-core Dirac-Hartree-Fock (DHF $V^{N-2}$) and self-energy (core-polarization) potentials. The self-energy correction is computed using second-order MBPT diagrams involving virtual core excitations. At the next step, the computed one-electron valence orbitals are used to diagonalize the atomic Hamiltonian in the model space of two valence electrons within the CI method. The CI Hamiltonian includes the residual (beyond DHF) Coulomb interaction between the valence electrons and their core-polarization-mediated interaction. The latter was computed in the second-order MBPT. This step yields two-electron wave-functions and energies. Finally, with the obtained wave-functions we calculated the required electric-dipole matrix elements. In calculations of transition rates we used experimental energy intervals and the computed CI+MBPT matrix elements.

We used two independent CI+MBPT implementations: (i) by the Reno group (see the discussion of the earlier version in Ref. Derevianko (2001)) and (ii) a recently published package Kozlov et al. (2015). The practical goal of the calculations was not to reach the highest possible accuracy, but rather to generate the large amount of data needed for the transition array involving the 75 lowest-energy levels. An additional computational challenge was the inclusion of high angular momenta states, e.g., the $4s5g$ ${}^{3}G$ state. The Reno code was run on a large basis set but without including core-polarization-mediated interaction in the CI Hamiltonian due to considerable computational costs. The production runs with the package of Ref. Kozlov et al. (2015) employed a smaller basis set (due to code limitations) but treated the correlation problem more fully. Our final values combine the outputs of the two codes. The bulk of the results comes from the package of Ref. Kozlov et al. (2015). These results are augmented with the $ns8s$ states from the Reno code due to the limited number of roots in the package of Ref. Kozlov et al. (2015).

We assessed the quality of the calculations by comparing the CI+MBPT energies with the NIST recommended values Ralchenko et al. (2016) and by comparing computed transition rates with the NIST recommended data, when available. A representative comparison is presented in Table 1. From this table, we see that the energy intervals are reproduced with a few percent accuracy, while matrix elements with 1-30% accuracy. Such accuracies are sufficient for the goals of this paper. The full transition array with 811 entries together with a Mathematica front-end for accessing these data can be found in the supplementary materials. Detailed formatted tables will be published elsewhere.

III Rate equation model of Ca electronic state populations

Using these calculated transition rates, we create a rate model including the first 75 excited states of calcium. As an example, the differential equation for state $i$ with a laser driving from state $i$ to state $k$ is given by

[TABLE]

where $N_{i}$ is the number of atoms in state $i$, $A_{ij}$ is the decay rate of state $i$ to $j$, $c$ is the speed of light in a vacuum, $\hbar$ is the reduced Planck constant, $\omega_{ik}$ is the angular transition frequency between state $i$ and $k$, $\omega_{l}$ ($I_{l}$) is the angular frequency (intensity) of the applied laser, $\Gamma_{k}$ is the natural linewidth of state $k$, and $j_{i}$ is the total angular momentum quantum number of state $i$.

IV Evaluation of the standard Ca MOT operation

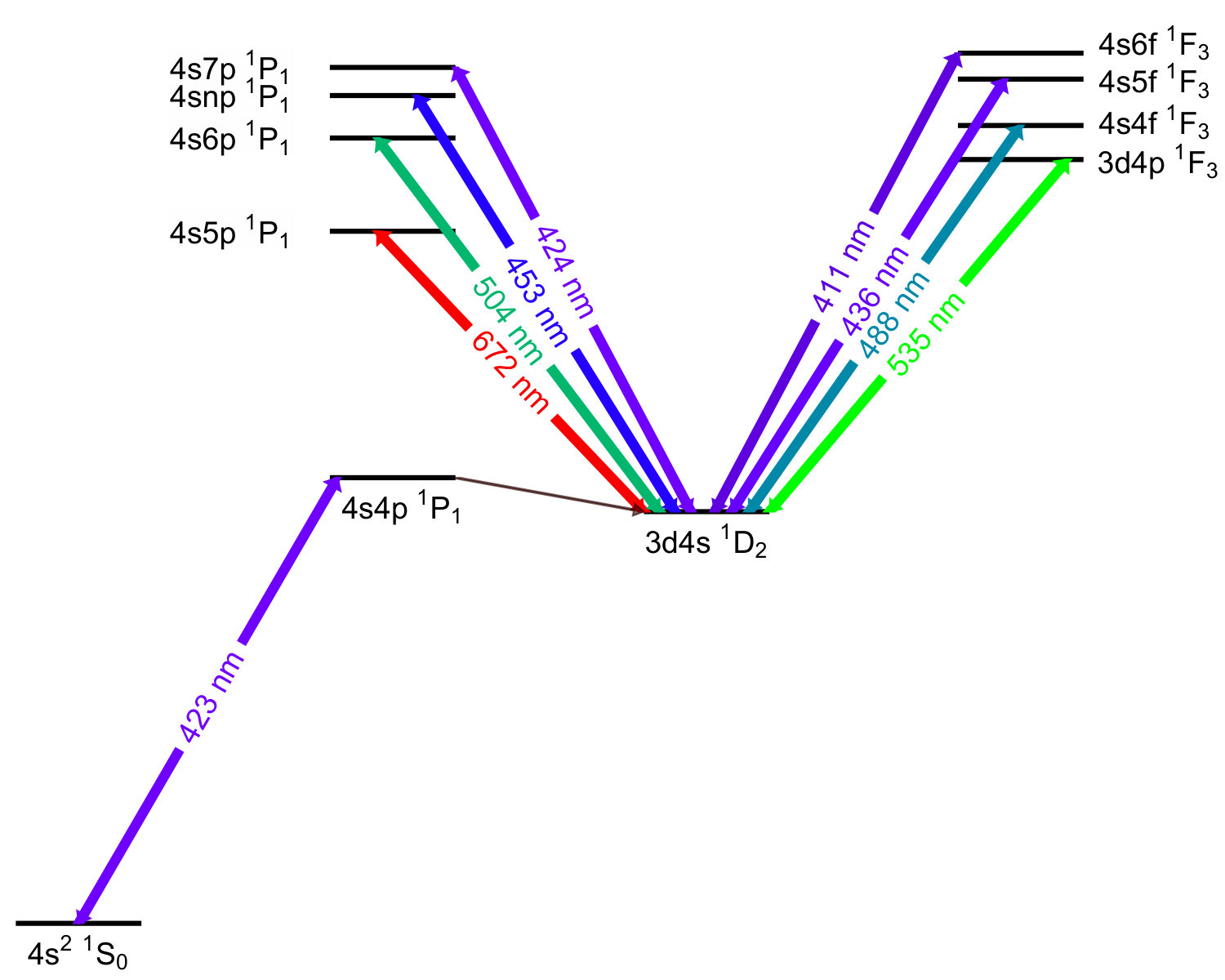

The standard implementation of a Ca MOT is formed by laser cooling on the strong $4s4p$ {}^{1}P_{1}$$\leftarrow $4s^{2}$ ${}^{1}S_{0}$ transition at 423 nm in the presence of an anti-Helmholtz magnetic field with gradient of 60 G/cm in the axial direction. This transition will incur loss from the laser cooling cycle primarily due to decay from the $4s4p$ ${}^{1}P_{1}$ state to the $3d4s$ ${}^{1}D_{2}$ state. This ${}^{1}D_{2}$ state, as shown in Fig. 1, decays to the $4s4p$ ${}^{3}P_{1}$ (83% branching) and ${}^{3}P_{2}$ (17% branching) states with a total lifetime of 1.71 ms Husain and Roberts (1986). The ${}^{3}P_{1}$ state decays to the ground state with a lifetime of 0.331 ms, while the ${}^{3}P_{2}$ state has a lifetime of 118 minutes, leading to loss from the laser cooling cycle Husain and Roberts (1986); Derevianko (2001). This loss, which is proportional to the $4s4p$ ${}^{1}P_{1}$ state population, limits the lifetime of the Ca MOT and according to the rate model with our MOT parameters leads to a MOT lifetime of 27 ms. As detailed later, we experimentally observe a MOT lifetime of 29(5) ms in this configuration.

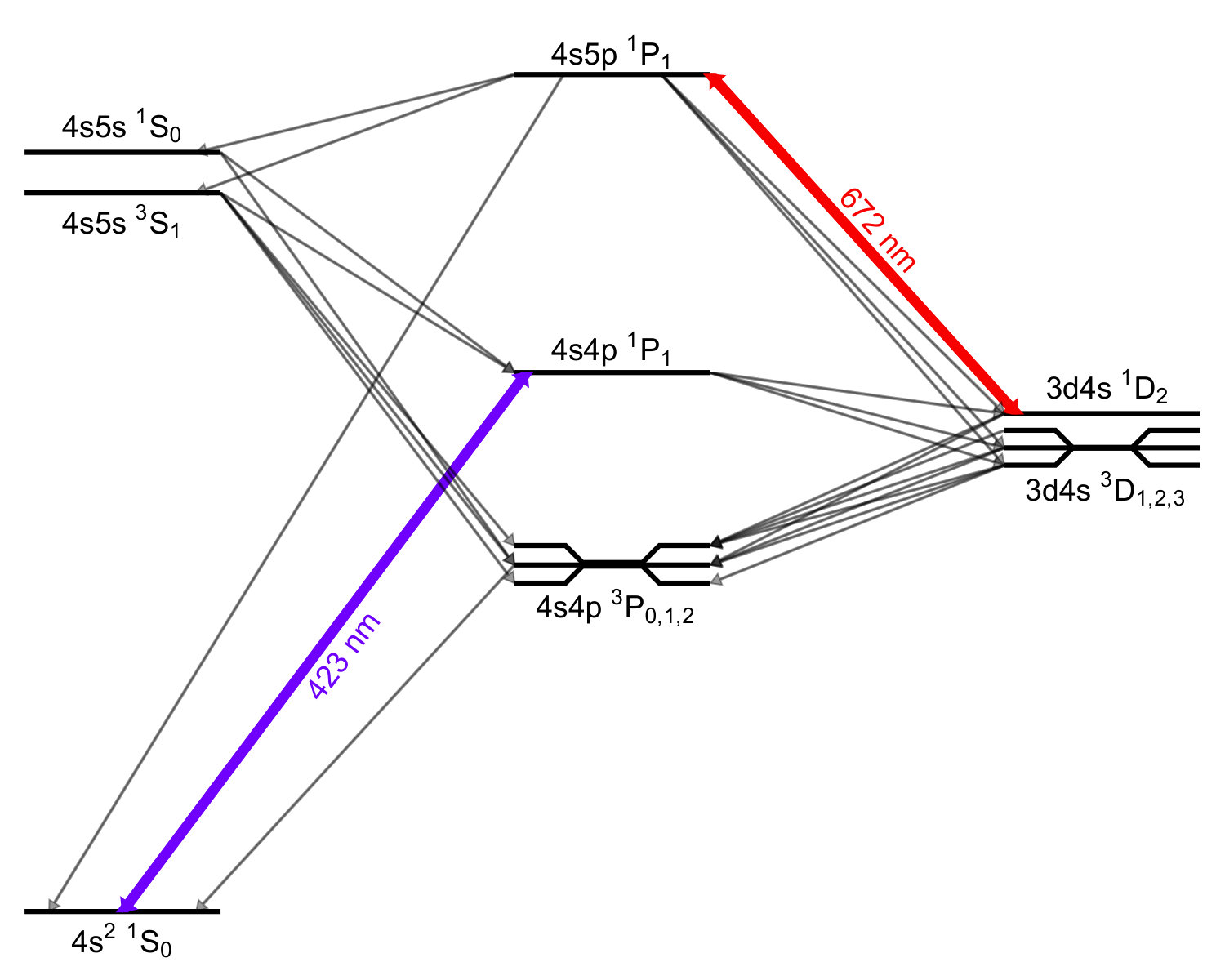

To extend the MOT lifetime, a repumping laser is usually added to drive the $4s5p$ {}^{1}P_{1}$$\leftarrow $3d4s$ ${}^{1}D_{2}$ transition at 672 nm in order to return electronic population in the $3d4s$ ${}^{1}D_{2}$ level to the laser cooling cycle before it decays to the $4s4p$ ${}^{3}P_{1}$ and ${}^{3}P_{2}$ states Kurosu and Shimizu (1992). In this configuration, the rate equation model predicts that the MOT lifetime is increased to 98 ms for our MOT parameters. As detailed later, we experimentally observe a MOT lifetime of 93(6) ms in this configuration.

Interestingly, it is often assumed that the lack of a further increase in the MOT lifetime with this repumping scheme is an incomplete depletion of the $3d4s$ ${}^{1}D_{2}$ state due to unfavorable branching ratios in the $4s5p$ ${}^{1}P_{1}$ state Kurosu and Shimizu (1992). This state decays primarily back to the $3d4s$ ${}^{1}D_{2}$ state and only weakly back in the cooling cycle. However, the rate equation model reveals that the MOT lifetime is actually limited by the decay of the $4s5p$ ${}^{1}P_{1}$ state to the $4s5s$ ${}^{3}S_{1}$, $3d4s$ ${}^{3}D_{1}$, and $3d4s$ ${}^{3}D_{2}$ states, all of which decay primarily to the $4s4p$ ${}^{3}P_{0,1,2}$ states, as shown in Fig. 1, as first pointed out in Ref. Oates et al. (1999). Specifically, according to the theoretical calculations, the $4s5p$ ${}^{1}P_{1}$ state decays indirectly to the lossy $4s4p$ ${}^{3}P_{0}$ and ${}^{3}P_{2}$ states at a total rate of $8\times 10^{4}$ s*-1*, while the $3d4s$ ${}^{1}D_{2}$ state decays to the $4s4p$ ${}^{3}P_{2}$ state at a rate of only $80$ s*-1*. With this understanding, the natural question arises: Is there an alternative repumping scheme that would suppress the loss into these triplet states?

V Evaluation of alternative Ca MOT operation schemes

The ideal repumping laser out of the $3d4s$ ${}^{1}D_{2}$ state would quickly transfer population from the ${}^{1}D_{2}$ state back into to the cooling cycle with perfect efficiency. With this idealized scheme, the rate model predicts a lifetime of 3.0 s with our MOT parameters. This lifetime is limited by the decay of the $4s4p$ ${}^{1}P_{1}$ state to $3d4s$ ${}^{3}D_{1}$ and ${}^{3}D_{2}$ states and is thus dependent on the $4s4p$ ${}^{1}P_{1}$ state population; lowering the $4s4p$ ${}^{1}P_{1}$ state population by decreasing 423 nm cooling laser intensity while maintaining reasonable MOT performance can extend the lifetime by $\sim 2\times$. Since this lifetime is similar to lifetimes set by other effects in most systems, such as collisions with background gas, it is likely unnecessary for the majority of applications to employ a more complicated multi-laser repumping scheme out of the 3P states like that used in Sr Ludlow et al. (2015), especially since the longer lifetime of the $3d4s$ ${}^{1}D_{2}$ and $4s4p$ ${}^{3}P_{1}$  in Ca make this scheme less efficient.

Therefore, for this work we chose to only explore single-laser repump transitions from the $3d4s$ ${}^{1}D_{2}$ state with high branching ratios back into the laser cooling cycle. With this metric, we find that within the first 75 electronic states, there are seven reasonable alternative repumping transitions from the $3d4s$ ${}^{1}D_{2}$ state, shown in Fig. 2, which go to states in the ${}^{1}P_{1}$ and ${}^{1}F_{3}$ manifolds. Using the rate equation model with our standard MOT parameters, we calculate the expected MOT lifetimes for these transitions, which are limited by optical pumping into the ${}^{3}P_{0,2}$ states, and present the results in Table 2.

Of these seven transitions, five are accessible by lasers available to us and we explore them using a standard six beam Ca MOT described in Ref. Rellergert et al. (2013). Briefly, in this system, laser cooling is provided by driving the $4s4p$ ${}^{1}P_{1}$ $\leftarrow$ $4s^{2}$ ${}^{1}S_{0}$ cooling transition with a total laser intensity of 63 mW/cm2 detuned 34.4 MHz below resonance. The Ca MOT is loaded from an oven source placed $\sim$ 3.5 cm away from the MOT. Atoms from the oven are decelerated by two ‘deceleration beams’ with intensities 110 mW/cm2 and 53 mW/cm2 and detunings below resonance of 109 MHz and 318 MHz, respectively. The 672 nm traditional Ca MOT repump laser has an intensity of 11 mW/cm2.

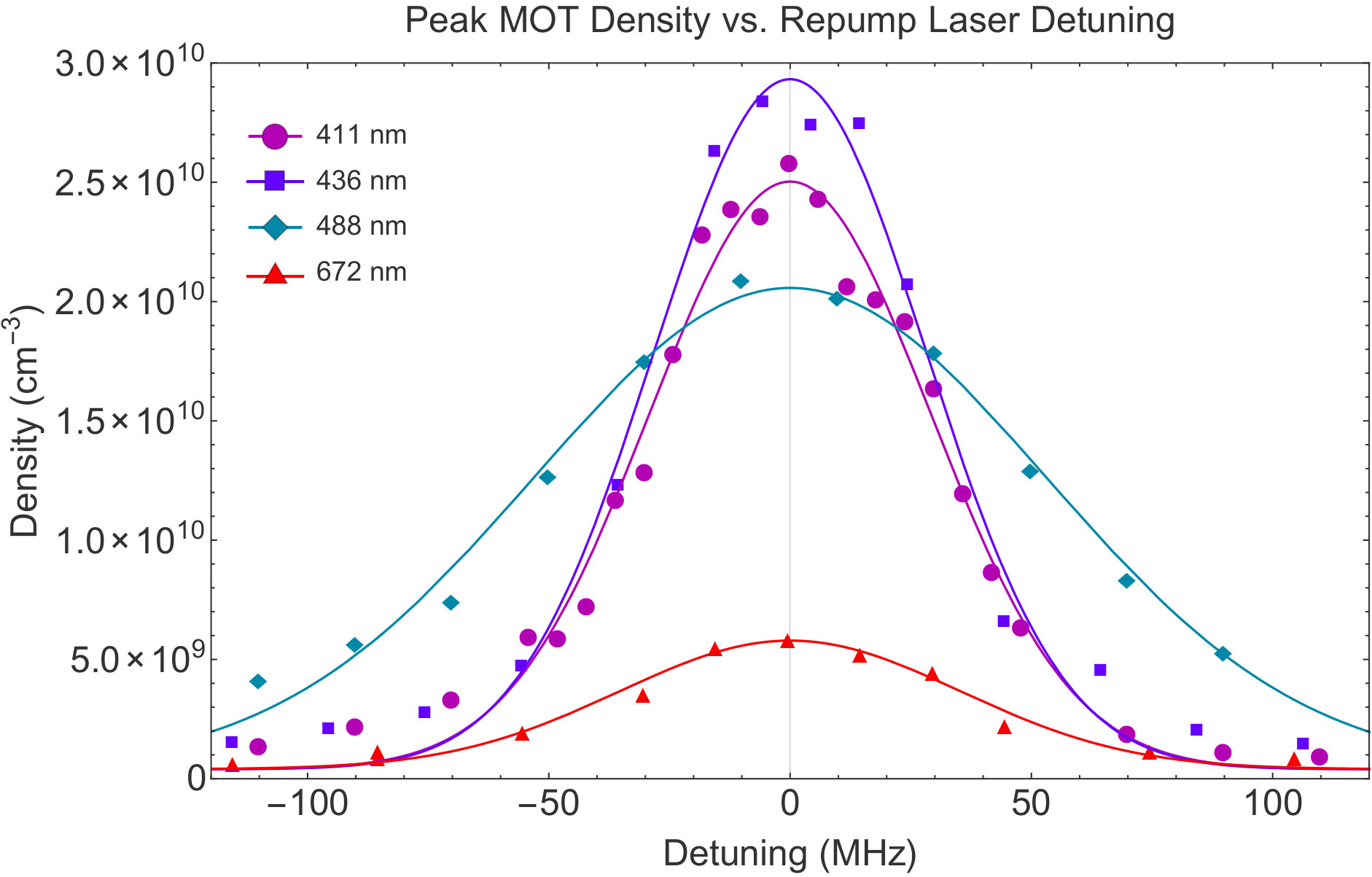

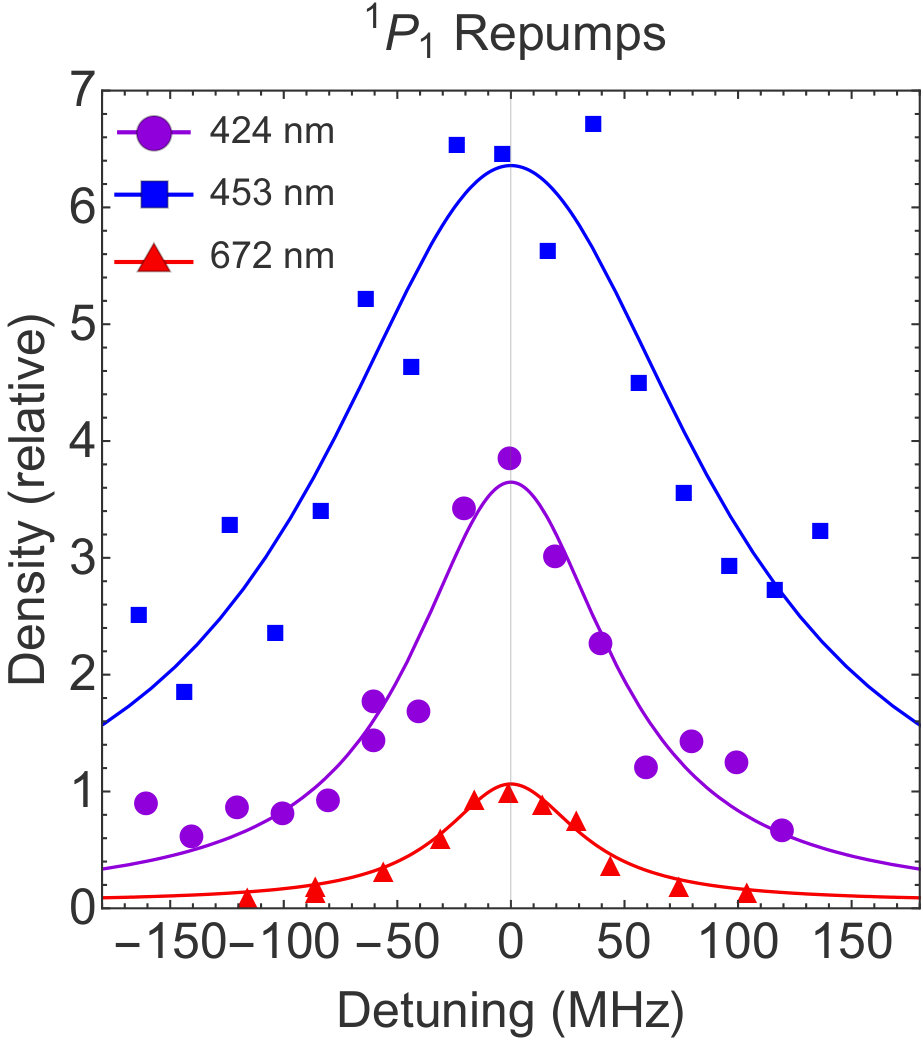

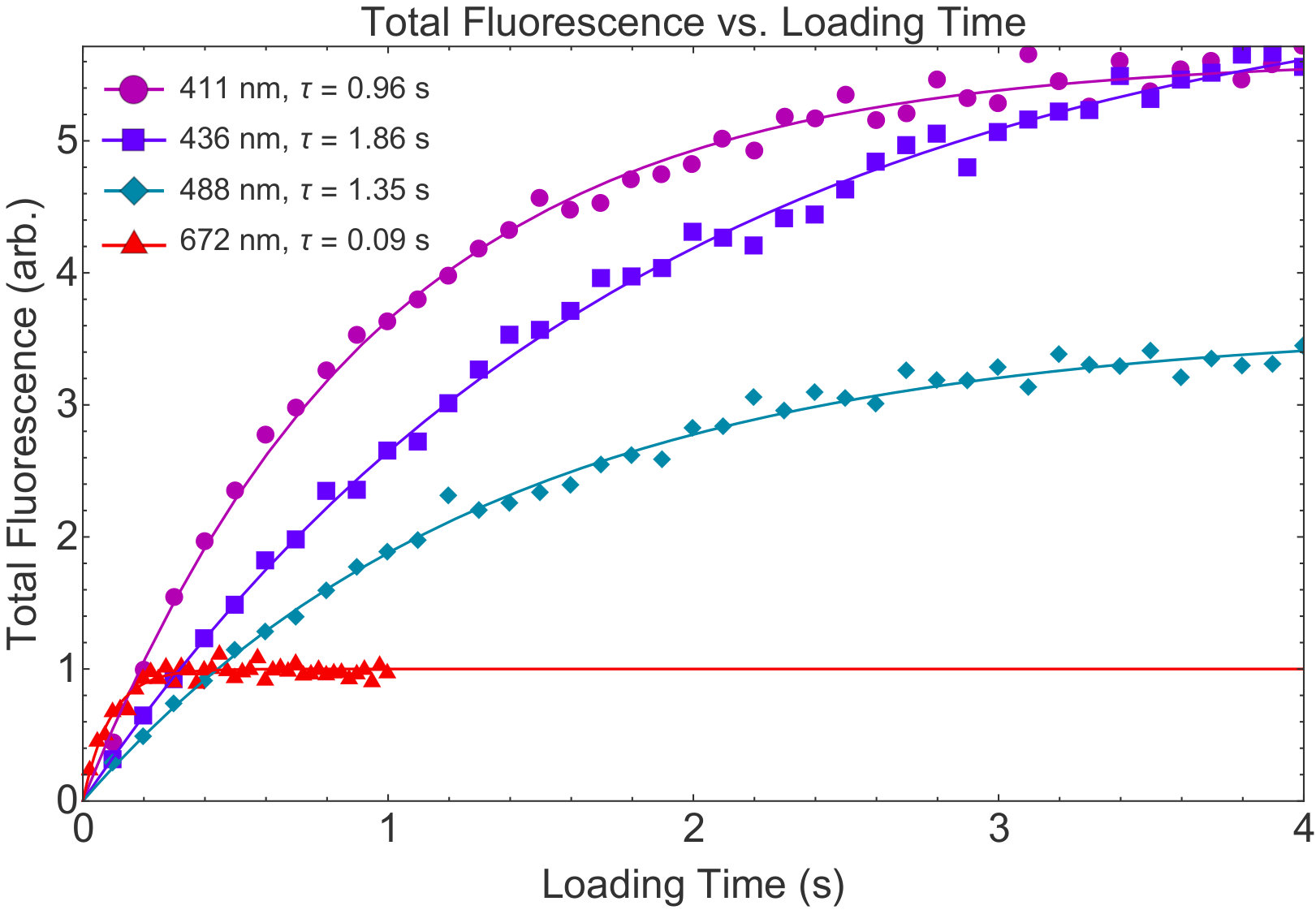

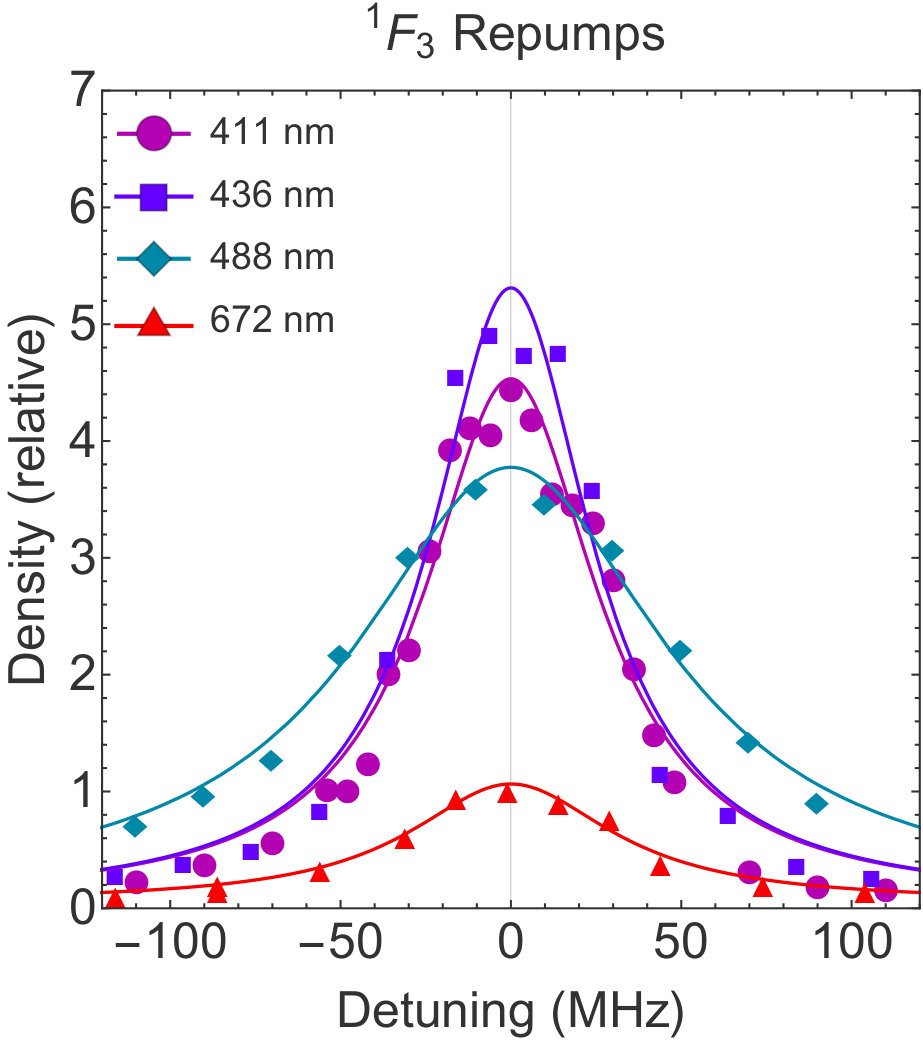

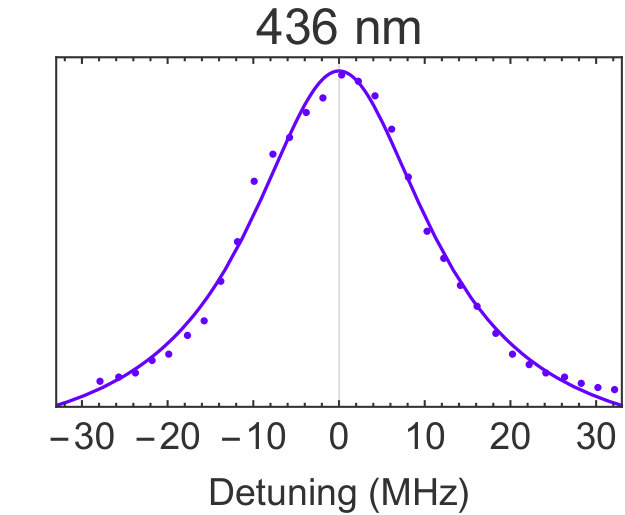

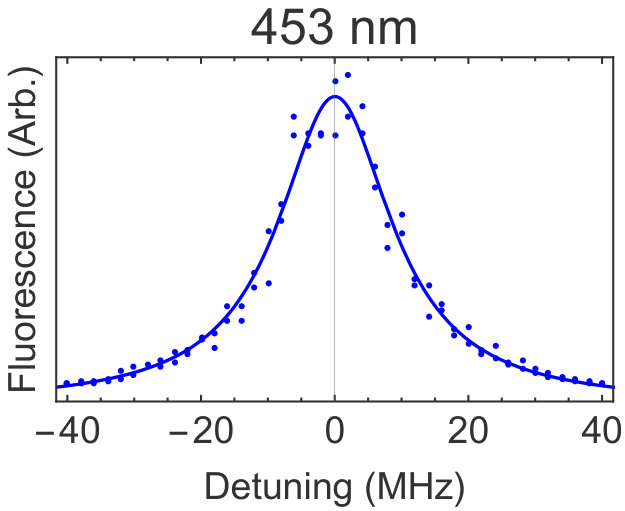

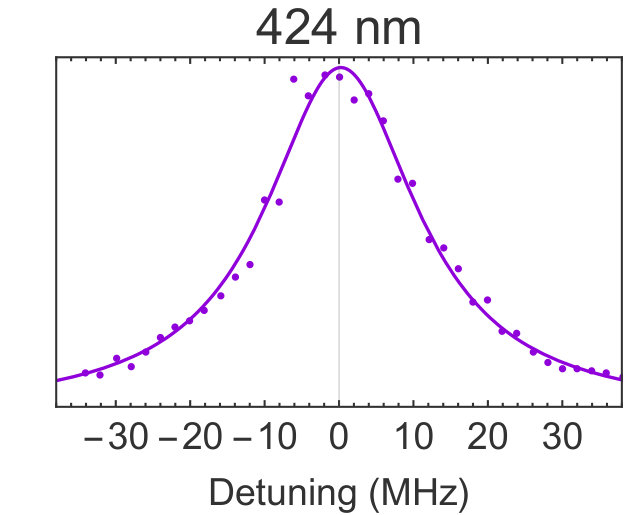

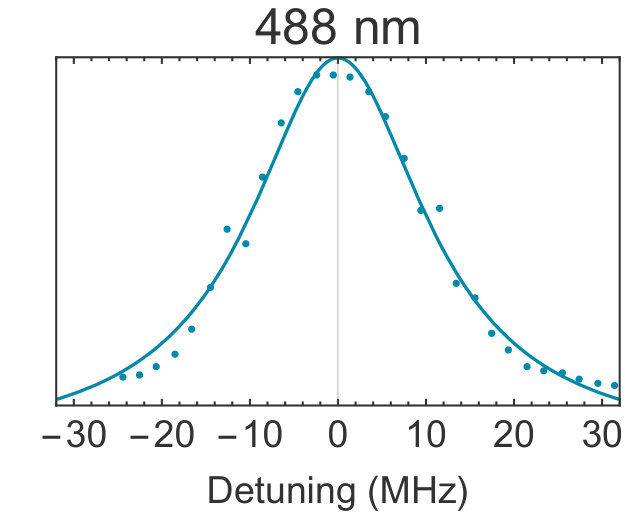

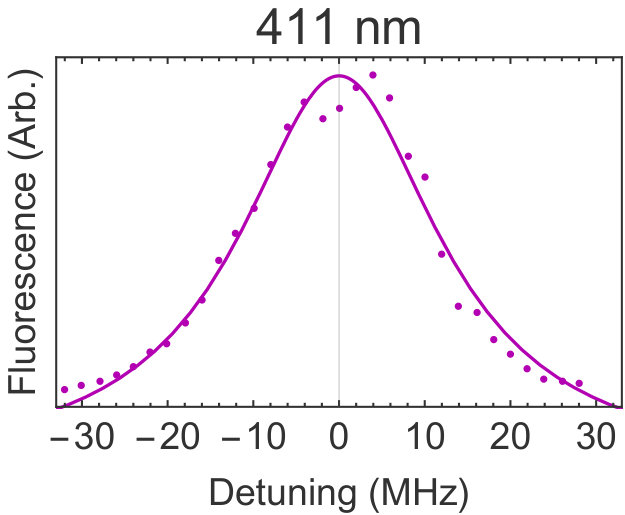

For each single-beam repumping scheme, we characterize the MOT performance by measuring the MOT density, lifetime, and temperature. The density is measured using absorption imaging on the $4s4p$ ${}^{1}P_{1}$ $\leftarrow$ $4s^{2}$ ${}^{1}S_{0}$ transition. The MOT lifetime, $\tau$, is extracted by using fluorescence imaging to observe the number of trapped atoms, $N$, as the MOT is loaded from the oven at rate $R$ and fitting the data to the form $N(t)=R\tau\left(1-e^{-t/\tau}\right)$. The temperature, $T$, is found from the ballistic expansion of the Ca atoms after the MOT trapping beams are extinguished. For this measurement, the $e^{-1}$ waist of the cloud is extracted from absorption images taken after a variable time of expansion, and $T$ is extracted by fitting this data to the form $w(t>0)=\sqrt{w(t=0)^{2}+\frac{2k_{B}Tt^{2}}{m}}$, where $k_{B}$ and $m$ are the Boltzmann constant and the mass of the Ca atom, respectively. The results of these measurements are shown in Fig. 3-4 and Table 2. All of the experimentally explored alternative repumping schemes produce significantly denser MOTs at roughly the same temperature with longer optical pumping lifetimes.

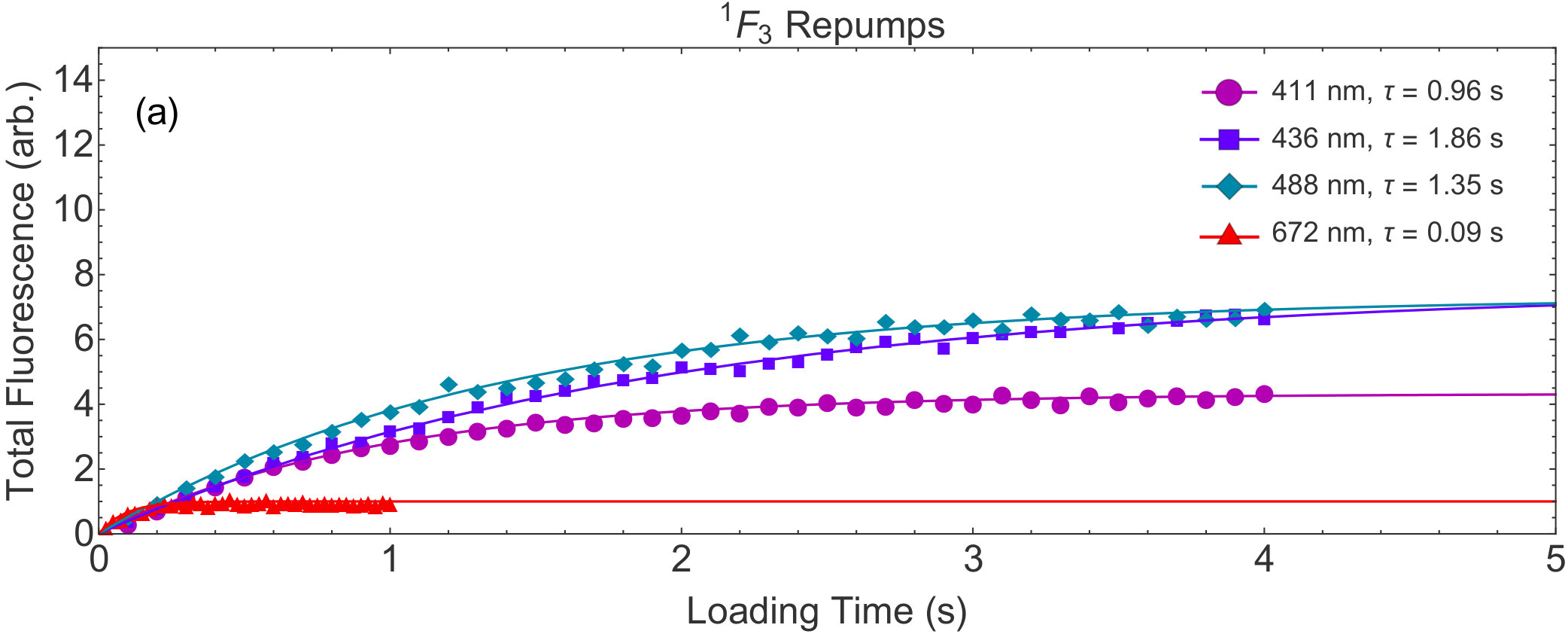

Somewhat surprisingly, repumping to ${}^{1}F_{3}$ states leads to similar or sometimes better MOT performance than repumping to ${}^{1}P_{1}$ states. Population promoted to the ${}^{1}F_{3}$ states quickly decays to states with term ${}^{1}D_{2}$, which in turn primarily decay to the $4s4p$ ${}^{1}P_{1}$ state. During this cascade, there is less decay into states of triplet character as compared to decays from some of the ${}^{1}P_{1}$ repumping states. Thus, despite the more complicated repumping pathway, repumping to the ${}^{1}F_{3}$ states can be very effective.

The relative performance of the ${}^{1}F_{3}$ repumping schemes can be explained by their branching pathways into lossy triplet states. The total MOT loss rate due to loss from an upper repump state is given by $\frac{d}{dt}N=-\Gamma_{i}f_{Loss}N_{i}$, where $N$ is the total number of atoms in the MOT, $N_{i}$ is the number of atoms in the upper repump state, $\Gamma_{i}$ is the natural linewidth of the upper repump state, and $f_{Loss}$ is the fraction of decays which lead to decay into the triplet states directly or indirectly. Of the three ${}^{1}F_{3}$ repump transitions experimentally tested, we approximate the relative values of $N_{i}$ by comparing the average number of repump transition cycles required before decay into another state. We use the calculated linewidths $\Gamma_{i}$ along with the most significant loss pathways to estimate $f_{Loss}$.

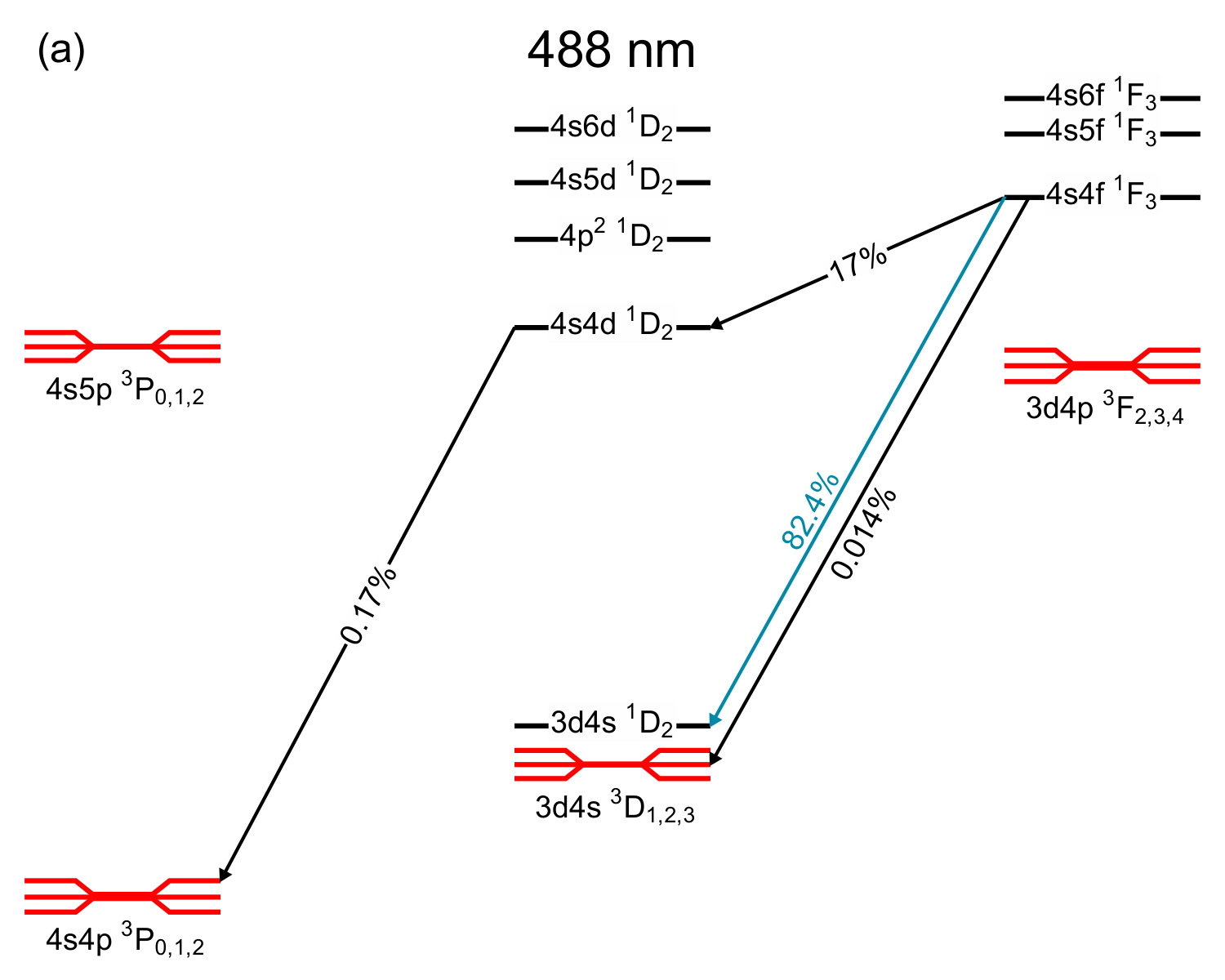

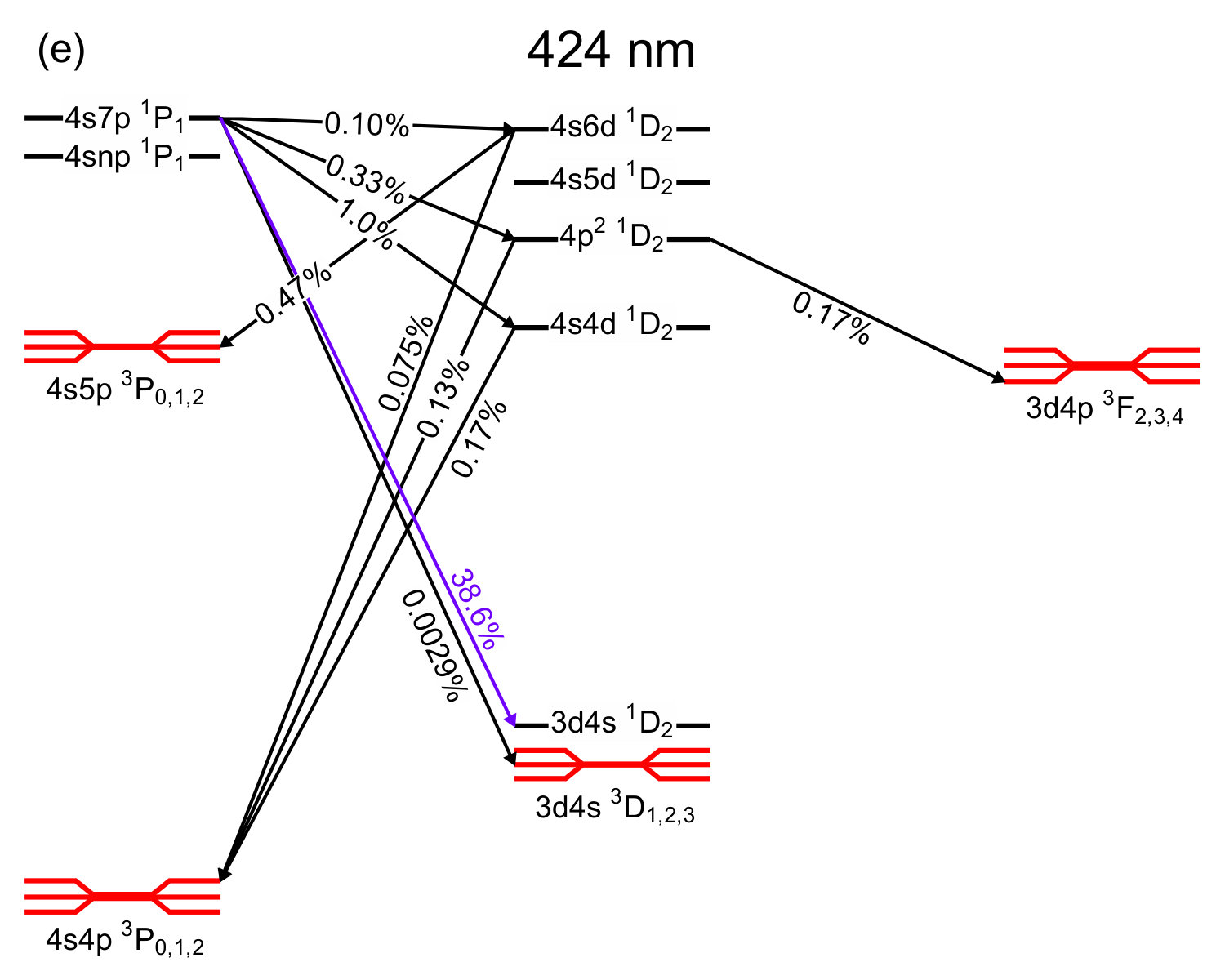

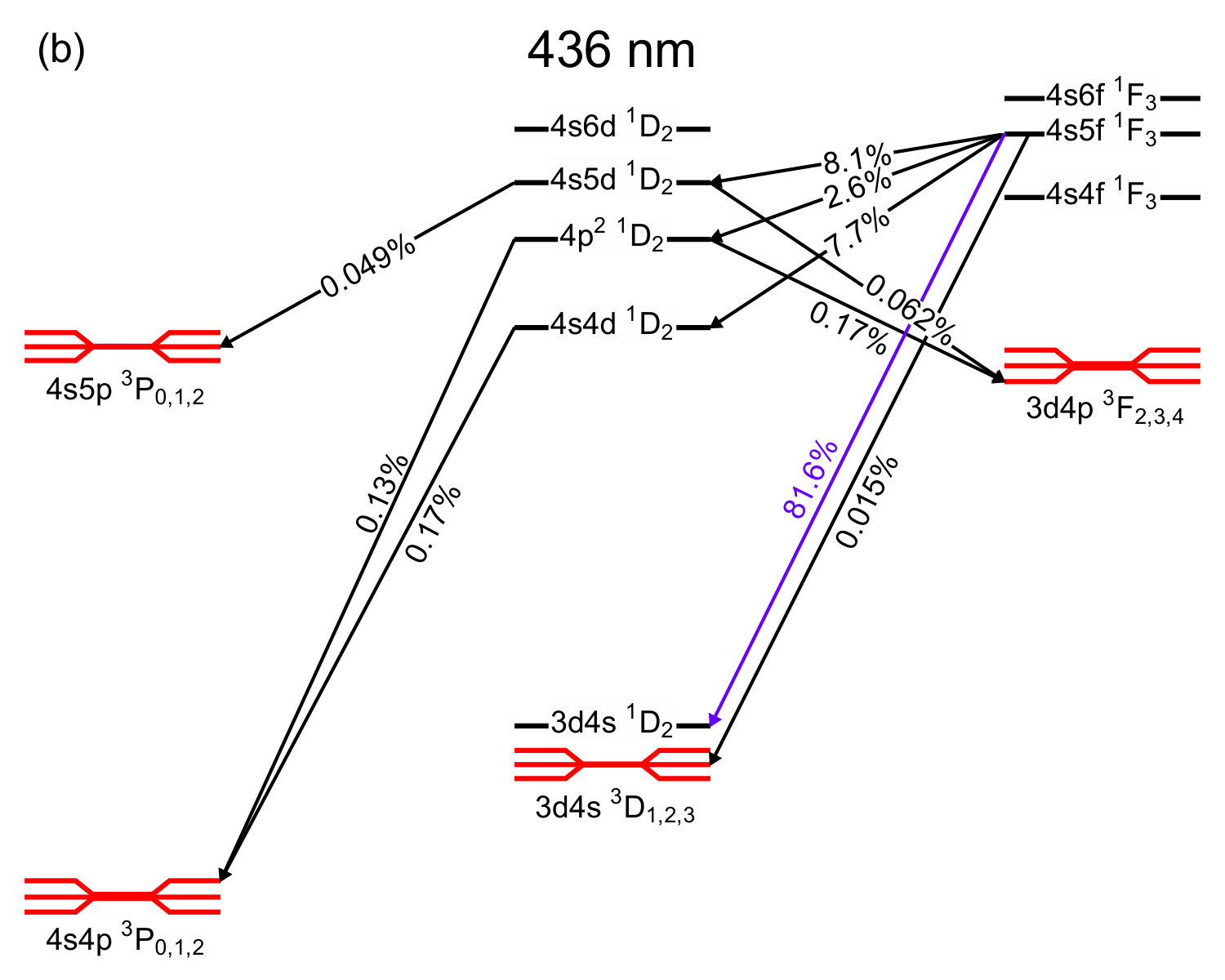

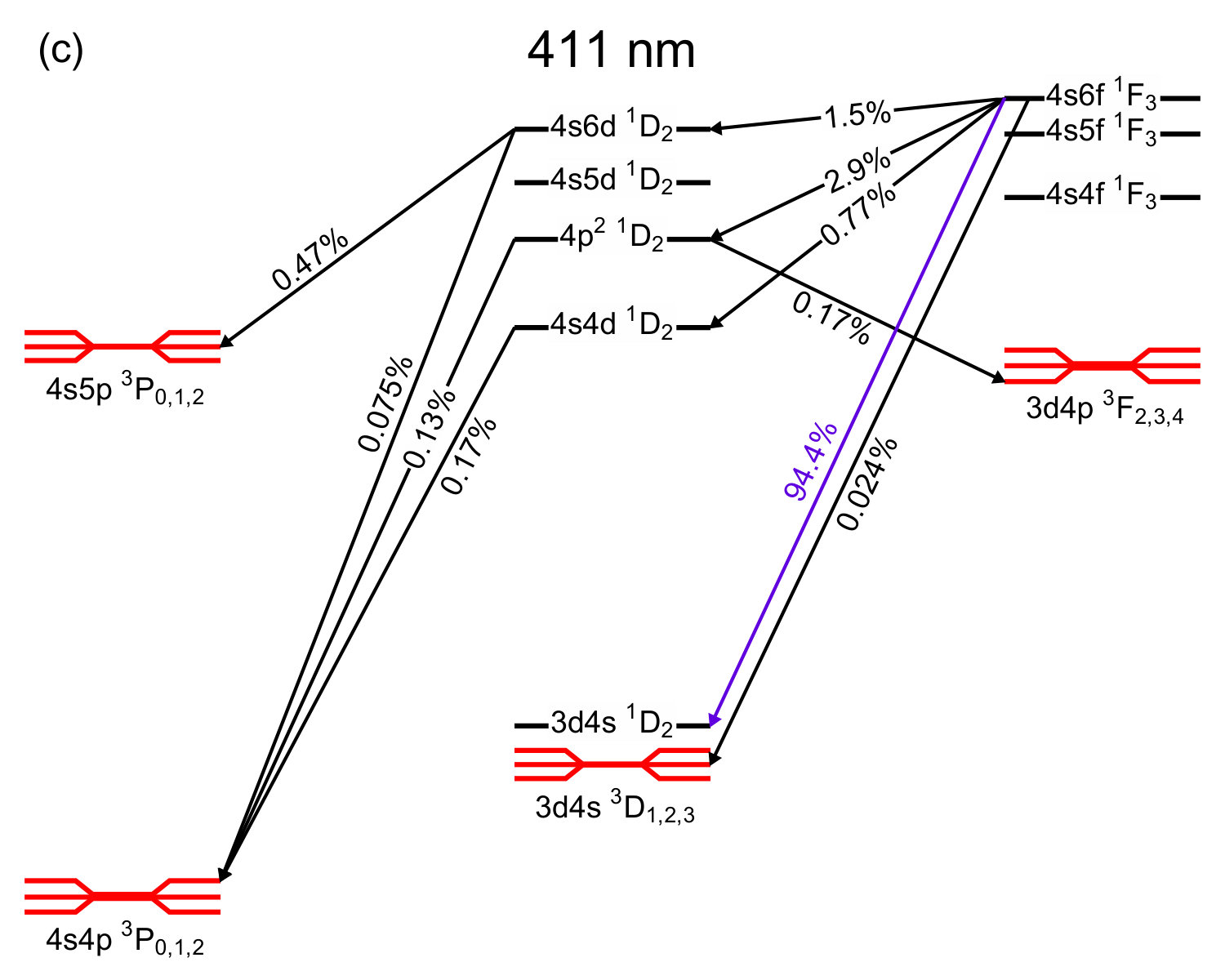

Summarizing from Fig. 5, the $4s4f$ ${}^{1}F_{3}$ state decays with $\sim 17\%$ branching into the $4s4d$ ${}^{1}D_{2}$ state, which has a branching of $\sim 0.2\%$ into the $4s4p$ ${}^{3}P_{2}$ state. The $4s5f$ ${}^{1}F_{3}$ state decays to the $4s4d$ ${}^{1}D_{2}$, $4p^{2}$ ${}^{1}D_{2}$, and $4s5d$ ${}^{1}D_{2}$ states with $\sim 8\%$, $\sim 3\%$, and $\sim 8\%$ branching, respectively. The $4p^{2}$ ${}^{1}D_{2}$ state decays to triplet states with $\sim 0.3\%$ branching, and the $4s5d$ ${}^{1}D_{2}$ state decays to triplet states with $\sim 0.1\%$ branching. The $4s6f$ ${}^{1}F_{3}$ state decays with branching ratio $\sim 0.8\%$, $\sim 3\%$, and $\sim 1.5\%$ into the $4s4d$ ${}^{1}D_{2}$, $4p^{2}$ ${}^{1}D_{2}$, and $4s6d$ ${}^{1}D_{2}$ states respectively, the last of which decays with $\sim 0.5\%$ branching into the $4s5p$ ${}^{3}P_{1}$ state. Using this method with only the branching ratios shown in Fig. 5 and the natural linewidths of the upper repump states, we predict that the lifetime of the MOT $\tau_{488}$, $\tau_{436}$, $\tau_{411}$, using a 488 nm, 436 nm, or 411 nm repump should obey the relaton: $\tau_{436}>\tau_{488}>\tau_{411}$. This agrees with the observed MOT lifetimes. For the same reason, we expect repumping to the $3d4p$ ${}^{1}F_{3}$ state with a 535 nm laser will exhibit poor performance. One can use this method to quickly estimate relative performances of potential repump transitions without developing a comprehensive rate model.

Similarly, the MOT performance when repumping to the $4s6p$ ${}^{1}P_{1}$ and $4s7p$ ${}^{1}P_{1}$ states relative to the traditional $4s5p$ ${}^{1}P_{1}$ state is understood by their primary branching ratios into triplet states. The $4s6p$ ${}^{1}P_{1}$ state decays with $\sim 0.006\%$ branching into the $3d4s$ ${}^{3}D_{2}$ state, and the $4s7p$ ${}^{1}P_{1}$ state decays with $\sim 0.003\%$ branching into the $3d4s$ ${}^{3}D_{2}$ state, while the $4s5p$ ${}^{1}P_{1}$ state decays with $\sim 0.9\%$ branching into the $3d4s$ ${}^{3}D_{1}$, $3d4s$ ${}^{3}D_{2}$, and $4s5s~{}^{3}S_{1}$ states.

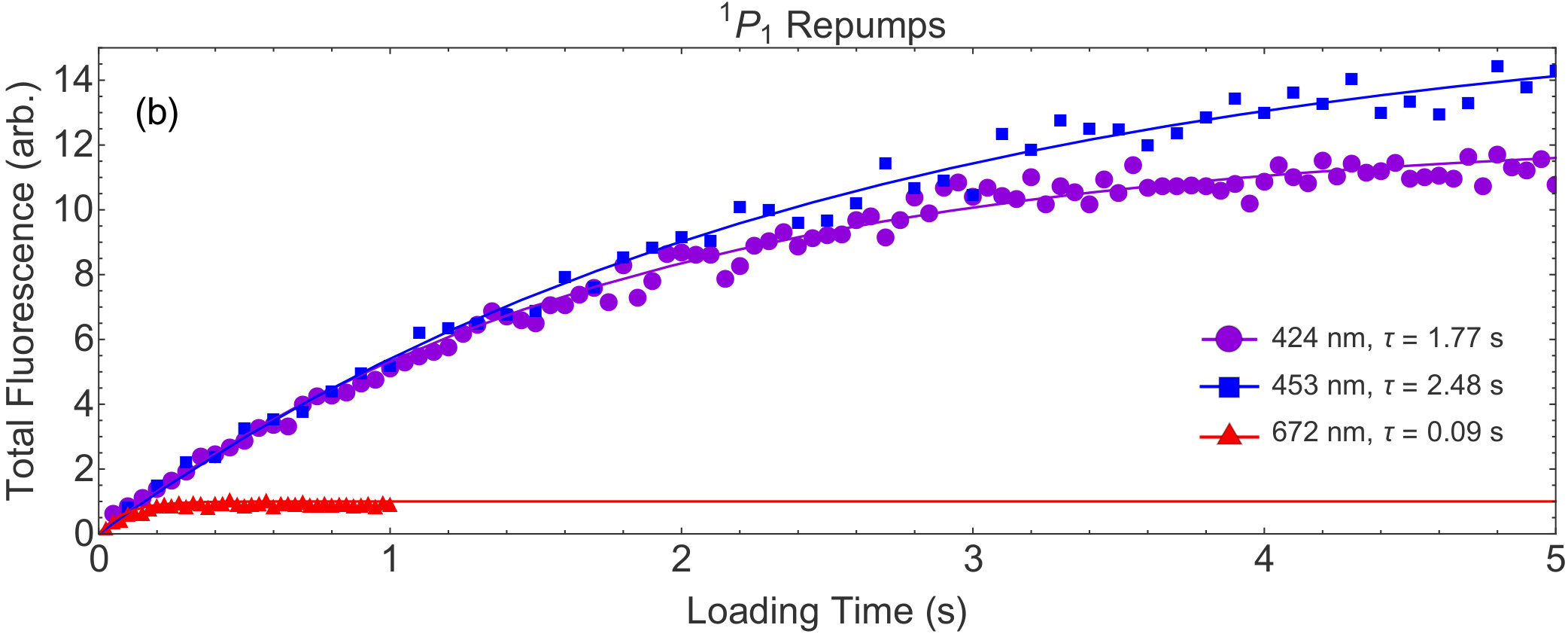

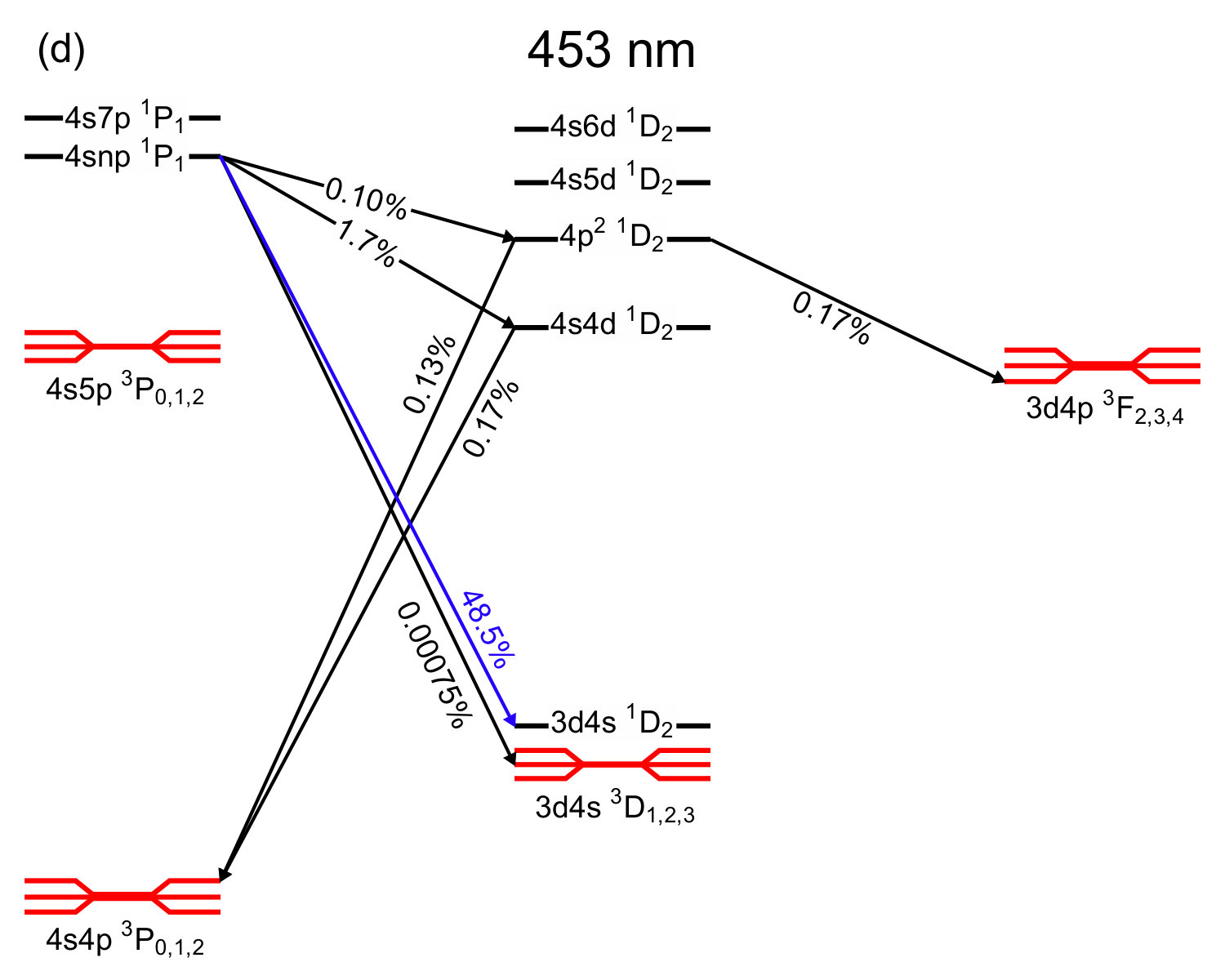

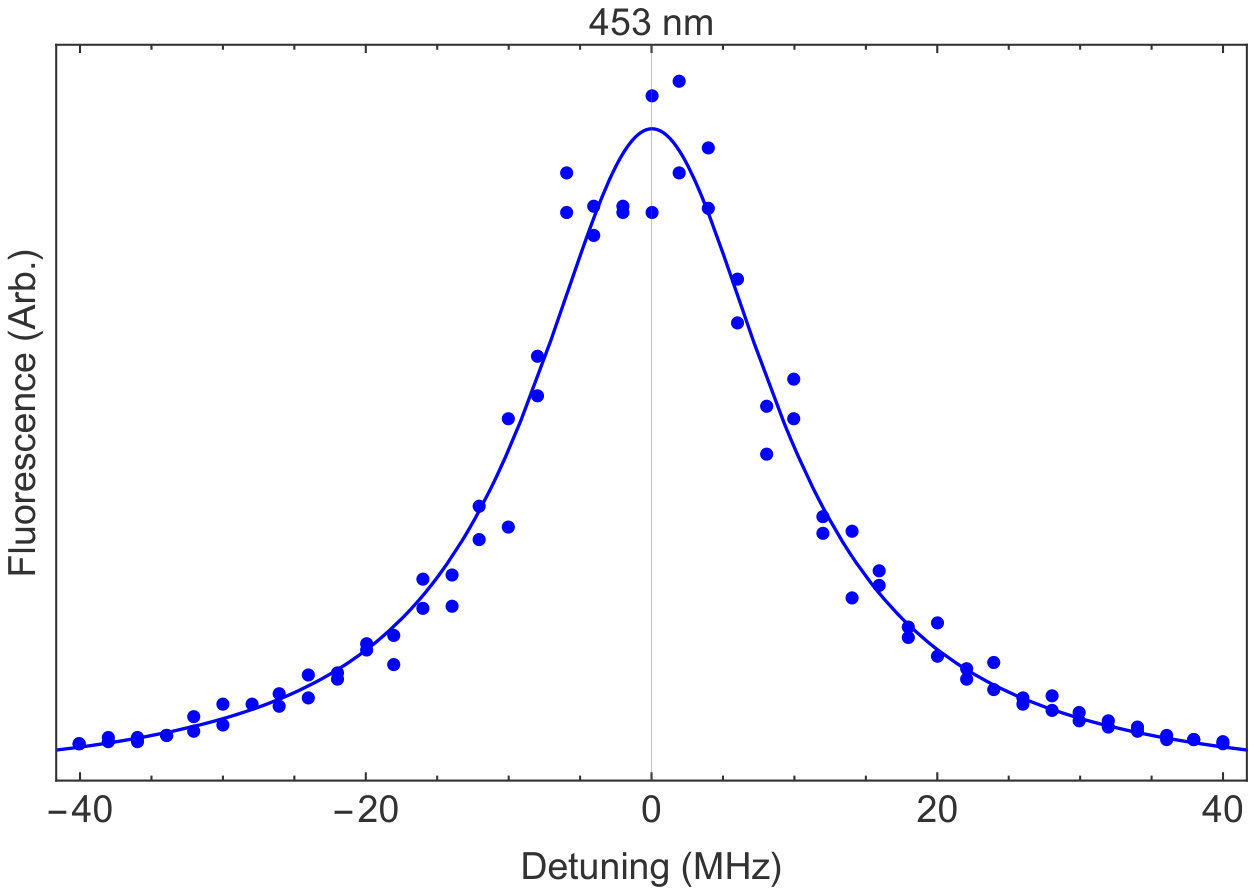

Interestingly, the best MOT performance, in terms of number, density, and lifetime, is achieved by repumping to a highly configuration-mixed state, which we label as $4snp$ ${}^{1}P_{1}$. Our calculations find this state is primarily composed of the mixture $4s7p$ (43%), $4p3d$ (28%), and $4s8p$ (13%). The high performance of this repumping transition arises from two facts. First, its primary branching ratio to triplet states is $\sim 0.001\%$ and the lowest of all repumping transitions explored here. Second, it exhibits a very high branching ratio of $\sim 43\%$ directly back to ground $4s^{2}$ ${}^{1}S_{0}$ state.

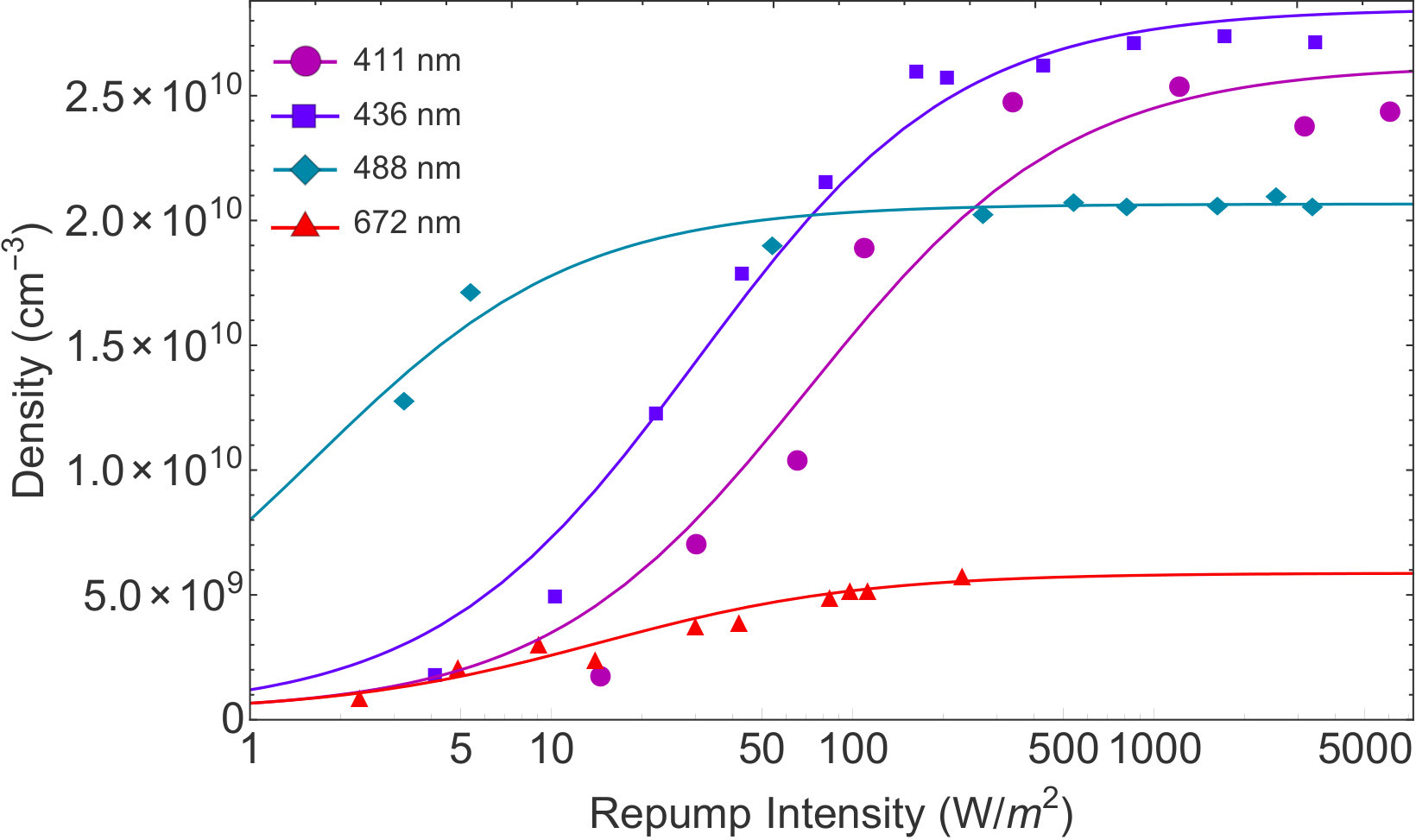

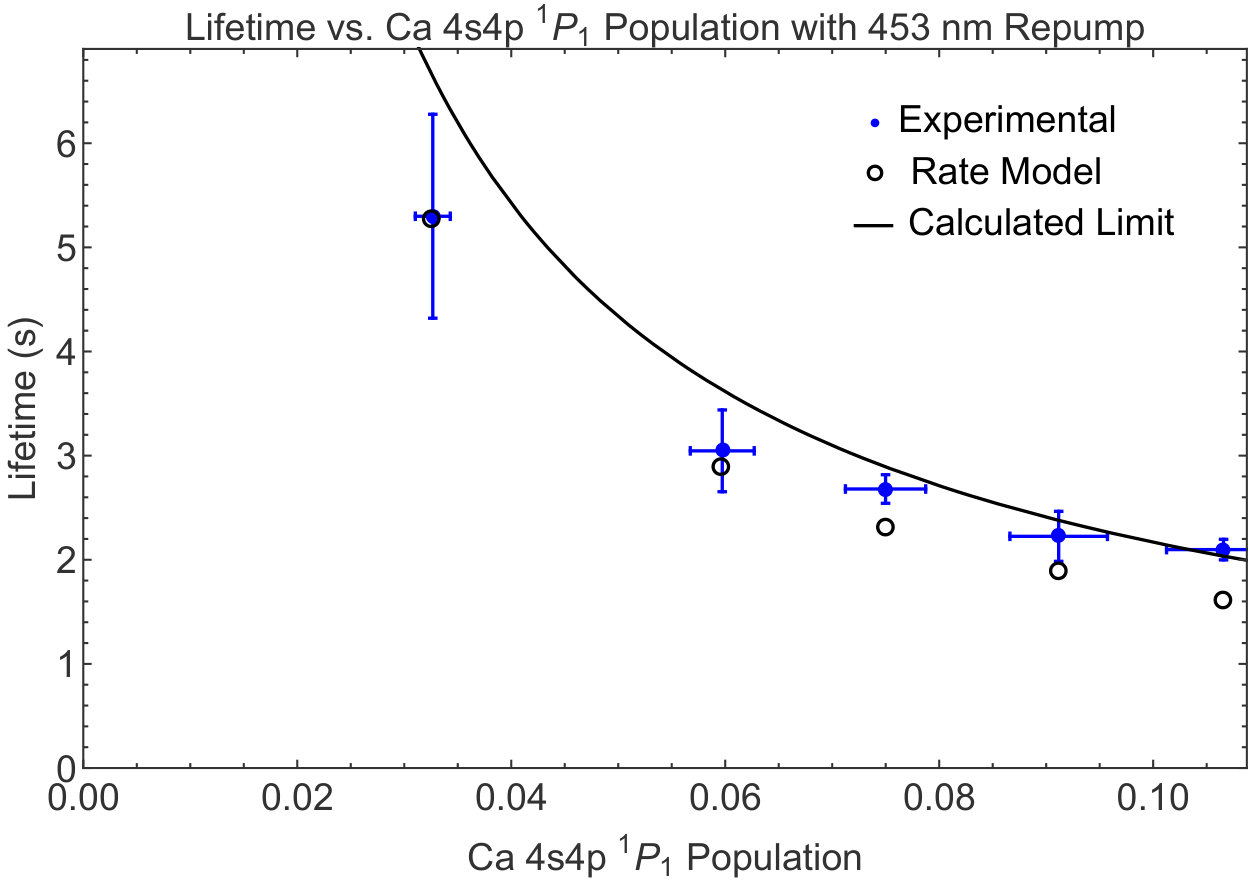

Because the lifetime of the MOT when operating with the 453 nm repump ($\sim 2.5$ s) is close to the idealized limit set by intercombination transitions from the $4s4p$ ${}^{1}P_{1}$ state (3 s), we vary the intensity of the 423 nm cooling laser to measure the lifetime of the MOT as a function of the $4s4p$ ${}^{1}P_{1}$ state population. Fig. 6 shows our results alongside the predicted lifetime from the rate model and the calculated limit of $0.24/\rho_{pp}$ s-1 set by the decay from the $4s4p$ ${}^{1}P_{1}$ state indirectly to the lossy $4s4p$ ${}^{3}P_{0}$ and ${}^{3}P_{2}$ states – here $\rho_{pp}$ is the population in state $4s4p$ ${}^{1}P_{1}$. Our results show that the lifetime of the MOT in this scheme approaches this fundamental limit for any Ca MOT with a single repump out of the $3d4s$ ${}^{1}D_{2}$ state. Therefore, repumping at 453 nm provides nearly the optimum performance for any imaginable single-repump scheme in Ca.

VI Ca+ production

Due to its relatively light mass and high ionization potential Ca is especially useful in hybrid atom-ion traps as a sympathetic coolant Rellergert et al. (2013). However, as was recently identified Sullivan et al (2011); Schowalter et al. (2016), Ca MOT operation can produce Ca+ and Ca${}_{2}^{+}$ through multi-photon and photo-associateve ionization, respectively. These ions then produce an unwanted heat load during the sympathetic cooling process. While techniques exist to cope with these nuisance ions Schowalter et al. (2016), it is advantageous to keep their production rate as low as possible. Therefore, we use time of flight mass spectrometry Schowalter et al. (2012); Schneider et al. (2014) to measure the density normalized Ca+ production rate for each of the tested repump lasers and compare to the Ca+ production rate with a 672 nm repump. As shown in Table 2, we find that the largest Ca+ production rate occurs with the 411 nm repump, a factor of $3.1\times$ compared to the Ca+ production rate with the 672 nm repump. The 453 nm repump, which resulted in the MOT with the longest lifetime, highest density, and largest number of atoms also yields the lowest Ca+ production rate.

VII Summary

In summary, we propose seven alternatives to the traditional 672 nm repumping scheme for a Ca MOT and experimentally explore five of them. We find that all five produce significant improvements in MOT density and lifetime. Three of these repumping transitions appear particularly convenient from a technological perspective since they occur at wavelengths that are accessible by laser diodes, i.e. 453 nm, 424 nm, and 411 nm – with the middle transition of this list occurring at nearly the same wavelength as the cooling transition in Ca. The overall best MOT performance occurs for repumping at 453 nm on the $4snp$ ${}^{1}P_{1}$ $\leftarrow$ $3d4s$ ${}^{1}D_{2}$ transition and results in a $\sim 6\times$ and $\sim 25\times$ improvement in density and lifetime, respectively, over the standard scheme. According to our rate model, this lifetime is near the maximum theoretical lifetime that can be achieved in a Ca MOT with a single repump laser from the $3d4s$ ${}^{1}D_{2}$ state.

In all cases, the relative performance of the different repumping schemes can be understood by their branching into triplet states. Electronic population in these states typically ends up in either the $4s4p$ ${}^{3}P_{0}$ or ${}^{3}P_{2}$ state, which due to their long spontaneous emission lifetimes are lost from the MOT. For this reason, if a Ca MOT lifetime beyond that of $\sim 5$ s is desired it would be necessary to add additional lasers to repump from the $4s4p$ ${}^{3}P_{0}$ and $4s4p$ ${}^{3}P_{2}$ states as is done in Sr Ludlow et al. (2015). However, even if these lasers are added, given the longer lifetime of the $4s4p$ ${}^{3}P_{1}$ and $3d4s$ ${}^{3}D_{1}$ states as compared to their analogues in Sr, it will likely be necessary to retain the 453 nm repump for optimal MOT operation.

Finally, due to their similar atomic structure it may be possible to apply this repumping scheme in other Group 2(-like) atoms. For example, in Sr MOTs we speculate that repumping on the $5s8p$ ${}^{1}P_{1}\leftarrow$ $4d5s$ ${}^{1}D_{2}$ transition at 448 nm may be beneficial since it would return population from the $4d5s$ ${}^{1}D_{2}$ more quickly than in the typically employed scheme and thereby increase the achievable optical force. A likely less efficient, but perhaps technologically simpler repumping pathway would be to drive the $5s6p$ ${}^{1}P_{1}\leftarrow$ $4d5s$ ${}^{1}D_{2}$ transition at 717 nm. In both of these cases, however, it may be necessary to retain the lasers used to repump population from the $5s5p$ ${}^{3}P_{0}$ and ${}^{3}P_{2}$ states as the larger spin-orbit mixing in Sr increases the parasitic intercombination transitions from e.g. the $5s5p$ ${}^{1}P_{1}$ state.

Acknowledgements.

We would like to thank M. Kozlov for help with the CI-MBPT package Kozlov et al. (2015). This work was supported by the National Science Foundation (PHY-1205311 and PHY-1607396) and Army Research Office (W911NF-15-1-0121 and W911NF-14-1-0378) grants. YMY thanks support of the National Natural Science Foundation of China, Grant No. 91536106.
