First-Principles Calculation of Electronic Energy Level Alignment at Electrochemical Interfaces

TL;DR

This paper uses first-principles DFT calculations to analyze how solvent molecules influence the electronic energy level alignment at semiconductor-electrolyte interfaces, revealing solvent-induced level shifts and the importance of partial surface coverage.

Contribution

It introduces a method to quantify solvent-induced energy level shifts at electrochemical interfaces using DFT and potential difference calculations, considering partial surface coverage.

Findings

Solvent molecules cause an up-shift in energy levels, varying with coverage.

Density of states shape remains largely unchanged near the gap.

Partial surface coverage affects energy level alignment, as shown by molecular dynamics simulations.

Abstract

Energy level alignment at solid-solvent interfaces is an important step in determining the properties of electrochemical systems. The positions of conduction and valence band edges of a semiconductor are affected by its environment. In this study, using first-principles DFT calculation, we have determined the level shifts of the semiconductors TiO$_2$ and ZnO at the interfaces with MeCN and DMF solvent molecules. The level shifts of semiconductor is obtained using the potential difference between the clean and exposed surfaces of asymmetric slabs. In this work, neglecting the effects of present ions in the electrolyte solution, we have shown that the solvent molecules give rise to an up-shift for the levels, and the amount of this shift varies with coverage. It is also shown that the shapes of density of states do not change sensibly near the gap. Molecular dynamics simulations of the interface have shown that at room temperatures the semiconductor surface is not fully covered by the solvent molecules, and one must use intermediate values in an static calculations.

Figures

Tables

Table 1. Table 1: Binding energies, E b subscript 𝐸 b E_{\rm b} , and electrostatic potential differences between two sides of slabs, Δ ​ V Δ 𝑉 \Delta V , in electron-volts, molecule-surface distance, d 1 subscript 𝑑 1 d_{1} , and selected intra-molecular distance, d 2 subscript 𝑑 2 d_{2} , in Å italic-Å \AA , and the interface dipoles, μ 𝜇 \mu , in atomic units for different coverages, n.

System	n	Eb(eV)	$\Delta V$(eV)	d1($\AA$)	d2$\left(\AA \right)$	$\mu$(a.u.)
n-MeCN/ZnO	1	0.693	1.30	2.08	1.16	1.48
	2	0.660	2.05	2.10	1.16	2.27
	3	0.614	2.41	2.10	1.16	2.65
	6	0.387	3.70	2.24	1.16	4.09
n-DMF/ZnO	1	0.790	1.60	2.05	1.26	1.76
	2	0.733	2.43	2.09	1.26	2.71
	3	0.709	2.88	2.13	1.26	3.20
	6	0.468	4.06	2.20	1.26	4.50
n-MeCN/TiO2	1	0.594	1.21	2.28	1.17	1.39
	2	0.555	1.95	2.29	1.17	2.24
	3	0.485	2.57	2.30	1.16	2.97
	6	0.341	3.41	2.41	1.16	3.95
n-DMF/TiO2	1	0.641	1.92	2.18	1.25	2.21
	2	0.500	2.93	2.35	1.25	3.39
	3	0.449	3.84	2.30	1.24	4.42
	6	0.327	5.23	2.41	1.23	6.05

Equations

$$\bar{V}(z)=\frac{1}{S}{\int }_{\mathrm{supercell}}V(x,y,z)dxdy,$$

$$\bar{\rho }(z)=\int \rho (\mathbf{r})dxdy$$

$$\Delta \rho (\mathbf{r})={\rho }_{\mathrm{comb}}(\mathbf{r})-{\rho }_{\mathrm{sur}}(\mathbf{r})-{\rho }_{\mathrm{mol}}(\mathbf{r})$$

$${\mu }_{\mathrm{comb}}={\mu }_{\mathrm{mol}}+{\mu }_{\mathrm{sur}}+{\mu }_{\mathrm{chem}}$$

$$V_{\mathrm{dip}}(z)=4\pi \frac{\mu }{S}\left(\frac{z}{z_m}-\frac{1}{2}\right),0<z<z_m$$

$$\Delta V=4\pi \frac{\mu }{S},$$

$$\frac{\Delta V_n}{\Delta V_1}=\ln (n)+1$$

$${\rho }_{\mathrm{mol}}(\mathbf{r})=+e\sum _{\alpha }{Z}_{\alpha }\delta (\mathbf{r}-{\mathbf{R}}_{\alpha })-e{n}_{\mathrm{mol}}(\mathbf{r};\{{\mathbf{R}}_{\alpha }\})$$

$${\rho }_{\mathrm{sur}}(\mathbf{r})=+e\sum _{\beta }{Z}_{\beta }\delta (\mathbf{r}-{\mathbf{R}}_{\beta })-e{n}_{\mathrm{sur}}(\mathbf{r};\{{\mathbf{R}}_{\beta }\})$$

$${\rho }_{\mathrm{comb}}(\mathbf{r})=+e\sum _{\alpha }{Z}_{\alpha }\delta (\mathbf{r}-{\mathbf{R}}_{\alpha }^{\prime })+e\sum _{\beta }{Z}_{\beta }\delta (\mathbf{r}-{\mathbf{R}}_{\beta }^{\prime })-e{n}_{\mathrm{comb}}(\mathbf{r};\{{\mathbf{R}}_{\alpha }^{\prime },{\mathbf{R}}_{\beta }^{\prime }\})$$

$$\Delta \rho (\mathbf{r})=-e{n}_{\mathrm{comb}}(\mathbf{r};\{{\mathbf{R}}_{\alpha }^{\prime },{\mathbf{R}}_{\beta }^{\prime }\})+e{n}_{\mathrm{mol}}(\mathbf{r};\{{\mathbf{R}}_{\alpha }^{\prime }\})+e{n}_{\mathrm{sur}}(\mathbf{r};\{{\mathbf{R}}_{\beta }^{\prime }\})$$

$${\mu }_{\mathrm{chem}}\equiv \int \mathbf{r}\Delta \rho (\mathbf{r})d\mathbf{r}$$

Full text

I Introduction

Abundance and ease of preparation have made titanium oxide(TiO2) and zinc-oxide (ZnO) as the mostly used semiconductors in electrochemical applicationsGrätzel (2001); Mane et al. (2005). Design and engineering of an electrochemical system need a deep understanding of the semiconductor behaviors at its interface with other materials.

The alignment of electronic energy levels at solid-solvent interfaces plays a crucial role in the functionality of electrochemical systemsIshii et al. (1999); Greiner et al. (2012); Narioka et al. (1995); Cheng and Sprik (2012); Kharche et al. (2014). Hydrogen-evolution in photo-electrochemical cellsMorales-Guio et al. (2014); Laursen et al. (2012) and electron injection in dye-sensitized solar cells (DSSC)O’regan and Grfitzeli (1991) are two well-known instances of reactions which highly depend on the relative alignment of electronic energy levels at the semiconductor-solvent interface.

In a realistic electrochemical system, the relative positions of conduction and valence band edges (CB and VB) of the semiconductor are sensitive to its environmental factors: pH of the solvent, the concentration of dissolved ions, defects and adsorbents at the semiconductor surface. On the other hand, the short- and long-range interactions of the solvent molecules with the semiconductor surface atoms could significantly affect the electronic structure of the semiconductorKharche et al. (2014).

Adsorption of solvent molecules on the semiconductor surface results in a net electric dipole (see appendix A), which in turn, causes shifts in the energy positions of the conduction and valance bands at the semiconductor surfaceMosconi et al. (2012). To explore the interrelation between the molecular structure of the solvent and the level alignment at the interface, one has to consider the reasons behind the formation of electric dipole layer at the surfaceCheng and Sprik (2012). This surface dipole moment results from the permanent dipoles of adsorbate molecules and the charge displacements through the formation of chemical bonding between semiconductor surface and the solvent moleculesKera et al. (2004).

The description of detailed mechanisms involved at interfaces is not possible unless one uses computational methods. The density functional theory (DFT)Hohenberg and Kohn (1964); Kohn and Sham (1965) and its time-dependent extension (TDDFT)Runge and Gross (1984) have played significant roles in the design and engineering of electrochemical systems among which hydrogen evolution systemsHinnemann et al. (2005); Greeley et al. (2006) and DSSC’sSumita et al. (2011); De Angelis et al. (2007); Mathew et al. (2014); Azar and Payami (2014, 2015) are the most common examples.

In this work, using first-principles DFT calculations, we aim to explore how the changes in semiconductor environment, such as molecular structure of the solvent and its surface coverage, could affect the energy levels at the interface. Here we consider the two most popular solvents, acetonitrile (MeCN) and dimethylformamide (DMF).

It should be mentioned that in an electrochemical system, one needs to identify the exact positionsKharche et al. (2014) of CB and VB, which demands some sophisticated methods such as GWHedin (1965); Aulbur et al. (1999) or othersGeorges et al. (1996); Tran and Blaha (2009). However, since these positions for TiO2 and ZnO are well-known, and in this work we aim to determine just the amounts of shifts for the levels, regardless of the absolute positions, we do not need to perform such relative expensive calculations, and therefore the results obtained based on KS-DFT method suffices.

In the calculations, we have considered adsorption geometry and binding energy as a function of surface coverage, and obtained a non-linear dependence for the binding energy and level shifts.

Separating the total dipole moment of the interface into different components (appendix A) showed that the dominant charge transfer to the interface region is from the adsorbed solvent molecules which causes formation of a net dipole towards the surface, and this, in turn, results in an upward level shifts for the semiconductor.

In our periodic slab scheme of calculations, using the dipole correction methodBengtsson (1999); Meyer and Vanderbilt (2001), we have determined the potential difference between the clean and exposed surfaces, and used it to estimate the level shifts of the semiconductor in presence of solvent molecules.

Finally, using ab-initio molecular dynamics (MD) for the time-evolution of solvent-semiconductor interface, we have shown that the thermal effects and interaction of solvent molecules prevent the formation of a full coverage for semiconductor.

The structure of this paper is as follows. In section 2 we present the computational details; the calculation results are presented and discussed in section 3; and we conclude this work in section 4. Finally, the relations for displacement charge and surface dipole moment are derived in appendix A.

II Computational Methods

Modeling the titania surface, we have constructed an anatase 8-(TiO2)-layer slab with (101) surface using a $3\times 1$ supercell along [010] and [10$\bar{1}$] directions. For zinc oxide surface, we have made an 8-(ZnO)-layer slab with (10$\bar{1}$0) surface using $3\times 2$ supercell along [000$\bar{1}$] and [11$\bar{2}$0] directions. In all of our calculations the systems are fully relaxed. It has been shown by othersMartsinovich et al. (2010) that taking an 8-layer slab is suitable for low-index anatase surface calculations, and the effects of relaxations on electronic structure has also been studied by other researchersLazzeri et al. (2001); Zhao et al. (2010).

In this work, all the electronic-structure calculations are based on the DFT and the self-consistent solution of the Kohn-Sham (KS) equationsKohn and Sham (1965) using the Quantum ESPRESSO (QE) code packageGiannozzi et al. (2009) within the PBE generalized gradient approximationPerdew et al. (1996) for the XC energy functional. For the atoms Zn, Ti, O, C, N, and H we have used the ultrasoft pseudopotentials Ti.pbe-sp-van_ak.UPF, O.pbe-van_bm.UPF, C.pbe-van_bm.UPF, N.pbe-van_ak.UPF, S.pbe-van_bm.UPF, F.pbe-n-van.UPF, and H.pbe-van_ak.UPF available at http://www.quantum-espresso.org. The kinetic-energy cutoff for the plane-wave basis set were chosen 28 and 220 Ry for the wave functions and charge density, respectively. For the Brillouin-zone integrations, a $2\times 2\times 1$ grid was used.

Choosing a reasonable reference potential is a crucial step in the study of level alignment because, the comparison of surface levels before and after the adsorption needs a unique reference point. One usual method in models with slab geometry is plotting the planar average potential as a function of $z$ which is normal to the surface, and choosing the reference potential, $V(\infty)$, at a point far from surfaces in vacuum region. The plane-averaged potential is defined as:

[TABLE]

where $S$ is the surface area of the supercell.

Identification of the reference point for a symmetric slab is trivial because the average potential becomes flat deep inside the vacuum region. However, for asymmetric slabs, because of a net surface dipole moment, the electrostatic potentials are different in the vacua at two sides of the slab. Solution of the Poisson’s equation with a periodic boundary condition introduces an artificial uniform electric field across the supercell which deteriorates the flatness of potentials at the two sides of the slab. In this case we have no well-defined reference point as in the symmetric slab case. One workaround is to take much thicker symmetrized slabs which is computationally expensive. A more convenient way is to use the dipole correction methodBengtsson (1999); Meyer and Vanderbilt (2001) in which the artificial linear potential is compensated by a sawtooth-like external potential. In this work we have used the second method as implemented in QE code package.

The Born-Oppenheimer ab initio molecular-dynamics simulations at room temperature are performed employing the SIESTA code packageSoler et al. (2002) within the DFT and the PBEPerdew et al. (1996) level of approximation for the exchange-correlation. For basis sets, a split-valence double-$\zeta$ basis augmented by polarization functions (DZP) are used along with the nonrelativistic pseudopotentials for all atoms. Real-space integrals were performed on a mesh with a 150 Ry cutoff.

III Results and Discussions

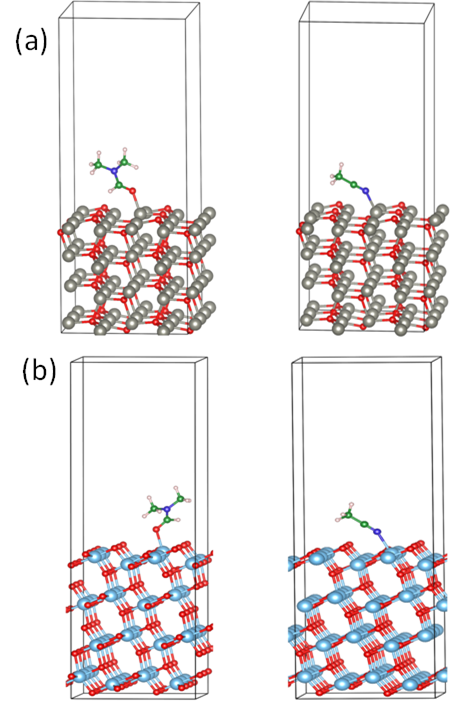

The equilibrium geometries and electronic structure of slab-solvent interfaces are calculated using different coverages of 1, 2, 3, 6 solvent molecules per supercell for both TiO2 and ZnO. The resulting equilibrium geometries of an MeCN and a DMF adsorbed on ZnO and TiO2 surfaces are compared in Fig.1. As is seen from the figure, the orientations of each molecule on the TiO2 and ZnO surfaces are more or less the same, perhaps because of the fact that both Ti and Zn are transition metals which are surrounded by O atoms in a similar manner.

Geometrical parameters and binding energies for different coverage values are calculated and tabulated in Table 1. As is seen from table, with increasing the coverage, the distance between the solvent molecule and surface, ($d_{1}$), increases which is consistent with behavior of the binding energy, $E_{b}$. The relatively high values for the binding energies imply that the bondings between the solvent molecules and the surfaces have near covalent character. As to the “selected intra-molecular distance”, $d_{2}$, it is defined as the distance between the two nearest atoms of the solvent molecule to the surface of the semiconductor. With decreasing the binding energy, we expect that $d_{2}$ decreases down to its value for isolated molecule (1.23 $\AA$ for DMF, and 1.16 $\AA$ for MeCN) and this change is so small that they are more or less constant.

To gain insight into the solvent-surface interactions, we have examined the charge redistribution between molecule and surface after the bond formation. Considering the periodic geometry of interface in $(x,y)$ plane, and averaging the density over this plane, the resulting laterally averaged charge density:

[TABLE]

would be an appropriate quantity for more detailed analysis of charge displacement.

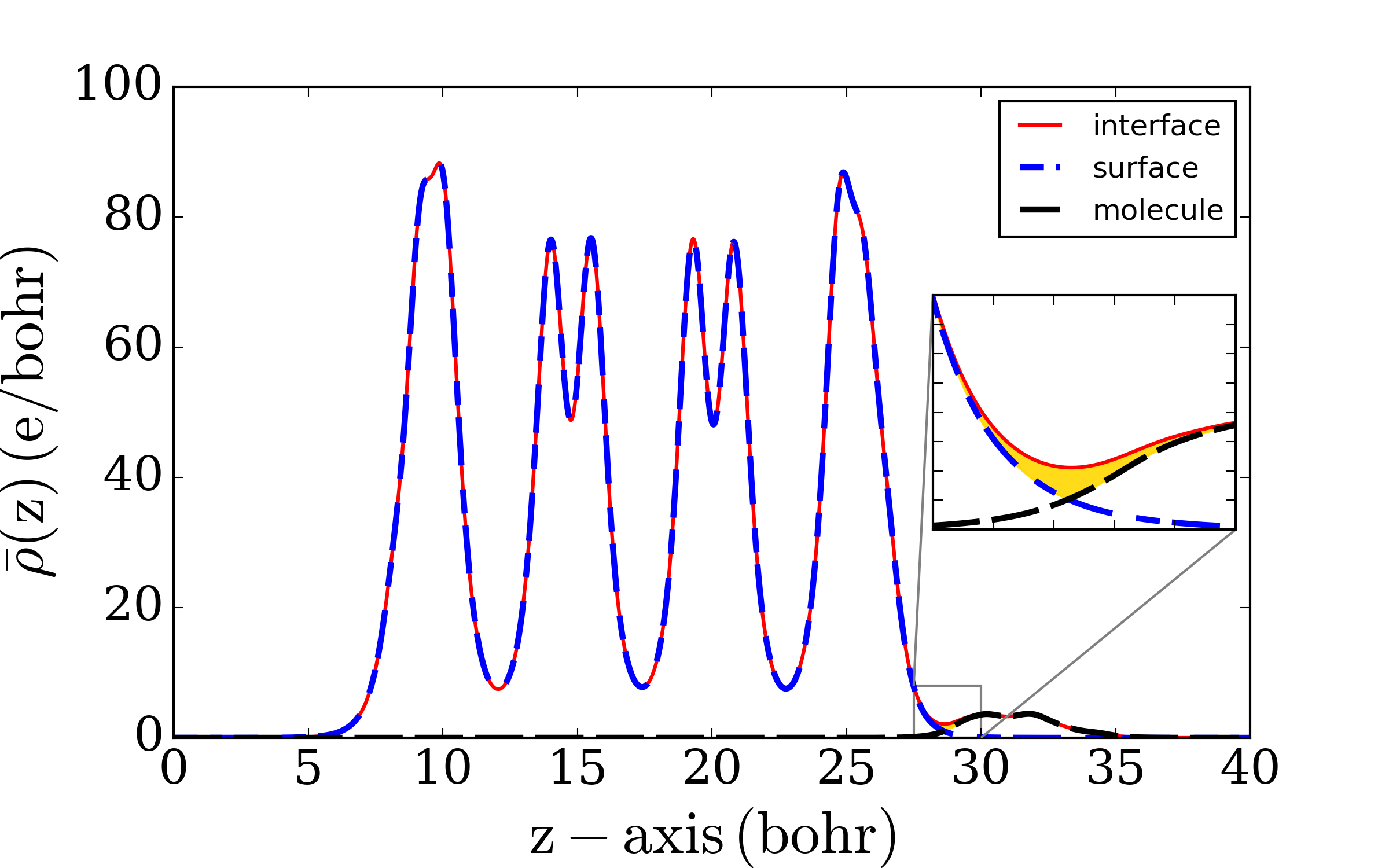

We have calculated this averaged quantity for MeCN/ZnO after adsorption as well as for the isolated molecule and surface at the same relative ionic positions, and have shown the result in Fig. 2. From this figure we see that there is some charge injection from the molecule into the interface region.

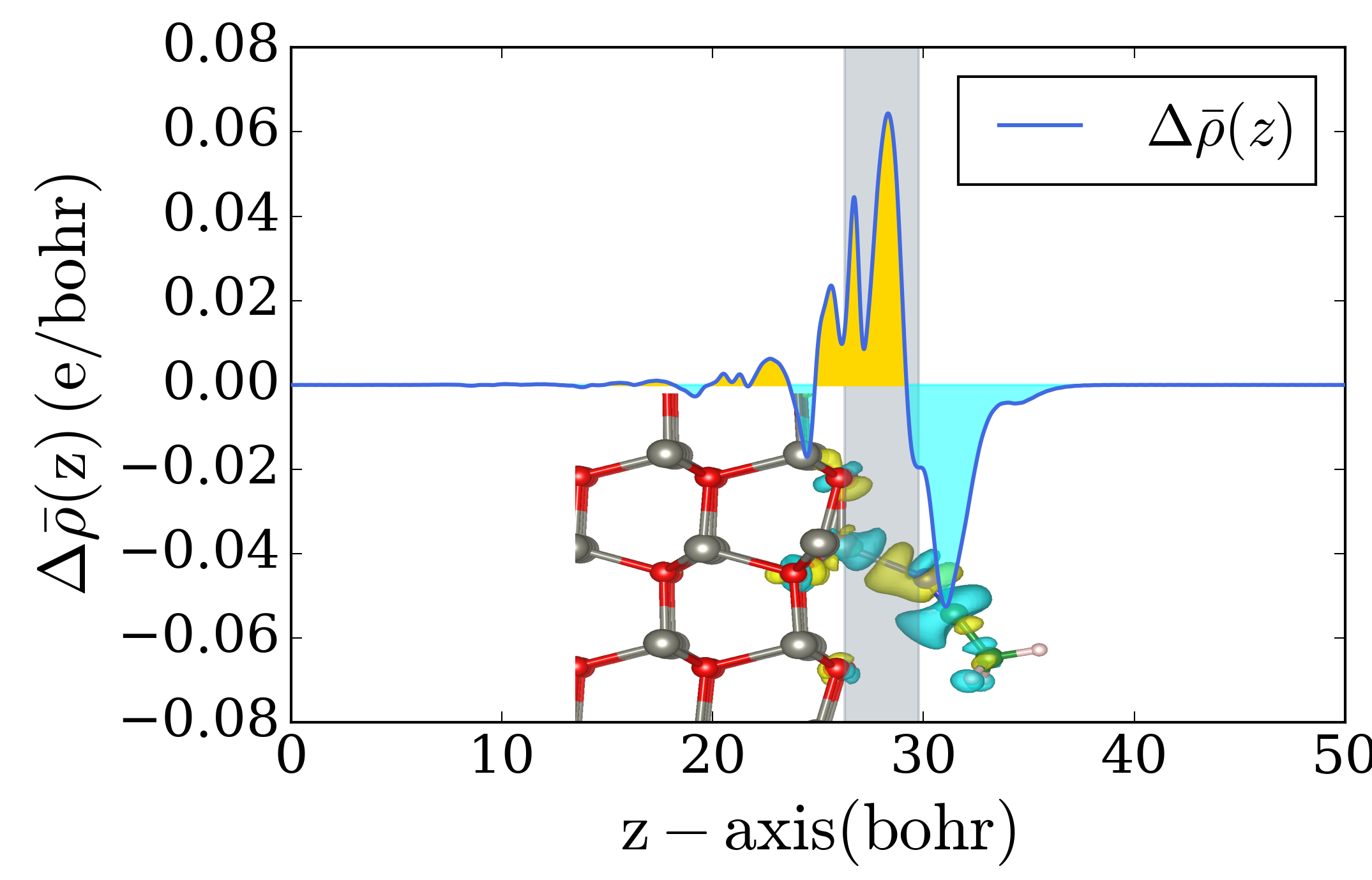

The charge displacement is better presented when we consider the electronic charge-difference quantity defined by (appendix A):

[TABLE]

where the first, second, and third terms on the right refer to the electronic densities of the combined molecule-surface system, deformed surface, and deformed molecule, respectively. Commonly the ionic positions are chosen in such a way that there is no contributions from the positive ions in the charge transfer. The average of this quantity over the $(x,y)$ plane, is shown in Fig. 3 as a function of $z$ which is normal to the surface. We note that there is a charge increment in the interface region. The interface region boundaries are defined by two parallel ($x,y$)-planes, one containing the outermost atom of the surface and another containing the nearest atom of the molecule to the surface. Since on the one hand the charge increment resides in the region between these two boundary atoms, and on the other hand the binding energy is of the order of a covalent bonding between two atoms, we may interpret the bonding between the solvent molecule and the surface as having a near covalent character.

As one notes in Table 1, the binding energy per molecule decreases with increasing the coverage, leading to weaker bondings of molecules to the surface. Also it is evident from Fig. 3 that the adsorbed molecule has more contribution in charge displacement than the surface, which leads to the formation of a dipole layer near the surface. Since the orientation of generated dipole is towards the surface, we expect an up-shift for the semiconductor energy levels.

Using the splitting of electronic charge density as in Eq. (3), the $z$-component of dipole moment of the combined system can be written as (appendix A):

[TABLE]

where $\mu_{\rm chem}$ is the dipole originating from the charge displacement (chemical bonding). The values of $\mu_{\rm comb}$, $\mu_{\rm mol}$, $\mu_{\rm sur}$, and $\mu_{\rm chem}$ in the MeCN/ZnO system are calculated to be 1.46, 0.81, 0.14, and 0.51 a.u., respectively. These values imply that the charge displacement has a significant contribution (after the molecule itself) in the total dipole moment.

In the next step, we have studied how the adsorption of solvent molecules on the surface affects the potential difference between the two sides of the slab. For this purpose, we have used the calculated averaged electrostatic potential after applying the dipole correctionBengtsson (1999):

[TABLE]

where $\mu$, $S$, and $z_{m}$ are the dipole of the supercell, surface area of the supercell, and the length of the region over which the correction has been applied, respectively. Equation (5), leads to a potential jump across the slab:

[TABLE]

which we could interpret as the difference between the asymptotic potentials of clean surface, $V(-\infty)$, and exposed surface, $V(+\infty)$.

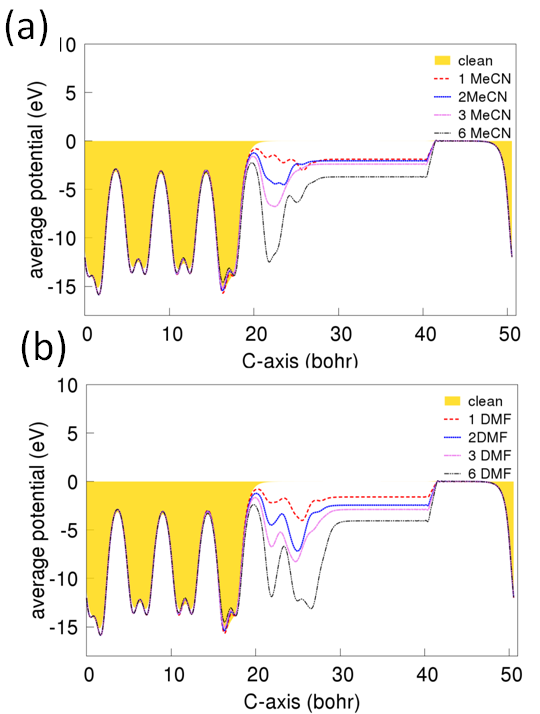

In Fig. 4, we have plotted the averaged electrostatic potentials of MeCN/ZnO and DMF/ZnO for different coverages. We avoid to bring the plots for MeCN/TiO2 and DMF/TiO2, because of the similarity with the latter case. In the plots, we have identified the asymptotic potentials of clean surfaces as $V(-\infty)=0$. As is seen from Fig. 4, the potentials towards $-\infty$ are identical and moving to the right, they start to split in the vicinity of the exposed surface. This splitting is more significant for higher coverages. Moving to the right of the figure, far from the adsorbed molecule, the potentials flatten to their asymptotic values of $V(+\infty)$. The rightmost part of the figure is the periodic image of the left. According to the above arguments, one can use the difference $[V(+\infty)-V(-\infty)]$ in the calculations of work-function for the exposed surface of semiconductor, which can be used for the level shifts in electrochemical applications.

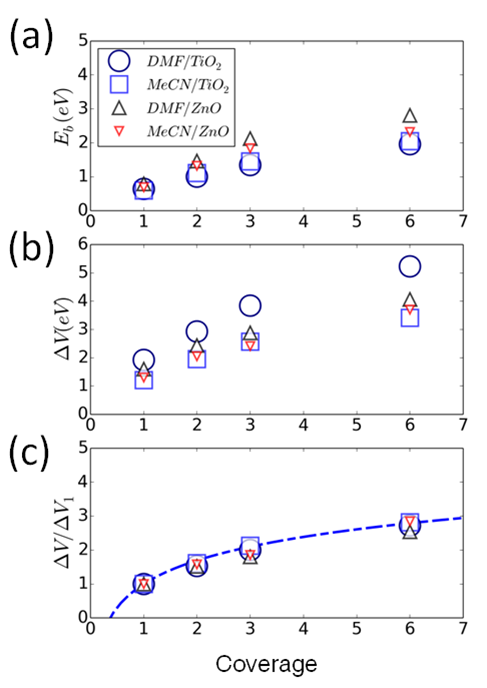

In Fig. 5, we have plotted the binding energies, potential differences, and normalized potential differences as functions of the coverage for $X/Y$ systems where $X$=MeCN, DMF; and $Y$=TiO2, ZnO. As is seen from the figure, DMF adsorption leads to a greater potential difference than for MeCN, which is due to its larger dipole moment. Also we see a non-linear behavior for both binding energies and potential differences as functions of coverage. Interestingly, the values of normalized potential differences are very close to each other for different coverages, and this behavior is nicely fitted to a logarithmic function as:

[TABLE]

where $\Delta V_{n}$ is the potential difference for coverage $n$ [See Fig. 5(c)].

To relate the above discussions to level alignments, we consider the density of states (DOS) for clean and exposed surfaces. Since the DMF/TiO2 system has the largest value for $\Delta V$ than other $X/Y$ systems, we have calculated the DOS values of this system at two coverages and compared with that of clean surface in Fig. 6. To find the absolute values of VB and CB edges, we have to refer all energies to the vacuum level. Choosing this reference energy is a crucial step to compare different systems and to investigate level shifts. The method is a common approach in level-alignment problemsKharche et al. (2014); Mosconi et al. (2012).

In the case of symmetric slabs, the asymptotic potentials are the same in both sides and can be used as a unique energy reference. However, for asymmetric slabs, as we discussed above, the asymptotic potentials at the two sides are different and we have used both of them, one at a time, as references to generate our DOS plots as in Fig.6.

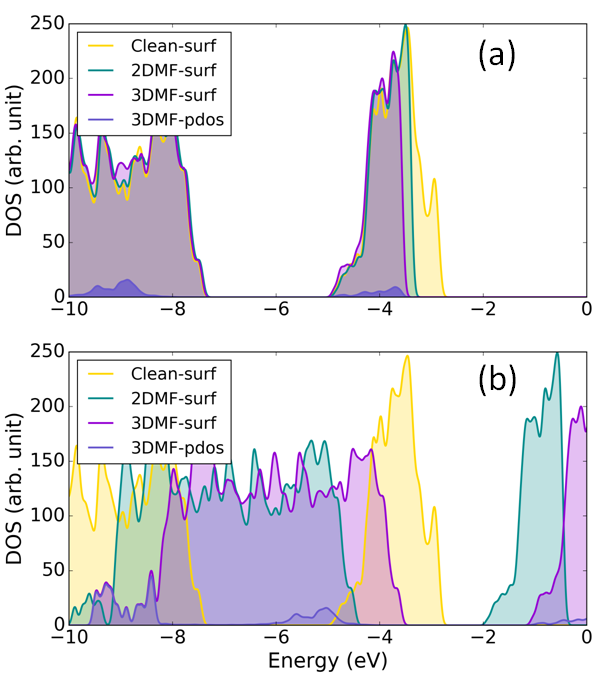

In Fig. 6(a), the asymptotic potentials of the clean side of the slabs are taken as reference point of energy, i.e., $V(-\infty)=0$. The result is that the VB and CB edges do not change with coverage, and consequently the band gap remains unchanged. This result can be understood by the fact that, irrespective of the coverage of right side of the slab, the energy needed to extract an electron from the clean surface should be the same (the slabs are thick enough so that the surfaces at the two sides do not see each other). In addition, since the projection of DOS over atomic orbitals of DMF molecules, i.e., the dark blue small peaks in Fig. 6(a), are localized far from the gap region, the adsorption does not change the DOS shapes near to the gap.

Now, if we take the asymptotic potentials of the right hand side as the reference points, we obtain the result shown in Fig. 6(b). In this figure, the energy level up-shifts due to solvent molecules are clearly shown. As is seen, for higher coverage values, less energy is needed to extract an electron from the exposed surface. This case of referencing is the one that should be considered in an electrochemical system, and the values of $\Delta V$ listed in Table 1 can be used as a good estimate of level shifts in the presence of solvent. Once again, it should be emphasized that the energy values that we are working with, are the ones obtained from the solution of the KS equations, which are not necessarily the actual values for a system; however, using the method proposed in this work gives a good estimate for the level shifts in an electrochemical system.

The results presented up to now, were based on the assumption of mono-layer adsorption in static conditions. However, in reality, the adsorbed layer interacts with other solvent molecules and there exist some thermal fluctuations at room temperatures. To have an estimation of how these effects may change our static results, we have also performed an ab initio molecular dynamics (AIMD) calculations for a ZnO slab embedded in MeCN molecules. For the starting configuration, Fig. 7(a), we took a supercell containing a (ZnO)48 slab and a number of 35 MeCN molecules inside the simulation box (corresponding to the solvent density of 0.786 g.cm*-3*) out of which 12 molecules are attached (full coverage) to the proper adsorption sites of the slab surfaces (6 molecules at each side). The initial configuration for the AIMD simulations was constructed from relaxed structure of one-layer covered slab combined with classical molecular dynamics simulation of MeCN box which had been equilibrated for 100 ps at 300∘ K. Starting from this initial configuration, we have performed canonical ($NVT$) simulations for 2.5 ps using the Nose-Hoover thermostat at 300∘ K, with a time step of 0.5 fs, as implemented in SIESTA code package.

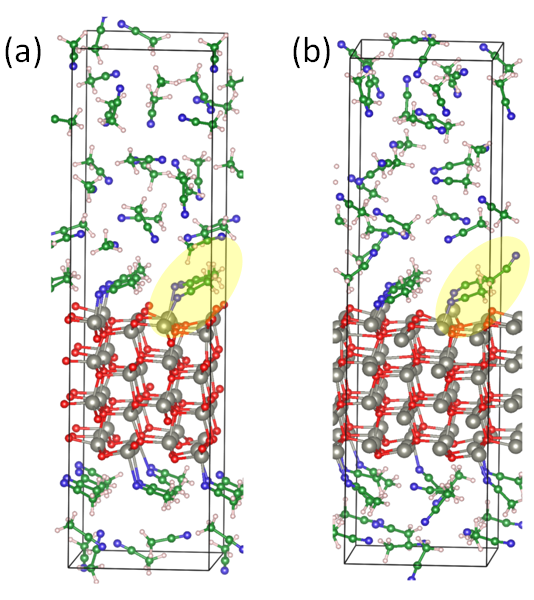

Tracing the evolution of the system, we observe that within about 200 fs, one of the initially adsorbed molecules detaches from the surface and changes its orientation to the opposite direction, as shown in yellow highlighted region in Fig. 7(b). For more details, the animated dynamics of system is included as supporting information. To summarize, the results obtained from the molecular dynamics simulation of the system show that, the thermal effects and interaction of first-layer solvent molecules with other layers prevent the adsorption with a full coverage, and this in turn, means that the level shifts realized in actual conditions are somewhat smaller than those corresponding to full coverage, as listed in Table 1. Although in this work we performed the MD simulation in a small (both in size and time) scale, the results are very informative. Extending this study for larger scale simulations is currently in progress.

IV Conclusions

In this study, we have used first-principles DFT calculation and ab initio MD to explore the energy-level shifts of the semiconductors TiO2 and ZnO at the interfaces with MeCN and DMF solvent molecules. The DFT calculations are performed for different coverages of solvent molecules, and we have shown that the binding energies per molecule decreases with coverage. The dipole correction method is used to determine the potential difference between the clean and exposed surfaces of an asymmetric slabs. This quantity gives an estimate for the level shifts in electrochemical systems. The calculations show that some charge is injected from the adsorbed molecules into the interface, giving rise to a surface dipole layer. In the studied cases, the dipoles originating from the charge injection adds to the permanent dipole of the adsorbent molecules, leading to a higher potential difference, which in turn enhances the level shifts. Our electronic structure calculations show that the studied adsorbed molecules have negligible effects on the DOS shapes near the gaps; and looking from the exposed side of the slab, this gap shifts to the right with coverage. Finally, the dynamics of interface is studied using ab initio MD calculations for MeCN/ZnO system, and the results for 300∘ K show that in the equilibrate state some fraction of solvent molecules detach from the surface, which implies that in our static calculations we should take smaller coverages in order to mimic a realistic system.

Appendix A Charge Displacement and Dipole Moments

The total charge densities of an isolated molecule and an isolated surface (slab), in their equilibrium ground states, are given respectively, by:

[TABLE]

[TABLE]

where, $e$ is the magnitude of an electronic charge, and the sets $\{{\bf R_{\alpha}}\}$ and $\{{\bf R_{\beta}}\}$ determine the ionic position vectors of the molecule and slab, respectively; while $n_{\rm mol}({\bf r};\{{\bf R_{\alpha}}\})$ and $n_{\rm sur}({\bf r};\{{\bf R_{\beta}}\})$ are the ground state electronic number densities of molecule and slab, respectively, which are obtained by the solutions of the KS equations of DFT for the given external parameters of the ionic positions.

When the molecule is adsorbed on the surface, the set of equilibrium ionic positions in the combined system change to $\{{\bf R^{\prime}_{\alpha}},{\bf R^{\prime}_{\beta}}\}$, and the total charge density of the combined system, in its ground state, is given by:

[TABLE]

Now, to obtain the charge difference, Eq. (3), the total charge densities of the isolated molecule and surface should be calculated for the ground states with external parameters $\{{\bf R^{\prime}_{\alpha}}\}$ and $\{{\bf R^{\prime}_{\beta}}\}$, respectively, so that the contributions from the ionic charges cancel out:

[TABLE]

where the electronic charge density is defined as the multiplication of the electronic charge and the number density.

To obtain the dipole moment of the combined system, $\mu_{\rm comb}$, we multilpy by r both sides of Eq. (11) and integrate over the whole space:

[TABLE]

Rearranging the terms and by the definition of the electric dipole moment as the integral over space of the product of r and charge density, we obtain Eq. (4).

Acknowledgements.

This work is part of research program in School of Physics and Accelerators, NSTRI, AEOI.
