V-type candidates and Vesta family asteroids in the Moving Objects VISTA (MOVIS) Catalogue

TL;DR

This study uses near-infrared colors from the MOVIS-C catalogue to identify and analyze V-type basaltic asteroids, revealing their distribution beyond the Vesta family and nearly doubling known candidates outside it.

Contribution

It introduces a new method for identifying V-type asteroids using near-infrared colors and expands the known population of basaltic asteroids outside the Vesta family.

Findings

Identified 477 V-type candidates, 244 outside the Vesta family.

Discovered 19 V-types beyond the 3:1 resonance, including 6 in the outer belt.

Approximately 85% of Vesta family members are V-type asteroids.

Abstract

Basaltic asteroids (V-types) are believed to be fragments of large differentiated bodies. The majority of them are found in the inner part of the asteroid belt, and are current or past members of the Vesta family. Recently, some V-type asteroids have been discovered far from the Vesta family supporting the hypothesis of the presence of multiple basaltic asteroids in the early solar system. The discovery of basaltic asteroids in the outer belt challenged the models of the radial extent and the variability of the temperature distribution in the early solar system. We aim to identify new basaltic V-type asteroids using near-infrared colors of ~40000 asteroids observed by the VHS-VISTA survey and compiled in the MOVIS-C catalogue. We also want to study their near-infrared colors and to study the near-infrared color distribution of the Vesta dynamical family. We performed a search in the MOVIS-C catalogue of all the asteroids with (Y-J) and (J-Ks) in the range (Y-J) > 0.5 and (J-Ks) < 0.3, associated with V-type asteroids, and studied their color distribution. We have also analyzed the near-infrared color distribution of 273 asteroid members of the Vesta family and compared them with the albedo and visible colors from WISE and SDSS data. We determined the fraction of V-type asteroids in the family. We found 477 V-type candidates in MOVIS-C, 244 of them outside the Vesta dynamical family. We identified 19 V-type asteroids beyond the 3:1 mean motion resonance, 6 of them in the outer main belt, and 16 V-types in the inner main belt with proper inclination i_p < 3.0deg, well below the inclination of the Vesta family. We computed that ~85% of the members of the Vesta dynamical family are V-type asteroids, and only 1-2% are primitive class asteroids and unlikely members of the family. This work almost doubles the sample of basaltic asteroid candidates in regions outside the Vesta family.

Figures

Tables

Table 1. Table 1: List of MOVIS-C V-type candidates that belong to the Vesta collisional family and have color uncertainties ≤ \leq 0.1. Objects marked with an asterisk are also identified as V-type candidates by Roig & Gil-Hutton ( 2006 ) based on their visible colors.

1959	15781	29334	43388∗	62406	96698
1979	15881	29979	44097	65068	96890
2011	16234	29994	44805	65504	98086∗
2508	17139	30097	44877	66111	98167
3153	17162	30329	45792	67498	99381
3613	17431	30358	46281	68759	102813
4311	17562	30818	46698∗	68782	103042
4444	17769	31132	48644	68801	103132
4993	17976	31517	48734	68879	107709
5051	18508	31575	50048	69742∗	108250
5307	18581	31778	50082	70248	111976
6014	18754	32276	50084∗	70277	112087
6085	19025	32541	50086	70940	117819
6096	19573	33049	50241	72246	118295
6506	19680	33100	50248	73109	118305
6877	20252	33477	51368	73174∗	118532
7005	20302	33491	51487	74010	119085
7012	21633	33512	51628	74898	119136
7810	21692	33590	51687	74924	122101
9076	21883	33875	52792	74936	130756
9204	22080	34081	53000	75636	131609
9616	22155	34534∗	53580	77122	132010
10056	22654	35222	53734	77324	132347
10614	23522	35284	54084∗	77590	136439
11189	24085	35414	54152	80798	137512
11326	24115	36021	55315	80800	138192
11522	24255	36761	56169	84328	147141
12340	24261	36834	56599	86520	153392
12591	25220	37113	57104	88781	161029
13054	25708	37149	57818	88958	162518
13164	26238	37192	57930∗	90548	170306
13191	26611	37234	57943	90639	170309
13287	27539	38335	58271	91343	172447
13530	27939∗	38732∗	59215	92646	175841
13569	28397	38876	59336	92686	178112
13855	28543	38879	59569	93339	225334
13994	28737	39949∗	61521	93394∗	243137
15032	28902	41558	61741	94355	244232
15756	29186	42644	61986	94413

Table 2. Table 2: List of MOVIS-C V-type candidates with color uncertainties ≤ \leq 0.1 that do not belong to the Vesta family. The objects marked with an asterisk are also identified as V-type candidates by Roig & Gil-Hutton ( 2006 ) based on their visible colors.

2275	12172	26842	44878	70081	113910
2452	12612	27343	44930	71826	114858
2486	12787	27373	44953	71850	122008
2763	12789	27383	45323	71960	122243
2888	13194	27770	45893	73076	122267
3188	13380	28461	45942	73658	123786
3331∗	13398	29384	47459	74596	126981
3536	13721	29677	47476	74912	130972
3882	13760	29733	47837	75080	133202
3900	15121	30893∗	48036	75289	135575
3954	15506	30961	49214	75661	136229
4228	15678	31460	50035	77972	145887
4693	15846	31599	50091	79426	147703
5150	16169	31677	50105	80345	152165
5328	16352∗	31775	50215	80463	152933
5524	16477	32581	51511	82349	159601
5631	16605	33366	52132	82455	164235
5713	16873	33513	52819	86263	165142∗
5758	17001	33562	52985	86284	166973
5875	17057	33628	52995	86768	177529
5952	17546	35062∗	53608	89270	179851
6046	17739	36644	54367	89729	180703
6363	18012	37386	55456	89729	183004
6406	18644	37404	55769	90223	188102
6442	19257	37730	56369	94680	189231
6584	19281	38317	56456	96653	197480
6587	19294	38744	57278	96823	203379
6853	19518	39175	57454	98231	207473
7223	19619	39465	59423	98654	218144
7459	19679	39926	59834	99579	235061
7675	19738∗	40258	61354	100772	240551
7823	19969	40378	61736	101029	245202
7998	19983	40521∗	61985	102601	249866
8644	20188	40708	63673	102986	284907
8921	21307	41433	63708	103105	313008
9064	22880	41463	65949	103828	322744
9147∗	22892	41776	67477	109080	326769
9197	24140	41793	67792	111947	354036
9495	24604∗	42656	67876	112839	364694
9495	25979	43885	68141	112841
9746	26097	44541	69255	113516

Table 3. Table 3: MOVIS-C V-type candidates with known spectral class.

Object	Reference	Vesta family	Class
2011 Veteraniya	4,11	Y	V
2486 Metsahovi	1,6	N	V
2508 Alupka	2	Y	V
2763 Jeans (*)	2,5	N	V
3536 Schleiche	2	N	V
3613 Kunlun	12	Y	V
3900 Knezevic	2	N	V
4311 Zguridi	2	Y	V
4993 Cossard	2,4	Y	V
5051 Ralph	2	Y	Sr
6406 Vanavara	1,4	N	V
9147 Kourakuen	3,10	N	V
10614 1997UH1	3	Y	V or R
27343 Deannashea	8	N	V
40521 (1999 RL95)	7,9	N	V

Table 4. Table 4: Near-infrared colors and proper orbital elements of the V-type candidates identified in the outer and middle main belt.

Number	Name	$\left(Y-J\right)$	${\left(Y-J\right)}_{err}$	$\left(J-K_S\right)$	${\left(J-K_S\right)}_{err}$	$a_p$	$e_p$	$sin\left(i_p\right)$
2452	Lyot	0.548	0.006	0.216	0.017	3.157603	0.157434	0.203073
26842	Hefele	0.543	0.019	0.200	0.054	3.070801	0.161099	0.11862
47837	2000 EB118	0.513	0.052	0.188	0.099	3.047409	0.116868	0.198066
112839	2002 QJ18	0.847	0.057	0.297	0.090	3.161972	0.090493	0.263182
123786	2001 BS17	0.560	0.081	0.143	0.096	3.094369	0.199381	0.045462
126981	2002 FW26	0.615	0.042	0.231	0.087	2.985409	0.064602	0.152313
6442	Salzburg	0.545	0.032	0.023	0.078	2.686807	0.058888	0.047547
7459	Gilbertofranco	0.788	0.010	0.125	0.019	2.597774	0.135546	0.088471
13760	Rodriguez	0.558	0.029	0.142	0.072	2.556707	0.106708	0.040244
20188	1997 AC18	0.693	0.024	0.067	0.058	2.593472	0.12641	0.133965
40521	1999 RL95	0.668	0.034	0.073	0.075	2.531127	0.05667	0.218938
52132	5034 P-L	0.602	0.073	0.216	0.046	2.590746	0.247551	0.188448
59423	1999 GE4	0.520	0.027	0.270	0.075	2.648131	0.120942	0.228428
61354	2000 PY10	0.690	0.027	0.029	0.084	2.516033	0.105526	0.206352
61985	2000 RW30	0.679	0.024	0.101	0.045	2.564561	0.090761	0.153342
100772	1998 FN34	0.614	0.043	0.289	0.092	2.748188	0.246466	0.076894
180703	2004 HW46	0.502	0.031	0.141	0.093	2.721743	0.1747	0.237132
197480	2004 BE8	0.510	0.020	0.221	0.052	2.724477	0.171389	0.231051
249866	2001 QM165	0.929	0.077	0.273	0.097	2.666192	0.196148	0.172099

Table 5. Table 5: Mean values of the near-infrared colors of our V-type candidates, separated into members and nonmembers of the Vesta collisional family.

Color	Mean	$\sigma$	N
Vesta family
$\left(Y-J\right)$	0.62	0.07	233
$\left(Y-H\right)$	0.75	0.12	90
$\left(Y-Ks\right)$	0.68	0.12	232
$\left(J-H\right)$	0.12	0.13	94
$\left(J-Ks\right)$	0.05	0.13	233
$\left(H-Ks\right)$	-0.07	0.12	233
Non-Vesta family
$\left(Y-J\right)$	0.68	0.11	244
$\left(Y-H\right)$	0.78	0.14	117
$\left(Y-Ks\right)$	0.73	0.14	244
$\left(J-H\right)$	0.10	0.14	120
$\left(J-Ks\right)$	0.05	0.13	244
$\left(H-Ks\right)$	-0.05	0.13	121

Full text

*Aims. *We aim to identify new basaltic V-type asteroids using near-infrared colors of $\sim$ 40000 asteroids observed by the VHS-VISTA survey and compiled in the MOVIS-C catalogue. We also want to study their near-infrared colors and to study the near-infrared color distribution of the Vesta dynamical family.

*Methods. * We performed a search in the MOVIS-C catalogue of all the asteroids with ($Y-J$) and ($J-Ks$) in the range $(Y-J)\geq 0.5$ and $(J-Ks)\leq 0.3$, associated with V-type asteroids, and studied their color distribution. We have also analyzed the near-infrared color distribution of 273 asteroid members of the Vesta family and compared them with the albedo and visible colors from WISE and SDSS data. We determined the fraction of V-type asteroids in the family.

*Results. *We found 477 V-type candidates in MOVIS-C, 244 of them outside the Vesta dynamical family. We identified 19 V-type asteroids beyond the 3:1 mean motion resonance, 6 of them in the outer main belt, and 16 V-types in the inner main belt with proper inclination $i_{p}\leq 3.0\degr$, well below the inclination of the Vesta family. We computed that $\sim$ 85% of the members of the Vesta dynamical family are V-type asteroids, and only 1-2% are primitive class asteroids and unlikely members of the family.

*Conclusions. *This work almost doubles the sample of basaltic asteroid candidates in regions outside the Vesta family. Spectroscopic studies in the near-infrared and dynamical studies are needed to confirm their basaltic composition and to determine their origin.

1 Introduction

Basaltic asteroids are believed to be fragments of large bodies whose interiors reached the melting temperature of silicate rocks and subsequently differentiated (Gaffey et al., 2002), forming a core of heavy minerals and a mantle of lighter minerals (olivine and pyroxene). Differentiation is a fundamental process that determines the later geological evolution of the objects, so determining wether specific asteroids are differentiated or not is of scientific interest for understanding the process that sculpted the asteroid belt. Taxonomically, basaltic asteroids are classified as V-types, named after their most representative member (4) Vesta, which was for a long time the only known asteroid presenting a basaltic crust (McCord et al., 1970; Binzel & Xu, 1993). The NASA Dawn mission provided a detailed study of Vesta’s composition (see McCord & Scully 2015 and references therein). The visible to near-infrared (VNIR, 0.4 - 2.5 $\mu$m) spectra of basaltic asteroids are characterized by two deep absorption bands around 1 and 2 $\mu$m, associated with the presence of pyroxene on their surfaces. This type of spectra are similar to those of Howardite-Eucrite-Diogenite meteorites (known as HEDs), which are thought to originate from V-type asteroids.

The majority of basaltic asteroids are found in the inner part of the asteroid main belt, between 2.15 and 2.5 AU. Most of them are current or past members of the largest asteroid family in the belt, the Vesta family, dynamically defined as having members with proper semi-major axis ($a_{p}$), eccentricity ($e_{p}$), and inclination ($i_{p}$) in the ranges $2.26\leq a_{p}\leq 2.48,0.075\leq e_{p}\leq 0.122$, and $5.6^{\circ}\leq i_{p}\leq 7.9^{\circ}$, respectively (Nesvorný et al., 2015). The Vesta collisional family originated from a collisional event that excavated a crater in the surface of Vesta (Asphaug, 1997; Thomas et al., 1997) and that occurred more than 1.2 Gyr ago (Carruba et al., 2005). Consistently, spectral studies show that a large fraction of the Vesta family members present a basaltic composition (Binzel & Xu, 1993; Burbine et al., 2001).

Vesta and its dynamical family are not the only asteroids with a basaltic composition. In the last decades, more V-type asteroids were discovered far from Vesta family in the outer main belt (2.8 - 3.3 AU), as is the case of asteroid (1459) Magnya (Lazzaro et al., 2000), or in the middle main belt (2.5 - 2.8 AU) (Moskovitz et al., 2008; Duffard & Roig, 2009). The orbits of these asteroids suggest that they are not scattered Vesta family objects because they cannot be explained by the typical ejection velocities produced during the cratering event. The case of (1459) Magnya is the most intriguing one because it is so far away from the Vesta family that it is almost impossible for it to be a fragment of the crust of Vesta. Michtchenko et al. (2002) proposed that Magnya is a fragment of another large differentiated asteroid that existed in the outer belt region.

The presence of multiple differentiated parent bodies is also supported by the meteorite record. Bland et al. (2009) report on the fall of a basaltic meteorite that has orbital properties and an oxygen isotope composition that suggest a parent body distinct from Vesta.

The existence of V-type asteroids outside the Vesta family is currently explained by the presence of multiple basaltic asteroids in the early solar system; this hypothesis is supported by the study of HED meteorites. Huaman et al. (2014) found at least three local sources of V-type asteroids, possibly associated with the parent bodies (349) Dembowska, (221) Eos, and (1459) Magnya. The discovery of basaltic asteroids in the outer main belt challenged the models of the radial extent and the variability of the temperature distribution in the early solar system, which generally did not predict melting temperatures in this region (Hardersen et al., 2014).

Using wide field surveys that cover huge fractions of the sky with several filters in the visible and near-infrared it is possible to search for V-type candidates. Roig & Gil-Hutton (2006) presented a systematic method for identifying possible basaltic (V-type) asteroids using the 3rd release of the Moving Objects Catalog (MOC) of the Sloan Digital Sky Survey (SDSS). The method is based on the Principal Components Analysis of the MOC colors in the visible, combined with some refined criteria of segregation of the taxonomical classes. They found 505 asteroids exhibiting V-type colors, 263 of them outside the Vesta family, almost all of them in the inner asteroid belt, and 8 of them in the middle/outer belt. Moskovitz et al. (2008) also studied the distribution of V-type asteroids in the main belt using SDSS colors and dynamical criteria. They found 50 V-type candidates outside the Vesta family and using visible and near-infrared spectroscopy they confirmed that 10 of the 11 objects they observed are V-types.

The aims of this paper are to identify new V-type candidates using the near-infrared colors of $\sim$ 40000 asteroids observed by the VHS-VISTA survey and compiled in the MOVIS-C catalogue (Popescu et al., 2016) and to study the near-infrared colors of all the Vesta family asteroids identified in the MOVIS-C catalogue.

A general description of MOVIS-C catalogue and the criteria used to select V-type candidates is presented in Section 2. In Section 3 we determine the goodness of the V-type candidate selection by analyzing the candidates with known spectra, SDSS colors, and albedo. The distribution of the V-type candidates in the main belt and their near-infrared colors are analyzed in Section 4. The near-infrared colors of the Vesta family asteroids are studied in Section 5, and the conclusions are presented in Section 6.

2 Identification of V-type asteroid candidates in MOVIS-C

The Moving Objects VISTA Survey (MOVIS) is a compilation of the observations of known minor bodies of the solar system observed during the VISTA-VHS survey (Popescu et al., 2016). The VISTA Hemisphere Survey (VHS) is an all sky survey that uses the 4.1m Visible and Infrared Survey Telescope for Astronomy (VISTA) wide field survey telescope located at ESO’s Cerro Paranal Observatory in Chile, equipped with a near-infrared camera with a 1.65$\degr$ field of view. VISTA-VHS uses the $Y$, $J$, $H$, and $Ks$ broadband filters and targets to image the entire southern hemisphere of the sky, covering about 19.000 square degrees. Popescu et al. (2016) compiled the colors and the magnitudes of the minor planets observed by the VISTA survey in three catalogues: the detections catalogue, MOVIS-D; the magnitudes catalogue, MOVIS-M; and the colors catalogue, MOVIS-C. The catalogues were built using the third data release of the survey (VISTA VHS-DR3). A total of 39.947 objects were detected. The colors found for asteroids with known spectral properties revealed well-defined patterns corresponding to different mineralogies. The distribution of MOVIS-C data in color-color plots shows clusters identified with different taxonomic types. All the diagrams that use in particular the $(Y-J)$ color separate the spectral classes much better than the common $(J-H)$ and $(H-Ks)$ colors used to date: even for quite large color errors ($\sim 0.1$) the color-color plots $(Y-J)$ vs. $(Y-Ks)$ and $(Y-J)$ vs. $(J-Ks)$ clearly separate the S- from the C-complex without overlapping between the regions. The end members A-, D-, R-, and V-types also occupy well-defined regions.

Based on their distinctive spectral features asteroids with spectral properties similar to those of V-type asteroids can be easily identified using color-color diagrams obtained from observations with the $Y$, $J$, $H$, and $Ks$ filters (Popescu et al., 2016; Mommert et al., 2016). In Popescu et al. (2016) we showed that in the $(Y-J)$ vs. $(J-Ks)$ plot V-types appear as a separate group with $(Y-J)\geq 0.5$ and $(J-Ks)\leq 0.3$ (see Fig. 15 in Popescu et al. 2016). In fact, the mean colors of asteroids with know taxonomic type in MOVIS-C show that the mean ($Y-J$) and ($J-Ks$) colors of V-types ($(\overline{Y-J})=0.64\pm 0.09$ and $(\overline{J-Ks})=0.08\pm 0.08$) are respectively 0.2 mag larger and more than 0.3 mag smaller than any other spectral class (see Table 1 in Popescu et al. 2016). This is explained well by the deep absorption bands around 1 and 2 $\mu$m (Band I and Band II) that characterize the near-infrared spectra of V-types (see Fig. 1) and the band-pass of the VISTA filters. We note that the $(Y-J)$ color is determined by the first absorption band and a large (red slope) value is indicative of a deep 1 $\mu$m band. On the other hand, the $(J-K_{S})$ is also determined by the second absorption band and a low (blue slope) value is indicative of a deep 2 $\mu$m band. Based on the template spectrum for V-types from Bus-DeMeo taxonomy (DeMeo et al., 2009) we can determine that a V-type asteroid should have color values around $(Y-J)=0.625\pm 0.095$; $(Y-H)=0.708\pm 0.095$; $(Y-Ks)=0.660\pm 0.095$; $(J-H)=0.082\pm 0.095$; $(J-Ks)=0.035\pm 0.111$; $(H-Ks)=-0.047\pm 0.050$, which are close to the middle of the region defined by the V-type candidates in the color-color plots. The equivalent colors of the V-types were computed using the taxonomic template spectrum, the response curve of the VISTA filters, and the solar colors, as explained in Popescu et al. (2016).

In this work we use the colors obtained from the recently updated VHS-VISTA survey data release (VHSv20160114) to define V-type candidates in the MOVIS-C catalogue: asteroids having $(Y-J)\geq 0.5$ and $(J-Ks)\leq 0.3$ with uncertainties in both colors $<0.1$. These values correspond to the average values of the objects located close to the limit that separates V-types from the rest of the classes in the $(Y-J)$ vs. $(J-Ks)$ plot in Fig. 15 from Popescu et al. (2016). This plot shows a distinctive gap between this group and the rest of the objects. We base our selection criteria in these two colors because they clearly separate the V-types from the other classes and because of observational constraints due to the particular observing procedure used in the VHS survey: (1) the number of objects with $K_{s}$ data is larger than those with $H$ data and (2) the $(J-Ks)$ colors are more accurate than the $(J-H)$ ones mainly because of the shorter time interval between the observations in both filters (Popescu et al., 2016).

As discussed above, the existence of V-type asteroids outside the Vesta family can be explained by the presence of multiple basaltic asteroids in the early solar system; for the analysis of the V-type candidates, we will differentiate between those candidates that are members of the Vesta family according to Nesvorný et al. (2015) and those that are non-Vesta family members.

A total of 477 V-type candidates have been identified in the MOVIS-C catalogue using the criteria described above, 233 of them members of the Vesta family (see Table 1) and 244 non-Vesta family members (see Table 2). Only 22 of our V-type candidates, marked with an asterisk in Tables 1 and 2, are also identified as V-type candidates by Roig & Gil-Hutton (2006) based on their SDSS colors.

3 Visible spectra, colors, and albedo of MOVIS V-type candidates

To see how efficiently MOVIS-C can identify V-type candidates, we searched for published spectra of these objects in the two largest spectroscopic databases: the Small Main-Belt Asteroid Spectroscopic Survey (SMASS, Xu et al. 1995, Bus & Binzel 2002) and the Small Solar System Objects Spectroscopic Survey (S3OS2, Lazzaro et al. 2004). Nine of the candidates have spectra in the SMASS database, while there are none in the S3OS2. We also searched for visible and/or near-infrared spectra in the literature and found that there are spectral data of a total 15 of our V-type candidates, 13 of which already spectroscopically classified as V-types (see Table 3). From those that are not, one is classified as Sr, and the other is ambiguously classified as V- or R-type. We note that the spectra of R- or Sr-types are also characterized by deep absorption bands close to 1 and 2 $\mu$m. On the other hand, eight objects with MOVIS-C data are already classified as V-types based on their visible spectrum obtained by SMASS survey. Six of these objects have well-determined $(Y-J)$ and $(J-Ks)$ colors: (2508) Alupka, (3498) Belton, (3536) Schleicher, (3900) Knezevic, (4311) Zguridi, and (4993) Cossard. Except for (3498) Belton, which has a $(J-Ks)$ error slightly larger than the 0.1 limit we used, all of them are identified as V-type candidates in this paper. So, 87% of the V-type candidates identified in MOVIS-C with known spectra are V-type, and all the asteroids in MOVIS-C classified as V-type in the SDSS are identified as V-type candidates. This is indicative of the very high success rate of identifying V-types using MOVIS-C and the color criteria presented in this work.

We next looked at the SDSS colors and visible albedo ($p_{V}$) of our V-type candidates, confirming that most of them also have visible colors and albedo compatible with V-type asteroids. The SDSS colors $(i-z)$ and $a^{*}$ (as defined by Ivezić et al. 2001), and the $p_{V}$ calculated from the Wide Infrared Survey Explorer (WISE) data (Masiero et al., 2011) were retrieved using the MP3C Minor Planet Physical Properties Catalogue222http://mp3c.oca.eu/.

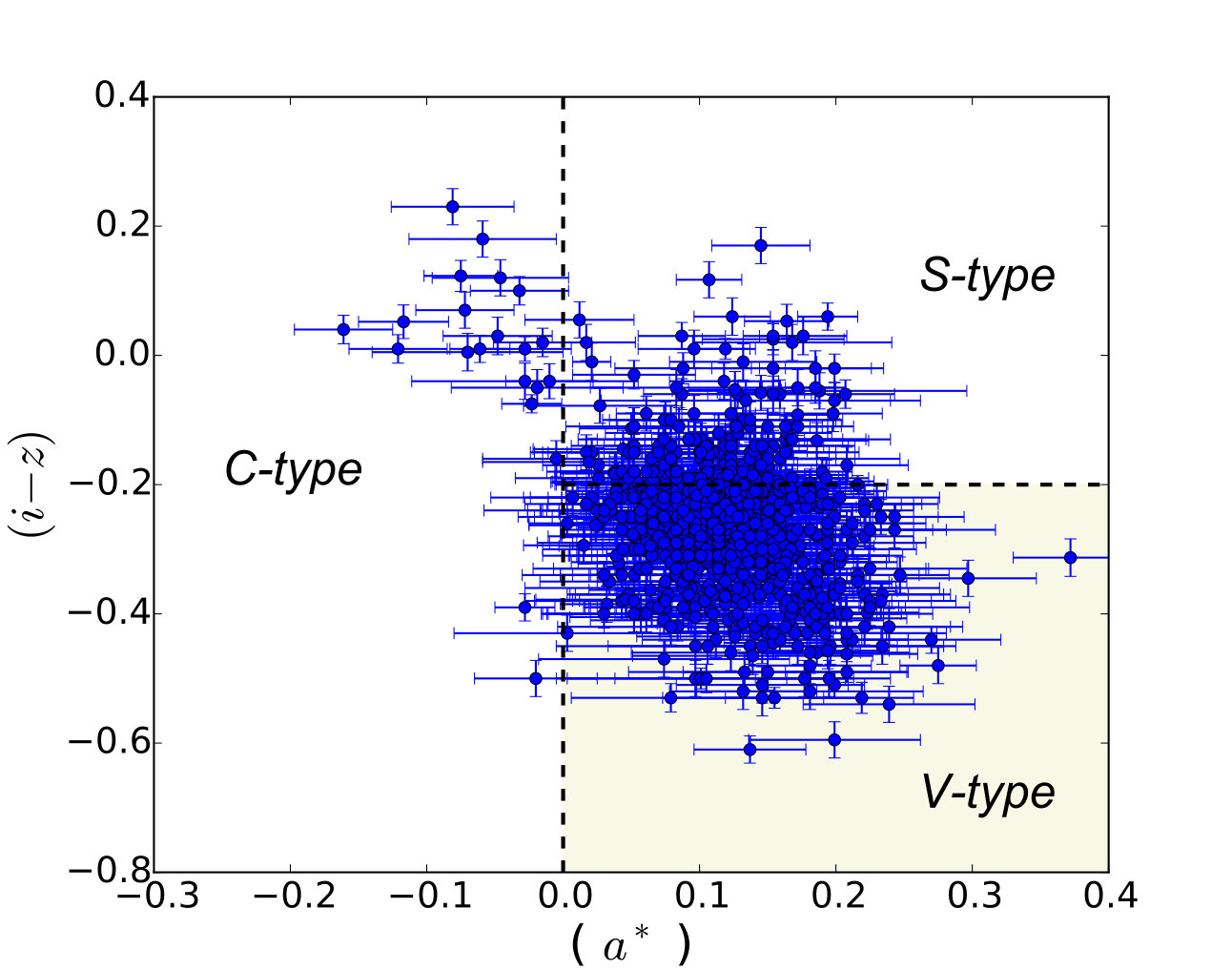

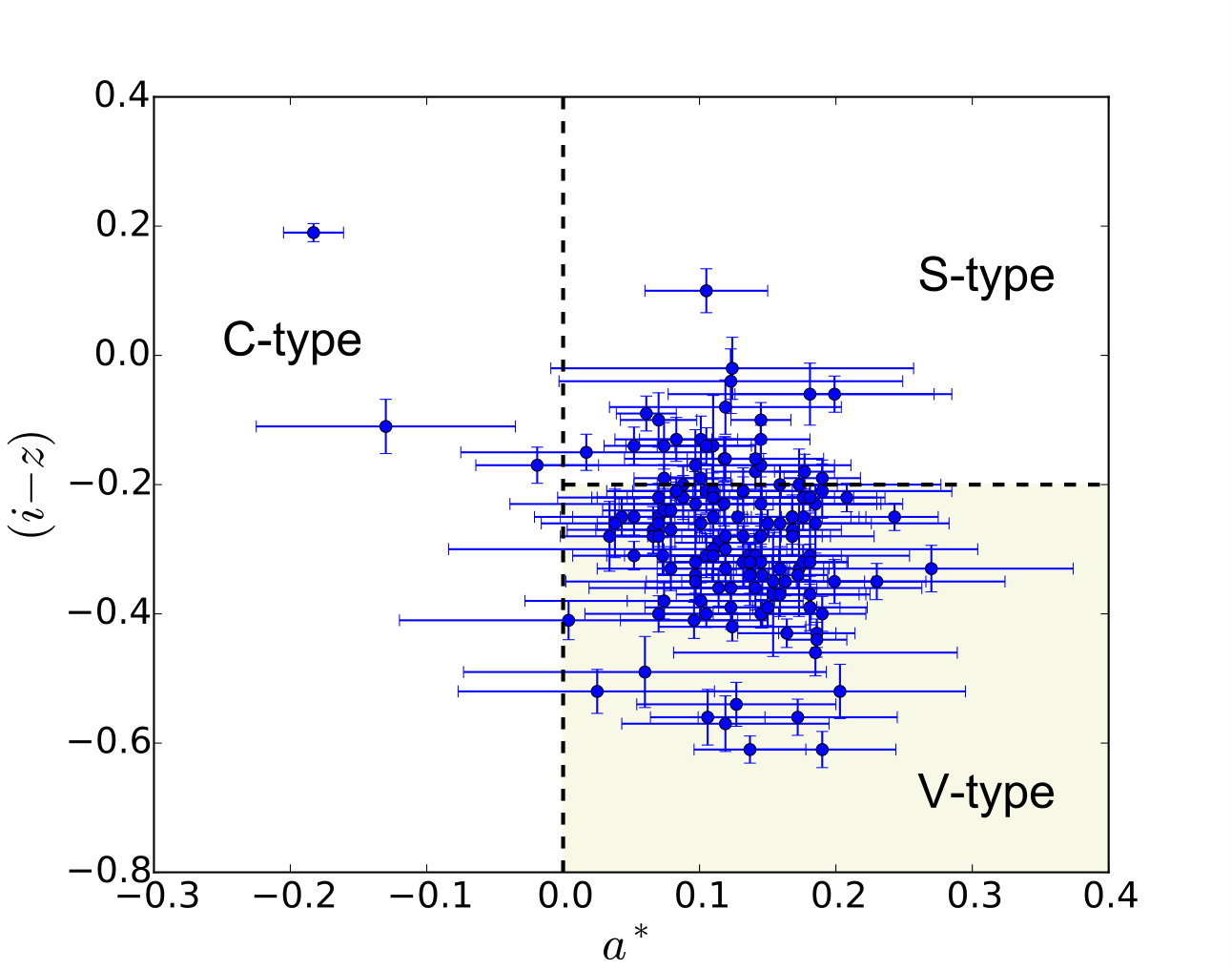

Using SDSS colors from the 3rd release of the MOC, Roig & Gil-Hutton (2006) identified a few hundred V-type candidates. They showed that V-type asteroids appear well segregated in the $(i-z)$ vs. $a^{*}$ color-color plot, forming a cluster in the region $a^{*}>0$ and $(i-z)<-0.2$. A total of 144 of our V-type candidates presented SDSS colors (Ivezić et al., 2002) in the 4th release of the MOC. Following this criterion (see Fig. 2), 111 out of the 144 V-type candidates presented in this paper (77%) have SDSS colors compatible with V-type asteroids. We note that only 22 of our 144 V-type candidates are identified as V-types in Roig & Gil-Hutton (2006), likely because they used the 3rd release of the MOC that have photometric data for 204,305 moving objects, while the 4th MOV release used in this paper have data for 471,569 moving objects. Considering the error bars of the SDSS colors only 10 asteroids present visible colors far from the V-type cluster ($a<0.1$ and $(i-z)<-0.1$). Only 2 of the 144 present SDSS colors that place them in the region associated with the primitive C-complex ($a^{*}<0.0$), namely (166973) 2003 OV5 and (15032) Alexlevin.

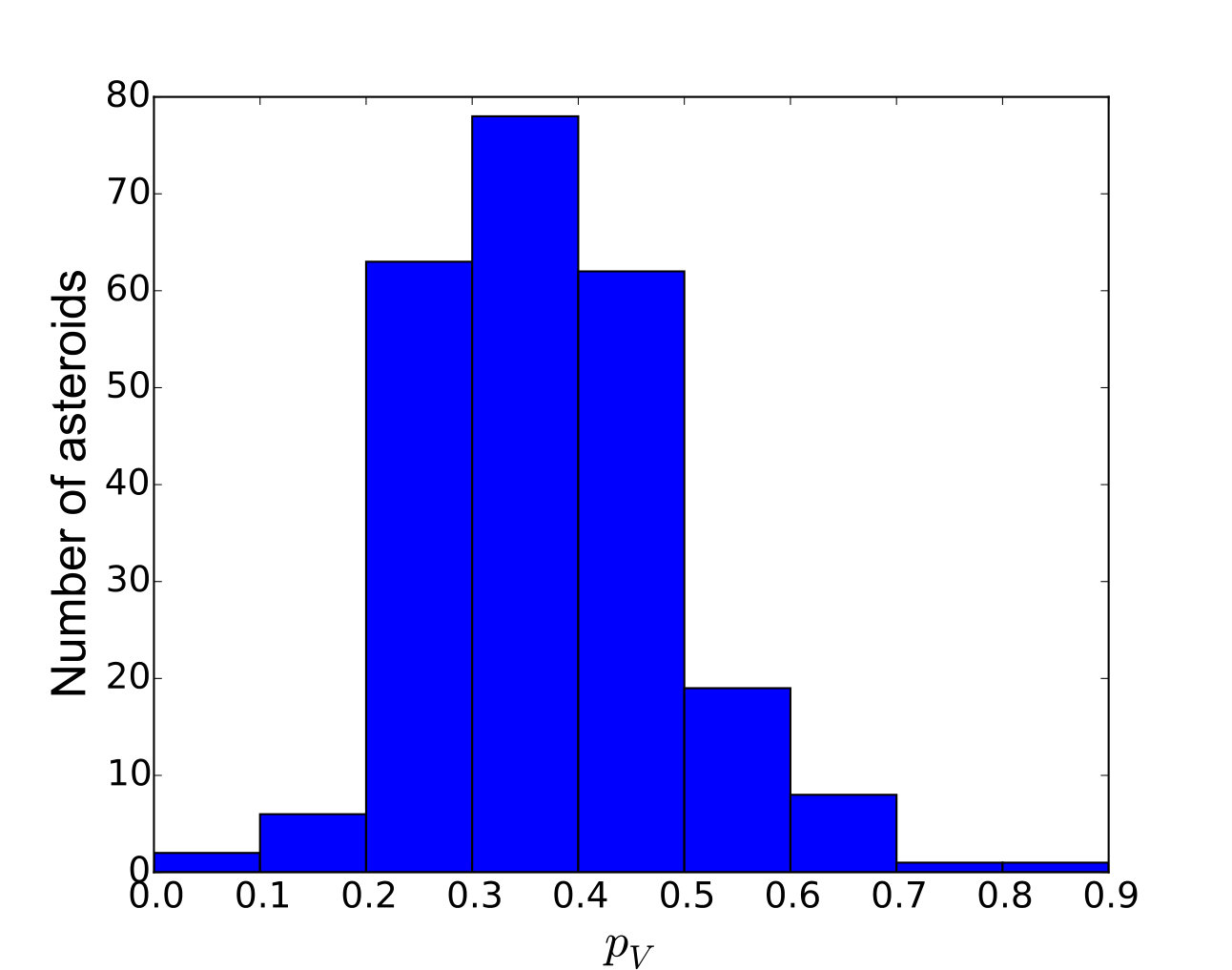

A total of 240 of our V-type candidates have visible albedo ($p_{V}$) obtained from WISE observations (Masiero et al., 2011). The albedo distribution (see Fig. 3) is typical of that of rocky asteroids, with $(\overline{p_{V}})=0.37\pm 0.12$, with 232 objects (87%) with $p_{V}>0.2$ and only 3 with $p_{V}<0.15$ (compatible with C-class objects within the uncertainties): (166973) 2003 OV5, (5524) Lecacheux, and (112839) 1998 SA111. Low-albedo asteroids cannot be basaltic, so the selection criteria includes $\sim$ 1.5% of asteroids that are clearly not V-type likely owing to errors in the color determination.

We note that (166973) 2003 OV5 has both SDSS colors and $p_{V}$ compatible with a primitive class asteroid. On the other hand, the albedo of (15032) Alexlevin is too high ($p_{V}=0.29$) and (5524) Lecacheux and (112839) 1998 SA111 have $a^{*}>$ 0 ($0.132\pm 0.016$ and $0.105\pm 0.034$, respectively).

Finally, of the 477 candidates, 76 have both SDSS colors and WISE albedo, and 56 of these 76 (74%) have the albedo and SDSS colors of the V-types ($p_{V}>0.20$, $a^{*}>0$ and $(i-z)<-0.2$). We note that the $74\%$ success rate of detecting objects that are V-types according to MOVIS, SDSS, and WISE data depends on the success rate (and uncertainties) of all the surveys. The success rate of MOVIS alone of detecting V-type candidates among those that have been already classified because of their visible or near-infrared spectrum (confirmed V-types) is higher, $\sim 87\%$ (13 of 15 objects).

4 V-type candidates outside the Vesta family

4.1 Distribution of V-type candidates in the main belt

As discussed above, the existence of V-type asteroids outside the Vesta family, and in particular in orbits that are not likely to be attained by any asteroid scattered from the Vesta family, is challenging, and suggests that there were multiple basaltic asteroids in the early solar system. For this reason we first analyzed the orbital distribution in the space of proper elements and separated members and nonmembers of the Vesta dynamical family according to Nesvorný et al. (2015).

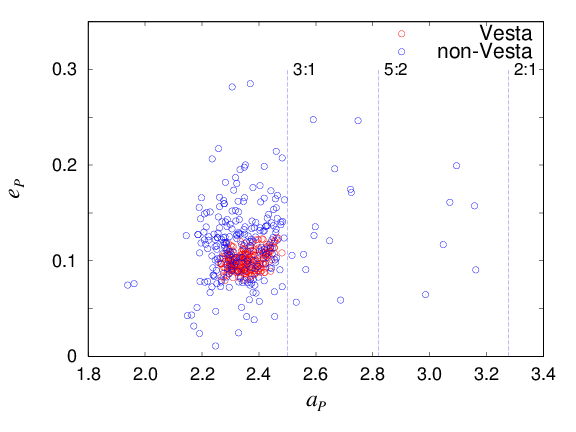

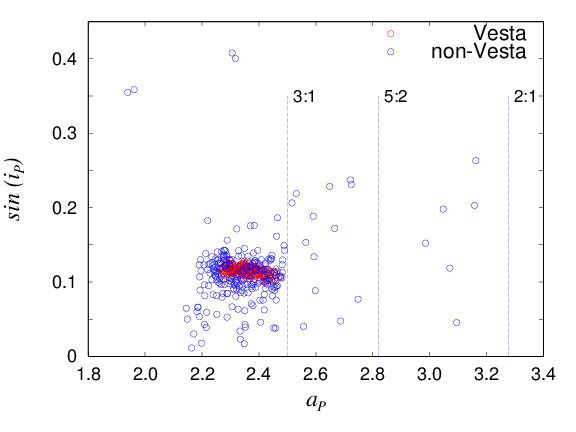

Figure 4 shows the distribution in proper orbital elements of the V-type candidates presented in Tables 1 and 2. It is clearly seen that the great majority of the non-Vesta candidates are in the inner main belt (objects with semi-major axis $a_{p}<2.5$ AU, hereafter IMB), most of them close to the region occupied by the Vesta family asteroids. This suggests that the large majority of those IMB V-type asteroids outside the Vesta family are probably fragments of (4) Vesta; some of them are probably not included in the family because of the distance criterium $d_{cutoff}$ used by Nesvorný et al. (2015) or because some of them have been scattered from the family (Nesvorný et al., 2008).

On the other hand, V-type candidates that are in the outer main belt (objects with semi-major axis between 2.8 - 3.3 AU, hereafter OMB) and in the middle main belt (objects with semi-major axis between 2.5 - 2.8 AU, hereafter MMB) are very interesting because they are unlikely scattered Vesta family asteroids.

Asteroids in the MMB are objects that are beyond the 3:1 mean motion resonance with Jupiter, the outer edge of the Vesta family. According to Roig & Gil-Hutton (2006), only fragments of the Vesta family ejected at very high velocities ($>700$ m/s) are able to be injected in the MMB. We identified 13 V-type candidates in the MMB (see Table 4), Moskovitz et al. (2008) identified 12 more, and Roig & Gil-Hutton (2006) another 2; asteroid (40521) was identified in all three samples. A total of 27 V-type candidates are identified in the MMB either by their near-infrared (this work) or SDSS colors (Moskovitz et al., 2008; Roig & Gil-Hutton, 2006).

According to Nesvorný et al. (2015) two of the V-type asteroids in the MMB identified in this work, (197480) and (180703), belong to the (173) Ino collisional family; among those identified in Moskovitz et al. (2008), asteroid (208899) belongs to the (2732) Witt family, (84021) belongs to the (170) Maria family, and (55550) belongs to the (15) Eunomia family. The case of (55550) is very interesting because the Eunomia family has been suggested as a possible source of basaltic-type asteroids (Carruba et al., 2007; Roig et al., 2008). Twelve of the V-type candidates identified in the MMB are in the vicinity of the Eunomia family in the space of proper orbital elements.

The case of V-type asteroids in the OMB and the possible link with (1459) Magnya is crucial in order to validate the hypothesis of the presence of multiple basaltic asteroids in the early solar system. We identified six V-type candidates in the OMB (see Table 4), one of which – (126981) – belongs to the (9506) Telramund family. Moskovitz et al. (2008) identified four V-types in the OMB, and Roig & Gil-Hutton (2006) identified another six V-types.

Finally, it is interesting to study the V-type candidates in the IMB that are far from the space of proper orbital elements of the Vesta dynamical family. This can help explain what dynamical path was taken by the Vesta asteroids to reach these orbits, and can test whether there are basaltic asteroids in the IMB that are not chunks of the crust of Vesta. In particular there are two groups: (1) those with $a_{p}\leq 2.22$ AU that are well inside the 7:2 mean motion resonance (between 2.23 and 2.27 AU), which is the inner edge of the Vesta family, and (2) those with proper inclination well below the proper inclination of the Vesta family. Nesvorný et al. (2008) showed that scattered Vesta family asteroids populate most of the semi-major axis extent of the IMB, but do not extend to proper inclinations much smaller than that of the family (e.g., $i_{p}<3\degr$). There are 19 V-type candidates with $a_{p}\leq 2.22$ AU and 16 with $i_{p}\leq 3.0\degr$ in our sample. From our list of V-type candidates in the IMB 13 of them dynamically belong to the (8) Flora family, 5 belong to the (44) Nysa family, 2 belong to the (434) Hungaria, and 1 belongs to the (27) Euterpe family.

Spectroscopic observations of V-type candidates in the MMB, the OMB, and other non-Vesta family V-types are extremely important in order to confirm their taxonomical classification as V-types, and to allow mineralogical studies to compare their surface properties to those of Vesta family asteroids (e.g., Duffard & Roig 2009; Fulvio et al. 2016; Ieva et al. 2016). These asteroids, together with dynamical studies to determine their origin (e.g., Carruba et al. 2014; Nesvorný et al. 2008; Huaman et al. 2014; Roig et al. 2008), are crucial to understanding the population and origin of basaltic asteroids in this region of the belt.

4.2 Near-infrared color distribution of the V-type candidates

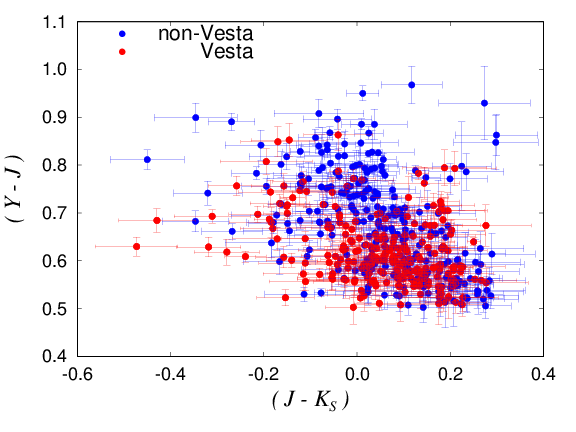

The $(Y-J)$ vs. $(J-K_{s})$ plot of the V-type candidates is presented in Figure 5. A first look at this figure suggests that the colors of the Vesta and non-Vesta V-types are slightly different. To better analyze this possible difference the normalized histograms showing the $(Y-J)$ and $(J-K_{s})$ color distribution of both groups are presented in Figure 6, and the mean value and corresponding standard deviation ($\sigma$) of the colors as well as the number of objects used to compute them (N), separated into Vesta and non-Vesta family asteroids, are presented in Table 5.

The $(Y-J)$ colors of the Vesta family candidates seem to have a narrower distribution than the colors of the non-Vesta family asteroids. The $(Y-J)$ colors of non-Vesta candidates spread over a wider range of values and peak at a larger $(Y-J)$, but the mean $(\overline{Y-J})$ values of the two distributions are similar within a 1-$\sigma$ deviation. To check if the $(Y-J)$ color distribution of the two groups are statistically different, we use a Kolmogorov-Smirnov (K-S) test. This test assumes that both distributions are compatible and compute the probability that the two distributions are equal. The probability value $P$ obtained with the K-S test for the $(Y-J)$ distributions is $P_{(Y-J)}=2.5x10^{-11}$, and for the $(J-K_{s})$ is $P_{(J-K_{s})}=0.24$. To reject the null hypothesis the K-S rejection criteria range from the less strict $P<0.05$ to the more strict $P<0.03$ (or even $P<0.01$), so the test cannot reject the null hypothesis in the case of the $(J-K_{s})$ distributions, but shows that the $(Y-J)$ distributions of the Vesta and non-Vesta candidates are significantly different.

The different $(Y-J)$ color distribution of both groups can be interpreted in terms of (1) a different composition of the non-Vesta asteroids with respect to Vesta, supporting an origin in a different parent body than Vesta with a slightly different basaltic composition; (2) a different degree of space-weathering that either affects the spectral slope or the depth of the bands (see, e.g., Pieters et al. 1993; Brunetto et al. 2006; and references therein); and (3) a different degree of contamination of the two samples by the incorrect identification of V-types using MOVIS. In this context the observed narrower distribution of the $(Y-J)$ color of the V-type candidates in the Vesta family is expected as they are chunks of the same asteroid (Vesta), ejected at the same time (thus the affected by weathering during the same amount of time in a similar region of the solar system), and the sample is likely less affected by objects that are incorrectly identified as V-type as it is biased in favor of Vestoids.

Differences in the composition of V-types outside the Vesta family have been suggested by Ieva et al. (2016) for V-types in the MMB and OMB from the analysis of four V-types outside the 3:1 resonance. As discussed above, $(Y-J)$ is related to Band I of the V-type spectrum and $(J-K_{s})$ is related to Band II (see Fig. 1). The position and the depth of the bands is used to study the mineralogical composition of the V-type asteroids (see, e.g., Duffard et al. 2005). In particular, the Band I center vs. Band II / Band I area ratio (BAR) is a diagnostic of different surface composition. For V-type asteroids with similar $(J-K_{s})$, a larger $(Y-J)$ value can be due to either a deeper Band I (than a smaller BAR value), or a lager value of Band I center. In any case, the interpretation in terms of mineralogical composition with only these two broadband colors is not straightforward and needs to be studied further, for example by using the spectra of basaltic meteorites, but this is beyond of the scope of this paper.

On the other hand, when considering only the OMB and MMB V-types (the non-Vesta asteroids that are more likely chunks of other basaltic parent bodies), we obtain a mean value of $(\overline{Y-J})=0.63\pm 0.12$, almost the same value obtained for the Vesta family candidates (see Table 5). Unfortunately, there are not enough V-types in the OMB and MMB to perform a statistically significant $(Y-J)$ distribution to compare with the Vesta asteroids, so we cannot claim any compositional difference between the two populations. Visible and near-infrared spectra of a significant number of these non-Vesta V-types, in particular in the OMB and MMB, is needed in order to perform a detailed mineralogical analysis and to compare their composition with that of Vesta family asteroids.

5 The Vesta family

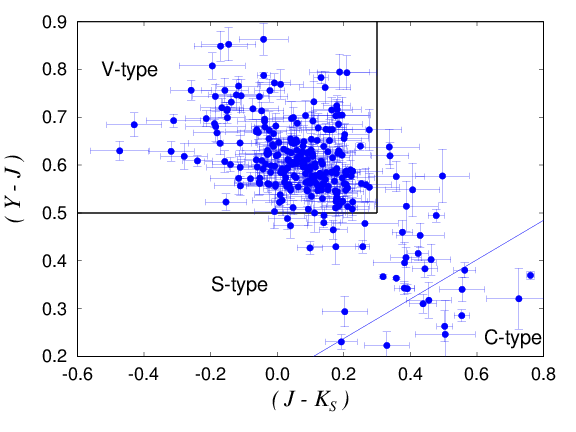

We also used MOVIS-C to study the near-infrared colors of the Vesta dynamical family and to combine them with the analysis of visible colors from the SDSS and visible albedos $p_{V}$ from the WISE data.

There are 273 Vesta family asteroids according to Nesvorný et al. (2015) observed in the MOVIS-C catalogue with $(Y-J)$ and $(J-K_{s})$ colors with uncertainties $<0.10$ magnitudes. The $(Y-J)$ vs. $(J-K_{s})$ color-color plot of the asteroids belonging to the Vesta dynamical family is shown in Fig. 7. The regions between the V-, S-, and C-type classes as determined in Popescu et al. (2016) are also shown. The Vesta family asteroids are concentrated in two clearly differentiated groups, one in the upper left (in the region of the V-type asteroids) and the other in the lower right (in the region of the S- and C-type asteroids). A total of 233 Vesta family asteroids ($\sim$ 85%) are V-types, 39 ($\sim$ 11%) are located in the region of S-types, and 11 ($\sim$ 4%) in the region of C-type asteroids.

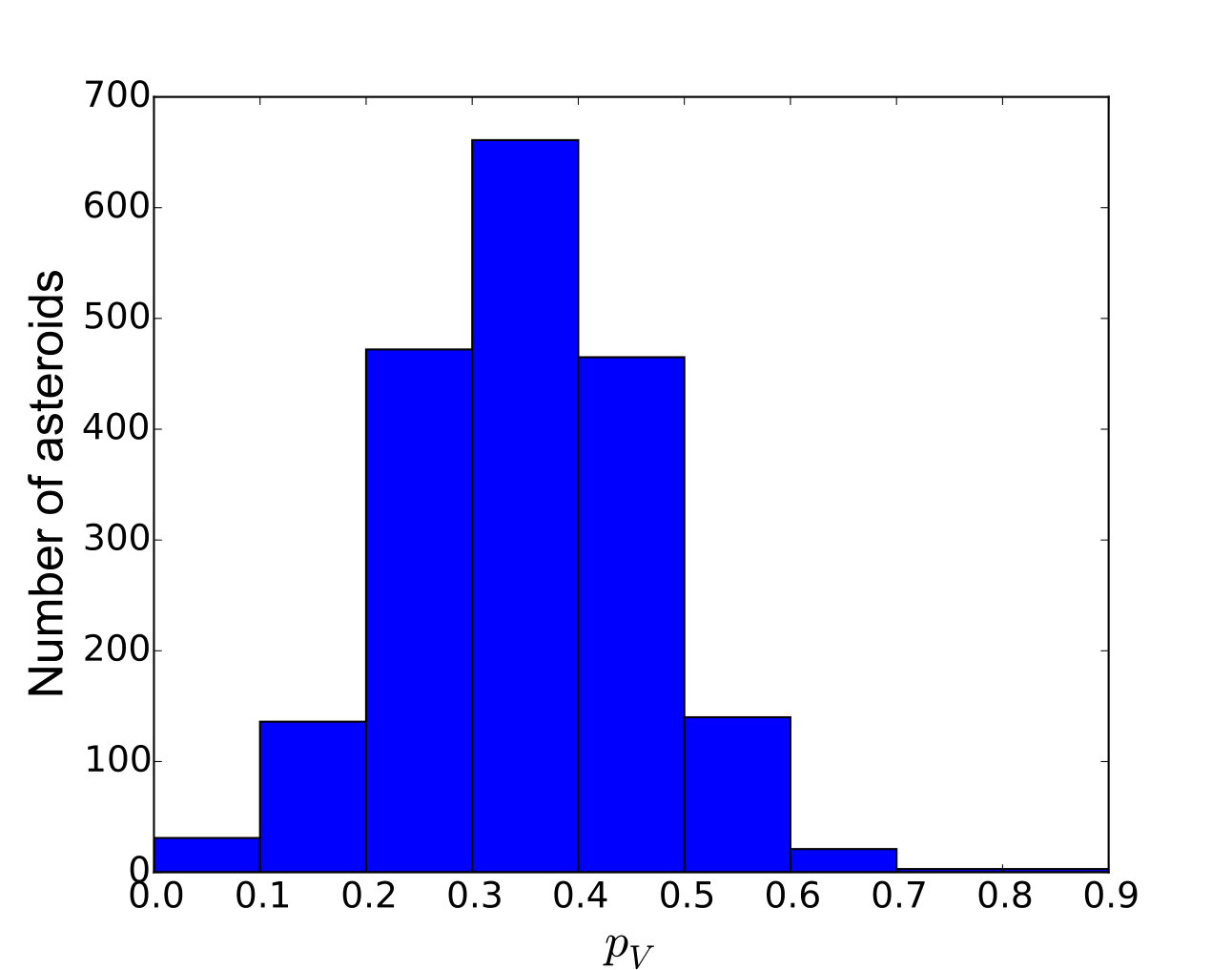

In this sample of 273 Vesta family asteroids 139 of them have visible albedo ($p_{V}$) based on WISE data (Masiero et al., 2011). Only two of them ($\sim 1.5$ %) have an albedo compatible with primitive asteroids ($p_{V}<0.1$). The same result is obtained when considering all the Vesta family asteroids observed by WISE with determined $p_{V}$ (see Fig. 8). Only 31 objects have $p_{V}<0.1$ of a total of 1933, equivalent to 1.5% of the sample. We note that the region occupied by the C-types in the $(Y-J)$ vs. $(J-K_{s})$ plot also includes the X-types and the K-types. Some X-types (M- and E- types) and the K-type asteroids present $p_{V}>0.1$, so the Vesta family contains a very small fraction of primitive interlopers.

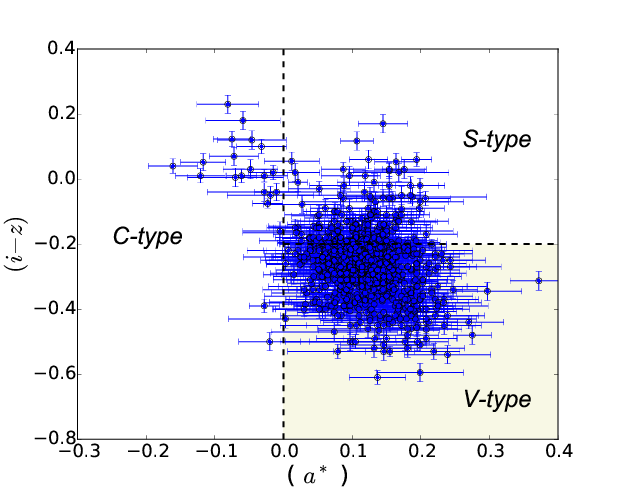

Using the SDSS data (Ivezić et al., 2002) and only considering objects with uncertainties in the spectral slope $\sigma(a^{*})<0.03$ and uncertainties in the color $\sigma(i-z)<$ 0.13, there are data for 910 Vesta family asteroids (see Fig. 9). A total of 659 of these objects ( $\sim 73$%) fulfill the criteria used by Roig & Gil-Hutton (2006) to determine a V-type, i.e., $(i-z)>-0.2$ and $a^{*}>0$, and only 23 (2.5%) are in the region of C-type primitive class asteroids. We note that a large fraction of the asteroids in the region of the S-types are concentrated very close to the region of the V-types, 179 of them having $(i-z)$ color in the range -0.2 $<(i-z)<-0.1$).

6 Conclusions

In this paper we used the Moving Objects VISTA Survey Color Catalog (MOVIS-C, Popescu et al. 2016), a compilation of the near-infrared colors of $\sim$ 40000 known minor bodies of the solar system observed during the VISTA-VHS survey, to search for V-type asteroids and to study the color distribution of the Vesta dynamical family.

A total of 477 V-type candidates were identified in MOVIS-C based on their near-infrared $(Y-J)$ and $(J-Ks)$ colors, 455 of them not previously recognized by any other spectroscopic or spectrophotometric survey. This sample almost doubles the number of known V-types outside the Vesta family. The MOVIS success rate of detecting V-types is $\sim 87\%$, 15 objects in our list have a previous taxonomical classification based on spectroscopic observations, 13 of them were already classified as V-types. We found that 244 of the V-type candidates are not Vesta family members according to Nesvorný et al. (2015). We also enlarged the sample of V-types with an unlikely origin in the Vesta family: we identified 19 V-type asteroids beyond the 3:1 mean motion resonance, 13 of which in the mean main belt and 6 in the outer main belt, and we found other 16 in the inner main belt with proper inclination well below that of the Vesta family ($i_{p}\leq 3.0\degr$) and well bellow the $i_{p}$ value that scattered Vesta family objects could attain (Nesvorný et al., 2008).

We also found that the $(Y-J)$ colors of the Vesta family candidates seem to have a narrower distribution compared to the colors of the non-Vesta family asteroids, and peaks at a smaller $(Y-J)$ value. Ieva et al. (2016) found that V-types in the MMB and OMB seems to present a different surface composition with respect to Vesta family asteroids, but when considering only the OMB and MMB V-types in our sample we found that their color distribution is almost equal to that of the Vesta family. Therefore, we conclude that a careful visible and near-infrared spectroscopic study of the V-types in this region of the main belt is needed in order to perform a detailed mineralogical analysis and compare their composition with that of Vesta family asteroids.

Finally the near-infrared colors of the all the Vesta family asteroids in MOVIS-C (a total of 273 asteroids) are presented and analyzed together with their SDSS colors and visible albedo $p_{V}$. We conclude that the great majority of the asteroids identified as Vesta family members by pure dynamical considerations are V-types ($\sim$ 85%), and only a few $\sim 1-2$ % are primitive asteroids and so unlikely members of the collisional family.
