Interaction of charged patchy protein models with like-charged polyelectrolyte brushes

TL;DR

This study uses computer simulations to explore how charged patchy proteins interact with like-charged polyelectrolyte brushes, revealing strong electrostatic attractions influenced by salt concentration and patch charge.

Contribution

It introduces a detailed simulation analysis of patchy protein models interacting with polyelectrolyte brushes, highlighting the roles of multipolar and counterion effects.

Findings

Strong binding affinities up to tens of kT observed.

Attraction strongest at the brush surface due to multipolar and counterion effects.

Salt concentration and patch charge significantly influence adsorption.

Abstract

We study the adsorption of charged patchy particle models (CPPMs) on a thin film of a like-charged and dense polyelectrolyte (PE) brush (of 50 monomers per chain) by means of implicit-solvent, explicit-salt Langevin dynamics computer simulations. Our previously introduced set of CPPMs embraces well-defined one-, and two-patched spherical globules, each of the same net charge and (nanometer) size, with mono- and multipole moments comparable to those of small globular proteins. We focus on electrostatic effects on the adsorption far away from the isoelectric point of typical proteins, i.e., where charge regulation plays no role. Despite the same net charge of the brush and globule we observe large binding affinities up to tens of the thermal energy, kT, which are enhanced by decreasing salt concentration and increasing charge of the patch(es). Our analysis of the distance-resolved potentials of mean force together with a phenomenological description of all leading interaction contributions shows that the attraction is strongest at the brush surface, driven by multipolar, Born (self-energy), and counterion-release contributions, dominating locally over the monopolar and steric repulsions.

Figures

Tables

Table 1. Table 1: A summary of our charged patchy particle models (CPPMs) denoted by P s m superscript subscript 𝑃 𝑠 𝑚 P_{s}^{m} . The index m 𝑚 m stands for the number of patches, while s 𝑠 s denotes the number of positive charges on each patch. In the images of the CPPMs in the top row, the pink beads depict the negatively charged atoms, while turquoise beads depict the positively ones. Yellow and white atoms depict the same neutral atoms and are only distinguished here to better illustrate the patch region, which roughly has an area of 3 nm 2 . All CPPMs have a radius of R P = 2 subscript 𝑅 P 2 R_{\textrm{P}}=2  nm and a net charge of Q P = − 8 subscript 𝑄 P 8 Q_{\textrm{P}}=-8  e. The patchy globules carry individual dipole moments as also summarized in the table. The corresponding quadrupole (tensorial) moments are provided in previous work  Yigit et al. ( 2015 ) .

Label	$P_0^0$	$P_8^1$	$P_{12}^1$	$P_{16}^1$	$P_8^2$	$P_{12}^2$
Radius $R_{\text{P}}$ [nm]	2	2	2	2	2	2
Patch area $A_{\text{P}}$ [nm2]	0	3	3	3	3 (x2)	3 (x2)
Total charge $Q_{\text{P}}$ [e]	-8	-8	-8	-8	-8	-8
Dipole moment ${\mu }_{\text{P}}$ [D]	159	896	1329	1633	206	151

Table 2. Table 2: A summary of the salt dependent energy contributions to the binding affinity of the ( P 12 1 subscript superscript 𝑃 1 12 P^{1}_{12} ) complex. Here, w min = w ​ ( z min ) subscript 𝑤 min 𝑤 subscript 𝑧 min w_{\rm min}=w(z_{\rm min}) is the value of the simulation PMF evaluated at the global minimum z min subscript 𝑧 min z_{\rm min} . w tot subscript 𝑤 tot w_{\rm tot} is evaluated from the phenomenological description eq. (4), where the individual terms are calculated from the data (potential and ion distributions) in the reference simulations in Figs. 2 and 3.

$c_s$	$z_{\min }$	$w_{\text{min}}$	$w_{\text{excl+vdW}}$	$w_{\text{elec}}$	$w_{\mathrm{mon}}$	$w_{\mathrm{dip}}$	$w_{\text{Born}}$	$N_{+}$	$w_{\text{cr}}$	$w_{\text{tot}}$
$[$M]	[nm]	k${}_{\text{B}}$T	$k_{\text{B}}$T	k${}_{\text{B}}$T	k${}_{\text{B}}$T	k${}_{\text{B}}$T	k${}_{\text{B}}$T		k${}_{\text{B}}$T	k${}_{\text{B}}$T
15	12.5	-27.2	0.7	-5.0	10.0	-10.0	-5.0	2.6	-14.2	-18.5
32	11.9	-27.4	1.3	-6.8	8.7	-10.1	-5.4	2.7	-12.7	-18.2
78	11.9	-22.3	0.6	-4.7	4.0	-6.0	-2.8	2.6	-9.9	-14.0
137	10.7	-22.1	2.0	-5.9	4.3	-6.5	-3.7	2.8	-9.1	-13.0
259	10.4	-15.9	1.3	-3.3	2.2	-3.7	-1.9	2.7	-7.0	-9.1

Equations

$$m_i\frac{d^2{\mathbf{r}}_i}{d{t}^2}=-m_i{\xi }_i\frac{d{\mathbf{r}}_i}{dt}+{\nabla }_{i}U+{\mathbf{R}}_i(t)$$

$$⟨{\mathbf{R}}_i(t)\cdot {\mathbf{R}}_j(t^{\prime })⟩=2m_i{\xi }_i{k}_{\mathrm{B}}T\delta (t-t^{\prime }){\delta }_{ij}.$$

$$\cos [\theta (z)]={⟨\frac{\mathbf{p}\cdot {\mathbf{e}}_z}{|\mathbf{p}|}⟩}_z.$$

$$w_{\text{tot}}(z)=w_{\text{excl+vdW}}(z)+w_{\text{elec}}(z)+w_{\text{cr}}(z).$$

$$w_{\text{elec}}(z)$$

$$w_{\mathrm{Born}}(\kappa )$$

$$\Delta w_{\text{Born}}(z)=w_{\text{Born}}({\kappa }_{\text{brush}}(z))-w_{\text{Born}}({\kappa }_{\text{bulk}}),$$

$$w_{cr}(z)=-k_{\mathrm{B}}T{N}_{+}(z)\ln \left[\frac{c_{\mathrm{cond}}}{c_s}\right],$$

$$w_{cr}(z)=-k_{\mathrm{B}}T\left\{1-{\Gamma }^{-1}\right\}{N}_{\mathrm{m}}(z)\ln \left[\frac{c_{\mathrm{cond}}}{c_s}\right]$$

$$\varphi (r,\theta )$$

$$w_{\mathrm{Born}}=\frac{1}{2}\int \rho (\mathbf{r})\varphi (\mathbf{r})\mathrm{d}\mathbf{r}.$$

$$w_{\mathrm{Born}}=-\frac{1}{2}\epsilon {\epsilon }_0\int \varphi (\mathbf{r}){\nabla }^2\varphi (\mathbf{r})\mathrm{d}\mathbf{r}+\frac{1}{2}\epsilon {\epsilon }_0{\kappa }^2\int {\varphi }^2(\mathbf{r})\mathrm{d}\mathbf{r}$$

$$w_{\mathrm{Born}}=\frac{1}{2}\epsilon {\epsilon }_0\int (\nabla \varphi {)}^2\mathrm{d}\mathbf{r}+\frac{1}{2}\epsilon {\epsilon }_0{\kappa }^2\int {\varphi }^2(\mathbf{r})\mathrm{d}\mathbf{r}.$$

$$(\nabla \varphi {)}^2={\left(\frac{\partial \varphi }{\partial r}\right)}^2+\frac{1}{r^2}{\left(\frac{\partial \varphi }{\partial \theta }\right)}^2.$$

$$w_{\mathrm{Born}}(\kappa )=\frac{3{\mu }^2}{8\pi \epsilon {\epsilon }_0{R}^3}\frac{(1+\kappa R)[2+2\kappa R+(\kappa R{)}^2]}{[3+3\kappa R+(\kappa R{)}^2{]}^2}.$$

Full text

I.   Introduction

Polyelectrolyte brushes consist of polyelectrolyte chains grafted to a planar or curved surface Ruhe et al. (2004); Ballauff (2007); Minko (2006). The overall structure of such a system is mainly determined by the osmotic pressure of the counterions. In the osmotic limit, that is, at low salt concentrations, the chains are strongly stretched whereas in the salted brush generated by high salt concentrations the electrostatic interaction is strongly screened and the resulting spatial structure of the brush layer resembles the case of uncharged brushes Pincus (1991); Zhulina et al. (1995); Csajka and Seidel (2000); Naji et al. (2003); Kumar and Seidel (2005); Arya et al. (2007); Chen et al. (2011); Ballauff and Borisov (2006). In this way polyelectrolyte brushes present adaptive systems that have been discussed for a broad variety of applications Minko (2006). Some 10 years ago it has been found that polyelectrolyte brushes strongly adsorb proteins with like net charge in the osmotic limits, while virtually no interaction took place in the limit of the salted brush Wittemann et al. (2003). Thus, a spherical polyelectrolyte brush consisting of a solid core of approximately 100 nm diameter carrying long grafted chains of poly(acrylic acid) (PAA) adsorbs high amounts of bovine serum albumine (BSA) above its isoelectric point where the overall charge of the protein is negative as well. This discovery of the adsorption of proteins at the “wrong side” of the isoelectric point has led to a number of experimental and theoretical studies on planar and spherical systems Biesheuvel and Wittemann (2005); Wittemann and Ballauff (2006); Biesheuvel et al. (2006); Dai et al. (2006); Kusumo et al. (2004); Leermakers et al. (2007); Becker et al. (2011); Yang et al. (2015).

In principle, the brush and the protein should repel each other because of two reasons, namely i) electrostatic repulsion, and ii) the electrosteric repulsion between the protein and the brush layer: Inserting a protein into a polyelectrolyte brush will lead to unfavorable steric interactions with tethered chains of the brush as well as to a raise of the osmotic pressure of the confined counterions. Hence, there must be a strong attractive force which is capable of overcoming these strongly repulsive forces. Three major causes have been suggested to explain the strong attraction observed for a broad variety of systems:

• •

First, charge inversion of the protein immersed in a polyelectrolyte brush Biesheuvel and Wittemann (2005); Biesheuvel et al. (2006). The pH-dependent protein concentration within the brush layer my be lower than outside in the bulk and below the isoelectric point. Hence, the net charge of the protein changes its sign.

• •

As a second driving force counterion release was invoked Record et al. (1978); Czeslik et al. (2004); Wittemann and Ballauff (2006). Proteins in general carry patches of positive charge on their surface even above the isoelectric point. These patches can interact with the negatively charged polyelectrolyte chains, thereby releasing a certain number of previously bound counterions into the bulk phase. Since the osmotic pressure within the brush layer at low salt concentration is quite high, it has been argued that the effect of counterion release should be strong and virtually independent of the proton concentration within the brush Wittemann et al. (2003); Henzler et al. (2010).

• •

As a third cause for attraction, a heterogeneously charged protein globule may be attracted into the brush because the polyelectrolyte brush interacts asymmetrically with the dipole of the protein caused by large charge patches of opposite sign Leermakers et al. (2007); de Vos et al. (2008, 2009, 2010).

The combined problem of patchiness and counterion release has been re-considered by de Vos et al. in a field-theoretical study de Vos et al. (2010). These authors concluded that the effect of counterion release is operative but of minor importance. However, a recent study by He et al. He et al. (2015) using molecular dynamics simulations clearly underscored the important role of counterion release when considering the interaction of proteins with polyelectrolyte brushes. Thus, the role of counterion release and its magnitude is still not fully elucidated.

In order to re-consider this problem, we first developed a model for proteins with patchy surface charge (charged patchy protein model, CPPM) Yigit et al. (2015). The interaction of these model proteins with single polyelectrolyte chains of like charge was studied extensively by implicit-solvent/explicit-salt Langevin computer simulations Yigit et al. (2015, 2015). The results obtained in this study confirmed the general concept of counterion release for highly charged polyelectrolytes. Moreover, a simple theoretical model was shown to capture the salient features of the simulations. In particular, the binding affinity derived from these simulations using the CPPM-model was shown to scale dominantly with the logarithm of the salt concentration in the bulk multiplied by the number of released counterions Yigit et al. (2015). This relation had been predicted by Record and Lohman Record et al. (1976) a long time ago and found to be valid in a number of experimental studies Rau and Parsegian (1992); Yu et al. (2015). It demonstrates the direct relation between the binding affinity and the translational entropy of the released counterions. It can be derived directly for the problem under consideration here as shown by Henzler et al.Henzler et al. (2010).

Here we extend our previous studies Yigit et al. (2015, 2015) to explore the interaction of patchy proteins with a thin planar film of a dense like-charged polyelectrolyte brush. In order to keep the problem as simple as possible, we do not consider the effect of charge reversal and focus on the electrostatic mechanisms for fixed (pH-independent) local charge distributions. The general goal of this study is a fully quantitative assessment of the local electrostatic effects that drive like-charged attraction with a sharpened focus on the details of dipolar and counterion-release effects in the limit of highly charged PE brushes. Our simulations allow us to accurately average out all conformational effects and explore in detail the ionic mechanisms taking place at the PE-patch interface. Based on this, the various contribution to protein uptake by the brush can be properly characterized and quantitatively compared to analytical models.

We systematically start by studying the interaction of uncharged spheres with the brush layer to obtain the simplest steric interaction. In the second step, the interaction of a CPPM without patches but a net charge with the like-charged brush layer is determined to study exclusively the repulsive electrostatic interactions based on monopole interactions and the contributions by the osmotic pressure of the counterions. Finally, we study CPPMs with additional charge patches (with opposite sign of the charge than the brush) that indeed can display a strong, like-charge attraction. We qualitatively discuss the balance between all leading-order interaction mechanisms at hand of a phenomenological brush–CPPM binding model. As in our previous paper,Yigit et al. (2015) we find that the counterion-release effect (involving 2–3 ions) is one of the dominant driving force for protein adsorption. However, this interaction can be supported significantly by the dipolar attraction and Born (self-energy) terms. We demonstrate that the combination of all terms lead to a stable adsorption of the protein at the surface of the brush layer.

II.   Methods

II.1.   Charged patchy protein models (CPPMs)

As introduced earlier, Yigit et al. (2015, 2015) we employ a set of spherical patchy protein models with well-defined charge patchiness and multipolarity to mimic the electrostatic features of nanometer-sized globular proteins or similar nanoparticles. Briefly, the CPPMs are constructed by distributing 642 atom-sized ($\simeq 0.3$ nm) beads on a spherical surface with radius $R_{\textrm{P}}=2$ nm. The latter is typical for small globular proteins such as lysozyme or lactoglobulin Uversky (1993).

To build a charge patch, one bead on the surface is randomly chosen and subsequently the closest neighboring beads are selected until a roughly circular patch area $A_{\textrm{P}}\simeq 3$ nm2 is achieved. This area is of the same order as the size of some naturally occurring larger clusters of charged amino acids of the same sign, based on the inspection of crystal structures of small globular proteins Berman et al. (2000). Afterwards, $s$ positive charges are placed on randomly chosen beads on the patch. We construct patchy globules with one $(m=1)$ or two $(m=2)$ patches. In CPPMs with two patches the patches are antipodally directed, that is, on the exact opposite sides. In order to assign a net charge $Q_{\textrm{P}}$ to the CPPMs, we fixed the number of negatively and positively charged beads to be $N_{n}=37$ and $N_{p}=29$ in all CPPMs. Thus, the resulting net charge of the patchy globule is $Q_{\textrm{P}}=-8$ e for all CPPMs, comparable to absolute net charges of proteins of similar size at physiological conditions Berman et al. (2000). The $N_{n}$ negative charges are homogeneously distributed on the surface around the positive patch(es). The remaining $N_{p}-m\cdot s$ positive charges are distributed in such a way that charged beads (positive or negative) are not immediately adjacent. Our CPPMs are denoted by $P^{m}_{s}$ where $m$ specifies the number of patches and $s$ the number of positively charged beads per patch.

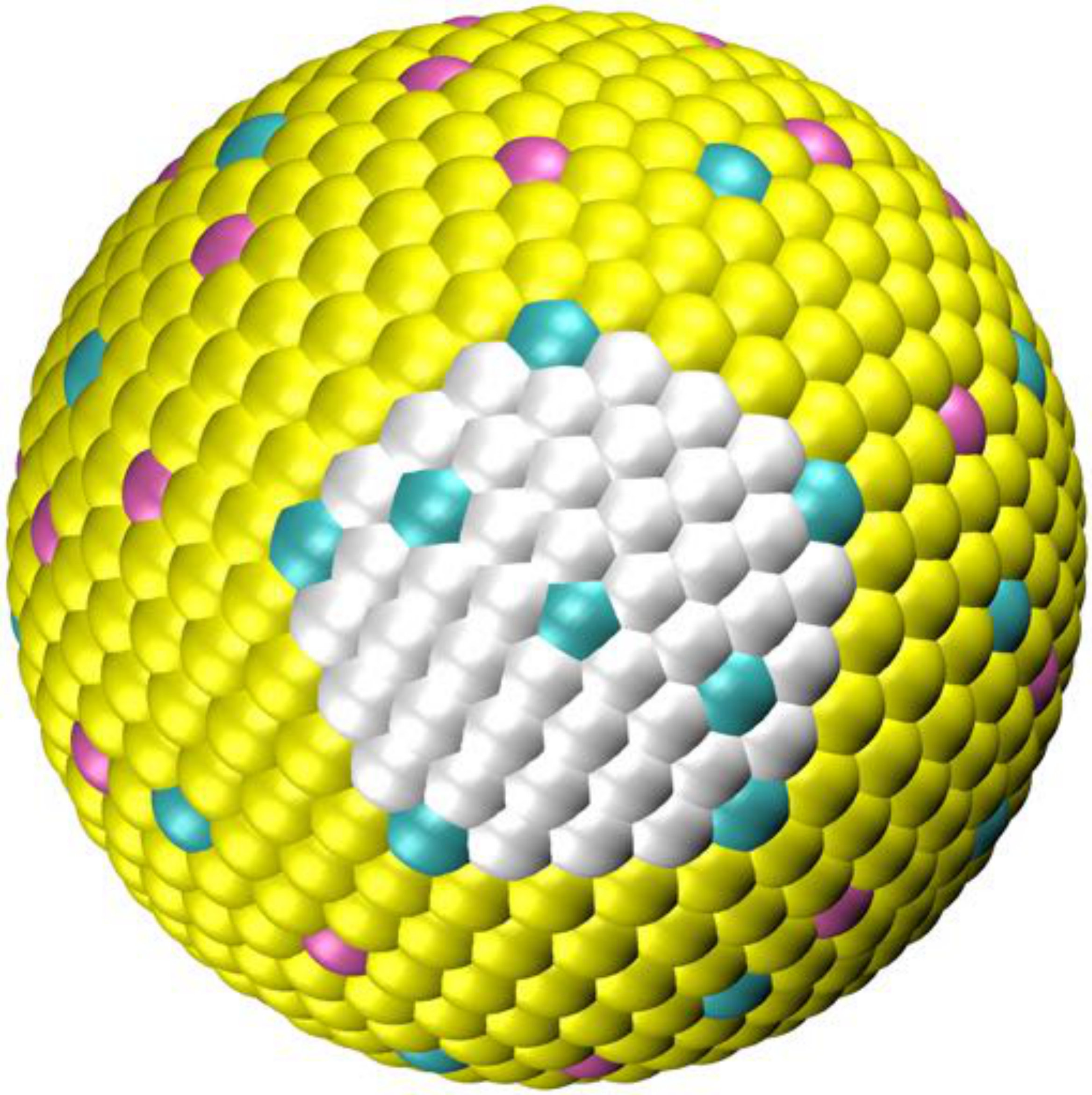

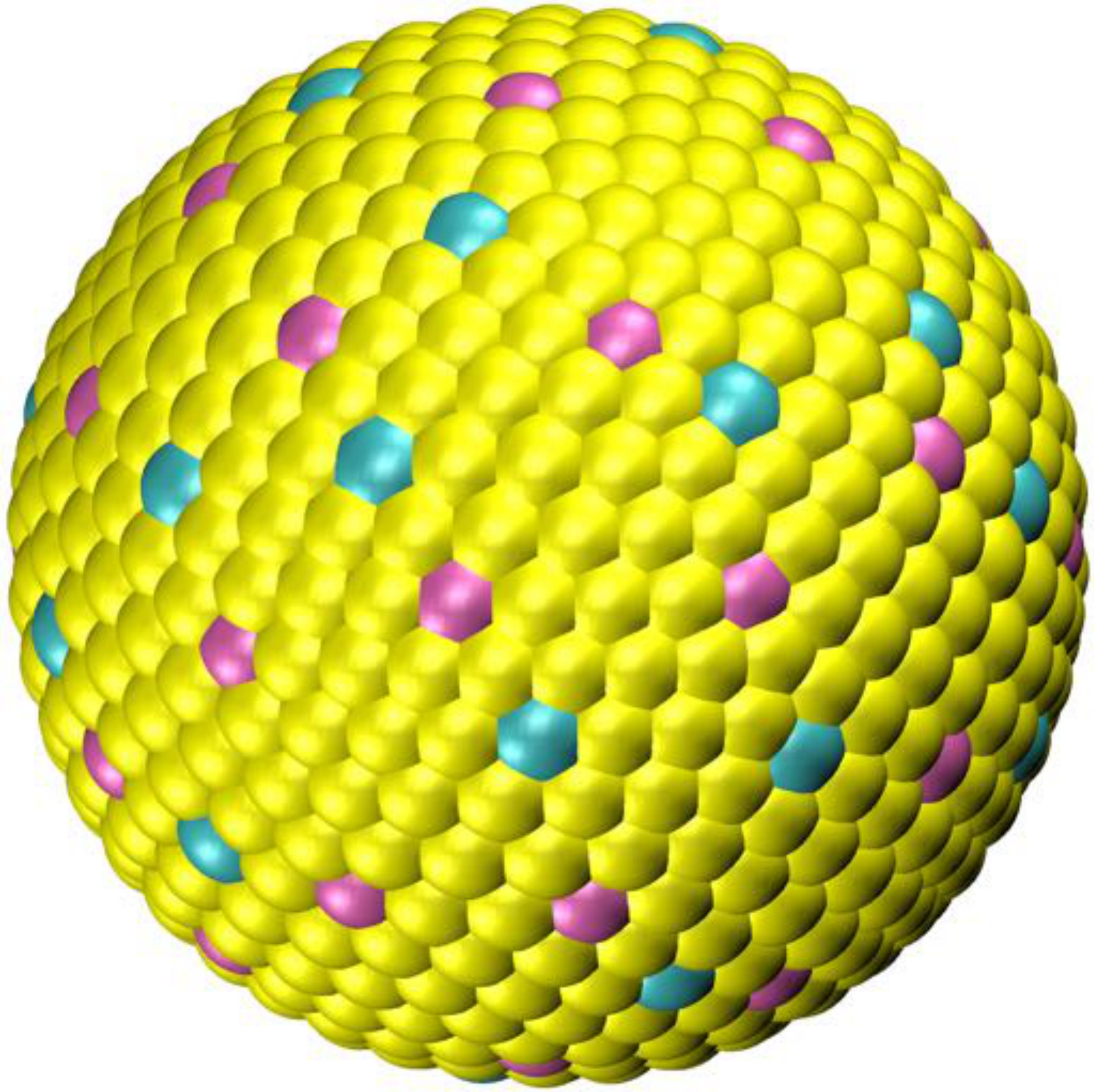

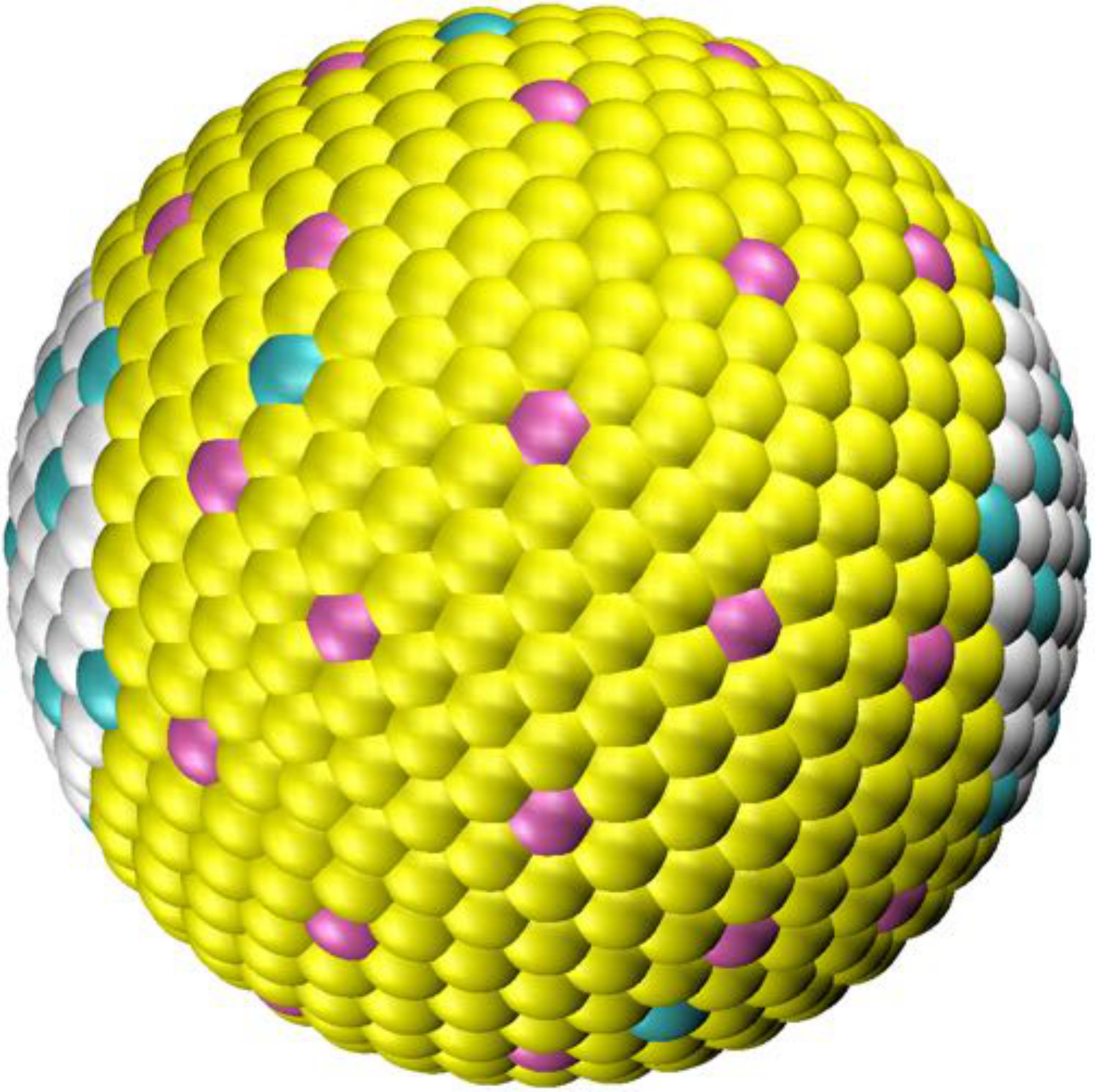

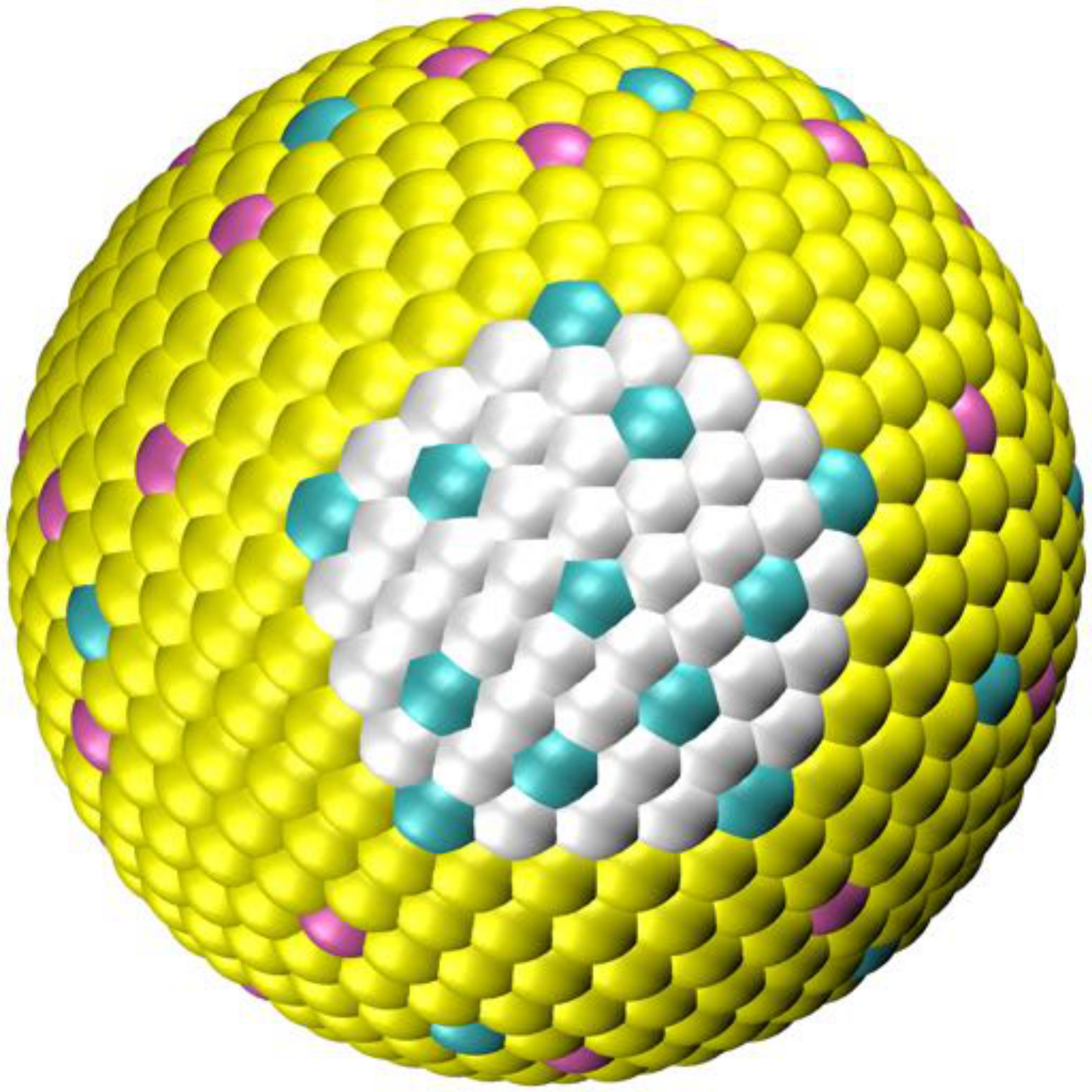

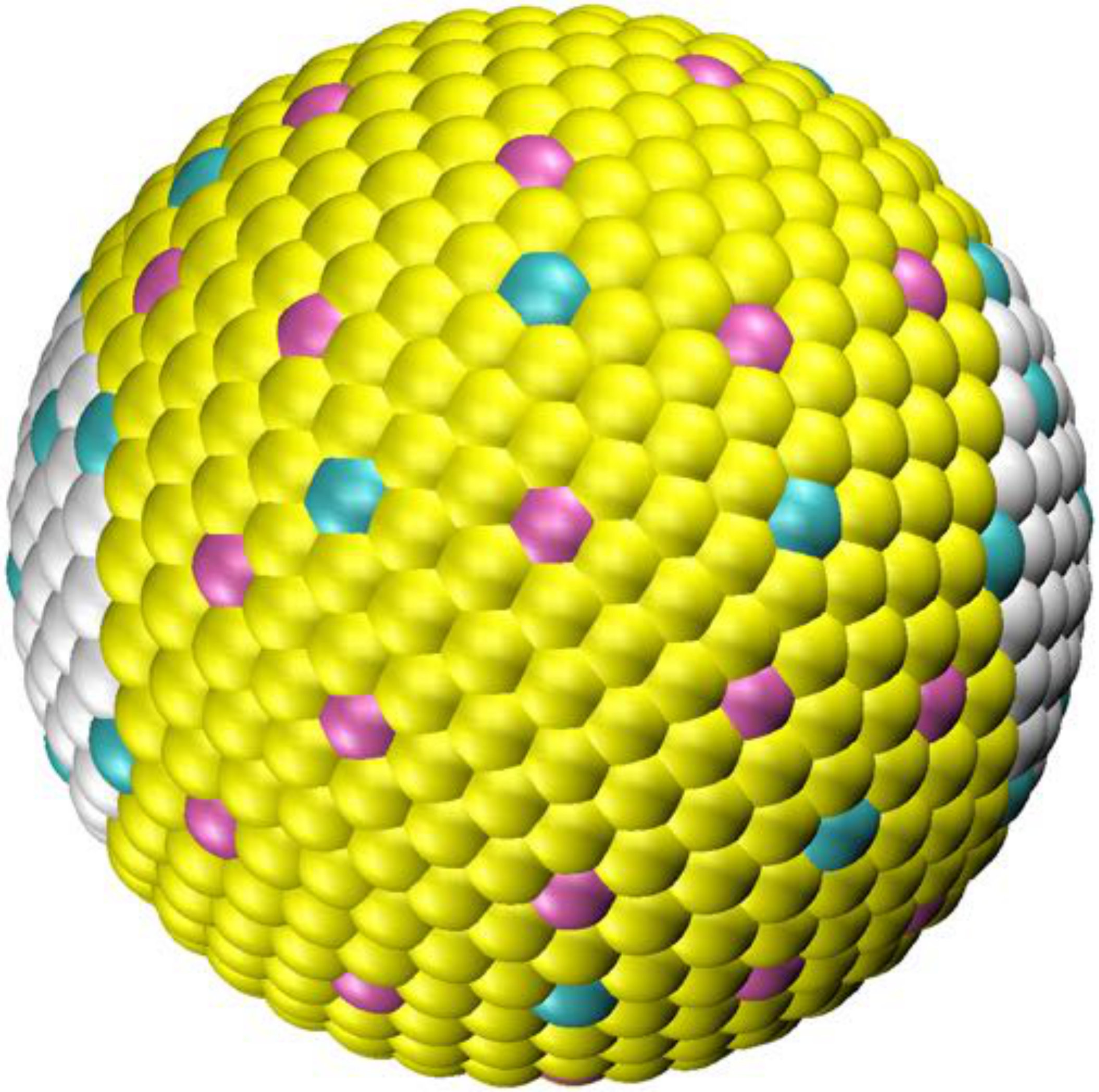

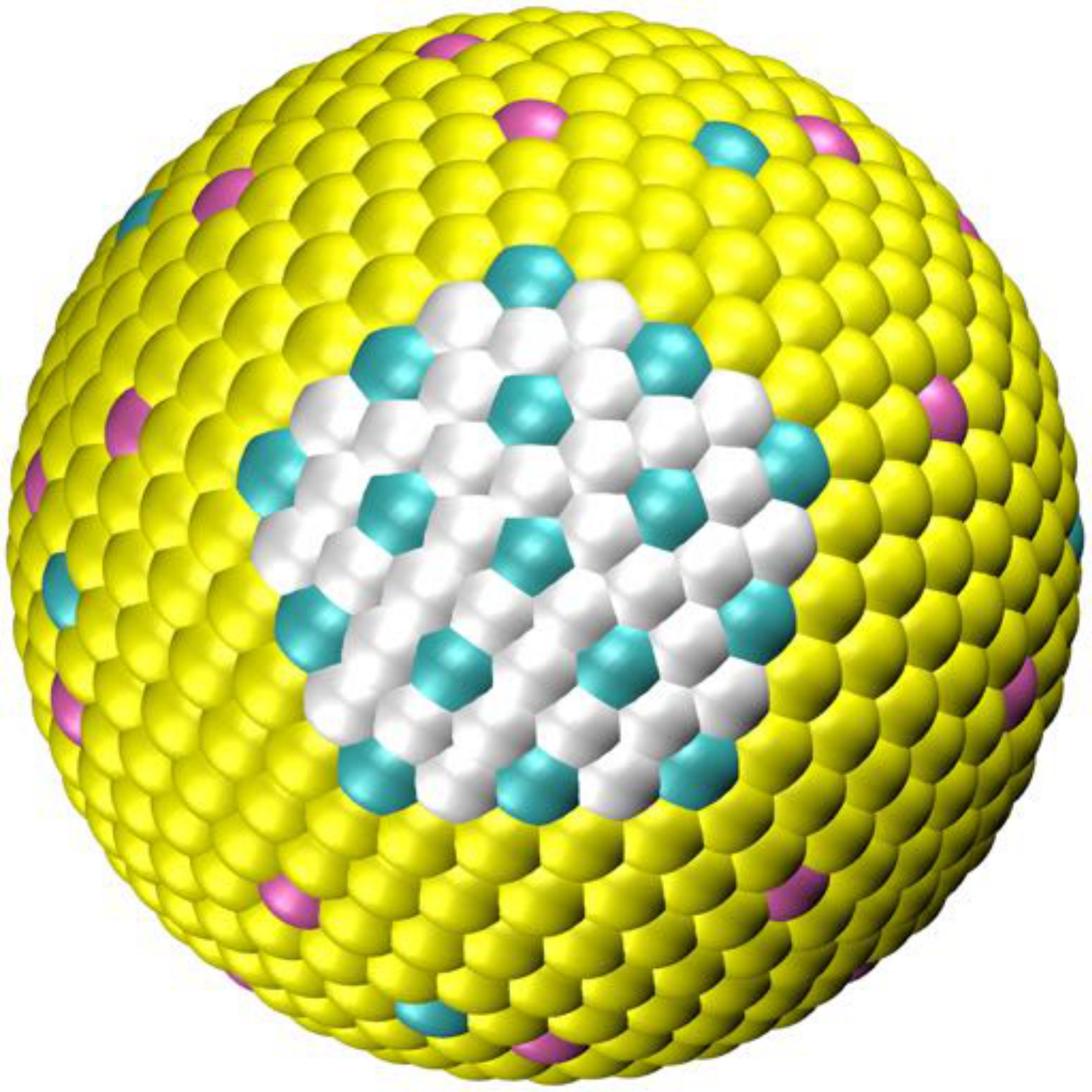

Illustrative snapshots and a summary of the CPPM features, in particular, the dipole moments, are listed in Table 1. In our models we consider $m=1,2$ and $s=8,12,16$ resulting in mean patch charge densities of around 1 to 2 e/nm2 corresponding to a local assembly of a few amino acids separated from each other by a few angstroms Kayitmazer et al. (2013); Berman et al. (2000). The dipole moments, calculated using the center-of-mass of the CPPM as coordinate origin for the charge distribution, are in the range of 159 Debye to 1633 Debye, cf. Table 1, also comparable to proteins of this size. The small lactoglobulin, for instance, has 730 Debye Ferry and Oncley (1941).

II.2.   PE brush model

The simulated PE brush is composed of 16 flexible PE chains fixed by harmonic constraints at one end on a neutral and planar surface in equidistant spacings on a square lattice. With a surface area of 100 nm2, the grafting density thus corresponds to $\tau_{B}=0.16$ ${\text{molecules}}/{\text{nm}^{2}}$. A single flexible PE is modeled in a coarse-grained fashion as a sequence of $N_{\text{mon}}=50$ freely jointed beads. Each bead represents a monomer with a diameter $\sigma_{\rm LJ}$ and an electric charge of one negative elementary charge $-e$. The PE monomers are connected by a harmonic bond potential with an equilibrium bond length $b_{\text{mon}}=0.4$ nm and a force constant $K_{\text{mon}}=4100$ ${\text{kJ}}/{\text{(mol nm}^{2})}$. A harmonic angle potential is applied in which the angle between a triplet of monomers is $\gamma=120^{\circ}$ and the force constant is $K_{\gamma}=418$ ${\text{kJ}}/{\text{(mol rad}^{2})}$. An illustrating snapshot of the PE brush (including salt) and a CPPM is shown in Fig. 1.

II.3.   Simulation details

The dynamics of each of the beads (creating the CPPM and the brush) and explicit ions is governed by Langevin’s equation of motion

[TABLE]

where the force $\bm{R}_{i}(t)$ is a Gaussian noise process with zero mean $\langle\bm{R}_{i}(t)\rangle=0$ and satisfies the fluctuation–dissipation theorem

[TABLE]

The $m_{i}$ and $\xi_{i}$ are the mass and friction constant of the $i$th bead, respectively. $U$ is the system potential energy and includes intra- and intermolecular interactions and position constraints. All interatomic interactions are composed of the Lennard-Jones (LJ) potential between the beads, ions, and the grafting surface (modeled by the 9–3 potential), as well as the Coulomb interaction between all charged beads and ions. LJ interactions between neighboring polymer beads are excluded. The solvent is modeled as a continuous medium with a static dielectric constant $\epsilon=78.44$. All beads and ions have mass $m_{i}=1$ amu, a LJ diameter $\sigma_{\rm LJ}=0.3$ nm, energy well $\epsilon_{\rm LJ}=0.1$ k${}_{\text{B}}$T, and integer charges $q_{i}$ = 0, $+e$, or $-e$.

The simulations are performed using the GROMACS 4.5.4 software package Hess et al. (2008). A leap-frog algorithm with a time step of 2 fs is used to integrate the equations of motion. The Langevin thermostat with $\xi_{i}=0.5$ ps*-1* keeps the temperature at $T=298$ K and generates a canonical ensemble ($NVT$). Center of mass translation of the system is removed every 10 steps. The rectangular simulation box with $L_{x}=L_{y}=10$ nm, and $L_{z}=30$ nm is periodic only in the $x,y$-directions. The walls, placed at $z=\sigma$ and $z=30$ nm, are represented by the 9–3 LJ potential with parameters $\sigma=0.3$ nm, $\epsilon=0.1$ $k_{\mathrm{B}}T$, and parameter ’wall-density’ = 0.5 nm*-3*. One end of the PE chains is position-restrained in the immediate vicinity of the wall at $z=0$ nm by a harmonic potential with a force constant of 4100 ${\text{kJ}}/{\text{(mol nm}^{2})}$. The cut-off radius is set to 1.2 nm to calculate the real-space interactions, while Particle-Mesh-Ewald (PME) is implemented to account for long-range electrostatics Essmann et al. (1995). The reciprocal summation of the PME method is computed on a 3D FFT grid but with spacings of 0.32 nm in $x,y$-directions and 0.23 nm in $z$-direction using a fourth-order interpolation. Because of the periodicity, a correction term to the Ewald summation in the $z$-direction is added to produce a pseudo-2D summation Yeh and Berkowitz (1999); Qiao et al. (2011) to avoid artefacts of the system’s instantaneous net dipole moment..

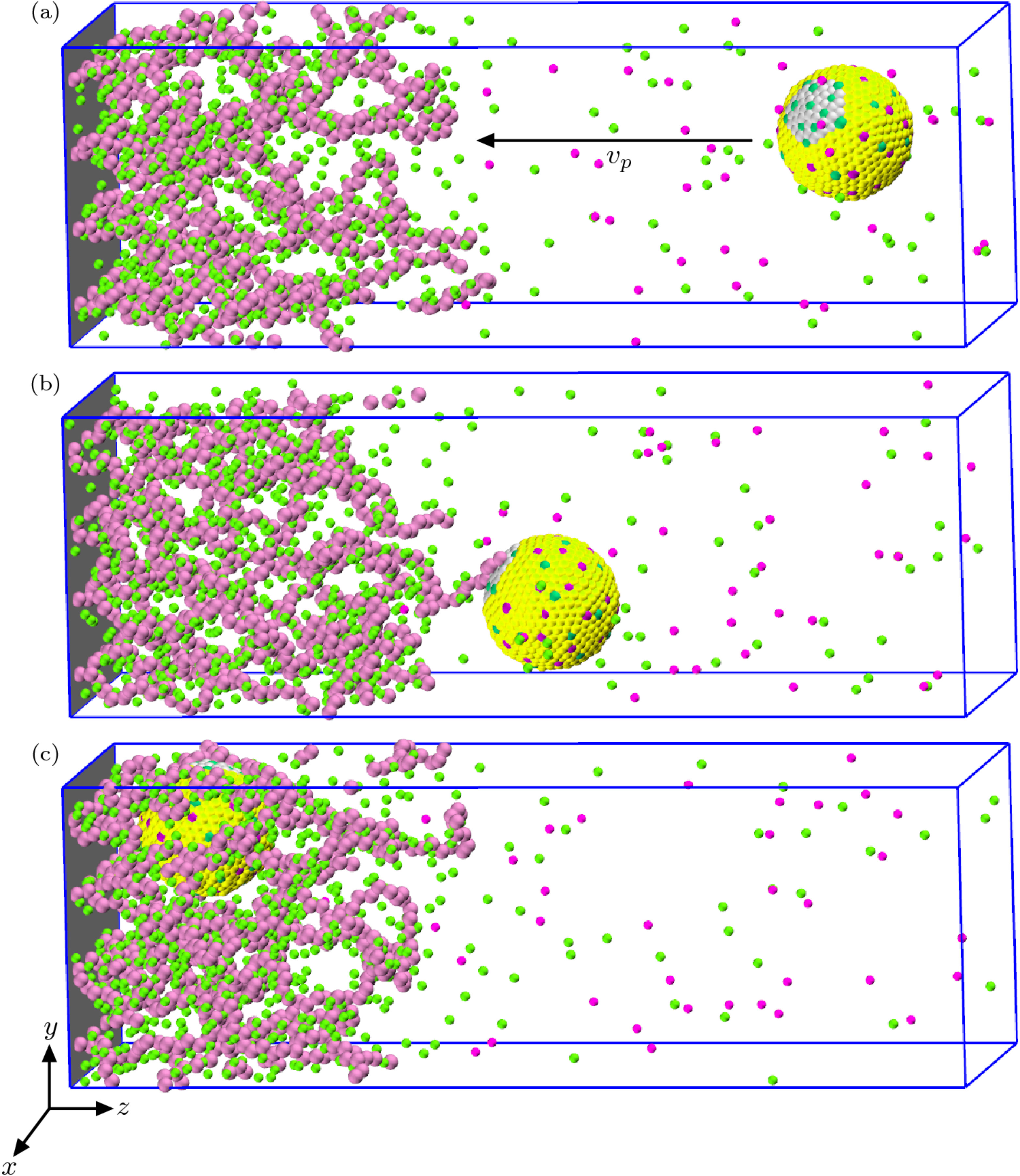

The CPPM is initially placed at $z\approx 27$ nm. After the simulation box with brush and CPPM is set up, the corresponding number of counterions is added to ensure electroneutrality of the system. Additionally, monovalent salt is added to the system leading to (bulk) concentrations $c_{s}=15,32,78,137$, and $259$ mM. The system is relaxed for 100 ps to remove local contacts and afterwards equilibrated for 30 ns.

II.4.   PMF calculations

For calculating the PMF between the brush and CPPMs the pull code of the software package GROMACS was used with the umbrella method Hess et al. (2008). Here, the center-of-mass (COM) of the patchy particle is restrained in space by an external time-dependent force. This force is applied by a harmonic potential that is moved with a constant pulling velocity $v_{p}$ to steer the CPPM in the prescribed direction Isralewitz et al. (2001). The reaction coordinate is $z$, the distance of the COM of the CPPM to the grafting surface at $z=0$. After several test runs, and comparison to standard umbrella sampling, Yigit et al. (2015) the pulling rate $v_{p}=0.1$ nm/ns and a harmonic force constant $K=2500$ kJ mol*-1* nm*-2* were chosen to yield the best performance with respect to accuracy versus computational effort. The simulation time of $\sim$250 ns is required to pull the CPPMs deep into the brush ($z\simeq 2$ nm) from a separated state ($z\simeq 27$ nm). The standard deviation was calculated by block averages to specify the statistical error.

After a completion of a run, the constant friction force $F=-m\xi v_{p}$ was subtracted from the total force and averaged within a specific interval of discrete spacing $\Delta z$ to obtain the mean force. According to our simulation setup, the mean force was integrated backwards to get the PMF. We emphasize that in all our simulations the patchy particles were able to rotate freely and, thus, all our results are orientation-averaged with the appropriate and correct Boltzmann weight.

II.5.   CPPM orientation

The patch vector $\bm{p}$ points from the particle center to the patch center and provides also a very good approximation of the dipole direction $\vec{\mu}$ of the P${}^{1}_{s}$ models. In our analysis we computed the distance-resolved cosine of the angle $\theta(z)$ by

[TABLE]

The distance-dependent angular correlation of the patch vectors is calculated via the second Legendre polynomial $P_{2}(\cos[\theta])$ with $P_{2}(x)=(3x^{2}-1)/2$. For CPPMs with two patches only one patch is used to calculate the orientation since the patches are antipodally directed.

II.6.   Phenomenological separation of the PMF

In order to describe the dominant physical contributions to the PMF between the single CPPM and the brush, we employ a phenomenological approach where we divide up the total free energy in three major contributions, via

[TABLE]

With the first term $w_{\text{excl+vdW}}(z)$ we represent all contributions for a neutral globule, that is, the excluded-volume (including steric and osmotic) and van der Waals (vdW) interactions between a totally neutral CPPM (no bead is charged) and the charged PE brush. As a full analytical theory for this part is difficult to develop, we will explicitly calculate the PMF between a neutral CPPM interacting with a charged brush in the simulation. However, qualitatively the contributions to $w_{\text{excl+vdW}}(z)$ can be discussed as follows.

In our simulations, the vdW interactions are modeled by the attractive part of the LJ interaction. This interaction is small because of our choice of the $\epsilon_{\rm LJ}$-parameter of only 0.1 $k_{\mathrm{B}}T$. The excluded volume part originates on one hand from the configurational response of the PEs to the CPPM excluded volume and on the other hand from the osmotic pressure of confined counterions, which also penalizes the intrusion of the globule. Based on classical laws of the osmotic pressure of semi-dilute polymer solutions de Gennes (1979) the former is expected to be repulsive on the order of several $k_{\mathrm{B}}T$ due to the polymer configurational entropy loss. We will calculate it by simulating a neutral CPPM interacting with a completely neutral brush. Note, however, that charging the polymers stretches the brush and may modify this contribution, likely decrease it slightly as the brush effectively swells upon charging. The second excluded volume contribution, let us write it as $w_{\text{osm}}(z)$, arises from the volume work of the penetrating CPPM with volume $V_{P}$ against the osmotic pressure of the confined counterions. Assuming ideal gas behavior, we can expect it to scale roughly linearly with counterion density as $w_{\text{osm}}(z)=k_{\mathrm{B}}T[c_{\text{free}}(z)-c_{\text{s}}]\cdot V_{\textrm{P}}$, where $c_{\text{free}}(z)$ denotes the local number density of free (not condensed) counterions within the PE brush, while $c_{\text{s}}$ is the bulk number density of salt ions. For our models, $V_{\textrm{P}}\simeq 33.5$ nm3, and for a brush charge density of about 1 nm*-3*, then tens of the thermal energy $k_{\mathrm{B}}T$ repulsion are easily possible. We will indeed see that this contribution dominates the non-electrostatic interaction.

If the CPPM is charged, explicit electrostatic interactions come into play, incorporated in $w_{\text{elec}}(z)$ in eq. (4). In principle one could employ numerical solutions of mean-field theories Leermakers et al. (2007). Here we proceed on a simpler but analytical and thus more transparent way: based on analytical solutions of the linearized Poisson–Boltzmann equation in a cell-model, Yigit et al. (2012) the leading order electrostatic interaction energy for a strictly monopolar globule within a homogeneous PE matrix is given by two terms: first, a monopole term that simply describes charge repulsion by the electrostatic (Donnan) potential. Secondly, a Born term that describes the change of the self-energy of electrostatic charging the globule in the bulk solvent versus the brush environment. The latter has significantly different screening properties than the bulk and the self-energy of charging can change considerably. Here, we tie up on these ideas and include the next leading term in a multipolar expansion of the problem, that is, the dipolar contribution to both the electrostatic interaction Hill (44) and the Born terms. We thus arrive at

[TABLE]

where $\beta={(k_{\mathrm{B}}T)}^{-1}$, and the first two terms on the right hand side characterize the (point) monopole and (point) dipole contribution to the direct interaction of the CPPM with the electrostatic potential $\Phi(z)$ and field $E(z)=-{\rm d}\Phi/{\rm d}z$, respectively. The latter are determined consistently in our work from the charge density profiles through integration of Poisson’s equation. $Z_{\textrm{P}}<0$ and $\mu_{\textrm{P}}>0$ are the net charge and dipole moment of the CPPM, respectively. Note that for our like-charged systems, the monopole-term is repulsive, while the dipole term is attractive.

For the leading order of the Born energy up to the dipole level we derive (see Appendix A)

[TABLE]

The first term is the classical result of a monopolar sphere with valence $Z_{\textrm{P}}$ and radius $R_{\textrm{P}}$ in a salty environment with inverse screening length $\kappa$ in the Debye-Hückel approximation McQuarrie (1979). The second term is the equivalent expression for a point dipole with moment $\mu_{\textrm{P}}$ centered in the sphere.

Since we are dealing with an inhomogeneous system, i.e., locally varying ion densities perpendicular to the grafting wall, we apply a local field approximation, that is, we assume we can apply the Born theory developed for a homogeneous system also in the case of la ocal ($z$-dependent) salt distribution. This should be a good approximation as long as the length scales of the inhomogeneities are larger than the globule size. This is not always the case in our work but the simple theory will still serve as a good, at least qualitative interpretation of the simulation results. Hence, the change of the total Born energy by transferring a CPPM from bulk into the PE brush reads in the monopole–dipole approximation

[TABLE]

where $\kappa_{\text{bulk}}=\sqrt{8\pi\lambda_{\textrm{B}}c_{s}}$ represents the inverse Debye screening length in the bulk and $\kappa_{\text{brush}}(z)=\sqrt{4\pi\lambda_{B}\sum_{i}c_{i}(z)}$ is the local inverse screening length within the PE brush. Here, the summation $i=+,-,m$ runs over the densities of cations, anions, and PE monomers. With the latter, we have assumed that the PE monomers are mobile and thus fully contribute to the local screening. Since the PE are flexible and far from close packing, this should be a better approximation than assuming a fixed, non-screening background of the PE matrix. In our comparison to the fully simulated PMFs we will take the salt density profiles $c_{i}(z)$ directly from reference simulations without CPPM. The constant $\lambda_{\textrm{B}}=e^{2}/(4\pi\epsilon\epsilon_{0}k_{\mathrm{B}}T)$ is the Bjerrum length and has the value of 0.71 nm for our systems, i.e., aqueous solvent at normal conditions.

Finally, for our highly charged PE brush interacting with oppositely charged patches, we expect explicit counterion-release effects to play a role, which we treat separately to the electrostatic interactions just introduced above. In our previous work on the interaction between CPPMs and single PEs, Yigit et al. (2015) we have argued that counterion-release, within the frame of the Onsager-Manning-Oosawa treatment,Fuoss et al. (1951); Oosawa (1971); Manning (1969) only happens for ions condensed at the PEs, not those accumulated at the protein patch. After complexation, the positive CPPM patch charges become neutralized by one or more PE chains in the brush and consequently a corresponding amount of condensed ions will be liberated. The release entropy per ion can be of considerable magnitude, that is, of the order of several $k_{\mathrm{B}}T$. Inspired by the classical work of Record and Lohman Record et al. (1976) and more recent work, Henzler et al. (2010) we have shown that the total gain in translational entropy of released ions during CPPM-PE complexation can be well expressed by Yigit et al. (2015, 2015)

[TABLE]

where $N_{+}$ is the number of released ions from the PEs upon complexation. As before, $c_{s}$ is the bulk salt concentration and $c_{\text{cond}}$ (typically $c_{\rm cond}\gg c_{s}$) specifies the concentration of condensed counterions in the solvation shell around the PE monomers. From averaging the radial distribution functions (not shown) in a shell of 0.4 nm thickness we calculate a value $c_{\text{cond}}\simeq 3.5\pm 0.5$ M, only slightly depending on salt concentration Yigit et al. (2015). We refer to previous work for a detailed analysis of accumulation and release of ions during the association of two CPPMs Yigit et al. (2015), or a single PE and a CPPM Yigit et al. (2015) or a better resolved protein model Yu et al. (2015). In our current work the CPPM complexes with many PE chains at the same time in the brush and the number of released ions in the simulation is not easily accessible. We circumvent this problem by counting the local number of PE monomers, $N_{\rm m}(z)$, bound to the patch region and then assuming that on those their fraction of condensed ions were liberated. The latter is then estimated using the classical Manning law as $1-\Gamma^{-1}$, where $\Gamma=z\lambda_{B}/l$ is the ’Manning’-parameter for a salt valency $z$ and bond length $l\simeq b_{\rm mon}$. Hence, we find

[TABLE]

having used the identity $N_{+}=\left\{1-\Gamma^{-1}\right\}N_{\rm m}$. For the PEs in our brush we find $\Gamma\simeq 1.78$.

III.   Results

III.1.   Polyelectrolyte brush only

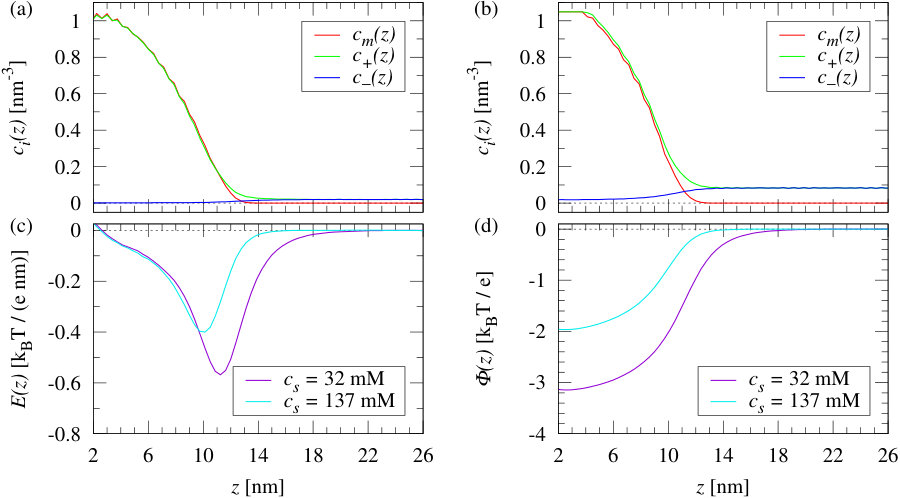

We first present an analysis of the monomer and ion density profiles and electrostatic properties of an isolated PE brush (without any CPPM) at two salt concentrations. PE monomer density profiles $c_{m}(z)$ at ionic strengths of 32 mM and 137 mM are displayed in Fig. 2 (a) and (b), respectively. They are a monotonically decreasing function of the distance from the grafting surface, quickly converging to zero beyond $z\gtrsim 12$ nm in the bulk region. For the lower salt concentration the brush is slightly more stretched, as expected due to the higher osmotic pressure difference of the neutralizing counterions. Similar profiles and trends have been observed in related simulations Csajka and Seidel (2000); Naji et al. (2003); Kumar and Seidel (2005); Arya et al. (2007); Chen et al. (2011) and are predicted by self-consistent field theory Zhulina and Borisov (1997). As expected, the counterion profiles $c_{+}(z)$ closely follow the brush density profiles in the brush layer (apart from a Debye layer at the brush interface at $z\sim 12$ nm), indicating a significant electrostatic neutralization of the PE brush, while the coions are mostly depleted from the brush. Both the counterion and coion profiles converge to their respective concentration values in the bulk region.

From the charge density profiles we calculate the electric field $E(z)$ and potential $\Phi(z)$ of the system via integration of Poisson’s equation as shown in Fig. 2 (c) and (d), respectively. The electrostatic potential is negative through the brush layer and saturates to zero in the bulk region. Near the grafting surface, it reaches roughly $-3.1$ ${\text{k}_{\text{B}}\text{T}}/{\text{e}}$ at the low ionic strength and about $-2$ ${\text{k}_{\text{B}}\text{T}}/{\text{e}}$ at the higher ionic strength. As a rough consistency check we can compare these values with the hypothetical Donnan potential that builds up for perfect electroneutralization of a charged background connected to a salt reservoir Donnan (2914); Philipse and Vrij (2011). The ideal Donnan potential in this case reads $e\beta\phi={\operatorname{ln}}(y+\sqrt{y^{2}+1})$ with $y=c_{B}/(2c_{s})$, where $c_{B}$ is the charge density of the charge matrix (here, the brush). If we take the maximum value of the brush density close to the grafting plane, $c_{B}\simeq 1$ nm*-3*, we find for the electrostatic potentials -3.4 and -2.1 kBT/e at the grafting surface for the lower and higher salt concentration, respectively. These numbers overestimate the simulations by less than 10%. The small discrepancy may come from steric and electrostatic correlation effects, not included in the simple Donnan picture where ions are simply Boltzmann distributed.

The electrostatic field, $E(z)=-\partial\Phi/\partial z$, plotted in Fig. 2 (c) shows a distinct minimum at the brush surface around $z=10-11$ nm, moving to smaller values for the larger salt concentration, when the brush shrinks. The reason for this extremum is that here, in the Debye layer, where electroneutrality is locally violated, the potential change is extremal before it deteriorates in the inner part of the brush. This has interesting consequences on the adsorption of multipolar particles: if a particle has a strong dipole moment, its dipolar coupling to the field may dominate over other interaction contributions and the distribution of adsorbed particles may be significantly different than for simple monopoles.

III.2.   PMFs in some reference cases

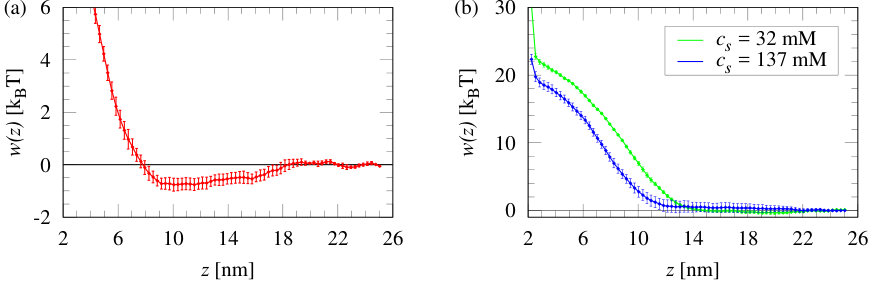

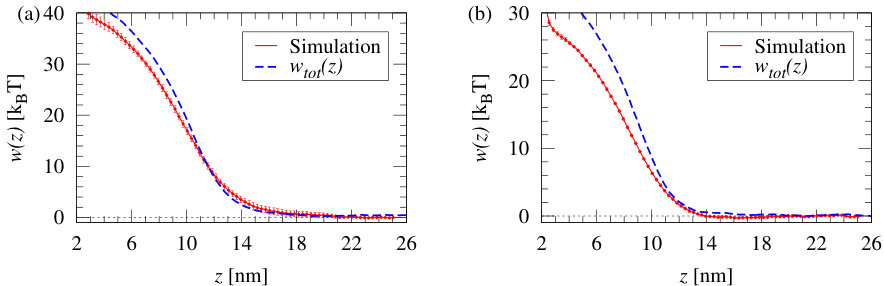

We discuss now a few insightful limiting reference cases of the PMF in order to understand the individual interaction contributions better. In Fig. 3 (a) we plot the simplest case where both the brush and the CPPM are completely neutral, i.e., no bead is charged and only simple excluded volume and vdW interactions play a role. In the PMF of this neutral system we observe a small vdW attraction of about $-1$ k${}_{\text{B}}$T at $z\approx 10$ nm, while for smaller distances the PMF is repulsive due to the compression of the brush in a range of a few $k_{\rm B}T$ as expected for semi-dilute polymer solutions de Gennes (1979). In Fig. 3 (b) we further plot the PMF of a completely neutral CPPM inserted now into a fully charged brush. In this osmotic brush case the brush is stretched and filled with a high density of counterions, cf. Figs. 2 (a) and (b). The repulsion is considerable in the range of tens of $k_{\rm B}T$, as predicted from the ideal gas equation. Hence, the contribution $w_{\text{excl+vdW}}(z)$ to the total free energy, eq (4), for a neutral globule pushed into a highly charged brush is dominated by the volume work of the globule against the osmotic pressure of neutralizing counterions.

As another instructive reference system we plot the PMF of the rather homogeneously charged (patchless) and essentially monopolar ($P^{0}_{0}$) system at $c_{s}=32$ mM and $c_{s}=137$ mM salt concentrations in Fig. 4 (a) and (b), respectively. The plots reveal, as intuitively expected, a purely repulsive interaction, weaker for the higher ionic strength by about 10 k${}_{\text{B}}$T. However, already in this relatively simple case many interactions are present. First, we have the osmotic and vdW interactions $w_{\text{excl+vdW}}(z)$. Secondly, we have the electrostatic term $w_{\rm elec}(z)$ with the repulsive monopole term but the attractive (monopole) Born term. We can neglect the influence of the very small dipole of this CPPM ($P^{0}_{0}$) and counterion-release plays no role as no patches are present. The phenomenological prediction $w_{\text{osm}}(z)+w_{\rm elec}(z)\simeq w_{\rm tot}(z)$ is also displayed in the figures. Here, the contribution for $w_{\text{osm}}(z)$ was taken directly from the previous reference simulations of the neutral sphere in the charged brush, cf. Fig. 3(b). For the electrostatic contributions, eq. (5)–(7), the values for $\Phi(z)$, $E(z)$, and charge profiles $c_{i}(z)$ were taken from the simulations of an isolated charged brush, cf. Fig. 2. The comparison is satisfying given the approximations already made.

III.3.   Interaction between a PE brush and one-patched CPPMs

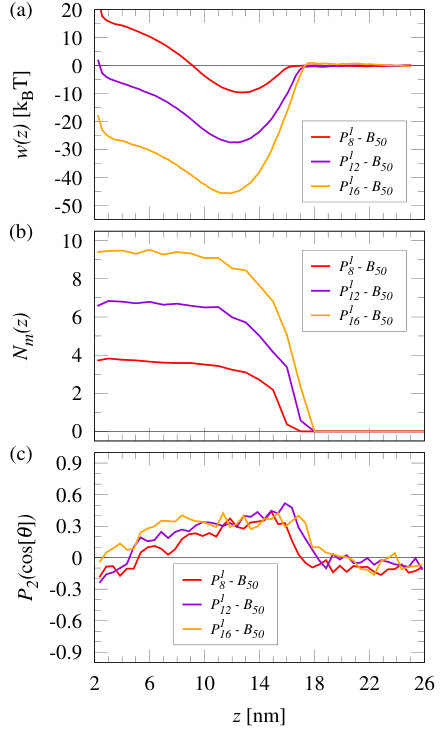

We now turn to the PMFs between the PE brush and a like-charged CPPM with only one patch, i.e., ($P^{1}_{s}$). We particularly investigate how the patch charge and ionic strength affects the PMF and its individual contributions. In Fig. 5 (a) we present PMFs for patchiness $s=8,12$, and 16 at ionic strengths of 32 mM. A clearly stable adsorption minimum is found at the brush surface layer at $z\approx 12$ nm. By increasing the patch size from $s=8$ to $s=16$ the attraction shifts from $-10$ k${}_{\text{B}}$T to $-45$ k${}_{\text{B}}$T for $c_{s}=32$ mM.

The released ions are determined from the localization of $N_{m}(z)$ PE monomers on the positive patch and are presented in Fig. 5 (b). Once the CPPM comes close to the brush surface, cf. Fig. 1(b), PE monomers interact with the positive patch and lead to a quick rise of the number of attached monomers. For even closer approach, $N_{m}(z)$ saturates to a constant value in the brush layer. The value depends on the patchiness and is about 3.8 and 9.3 (for $s=8$ and 16 at $z=2$ nm, respectively) PE monomers attached to the patch, which then leads to $N_{+}(z)=\left\{1-\Gamma^{-1}\right\}N_{\rm m}(z)\simeq 0.44N_{\rm m}(z)$ locally released counterions on average, i.e., about 1.7 and 4.1 (for $s=8$ and 16, respectively) deep in the brush.

In Fig. 5 (c) the mean angular orientation of the patch towards the grafting surfaces is shown. At large distances there is no favorite alignment of the CPPM while at intermediate distances around $z=16$ nm, close to the brush surface, the patch vector is aligned almost parallel to the grafting surface. The alignment is expected due to the coupling of the dipole to the $E$-field, but interestingly the maximum alignment happens for a distance larger than the minimum of the electrostatic field, cf. Fig. 2. The reason is probably that single PE chains can reach out of the brush to touch the patch and thereby strongly orient the CPPM, see also the snapshots in Fig. 1(b) for an exemplary illustration. When the CPPM penetrates into the brush layer, the orientation correlation weakens likely due to the PEs more homogeneously surrounding the CPPM and finally due to the decrease of the electrostatic field within the PE brush.

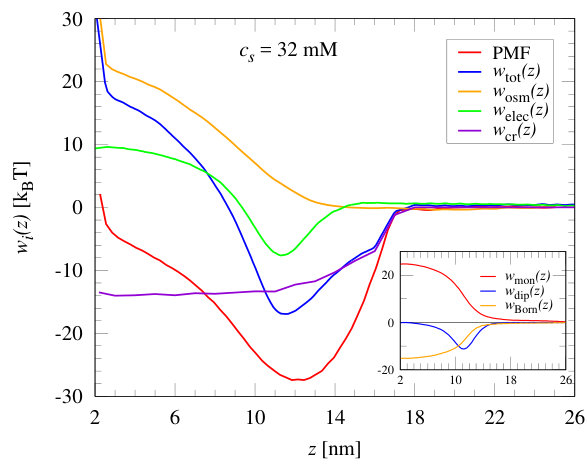

In Fig. 6 we quantitatively compare and discuss the PMFs within our phenomenological framework around eq. (4) for a salt concentration $c_{s}=32$ mM. Here, we compare the simulation PMF (red curve) to the total phenomenological prediction $w_{\rm tot}(z)$ that originates from the sum of the vdW and excluded-volume interactions $w_{\text{excl+vdW}}(z)$, the electrostatic part $w_{\rm elec}$, and the counterion-release contribution $w_{\rm cr}(z)$. As discussed before, the excluded volume part is highly repulsive and completely dominated by the osmotic contributions from the counterions $w_{\rm osm}$. This contribution for $w_{\text{osm}}(z)$ (yellow curve in Fig. 6) was taken directly from the reference simulations of the neutral sphere in the charged brush, cf. Fig. 3(b). The electrostatic part is plotted as the green curve and further subdivided into monopolar repulsion and dipole and Born attraction in the inset. Here, the monopole repulsion is very large (up to 23 $k_{\mathrm{B}}T$) and partially canceled by the large Born attraction (up to -18 $k_{\mathrm{B}}T$). The dipole part is extremal at the brush surface at $z\simeq 12$ nm and remains an attractive contribution inside the brush. For smaller distances $z\lesssim 10$ nm the net monopole repulsion, however, wins over it. To obtain the prediction of the total PMF, the counterion-release contribution has to be finally added. The latter is highly attractive, providing up to 10–14 $k_{\mathrm{B}}T$ favorable entropy for distances smaller than $z\simeq 14$ nm. In total the prediction adds up to show a stable adsorption at the brush surface at $z\simeq 10-12$ nm and an increasing repulsion closer to the grafting surface. This description (blue curve) is in qualitative accordance with the PMF (red curve) directly extracted from the simulation. Apparently, however, the phenomenological description is roughly overall $\simeq 10$ $k_{\mathrm{B}}T$ more repulsive. We believe this discrepancy might stem from the addition of errors we have made in the approximations of the single contributions. In particular, our estimation of the Born free energy is probably the weakest of all as we performed only a simple dipolar expansion for the CPPM. The CPPM has large surface charge densities in direct contact with the PE chains and mobile ions and thus we believe that the Born contribution is in fact more attractive than described by eq. (7) and is mostly responsible for the relatively large discrepancy of the phenomenological model.

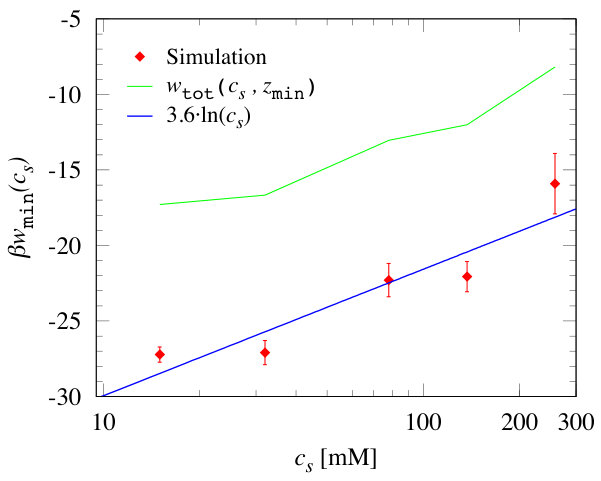

We finally discuss the salt concentration dependence of the binding affinity $w_{\rm min}$ represented by the (global) minimum values $w(z_{\rm min})$ of the PMFs from the ($P^{1}_{12}$) systems. The data from the respective simulations are depicted in Fig. 7. We also include a Record–Lohman type of logarithmic fit of the form $\beta w_{\rm min}(c_{s})=\tilde{a}+\tilde{N}{\operatorname{ln}}[c_{s}]$, which yields the number of released counterions in an ion-release dominated scenario Record et al. (1976). From the best fit (blue line) we get for $\tilde{a}=-36.8$ and for $\tilde{N}=3.6$. The latter indicates ion release in the order of 3 to 4 counterions as the CPPM adheres to the brush surface. Although the adsorption is not entirely driven by counterion release, this number is not too far from what we actually observe in our simulations, where we calculate roughly 2.7 ions on average, see the $N_{+}$ values in Table 2. We also show the results of the phenomenological model from eq. (4) in Fig. 7. Although this approach reveals a systematic deviation between the prediction (green line) and simulated data (red points), it qualitatively reproduces the correct trend. Such a good reproduction is non-trivial as the final binding affinity results from cancellation of several repulsive and attractive contributions (with different individual salt concentration dependencies) as summarized in detail in Table 2.

III.4.   Interaction between a PE brush and two-patched CPPMs

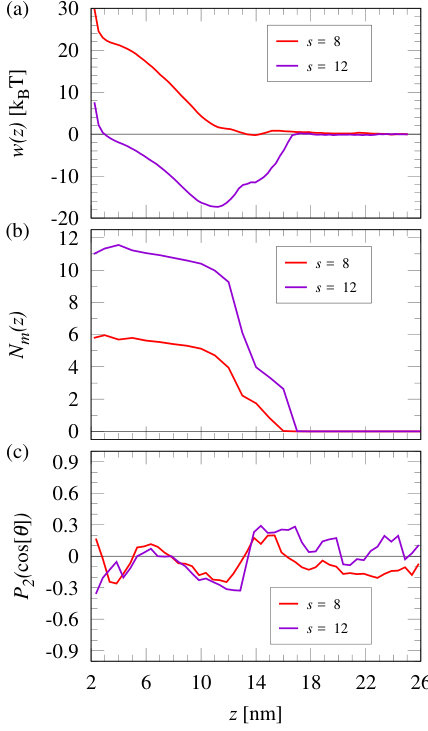

The manner in which a CPPM with two, antipodally aligned patches $(m=2)$ with $s=8$ and $s=12$ charges interacts with the PE brush is presented in Fig. 8 (a) for the 32mM salt concentration. For $s=8$ the PMFs are essentially repulsive apart from a very shallow minimum at the brush surface at around $z\simeq 14$ nm. This result is actually remarkable as now two patches, that is, twice the number of positive charges, are acting as attractors. Recall that with only one patch, see the PMF of P${}_{8}^{1}$ in Fig. 5 (a), we found a significant attraction of $\simeq 9$ $k_{\rm B}T$. In light of our phenomenological theory, this implies that the increased (attractive) counterion-release effects are fully compensated by the monopole and osmotic repulsions, while the attractive dipolar (cf. Table 1) (and higher order multipolar) interactions as well as the Born energy have become apparently too small to significantly stabilize the minimum. The situation changes in the case of larger patch charges, $s=12$, as also shown in Fig. 8 (a). Here, evidently the attractive terms, presumably most significantly the counterion-release contribution, clearly outweigh the repulsive interactions. The amount of released counterions is about a factor of two stronger in the $s=12$ system than for $s=8$, as indicated by the number of adsorbed monomers shown in Figs. 8 (b).

Note also that there is an interesting small plateau-like region in the PMF of the P${}_{12}^{2}$ CPPM at around $z\simeq 14$ nm separated by a small hump ($z\simeq 13$ nm) to the stable minimum at $z\simeq 11$ nm. We found a similar, but more pronounced behavior previously in the PMFs between two-patched CPPMs and a single PE Yigit et al. (2015). The reason in the latter case is that after the first, favorable contact of the PE monomers with one of the two positive patches, a tighter complexation is only possible after the PE wraps around the CPPM to reach and adsorb to the second patch, eventually stabilizing the final complex. However, this wrapping is penalized by electrostatic repulsion (as the PE moves along the like-charged part between the patches of the globule) and an energy barrier can appear. It seems a similar signature can be observed here by two-patched CPPMs interacting with PE brushes. Noteworthy, the experimental adsorption of $\beta$-lactoglobulin to like-charged spherical PE brushes proceeded in a yet unexplained two-step process Henzler et al. (2010).

Finally, the local CPPM orientation, plotted in Fig. 8 (c), exhibits a rather complex behavior with several extrema, especially for the higher charged, $s=12$, system. One maximally oriented configuration of aligned patches parallel to the $z$-direction appears at the brush surface at $z\approx 14$ nm, when the first patch interacts with the PE ends. This is understandable again by a structural picture of PEs reaching out towards the first approaching patch and forcing rotation of this CPPM patch to face the brush. The explanation of the appearance of the other, smaller maximum at $z\simeq 6$ nm, or the two minima at $z\simeq 3$–$4$ and $12$ nm, where the axis connecting the patches is perpendicular to $z$, however, is not so simple. In general, quadrupolar interactions with electric field gradients and orientation-dependent patch adsorption to the inhomogeneously (in $z$-direction) distributed PE monomers rule the game, probably a mix thereof, and we leave the detailed exploration of these interesting structural phenomena of multipolar adsorption for future studies.

IV.   Summary and concluding remarks

In summary, we have explored the interaction of simplified patchy protein models and a thin film of a dense PE brush using implicit-water, explicit-salt Langevin dynamics computer simulations. We focused on the regime of highly charged PE chains and proteins with considerable patchiness to investigate in detail the competition of osmotic and electrostatic interaction mechanisms. We neglected the possibilty of charge regulation and charge inversion of the protein. The matter of what is the driving force of like-charge attraction of proteins to PE brushes has been controversially discussed in literature Wittemann et al. (2003); Biesheuvel and Wittemann (2005); Wittemann and Ballauff (2006); Leermakers et al. (2007); de Vos et al. (2009).

We have found that the patchy particle $P^{1}_{8}$, which possesses the lowest patch charge density and similar electrostatic features to lactoglobulin Ferry and Oncley (1941), already leads to a significant adsorption at low and intermediate (physiological) ionic strengths. In all cases we found that the adsorption takes place on the surface of the PE brush, which is reflected by the location of the global PMF minimum. Adsorption has been found to be stronger for lower salt concentrations and higher patch charge. We note that stronger surface adsorption on the brush surface with higher particle dipole has been also reported by Hu et al. who simulated a coarse-grained model of fullerene-like patchy particles Hu and Cao (2009).

Our analysis has demonstrated the existence of multiple competing interaction mechanisms, most notably the repulsive osmotic and monopolar electrostatic contributions and the attractive multipolar, self-energy (Born), and counterion-release mechanisms. The purely electrostatic contributions due to the inhomogeneous charge distributions, leaving counterion-release aside, have been discussed on a global level previously in the framework of a mean-field Poisson–Boltzmann theory Leermakers et al. (2007). We have described the leading order parts analytically and found that the balance between all of those is complex and specific to the system. In our case the final adsorption was driven equally by electrostatic and counterion-release mechanisms, overcoming the large monopole and osmotic repulsive interactions. The strong affinity of the CPPM specifically to the brush surface can be traced back to the large dipole interaction, which is maximal at the brush surface, whereas the monopole and osmotic repulsions steeply rise further inside the brush and dominate over the attractive contributions.

Cleary, the attractive interactions are determined by the magnitude of the charge of the patches and thus a minimal patch size needs to be present to compete against the repulsion Leermakers et al. (2007) which, in turn, is defined by the brush charge and the protein net charge. Here, the counterion-release effect is a strong contributor to like-charged attraction as every condensed ion released from a PE chain provides several $k_{\mathrm{B}}T$ of binding entropy. Note that we only found these effects taking place on the PE chains, no distinctive condensation behavior could be found on the protein patches Yigit et al. (2015). In order to have the counterion-release effects active, the patch should probably carry at least 2–3 localized charges, such that a PE is likely to locally bind. We have also found a non-trivial effect of the number (or geometrical distribution) of patches, namely doubling the patches did not lead to a higher attraction; in contrast, the double-patched $P^{2}_{8}$ system showed no stable adsorption, whereas the single-patched $P^{1}_{8}$ did, probably due to the missing dipole attraction and possibly lowered self-energy contribution, such that the monopolar repulsion could not be overcome. So, while the distribution of patches probably has less influence on counterion release, it has a major influence on multipolar and Born electrostatic contributions. In that respect, also the salt concentration dependence of the binding affinity is non-trivial in general, as argued in our phenomenological framework, because all contributions have quite different functional salt dependencies.

To conclude, the question of what is the driving force of like-charge attraction of proteins to PE brushes Wittemann et al. (2003); Biesheuvel and Wittemann (2005); Wittemann and Ballauff (2006); Leermakers et al. (2007); de Vos et al. (2009) has no unique answer; there are at least three mechanisms, and which one dominates is system-dependent and governed by pH, PE charges, salt concentration, and charge heterogeneity of the protein. If, for instance, charge heterogeneity is small and experiments are operated close to the isoelectric point, charge regulation may play an important role Biesheuvel and Wittemann (2005). Far away from the isoelectric point, multipolar electrostatics governs the attraction. If then also the PE charge density is high enough, roughly beyond the Onsager-Manning-Oosawa threshold Fuoss et al. (1951); Oosawa (1971); Manning (1969), the counterion-release mechanism sets in and, due to the large entropy gain per ion, can become the decisive driving force.

Acknowledgments

The authors thank Jan Heyda and Stefano Angioletti-Uberti for inspiring discussions. The authors are thankful for support by the Helmholtz Virtual Institute for Multifunctional Biomaterials for Medicine, and the Helmholtz Association through the Helmholtz-Portfolio Topic “Technology and Medicine.” M.K. and J. D. acknowledge funding by the ERC (European Research Council) Consolidator Grant under project number 646659-NANOREACTOR.

Appendix A Appendix: Born free energy of a dipolar sphere

Multipole charging free energies in dielectric and salty environments have been discussed in detail before Kirkwood (53, 54). Here we explicitly present the Born (self) energy for the dipole in a salty environment for the convenience of the reader. Extensions to quadrupolar and higher order terms can be performed analogously.

We consider a point dipole $\mu$ enclosed in a spherical shell with a radius $R$. Outside the sphere we assume DH electrostatic screening $\kappa$, whereas the interior is free of ions. The corresponding electrostatic potential outside the sphere is (constructed by Eq. (18) in Hoffmann et al. Hoffmann et al. (2004)),

[TABLE]

We now calculate the charging (Born) free energy outside the sphere. In general, the electrostatic free energy can be evaluated as

[TABLE]

Since we want to evaluate only the free energy outside the sphere, we cannot use the actual charge distribution $\rho({\bf r})$. We can transform the above integral using linearized PB equation $(\nabla^{2}-\kappa^{2})\phi=-(1/\varepsilon\varepsilon_{0})\rho({\bf r})$, and thus eliminate the density,

[TABLE]

Now we use a relation $\nabla^{2}\phi^{2}=2(\nabla\phi)^{2}+2\phi\nabla^{2}\phi$. It can be shown that $\int\nabla^{2}\phi^{2}{\mathrm{d}}{\bf r}=0$, and therefore we can rewrite the free energy as

[TABLE]

The above free energy expression has a simple physical interpretation; the first term is the integral over energy density of the electric field $(1/2)\varepsilon\varepsilon_{0}E^{2}$, and the second term stems from the entropy of ions, $k_{\mathrm{B}}(n_{+}\log n_{+}+n_{-}\log n_{-})$. The term $(\nabla\phi)^{2}$ expresses in spherical coordinates as

[TABLE]

We insert the potential $\phi(r,\theta)$ given by Eq. (A) into Eq. (13) and integrate over $r\in(R,\infty)$ and $\theta\in(0,\pi)$, which yields

[TABLE]

If the sphere has both a monopole $Q$ and dipole $\mu$ the total Born term is given by eq. (6). One can show that the cross monopole-dipole term vanishes in the above linear treatment.
