Temperature dependence of shear viscosity of $SU(3)$--gluodynamics within lattice simulation

TL;DR

This study investigates how shear viscosity varies with temperature in SU(3) gluodynamics using lattice simulations, revealing strongly interacting behavior near the deconfinement transition and comparing results with theoretical bounds.

Contribution

The paper introduces two methods to extract shear viscosity from lattice data and demonstrates their agreement, providing new insights into the nonperturbative properties of SU(3) gluodynamics.

Findings

Shear viscosity to entropy ratio is close to 1/4π near T_c.

SU(3) gluodynamics behaves as a strongly interacting system.

Results agree with nonperturbative theoretical expectations.

Abstract

In this paper we study the shear viscosity temperature dependence of $SU(3)$--gluodynamics within lattice simulation. To do so, we measure the correlation functions of energy-momentum tensor in the range of temperatures $T/T_c\in [0.9, 1.5]$. To extract the values of shear viscosity we used two approaches. The first one is to fit the lattice data with some physically motivated ansatz for the spectral function with unknown parameters and then determine shear viscosity. The second approach is to apply the Backus-Gilbert method which allows to extract shear viscosity from the lattice data nonparametrically. The results obtained within both approaches agree with each other. Our results allow us to conclude that within the temperature range $T/T_c \in [0.9, 1.5]$ SU(3)--gluodynamics reveals the properties of a strongly interacting system, which cannot be described perturbatively, and has the ratio $\eta/s$ close to the value ${1}/{4\pi}$ in $N = 4$ Supersymmetric Yang-Mills theory.

Figures

Tables

Table 1. Table 1: The parameters of the functions ρ 1 ​ ( ω ) subscript 𝜌 1 𝜔 \rho_{1}(\omega) , ρ 2 ​ ( ω ) subscript 𝜌 2 𝜔 \rho_{2}(\omega) , ρ 3 ​ ( ω ) subscript 𝜌 3 𝜔 \rho_{3}(\omega) obtained from the fit of the lattice data. Instead of the parameter B 𝐵 B in the second column we show the ratio η / s = π ​ B / s 𝜂 𝑠 𝜋 𝐵 𝑠 \eta/s=\pi B/s .

$T/T_c$	fit type	$A$	${\omega }_0/T$	$\eta /s$	$\gamma$	C	${\chi }^2/\text{dof}$
$0.90$	${\rho }_1$	1.108(5)	8.7(4)	0.64(16)	–	–	0.9
	${\rho }_2$	1.108(3)	8.5(4)	0.59(13)	3.9(1.5)	–	1.2
	${\rho }_3$	1.109(3)	8.5(6)	0.57(25)	–	0.002(53)	1.2
$0.925$	${\rho }_1$	0.921(3)	8.7(3)	0.49(6)	–	–	1.9
	${\rho }_2$	0.921(2)	8.7(3)	0.49(6)	4.7(1.1)	–	2.1
	${\rho }_3$	0.921(2)	8.7(7)	0.55(17)	–	-0.003(19)	2.1
$0.95$	${\rho }_1$	0.942(5)	7.7(5)	0.22(9)	–	–	1.0
	${\rho }_2$	0.940(4)	7.6(5)	0.20(8)	2.5(1.3)	–	1.5
	${\rho }_3$	0.940(8)	7.6(7)	0.24(15)	–	0.002(37)	1.5
$1.0$	${\rho }_1$	0.998(13)	7.3(5)	0.23(3)	–	–	1.8
	${\rho }_2$	0.998(13)	7.3(5)	0.21(5)	3.7(8)	–	2.1
	${\rho }_3$	0.998(13)	7.3(1.1)	0.24(8)	–	-0.007(65)	2.1
$1.1$	${\rho }_1$	0.927(8)	7.0(7)	0.18(5)	–	–	1.3
	${\rho }_2$	0.927(8)	6.9(6)	0.17(4)	4.1(1.4)	–	1.4
	${\rho }_3$	0.927(8)	7.2(1.0)	0.15(5)	–	0.02(3)	1.4
$1.2$	${\rho }_1$	0.819(8)	7.6(4)	0.21(3)	–	–	1.6
	${\rho }_2$	0.818(7)	7.6(5)	0.21(3)	5.4(8)	–	1.8
	${\rho }_3$	0.818(9)	7.6(5)	0.22(6)	–	-0.004(28)	1.8
$1.35$	${\rho }_1$	0.932(8)	7.7(5)	0.22(3)	–	–	0.9
	${\rho }_2$	0.932(8)	7.7(5)	0.22(3)	2.3(1.0)	–	1.0
	${\rho }_3$	0.932(8)	7.9(1.0)	0.20(7)	–	0.01(5)	1.0
$1.5$	${\rho }_1$	0.932(9)	9.0(4)	0.28(2)	–	–	1.0
	${\rho }_2$	0.932(9)	9.0(4)	0.27(2)	2.6(7)	–	1.1
	${\rho }_3$	0.932(9)	9.1(4)	0.27(7)	–	0.002(31)	1.1

Table 2. Table 2: The ratio η / s 𝜂 𝑠 \eta/s for various temperatures obtained by various methods. The results for gluodynamics obtained using the fitting procedure are presented in the second column. The results for gluodynamics obtained within the BG method are presented in the third column. Estimation of the ratio η / s 𝜂 𝑠 \eta/s for QCD with dynamical N f = 3 subscript 𝑁 𝑓 3 N_{f}=3 quarks are presented in the forth column.

$T/T_c$	$\eta /s$, Gluodynamics	$\eta /s$, Gluodynamics	$\eta /s$, $QC{D}_{N_f=3}$
	fitting procedure	BG method
0.90	0.57(28)	0.50(24)	0.59(28)
0.925	0.55(18)	0.52(25)	0.61(30)
0.95	0.24(15)	0.22(12)	0.26(14)
1.0	0.24(8)	0.20(12)	0.24(14)
1.1	0.15(5)	0.17(6)	0.21(7)
1.2	0.22(6)	0.21(4)	0.26(5)
1.35	0.20(7)	0.22(6)	0.28(7)
1.5	0.27(7)	0.28(8)	0.36(10)

Equations

$$\begin{array}{r}C(x_0)=T^{-5}\int d^3\text{x}⟨T_{12}(0)T_{12}(x_0,\text{x})⟩,\end{array}$$

$$\begin{array}{r}C(x_0)=T^{-5}{\int }_0^{\infty }\rho (\omega )\frac{\cosh \omega (\frac{1}{2T}-x_0)}{\sinh \frac{\omega }{2T}}d\omega .\end{array}$$

$$\begin{array}{r}\eta =\pi \underset{\omega \to 0}{\lim }\frac{\rho (\omega )}{\omega },\end{array}$$

$$\rho^{LO}(\omega)=\frac{1}{10}\frac{d_{A}}{(4\pi)^{2}}\frac{\omega^{4}}{\tanh(\frac{\omega}{4T})}+\biggl{(}\frac{2\pi}{15}\biggr{)}^{2}d_{A}T^{4}~{}\omega\delta(\omega),$$

$$\lim_{\omega\to\infty}\rho^{NLO}(\omega)=\frac{1}{10}\frac{d_{A}}{(4\pi)^{2}}\omega^{4}\biggr{(}1-\frac{5\alpha_{s}N_{c}}{9\pi}\biggl{)}$$

$$\begin{array}{r}{S}_g=\beta \sum _{x,\mu <\nu }\left(1-\frac{1}{3}\text{mbox}Re\mathrm{Tr}{U}_{\mu ,\nu }(x)\right),\end{array}$$

$$\begin{array}{r}{F}_{\mu \nu }^{(clov)}(x)=\frac{1}{4ig{a}^2}(V_{\mu ,\nu }(x)+V_{\nu ,-\mu }(x)+V_{-\mu ,-\nu }(x)+V_{-\nu ,\mu }(x)),\\ V_{\mu ,\nu }(x)=\frac{1}{2}(U_{\mu ,\nu }(x)-U_{\nu ,\mu }(x)).\end{array}$$

$${\rho }_1(\omega )=B{T}^3\omega \theta ({\omega }_0-\omega )+A{\rho }_{lat}(\omega )\theta (\omega -{\omega }_0).$$

$${\rho }_2(\omega )=\frac{1}{2}B{T}^3\omega \left(1+\tanh \left[\gamma (w_0-w)\right]\right)+\frac{1}{2}A{\rho }_{lat}(\omega )\left(1+\tanh \left[\gamma (w-w_0)\right]\right).$$

$${\rho }_3(\omega )=B{T}^3\omega \left(1+C{\omega }^2\right)\theta ({\omega }_0-\omega )+A{\rho }_{lat}(\omega )\theta (\omega -{\omega }_0).$$

$$C(x_i)=\frac{1}{T^5}{\int }_0^{\infty }d\omega \frac{\rho (\omega )}{f(\omega )}K(x_i,\omega ),$$

$$\displaystyle K(x,\omega)=f(\omega)\frac{\cosh\omega\biggl{(}\frac{1}{2T}-x\biggr{)}}{\sinh\frac{\omega}{2T}},$$

$$\bar{\rho }(\bar{\omega })=f(\bar{\omega }){\int }_0^{\infty }d\omega \delta (\bar{\omega },\omega )\frac{\rho (\omega )}{f(\omega )},$$

$$\delta (\bar{\omega },\omega )=\sum _i{q}_i(\bar{\omega })K(x_i,\omega ).$$

$$\bar{\rho }(\bar{\omega })=f(\bar{\omega })\sum _i{q}_i(\bar{\omega })C(x_i)$$

$$q_i(\omega )$$

$$W_{ij}(\bar{\omega })$$

$$R(x_i)$$

$$f_1(x)=x$$

$$f_2(x)=\frac{{\rho }_{lat}(x)}{(\tanh (x/4T){)}^2}$$

$${\rho }_{ult}(\omega )=A{\rho }_{lat}(\omega )\theta (\omega -{\omega }_0),$$

$${\left(\eta /s\right)}_{QCD}=\frac{{\left(\eta /s\right)}_{QCD}}{{\left(\eta /s\right)}_{YM}}\times {\left(\eta /s\right)}_{YM}$$

Full text

Lattice gauge theory, quark-gluon plasma, transport coefficients

Introduction

Modern heavy ion collisions experiments such as RHIC and LHC are aimed at study of quark-gluon plasma (QGP). Hydrodynamic description of QGP evolution proved to be efficient in understanding of experimental results Kolb:2003dz ; Ollitrault:2008zz . Despite this success, hydrodynamics is only an effective theory which correctly represents dynamics of infrared degrees of freedom. Parameters of this effective theory, such as shear viscosity, bulk viscosity, conductivity, etc. cannot be calculated within hydrodynamics itself but must be determined either from the experiment or from calculation based on the first principles.

The measurement of elliptic flow Ackermann:2000tr ; Adler:2002pu allows to estimate the value of QGP shear viscosity. In particular, hydrodynamic approximation describes the experimental data if the ratio of shear viscosity $\eta$ to entropy density $s$ lies within the range $\eta/s=(1-2.5)\times 1/4\pi$ Song:2012ua . This value is close to the result of $N=4$ Supersymmetric Yang-Mills (SYM) theory at strong coupling $\eta/s=1/4\pi$ Policastro et al. (2001) and deviates from the calculation at weak coupling $\eta/s\sim\mbox{const}/(g^{4}\log(1/g))\sim 1$ Arnold:2000dr ; Arnold:2003zc .

From this consideration one can conclude that the small value of ratio $\eta/s$ is governed by nonperturbative dynamics. Attempts of nonperturbative calculation of shear viscosity were undertaken in papers Ozvenchuk:2012kh ; Marty:2013ita ; Berrehrah:2016vzw ; Christiansen:2014ypa . Unfortunately it is rather difficult to estimate the systematic uncertainty of these approaches, so today the analytical approch which fully accounts for nonperturbative dynamics of QGP based on the first principles is absent. For this reason the only way to calculate shear viscosity of QGP is the lattice simulation of QCD.

Despite considerable progress in the lattice study of QCD properties today it is not possible to calculate shear viscosity of QGP with dynamical quarks. Even shear viscosity study within pure gluodynamics is an extremely complicated task. There are only few attempts to calculate shear viscosity of SU(3)–gluodynamics undertaken in papers Karsch and Wyld (1987); Nakamura and Sakai (2005); Meyer (2007, 2009a); Mages:2015rea and SU(2)–gluodynamics undertaken in papers Braguta and Kotov (2013); Astrakhantsev:2015jta . In this paper we are going to study the temperature dependence of shear viscosity of SU(3)–gluodynamics in the vicinity of the confinement/deconfinement phase transition $T/T_{c}\in[0.9,1.5]$.

The paper is organized as follows. In the next section we describe the details of the calculation. Section III is devoted to the calculation of shear viscosity from lattice measurements of the energy-momentum tensor correlation function. In the last section our results are discussed and the conclusion is drawn.

Details of the calculation

Shear viscosity is related to the Euclidean correlation function of the energy-momentum tensor $T_{\mu\nu}=\frac{1}{4}\delta_{\mu\nu}F_{\alpha\beta}^{a}F_{\alpha\beta}^{a}-F_{\mu\alpha}^{a}F_{\nu\alpha}^{a}$ (here for simplicity we omitted the trace anomaly):

[TABLE]

where $T$ is the temperature of the system. The correlation function (1) can be written in terms of the spectral function $\rho(\omega)$ as follows

[TABLE]

The spectral function contains valuable information about the properties of a medium. To find shear viscosity from the spectral function one uses the Kubo formula Kubo (1957)

[TABLE]

Lattice calculation of shear viscosity can be divided into two parts. The first part is the measurement of the correlation function $C(x_{0})$ with sufficient accuracy. This part of the calculation requires large computational resources but for the gluodynamics the accuracy of the correlator can be dramatically improved with the help of the two-level algorithm Meyer (2003). The second part is the determination of the spectral function $\rho(\omega)$ from the correlation function $C(x_{0})$. The last part of the calculation is probably the most complicated, since one should determine continuous spectral function $\rho(\omega)$ from the integral equation (2) for the set of $\mathcal{O}(10)$ values of the function $C(x_{0})$ measured within the lattice simulation.

Below we will need the the properties of the spectral function. First we recall very general properties: the positivity of the spectral function $\rho(\omega)/\omega\geqslant 0$ and oddness: $\rho(-\omega)=-\rho(\omega)$. At large frequencies one expects that the asymptotic freedom manifests itself in the approach of the real spectral function to the one calculated at weak coupling. For this reason it is also important to write the expression for the spectral function in the leading-order approximation in the strong coupling constant Meyer (2008a)

[TABLE]

where $d_{A}=N_{c}^{2}-1=8$ for the SU(3)–gluodynamics.

The next-to-leading order expression for the spectral function at a large $\omega$ is also known Kataev et al. (1982):

[TABLE]

It should be noted here that at a large $\omega$ the spectral function scales as $\rho(\omega)\sim\omega^{4}$, what leads to a large perturbative contribution to the correlation function for all values of the Euclidean time $x_{0}$. Calculation shows that even at the $x_{0}=1/(2T)$ the tree level contribution is $\sim 80-90\%$ of the total value of the correlation function. Note also that the large $\omega$ behavior of the spectral function leads to a fast decrease of the correlation function $C(x_{0})\sim 1/x_{0}^{5}$ for small $x_{0}$. For this reason the signal/noise ratio for the $C(x_{0})$ is small at $x_{0}\gg a$ and the lattice measurement of the correlation function at $x_{0}\sim 1/(2T)$ becomes computationally very expensive.

In numerical simulation we use the Wilson gauge action for the SU(3)–gluodynamics

[TABLE]

where $U_{\mu,\nu}(x)$ is the product of the link variables along the elementary rectangular $(\mu,\nu)$, which starts at $x$.

For the tensor $F_{\mu\nu}$ we use the clover discretization scheme:

[TABLE]

One can easily define the energy-momentum tensor on the lattice using its continuum expression and lattice discretization (7) for the $F_{\mu\nu}$ tensor.

Note also that instead of the correlation function $\langle T_{12}(x)T_{12}(y)\rangle$ in this paper we measure the correlation function $\frac{1}{2}(\langle T_{11}(x)T_{11}(y)\rangle-\langle T_{11}(x)T_{22}(y)\rangle)$. Both correlation functions are equal in the continuum limit Karsch and Wyld (1987). Meanwhile the renormalization properties of the diagonal components of energy-momentum tensor $T_{\mu\nu}$ are known (see below).

It has become conventional to present the value of shear viscosity as the ratio viscosity-to-entropy-density $\eta/s$. For homogeneous systems the entropy density $s$ can be expressed as $s=\frac{\epsilon+p}{T}$, where $\epsilon$ is the energy density and $p$ is the pressure. These thermodynamic quantities were measured with the method described in Engels et al. (2000).

The energy-momentum tensor in the continuum theory is a set of Noether currents which are related to the translation invariance of the action. In the lattice formulation of field theory continuum rotational invariance does not exist and the renormalization for energy-momentum tensor is required. For the correlation function considered in this paper the renormalization is multiplicative Meyer (2011). The renormalization factors depend on the discretization scheme. For instance, for the diagonal component of $T_{\mu\nu}$ (when $\mu=\nu$) and the plaquette-based discretization of $T_{\mu\nu}$: $\displaystyle T_{\mu\mu}=\frac{2}{a^{4}g^{2}}\left(-\sum\limits_{\nu\neq\mu}\operatorname{Tr}U_{\mu,\nu}(x)+\sum\limits_{\nu,\sigma\neq\mu,\sigma>\nu}\operatorname{Tr}U_{\sigma,\nu}(x)\right)$ the renormalization factors are related to the anisotropy coefficients Engels et al. (2000); Meyer (2008b): $T^{(ren)}_{\mu\nu}=Z^{(plaq)}T_{\mu\nu}^{(plaq)}$, $\displaystyle Z^{(plaq)}=1-\frac{1}{2}g_{0}^{2}(c_{\sigma}-c_{\tau})$, where $c_{\sigma}$ and $c_{\tau}$ are defined in Engels et al. (2000).

Using the renormalization factors for the plaquette-based discretization of $T_{00}$, we can find the renormalization factors for the clover discretization simply by fitting the vacuum expectation values of the renormalized $T_{00}$: $Z^{(plaq)}\langle T_{00}^{(plaq)}\rangle=Z^{(clov)}\langle T_{00}^{(clov)}\rangle$.

Numerical results

The spectral function from the fitting procedure.

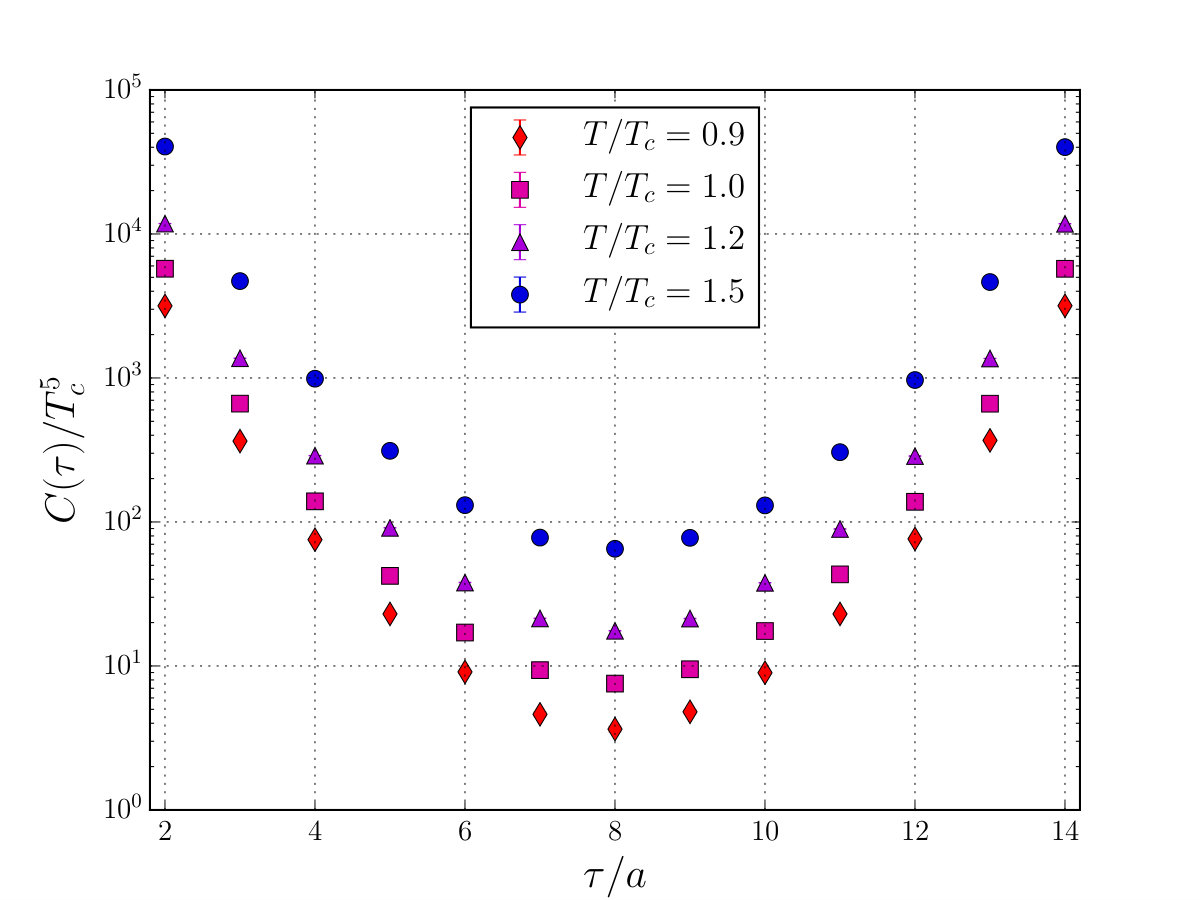

We measured the correlation functions $C(x_{0})$ on the lattice $16\times 32^{3}$ with the following set of the $\beta$–parameter: $\beta=6.491,6.512,6.532,6.575,6.647,6.712,6.811,6.897$, which correspond to the temperatures $T/T_{c}\simeq 0.9,0.925,0.95,1.0,1.1,1.2,1.35,1.5$. Application of two-level algorithm allowed us to get uncertainties not larger than $\sim 2-3\%$ at the distance $Tx_{0}=0.5$ for all temperatures under consideration. For the other points the accuracy is even better. In Fig. 1 we plot the correlation functions for various temperatures.

The next step in the calculation of shear viscosity is the extraction of the spectral function from the integral equation (2). In this section we are going to use physically motivated ansatzes for the spectral function with unknown parameters. These parameters will be determined through the fitting procedure.

The first anzatz which will be used in the calculation is motivated by QCD sum rules Shifman et al. (1979). In order to build a tentative spectral function we join the first-order hydrodynamic behavior at small frequencies with the asymptotic freedom at large frequencies 111Note that the frequency $\omega$ is measured in physical units.

[TABLE]

In the last formula $\rho_{lat}(\omega)$ is the tree level lattice expression for the spectral function calculated for the correlation function $\sim\frac{1}{2}(\langle T_{11}(x)T_{11}(y)\rangle-\langle T_{11}(x)T_{22}(y)\rangle)$ with clover discretization of the tensor $F_{\mu\nu}$ at lattice with the fixed $L_{t}$ and $L_{s}\to\infty$. The function $\rho_{lat}(\omega)$ was calculated in the paper Astrakhantsev:2015jta .

It was noted above that the correlation function $C(x_{0})$ is very sensitive to the ultraviolet properties of the spectral function. To get accurate description of the lattice data we used the lattice spectral function at large frequencies $\rho_{lat}(\omega)$ instead of the continuum expression (4). Application of the function $\rho_{lat}(\omega)$ takes discretization effects in temporal direction into account and, as the result, considerably improves the quality of the fit.

Evidently the inclusion of interactions modifies the tree level formula. However, due to the asymptotic freedom at large frequencies one can expect that this modification is not dramatic. In particular, it is seen from (5) that one-loop radiative corrections modify the spectral function by a factor close to unity. Inspired by this observation, in expression (8) we multiplied the $\rho_{lat}(\omega)$ by some factor $A$ which effectively accounts radiative corrections at large frequencies. Our results show that the introduction of the factor $A$ is crucial for successfull description of the lattice data.

A drawback of the ansatz (8) is that this function has a discontinuity at the point $\omega=\omega_{0}$. It causes no difficulties to build the spectral function with the properties similar to the ansatz (8) but free from this drawback

[TABLE]

Notice that in this ansatz we have introduced the parameter $\gamma$ which controls the width of the transition from the infrared hydrodynamic regime to the ultraviolet regime of the asymptotic freedom in the spectral function. Evidently the width of the transition is $\sim 1/\gamma$.

In the ansatzes (8), (9) the first-order hydrodynamic regime directly continues to the regime of the asymptotic freedom. However, it is reasonable to assume that there is a region of frequencies where the spectral function deviates from the first-order hydrodynamics. In order to study this deviation in addition to spectral functions (8), (9) we use the following ansatz

[TABLE]

In last formula we introduced a correction to the first-order hydrodynamic approximation which is controlled by the parameter $C$. We did not introduce next-to-leading order correction to the first-order hydrodynamics $\sim\omega^{2}$ since the spectral function is an odd function of frequency. Notice that in the hard-thermal-loop framework the hydrodynamic behavior at small frequencies is replaced by the transport peak of a final width $\omega\to\omega/(1+\Gamma\omega^{2})$ Aarts:2002cc . So, the ansatz (10) can be considered as a first term of the expansion of the transport peak with $\Gamma=-C$.

We fit lattice data ($14\geqslant x_{0}/a\geqslant 2$) for each temperature by the formula (2) with the spectral functions (8), (9), (10). In the Table 1 we show the parameters of functions (8), (9), (10) obtained through this fit. Instead of the parameter $B$ in the second column of Table 1 we show the ratio $\eta/s$ which is related to the $B$ as $\eta/s=\pi B/s$.

Now few comments are in order

• •

It is seen from Table 1 that functions (8), (9), (10) fit lattice data for various temperatures quite well. It is also seen that for all ansatzes the ratio $\eta/s$ quickly drops when temperature approaches the critical point $T_{c}$ and then either slowly rises after $T_{c}$ or stays constant. This behavior was seen in various models aimed at the calculation of shear viscosity in QCD.

• •

The values of $\eta/s$, $A$ and $\omega_{0}$ obtained through the fitting of the data by various ansatzes at the same temperature are in agreement with each other within the uncertainty of the calculation. However, the uncertainties for these parameters are different for various ansatzes.

• •

The values of the threshold parameter $\omega_{0}$ for all ansatzes are physically well motivated. The value of the strong coupling constant at the threshold parameter $\omega_{0}$ ($\omega_{0}\sim 2-3$ GeV in physical units) is $\alpha_{s}(\omega_{0})\sim 0.2-0.3$. This allows us to expect that perturbative expression for the spectral function is applicable for $\omega>\omega_{0}$. The values of the factor $A$ for all temperatures, which takes into account radiative corrections, are close to unity what confirms applicability of the asymptotic freedom at high frequencies.

• •

Notice also that contrary to the infrared part of the spectral function the parameters of the ultraviolet part for all ansatzes are determined from the fit with a very good accuracy. This feature results from the fact that the dominant contribution to the correlation function is due to high frequencies.

• •

The ansatz $\rho_{3}(\omega)$ allows one to study the deviation from the first-order hydrodynamics. This deviation is controlled by the parameter $C$. From Table 1 one sees that within the uncertainty of the calculation the values of the $C$ are zero for all temperatures. This fact implies that our data do not allow to observe the deviation from the first-order hydrodynamics.

It is worth to note that we tried to fit our data by the spectral function similar to the $\rho_{1}(\omega)$ but with the substitution $\omega\to\omega/(1+\Gamma\omega^{2})$. This substitution accounts for the transport peak Aarts:2002cc . The result of this fit is very similar to that for ansatz (10). The parameters $\Gamma$ equal zero within the uncertainty of the calculation.

Low frequency parts of spectral functions (8) and (9) are given by the first-order hydrodynamic expression $\sim\omega$. One can expect that the first-order hydrodynamic approximation works well up to $\omega\leqslant\pi T\simeq 1$ GeV Meyer (2008c). From the other side high frequency perturbative expression for the spectral function is fixed very accurately and it works well for $\omega\geqslant\omega_{0}\sim 3$ GeV. The form of the spectral function in the region $1~{}\mbox{GeV}\leqslant\omega\leqslant 3~{}\mbox{GeV}$ is not clear. We believe that poor knowledge of the spectral function in the region $1~{}\mbox{GeV}\leqslant\omega\leqslant 3~{}\mbox{GeV}$ is the main source of the uncertainty of the calculation based on the fitting of lattice data by the functions $\rho_{1}(\omega)$ and $\rho_{2}(\omega)$. Notice that this source of uncertainty in the values of shear viscosity is not accounted in Table 1.

The function $\rho_{3}(\omega)$ modifies the first-order hydrodynamic expression in the intermediate region due to the term $\sim C\omega^{2}$. Thus the function $\rho_{3}(\omega)$ at least partly takes into account uncertainty in shear viscosity due to our poor knowledge of the spectral function in the intermediate region. For this reason we take the results for the ratios $\eta/s$ obtained through the fitting by the function $\rho_{3}(\omega)$ as the results of this section. In addition to the statistical uncertainties in the ratio $\eta/s$ shown in Table 1, there are uncertainties in the entropy density $s$ and the renormalization coefficient of the clover discretized energy-momentum tensor (7). The former uncertainties are $4-6$ % for all temperatures under consideration. The latter uncertainties are $\sim 3$ % for the temperatures $T/T_{c}\geqslant 1.0$, $\sim 6$ % for temperatures $T/T_{c}=0.925,0.95$ and $\sim 12$ % for the temperature $T/T_{c}=0.9$. The results for the ratios $\eta/s$ obtained within the fitting procedure including all uncertainties are shown in the second column of Table 2 and in Fig. 5.

The Backus-Gilbert method for the spectral function

In this section we are going to determine the ratio $\eta/s$ using the Backus-Gilbert(BG) method Backus:1 ; Backus:2 222In QCD this approach was recently applied in papers Brandt:2015sxa ; Brandt:2015aqk . Backus-Gilbert method was also recently applied in the lattice calculation of graphene conductivity Boyda:2016emg .. This approach has considerable advantage over the method based on the fitting procedure: one does not need to know the parametrical form of the spectral function to carry out the calculation.

The method can be formulated as follows333Here we follow the designations of Brandt:2015sxa ; Brandt:2015aqk . One needs to solve equation (2). To do this we rewrite it in the following form

[TABLE]

where $f(\omega)$ is some function with the property $f(t)|_{t\to 0}\sim t$, $x_{i}$ are lattice points where the calculation of the $C(x_{i})$ are carried out and $K(x,\omega)$ is a rescaled kernel of the integral equation

[TABLE]

Our aim is to determine the $\rho(\omega)$. In the BG method instead of the function $\rho(\omega)$ we consider the estimator of this function $\bar{\rho}(\bar{\omega})$ which can be written as

[TABLE]

where the function $\delta(\bar{\omega},\omega)$ is called the resolution function. This function has a peak around the point $\bar{\omega}$ and it is normalized as $\int_{0}^{\infty}d\omega\delta(\bar{\omega},\omega)=1$. The function is expanded over the $K(x_{i},\omega)$ as

[TABLE]

For this resolution function the estimator is a linear conbination of the values of the correlation function

[TABLE]

Evidently to get a better approximation for the $\rho(\omega)$ by the estimator $\bar{\rho}(\bar{\omega})$ one should minimize the width of the $\delta(\bar{\omega},\omega)$. However, a very narrow peak might build an estimator fitting the points themselves, but not the physics (generality) they present. This means that any method of this kind should be regularized.

The Backus-Gilbert is aimed at minimization of the Backus-Gilbert functional $\displaystyle\mathcal{H}(\rho(\omega))=\lambda\mathcal{A}(\rho(\omega))+(1-\lambda)\mathcal{B}(\rho(\omega))$. The component $\mathcal{A}$ represents the width of the resolution function (the second moment of distribution): $\displaystyle\mathcal{A}=\int_{0}^{\infty}d\omega\delta(\bar{\omega},\omega)(\omega-\bar{\omega})^{2}$. In principle, it could be any other function with the same physical meaning. The advandate of the second moment is that it is quadratic in $\omega$ and $\bar{\omega}$, making analytical minimization possible.

The component $\mathcal{B}(\rho(\omega))=\mbox{Var}[\rho(\omega)]$ punishes $\rho(\omega)$ for being too dependent on the data. In terms of the covariance matrix and $q$–functions, it reads $\displaystyle\mathcal{B}(\vec{q})=\vec{q}^{T}\hat{S}\vec{q}$.

Putting everything together, the minimization of the $\mathcal{H}$ functional gives the following values of the coefficients

[TABLE]

If the $\lambda$ is close to $1$, the resolution function has the smallest width and the estimator gives the best approximation for the spectral function. However, the application of the Backus-Gilbert method with $\lambda\sim 1$ to the calculation of shear viscosity gives rise to large uncertainties. The result becomes very dependent on the data, the spectral function turns out to be noisy and unstable. Statistical uncertainties can be improved at the expense of increasing the width of the resolution function through decreasing the value of the $\lambda$–parameter.

Now let us discuss the choice of the function $f(x)$. To determine the spectral density at small frequencies it is reasonable to choose the following function

[TABLE]

In this case the ratio $\displaystyle\rho(\omega)/f_{1}(\omega)|_{\omega\to 0}=\eta/\pi$. The main motivation for choosing this function is that it gives rather small width of the resolution function at small frequencies.

To study the spectral function at large frequencies we choose the following function

[TABLE]

One can expect that due to asymptotic freedom at large frequencies $\omega\gg\Lambda_{QCD}$ the ratio $\rho(\omega)/f_{2}(\omega)$ behaves like constant. The width of the resolution function with the $f_{2}(x)$ is larger than that with the $f_{1}(x)$.

Now let us proceed to the calculation of shear viscosity. To do this we use the function $f_{1}(x)$. As to the $\lambda$-parameter we choose $\lambda=0.002$. For this value of the $\lambda$ the uncertainty in the restored spectral density at zero frequency is smaller than 1% for all temperatures under consideration. In Fig. 2 we plot the resolution function at temperature $T/T_{c}=1.35$ and $\bar{\omega}=0$ for various values of the $\lambda$. The resolution functions for the other temperatures are very similar to those in Fig. 2 and we do not show them here.

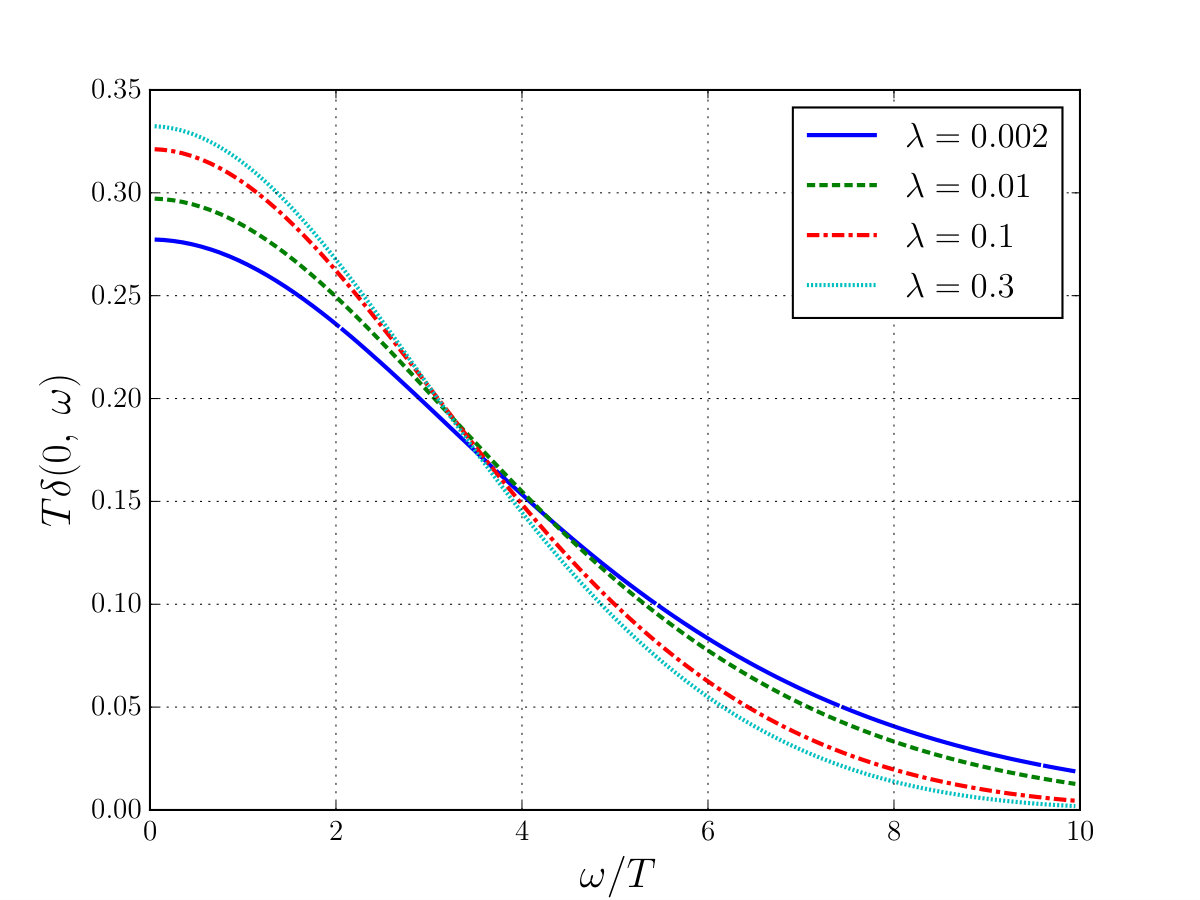

From Fig. 2 one sees that the width of the resolution function at $\lambda=0.002$ is $\Delta\omega\sim 4T$. If for a while we forget about the ultraviolet contribution, the convolution of the spectral function $\rho(\omega)$ with the resolution function (13) gives some average of the spectral function over the interval with the width $\sim 4T$. One can expect that the first-order hydrodynamic approximation works well up to $\omega\leqslant\pi T\simeq 1$ GeV Meyer (2008c), what covers most of the interval $(0,4T)$

Now let us discuss the ultraviolet contribution to convolution (13). According to the results of previous section the ultraviolet part of the spectral function starts to work for frequencies $\omega/T\sim 7-8$. From Fig. 2 one sees that the resolution function is considerably suppressed in this region. However, it is not possible to disregard ultraviolet contribution since the spectral function at large frequencies rises very quickly $\rho(\omega)\sim\omega^{4}$. Calculation shows that for the most temperatures under consideration the contribution which results from the ultraviolet part of the spectral function is larger than the contribution of hydrodynamic part of the spectral function. So, to get reliable result for shear viscosity one should subtract the ultraviolet contribution.

To study the spectral function at large frequencies we are going to use the BG method with the function $f_{2}(\omega)$ and $\lambda=0.002$. In Fig. 3 we plot the ratios $\bar{\rho}(\bar{\omega})/f_{2}(\bar{\omega})$ as a function of $\bar{\omega}a$ for the temperatures $T/T_{c}=0.9,1.1,1.35,1.5$. For the other temperatures under consideration the figures are similar and we do not show them here. Red curves correspond to the spectral functions restored by the BG method from our data. In order to compare the results of the BG method with the results obtained in the previous section we took the spectral function at large frequencies

[TABLE]

and convoluted it with the resolution function. The values of the $A$ and $\omega$ with uncertainties were taken from the fitting procedure (see Table 1). The results are presented as blue curves. Finally we plotted dashed lines which correspond to the values of the constants $A$ with uncertainties obtained within fitting procedure.

Now few comments are in order

• •

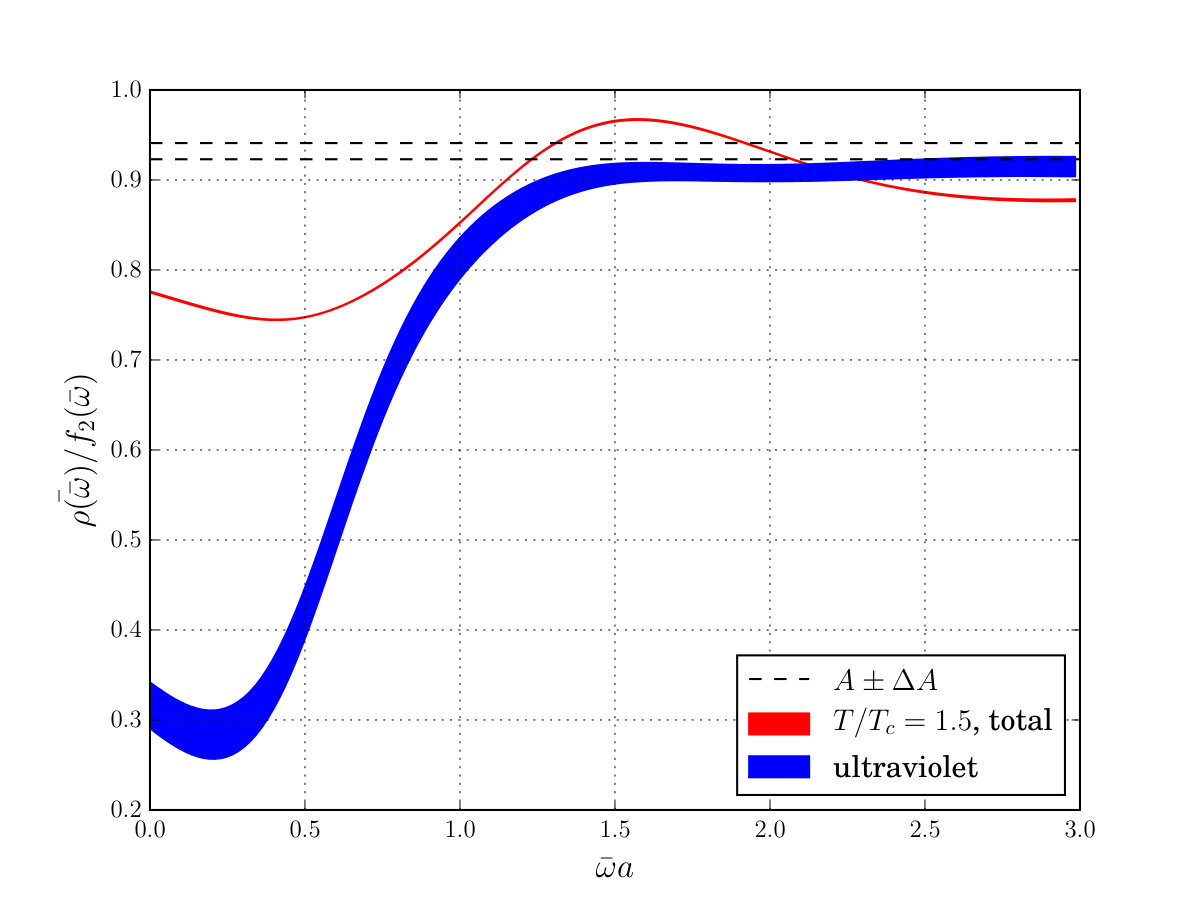

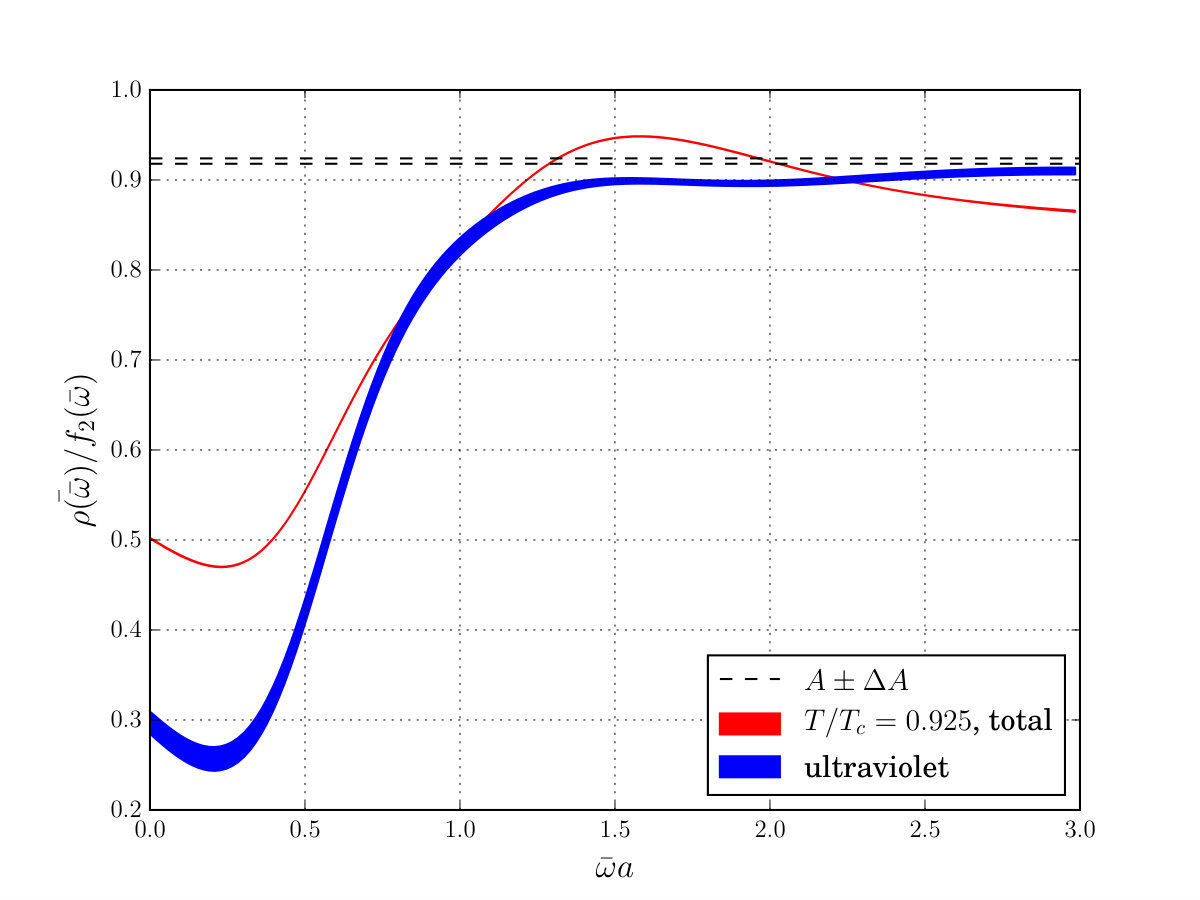

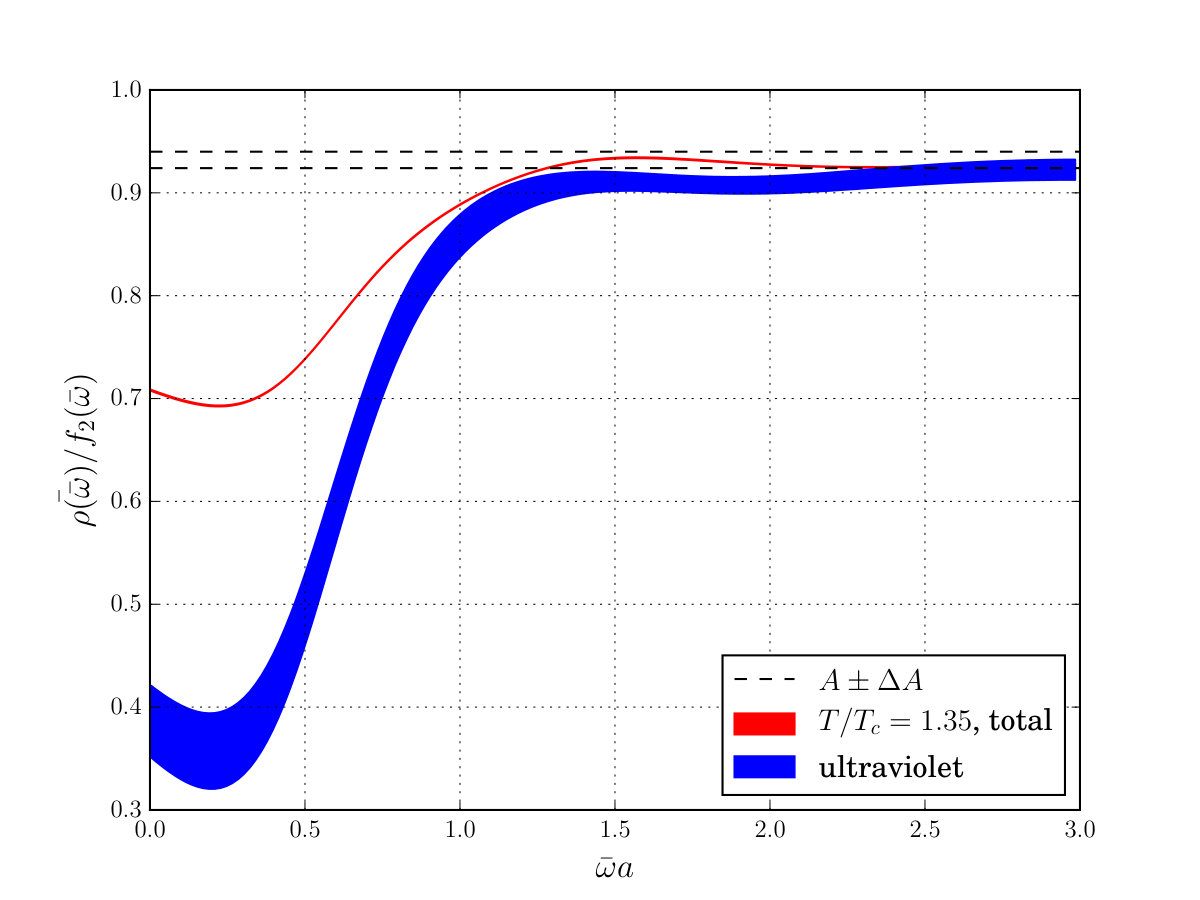

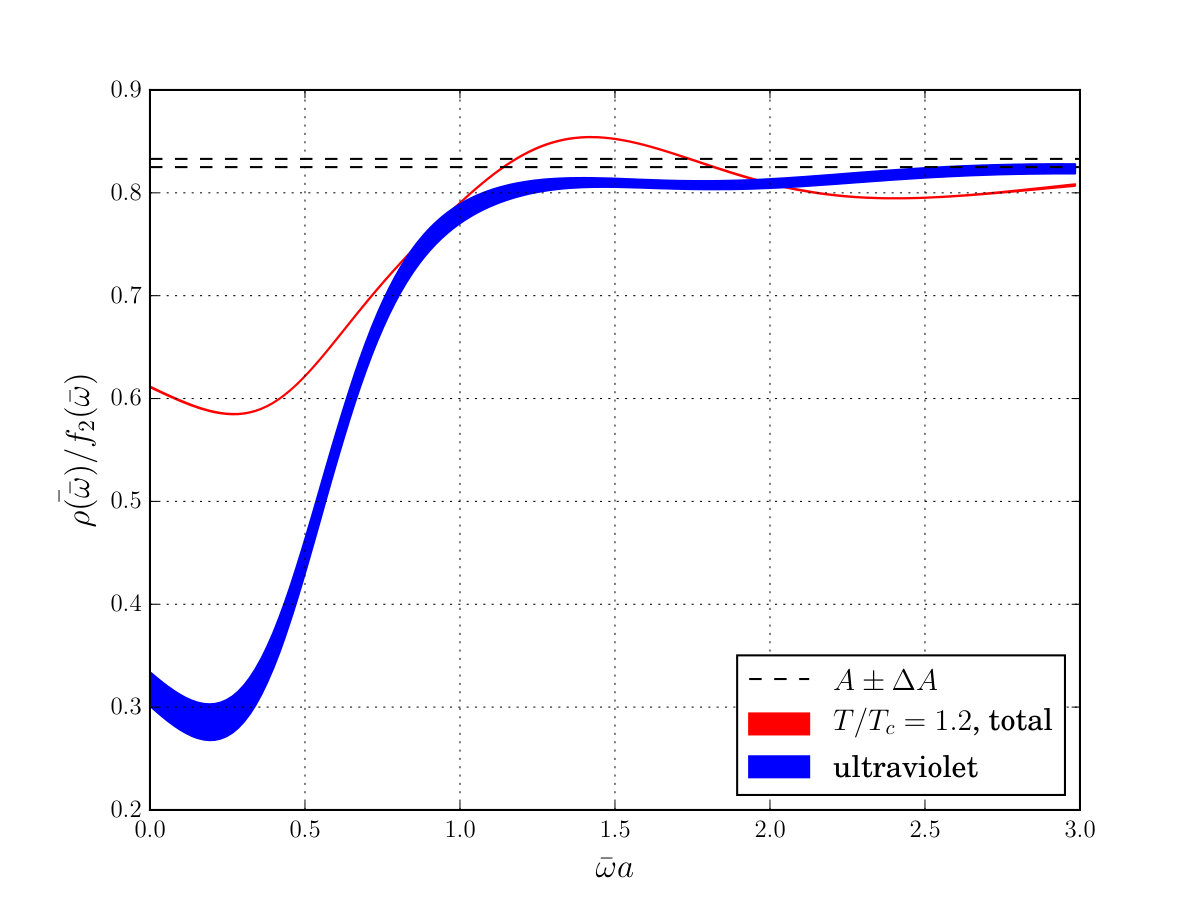

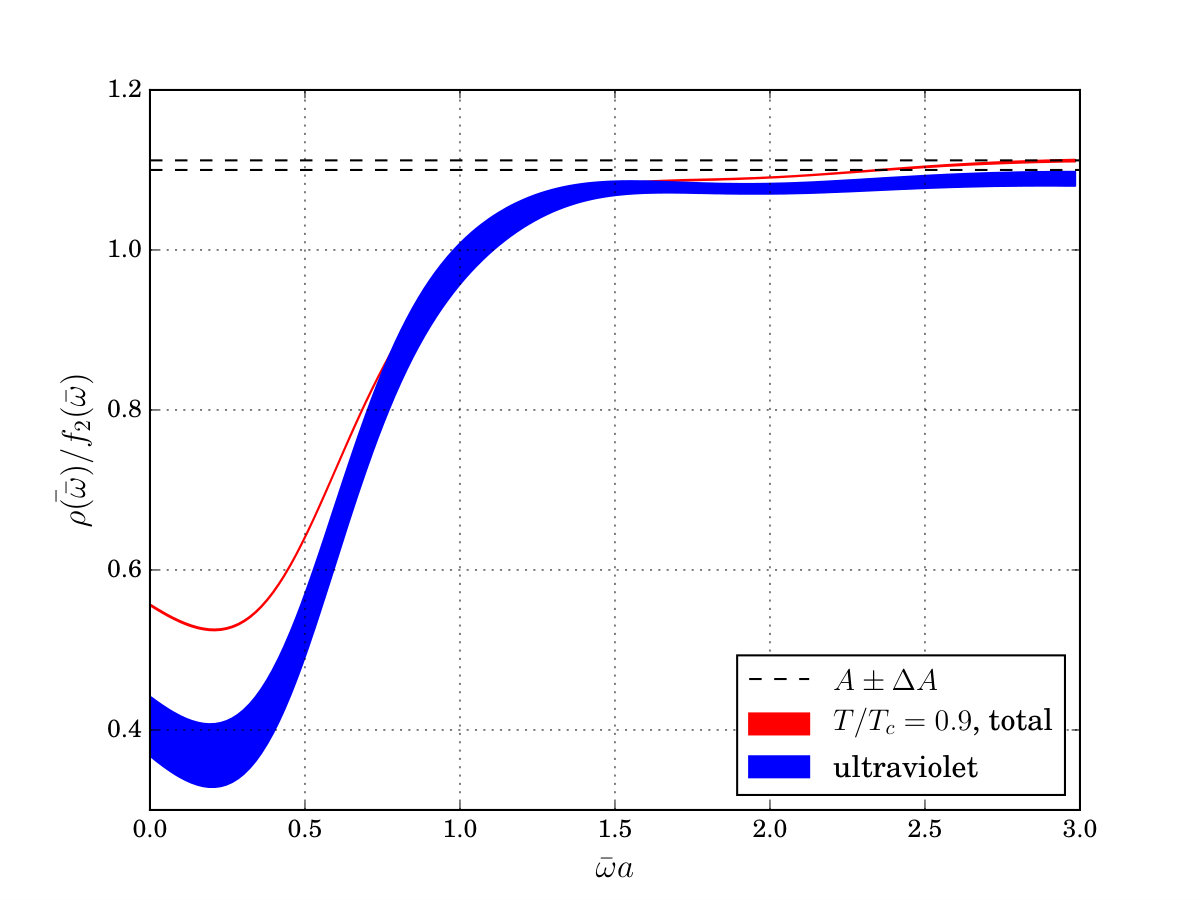

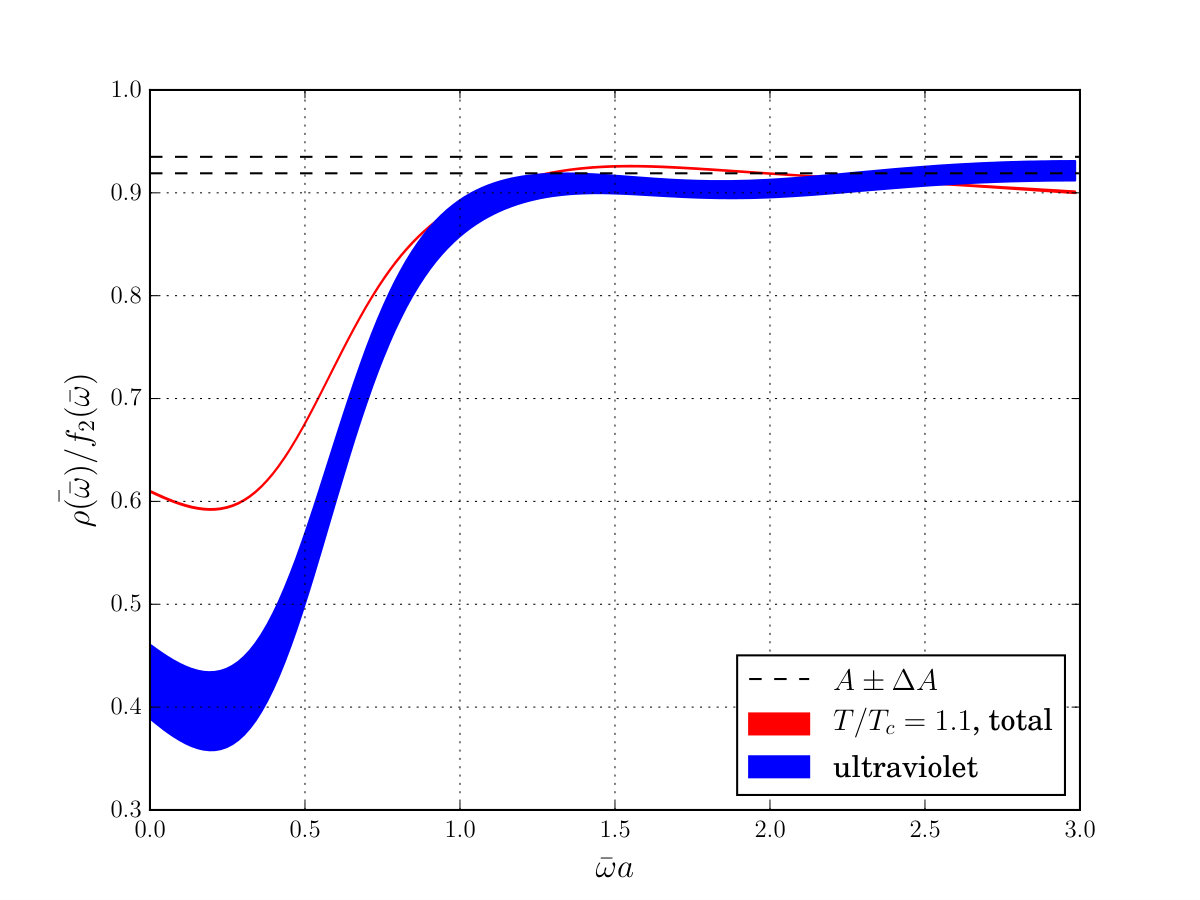

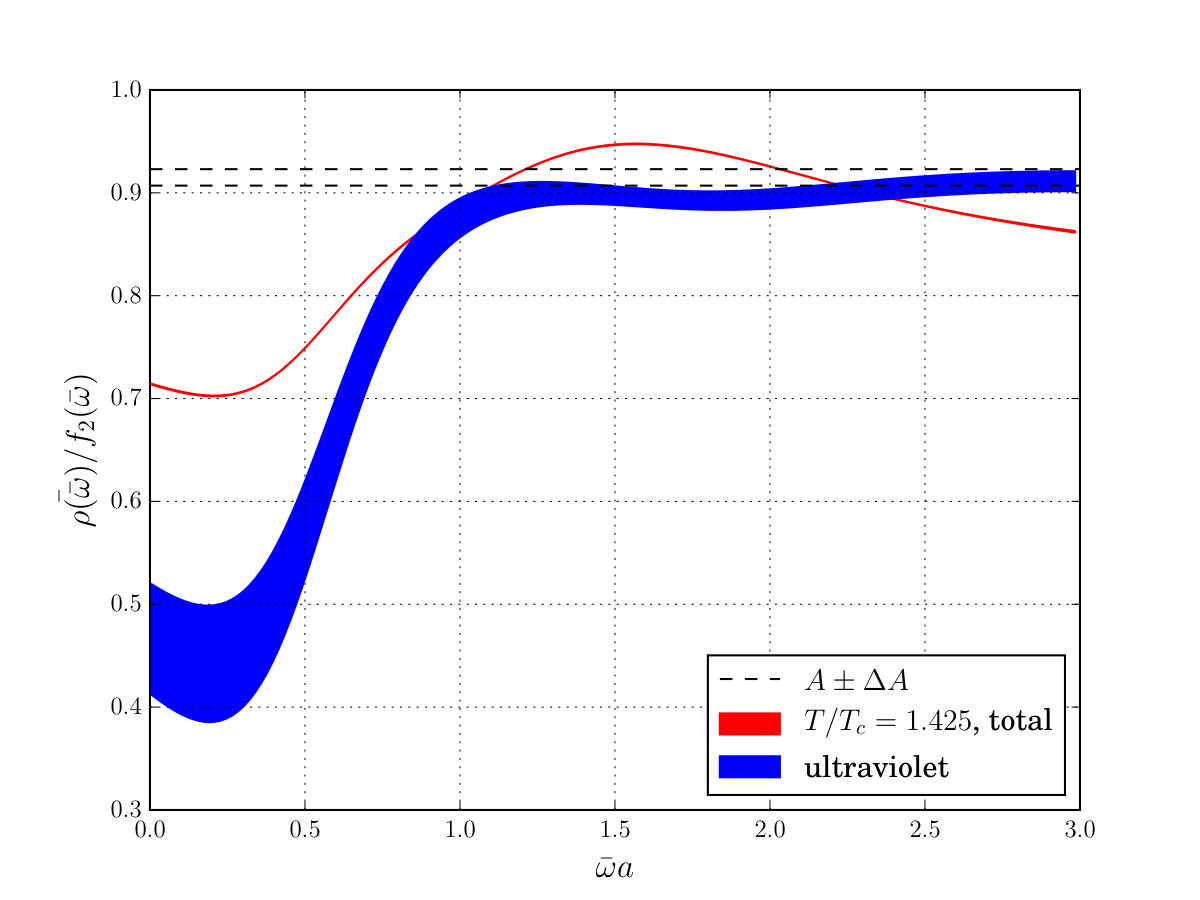

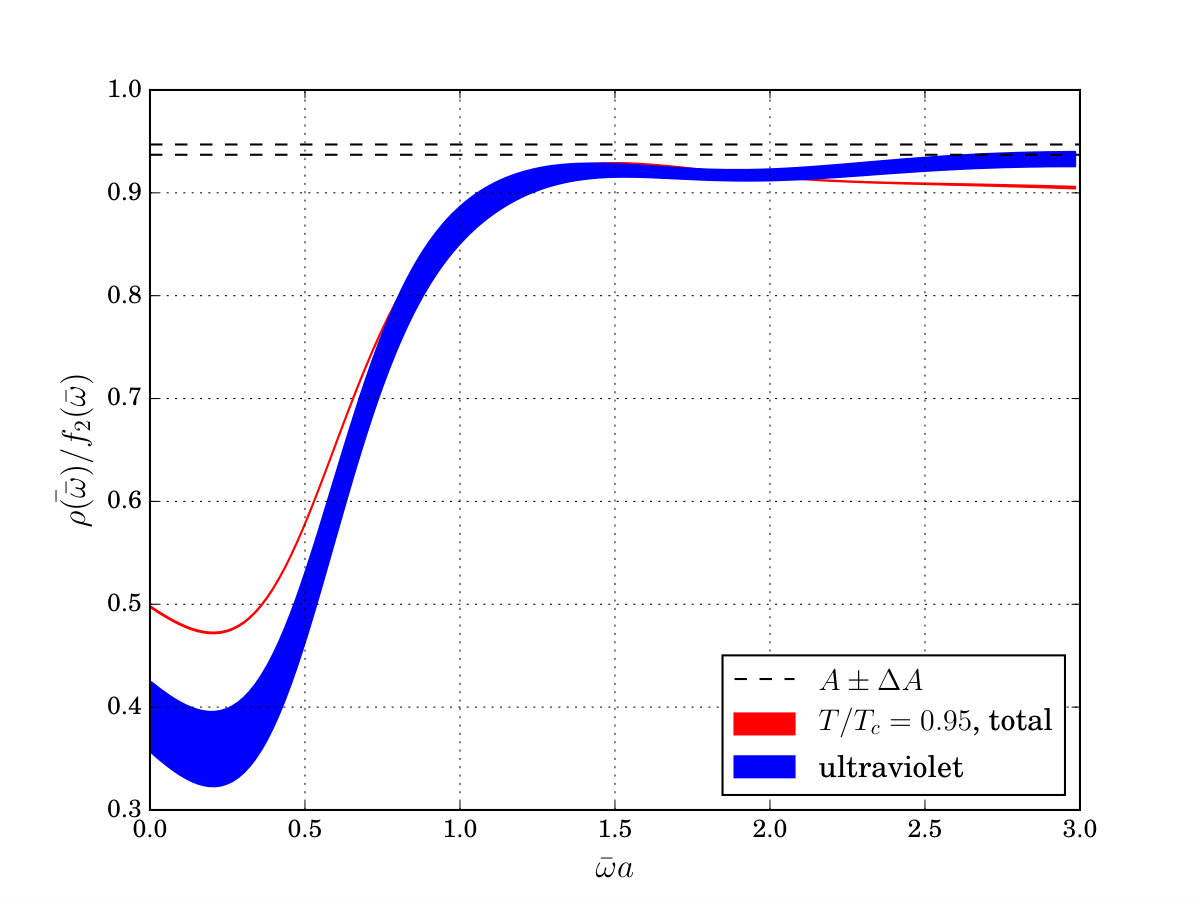

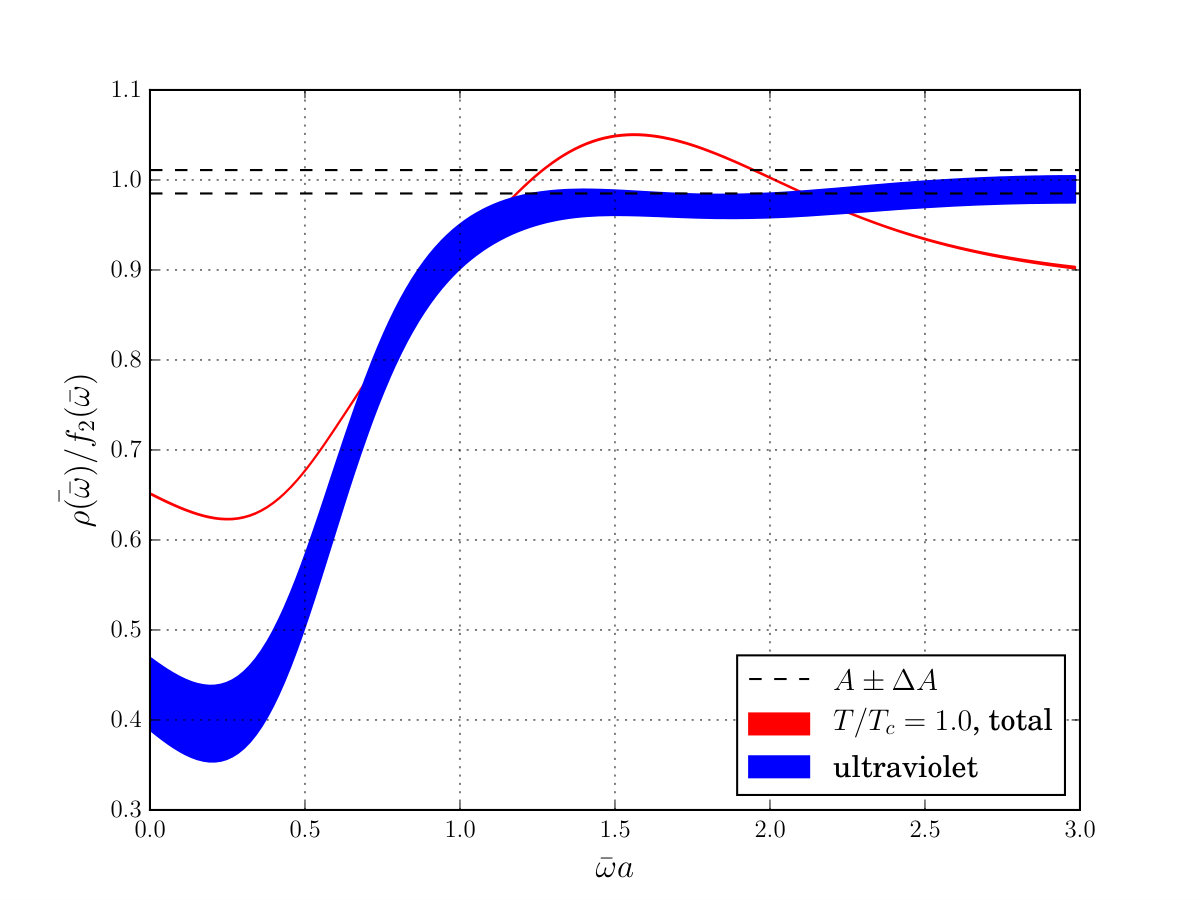

It is seen from Fig. 3 that the red curves can be separated into two parts. The first part is the spectral function for small frequencies $\bar{\omega}a\leqslant 0.5$ ($\bar{\omega}T\leqslant 8$). One can say that the spectral function in this region is in the infrared regime. After $\bar{\omega}a\sim 0.5$ ($\bar{\omega}T\sim 8$) there is a transition to the second regime where the spectral function is close to the ultraviolet asymptotic which is given by the constant $A$.

• •

It is also clear from Fig. 3 that the behavior of the blue curves which represents the ultraviolet contribution to the ratio $\bar{\rho}(\bar{\omega})/f_{2}(\bar{\omega})$ is similar to the red ones. In the ultraviolet regime the blue and red curves are close to each other. Transition from the ultraviolet to the infrared regime takes place within the same region in $\bar{\omega}a$.

• •

In the infrared region the red curves are higher than the blue ones. The difference between them can be attributed to contribution of the spectral functions at small frequencies. One sees that the smaller the temperature the smaller the difference. If we recall that shear viscosity is related to the spectral function at small frequencies one can state that shear viscosity drops with temperature. Our results assume that the entropy density $s$ drops with temperature more quickly than shear viscosity. As a result the ratio $\eta/s$ rises below $T_{c}$.

• •

From Fig. 3 one can see that in the ultraviolet region the restored spectral function is not a constant but some slowly varying function of the $\bar{\omega}a$. The deviation of this function from the asymptotic value $A$ obtained within fitting procedure is very small for all temperatures. For the most temperatures the deviation is few percent. The deviation of the restored spectral function from the asymptotic value $A$ can be attributed to radiative corrections to the tree level spectral function which, evidently, more complicated than constant.

The study carried out in this section allows us to state that formula (21) describes ultraviolet part of the spectral function quite well. For this reason below we are going to use (21) as a model for the ultraviolet part of the spectral function. The value of the constant $A$ will be determined from the variation of the restored ratio $\bar{\rho}(\bar{\omega})/f_{2}(\bar{\omega})$ in the region $\bar{\omega}a\in(1.5,3)$. This interval is chosen since the contribution of the infrared part of the spectral function is this region is small and the ratios $\bar{\rho}(\bar{\omega})/f_{2}(\bar{\omega})$ for all temperatures are in the ultraviolet regime. The values of the constants $A$ determined in this way are in agreement with that obtained within fitting procedure.

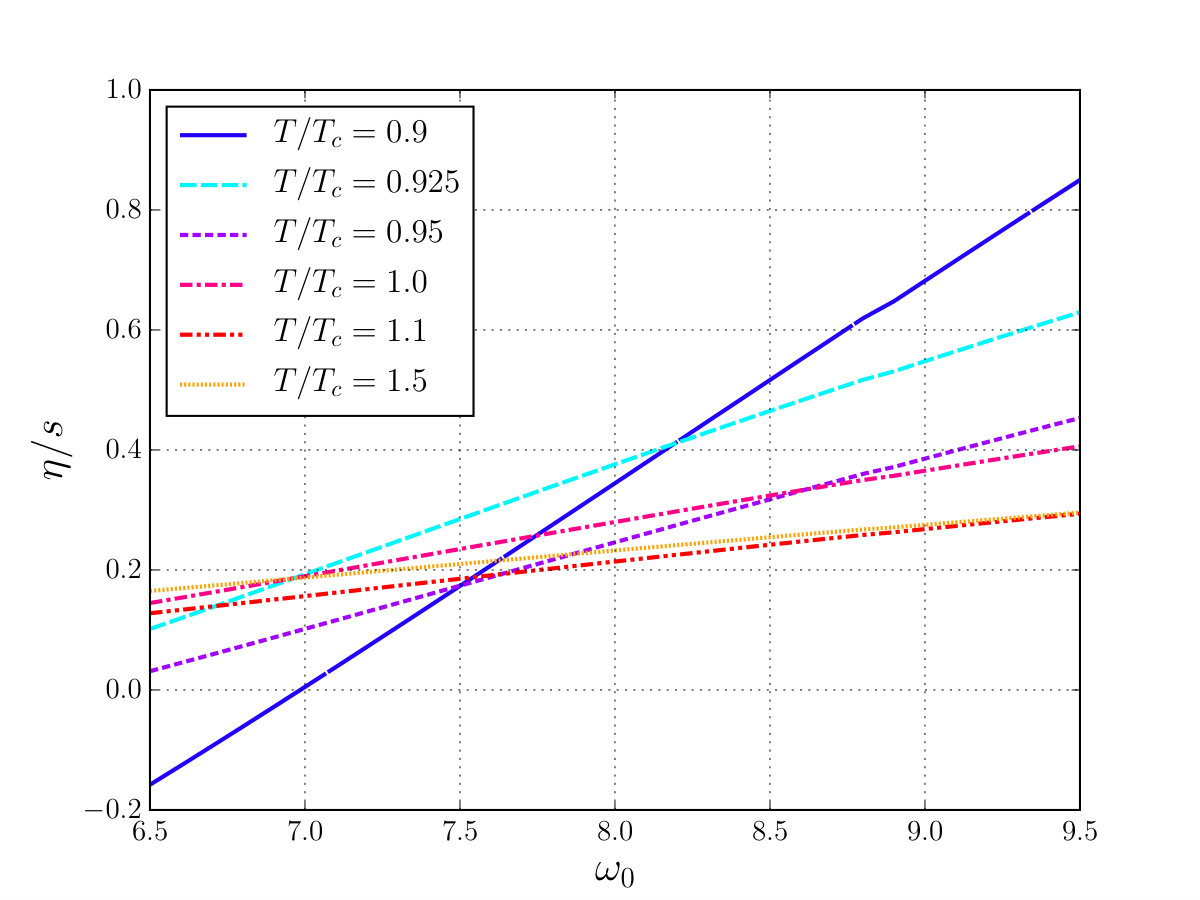

In addition to the constant $A$ the ultraviolet part (21) depends on the threshold parameters $\omega_{0}$. Thus, if one subtracts the ultraviolet contribution in the form (21), the ratio $\eta/s$ obtained within the BG method will depend on the value of $\omega_{0}$. To study this dependence in Fig. 4 we plot the ratio $\eta/s$ as a function of $\omega_{0}$ for the temperatures $T/T_{c}=0.9,0.925,0.95,1.0,1.1,1.5$. The curves for the temperatures $T/T_{c}=1.2,1.35$ are very close to the curve at $T/T_{c}=1.5$. For this reason we do not show these temperatures on the figure. The parameter $A$ is taken at the central value of the fit of lattice data by the function $\rho_{3}(\omega)$ (see Table 1). From Fig. 4 one sees that the larger the temperature the larger the slope of the curves and the weaker the dependence of the $\eta/s$ on $\omega_{0}$. The dependence of the $\eta/s$ on $\omega_{0}$ is weak for the temperatures $T/T_{c}\geqslant 1.0$ and it is stronger for the $T/T_{c}<1.0$. The strongest dependence of the $\eta/s$ on $\omega_{0}$ is for the temperature $T/T_{c}=0.9$. We believe that this property stems from the already mentioned fact: shear viscosity of gluodynamics drops with temperature and the extraction of viscosity from the observable which contains large ultraviolet contribution becomes more and more complicated for lower temperatures.

Unfortunately it is not quite clear how the value of the threshold parameter $\omega_{0}$ can be determined within the BG method. Note, however, that the position of the transition from the infrared to ultraviolet regime (see Fig. 3) coincide for both restored spectral function and for the function (21) with $\omega_{0}$ obtained within fitting procedure. Note also that the values of the parameter $A$ obtained within the BG method and fitting predure agrees quite well. For this reason one can expect that fitting procedure gives a good approximation for the value of $\omega_{0}$ and we will take it for the model of the ultraviolet contribution.

Subtracting the ultraviolet contribution from the ratio $\eta/s$ in the form (21) we get the results of this section. These results are shown in the third column of Table 2 and in Fig. 5. The uncertainties in Table 2 and in Fig. 5 are due to the uncertainties in the $A$, $\omega_{0}$, the entropy density $s$ and the renormalization constant of the energy-momentum tensor (see previous section). From Table 2 and Fig. 5 one sees that the results obtained within two approaches applied in this paper agree with each other.

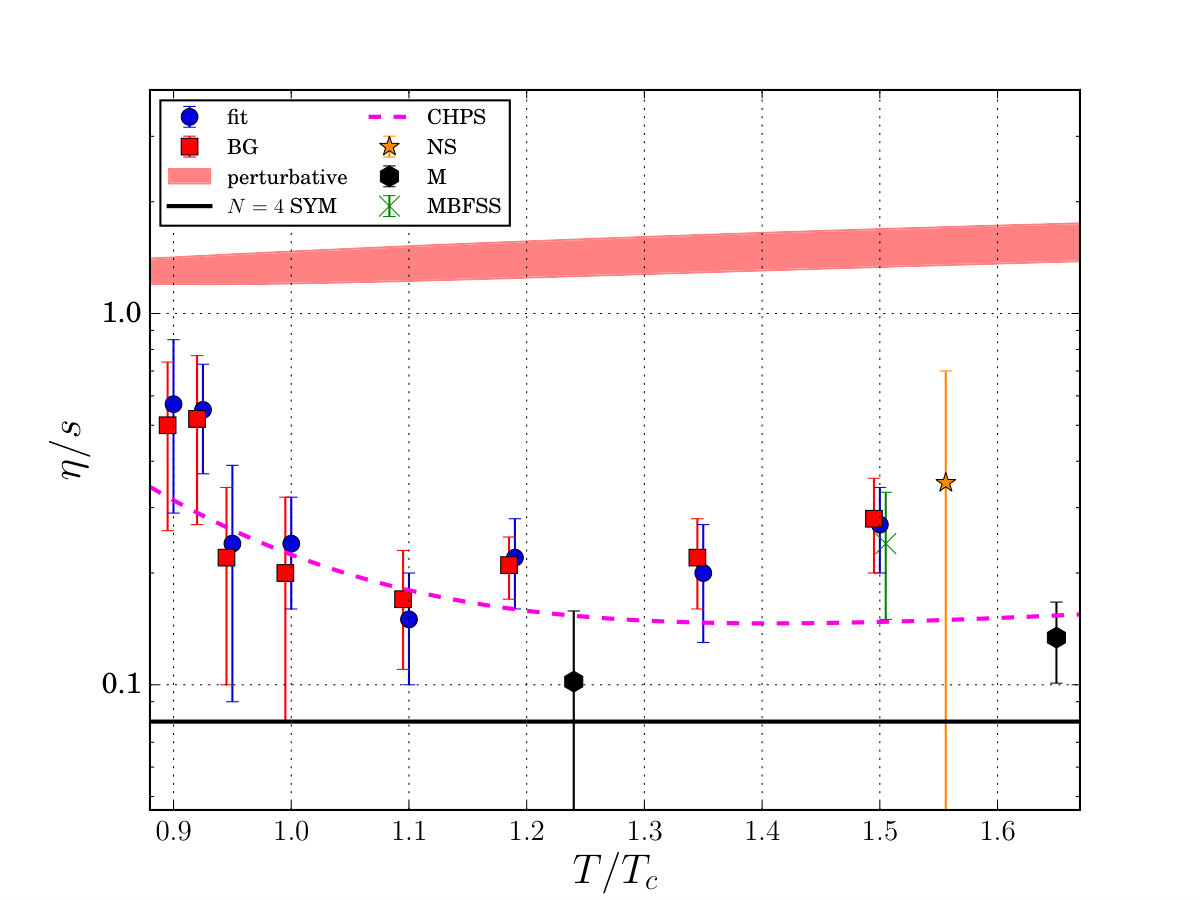

In addition to the results obtained in this paper in Fig. 5 we plot lattice results obtained in papers Nakamura and Sakai (2005); Meyer (2007); Mages:2015rea . It is seen that our results are in agreement with the previous lattice studies.

It is also interesting to draw the results of paper Christiansen:2014ypa . In this paper the authors calculated the shear viscosity in Yang-Mills theory using an exact diagrammatic representation in terms of full propagators and vertices using gluon spectral functions as external input. Our results are in agreement with the results of this paper.

In Fig. 5 we also plot the value of the ratio $\eta/s$ for the $N=4$ SYM theory at strong coupling $\eta/s=1/4\pi$ Policastro et al. (2001) and the results of perturbative calculation of the $\eta/s$. Perturbative results were obtained as follows. The scale $\Lambda$ for the running coupling constant in gluodynamics was taken from Capitani:1998mq . The entropy density $s$ was taken at one-loop accuracy Kapusta:2006 . We took perturbative results for shear viscosity at next-to-leading-log approximation from paper Arnold:2003zc . In order to estimate the uncertainty of the perturbative results we varied the scale in the region from the first to the second Matsubara frequency $\mu\in(2\pi T,4\pi T)$. Comparing our results with other approaches one can conclude that within the temperature range $T/T_{c}\in[0.9,1.5]$ SU(3)–gluodynamics reveals the properties of a strongly interacting system, which cannot be described perturbatively, and has the ratio $\eta/s$ close to the value $1/4\pi$ in $N=4$ Supersymmetric Yang-Mills theory.

Discussion and conclusion

This paper is aimed at studying the temperature dependence of shear viscosity of SU(3)–gluodynamics within lattice simulation. In particular, we measured the correlation functions of energy-momentum tensor $\langle T_{12}(x_{0})T_{12}(0)\rangle$ at lattice $16\times 32^{3}$ for the temperatures in the range $T/T_{c}\in[0.9,1.5]$. In order to get small uncertainties in our results we used two-level algorithm which allowed us to reach the accuracy not larger than $\sim 2-3\%$ at the distance $Tx_{0}=0.5$ for all temperatures under consideration. For the other points the accuracy is better.

Using lattice data for the correlation functions we calculated the ratios $\eta/s$ for the temperatures under consideration. To do this we used physically motivated ansatzes for the spectral function with unknown parameters. These papameters were determined through the fitting procedure. All ansatzes used in this paper are different ways of the interpolation between hydrodynamic behavior at small frequencies and asymptotic freedom at large frequencies. These ansatzes fit lattice data quite well for all temperatures. Another approach used to calculate the ratio $\eta/s$ is the Backus-Gilbert method.

In Table 2 and Fig. 5 we plot the results obtained in this paper. From Table 2 and Fig. 5 one sees that the results obtained within two approaches applied in this paper agree with each other.

In addition in Fig. 5 we plot lattice results obtained in papers Nakamura and Sakai (2005); Meyer (2007); Mages:2015rea . It is seen that our results are in agreement with the previous lattice studies. In Fig. 5 we also plot the value of the ratio $\eta/s$ for the $N=4$ SYM theory at strong coupling $\eta/s=1/4\pi$ and the results of perturbative calculation of the $\eta/s$. Comparing our results with other approaches one can conclude that the ratio $\eta/s$ for the gluodynamics is very close to $N=4$ SYM and cannot be described perturbatively.

It is also interesting to mention the results of paper Christiansen:2014ypa . In this paper the authors calculated the shear viscosity in Yang-Mills theory using an exact diagrammatic representation in terms of full propagators and vertices using gluon spectral functions as external input. Our results are in agreement with the results of this paper.

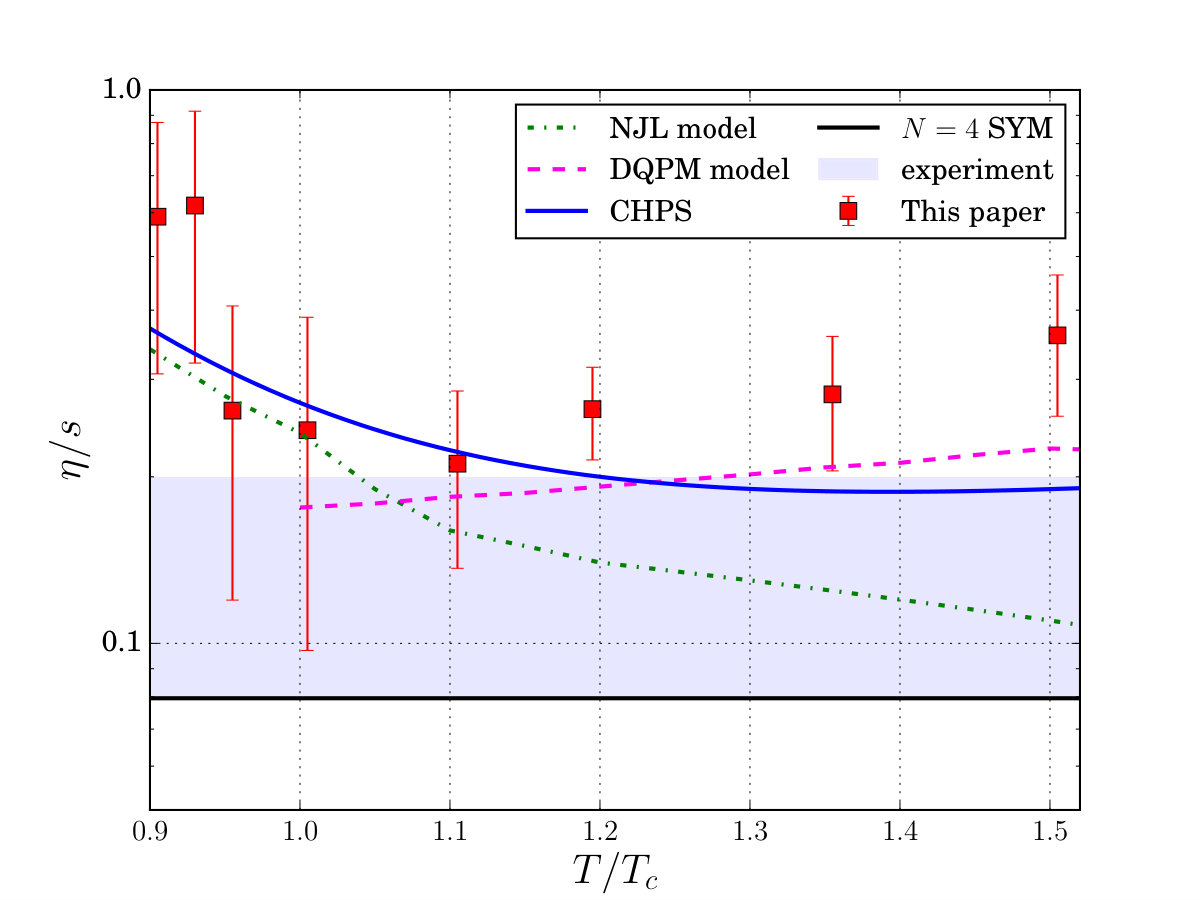

Today it is not possible to carry out lattice calculation of shear viscosity in QCD with dynamical fermions. However, one can estimate the ratio $\eta/s$ using the following formula

[TABLE]

The ratio \bigl{(}{\eta}/{s}\bigr{)}_{YM} is calculated in this paper, while the ratio \displaystyle\left(\frac{\eta}{s}\right)_{\mbox{QCD}}\bigg{/}\left(\frac{\eta}{s}\right)_{\mbox{YM}} for $N_{f}=3$ quarks was estimated in paper Christiansen:2014ypa . For the \bigl{(}{\eta}/{s}\bigr{)}_{YM} we took the result obtained using the BG method. Our results for the ratio \bigl{(}{\eta}/{s}\bigr{)}_{QCD} are shown in Table 2 and in Fig. 6. In addition in Fig. 6 we plot the estimation of the $\eta/s$ obtained within various models: NJL Marty:2013ita , dynamical quasiparticle approach Berrehrah:2016vzw , the result of paper Christiansen:2014ypa and $N=4$ SYM. Finally in Fig. 6 we plot the gray region which shows the experimental bound on the ratio $\eta/s$ found from experiment data Song:2012ua . It is seen that the results obtained in this paper agree with experiment.
