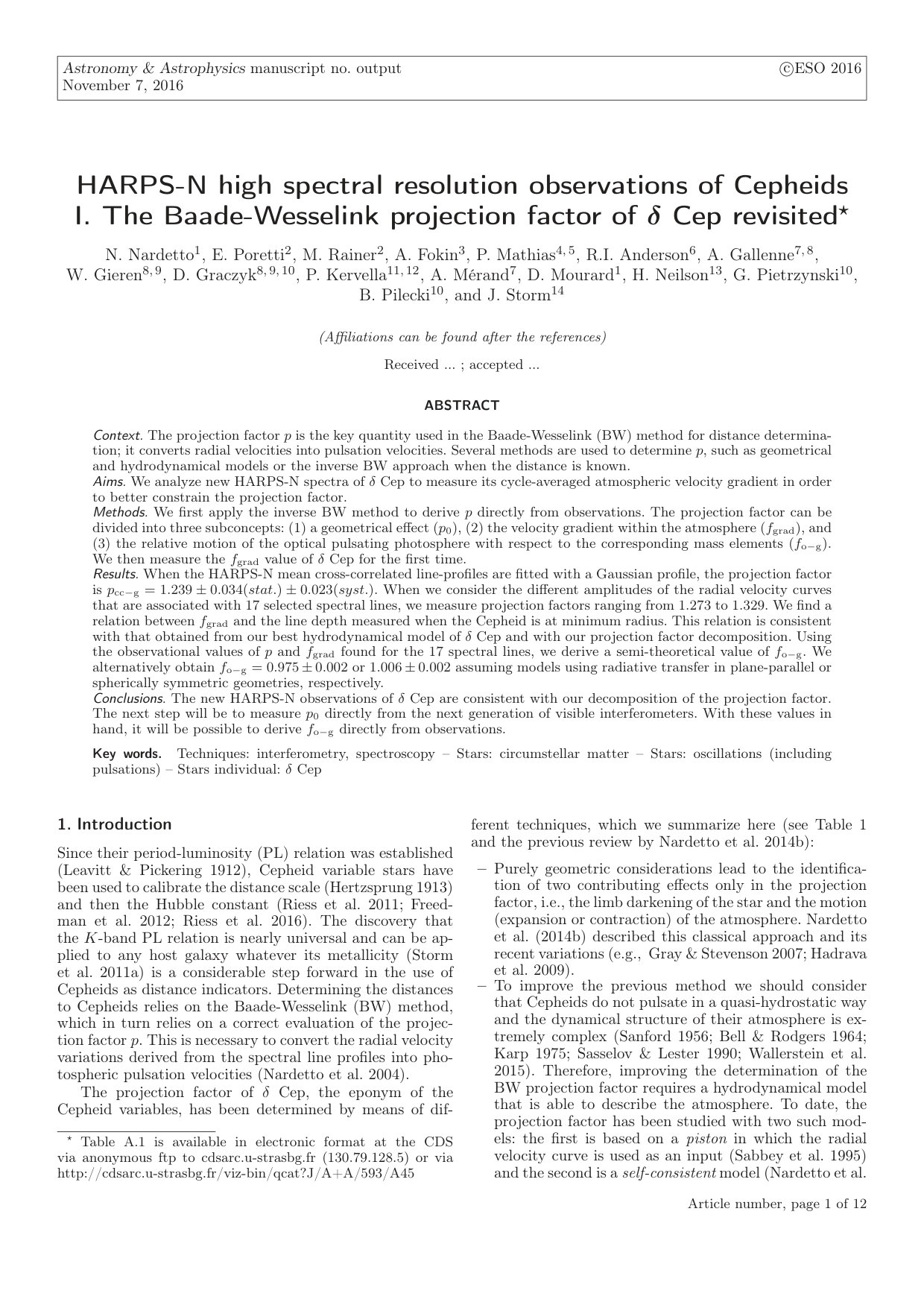

HARPS-N high spectral resolution observations of Cepheids I. The Baade-Wesselink projection factor of {\delta} Cep revisited

TL;DR

This study uses high-resolution HARPS-N spectra of delta Cep to refine the projection factor in the Baade-Wesselink method, improving distance measurements to Cepheids by analyzing atmospheric velocity gradients and spectral line variations.

Contribution

It provides the first measurement of the atmospheric velocity gradient in delta Cep and refines the projection factor decomposition using observational data and hydrodynamical models.

Findings

Derived a new projection factor pcc-g = 1.239 with uncertainties.

Established a relation between the velocity gradient and spectral line depth.

Estimated the optical-to-mass motion correction fo-g with high precision.

Abstract

The projection factor p is the key quantity used in the Baade-Wesselink (BW) method for distance determination; it converts radial velocities into pulsation velocities. Several methods are used to determine p, such as geometrical and hydrodynamical models or the inverse BW approach when the distance is known. We analyze new HARPS-N spectra of delta Cep to measure its cycle-averaged atmospheric velocity gradient in order to better constrain the projection factor. We first apply the inverse BW method to derive p directly from observations. The projection factor can be divided into three subconcepts: (1) a geometrical effect (p0); (2) the velocity gradient within the atmosphere (fgrad); and (3) the relative motion of the optical pulsating photosphere with respect to the corresponding mass elements (fo-g). We then measure the fgrad value of delta Cep for the first time. When the HARPS-N mean cross-correlated line-profiles are fitted with a Gaussian profile, the projection factor is pcc-g = 1.239 +/- 0.034(stat) +/- 0.023(syst). When we consider the different amplitudes of the radial velocity curves that are associated with 17 selected spectral lines, we measure projection factors ranging from 1.273 to 1.329. We find a relation between fgrad and the line depth measured when the Cepheid is at minimum radius. This relation is consistent with that obtained from our best hydrodynamical model of delta Cep and with our projection factor decomposition. Using the observational values of p and fgrad found for the 17 spectral lines, we derive a semi-theoretical value of fo-g. We alternatively obtain fo-g = 0.975+/-0.002 or 1.006+/-0.002 assuming models using radiative transfer in plane-parallel or spherically symmetric geometries, respectively. The new HARPS-N observations of delta Cep are consistent with our decomposition of the projection factor.

Figures

Tables

Table 1. Table 1: Non-exhaustive history of the determination of the Baade-Wesselink projection factor in the case of δ 𝛿 \delta  Cep. The method used to derive the radial velocity is indicated, and cc-g corresponds to a Gaussian fit of the cross-correlated line profile. For the values of the projection factor derived from a published period projection factor relation, we consistently use a period of P = 5.366208 𝑃 5.366208 P=5.366208 days (Engle et al., 2014 ) .

method	$p$	reference
Geometrical models
centroid	1.415	Getting (1934)
centroid	1.375	van Hoof & Deurinck (1952)
centroid	1.360	Burki et al. (1982)
centroid	1.328	Neilson et al. (2012)
Hydrodynamical models
bisector	1.34	Sabbey et al. (1995)
Gaussian	1.27 $\pm$ 0.01	Nardetto et al. (2004)
cc-g ($Pp$)	1.25 $\pm$ 0.05	Nardetto et al. (2009)
Observations
cc-g	1.273 $\pm$ 0.021 $\pm$ 0.050	Mérand et al. (2005)
cc-g	1.245 $\pm$ 0.030 $\pm$ 0.050	Groenewegen (2007)
cc-g	1.290 $\pm$ 0.020 $\pm$ 0.050	Merand et al. (2015)
cc-g ($Pp$)	1.47 $\pm$ 0.05	Gieren et al. (2005b)
cc-g ($Pp$)	1.29 $\pm$ 0.06	Laney & Joner (2009)
cc-g ($Pp$)	1.41 $\pm$ 0.05	Storm et al. (2011b)
cc-g ($Pp$)	1.325 $\pm$ 0.03	Groenewegen (2013)

Table 2. Table 2: HARPS-N spectroscopic data of δ 𝛿 \delta  Cep.

BJD	$\varphi$	RVcc-g	${\sigma }_{{\mathrm{RV}}_{\mathrm{cc}-g}}$	BJD	$\varphi$	RVcc-g	${\sigma }_{{\mathrm{RV}}_{\mathrm{cc}-g}}$
2457108.765	0.53	-9.6505	0.0004	2457174.601	0.80	2.8618	0.0009
2457109.760	0.71	-0.1170	0.0005	2457175.553	0.97	-34.7911	0.0010
2457112.747	0.27	-23.4763	0.0003	2457175.554	0.97	-34.8038	0.0009
2457113.753	0.46	-13.2657	0.0003	2457175.721	0.01	-35.3598	0.0008
2457137.747	0.93	-29.1695	0.0016	2457175.722	0.01	-35.3590	0.0008
2457142.728	0.85	-5.3965	0.0012	2457176.545	0.16	-29.4283	0.0008
2457143.703	0.04	-34.6591	0.0008	2457176.546	0.16	-29.4176	0.0008
2457143.704	0.04	-34.6507	0.0007	2457176.723	0.19	-27.7502	0.0006
2457144.709	0.22	-25.9233	0.0006	2457176.724	0.19	-27.7408	0.0006
2457144.710	0.22	-25.9144	0.0006	2457177.526	0.34	-19.6200	0.0007
2457145.712	0.41	-15.7395	0.0003	2457177.527	0.34	-19.6091	0.0007
2457145.714	0.41	-15.7263	0.0003	2457177.598	0.36	-18.8642	0.0005
2457146.695	0.59	-6.5524	0.0007	2457177.599	0.36	-18.8540	0.0006
2457146.696	0.59	-6.5400	0.0007	2457178.543	0.53	-9.5137	0.0007
2457147.726	0.79	3.0172	0.0012	2457178.544	0.53	-9.5015	0.0008
2457147.727	0.79	3.0182	0.0012	2457178.718	0.56	-7.9788	0.0011
2457148.704	0.97	-34.7264	0.0007	2457178.720	0.56	-7.9717	0.0020
2457148.705	0.97	-34.7357	0.0008	2457204.523	0.37	-18.0216	0.0005
2457153.719	0.90	-22.7805	0.0016	2457204.524	0.37	-18.0121	0.0005
2457153.720	0.90	-22.8391	0.0017	2457205.547	0.56	-8.0510	0.0007
2457154.659	0.08	-32.9507	0.0028	2457205.548	0.56	-8.0441	0.0007
2457154.661	0.08	-32.9407	0.0027	2457206.455	0.73	0.8814	0.0008
2457156.745	0.47	-12.6738	0.0016	2457206.457	0.73	0.8987	0.0007
2457157.695	0.64	-4.2804	0.0025	2457206.538	0.75	1.7037	0.0009
2457157.697	0.64	-4.2640	0.0023	2457206.539	0.75	1.7139	0.0009
2457159.734	0.02	-35.0911	0.0010	2457206.723	0.78	2.8518	0.0013
2457159.735	0.02	-35.0878	0.0010	2457206.724	0.78	2.8540	0.0015
2457169.546	0.85	-4.5949	0.0012	2457207.546	0.94	-30.6013	0.0009
2457169.547	0.85	-4.6461	0.0013	2457207.547	0.94	-30.6337	0.0009
2457169.614	0.86	-8.7664	0.0012	2457208.471	0.11	-31.8710	0.0010
2457169.615	0.87	-8.8388	0.0014	2457208.472	0.11	-31.8670	0.0010
2457170.558	0.04	-34.5581	0.0010	2457208.621	0.14	-30.5734	0.0011
2457170.559	0.04	-34.5525	0.0009	2457209.466	0.29	-22.3141	0.0008
2457170.718	0.07	-33.4392	0.0011	2457209.467	0.29	-22.3028	0.0010
2457170.719	0.07	-33.4328	0.0011	2457209.708	0.34	-19.8308	0.0006
2457170.721	0.07	-33.4184	0.0009	2457209.709	0.34	-19.8196	0.0006
2457170.721	0.07	-33.4142	0.0008	2457210.515	0.49	-11.7732	0.0009
2457171.536	0.22	-25.9946	0.0010	2457210.515	0.49	-11.7647	0.0009
2457171.540	0.22	-25.9575	0.0009	2457210.623	0.51	-10.7254	0.0008
2457171.600	0.24	-25.3673	0.0006	2457210.624	0.51	-10.7162	0.0008
2457171.602	0.24	-25.3431	0.0006	2457255.670	0.90	-22.2876	0.0014
2457172.596	0.42	-15.1771	0.0005	2457255.671	0.90	-22.3447	0.0013
2457172.598	0.42	-15.1607	0.0005	2457255.745	0.92	-26.4495	0.0010
2457172.712	0.44	-14.0256	0.0005	2457255.746	0.92	-26.5002	0.0009
2457172.713	0.44	-14.0132	0.0005	2457255.748	0.92	-26.6127	0.0010
2457173.530	0.59	-6.5085	0.0010	2457255.749	0.92	-26.6636	0.0010
2457173.532	0.60	-6.4944	0.0010	2457255.751	0.92	-26.7676	0.0010
2457173.725	0.63	-4.8069	0.0007	2457255.752	0.92	-26.8161	0.0010
2457173.726	0.63	-4.7941	0.0007	2457270.699	0.70	-0.9438	0.0008
2457174.531	0.78	2.8942	0.0013	2457270.700	0.71	-0.9308	0.0008
2457174.535	0.78	2.8976	0.0014	2457271.731	0.90	-20.0635	0.0007
2457174.597	0.79	2.8737	0.0008
days		${\text{km\hspace{0.17em}s}}^{-1}$	${\text{km\hspace{0.17em}s}}^{-1}$	days		${\text{km\hspace{0.17em}s}}^{-1}$	${\text{km\hspace{0.17em}s}}^{-1}$

Table 3. Table 3: Spectral lines used this study.

No.	El.	Wavelength (Å)	Ep (eV)	$\log \left(gf\right)$
1	Fe I	4683.560	2.831	-2.319
2	Fe I	4896.439	3.883	-2.050
3	Ni I	5082.339	3.658	-0.540
4	Fe I	5367.467	4.415	0.443
5	Fe I	5373.709	4.473	-0.860
6	Fe I	5383.369	4.312	0.645
7	Ti II	5418.751	1.582	-2.110
8	Fe I	5576.089	3.430	-1.000
9	Fe I	5862.353	4.549	-0.058
10	Fe I	6003.012	3.881	-1.120
11	Fe I	6024.058	4.548	-0.120
12	Fe I	6027.051	4.076	-1.089
13	Fe I	6056.005	4.733	-0.460
14	Si I	6155.134	5.619	-0.400
15	Fe I	6252.555	2.404	-1.687
16	Fe I	6265.134	2.176	-2.550
17	Fe I	6336.824	3.686	-0.856

Table 4. Table 4: The observational quantities, D 𝐷 D , p obs subscript 𝑝 obs p_{\mathrm{obs}} , and f grad subscript 𝑓 grad f_{\mathrm{grad}} , are listed for each line of Table  3 . The quantities p hydro subscript 𝑝 hydro p_{\mathrm{hydro}} , p 0 subscript 𝑝 0 p_{\mathrm{0}} and f o − g subscript 𝑓 o g f_{\mathrm{o-g}} are derived from hydrodynamical model.

	HARPS-N observations			Hydrodynamical model
line	D(a)	$p_{\mathrm{obs}\pm {\sigma }_{\mathrm{fluor}-\mathrm{stat}}\pm {\sigma }_{d-\mathrm{stat}}\pm {\sigma }_{d-\mathrm{syst}}}$(b)	$f_{\mathrm{grad}}$(c)	$p_{\mathrm{hydro}}$(d)	$p_0$(e)
line 1	0.281 ±0.001	1.287 ±0.031±0.014±0.023	0.983 ±0.007	1.307	1.360
line 2	0.147 ±0.001	1.323 ±0.031±0.014±0.023	0.991 ±0.004	1.328	1.365
line 3	0.348 ±0.001	1.280 ±0.031±0.014±0.023	0.979 ±0.009	1.304	1.369
line 4	0.573 ±0.001	1.282 ±0.031±0.014±0.023	0.967 ±0.014	1.292	1.375
line 5	0.297 ±0.001	1.297 ±0.031±0.014±0.023	0.982 ±0.008	1.309	1.375
line 6	0.612 ±0.001	1.282 ±0.031±0.014±0.023	0.964 ±0.015	1.288	1.375
line 7	0.562 ±0.001	1.273 ±0.031±0.014±0.023	0.967 ±0.014	1.272	1.376
line 8	0.500 ±0.001	1.285 ±0.031±0.014±0.023	0.971 ±0.012	1.297	1.378
line 9	0.364 ±0.001	1.307 ±0.031±0.014±0.023	0.979 ±0.009	1.302	1.383
line 10	0.326 ±0.001	1.329 ±0.031±0.014±0.023	0.981 ±0.008	1.301	1.387
line 11	0.429 ±0.001	1.295 ±0.031±0.014±0.023	0.975 ±0.011	1.304	1.385
line 12	0.283 ±0.001	1.300 ±0.031±0.014±0.023	0.983 ±0.007	1.312	1.385
line 13	0.290 ±0.002	1.294 ±0.031±0.014±0.023	0.983 ±0.008	1.304	1.386
line 14	0.317 ±0.002	1.292 ±0.031±0.014±0.023	0.981 ±0.008	1.310	1.387
line 15	0.497 ±0.001	1.280 ±0.031±0.014±0.023	0.971 ±0.012	1.290	1.389
line 16	0.348 ±0.001	1.301 ±0.031±0.014±0.023	0.979 ±0.009	1.301	1.389
line 17	0.366 ±0.001	1.323 ±0.031±0.014±0.023	0.978 ±0.009	1.297	1.390

Equations

$${\chi }^2=\sum _i\frac{({\theta }_{\mathrm{obs}}({\varphi }_i)-{\theta }_{\mathrm{model}}({\varphi }_i){)}^2}{{\sigma }_{\mathrm{obs}}({\varphi }_i{)}^2},$$

$${\theta }_{\mathrm{model}}({\varphi }_i)=\overline{\theta }+9.3009\frac{p_{\mathrm{cc}-\mathrm{g}}}{d}\left(\int R{V}_{\mathrm{cc}-\mathrm{g}}({\varphi }_i)d{\varphi }_i\right)[\mathrm{mas}],$$

$$R{V}_{\mathrm{c}}=\frac{{\int }_{\mathrm{line}}\lambda S(\lambda )d\lambda }{{\int }_{\mathrm{line}}S(\lambda )d\lambda },$$

$$\Delta R{V}_{\mathrm{c}}=a_{0}D+b_0,$$

$$f_{\mathrm{grad}}=\frac{b_0}{a_{0}D+b_0}.$$

$$\Delta R{V}_{\mathrm{c}}[\mathrm{obs}]=[2.86\pm 0.84]D+[35.40\pm 0.36].$$

$$\Delta R{V}_{\mathrm{c}}[\mathrm{mod}]=[2.90\pm 0.39]D+[32.84\pm 0.13].$$

$$\Delta R{V}_{\mathrm{c}}[\mathrm{mod}]=[2.90D+32.84]\ast f_{\mathrm{c}}.$$

$$f_{\mathrm{o}-\mathrm{g}}=\frac{p_{\mathrm{obs}}(k)}{p_{\mathrm{o}}(k)f_{\mathrm{grad}}(k)},$$

Full text

*Aims. *We analyze new HARPS-N spectra of $\delta$ Cep to measure its cycle-averaged atmospheric velocity gradient in order to better constrain the projection factor.

*Methods. *We first apply the inverse BW method to derive $p$ directly from observations. The projection factor can be divided into three subconcepts: (1) a geometrical effect ($p_{\mathrm{0}}$), (2) the velocity gradient within the atmosphere ($f_{\mathrm{grad}}$), and (3) the relative motion of the optical pulsating photosphere with respect to the corresponding mass elements ($f_{\mathrm{o-g}}$). We then measure the $f_{\mathrm{grad}}$ value of $\delta$ Cep for the first time.

*Results. *When the HARPS-N mean cross-correlated line-profiles are fitted with a Gaussian profile, the projection factor is $p_{\mathrm{cc-g}}=1.239\pm 0.034(stat.)\pm 0.023(syst.)$. When we consider the different amplitudes of the radial velocity curves that are associated with 17 selected spectral lines, we measure projection factors ranging from 1.273 to 1.329. We find a relation between $f_{\rm grad}$ and the line depth measured when the Cepheid is at minimum radius. This relation is consistent with that obtained from our best hydrodynamical model of $\delta$ Cep and with our projection factor decomposition. Using the observational values of $p$ and $f_{\mathrm{grad}}$ found for the 17 spectral lines, we derive a semi-theoretical value of $f_{\mathrm{o-g}}$. We alternatively obtain $f_{\mathrm{o-g}}=0.975\pm 0.002$ or $1.006\pm 0.002$ assuming models using radiative transfer in plane-parallel or spherically symmetric geometries, respectively.

*Conclusions. *The new HARPS-N observations of $\delta$ Cep are consistent with our decomposition of the projection factor. The next step will be to measure $p_{\mathrm{0}}$ directly from the next generation of visible interferometers. With these values in hand, it will be possible to derive $f_{\mathrm{o-g}}$ directly from observations.

1 Introduction

Since their period-luminosity (PL) relation was established (Leavitt & Pickering, 1912), Cepheid variable stars have been used to calibrate the distance scale (Hertzsprung, 1913) and then the Hubble constant (Riess et al., 2011; Freedman et al., 2012; Riess et al., 2016). The discovery that the $K$-band PL relation is nearly universal and can be applied to any host galaxy whatever its metallicity (Storm et al., 2011a) is a considerable step forward in the use of Cepheids as distance indicators. Determining the distances to Cepheids relies on the Baade-Wesselink (BW) method, which in turn relies on a correct evaluation of the projection factor $p$. This is necessary to convert the radial velocity variations derived from the spectral line profiles into photospheric pulsation velocities (Nardetto et al., 2004).

The projection factor of $\delta$ Cep, the eponym of the Cepheid variables, has been determined by means of different techniques, which we summarize here (see Table 1 and the previous review by Nardetto et al. 2014b):

• •

Purely geometric considerations lead to the identification of two contributing effects only in the projection factor, i.e., the limb darkening of the star and the motion (expansion or contraction) of the atmosphere. Nardetto et al. (2014b) described this classical approach and its recent variations (e.g., Gray & Stevenson, 2007; Hadrava et al., 2009).

• •

To improve the previous method we should consider that Cepheids do not pulsate in a quasi-hydrostatic way and the dynamical structure of their atmosphere is extremely complex (Sanford, 1956; Bell & Rodgers, 1964; Karp, 1975; Sasselov & Lester, 1990; Wallerstein et al., 2015). Therefore, improving the determination of the BW projection factor requires a hydrodynamical model that is able to describe the atmosphere. To date, the projection factor has been studied with two such models: the first is based on a piston in which the radial velocity curve is used as an input (Sabbey et al., 1995) and the second is a self-consistent model (Nardetto et al., 2004). Sabbey et al. (1995) found a mean value of the projection factor $p=1.34$ (see also Marengo et al., 2002, 2003). However, this value was derived using the bisector method of the radial velocity determination (applied to the theoretical line profiles). This makes it difficult to compare this value with other studies. As commonly done in the literature, if a Gaussian fit of the cross-correlated line-profile is used to derive the radial velocity RVcc-g (“cc” for cross-correlated and “g” for Gaussian), then the measured projection factor tends to be about 11% smaller than the initial geometrical projection factor is found, i.e., $p=1.25\pm 0.05$ (Nardetto et al., 2009).

• •

As an approach entirely based on observations, Mérand et al. (2005) applied the inverse BW method to infrared interferometric data of $\delta$ Cep. The projection factor is then fit, where the distance of $\delta$ Cep is known with 4% uncertainty from the HST parallax ($d=274\pm 11$ pc; Benedict et al. 2002). They found $p=1.273\pm 0.021\pm 0.050$ using RVcc-g for the radial velocity. The first error is the internal one due to the fitting method. The second is due to the uncertainty of the distance. Groenewegen (2007) found $p=1.245\pm 0.030\pm 0.050$ when using almost the same distance (273 instead of 274 pc), a different radial velocity dataset and a different fitting method of the radial velocity curve. Recently, Merand et al. (2015) applied an integrated inverse method (SPIPS) to $\delta$ Cep (by combining interferometry and photometry) and found $p=1.29\pm 0.02\pm 0.05.$ These values agree closely with the self-consistent hydrodynamical model. Another slightly different approach is to apply the infrared surface brightness inverse method to distant Cepheids (see Fouque & Gieren, 1997; Kervella et al., 2004a for the principles) in order to derive a period projection factor relation ($Pp$). In this approach the distance to each LMC Cepheid is assumed to be the same by taking into account the geometry of LMC. This constrains the slope of the $Pp$ relation. However, its zero-point is alternatively fixed using distances to Cepheids in Galactic clusters (Gieren et al., 2005b), HST parallaxes of nearby Cepheids derived by van Leeuwen et al. (2007) (Laney & Joner, 2009; Storm et al., 2011b), or a combination of both (Groenewegen, 2013). Laney & Joner (2009) also used high-amplitude $\delta$ Scuti stars to derive their $Pp$ relation (see also Fig. 10 in Nardetto et al., 2014a). The projection factors derived by Laney & Joner (2009) and Groenewegen (2013) are consistent with the interferometric values, while the projection factors from Gieren et al. (2005b) and Storm et al. (2011b) are significantly greater (see Table 1).

• •

Pilecki et al. (2013) constrained the projection factor using a short-period Cepheid ($P=3.80$ d, similar to the period of $\delta$ Cep) in a eclipsing binary system. They found $p=1.21\pm 0.04$.

This non-exhaustive review shows just how complex the situation regarding the value of the BW projection factor of $\delta$ Cep is. This paper is part of the international “Araucaria Project”, whose purpose is to provide an improved local calibration of the extragalactic distance scale out to distances of a few megaparsecs (Gieren et al., 2005a). In Sect. 2 we present new High Accuracy Radial velocity Planet Searcher for the Northern hemisphere (HARPS-N) observations. Using these spectra together with the Mérand et al. (2005) data obtained with the Fiber Linked Unit for Optical Recombination (FLUOR, Coudé du Foresto et al., 1997) operating at the focus of the Center for High Angular Resolution Astronomy (CHARA) array (ten Brummelaar et al., 2005) located at the Mount Wilson Observatory (California, USA), we apply the inverse BW method to derive the projection factor associated with the RVcc-g radial velocity and for 17 individual spectral lines (Sect. 3). In Sect. 4, we briefly describe the hydrodynamical model used in Nardetto et al. (2004) and review the projection factor decomposition into three sub-concepts ($p=p_{\mathrm{0}}f_{\mathrm{grad}}f_{\mathrm{o-g}}$, Nardetto et al. 2007). In Sect. 4.1, we compare the observational and theoretical projection factors. We then compare the hydrodynamical model with the observed atmospheric velocity gradient (Sect. 4.2) and the angular diameter curve of FLUOR/CHARA (Sect. 4.3). In Sect. 5 we derive the $f_{\mathrm{o-g}}$ quantity from the previous sections. We conclude in Sect. 6.

2 HARPS-N spectroscopic observations

HARPS-N is a high-precision radial-velocity spectrograph installed at the Italian Telescopio Nazionale Galileo (TNG), a 3.58-meter telescope located at the Roque de los Muchachos Observatory on the island of La Palma, Canary Islands, Spain (Cosentino et al., 2012). HARPS-N is the northern hemisphere counterpart of the similar HARPS instrument installed at the ESO 3.6 m telescope at La Silla Observatory in Chile. The instrument covers the wavelength range from 3800 to 6900 Å with a resolving power of $R\simeq 115000$. A total of 103 spectra were secured between 27 March and 6 September 2015 in the framework of the OPTICON proposal 2015B/015 (Table 2). In order to calculate the pulsation phase of each spectrum, we used $P=5.366208$ d (Engle et al., 2014) and $T_{0}=2457105.930$ d, the time corresponding to the maximum approaching velocity determined from the HARPS-N radial velocities. The data are spread over 14 of the 30 pulsation cycles elapsed between the first and last epoch. The final products of the HARPS-N data reduction software (DRS) installed at TNG (on-line mode) are background-subtracted, cosmic-corrected, flat-fielded, and wavelength-calibrated spectra (with and without merging of the spectral orders). We used these spectra to compute the mean-line profiles by means of the least-squares deconvolution (LSD) technique (Donati et al., 1997). As can be seen in Fig. 1, the mean profiles reflect the large-amplitude radial pulsation by distorting the shape in a continuous way.

The DRS also computes the star’s radial velocity by fitting a Gaussian function to the cross-correlation functions (CCFs). To do this, the DRS uses a mask including thousands of lines covering the whole HARPS-N spectral ranges. The observer can select the mask among those available online and the G2 mask was the closest to the $\delta$ Cep spectral type. As a further step, we re-computed the RV values by using the HARPS-N DRS in the offline mode on the Yabi platform, as in the case of $\tau$ Boo (Borsa et al., 2015). We applied both library and custom masks, ranging spectral types from F5 to G2. We obtained RV curves fitted with very similar sets of least-squares parameters showing only some small changes in the mean values. Table 2 lists the $\mathrm{RV_{\mathrm{cc-g}}}$ values obtained from the custom F5I mask, also plotted in panel a) of Fig. 2 with different symbols for each pulsation cycle. The RV curve shows a full amplitude of 38.4 $\mbox{km\,s}^{-1}$   and an average value (i.e., the A0 value of the fit) of $V_{\gamma}=-16.95$ $\mbox{km\,s}^{-1}$ . As a comparison, we calculate the centroid of the mean line profiles $\mathrm{RV_{\mathrm{cc-c}}}$ (“cc” for cross-correlated and “c” for centroid) and plot the residuals in panel b) of Fig. 2. The $\mathrm{RV_{\mathrm{cc-c}}}$ curve has an amplitude 1.2 $\mbox{km\,s}^{-1}$   lower than that of the $\mathrm{RV_{\mathrm{cc-g}}}$ value. This result is similar to that reported in the case of $\beta$ Dor (Fig. 2 in Nardetto et al., 2006). The implications of this difference on the projection factor is discussed in Sect. 3.1.

Consistent with Anderson et al. (2015), we find no evidence for cycle-to-cycle differences in the RV amplitude as exhibited by long-period Cepheids (Anderson, 2014; Anderson et al., 2016). We also investigated the possible effect of the binary motion due to the companion (Anderson et al., 2015). Unfortunately, the HARPS-N observations are placed on the slow decline of the RV curve and they only span 160 days. We were able to detect a slow drift of $-0.5\pm 0.1$ m s*-1* d*-1*. The least-squares solution with 14 harmonics leaves a r.m.s. residual of 49 m s*-1*. Including a linear trend did not significantly reduce the residual since the major source of error probably lies in the fits of the very different shapes of the mean-line profiles along the pulsation cycle (Fig. 1). We also note that surface effects induced by convection and granulation (Neilson & Ignace, 2014) could contribute to increasing the residual r.m.s. These effects are also observed in the light curves of Cepheids (Derekas et al., 2012; Evans et al., 2015; Poretti et al., 2015; Derekas et al., 2016).

3 Inverse Baade-Wesselink projection factors derived from observations

3.1 Using the cross-correlated radial velocity curve

We describe the interferometric version of the BW method as follows. We apply a classical ${\chi}^{2}$ minimization

[TABLE]

where

• •

$\theta_{\rm obs}(\phi_{i})$ are the interferometric limb-darkened angular diameters obtained from FLUOR/CHARA observations (Mérand et al., 2005), with $\phi_{i}$ the pulsation phase corresponding to the $i$-th measurement (Fig. 3);

• •

$\sigma_{\rm obs}(\phi_{i})$ are the statistical uncertainties corresponding to FLUOR/CHARA measurements;

• •

$\theta_{\rm model}(\phi_{i})$ are the modeled limb-darkened angular diameters, defined as

[TABLE]

where the conversion factor 9.3009 is defined using the solar radius given in Prša et al. (2016).

The $RV_{\mathrm{cc-g}}(\phi_{i})$ is the interpolated HARPS-N cross-correlated radial velocity curve shown in panel a) of Fig. 2. It is obtained using the Gaussian fit, i.e., the most common approach in the literature. The parameters $\overline{\theta}$ and $p_{\mathrm{cc-g}}$ are the mean angular diameter of the star (in mas) and the projection factor (associated with the Gaussian fit of the CCFs), respectively, while $d$ is the distance to the star. The quantities $\overline{\theta}$ and $p_{\mathrm{cc-g}}$ are fit in order to minimize ${\chi}^{2}$, while $d$ is fixed to $d=272\pm 3(stat.)\pm 5(syst.)$ pc (Majaess et al., 2012).

We find $\overline{\theta}=1.466\pm 0.007$ mas and $p_{\mathrm{cc-g}}=1.239\pm 0.031$, where the uncertainty on the projection factor (hereafter $\sigma_{\mathrm{stat-fluor}}$) is about 2.5% and stems from FLUOR/CHARA angular diameter measurements. If we apply this procedure 10,000 times using a Gaussian distribution for the assumed distance that is centered at $272$ pc and has a half width at half maximum (HWHM) of $3$ pc (corresponding to the statistical precision on the distance of Majaess et al. 2012), then we obtain a symmetric distribution for the 10,000 values of $p_{\mathrm{cc-g}}$ with a HWHM $\sigma_{\mathrm{stat-d}}=0.014$. If the distance is set to $277$ pc and $267$ pc (corresponding to the systematical uncertainty of $\pm 5$ pc of Majaess et al. 2012), we find $p=1.262$ and $p=1.216$, respectively. We have a systematical uncertainty $\sigma_{\mathrm{syst-d}}=0.023$ for the projection factor. We thus find $p_{\mathrm{cc-g}}=1.239\pm 0.031$ ($\sigma_{\mathrm{stat-fluor}}$) $\pm 0.014$ ($\sigma_{\mathrm{stat-d}}$) $\pm 0.023$ ($\sigma_{\mathrm{syst-d}}$). These results are illustrated in Fig. 4. Interestingly, if we use the RVcc-c curve in Eq. 2 (still keeping $d=272$ pc), we obtain $p_{\mathrm{cc-c}}=1.272$ while the uncertainties remain unchanged.

The distance of $\delta$ Cep obtained by Majaess et al. (2012) is an average of Hipparcos (van Leeuwen, 2007) and HST (Benedict et al., 2002) trigonometric parallaxes, together with the cluster main sequence fitting distance. If we rely on the direct distance to $\delta$ Cep obtained only by HST (Benedict et al., 2002), i.e., $273\pm 11$ pc, then $\sigma_{\mathrm{stat-d}}$ is larger with a value of $0.050$ (compared to 0.014 when relying on Majaess et al. 2012). A distance $d=244\leavevmode\nobreak\ \pm\leavevmode\nobreak\ 10$ pc was obtained by Anderson et al. (2015) from the reanalysis of the Hipparcos astrometry of $\delta$ Cep. It leads to a very small projection factor $p_{\mathrm{cc-g}}=1.14\pm 0.031\pm 0.047$ compared to other values listed in Table 1.

3.2 Using the first moment radial velocity curves corresponding to individual spectral lines

We use the 17 unblended spectral lines (Table 3) that were previously selected for an analysis of eight Cepheids with periods ranging from 4.7 to 42.9 d (Nardetto et al., 2007). These lines remain unblended for every pulsation phase of the Cepheids considered. Moreover, they were carefully selected in order to represent a wide range of depths, hence to measure the atmospheric velocity gradient (Sect. 4.2). For each of these lines, we derive the centroid velocity ($RV_{\mathrm{c}}$), i.e., the first moment of the spectral line profile, estimated as

[TABLE]

where $S(\lambda)$ is the observed line profile. The radial velocity measurements associated with the spectral lines are presented in Fig. 5a together with the interpolated RVcc-g curve. The RVc curves plotted have been corrected for the $\gamma$-velocity value corresponding to the RVcc-g curve, i.e., $V_{\mathrm{\gamma}}=-16.95$ $\mbox{km\,s}^{-1}$ . The residuals, i.e., the $\gamma$-velocity offsets, between the curves of Fig. 5a are related to the line asymmetry and the k-term value (see Nardetto et al., 2008 for Cepheids and Nardetto et al., 2013, 2014a for other types of pulsating stars). This will be analyzed in a forthcoming paper. The final RVc curves used in the inverse BW approach are corrected from their own residual $\gamma$-velocity in such a way that the interpolated curve has an average of zero. The residual of these curves compared to the RVcc-g and RVcc-c curves are shown in panel b) and c), respectively. We then apply the same method as in Sect. 3.1. The measured projection factor values $p_{\mathrm{obs}}$($k$) associated with each spectral line $k$ are listed in Table 4. The statistical and systematical uncertainties in the case of individual lines are the same as those found when using the RVcc-g curve. The projection factor values range from $1.273$ (line 7) to $1.329$ (line 10), whereas the value corresponding to the cross-correlation method is $1.239$ (see Fig. 4). This shows that the projection factor depends significantly on the method used to derive the radial velocity and the spectral line considered. To analyze these values it is possible to use hydrodynamical simulations and the projection factor decomposition into three terms introduced by Nardetto et al. (2007).

4 Comparing the hydrodynamical model of $\delta$ Cep with observations

Our best model of $\delta$ Cep was presented in Nardetto et al. (2004) and is computed using the code by Fokin (1991). The hydrodynamical model requires only five input fundamental parameters: $M=4.8\,M_{\odot}$, $L=1995\,L_{\odot}$, $T_{\rm eff}=5877$ K, $Y=0.28$, and $Z=0.02$. At the limit cycle the pulsation period is $5.419$ d, very close (1%) to the observed value.

4.1 Baade-Wesselink projection factors derived from the hydrodynamical model

The projection factors are derived directly from the hydrodynamical code for each spectral line of Table 3 following the definition and procedure described in Nardetto et al. (2007). The computed projection factors range from $1.272$ (line 7) to $1.328$ (line 2). In Fig. 6 we plot the theoretical projection factors ($p_{\mathrm{hydro}}$) as a function of the observational values (listed in Table 4). In this figure the statistical uncertainties on the observational projection factors, i.e., $\sigma_{\mathrm{stat-fluor}}$ and $\sigma_{\mathrm{stat-d}}$, have been summed quadratically (i.e., $\sigma=0.034$). The agreement is excellent since the most discrepant lines (10 and 17, in red in the figure) show observational projection factor values only about 1$\sigma$ larger than the theoretical values.

4.2 Atmospheric velocity gradient of $\delta$ Cep

In Nardetto et al. (2007), we split the projection factor into three quantities: $p=p_{\mathrm{o}}\,f_{\mathrm{grad}}\,f_{\mathrm{o-g}}$, where $p_{\mathrm{0}}$ is the geometrical projection factor (linked to the limb darkening of the star); $f_{\mathrm{grad}}$, which is a cycle-integrated quantity linked to the velocity gradient in the atmosphere of the star (i.e., between the considered line-forming region and the photosphere); and $f_{\mathrm{o-g}}$, which is the relative motion of the optical pulsating photosphere with respect to the corresponding mass elements.

We derive $f_{\mathrm{grad}}$ directly from HARPS-N observations. In Nardetto et al. (2007), we showed that the line depth taken at the minimum radius phase (hereafter $D$) traces the height of the line-forming regions in such a way that the projection factor decomposition is possible. By comparing $\Delta RV_{\mathrm{c}}$ with the depth, $D$, of the 17 selected spectral lines listed in Table 3, we directly measure $f_{\mathrm{grad}}$. If we define $a_{0}$ and $b_{0}$ as the slope and zero-point of the linear correlation (the photosphere being the zero line depth),

[TABLE]

then the velocity gradient correction on the projection factor is

[TABLE]

In Anderson (2016) the atmospheric velocity gradient is defined as the difference between velocities determined using weak and strong lines at each pulsation phase. In our description of the projection factor, $f_{\mathrm{grad}}$ is calculated with Eqs. 4 and  5, i.e., considering the amplitude of the radial velocity curves from individual lines. In the following we thus refer to $f_{\mathrm{grad}}$ as a cycle integrated quantity.

In Fig. 7 we plot the HARPS-N measurements with blue dots, except for lines 10 and 17 for which we use red squares. These two values are about 2$\sigma$ below the other measurements, as already noted in Fig. 6. After fitting all measured $\Delta RV_{\mathrm{c}}\mathrm{[obs]}$ with a linear relation we find

[TABLE]

The reduced $\chi^{2}$ is 1.4 and decreases to 1.1 if lines 10 and 17 are not considered (but with approximately the same values of $a_{0}$ and $b_{0}$). For comparison, the reduced $\chi^{2}$ is 2.5 if a horizontal line is fitted. The same quantities derived from the hydrodynamical model are shown in Fig. 7 ($\Delta RV_{\mathrm{c}}\mathrm{[mod]}$, magenta squares). The corresponding relation is

[TABLE]

The slopes of Eq. 6 and 7 are consistent, while the theoretical zero-point is about 2.6 $\mbox{km\,s}^{-1}$ below the corresponding observational value, which means that the amplitudes of the theoretical radial velocity curves are 2.6 $\mbox{km\,s}^{-1}$ (or 7.8%) smaller on average. Such disagreement occurs because our code is self-consistent, i.e., the radial velocity curve is not used as an input like in a piston code, and because the treatment of convection in the code is missing which can slightly bias (by a few percent) the input fundamental parameters. The two- or three-dimensional models that properly describe the coupling between the pulsation and the convection (Geroux & Deupree, 2015; Houdek & Dupret, 2015) are currently not providing synthetic profiles, hence preventing the calculation of the projection factor. Therefore, we rely on our purely radiative hydrodynamical code (as previously done in Nardetto et al., 2004, 2007) to study the atmosphere of Cepheids. Its consistency with the spectroscopic and interferometric observables is satisfactory as soon as we consider a multiplying correcting factor of $f_{\mathrm{c}}=1.078$. Consequently, Eq. 7 becomes

[TABLE]

The corresponding values are shown in Fig. 7 with light blue squares, and the agreement with observations is now excellent. If the theoretical amplitudes of the radial velocity curves are underestimated, why do we obtain the correct values of the projection factors in Sect. 4.1? The answer is that the projection factor depends only on the ratio of pulsation to radial velocities. If the pulsation velocity curve has an amplitude that is 7.8% larger, then the radial velocity curve (whatever the line considered) and the radius variation (see Sect. 4.3), also have amplitudes that are 7.8% larger and the derived projection factor remains the same.

Small differences in the velocity amplitudes between the RVcc-c and RVc curves (Fig. 5c) are due to the use of different methods and line samples (a full mask and 17 selected lines, respectively).

4.3 Angular diameter curve.

In Fig. 8, we compare our best-fit infrared angular diameters from FLUOR/CHARA (same curve as Fig. 3) with the photospheric angular diameters derived directly from the model assuming a distance of d=272\leavevmode\nobreak\pc (Majaess et al., 2012). Following the projection factor decomposition, this photospheric angular diameter is calculated by integrating the pulsation velocity associated with the photosphere of the star. We consider this to be the layer of the star for which the optical depth in the continuum (in the vicinity of the Fe I 6003.012 Å  spectral line) is $\tau_{c}=\frac{2}{3}$. However, to superimpose the computed photospheric angular diameter curve on the interferometric one, we again need a correction factor $f_{\mathrm{c}}$. We find that the rescaled model (magenta open squares) is consistent with the solid line, which corresponds to the integration of the HARPS-N RVcc-g curve (multiplied consistently by pcc-g).

We rescaled the outputs of the hydrodynamical code, i.e., the atmospheric velocity gradient (Sect. 4.2), the radial velocity, and the angular diameter curves, by the same quantity $f_{\mathrm{c}}$ in order to reproduce the observations satisfactorily. This scaling leaves the hydrodynamical projection factors unchanged and in agreement with the observational values (Table 3). This can be seen using Eq. 2: if we multiply each part of this equation by $f_{\mathrm{c}}$, the result in terms of the projection factor is unchanged.

5 Determining $f_{\mathrm{o-g}}$

The variable $f_{\mathrm{o-g}}$ is linked to the distinction between the optical and gas photospheric layers. The optical layer is the location where the continuum is generated ($\tau_{c}=\frac{2}{3}$). The gas layer is the location of some mass element in the hydrodynamic model mesh where, at some moment in time, the photosphere is located. Given that the location of the photosphere moves through different mass elements as the star pulsates, the two layers have different velocities, hence it is necessary to define $f_{\mathrm{o-g}}$ in the projection factor decomposition. The $f_{\mathrm{o-g}}$ quantity is independent of the spectral line considered and is given by

[TABLE]

where $k$ indicates the spectral line considered. From the previous sections, we now have the ability to derive $f_{\mathrm{o-g}}$. In Sect. 3, we derived the projection factors $p_{\mathrm{obs}}(k)$ for 17 individual lines. In Sect. 4.2, we determined $f_{\mathrm{grad}}(k)=\frac{b_{0}}{a_{0}D_{k}+b_{0}}$ using Eq. 5 (see Table 4). The last quantity required to derive $f_{\mathrm{o-g}}$ is the geometric projection factor $p_{\mathrm{o}}$ (see Eq. 9). There is currently no direct estimation of $p_{\mathrm{o}}$ for $\delta$ Cep. If we rely on the hydrodynamical model, $p_{\mathrm{o}}$ can be inferred from the intensity distribution next to the continuum of each spectral line. The list of geometric projection factors are listed in Table 4 and plotted in Fig. 9 with magenta dots. These calculations are done in the plane-parallel radiative transfer approximation. On the other hand, Neilson et al. (2012) showed that the p-factor differs significantly as a function of geometry where those from plane-parallel model atmospheres are 3-7% greater then those derived from spherically symmetric models. Using their Table 1, we find for $\delta$ Cep a spherically symmetric geometrical projection factor of 1.342 in the R-band (i.e., with an effective wavelength of 6000 Å). In Fig. 9, if we shift our results (magenta dots) by $0.043$ in order to get 1.342 at 6000 Å (a decrease of 3.2%), we roughly estimate the geometrical projection factors in spherical geometry as a function of the wavelength (red open triangles). In Fig. 9, we now plot the $\frac{p_{\mathrm{obs}}(k)}{f_{\mathrm{grad}}(k)}$ quantity for each individual spectral line with their corresponding uncertainties (blue open squares). If we divide the $\frac{p_{\mathrm{obs}}(k)}{f_{\mathrm{grad}}(k)}$ quantities obtained for each individual spectral line by the corresponding value of $p_{\mathrm{o}}(k)$ calculated in plane-parallel geometry, we obtain $f_{\mathrm{o-g}}=0.975\pm 0.002$, with a reduced $\chi^{2}$ of 0.13. This indicates that our uncertainties (the quadratic sum of $\sigma_{\mathrm{stat-fluor}}$, $\sigma_{\mathrm{stat-d}}$ and the statistical uncertainty on $f_{\mathrm{grad}}$) are probably overestimated. This value is several $\sigma$ greater than that found directly with the hydrodynamical model of $\delta$ Cep: $f_{\mathrm{o-g}}=0.963\pm 0.005$ (Nardetto et al., 2007, their Table 5). Using the values of $p_{\mathrm{o}}$ from Neilson et al. (2012) (blue open triangles), we obtain $f_{\mathrm{o-g}}=1.006\pm 0.002$. Thus, $f_{\mathrm{o-g}}$ depends significantly on the model used to calculate $p_{\mathrm{o}}$.

6 Conclusion

Our rescaled hydrodynamical model of $\delta$ Cep is consistent with both spectroscopic and interferometric data modulo a rescaling factor that depends on the input parameters of the model ($M,L,T_{\mathrm{eff}},Z$). In particular, it reproduces the observed amplitudes of the radial velocity curves associated with a selection of 17 unblended spectral lines as a function of the line depth in a very satisfactory way. This is a critical step for deriving the correct value of the projection factor. This strongly suggests that our decomposition of the projection factor into three physical terms is adequate. The next difficult step will be to measure $p_{\mathrm{0}}$ directly from the next generation of visible-wavelength interferometers. With such values in hand, it will be possible to derive $f_{\mathrm{o-g}}$ directly from observations.

The projection factor is a complex quantity that is particularly sensitive to the definition of the radial velocity measurement. More details should be given and perhaps a standard procedure applied in future analyses. For instance, the CCFs are generally fitted with a Gaussian. This produces a velocity value sensitive to stellar rotation and to both the line width and depth (Nardetto et al., 2006). Thus, additional biases in the distance determination are introduced, in particular when comparing the projection factors of different Cepheids. Conversely, investigating the projection factor of individual lines is useful for learning how to mitigate the impact of the radial velocity modulation (Anderson, 2014) and the possible angular-diameter modulation (Anderson et al., 2016) on the BW distances.

In this study, we found $p_{\mathrm{cc-g}}=1.24\pm 0.04$ a value that is consistent with the Pp relation of Nardetto et al. (2009), i.e., $p_{\mathrm{cc-g}}=1.25\pm 0.05$. However, a disagreement is still found between the interferometric and the infrared surface-brightness approaches (and their respective projection factors) in the case of $\delta$ Cep (Ngeow et al., 2012), while an agreement is found for the long-period Cepheid $\ell$ Car (Kervella et al., 2004b). This suggests that the p-factors adopted in these approaches might be affected by something not directly related to the projection factor itself but rather to other effects in the atmosphere or close to it, such as a static circumstellar environment (Nardetto et al., 2016). However, it is worth mentioning that the two methods currently provide absolutely the same results in terms of distances. After a long history (since Getting 1934), the BW projection factor remains a key quantity in the calibration of the cosmic distance scale, and one century after the discovery of the Period-Luminosity relation (Leavitt, 1908), Cepheid pulsation is still a distinct challenge. With Gaia and other high-quality spectroscopic data, it will soon be possible to better constrain the Pp relation.

Acknowledgements.

The observations leading to these results have received funding from the European Commission’s Seventh Framework Programme (FP7/2013-2016) under grant agreement number 312430 (OPTICON). The authors thank the GAPS observers F. Borsa, L. Di Fabrizio, R. Fares, A. Fiorenzano, P. Giacobbe, J. Maldonado, and G. Scandariato. The authors thank the CHARA Array, which is funded by the National Science Foundation through NSF grants AST-0606958 and AST-0908253 and by Georgia State University through the College of Arts and Sciences, as well as the W. M. Keck Foundation. This research has made use of the SIMBAD and VIZIER111Available at http://cdsweb.u- strasbg.fr/ databases at CDS, Strasbourg (France), and of the electronic bibliography maintained by the NASA/ADS system. WG gratefully acknowledges financial support for this work from the BASAL Centro de Astrofisica y Tecnologias Afines (CATA) PFB-06/2007, and from the Millenium Institute of Astrophysics (MAS) of the Iniciativa Cientifica Milenio del Ministerio de Economia, Fomento y Turismo de Chile, project IC120009. We acknowledge financial support for this work from ECOS-CONICYT grant C13U01. Support from the Polish National Science Center grant MAESTRO 2012/06/A/ST9/00269 is also acknowledged. EP and MR acknowledge financial support from PRIN INAF-2014. NN, PK, AG, and WG acknowledge the support of the French-Chilean exchange program ECOS- Sud/CONICYT (C13U01). The authors acknowledge the support of the French Agence Nationale de la Recherche (ANR), under grant ANR-15-CE31-0012- 01 (project UnlockCepheids) and the financial support from “Programme National de Physique Stellaire” (PNPS) of CNRS/INSU, France.
