Macroscopic Coherent Structures in a Stochastic Neural Network: From Interface Dynamics to Coarse-Grained Bifurcation Analysis
Daniele Avitabile, Kyle Wedgwood
TL;DR
This paper explores how patterns like bumps and waves form in a stochastic neural network model using both analytical and numerical methods.
Contribution
The study introduces lifting operators that use microscopic motifs to distinguish between stationary and travelling bumps in neural networks.
Findings
Stationary and travelling bumps share similar meso- and macroscopic profiles but differ in microscopic structure.
Waves are supported by high synaptic gain and long refractory times, while meandering bumps are elicited by short refractory times.
Equation-free methods are used to compute patterns and their stability in the full stochastic model on a discrete lattice.
Abstract
We study coarse pattern formation in a cellular automaton modelling a spatially-extended stochastic neural network. The model, originally proposed by Gong and Robinson [36], is known to support stationary and travelling bumps of localised activity. We pose the model on a ring and study the existence and stability of these patterns in various limits using a combination of analytical and numerical techniques. In a purely deterministic version of the model, posed on a continuum, we construct bumps and travelling waves analytically using standard interface methods from neural fields theory. In a stochastic version with Heaviside firing rate, we construct approximate analytical probability mass functions associated with bumps and travelling waves. In the full stochastic model posed on a discrete lattice, where a coarse analytic description is unavailable, we compute patterns and their linear…
Click any figure to enlarge with its caption.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNeural dynamics and brain function · stochastic dynamics and bifurcation · Neural Networks and Applications
Introduction
In the past decades, single-neuron recordings have been complemented by multineuronal experimental techniques, which have provided quantitative evidence that the cells forming the nervous systems are coupled both structurally [8] and functionally (for a recent review, see [75] and references therein). An important question in neuroscience concerns the relationship between electrical activity at the level of individual neurons and the emerging spatio-temporal coherent structures observed experimentally using local field potential recordings [22], functional magnetic resonance imaging [69] and electroencephalography [58].
There exist a wide variety of models describing activity at the level of an individual neuron [39, 26], and major research efforts in theoretical and computational neuroscience are directed towards coupling neurons in large-dimensional neural networks, whose behaviour is studied mainly via direct numerical simulations [40, 27].
A complementary approach, dating back to Wilson and Cowan [73, 74] and Amari [1, 2], foregoes describing activity at the single neuron level by representing averaged activity across populations of neurons. These neural field models are nonlocal, spatially-extended, excitable pattern-forming systems [24] which are often analytically tractable and support several coherent structures such as localised radially-symmetric states [72, 54, 52, 14, 29], localised patches [53, 63, 4], patterns on lattices with various symmetries [23, 13], travelling bumps and fronts [25, 12], rings [61, 19], breathers [30, 31, 32], target patterns [20], spiral waves [47] and lurching waves [35, 60, 71] (for comprehensive reviews, we refer the reader to [11, 12]).
Recent studies have analysed neural fields with additive noise [38, 28, 46], multiplicative noise [15], or noisy firing thresholds [7], albeit these models are still mostly phenomenological. Even though several papers derive continuum neural fields from microscopic models of coupled neurons [41, 9, 10, 5], the development of a rigorous theory of multi-scale brain models is an active area of research.
Numerical studies of networks based on realistic neural biophysical models rely almost entirely on brute-force Monte Carlo simulations (for a very recent, remarkable example, we refer the reader to [56]). With this direct numerical simulation approach, the stochastic evolution of each neuron in the network is monitored, resulting in huge computational costs, both in terms of computing time and memory. From this point of view, multi-scale numerical techniques for neural networks present interesting open problems.
When few clusters of neurons with similar properties form in the network, a significant reduction in computational costs can be obtained by population density methods [59, 37], which evolve probability density functions of neural subpopulations, as opposed to single neuron trajectories. This coarse-graining technique is particularly effective when the underlying microscopic neuronal model has a low-dimensional state space (such as the leaky integrate-and-fire model) but its performance degrades for more realistic biophysical models. Developments of the population density method involve analytically derived moment closure approximations [16, 55]. Both Monte Carlo simulations and population density methods give access only to stable asymptotic states, which may form only after long-transient simulations.
An alternative approach is offered by equation-free [42, 43] and heterogeneous multiscale methods [70, 21], which implement multiple-scale simulations using an on-the-fly numerical closure approximations. Equation-free methods, in particular, are of interest in computational neuroscience as they accelerate macroscopic simulations and allow the computation of unstable macroscopic states. In addition, with equation-free methods, it is possible to perform coarse-grained bifurcation analysis using standard numerical bifurcation techniques for time-steppers [68].
The equation-free framework [42, 43] assumes the existence of a closed coarse model in terms of a few macroscopic state variables. The model closure is enforced numerically, rather than analytically, using a coarse time-stepper: a computational procedure which takes advantage of knowledge of the microscopic dynamics to time-step an approximated macroscopic evolution equation. A single coarse time step from time t0 to time t1 is composed of three stages: (i) lifting, that is, the creation of microscopic initial conditions that are compatible with the macroscopic states at time t0; (ii) evolution, the use of independent realisations of the microscopic model over a time interval [t0, t1]; (iii) restriction, that is, the estimation of the macroscopic state at time t1 using the realisations of the microscopic model.
While equation-free methods have been employed in various contexts (see [43] and references therein) and in particular in neuroscience applications [48, 50, 49, 66, 67, 51], there are still open questions, mainly related to how noise propagates through the coarse time stepper. A key aspect of every equation-free implementation is the lifting step. The underlying lifting operator, which maps a macroscopic state to a set of microscopic states, is generally non-unique, and lifting choices have a considerable impact on the convergence properties of the resulting numerical scheme [3]. Even though the choice of coarse variables can be automatised using data-mining techniques, as shown in several papers by Laing, Kevrekidis and co-workers [48, 50, 49], the lifting step is inherently problem dependent.
The present paper explores the possibility of using techniques from neural field models to inform the coarse-grained bifurcation analysis of discrete neural networks. A successful strategy in analysing neural fields is to replace the models' sigmoidal firing rate functions with Heaviside distributions [11, 12]. Using this strategy, it is possible to relate macroscopic observables, such as bump widths or wave speeds, to biophysical parameters, such as firing rate thresholds. Under this hypothesis, a macroscopic variable suggests itself, as the state of the system can be constructed entirely via the loci of points in physical space where the neural activity attains the firing-rate threshold value. In addition, there exists a closed (albeit implicit) evolution equation for such interfaces [19].
In this study, we show how the insight gained in the Heaviside limit may be used to perform coarse-grained bifurcation analysis of neural networks, even in cases where the network does not evolve according to an integro-differential equation. As an illustrative example, we consider a spatially-extended neural network in the form of a discrete time Markov chain with discrete ternary state space, posed on a lattice. The model is an existing cellular automaton proposed by Gong and co-workers [36], and it has been related to neuroscience in the context of relevant spatio-temporal activity patterns that are observed in cortical tissue. In spite of its simplicity, the model possesses sufficient complexity to support rich dynamical behaviour akin to that produced by neural fields. In particular, it explicitly includes refractoriness and is one of the simplest models capable of generating propagating activity in the form of travelling waves. An important feature of this model is that the microscopic transition probabilities depend on the local properties of the tissue, as well as on the global synaptic profile across the network. The latter has a convolution structure typical of neural field models, which we exploit to use interface dynamics and define a suitable lifting strategy.
We initially study the model in simplifying limits in which an analytical (or semi-analytical) treatment is possible. In these cases, we construct bump and wave solutions and compute their stability. This analysis follows the standard Amari framework, but is here applied directly to the cellular automaton. We then derive the corresponding lifting operators, which highlight a critical importance of the microscopic structure of solutions: one of the main results of our analysis is that, since macroscopic stationary and travelling bumps coexist and have nearly identical macroscopic profiles, a standard lifting is unable to distinguish between them, thereby preventing coarse numerical continuation. These structures, however, possess different microstructures, which are captured by our analysis and subsequently by our lifting operators. This allows us to compute separate solution branches, in which we vary several model parameters, including those associated with the noise processes.
The manuscript is arranged as follows: In Section 2 we outline the model. In Section 3, we simulate the model and identify the macroscopic profiles in which we are interested, together with the coarse variables that describe them. In Section 4, we define a deterministic version of the full model and lay down the framework for analysing it. In Sections 5 and 6, we respectively construct bump and wave solutions under the deterministic approximation and compute the stability of these solutions. In Section 7, we define and construct travelling waves relaxing the deterministic limit. In Sections 8.1 and 8.2, we provide the lifting steps for use in the equation-free algorithm for the bump and wave respectively. In Section 9, we briefly outline the continuation algorithm and in Section 10, we show the results of applying this continuation to our system. Finally, in Section 11, we make some concluding remarks.
Model description
State variables for continuum and discrete tissues
2.1.
In this section, we present a modification of a model originally proposed by Gong and Robinson [36].
We consider a one-dimensional neural tissue 𝕏 ⊂ ℝ. At each discrete time step t ∈ ℤ, a neuron at position x ∈ 𝕏 may be in one of three states: a refractory state (henceforth denoted as –1), a quiescent state (0) or a spiking state (1). Our state variable is thus a function u : 𝕏 × → 𝕌, where 𝕌 = {–1, 0, 1}. We pose the model on a continuum tissue 𝕊 = ℝ/2Lℤ or on a discrete tissue featuring N + 1 evenly spaced neurons, [eqn]
We will often alternate between the discrete and the continuum setting, hence we will use a unified notation for these cases. We use the symbol X to refer to either 𝕊 or 𝕊_N, depending on the context. Also, we use u(·, t) to indicate the state variable in both the discrete and the continuum case: u(·, t) will denote a step function defined on 𝕊 in the continuum case and a vector in 𝕌 ^N^ with components u(xi_, t) in the discrete case. Similarly, we write ∫𝕏 u(x) dx to indicate ∫𝕊 u(x) dx or [eqn].
Model definition
2.2.
We use the term stochastic model when the Markov chain model described below is posed on 𝕊_N_. An example of microscopic state supported by the stochastic model is given in Figure 1(a).

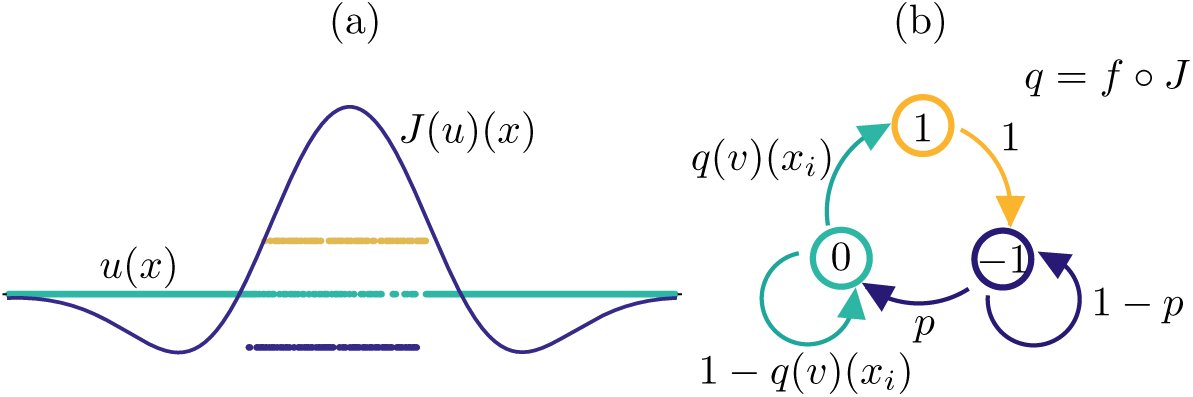

(a): Example of microscopic state u(x) ∈ 𝕌 N and corresponding synaptic profile J(u)(x) ∈ ℝN in a network of 1024 neurons, (b): Schematic of the transition kernel for the network (see also Equations (2.5)–(2.7)), The conditional probability of the local variable u(xi, t + 1) depends on the global state of the network at time t, via the function q = f ∘ J, as seen in (2.7).
In the model, neurons are coupled via a translation-invariant synaptic kernel, that is, we assume the connection strength between two neurons to be dependent on their mutual Euclidean distance. In particular, we prescribe that short range connections are excitatory, whilst long-range connections are inhibitory. To model this coupling, we use a standard Mexican hat function, [eqn] and denote by W its periodic extension.
In order to describe the dynamics of the model, it is useful to partition the tissue 𝕏 into the 3 pullback sets [eqn] so that we can write, for instance, [eqn] to denote the set of neurons that are firing at time t (and similarly for [eqn] and [eqn]). Where it is unambiguous, we shall simply write Xk or Xk(t) in place of [eqn].
The synaptic input to a cell at position xi is given by a weighted sum of inputs from all firing cells. Using the synaptic kernel (2.1) and the partition (2.2), the synaptic input is then modelled as [eqn] where k ∈ ℝ_+_ is the synaptic gain, which is common for all neurons and 𝟙_X_ is the indicator function of a set X.
Remark 2.1 (Synaptic input as mesoscopic variable). Since X1 depends on the microscopic state variable u, so does the synaptic input (2.3). Where necessary, we will write J(u)(x, t) to highlight the dependence on u. We refer the reader to Figure 1 for a concrete example of synaptic profile. It will become apparent in the next section that J plays the role of a mesoscopic state variable associated with u.
The firing probability associated to a quiescent neuron is linked to the synaptic input via the firing rate function [eqn] whose steepness and threshold are denoted by the positive real numbers β and h, respectively. We are now ready to describe the evolution of the stochastic model, which is a discrete-time Markov process with finite state space 𝕌 ^N^ and transition probabilities specified as follows: for each xi ∈ 𝕊_N_ and t ∈ ℤ [eqn] [eqn] [eqn] where p ∈ (0,1]. We give a schematic representation of the transitions of each neuron in the network in Figure 1(b). We remark that conditional probability of the local variable u(xi, t + 1) depends on the global state of the network at time t, via the function f ∘ J.
The model described by (2.1)–(2.7), complemented by initial conditions, defines a stochastic evolution map that we will formally denote as [eqn] where γ = (k, β, h, p, A1, A2, B1, B2) is a vector of control parameters.
Microscopic states observed via direct simulation
In this section, we introduce a few coherent states supported by the stochastic model. The main aim of the section is to show examples of bumps, multiple bumps and travelling waves, whose existence and stability properties will be studied in the following sections. In addition, we give a first characterisation of the macroscopic variables of interest and link them to the microscopic structure observed numerically.
Bumps
3.1.
In a suitable region of parameter space, the microscopic model supports bump solutions [62] in which the microscopic variable u(x, t) is nonzero only in a localised region of the tissue. In this active region, neurons attain all values in 𝕌. In Figure 2, we show a time simulation of the microscopic model with N = 1024 neurons. At each time t, neurons are in the refractory (blue), quiescent (green) or spiking (yellow) state. We prescribe the initial condition by setting u(xi, 0) = 0 outside of a localised region, in which u(xi, 0) are sampled randomly from 𝕌. After a short transient, a stochastic microscopic bump is formed. As expected due to the stochastic nature of the system [45], the active region wanders while remaining localised. A space-time section of the active region reveals a characteristic random microstructure (see Figure 2(a)). By plotting J(x, t), we see that the active region is well approximated by the portion of the tissue X≥ = [ξ1, ξ2] where J lies above the threshold h. A quantitative comparison between J(x, 50) and u(x, 50) is made in Figure 2(a). We interpret J as a mesoscopic variable associated with the bump, and ξ1 and ξ2 as corresponding macroscopic variables.

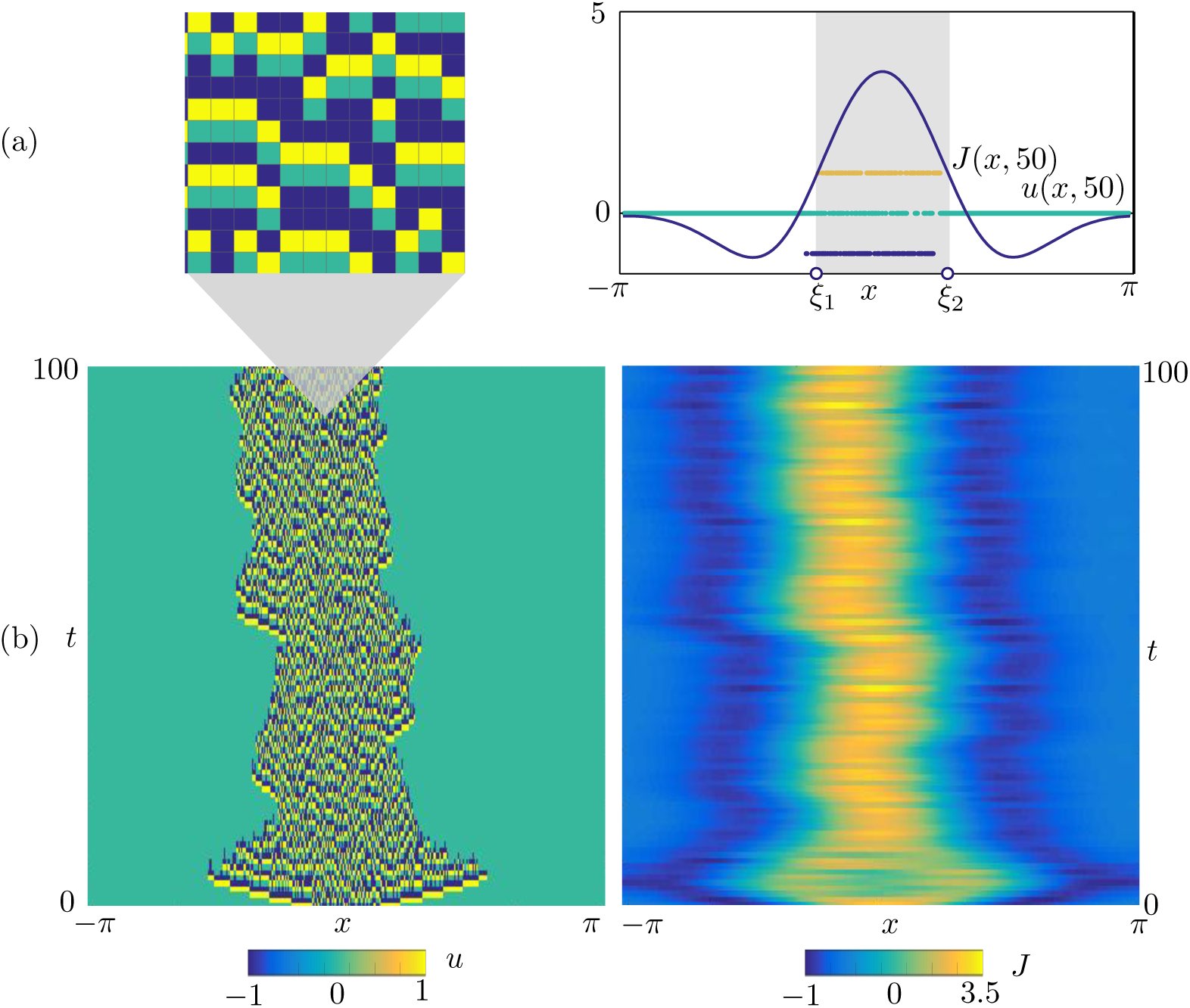

Bump obtained via time simulation of the stochastic model for (x, t) ∈ [–π, π] × [0, 100]. (a): The microscopic state u(x, t) (left) attains the discrete values –1 (blue), 0 (green) and 1 (yellow). The corresponding synaptic profile J(x, t) is a continuous function. A comparison between J(x, 50) and u(x, 50) is reported on the right panel, where we also mark the interval [ξ1, ξ2] where J is above the firing threshold h. (b): Space-time plots of u and J. Parameters as in Table 1.
Multiple-bumps solutions
3.2.
Solutions with multiple bumps are also observed by direct simulation, as shown in Figure 3. The microstructure of these patterns resembles the one found in the single bump case (see Figure 3(a)). At the mesoscopic level, the set for which J lies above the threshold h is now a union of disjoint intervals [ξ1, ξ2], &, [ξ7, ξ8]. The number of bumps of the pattern depends on the width of the tissue; the experiment of Figure 3 is carried out on a domain twice as large as that of Figure 2. The examples of bump and multiple-bump solutions reported in these figures are obtained for different values of the main control parameter k (see Table 1), however, these states coexist in a suitable region of parameter space, as will be shown below.

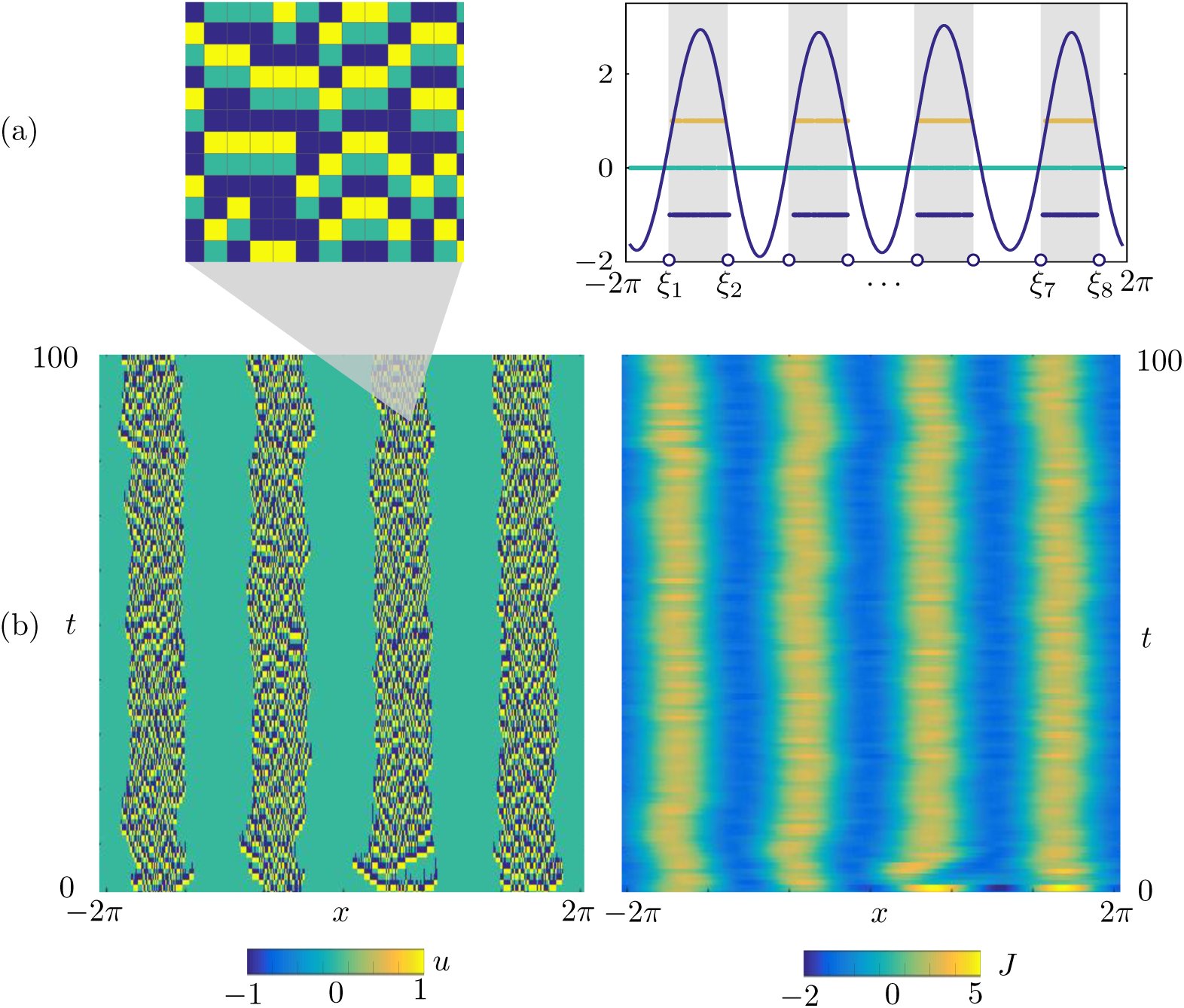

Multiple bump solution obtained via time simulation of the stochastic model for (x, t) ∈ [–2π, 2π] × [0,100], (a): The microscopic state u(x, t) in the active region (left) is similar to the one found for the single bump (see Figure 2(a)), A comparison between J(x, 50) and u(x, 50) is reported on the right panel, where we also mark the intervals [ξ1, ξ2],…, [ξ7, ξ8] where J is above the firing threshold h, (b): Space-time plots of u and J, Parameters are as in Table 1.

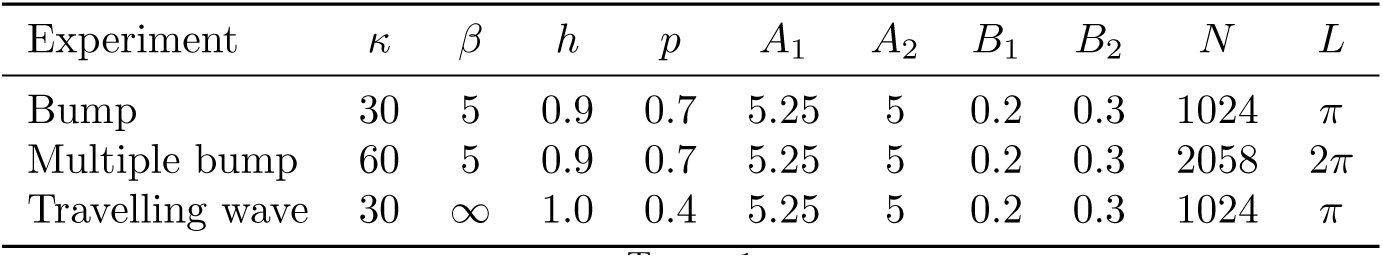

Table 1.: Parameter values for which the stochastic model supports a bump (Figure 2), a multiple-bump solution (Figure 3) and a travelling wave (Figure 4), The value ∞ for the parameter β indicates that a Heaviside firing rate has been used in place of the sigmoidal function (2.4).
Travelling waves
3.3.
Further simulation shows that the model also supports coherent states in the form of stochastic travelling waves. In two spatial dimensions, the system is known to support travelling spots [36, 62]. In Figure 4, we show a time simulation of the stochastic model with initial condition [eqn]
In passing, we note that the state of the network at each discrete time t is defined entirely by the partition {Xk} of the tissue; we shall often use this characterisation in the reminder of the paper.

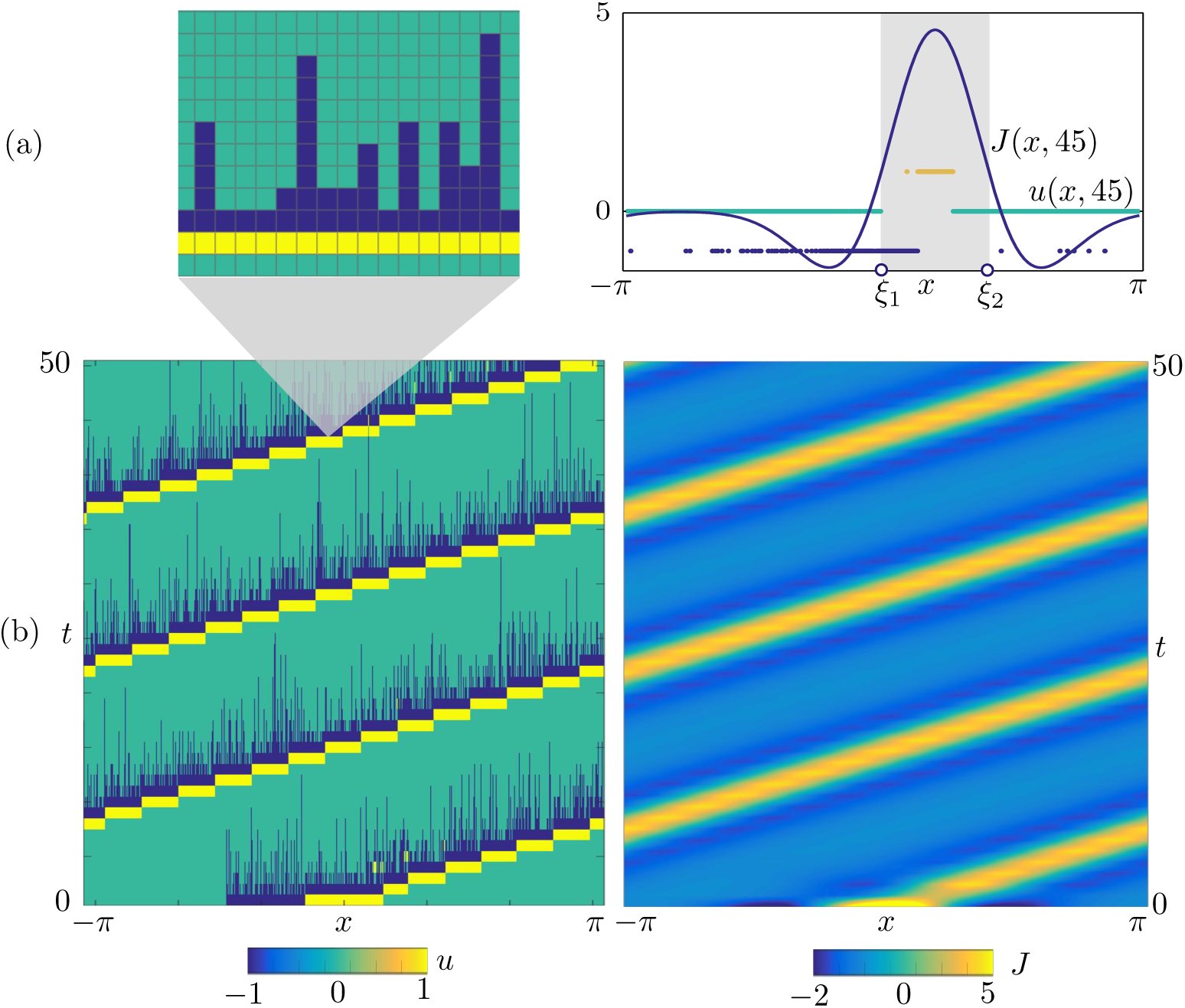

Travelling wave obtained via time simulation of the stochastic model for (x, t) ∈ [–π, π] × [0, 50]. (a): The microscopic state u(x, t) (left) has a characteristic microstructure, which is also visible on the right panel, where we compare J(x, 45) and u(x, 45). As in the other cases, we mark the interval [ξ1, ξ2] where J is above the firing threshold h. (b): Space-time plots of u and J. Parameters are as in Table 1.
In the direct simulation of Figure 4, the active region moves to the right and, after just 4 iterations, a travelling wave emerges. The microscopic variable, u(x, t), displays stochastic fluctuations which disappear at the level of the mesoscopic variable, J(x, t), giving rise to a seemingly deterministic travelling wave. A closer inspection (Figure 4(a)) reveals that the state can still be described in terms of the active region [ξ1, ξ2] where J is above h. However, the travelling wave has a different microstructure with respect to the bump. Proceeding from right to left, we observe:
- A region of the tissue ahead of the wave, x ∈ (ξ2, π), where the neurons are in the quiescent state 0 with high probability.
- An active region x ∈ [ξ1, ξ2], split in three subintervals, each of approximate width (ξ2 – ξ1)/3, where u attains with high probability the values 0, 1 and –1 respectively.
- A region at the back of the wave, x ∈ [–π, ξ1), where neurons are either quiescent or refractory. We note that u = 0 with high probability as x → –π whereas, as X → ξ1, neurons are increasingly likely to be refractory, with u = –1.
A further observation of the space-time plot of u in Figure 4(b) reveals a remarkably simple advection mechanism of the travelling wave, which can be fully understood in terms of the transition kernel of Figure 1(b) upon noticing that, for sufficiently large β, qi = f(J(u))(xi) ≈ 0 everywhere except in the active region, where qi ≈ 1. In Figure 5, we show how the transition kernel simplifies inside and outside the active region and provide a schematic of the advection mechanism. For an idealised travelling wave profile at time t, we depict 3 subintervals partitioning the active region (shaded), together with 2 adjacent intervals outside the active region. Each interval is then mapped to another interval, following the simplified transition rules sketched in Figure 5(a):
- At the front of the wave, to the right of ξ2(t), neurons in the quiescent state 0 remain at 0 (rules for x ∉ [ξ1, ξ2]).
- Inside the active region, to the left of ξ2(t), we follow the rules for x ∈ [ξ1, ξ2] in a clockwise manner: neurons in the quiescent state 0 spike, hence their state variable becomes 1; similarly, spiking neurons become refractory. Of the neurons in the refractory state, those being the ones nearest ξ1(t), a proportion p become quiescent, while the remaining ones remain refractory.
- At the back of the wave, to the left of ξ1(t), the interval contains a mixture of neurons in states 0 and –1. The former remain at 0 whilst, of the latter, a proportion p transition into state 0, with the rest remaining at –1 (rules for x ∉ [ξ1, ξ2]). From this argument, we see that the proportion of refractory neurons in the back of the wave must decrease as ξ → –π.

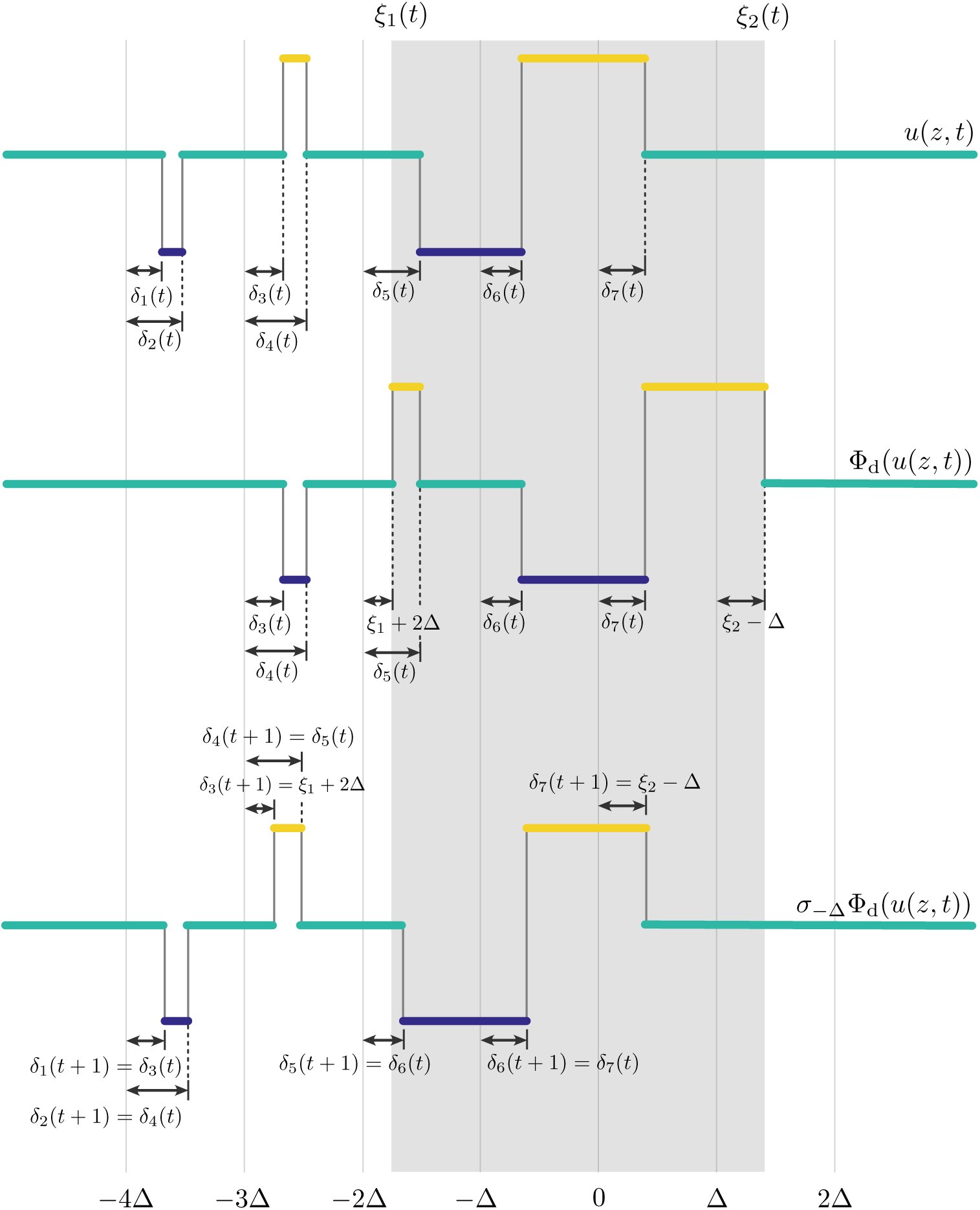

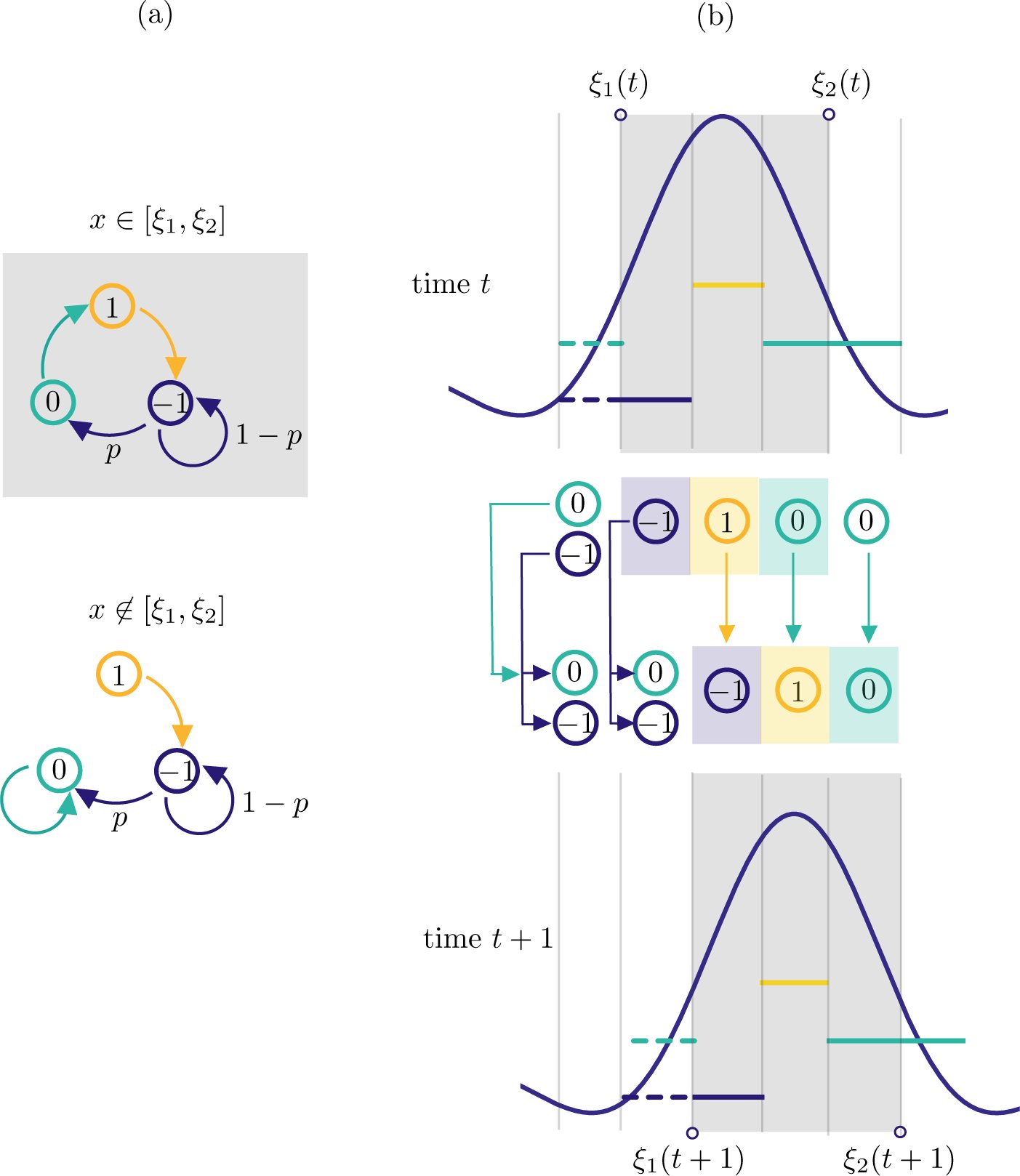

Schematic of the advection mechanism for the travelling wave state, Shaded areas pertain to the active region [ξ1(t), ξ2(t)], non-shaded areas to the inactive region 𝕏 \ [ξ1(t), ξ2 (t)]. (a): In the active (inactive) region, qi = f(J(u))(xi) ≈ 1 (qi ≈ 0), hence the transition kernel (2.5)–(2.7) can be simplified as shown, (b): At time t the travelling wave has a profile similar to the one in Figure 4, which we represent in the proximity of the active region, We depict 5 intervals of equal width, 3 of which form a partition of [ξ1(t), ξ2(t)]. Each interval is mapped to another interval at time t + 1, following the transition rules sketched in (a), In one discrete step, the wave progresses with positive speed: so that J(x, t + 1) is a translation of J(x, t).
The resulting mesoscopic variable J(x, t + 1) is a spatial translation by (ξ2(t) – ξ1 (t))/3 of J(x,t). We remark that the approximate transition rules of Figure 5(a) are valid also in the case of a bump, albeit the corresponding microstructure does not allow the advection mechanism described above.
Macroscopic variables
3.4.
The computations of the previous sections suggest that, beyond the mesoscopic variable, J(x), coarser macroscopic variables are available to describe the observed patterns. In analogy with what is typically found in neural fields with Heaviside firing rate [2, 12, 18], the scalars {ξi} defining the active region X≥ = ∪i [ξ2i–1, ξ2i], where J is above h, seem plausible macroscopic variables. This is evidenced not only by Figures 2–4, but also from the schematic in Figure 5(b), where the interval [ξ1(t), ξ2(t)] is mapped to a new interval [ξ1(t + 1), ξ2(t + 1)] of the same width. To explore this further, we extract the widths Δ_i(t) of each sub-interval [ξ2i(t), ξ2i–1(t)] from the data in Figure 2–4, and plot the widths as a function of t. In all cases, we observe a brief transient, after which Δi_(t) relaxes towards a coarse equilibrium, though fluctuations seem larger for the bump and multiple bump when compared with those for the wave. In the multiple bump case, we also notice that all intervals have approximately the same asymptotic width.
Deterministic model
We now introduce a deterministic version of the stochastic model considered in Section 2.2, which is suitable for carrying out analytical calculations. We make the following assumptions:
- Continuum neural tissue. We consider the limit of infinitely many neurons and pose the model on 𝕊.
- Deterministic transitions. We assume p = 1, which implies a deterministic transition from refractory states to quiescent ones (see Equation (2.5)), and β → ∞, which induces a Heaviside firing rate f(I) = Θ(I – h) and hence a deterministic transition from quiescent states to spiking ones given sufficiently high input (see Equations (2.4), (2.6)).
In addition to the pullback sets X–1, X0, and X1 defined in (2.2), we will partition the tissue into active and inactive regions [eqn]
In the deterministic model, the transitions (2.5)–(2.7) are then replaced by the following rule [eqn]
We stress that the right-hand side of the equation above depends on u(x, t), since the partitions {X–1, X0, X1} and {X<, X≥} do so (see Remark 2.1).
As we shall see, it is sometimes useful to refer to the induced mapping of the pullback sets [eqn]
Henceforth, we will use the term deterministic model and formally write [eqn] for (4.2), where the partition {Xk}k∈𝕌 is defined by (2.2)and the active and inactive sets X≥, X< by (4.1).
Macroscopic bump solution of the deterministic model
We now proceed to construct a bump solution of the deterministic model presented in Section 4. In order to do so, we consider a microscopic state with a regular structure, resulting in a partition, [eqn], with 3m + 2 strips (see Figure 7) and then study the limit m → ∞.

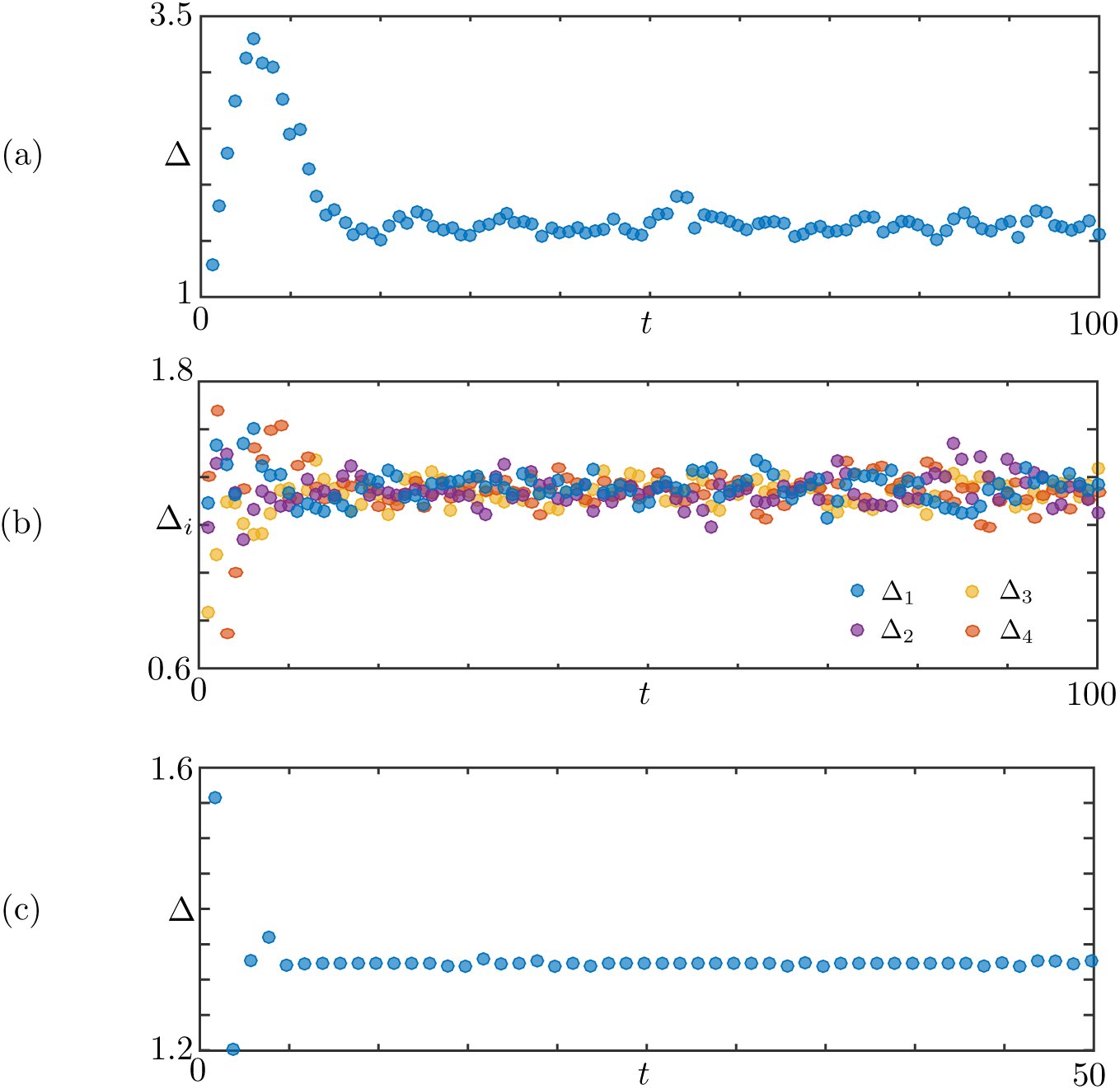

Width of the active regions Δi = ξ2i – ξ2i–1 for the patterns in Figures 2–4. (a): Bump, for which i = 1. (b): Multiple Bump, i = 1,…, 4. (c): Travelling wave, i = 1. In all cases, the patterns reach a coarse equilibrium state after a short transient.
Schematic of the analytical construction of a bump, A microscopic state whose partition comprises 3m + 2 strips is considered, The microscopic state, which is not an equilibrium of the deterministic system, has a characteristic width η2 – ηι, which differs from the width of the mesoscopic bump Jm, If we let m ∞ ∞ while keeping η2 – η1 constant, then Jm tends towards a mesoscopic bump Jb and (see Proposition 5.1).
Bump construction
5.1.

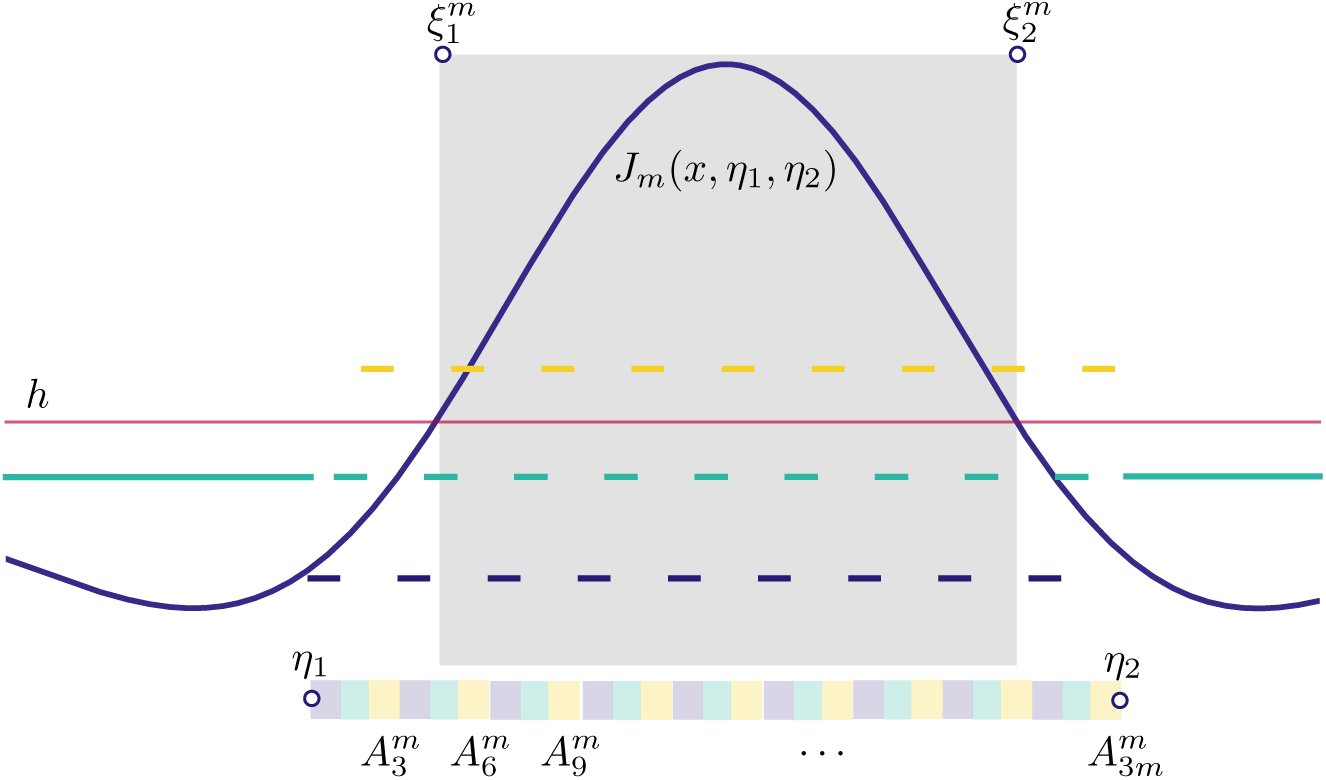

Starting from two points η1, η1 ∈ 𝕊, with η1 , η2, we construct 3m intervals as follows [eqn]
We then consider states [eqn], with partitions given by [eqn] and activity set [eqn]. We note that, in addition to the 3m strips that form the active region of the bump, we also need two additional strips in the inactive region to form a partition of 𝕊. In general, [eqn], as illustrated in Figure 7. Applying (4.2)or (4.3), we find Φ_d_(um) ≠ um, hence um are not equilibria of the deterministic model. However, these states help us defining a macroscopic bump as a fixed point of a suitably defined map using the associated mesoscopic synaptic profile [eqn] where we have highlighted the dependence of [eqn] on η1, η2. The proposition below shows that there is a well defined limit, Jb, of the mesoscopic profile as m → ∞. We also have that [eqn] as m → ∞ and that the threshold crossings of the activity set are roots of a simple nonlinear function.
Proposition 5.1 (Bump construction). Let W be the periodic extension of the synaptic kernel (2.1) and let h, k ∈ ℝ_+. Further, let [eqn] and Jm_ be defined as in (5.1), (5.2) and (5.3), respectively, and let Jb: 𝕊^3^ → ℝ be defined as [eqn] The following results hold
- Jm(x, η1, η1) → Jb(x, η1,η1) as m → ∞ uniformly in the variable x for all η1, η2 ∈ S with η1 < η2,
- If there exists Δ ∈ (0, L) such that [eqn], then [eqn]
Proof. We fix η1 < η2 and consider the 2L-periodic continuous mapping x ↦ Jb(x, η1, η2), defined on 𝕊. We aim to prove that Jm → Jb uniformly in 𝕊. We pose [eqn] for all x ∈ 𝕊, m ∈ ℕ. Since the intervals [eqn] form a partition of [η1, η2) we have [eqn] Since W is continuous on the compact set 𝕊, it is also uniformly continuous on 𝕊. Hence, there exists a modulus of continuity ω of W: [eqn] We use ω to estimate [eqn] as follows: [eqn] We have then [eqn] as m → ∞ and since ω((η2 – η1)/(3m)) is independent of x, the convergence is uniform. Applying a similar argument, we find [eqn] as m → ∞ and using (5.4), we conclude [eqn] as m → ∞. Since [eqn], then Jm → Jb uniformly for all x ∈ 𝕊 and η1, η2 ∈ 𝕊 with η1 < η2, that is, result 1 holds true. By hypothesis Jb(0, 0, Δ) = h and, using a change of variables under the integral and the fact that W is even, it can be shown that Jb(Δ, 0, Δ) = h, which proves result 2.
Corollary 5.2 (Bump symmetries). Let Δ be defined as in Proposition 5.1, then Jb(x + δ, δ, δ + Δ) is a mesoscopic bump for all δ ∈ [L, –Δ + L). Such bump is symmetric with respect to the axis X = δ + Δ/2. Proof. The assertion is obtained using a change of variables in the integral defining Jb and noting that W is even.
The results above show that, [eqn] as m → ∞, hence we lose the distinction between width of the microscopic pattern, η2 – η1, and width of the mesoscopic pattern, [eqn], in that result 2 establishes Jb(ηi, η1, η2) = h, for η1 = 0, η2 = Δ. With reference to Figure 7, the factor 1/3 appearing in the expression for Jb confirms that, in the limit of infinitely many strips, only a third of the intervals [eqn] contribute to the integral. In addition, the formula for J_b_ is useful for practical computations as it allows us to determine the width, Δ, of the bump.
Remark 5.3 (Permuting intervals [eqn]). A bump can also be found if the partition [eqn] of um is less regular than the one depicted in Figure 7. In particular, Proposition 5.1 can be extended to a more general case of permuted intervals. More precisely, if we consider permutations, σj, of the index sets {3j – 2, 3j – 1, 3j} for J = 1,…, m and construct partitions [eqn] then the resulting Jm converges uniformly to Jb as m → ∞. The proof of this result follows closely the one of Proposition 5.1 and is omitted here for simplicity.
Bump stability
5.2.
Once a bump has been constructed, its stability can be studied by employing standard techniques used to analyse neural field models [11]. We consider the map [eqn] and study the implicit evolution [eqn]
The motivation for studying this evolution comes from Proposition 5.1, according to which the macroscopic bump ξ* = (0, Δ) is an equilibrium of (5.5), that is, Ψ_b_(ξ*, ξ*) = 0. To determine coarse linear stability, we study how small perturbations of ξ* evolve according to the implicit rule (5.5). We set ξ(t) = ξ* + εξ̃(t), for 0 < ϵ ≪ 1 with ξ̃_i_ = O(1) and expand (5.5) around (ξ*, ξ*), retaining terms up to order ε, [eqn]
Using the classical ansatz ξ̃(t) = λ^t^v, with λ ∈ ℂ and v ∈ 𝕊^2^, we obtain the eigenvalue problem [eqn] with eigenvalues and eigenvectors given by [eqn]
As expected, we find an eigenvalue with absolute value equal to 1, corresponding to a pure translational eigenvector. The remaining eigenvalue, corresponding to a compression/extension eigenvector, determines the stability of the macroscopic bump. The parameters Ai, Bi in Equation (2.1) are such that W has a global maximum at x = 0, with W(0) > 0. Hence, the eigenvalues are finite real numbers and the pattern is stable if W(Δ) < 0. We will present concrete bump computations in Section 10.
Multi-bump solutions
5.3.
The discussion in the previous section can be extended to the case of solutions featuring multiple bumps. For simplicity, we will discuss here solutions with 2 bumps, but the case of k bumps follows straightforwardly. The starting point is a microscopic structure similar to (5.2), with two disjoint intervals [η1, η2), [η3, η4) ⊂ 𝕊 each subdivided into 3m subintervals. We form the vector [eqn] and have [eqn] as m → ∞ uniformly in the variable x for all η1,…, η4 ∈ 𝕊 with η1 < … < η4. In the expression above, Jm and Jb are the same functions used in Section 5.1 for the single bump. In analogy with what was done for the single bump, we consider the mapping defined by [eqn]
Multi-bump solutions can then be studied as in Section 5. We present here the results for a multi-bump for L = π with threshold crossings given by [eqn] where Δ satisfies [eqn]
A quick calculation leads to the eigenvalue problem [eqn] where α = –W(0) + W(Δ) – W(π) + W(π – Δ). The real symmetric matrix in Equation (5.9)has eigenvalues and eigenvectors given by [eqn]
As expected, we have one neutral translational mode. If the remaining 3 eigenvalues lie in the unit circle, the multi-bump solution is stable. A depiction of this multi-bump, with corresponding eigenmodes can be found in Figure 8. We remark that the multibump presented here was constructed imposing particular symmetries (the pattern is even; bumps all have the same widths). The system may in principle support more generic bumps, but their construction and stability analysis can be carried out in a similar fashion.
Stable mesoscopic multi-bump obtained for the deterministic model. We also plot the corresponding macroscopic bump ξ (Equations (5.7)-(5.8)) and coarse eigenvectors. Parameters are k = 30, h = 0.9, p = 1, β → ∞, with other parameters as in Table 1*
Travelling waves in the deterministic model
Travelling waves in the deterministic model can also be studied via threshold crossings, and we perform this study in the present section. We seek a measurable function utw : 𝕊 → 𝕌 and a constant c ∈ ℝ such that [eqn] almost everywhere in 𝕊 and for all t ∈ ℤ. We recall that, in general, a state u(x, t) is completely defined by its partition, [eqn]. Consequently, Equation (6.1)expresses that a travelling wave has a fixed profile utw, whose partition, [eqn], does not depend on time. A travelling wave (utw, c) satisfies almost everywhere the condition [eqn] where Φ_d_ is the deterministic evolution operator (4.4)and the shift operator is defined by σx : u(·) ↦ u(· – x). The existence of a travelling wave is now an immediate consequence of the symmetries of W, as shown in the following proposition. An important difference with respect to the bump is that analytical expressions can be found for both microscopic and mesoscopic profiles, as opposed to Proposition 5.1, which concerns only the mesoscopic profile.
Proposition 6.1 (Travelling wave) Let h, k ∈ ℝ_+. If there exists Δ ∈ (0, L) such that [eqn], then [eqn] is a travelling wave of the deterministic model (4.4) with speed c = Δ, associated mesoscopic profile [eqn] and activity set [eqn]. Proof. The assertion can be verified directly. We have [eqn] hence the activity set for utw is [eqn] with mesoscopic profile [eqn]. Consequently, Φ_d(utw; γ) has partition [eqn] and utw = σ–Δ_Φ_d(utw, γ) almost everywhere.
Numerical simulations of the deterministic model confirm the existence of the mesoscopic travelling wave utw in a suitable region of parameter space, as will be shown in Section 10. The main difference between utw and the stochastic waves observed in Figure 4 is in the wake of the wave, where the former features quiescent neurons and the latter a mixture of quiescent and refractory neurons.
Travelling wave stability
6.1.
As we will show in Section 10, waves can be found for sufficiently large values of the gain parameter k. However, when this parameter is below a critical value, we observe that waves destabilise at their tail. This type of instability is presented in the numerical experiment of Figure 9. Here, we iterate the dynamical system [eqn] where utw is the profile of Proposition 6.1, travelling with speed Δ, and the perturbation εũ_tw_ is non-zero only in two intervals of width 0.01. We deem the travelling wave stable if u(z, t) → utw(z) as t → ∞. For k sufficiently large, the perturbations decay, as witnessed by their decreasing width in Figure 9(a). For k = 33, the perturbations grow and the wave destabilises.

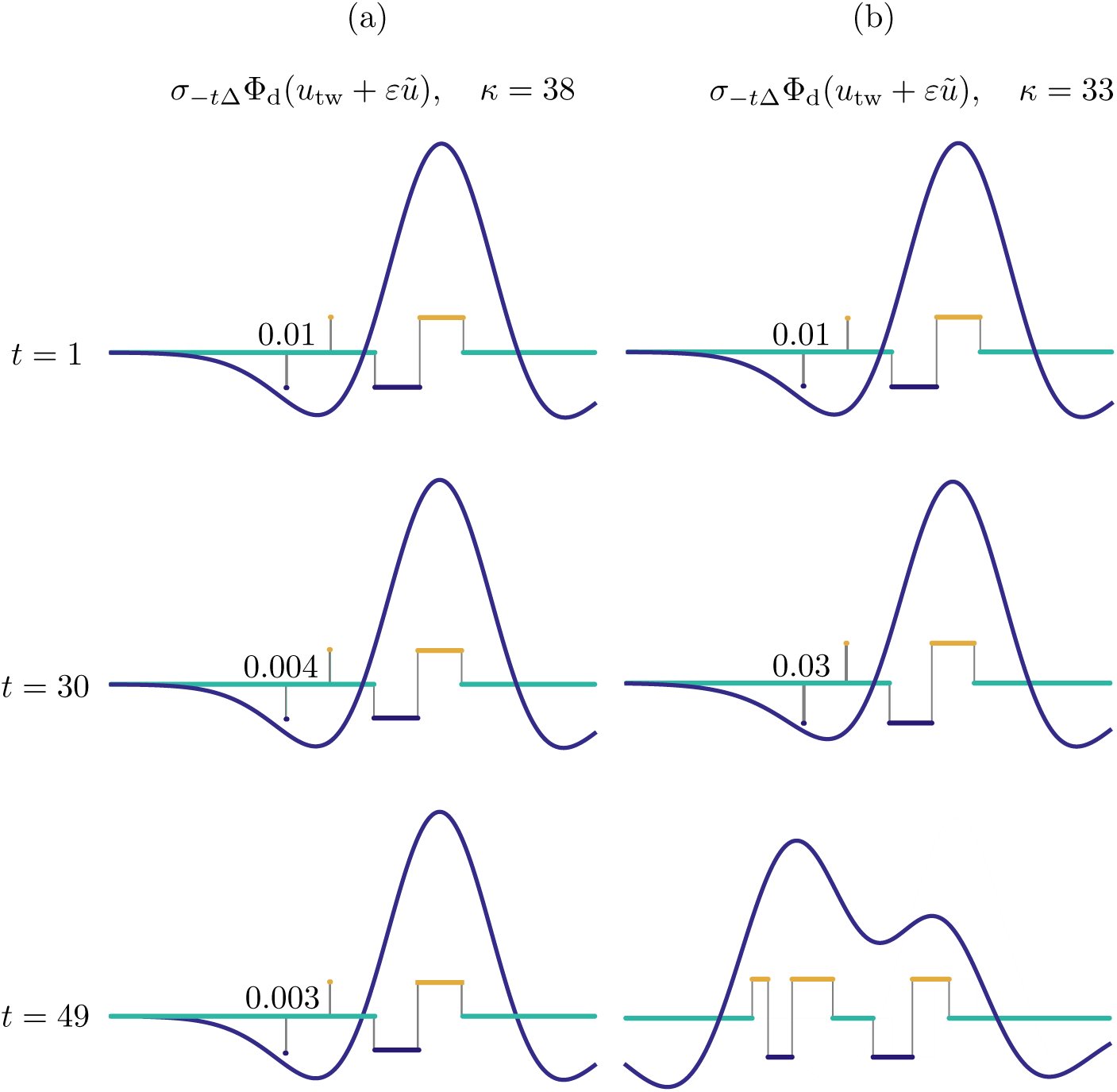

Numerical investigation of the linear stability of the travelling wave of the deterministic system, subject to perturbations in the wake of the wave. We iterate the map Φd starting from a perturbed state utw + εũ, where utw is the mesoscopic wave profile of Proposition 6.1, travelling with speed Δ, and εũ is non-zero only in two intervals of width 0.01 in the wake of the wave. We plot σ–tΔΦd(utw + εũ) and the corresponding macroscopic profile as a function of t and we annotate the width of one of the perturbations. (a): For k = 38, the wave is stable. (b): for sufficiently small k, the wave becomes unstable.

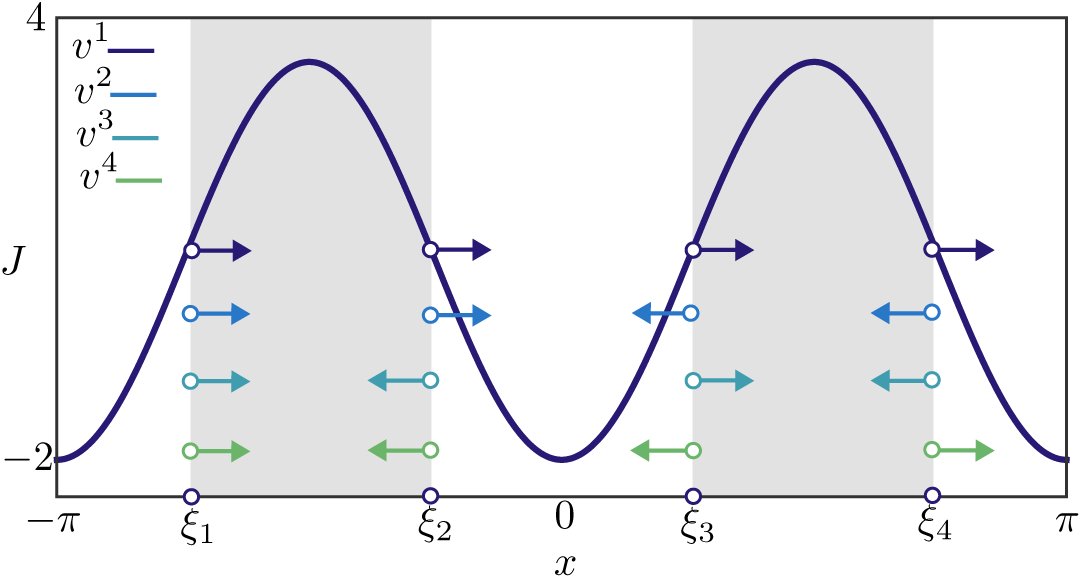

To analyse the behaviour of Figure 9, we shall derive the evolution equation for a relevant class of perturbations to utw. This class may be regarded as a generalisation of the perturbation applied in this figure and is sufficient to capture the instabilities observed in numerical simulations. We seek solutions to (6.2) with initial condition u(z, t) = Σ_kk1Xk(t)(z) with time-dependent partitions [eqn] and activity set X≥(t) = [ξ1(t), ξ2(t)]. In passing, we note that for δi_ = 0, the partition above coincides with [eqn] in Proposition 6.1, hence this partition can be used as perturbation of utw. Inserting the ansatz for u(ξ, t) into (6.2), we obtain a nonlinear implicit evolution equation, Ψ(δ(t + 1), δ(t)) = 0, for the vector δ(t) as follows (see Figure 10) [eqn]
We note that the map above is valid under the assumption δ3(t) < δ4(t), which preserve the number of intervals of the original partition. As in [44], we note that this prevents us from looking at oscillatory evolution of δ(t). We set δi(t) = ελ^t^vi, retain terms up to first order and obtain an eigenvalue problem for the matrix [eqn] where α = ω(2Δ) – ω(Δ). Once again, we have an eigenvalue on the unit circle, corresponding to a neutrally stable translation mode. If all other eigenvalues are within the unit circle, then the wave is linearly stable. Concrete calculations will be presented in Section 10.
Visualisation of one iteration of the system (6.2): a perturbed travelling wave (top) is first transformed by Φd using the rules (4.3) (centre) and then shifted back by an amount Δ (bottom), This gives rise to an implicit evolution equation Ψ(δ(t + 1), δ(t)) = 0 for the threshold crossing points of the perturbed wave, as detailed in the text.
Approximate probability mass functions for the Markov chain model
We have thus far analysed coherent states of a deterministic limit of the Markov chain model, and we now move to the more challenging stochastic setting. More precisely, we return to the original model (2.8)and find approximate mass functions for the coherent structures presented in Section 3 (see Figures 2–4). These approximations will be used in the lifting procedure of the equation-free framework.
The stochastic model is a Markov chain whose 3^N^-by-3^N^ transition kernel has entries specified by (2.1). It is useful to examine the evolution of the probability mass function for the state of a neuron at position xi in the network, μk(xi, t) = Pr(u(xi, t) = k), k ∈ 𝕌, which evolves according to [eqn] or in compact notation μ(xi, t + 1) = Π(xi, t)μ(xi, t). We recall that f is the sigmoidal firing rate and that J is a deterministic function of the random vector, u(x, t) ∈ 𝕌^N^, via the pullback set [eqn]: [eqn]
As a consequence, the evolution equation for μ(xi, t) is non-local, in that J(xi, t) depends on the microscopic state of the whole network.
We now introduce an approximate evolution equation, obtained by posing the problem on a continuum tissue 𝕊 and by substituting J(x, t) by its expected value [eqn] where μ : 𝕊 × ℤ → [0,1]^3^, [eqn] and [eqn]
In passing, we note that the evolution equation (7.2)is deterministic. We are interested in two types of solutions to (7.2):
- A time-independent bump solution, that is a mapping μb such that μ(x, t) = μb(x) for all x ∈ 𝕊 and t ∈ ℤ.
- A travelling wave solution, that is, a mapping μtw and a real number c such that μ(x, t) = μtw(x – ct) for all x ∈ 𝕊 and t ∈ ℤ.
Approximate probability mass function for bumps
7.1.
We observe that, posing μ(y, t) = μb(y) in (7.2), we have [eqn] Motivated by the simulations in Section 3 and by Proposition 5.1, we seek a solution to (7.2) in the limit β → œ, with 𝔼J > h for x ∈ [0, Δ], and (μb)1(x) ≠ 0 for x ∈ [0, Δ], where Δ is unknown. We obtain [eqn] where [eqn]
We conclude that, for each x ∈ [0, Δ] (respectively x ∈ 𝕊 \ [0, Δ]), μb(x) is the right || · ||1-unit eigenvector corresponding to the eigenvalue 1 of the stochastic matrix Q≥ (respectively Q<). We find [eqn] and, by imposing the threshold condition 𝔼J = h, we obtain a compatibility condition for Δ, [eqn]
We note that if p = 1 we have 𝔼J = Jb (x, 0, Δ) where Jb is the profile for the mesoscopic bump found in Proposition 5.1, as expected.

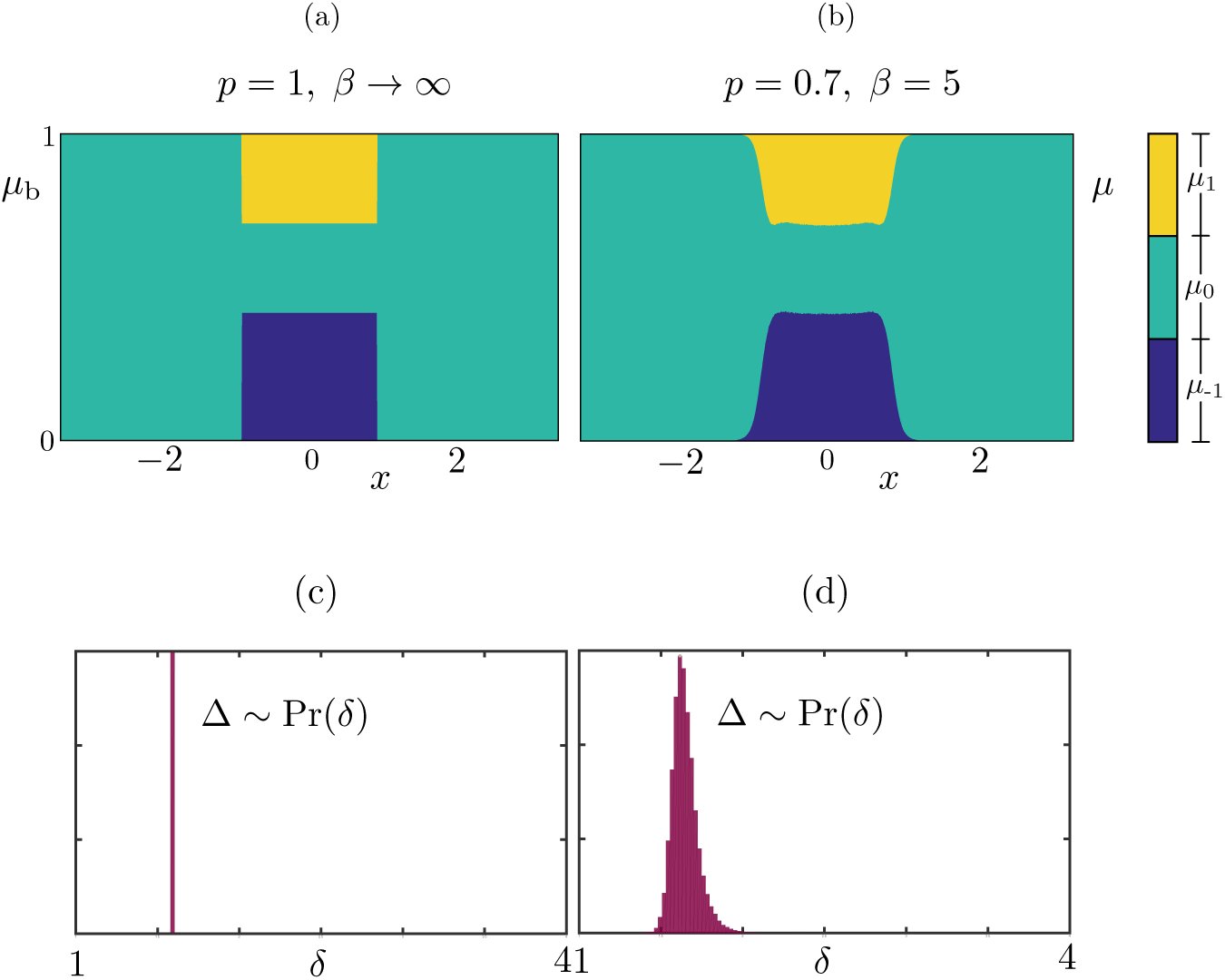

In Figure 11(a), we plot μb(x) as predicted by (7.5)–(7.6), for p = 0.7, k = 30, h = 0.9. At each x, we visualise (μb)k for each k ∈ 𝕌 using vertically juxtaposed color bars, with height proportional to the values (μb)k, as shown in the legend. For a qualitative comparison with direct simulations, we refer the reader to the microscopic profile u(x, 50) shown in the right panel of Figure 2(a): the comparison suggests that each u(xi, 50) is distributed according to μb(xi).
Comparison between the probability mass function μb, as computed by (7.5)-(7.6), and the observed distribution μ of the stochastic model, (a): We compute the vector (μb)k, k ∈ 𝕌 in each. strip using (7.7) and visualise the distribution using vertically juxtaposed color bars, with height proportional to the values (μb)k, as shown in the legend, (b): A long. simulation of the stochastic model supporting a stochastic bump u(x,t) for t ∈ [0,T], where T = 105, At each time t > 10 (allowing for initial transients to decay), we compute ξ1(t), ξ2(t), Δ(t) and then produce histograms for the random profile u(x – ξ1(t) – Δ(t)/2,t), (c): in the deterministic limit the value of Δ is determined by (7.6), hence we have a Dirac distribution, (d): the distribution of Δ obtained in the Markov chain model, Parameters are as in Table 1.
We also compared quantitatively the approximate distribution μb with the distribution, μ(x, t), obtained via Monte Carlo samples of the full system (7.1). The distributions are obtained from a long-time simulation of the stochastic model supporting a microscopic bump u(x, t) for t ∈ [0,T], with T = 10^5^. At each discrete time t, we compute the mesoscopic profile, J(u)(x, t), the corresponding threshold crossings and width: ξ1(t), ξ2(t), Δ(t) and then produce histograms for the random profile u(x – ξ1(t) – Δ(t)/2, t). The instantaneous shift applied to the profile is necessary to pin the wandering bump.
We note a discrepancy between the analytically computed histograms, in which we observe a sharp transition between the region x ∈ [0, Δ] and x ∈ 𝕊 \ [0, Δ], and the numerically computed ones, in which this transition is smoother. This discrepancy arises because Δ(t) oscillates around an average value Δ predicted by (7.6); the approximate evolution equation (7.2)does not account for these oscillations. This is visible in the histograms of Figure 11(c)-(d), as well as in the direct numerical simulation 6(a).
Approximate probability mass function for travelling waves
7.2.

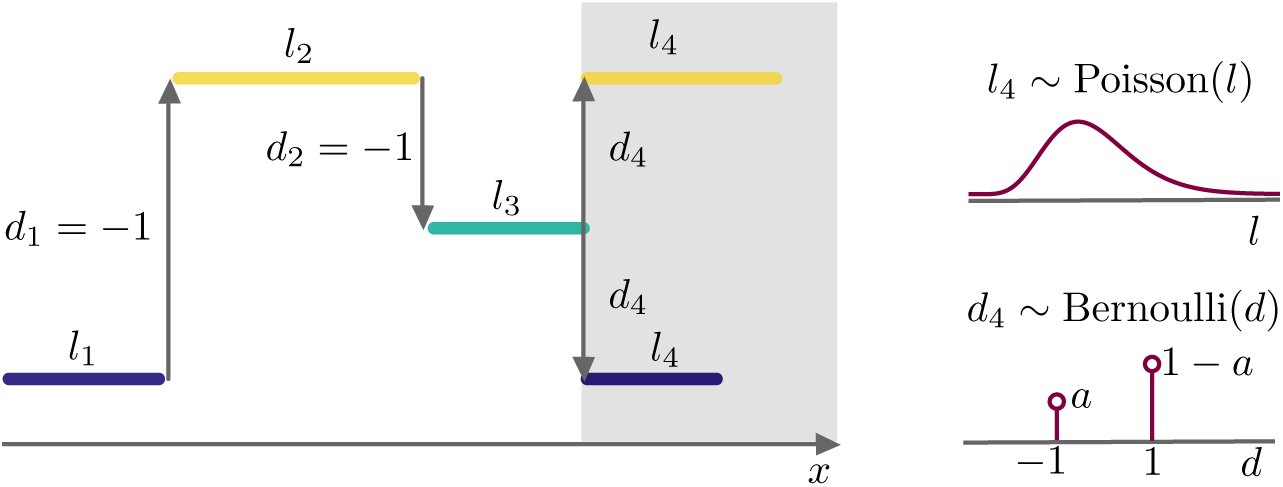

We now follow a similar strategy to approximate the probability mass function for travelling waves. We pose μ(x, t) = μtw(x – ct) in the expression for 𝔼[J], to obtain [eqn] Proposition 6.1 provides us with a deterministic travelling wave with speed c = Δ. The parameter Δ is also connected to the mesoscopic wave profile, which has threshold crossings ξ1 = –2Δ and ξ2 = Δ. Hence, we seek for a solution to (7.2) in the limit β → ∞, with 𝔼J ≥ h for X ∈ [–2c, c], and (μtw)1(z) ≠ 0 for z ∈ [–2c, c], where c is unknown. For simplicity, we pose the problem on a large domain whose size is commensurate with c, that is 𝕊 = cT/ℝ, where T is an even integer much greater than 1.
We obtain [eqn] where [eqn]
To make further analytical progress, it is useful to partition the domain 𝕊 = cT/ℝ in strips of width c, [eqn] and impose that the wave returns back to its original position after t iterations, σcTμtw(z) = μtw(z), while satisfying the compatibility condition h = 𝔼J. This leads to the system [eqn]
With reference to system (7.7)we note that:
- R(z, c) is constant within each strip Ij, hence the probability mass function, μtw(z), is also constant in each strip, that is, μtw(z) = Σ_i_ ρi1Ii(c)(z) for some unknown vector (ρ–T/2,…, ρT/2) ∈ 𝕊^3T^.
- Each Rj is a product of T 3-by-3 stochastic matrices, each equal to Q< or Q≥. Furthermore, the matrices {Rj} are computable. For instance, for the strip I–1 we have [eqn]
Consequently, μtw(z) can be determined by solving the following problem in the unknown (ρ–T/2, …, ρT/2, c) ∈ 𝕊^3T^ × ℝ: [eqn]
Before presenting a quantitative comparison between the numerically determined distribution, μtw(z), and that obtained via direct time simulations, we make a few efficiency considerations. In the following sections, it will become apparent that sampling the distribution μtw(z) for various values of control parameters, such as h or k, is a recurrent task, at the core of the coarse bifurcation analysis: each linear and nonlinear function evaluation within the continuation algorithm requires sampling μtw(z), and hence solving the large nonlinear problem (7.8).
With little effort, however, we can obtain an accurate approximation to μtw, with considerable computational savings. The inspiration comes once again from the analytical wave of Proposition 6.1. We notice that only the last equation of system (7.8)is nonlinear; the last equation is also the only one which couples {ρj} with c. When p = 1 the wave speed is known as β → ∞, N → ∞ and p = 1 corresponds to the deterministic limit, hence 𝔼J = Jtw(z), which implies c = Δ and (ρ–1)1 = 1. The stochastic waves observed in direct simulations for p ≠ 1, however, display c ≈ (ξ2 – ξ1)/3 = Δ and μ ≈ 1 in the strip where J achieves a local maximum (see, for instance Figure 4, for which p = 0.4).
The considerations above lead us to the following scheme to approximate μtw: (i) set c = Δ and remove the last equation in (7.8); (ii) solve T decoupled 3-by-3 eigenvalue problems to find ρi. Furthermore, if p remains fixed in the coarse bifurcation analysis, ρi can be pre-computed and step (ii) can be skipped.

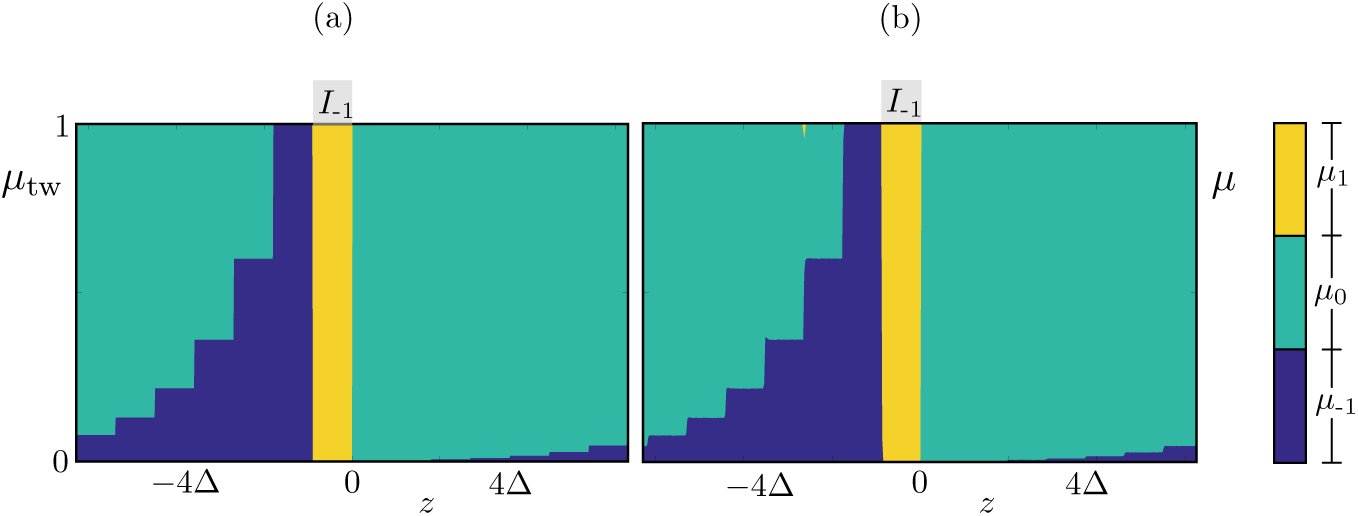

In Figure 12(a), we report the approximate μtw found with the numerical procedure described above. An inspection of the microscopic profile u(x, 45) in the right panel of Figure 4(a) shows that this profile is compatible with μtw. We also compared quantitatively the approximate distribution with the distribution, μ(x, t), obtained with Monte Carlo samples of the full system (7.1). The distributions are obtained from M samples [eqn] of the stochastic model for a travelling wave for t ∈ [0, T]. For each sample s, we compute the thresholds, [eqn], of the corresponding J(u^s^)(x, t) and then produce histograms for [eqn]. This shifting, whose results are reported in Figure 12(b), does not enforce any constant value for the velocity, hence it allows us to test the numerical approximation μtw. The agreement between the two distributions is excellent: we stress that, while the strips in Figure 12(a) are enforced by our approximation, the ones in Figure 12(b) emerge from the data. We note a slight discrepancy, in that μtw(– 3Δ) ≈ 0, while the other distribution shows a small nonzero probability attributed to the firing state at ξ = –3Δ. Despite this minor disagreement, the differences between the approximated and observed distributions remain small across all parameter regimes of note and the approximations even retain their accuracy as β is decreased (not shown).
Similarly to Figure 11, we compare the approximated probability mass function μ, and the observed distribution μ of the stochastic model. (a): the probability mass function is approximated using the numerical scheme outlined in the main text for the solution of (7.8); the strip I–1 is indicated for reference. (b): A set of 9 × 105 realisations of the stochastic model for a travelling wave are run for t ∈ [0,T], where T = 1000. For each realisation s, we calculate the final threshold crossings , and then compute histograms of . We stress that the strips in (a) are induced by our numerical procedure, while the ones in (b) emerge from the data. The agreement is excellent and is preserved across a vast region of parameter space (not shown). Parameters are as in Table 1.
Coarse time-stepper
As mentioned in the introduction, equation-free methods allow us to compute macroscopic states in cases in which a macroscopic evolution equation is not available in closed form [42, 43]. To understand the general idea behind the equation-free framework, we initially discuss an example taken from one of the previous sections, where an evolution equation does exist in closed form.
In Section 5, we described bumps in a deterministic limit of the Markov chain model. In this description, we singled out a microscopic state (the function um(x) with partition (5.2)) and a corresponding mesoscopic state (the function Jm(x)), both sketched in Figure 7. Proposition 5.1 shows that there exists a well defined mesoscopic limit profile, Jb, which is determined (up to translations in x) by its threshold crossings ξ1 = 0, ξ2 = Δ. This suggests a characterisation of the bump in terms of the macroscopic vector (ξ1, ξ2) or, once translation invariance is factored out, in terms of the macroscopic bump width, Δ. Even though the microscopic state um is not an equilibrium of the deterministic system, the macroscopic state (0, Δ) is a fixed point of the evolution equation (5.5), whose evolution operator Ψ is known in closed form, owing to Proposition 5.1. It is then possible to compute Δ as a root of an explicitly available nonlinear equation.
We now aim to use equation-free methods to compute macroscopic equilibria in cases where we do not have an explicit evolution equation, but only a numerical procedure to approximate Ψ. As mentioned in the introduction, the evolution equation is approximated using a coarse time-stepper, which maps the macroscopic state at time t0 to the macroscopic state at time t1 using three stages: lifting, evolution, restriction. The specification of these stages (the lifting in particular) typically requires some closure assumptions, which are enforced numerically. In our case, we use the analysis of the previous sections for this purpose. In the following section, we discuss the coarse time-stepper for bumps and travelling waves. The multi-bump case is a straightforward extension of the single bump case.
Coarse time-stepper for bumps
8.1.
The macroscopic variables for the bump are the threshold crossings {ξi} of the mesoscopic profile J. The lifting operator for the bump takes as arguments {ξi} and returns a set of microscopic profiles compatible with these threshold crossings: [eqn] If β → ∞, u^s^(x) are samples of the analytical probability mass function μb(x + Δ/2), where μb is given by (7.5)with Δ = ξ2 – ξ1. In this limit, a solution branch may also be traced by plotting (7.6).
If β is finite, we either extract samples from the approximate probability mass function μb used above, or we extract samples U^s^(x) satisfying the following properties (see Proposition 5.1 and Remark 5.3):
- U^s^(x) is symmetric with respect to the axis X = (ξ̃_1_ + ξ̃_2_)/2, where ξ̃_i_ = round (ξi) and round: 𝕊 → 𝕊_N_.
- u^s^(x) = 0 for all X ∈ [–L, ξ̃_1_) ∪ (ξ̃_2_, L).
- The pullback sets, X1 and X–1, are contained within [ξ1, ξ2] and are unions of a random number of intervals whose widths are also random. A schematic of the lifting operator for bumps is shown in Figure 13.
Schematic representation of the lift operator for a bump solution, This figure displays a representation of how the states for neurons located within the activity set, [ξ1,ξ2], are lifted, For illustrative purposes, we assume here that we are midway through the lifting operation, where 3 steps of the while loop listed in Algorithm 1 have been completed and a fourth one is being executed (shaded area), The width l4 of the next strip is drawn from a Poisson distribution, The random variable d € {–1, 1} indicates the direction through which we cycle through the states {–1, 0, 1} during the lifting, The number d4 is drawn from a Bernoulli distribution whose average a gives the probablity of changing direction, For full details of the lifting operator, please refer to Algorithm 1.
A more precise description of the latter sampling is given in Algorithm 1. As mentioned in the introduction, lifting operators are not unique and we have given above two possible examples of lifting. In our computations, we favour the second sampling method. The mesoscopic profiles, J, generated using this approach are well-matched to 𝔼[J] produced by the analytically derived probability mass functions (7.5). Numerical experiments demonstrate that this method is better than the first possible lifting choice at continuing unstable branches. This is most likely due to the fact that the latter method slightly overestimates the probability of neurons within the bump to be in the spiking state, and underestimates that of them being in the refractory state and this helps mitigate the problems encountered when finding unstable states caused by the combination of the finite size of the network and non-smooth characteristics of the model (when β is high).
The evolution operator is given by [eqn] where ψT denotes T compositions of the microscopic evolution operator (2.8)and the dependence on the control parameter, γ, is omitted for simplicity.
For the restriction operator, we compute the average activity set of the profiles. More specifically, we set [eqn] where [eqn] and [eqn] are defined using a piecewise first-order interpolant [eqn] of J with nodes [eqn], [eqn]
Algorithm 1: Lifting operator for bump
Input : Threshold crossings ξ1, ξ2; Average number of strips, m; Average for the Bernoulli distribution, a; Width of the domain, L. Output : Profiles u^1^(x),…,u^M^(x) Comments : The profiles u^s^(x) are assumed to besymmetric around x = (ξ1 + ξ2)/2. The operator round rounds a real number to a computational grid with stepsize δx = 2L/N. Pseudocode : for s = 1, M do Set u^s^(x) = 0 for all x ∈ [–L, ξ1) ∪ (ξ2, L) Set d = –1 x = round(ξ1), u^s^(x) = 1 while x ≤ (ξ1 + ξ2)/2 do Select random width l ~ Poisson((ξ2 – ξ1/m) Select random increment b ~ Bernoulli(a), d = (d + 2b + 1) mod 3 – 1 for j = 1, l do Update x = x + δx if x ≤ (ξ1 + ξ2)/2 then if j = l then u^i^ changes value at the next grid point u^s^(x + δx) = (u^s^(x) + d + 1) mod 3 – 1 else u^s^ remains constant at the next grid point u^s^(x + δx) = u^s^(x) end Reflection around symmetry axis, u(ξ2 + ξ1 – x) = u(x) end end end end
We also point out that the computation stops if the two sets above are empty, whereupon, we set [eqn].
The coarse time-stepper for bumps is then given by [eqn] where the dependence on parameter γ has been omitted.
Coarse time-stepper for travelling waves
8.2.
In Section 7.1, we showed that the probability mass function, μtw(z), of a coarse travelling wave can be approx-imated numerically using the travelling wave of the deterministic model, by solving a simple set of eigenvalue problems. It is therefore natural to use μtw in the lifting procedure for the travelling wave. In analogy with what was done for the bump, our coarse variables (ξ1, ξ2) are the boundaries of the activity set associated with the coarse wave, X≥ = [ξ1, ξ2]. We then set [eqn] where {u^s^(xj)}s are M independent samples of the probability mass functions μtw(xi), with c = (ξ2 – ξ1)/3. The restriction operator for travelling waves is the same used for the bump. The coarse time-stepper for travelling waves, Φ_tw_, is then obtained as in (8.1), with 𝓛_b_ replaced by 𝓛_tw_. [eqn]
Root finding and pseudo-arclength continuation
Once the coarse time-steppers, Φ_1_ and Φ_tw_, have been defined, it is possible to use Newton’s method and pseudo-arclength continuation to compute coarse states, continue them in one of the control parameters and assess their coarse linear stability. In this section, we will indicate dependence upon a single parameter γ ∈ ℝ, implying that this can be any of the control parameters in (2.8).
For bumps, we continue in γ the nonlinear problem Fb(ξ; γ) = 0, where [eqn]
A vector ξ such that Fb(ξ; γ) = 0 corresponds to a coarse bump with activity set X≥ = [0, ξ2] and width ξ2, occurring for the parameter value γ, that is, we eliminated the translation invariance associated with the problem by imposing ξ1 = 0. In passing, we note that it is possible to hardwire the condition ξ1 =0 directly in Fb and proceed to solve an equivalent 1-dimensional system. Here, we retain the 2-dimensional formulation with the explicit condition ξ1 = 0, as this makes the exposition simpler.
During continuation, the explicitly unavailable Jacobians [eqn] are approximated using the first-order forward finite-difference formulas [eqn]
The finite difference formula for DξΦ_b_ also defines the Jacobian operator used to compute stability: for a given solution ξ* of (9.1), we study the associated eigenvalue problem [eqn]
For coarse travelling waves, we define [eqn]
A solution (ξ, c) to the problem Ftw(ξ, c; γ) = 0 corresponds to a coarse travelling wave with activity set X≥ = [0, ξ2] and speed ξ2/3, that is, we eliminated the translation invariance and imposed a speed c in accordance with the lifting procedure Ltw. As for the bump we can, in principle, solve an equivalent 1-dimensional coarse problem.
Numerical results
We begin by testing the numerical properties of the coarse time-stepper, the Jacobian-vector products and the Newton solver used for our computations. In Figure 14(a), we evaluate the Jacobian-vector product of the coarse time stepper with p = 1, β → ∞ for bumps (waves) evaluated at a coarse bump (wave), in the direction εξ̃, where 0 < ε ≪ 1 and ξ̃ is a random vector with norm 1. Since this coarse time stepper corresponds to the deterministic case, we expect the norm of the Jacobian-vector product to be an O(ε), as confirmed by the numerical experiment. In Figure 14(b), we repeat the experiment in the stochastic setting (p = 0.4), for the travelling wave case with various number of realisations. As expected, the norm of the Jacobian-vector action follows the O(ε) curve for sufficiently large ε: the more realisations are employed, the more accurately the O(ε) curve is followed.

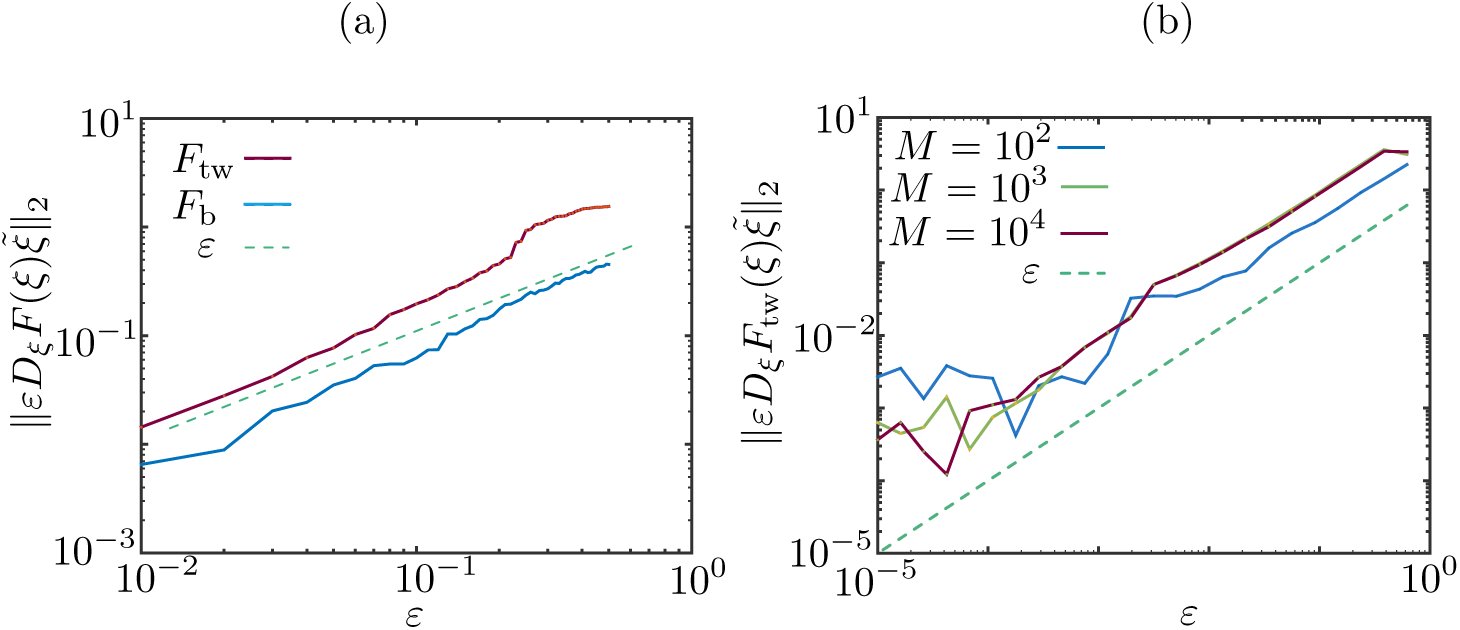

Jacobian-vector product norm as a function of ε. The approximated Jacobian-vector products DξFb(ξ)ξ̃ and DξFtw(ξ)ξ̃, are evaluated at a coarse bump and a coarse travelling wave ξ in a randomly selected direction εξ̃, where ||ξ||2 = 1. (a) A single realisation of the deterministic coarse-evolution maps is used in the test, showing that the norm of the Jacobian-vector product is an 𝒪(ε), as expected. Parameters: p =1, k = 30, β → ∞ (Heaviside firing rate), h =1, N = 128, A1 = 5.25, A2 = 5, B1 = 0.2, B2 = 0.3. (b) The experiment is repeated for a coarse travelling wave in the stochastic setting and for various values of M. Parameters as in (a), except p = 0.4.
We then proceed to verify directly the convergence history of the damped Newton solver. In Figure 15(a), we use a damping factor 0.5 and show the residual of the problem as a function of the number of iterations, showing that the method converges quickly to a solution. At first sight, it is surprising that the achievable tolerance of the problem does not change when the number of realisations increases. A second experiment, however, reported in Figure 15(b), shows that this behaviour is caused by the low system size: when we increase N from 2^7^ to 2^9^, the achievable tolerance decreases by one order of magnitude.

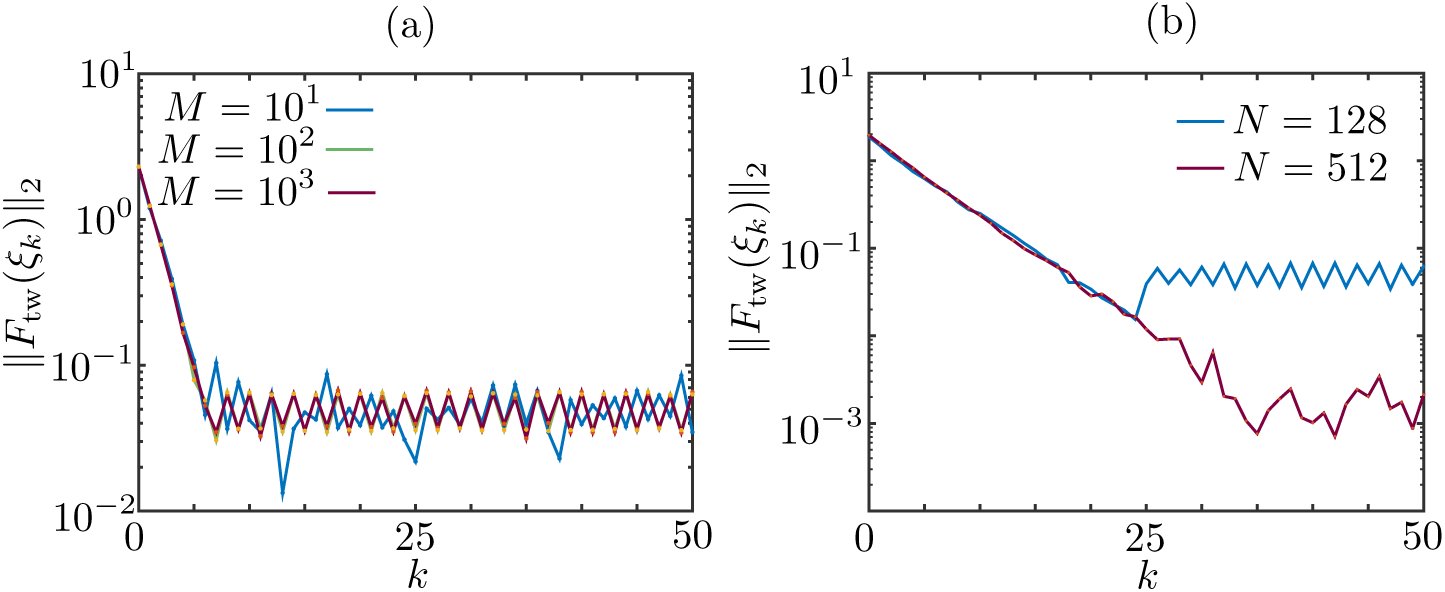

Convergence history of the damped Newton’s method applied to the coarse travelling wave problem. (a): the method converges linearly, and the achievable tolerance does not decrease when the number of realisations M is increased. (b): the achievable tolerance depends on the grid size, or, equivalently, on the number of neurons, N.

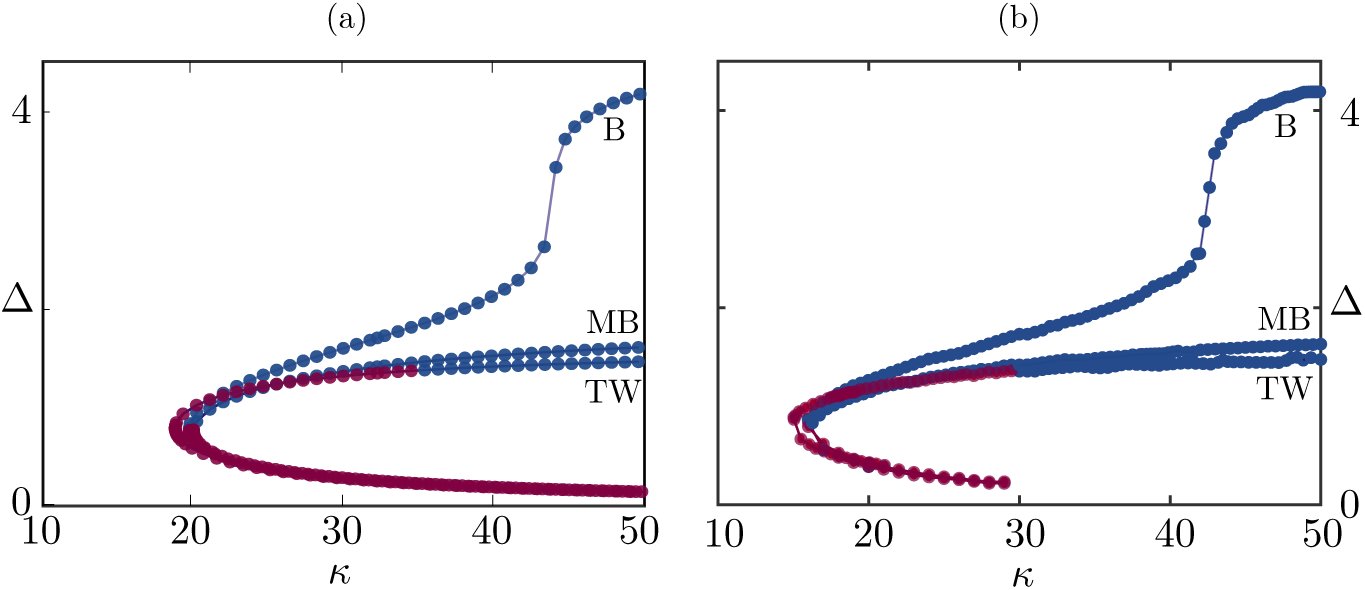

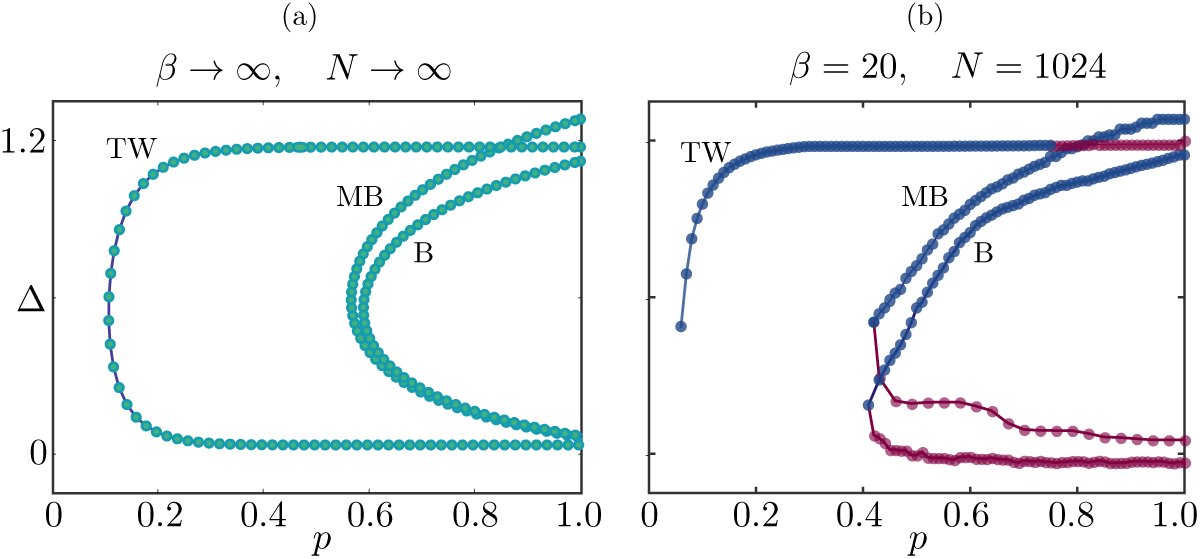

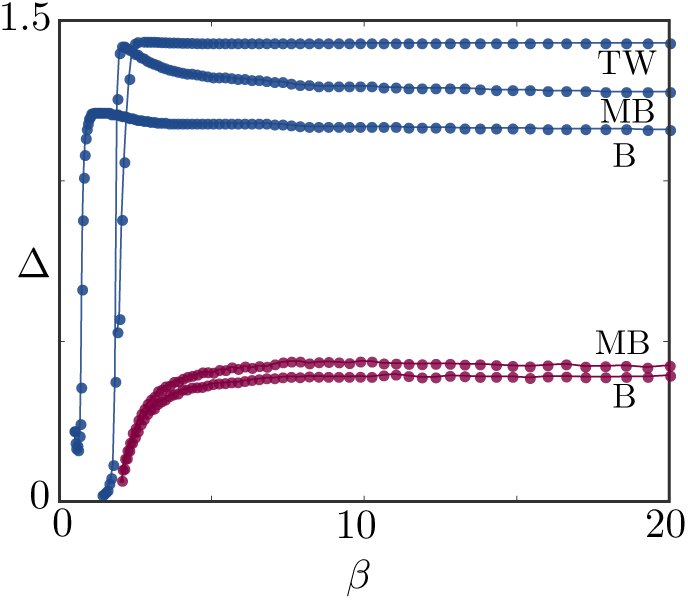

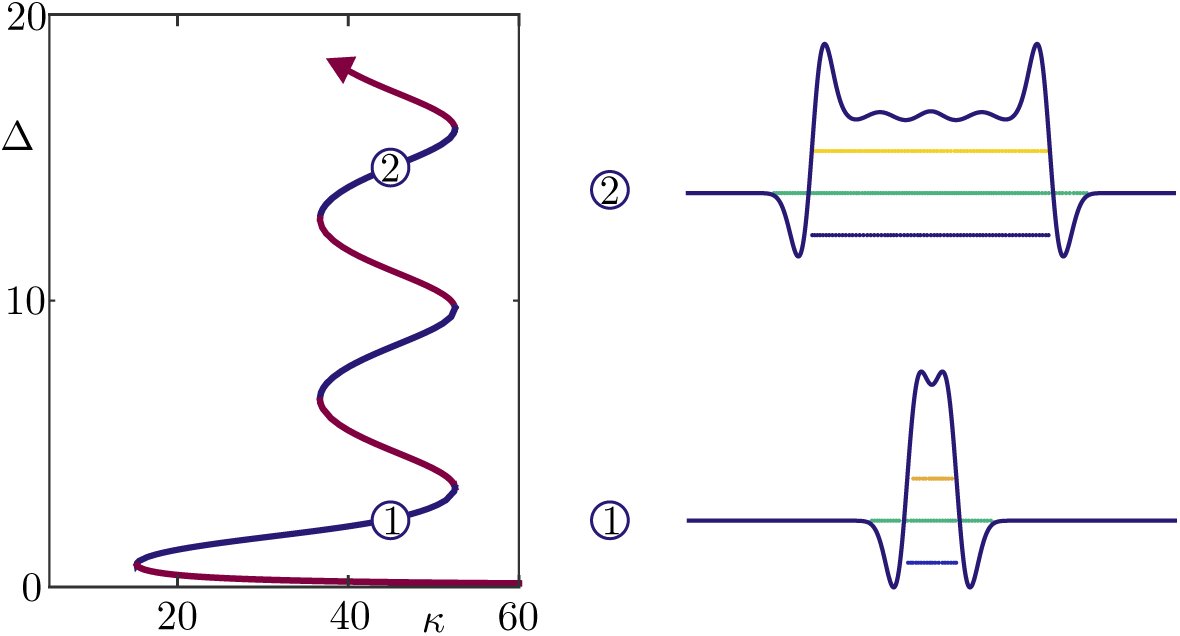

Numerical Bifurcation Analysis
10.1.
Gong and Robinson [36], and Qi and Gong [62] found wandering spots and propagating ensembles using direct numerical simulations on the plane. Here, we perform a numerical bifurcation analysis with various control parameters for the structures found in Section 3 on a one-dimensional domain.
In Figure 16(a), we vary the primary control parameter k, the gain of the convolu-tion term, therefore, we study existence and stability of the bumps and the travelling pulse when global coupling is varied. This continuation is performed for a bump, a multiple bump and a travelling pulse in the continuum deterministic model, using Equations (5.5), (5.8)and (6.2), respectively.
Bifurcation diagrams for bumps (B), multibumps (MB) and travelling waves (TW) using k as bifurcation parameter parameter, (a): Using the analytical results, we see that bump, multi-bump and travelling wave solutions coexist and are stable for sufficiently high k (see main text for details), (b): The solution branches found using the equation-free methods agree with the analytical results, Parameters as in Table 1 except h = p = 1.0, β → ∞.
For sufficiently high k, these states coexist and are stable in a large region of parameter space. We stress that spatially homogeneous mesoscopic states J(x) ≡ J*, with 0 = J* or J* > h are also supported by the model, but are not treated here. Interestingly, the three solution branches are disconnected, hence the bump analysed in this study does not derive from an instability of the trivial state. A narrow unstable bump Δ ≪ 1 exists for arbitrarily large k (red branch); as k decreases, the branch stabilises at a saddle-node bifurcation. At k ≈ 42, the branch becomes steeper, the maximum of the bump changes concavity, developing a dimple. On an infinite domain, the branch displays an asymptote (not shown) as the bump widens indefinitely. On a finite domain, like the one reported in the figure, there is a maximum achievable width of the bump, due to boundary effects. The travelling wave is also initially unstable, but does not stabilise at the saddle node bifurcation. Instead, the wave becomes stable at k ≈ 33, confirming the numerical simulations reported in Figure 9.
In Figure 16(b), we repeat the continuation for the same parameter values, but on a finite network, using the coarse time-steppers outlined in Sections 8.1, 8.2. The numerical procedure returns results in line with the continuum case, even at the presence of the noise induced by the finite size. The branches terminate for large k and low Δ: this can be explained by noting that, if J(x) ≡ 0, then the system attains the trivial resting state u(x) ≡ 0 immediately, as no neuron can fire; on a continuum network, Δ can be arbitrarily small, hence the branch can be followed for arbitrarily large k; on a discrete network, there is a minimal value of Δ that can be represented with a finite grid.
We now consider continuation of solutions in the stochastic model. In Figure 17, we vary the transition probability, p, from the refractory to quiescent state. In panel (a), we show analytical results, given by solving (7.5)-(7.6), whilst panel (b) shows results found using the equation-free method. We find qualitatively similar diagrams in both cases, though we note some quantitative differences, owing to the finite size of the network and the finiteness of β: at the presence of noise, the stationary solutions exist for a wider region of parameter space (compare the folds in Figure 17(a) and Figure 17(b)); a similar situation arises, is also valid for the travelling wave branches.
Bifurcation in the control parameter p, (a): Existence curves obtained analytically; we see that, below a critical value of p, only the travelling wave exists, (b): The solution branches found using the equation-free method agree qualitatively with the analytical results, and we can use the method to infer stability, For full details, please refer to the text, Parameters as in Table 1 except k = 20.0, h = 0.9, with β → ∞ for (a) and β = 20.0 for (b).
The analytical curves of Figure 17(a) do not contain any stability information, which are instead available in the equation-free calculations of Figure 17(b), confirming that bump and multi-bump destabilise at a saddle-node bifurcation, whereas the travelling wave becomes unstable to perturbations in the wake, if p is too large. The lower branch of the travelling wave is present in the analytical results, but not in the numerical ones, as this branch is not captured by our lifting strategy: when we lift a travelling wave for very low values of Δ, we have that J < h for all x ∈ 𝕊_N_ and the network attains the trivial state u(x) ≡ 0 in 1 or 2 time steps, thereby the coarse time stepper becomes ineffective, as the integration time T can not be reduced to 0.
Gong and co-workers [36, 62] found that refractoriness is a key component to generating propagating activity in the network. The bifurcation diagram presented here confirm this, as we recognise 3 regimes: for high p (low refractory time) the system supports stationary bumps, as the wave is unstable; for intermediate p, travelling and stationary bumps coexist and are stable, while for low p (high refractory time) the system selects the travelling wave.
In Figure 18, we perform the same computation now varying β, which governs the sensitivity of the transition from quiescence to spiking. Here, we see that the wave and both bump solutions are stable for a wide range of β values and furthermore, that these states are largely insensitive to variations in this parameter, implying that the Heaviside limit is a good approximation for the network in this region of parameter space.
Bifurcation in the control parameter β, For a large range of values, we observe very little change in Δ as β is varied, Parameters as in Table 1 except k = 40.0, h = 0.9, p = 1.0, See the main text for full details.
Bifurcation diagram for bumps in a heterogeneous network, To generate this figure, we replaced the coupling function with W̃(x, y) = W(x – y)(1 + W0 cos(y/s)), with W0 = 0.01, s = 0.5, We observe the snaking phenomenon in the approximate interval k ∈ [38, 52], The branches moving upwards and to the right are stable, whereas those moving to the left are unstable, The images on the right, obtained via direct simulation, depict the solution profiles on the labelled part of the branches, We note the similarity of the mesoscopic profiles within the middle of the bump, The continuation was performed for the continumm, deterministic model with parameters are k = 30, h = 0.9.
Finally, we apply the framework presented in the previous sections to study heterogeneous networks. We modulate the synaptic kernel using a harmonic function, as studied in [4] for a neural field. As in [4], the heterogeneity promotes the formation of a hierarchy of stable coexisting localised bumps, with varying width, arranged in a classical snaking bifurcation diagram. A detailed study of this bifurcation structure, while possible, is outside the scope of the present paper.
Discussion
In this article, we have used a combination of analytical and numerical techniques to study pattern formation in a Markov chain neural network model. Whilst simple in nature, the model exhibits rich dynamical behaviour, which is often observed in more realistic neural networks. In particular, spatio-temporal patterns in the form of bumps have been linked to working memory [33, 17, 34], whilst travelling waves are thought to be important for plasticity [6] and memory consolidation [57, 64]. Overall, our results reinforce the findings of [36], namely that refractoriness is key to generating propagating activity: we have shown analytically and numerically that waves are supported by a combination of high gains in the synaptic input and moderate to long refractory times. For high gains and short refractory times, the network supports localised, meandering bumps of activity.
The analysis presented here highlights the multiscale nature of the model by showing how evolution on a microscopic level gives rise to emergent behaviour at meso‐ and macroscopic levels. In particular, we established a link between descriptions of the model at multiple spatial scales: the identified coarse spatiotemporal patterns have typified and recognisable motifs at the microscopic level, which we exploit to compute macroscopic patterns and their stability.
Travelling waves and bumps have almost identical meso‐ and macroscopic profiles: if microscopic data were removed from Figure 2(a) and Figure 4(a), the profiles and activity sets of these two patterns would be indistinguishable. We have shown that a disambiguation is however possible if the meso‐ and macroscopic descriptions take into account microscopic traits of the patterns: in the deterministic limit of the system, where mathematical analysis is possible, the microscopic structure is used in the partition sets of Propositions 5.1 and 6.1; in the stochastic setting with Heaviside firing rates and infinite number of neurons, the microscopic structure is reflected in the approximate probability mass functions appearing in Section 7; in the full stochastic finite-size setting, where an analytical description is unavailable, the microscopic structure is hardwired in the lifting operators of the coarse time-steppers (Section 8).
An essential ingredient in our analysis is the dependence of the Markov chain transition probability matrix upon the global activity of the network, via the firing rate function f. Since this hypothesis is used to construct rate models as Markov processes [10], our lifting strategy could be used in equation-free schemes for more general large-dimensional neural networks. An apparent limitation of the procedure presented here is its inability to lift strongly unstable patterns with low activity, as pointed out in Section 10. This limitation, however, seems to be specific to the model studied here: when Δ → 0, bumps destabilise with transients that are too short to be captured by the coarse time-stepper.
A possible remedy would be to represent the pattern via a low-dimensional, spatially-extended, spectral discretisation of the mesoscopic profile (see [48]), which would allow us to represent the synaptic activity below the threshold h. This would lead to a larger-dimensional coarse system, in which noise would pollute the Jacobian-vector evaluation and the convergence of the Newton method. Variance-reduction techniques [65] have been recently proposed for equation-free methods in the context of agent-based models [3], and we aim to adapt them to large neural networks in subsequent publications.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Shun-ichi Amari. Homogeneous nets of neuron-like elements. Biological Cybernetics, 17(4):211–220, 1975.
- 2Shun-ichi Amari. Dynamics of pattern formation in lateral-inhibition type neural fields. Bio logical Cybernetics, 27(2):77–87, June 1977.
- 3Daniele Avitabile, Rebecca Hoyle, and Giovanni Samaey. Noise reduction in coarse bifurcation analysis of stochastic agent-based models: an example of consumer lock-in. SIAM Journal on Applied Dynamical Systems, 13(4):1583–1619, 2014.
- 4Daniele Avitabile and Helmut Schmidt. Snakes and ladders in an inhomogeneous neural field model. Physica D: Nonlinear Phenomena, 294:24–36, 2015.
- 5Javier Baladron, Diego Fasoli, Olivier Faugeras, and Jonathan Touboul. Mean-field description and propagation of chaos in networks of Hodgkin-Huxley and Fitz Hugh-Nagumo neurons. The Journal of Mathematical Neuroscience, 2(10), 2012.
- 6James E. M. Bennett. Refinement and pattern formation in neural circuits by the interaction of traveling waves with spike-timing dependent plasticity. P Lo S Computational Biology, 11(8):e 1004422, 2015.
- 7Chris A. Brackley and Matthew S. Turner. Random fluctuations of the firing rate function in a continuum neural field model. Physical Review E, 75(4):041913, 2007.
- 8Valentino Braitenberg and Almut Schiiz. Cortex: Statistics and Geometry of Neuronal Con nectivity. Springer Berlin Heidelberg, Berlin, Heidelberg, 1998.
