Discovery of a Young Gamma-ray Pulsar Associated with an Extended TeV Gamma-ray Source

TL;DR

This paper reports the discovery of a young, radio-quiet gamma-ray pulsar, PSR J1022-5746, associated with an extended TeV gamma-ray source, utilizing Fermi LAT data and multiwavelength observations.

Contribution

It presents the first discovery of a young gamma-ray pulsar in a blind search linked to an extended TeV source, demonstrating the capabilities of Fermi LAT.

Findings

Discovery of PSR J1022-5746 as a young gamma-ray pulsar

Association with an extended TeV gamma-ray source

Multiwavelength observations supporting the identification

Abstract

Since its launch in June 2008, the Large Area Telescope (LAT), onboard the \emph{Fermi} Gamma-ray Space Telescope, has greatly added to our understanding of gamma-ray pulsars. Its fine point spread function and large effective area, combined with the time-differencing method, make it the first gamma-ray instrument capable of discovering a new population of gamma-ray pulsars. We will present the recent discovery of the youngest (~4600 yr) radio-quiet gamma-ray pulsar discovered in a blind frequency search so far: PSR J1022-5746, a pulsar associated with an extended TeV source. We also present multiwavelength observations of the source, including X-ray observations.

Figures

Tables

Table 1. Table 1: Names and locations of the new gamma-ray pulsars.

Pulsar Name	J1022–5746
Source Associations	0FGL J1024.0–5754
	HESS J1023–575
	CXOU J102302.8–574607
R.A.	155.7597
Decl.	-57.7693
$l$	284.2
$b$	-0.4

Table 2. Table 2: Rotational ephemerides for the new pulsars. For all timing solutions, the reference epoch is MJD 54800. Row 1 gives the pulsar name. Row 2 lists the number of photons from the standard cut over the 11 month observational period. Row 3 gives the flux above 100 MeV in units of 10 − 8 superscript 10 8 10^{-8} cm -2 s -1 using P6v3 IRFs. Rows 4 and 5 list the frequency in units of Hz and frequency derivative in units of − 10 − 12 superscript 10 12 -10^{-12} Hz s -1 . Rows 6, 7 and 8 give the characteristic age in units of kyr, spin-down luminosity in units of 10 34 superscript 10 34 10^{34} erg s -1 , and magnetic field strength at the light cylinder B L ​ C subscript 𝐵 𝐿 𝐶 B_{LC} determined from the spin parameters. These derived parameters are rounded to the nearest significant digit.

Pulsar Name	J1022–5746
$n_{\gamma }$	4365
$F_{100}$ (${10}^{-8}$ cm-2 s-1)	$23.0\pm 2.6$
$f$ (Hz)	8.970977214(3)
$\dot{f}$ ($-{10}^{-12}$ Hz s-1)	30.9163(3)
$\ddot{f}$ (${10}^{-21}$ Hz s-2)	6.49(9)
$\tau$ (kyr)	4.6
$\dot{E}$ (${10}^{34}$ erg s-1)	1094.9
$B_{LC}$ (kG)	44.0

Full text

I Overview

There is an interesting cluster of bright gamma-ray sources located within the Galactic plane, roughly at $l\sim 285^{\circ}$, extending about $\pm 5^{\circ}$ . This region houses six Fermi sources, most of them gamma-ray pulsars. These sources include radio-loud pulsars PSR J1048-5832 and PSR J1028-5819 and radio-quiet PSR J1044-5737, recently discovered in a blind frequency search (Abdo et al., 2009a). The new pulsar, PSR J1022-5746, is located within this region.

This source was found early on in the mission as a bright gamma-ray source, published in the Fermi Bright Source List (0FGL J1024.0-5754) (Abdo, 2009). However, it was not detected in a blind frequency search for several reasons. The 0FGL position is $\sim 17^{\prime}$ away from the timed pulsar location, which is insufficient for blind pulsation searches. In addition, this pulsar has a non-neglible $\ddot{f}$ correction. These two factors made detection at an early date very challenging.

We will discuss how J1022-5746 was discovered in a blind search, list its timing properties, and discuss multiwavelength observations, especially in the TeV regeme.

II Detection in a Blind Frequency Search

Gamma-ray photon data from pulsars is very sparse, requiring long integration times for sufficient statistics. The length of the integration time, or viewing period, increases the resolution of the FFT used to detect the periodic signal since the number of FFT bins $N$ is $N=2Tf_{\rm max}$. Moreover, the long viewing period requires us to scan tens of thousands of $\dot{f}$ trials to correct for the spin-down of the pulsar. In addition, young pulsars typically have timing noise, or can suddenly and abruptly change their rotational frequencies (known as glitches), making an FFT of the full time series computationally intensive.

Instead, we look for periodicity using the time-differencing method (Atwood et al., 2006). Since periodicity in photon arrival times will also be present in the differences between arrival times, we calculate all differences between arrival times up to a maximum differencing window of about 6 days ($T=2^{19}$ s). The loss in sensitivity is made up for by the reduced number of $\dot{f}$ trials, and the computational time is dramatically reduced. We cover zero spin-down to the spin-down of the Crab pulsar ($\frac{\dot{f}}{f}=-1.125\times 10^{-11}$ s*-1*). This method is very efficient at finding pulsars and has resulted in the discovery of 16 pulsars in the first few months of the mission (Abdo et al., 2009b), including PSR J1022-5746.

PSR J1022-5746 has the largest $\dot{f}$ and $\ddot{f}$ of all the pulsars found in the blind search, making it difficult to find in a long span of data without correcting for $\ddot{f}$.

We used a circular region of interest (ROI) of radius $R\leq 0.8^{\circ}$, minimum energy of 300 MeV, and diffuse class photons (Abdo et al., 2009c).

III Pulsar Properties

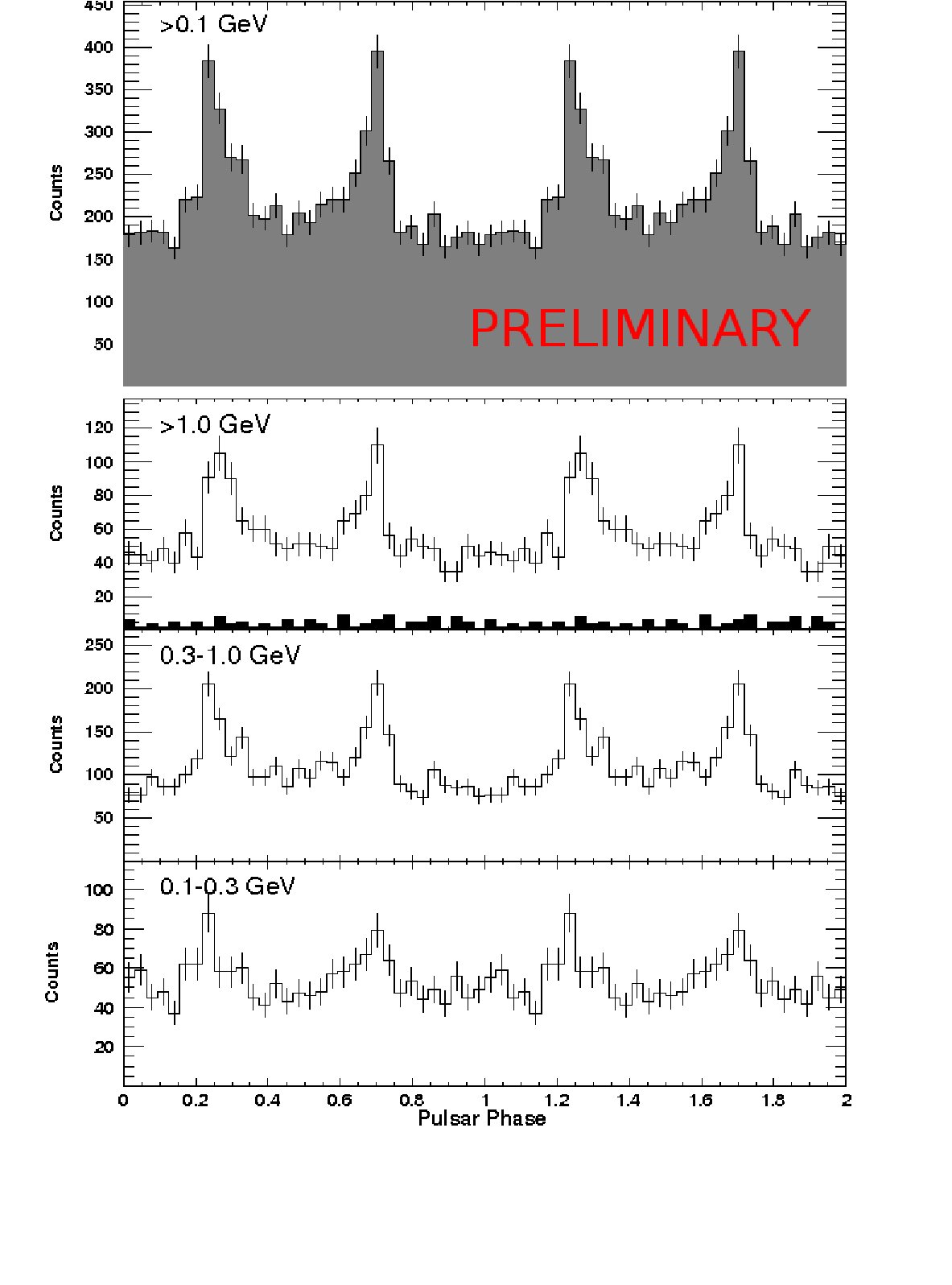

The double-phase light curve of the pulsar is found in figure 1. We can see the double peak structure across the multiple energy bands ($>$ 100 MeV, 100-300 MeV, 300 MeV-1 GeV, $>$ 1 GeV, $>$ 5 GeV). Also, we have shifted the first peak to $\phi=0.25$ for clarity. The peak separation is $0.45\pm 0.01$ and the off-pulse region is $0.75-1.18$.

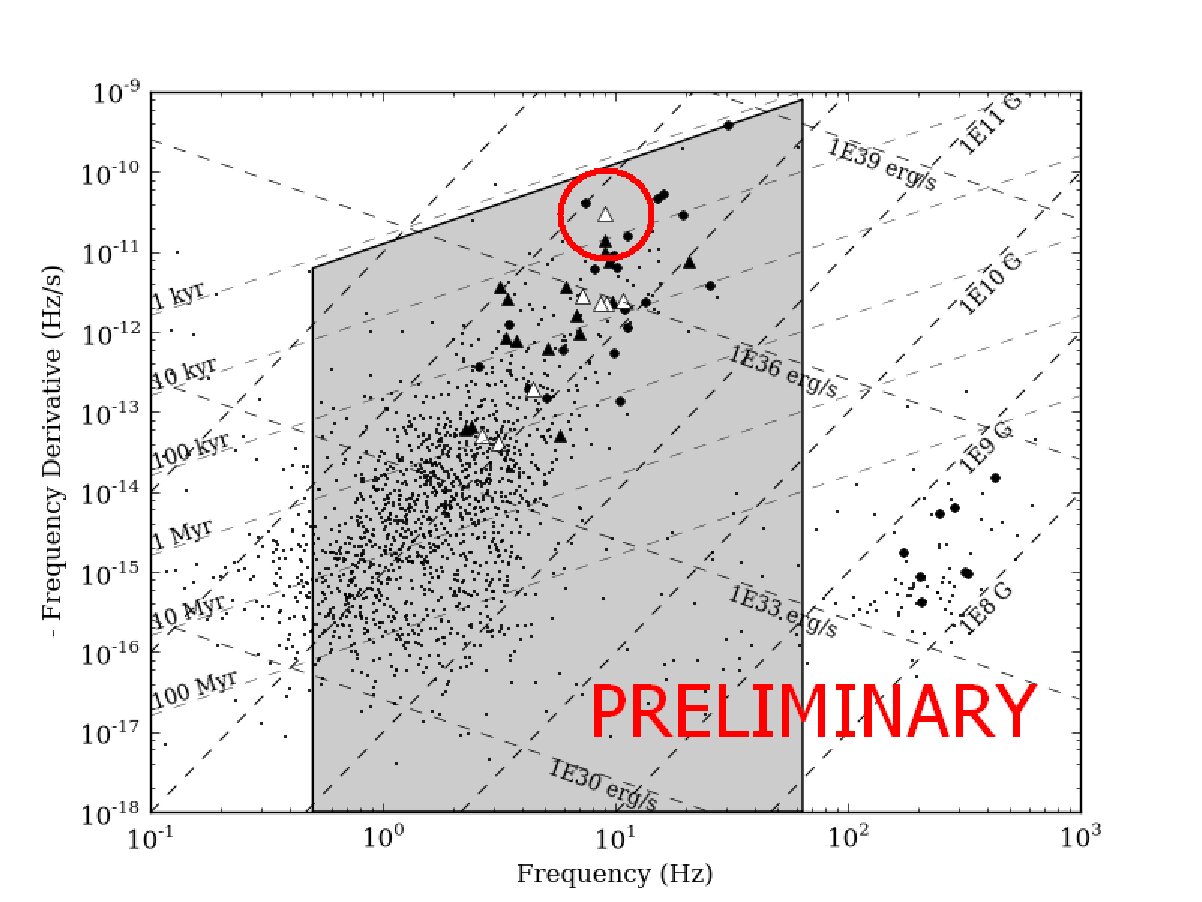

We can compare this pulsar to the known pulsar population in figure 2. This pulsar is one of the youngest gamma-ray pulsars, and the youngest pulsar discovered in a blind search. Also, it is the most highly energetic blind search pulsar. The rotational ephemerides can be found in table 2.

IV Multiwavelength

IV.1 TeV

This pulsar might help to explain the engine powering the TeV source HESS J1023-575. HESS reported detection of an extended TeV source near the Westerlund 2 star cluster (Aharonian et al., 2007). The possible VHE emission explanations put forth were a massive WR binary system WR 20a, a young stellar cluster Westerlund 2, or cosmic rays accelerated at their termination shock and interacting with their environment.

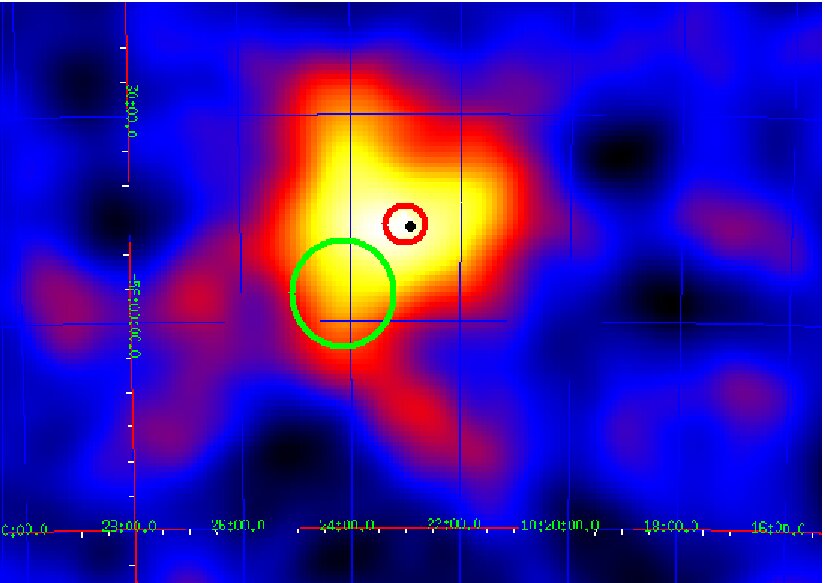

When compared with the location of the pulsar J1022-5746, it is apparent that the pulsar lies close to the central region of the TeV source. The bright source location lies $18^{\prime}$ away from the LAT catalog location, and the timed pulsar location lies nicely within the TeV source, as seen in figure 3.

IV.2 Infrared

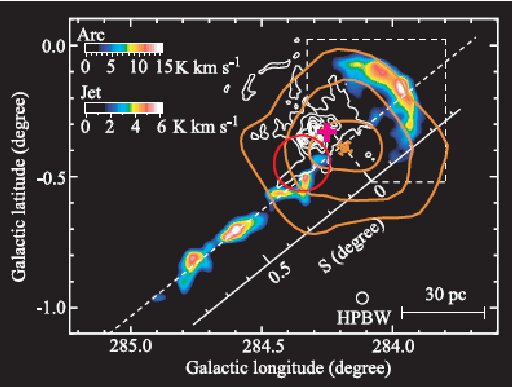

Fukui et. al. 2009 observed a jet and arc of molecular gas aligning with this HESS source, possibly caused by an anisotropic supernova explosion, as seen in figure 4 (Fukui et al., 2009).

IV.3 X-ray

A Chandra 130 ks image reveals a faint source named CXOU J102302.8-574607 as the likely counterpart. This is coincident with pulsar location to within $0.1^{\prime}$. The column density $N_{H}\sim 1.3\times 10^{22}$ cm*-2* implies $d>10$ kpc. J1022-5746 is located $>8^{\prime}$ away from the Westerlund 2 core ($\sim 8$ kpc).

V Conclusions

PSR J1022-5746 is the youngest and most energetic gamma-selected gamma-ray pulsar discovered. It has been observed in radio, but no pulsations were detected. It was discovered in recent blind frequency searches, along with 7 additional pulsars. A Chandra analysis reveals faint, distant X-ray source, about $8^{\prime}$ away from the core of the Westerlund 2 cluster. PSR J1022-5746 is coincident with TeV source HESS J1023-575, suggesting the pulsar contributes to the VHE emission.
