Observations of quasi-periodic solar X-ray emission as a result of MHD oscillations in a system of multiple flare loops

TL;DR

This study analyzes quasi-periodic pulsations in a 2002 solar flare, linking observed X-ray oscillations to MHD wave activity in multiple flare loops, revealing insights into energy release and loop oscillations.

Contribution

It provides the first detailed interpretation connecting observed QPP in X-ray emissions to MHD oscillations in multiple interacting flare loops.

Findings

Detected two significant QPP periods of 16 and 36 seconds.

Linked 36-second QPP to MHD oscillations causing energy release.

Identified 16-second sausage mode oscillations in flare loops.

Abstract

We investigate the solar flare of 20 October 2002. The flare was accompanied by quasi-periodic pulsations (QPP) of both thermal and nonthermal hard X-ray emissions (HXR) observed by RHESSI in the 3-50 keV energy range. Analysis of the HXR time profiles in different energy channels made with the Lomb periodogram indicates two statistically significant time periods of about 16 and 36 seconds. The 36-second QPP were observed only in the nonthermal HXR emission in the impulsive phase of the flare. The 16-second QPP were more pronounced in the thermal HXR emission and were observed both in the impulsive and in the decay phases of the flare. Imaging analysis of the flare region, the determined time periods of the QPP and the estimated physical parameters of magnetic loops in the flare region allow us to interpret the observations as follows. 1) In the impulsive phase energy was released and electrons were accelerated by successive acts with the average time period of about 36 seconds in different parts of two spatially separated, but interacting loop systems of the flare region. 2) The 36-second periodicity of energy release could be caused by the action of fast MHD oscillations in the loops connecting these flaring sites. 3) During the first explosive acts of energy release the MHD oscillations (most probably the sausage mode) with time period of 16 seconds were excited in one system of the flare loops. 4) These oscillations were maintained by the subsequent explosive acts of energy release in the impulsive phase and were completely damped in the decay phase of the flare.

Figures

Full text

{article}

{opening}

1 Introduction

Electrons, accelerated during solar flares, generate nonthermal HXR and microwave emission in the solar atmosphere as a result of their Coulomb collisions with ambient plasma (bremsstrahlung) and interaction with magnetic field (synchrotron radiation), respectively. Often the light curves of nonthermal HXR and microwave emissions in large solar flares are composed of multiple pulses with different durations from less than one second up to several minutes (e.g.,  \opencitedennis88; \openciteaschwanden09, and references therein). This indicates many episodes of acceleration of electrons, possibly in different locations within flare regions, since the majority of these flares are accompanied by formation of arcades of many flaring loops and by the HXR emission generated in different flare loops (e.g.,  \opencitevorpahl76; \opencitedejager79; \opencitegrigis05). It has been suggested that flares consist of a number of “Elementary Flare Bursts” (EFB), which can be a result of collisions between different current-carrying loops [de Jager (1979), Sakai and de Jager (1996)].

More rarely, the light curves of nonthermal HXR and microwave emission show apparent quasi-periodic pulsations (QPP; see, e.g.,  \opencitedennis88;  \opencitenakariakov05;  \openciteaschwanden09 for a review and references therein). This may indicate the presence of some quasi-periodic processes (not fully understood at the moment) of acceleration of electrons. Using RHESSI imaging observations in the HXR range, it was shown that this quasi-periodic acceleration of electrons, at least in some flares, occurs in different flare loops, rather than in a single one [Zimovets and Struminsky (2009)]. In this case the observed quasi-periodicity could be a coincidence owing to similar physical conditions in successively bursting flare loops. This returns us to the idea of multiple EFB due to coalescence of current-carrying loops or due to the presence of multiple spatially separated “null-points” in flare regions, in which the stored magnetic energy can be released. But in principle, it is possible to implement a model proposed by \inlinecitenakariakov06 to explain the QPP in the latter case by the successive quasi-periodic reconnection in different null-points due to fast magnetoacoustic oscillations in nearby non-flaring loops.

On the other hand, it was theoretically suggested that QPP could be produced inside a single vibrating flare loop by the quasi-periodic modulation of the spectrum of nonthermal electrons through the betatron acceleration [Brown and Hoyng (1975)] or by the quasi-periodic modulation of efficiency of the trapped nonthermal electrons to precipitate into the lower heights with larger plasma density and stronger magnetic field (in particular, the sausage mode is a good candidate for this) [Zaitsev and Stepanov (1982)]. Indeed, imaging observations of the QPP in the microwave range made using the Nobeyama Radioheliograph with sufficient spatial resolution (but with no simultaneous QPP observed in the HXR range), which could be interpreted in terms of the global sausage mode of the flaring loop oscillations, were reported [Nakariakov, Melnikov, and Reznikova (2003)]. Imaging observations of QPP, but without sufficient spatial resolution together with an analysis of the time periods of QPP, allowed QPP to be interpreted in terms of the flare loop oscillations (e.g.,  \openciteasai01;  \openciteinglis09). Different modes of oscillations in coronal loops actually have been found with the TRACE and SOHO spacecraft in the range of the extreme ultraviolet radiation (see, e.g.,  \openciteaschwanden09;  \opencitenakariakov05 for a review and references therein), making the oscillations of magnetic loops a natural way to explain the QPP of electromagnetic emission in flares. However, despite the large number of papers published on flare QPP, their nature is still not fully understood. Further imaging analysis of flares with QPP is required.

In this work we investigate the solar flare of 20 October 2002. The light curves of its thermal and nonthermal HXR emission detected by RHESSI clearly indicate the presence of the QPP with two significant time periods of about 16 and 36 seconds. We will present time-spectral, energy-spectral and imaging analysis of the flare HXR emission and propose possible flare scenario to interpret the observed QPP.

2 Data and Instrumentation

1. The Reuven Ramaty High-Energy Solar Spectroscopic Imager (RHESSI; \opencitelin02) is used to detect solar X-rays of about 3-17000 keV. The time resolution of RHESSI is about 4 seconds, which equals the satellite’s period of rotation. RHESSI can detect X-rays with energy resolution of about 1 keV [Smith et al. (2002)] and with spatial resolution of about $2.3^{\prime\prime}$ in the 3-100 keV range [Hurford et al. (2002)].

2. Three-second data sets of X-ray emission detected by the X-Ray Sensor (XRS) onboard GOES-10 satellite in two energy channels (1-8 and 0.5-4 Å or about 1.55-12.4 and 3.1-24.8 keV) are used. Unfortunately, the Solar X-ray Imager onboard the GOES-12 satellite [Hill et al. (2005)] did not produce images of the Sun during the flare.

3. One-second ground-based radio data (flux) are obtained from two observatories of the Radio Solar Telescope Network (RSTN) - the Sagamore Hill Radio Observatory (USA) and the San Vito Solar Observatory (Italy) - at standard frequencies 245, 410, 610, 1414, 2695, 4995, 8800 and 15400 MHz. Unfortunately, these observatories do not make imaging observations of the Sun. The Nobeyama Radioheliograph, who can make images of the Sun in the microwave range, was in night time during the flare.

4. Full-disk images made in Fe XII lines (about 195 Å; formation temperature is about 1.6 MK) by the Extreme-ultraviolet Imaging Telescope onboard the Solar and Heliospheric Observatory spacecraft (EIT/SOHO; \opencitedelaboudiniere95) with a spatial resolution of $2.62^{\prime\prime}$ and cadence of about 12 minutes are used to determine configuration of magnetic loops in the flare region. Unfortunately, the Transition Region and Coronal Explorer (TRACE; \opencitehandy99), which has better spatial resolution and fewer cadence, observed different active region during this flare.

5. Level 1.8 full-disk photospheric line-of-sight magnetograms made by the Michelson Doppler Imager onboard SOHO (MDI/SOHO; \opencitescherrer95) with a spatial resolution of about $2^{\prime\prime}$ are used to determine configuration of magnetic field and the magnetic inversion line in the flare region and to roughly estimate magnetic field in flare loops.

3 Observations

3.1 Time and spectral analysis of the flare hard X-ray emission

The solar flare of 20 October 2002 (M1.8 according to the GOES classification) with heliographic coordinates S19°, W23° started at about 14:21 UT in X-ray radiation in the NOAA Active Region 10163. The light curves of HXR emission detected by RHESSI in the 3-50 keV range indicate clearly the presence of QPP (Figure 1). The light curve of X-ray radiation detected by GOES is much smoother and does not reveal pulsations. Possibly, this is due to RHESSI’s detectors having much higher count statistics of X-rays than GOES’s detectors: RHESSI has nine cryogenically cooled germanium detectors, while the GOES satellites have two ion chambers. Unfortunately, the used solar radio telescopes could not detect the above-background flux of microwave emission at frequencies above 8800 MHz, which could allow us to study the behavior of the mildly-relativistic electrons in this flare. Thus, further we will concentrate only on the analysis of HXR emission, detected by RHESSI.

Using the OSPEX package within the SolarSoftWare we made spectral analysis of the HXR emission (from full-disk and from selected areas of the flare region) detected by RHESSI in different time intervals during the flare. The implemented best-fit-technique clearly indicates that the energy spectrum of the HXR emission has a thermal component and a nonthermal component, which is fitted well by the double power-law function (the break energy is in the 15-25 keV range; the power-law spectral indexes below and above break are between -9 and -4 during the flare; this soft spectrum of HXR emission partly explains the absence of detectable microwave emission). The nonthermal component dominates the thermal component in the spectrum of X-rays above energies of about 10-15 keV. Further, according to the implemented spectral analysis, we will subdivide the HXR emission into thermal (below 15 keV) and nonthermal (above 15 keV) components. For the sake of clarity and compactness of the paper, we will present an analysis of only light curves in the 5(6)-10(12) (thermal component) and 25-50 (nonthermal component) keV energy ranges.

Looking at the light curves of HXR emission, we can subdivide the flare into two fundamentally different phases: the impulsive phase and the decay phase. The impulsive phase consists of eight quasi-periodic pulses of nonthermal emission [episodes (E)-(L) on Figure 1] with a duration of about 30-40 seconds, indicating several acts of energy release and acceleration of electrons. These pulses are clearly composed of shorter quasi-periodic subpulses with a duration of about 15-20 seconds, which coincide in time (within the measurement accuracy of RHESSI of about 4 seconds) with pulses of thermal emission. The decay phase, which started after the maximum of the thermal HXR emission [after interval (M) on Figure 1], consists mainly of pulses of thermal emission with a duration of 15-20 seconds, while the decaying flux of nonthermal HXR emission mainly below 25 keV is also still presented (this is not shown on Figure 1 for clarity). Possibly, this indicates that there were no new significant acts of energy release in the decay phase of the flare, while nonthermal electrons, accelerated mainly in the impulsive phase, were still trapped in the “post”-flare loops. This scenario will be confirmed by the imaging analysis of the flare region (see Section 3.2).

The presence of oscillations in the light curves of the observed HXR emission is confirmed by their spectral analysis. Firstly, to remove low frequency spectral components, we subtract the running averaged signals smoothed over 20 or 60 seconds $F_{20,60}(t)$ from the 4-second RHESSI data $F_{4}(t)$. Further, the normalized Lomb periodograms [Lomb (1976), Scargle (1982)] are calculated for the normalized signals $dF(t)/F_{20,60}(t)=\left[F_{4}(t)-F_{20,60}(t)\right]/F_{20,60}(t)$ in different time intervals:

1. during the whole flare [Figure 2(a)], in the impulsive [Figure 2(c)] and in the decay phases [Figure 2(e)] separately for thermal emission;

2. only in the impulsive phase for nonthermal emission (when there was statistically significant flux of X-rays above the RHESSI background level; [Figure 2(g) and  2(i)].

The power spectra of the normalized light curves of thermal emission reveal a statistically significant [Horne and Baliunas (1986)] peak of about 16 seconds both in the impulsive and in the decay phases, but more pronounced in the decay phase [see Figure  2(b), 2(d) and 2(f)]. The power spectra of the normalized light curves of nonthermal emission with averaging over 20 and 60 seconds reveal two statistically significant peaks around 14-17 seconds and about 36-37 seconds, respectively. Averaging over 60 seconds has strengthened the statistical significance of the 36-second peak in the spectrum, while averaging over 20 seconds has strengthened the significance of the 16-second peak. The splitting of the peak near 16 seconds to two more narrow peaks [Figure 2(h)] may be related to the short duration of the analyzed data sets.

3.2 Imaging analysis of the flare region

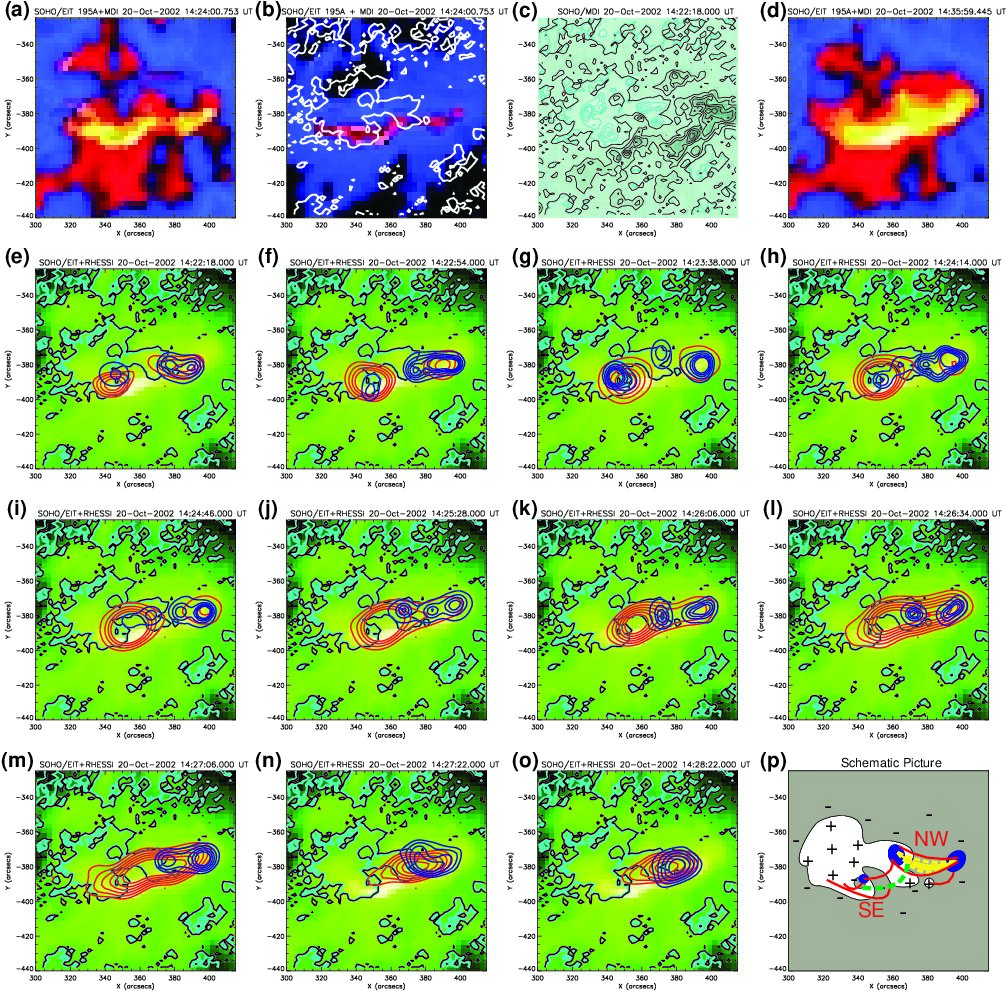

Figure 3 shows images of the flare region made in different wavelength bands and in different time intervals during the flare. The EIT/SOHO images made in the impulsive phase and just after the decay phase jointly with an analysis of the MDI/SOHO photospheric magnetogram of the line-of-sight magnetic field [Figure 3(a–d)] clearly indicate two closely spaced systems of flare loops: in the south-east (SE) and in the north-west (NW). Unfortunately, the EIT/SOHO cadence of about 12 minutes is not enough to investigate the dynamics of this flare in the EUV radiation.

To examine the spatial evolution of thermal and nonthermal X-ray sources during the impulsive and decay phases we reconstruct RHESSI images using the CLEAN and Pixon algorithms [Hurford et al. (2002)]. Detectors 3-8 are used. Several series of images integrated over 8, 12, 16, 20, 32, 48, 60 seconds are obtained in different energy ranges and for different time intervals. We mainly work with the 5(6)-10(12) keV (thermal X-ray sources) and 25-50 keV (nonthermal X-ray sources) RHESSI images.

Figure 3(e–o) shows the morphology and dynamics of the flare region in X-rays. It is seen that early in the impulsive phase (up to about 14:25 UT) there were two clearly separated systems of flare loops (in the South-East and in the North-West), whose positions coincided well with the loop systems SE and NW, visible in the EIT images. These loop systems were not independent. We calculate time profiles of thermal HXR flux at 6-12 keV both from the SE and from the NW systems in the 14:22:48-14:25:20 UT interval (when the two flare systems were clearly separated), which we split into subintervals of 8 seconds to make time series of X-ray images. To calculate the HXR flux from each system we employ two circular integration regions with radius of 15 arcsecs for each system on each image. It turned out that fluxes of thermal HXR emission, calculated from two separate flare systems, were strongly correlated (Figure 4).

The space between the two flare loop systems was filled with thermal HXR radiation after about 14:25 UT (before start of the decay phase), indicating the presence of magnetic loops here, which could connect the SE and the NW systems. The SE system and the space between two systems have become practically invisible in thermal HXR against the background of the bright NW source in the decay phase, possibly due to much stronger emission from the NW system and the limited dynamic range of the RHESSI observations. Only the NW system was clearly observed in thermal HXR in the decay phase. Unfortunately, it is not possible to make spatially resolved analysis of the flare oscillations in thermal HXR emission due to the low spatial resolution of RHESSI.

Morphology of nonthermal HXR sources, located mainly in the footpoints of different flare loops, also confirms the presence of two flare loop systems before about 14:25 UT. We emphasize that nonthermal HXR were emitted from different positions in both flare systems during this time interval - the sources of nonthermal HXR emission were not stationary! The footpoint sources of nonthermal HXR emission almost completely disappeared in the SE system after about 14:25 UT [Figure 3(j) and 3(k)], while two footpoint nonthermal HXR sources in the NW system became stationary. Nonthermal HXR radiation filled the whole NW loop system, not only its footpoints, in the decay phase [Figure 3(m),  3(n) and  3(o)]. Possibly, this was caused by the trapped nonthermal electrons in these overdense loops. Unfortunately, it is not possible to investigate dynamics of nonthermal HXR emission more precisely due to low RHESSI count statistics in this flare (we have to use integration at least over 32 seconds to generate 25-50 keV images of high quality).

4 Discussion

Based on the analyzed observational data, we can propose a rough scenario of the investigated flare [see Figure 3(p)].

1. In the impulsive phase of the flare energy was released and electrons were accelerated by successive quasi-periodic acts with an average time period of about 36 seconds in different parts of two spatially separated, but interacting loop-systems of the flare region. Possibly, these loop-systems interact through the connecting magnetic loop near both ends of which they are located. We have established two observational evidences that these flare systems are linked: 1) the fluxes of thermal HXR emission from these systems are strongly correlated; 2) the formation of the loop-type structure in the space between these flaring systems is observed in thermal HXR emission. The question appears: is it possible to interpret the observed 36-second quasi-periodicity ($P_{36}$) of energy release in two different flaring systems by the MHD oscillations in the connecting loop? Indeed, it was concluded from the imaging observations of another flare event that oscillations of even nonflaring transequatorial loop (the kink modes) can be responsible for the QPP of HXR emission observed simultaneously from two different active regions located at both ends of this loop [Foullon et al. (2005)]. Unfortunately, it is not possible to estimate length of the connecting loop ($L_{c}$) accurately in our case, due to insufficient spatial resolution of observations, nevertheless we can say with certainty that $20\leq{L_{c}}\leq 40$ Mm. Thus, we can estimate the required phase speed of a fundamental standing mode as $V_{ph}=2L_{c}/P_{36}$ or $1100\leq{V_{ph}}\leq{2200}$ km/s. These phase speeds are consistent with the speeds of fast magnetoacoustic kink modes that have been directly observed in coronal loops in the EUV emission (\opencitenakariakov05; \openciteaschwanden09; and references therein). Implementing the imaging spectroscopy technique to the RHESSI HXR data we could estimate the emission measure of different parts of the flare region. Hence, using the observed volumes of these parts, we could roughly estimate averaged electron plasma density ($n_{e}$) in them. Our estimations give ${10^{10}}\leq{n_{e}}\leq{10^{11}}$ cm*-3* for each flaring loop-system and also for the connecting loop-type structure. Thus, the Alfvén speed in the connecting loop-type structure is $7B\leq{V_{A}}\leq{22B}$  km/s, where $B$  is magnetic field in gauss inside the loop-type structure. Consequently, if $B\approx{100}$  G, which is a reasonable value, we have $700\leq{V_{A}}\leq{2200}$  km/s. These values of the Alfvén speed are very close to the estimated $V_{ph}$! Thus, we conclude that the observed 36-second periodicity can actually be caused by the fast MHD oscillations in the loop-type structure, which connects two separate flare systems. The physical mechanism, proposed by \inlinecitenakariakov06, is a good candidate to explain quasi-periodic spatial fragmentation of energy release in the impulsive phase of this flare (see Section 1). Multiple null-points could actually exist in this flare region, because of its complex topology: several inclusions of magnetic field of opposite polarity are seen on the magnetograms.

2. During the first 36-second explosive episodes of energy release, the MHD oscillations, probably global sausage modes (see below), with time period of about 16 seconds were excited in the loops of the NW flare system.

3. These oscillations were maintained by the subsequent explosive acts of energy release in the impulsive phase and were damped in the decay phase of the flare. We conclude that the 16-second oscillations were excited only in the NW system, but not in the SE flare system and not in the connecting loop-type structure at least in the decay phase, because the NW system was more stationary and retained its loop-like configuration in the decay phase, when the QPP of thermal HXR emission were still observed, but the SE flare system and the connecting loop-type structure were no longer visible in thermal HXR emission on the RHESSI images. Estimated length and electron plasma density of the loops in the NW flare system are $25\leq{L_{NW}}\leq{35}$ Mm and ${10^{10}}\leq{n_{e}}\leq{10^{11}}$ cm*-3*, respectively. These physical parameters highly coincide with the same parameters, found in \inlinecitenakariakov03, where the 16-second quasi-periodic pulsations of microwave emission, observed with the Nobeyama Radioheliograph, were successfully interpreted in terms of the global sausage mode of the oscillating flare loop! Thus, by analogy, we can also interpret the observed 16-second pulsations of HXR emission as the global sausage mode, excited in the loops of the NW flare system. Moreover, the sausage mode must be accompanied by perturbations of plasma density and emission measure. Hence, this mode of oscillations would quasi-periodically modulate flux of thermal HXR emission. This is what we observe both in the impulsive and in the decay phase of the flare. The decay phase was not accompanied by significant energy release, therefore we clearly observe the damping of oscillations. Contrary to that, in the impulsive phase there were multiple explosive acts of energy release, which might intermittently re-excite oscillations.

It is interesting to note that the 16-second periodicity of nonthermal emission has already been observed in other solar flares [Parks and Winckler (1969), Nakariakov, Melnikov, and Reznikova (2003), Inglis, Nakariakov, and Melnikov (2008)]. Perhaps, this is a typical period of the global sausage oscillations in flare regions [Inglis, Nakariakov, and Melnikov (2008)]. The 36-second periodicity of HXR emission was also found in many solar flares [Lipa (1978)].

Despite the above arguments we are aware that the proposed flare scenario, based on the MHD oscillations of magnetic loops in flare region, may not be true. Oscillations of the flaring loops itself were not detected directly using imaging observations, though this may be due to the observational limitations.

Acknowledgements

We are grateful to the spacecraft teams and consortia (RHESSI,

SOHO, and GOES) and ground-based observatories (the Sagamore Hill Radio Observatory and the San Vito Solar Observatory), whose data were used in this work. We thank Jenny Harris for help in English editing. IVZ is grateful to the organizers of the Baikal Young Scientists’ International School for Fundamental Physics (2009), where this work was presented. This work was partially supported by the Russian Foundation for Basic Research, grants No. 07-02-00319, 09-02-16032.

This article is dedicated to IVZ’s grandfather F.I. Krylov, veteran of the WWII, who died during its writing.
