Reconstructing the Local Twist of Coronal Magnetic Fields and the Three-Dimensional Shape of the Field Lines from Coronal Loops in EUV and X-Ray Images

TL;DR

This paper introduces a method to reconstruct the three-dimensional shape and twist of coronal magnetic field lines from EUV and X-ray images of coronal loops, aiding the understanding of solar magnetic structures.

Contribution

The authors develop a technique to quantitatively infer coronal magnetic field properties from coronal loop images, including twist, shape, and field strength, validated against non-linear force-free field models.

Findings

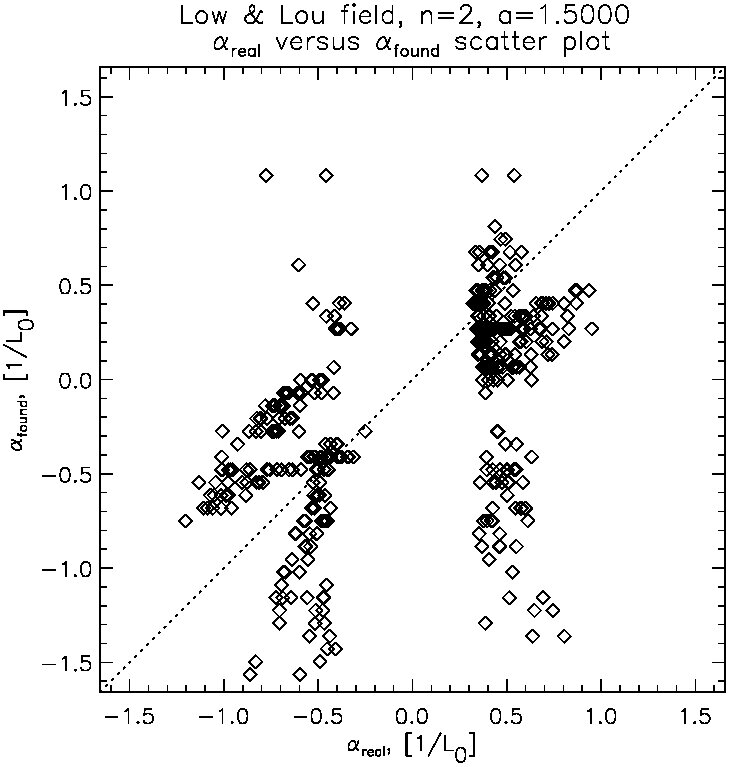

Reconstruction of twist with at most 15% deviation.

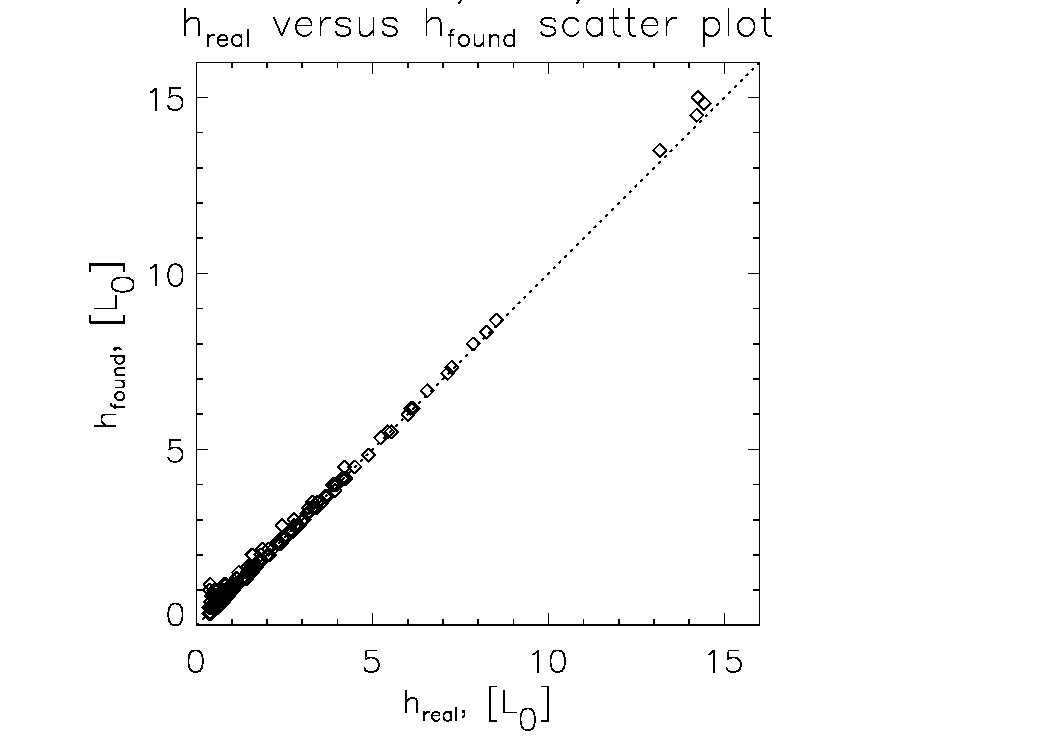

Loop heights are estimated within 5% accuracy.

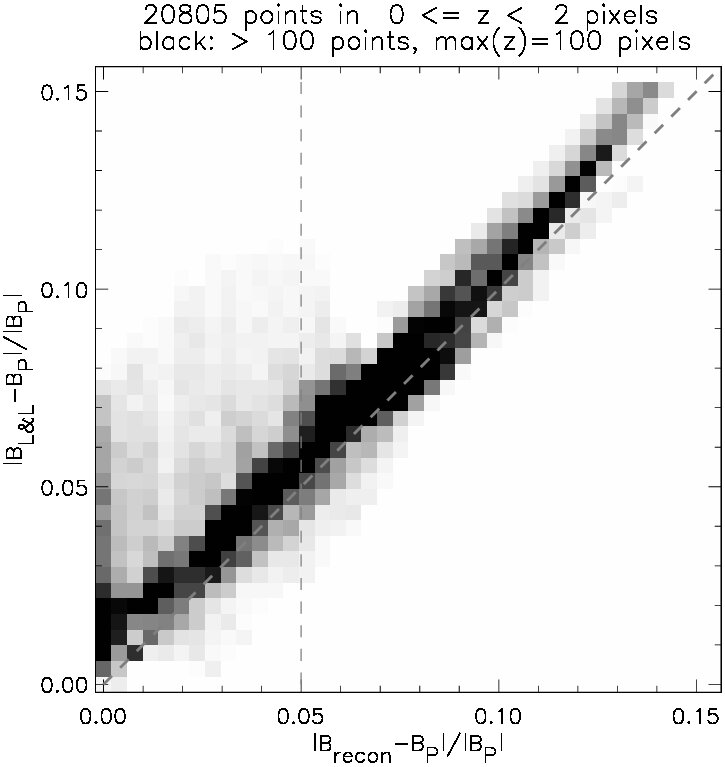

Magnetic field strength is reconstructed within 10% deviation.

Abstract

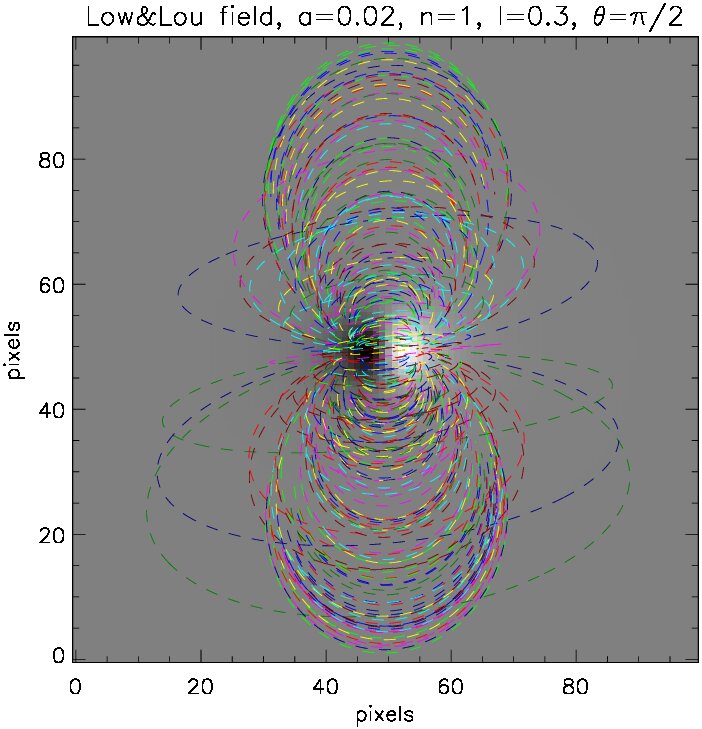

Non-linear force-free fields are the most general case of force-free fields, but the hardest to model as well. There are numerous methods of computing such fields by extrapolating vector magnetograms from the photosphere, but very few attempts have so far made quantitative use of coronal morphology. We present a method to make such quantitative use of X-Ray and EUV images of coronal loops. Each individual loop is fit to a field line of a linear force-free field, allowing the estimation of the field line's twist, three-dimensional geometry and the field strength along it. We assess the validity of such a reconstruction since the actual corona is probably not a linear force-free field and that the superposition of linear force-free fields is generally not itself a force-free field. To do so, we perform a series of tests on non-linear force-free fields, described in Low & Lou (1990). For model loops we project field lines onto the photosphere. We compare several results of the method with the original field, in particular the three-dimensional loop shapes, local twist (coronal alpha), distribution of twist in the model photosphere and strength of the magnetic field. We find that, (i) for these trial fields, the method reconstructs twist with mean absolute deviation of at most 15% of the range of photospheric twist, (ii) that heights of the loops are reconstructed with mean absolute deviation of at most 5% of the range of trial heights and (iii) that the magnitude of non-potential contribution to photospheric field is reconstructed with mean absolute deviation of at most 10% of the maximal value.
