Measurements of the Top Quark Mass at D0

TL;DR

This paper reports precise measurements of the top quark mass and its mass difference with the antitop quark using data from the D0 experiment at Fermilab, covering dilepton and lepton+jets channels.

Contribution

It provides new top quark mass measurements and the first observation of the mass difference between t and tbar quarks in specific decay channels.

Findings

Top quark mass measured with high precision.

Mass difference between t and tbar observed.

Results consistent with Standard Model expectations.

Abstract

We present measurements of the top quark mass based on 3.6 fb^-1 of data collected by the D0 experiment during Run II of the Fermilab Tevatron collider. We present results in the dilepton and lepton+jets final states. We also present the measurement of the mass difference between t and tbar quarks observed in lepton+jets final states of ttbar events in 1 fb^-1 of data.

Figures

Equations

$$P_{\mathrm{evt}}(\mathbf{x};m_t,f_t)=\left[f_t{P}_{\mathrm{sig}}(\mathbf{x};m_t)+(1-f_t)P_{\mathrm{bkg}}(\mathbf{x})\right],$$

$$P_{\mathrm{sig}}(\mathbf{x};m_t)=\frac{1}{{\sigma }^{\prime }(m_t)}{\int }_{q_1,q_2,\mathbf{y}}\sum _{\genfrac{}{}{0ex}{}{\mathrm{perm},}{\mathrm{flavors}}}{w}_{\mathrm{perm}}d{q}_{1}d{q}_{2}f(q_1)f(q_2)\frac{(2\pi {)}^4|\mathcal{M}{|}^2}{4\sqrt{(q_1\cdot q_2{)}^2}}d{\Phi }_{6}W(\mathbf{x},\mathbf{y}),$$

Full text

1 Introduction

The unique place in the Standard Model filled by the top quark makes precise measurements of its mass of great interest. We report preliminary top quark mass measurements using $3.6\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of data from the D0 experiment d0 at the Fermilab Tevatron, as well a direct measurement of the mass difference between the top quark and its antiparticle.

2 Measurements of the top quark mass

The most precise top quark mass measurements at D0 are currently obtained by the matrix element method matrix-element . In this method, a likelihood is assigned to each event of the form

[TABLE]

where $\mathbf{x}$ represents the full set of measured kinematic quantities of the event, $m_{t}$ the top quark mass, and $f_{t}$ is the $t\bar{t}$ signal fraction in the sample. The $t\bar{t}$ signal likelihood is then

[TABLE]

where $\mathbf{y}$ is the set of parton-level kinematic variables defining the final state of the hard scatter, $q_{i}$ are the momenta of the incoming partons, $f$ is the parton distribution function, $\sigma^{\prime}$ is the observable cross section (including the detector efficiency), $\cal M$ is the matrix element for the hard scatter, taken from an analytic calculation mahlon-parke , and $W$ is the transfer function from a hard scatter to the measured variables. The sum is over flavors of incoming partons and assignments of jets to final-state partons; if $b$-tagging is used, a weight $w_{\mathrm{perm}}$ is applied based on this assignment. $P_{\,{\mathrm{bkg}}}$ is similar, except that there is no dependence on $m_{t}$ and $\cal M$ is evaluated using vecbos vecbos . An estimate of $m_{t}$ and its uncertainty is then extracted from the joint likelihood of a data sample via maximum likelihood. Due to approximations present in $\cal M$ and $W$, the mass extracted by this procedure will be systematically biased. The analysis is carried out on many simulated experiments with various input $m_{t}$; the results are used to correct the extracted $m_{t}$ and its uncertainty. alpgen alpgen is used to model the $t\bar{t}$ signal.

This measurement has been carried out in the $t\bar{t}\rightarrow e\mu\nu\nu b\bar{b}$ channel with $3.6\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of data emu36 . Events are selected with an isolated, high-${p_{\scriptscriptstyle T}}$ electron and muon and two jets; there is also a requirement made on $H_{T}={p_{\scriptscriptstyle T}}(\ell_{1})+{p_{\scriptscriptstyle T}}(j_{1})+{p_{\scriptscriptstyle T}}(j_{2})$. This yields 154 candidate events. The expected background fraction is about $16\%$ and is predominantly due to $Z\rightarrow\tau\tau$. The fit to the final $2.5\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ subset of the data is shown in Fig. 2.

{ltxfigure}

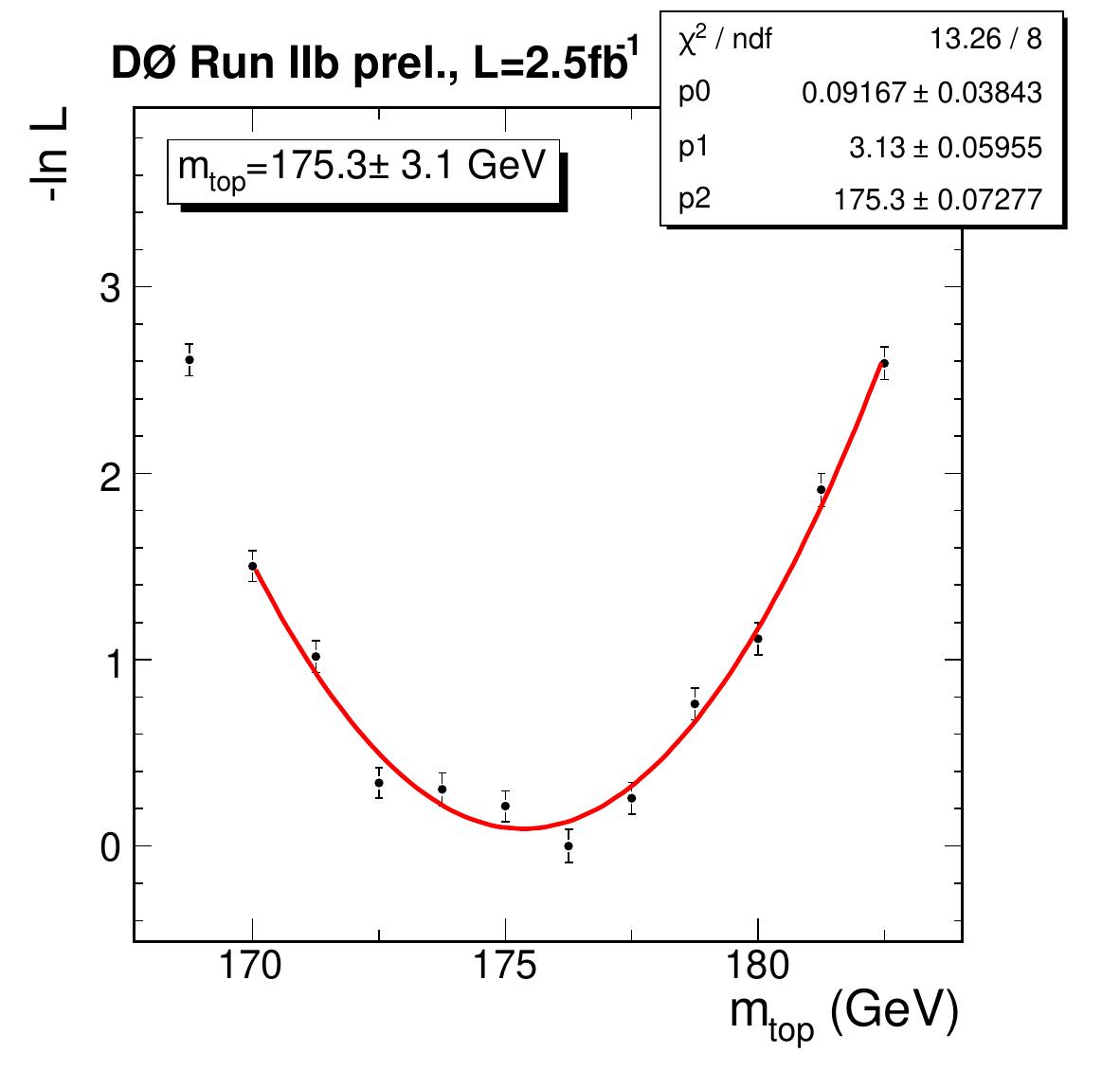

Fit for $m_{t}$ to $2.5\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of $e\mu$ data. (Uncalibrated.)

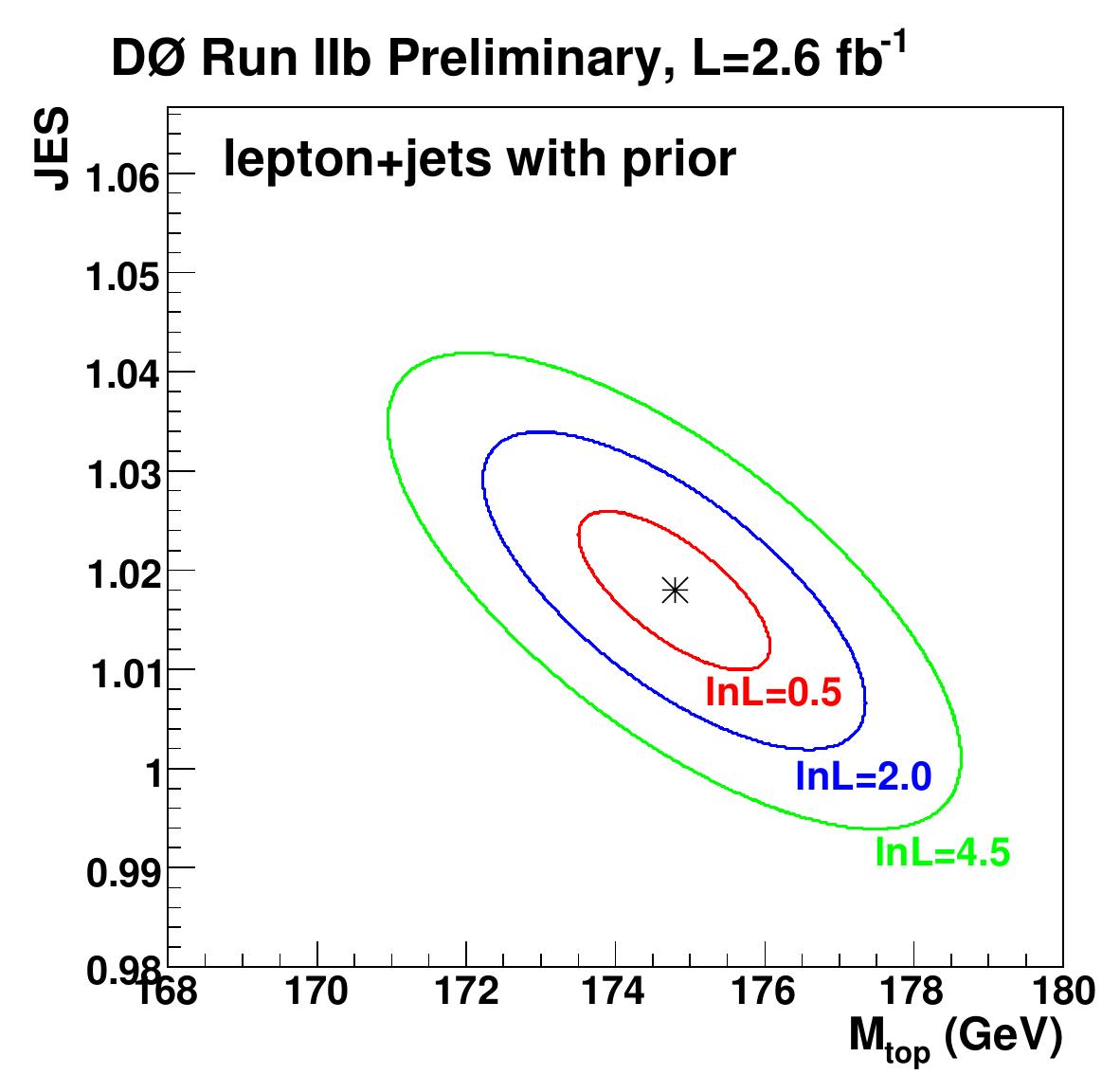

Fit for $m_{t}$ and JES to $2.6\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of $\ell+{\mathrm{jets}}$ data. (Uncalibrated.)

The result after calibration is $m_{t}=174.8\pm 3.3\ \textnormal{(stat.)}\pm 2.6\ \textnormal{(syst.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$. Combined with previous D0 results from channels in which both top quarks decay to leptons olddil , the result is $m_{t}=174.7\pm 2.9\ \textnormal{(stat.)}\pm 2.4\ \textnormal{(syst.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$.

The analysis has also been performed in the $t\bar{t}\rightarrow\ell\nu b\bar{b}qq$ (“$\ell+{\mathrm{jets}}$,” where $\ell\equiv e,\mu$) channels with $3.6\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of data ljets36 . Events are required to have exactly one isolated, high-${p_{\scriptscriptstyle T}}$ electron or muon, large \hbox{E\hbox to0.0pt{\kern-4.49997pt\raise 0.54668pt\hbox{/}\hss}}_{T}, and exactly four jets, at least one of which must be identified as a $b$-jet. This yields 615 events with a background fraction of about $30\%$. Each signal event has a $W\rightarrow jj$ decay; by constraining this to the known mass of the $W$ boson, the jet energy scale uncertainty may be reduced. This is implemented with an additional fit parameter JES, which is a multiplicative scale factor on the jet energies. A prior probability distribution for JES is included, corresponding to the results of the standard jet energy calibration. Results for the final $2.6\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of data are shown in Fig. 2.

The result is $m_{t}=174.7\pm 0.8\ \textnormal{(stat.)}\pm 1.6\ \textnormal{(syst.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$. Combining all top quark mass measurements from D0 d0combination yields $m_{t}=173.2\pm 0.9\ \textnormal{(stat.)}\pm 1.5\ \textnormal{(syst.)}$. The precision of this measurement is now better than $1\%$; also note that it is now systematics dominated.

{ltxtable}

Systematic uncertainties (in GeV) for the top quark mass measurements tevcombination .

Source

$\ell\ell$

$\ell+{\mathrm{jets}}$

In-situ JES — $\pm 0.47$

Jet $e/h$, $b$-tag, recon. $\pm 1.32$ $\pm 0.91$

$b$ modeling $\pm 0.26$ $\pm 0.07$

JES control samples $\pm 1.46$ $\pm 0.84$

Lepton momentum scale $\pm 0.32$ $\pm 0.18$

Signal model $\pm 0.65$ $\pm 0.45$

Monte Carlo model diffs. $\pm 1.00$ $\pm 0.58$

Bkg. model (excl. QCD) $\pm 0.08$ $\pm 0.08$

Fit method + QCD bkg. $\pm 0.51$ $\pm 0.21$

Color reconnection $\pm 0.40$ $\pm 0.40$

Luminosity profile $\pm 0.00$ $\pm 0.05$

Total: $\pm 2.43$ $\pm 1.60$

Systematic uncertainties (in GeV) for the top quark mass difference measurement.

Source

Physics modeling:

Signal $\pm 0.85$

PDF uncertainty $\pm 0.26$

Other $\pm 0.14$

Detector modeling:

Jet resolution $\pm 0.39$

Overall jet energy scale $\pm 0.08$

Wrong sign leptons $\pm 0.07$

$b\bar{b}$ response asymmetry $\pm 0.42$

Other $\pm 0.22$

Method: $\pm 0.53$

Total: $\pm 1.22$

Systematic uncertainties are summarized in Table 2. The categories shown in this table are the result of a recent effort to make the evaluation of systematics consistent across all Tevatron $m_{t}$ measurements. Compared with previous analyses, two new systematics have now been evaluated. “Color reconnection” arises from variations in the description of color reconnection of final-state particles color-reconn . “Luminosity profile” quantifies the uncertainty due to mismodeling the number of collisions per bunch crossing.

When these results are combined with those from CDF, the new world average is $m_{t}=173.1\pm 0.6\ \textnormal{(stat.)}\pm 1.1\ \textnormal{(syst.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$ tevcombination , for an overall precision of $0.75\%$.

3 Top-antitop quark mass difference measurement

CPT is generally believed to be a good symmetry nature; by the CPT theorem CPT , it holds for any local Lorentz-invariant quantum field theory. Nevertheless, it is important to search for any violations. One implication of CPT invariance is that the mass of a particle and its antiparticle must be equal. While many precise such measurements have been made cptmeas , those for quarks have always been indirect. The top quark is, however, unique: due to its large mass, it decays before hadronization effects become important. Thus, the masses of the top and antitop quarks can be measured directly and separately.

D0 has now performed the first direct measurement of the mass difference between a quark and its antiquark mdiff . The measurement is performed in the $\ell+{\mathrm{jets}}$ channel using the 2002–2006 data set, comprising about $1\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$.

The method is an extension of the matrix element method described earlier. The matrix element of (2) is modified so that the top and antitop quark masses are specified separately. For this analysis, the jet energy scale factor JES is fixed to that determined from the mass measurement. Thus, instead of $(m_{t},{\mathrm{JES}})$, we now extract $(m_{t},m_{\bar{t}})$; or equivalently $(\Delta m,m_{\mathrm{sum}})=(m_{t}-m_{\bar{t}},(m_{t}+m_{\bar{t}})/2)$. The leptonically-decaying top quark in each event is identified as either a quark or antiquark based on the sign of the lepton. A modified version of pythia pythia is used to simulate signal events with $m_{t}\neq m_{\bar{t}}$.

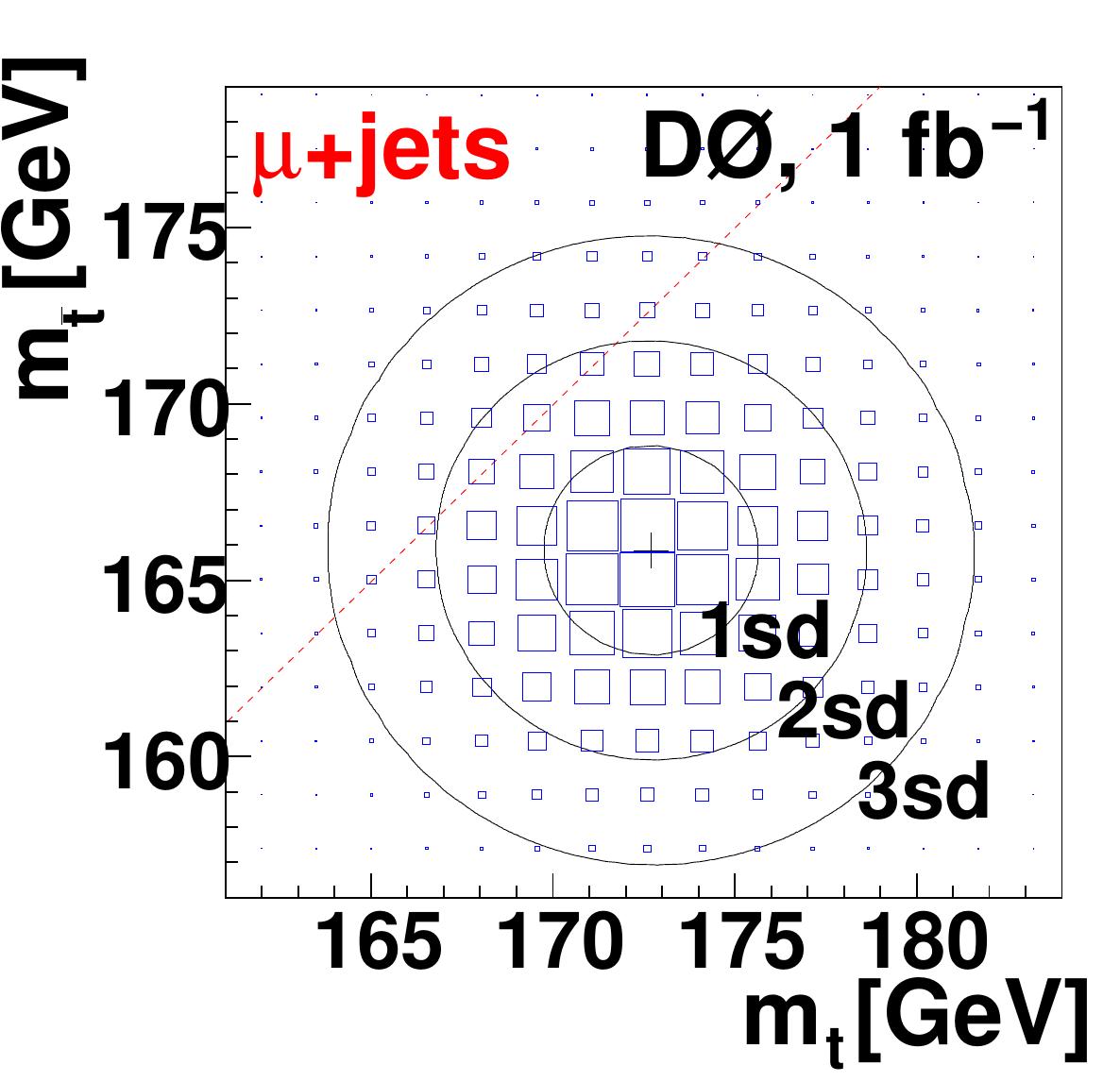

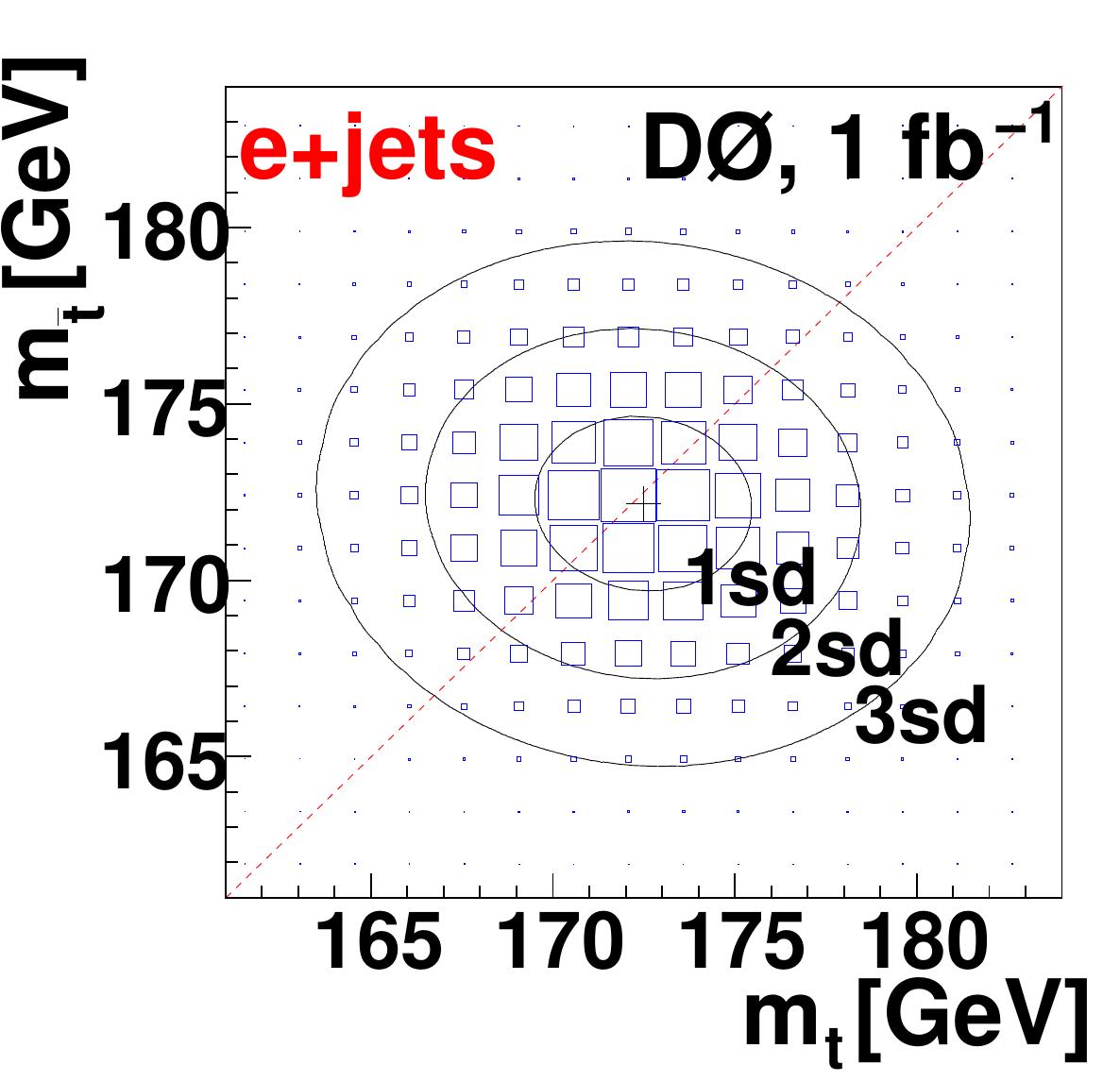

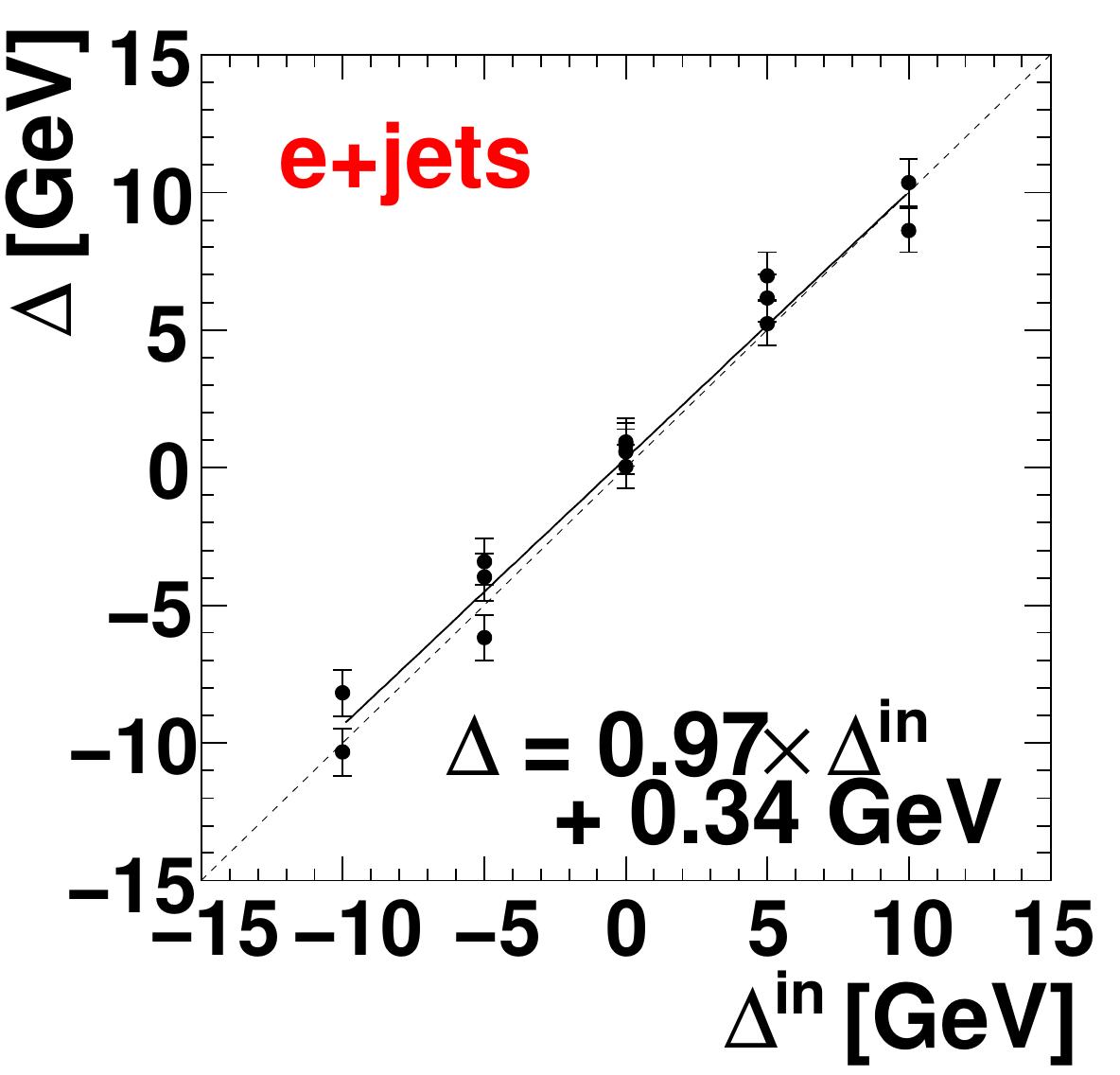

Fig. 1 shows the analysis calibration and fits to data. Combining the electron and muon channels yields $\Delta m=3.8\pm 3.4\ \textnormal{(stat.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$ and $m_{\mathrm{sum}}=170.9\pm 1.5\ \textnormal{(stat.)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$. The mass previously measured from this data sample was $170.6\pm 2.2\ \textnormal{(stat.+JES)}\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$ mass1a .

Systematic uncertainties are summarized in Table 2. Most are common with the mass measurement analysis; they tend, however, to cancel in the difference. Many systematics are dominated by the statistics of the samples used to evaluate them. Two sources of systematics are new for this analysis. First is the uncertainty due to mismeasurements of the sign of the electron. This is evaluated by increasing the mismeasurement rate in Monte Carlo to match that seen in data. Second is the asymmetry in the calorimeter response to jets from $b$ and $\bar{b}$ quarks. This systematic is limited by statistics.

The total systematic uncertainty for the $\Delta m$ measurement is $1.2\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$, giving a final result from $1\mathrel{\mathrm{fb}}\mathclose{}\mathord{}^{-1}$ of data of $\Delta m=3.8\pm 3.7\mathrel{\mathrm{Ge\kern-1.00006ptV}}\mathclose{}\mathord{}$.

This work is supported in part by the U.S. Department of Energy under contract DE-AC02-98CH10886 with Brookhaven National Laboratory.
