Gamma Ray Spectra from Dark Matter Annihilation and Decay

TL;DR

This paper analyzes gamma ray spectra from dark matter annihilation and decay, focusing on scenarios compatible with PAMELA data, comparing direct photon production, final state radiation, and higher-order operator contributions.

Contribution

It provides a detailed comparison of gamma ray spectra from various dark matter processes, highlighting the dominance of higher-order operators at certain energy scales.

Findings

Higher-order operators dominate photon spectra for dark matter masses around 1 TeV if their scale is below 1000 TeV.

Final state radiation produces softer gamma ray spectra compared to higher-order operators.

The hardest gamma ray spectra arise from higher-order operators, while the softest come from intermediate decay final state radiation.

Abstract

In this paper, we study gamma ray spectra for various scenarios of dark matter annihilation and decay. We focus on processes which generate only high-energy photons or leptons and photons, but no proton-antiproton pairs, to be compatible with PAMELA's data. We investigate photons produced directly from two-body decay chains and photons produced together with charged particles. For the former case we also include the process DM(+DM) -> N phi -> 2N gamma which can arise from specific strongly-coupled dark matter scenarios. For the latter case, photons are either generated by final state radiation from high-energy leptons or are directly generated from contact interactions represented by higher-order (non-renormalizable) operators obtained after integrating out heavy modes. We compare their overall annihilation cross-sections/decay rates taking into account chiral suppression (in the s-wave approximation), dimension of operators and dark matter particle properties. A rough estimate shows that, for a dark matter particle with a mass of O(1 TeV), the hard photon spectra in direct electron-positron-photon final states arising from either scalar boson dark matter annihilation/decay or Majorana fermion dark matter annihilation are dominated by higher-order operators if the scale of the leading operator is lower than O(1000 TeV). Otherwise, all the photon spectra arising in this way are dominated by final state radiation. Among the spectra studied, the higher-order operators spectrum is the hardest while the final state radiation spectrum with an intermediate decay is the softest.

Figures

Equations

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\frac{1}{⟨\sigma v⟩}\frac{d⟨\sigma v⟩}{d{E}_{\gamma }}\text{mbox}or\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\frac{1}{\Gamma }\frac{d\Gamma }{d{E}_{\gamma }},$$

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\delta \left(E_{\gamma }-\frac{M}{2}\right)$$

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\frac{2}{M\sqrt{1-\frac{4m_{\varphi }^2}{M^2}}}$$

$$\frac{M}{4}\left(1-\sqrt{1-\frac{4m_{\varphi }^2}{M^2}}\right)<E_{\gamma }<\frac{M}{4}\left(1+\sqrt{1-\frac{4m_{\varphi }^2}{M^2}}\right)$$

$$\frac{1}{N_{\gamma}}\frac{dN_{\gamma}}{dE_{\gamma}}=A\left\{\begin{array}[]{ll}\ln\left[\frac{E_{\pi}^{\rm max}+|\vec{p}_{\pi}^{\;\rm max}|}{m_{\pi}}\frac{2E_{\gamma}}{m_{\pi}}\right]&\mbox{for $E_{\gamma}^{\rm min}(E_{\pi}^{\rm max})<E_{\gamma}<E_{\gamma}^{\rm min}(E_{\pi}^{\rm min})$}\\ \ln\left[\frac{E_{\pi}^{\rm max}+|\vec{p}_{\pi}^{\;\rm max}|}{E_{\pi}^{\rm min}+|\vec{p}_{\pi}^{\;\rm min}|}\right]&\mbox{for $E_{\gamma}^{\rm min}(E_{\pi}^{\rm min})<E_{\gamma}<E_{\gamma}^{\rm max}(E_{\pi}^{\rm min})$}\\ \ln\left[\frac{E_{\pi}^{\rm max}+|\vec{p}_{\pi}^{\;\rm max}|}{m_{\pi}}\frac{m_{\pi}}{2E_{\gamma}}\right]&\mbox{for $E_{\gamma}^{\rm max}(E_{\pi}^{\rm min})<E_{\gamma}<E_{\gamma}^{\rm max}(E_{\pi}^{\rm max})$}\end{array}\right.$$

$$A$$

$$E_{\pi }^{\min }$$

$$E_{\pi }^{\max }$$

$$E_{\gamma }^{\min }(E_{\pi })$$

$$E_{\gamma }^{\max }(E_{\pi })$$

$$\frac{d{N}_{\varphi }}{d{E}_{\varphi }}=\frac{2(N-1)(N-2)(M-2E_{\varphi }{)}^{N-3}2E_{\varphi }}{M^{N-1}}$$

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\frac{2(N-1)(M-2E_{\gamma }{)}^{N-2}}{M^{N-1}}$$

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}\simeq \frac{\alpha }{\pi }\left(\frac{M^2+(M-2E_{\gamma }{)}^2}{M^2{E}_{\gamma }}\ln \left[\frac{M(M-2E_{\gamma })}{m_e^2}\right]\right)$$

$$\frac{1}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=\frac{320(M-2E_{\gamma })E_{\gamma }^3}{M^5}$$

$${\mathcal{L}}_{\mathrm{FSR}}\supset \frac{h{m}_e}{M_{\mathrm{int}}^2}{\varphi }^{†}\varphi (\bar{e}e+{\bar{e}}^{†}{e}^{†})$$

$${\mathcal{L}}_{\mathrm{eff}}\supset \frac{\sqrt{4\pi \alpha }}{M_{\mathrm{int}}^2}{\partial }^{\mu }({\varphi }^{†}\varphi )(e^{†}{\bar{\sigma }}^{\nu }e)[a_L{F}_{\mu \nu }+b_L{\tilde{F}}_{\mu \nu }]+\{L\to R,e\to \bar{e}\}$$

$${\mathcal{L}}_{\mathrm{FSR}}\supset \frac{h_L}{M_{\mathrm{int}}^2}({\chi }^{†}{\bar{\sigma }}^{\mu }\chi )(e^{†}{\bar{\sigma }}_{\mu }e)+\{L\to R,e\to \bar{e}\}$$

$${\mathcal{L}}_{\mathrm{eff}}\supset \frac{\sqrt{4\pi \alpha }}{M_{\mathrm{int}}^4}({\chi }^{†}{\bar{\sigma }}^{\mu }\chi )(e^{†}{\bar{\sigma }}^{\nu }e)[a_L{F}_{\mu \nu }+b_L{\tilde{F}}_{\mu \nu }]+\{L\to R,e\to \bar{e}\}$$

$${\mathcal{L}}_{\mathrm{FSR}}\supset \frac{h{m}_e}{M_{\mathrm{int}}}\varphi (\bar{e}e+e^{†}{\bar{e}}^{†})$$

$${\mathcal{L}}_{\mathrm{eff}}\supset \frac{\sqrt{4\pi \alpha }}{M_{\mathrm{int}}^3}{\partial }^{\mu }\varphi (e^{†}{\bar{\sigma }}^{\nu }e)[a_L{F}_{\mu \nu }+b_L{\tilde{F}}_{\mu \nu }]+\{L\to R,e\to \bar{e}\}$$

$$M_{\mathrm{int}}^{\ast }\approx M{\left(\frac{M}{m_e}\right)}^{\frac{1}{2}}{\left[\frac{h_L^2+h_R^2}{a_L^2+b_L^2+a_R^2+b_R^2}\ln \left(\frac{M^2}{m_e^2}\right)\right]}^{-\frac{1}{4}}\approx 10^6\mathrm{GeV}$$

$$\frac{1}{N_{\gamma}}\frac{dN_{\gamma}}{dE_{\gamma}}\simeq\frac{\alpha}{\pi}\frac{1}{\sqrt{E_{\phi}^{2}-m_{\phi}^{2}}}\left\{\begin{array}[]{ll}f\left(\frac{2E_{\gamma}}{E_{\phi}-|\vec{p}_{\phi}|}\right)-f\left(\frac{2E_{\gamma}}{E_{\phi}+|\vec{p}_{\phi}|}\right)&\mbox{for $E_{d}<E_{\gamma}<E_{\gamma}^{{\rm int}}$}\\ f\left(1-\frac{4m_{e}^{2}}{m_{\phi}^{2}}\right)-f\left(\frac{2E_{\gamma}}{E_{\phi}+|\vec{p}_{\phi}|}\right)&\mbox{for $E_{\gamma}^{{\rm int}}<E_{\gamma}<E_{\gamma}^{{\rm max}}$}\end{array}\right.$$

$$\begin{gathered} f(x)=\frac{x^2+x-2}{x}\ln \left(\frac{m_{\varphi }^2(1-x)}{m_e^2}\right)-x+1 \\ -2\left[1-\ln \left(\frac{m_e^2}{m_{\varphi }^2}\right)\right]\ln (x)+2\text{mbox}dilog(1-x) \end{gathered}$$

$$E_{\gamma }^{\mathrm{int}}=\frac{E_{\varphi }-|{\vec{p}}_{\varphi }|}{2}\left(1-\frac{4m_e^2}{m_{\varphi }^2}\right)\text{mbox}and{E}_{\gamma }^{\max }=\frac{E_{\varphi }+|{\vec{p}}_{\varphi }|}{2}\left(1-\frac{4m_e^2}{m_{\varphi }^2}\right).$$

$$\frac{1}{N_{\gamma}}\frac{dN_{\gamma}}{dE_{\gamma}}=\left\{\begin{array}[]{ll}\frac{160[2m_{\phi}^{2}(M^{2}-m_{\phi}^{2})-3M(M^{2}-2m_{\phi}^{2})E_{\gamma}]E_{\gamma}^{3}}{3m_{\phi}^{8}}&\mbox{for $0<E_{\gamma}<\frac{E_{\phi}-|\vec{p}_{\phi}|}{2}$}\\ \frac{5[(E_{\phi}+|\vec{p}_{\phi}|)^{4}-16(2E_{\phi}+2|\vec{p}_{\phi}|-3E_{\gamma})E_{\gamma}^{3}]}{3|\vec{p}_{\phi}|(E_{\phi}+|\vec{p}_{\phi}|)^{4}}&\mbox{for $\frac{E_{\phi}-|\vec{p}_{\phi}|}{2}<E_{\gamma}<\frac{E_{\phi}+|\vec{p}_{\phi}|}{2}$}\end{array}\right.$$

$$\begin{gathered} d\Gamma \propto \int d{\Pi }_2(\tau \to {\nu }_{\tau }+v)d{m}_v^{2}d{\Pi }_n(v\to n\pi ) \\ \times |{\check{\mathcal{M}}}_{\mu ,\pm }(\tau \to {\nu }_{\tau }+v){\mathcal{P}}_v^{\mu \nu }(m_v^2){\hat{\mathcal{M}}}_{\nu }(v\to n\pi ){|}^2 \end{gathered}$$

$$\frac{E_{\gamma }^{\max }}{N_{\gamma }}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}=f(E_{\gamma }/E_{\gamma }^{\max })e^{-g(E_{\gamma }/E_{\gamma }^{\max })}$$

$$f(x)$$

$$g(x)$$

$$\frac{d{N}_{\gamma }^{\mathrm{total}}}{d{E}_{\gamma }}=\sum _i\text{mbox}Br(i)\frac{d{N}_{\gamma }^{(i)}}{d{E}_{\gamma }}$$

$${\Phi }_{\gamma }\equiv \frac{d{N}_{\gamma }}{dAdtd\Omega }$$

$$\frac{d{\Phi }_{\gamma }}{d{E}_{\gamma }}(E_{\gamma },\Omega )=\frac{⟨\sigma v⟩}{4\pi m_{\mathrm{DM}}^2}\frac{d{N}_{\gamma }}{d{E}_{\gamma }}{\int }_{\mathrm{los}}{\rho }_{\mathrm{DM}}^2(r,\Omega )dr$$

Full text

1. 1 Introduction

2. 2 Direct production of photons through subsequent two-body decay chain

3. 2.1 $\mbox{DM}+\mbox{DM}\rightarrow 2\gamma$ and $\mbox{DM}\rightarrow 2\gamma$

4. 2.2 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow 2\gamma$

5. 2.3 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow 2\pi$ and $\pi\rightarrow 2\gamma$

6. 2.4 $\mbox{DM}+\mbox{DM}\rightarrow N\phi$ and $\mbox{DM}\rightarrow N\phi$ followed by $\phi\rightarrow 2\gamma$

7. 3 Photons from final states with charged particles

8. 3.1 $\mbox{DM}+\mbox{DM}\rightarrow e^{+}+e^{-}+\gamma$ and $\mbox{DM}\rightarrow e^{+}+e^{-}+\gamma$

9. 3.2 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow e^{+}+e^{-}+\gamma$

10. 4 Photons from taus

11. 5 Photon spectra and flux

12. 5.1 Photon spectra

13. 5.2 Photon flux

14. 6 Conclusion

15. A Density of states

16. B FSR collinear divergence

17. C Higher-order operators

1 Introduction

Recently several experiments (ATIC [2], H.E.S.S. [3, 4], PAMELA [5], FERMI [6]) detected an anomaly in the cosmic ray electron spectrum, measuring an excess in the high-energy positron flux compare to usual diffusion models. Such an excess was not found for antiprotons [7]. One was thus led to conjecture a new source of primary electrons and positrons. The most likely sources advanced to explain this anomaly are nearby pulsars or dark matter (DM) annihilation/decay [8, 9]. In any case, the issue related to the identity of the new source (pulsars versus DM) will be clarified by the photon spectrum which will be measured by FERMI and announced later this summer. Indeed, there is an irreducible background of gamma ray photons coming from final state radiation (FSR) from electrons and/or positrons. Nearby pulsars would lead to a local photon spectrum while DM would instead generate a diffuse photon spectrum.

The existence of DM is well established, although its paticle identity is still unknown. Assuming that DM annihilation/decay is the new source of primary electrons and positrons, several scenarios are possible (see [10–33] for related work). Apart from the FSR of photons, DM might also annihilate/decay directly to photons. Different photon spectra are expected from each annihilation/decay mode and a knowledge of the achievable spectra will help physicists understand the properties of DM at the particle level.

In Section 2, we discuss direct production of photons from DM annihilation/decay through subsequent two-body decay chain. In Section 3, we study the irreducible photon background from charged particles, considering only the dominant process (either FSR of photons or photon production from higher-order operators). Next, in Section 4 we consider direct photon production from taus. Finally, Section 5 contains a summary of the results and a comparison of the different photon spectra and total fluxes obtained from the density of states (DOS). Various detailed computations are left for the Appendix.

Since we want to address both annihilation and decay, we compute photon DOS throughout the paper, and it only differs with the spectrum by a constant factor as total number of photons. One can write DOS as

[TABLE]

not photon spectra $\frac{dN_{\gamma}}{dE_{\gamma}}$. The photon DOS are thus normalized to 1, i.e. $\int dE_{\gamma}\frac{1}{N_{\gamma}}\frac{dN_{\gamma}}{dE_{\gamma}}=1$, except for FSR where the DOS is normalized with respect to the annihilation cross-section/decay to zeroth-order in the fine structure constant (see Section 3). Thus, the total number of photons $N_{\gamma}$, given by $N_{\gamma}=\int dE_{\gamma}\frac{dN_{\gamma}}{dE_{\gamma}}$, can be found from the photon multiplicity. For example, a scenario, where DM annihilates/decays to two scalar bosons which subsequently decay to two photons each, would have a total number of photons given by $N_{\gamma}=4$.

Since we focus on the photon DOS, all the results are applicable to DM annihilation and decay, and both are assessed simultaneously by substituting the parameter $M$ by $2m_{\rm DM}$ for DM annihilation or $m_{\rm DM}$ for DM decay. Since backgrounds fall roughly like $E_{\gamma}^{2}$, we plot the photon DOS in function of the dimensionless photon energy $2E_{\gamma}/M$ with an extra $E_{\gamma}^{2}$ factor. This is consistent with the standard representation used in experiments. The $M/2$ factor appearing in the plots is to make the quantities dimensionless, where $M/2$ is the maximal energy a photon can get during a process.

Throughout this paper we assume that DM annihilates/decays only to leptons or photons as indicated by the experiments. Moreover, we assume that DM annihilation always occurs in the s-wave approximation. Under this assumption, we can get rid of the operators that can only contribute in p wave or higher order waves when we do operator analysis in later sections. Furthermore, DM annihilation to leptons or photons is allowed whatever the particle identity of DM (scalar boson, fermion or gauge boson). However, with the assumptions that standard model particles are not charged under hidden symmetries and that individual lepton numbers are conserved, DM decay to leptons or photons is allowed only for scalar boson and abelian gauge boson DM.

Issues related to the overall annihilation cross-sections/decay rates (Sommerfeld enhancement, non-thermal DM production, etc) and the irreducible astrophysical photon background (inverse Compton scattering from starlight and CMB, synchrotron radiation from galactic magnetic fields) will not be investigated.

2 Direct production of photons through subsequent two-body decay chain

In this section, we analyze direct production of photons through subsequent two-body decay chain produced by DM annihilation/decay. We assume the whole process is a chain with $k$ steps, $\phi_{i-1}\rightarrow 2\phi_{i}$, the last $\phi$ will decay to two photons and cause $2k$ photons as the final products. In Appendix A, we give a general way to calculate the DOS for two-body decay chains with on-shell intermediate particles. In following subsections, we simply show some results for different scenarios.

2.1 $\mbox{DM}+\mbox{DM}\rightarrow 2\gamma$ and $\mbox{DM}\rightarrow 2\gamma$

We first start with the simplest case where DM annihilates/decays directly to two photons. Since DM particles are almost stationary in the galactic frame, the photon DOS is a pure delta function,

[TABLE]

Since $N_{\gamma}=2$ the photon spectrum is simply twice the photon DOS.

2.2 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow 2\gamma$

To compute the photon DOS when DM annihilates/decays to two bosons which subsequently decay to two photons each, we must first boost the DOS obtained in the previous subsection and convolute it with the appropriate DOS of DM annihilation/decay to two bosons as explained in Appendix A. Because the energy of the $\phi$ boson is always $\frac{M}{2}$ and the direction of the photon in the boson rest frame is uniform, we can simply boost the delta function into the DM center of mass frame to obtain the photon DOS,

[TABLE]

where the photon energy is between

[TABLE]

and $m_{\phi}$ is the boson mass. As expected the photon DOS is normalized to one and the photon spectrum is four times the photon DOS ($N_{\gamma}=4$). Notice that in the limit where $m_{\phi}=\frac{M}{2}$, in which case the two $\phi$ bosons are produced at rest in the DM center of mass frame, the photon DOS becomes a delta function and matches the photon DOS obtained in the previous subsection. This is easily understood since in this limit the $\phi$ bosons are stationary and decay to two photons each as in the previous subsection, only the delta function support and the DOS normalization change.

2.3 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow 2\pi$ and $\pi\rightarrow 2\gamma$

When DM annihilates/decays to two $\phi$ bosons which decay to two $\pi$ bosons and finally decay to two photons, the photon DOS can again be computed by boosting the DOS obtained in the previous subsection and convoluting the result with the appropriate DOS of DM annihilation/decay to two bosons. As shown before, the $\phi$ DOS is a delta function and the $\pi$ DOS is a step function. However the photon DOS gets complicated since, for a fixed photon energy, not all $\pi$ with energy in the support of the step function can contribute. Indeed we have to calculate the minimum and maximum allowed $\pi$ energies which can generate the relevant photon energy and compute the photon DOS accordingly. Detailed computations are discussed in Appendix A. Defining the boson masses as $m_{\phi}$ and $m_{\pi}$ the photon DOS is

[TABLE]

where

[TABLE]

and $|\vec{p}_{\pi}|=\sqrt{E_{\pi}^{2}-m_{\pi}^{2}}$. The limits on the photon energy $E_{\gamma}$ are found using

[TABLE]

where $E_{\gamma}^{\rm min}(E_{\pi}^{\rm max})<E_{\gamma}^{\rm min}(E_{\pi}^{\rm min})<E_{\gamma}^{\rm max}(E_{\pi}^{\rm min})<E_{\gamma}^{\rm max}(E_{\pi}^{\rm max})$. $E_{\gamma}^{\rm min/max}(E_{\pi}^{\rm min})$ is the minimum/maximum photon energy that can be generated by a $\pi$ boson with minimum energy and similarly for $E_{\gamma}^{\rm min/max}(E_{\pi}^{\rm max})$. Again the photon DOS is canonically normalized while the photon spectrum is normalized such that the total number of photons is 8 ($N_{\gamma}=8$) and it is shown in figure 1 for some given boson masses.

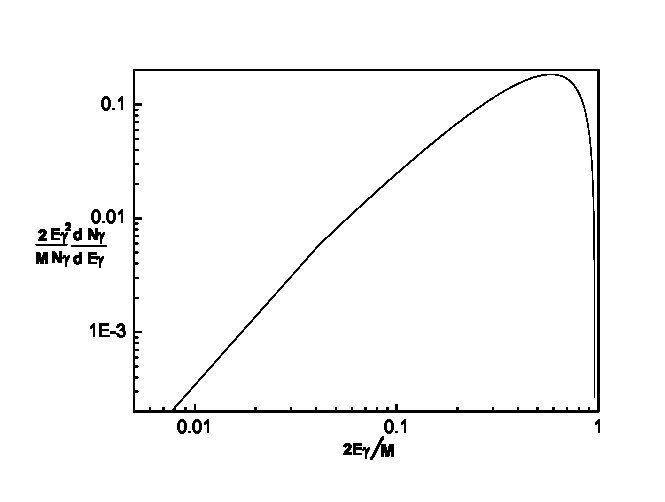

There are three parts in DOS. Firstly, DOS increases with photon energy as a log function, then in the second part DOS is just a constant, does not depend on $E_{\gamma}$, and in the third part DOS will decrease with $E_{\gamma}$ logarithmically. Since the parameters we take for the figure, the first part is out of region, the second part is corresponding to a straight line at low energy regime, and the joint point of second and third part will cause a kink at $2E_{\gamma}/M\approx 0.04$ since they are not smoothly connected to each other.

As a consistency check, we can again match the DOS obtained here with the DOS obtained in the previous subsections by taking different limits on the mass ratios. Indeed, by taking the limits $\frac{m_{\pi}}{m_{\phi}}=\frac{1}{2}$ or $\frac{m_{\phi}}{M}=\frac{1}{2}$ (but not both) the DOS becomes a step function because, in such limits, there are two particles produced at rest in the center of mass frame of the parent particle(s). Moreover in the limit where both $\frac{m_{\pi}}{m_{\phi}}=\frac{1}{2}$ and $\frac{m_{\phi}}{M}=\frac{1}{2}$ the DOS becomes a delta function since, in that limit, DM annihilates/decays to two stationary $\phi$ bosons, and both $\phi$ decay to two stationary $\pi$ bosons, which finally decay to a total of eight photons, each of them taking $\frac{1}{8}$ of the initial energy $M$.

If we take some generic values for the two mass ratios $\frac{m_{\pi}}{m_{\phi}}$ and $\frac{m_{\phi}}{M}$, the third part of the DOS, which decreases as $-\ln(E_{\gamma})$, dominates the DOS (it has the largest support). Also, adding more steps to the decay chain results in a softer photon DOS, a general trend which is intuitively expected since the total energy is distributed among a larger number of particles.

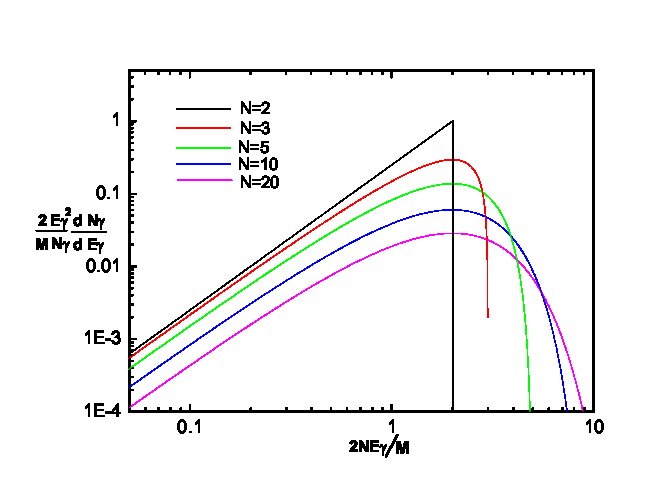

2.4 $\mbox{DM}+\mbox{DM}\rightarrow N\phi$ and $\mbox{DM}\rightarrow N\phi$ followed by $\phi\rightarrow 2\gamma$

Finally, we study DM annihilation/decay to $N$ $\phi$ bosons which then decay to two photons each. The computation is done in the massless limit, i.e. $m_{\phi}=0$. This scenario occurs for example when two strongly-coupled bound states annihilate to very light pseudo Nambu-Goldstone bosons (pions in the QCD analogy) which then decay to two photons [34]. In the massless limit, the $\phi$ boson DOS, assuming constant matrix element, can be computed by dimensional analysis and is given by

[TABLE]

where $0<E_{\phi}<\frac{M}{2}$. Therefore the photon DOS is simply

[TABLE]

where $0<E_{\gamma}<\frac{M}{2}$ (more detail is given in Appendix A). The photon DOS satisfies $n_{\gamma}=1$ and the photon spectrum is normalized to $N_{\gamma}=2N$. When $N=2$ this result is equivalent to the scenario discussed in subsection 2.2, equation (2.2), with $m_{\phi}=0$. The photon DOS for different $N$ is shown in figure 2. One can easily see that the width grows with N.

3 Photons from final states with charged particles

In this section, we analyze the irreducible photon background coming from charged particles, considering only the dominant process, i.e. FSR of photons or direct photon production from higher-order operators.

For DM annihilation, FSR is the dominant process unless DM is a scalar boson or a Majorana fermion which annihilates directly to an electron-positron pair. For DM decay, FSR is the dominant process unless DM is a scalar boson which decays directly to an electron-positron pair. Indeed, in these specific cases FSR is small due to the large chiral suppression (in the s-wave approximation for the annihilation scenarios), and might or might not be the dominant process according to the typical scale of the leading higher-order operators.

Here we will study two different modes which contribute to the photon DOS: DM annihilation/decay to one electron-positron pair and DM annihilation/decay to one boson pair which subsequently decay to one electron-positron pair each.

3.1 $\mbox{DM}+\mbox{DM}\rightarrow e^{+}+e^{-}+\gamma$ and $\mbox{DM}\rightarrow e^{+}+e^{-}+\gamma$

Final state radiation of photons

For direct DM annihilation/decay to one electron-positron pair, the photon DOS from FSR of a single photon from the electron or the positron, in the collinear limit (a formula at leading order in the electron mass is given in Appendix B), is simply given by [35]

[TABLE]

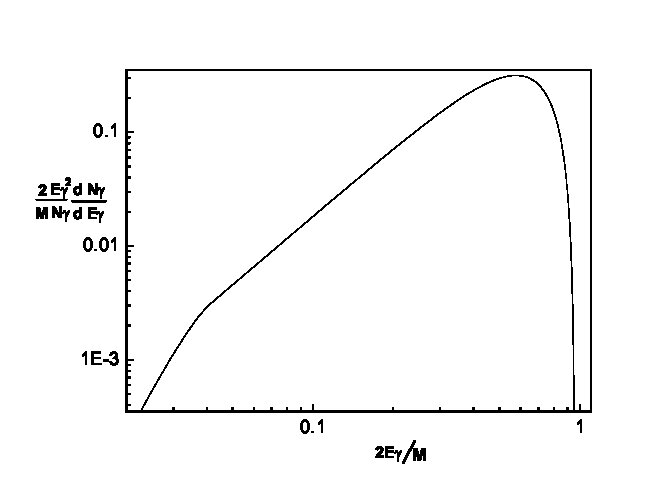

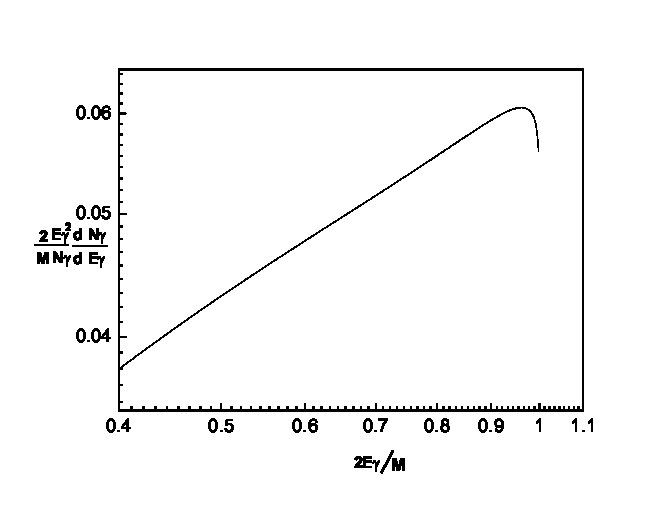

and the DOS is shown in figure 3. Since there is soft photon Log divergence in the FSR, we choose to normalize respect to zero$th$ order approximation of $\alpha$, i.e. $\sigma_{DM+DM\rightarrow e^{+}+e^{-}}$ for annihilation and $\Gamma_{DM\rightarrow e^{+}+e^{-}}$ for decay.

Notice here that the photon spectrum is the same than the photon DOS.

Direct photon production from higher-order operators

Photons from FSR may not always be the leading contribution to the spectrum in some cases. The smallness of the electron mass might lead to large chiral suppression for FSR. So the leading process can be the one where photons are directly generated associated with $e^{+}e^{-}$. In low energy effective theory, one can write such process as higher order operators, assuming the particle intermediates the process to be heavy. We will show below that there is a low $M_{\rm int}$ regime where the higher-order operators dominate over FSR for the following scenarios: direct scalar boson or Majorana DM s-wave annihilation to one electron-positron pair or direct scalar boson DM decay to one electron-positron pair.

For all these scenarios, named as scalar boson DM annihilation, Majorana DM annihilation and scalar boson DM decay, in the higher order operators, they share the common part as $e^{{\dagger}}\bar{\sigma}^{\mu}eF^{\alpha\beta}$ or $\bar{e}^{{\dagger}}\sigma^{\mu}\bar{e}F^{\alpha\beta}$. The only difference among them comes from the part of DM operators. But that part, under s-wave approximation, will only contribute different constant coefficients to the spectra of those scenarios. Since we are calculating DOS instead of spectrum, that difference will be exactly canceled by normalization. Thus, they share the same expression on DOS.

Within our assumptions, the photon DOS from the leading contact interactions given below in the limit of vanishing electron mass are all given by

[TABLE]

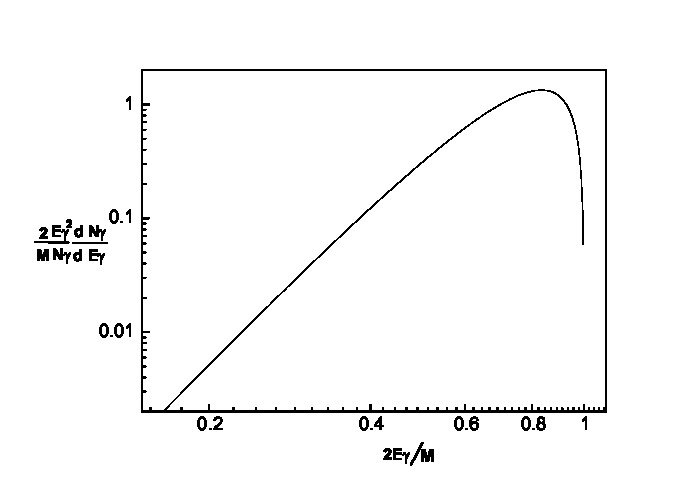

where $E_{\gamma}^{\rm max}=M/2$. The photon distribution for this spectrum is shown in figure 4. The spectrum is independent of the specific case considered (scalar boson DM annihilation, Majorana DM annihilation or scalar boson DM decay). Here the limits on the photon energy are $0<E_{\gamma}<\frac{M}{2}$ and DOS is normalized to 1 as well.

Once again, the photon spectrum is the same than the photon DOS in this case.

Final state radiation versus direct photon production

When scalar boson DM $\phi$ annihilates directly to one electron-positron pair, higher-order operators dominate for small $M_{\rm int}$ while FSR dominates for large $M_{\rm int}$. Indeed, FSR is generated mainly by the dimension 6 operator

[TABLE]

while direct photon production is generated from dimension 8 operators through the following effective Lagrangian

[TABLE]

where two-component spinor notation [36] is used and the coupling constants $\{h,a_{L},b_{L},a_{R},b_{R}\}$ should naturally be order one numbers. A similar operator has also been considered in Ref [31]. The relevant cross-sections are $\langle\sigma_{\rm FSR}v\rangle\approx c_{\rm FSR}\alpha\frac{m_{e}^{2}}{M_{\rm int}^{4}}\ln\left(\frac{4m_{\phi}^{2}}{m_{e}^{2}}\right)$ and $\langle\sigma_{\rm eff}\rangle\approx c_{\rm eff}\alpha\frac{(2m_{\phi})^{6}}{M_{\rm int}^{8}}$ where $c_{\rm FSR}\propto h^{2}$ and $c_{\rm eff}\propto a_{L}^{2}+\cdots$ include the appropriate order one coupling constants together with the $\pi$ factors from the phase space integration.

When Majorana DM $\chi$ annihilates directly to one electron-positron pair, higher-order operators dominate for small $M_{\rm int}$ while FSR dominates for large $M_{\rm int}$. Indeed, FSR is generated mainly by the dimension 6 operator

[TABLE]

while direct photon production is generated from dimension 8 operators through the following effective Lagrangian

[TABLE]

where two-component spinor notation [36] is used and the coupling constants $\{h_{L},a_{L},b_{L},h_{R},a_{R},b_{R}\}$ should naturally be order one numbers. The relevant cross-sections are $\langle\sigma_{\rm FSR}v\rangle\approx c_{\rm FSR}\alpha\frac{m_{e}^{2}}{M_{\rm int}^{4}}\ln\left(\frac{4m_{\chi}^{2}}{m_{e}^{2}}\right)$ and $\langle\sigma_{\rm eff}\rangle\approx c_{\rm eff}\alpha\frac{(2m_{\chi})^{6}}{M_{\rm int}^{8}}$ where $c_{\rm FSR}\propto h_{L}^{2}+h_{R}^{2}$ and $c_{\rm eff}\propto a_{L}^{2}+\cdots$ include the appropriate order one coupling constants together with the $\pi$ factors from the phase space integration.

Finally, when scalar boson DM $\phi$ decays directly to one electron-positron pair, higher-order operators dominate for small $M_{\rm int}$ while FSR dominates for large $M_{\rm int}$. Indeed, FSR is generated mainly by the dimension 5 operator

[TABLE]

while direct photon production is generated from dimension 7 operators through the following effective Lagrangian

[TABLE]

where two-component spinor notation [36] is used and the coupling constants $\{h,a_{L},b_{L},a_{R},b_{R}\}$ should naturally be order one numbers. This operator has also been considered in Ref [31]. The relevant decay rates are $\Gamma_{\rm FSR}\approx c_{\rm FSR}\alpha\frac{m_{e}^{2}m_{\phi}}{M_{\rm int}^{2}}\ln\left(\frac{m_{\phi}^{2}}{m_{e}^{2}}\right)$ and $\Gamma_{\rm eff}\approx c_{\rm eff}\alpha\frac{m_{\phi}^{7}}{M_{\rm int}^{6}}$ where $c_{\rm FSR}\propto h^{2}$ and $c_{\rm eff}\propto a_{L}^{2}+\cdots$ include the appropriate order one coupling constants together with the $\pi$ factors from the phase space integration.

For all scenarios both processes (final state radiation and direct photon production) have comparable contributions when

[TABLE]

where we assumed order one coupling constants and $M\approx 1$ TeV. Therefore higher-order operators dominate over FSR for $M_{\rm int}\lesssim M_{\rm int}^{*}$ while FSR dominates over higher-order operators for $M_{\rm int}\gtrsim M_{\rm int}^{*}$. Obviously for the scalar boson DM decay the decay rates are taken to be small enough such that DM is long-lived. This is possible if the operator coefficients are small, which occurs for example when the effective dimension of the scalar boson DM is higher. This is the case when the scalar boson DM is a composite field (like a glueball). In this case, equation (3.9) is still valid since the effective dimensions of the operators for both final state radiation and direct photon production increase together. A more detailed analysis can be found in Appendix C.

3.2 $\mbox{DM}+\mbox{DM}\rightarrow 2\phi$ and $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow e^{+}+e^{-}+\gamma$

Here the computation of the photon DOS involves once more a convolution of the boosted (FSR or higher-order operators) photon DOS obtained in section 3.1 with the appropriate DOS of DM annihilation/decay to two bosons as described in Appendix A.

Final state radiation of photons

Defining the boson mass as $m_{\phi}$, the photon DOS from FSR of a single photon from the electrons or the positrons is thus

[TABLE]

where the function $f$ is

[TABLE]

and the boson energy and momentum are $E_{\phi}=\frac{M}{2}$ and $|\vec{p}_{\phi}|=\frac{M}{2}\sqrt{1-\frac{4m_{\phi}^{2}}{M^{2}}}$ respectively. The limits on the photon energy are

[TABLE]

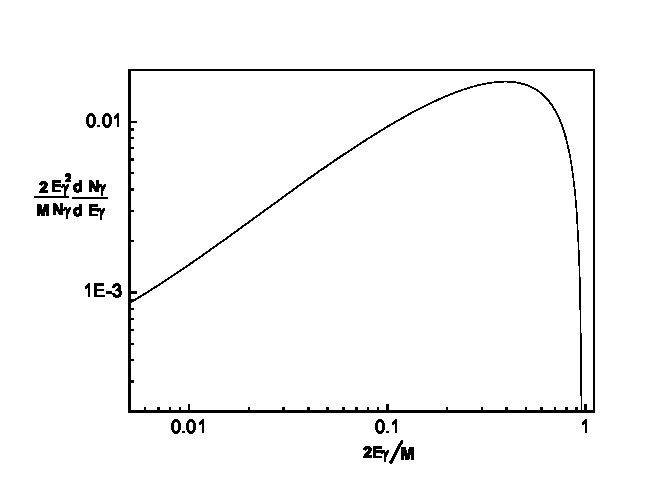

The photon spectrum is simply twice the photon DOS ($N_{\gamma}=2$) which is shown in figure 5 for a given boson mass.

Again it is possible to relate the FSR photon DOS of this subsection to the FSR photon DOS of the previous subsection by letting the boson mass approach half the parameter $M$, i.e. $m_{\phi}=M/2$. This corresponds to DM annihilation/decay to two bosons at rest in the DM center of mass frame which subsequently decay to one electron-positron pair each with a single FSR photon. Notice that, in this limit, the $(E_{\phi}^{2}-m_{\phi}^{2})^{-\frac{1}{2}}$ prefactor in the photon DOS is very important for the matching to work.

Direct photon production from higher-order operators

As previously shown, photon production from scalar boson decay to electron-positron pair is not dominated by FSR when the typical scale of the interactions $M_{\rm int}$ is low. In that case, the photon DOS from higher-order operators is given by

[TABLE]

where the boson energy and momentum are $E_{\phi}=\frac{M}{2}$ and $|\vec{p}_{\phi}|=\frac{M}{2}\sqrt{1-\frac{4m_{\phi}^{2}}{M^{2}}}$ respectively. The photon DOS, which is shown in figure 6, is canonically normalized and the photon spectrum is simply twice the photon DOS ($N_{\gamma}=2$). Once more, it is possible to relate the photon DOS obtained in this subsection with the photon DOS obtained in the previous subsection for higher-order operators by taking the limit $m_{\phi}=\frac{M}{2}$.

4 Photons from taus

Tau leptons represent another interesting decay mode for dark matter annihilation/decay. Since baryon number is conserved in tau decays, and the tau mass is less than the sum of the proton and neutron masses, $m_{\tau}<m_{p}+m_{n}$, tau decays include only (anti-)leptons and (anti-)mesons, with no (anti-) baryons. Dark matter that annihilates/decays preferentially to tau leptons is therefore not necessarily in conflict with stringent limits on the anti-proton flux in cosmic rays. However, tau leptons do provide an interesting source of photons since tau decays include a significant fraction of neutral pions, $\tau\to X+\pi^{0}$, that subsequently decay to photons, $\pi^{0}\to 2\gamma$.

The average number of $\pi^{0}$ produced in a single $\tau$ decay is approximately $\langle{N}_{\pi^{0}}\rangle\simeq 0.51$, giving an average of roughly one photon per $\tau$ decay, $N_{\gamma}/N_{\tau}\simeq 1$. Most $\pi^{0}$ from $\tau$ decays come from the hadronic one-prong decay modes $\tau^{-}\rightarrow\nu_{\tau}+\rho^{-}\rightarrow\nu_{\tau}+\pi^{-}+\pi^{0}$ (branching fraction $25.4\%$) and $\tau^{-}\rightarrow\nu_{\tau}+a_{1}^{-}\rightarrow\nu_{\tau}+\pi^{-}+2\pi^{0}$ (branching fraction approximately $9\%$ [37]). These two decay modes account for approximately $85\%$ of all the neutral pions arising from $\tau$ decay. The other main sources of neutral pions are the three-prong mode $\tau^{-}\rightarrow\nu_{\tau}+2\pi^{-}+\pi^{+}+\pi^{0}$ (branching fraction $4.3\%$) and the one-prong mode $\tau^{-}\rightarrow\nu_{\tau}+\pi^{-}+3\pi^{0}$ (branching fraction $1.1\%$), as well as continuum contributions. All branching fractions are taken from the PDG [38]. Below we include only the dominant decays through the $\rho$ and $a_{1}$ resonances.

To obtain the photon DOS we first need to obtain the DOS of neutral pions. We have explicitly computed the contribution to the pion spectrum from the principal decay modes, with intermediate $\rho$ and $a_{1}$ vector meson resonances. The general $\tau$ differential decay rate takes the form

[TABLE]

The $\pi^{0}$ DOS is obtained by removing a single $\pi^{0}$ from the final state phase space integration. Here $\mathcal{P}^{\mu\nu}_{v}(m_{v}^{2})$ is the vector meson propagator, $\check{\mathcal{M}}_{\mu,\pm}(\tau\rightarrow\nu_{\tau}+v)$ denotes the matrix element for a $\tau$ of helicity $h=\pm{1\over 2}$ corresponding to right or left handed respectively, to decay to a vector meson, and $\hat{\mathcal{M}}_{\nu}(v\rightarrow n\pi)$ denotes the matrix element for the vector meson to decay to $n$ pions.

First consider the decay through the $\rho$ resonance. Obtaining the pion spectrum from the sequence of two-body cascades $\tau\rightarrow\nu+\rho\rightarrow\nu+2\pi$ uses many of the techniques as used in the scalar cascades in Section 2. The major differences are first, nonconstant matrix elements, resulting from the nonzero spin of the intermediate $\rho$, and second, the large decay width of the $\rho$, which necessitates the use of a Breit-Wigner with a running width. We use a $\rho$ mass and width of $m_{0,\rho}=770\,{\rm MeV}$ and $\Gamma_{0,\rho}=150\,{\rm MeV}$. Next consider the decay through the $a_{1}$ resonance which differs from the $\rho$ mode in that the final decay $a_{1}\rightarrow 3\pi$ is not two-body. The spectrum of the observed pion therefore requires additional integrations over the phase space of the unobserved pions in the final state. Following [37, 39], we use relatively simple parameterizations given in [40] for both the $a_{1}\rightarrow 3\pi$ matrix element and running width. We use an $a_{1}$ mass and width of $m_{0,a}=1.22\,{\rm GeV}$ and $\Gamma_{0,a}=420\,{\rm MeV}$.

The photon DOS may be obtained from the pion DOS by convolution, as before. We work in the collinear limit $M\gg m_{\tau}$ in which the components of the $\pi^{0}$, and therefore photon, momentum transverse to the tau direction of motion in the origin annihilation/decay frame are irrelevant. The results for the normalized photon DOS under the assumption that the DM annihilates/decay to a single tau–anti-tau pair are well fit by the parameterized functional form

[TABLE]

where $E_{\gamma}^{\rm max}=M/2$, and

[TABLE]

For positive or right handed helicity the best fit parameters are $a_{+}=-0.192$, $b_{+,i}=\{3.90,-2.26,-15.59,32.96,-19.45\}$, $c_{+,i}=\{8.94,-16.10,-19.45\}$, while for negative or left handed helicity the best fit parameters are $a_{-}=-0.040$, $b_{-,i}=\{5.55,4.29,-10.94,0,0\}$, $c_{-,i}=\{7.36,0,0\}$. The differences between the photon DOS arising from right- and left-handed taus are only very minor. It seems unlikely that a measurement of the photon spectrum alone could ever distinguish the helicity of tau’s arising from DM annihilation/decay. The photon distribution arising from DM annihilation/decay directly to a single tau–anti-tau pair and averaging over tau helicity is shown in Fig. 7.

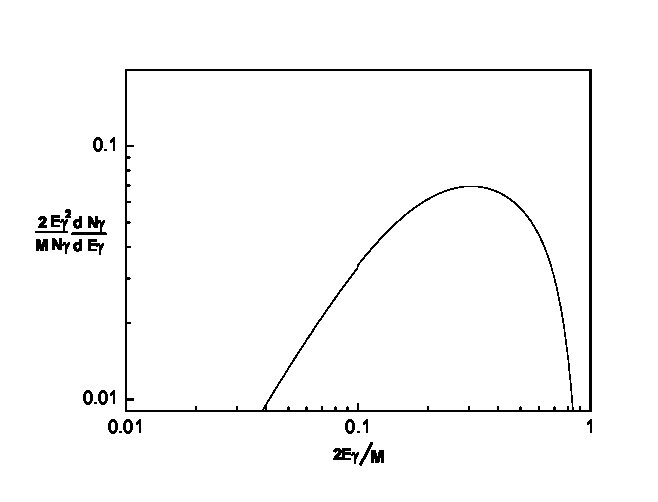

In this case the photon spectrum is roughly twice the photon DOS, $N_{\gamma}\simeq 2$, since there is roughly one photon per tau on average and two tau’s per DM annihilation/decay.

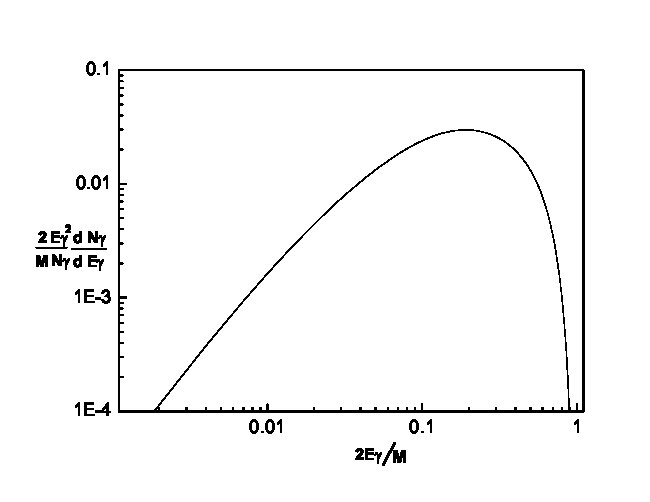

If we assume DM particles annihilate/decay to two intermediate bosons $\phi$, each of which subsequently decays to a tau–anti-tau pair, then we again need to boost the DOS obtained above and convolve it with the appropriate DOS of DM annihilation/decay to two bosons, as explained in Appendix A. The final photon spectral distribution for this case in the collinear limits $M\gg m_{\phi}\gg m_{\tau}$, and averaging over tau helicities is shown in Fig. 8. The photon spectrum in this case is roughly four times the photon DOS, $N_{\gamma}\simeq 4$.

We can see that the final photon DOS is softer compared to Fig. 7 due to extra intermediate state.

5 Photon spectra and flux

5.1 Photon spectra

Strickly speaking, everything we have computed up to now are photon DOS in different scenarios. The different photon DOS are superimposed in figure 9.

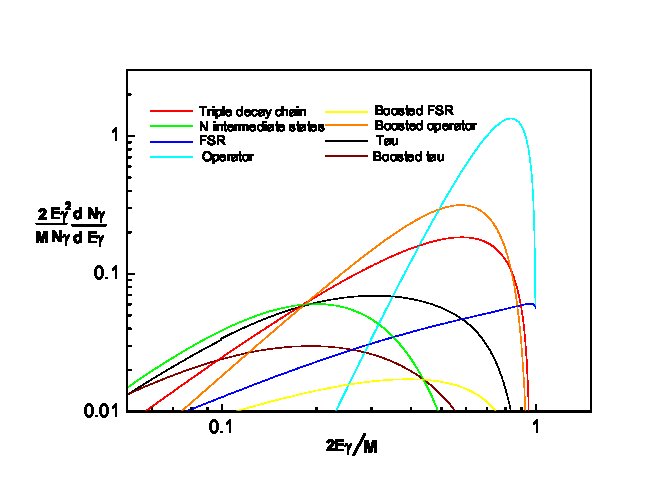

However, in the likely case where several scenarios add up, the different spectra must be added with the appropriate weight. The full photon spectrum obtained is given by

[TABLE]

where the sum is over all allowed scenarios $i$, with photon spectrum $\frac{dN_{\gamma}^{(i)}}{dE_{\gamma}}$ and branching ratio $\mbox{Br}(i)$. In comparing with the background of gamma ray photons, the only difference between DM annihilation and DM decay comes from the power of the DM density profile in the appropriate equations as discussed in the next subsection.

5.2 Photon flux

An observation of gamma rays from dark matter annihilation/decay involves not only the spectrum but also the absolute magnitude. The photon flux

[TABLE]

where $dA$ and $d\Omega$ are the detector area and solid angle elements, can be computed from an integral over the source along the line of sight (los) [41] since gamma rays are not significantly attenuated on galactic length scales. For annihilation of a single species of DM particle that is its own anti-particle the spectral flux is given by

[TABLE]

where $\langle\sigma v\rangle$ is the phase space averaged annihilation cross section times velocity, $\rho_{\rm DM}$ is the dark matter density, and $dN_{\gamma}/dE_{\gamma}$ is the photon spectrum with $N_{\gamma}=\int dE_{\gamma}(dN_{\gamma}/dE_{\gamma})$ photons emitted per annihilation. If the DM is composed of distinct particle and anti-particle particle species with equal densities that can annihilate only through the particle–anti-particle channel, the flux (5.3) should be multiplied by an additional factor of ${1\over 4}$. In terms of dimensional units the annihilation spectral flux (5.3) may be written

[TABLE]

where

[TABLE]

is a dimensionless order one factor that represents astrophysical parameters.

For decay of a single species of DM the spectral flux is given by

[TABLE]

where $\Gamma$ is the DM decay rate with $N_{\gamma}=\int dE_{\gamma}(dN_{\gamma}/dE_{\gamma})$ photons emitted per decay. In terms of dimensional units the decay spectral flux may be written

[TABLE]

where

[TABLE]

is a dimensionless order one factor characterizing the astrophysical parameters. With the spectral flux equations (5.3) and (5.6) comparisons with the gamma ray background are straightforward.

6 Conclusion

High-energy photons are hardly deflected when they propagate through the galaxy. This is an advantage over charged particles, like electrons and positrons, which interact with the galactic magnetic field. Moreover, once charged particles are accelerated, photons are always produced due to radiation. The different photon spectra one can obtained are good candidates to provide information on the process(es) generating the photons. In this paper, we studied the spectra of high-energy photons generated by various dark matter annihilation/decay scenarios including: direct photon production from arbitrary two-body decay chains, final state radiation from charged particles generated by dark matter annihilation/decay, direct photons production together with charged particles from higher-order operators, and the special case where photons are produced from taus generated by dark matter annihilation/decay.

We noted also that, for processes which generate photons and leptons, effective field theory allows a comparison between the spectra from final state radiation and the ones from direct photon production due to higher-order operators. Interestingly, we found that, except for scalar dark matter annihilation or decay and Majorana dark matter annihilation, all the other dark matter scenarios are dominated by final state radiation. Moreover, for these exceptions (scalar boson dark matter annihilation and decay and Majorana dark matter annihilation), with a dark matter mass of $\mathcal{O}(1\,{\rm TeV})$ we found that direct photon production from higher-order operators dominates if the scale of the leading operator is lower than $\mathcal{O}(1000\,{\rm TeV})$. Otherwise final state radiation still dominates. Finally, it is also very interesting to see that the hardest spectrum among the spectra studied here (see figure 9) comes from these exceptions, i.e. direct photon production from higher-order operators.

Once the flux of cosmic gamma rays is measured, an eventual dark matter signal could be compared with the different spectra presented here and a great deal of information on the nature of dark matter at the particle physics level could be deduced.

Acknowledgments

This research was supported by DOE grant DE-FG02-96ER40949. We would like to thank IAS for their hospitality during the “Current Trends in Dark Matter” workshop, and Rouven Essig for comments on this manuscript.

Appendix A Density of states

In this appendix we review how the DOS is obtained from general considerations. The DOS for $\Phi$ annihilation/decay to $\phi$ is simply given by

[TABLE]

respectively, and is thus normalized to one. For example, assuming constant averaged matrix element squared, the DOS in the $\Phi$ center of mass frame for $2\rightarrow 2$ annihilation in the s-wave approximation and $1\rightarrow 2$ decay is simply obtained from the phase space,

[TABLE]

where $P^{\mu}=(M,\vec{0})$ with $M=2m_{\Phi}$ for $\Phi$ annihilation and $M=m_{\Phi}$ for $\Phi$ decay.

For $\Phi$ decay in a boosted frame, the DOS follows from Lorentz covariance. Indeed $N\equiv\int dE\frac{dN}{dE}$ is a Lorentz scalar thus $N^{{\rm CM}}=N^{{\rm Boost}}$. Therefore one can rewrite the boosted DOS as

[TABLE]

or

[TABLE]

Here $z^{{\rm CM}}=\cos\theta=\hat{p}_{\Phi}\cdot\hat{p}_{\phi}^{{\rm CM}}$ is the angle between the boosted $\Phi$ and the unboosted $\phi$. Since the DOS in the $\Phi$ rest frame is uniform, then $\frac{dN^{{\rm CM}}}{Ndz^{{\rm CM}}dE^{{\rm CM}}}=\frac{1}{2}\frac{dN^{{\rm CM}}}{NdE^{{\rm CM}}}$. Finally, the $\phi$ energy in the $\Phi$ center of mass frame is related to the $\phi$ energy in the boosted frame by

[TABLE]

The bounds on $z$ can be found from the bounds in the $\Phi$ center of mass frame plus the physical constraint that $-1<z<1$. Boosting the DOS of the previous example in the frame where $\Phi$ has four-momentum $p_{\Phi}^{\mu}=E_{\Phi}(1,\hat{p}_{\Phi}\sqrt{1-m_{\Phi}^{2}/E_{\Phi}^{2}})$, one gets

[TABLE]

where the $\phi$ energy is bounded by

[TABLE]

Convolution and matching of DOS

For a two-body decay chain $\phi_{0}\rightarrow 2\phi_{1}$ to $\phi_{k-1}\rightarrow 2\phi_{k}$ the DOS in the $\phi_{0}$ rest frame can be found by iteration and is given by

[TABLE]

where the bounds are complicated functions of the energies. For example, with the same assumptions as above, the two-body decay chain $\phi_{0}\rightarrow 2\phi_{1}$ followed by $\phi_{1}\rightarrow 2\phi_{2}$ gives

[TABLE]

where the $\phi_{2}$ energy is bounded by

[TABLE]

By taking limits where intermediate particles are created at rest in the center of mass frame of the parent particle, it is possible to match different DOS. Indeed in the limit where $m_{i+1}\rightarrow\frac{m_{i}}{2}$, the decay chain is effectively cut by one step, with all the previous steps being unchanged, the $i$-th step being deleted and the subsequent steps being modified due to the energy redistribution. The DOS satisfies

[TABLE]

where the $i$th step is not included on the LHS. This allows us to check the different DOS formula.

Appendix B FSR collinear divergence

In the calculation of FSR, one would have to deal with the collinear divergence, which will show up when we take the massless limit for $e^{+}e^{-}$. Taking the electron mass into account, the three-body decay rate does not suffer from a collinear divergence and it can be easily computed using Dalitz coordinates [35]. Here we show the result for $\phi\rightarrow e^{+}+e^{-}+\gamma$, where FSR coming from the following vertex $\frac{hm_{e}}{N_{int}}\phi(\bar{e}e+\bar{e^{{\dagger}}}e^{{\dagger}})$, one can get spectrum as

[TABLE]

Such spectrum has soft photon divergence, so we choose to normalize the spectrum respect to its zero$th$ order approximation on $\alpha$, which corresponds to the process $\phi\rightarrow e^{+}+e^{-}$, i.e.

[TABLE]

where $\Gamma_{\phi\rightarrow e^{+}+e^{-}}=\frac{h^{2}m_{e}^{2}m_{\phi}}{8\pi M_{\rm int}^{2}}$.

The first piece of the formula is from long distance contribution since this part is not sensitive to the details of the vertex, and it will be logarithmically diverge when we take $m_{e}$ goes to zero. The second term is the finite piece when we take massless limit of $e^{+}e^{-}$. This is the extra piece comparing to collinear approximation where we only keep long distance piece. In the collinear limit (see equation (C.1)), after the last term of equation (B.1) is dropped, one gets the photon DOS equation (3.1) introduced in section 3.

Next, we consider the case where FSR gets one step of boosting, i.e. DM annihilate/decay to intermediate particle $\phi$, then $\phi$ decays to $e^{+}e^{-}$ with photon from FSR.

In a frame where $\phi$ has four-momentum $p_{\phi}^{\mu}=E_{\phi}(1,\hat{p}_{\phi}\sqrt{1-m_{\phi}^{2}/E_{\phi}^{2}})$, the boosted DOS can be found from the general formula. However, since the photon is massless, the Jacobian simplifies greatly, leading to

[TABLE]

The integral is easily done using the new variable $w=\frac{m_{\phi}}{E_{\phi}+z^{{\rm CM}}\sqrt{E_{\phi}^{2}-m_{\phi}^{2}}}$, in terms of which $E_{\gamma}^{{\rm CM}}=wE_{\gamma}$. The bounds on $w$ can be found from the bounds on $E_{\gamma}^{{\rm CM}}$ due to $E_{\gamma}^{{\rm CM}}(E_{\gamma})$ and from the physical constraint $-1<z<1$, giving two different regimes,

[TABLE]

as discussed in the text. Convoluting this boosted DOS with the two-body decay DOS one obtains the DOS for $\mbox{DM}\rightarrow 2\phi$ followed by $\phi\rightarrow e^{+}+e^{-}+\gamma$ mentioned above.

Appendix C Higher-order operators

In some specific scenarios, FSR suffers a large chiral suppression due to the small electron mass. In these cases, direct photon production from higher-order operators might dominate. In this Appendix we determine the necessary conditions for which direct photon production from higher-order operators dominates over FSR. To reach the most general conclusions, effective field theory is used throughout the analysis. Therefore, the chirality rule, which states that chirality-violating operators must come with an overall mass term, is enforced. Moreover, to evaluate the appropriate FSR annihilation cross-section/decay rate, the collinear limit is taken [42],

[TABLE]

where $x=2E_{\gamma}/M$ and $X=\langle\sigma v\rangle$ with $M=2m_{\rm DM}$ for DM annihilation or $X=\Gamma$ with $M=m_{\rm DM}$ for DM decay respectively. Notice that for DM annihilation, DM is assumed to be almost at rest, thus the s-wave approximation can be taken. The lowest-dimension electron operators are given in table 1. When the operator does not violate chirality, only the operators with $e$ alone are considered since operators mixing $e$ and $\bar{e}$ will lead to chirality-suppressed mixing terms.

The photon can either appear in a covariant derivative, which is already taken into account in the electron operators, or in the field strength tensor as in table 2.

To simplify the analysis, the Lorentz indices are kept free and are contracted with the appropriate tensors ($g_{\mu\nu}$ or $\epsilon_{\mu\nu\lambda\rho}$) only at the end of the analysis. In this way, one does not have to deal with the complete set of operators at this stage of the analysis (for example, the operator corresponding to the dual field strength tensor can be forgotten).

Scalar boson DM annihilation to $e^{+}+e^{-}+\gamma$

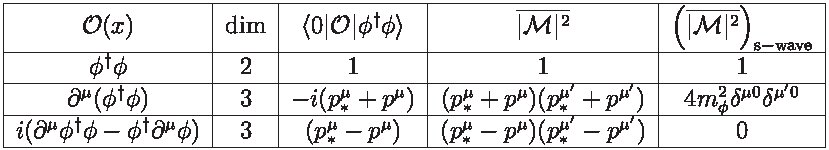

The relevant lowest-dimension scalar boson operators are given in table 3.

Combining operators of table 3 with operators of table 1, the leading operator for FSR seems to be constructed from $\partial^{\mu}(\phi^{\dagger}\phi)$ and $(e^{\dagger}\bar{\sigma}_{\mu}e)$. It is a dimension 6 operator and it is not explicitly chirality-suppressed. However, in the s-wave approximation, $p_{+}^{\mu}=(m_{\phi},\vec{p}_{e})$ and $p_{-}^{\mu}=(m_{\phi},-\vec{p}_{e})$, thus $\overline{|\langle e^{+}e^{-}|(e^{\dagger}\bar{\sigma}^{0}e)|0\rangle|^{2}}=2m_{e}^{2}$ which is chirality-suppressed. Therefore, the leading FSR operators are dimension 6 but are chirality-suppressed. For example, one such operator can be constructed out of $\phi^{\dagger}\phi$ and $m_{e}(\bar{e}e+e^{\dagger}\bar{e}^{\dagger})$. The related FSR cross-section is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

For direct photon production from higher-order operators to dominate, the operators should not be chirality-suppressed and/or should be of lower dimension. Combining again operators of table 3 with operators of tables 1 and 2 such that one photon can be created in the final state, the leading operators for direct photon production are dimension 8 and are not chirality-suppressed. The operator made out of $\partial^{\mu}(\phi^{\dagger}\phi)$, $(e^{\dagger}\bar{\sigma}_{\nu}e)$ and $F_{\mu\nu}$ is an example. Following the general rules of effective field theory, a factor of $\alpha$ should be put in front of this type of operators. The related direct photon production cross-section is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration111$c_{\rm FSR}$ and $c_{\rm eff}$ have the same phase space factors since both are obtained from a three-particle final state..

It is now straightforward to compare FSR and direct photon production cross-sections,

[TABLE]

which leads to equation (3.9) of section 3. Direct photon production from higher-order operators will therefore dominate over FSR when $M_{\rm int}\lesssim M_{\rm int}^{*}$ (see equation (3.9)). In the remaining subsections, the analysis is more concise since it closely follows what has been done here.

Majorana DM annihilation to $e^{+}+e^{-}+\gamma$

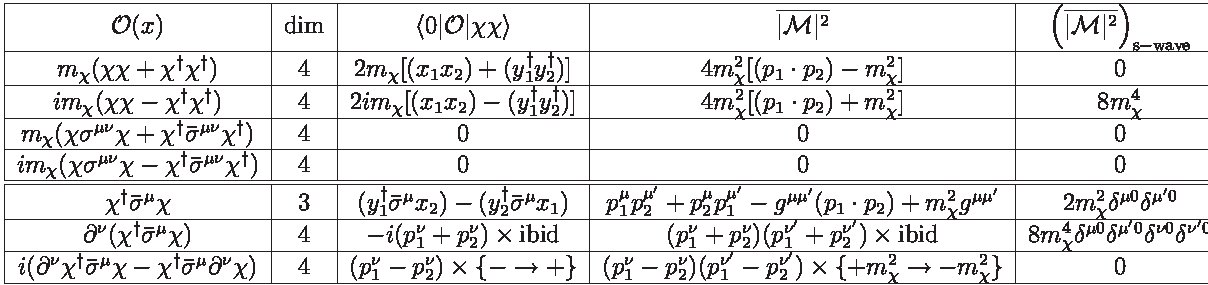

The relevant lowest-dimension Majorana operators are given in table 4.

Combining operators of table 4 with operators of table 1, the leading order operators for FSR are dimension 6 operators of the form $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(e^{\dagger}\bar{\sigma}_{\mu}e)$. Again, these operators are chirality-suppressed in the s-wave approximation, thus the related FSR cross-section is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Combining operators of table 4 with operators of tables 1 and 2, the leading operators for direct photon production are dimension 8 and are not chirality-suppressed. The operator made out of $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)$, $(e^{\dagger}\bar{\sigma}^{\nu}e)$ and $F_{\mu\nu}$ is an example. The related direct photon production cross-section is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Comparing FSR and direct photon production cross-sections leads to the equivalent of equation (C.4) with the same overall conclusions as scalar boson DM annihilation.

Dirac DM annihilation to $e^{+}+e^{-}+\gamma$

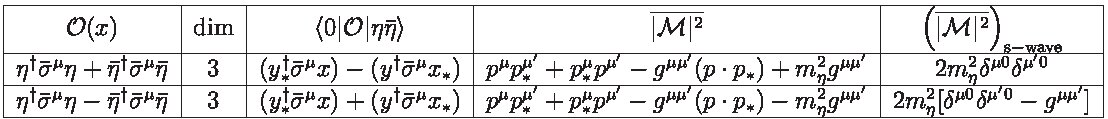

The relevant lowest-dimension Dirac operators are given in table 5.

Combining operators of table 5 with operators of table 1, the leading order operators for FSR are dimension 6 operators of the form $[(\eta^{\dagger}\bar{\sigma}^{\mu}\eta)-(\bar{\eta}^{\dagger}\bar{\sigma}^{\mu}\bar{\eta})](e^{\dagger}\bar{\sigma}_{\mu}e)$. However, these operators are not chirality-suppressed in the s-wave approximation, thus the related FSR cross-section is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Combining operators of table 5 with operators of tables 1 and 2, the leading operators for direct photon production are dimension 8 and are not chirality-suppressed, as in the Majorana DM annihilation case. The operator made out of $[(\eta^{\dagger}\bar{\sigma}^{\mu}\eta)+(\bar{\eta}^{\dagger}\bar{\sigma}^{\mu}\bar{\eta})]$, $(e^{\dagger}\bar{\sigma}^{\nu}e)$ and $F_{\mu\nu}$ is an example. The related direct photon production cross-section is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Comparing FSR and direct photon production cross-sections leads to

[TABLE]

and, for order one coefficients, FSR always dominates over direct photon production from higher-order operators.

Gauge boson DM annihilation to $e^{+}+e^{-}+\gamma$

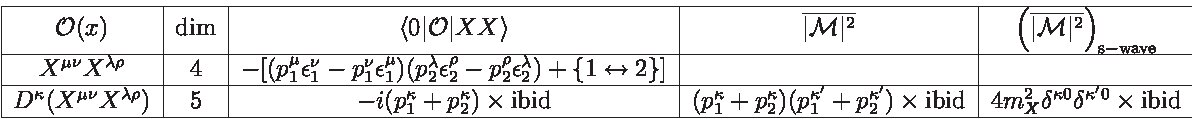

The relevant lowest-dimension gauge boson operators are given in table 6.

Combining operators of table 6 with operators of table 1, the leading order operators for FSR are dimension 8 operators of the form $X^{\mu\lambda}X_{\nu\lambda}i(D^{\nu}e^{\dagger}\bar{\sigma}_{\mu}e-e^{\dagger}\bar{\sigma}_{\mu}D^{\nu}e)$. However, these operators are not chirality-suppressed in the s-wave approximation, thus the related FSR cross-section is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Combining operators of table 6 with operators of tables 1 and 2, the leading operators for direct photon production are dimension 8 and are not chirality-suppressed. The operator made out of $X^{\mu\lambda}X_{\nu\lambda}$ and $i(D^{\nu}e^{\dagger}\bar{\sigma}_{\mu}e-e^{\dagger}\bar{\sigma}_{\mu}D^{\nu}e)$ is an example. The related direct photon production cross-section is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Comparing FSR and direct photon production cross-sections leads to

[TABLE]

and, for order one coefficients, FSR always dominates over direct photon production from higher-order operators, although only slightly.

Scalar boson DM decay to $e^{+}+e^{-}+\gamma$

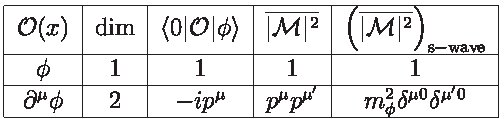

This case follows closely the scalar boson DM annihilation case. The relevant lowest-dimension scalar boson operators are given in table 7.

Combining operators of table 7 with operators of table 1, the leading order operators for FSR are dimension 5 operators of the form $m_{e}\phi(\bar{e}e+e^{\dagger}\bar{e}^{\dagger})$. These operators are chirality-suppressed and thus the related FSR decay rate is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Combining operators of table 7 with operators of tables 1 and 2, the leading operators for direct photon production are dimension 7 and are not chirality-suppressed. The operator made out of $\partial^{\mu}\phi$, $(e^{\dagger}\bar{\sigma}^{\nu}e)$ and $F_{\mu\nu}$ is an example. The related direct photon production decay rate is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Comparing FSR and direct photon production decay rates leads to the equivalent of equation (C.4) for decay rates,

[TABLE]

with the same overall conclusions as scalar boson DM annihilation.

Abelian gauge boson DM decay to $e^{+}+e^{-}+\gamma$

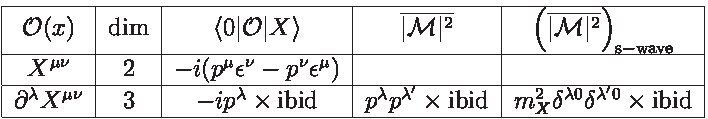

The relevant lowest-dimension gauge boson operators are given in table 8.

Combining operators of table 8 with operators of table 1, the leading order operators for FSR are dimension 6 operators of the form $\partial^{\mu}X_{\mu\nu}(e^{\dagger}\bar{\sigma}^{\nu}e)$. However, these operators are not chirality-suppressed and thus the related FSR decay rate is

[TABLE]

where $c_{\rm FSR}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Combining operators of table 8 with operators of tables 1 and 2, the leading operators for direct photon production are dimension 6 and are not chirality-suppressed. The operator made out of $X^{\mu\nu}$ and $i(D_{\nu}e^{\dagger}\bar{\sigma}_{\mu}e-e^{\dagger}\bar{\sigma}_{\mu}D_{\nu}e)$ is an example. The related direct photon production decay rate is

[TABLE]

where $c_{\rm eff}$ includes the operator coupling constant and the $\pi$ factors from the phase space integration.

Comparing FSR and direct photon production cross-sections leads to

[TABLE]

and, for order one coefficients, FSR always dominates over direct photon production from higher-order operators, although only slightly.

DOS for direct photon production from higher-order operators: An example for Majorana DM annihilation

When direct photon production from higher-order operators dominates over FSR, the photon DOS can be obtained from the most general effective Lagrangian. Here we study the case of Majorana DM annihilation to electron-positron pair, $\chi+\chi\rightarrow e^{+}+e^{-}+\gamma$. The other cases where direct photon production from higher-order operators dominates over FSR are basically equivalent.

The lowest-dimension operators relevant to $\chi+\chi\rightarrow e^{+}+e^{-}+\gamma$ are effective dimension 8 operators due to the chirality rule, thus only effective mass dimension 8 operators will be considered. The highest possible effective mass dimension for the DM ($\chi$) operators is therefore 4. The photon can either appear in a covariant derivative or in the field strength tensor.

With the help of tables 1, 2 and 4, the minimal set (in the sense that any operator relevant for $\chi+\chi\rightarrow e^{+}+e^{-}+\gamma$ can be rewritten as a linear combination of the operators in the minimal set) of operators of the mass dimension 8 effective Lagrangian for the process $\chi+\chi\rightarrow e^{+}+e^{-}+\gamma$ can be found.

From the electron operators without covariant derivatives, only the one with mass dimension 3 is relevant, leading to $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(e^{\dagger}\bar{\sigma}^{\nu}e)F^{\lambda\rho}$. From the electron operators with one covariant derivative, only $i(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)\partial^{\rho}(D^{\lambda}e^{\dagger}\bar{\sigma}^{\nu}e-e^{\dagger}\bar{\sigma}^{\nu}D^{\lambda}e)$ survives (there are two different ways of building this operator) since all other operators are either zero to lowest order in $m_{e}$ from the equations of motion (the $\sigma$ matrix and the covariant derivative are forced to be contracted together) or vanish in the s-wave. Finally there are only two operators that can be built from the electron operators with two covariant derivatives, which are $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(D^{\rho}D^{\lambda}e^{\dagger}\bar{\sigma}^{\nu}e+e^{\dagger}\bar{\sigma}^{\nu}D^{\rho}D^{\lambda}e)$ and $i(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(D^{\rho}D^{\lambda}e^{\dagger}\bar{\sigma}^{\nu}e-e^{\dagger}\bar{\sigma}^{\nu}D^{\rho}D^{\lambda}e)$.

All operators have four Lorentz indices and must therefore be contracted with $g_{\mu\nu}g_{\lambda\rho}$, $g_{\mu\lambda}g_{\nu\rho}$, $g_{\mu\rho}g_{\nu\lambda}$ and $\epsilon_{\mu\nu\lambda\rho}$. Using the equations of motion, this fact leads to an even smaller minimal set (to lowest order in $m_{e}$), since $g_{\mu\nu}1=\sigma_{\mu}\bar{\sigma}_{\nu}+2i\sigma_{\mu\nu}$ and $[D_{\mu},D_{\nu}]=-i\sqrt{4\pi\alpha}F_{\mu\nu}$. Indeed one has

[TABLE]

thus eliminating all operators with two covariant derivatives. Moreover, the operator with one covariant derivative can be rewritten in terms of two covariant derivatives as $i(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(D^{\rho}e^{\dagger}\bar{\sigma}^{\nu}D^{\lambda}e-D^{\lambda}e^{\dagger}\bar{\sigma}^{\nu}D^{\rho}e)$, leading to

[TABLE]

therefore eliminating three of the four possible operators. Finally, for the operators with $F^{\mu\nu}$, only two operators survive since the field strength tensor is antisymmetric.

Then the minimal set consists of $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(e^{\dagger}\bar{\sigma}^{\nu}e)F_{\mu\nu}$, $(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(e^{\dagger}\bar{\sigma}^{\nu}e)\tilde{F}_{\mu\nu}$ and $i\epsilon_{\mu\nu\lambda\rho}\partial^{\rho}(\chi^{\dagger}\bar{\sigma}^{\mu}\chi)(e^{\dagger}\bar{\sigma}^{\nu}D^{\lambda}e)$. In the s-wave approximation, the last term also vanishes, thus leading to only two operators relevant for the mass dimension 8 effective Lagrangian of $\chi+\chi\rightarrow e^{+}+e_{-}+\gamma$ (at lowest order in $m_{e}$),

[TABLE]

where the coupling constants are assumed to be order one numbers. Since the operators do not interfere (they couple the electrons to different photon states), the probability is simply given by

[TABLE]

where $\vec{p}_{-}=-\vec{p}_{\gamma}-\vec{p}_{+}$, $E_{-}=\sqrt{E_{\gamma}^{2}+E_{+}^{2}+2zE_{\gamma}E_{+}}=2m_{\chi}-E_{\gamma}-E_{+}$, $z=\frac{2m_{\chi}^{2}-2m_{\chi}E_{\gamma}-2m_{\chi}E_{+}+E_{\gamma}E_{+}}{E_{\gamma}E_{+}}$ and $m_{\chi}-E_{\gamma}<E_{+}<m_{\chi}$. Here $z=\cos\theta$ and $\theta$ is the angle between the positron and the photon. In the vanishing electron mass limit the annihilation cross-section is thus

[TABLE]

with $0<E_{\gamma}<m_{\chi}$, which gives the DOS mentioned in the text. Notice that the annihilation cross-section vanishes like the cube of the photon energy, $E_{\gamma}^{3}$, as $E_{\gamma}\rightarrow 0$.
