The obscured quasar population from optical, mid-infrared, and X-ray surveys

TL;DR

This paper reviews recent multi-wavelength efforts to identify and understand the population of obscured AGN, especially Type 2 quasars, highlighting current observational challenges and findings.

Contribution

It provides a comprehensive review of the identification methods and recent results on obscured AGN, emphasizing the optical selection of Type 2 quasars from SDSS.

Findings

Significant number of obscured AGN identified across wavelengths

Type 2 quasars are key to understanding the obscured AGN population

Current data still lack a complete census due to observational limitations

Abstract

Over the last few years, optical, mid-infrared and X-ray surveys have brought to light a significant number of candidate obscured AGN and, among them, many Type 2 quasars, the long-sought after "big cousins'' of local Seyfert 2 galaxies. However, despite the large amount of multi-wavelength data currently available, a proper census and a panchromatic view of the obscured AGN/quasar population are still missing, mainly due to observational limitations. Here we provide a review of recent results on the identification of obscured AGN, focusing primarily on the population of Type 2 quasars selected in the optical band from the Sloan Digital Sky Survey.

Figures

Full text

Dipartimento di Astronomia, Università degli Studi di Bologna, Italy

INAF – Osservatorio Astronomico di Bologna, Italy

INAF – Osservatorio Astronomico di Bologna, Italy

Department of Physics, Durham University, UK

1. Introduction: the X-ray and mid-infrared hunt for obscured quasars

The quest for the identification of luminous and obscured Active Galactic Nuclei (AGN), the so-called Type 2 quasars predicted by unification schemes of AGN (e.g., Antonucci 1993) and required by many synthesis models of the X-ray background (XRB; e.g., Gilli, Comastri & Hasinger 2007), has been the topic of numerous investigations over the past few years. Although moderate-depth and ultra-deep X-ray surveys (see Brandt & Hasinger 2005 for a review) have proven effective to reveal a large number of Type 2 quasar candidates at high redshift (e.g., Alexander et al. 2001; Mainieri et al. 2002; Mignoli et al. 2004), the optical counterparts of these sources are typically faint and therefore represent challenging targets to obtain spectroscopic redshifts and reliable classifications based on “standard” optical emission-line ratio techniques. Furthermore, there is evidence that despite the fact that $\approx$ 80% of the XRB has been resolved into discrete sources by ultra-deep X-ray surveys in the 2–8 keV band (e.g., Bauer et al. 2004; Hickox & Markevitch 2006), only $\approx$ 60% of the XRB has been resolved above $\approx$ 6 keV (Worsley et al. 2004, 2005), indicating that while ultra-deep X-ray surveys provide efficient identification of AGN activity, they do not provide a complete census of the obscured AGN population. It is plausible that one of the “missing” XRB components is related to the population of Compton-thick AGN (i.e., sources with column densities $>1/\sigma_{\rm T}\approx 10^{24}$ cm*-2*, where $\sigma_{\rm T}$ is the Thomson cross section; see Comastri 2004 for a review on Compton-thick AGN) which are required by the AGN synthesis models of the XRB (Gilli et al. 2007) but, as being heavily obscured, are difficult to discover and identify in the X-rays by the current generation of X-ray telescopes; see, e.g., Tozzi et al. (2006) for the Compton-thick AGN candidate selection in the Chandra Deep Field-South.

In the presence of obscuration, the nuclear emission is expected to be re-emitted at longer wavelengths and hence mid-infrared (MIR) observations can be crucial to reveal obscured AGN emission. Recently, numerous attempts have been made in this direction, fully exploiting the capabilities of the detectors on-board Spitzer (e.g., Alonso-Herrero et al. 2006; Polletta et al. 2006; Donley et al. 2007). Unfortunately, the AGN locus in the color-color diagrams obtained from Spitzer photometry (e.g., Lacy et al. 2004; Stern et al. 2005) is often contaminated by starburst galaxies, therefore further investigations and adjustments are required to efficiently distinguish the obscured and elusive AGN from the less intriguing unobscured population. The present limitations of Spitzer diagnostic diagrams to select obscured AGN may be overcome either by refining the selection criteria (e.g., Martínez-Sansigre et al. 2005, 2006) or targeting the optically faint or invisible source population with, e.g., MIR spectroscopy (e.g., Houck et al. 2005; Weedman et al. 2006a).

The next obvious step where most of the observational efforts will be concentrated in the years to come is to compare the obscured AGN selection criteria adopted at different wavelengths and compute their efficiency in the detection and identification of the most heavily obscured quasars. Parallel to these kinds of studies, the analyses of the multi-wavelength (from MIR to X-rays) properties of obscured AGN and quasars will be crucial to investigate their emission accurately (e.g., Weedman et al. 2006b), refine the current torus models and templates (e.g., Silva, Maiolino & Granato 2004), and derive some fundamental parameters such as the masses of the super-massive black holes (SMBHs) residing in these sources and their Eddington ratios (e.g., Pozzi et al. 2007). Finally, the co-evolution of galaxies and SMBHs will be investigated up to high redshifts, where a significant fraction of MIR–submillimeter-selected obscured AGN will probably be found (e.g., Alexander et al. 2005a; Martínez-Sansigre et al. 2005).

2. Are any optically selected Type 2 quasars out there?

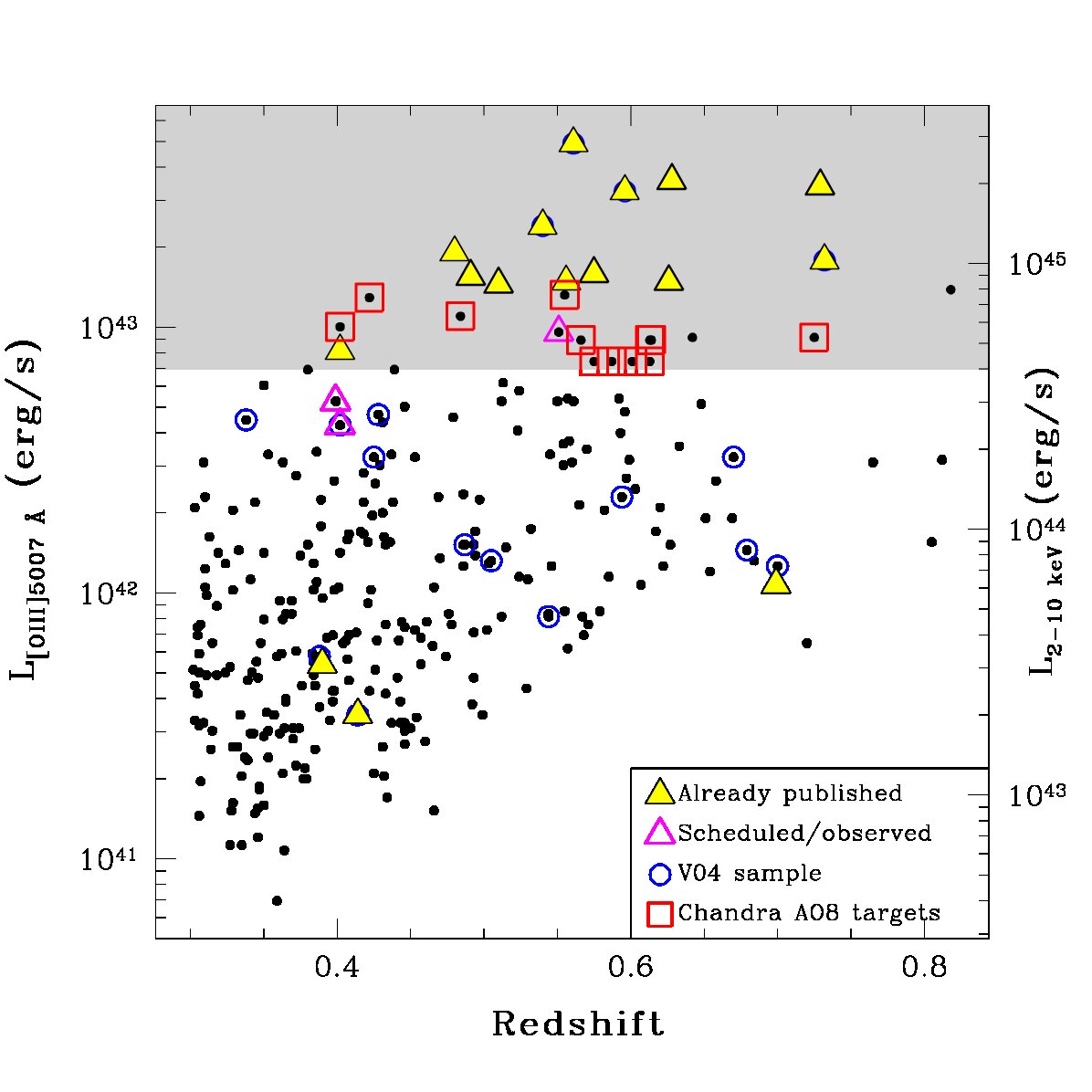

Although primarily designed, in the AGN research field, for the discovery of broad-line (Type 1) objects, the Sloan Digital Sky Survey (SDSS; York et al. 2000) has provided a sample of 291 high-ionization narrow emission-line AGN in the redshift range 0.3–0.83 (Zakamska et al. 2003; small filled circles in Fig. 1), many of which are identified as candidate Type 2 quasars on the basis of their [O iii]5007Å luminosities. In the following, we summarize the main results obtained over the last three years for a sub-sample of these optically selected Type 2 quasars with ROSAT, Chandra, and XMM-Newton observations.

• $\surd$

From the analysis of primarily archival ROSAT observations, Vignali, Alexander & Comastri (2004, hereafter V04) were able to place constraints on the X-ray emission of 17 SDSS Type 2 quasar candidates (open circles in Fig. 1). Using the [O iii] line luminosity to predict the intrinsic X-ray power of the AGN (following the correlation of Mulchaey et al. 1994), V04 found that at least 47% of the observed sample shows indications of X-ray absorption, including the four highest luminosity sources with predicted unobscured luminosities of $\approx$ 1045 erg s*-1*, hence well above the typically adopted threshold of 1044 erg s*-1* in the 2–10 keV band for Type 2 quasars.

• $\surd$

In Vignali, Alexander & Comastri (2006, hereafter V06), the most up-to-date results on the SDSS Type 2 quasar population were presented. Using a combination of Chandra and XMM-Newton pointed and serendipitous observations (for a total of 16 sources; filled triangles in Fig. 1), selected predominantly among the most luminous in [O iii], V06 detected X-ray emission from ten sources. For seven of these AGN, basic/moderate-quality X-ray spectral analyses constrained the column densities in the range $\approx$ 1022 – a few 1023 cm*-2* (filled triangles in Fig. 2). Once their observed X-ray luminosities are corrected for the effect of absorption, there is indication that the X-ray luminosity predictions based on the Mulchaey et al. (1994) correlation are consistent with the values obtained from X-ray spectral fitting (all these seven sources lie close to the 1:1 line in Fig. 2).

• $\surd$

Having calibrated the [O iii] line luminosity as an indicator of the intrinsic X-ray emission on the seven sources with good X-ray photon statistics, there are indications that the X-ray undetected sources and the sources with a limited number of counts (open circles in Fig. 2) are possibly more obscured than those found absorbed through direct X-ray spectral fitting, as pointed out also by Ptak et al. (2006). This would imply that up to $\approx$ 50% of the population is characterized by column densities in excess to $10^{23}$ cm*-2*, with a sizable number of Compton-thick quasars possibly hiding among the X-ray faintest sources (see the quasars located in the grey region in Fig. 2). This possibility is also suggested by the comparison of the X-ray-to-[O iii] flux ratios of our sources vs. those obtained from a large sample of mostly nearby Seyfert 2 galaxies (see Guainazzi et al. 2005 and Fig. 6 of V06).

• $\surd$

Given the highly inhomogeneous selection and incompleteness of the sample presented by Zakamska et al. (2003), the number density of SDSS selected Type 2 quasars can be derived only roughly. In an attempt to provide a first-order estimate, V06 obtained a value of $\approx$ 0.05 deg*-2*, while Gilli et al. (2007) XRB synthesis models predict a surface density of Type 2 quasars of $\approx$ 0.15 deg*-2* in the $\approx$ 0.3–0.8 redshift range. This comparison indicates that the Zakamska et al. (2003) selection is relatively efficient at finding obscured quasar activity; however, a combination of blank-field X-ray surveys and optical selection techniques will provide a more complete census.

Given the accurate analyses carried out by Zakamska et al. (2003) in the original selection of the obscured SDSS AGN sample, it seems unlikely that a significant population of starburst galaxies or low-luminosity AGN is hiding among the sources with the highest [O iii] luminosity in the V06 sample. Hence, it is likely that some of the Zakamska et al. (2003) quasars are obscured by Compton-thick material in the X-ray band. Although effective and comparatively complete, the optical selection and requirement for [OIII] in the SDSS spectra clearly limit obscured quasar searches to $z<1$. Due to the likely optical faintness of obscured quasars at $z>1$, a multi-wavelength selection process including targeted follow-up observations is likely to be required for a comparably complete census of obscured quasar activity at high redshift.

3. What’s next in the study of SDSS Type 2 quasars?

The observations approved for Chandra Cycle 8 (10 ks pointing for 12 targets) will allow us to have an almost complete coverage of the most extreme SDSS Type 2 quasar candidates (i.e., above a predicted 2–10 keV luminosity of 1044 erg s*-1* also taking into account the dispersion in the $L_{[O\ III]}$–$L_{\rm 2-10~{}keV}$ correlation; open squares in Fig. 1). While direct X-ray spectral fitting will be possible only for the most X-ray luminous SDSS Type 2 quasars, for the newly observed faint X-ray sources, basic spectral analysis will be carried out by means of the hardness-ratio technique. For the few-count or undetected sources, it will be possible to derive the average source properties through stacking analysis; use of this has been prevented thus far by the limited number of sources with either Chandra or XMM-Newton constraints and the paucity of X-ray counts. Luckily, it will be possible also to estimate the column density distribution of SDSS Type 2 quasars and, by stacking the X-ray source spectra in different $N_{\rm H}$ bins, to search for faint spectral features, as shown by Alexander et al. (2005b) for a sample of submillimeter galaxies.

Acknowledgments.

The authors acknowledge support by the Italian Space Agency (contract ASI–INAF I/023/05/0; CV and AC) and the Royal Society (DMA). The authors wish to thank the people involved in the HELLAS2XMM survey for useful discussions.
