Magnetic superelasticity and inverse magnetocaloric effect in Ni-Mn-In

TL;DR

This paper investigates Ni-Mn-In alloys, revealing their magnetic superelasticity and inverse magnetocaloric effect linked to structural phase transitions, with potential applications in magnetic cooling and smart materials.

Contribution

It demonstrates the coexistence of magnetic superelasticity and inverse magnetocaloric effect in Ni-Mn-In alloys and explores their relationship with structural phase transitions.

Findings

Magnetic field induces a martensitic to austenitic phase transition.

The alloy exhibits strain recovery upon magnetic field removal.

Inverse magnetocaloric effect observed in the alloy.

Abstract

Applying a magnetic field to a ferromagnetic Ni$_{50}$Mn$_{34}$In$_{16}$ alloy in the martensitic state induces a structural phase transition to the austenitic state. This is accompanied by a strain which recovers on removing the magnetic field giving the system a magnetically superelastic character. A further property of this alloy is that it also shows the inverse magnetocaloric effect. The magnetic superelasticity and the inverse magnetocaloric effect in Ni-Mn-In and their association with the first order structural transition is studied by magnetization, strain, and neutron diffraction studies under magnetic field.

Figures

Equations

$$\Delta S(T,H)={\mu }_0{\int }_0^H{\left(\frac{\partial M}{\partial T}\right)}_{H}dH,$$

Full text

I Introduction

Shape memory alloys exhibit unique thermomechanical properties which originate from a martensitic transition occurring between the austenite state with high crystallographic symmetry and a lower symmetry martensite state Otsuka98 . These materials are superelastic and can remember their original shape after severe deformation. Superelasticity is related to the stress induced reversible structural transition.

Research on shape memory alloys received significant stimulus after the discovery of the magnetic shape memory (MSM) effect in Ni2MnGa Ullako96 . This effect arises from a magnetic field induced reorientation of twin-related martensitic variants and relies on high magnetocrystalline anisotropy. The driving force is provided by the difference between the Zeeman energies of neighboring martensite variants Ohand98 ; James98 . Giant strains up to 10% have been reported for off stoichiometric Ni-Mn-Ga single variant crystals with the 14M modulated martensitic structure Sozinov02 . Over the past decade, vast amount of knowledge accumulated on the properties of Ni-Mn-Ga Heusler alloys has enabled to foresee the possibility of employing these alloys in device applications Kakeshita02 .

In applied magnetic fields, the martensitic start temperature $M_{s}$ of Ni-Mn-Ga shifts to higher temperatures along with the other characteristic temperatures martensite finish $M_{f}$, austenite start $A_{s}$, and austenite finish $A_{f}$ Bozhko99 . With this feature, it is possible to induce a reversible structural phase transformation, whereby strain can be fully recovered on removing the field without the necessity of prestraining the specimen Dikshtein00 . In such magnetic field induced superelasticity, the maximum field induced strain relies on the difference in the crystallographic dimensions in the martensitic and austenitic states. When a field of sufficient strength is applied at a temperature corresponding initially to the austenitic state, the shift in all characteristic temperatures (therefore the shift in the hysteresis associated with the transformation) can be large enough so that the martensitic state is stabilized. However, experiments performed in fields up to 10 T have shown that in the case of Ni54Mn21Ga25 the rate of shift is only about $\sim$1 KT*-1* Dikshtein00 . Neutron diffraction experiments under magnetic field on an alloy with similar composition confirm these results Inoue00 .

Parallel to the development of the understanding of the MSM effect in Ni-Mn-Ga and exploiting giant strains for applications, search for other MSM material also took up considerable place in the research agenda Wuttig00 . In Ni-Co-Mn-In, it has recently been reported that when a magnetic field is applied to a pre-strained single crystal specimen, the strain is recovered with a value that is nearly equal to the size of the pre-strain Kainuma06 . Although this is a considerable step in the search for magnetic superelasticity, a system in which considerable length change occurs reversibly by applying and removing a magnetic field without requiring pre-strain is still to be found.

Recently, we have investigated a number of Ni-Mn based Heusler systems other than Ni-Mn-Ga with the aim of finding ferromagnetic alloys that undergo martensitic transformations and understanding their properties around the transformation point Krenke05a ; Krenke06 . In Ni-Mn-Sn Krenke05b , we have come across an inverse magnetocaloric effect at temperatures in the range of the first order martensitic transition with size comparable to that of the archetype Gd5(Si1-xGex)4 system, which exhibits the conventional giant magnetocaloric effect Pech97 .

Here, we demonstrate the presence of both magnetic superelasticity and the inverse magnetocaloric effect in Ni-Mn-In in the range of the martensitic transition. Large field induced strains in polycrystalline Ni-Mn-In of magnitude similar to that in polycrystalline Ni-Mn-Ga are found. We show in Ni-Mn-In that instead of the large field induced strain being due to twin boundary motion in the martensitic phase, it relies essentially on the reverse field induced martensite-to-austenite transition. Below, we present results of field dependent magnetization, calorimetry, neutron diffraction, strain, and length change measurements in magnetic field on a Ni-Mn-In alloy and discuss the field induced strain and the inverse magnetocaloric effect in relation to the field induced martensite-to-austenite transition.

II Experimental

Arc melted samples were annealed at 1073 K under argon atmosphere for two hours and quenched in ice water. Magnetization measurements were carried out using a superconducting quantum interference device magnetometer, and calorimetric measurements in magnetic field were performed using a high sensitivity differential scanning calorimeter Marcos03 . Neutron diffraction in magnetic fields up to 5 T was performed on the D2B powder diffractometer at ILL, Grenoble. The strain measurements were made using conventional strain-gage technique in magnetic fields up to 5T.

III Results

III.1 Calorimetry and magnetization

Ni50Mn50-xInx alloys undergo martensitic transitions for about $x<16$ Sutou04 ; Krenke06 . Here we concentrate on the magneto-structural coupling in the ferromagnetic Ni50.3Mn33.8In15.9 alloy, which has a Curie point $T_{C}=305$ K and transforms martensitically on cooling at $M_{s}=210$ K. The other characteristic temperatures defining the temperature limits of the transition are $M_{f}=175$ K, $A_{s}=200$ K, and $A_{f}=230$ K. These temperatures are determined from the calorimetry data in Fig. 1a.

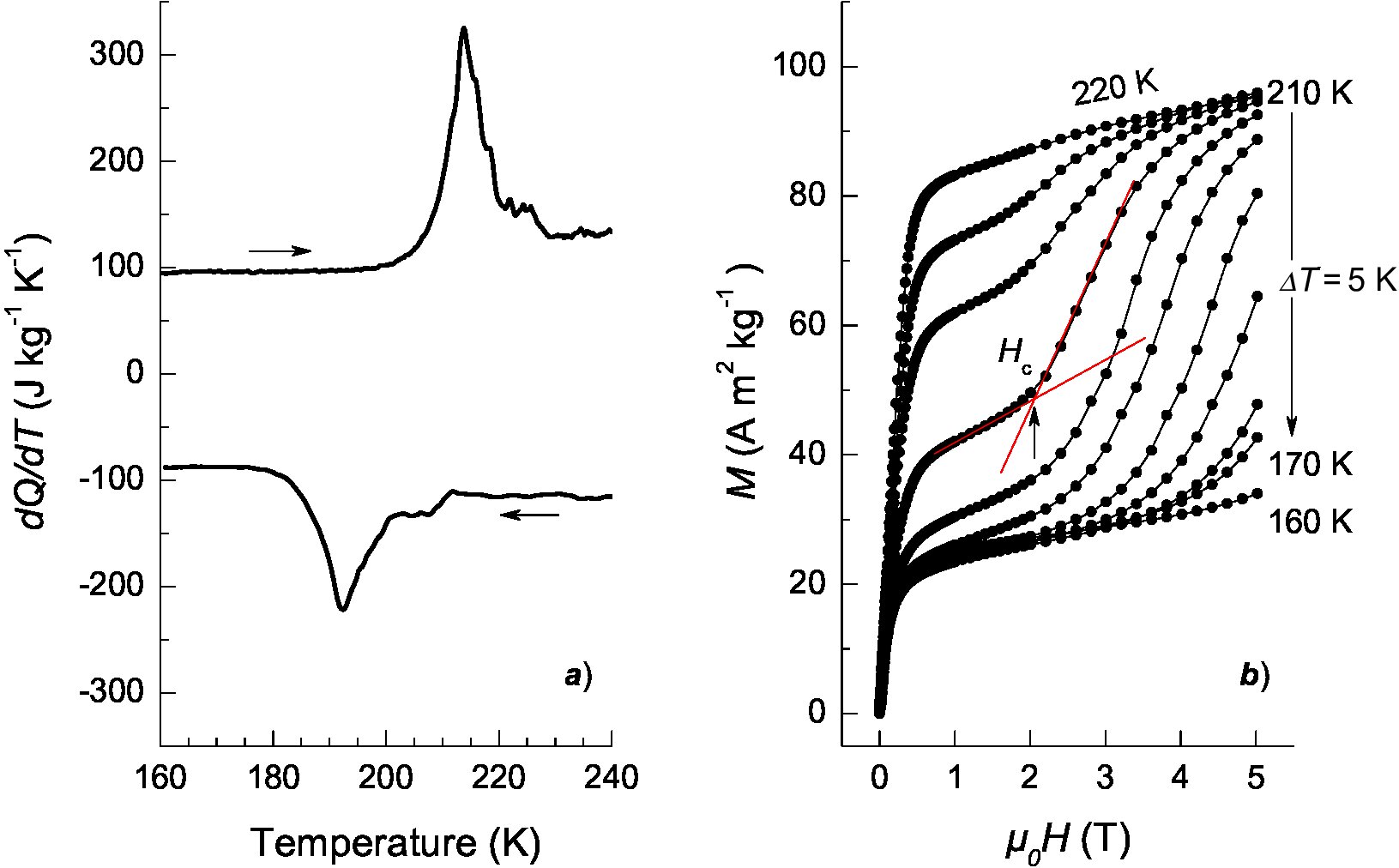

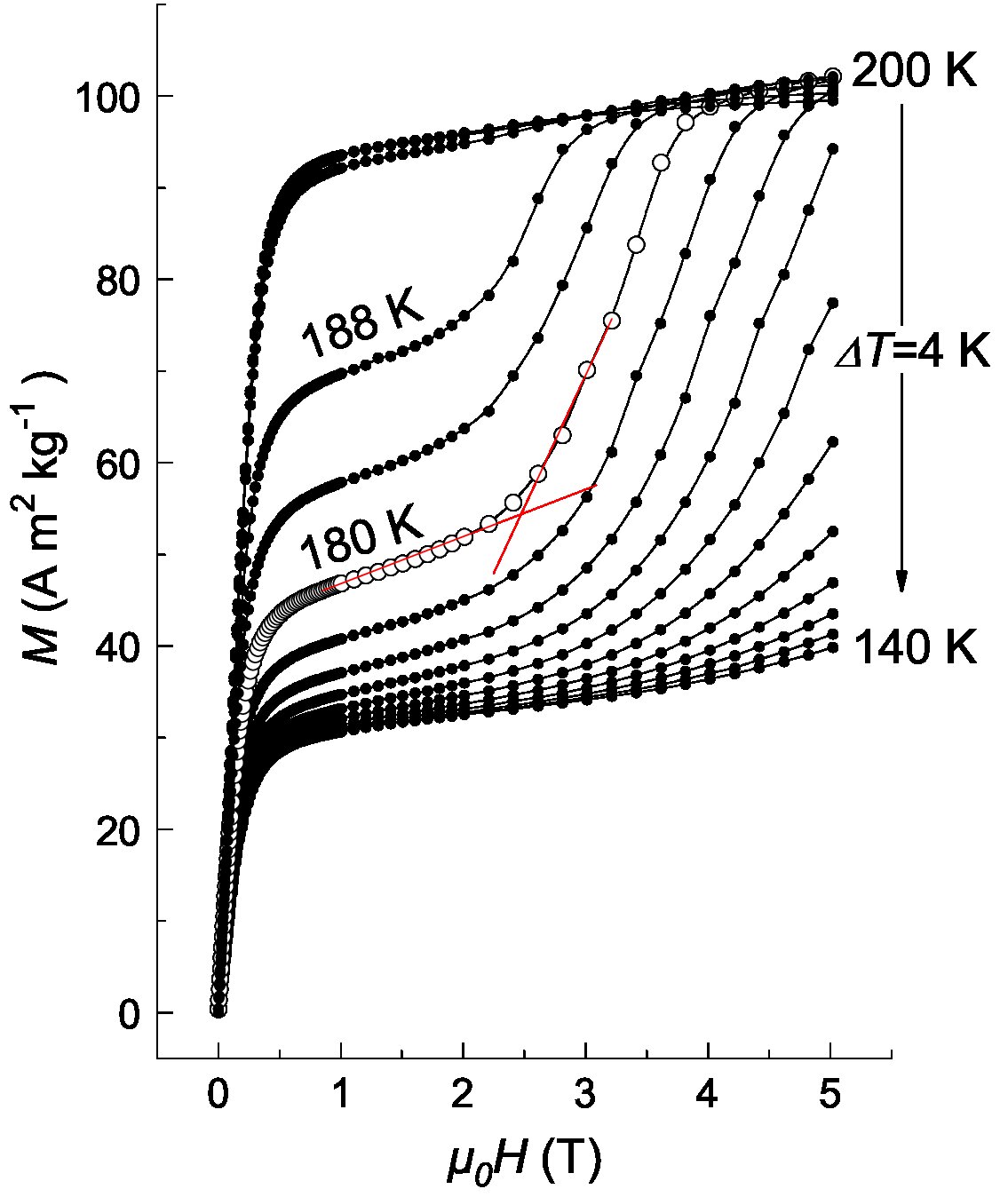

In order to search for the presence of a coupling of the structure with the magnetic degree of freedom within the temperature range of the martensitic transition, we have studied the field dependence of the magnetization $M(H)$. The data shown in Fig. 1b are obtained in increasing field and decreasing temperature. Here, the magnetizations in the temperature interval $160\leq T\leq 210$ K initially show a tendency to saturate, but, then, exhibit metamagnetic transitions in higher fields. The characteristic field $H_{c}$ defining the transition point is determined as the crossing point of the linear portions of the curves. The transition shifts to higher fields with decreasing temperature, and on removing the field, the magnetization returns to its original value (see Fig. 7). As will be shown with neutron diffraction in external field, the metamagnetic transition is associated with the onset of a field induced reverse martensitic transition.

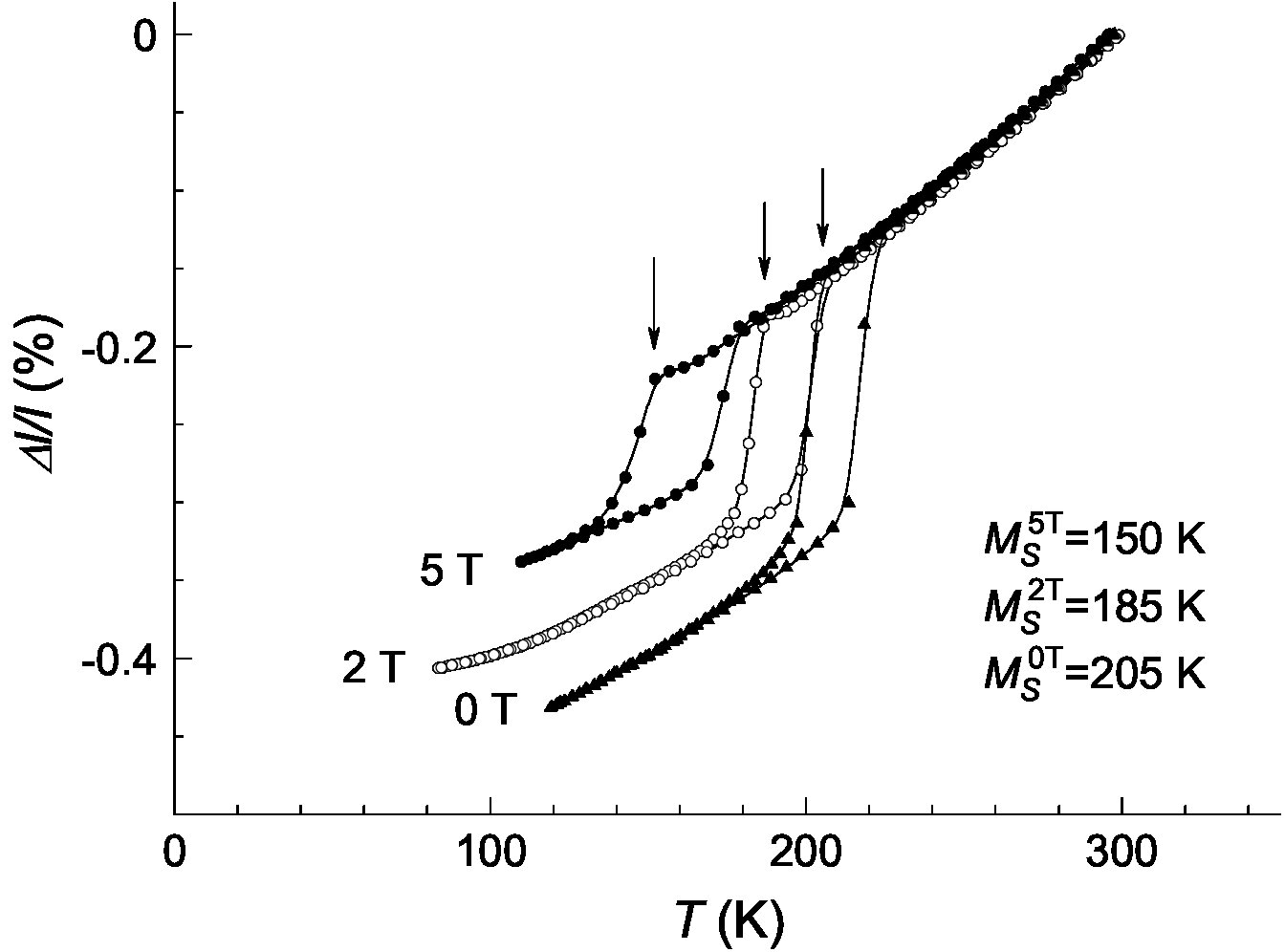

In Fig. 2, we show the relative length change $\Delta l/l$ as a function of temperature in different constant applied magnetic fields. As the field increases, $M_{s}$ (indicated by arrows) decreases by an amount of about $-10$ KT*-1*. The other characteristic temperatures are positioned in the conventional manner around the temperature hysteresis loop, and all shift by nearly the same amount in a given field. With increasing measuring field, the difference in $\Delta l/l$ between the austenitic and martensitic states decreases. The cause of this decrease is associated with the crystallographic orientation of the easy axis of magnetization within the orthorhombic structure of the martensitic phase. This property is discussed separately in reference Krenke07 .

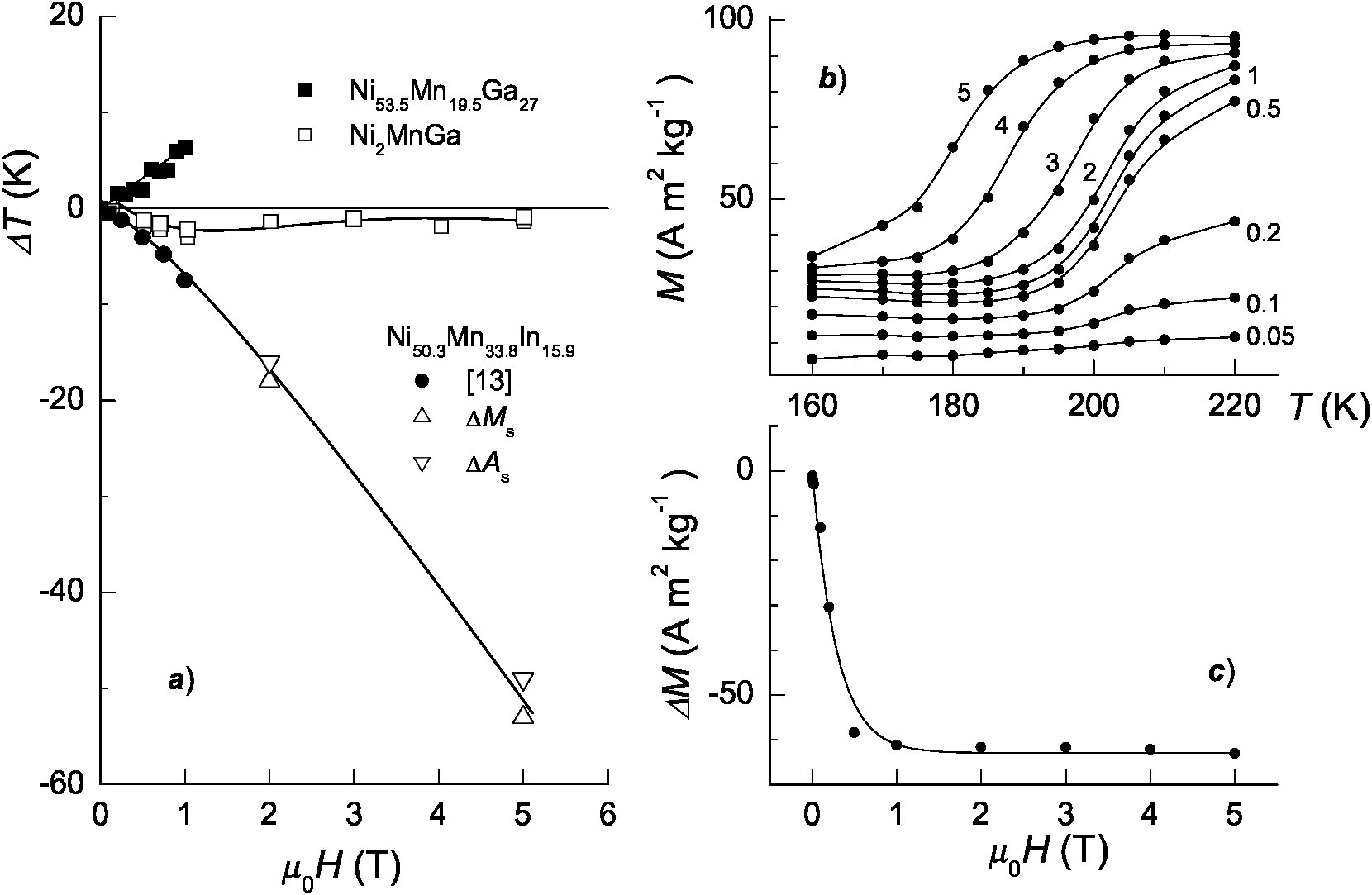

In Fig. 3a, we compare the magnitude of the shift of the transition temperatures represented by $\Delta T$ as a function of the external magnetic field $\mu_{0}H$ of the present Ni-Mn-In alloy with those reported for Ni2MnGa and Ni53.5Mn19.5Ga27; the latter exhibiting the strongest field dependent transition temperature Kim06 ; Jeong03 . Since the applied field shifts all characteristic temperatures by the same amount, $\Delta T$ is the change in any one of the characteristic transition temperatures in applied magnetic field with respect to zero field. The shifts in $M_{s}$ and $A_{s}$ of Ni-Mn-In determined from Fig. 2 are shown with up and down triangles respectively. We have also included data for $\mu_{0}H\leq 1$ T obtained from calorimetric measurements under constant magnetic field Krenke06 .

Two significant features show up from Fig. 3a: (i) The rate of change of the transition temperature in Ni50.3Mn33.8In15.9 ($-10$ KT*-1*) is higher than in Ni53.5Mn19.5Ga27 (6 KT*-1*), and (ii) in Ni-Mn-In, $\Delta T$ is negative, i.e., the transition temperature decreases with increasing field. This is consistent with the fact that the magnetization in the high temperature cubic phase is larger than the magnetization in the martensitic phase as seen in Fig. 3b, where the temperature dependence of the magnetizations at constant fields obtained from Fig. 1b at selected fields are plotted. The difference in the magnetization of the martensitic and austenitic states around the transition temperature $\Delta M$ is plotted as a function of applied field in Fig. 3c.

III.2 Neutron diffraction in magnetic field

To understand the properties of the transition observed in $M(T)$ and $M(H)$, we have undertaken powder neutron diffraction experiments as a function of temperature and magnetic field. The Ni49.7Mn34.3In16.0 sample used for these experiments has a composition that differs slightly from that used in the measurements presented above and, therefore, the transition temperatures are slightly shifted. Therefore, we plot in Fig. 4 the $M(H)$ isotherms and will compare these data to the neutron diffraction data.

Fig. 5a shows neutron diffraction patterns at 5 K and 317 K. The pattern at 317 K generates from an L21 structure with a lattice constant $a=0.6011$ nm. At 5 K, the pattern is that of a 10M modulated martensite structure having a monoclinic unit cell with $\beta=86.97$ and lattice constants $a=0.4398$ nm, $b=0.5635$ nm, and $c=2.1720$ nm. Other than this slight monoclinicity, the structure is orthorhombic having a shuffle periodicity of 10 lattice planes in the [110] direction. In the pattern at 317 K, some additional weak reflections can be identified around 36 and 47 . These lie close to the positions of the (1 0 $-$7) and (2 1 3) reflections of the martensitic phase at 5 K, but at slightly smaller angles due to thermal expansion, and their presence is attributed to small amounts of mechanically induced martensite formed on grinding the ingot for powder specimen preparation.

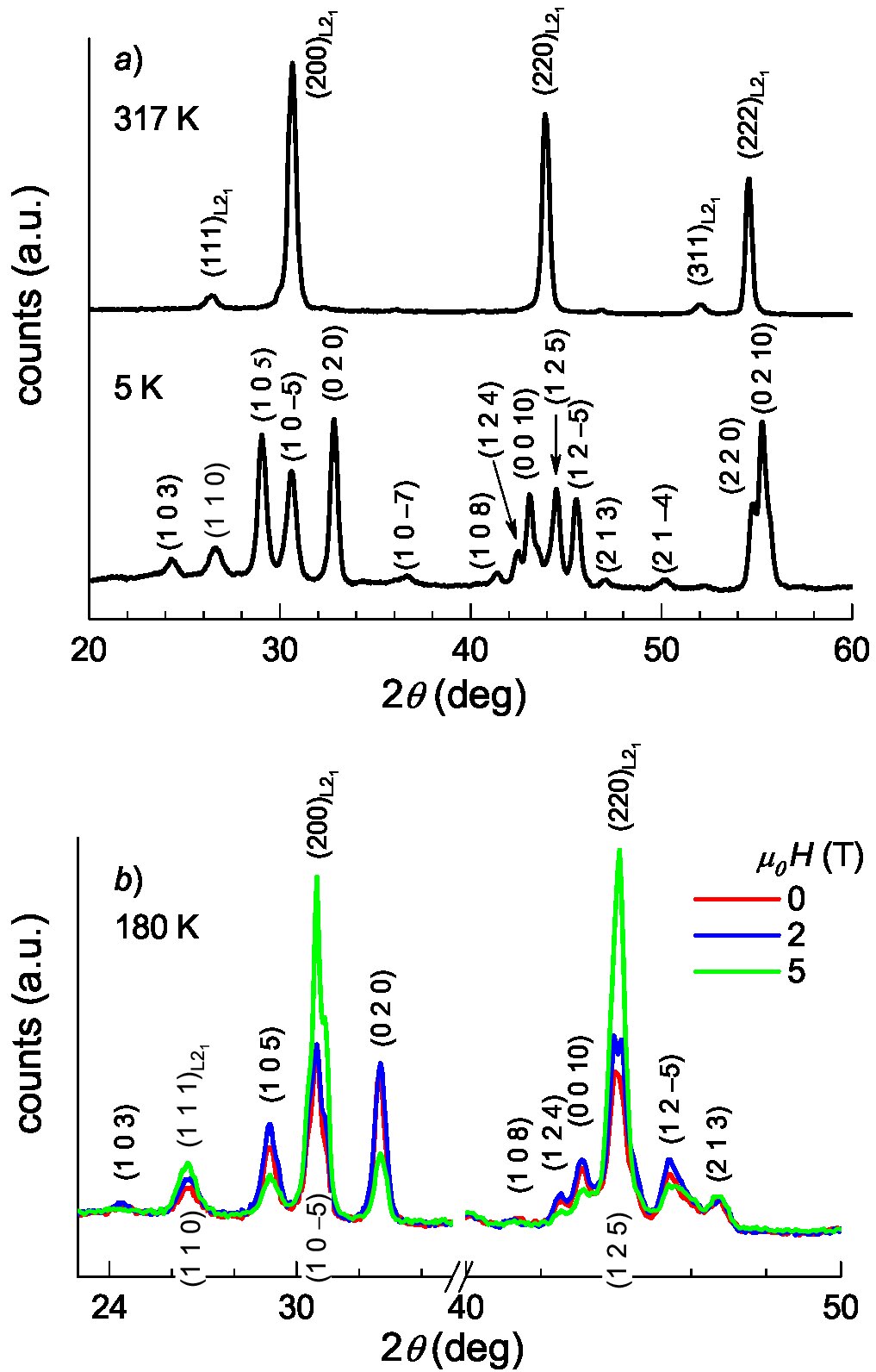

At 180 K, which is a temperature that falls well in the range of the transformation (Fig. 4), we have studied the evolution of the diffraction spectrum with applied magnetic field. Fig. 5b shows the spectrum in $2\theta$ ranges that encompass the vicinity of the positions of the (200) and (220) reflections of the L21 phase. As the magnetic field increases, the intensities of these reflections grow at the expense of the intensities of the (1 0 $-$5) and (1 2 5) reflections, which lie nearly at the same positions as the (200) and the (220) reflections of the L21 phase respectively. This shows that a progressive magnetic field induced structural transition from the martensitic to the austenitic state is taking place with increasing magnetic field. In cases where the positions of the reflections pertain only to the martensitic phase, e.g. (1 0 5), (1 2 $-$5), etc., the intensity first increases with increasing magnetic field up to 2 T and, then, decreases. The initial increase is related to the increase in the magnetization in the martensitic state at 180 K up to around $\mu_{0}H_{c}\approx 2$ T (Fig. 4). The subsequent decrease is associated with the gradual decrease in the amount of martensite and the stabilization of the L21 phase. However at 5 T, the reflections associated with the martensitic phase do not disappear, although their intensities are reduced. This indicates that the transition is not complete in this field, and larger magnetic fields are required to fully restore the L21 state at 180 K. The neutron diffraction data indicate clearly a magnetic field induced reverse transition and give evidence that the observed metamagnetic transition in $M(H)$ is related to the reverse martensitic transition.

III.3 Magnetic field induced strain

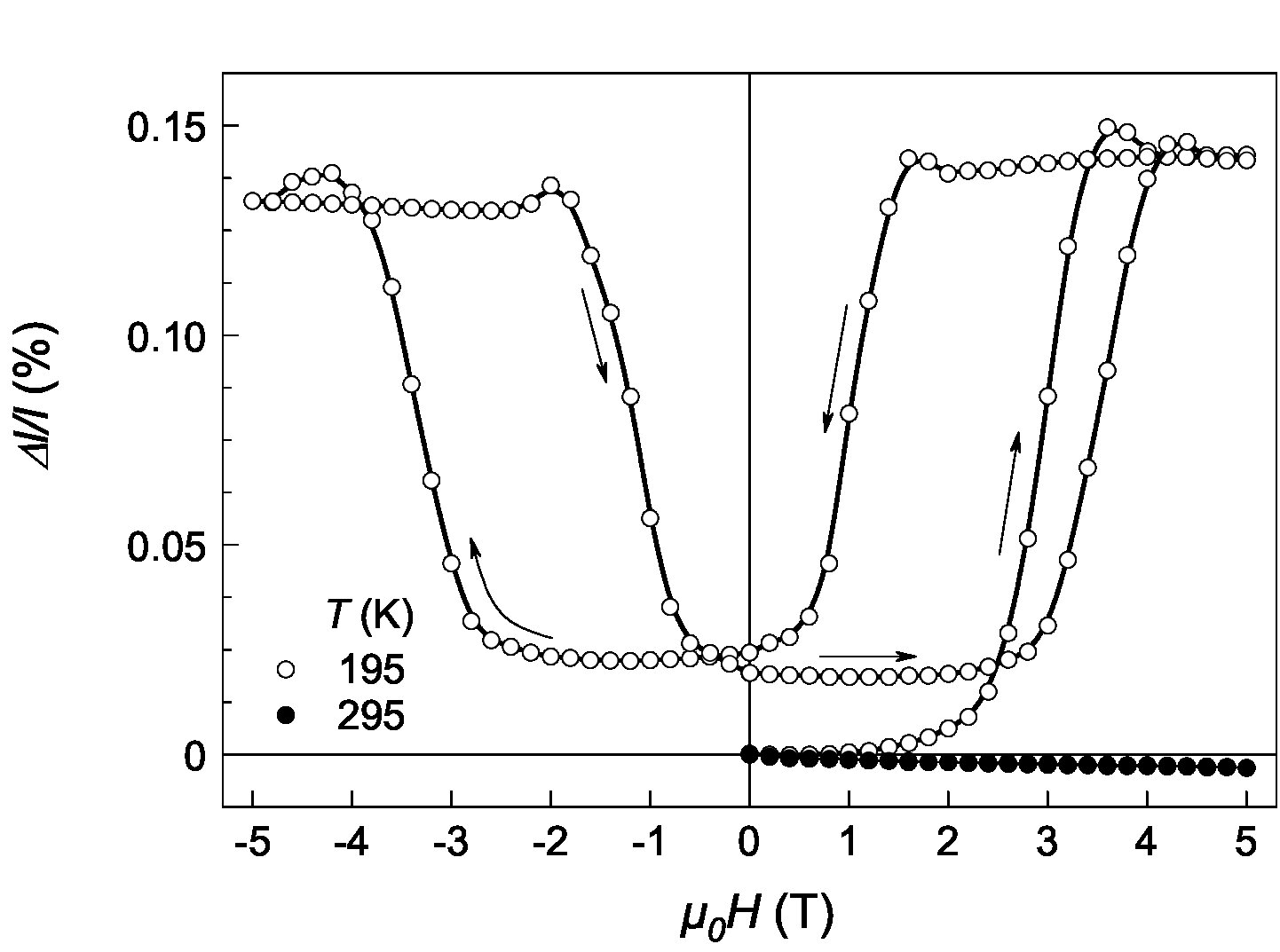

The magnetic field induced structural phase transition in the present alloy can have important consequences on macroscopic strains occurring during the application of the field. Fig. 6 shows the results of magnetic field dependent strain measurements, where the strain is defined as $\Delta l/l=[l(H)-l_{0}]/l_{0}$. Here, $l_{0}$ is the length in the absence of field and $l(H)$ the length in field. The sample is well within the austenitic temperature range at 295 K (filled circles) and is within the structural transition region at 195 K (open circles). The small field induced strain at 295 K increasing negatively with increasing field corresponds to the intrinsic magnetostriction of the austenite, while at 195 K, a strain of about 0.14% is reached in the initial curve. After the first field cycle is completed, the strain reduces to about 0.12 % and remains constant at this value, which is roughly the same as that attained in polycrystalline Ni-Mn-Ga. However, the effect here is due to the crystallographic transformation from martensite to austenite with increasing field instead of a field induced twin boundary motion that occurs within the martensitic state as in Ni-Mn-Ga. Although hysteresis is observed in Fig. 6, the sample returns to its zero-field length on removing the field.

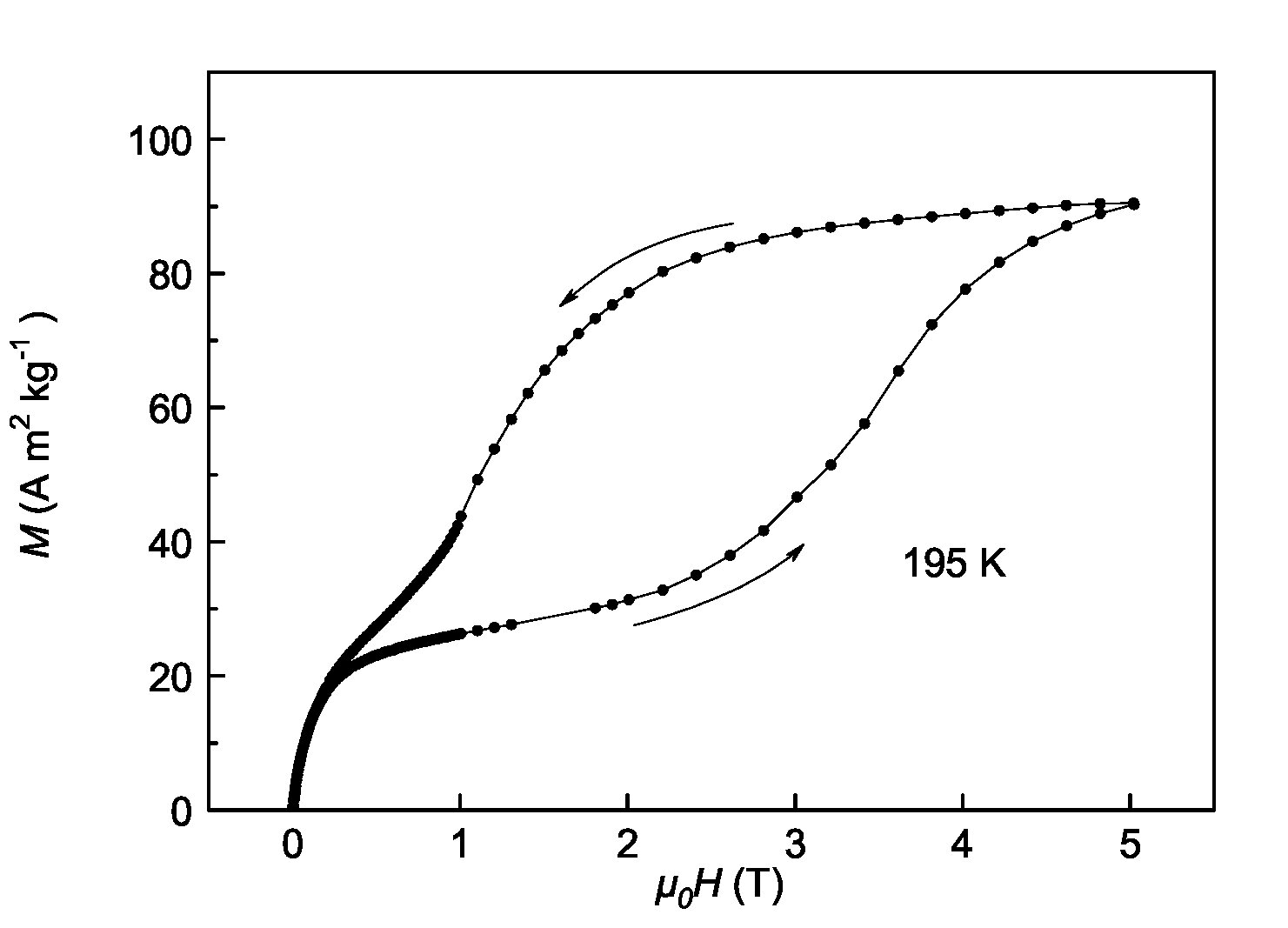

The features in the field dependence of the strain is reflected in the field dependence of the magnetization at the same temperature as seen in Fig. 7. The $M(H)$ curves show metamagnetic transitions around 2 T and 1 T for the increasing and decreasing field branches respectively. These points correspond to the fields where $\Delta l/l$ also changes rapidly. As in the case of $\Delta l/l$, $M(H)$ also shows essentially no remanence and recovers its zero-field value.

III.4 Magnetocaloric effect

Due to the first order magnetic field induced transition and considerable difference in the magnetization of the martensitic and L21 states at the transition temperature, substantial magnetocaloric effects can be expected. The field induced entropy change $\Delta S$ around the martensitic transition temperature can be estimated from magnetization measurements by employing the Maxwell equation Tegus02

[TABLE]

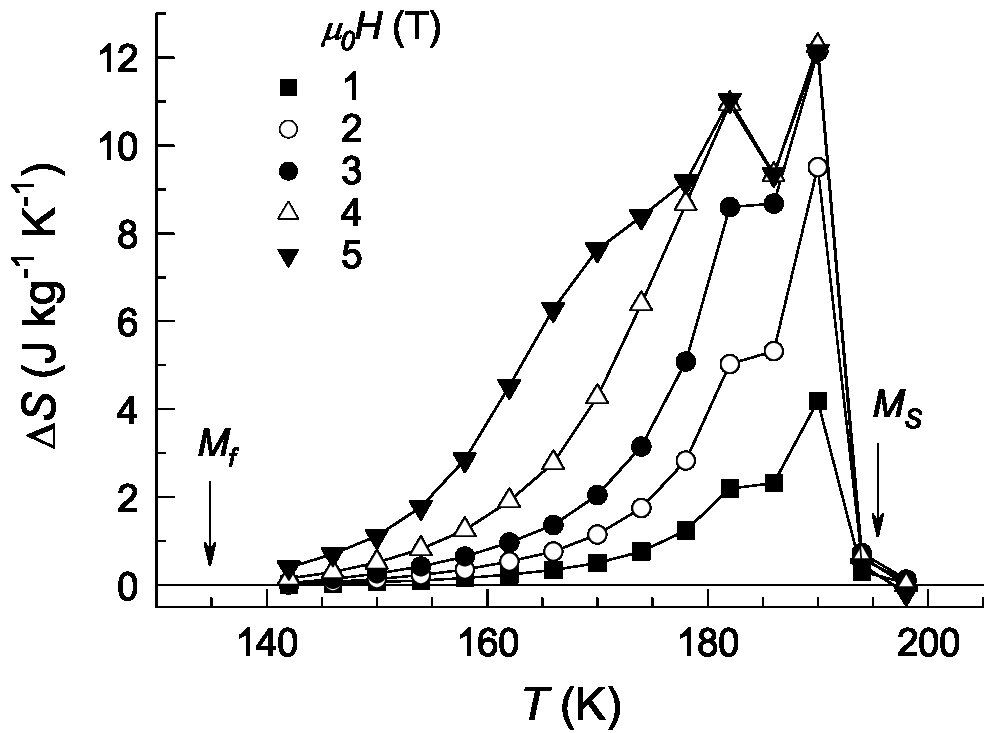

from which the magnetocaloric effect can be evaluated by numerical integration using the data in Fig. 1b. The resulting $\Delta S$ in the temperature range 170 K $\leq T\leq 225$ K is plotted in Fig. 8. The sign of $\Delta S$ is positive for all temperatures indicating that an inverse magnetocaloric effect is present, i.e. the sample cools on applying a magnetic field adiabatically as in Ni-Mn-Sn Krenke05b . The maximum value of $\Delta S=12$ JK*-1kg-1* is reached in a magnetic field of 4 T at about 205 K. Since there is no substantial change in the magnetization above 4 T at this temperature, increasing the magnetic field any further does not lead to any further increase in $\Delta S$. As expected for magnetostructural transitions Casanova02 , this value is larger than the transition entropy change Krenke06 since it also includes the effect of magnetization changes with temperature beyond the transition region.

IV Discussion

The origins of both distinct properties of the studied alloy, namely, the field induced martensite to austenite transition and the inverse magnetocaloric effect, are related to the lower value of the magnetization in the martensitic phase with respect to that in the austenitic phase. The difference in the magnetization can be ascribed to the fact that in Mn based Heusler alloys, the magnetic moments are localized mainly on the Mn atoms and the exchange interaction strongly depends on the Mn-Mn distance. Hence, any change in the distance caused by a change in the crystallographic configuration can modify the strength of the interactions leading to different magnetic exchange in each of the phases. Indeed, it has been shown that in the case of a Ni0.50Mn0.36Sn0.14 alloy that short range antiferromagnetism is present between Mn atoms located at the 4(b) positions of the austenite phase which is then strengthened in the martensitic state Brown06 . The present Ni-Mn-In alloy transforms to the same martensitic structure as in Ni0.50Mn0.36Sn0.14. Therefore, the strong reduction of the magnetization below $M_{s}$ in Ni-Mn-In can be expected to be due to a similar cause. The presence of short range antiferromagnetism in the ferromagnetic matrix leads to frustration in the temperature range of the martensitic transition. In such a frustrated system, the application of a magnetic field can lead to the degeneracy of the spin states giving rise to an increase in the configurational entropy that is required for the observed positive $\Delta S$. However, the quantitative details of the frustrated state and the microscopic process leading to a positive $\Delta S$ remain to be described.

In Ni-Mn-Ga, giant strains are due to the reorientation of twin-related variants in the martensitic state and recovery of this strain is, in general, not achieved by simply removing the field. By contrast, the magnetic superelastic effect and the associated strain reported here for Ni-Mn-In is related to the field induced structural transition. This enables to reversibly induce and recover the strain by simply applying and removing the field.

V Conclusion

Ni0.50Mn0.34In0.16 exhibits a magnetic field induced structural transition from the martensitic state to the austenitic state. The transition is directly evidenced by neutron diffraction measurements under magnetic field. Here, other than in Ni-Mn-Ga alloys, where the magnetization of the martensitic state is higher than that in the cubic phase, the austenite is stabilized by the application of a magnetic field. The shift of the transition temperatures was found to be large and negative with values up to about -50 K in 5 Tesla. Due to the reversible magnetic field induced transition, magnetic superelasticity with 0.12% strains occur. Other than in magnetic shape memory alloys, where strain is mainly created by twin boundary motion, strain in Ni0.50Mn0.34In0.16 is caused by changes in lattice parameters during the transition. Additionally, an inverse magnetocaloric effect with a maximum value in the entropy change of about 12 Jkg*-1K-1* at 190 K and a minimum entropy change of 8 Jkg*-1K-1* in a broad temperature range $170K\leq T\leq 190K$ is also found in this alloy.

Acknowledgements.

We thank Peter Hinkel and Sabine Schremmer for technical support. This work was supported by Deutsche Forschungsgemeinschaft (GK277) and CICyT (Spain), project MAT2004-1291. XM acknowledges support from DGICyT (Spain).
