Superconductor strip in a closed magnetic environment: exact analytic representation of the critical state

TL;DR

This paper derives an exact analytical model for the critical state of a superconductor strip within a high-permeability magnetic cavity, revealing flux penetration reduction in small cavities and enabling analysis of various geometries.

Contribution

It provides the first exact analytic solution for a superconductor strip in a magnetic cavity, allowing for precise current and flux distribution analysis.

Findings

Flux penetration is significantly reduced in small cavities.

The model enables analysis of different cavity geometries via conformal mapping.

Exact current profiles can be obtained for various configurations.

Abstract

An exact analytic representation of the critical state of a current-carrying type-II superconductor strip located inside a cylindrical magnetic cavity of high permeability is derived. The obtained results show that, when the cavity radius is small, penetration of magnetic flux fronts is strongly reduced as compared to the situation in an isolated strip. From our generic representation it is possible to establish current profiles in closed cavities of various other geometries too by means of conformal mapping of the basic configuration addressed.

Figures

Equations

$${\int }_{-w}^{w}d{x}^{\prime }J(x^{\prime })\left(\frac{1}{x-x^{\prime }}+\frac{q}{x-a^2/x^{\prime }}\right)=0$$

$$J(x)=J_c\left(\frac{a^2+b^2}{\pi s^2(x)}\right)s^{\prime }(x)\varphi (s(x)),$$

$$\varphi (s)=\frac{c}{\sqrt{c^2-s^2}}\arctan \sqrt{\frac{(h^2-b^2)(c^2-s^2)}{(b^2-s^2)(c^2-h^2)}}$$

$$-\arctan \sqrt{\frac{h^2-b^2}{b^2-s^2}}+\frac{\sqrt{b^2-s^2}}{b}\arctan \sqrt{\frac{b^2{w}^2-b^4}{a^4-b^2{w}^2}}$$

$$\times \left[(K\left(\frac{b}{c}\right)-\Pi \left(\frac{b^2}{s^2},\frac{b}{c}\right))/K\left(\frac{b}{c}\right)\right]$$

$$I=\frac{J_c(\pi /b)(a^2+b^2)}{K^2\left(2ab/(a^2+b^2)\right)}\arctan \sqrt{\frac{b^2(w^2-b^2)}{(a^4-w^2{b}^2)}}.$$

$$\Delta (I)\simeq \frac{2w}{{\pi }^2}\left(\frac{a^2-w^2}{a^2+w^2}\right)K^2\left(\frac{2aw}{a^2+w^2}\right){\left(\frac{I}{I_c}\right)}^2$$

Full text

,

Relatively high AC losses in superconductor cables and strips present a substantial problem for the implementation of superconductors in high-frequency and low-frequency applications. Recently, a suggestion for improving the current-carrying capability of superconductor strips [1, 2, 3] and for reducing AC losses in superconductor cables [4] based on the idea of magnetic shielding of applied fields as well as current self-induced fields was put forth. AC losses in superconductor strips caused by the latter type of fields are anticipated to greatly decrease when the strips are exposed to suitably designed magnetic environments [2, 3]. Exact analytic representations of sheet current distributions in superconductor strips located between two high-permeability magnets occupying infinite half-spaces were derived before [1, 2]; these configurations allowed to find the respective current distributions for various other topologically open shielding geometries by application of the method of conformal mapping. Utilization of the latter tool for analyzing sheet current distributions and AC losses in the presence of topologically closed magnetic environments of practical interest requires corresponding reference results. An establishment of such results is the focus of the present communication.

We consider an infinitely extended type-II superconductor strip of width $2w$ located inside a cylindrical cavity of radius $a$ in an infinitely extended soft magnet of relative permeability $\mu$, the symmetry axis of this configuration coinciding with the $z$-axis of a cartesian coordinate system $x,y,z$. Assuming the thickness of the strip to be small compared to its width, variations of the current over the thickness of the strip may be ignored and, for mathematical convenience, the state of the strip characterized by the sheet current $J$ alone.

When magnetic flux penetrates the superconductor strip in the critical state, the distribution of the sheet current is controlled by the pinning of magnetic vortices. In conformity with Bean’s hypothesis [5], the sheet current adopts its critical value $J_{c}$ throughout the flux-penetrated regions of the strip, whereas the magnetic field component normal to the strip vanishes in the flux-free regions of the strip. Proceeding in the spirit of previous work [6], a distribution of the sheet current prevails with magnetic flux penetrated from the edges of the strip, but with the central zone $-b<x<b$ of half-width $b<w$ left flux free. In this zone, the distribution of the sheet current is governed by the integral equation [2]

[TABLE]

together with the requirement that the total transport current equals $I$. Here, $q=(\mu-1)/(\mu+1)$ means the strength of the image current induced by the magnetic cavity.

In the limit $\mu\gg 1$, i.e. for $q\rightarrow 1$, Eq. (1) has the exact analytic solution

[TABLE]

where

[TABLE]

with $s(x)=x(a^{2}+b^{2})/(a^{2}+x^{2}),\,c=(a^{2}+b^{2})/2a$ and $h=w(a^{2}+b^{2})/(a^{2}+w^{2})$. Herein, $K$ and $\Pi$ denote complete elliptic integrals of the first and, respectively, third kind.

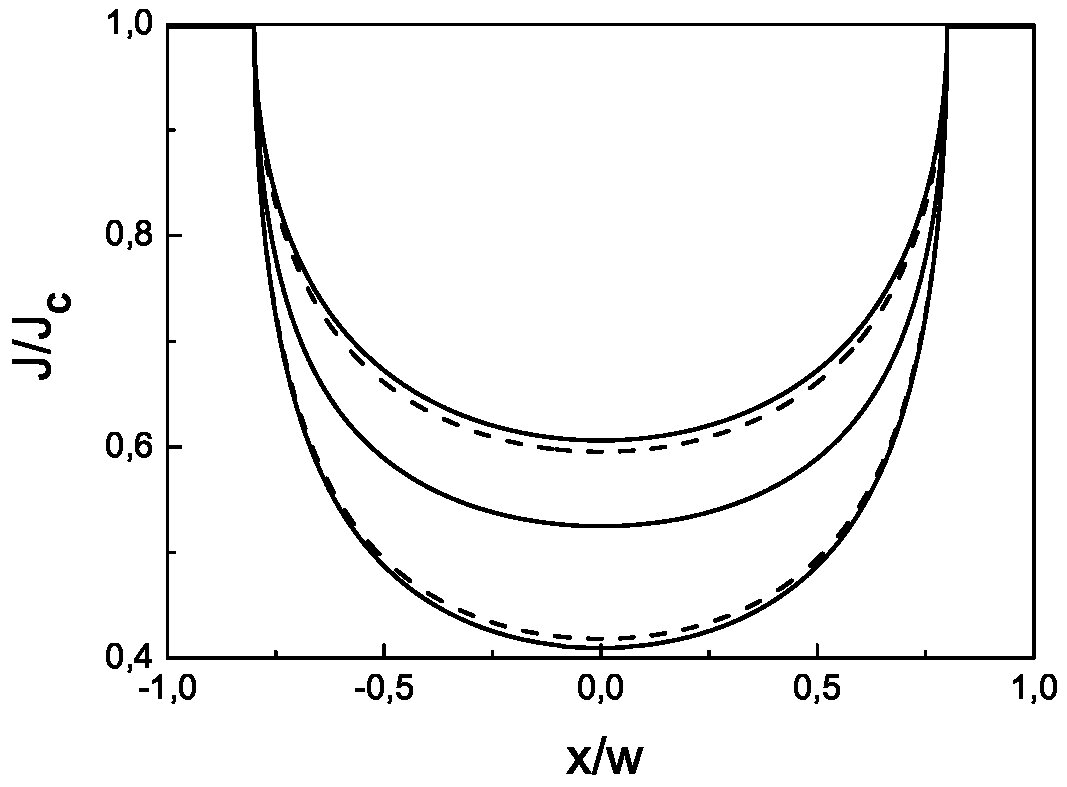

Sheet current profiles obtained from Eq. (2) for a range of the geometrical parameters involved, with a fixed value of $b$, are shown in Fig. 1. This exhibits a flattening of the current profiles together with an increase in the magnitude of the total current up to saturation, when the radius of the magnetic cavity is reduced, precisely as in the case of topologically open magnetic cavities [1, 2].

The half-width of the flux-free zone is controlled by the total transport current in the strip and by the geometry of the magnetic environment. An implicit equation for $b$ in the chosen geometry may be found by integrating the sheet current over the width of the strip using Eq. (2) which yields

[TABLE]

The cylindrical magnetic cavity entails a reduction of the depth of penetration of magnetic flux into the strip, $\Delta(I)=w-b$, as compared to the depth in the situation without a magnetic environment, $\Delta_{0}(I)=w(1-\sqrt{1-(I/I_{c})^{2}})$, where $I_{c}=2wJ_{c}$ [7]. For weak flux penetration, when $\Delta\ll w$ and hence $I\ll I_{c}$, the explicit approximate result

[TABLE]

is seen to hold. Thus, $\Delta$ strongly decreases with respect to $\Delta_{0}\simeq(w/2)(I/I_{c})^{2}$ as $a\rightarrow w$. This also means a reduction of AC losses to the same extent which typically scale with $\Delta^{2}$ [6, 7]. These losses may be further curtailed by optimization of the shape of the magnetic cavity using, in the limit $\mu\gg 1$, the method of conformal mapping of the basic cylindrical configuration addressed above.
