Self-organized metal nanostructures through laser driven thermocapillary convection

TL;DR

This paper investigates how ultrathin Co metal films on SiO2 surfaces self-organize into nanostructures like nanowires and nanoparticles through laser-induced thermocapillary convection, revealing the underlying physical mechanisms.

Contribution

It demonstrates the formation of ordered nanostructures in ultrathin metal films via laser-driven thermocapillary flow and instability mechanisms, expanding understanding of laser-induced self-organization.

Findings

Nanowires form and break into ordered nanoparticles.

Pattern scaling aligns with thermocapillary and Rayleigh-like instabilities.

Ultrathin films (≤2 nm) undergo spinodal instability leading to nanoparticle formation.

Abstract

When ultrathin metal films are subjected to multiple cycles of rapid melting and resolidification by a ns pulsed laser, spatially correlated interfacial nanostructures can result from a competition among several possible thin film self-organizing processes. Here we investigate self-organization and the ensuing length scales when Co films (1-8 nm thick) on SiO_{\text{2}} surfaces are repeatedly and rapidly melted by non-uniform (interference) laser irradiation. Pattern evolution produces nanowires, which eventually break-up into nanoparticles exhibiting spatial order in the nearest neighbor spacing, \lambda_{NN2}.The scaling behavior is consistent with pattern formation by thermocapillary flow and a Rayleigh-like instability. For h_{0}\leq2 nm, a hydrodynamic instability of a spinodally unstable film leads to the formation of nanoparticles.

Figures

Equations

$${\Lambda }_{TFH}=\sqrt{\frac{16{\pi }^3\gamma }{A}}{h}_o^2$$

$$r_{p1}=\sqrt[3]{\frac{24{\pi }^3\gamma }{f(\theta )A}}{h}_o^{\frac{5}{3}}$$

$${\tau }_{Ma}=\frac{{\Lambda }_{laser}^2\eta }{4\frac{\partial \gamma }{\partial T}\Delta T{h}_0}$$

$${\tau }_s=\frac{96\pi \gamma \eta }{A^2}{h}_0^5$$

$${\tau }_R=\sqrt{\frac{\rho r_{cyl}^3}{\gamma }}$$

Full text

Metal nanostructures, possessing spatial order and size uniformity are attractive for a variety of applications including: optoelectronics, plasmonics, chemical and biomedical sensing, and catalytic devices Quinten et al. (1998); Garcia et al. (2007); Shipway et al. (2000); Xia et al. (2003); Raty et al. (2005). In recent years there has been tremendous research emphasis on finding self-organization strategies to make strongly correlated metal and semiconductor nanostructures. In the area of thin film pattern formation, epitaxial strain driven self-organization in crystallographic systems has been somewhat successful Brune et al. (1998); Kwak et al. (1994); Teichert et al. (1996); Goswami et al. (2003). However, this strategy of exploiting epitaxial strain cannot be applied to materials on important amorphous surfaces, such as SiO${}_{\text{2}}$. One possibility for self-organization on amorphous surfaces is via dewetting instabilities, such as those observed in liquid polymer films on various inert surfaces, in which preferred length scales appear when destabilizing long range attractive intermolecular forces overcome stabilizing surface tension forces Vrij (1966); Vrij and Overbeek (1968); de Gennes et al. (2004). We have previously shown that multiple pulses of single beam ns laser irradiation of Co films with thickness $1\leq h_{0}\leq 8\,nm$ on SiO${}_{\text{2}}$ surfaces demonstrate self-organization by a thin film hydrodynamic (TFH) instability with length scales characterized by the metal surface tension ($\gamma$), the dispersion force characterized by the Hamaker constant $A$ and film thickness $h_{0}$ Favazza et al. (2006a). The ensuing pattern had short range spatial order (SRO) in the nearest-neighbor ($NN$) particle spacing $\lambda_{NN1}$, which scaled with thickness as $h_{0}^{2}$, while the particle radius varied as $r_{p1}\sim h_{0}^{5/3}$. Recently we have also provided preliminary evidence that 2-beam laser interference irradiation can give rise to quasi-2D ordering of the nanoparticles with both long range order (LRO) and SRO Favazza et al. (2006b). However the evolution of the 2-beam pattern from the flat film to nanoparticle state was not investigated, and the mechanisms for spatial ordering were not identified. Here we report detailed experiments of 2-beam interference irradiation of Co on SiO${}_{\text{2}}$ as a function of film thickness for $1\leq h_{0}\leq 8\,nm$ that demonstrate that the pattern evolution and resulting length scales are consequences of different mechanisms, including the TFH instability, thermocapillary ($TC$) flow and a Rayleigh-like instability, based on the timescales of these processes. One can access a particular mechanism via the choice of film thickness and/or thermophysical parameters such as $\gamma$, $A$ and the temperature gradient.

Cobalt films ranging in thickness from $\sim 1-8\,nm$ were deposited by e-beam evaporation onto optically smooth SiO${}_{\text{2}}$ surfaces in vacuum. Specific details of the experiments are published elsewhere Favazza et al. (2006b, c). In brief, following deposition, the Co films were irradiated in vacuum with a $266\,nm$ pulsed laser operating at a repetition rate of $50\,Hz$ with a pulse time $\tau\sim 9\,ns$ by single beam Favazza et al. (2006a) or 2-beam interference irradiation. In the single beam case, films were exposed to an unfocused beam at normal incidence. For the 2-beam condition, an interference angle of $\sim 45^{\circ}$ generated a periodic laser intensity profile whose contrast was maximized by adjusting the energy density of the off-normal beam with a $750\,mm$ lens positioned $300\,mm$ away from the sample at angle of $\sim 45^{\circ}$. In both instances, Co films were irradiated for similar times as measured by the number of laser pulses, $n$, for $5\leq n\leq 10,500$. Also, comparable laser energy densities were used for both types of irradiation, with the energy density, $E_{laser}$ between $E_{Threshold}<60\leq E_{laser}\leq 200\,mJ$ Trice et al. (2006). The resultant morphological evolution was investigated as a function of $n$ and was examined and characterized using a Hitachi S-4500 scanning electron microscope (SEM). It was also verified that all the films studied had minimal evaporation, as confirmed by performing energy dispersive X-ray spectrometry measurements of the Co concentration after irradiation.

As detailed in prior studies for single beam irradiation Favazza et al. (2006a); Trice et al. (2006), the film shows several distinct patterns enroute to a final robust state of nanoparticles characterized by a spatially correlated nearest neighbor ($NN$) spacing. Here we briefly summarize the trends for the purpose of comparison with the pattern evolution under 2-beam interference irradiation. More detailed analysis the single beam data can be found elsewhere Favazza et al. (2006a); Trice et al. (2006). At the early stages ($n=10$) regular holes with a characteristic diameter form, followed by a cellular network of polygonal structures. Eventually, the polygonal networks evolve into nanoparticles, which form predominantly at the vertices of the polygons. An important property of the evolution is that the patterns possessed a characteristic length scale at every stage. In Fig. 1(a), the scaling behavior of the spatial correlation in the final stable nanoparticle state is shown for varying initial film thicknesses. The observed trend with $h_{0}$ was in agreement with classical linear TFH dewetting theory Vrij (1966); Vrij and Overbeek (1968) in which:

[TABLE]

where $\Lambda_{TFH}$ represents the average $NN$ nanoparticle spacing, $\lambda_{NN1}$, $A=1.4\times 10^{-18}J$ is the experimentally estimated Hamaker constant for the ${SiO}_{\text{2}}/Co/Vacuum$ system , $\gamma=1.88\,\frac{mJ}{m^{2}}$ is the Co liquid surface tension and $h_{0}$ is the film thickness Vrij (1966); Vrij and Overbeek (1968). Furthermore, volume conservation implied that the nanoparticles will have a radius that will vary with the initial film thickness $h_{0}$ as:

[TABLE]

where $f(\theta)$ accounts for the contact angle of the nanoparticles Favazza et al. (2006a). We experimentally observed a monomodal particle size distribution with the average radius shown in Fig. 1(b) and a trend consistent with the above theoretical prediction from linear TFH theory.

The results of 2-beam irradiation were qualitatively different from single beam irradiation. In Fig. 2(a-c), the typical pattern evolution for films with $h_{0}>2\,nm$ is shown as a function of $n$. In this case, the early stages are comprised of spatially periodic film rupture at length scales comparable to the interference spacing. Longer irradiation yielded the formation of long, cylindrical-like “nanowires” and continued irradiation resulted in the break-up of these nanowires into particles. The final particle state is characterized by a quasi-2D, comprised of the LRO due to periodic laser intensity and SRO resulting from the break-up of the nanowires. The observed differences from the two processing conditions can be explained on the basis of the various mechanisms of fluid motion operating under the two irradiation conditions. When irradiating the metal film with a 2-beam interference pattern, the resulting periodic laser intensity induces a transient and periodic thermal gradient along the plane of the film which creates a surface tension gradient not present in the single beam irradiation. Consequently, $TC$ or Marangoni convection of the molten Co can occur. To contrast the results of single beam and 2-beam irradiation, the time scales for the various mechanisms were estimated. The timescale for $TC$ flow can be expressed as Schwarz-Selinger et al. (2001):

[TABLE]

where $\Lambda_{laser}=350\,nm$ is the laser fringe spacing, $\eta=4.45\times 10^{-3}\,Pas$, is the Co metal viscosity, $\frac{\partial\gamma}{\partial T}=-0.34\times 10^{-3}Jm^{-2}K^{-1}$ is the rate at which the surface tension of the Co changes with temperature and $\Delta T$ is the maximum temperature difference between the peak and valley of the laser fringe. The timescale for the TFH instability can be expressed as Vrij (1966); Vrij and Overbeek (1968):

[TABLE]

An important aspect of the above equations is that the time scale of the $TC$ flow decreases with increasing $h_{0}$ while the TFH instability increases with increasing $h_{0}$. We determined that typical liquid lifetimes range from $1\leq\tau_{L}\leq 10\,ns$ and thermal gradients range from $0.5-0.7\,\frac{K}{nm}$ Favazza et al. (2006b); Trice et al. (2006). From Eq. 3 and 4, $\tau_{s}>\tau_{Ma}$ for films with $h_{o}\leq 2\,nm$ and $\tau_{s}<\tau_{Ma}$ for films with $h_{0}>2\,nm$. This implies that pattern formation is dominated by the $TC$ flow for $h_{0}>2\,nm$ with the TFH flow dominating for $h_{0}<2\,nm$, as shown in the comparative timescale plot in Fig. 3. This result was confirmed experimentally as nanowire formation was observed only above $2\,nm$ while it was absent for films $<2\,nm$, as shown in Fig. 3(inset A). For film thicknesses near the cross-over point of $h_{0}=2\,nm$, the pattern consisted of particle formation with some evidence for lateral movement of the metal (Fig. 3(inset B)) indicating that both mechanisms are operative Moriarty et al. (2002).

For films with $h_{0}>2\,nm$ nanowire formation under the 2-beam irradiation also permitted access to a Rayleigh-like instability in which cylinders are unstable to wavelengths $\geq 2\pi r_{cyl}$, with the fastest growing wavelength scaling as $\Lambda_{R}\propto r_{cyl}$ , where $r_{cyl}$ is the radius of the cylinder. The characteristic time scale for this process can be expressed as de Gennes et al. (2004); Lord Rayleigh (1879a):

[TABLE]

where $\rho=7.8\,\frac{g}{cm^{3}}$ is the liquid density of Co Gale and Totemeier (2004). Assuming these are partial cylinders with contact angles $>{90}^{\circ}$and using the projected width of these regions from SEM images, we estimated $r_{cyl}$, preceding the break-up into nanoparticles, to be in the range of $35-55\,nm$. Based on these values of $r_{cyl},$ the typical magnitude for the cylinder break-up time was estimated as $\tau_{Ray}\sim 1-2\,ns$. Since this time scale is comparable to or smaller than the typical liquid lifetimes, the Rayleigh process is clearly accessible whenever a cylinder is formed. Also, according to the Rayleigh formulation, the particle radius scales linearly with both the spacing between particles and the radius of the original cylinder Lord Rayleigh (1879a, b); Eggers (1997). Through volume conservation, the cylinder radius varies as $r_{cyl}\propto h_{o}^{1/2}$, resulting in a similar scaling relation for the size of the particle as $r_{p2}\propto h_{o}^{1/2}$. As shown in Fig. 1(a-b), the particle spacing and the size both scale as $h_{o}^{1/2}$ and the ratio of particle spacing to radius is independent of film thickness. While, the ratio in the classical Rayleigh break-up of a perfect cylinder is expected to be $\frac{\lambda_{NN2}}{r_{p2}}\sim 4.7$ Lord Rayleigh (1879a, b); Eggers (1997) our measured ratio was $\simeq 5.6$. We have ruled out previously existing explanations for how this ratio can be modified Nichols and Mullins (1965); McCallum et al. (1996); Hocking (1990); Hocking and Miksis (1993); Davis (1980); Gurski and McFadden (2003). Nichols et al. Nichols and Mullins (1965) have shown that if the break-up is dominated by solid-state surface diffusion, then the ratio is maintained, however, if the flow is generated by external volume diffusion, then the ratio grows to $\sim 6.1$. However, the timescale over which external volume diffusion can cause break-up has been estimated as $\sim 0.3\,s$ ($\tau_{vol}\sim\frac{13D_{V}\gamma\Omega}{fkT}$, where $D_{v}$ is the volume self-diffusion coefficient, $\Omega$ is the atomic volume and $f$ is the correlation factor Nichols and Mullins (1965)) for cylinder with $r_{cyl}=40\,nm$. This timescale is well outside the realm of the laser processing time (for $t=0.3\,s,\;n\sim O(10^{6})$), and as such can be disregarded as a possible break-up mechanism. We have also estimated the correction to the ratio for situations in which truncated cylinders break-up based on the work by McCallum et al. McCallum et al. (1996) and determined that only a small change to the ratio will be introduced. While there have also been papers examining the effect of having a non-uniform contact line or an anisotropic surface, these models also do not yield the observed 5.6 ratio Davis (1980); Gurski and McFadden (2003). It is possible that the thermocapillary flow and a Rayleigh-like instability can drive self-organization of the film such that the liquid profiles are stationary solutions to the non-linear equations describing the pattern evolution Mitlin (1993); Tan et al. (1990). However, a nonlinear analysis along with further experiments are required to verify such a hypothesis.

In conclusion, self-organization leading to spatially correlated nanostructures under ns laser irradiation of ultrathin Co films on SiO${}_{\text{2}}$ has been investigated. For films with thickness $2-8\,nm$, non-uniform laser irradiation by 2-beam interference leads to pattern formation characterized by the formation of nanowires via thermocapillary flow and eventually to nanoparticles via a Rayleigh-like break-up of the nanowires. The nanowire break-up results in an average nearest-neighbor particle spacing of $\lambda_{NN2}\propto h_{0}^{1/2}$ with radius $r_{p2}\propto h_{0}^{1/2}$ in contrast to the TFH instability in which $\lambda_{NN1}\propto h_{0}^{2}$ and $r_{p1}\propto h_{0}^{5/3}$. For films with $h_{0}\leq 2\,nm$ nanowire formation was absent because the TFH time scales were much shorter than the $TC$ timescale. These results show that self-organization through laser-induced hydrodynamic flow can be used to make a variety of strongly correlated surface nanostructures on amorphous substrates by selecting the appropriate film thickness based upon thermophysical parameters.

RK and RS acknowledge support by the NSF through a CAREER grant DMI-0449258 and grant CTS 0335348 respectively.

*Electronic address: ramkik@wuphys.wustl.edu, *†*Electronic address: suresh@wustl.edu

Figure captions

• •

Figure 1: Self-organized length scales versus initial film thickness: (a) $\sqrt{h_{0}}$ dependency for the particle radius from 2-beam interference irradiation (open squares); and $h_{0}^{\frac{5}{3}}$ dependency from single beam irradiation (closed triangles). (b) $\sqrt{h_{0}}$ dependency for the particle spacing from 2-beam irradiation (open squares) and $h_{0}^{2}$ dependency from single beam irradiation (closed triangles).

• •

Figure 2: SEM images depicting the stages of pattern formation for 2-beam interference irradiation of a $\sim 6$ nm film as a function of increasing number of laser pulses $n$: (a) periodic rupture (b) nanowires and (c) the final nanoparticle state which exhibits both LRO and SRO. (Co rich and SiO${}_{\text{2}}$ rich regions correspond to bright and dark contrast respectively).

• •

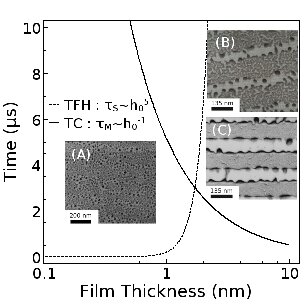

Figure 3: Comparison of the time scales for TFH dewetting and thermocapillary ($TC$) flow as a function of initial film thickness with the morphology for various film thickness following irradiation (insets). (A) $h\leq 1\,nm$ film showing that the entire film dewets; (B) $h\sim 2\,nm$ film showing that while $TC$ flow causes the film to split there is still evidence for TFH dewetting and (C) $h\sim 4.5\,nm$ film showing that $TC$ forces completely dominate morphology change. (Co rich and SiO${}_{\text{2}}$ rich regions correspond to bright and dark contrast respectively).
