Characterization of open cluster remnants

TL;DR

This paper introduces a systematic method for characterizing open cluster remnants using photometric and proper motion data, identifying 13 remnants and analyzing their evolutionary stages.

Contribution

It presents a new, standardized approach for analyzing open cluster remnants, combining structural, photometric, and proper motion data for consistent characterization.

Findings

13 open-cluster remnants identified

Evidence of binary stars in remnants

Remnants' distributions resemble open clusters

Abstract

Despite progress in the theoretical knowledge of open cluster remnants and the growing search for observational identifications in recent years, open questions still remain. The methods used to analyze open cluster remnants and criteria to define them as physical systems are not homogeneous. In this work we present a systematic method for studying these objects that provides a view of their properties and allows their characterization. Eighteen remnant candidates are analyzed by means of photometric and proper motion data. These data provide information on objects and their fields. We establish criteria for characterizing open cluster remnants, taking observational uncertainties into account. 2MASS J and H photometry is employed (i) to study structural properties of the objects by means of radial stellar density profiles, (ii) to test for any similarity between objects and fields with a statistical comparison method applied to the distributions of stars in the CMDs, and (iii) to obtain ages, reddening values, and distances from the CMD, taking an index of isochrone fit into account. The UCAC2 proper motions allowed an objective comparison between objects and large solid angle offset fields. The objective analysis based on the present methods indicates 13 open-cluster remnants in the sample. Evidence of the presence of binary stars is found, as expected for dynamically evolved systems. Finally, we infer possible evolutionary stages among remnants from the structure, proper motion, and CMD distributions. The low stellar statistics for individual objects is overcome by means of the construction of composite proper motion and CMD diagrams. The distributions of remnants in the composite diagrams resemble the single-star and unresolved binary star distributions of open clusters.

Figures

Tables

Table 1. Table 1: POCRs and open cluster NGC3680

Name	T	l	b	$\alpha$	$\delta$	$R_{\lim }$
		(∘)	(∘)	(h  :  m  :  s)	(∘  :  ′  :  ″)	(′)
NGC 3680	OC	286.76	16.92	11:25:38	-43:14:30	$22.0\pm 1$
NGC 6481	C	29.94	14.93	17:52:48	04:10:00	$1.5\pm 0.5$
M 73, NGC 6994	C	33.71	-39.93	20:58:55	-12:38:03	$4.5\pm 0.5$
NGC 6863	C	32.27	-17.99	20:05:07	-03:33:20	$1.5\pm 0.5$
NGC 1663, OCL-461	L	185.88	-19.66	04:49:18	13:09:47	$6.0\pm 0.5$
ESO 425 SC6	L	235.39	-22.28	06:04:50	-29:10:59	$3.0\pm 0.5$
ESO 425 SC15	L	236.37	-20.35	06:14:35	-29:22:30	$3.0\pm 0.5$
Ruprecht 3, OCL-642, ESO426SC33	C	238.77	-14.81	06:42:07	-29:27:15	$2.0\pm 0.5$
ESO 426 SC26	L	239.62	-16.51	06:36:18	-30:51:30	$3.0\pm 0.5$
ESO 429 SC2	L	242.59	-4.16	07:33:24	-28:11:15	$5.0\pm 0.5$
Ruprecht 31, OCL-711, ESO68SC9	C	250.08	-5.97	07:42:58	-35:35:50	$2.0\pm 0.5$
Waterloo 6	C	264.82	-2.67	08:40:17	-46:07:55	$1.5\pm 0.5$
ESO 570 SC12	L	274.06	35.89	11:12:07	-21:21:00	$5.0\pm 0.5$
NGC 1252	L	274.08	-50.83	03:10:49	-57:46:00	$6.0\pm 0.5$
NGC 1901, Bok 1, OCL-791.1	L	279.03	-33.60	05:18:11	-68:27:00	$5.0\pm 0.5$
Object 1	C	294.94	-0.63	11:41:34	-62:25:05	$2.0\pm 0.5$
ESO 132 SC14	C	308.15	0.20	13:36:30	-62:12:49	$1.5\pm 0.5$
ESO 383 SC10	L	312.13	27.08	13:31:30	-35:03:56	$3.0\pm 0.5$
Lyngå 8 , OCl-962, ESO 226SC1	C	333.27	-0.07	16:20:04	-50:13:59	$1.5\pm 0.5$

Table 2. Table 2: Statistical test for POCRs and the open cluster NGC 3680

Name	$R_{\mathrm{POCR}}^2$	$P$
	(′)	(%)
NGC3680	0.071
NGC 6481	0.232
NGC 6994	0.006
NGC 6863	0.104
NGC 1663	0.017
ESO 425 SC6	0.025
ESO 425 SC15	0.027
Ruprecht 3	0.077
ESO 426 SC26	0.029
ESO 429 SC2	0.025
Ruprecht 31	0.197
Waterloo 6	0.184
ESO 570 SC12	0.005
NGC 1252	0.001
NGC 1901	0.030
Object 1	0.459
ESO 132 SC14	0.380
ESO 383 SC10	0.024
Lyngå 8	0.018

Table 3. Table 3: CMDs parameters for POCRs and the open cluster NGC 3680

Name $r_d$ $I_f(\%)$ $\tau$ (Gyr) E(J - H) $E\left(B-V\right)$ $\left(J-M_J\right)$ $d_{\odot }$ D z $R_{gc}$ pm (′) (%) (Gyr) (mag) (mag) (mag) (kpc) (pc) (kpc) (kpc) NGC 3680 $3.0$ $78\pm 18$ $1.6\pm {0.01}^a$ 0.0a 0.0 10.00a 1.00a 12.8a 0.30 8.8a 18 NGC 6481 $1.5$ $83\pm 26$ $3.5\pm 0.5$ 0.06 0.18 10.36 1.18 1.03 0.30 7.04 10 NGC 6994 $2.5$ $83\pm 26$ $1.0\pm 0.2$ 0.01 0.03 9.77 0.9 2.36 -0.57 8.0 10 NGC 6863 $1.5$ $75\pm 31$ $3.5\pm 0.5$ 0.00 0.00 10.40 1.20 1.05 -0.37 7.06 7 NGC 1663 $3.0$ $88\pm 23$ $2.8\pm 0.2$ 0.04 0.12 0.20 1.10 4.20 -0.40 9.13 15 ESO 425 SC6 $2.5$ $71\pm 18$ $2.5\pm 0.3$ 0.00 0.00 10.20 1.10 1.92 -0.41 8.62 15 ESO 425 SC15 $3.0$ $61\pm 15$ $1.0\pm 0.3$ 0.01 0.03 9.97 0.99 1.73 -0.34 8.55 15 Ruprecht 3 $2.0$ $65\pm 18$ $1.5\pm 0.5$ 0.00 0.00 10.20 1.10 1.28 -0.28 8.60 13 ESO 426 SC26 $2.5$ $70\pm 17$ $1.0\pm 0.3$ 0.01 0.04 10.46 1.24 2.16 -0.35 8.66 17 ESO 429 SC2 $1.5$ $68\pm 17$ $0.4\pm 0.05$ 0.03 0.9 11.20 1.67 4.85 -0.12 8.88 15 Ruprecht 31 $1.5$ $78\pm 24$ $1.0\pm 0.3$ 0.02 0.06 9.85 0.93 0.81 -0.10 8.36 11 Waterloo 6 $1.5$ $48\pm 15$ $0.2\pm 0.1$ 0.00 0.00 10.5 1.26 1.28 -0.06 8.21 - ESO 570 SC12 $4.0$ $62\pm 20$ $0.8\pm 0.2$ 0.01 0.03 9.02 0.64 1.86 0.37 7.99 10 NGC 1252 $4.0$ $65\pm 19$ $2.8\pm 0.3$ 0.00 0.00 9.5 0.79 2.76 -0.61 8.00 11 NGC 1901 $5.0$ $67\pm 21$ $0.6\pm 0.1$ 0.01 0.03 8.35 0.46 1.34 -0.26 7.95 10 Object 1 $1.5$ $50\pm 11$ $0.6\pm 0.1$ 0.00 0.00 11.20 1.74 2.00 -0.02 7.44 20 ESO 132 SC14 $1.5$ $33\pm 9$ $0.8\pm 0.2$ 0.00 0.00 10.20 1.10 0.95 0.003 7.37 - ESO 383 SC10 $3.0$ $76\pm 19$ $2.0\pm 0.5$ 0.00 0.00 10.00 1.00 1.74 0.45 7.45 15 Lyngå 8 $1.5$ $56\pm 19$ $2.0\pm 0.5$ 0.19 0.57 10.11 1.05 0.92 -0.001 7.07 9

Table 4. Table 4: The groups and median velocity values

Name	Type	$v_M$ (km/s)
Group A
NGC 1663	L	68
ESO 425 SC15	L	47
ESO 426 SC26	L	70
Ruprecht 31	C	44
NGC 1252	L	68
NGC 1901	L	26
Group B
NGC 6481	C	78
NGC 6863	C	137
ESO 425 SC6	L	83
Ruprecht 3	C	83
ESO 570 SC12	L	109
Object 1	C	82
ESO 383 SC10	L	113
Lyngå 8	C	75

Table 5. Table 5: Final classification for the POCRS

Nome	Type	Profile	R2	If	Q
NGC 3680	L	y	y	y	OC
NGC 6481	C	y	y	y	OCR
NGC 6994	C	y	n	n	FF
NGC 6863	C	y	y	y	OCR
NGC 1663	L	y	y	y	OCR
ESO 425 SC 6	L	y	y	y	OCR
ESO 425 SC 15	L	y	y	y	OCR
Ruprecht 3	C	y	y	y	OCR
ESO 426 SC 26	L	y	y	y	OCR
ESO 429 SC 2	L	y	n	y	POCR
Ruprecht 31	C	y	y	y	OCR
Waterloo 6	C	y	n	n	FF
ESO 570 SC 12	L	y	y	y	OCR
NGC 1252	L	y	y	y	OCR
NGC 1901	L	y	y	y	OCR
Object 1	C	y	y	n	POCR
ESO 132 SC 14	C	y	y	n	POCR
ESO 383 SC 10	S	y	y	y	OCR
Lyngå 8	C	y	y	y	OCR

Equations

$$R^2=\sum _{i=1}^{n_{\mathrm{box}}}({\rho }_i-{\rho }_{i,\mathrm{field}}{)}^2$$

$$P=1-\frac{|j_{\mathrm{m}}-j_{\mathrm{POCR}}|}{N_{\mathrm{s}}/2}$$

$$MP=\sqrt{({\mu }_{\alpha }cos\delta {)}^2+{\mu }_{\delta }^2}.$$

$$v_p(km/s)=MP(mas/yr)\ast d(pc)\ast 4.74\times 10^{-3}.$$

Full text

Methods.

Results.

*Aims. *Eighteen remnant candidates are analyzed by means of photometric and proper motion data. These data provide information on objects and their fields. We establish criteria for characterizing open cluster remnants, taking observational uncertainties into account.

*Methods. *2MASS J and H photometry is employed (i) to study structural properties of the objects by means of radial stellar density profiles, (ii) to test for any similarity between objects and fields with a statistical comparison method applied to the distributions of stars in the CMDs, and (iii) to obtain ages, reddening values, and distances from the CMD, taking an index of isochrone fit into account. The UCAC2 proper motions allowed an objective comparison between objects and large solid angle offset fields.

*Results. *The objective analysis based on the present methods indicates 13 open-cluster remnants in the sample. Evidence of the presence of binary stars is found, as expected for dynamically evolved systems. Finally, we infer possible evolutionary stages among remnants from the structure, proper motion, and CMD distributions. The low stellar statistics for individual objects is overcome by means of the construction of composite proper motion and CMD diagrams. The distributions of remnants in the composite diagrams resemble the single-star and unresolved binary star distributions of open clusters.

††offprints: D. B. Pavani

1 Introduction

The study of the space distribution, formation, age, and structure of open clusters provides information on their evolution. Open clusters are destroyed over time by the action of both internal forces (mass loss through the dynamical evolution and stellar evolution) and external ones, such as interactions with the Galactic tidal field, collisions with molecular clouds, and/or disc shocking (Friel friel1999 (1999); Wielen wielen (1971)). Portegies Zwart et al. (portegies (2002)) confirm central Galaxy tidal-field effects by showing that star clusters located inside 150 pc of the Galactic center can be dissolved in $\sim 50$ Myr. In the solar neighborhood, most open clusters evaporate completely in less than 1 Gyr (Bergond et al. bergond (1987); Bonatto et al. bonatto2005a (2005)). However, older objects exist (Lyngå lynga (1987); Dutra & Bica dutra (2000)). By means of the open cluster catalogue by Dias et al. (dias (2002)), updated to January 2006111http://www.astro.iag.usp.br/$\sim$ wilton, we concluded that objects older than 1 Gyr amount to ${\approx}$ 10 % of the 864 clusters with available ages.

Open cluster remnants (hereafter, OCR) correspond to final evolutionary stages. Numerical simulations (Terlevich terlevich (1987); de La Fuente Marcos fuente1997 (1997), fuente1998 (1998)) have shown that the final stellar content of OCRs depends on their initial mass function, fraction of primordial binaries, Galactocentric distance, and total mass. The simulations also show that a strong dependence exists between the dissolution timescale of an open cluster and the stellar mass evaporation. As a consequence, OCRs are expected to be rich in binary stars. Owing to dynamical processes that dominate the dissolution, it is reasonable to assume that the effects of mass segregation will cause depletion of the low main sequence (MS) in OCRs. Considering the above results with those of Hsu et al. (hsu (1996)), Friel (friel1999 (1999)) made further developments towards an evolutionary scenario. Small and poorly populated open clusters dissolve primarily from internal dynamical effects on the order of a few 108 Myr, which explains most of the open cluster population. Apparently there is no relationship between dissolution rate and location in the Galaxy for low-mass open clusters. For richer and more massive open clusters, the Galactic field effects become significant. Those with intermediate masses ($\sim 500$ to $1000M_{\odot}$) can survive several Gyr, if they are located in the external regions of the disc (e.g., NGC 752 and NGC 3680). Open clusters that survive longer (e.g. NGC 6791) must be more massive or else located exclusively in external regions of the disc (NGC 188), or both (Friel friel2002 (2002)).

From an observational point of view, an OCR can be defined as a poorly populated concentration of stars resulting from the dynamical evolution of a more massive system (Pavani et al. pavani2001 (2001)). Despite theoretical progress, and the growing number of observed candidates, open questions still remain, such as: (i) Is there a preferential location in the Galaxy for OCRs? (ii) Do different evolutionary stages exist among remnants? (iii) Is it possible to define criteria for the characterization of OCRs?

Studies in the literature reflect the debate on the observational evidence of OCRs. For instance, NGC 6994 (M 73) was interpreted as a possible remnant of an old open cluster by means of high-resolution spectra studies, radial velocities, atmospheric parameters, and proper motions (Bassino et al. bassino (2000)). On the other hand, Carraro (carraro2000 (2000)) and Odenkirchen & Soubiran (odenkirchen (2002)) interpret NGC 6994 as a random fluctuation of the stellar density using CCD photometry in B, V, and I bands and high-resolution spectra of the six brightest stars, respectively.

Bica et al. (bica2001 (2001)) present 34 possible open cluster remnants (POCR) that are located at relatively high galactic latitudes ($|b|>15^{\circ}$) and are underpopulated with respect to the usual open clusters. They show a significant density contrast of brighter stars as compared to the Galactic field. Among the objects in that list, some have already been studied in detail it was concluded that NGC 1252 is a remnant at $d_{\odot}=0.64$ kpc from the Sun, with an age of 3 $\pm$ 1 Gyr. NGC 1901 is a physical system dynamically comparable to the Hyades, at $d_{\odot}=0.45$ kpc, and with an age of 0.6 $\pm$ 0.1 Gyr. Both were studied with B,V photometry, from the Tycho-2’s proper motions and comparisons of object CMDs with model predictions for the Galactic field (Pavani et al. pavani2001 (2001)). Carraro (carraro2002 (2002)) concludes that NGC 7772 and NGC 7036 are remnants. NGC 7772 is located at $d_{\odot}=1$ kpc, with 14 members and an age of 1.5 Gyr. NGC 7036 has 17 members and is located at $d_{\odot}=1$ kpc with an age of 3-4 Gyr. He used UBVI photometry for color-color diagrams, CMD, and a radial stellar density profile. NGC 1663 was found to be a remnant of 2 Gyr located at $d_{\odot}=0.7$ kpc (Baume et al. baume (2003)). They employed high-resolution spectra of the brightest stars and 2MASS photometry (Skrutskie et al. skrutskie (1997))222Two Micron All Sky Survey, All Sky data release, available at http://www.ipac.caltech.edu/2mass/releases/allsky, together with Tycho-2’s astrometric data. Pavani et al. (pavani2003 (2003)) find that Ruprecht 3 is a remnant at $d_{\odot}=0.72$ kpc with an age of 1.5 $\pm$ 0.5 Gyr, using J and H 2MASS photometry, integrated and individual star spectroscopy, and statistical methods for subtracting field stars from the CMD. Bonatto et al. (bonatto2004 (2004)) presented NGC 2180 as a probable missing link between evolved open clusters and remnants using J and H 2MASS photometry. They discuss luminosity and mass functions, structure, and CMDs. They obtained an age of $700\pm 70$ Myr, $d_{\odot}=0.91\pm 0.08$ kpc, and observed mass $m_{obs}\,\sim\,47M_{\odot}$. Villanova et al. (villanova (2004)) obtained CCD UBVI photometry and medium/high resolution spectroscopy for NGC 5385, NGC 2664 and Collinder 21 and their fields. The analysis using star counts, photometry, radial velocity distribution, and Tycho-2’s proper motions indicated they are non physical objects. Carraro et al. (carraro2005 (2005)) discuss the nature of 11 possible OCRs by using the Southern Proper Motion (SPM) Program 3 combined with 2MASS photometry. They conclude that ESO 282 SC26 is a probable physical group.

The methods employed in the series of studies above are not homogeneous. The present study intends to characterize OCRs by using a systematic set of observational methods applied to a large sample of candidates. We include new POCRs and objects in common with previous studies. This is essential for establishing criteria for the observational identification and determination of OCR properties, taking observational uncertainties into account.

In Sect. 2 we present the criteria for object selection and their structural properties. In Sect. 3 we describe a statistical comparison test between distributions of stars in the CMD. In Sect. 4 we discuss the J $\times$ (J - H) CMDs and derive ages, reddening values, and distances, together with a classification of the objects based on an index of isochrone fitting. In Sect. 5 we present the proper motion analysis. In Sect. 6 we characterize the OCRs. Finally, concluding remarks are given in Sect. 7.

2 Methods

2.1 Object selection

The selection of POCRs was based on poorly populated stellar concentrations included in the catalogues by Alter et al. (alter (1970)) and Lyngå  (lynga (1987)). The objects have a significant stellar density contrast as compared to the background. Among the initially selected objects, we kept those presenting evidence of evolutionary sequences in the CMD. We favored higher Galactic latitudes to avoid contamination by disc stars. The final sample contains 17 objects previously described as star clusters in open cluster catalogues and a new one (Object 1), which was found on a sky survey plate by one of us (E. B.). Based on DSS333The Digitized Sky Survey available: http://cadcwww.dao.nrc.ca/cadcbin/getdss and 2MASS data we determined accurate equatorial coordinates for the POCRs (Table 1).

Among the 18 sample objects, 8 were previously included in a list of 34 POCRs (Bica et al. bica2001 (2001)). Of these, 7 have been discussed in recent studies: (i) ESO 425 SC6 and ESO 425 SC15 were classified as non physical (Carraro et al. carraro2005 (2005)); (ii) NGC 1663 was found to be a remnant (Baume et al. baume (2003)); (iii) Ruprecht 3, NGC 1252 and NGC 1901 were found to be remnants (Pavani et al. pavani2003 (2003), Pavani et al. pavani2001b (2001)); (iv) NGC 6994 (Bassino et al. bassino (2000); Carraro carraro2000 (2000), Ordenkirchen & Soubiran odenkirchen (2002)) is discussed further in the present work.

The intermediate-age open cluster NGC 3680 is used as a comparison (see also Bica et al. bica2001 (2001)). It presents evidence of an evolved open cluster dynamical stage and resembles in many respects what is expected for OCRs. The central luminosity function of NGC3680 is nearly flat from the turnoff to the turnover (Bonatto et al. bonatto2004 (2004)). Depletion of the low MS in central parts and the presence of a corona rich in low-mass stars has been detected in NGC 3680 (see also Anthony-Twarog et al. anthony (1997)) The 2MASS data are a powerful input in the analyses, making possible the study of (i) structural properties, (ii) objects and fields by means of a statistical method, (iii) the CMD distribution to derive ages, reddening, and distances.

The kinematical data were extracted from The Second U. S. Naval Observatory CCD Astrograph Catalog - UCAC2 (Zacharias et al. zacharias (2004)). It allows quantitative comparison of the proper motions of the object and large solid-angle offset fields. The use of complementary methods proved to be essential in the present study to deal with completeness effects affecting POCRs.

2.2 Structural properties

The 18 objects present two characteristic structures in the DSS/XDSS images. The first one is poorly populated with small angular sizes and is centrally concentrated. Such objects are hereafter referred to as compact (C in Table 1). The second structure type is more populated in stars, with larger angular sizes and more scattered stars. We refer to them as loose (L in Table 1).

NGC 3680 is similar to loose POCRs in the present sample (Fig. 2, in Bonatto et al. bonatto2004 (2004)). Figure 1 shows examples of R band XDSS images of objects classified by eye as compact (left panels) and loose ones (right panels). The compact objects present a high-density contrast of stars as compared to the background and typically include up to 10 stars. Table 1 shows the 18 objects of the present sample, together with NGC3680. The columns give: (1) designation; (2) structural type (C for compact and L for loose); (3) and (4) Galactic longitude and latitude, respectively; (5) and (6) J2000.0 equatorial coordinates; (7) limiting radius $R_{\rm{lim}}$ obtained by means of the radial stellar density profile (Figs. 2 and 3).

The occurrence of two distinct structures might be associated to different evolutionary phases and dynamical processes leading to a depletion of stars. Another possibility would be a different origin for compact and loose objects related, e.g., to formation conditions and position in the Galaxy.

The 2MASS Point Source Catalogue completeness limit444http://www.ipac.caltech.edu/2mass/releases/allsky/doc/sec6_5a1.html is $99\%$ for $J<15.8$ and $H<14.1$ at $|b|>30^{\circ}$. Basically, areas of incompleteness are at $\pm 75^{\circ}$ from the Galactic center, $b=\pm 1^{\circ}$ from the Galactic plane, and radius $r<5^{\circ}$ of the Galactic center. For these regions the completess limits are $J<14.0$ and $H<13.5$ mag. Figures 7 to 9 of the 2MASS analysis of Release Catalogs555http://www.ipac.caltech.edu/2mass/releases/allsky/doc/sec6.html allow estimation of completess as a function of l and b. For the POCRs in Table 1 with $|b|>14^{\circ}$, the derived limits are $J<15.8$ and $H<14.1$ mag, and for those with $|b|<6^{\circ}$ $J<14.0$ and $H<13.5$ mag. Object 1, ESO132 SC14, and Lyngå 8 are close to the plane, and the CMD contains very red stars, so we applied a color filter (Sects. 4 and 5) to eliminate them, as well as to eliminate the contamination of LMC stars in NGC 1901 direction (see Fig 9). Figures 2 and 3 show the radial density profiles for the magnitude-limited extractions for the whole sample.

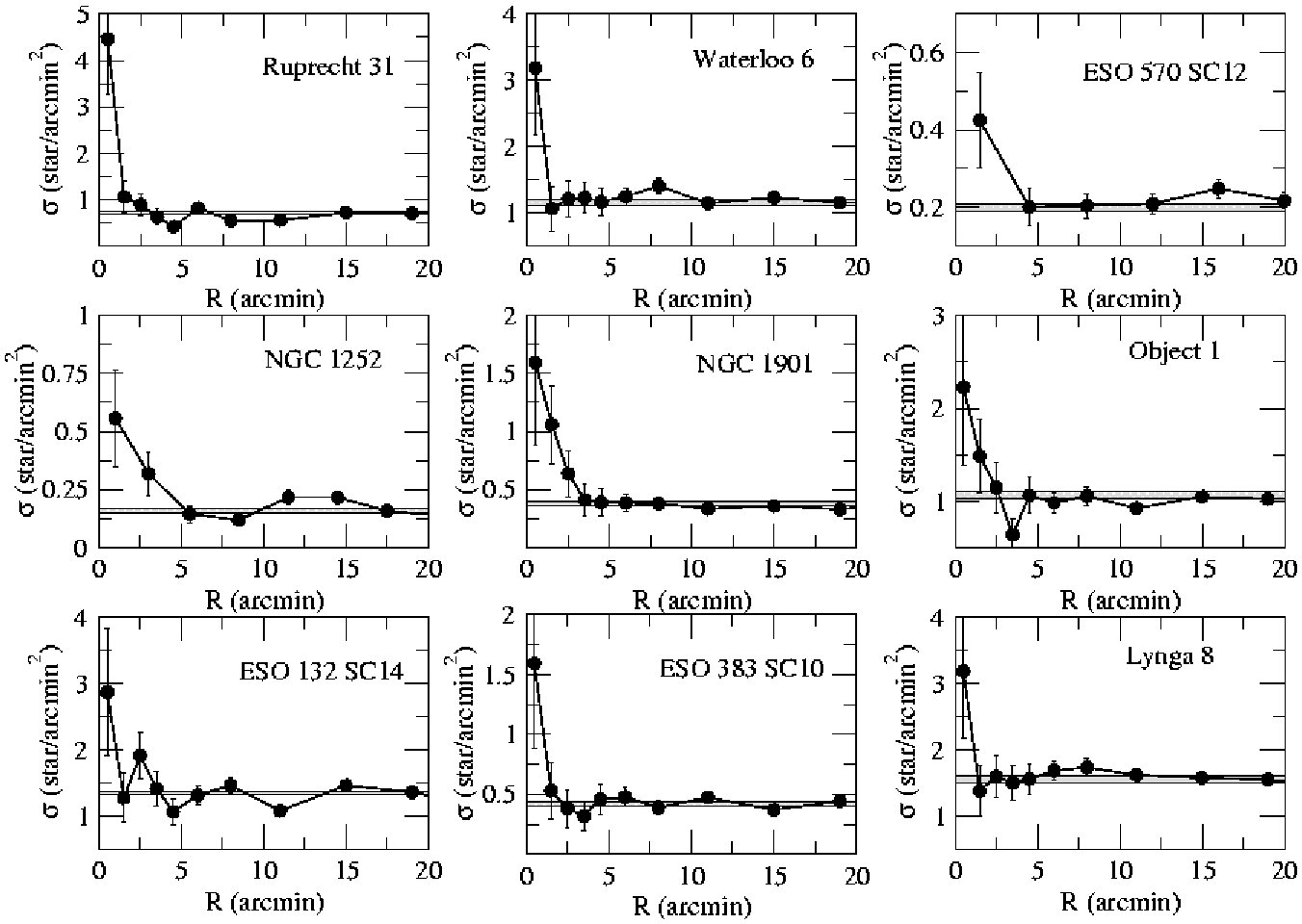

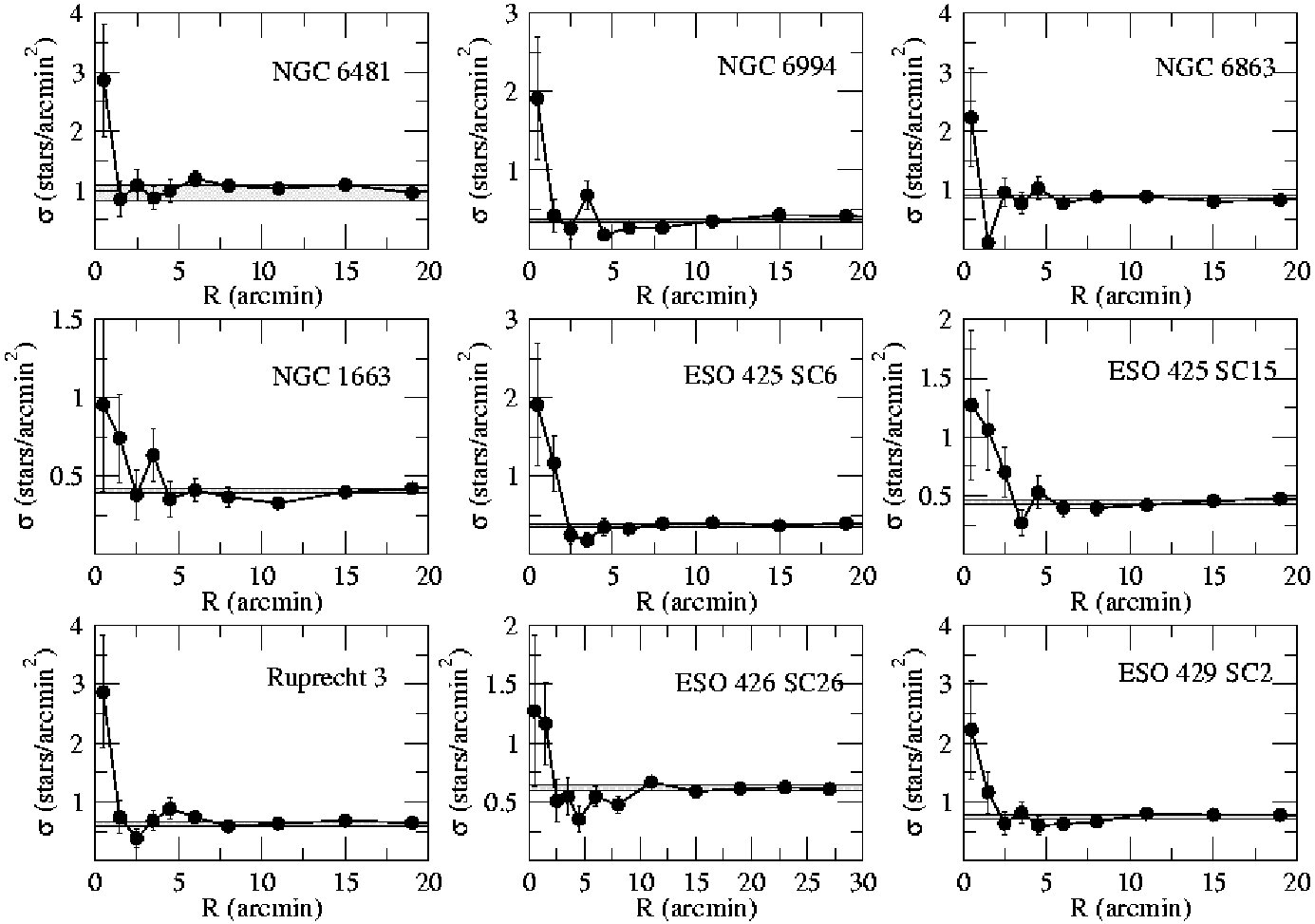

The radial stellar density profile provides a general view of an open cluster structure. We apply this method to POCRs. Star counts with 2MASS photometry are carried out in concentric rings to take POCR and field areas into account. The extractions were centered in the equatorial coordinates of Table 1. The radial density profiles were obtained from star counts in concentric rings with steps in radius depending on the object properties, divided by the ring area. The background contribution level shown in Figs. 2 and 3 as shaded rectangles corresponds to the average number of stars present in an outer ring. Poisson error bars are significant since POCRs are intrinsically poorly populated.

As comparison, Fig. 4 of Bonatto et al. (bonatto2004 (2004)) shows that the radial profile of the evolved open cluster NGC 3680 is described by a King model with core radius $r_{c}=2.3\pm 0.41\arcmin$ and a limiting radius $R_{\rm{lim}}=22\pm 1\arcmin$. Objects in Figs. 2 and 3 illustrate behaviors in the present sample. Compact POCRs as a rule show only one point above the background density. It basically corresponds to diameters estimated on DSS and XDSS images. Halos are generally absent. King models could not be fitted to the profiles of most POCRs. Loose POCRs present a density profile with an extended region (possibly a halo) characterizing their limiting radius, as illustrated by NGC 1663 (Fig. 2). The limiting radius arises where an observed profile merges with the background. We show the resulting limiting radii in Table 1. The loose POCRs NGC 1663, ESO 425 SC6, ESO 425 SC15, ESO 429 SC2, ESO 383 SC10 and NGC 1901 could be basically fitted by a King model. A comparison with the evolved open cluster NGC 3680 (Bonatto et al. bonatto2004 (2004)) shows that Poisson errors are larger for POCRs. It is important to explore loose POCRs as possibly intermediate evolutionary dynamical stages between open clusters and OCRs. Despite the loose appearance of ESO 570 SC12 (Fig. 1), its profile resembles those of compact POCRs, which might also suggest an evolutionary transition.

We conclude that the radial stellar density profiles of the sample objects are basically consistent with OCRs that gradually lose stars as compared to open clusters, persisting in the more internal parts responsible for observed limiting radii.

3 $R^{2}$ statistical test

Automated procedures for a systematic search of star clusters in catalogues have been developed in the past years. Reylé & Robin (reyle (2001)) combine the density of stars and the integrated flux in the $K_{\textit{s}}$ band. Ivanov et al. (ivanov (2002)) employed the apparent stellar surface density, $K_{\textit{s}}$ band luminosity function and the distribution of stars in $J-K_{\textit{s}}$. Mercer et al. (mercer (2005)) present an algorithm that uses statistical methods to locate high stellar densities aided by criteria of color and magnitude selections. In general the main objective of those searches is to reveal any hidden globular clusters, infrared star clusters, and young star clusters embedded in HII regions in our Galaxy. For known star clusters, there are e.g. studies from Mighell et al. (mighel96 (1996)) and Kerber & Santiago (kerber2005 (2005)) that applied statistical methods to compare populated clusters and fields using the CMD.

Although OCRs are less populated than open clusters, they should still present a stellar density contrast with respect to the surrounding field (Sect. 2.2). However, it is necessary to adapt the open cluster comparison methods owing to the intrinsically poorly populated nature of OCRs. Bica et al. (bica2001 (2001)) compared the density of the bright stars in the POCR area with what is predicted for the field from a model of Galactic structure and GSC666The HST Guide Star Catalog, Version 1.2, available at http:// www-gsss.stsci.edu/ (Lasker et al. gsc (1988)) counts in an offset equal area.

We further develop and adapt statistical comparison methods to the 2MASS data of POCRs and test the hypothesis that the object can be reproduced in radial stellar density and CMD distribution by an equal-area field fluctuation. To perform this we employ a nearby large-area offset field, with typical angular radius of $30\arcmin$ and separated from the object by $R_{\rm{lim}}+3\times R_{\rm{lim}}$. Typically more than 100 sampling field areas of size equal to the $R_{\rm{lim}}$ of each object (Table 1) were generated. Each CMD was divided into boxes with dimensions in color $\bigtriangleup{(J-H)}=0.125$ and magnitude $\bigtriangleup{J}=0.5$ mag, generating a grid. We considered boxes containing at least one star. This grid was applied to the object and all samplings in the offset field. In each CMD box, the number of stars was counted and stellar densities were calculated using the object area.

Based on the $s^{2}$ (Kerber et al. kerber2001 (2001)), we defined the $R^{2}$ statistics, which reflects the distribution of field fluctuations and density contrasts in the CMD plane between field and POCRs:

[TABLE]

where $n_{\rm{box}}$ is the number of boxes in each grid for POCR (or sampled field CMD), $\rho_{i}$ corresponds to the box density for each POCR (or sampled field). Finally, $\rho_{i,\rm{field}}$ corresponds to the box density for the total field.

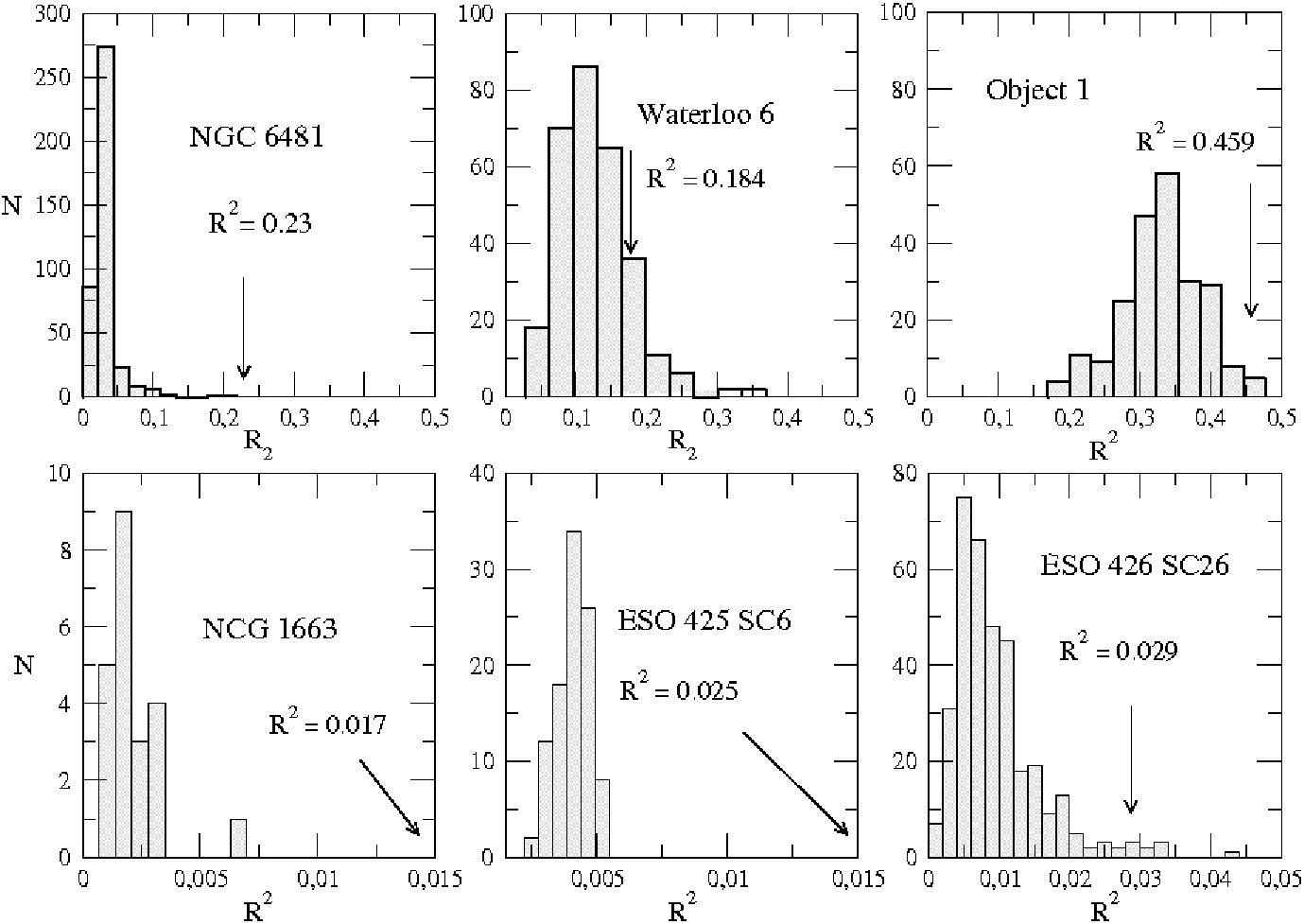

The ensemble of $R^{2}$ for the sampled fields (e.g. Fig. 4) is a measure of the distribution of stars in the CMD of the total field, which in turn can be compared to that of the POCR. The method proved to be efficient for minimizing undersampling, which would otherwise be important if we had adopted the classical comparison between a populous open cluster and equal-area offset field.

Let $j_{\rm{POCR}}$ be the position of the POCR $R^{2}$ value ($R^{2}_{\rm{POCR}}$) on the $R^{2}$ distribution for $N_{\rm{s}}$ sampled fields; we then define the probability $P$ of a POCR being a field fluctuation as:

[TABLE]

where $j_{\rm{m}}$ is the median position in that distribution. Table 2 gives the $P$ and $R^{2}_{\rm{POCR}}$ values for the POCRs. If the $R^{2}_{\rm{POCR}}$ value falls outside the $R^{2}$ field distribution, we adopt $P<1\%$. NGC 6994, Waterloo 6, and ESO 429 SC2 attain $P<22\%$, $P<20\%$, and $P<83\%$, respectively, and appear to be field fluctuations. NGC 6863 presents $P<11.5\%$, and the remaining POCRs in Table 2 have very low $P$ values, favoring physical systems.

4 CMD Analyses

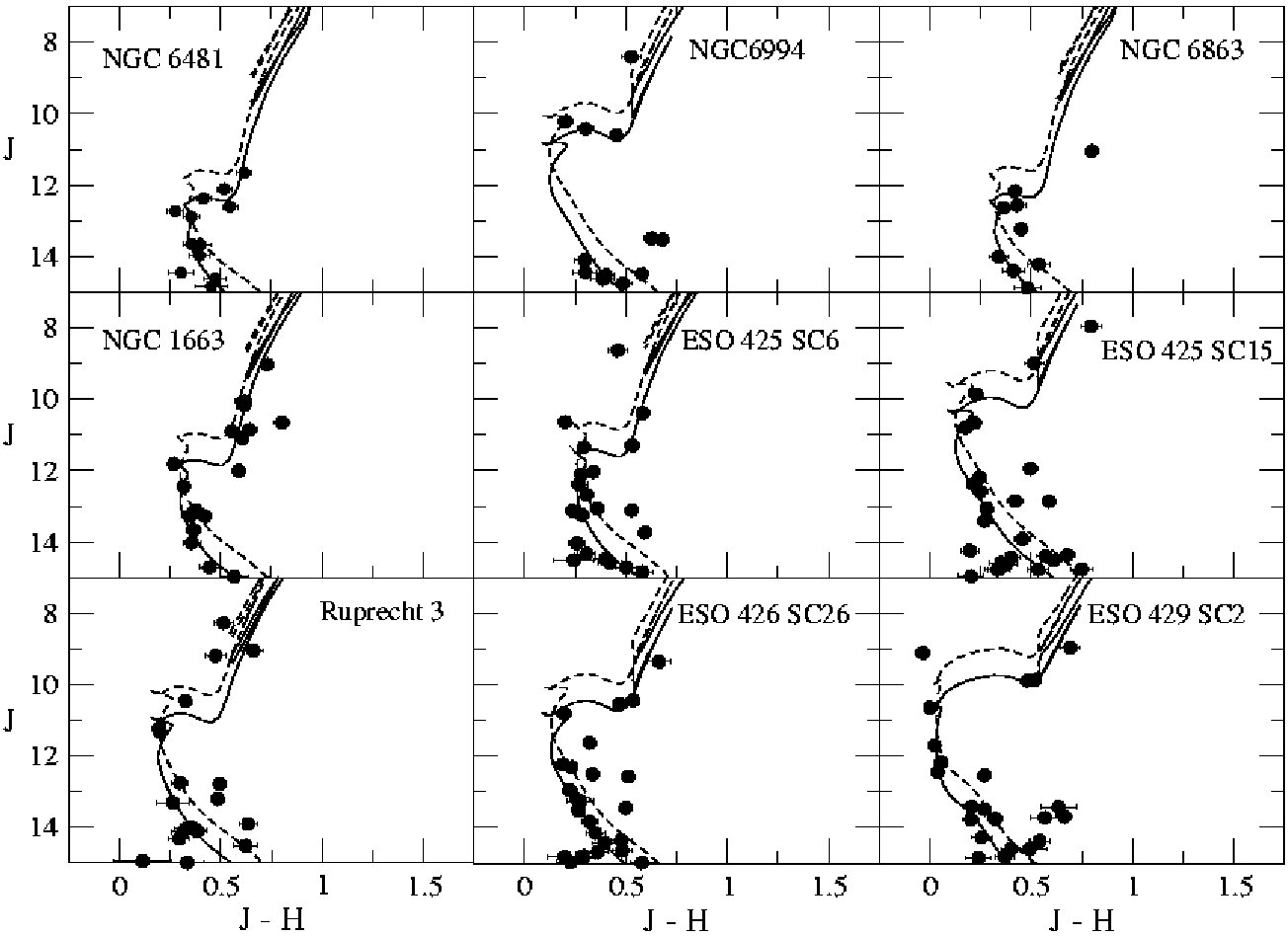

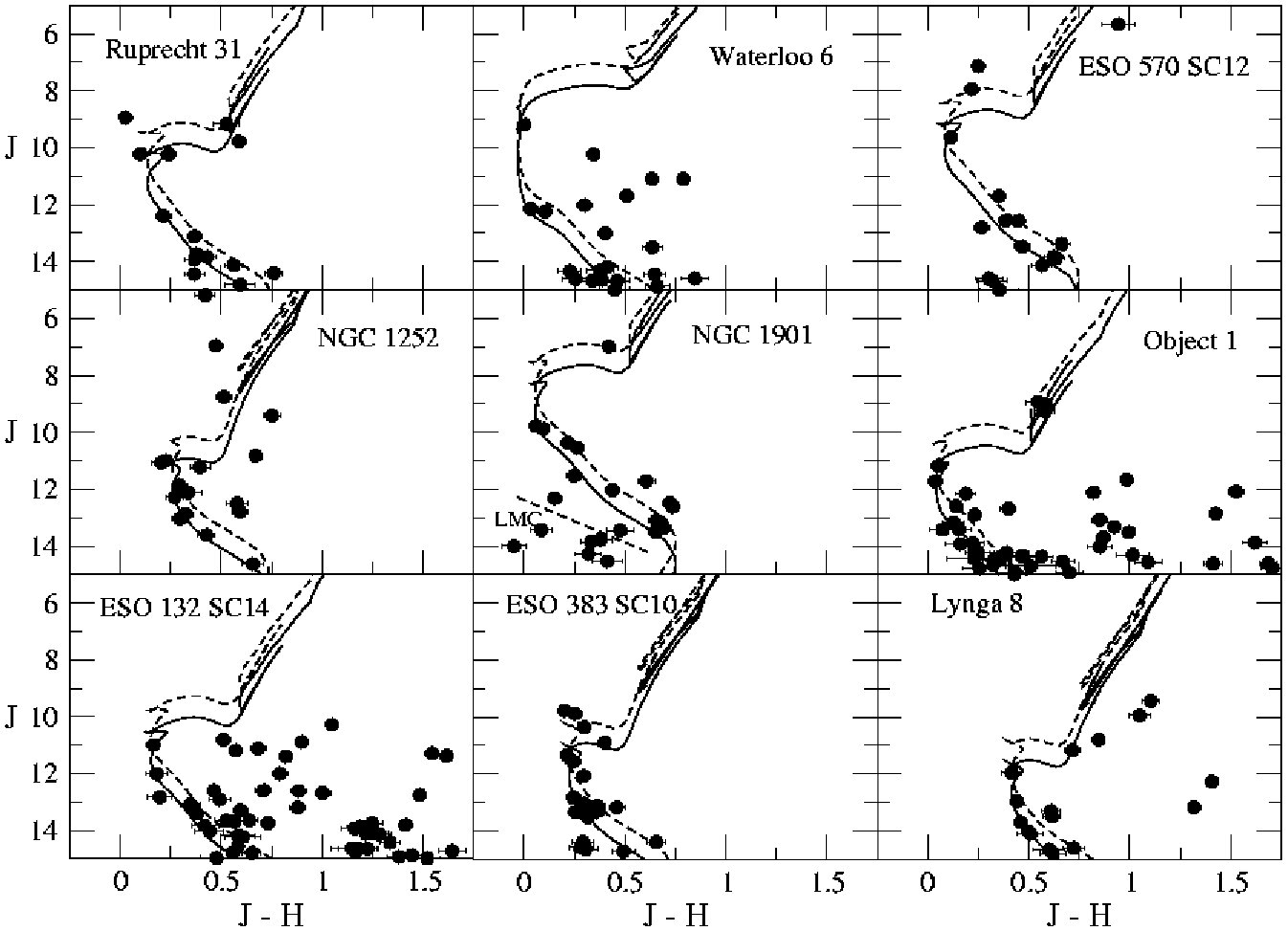

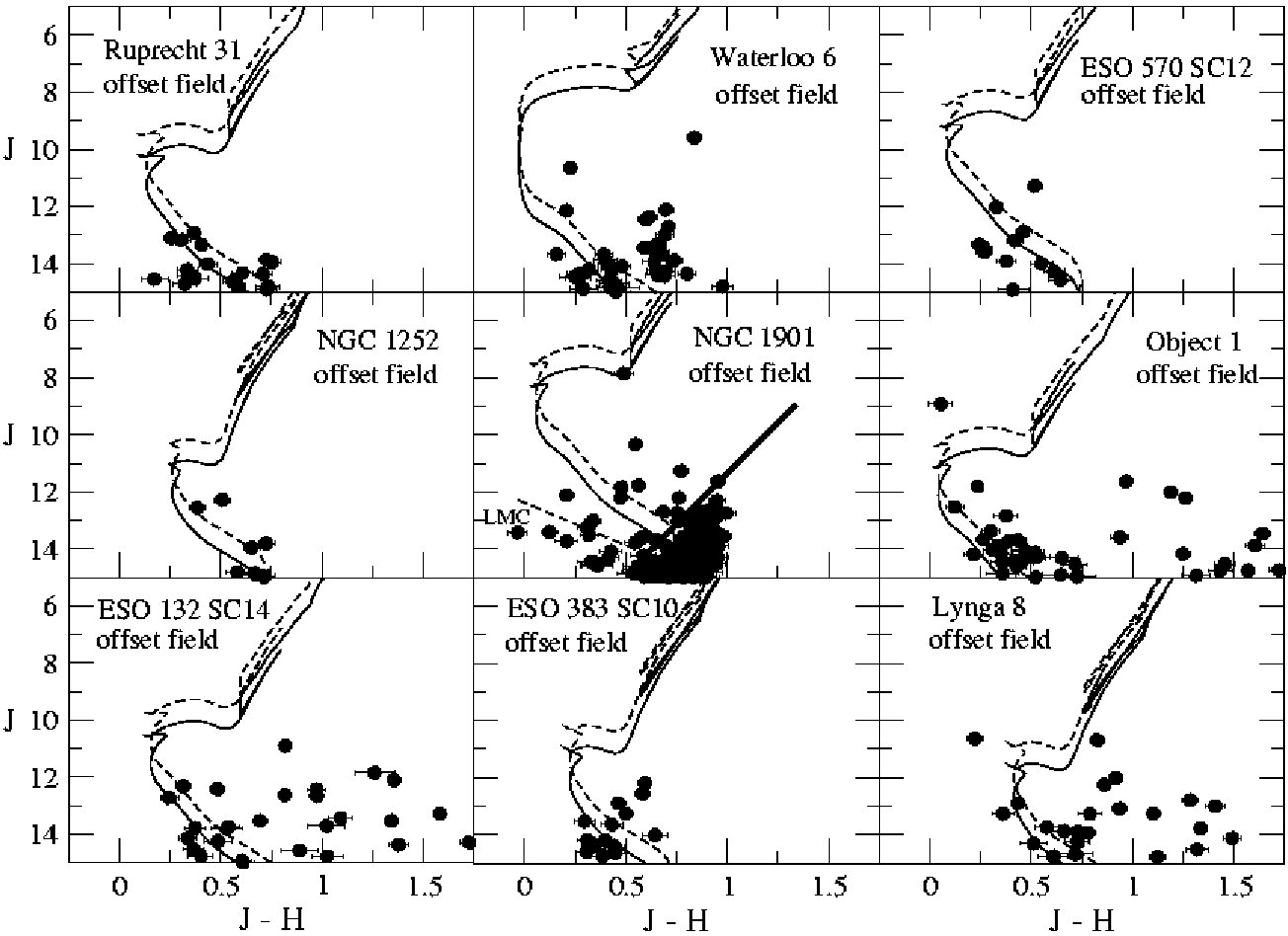

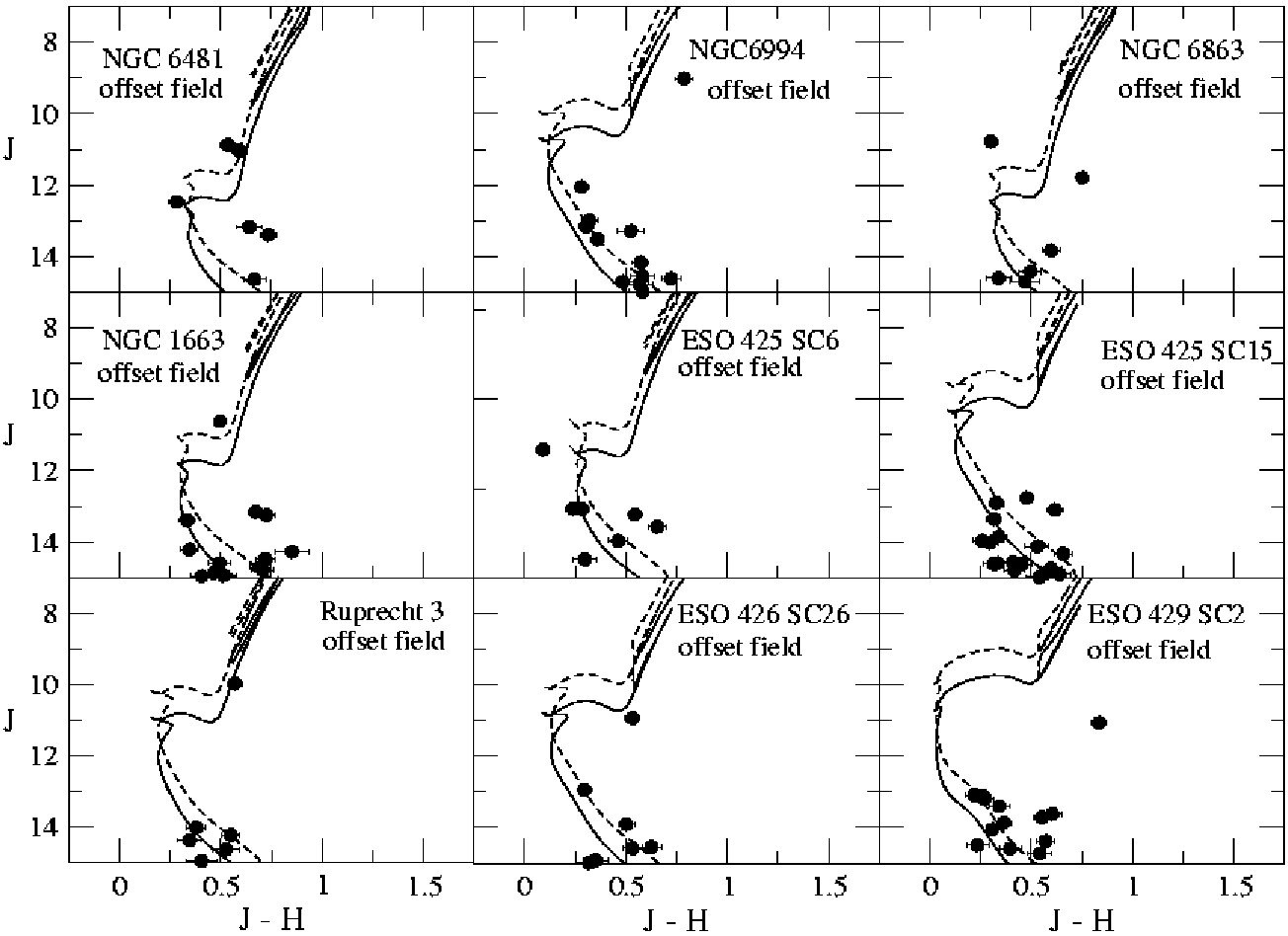

We built 2MASS CMDs of POCRs and offset fields with equal extraction radii, corresponding to the region above the background field contributions in radial stellar density profile (Figs. 2 and 3). We applied a cutoff at $J=15$ and excluded sources with flags for non-stellar objects for all CMDs in order to minimize the star field contamination in POCR directions. We derived reddening, distance modulus, distance to the Sun, Galactocentric distance, and age (Table 3) with the help of solar-metallicity Padova isochrones. In Fig. 5 we present the open cluster NGC 3680 core and off-core CMDs. The core CMD (left panel) presents a star distribution that is expected for OCRs: depletion of the low MS in central parts and the presence of a corona rich in low-mass stars. The field of NGC 3680 at $b\sim 17^{\circ}$ is uncrowded according to the 2MASS $99\%$ completeness limit. NGC 3680 is probably not affected by severe crowding, since the brighter limit found in 2MASS crowded fields777http://www.ipac.caltech.edu/2mass/releases/allsky/doc/sec6.html occurs only near the plane or central parts of globular clusters. The central MS depletion (Fig. 5) was also observed by Anthony-Twarog et al. (anthony (1997)). Since POCRs are less populous than open clusters, incompleteness is not expected. The brighter stars in the images, which in general characterize a POCR (Fig. 1), were identified in the CMD, which provided constraints for isochrone fittings.

The NGC 1901 direction is contaminated by LMC stars. We eliminated them by means of the color filters shown in Fig 9. To verify contamination in the NGC 1901 direction we analyzed three CMDs in three filters of fields with the same angular size as that of NGC 1901: (i) the field of the globular cluster NGC 1928 projected near the center of the LMC bar; (ii) the field of the association of stars NGC 2055 near the east end of the LMC bar dominated by a young population, and (iii) the field of NGC 2004 with red supergiants. Figures 7 and 9 dotted lines show the residual LMC contamination in NGC 1901 and offset field directions, respectively. Several POCRs have tight MS distributions, such as NGC 6481, ESO 425 SC6, and ESO 426 SC26 (Fig. 6). A sequence of binaries, together with that of single stars in general, encompass most of the POCR stars. The sequence of binaries is obtained from that of single stars by a shift of $\bigtriangleup{J}=0.75$ mag (Santiago et al. 1996; Elson et al. elson (1998)). As a rule, offset fields are underpopulated and, scattered and stars do not show the same brightness range (Figs. 8 and 9). On the other hand, in the CMDs of Waterloo 6 and ESO 132 SC14 (Fig. 7) stars are more scattered.

We applied a numerical method to quantify the fit of an isochrone to a POCR CMD. Stars compatible with single and binary isochrones were counted taking error bars into account. We obtained their ratio to the total number of stars in the CMD, defined as the fitting index $I_{f}$. Best isochrone fits could be obtained for all objects, and tentative fundamental parameters were derived (Table 3). This suggests that only classical CMD analyses may not be enough for conclusive results on the nature of underpopulated objects. The ensemble of methods will settle the more probable physical objects (Sect. 6). Table 3 gives (1) designation, (2) the extraction radius of the data, (3) $I_{f}$, (4) age $\tau$ (Gyr), (5) near IR and (6) optical reddening values, (7) distance modulus, (8) distance to the Sun $d_{\odot}$ (kpc), (9) linear diameter (pc), (10) height from the plane z (kpc), (11) Galactocentric distance $R_{gc}$ (kpc), and (12) number of probable members.

Linear diameters were are calculated from angular limiting radii (Table 1) and distances to the Sun. While most POCRs have diameters in the range 1-2 pc (Table 3), open clusters such as M 67 and NGC 3680, at comparable ages and Galactocentric distances, have 17.4 and 12.8 pc, respectively (Bonatto et al. bonatto2004 (2004)). This suggests that POCRs correspond to open cluster cores. The E(B - V) values were coverted from E(J - H) using $E(B-V)=3.03\times E(J-H)$ (Rieke & Lebofsky rieke (1985)). The number of probable members was estimated from $I_{f}$ as was the total number of stars in the POCR extraction radius. The number of probable members was not estimated for POCRS with $I_{f}<50\%$. Typical errors are $\epsilon$(E(J - H)) = 0.02 mag, $\epsilon$(J - MJ) = 0.2 mag, $\epsilon$(d*⊙) = 0.1 kpc, $\epsilon$(z) = 0.015 kpc, $\epsilon$(Rgc*) = 0.4 kpc. The errors combine 2MASS photometric errors with CMD fit errors. Using the relation $A_{J}/A_{V}=0.282$ (Rieke & Lebofsky rieke (1985)), we derived $A_{J}=2.65\times E(J-H)$ in the calculations above. In the sample 13 POCRs with $I_{f}>60\%$ are described by the respective isochrones well. Three POCRs have $50\%\leq I_{f}\leq 60\%$, while Waterloo 6 and ESO 132 SC14 have $I_{f}<50\%$.

We determined ages by fitting isochrones to the extracted CMDs and using equal area fields as references. No decontamination procedure was necessary. Most sample POCRs are located at relatively high Galactic latitudes and thus are favored by low contamination. The 6 POCRs at $|b|<6^{\circ}$ have small angular diameters and bluer colors on average than the field stars (Fig. 7).

5 Proper motions

Bica & Bonatto (bica2005 (2005)) present internal proper motion distributions that are related to binary stars in open clusters. They show that proper motions are a useful tool for identifying higher-velocity stars as unresolved binary cluster members and, as a consequence, for mapping and quantifying the binary fraction in the CMD.

Individual POCRs show low stellar statistics as compared to open clusters, and composite POCR CMDs might provide more insight into their nature. Proper motions extracted from UCAC2 allowed a comparison between POCR areas and large offset fields.

We applied a color filter (Bonatto et al. bonatto2005b (2005)) to the CMD of a given POCR and offset field stars that removed most background contamination. The color filter was used to separate the CMD of a POCR from background contamination (most disc and/or bulge stars), leaving a residual contamination that will be taken into account by means of histogram subtractions. In the following we employ the modulus of proper motion components

[TABLE]

To be consistent with the CMD analysis, we extracted the data for each POCR inside the limiting radius $R_{\rm{lim}}$ (Table 1). We verified that the correspondence between UCAC2 and 2MASS is nearly complete for $J\leqslant 14.5$.

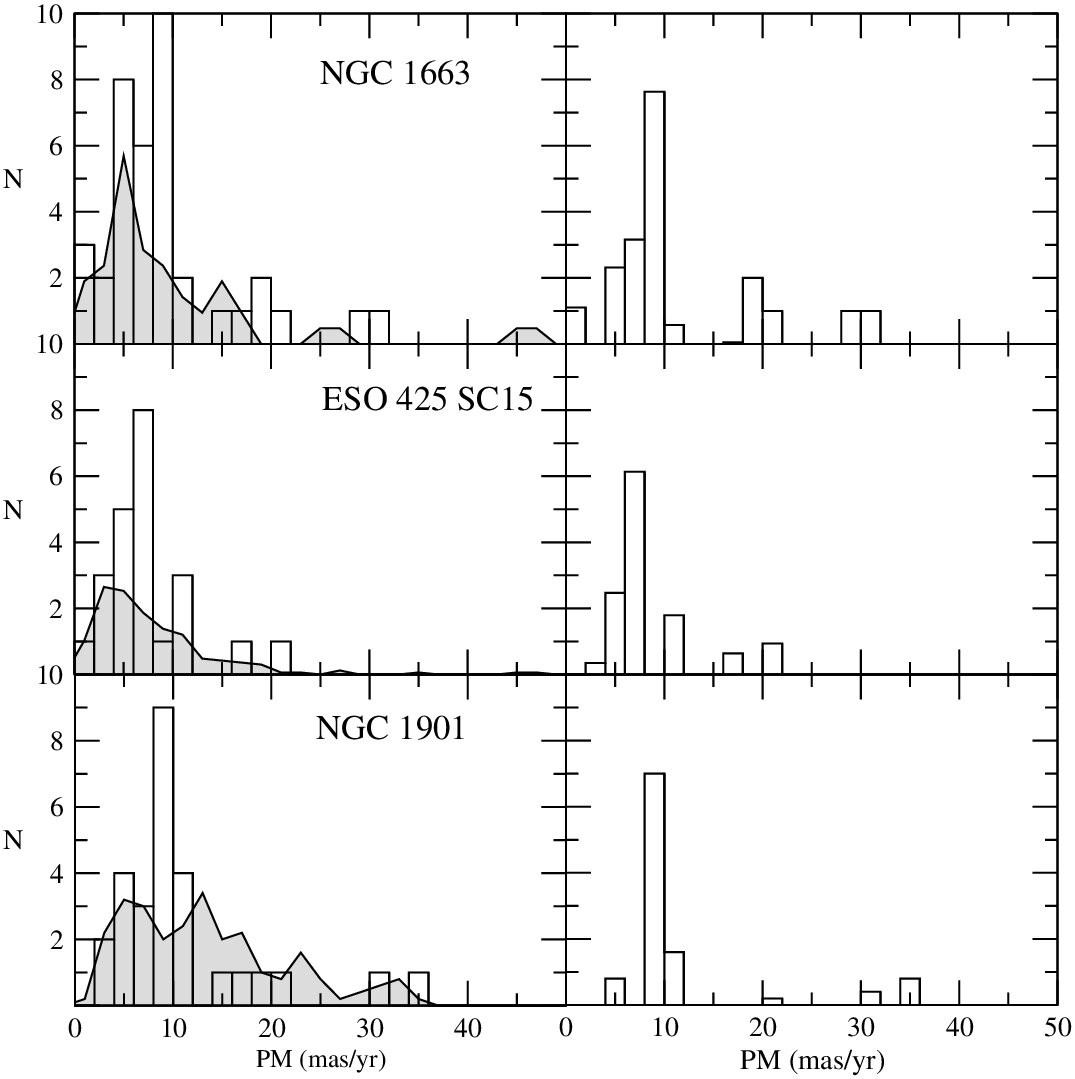

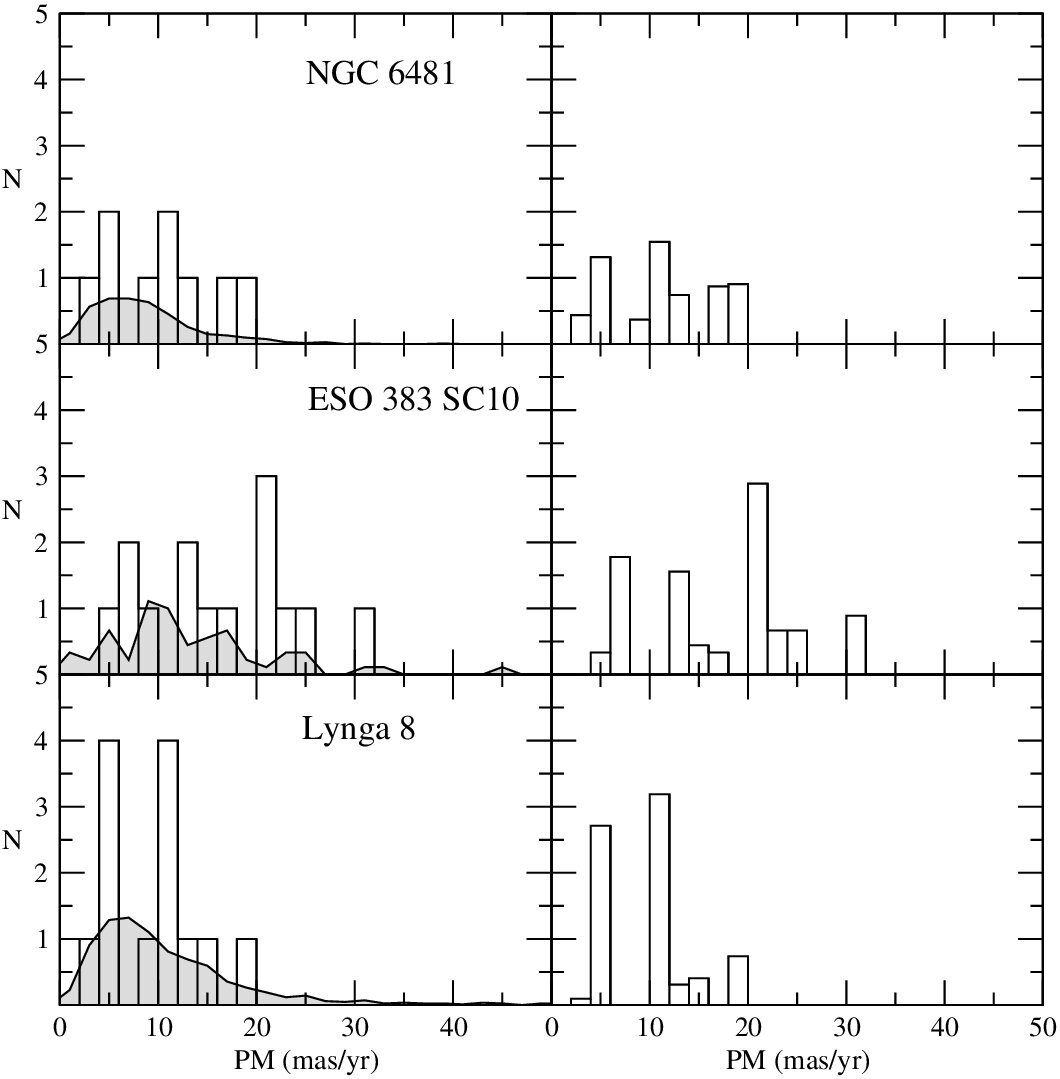

Histograms of stars in proper motion modulus bins of 2 mas/yr were built for POCRs with $I_{f}\geqslant 50\%$ and their offset fields. The offset field was scaled to the POCR area. We subtracted the offset field histogram from that of the POCR region, and the result provides the proper motion distribution in Figs. 10 and 11. Asymmetries and peaks in the proper motion distributions may yield information on the internal kinematics, presence of binaries, and possible evolutionary stages.

In order to analyze intrinsic properties, we transformed proper motions into linear velocities on the plane of the sky ($v_{p}$). The units mas/yr convert to km/s using the distances in Table 3 and

[TABLE]

The objects were divided into two groups (A and B) according to their $v_{p}$ distributions characterized by peaks or flatter distributions. The observed median velocities ($v_{M}$) were derived for rest velocity corrections (Table 4), and the median is suitable for non Gaussian distributions.

Finally, composite velocity histograms were built: (i) $v_{M}$ in each POCR histogram was used to correct the diagram to rest velocity, providing it in the form ($v_{p}-v_{M}$); (ii) Group A is characterized by a well-defined low-velocity peak and is formed by the loose POCRs NGC 1663, ESO 425 SC15, ESO 426 SC26, NGC 1252, NGC 1901, and the compact one Ruprecht 31. They have ($v_{M}<71$ km/s). Group B is characterized by higher-velocities, $75\leqslant v_{M}<140$ km/s, and is formed by the compact objects NGC 6481, NGC 6863, Ruprecht 3, Object 1, Lyngå 8 and the loose ones, ESO 425 SC6, ESO 570 SC12, and ESO 383 SC10.

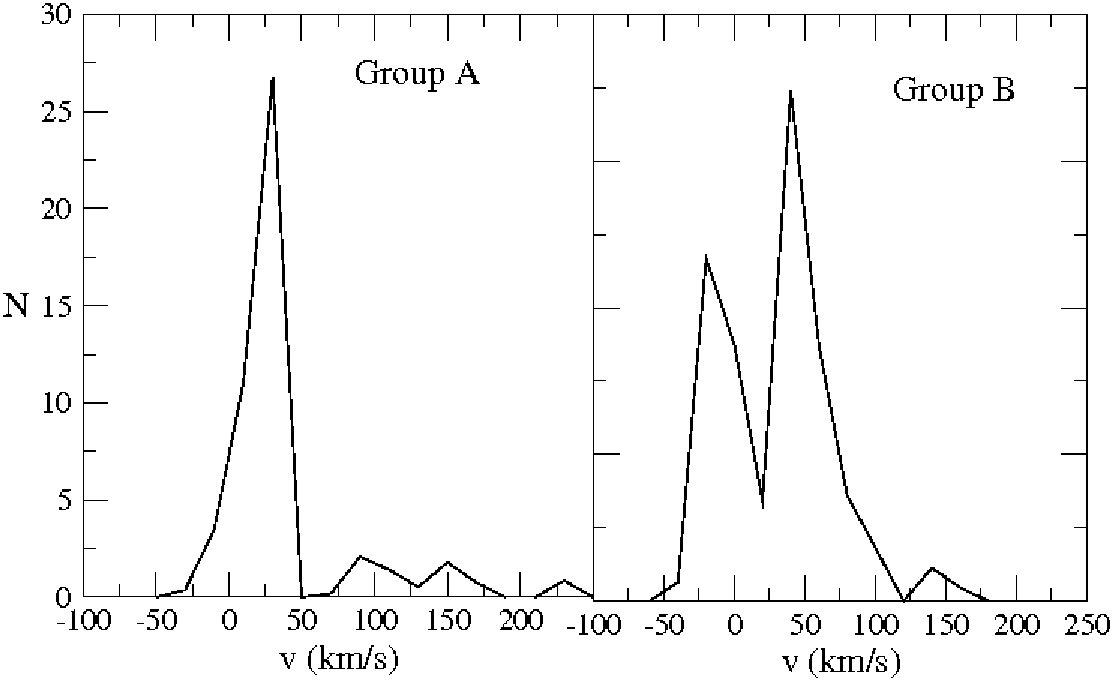

Figure 12 presents the composite histograms ($v_{p}-v_{M}$) for Groups A and B. Group A shows a well-defined low-velocity peak. Group B shows a double peak. Table 4 gives the POCRs belonging to each group. It is outstanding that the ($v_{p}-v_{M}$) composite histogram reveals properties of POCRs only seen before in open clusters (Bica & Bonatto bica2005 (2005)), which cannot be observed in individual POCRs owing to low statistics. The double-peak distribution in Group B resembles that of single (low velocity) and unresolved binary stars (high velocity) as observed in off-core regions of M67 (e.g. Fig. 5 in Bica & Bonatto bica2005 (2005)).

Several objects were not included in the group analysis because of doubt about their nature or they are field fluctuations because the indices are indicating non physical objects (Table 5). Although ESO 429 SC2 has a proper motion distribution compatible with Group A and has $I_{f}=68\pm 16\%$, it was not included in the composite histogram due to the probability of being a field fluctuation (Table 2). The CMD of NGC 6994 (Fig. 6) shows a gap of $\approx$3 mag. between bright and faint stars that is improbable in a turnoff (TO) to low MS distribution. The statistical method (Table 2) also favors a non physical nature. These results point to NGC 6994 being a field fluctuation, in agreement with Carraro (carraro2005 (2005)) and Odenkirchen & Soubiran (odenkirchen (2002)).

Composite open cluster CMDs have been a tool employed since Sandage (sandage (1958)) and were useful for modeling stellar evolution. In the present study we applied this principle to OCRs and POCRs. By means of reddening and distance corrections, we obtained absolute CMDs, which were in turn combined to build composite CMDs for Groups A and B, improving the stellar statistics in the diagrams (Fig. 13). Considering the ($v_{p}-v_{M}$) distributions for Groups A and B, stars with velocities higher than 25 km/s are more probably related to unresolved binary stars, based on analysis of the populous open cluster M 67 (Bica & Bonatto bica2005 (2005)). We plotted those stars in the composite CMD and they tend to be located to the right of the MS of single stars, as expected (Fig. 13).

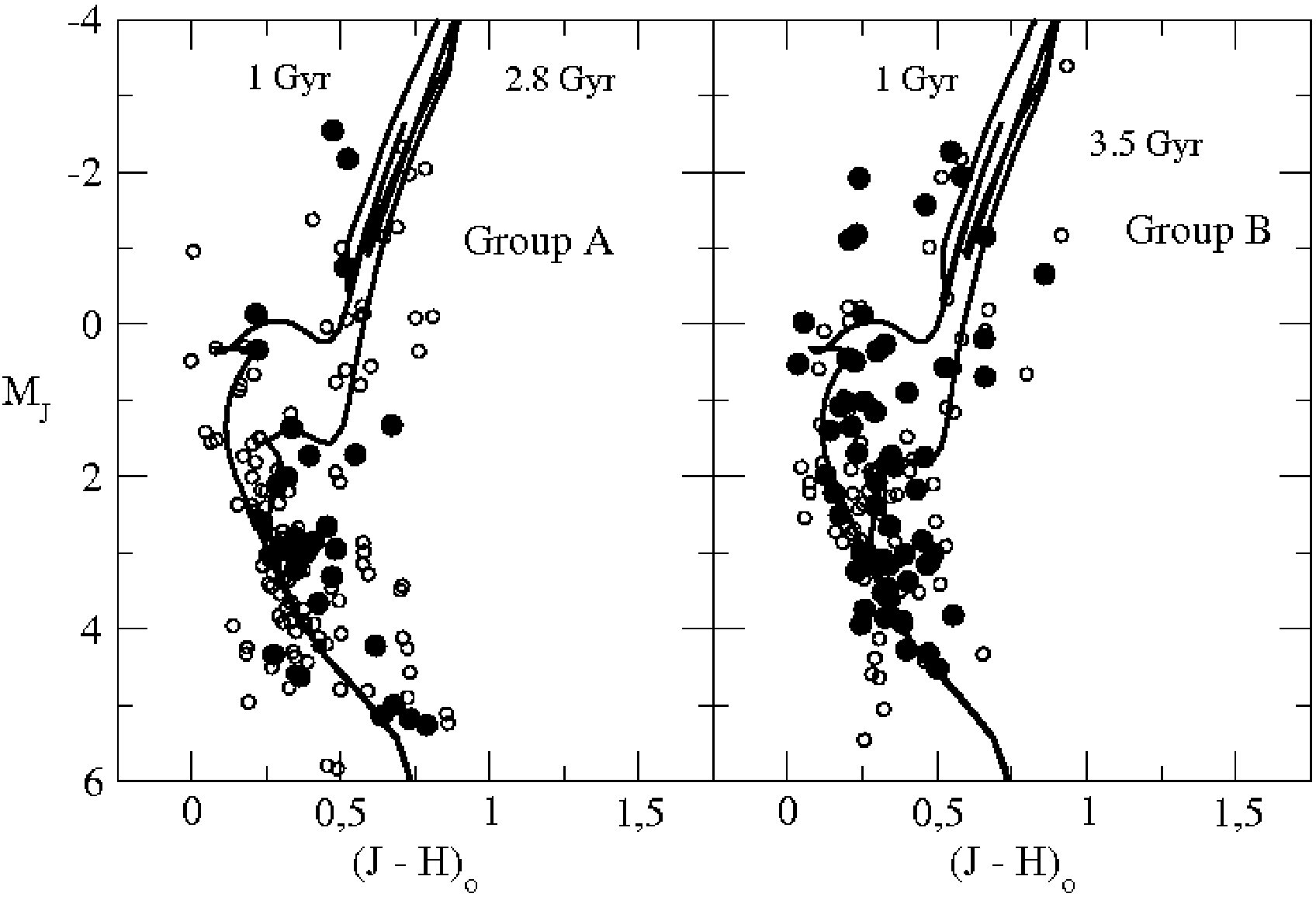

Group A (Fig. 13) shows the low-velocity stars distributed along the MS for different ages, while the higher-velocity stars are biased towards the right side of the isochrones. This is the locus encompassed by the color and magnitude limits expected for binary stars. In the composite CMD of Group B (right panel) a similar behavior is seen, and stars around the 3.5 Gyr isochrone suggest that higher-velocity stars tend to replace the single-star MS. This loss of single-stars to the field would tend to cause a higher fraction of binaries in such OCRs, in agreement with the results of N-body simulations (de La Fuente Marcos fuente1997 (1997), fuente1998 (1998)).

The composite diagrams of Groups A and B suggest possible evolutionary stages among the studied remnants, where Group B would be more dynamically evolved than Group A, and in general loose objects would be less evolved than compact ones.

6 Discussion

The present set of methods for the study of POCRs provided a view of their properties and criteria for their characterization. Of the 18 sample objects, ages, reddening values, and distances could be determined for 16 of them having $I_{f}>50\%$ (Table 3). In Table 5 we present a final POCR classification according to different criteria: (i) radial stellar density profile considering Poisson errors, (ii) probability of less than $15\%$ for the POCR CMD to be representative of the offset field CMD, (iii) homogeneous distribution of stars in the CMD and fitting index $I_{f}\geq 55\%$. Columns give the partial classifications in each method, where “y” stands for the attained minimum value, while “n” stands for those not attained. The final results are indicated in the last column, where “OCR” is an object we concluded is an open cluster remnant, FF a field fluctuation, and POCR is maintained as a possible open cluster remnant.

Structural and CMD analyses together are powerful tools for inferring the nature of POCRs. As an example, although NGC 6994 has a reasonable density profile, it has heterogeneous distribution of stars in the CMD (Fig. 6), strongly suggesting a non-physical object.

The statistical method comparing object and field CMDs has provided complementary results. It tests whether an object has a CMD compatible with that of the field. We conclude that 72 % of the studied objects have a probability $p<2\%$ of being representative of the field (Table 2).

Proper motions are indicators of the internal kinematics of the studied objects. Since we are dealing with intrinsically underpopulated stellar systems, it is important to build composite CMDs and proper-motion diagrams. The OCR composite CMDs show similarities with those of individual open clusters. The OCR composite proper-motion diagrams suggest their classification into two distinct patterns: Group A with one and Group B with two pronounced velocity peaks. The distinction between binary and single stars and their mapping in the CMD suggest evolutionary stages.

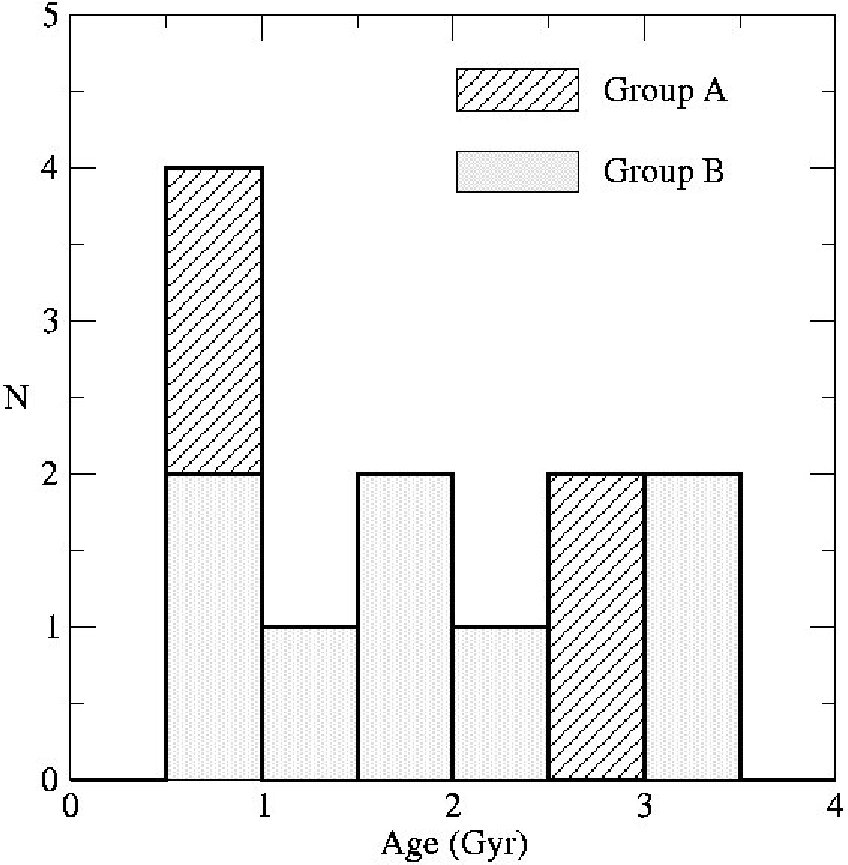

Figure 14 shows the age distribution of OCRs and POCRs with $I_{f}>50\%$ separated in Groups A and B. The peak of the distribution is in the range 0.5-1.0 Gyr, but older objects also exist. Figure 15 shows the objects in Groups A and B in terms of age as a function of Galactocentric distance $R_{gc}$ (left panel) and height from the plane $|z|$ as a function of $R_{gc}$ (right panel). For comparison we included 230 open clusters from Chen et al. (chen (2003)). The Sun is assumed to be at 8 kpc (Reid reid (1993)). Despite the small sample and the error bars, if we consider that the Group B objects tend to be located inside the Solar circle, this configuration could suggest that tidal effects related to $R_{\rm{gc}}$ affect the evolution of remnants (Table 3). Considering a shorter distance ($R_{gc}=$ 7.2 kpc) of the Sun to the Galactic center (Bica et al. bica06 (2006)), tidal effects would be stronger.

7 Concluding remarks

We studied 18 POCRs by means of 2MASS J and H photometry and UCAC2 proper motions. We analyzed structural properties and distributions of stars in CMDs of POCRs and offset fields using a statistical method. Ages were derived, together with reddening values and distances to the Sun, using the CMDs and Padova isochrones. We defined an index of isochrone fit. All these methods are useful criteria for remnant characterization. The analysis indicates the presence of 13 open cluster remnants in the sample (Table 5).

Open clusters are known to contain a significant fraction of multiple systems as a consequence of their dynamical evolution. The fraction of multiple systems increases and tends to concentrate in the central regions, thus changing the initial spatial distribution of stars (Takahashi & Portegies Zwart takahashi (2000)). Numerical simulations show that open cluster remnants are expected to be rich in binary stars. As an example, de La Fuente Marcos (fuente1997 (1997)) stopped simulations when the cluster population was 10 stars and the number of the remaining binaries was 3 or 4. Recent studies comparing observational and theoretical results indicate that cluster remnants can form highly hierarchical high-order multiple systems; and considering that the number of such objects can be larger, cluster remnants may be sufficient to account for all observed higher-order multiple systems (Goodwin & Kroupa kroupa (2005)).

The present overall results indicate evolutionary differences among sample objects. POCRs show two distinct structures, compact and loose, and we verify a correspondence between the radial stellar density profiles and these structures. Sample objects are basically consistent with OCRs that gradually lose stars as compared to open clusters. The composite proper motion diagrams shows evidence of binary stars, as expected from high binary fractions in dynamically evolved systems. The presence of a sequence of binaries in the composite CMD, replacing the MS of single-stars in Group B, suggests the existence of distinct stages along the dynamical evolution of open cluster remnants. In addition, most of the compact objects are included in Group B and tend to be more internally located in the disc. If two distinct structures might be associated to different evolutionary phases, then transitional objects should be detected. ESO 570 SC12 is visually loose (Fig. 1) but was compact in the radial density profile (Fig. 3). However, a large sample would be necessary to constrain such possible links. For the moment we cannot exclude the possibility that Groups A and B might be descendants of different types of open clusters.

For the first time a study presents a considerable number of POCRs analyzed by means of the same methods for the characterization of their common properties. We verify that is necessary to combine different methods in order to constrain the object nature owing to data incompleteness, observational uncertainties, and intrinsically low statistics. The existence of compact and loose POCRs suggests relatively stable remnant structures that dynamically survive beyond open clusters.

We confirm NGC 1252, NGC 1901, Ruprecht 3, and NGC 1663 as open cluster remnants, and NGC 6994 as a field fluctuation, in agreement with previous studies (Pavani et al. pavani2001b (2001); Pavani et al. pavani2003 (2003); Baume et al. baume (2003); Carraro carraro2000 (2000); Odenkirchen & Soubiran odenkirchen (2002)). Evidence is found that NGC 6481, NGC 6863, ESO 425 SC6, ESO 425 SC15, ESO 426 SC26, ESO 570 SC12, Ruprecht 31, ESO 383 SC10, and Lyngå 8 are also open cluster remnants, while Waterloo 6 is a field fluctuation. ESO 429 SC2, Object 1, and ESO 132 SC14 are maintained as POCRs for more detailed future studies.

The present work offers observational evidence of the existence in nature of open cluster remnants, as expected from theoretical and numerical studies. As prospective work to answer fundamental questions, we mention (i) would the distinction between compact and loose structures be related to that of the progenitor open cluster and/or the evolutionary processes and (ii), if evolutionary stages in remnants are confirmed, what detailed processes would cause them?
