Nodeless d-wave superconducting pairing due to residual antiferromagnetism in underdoped Pr$_{2-x}$Ce$_x$CuO$_{4-\delta}$

TL;DR

This study reveals that in underdoped Pr$_{2-x}$Ce$_x$CuO$_{4-eta}$, residual antiferromagnetism causes nodeless d-wave superconductivity, with a transition to nodal behavior as doping increases and the Fermi surface evolves.

Contribution

It introduces a model showing how residual antiferromagnetism leads to nodeless d-wave pairing in underdoped electron-doped cuprates, aligning with experimental observations.

Findings

Underdoped samples exhibit nodeless low-temperature penetration depth.

Increasing doping causes a transition to nodal d-wave behavior.

The model explains the doping-dependent evolution of the Fermi surface.

Abstract

We have investigated the doping dependence of the penetration depth vs. temperature in electron doped Pr$_{2-x}$Ce$_x$CuO$_{4-\delta}$ using a model which assumes the uniform coexistence of (mean-field) antiferromagnetism and superconductivity. Despite the presence of a $d_{x^2-y^2}$ pairing gap in the underlying spectrum, we find nodeless behavior of the low-$T$ penetration depth in underdoped case, in accord with experimental results. As doping increases, a linear-in-$T$ behavior of the penetration depth, characteristic of d-wave pairing, emerges as the lower magnetic band crosses the Fermi level and creates a nodal Fermi surface pocket.

Figures

Equations

$$H=H_{pair}+H_{int},$$

$$H_{int}=-\left(\frac{e}{c}\right)\vec{A}\cdot\Bigl{[}\sum_{\vec{k},\sigma}\vec{v}_{\vec{k}}c^{{\dagger}}_{\vec{k},\sigma}c_{\vec{k},\sigma}\Bigr{]}$$

$${\lambda }_{ij}^{-2}(T)$$

$$(E_{\vec{k}}^{\nu})^{2}=\Big{(}\xi_{\vec{k}}^{+}+\nu E_{0\vec{k}}\Big{)}^{2}+\Delta_{\vec{k}}^{2},$$

Full text

An understanding of the symmetry of the order parameter and its evolution with hole and electron doping is a key to unraveling the mechanism of high-$T_{c}$ superconductivity in the cuprates. Many experimental and theoretical studies of these fascinating materials demonstrate the presence of antiferromagnetic (AFM) order in underdoping for both hole-hosseini and electron dopingplcco ; kusko ; tanmoy . With hole-doping, the route followed by the AFM phase as it develops into the superconducting (SC) phase involves the intervention of nanoscale phase separations related to stripe or pseudogap physicshosseini . The behavior with electron doping, on the other hand, seems to be simpler in that the doped phase appears to be a uniform AFM metal, possibly evolving into a phase with coexisting AFM and SC ordersplcco ; kusko ; tanmoy .

For the hole doped cuprates it is generally believed that $d$-wave pairing survives up to the edge of antiferromagnetismhosseini ; dagan ; tsuei , but the doping dependence of the pairing symmetry with electron doping remains a matter of debate. This symmetry has been studied by low-$T$ penetration depth (PD) measurementswu ; andreone ; schneider ; alff ; skinta ; snezhko , point contact spectroscopybiswas ; qazilbash , tunnelingchesca , and other phase sensitive probesariando , in a variety of electron-doped cuprates, including Nd2-xCexCuO4-δ (NCCO)wu ; andreone ; schneider ; alff ; ariando , La2-xCexCuO4-δ (LCCO)skinta ; chesca Pr2-xCexCuO4-δ (PCCO)skinta ; biswas ; qazilbash ; snezhko . The results have been contradictory, with some early measurementswu ; andreone ; schneider ; alff finding evidence for $s$-wave pairing, while other experiments suggest a transition from $d$-wave in underdoping to either $s$-waveskinta ; biswas or $(d+is)$-wave characterqazilbash in the optimally and overdoped cases. Yet other experimentssnezhko ; ariando report only $d$-wave pairing, with the situation further complicated by the presence of nonmonotonic SC-gap variations observed in NCCOraman and Pr1-xLaCexCuO4-δ (PLCCO)plcco .

A recent study approximated the AFM background by treating the resulting partially-gapped Fermi surface (FS) in a two band modelQHWang . To understand the interplay between AFM and SC orders and the role of AFM order in modifying the pairingvoo ; yuan , in this article we directly evaluate the PD in a model with coexisting AFM and SC order. We assume a SC gap of $d$-wave pairing with a combination of first and third harmonics, which is necessary to incorporate nonmonotonic gap variationsraman ; plcco . We find that even in the presence of a $d$-wave pairing gap, the PD varies exponentially at low $T$ for most dopings $-$ a behavior characteristic of a nodeless SC-gap, as antiferromagnetism suppresses the spectral weight from the nodal point. In the overdoped case ($x=0.152$), the PD shows a linear-in-$T$ behavior as the hole pocket forms in the nodal region. Our analysis indicates that with increasing electron doping the position of the maximum leading edge gap on the FS moves away from the antinodal direction and that the nonmonotonic nature of the gap becomes stronger.

Our treatment of the in-plane PD is based on the Hamiltonian

[TABLE]

where $H_{pair}$ describes the physics of coexisting AFM and SC orders. We take $H_{pair}$ to be a one-band, tight-binding Hubbard Hamiltonian along the lines of Ref. tanmoy, in which the SC gap is of $d$-wave pairing with a combination of first and third harmonics. The tight binding parameters are assumed to be same as for NCCOkusko . The external perturbation is given by the electromagnetic interaction,

[TABLE]

where $c^{{\dagger}}_{\vec{k},\sigma}$ ($c_{\vec{k},\sigma}$) is the electronic creation (destruction) operator with momentum $\vec{k}$, charge $e$ and spin $\sigma$, and $c$ is speed of light. $\vec{A}$ is the Fourier component of the vector potential in momentum space. $\vec{v}_{\vec{k}}=\partial\xi_{\vec{k}}/(\hbar\partial\vec{k})$ is the band velocity for the noninteracting band $\xi_{\vec{k}}$kusko .

The PD is obtained by evaluating the induced current parallel to the vector potential, which is proportional to the inverse square of the in-plane PDtinkham . We have generalized the pure BCS result to the mixed AFM-SC case and findqiang

[TABLE]

Here, $a$ is the in-plane and $d$ the out-of-plane lattice constant of PCCO and $\beta=1/k_{B}T$. The prime on the ${\vec{k}}$ summation means that the sum is restricted to wave vectors in the magnetic zone. The magnetic field is assumed to lie perpendicular to the CuO2 plane. For a tetragonal lattice $\lambda_{ij}$ is diagonal, with $\lambda_{aa}=\lambda_{bb}=\lambda$ within the CuO2 plane. Interestingly, Eq. 3 displays a form similar to that for a pure $d$-wave SCsusumu ; sheehy , excepting two modifications. Firstly, the FS has components $\nu=\pm$ associated with the upper magnetic band (UMB) and the lower magnetic band (LMB), respectively:

[TABLE]

where $E_{0\vec{k}}=\sqrt{(\xi_{\vec{k}}^{-})^{2}+(U_{Q}S)^{2}}$ and $\xi_{\vec{k}}^{\pm}=(\xi_{\vec{k}}\pm\xi_{\vec{k}+\vec{Q}})/2$. $\Delta_{\vec{k}}$ is the SC gap and $U_{Q}S$ the AFM gap in terms of the AFM repulsion $U_{Q}$ and the commensurate magnetisation $S$ at the nesting vector $Q=(\pi,\pi)$. Secondly, the band masses $m^{\nu}_{\vec{k}ij}$ and quasiparticle velocities $\vec{v}^{\nu}_{\vec{k}}$ have magnetic correlation corrections: $1/m^{\nu}_{\vec{k}ij}=\partial^{2}(\xi_{\vec{k}}^{+}+\nu E_{0\vec{k}})/(\hbar^{2}\partial k_{i}\partial k_{j})$, $\vec{v}^{\nu}_{\vec{k}}=\partial(\xi_{\vec{k}}^{+}+\nu E_{0\vec{k}})/(\hbar\partial\vec{k})$.

We obtain the AFM and SC gaps self-consistently as a function of $T$ for a series of doping levels over the range $x=0.115-0.152$, using doping dependent interaction parameterstanmoy , before proceeding with the PD calculation from Eq. 3. The effective AFM interaction given by $U_{Q}$ is taken from our earlier work on NCCOkusko and decreases from a value of 3.33$t$ at $x$=0.115 to 3.1$t$ at $x$=0.152; the resulting self-consistent magnetization $S$ decreases linearly from 0.2 to 0.13 over this doping range, in agreement with earlier resultskusko , despite the presence of the SC order.

The two terms on the right hand side of Eq. 3 correspond to the conventional diamagnetic (first term) and paramagneticcooper (second term) currents of electrons. In a London picture, $\lambda^{-2}(T)$ is proportional to the SC electron density $n_{s}$, and hence vanishes as $T\rightarrow T_{c}$, while at $T=0$ all the electrons are superconducting. Here we find a similar result, but only the electrons in the AFM pockets condense. Similarly, as $T\rightarrow 0$, the linear-in-$T$ PD found in overdoped samples reveals the presence of gap nodes, where normal quasiparticles persist to zero energy.

Figure 1 compares the theoretical and experimental values of the inverse square of the PD in PCCOpcco over the doping range $x=0.115-0.152$. The results are normalized to the computed $T=0$ value for the $c$-axis lattice constant $d=12.2$ Åmarkert in order to highlight $T$-dependencies. The overall agreement is quite good, allowing us to adduce the doping dependence of the AFM and SC properties as discussed below. A discrepancy is found at the lowest and highest dopings, where the PD shows a tail extending beyond $T_{c}$, possibly associated with sample inhomogeneitiestwoband .

Turning to the inset in Fig. 1, note first that the theoretical values (red line) of $\lambda^{-2}(0)\propto n_{s}(0)$, do not involve any further fitting parameters beyond those used in fitting the $T$-dependence of $\lambda$. Around optimal doping, theory and experiment are seen to be in accord indicating that the theory correctly predicts the value of $n_{s}$(0), although striking deviations are seen away from optimal doping. Insight into this behavior is obtained by observing that as $T\rightarrow$ 0, all the electrons on the FS condense so that $n_{s}$(0) is proportional to the area of the FS pockets. For this reason, the computed $n_{s}$(0) decreases linearly with underdoping and undergoes a change in slope (marked by the green arrow) as the ($\pi$/2,$\pi$/2) pocket crosses the Fermi level in overdoping. In sharp contrast, the experimental points (blue dots) present a peak around optimal doping and a loss of carriers away from optimal doping, indicative of ’bad metal’ physics where the SC transition is dominated by thermal phase fluctuationscarlson ; foot3 . These results suggest that on the underdoped side AFM fluctuations are more deleterious than expected from the mean field BCS model underlying our computations. The reappearance of bad metal behavior on overdoping is puzzling and its origin is unclear$-$it may be related to increasing doping-induced disorder.

We discuss the doping and $T$-dependencies of the preceding theoretical PD results with reference to Figures  2-4. In Fig. 2(a), we emphasize that the contribution of the UMB is nodeless since the PD is dominated by energies near the Fermi level and the UMB pocket is far from the nodal region. An exponential form, $1-C\exp{(-\beta D)}$, is seen to produce an excellent fit in the low-$T$ region in Fig. 2(a). The values of the SC-gap $D$ in Fig. 3(a) so obtained for the UMB (blue dots) are quite close to the SC-gap (red open squares) at the electron pocket tip, marked by yellow diamonds on the FS plots of Figs. 4(b)-(d). The value of $C$ is $\approx$4.4, essentially independent of doping. Only at the highest doping $x=0.152$ do we find a significant linear-in-$T$ ($d$-wave) contribution to the PD as shown in Fig. 2(b), which coincides with the appearance of the hole pocket near ($\pi$/2,$\pi$/2) at high dopings as the LMB crosses the Fermi level (see Fig. 4(d)). A linear equation of the form, $1-aT$, fits the LMB contribution very well up to $T$ = 1.5K as shown by blue line in Fig. 2(b)foot2 . We do not find a second regime of linear-in-$T$ PD in the strongly underdoped regimevoo .

Figure 3 examines the doping dependence of the SC gap parameters. The dome-like shape as a function of doping of the gap $D$ in Fig. 3(a) is reflected in the behaviors of the first and third harmonics of the pairing gap in Fig. 3(b) as well. Fig. 3(c) delineates the doping dependence of the first and third harmonics of the pairing interaction, which display a maximum near $x\approx$ 0.13 where $T_{c}$ is optimal. The doping dependence of the SC gap parameters $\Delta_{1}$ and $\Delta_{3}$ is compared with various experimental results in Figs. 3(b) and (d). Some disagreement with Raman experiments on NCCO (green filled squares) and PCCO (green open squares)dqazilbash is due to sample variations, reflected in $T_{c}$ variations, while the ratio $2\Delta_{1}/k_{B}T_{c}$ is essentially constant and agrees well with experiment. If we scale the experimental gap to fit the calculated maximum at optimal doping, we can reproduce the dome-like behavior of the SC gap as shown by the green dashed line in Fig 3(b) for NCCO. The tunnelling data (magenta diamonds)biswas ; qazilbash do not show a maximum, because tunnelling is sensitive to the total gap obtained by combining AFM and SC gaps, and this combined gap in our computations does not have a maximum near optimal doping. Similarly, the larger gap seen by Ramandqazilbash in under- and optimally doped samples can be understood since the $B_{2g}$ channel measures the total spectral gap near the ($\pi,0$) pointliuraman , and hence is strongly coupled to the AFM order.

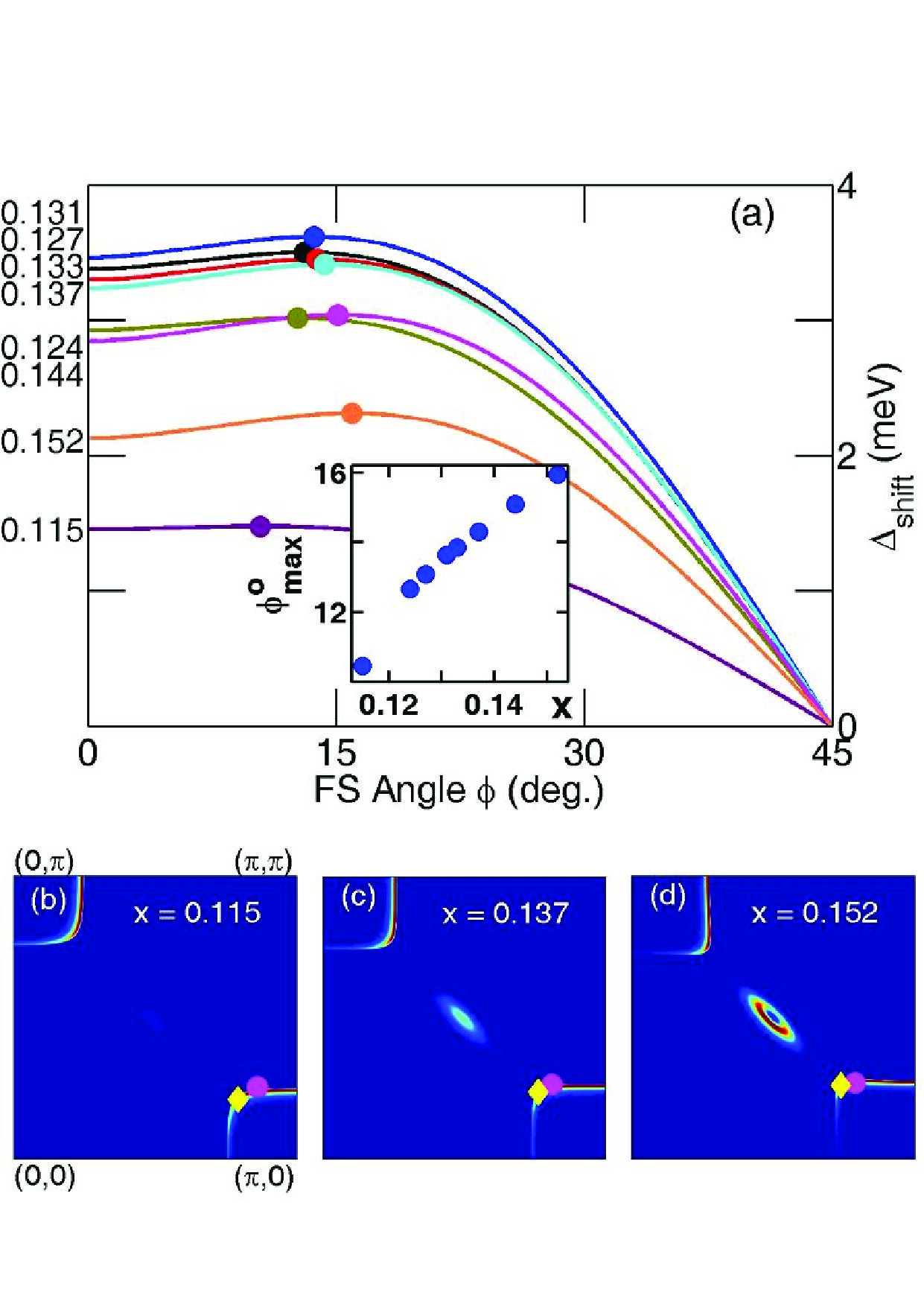

Fig. 3(d) shows that the ratio $2\Delta_{1}/k_{B}T_{c}$ possesses a nearly constant value of 4.1, close to the BCS value for a $d$-wave gap. In contrast, for fixed ratio of $V_{1}/V_{3}$foot1 , the third harmonic ratio $-2\Delta_{3}/k_{B}T_{c}$ increases linearly with doping. This is the reason that the position of the maximum of the leading edge gap (LEG) $\Delta_{\rm shift}$ on the FS, given by the FS angle $\phi_{\rm max}$ in Fig. 4(a), moves away from the antinodal point with doping; interestingly, the hot spots also move away with doping from the antinodal direction, but their shift is much smaller. We find that the ratio of the maximum value of $\Delta_{\rm shift}$ to its value along the antinodal direction increases with doping, indicating that the non-monotonic nature of $d$-wave pairing symmetry becomes more pronounced as one goes from under- to overdoping in the electron doped cuprates.

The evolution of the $(\pi/2,\pi/2)$-centered nodal hole-pocket is seen in Figs. 4(b)-(d). The absence of nodal pockets in the underdoped regime (see (b)) is responsible for the nodeless behavior of the SC gap. At optimal doping $x$=0.137, the hole pocket is still $\sim 25$ meV below $E_{F}$, but can be seen in (c) due to the finite energy resolution. The nodal pocket is fully formed in the overdoped case of (d) which is related to the striking $d$-wave behavior of PD in Fig. 2(b) as well as the kink in $n_{s}$(0) in Fig. 1 inset.

In conclusion, we have shown that the linear-in-$T$ variation of $\lambda^{-2}$ in electron doped cuprates is related to the appearance of the $(\pi/2,\pi/2)$-nodal hole pocket on the FS, which occurs in the overdoped regime. In underdoping, where the FS only consists of the $(\pi,0)$-centered electron pockets, $\lambda^{-2}$ varies in a nodeless manner, even though the pairing interaction is of $d$-wave symmetry, because the electron pocket lies far from the nodal region. Our analysis indicates that the SC electron density ($n_{s}(0)$) is suppressed in a non-BCS fashion as one goes away from optimal doping to either under- or overdoping. Interestingly, we find that the SC interaction ($V_{1}$ and $V_{3}$) also peaks at optimal doping.
