Jet-disturbed molecular gas near the Seyfert 2 nucleus in M51

TL;DR

High-resolution CO observations of M51 reveal complex molecular gas structures near the nucleus, challenging the simple rotating disk model and suggesting jet interactions or multiple gas components.

Contribution

This study provides the first sub-arcsecond imaging of molecular gas in M51's nucleus, uncovering complex kinematics inconsistent with a single rotating disk.

Findings

No clear circumnuclear disk detected at high resolution.

Identification of jet-entrained gas aligned with the radio jet.

Detection of a velocity gradient opposite to previous disk models.

Abstract

Previous molecular gas observations at arcsecond-scale resolution of the Seyfert 2 galaxy M51 suggest the presence of a dense circumnuclear rotating disk, which may be the reservoir for fueling the active nucleus and obscures it from direct view in the optical. However, our recent interferometric CO(3-2) observations show a hint of a velocity gradient perpendicular to the rotating disk, which suggests a more complex structure than previously thought. To image the putative circumnuclear molecular gas disk at sub-arcsecond resolution to better understand both the spatial distribution and kinematics of the molecular gas. We carried out CO(2-1) and CO(1-0) line observations of the nuclear region of M51 with the new A configuration of the IRAM Plateau de Bure Interferometer, yielding a spatial resolution lower than 15 pc. The high resolution images show no clear evidence of a disk, aligned nearly east-west and perpendicular to the radio jet axis, as suggested by previous observations, but show two separate features located on the eastern and western sides of the nucleus. The western feature shows an elongated structure along the jet and a good velocity correspondence with optical emission lines associated with the jet, suggesting that this feature is a jet-entrained gas. The eastern feature is elongated nearly east-west ending around the nucleus. A velocity gradient appears in the same direction with increasingly blueshifted velocities near the nucleus. This velocity gradient is in the opposite sense of that previously inferred for the putative circumnuclear disk. Possible explanations for the observed molecular gas distribution and kinematics are that a rotating gas disk disturbed by the jet, gas streaming toward the nucleus, or a ring with another smaller counter- or Keplarian-rotating gas disk inside.

Figures

Full text

*Aims. *To image the putative circumnuclear molecular gas disk at sub-arcsecond resolution to better understand both the spatial distribution and kinematics of the molecular gas.

*Methods. *We carried out CO(2-1) and CO(1-0) line observations of the nuclear region of M51 with the new A configuration of the IRAM Plateau de Bure Interferometer, yielding a spatial resolution lower than 15 pc.

*Results. *The high resolution images show no clear evidence of a disk, aligned nearly east-west and perpendicular to the radio jet axis, as suggested by previous observations, but show two separate features located on the eastern and western sides of the nucleus. The western feature shows an elongated structure along the jet and a good velocity correspondence with optical emission lines associated with the jet, suggesting that this feature is a jet-entrained gas. The eastern feature is elongated nearly east-west ending around the nucleus. A velocity gradient appears in the same direction with increasingly blueshifted velocities near the nucleus. This velocity gradient is in the opposite sense of that previously inferred for the putative circumnuclear disk. Possible explanations for the observed molecular gas distribution and kinematics are that a rotating gas disk disturbed by the jet, gas streaming toward the nucleus, or a ring with another smaller counter- or Keplarian-rotating gas disk inside.

††offprints: S. Matsushita,

1 Introduction

Active Galactic Nuclei (AGNs) are believed to be powered by gas accretion. This gas is supplied from interstellar matter in host galaxies, and the gas may form rotationally-supported structures around the central supermassive black hole. If they are viewed close to edge-on, they may obscure the central activity from direct view. AGNs can be categorized as type 1 if seen face-on, and type 2 if seen edge-on; this explanation is known as a unified model (e.g. Antonucci & Miller 1985). Indeed, a few hundred pc resolution molecular gas imaging toward the central regions of the Seyfert 2 galaxies NGC 1068 (Planesas et al. 1991; Jackson et al. 1993) and M51 (Kohno et al. 1996) show strong peaks at the nuclei with velocity gradients perpendicular to radio jets, which suggest the existence of edge-on circumnuclear rotating disks. Recent $\sim 50$ pc resolution imaging studies toward NGC 1068 and the Seyfert 1 galaxy NGC 3227 support this view, showing more detailed structures, namely warped disks (Schinnerer et al. 2000a, b). However, observations toward a few low activity AGN galaxies with $<100$ pc resolution show lopsided, weak, or no molecular gas emission toward the nuclei (e.g. García-Burillo et al. 2003, 2005).

M51 (NGC 5194) has also been observed in detail with molecular lines in the past, since it is one of the nearest (7.1 Mpc; Takáts & Vinkó 2006) Seyfert galaxies. A pair of radio jets emanates from the nucleus and narrow line regions (NLRs) are associated with the jet (e.g., Crane & van der Hulst 1992; Grillmair et al. 1997; Bradley et al. 2004). Interferometric images in molecular gas show blueshifted emission on the eastern side of the Seyfert 2 nucleus, and redshifted gas on the western side (Kohno et al. 1996; Scoville et al. 1998). This shift is almost perpendicular to the jet axis, and the estimated column density is consistent with that estimated from X-ray absorption toward the nucleus, suggesting that the molecular gas can be a rotating disk and play an important role in obscuring the AGN. Interferometric CO(3-2) observations suggest a velocity gradient along the jet in addition to that perpendicular to the jet (Matsushita et al. 2004). These results imply more complicated features than a simple disk structure. We therefore performed sub-arcsecond resolution CO(2-1) and CO(1-0) imaging observations of the center of M51 to study the distribution and kinematics of the molecular gas around the AGN in more detail.

2 Observation and data reduction

We observed CO(2-1) and CO(1-0) simultaneously toward the nuclear region of M51 using the IRAM Plateau de Bure Interferometer. The array was in the new A configuration, whose maximum baseline length extends to 760 m. Observations were carried out on February 4th, 2006. The system temperatures in DSB at 1 mm were in the range 200-700 K, except for Antenna 6, for which a new generation receiver gave system temperatures of 150-230 K. Those in SSB at 3 mm were in the range 140-250 K for Antenna 6, and 220-550 K for other antennas. Four of the correlators were configured to cover a 209 MHz (272 km s*-1*) bandwidth for the CO(2-1) line, and a 139 MHz (362 km s*-1*) bandwidth for the CO(1-0) line. The remaining four units of the correlator were configured to cover a 550 MHz bandwidth for continuum observations and calibration. The strong quasar 0923+392 was used for the bandpass calibration, and the quasars 1150+497 and 1418+546 were used for the phase and amplitude calibrations.

The data were calibrated using GILDAS, and were imaged using AIPS. The data were CLEANed with natural weighting, and the synthesized beam sizes are $0\aas@@fstack{\prime\prime}40\times 0\aas@@fstack{\prime\prime}31$ (14 pc $\times$ 11 pc) with a position angle (P.A.) of $0\degr$ and $0\aas@@fstack{\prime\prime}85\times 0\aas@@fstack{\prime\prime}55$ (29 pc $\times$ 19 pc) with a P.A. of $13\degr$ for CO(2-1) and CO(1-0) images, respectively. Fig. 1 shows the channel maps of CO(2-1) emission with a 20.3 km s*-1* velocity resolution. The channel maps of CO(1-0) emission show similar features to that of CO(2-1) emission with lower spatial resolution. Fig. 2 shows integrated intensity and intensity weighted mean velocity maps of the CO(2-1) and CO(1-0) lines. The noise levels for continuum maps are 1.2 mJy beam*-1* at 1.3 mm and 0.54 mJy beam*-1* at 2.6 mm, respectively. We did not detect any significant continuum emission at either frequency.

3 Results

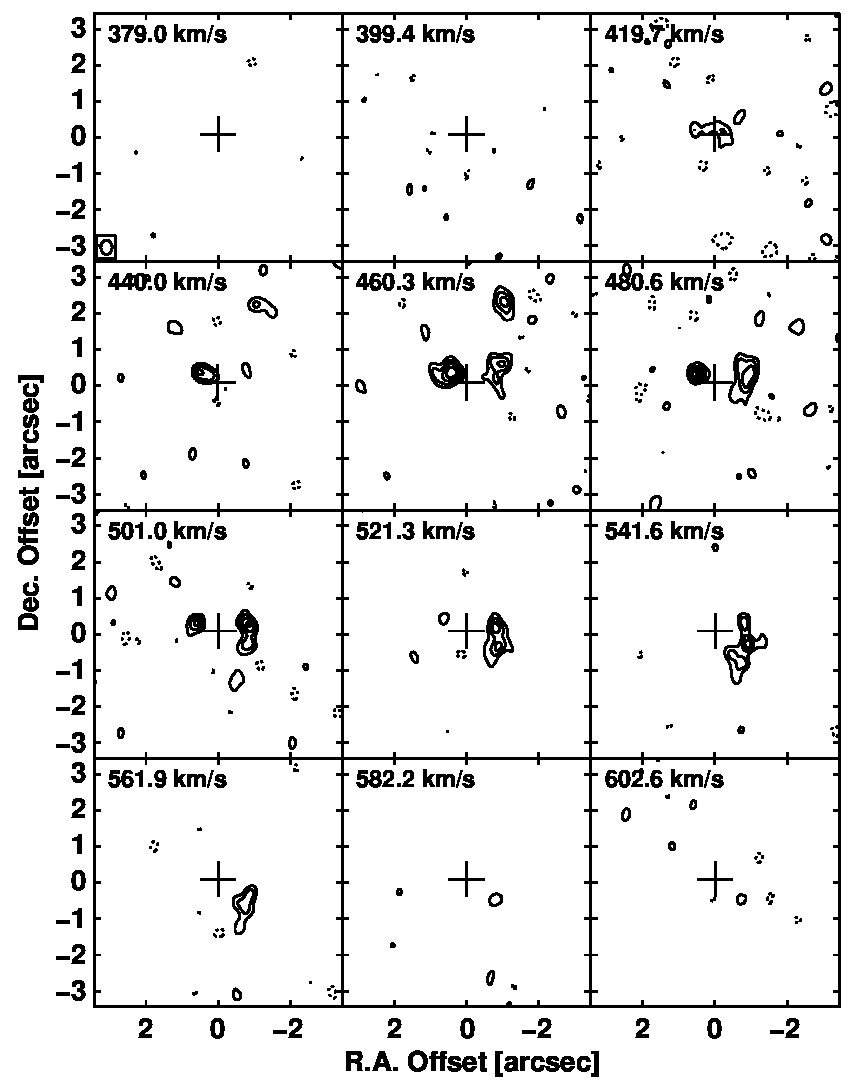

Most of the CO(2-1) emission is detected within $\sim 1\arcsec$ (34 pc) of the center, and is located mainly on the eastern and western sides of the nucleus. There is also weak emission located $\sim 2\aas@@fstack{\prime\prime}7$ northwest of the nucleus. The overall distribution and kinematics are consistent with past observations (Kohno et al. 1996; Scoville et al. 1998), if we degrade our image to lower angular resolution; a blueshifted feature with the average velocity of $\sim 460$ km s*-1* at the eastern side of the nucleus, and a redshifted feature with an average velocity of $\sim 500$ km s*-1* at the western side (Figs. 1, 2; see also Fig. 3b). We refer to these main structures with the same labels as in Scoville et al. (1998) (Fig. 2a).

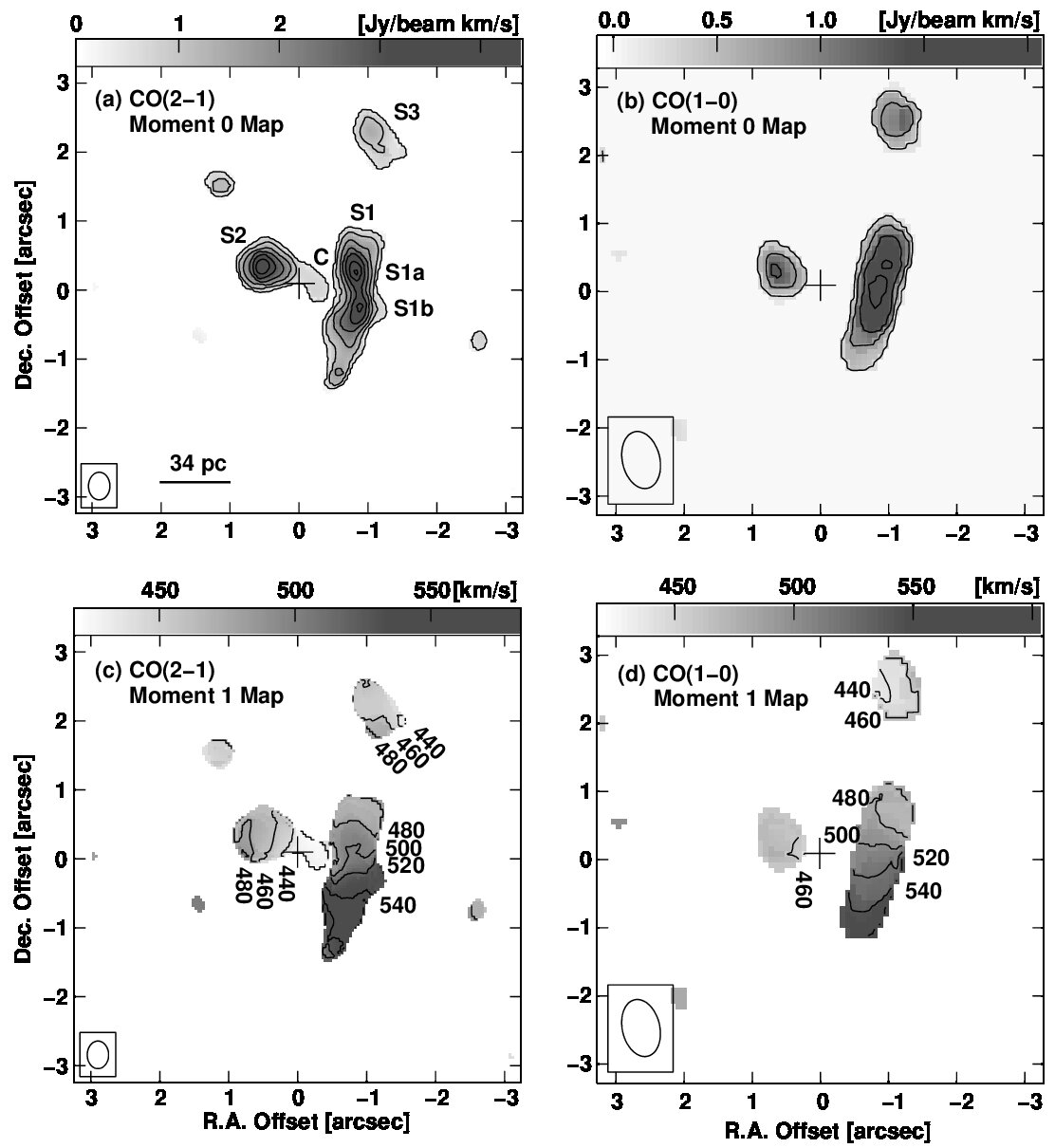

Our higher resolution images, however, show more complicated structures and kinematics than the previous low angular resolution observations. Molecular gas on the western side of the nucleus, S1, is elongated in the north-south direction and separated into two main peaks (S1a and b). S1a is located $0\aas@@fstack{\prime\prime}9$ (30 pc) northwest of the nucleus, and S1b is $1\aas@@fstack{\prime\prime}0$ (34 pc) to the southwest. On the eastern side of the nucleus, the molecular gas has an intensity peak $0\aas@@fstack{\prime\prime}6$ (20 pc) to the northeast (labeled S2), which is located closer to the nucleus in projected distance than that of S1a/b.

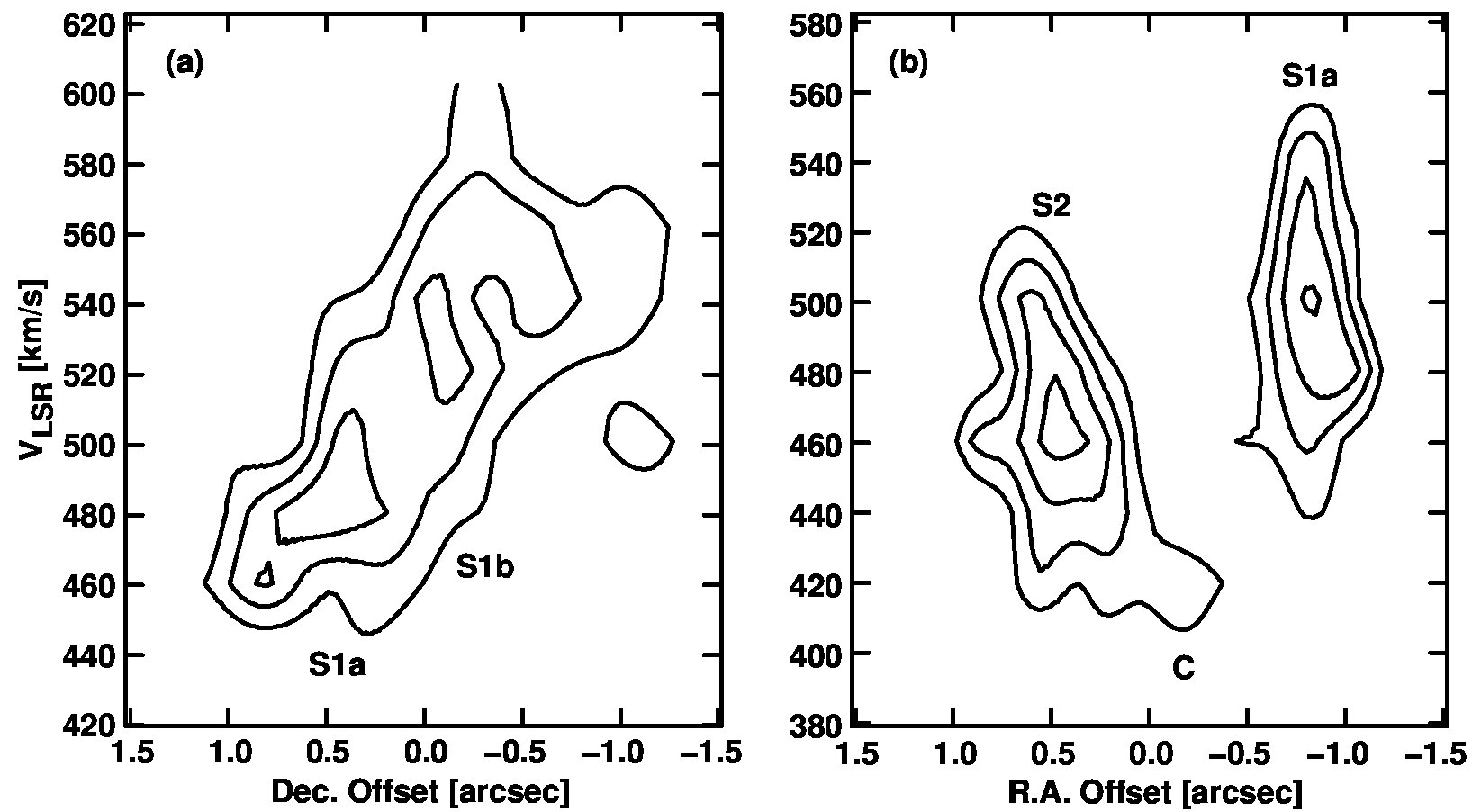

The feature S1 shows a clear velocity gradient along the north-south direction, which is shown in Fig. 2(c) and also in the position-velocity (PV) diagram (Fig. 3a). This gradient was previously suggested by the CO(3-2) data (Matsushita et al. 2004), but the magnitude of the velocity gradient is different. The computation of the magnitude of the velocity gradient is similar to that used for the CO(3-2) data. The fitting result indicates a velocity gradient within S1 of $2.2\pm 0.3$ km s*-1* pc*-1*, which is larger than that reported previously, $0.77\pm 0.01$ km s*-1* pc*-1* (the value has been modified by the different distance of the galaxy used). This difference is partially due to the larger beam size of the previous result; the CO(3-2) data set has a beam size of $3\aas@@fstack{\prime\prime}9\times 1\aas@@fstack{\prime\prime}6$ with a P.A. of $146\degr$, and the velocities of S2/C and S3 contaminate that of S1.

The CO(1-0) maps show very similar molecular gas distribution and kinematics as those in CO(2-1) maps (Fig. 2b,d). Only the western emission was detected in previous observations (Aalto et al. 1999; Sakamoto et al. 1999), but our map clearly shows the emission from both side of the nucleus.

In addition to the previously known features, our CO(2-1) image also shows a weak emission near the nucleus with a structure elongated in the northeast-southwest direction (feature C in Fig. 2a). This structure could be a part of S2, since the velocity map (Fig. 2c) and the PV diagram (Fig. 3b) show a smooth velocity gradient, although most of the emission in C comes from only one velocity channel (419.7 km s*-1* map in Fig. 1). The velocity gradient between S2 and C is in an opposite sense to that previously seen with the lower angular resolution observations mentioned above. This structure is not detected in the CO(1-0) line, but a hint of a velocity gradient can be seen in Fig. 2d.

The total CO(2-1) integrated intensity of S1, S2, and C is 25.01 Jy km s*-1*, and that of S1 and S2 in Scoville et al. (1998) is 33.44 Jy km s*-1*, so that our data detected $75\%$ of their intensity. Scoville et al. (1998) detected $\sim 50\%$ and $20\%$ of the single dish CO(2-1) flux in redshifted and blueshifted emission, respectively, so that our data recovered $\sim 25\%$ of the single dish flux.

4 Discussion

4.1 Jet-entrained molecular gas

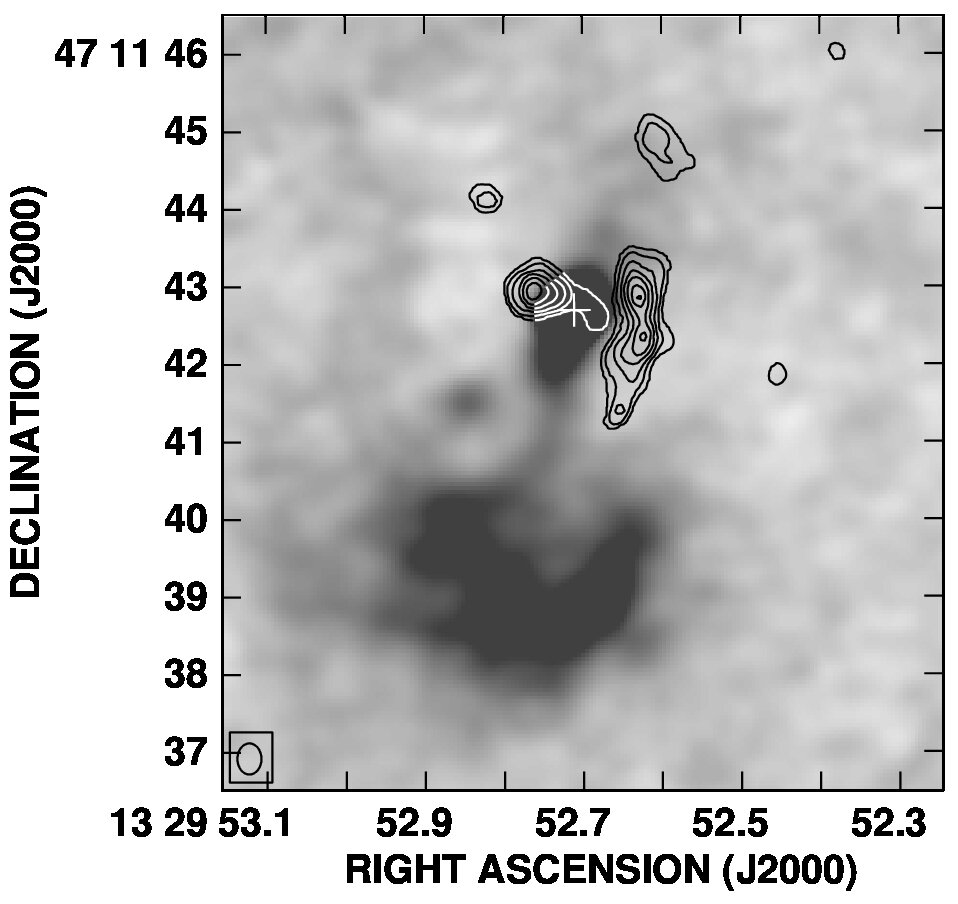

Our molecular gas data show a clear north-south velocity gradient within the feature S1. We suggested from our previous study that this velocity gradient may be due to molecular gas entrainment by the radio jet (Matsushita et al. 2004). Here we revisit this possibility with higher spatial and velocity resolution data. Fig. 4 shows our CO(2-1) image overlaid on the 6 cm radio continuum image (Crane & van der Hulst 1992). The radio continuum image shows a compact radio core coincident with the nucleus, and the southern jet emanating from there (note that the northern jet is located outside our figure). The CO(2-1) map clearly shows that S1 is aligned almost parallel to the jet. In addition, Figs. 2 and 3 show that the velocity gradient in S1 is also almost parallel to the jet.

The velocity increases from $\sim 480$ km s*-1* at S1a to $\sim 540$ km s*-1* south of S1b. This increment is very similar to that observed in the NLR clouds along the radio jet; Bradley et al. (2004) measured the velocities and velocity dispersions of the clouds using the [O III] $\lambda 5007$ line, and showed that the velocity of the southern $\lse 1\arcsec$ clouds from the nucleus are at V${}_{\rm LSR}\sim 440-590$ km s*-1* and the velocity increases as the clouds move away from the nucleus (see Table 2 and Fig. 9 of their paper)111We selected the clouds with a velocity dispersion of less than 100 km s*-1*; Clouds 3, 4, and 4a in Bradley et al. (2004). If we include all the clouds, the velocity is $\sim 440-690$ km s*-1* with a range of velocity dispersion of $\sim 25-331$ km s*-1*; Clouds 2, 3, 3a, 4, 4a, and 4b.. This velocity range and increment are consistent with our data. Furthermore recent observations of H2O masers toward the nucleus also show a velocity gradient along the jet with the same sense as our results (Hagiwara 2007), in addtion to the good correspondance of the velocity range (Hagiwara et al. 2001; Hagiwara 2007; Matsushita et al. 2004). These results suggest that the molecular gas in S1 (and the NLR clouds and the H2O masers) is possibly entrained by the radio jet. These results also suggest that some of the material in NLRs is supplied from molecular gas close to AGNs.

Another example of jet-entrained neutral gas is found in the radio galaxy 3C293 (Emont et al. 2005). The velocity of H I gas in absorption spectra toward the AGN matches that of ionized gas along kpc-scale radio jets. The spatial coincidence is not clear, since the spatial resolution of the H I data is lower ($25\aas@@fstack{\prime\prime}3\times 11\aas@@fstack{\prime\prime}9$) than that of the ionized gas data. Our result is therefore the first possible case of entrainment of molecular gas by a jet at the scale of ten pc.

The better resolution of our new CO data allows us to revisit the values of the molecular gas mass, momentum, and energy of the entrained gas. We derive $6\times 10^{5}$ M⊙, $8\times 10^{45}$ g cm s*-1*, and $3\times 10^{52}$ ergs for these quantities. These values are about half of the previous values derived from the CO(3-2) data, mainly due to the larger beam, but the conclusion is similar; the energy of the entrained gas could be similar to that of the radio jet ($>6.9\times 10^{51}$ ergs; Crane & van der Hulst 1992), but the momentum is much larger than that of the jet ($2\times 10^{41}$ g cm s*-1*). One way to explain this discrepancy is through a continuous input of momentum from the jet (see Matsushita et al. 2004, for more detail discussions).

4.2 Obscuring material around the Seyfert 2 nucleus

The feature C is located in front of the Seyfert 2 nucleus, and the CO(2-1) intensity is about 62.0 K km s*-1* (Fig. 2a). Hence the column density can be calculated as $6.2\times 10^{21}$ cm*-2* using a CO-to-H2 conversion factor of $1.0\times 10^{20}$ cm*-2* (K km s*-1*)-1 (Matsushita et al. 2004) and assuming a CO(2-1)/(1-0) ratio of unity. This value is far lower than that derived from the X-ray absorption of $5.6\times 10^{24}$ cm*-2* (Fukazawa et al. 2001). As is mentioned in Sect.3, the missing flux of our data is $\sim 75\%$. However, even if all of this missing flux contributes to obscuring the nuclear emission, this large column density difference cannot be explained. Changing the conversion factor or the ratio by an order of magnitude also cannot explain this large difference. One way to reconcile this disparity is to assume that C is not spatially resovled, in which case the computed column density is a lower limit. Alternatively, the obscuring material preferentially traced by higher-J CO lines or denser molecular gas tracers such as HCN may be involved. The CO(3-2) intensity in brightness temperature scale is $\sim 2$ times stronger than that of CO(1-0) (Matsushita et al. 2004), and the HCN(1-0) intensity is also relatively stronger (HCN/CO $\sim 0.4$; Kohno et al. 1996) than normal galaxies.

4.3 Molecular gas at ten pc scale from the Seyfert nucleus

Previous studies suggest that the blue shifted eastern feature S2 and the red shifted western feature S1 may be the outer part of a rotating disk as in the AGN unified model. However, our images show a more complicated nature, and no clear evidence of simple disk characteristics.

The simplest interpretation is that S1 and S2/C are independent structures. Since S1 is affected by the jet but S2/C is not, S1 is expected to be located closer to the nucleus than S2/C, and the projection effect makes the position of S2/C closer in our images. Alternatively, S2/C may be close to the nucleus, but the entrained gas has been already swept away or ionized by the jet. S2/C has a velocity gradient, and therefore can be interpreted as a streaming gas, presumably infalling toward the nucleus, as is observed in the Galactic Center (Lo & Claussen 1983; Ho et al. 1991).

S1 and S2/C can also be interpreted as a rotating disk that is largely disturbed by the jet, and only a part remains. According to the velocity gradient along S2/C, the blueshfited gas is expected at S1, which is the opposite sense to the previous suggestion, but the gas shows no signs of it due to the jet entrainment. This is possible from the timescale point of view; under this interpretation, S1 should have a blueshifted rotation velocity of $\sim 380$ km s*-1* based on the velocity gradient in S2/C. S1 has a velocity $\sim 150$ km s*-1* higher than the expected rotational velocity, and we assume that this is the entrained velocity. In this case, it takes $2\times 10^{5}$ years to be elongated along the jet by $\sim 1\arcsec$ or 34 pc. On the other hand, the rotation timescale at this radius is about $2\times 10^{6}$ years, an order of magnitude longer timescale. The rotating disk can therefore be locally disturbed by the jet.

However, the above two explanations have difficulty in explaining optical images of the nucleus; the Hubble Space Telescope images show “X” shaped dark lanes in front of the nucleus (Grillmair et al. 1997), suggesting the existence of a warped disk or two rings with one tilted far from another. An alternative explanation of the dark lanes is that, as previously proposed, there is a rotating edge-on ring with S2 as blueshifted gas and S1a as redshifted gas. In this case, the feature C can be the counterpart of another dark lane, which runs northeast-southwest, although C has to be a counter-rotating or Keplarian rotating disk to explain the opposite sense of the velocity gradient to that of the S1a/S2 (Sect. 3). This configuration explains the “X” shape, but has a rather complicated configuration, and it is difficult to explain why the inner disk C is not disturbed by the jet.

We imaged the nuclear region of the Seyfert 2 galaxy M51 at $\sim 10$ pc resolution, and we see no clear evidence of a circumnuclear rotating molecular gas disk as previously suggested. The molecular gas along the radio jet is most likely entrained by the jet. The explanations for other gas components are speculative, possibly involving a circumnuclear rotating disk or streaming gas.
