Test of nuclear level density inputs for Hauser-Feshbach model calculations

TL;DR

This study measures particle emission spectra from specific nuclear reactions and compares them with Hauser-Feshbach model predictions, revealing discrepancies due to inadequate level density models, and proposes new level density parameters.

Contribution

It provides new level density data and parameters for nuclei like 60Ni, 60Co, and 57Fe, highlighting issues with existing models.

Findings

Existing level density models do not match experimental data.

New level density parameters were derived for several nuclei.

Discrepancies indicate need for improved level density inputs in models.

Abstract

The energy spectra of neutrons, protons, and alpha-particles have been measured from the d+59Co and 3He+58Fe reactions leading to the same compound nucleus, 61$Ni. The experimental cross sections have been compared to Hauser-Feshbach model calculations using different input level density models. None of them have been found to agree with experiment. It manifests the serious problem with available level density parameterizations especially those based on neutron resonance spacings and density of discrete levels. New level densities and corresponding Fermi-gas parameters have been obtained for reaction product nuclei such as 60Ni,60Co, and 57Fe.

Figures

Tables

Table 1. Table 1: Ratio of experimental and calculated cross sections obtained with four prior level density models M1-M4 and one posterior M1 exp which uses parameters fit to experimental level densities (see Table 2 ). The spin cutoff parameters σ 1 subscript 𝜎 1 \sigma_{1} and σ 2 subscript 𝜎 2 \sigma_{2} are defined according to Eqs. ( 3 ) and ( 4 ).

	M1		M2		M3		M4	M1exp	Kexp
	${\sigma }_1$	${\sigma }_2$	${\sigma }_1$	${\sigma }_2$	${\sigma }_1$	${\sigma }_2$
58Fe(3He,n)	0.79(12)	1.04(16)	1.03(16)	1.22(19)	1.03(16)	1.05(16)	0.90(14)	1.03(16)	0.52
58Fe(3He,p)	1.23(20)	1.01(15)	1.05(16)	0.93(14)	1.03(15)	1.01(15)	1.11(17)	0.98(15)
58Fe(3He,$\alpha$)	0.66(10)	0.81(12)	0.66(10)	0.86(13)	0.73(11)	0.81(12)	0.72(11)	1.01(15)
59Co(d,n)	0.81(12)	0.90(14)	0.84(13)	0.91(14)	0.92(14)	0.93(14)	0.89(13)	0.97(15)	0.53
59Co(d,p)	1.82(27)	1.42(21)	1.70(26)	1.40(21)	1.32(20)	1.24(19)	1.41(21)	1.07(16)
59Co(d,$\alpha$)	0.69(11)	0.59(10)	0.64(10)	0.57(10)	0.59(9)	0.70(11)	0.64(10)	0.97(15)

Table 2. Table 2: Fermi-gas parameters obtained from experimental level densities

Nucleus	60Ni	60Co	57Fe
$a,\delta$ for Eq.(3)	6.16;1.43	6.91;-1.89	5.92;-0.13
$a,\delta$ for Eq.(4)	6.39;0.80	7.17;-2.6	6.14;-0.78

Table 3. Table 3: χ ​ 2 𝜒 2 \chi 2 of experimental and calculated total level densities for different level density models and spin cutoff factors

Nucleus	M1		M2		M3		M4	M1exp
	${\sigma }_1$	${\sigma }_2$	${\sigma }_1$	${\sigma }_2$	${\sigma }_1$	${\sigma }_2$
60Ni	15.3	3.8	1.5	0.2	0.9	1.4	2.5	0.6
60Co	1.3	1.9	2.9	3.1	1.8	2.0	0.8	0.6
57Fe	20.2	2.5	18.9	2.0	10.8	1.8	5.8	0.6
All nuclei	11.5	2.7	7.5	1.8	4.3	1.8	3.1	0.6

Table 4. Table 4: Spin cut off parameter obtained from s 𝑠 s -wave σ s e ​ x ​ p subscript superscript 𝜎 𝑒 𝑥 𝑝 𝑠 \sigma^{exp}_{s} and p-wave σ p e ​ x ​ p subscript superscript 𝜎 𝑒 𝑥 𝑝 𝑝 \sigma^{exp}_{p} resonances with using the total level density from the experiment. σ 1 c ​ a ​ l subscript superscript 𝜎 𝑐 𝑎 𝑙 1 \sigma^{cal}_{1} and σ 2 c ​ a ​ l subscript superscript 𝜎 𝑐 𝑎 𝑙 2 \sigma^{cal}_{2} have been calculated according to Eqs. ( 3 ) and ( 4 ), respectively, with parameters from Table  2 .

Nucleus	60Ni	60Co	57Fe
${\sigma }_s^{exp}$	3.3(8)	3.6(15)	2.80(30)
${\sigma }_p^{exp}$		5.2(12)	2.88(35)
${\sigma }_1^{cal}$	4.13	3.95	3.76
${\sigma }_2^{cal}$	3.22	3.26	3.0

Equations

$$\rho (E)=\frac{\exp [2\sqrt{a(E-\delta )}]}{12\sqrt{2}\sigma a^{1/4}(E-\delta {)}^{5/4}},$$

$${\sigma }^2=\overline{m^2}gt=\frac{I}{{\hslash }^2}t,$$

$${\sigma }_1^2=0.0146A^{5/3}t=0.0146A^{5/3}\sqrt{((E-\delta )/a))}.$$

$${\sigma }_2^2=0.089A^{2/3}a\sqrt{((E-\delta )/a)}.$$

$$\frac{d\sigma }{d{\epsilon }_b}({\epsilon }_a,{\epsilon }_b)=$$

$$\Gamma (U,J,\pi )=\sum _{b^{\prime }}(\sum _k{\Gamma }_{b^{\prime }}(U,J,\pi ,E_k,I_k,{\pi }_k)+$$

$${\rho }_b(E,I,\pi )={\rho }_b(E,I,\pi {)}_{\mathrm{input}}\frac{(d\sigma /d{\epsilon }_b{)}_{\mathrm{meas}}}{(d\sigma /d{\epsilon }_b{)}_{\mathrm{calc}}}.$$

$$G(J)=\frac{(2J+1)}{2\sigma^{2}}\exp{\Bigl{[}\frac{-(J+0.5)^{2}}{2\sigma^{2}}\Bigr{]}}$$

$$\sum _{J}G(J)=1$$

$$\frac{2}{D_L}=\rho (B_n+0.5\Delta E)\sum _{J=|I_0-0.5-L|}^{|I_0+0.5+L|}G(J),$$

Full text

I Introduction

The nuclear level density (NLD) is an important input for the calculation of reaction cross sections in the framework of Hauser-Feshbach (HF) theory of compound nuclear reactions. Compound reaction cross sections are needed in many applications including astrophysics and nuclear data for science and technology. In astrophysics the knowledge of reaction rates is crucial for understanding nucleosynthesis and energy generation in stars and stellar explosions. In many astrophysical scenarios, e.g. the r-process, the cross sections required to compute the reaction rates are in the regime where the statistical approach is appropriate rauscher . In these cases HF calculations are an essential tool for determining reaction rates, particularly for reactions involving radioactive nuclei which are presently inaccessible to experiment. HF calculations are likewise very important for other applications, e.g., the advanced reactor fuel cycle program AFC .

The statistical approach utilized in HF theory houser requires knowledge of the two quantities for participating species (see details below). These are the transmission coefficients of incoming and outgoing particles and level densities of residual nuclei. Transmission coefficients can be obtained from optical model potentials established on the basis of experimental data of elastic and total cross sections. Because of experimental constraints, the difference between various sources of transmission coefficients usually does not exceed $10-15\%$. Level densities are more uncertain. The reason is that it is difficult to obtain them experimentally above the region of well-resolved discrete low-lying levels known from nuclear spectroscopy. At present, the level density for practical applications is calculated mainly on the basis of the Fermi-gas Bethe and Gilbert-Cameron GC formulas with adjustable parameters which are found from experimental data on neutron resonance spacing and the density of low-lying discrete levels. Parameters recommended for use in HF calculations are tabulated in Ref. RIPL . The global parameter systematics for both the Fermi-gas and Gilbert-Cameron formulas have been developed in Ref. Egidy . However, it is still unclear how well these parameters reproduce compound reaction cross sections. No systematic investigations have been performed yet. Experimental data on level density above discrete levels are scarce. Some information is available from particle evaporation spectra (i.e. from compound nuclear reactions). The latest data obtained from (p,n) reaction on Sn isotopes Zhur claims that the available level density parameters do not reproduce neutron cross sections thereby indicating the problem with level density parameterizations. It becomes obvious that more experimental data on level density are needed in the energy region above discrete levels.

In this work, we study compound nuclear reactions to obtain information about level densities of the residual nuclei from particle evaporation spectra. Two different reactions, d+59Co and 3He+58Fe, which produce the same 61Ni compound nucleus, have been investigated. This approach helps to eliminate uncertainties connected to a specific reaction mechanism. As opposed to most of the similar experiments where only one type of outgoing particles has been measured, we have measured cross sections of all main outgoing particles including neutrons, protons, and $\alpha$-particles, populating 60Ni, 60Co, and 57Fe, respectively.

We will begin with a discussion of the present status of level density estimates used as inputs for HF calculations.

II Methods of level density estimates for HF codes

The simple level counting method to determine the level density of a nucleus works only up to a certain excitation energy below which levels are well separated and can be determined from nuclear spectroscopy. This region is typically up to 2 MeV for heavy nuclei and up to 6-9 MeV for light ones. Above these energies, more sophisticated methods have to be applied.

II.1 Level density based on neutron resonance spacings

In the region of neutron resonances which are located just above the neutron binding energy ($B_{n}$), the level density can again be determined by counting. In this case neutron resonances are counted; one must also take into account the assumed spin cut-off factor $\sigma$. Traditionally, because of the the absence of reliable data below Bn, the level density is determined by an interpolation procedure between densities of low-lying discrete levels and density obtained from neutron resonance spacing.The Bethe Fermi-gas model Bethe with adjustable parameters $a$ and $\delta$ is often used as an interpolation formula:

[TABLE]

where the $\sigma$ is the spin cut-off factor determining the level spin distribution. There are a few drawbacks to this approach. One shortcoming is that it uses an assumption that the selected model is valid in the entire excitation energy region including low-lying discrete states and neutron resonances. Undoubtedly this is correct for some of the nuclei. A nice example is the level density of 26Al which exhibits Fermi-gas behavior up to 8 MeV of excitation energy Egidy . On the other hand the level densities of 56,57Fe measured with Oslo method femo , for example, show complicated behavior which cannot be described by simple Fermi-gas formula. The reason for this might be the influence of pairing correlations leading to step structures in vicinity of proton and neutron paring energies and above. In such cases the model function fit to discrete levels may undergo considerable deviations in the higher excitation energy region leading to incorrect determination of level density parameters.

Another consideration is associated with the spin cut-off parameter which is important in determination of the total level density from density of neutron resonances at $B_{n}$. In Fermi-gas model the spin cut-off parameter is determined according to:

[TABLE]

where $\overline{m^{2}}$ is the average of the square of the single particle spin projections, $t=\sqrt{(E-\delta)/a}$ is the temperature, $g=6a/\pi^{2}$ is the single particle level density, $I$ is the rigid body moment of inertia expressed as $I=(2/5)\mu AR^{2}$, where $\mu$ is the nucleon mass, $A$ is the mass number and $R=1.25A^{1/3}$ is the nuclear radius. The spin cut off parameter in rigid body model is :

[TABLE]

On the other hand the Gilbert and Cameron GC used $\overline{m^{2}}=0.146A^{2/3}$. The corresponding formula for $\sigma$ is:

[TABLE]

Eqs. (3) and (4) have the same energy and $A$ dependence ($\sigma^{2}\sim A^{7/6}(E-\delta)^{1/2}$) but differ by a factor of $\approx 2$. It should be mentioned also that the recent model calculations alhassid show the suppression of the moment of inertia at low temperatures compared to its rigid body value. Thus uncertainties in spin cut off parameter transform to corresponding uncertainties of total level densities derived from neutron resonance spacings.

Experimentally, the spin cutoff parameter can be obtained only from spin distribution of low-lying discrete levels. However, because of the small number of known spins, the uncertainty of such procedure is large. It turns out that reported systematics based on such investigation $\sigma=(0.98\pm 0.23)A^{(0.29\pm 0.06)}$ Egidy is different from above expressions for which $\sigma\sim~{}\sqrt{A^{7/6}}~{}=~{}A^{0.58}$. At higher excitation energies determining the cutoff parameter becomes problematic due to the high level density and the absence of the reliable observables sensitive to this parameter. One can mention Ref. grimes where the spin cutoff parameter has been determined from the angular distribution of evaporation neutrons with $\alpha$ and proton projectiles. The deviation from the expected $A$ dependence has also been reported. The absolute values of the parameter agree with Eq. (3).

The parity dependence of level densities is also not established experimentally beyond the discrete level region. At the neutron binding energy the assumption is usually made about the equality of negative and positive parity states. This is supported by some experimental results Mitchell . However, recent calculations, performed for Fe, Ni, and Zn isotopes, show that for some of them the assumption of equally distributed states is not fulfilled even far beyond the neutron binding energy, up to excitation energies 15-20 MeV rouser2 .

As is seen from the above considerations, the calculation of the total level density from neutron resonance spacing might contain uncertainties associated with many factors such as the possible deviation from Fermi-gas dependence in interpolation region, uncertainties in spin cutoff parameter and inequality of states with different parity. Thus the question of how large these uncertainties are or to what extent the level density extracted in such a way can be applicable to calculations of reaction cross sections still remains important and not completely resolved.

II.2 Level density from evaporation particles

The cross section of evaporated particles from the first stage of a compound-nuclear reaction (i.e. when the outgoing particle is the first particle resulting from compound nucleus decay ) can be calculated in the framework of the Hauser-Feshbach theory:

[TABLE]

with

[TABLE]

Here $\sigma^{CN}(\varepsilon_{a})$ is the fusion cross section, $\varepsilon_{a}$ and $\varepsilon_{b}$ are energies of relative motion for incoming and outgoing channels ($\varepsilon_{b}=U-E_{k}-B_{b}$, where $B_{b}$ is the separation energy of particle $b$ from the compound nucleus), the $\Gamma_{b}$ are the transmission coefficients of the outgoing particle, and the quantities $(U,J,\pi)$ and $(E,I,\pi)$ are the energy, angular momentum, and parity of the compound and residual nuclei, respectively. The energy $E_{c}$ is the continuum edge, above which levels are modeled using a level density parameterization. For energies below $E_{c}$ the known excitation energies, spins, and parities of discrete levels are used. In practice $E_{c}$ is determined by the available spectroscopic data in the literature. It follows from Eq. (II.2) that the cross section is determined by both transmission coefficients of outgoing particles and the NLD of the residual nucleus $\rho_{b}(E,I,\pi)$. It is believed that transmission coefficients are known with sufficient accuracy near the line of stability because they can be obtained from optical model potentials usually based on experimental data for elastic scattering and total cross sections in the corresponding outgoing channel. Transmission coefficients obtained from different systematics of optical model parameters do not differ by more that 15-20 % from each other in our region of interest ($1-15$ MeV of outgoing particles). The uncertainties in level densities are much larger. Therefore the Hauser Feshbach model can be used to improve level densities by comparing experimental and calculated particle evaporation spectra. Details and assumptions of this procedure are described in Refs Vonach ; Vonach1 .

The advantage of this method is that because of the wide range of spin population in both the compound and final nuclei, evaporation spectra are determined by the total level density (integrated over all level spins) as opposed to the neutron resonance technique where resonances are known for one or two spins and one parity. The drawback stems from possible direct or multistep compound reaction contributions distorting the evaporation spectra, especially in the region of low-lying discrete levels needed for the absolute normalization of obtained level densities.

According to Hodgson Hudson , the interaction process can usefully be considered to take place in a series of stages corresponding to the successive nucleon-nucleon interaction until complete equilibrium is reached. At each stage it is possible for particles to be emitted from the nucleus. The direct reactions refer to the fast, first stages of this process giving forward peaked angular distribution. The term multistep direct reaction implies that that such process may take place in a number of states. Compound nuclear reactions refers to all processes giving angular distributions symmetric about 900; they are subdivided into multistep compound reactions that take place before the compound system has attained final statistical equilibrium and statistical compound reactions that correspond to the evaporation of particle from an equilibrium system.

The use of evaporation spectra to infer level densities requires that the reaction goes through to complete equilibrium. Significant contributions from either multistep direct or multistep compound reactions could cause incorrect level density parameters to be deduced. Multistep direct reactions would usually be forward peaked and also concentrated in peaks. If the reaction has a limited number of stages, the two-body force cannot cause transitions to states which involve a large number of rearrangements from the original state. Multistep compound reactions would be expected to lead to angular distributions which are symmetric about 900. They would, if complete equilibration has not occurred, also preferentially reach states which are similar to the target plus projectile. The shape of spectra from a multistep compound reaction would be different for a deuteron-induced as opposed to a 3He-induced reaction. Hodgson has reviewed Hudson the evidence for multistep compound reactions. He finds the most convincing evidence for such contributions comes from fluctuation measurements for the 27Al(3He,p) reaction. In this case, certain low-lying states show level widths in the compound system which are larger than expected. These states are low-lying and are the ones which would be most likely to show such effects. It appears that measurements of continuum spectra do not show evidence of such contributions. The uncertainties connected to contributions of pre-equilibrium reactions are generally difficult to estimate experimentally. The measurement of angular distribution does not solve the problem in the case of multistep compound mechanism. We believe that the use of different reactions to form the same compound nucleus is the most reliable way to estimate and eliminate such contributions.

In this work we investigate reactions with deuteron and 3He projectiles on 59Co and 58Fe, respectively. These two reactions form the same compound nucleus, 61Ni. The purpose was to investigate if the cross section of outgoing particles from both reactions can be described in the framework of Hauser-Feshbach model with same set of level density parameters. This is possible only when production cross section is due to compound reaction mechanism in both reactions. Neutron, protons, and $\alpha$-particles have been measured. These outgoing particles exhaust the majority of the fusion cross section. The ratio between cross sections of different particles is determined by the ratio of level densities of corresponding residual nuclei. It puts constraints on relative level density values obtained from an experiment. In our experiment, the level densities of 60Ni, 60Co, and 57Fe residual nuclei have been determined from the region of the energy spectra of neutron, proton, and $\alpha$-particles where only first state emission is possible.

III Experiment and method

The tandem accelerator at Ohio University’s Edwards Accelerator Laboratory provided 3He and deuteron beams with energies of 10 and 7.5 MeV, respectively. Self-supporting foils of 0.625-mg/cm2 58Fe (82% enriched) and 0.89-mg/cm2 ${}^{59}{\rm Co}$ (100% natural abundance) have been used as targets. The outgoing charged particles were registered by charged-particle spectrometers as shown in Fig. 2. The setup has ten 2-m time-of-flight legs ending with Si detectors (see Fig. 1). Legs are set up at different angles ranging from $22.5^{\circ}$ up to $157.5^{\circ}$. The mass of the charged particles is determined by measuring both the energy deposited in Si detectors and the time of flight. Additionally, a neutron detector was placed at the distance of 140 cm from the target to measure the neutron energy spectrum. The mass resolution was sufficient to resolve protons, deuterons, ${}^{3}{\rm H}$/3He, and $\alpha$-particles.

Additionally, the neutron spectra from both the 58Fe$(^{3}$He$,Xn)$ and the 59Co$(d,Xn)$ reactions have been measured by the time-of-flight method with the Swinger facility of Edwards Laboratory Swinger . Here a flight path of $7$ m has been used to obtain better energy resolution for outgoing neutrons, allowing us to measure the shape of neutron evaporation spectrum more accurately. The energy of the outgoing neutrons is determined by time-of-flight method. The 3-ns pulse width provided an energy resolution of about 100 keV and 800 keV at 1 and 14 MeV of neutrons, respectively. The neutron detector efficiency was measured with neutrons from the 27Al$(d,n)$ reaction on a stopping Al target at $E_{d}=7.44$ MeV Aleff . This measurement allowed us to determine the detector efficiency from 0.2 to 14.5 MeV neutron energy with an accuracy of $\sim 6$%. The neutron spectra have been measured at backward angles from $110^{\circ}$ to $150^{\circ}$. Additional measurements with a blank target have been performed at each angle to determine background contribution. The absolute cross section has been calculated by taking into account the target thickness, the accumulated charge of incoming deuteron or 3He beam, and the neutron detector efficiency. The overall systematic error for the absolute cross sections is estimated to be 15%. The errors in ratios of proton and $\alpha$ cross sections are only a few percents because they are determined by counting statistics alone.

IV Experimental particle spectra and level density of product nuclei

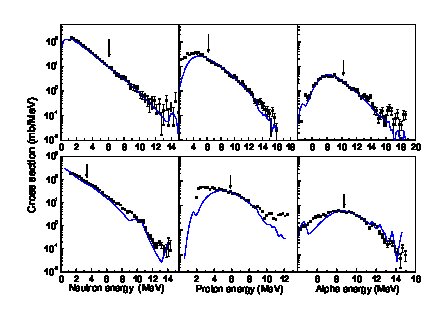

Energy spectra of neutron, protons, and $\alpha$-particles have been measured at backward angles (from $112^{\circ}$ to $157^{\circ}$) to eliminate contributions from direct reaction mechanisms. Fig. 2 show energy spectra of outgoing particles for both the 3He+58Fe and $d$+59Co reactions. The calculations of particle energy spectra have been performed with Hauser-Feshbach (HF) program developed at Edwards Accelerator Lab of Ohio University INPP . Particle transmission coefficients have been calculated with optical model potentials taken from the RIPL data base RIPL . Different potentials have been tested and found to be the same within 15%. Alpha-particle potentials are more uncertain. Differences between corresponding $\alpha$-transmission coefficients depends on the $\alpha$-energy and varies from $\sim~{}40$% for lower $\alpha$-energies to $<1$% for higher $\alpha$-energies in our region of interest (8-18 MeV). In order to reduce these uncertainties the RIPL $\alpha$-potentials have been tested against the experimental data on low energy $\alpha-$elastic scattering on 58Ni alphael . The data have been reproduced best by the potential from Ref.9019 which has been adopted for our HF calculations. Four level density models have been chosen for testing:

• •

The M1 model uses the Bethe formula (1) with parameters adjusted to fit both discrete level density and neutrons s-wave resonance spacings.

• •

The M2 model uses the Gilbert-Cameron GC formula with parameters adjusted to fit both discrete level density and neutrons s-wave resonance spacings.

• •

The M3 model uses Bethe formula but $\delta$ parameters are obtained from pairing energies according to Ref. rauscher . The $a$ parameter has been adjusted to match s-wave neutron resonance spacing. This model does not fit discrete levels.

• •

The M4 model is based on microscopic Hartree-Fock-BCS calculations HFBCS which are available from RIPL data base RIPL . According to Ref. HFBCS , this model has also been renormalized to fit discrete levels and neutron resonance spacings.

The value of total level density derived from neutron resonance spacings depends on spin cutoff parameter used. Therefore two prescriptions (3) and (4) for this parameter have been tested for M1-M3 models. The M4 model uses its one spin distribution which it is close to the prescription (3).

The measured particle energy spectra include particles from all possible stages of the reaction. However, by limiting our consideration to particles with energies above a particular threshold, we can ensure that only particles from the first stage of the reaction contribute. These thresholds depend on the particular reaction and are indicated by the arrows in Fig. 2. In this energy interval cross sections are determined exclusively by the level density of those residual nuclei. Another aspect which should be taken into consideration when comparing calculations and experiment is the contribution of direct processes. Direct processes take away the incoming flux resulting in reduction of compound reaction contribution. Assuming that the total reaction cross section ($\sigma_{R}$) can be decomposed into the sum of direct ($\sigma_{r}^{d}$) and compound reaction mechanisms ($\sigma_{R}^{c}$), we have $\sigma_{R}=\sigma_{R}^{d}+\sigma_{R}^{c}$. In this case, the HF calculations should be multiplied by the constant factor $K=\sigma_{R}^{c\_exp}/\sigma_{R}$ to correct for the absorbed incident flux which does not lead to compound nucleus formation. In our experiment the K has been estimated from the ratio $K^{exp}=(\sigma_{n}^{exp}+\sigma_{p}^{exp}+\sigma_{\alpha}^{exp})/(\sigma_{n}^{calc}+\sigma_{p}^{calc}+\sigma_{\alpha}^{calc})\approx K$ where the experimental cross sections have been measured at backward angles. If level densities used in calculations are correct, $K^{exp}=K$. However, the calculations show that this parameter is not very sensitive to input level densities and can be estimated with $\sim$20% accuracy with any reasonable level density models.

Table 1 shows the ratio of theoretical and experimental cross sections for different level density models used in calculations. Calculations have been multiplied by reduction factor K which for both reactions varied within 0.48-0.54 for different level density models. Results show that all of the models reproduce neutron cross sections within $\sim$20%. However, they overestimate $\alpha$-particle cross sections by $\sim$30% in average and underestimate protons by 5-80%. None of the models reproduce the ratio of p/$\alpha$ cross section; for example all models systematically overestimate this ratio by a factor of $\sim$2 for the d+59Co reaction. Assuming that particle transmission coefficients are known with sufficient accuracy, we conclude that the level density of residual nuclei is responsible for such disagreement. In particular, the level density ratio $\rho[{{}^{57}Fe}]/\rho[{{}^{60}Co}]$ is overestimated by model calculations.

In order to obtain correct level densities, the following procedure has been used as described in Ref. Mndn . The NLD model is chosen to calculate the differential cross section of Eq. (II.2). The parameters of the model were adjusted to reproduce the experimental spectra as closely as possible. The input NLD was improved by binwise renormalization according to the expression:

[TABLE]

The absolute normalization of the improved level densities (later referred to as experimental level densities) has been obtained by using discrete level densities of 60Ni populated by neutrons from the 59Co(d,n) reaction. Protons and $\alpha$-particles populating discrete levels behave differently for different reactions. The Fig. 2 shows that the ratio between experiment and calculations in discrete energy region is greater for 59Co(d,p) compared to 58Fe(3He,p) and for 58Fe(3He,$\alpha$) compared to 59Co(d,$\alpha$). These enhancements are apparently reaction specific and connected to contribution of direct or/and multistep compound reaction mechanism. We are not able to make the same comparison for neutron spectra because the counting statistics in the region of discrete levels for 58Fe(3He,n) reaction are rather poor. However, our recent result from 55Mn(d,n) Mndn indicates that the neutron spectrum measured at backward angles is purely evaporated even for high energy neutrons populating discrete levels. Therefore we used the neutron spectrum from the 59Co(d,n) reaction to determine the absolute normalization of the level density for the residual nucleus 60Ni. The absolute level densities of both 60Co and 57Fe nuclei have been adjusted in such a way as to reproduce ratios of both neutron/proton and neutron/alpha cross sections. Uncertainties of obtained level densities have been estimated to be about 20% which include uncertainties of absolute cross section measurements and uncertainties of particle transmission coefficients.

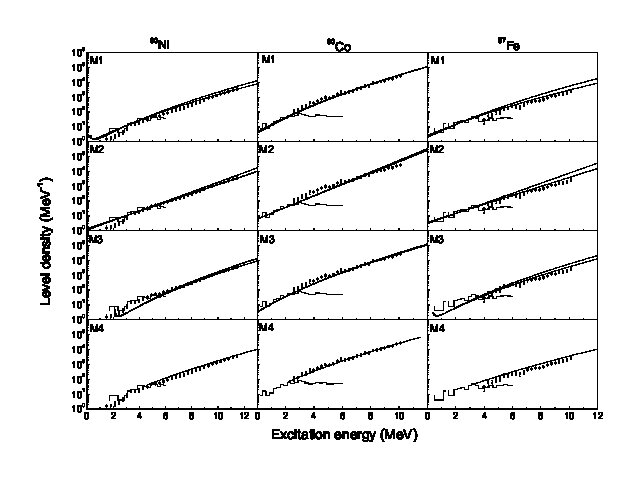

Both experimental and calculated level densities are displayed in Fig. 3. The level density for 60Ni has been extracted from (d,n) spectra because of better counting statistics but (3He,p) and (3He,$\alpha$) reactions have been used to obtain level density for 60Co and 57Fe, respectively, because of larger $Q$ value. This approach allows one to obtain level densities in a larger excitation energy interval. Calculations have been performed with models M1-M4 with spin cutoff parameters $\sigma_{1}$ and $\sigma_{2}$ for M1-M3 models. The M4 model uses its own spin distribution which is close to $\sigma_{1}$ for these nuclei. The $\chi^{2}$ values for calculated and experimental level densities are shown in the Table 3. Results show that the M1 model with $\sigma_{1}$ gives worse agreement with experimental data. The use of $\sigma_{2}$ improve the agreement for all of the models. The M2 and M3 models using $\sigma_{2}$ give best agreement with experiment on average, however level density for 60Co agrees better when using $\sigma_{1}$ and the best agreement is reached with M4 model. It appears that the spin cutoff parameter is very important when deriving the total level density from neutron resonance spacings. However, none of the models give a perfect description of the experimental data.

In order to improve level density parameters, the experimental level densities have been fitted with the Fermi-gas function (1) for two different spin cutoff factors $\sigma_{1}$ and $\sigma_{2}$. Best fit parameters are presented in the Table 2. They allow one to reproduce both shapes of particle spectra (fig.2) as well as ratios of neutron, proton and $\alpha$ cross sections for both 3He+58Fe and $d$+59Co reactions (Table 1). Level density parameters have been adjusted independently for both spin cutoff parameters resulting in the approximately same final ratio of experimental/calculated cross sections and $\chi^{2}$ values. Therefore the only one entry M1exp is presented in tables. The fact that a single set of level density parameters allows one to reproduce all particle cross sections from both reactions supports our conclusion that the compound nuclear mechanism is dominant in these reactions. Finally we note that the HF calculations do not perfectly reproduce the low-energy regions of the proton spectra where the second stage of outgoing protons dominate. Here the calculations also depends on additional level densities of corresponding residual nuclei as well as on the $\gamma$-strength functions. We leave this problem for further investigations.

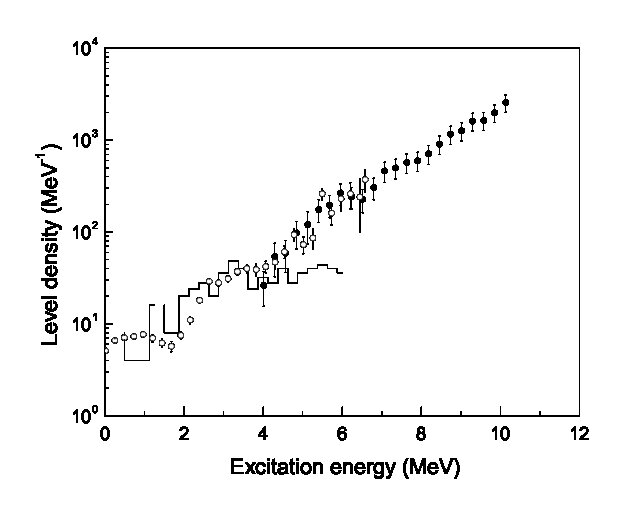

The level density of 57Fe below the particle separation threshold has also been obtained femo by Oslo technique using particle-$\gamma$ coincidences from 57(3He,3He′)57Fe reaction. We performed a similar comparison for the 56Fe nucleus where we confirmed consistency of both the Oslo technique and the technique based on particle evaporation spectra. Figure 4 shows the comparison for the 57Fe nucleus. Here we also see good agreement between level densities obtained from two different experiments. It supports the obtained level densities. The Fermi-gas parameters for 60Ni have been obtained in Ref. ni60 from 63Cu(p,$\alpha$)60Ni reaction at Ep=12 MeV . The values a=6.4 and $\delta$=1.3 are in a good agreement with our parameters presented in the Table 2.

V Spin cutoff parameter

As it has been mentioned in the previous section the spin cutoff parameter $\sigma_{2}$ obtained according to Eq. (4) gives slightly better agreement with the experiment compared to $\sigma_{1}$ obtained from Eq. (3). On the other hand, the spin cut off parameters at the neutron binding energy can be directly obtained from the experimental total level density and the density of levels for one or several spin states which are known from the analysis of neutron resonances RIPL . We used the spin distribution formula from Ref. GC :

[TABLE]

with normalization condition:

[TABLE]

The total level density $\rho(U)$ can be connected to the neutron resonance spacing by using the expression:

[TABLE]

where $D_{L}$ is the neutron resonance spacing for neutrons with orbital momentum $L$, $\Delta E$ is the energy interval containing neutron resonances. The assumption of equality of level numbers with positive and negative parity is used. Because the total level density $\rho(B_{n}+0.5\Delta E)$ around the neutron separation energy is known from our experiment, the parameter $\sigma$ can be obtained from Eqs.(8)-(10).

The data on neutron resonance spacings for nuclei under study are taken from Ref. Atlas . The estimated spin cut off parameters from both $s$-wave ($L=0$) and $p$-wave ($L=1$) resonance spacings are presented in the Table 4. The uncertainties include a 20% normalization uncertainty in total level densities and uncertainties in the resonance spacings. For 57Fe, we have obtained good agreement between two values of $\sigma$ derived from s- and p-wave neutron resonances. It indicates the parity equilibrium of neutron resonances. For 60Co, the uncertainties are too large to draw a definite conclusion. For 60Ni, the only $D_{0}$ is known and one value of $\sigma$ is obtained. It agrees better with $\sigma_{2}$ but $\sigma_{1}$ cannot be excluded.

The calculations of spin cutoff parameter have been performed with Eqs. (3) and (4) with Fermi-gas parameters from Table 2. The experiment shows better agreement with $\sigma_{2}$ for 57Fe. Spin cut off parameters for 60Ni and 60Co agree better with $\sigma_{2}$ and $\sigma_{1}$ respectively, however because of the large uncertainties, it is impossible to draw an unambiguous conclusion.

VI Discussion

The consistency between results from two different reactions supports our conclusion that these reactions are dominated by the compound-nuclear reaction mechanism at backward angles. Our results show that level densities estimated on the basis of interpolation procedure between neutron resonance and discrete energy regions do not reproduce experimental cross sections of all outgoing particles simultaneously. The reason is that for some of the nuclei the level density between discrete and continuum regions has a complicated behavior which cannot be described by simple formulas based on Fermi-gas or Gilbert-Cameron models. It is seen for 57Fe (Fig. 4) where the level density exhibits some step structure at energy around 3.7 MeV. Nevertheless, the Fermi-gas model can still be used to describe the level density at higher excitation energies where density fluctuations vanish. The M3 model, which does not use discrete levels, gives best agreement. However, a problem apparently connected to the spin cutoff parameters is still present. These results indicate that it is necessary to use level density systematics obtained from compound-nuclear particle evaporation spectra. Obviously, the region of discrete levels should be excluded from such an analysis.

Spin cut off parameters obtained from this experiment are in general agreement with model prediction of Eqs.(3) and (4). However it is difficult to reduce uncertainties to make more specific conclusions about the origin of this parameter. Most probably, this parameter fluctuates from nucleus to nucleus and is determined by the internal properties of nuclei such as the specific population of shell orbits.

As it has been discussed in the introduction, level densities affect reaction rates which are important in astrophysics and other applications. The magnitude of this affect depends mainly on level densities and contribution of the channel of interest to the total reaction cross section. According to the Table 1, the neutron outgoing channel is less sensitive to variations of level densities while changes in proton and $\alpha$ cross sections can reach a factor of 2 from corresponding changes in level densities. Changes in predicted cross sections will also occur at this level.

VII Conclusion

The neutron, proton, and $\alpha$-particle cross sections have been measured at backward angles from 3He+58Fe and d+59Co reactions. The calculations using HF model have been performed with three level density models adjusted to match discrete levels and neutron resonance spacings and one model adjusted to match neutron resonances only. None of the model reproduces cross sections of all outgoing particles simultaneously from both reactions. However, the model M3 suggested in Ref.rauscher gives the best agreement with experiment.

Level densities of residual nuclei 60Ni, 60Co, and 57Fe have been obtained from particle evaporation spectra. Experimental level densities have been fit by Fermi-gas function and new level density parameters have been obtained. The new level densities allow us to reproduce all particle energy spectra from both reactions that indicate the dominance of compound nuclear mechanism in particle spectra measured at backward angles. The contribution of compound mechanism to the total cross section is estimated about 50% for both reactions.

The total level density obtained from particle spectra and neutron resonance spacings have been used to extract the spin cut off parameter at the neutron separation energies. The extracted parameters agree with predictions of Eq. (4) for 57Fe but no definite conclusions can be made for 60Ni and 60Co. A better understanding of parity ratio systematics would help to make this technique more reliable.

VIII acknowledgments

We are grateful to J.E. O’Donnell and D. Carter for computer and electronic support during the experiment, A. Adekola, C. Matei, B. Oginni and Z. Heinen for taking shifts, D.C. Ingram for target thickness calculations done for us. We also acknowledge financial support from Department of Energy, grant No. DE-FG52-06NA26187/A000.
