Information entropic superconducting microcooler

TL;DR

This paper proposes a superconducting flux qubit-based microrefrigerator that uses adiabatic flux modulation and thermalization to transfer heat, linking quantum information erasure to cooling in a thermodynamically efficient device.

Contribution

It introduces a novel design for a microcooler that integrates quantum information principles with thermodynamic cooling using superconducting circuits.

Findings

Device operates effectively in realistic experimental conditions.

Demonstrates the link between quantum erasure and thermodynamic entropy.

Achieves frequency-selective photonic heat conduction.

Abstract

We consider a design for a cyclic microrefrigerator using a superconducting flux qubit. Adiabatic modulation of the flux combined with thermalization can be used to transfer energy from a lower temperature normal metal thin film resistor to another one at higher temperature. The frequency selectivity of photonic heat conduction is achieved by including the hot resistor as part of a high frequency LC resonator and the cold one as part of a low-frequency oscillator while keeping both circuits in the underdamped regime. We discuss the performance of the device in an experimentally realistic setting. This device illustrates the complementarity of information and thermodynamic entropy as the erasure of the quantum bit directly relates to the cooling of the resistor.

Figures

Equations

$$H/\hslash =-\frac{1}{2}\left(\Delta {\sigma }_x+\epsilon {\sigma }_z\right)$$

$${\rho }_{\mathrm{eq}}(\beta ,\epsilon )=\frac{1}{2}\left[I+\left(\frac{\Delta }{\omega }{\sigma }_x+\frac{\epsilon }{\omega }{\sigma }_z\right)\tanh \left(\frac{\beta \hslash \omega }{2}\right)\right].$$

$$P/f=E_Q-E_P=\frac{\hslash {\omega }_1{e}^{-{\beta }_1\hslash {\omega }_1}}{e^{-{\beta }_1\hslash {\omega }_1}+1}-\frac{\hslash {\omega }_1{e}^{-{\beta }_2\hslash {\omega }_2}}{e^{-{\beta }_2\hslash {\omega }_2}+1}\le \frac{\hslash {\omega }_1}{2},$$

$${\Gamma }_{\downarrow ,\uparrow }^j$$

$$S_I^j(\omega )$$

$${\Gamma }_{\mathrm{th}}^j=\frac{2(I_{\mathrm{p}}\Delta M_j{)}^2\coth \left(\frac{{\beta }_j\hslash \omega }{2}\right)}{R_j\hslash \omega \left(1+Q_j^2{\left(\frac{\omega }{{\omega }_{LCj}}-\frac{{\omega }_{LCj}}{\omega }\right)}^2\right)}.$$

$$\dot{\vec{M}}=-\vec{B}\times \vec{M}-{\Gamma }_{\mathrm{th}}^1({\vec{M}}_{\parallel }-{\vec{M}}_{T_1})-{\Gamma }_{\mathrm{th}}^2({\vec{M}}_{\parallel }-{\vec{M}}_{T_2})-{\Gamma }_2{\vec{M}}_{\perp },$$

$${\vec{M}}_{\parallel }=\frac{1}{{\omega }^2}(\Delta M_x+\epsilon M_z)(\Delta \vec{x}+\epsilon \vec{z})$$

$${\vec{M}}_{\perp }=\frac{{\epsilon }^2{M}_x-\Delta \epsilon M_z}{{\omega }^2}\vec{x}+M_y\vec{y}+\frac{{\Delta }^2{M}_z-\Delta \epsilon M_x}{{\omega }^2}\vec{z}.$$

$${\vec{M}}_T=\left(\frac{\Delta }{\omega }\vec{x}+\frac{\epsilon }{\omega }\vec{z}\right)\tanh \left(\frac{\beta \hslash \omega }{2}\right)$$

$$P_{\gamma }={\int }_0^{\infty }\frac{d\omega }{2\pi }\left[4\hslash {\omega }^3{M}^2\mathrm{Re}{Y}_1(\omega )\mathrm{Re}{Y}_2(\omega )(n_2(\omega )-n_1(\omega ))\right],$$

Full text

For the purpose of quantum computing, the coherence properties of superconducting quantum bits (qubits) should be optimized by decoupling them from all noise sources as well as possible. However, many interesting experiments can be envisioned also when the decoupling is far from perfect. One such experiment closely related to coherence optimization is using a qubit as a spectrometer astafiev ; bertet ; yoshihara for the environmental noise by monitoring the effect of the environment on the quantum two-level system. Here we focus on the opposite phenomenon, i.e. the effect of a qubit on the environment. Recently a superconducting flux qubit mooij ; chiorescu with a quite small tunneling energy from the point of view of quantum computing was cooled using sideband cooling and a third level mit from about 400 mK down to 3 mK. Motivated by this experiment we consider the possibility of using a single quantum bit as a cyclic refrigerator for environmental degrees of freedom. The utilized heat conduction mechanism is photonic which was recently studied also in experiment meschke . Besides the possible practical uses, the device is interesting physically as it directly illustrates the connection between information entropy and thermodynamical entropy. For related superconducting high-frequency cooler concepts see eg. Refs. hauss ; nisrfset .

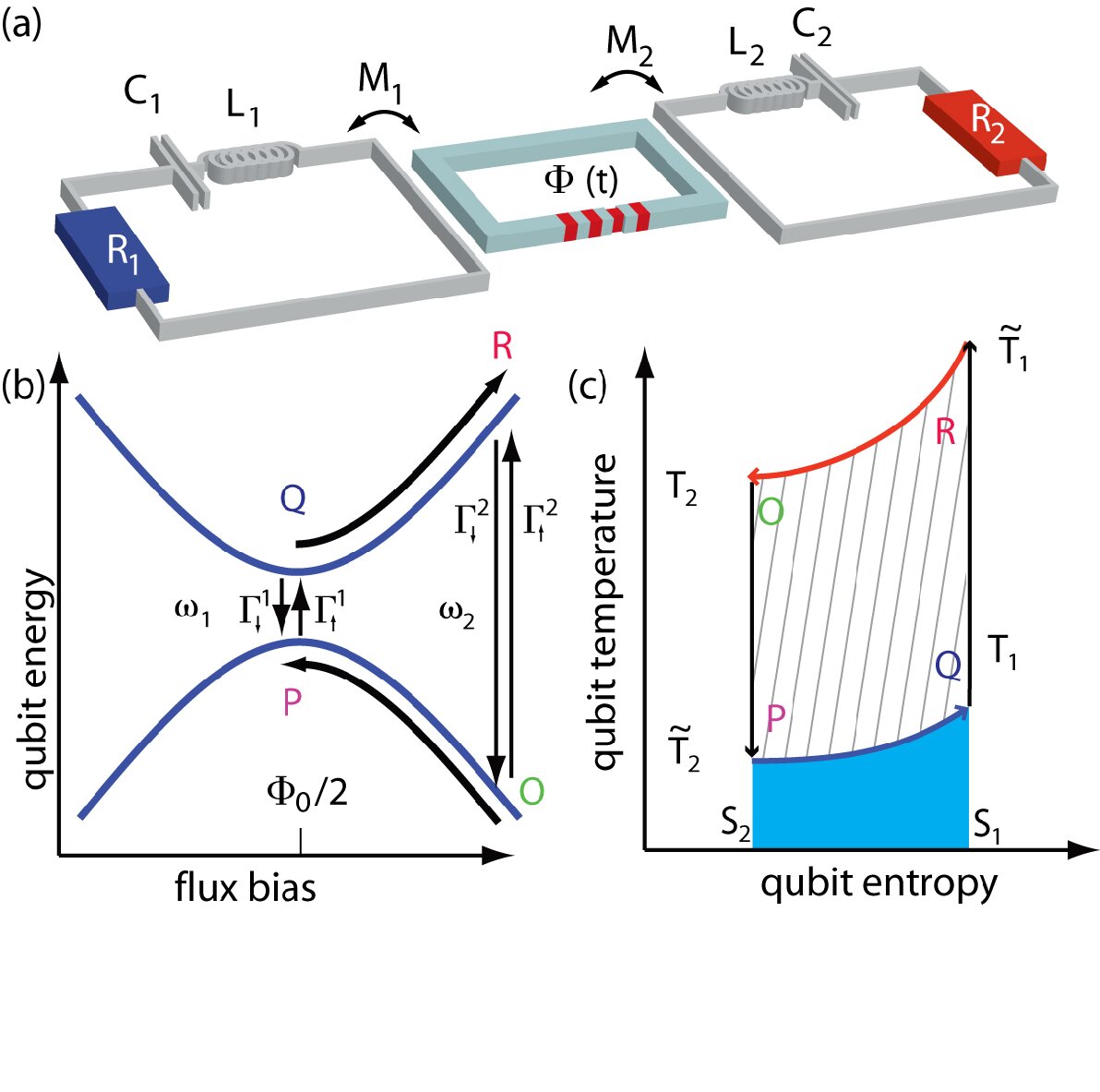

Here we study a flux qubit coupled inductively to two different loops shown in Fig. 1a. In loop $j$ ($j=1,2$) we have a resistor $R_{j}$ in series with an inductance $L_{j}$ and a capacitance $C_{j}$. These form two damped harmonic oscillators. The resistors are in general at different temperatures $T_{1}$ and $T_{2}$. The coupling of the qubit to these two admittances $Y_{1}$ and $Y_{2}$ is assumed to be sufficiently large to dominate the relaxation of the qubit. This assumption can be easily validated by e.g. increasing the mutual inductance. The flux qubit is an otherwise superconducting loop except for three or four Josephson junctions with suitably picked parameters. In particular one of the junctions is made smaller than others to form a two-level system. When biased close to half of the flux quantum $\Phi_{0}=h/2e$, the qubit can be described (in persistent current basis) by the Hamiltonian

[TABLE]

where $\sigma_{x}$ and $\sigma_{z}$ are Pauli matrices, $\hbar\varepsilon=2I_{{\rm p}}(\Phi-\Phi_{0}/2)$ is the flux-tunable energy bias and $\Phi$ is the controllable flux threading the qubit loop. Away from $\Phi=\Phi_{0}/2$ the eigenstates have the persistent currents $\pm I_{{\rm p}}$ circulating in the loop. The tunneling energy $\hbar\Delta$ results in an anticrossing at $\Phi=\Phi_{0}/2$ and there the energy eigenstates do not carry average current. The resonant angular frequency of the qubit is $\omega=\sqrt{\varepsilon^{2}+\Delta^{2}}$.

Consider the ideal cycle shown in Fig. 1b-c where the bias of the flux qubit is swept slowly (slower than $\Delta/2\pi$) between two extreme values $\varepsilon_{1}$ and $\varepsilon_{2}$ corresponding to two different energy level separations $\hbar\omega_{1}$ and $\hbar\omega_{2}$. Let us further assume that $\omega_{j}\approx\omega_{LCj}$ and $Q_{j}\gg 1$, where $\omega_{LCj}=1/\sqrt{L_{j}C_{j}}$ and $Q_{j}=\sqrt{L_{j}/C_{j}}/R_{j}$. This choice guarantees that the qubit mainly couples to resistor $R_{1}$ ($R_{2}$) at bias point 1 (2). The cooling cycle consists of steps O, P, Q and R. First in step O the qubit has the angular frequency $\omega_{2}$ and is allowed to thermalize. Because of the bandwidth limitations imposed by the reactive elements, the qubit tends to thermalize with resistor $R_{2}$ to temperature $T_{2}$. In the next step P the flux bias is adiabatically changed to point 1 such that the level populations do not change but the energy eigenstates do. The sweep is assumed to be however faster than relaxation. In point 1 the angular frequency is reduced to $\omega_{1}$. Because the level populations and therefore the Boltzmann factors do not change the qubit must now be at lower temperature $\tilde{T}_{2}$ given by $\tilde{T}_{2}=T_{2}\omega_{1}/\omega_{2}$ in order to compensate for the change of the qubit splitting. Note that the quantum mechanical adiabaticity implies also thermodynamical adiabaticity: while the energy eigenbasis changes the level populations and thus also entropy do not change. In step Q the qubit is allowed to thermalize to temperature $T_{1}$ which results in heating of the qubit and in cooling of resistor 1 if $\tilde{T}_{2}<T_{1}$. At this point the ideally pure quantum state of the qubit gets erased and information stored is lost. The entropy of the qubit increases, but locally the entropy of resistor 1 decreases such that one can say that some information is “stored” in the resistor as it cools but naturally with some loss. Finally in step R the qubit is adiabatically shifted back to frequency $\omega_{2}$ which results in heating of the qubit to the effective temperature $\tilde{T}_{1}=T_{1}\omega_{2}/\omega_{1}$ which is assumed to be higher than $T_{2}$. The excess energy is dumped to admittance 2 when the cycle starts again from the beginning. Note that due to the condition $\tilde{T}_{2}<T_{1}$ resistor 1 can never be cooled below $T_{2}\omega_{1}/\omega_{2}$. Since there is no isothermal stage in the above cycle the present device is not even in principle a Carnot cooler but rather an Otto-type device.quan

The density matrix of the qubit with the resonant angular frequency $\omega$ at temperature $T$ ($\beta=(k_{\rm B}T)^{-1}$) is given by

[TABLE]

Using this the cooling power and the efficiency of the ideal cycle in Fig. 1c can be easily calculated. It is given by the area of the shaded region in the entropy-temperature plane below points P and Q. In principle one could solve for the effective temperature of the qubit along the line between points P and Q as a function of entropy given by $S=-k_{\rm B}{\rm Tr}(\rho\ln\rho)$. Alternatively, we can simply note that the expectation value of the energy stored in the qubit in point P is $E_{P}={\rm Tr}(\rho_{\rm eq}(\beta_{2}\omega_{2}/\omega_{1},\varepsilon_{1})H_{1})$ while after relaxation we have $E_{Q}={\rm Tr}(\rho_{\rm eq}(\beta_{1},\varepsilon_{1})H_{1})$, where $H_{1}=H(\varepsilon_{1})$ is the Hamiltonian at point 1. We thus get for the ideal cooling power

[TABLE]

where $f$ is the pump frequency. The cooling power achieves the maximum value of $\hbar\omega_{1}f/2$ when the thermal population in step O (and P) is small and when the population in step Q is large, i.e. when $\beta_{2}\hbar\omega_{2}\gg 1$ and $\beta_{1}\hbar\omega_{1}\ll 1$. Naturally a practical device has to be designed to fulfill the first condition always, in which case the smallest achievable temperature is on the order of $\hbar\omega_{1}/k_{\rm B}$ below which the cooling power decreases rapidly. The dynamic range could be made wider by a tunable $\Delta$ which can be achieved by splitting the smallest junction into a dc SQUID geometry. Another figure of merit is the ratio $\eta$ of the heat removed from resistor 1 divided by the heat added to resistor 2. It can be obtained as the ratio of the shaded area divided by the sum of the hatched area and the shaded area, i.e., $\eta=(E_{Q}-E_{P})/(E_{R}-E_{O})$ where $E_{O}={\rm Tr}(\rho_{\rm eq}(\beta_{2},\varepsilon_{2})H_{2})$ and $E_{R}={\rm Tr}(\rho_{\rm eq}(\beta_{1}\omega_{1}/\omega_{2},\varepsilon_{2})H_{2})$. This simplifies neatly to $\eta=\omega_{1}/\omega_{2}<1$ which is in harmony with the second law of thermodynamics.

For more quantitative analysis we have to consider the details of the relaxation rates due to the baths. The Golden Rule transition rates due to resistor $j$ are given by

[TABLE]

where the positive sign corresponds to relaxation. The total thermalization rate is $\Gamma_{\rm th}^{j}=\Gamma_{\uparrow}^{j}+\Gamma_{\downarrow}^{j}$. Here the unsymmetrized noise spectrum is given by

[TABLE]

where ${\rm Re}Y_{j}(\omega)=R_{j}^{-1}/[1+Q_{j}^{2}(\frac{\omega}{\omega_{LCj}}-\frac{\omega_{LCj}}{\omega})^{2}]$ is the real part of admittance of circuit $j$. The total relaxation rate is thus

[TABLE]

To model the behavior of the device we utilize the Bloch master equation (see e.g Ref. makhlin ) given in our case by

[TABLE]

where $\vec{M}={\rm Tr}(\vec{\sigma}\rho)$ is the “magnetization” of the qubit, and $\vec{B}={\Delta}\vec{x}+\varepsilon\vec{z}$ is the fictitious magnetic field. Note however that the z-component of $\vec{B}$ and $\vec{M}$ do correspond to real magnetic field and magnetization, respectively. In Eq. (7) $\vec{M}_{\parallel}$ and $\vec{M}_{\perp}$ are the components of the magnetization parallel and perpendicular to $\vec{B}$, respectively. These are explicitly

[TABLE]

Here $\vec{M}_{T}$ stands for the $\varepsilon$-dependent equilibrium magnetization of a qubit at temperature $T$ given explicitly by

[TABLE]

and ${\Gamma_{2}=(\Gamma_{\rm th}^{1}+\Gamma_{\rm th}^{2})/2+\Gamma_{\varphi}}$ is the dephasing rate. The possibility of pure dephasing at the rate $\Gamma_{\varphi}$ has been included. In the simulation we neglect pure dephasing due to the intentionally large dominating thermalization rate. Equation (7) describes relaxation towards instantaneous equilibrium with two competing rates due to two different thermal baths. Equations of this type are usually used in the stationary case, but for driving frequencies slower than $\Delta/\hbar$ it should be also valid. As is obvious from Eq. (7), the qubit actually tends to relax towards an effective $\varepsilon$-dependent equilibrium magnetization ${(\Gamma_{\rm th}^{1}\vec{M}_{T_{1}}+\Gamma_{\rm th}^{2}\vec{M}_{T_{2}})/(\Gamma_{\rm th}^{1}+\Gamma_{\rm th}^{2})}$ at the rate $\Gamma_{\rm th}^{1}+\Gamma_{\rm th}^{2}$.

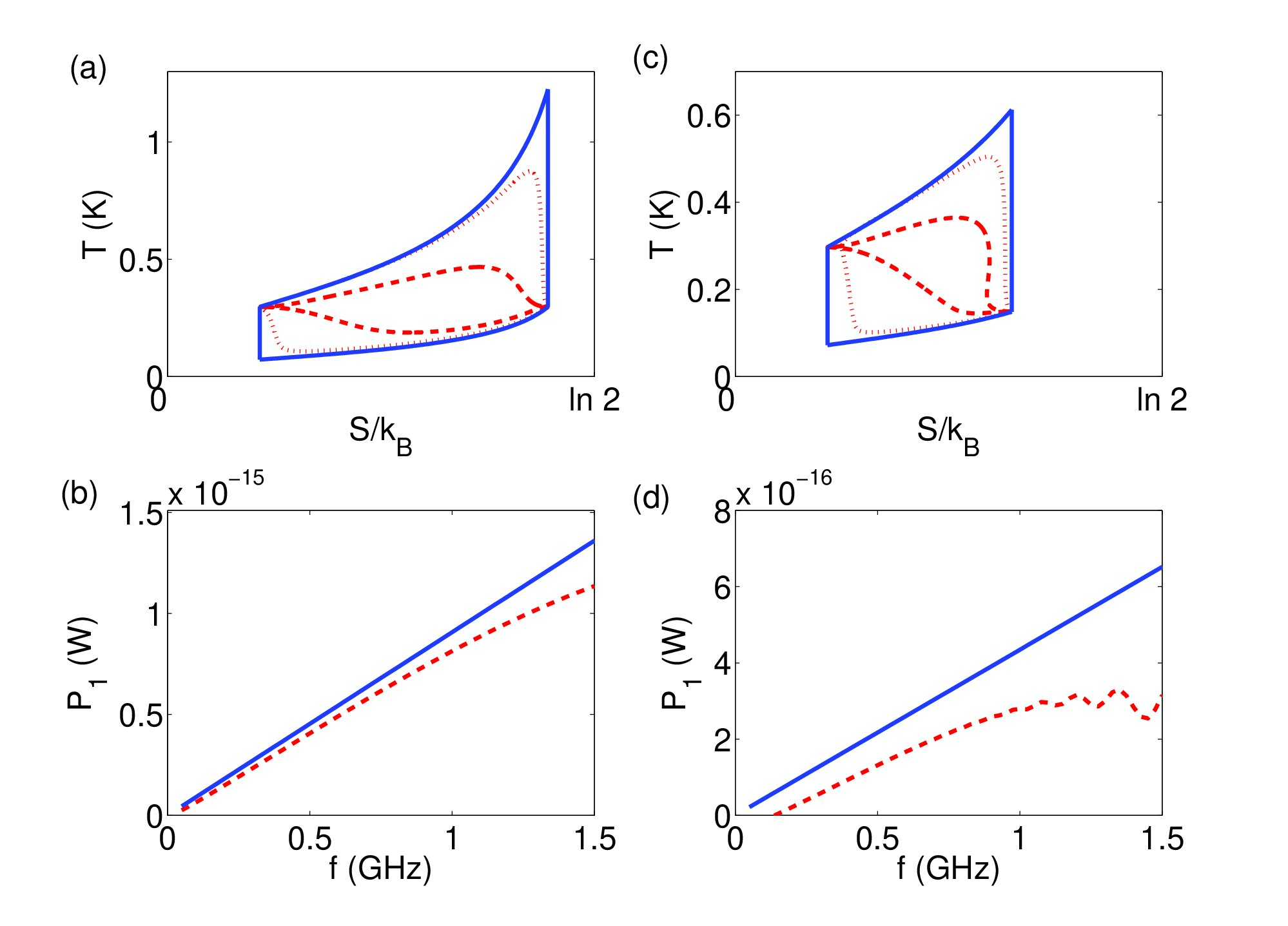

To illustrate the practical potential of the device we show in Fig. 2 the simulated cooling power with sinusoidal driving of $\epsilon(t)$ compared to the ideal case along with the actual loop in the entropy temperature plane. The heat flow $P_{j}$ from resistor $j$ to the qubit is simply obtained by integrating the product of the thermalization rate and the energy deficit, i.e., $P_{j}=f\int_{0}^{1/f}dt\Gamma_{\rm th}^{j}\left[{\rm Tr}(\rho_{\rm eq}(\beta_{j},\epsilon(t))H)-{\rm Tr}(\rho(t)H)\right]$ . The density matrix $\rho(t)=\frac{1}{2}\vec{M}(t)\cdot\vec{\sigma}$ is solved numerically using the Bloch equation (system is followed over a few periods until it has converged to the limit cycle). We see that the actual simulated behavior does not significantly deviate at low $f$ from the ideal behavior and that cooling powers on the order of fW can be achieved with reasonable sample parameters. The oscillatory behavior at high $f$ is interpreted as Landau-Zener interference sillanpaa ; oliver .

However, the cooling power has to be compared with realistic heat loads to evaluate the utility of the flux qubit cooler. On one hand, resistor 1 is subject to heat load from the phonons of the substrate on which the device rests. On the other hand, resistor 2 should be coupled well enough to phonon bath such that the unavoidable work done on it does not raise $T_{2}$ excessively. The heat flow between the electron system of resistor $j$ and the phonon system is given by $P_{el-ph}=\Sigma V(T^{5}_{j}-T_{ph}^{5})$ where $V_{j}$ is the volume of resistor $j$ and $\Sigma$ is typically on the order of $10^{9}~{}{\rm Wm}^{-3}{\rm K}^{-5}$. Thus resistor 1 needs to have a sufficiently small volume while resistor 2 should be large enough physically in order to serve as a heat sink. In addition the photonic heat conduction between the resistors due to temperature gradient may in principle contribute also. Following an analysis similar to Ref. schmidt , the heat flow from admittance $Y_{2}(\omega)$ to $Y_{1}(\omega)$ can be written as

[TABLE]

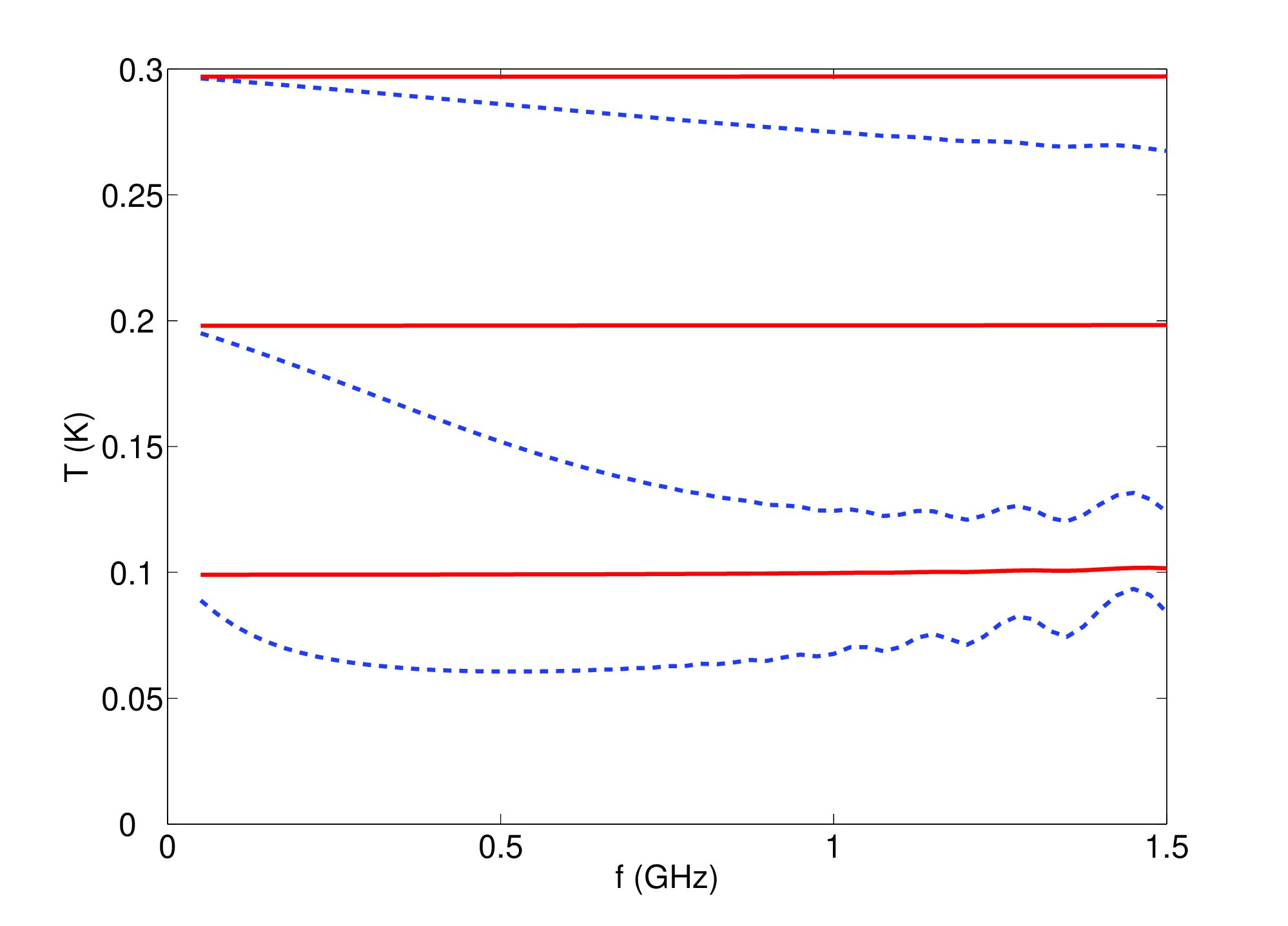

where $n_{j}(\omega)=[\exp(\beta_{j}\hbar\omega-1)]^{-1}$ are the boson occupation factors and $M$ is the mutual inductance between the loops. For detuned high-Q resonators the photonic heat conduction turns out to be quite negligible. For instance for the values of Fig. 3 with $M=5$ pH and $R_{1}=R_{2}=1~{}\Omega$ we get only $P_{\gamma}=2\times 10^{-18}$ W even if $T_{1}=0$ K and $T_{2}=300$ mK. Figure 2 illustrates the calculated equilibrium temperature versus operation frequency obtained numerically by finding the balance between the dominating phononic heat conduction and the integrated cooling power. We see that almost a factor of 2 reduction of $T_{1}$ is possible with realistic parameters.

In practice the drop of $T_{1}$ can be measured e.g. using an additional SINIS thermometer, in which resistor 1 will serve as the normal metal N. Its reading is sensitive to the electronic temperature of N only, and self-heating can be made very small. The resistors should be made out of thin film normal metal such as copper or gold with typically sub 1 $\Omega$ square resistance. Volume can be picked freely. To get the resonant frequencies and quality factor as above we need $L_{1}=320$ pH, $C_{1}=3.2$ pF, $L_{2}=80$ pH and $C_{2}=0.8$ pF which are also realistic. For the inductor one may use either Josephson or the kinetic inductance of superconducting wire while the capacitance values are similar to those in typical flux qubits yoshihara . To satisfy the conditions of the above numerical example we need quite large mutual inductances which however can be easily achieved using e.g. kinetic inductance prbspectro . The strong driving requires also rather large inductance between the microwave line and the qubit, which should not result in uncontrolled relaxation. For instance, $M_{\rm mw}$=5 pH coupling to the control line is acceptable as it would result in at most $3\times 10^{7}$ s*-1* relaxation rate assuming a 50 $\Omega$ environment at 0.3 K. This choice will not degrade the performance of the device significantly since driving is much faster. Yet sufficiently strong driving can be achieved with a modest 3 $\mu$A ac current. Fabrication process will require most likely three lithography steps.

In conclusion, we have described a method of using a superconducting flux qubit driven strongly at microwave frequency to cool an external metal resistor. Here we considered LC resonators to achieve the required frequency selectivity but a coplanar wave-guide resonator or a mechanical oscillator could be used in principle, too. We demonstrated by a numerical example that it is possible to observe the associated temperature decrease experimentally. This effect is directly related to the loss of information and thus to the increase of entropy of the quantum bit.
