Oscillation bands of condensates on a ring: Beyond the mean field theory

TL;DR

This paper investigates the oscillation bands of condensates on a ring by diagonalizing the Hamiltonian of a bosonic system, revealing excitation modes, clustering phenomena, and the relation between vortex and low-lying states beyond mean field theory.

Contribution

It introduces a detailed analysis of excitation modes, clustering, and state classification in a bosonic ring system beyond traditional mean field approaches.

Findings

Identification of basic oscillation modes involving pair excitations

Discovery of Bose-clustering and cluster structures in the system

Establishment of a relation between vortex states and low-lying excitations

Abstract

The Hamiltonian of a N-boson system confined on a ring with zero spin and repulsive interaction is diagonalized. The excitation of a pair of p-wave-particles rotating reversely appears to be a basic mode. The fluctuation of many of these excited pairs provides a mechanism of oscillation, the states can be thereby classified into oscillation bands. The particle correlation is studied intuitively via the two-body densities. Bose-clustering originating from the symmetrization of wave functions is found, which leads to the appearance of 1-, 2-, and 3-cluster structures. The motion is divided into being collective and relative, this leads to the establishment of a relation between the very high vortex states and the low-lying states.

Figures

Tables

Table 1. Table 1: Eigen-energies E j subscript 𝐸 𝑗 E_{j} (the unit is G 𝐺 G ) of the L = 0 𝐿 0 L=0 states. The first row is ( k max , K max ) subscript 𝑘 subscript 𝐾 (k_{\max},K_{\max}) , the first column is the serial number of states j 𝑗 j . V o = 1 , θ r ​ a ​ n ​ g ​ e = 0.025 , formulae-sequence subscript 𝑉 𝑜 1 subscript 𝜃 𝑟 𝑎 𝑛 𝑔 𝑒 0.025 V_{o}=1,\theta_{range}=0.025, and N = 100 𝑁 100 N=100 are given.

	(3,50)	(4,50)	(4,60)	(5,60)
1	39.109	39.090	39.090	39.078
15	53.645	53.616	53.616	53.613
16	54.822	54.800	54.800	54.790

Table 2. Table 2: The weights of Δ Z , i subscript Δ 𝑍 𝑖 \Delta_{Z,i} of the bands with L = 0 𝐿 0 L=0

$i$	$I-$band	$II-$band	$III-$band
1	0.009	0.017	0.040
2	0.012	0.030	0.056
3	0.021	0.061	0.088
4	0.035	0.028
5	0.055	0.035
6	0.079	0.106

Table 3. Table 3: Eigen-energies of the four lowest L = 0 𝐿 0 L=0 states for a system with N = 100 𝑁 100 N=100 and with zero-range interaction V i ​ j = 0.05 ​ δ ​ ( θ i − θ j ) subscript 𝑉 𝑖 𝑗 0.05 𝛿 subscript 𝜃 𝑖 subscript 𝜃 𝑗 V_{ij}=0.05\delta(\theta_{i}-\theta_{j}) (the unit of energy is G 𝐺 G  as before). The weights of the j = 0 𝑗 0 j=0 components of these states are also listed. The corresponding results from square-barrier interaction with V o = 1 subscript 𝑉 𝑜 1 V_{o}=1 , and θ r ​ a ​ n ​ g ​ e = 0.025 subscript 𝜃 𝑟 𝑎 𝑛 𝑔 𝑒 0.025 \theta_{range}=0.025 are given in the parentheses.

$(L,Z,i)$	$E^{(L,Z,i)}$	${\left(C_0^{(L,Z,i)}\right)}^2$
$(0,I,1)$	39.0900 (39.0902)	0.9370 (0.9371)
$(0,I,2)$	42.2982 (42.2983)	0.0510 (0.0510)
$(0,I,3)$	45.4733 (45.4733)	0.02 (0.02)
$(0,II,1)$	47.0076 (47.0074)	0.8372 (0.8373)

Equations

$$\begin{array}[]{lll}H=-\sum_{i}\frac{\partial^{2}}{\partial\theta_{i}^{2}}+\sum_{i<j}V_{ij}&&\end{array}$$

$${\Psi }_{I,i}^{(0)}=\sum _j{C}_j^{(0,I,i)}|P^{(j)}⟩+{\Delta }_{I,i}$$

$$\begin{array}[]{lll}\Psi_{II,i}^{(0)}&=&\sum_{j}C_{j}^{(0,II,i)}\frac{1}{\sqrt{2}}[\ |(2)^{1}(-1)^{2}P^{(j)}\rangle\\ &&\pm|(-2)^{1}(1)^{2}P^{(j)}\rangle]+\Delta_{II,i}\end{array}$$

$$\begin{array}[]{lll}\Psi_{III,i}^{(0)}=\sum_{j}C_{j}^{(0,III,i)}\ |(2)^{1}(-2)^{1}P^{(j)}\rangle+\Delta_{III,i}&&\end{array}$$

$$\begin{array}[]{lll}\rho_{2}(\theta_{1},\theta_{2})=\int d\theta_{3}\cdot\cdot\cdot d\theta_{N}\ \Psi_{Z,i}^{(L)\ast}\Psi_{Z,i}^{(L)}&&\end{array}$$

$$\begin{array}[]{rll}|\alpha\rangle=\sum_{k}\sqrt{n_{k}(n_{k}-1)/N(N-1)}\phi_{k}(1)\phi_{k}(2)|\alpha_{k}\rangle&&\\ +\underset{(k_{a}\neq k_{b})}{\sum_{k_{a},k_{b}}}\sqrt{n_{k_{a}}n_{k_{b}}/N(N-1)}\phi_{k_{a}}(1)\phi_{k_{b}}(2)|\alpha_{k_{a}k_{b}}\rangle&&\end{array}$$

$$\begin{array}[]{rll}\rho_{2}(\theta_{1},\theta_{2})=\frac{1}{(2\pi)^{2}N(N-1)}[N(N-1)-j(4N-6j)&&\\ +4j(N-2j)(1+\cos(\theta_{1}-\theta_{2}))+4j^{2}\cos^{2}(\theta_{1}-\theta_{2})]&&\end{array}$$

$$\begin{array}[]{lll}\Psi_{I,i}^{(1)}=\sum_{j}C_{j}^{(1,I,i)}\ |(1)^{1}P^{(j)}\rangle+\Delta_{I,i}&&\\ \Psi_{II,i}^{(1)}=\sum_{j}C_{j}^{(1,II,i)}\ |(2)^{1}(-1)^{1}P^{(j)}\rangle+\Delta_{II,i}&&\\ \Psi_{III,i}^{(1)}=\sum_{j}C_{j}^{(1,III,i)}\ |(-2)^{1}(1)^{3}P^{(j)}\rangle+\Delta_{III,i}&&\\ \Psi_{IV,i}^{(1)}=\sum_{j}C_{j}^{(1,IV,i)}\ |(2)^{1}(-2)^{1}(1)^{1}P^{(j)}\rangle+\Delta_{IV,i}&&\\ \Psi_{V,i}^{(1)}=\sum_{j}C_{j}^{(1,V,i)}\ |(3)^{1}(-1)^{2}P^{(j)}\rangle+\Delta_{V,i}&&\\ \Psi_{VI,i}^{(1)}=\sum_{j}C_{j}^{(1,VI,i)}\ |(3)^{1}(-2)^{1}P^{(j)}\rangle+\Delta_{VI,i}&&\end{array}$$

$$\begin{array}[]{lll}\Psi_{I,1}^{(L)}=\sum_{j}C_{j}^{(L,I,1)}\ |(1)^{L}P^{(j)}\rangle+\Delta_{I,1}^{L}&&\end{array}$$

$$\begin{array}[]{lll}E^{(N-L_{o},Z,i)}=E^{(L_{o},Z,i)}+N-2L_{o}&&\end{array}$$

$$\begin{array}[]{lll}\Psi_{Z,i}^{(N-L_{o})}=\overset{\wedge}{X}\Psi_{Z,i}^{(L_{o})}&&\end{array}$$

$$\begin{array}[]{lll}\psi_{int}^{(N+L_{o},Z,i)}=\psi_{int}^{(L_{o},Z,i)}&&\end{array}$$

$$\begin{array}[]{lll}\Psi_{Z,i}^{(N-L)}=\frac{1}{\sqrt{2\pi}}e^{i(N-L)\theta_{coll}}\ \psi_{int}^{(N-L,Z,i)}&&\end{array}$$

$$\begin{array}[]{lll}\overset{\wedge}{X}\Psi_{Z,i}^{(L)}=\frac{1}{\sqrt{2\pi}}e^{i(N-L)\theta_{coll}}\ \psi_{int}^{(-L,Z,i)}&&\end{array}$$

Full text

After the experimental realization of the Bose-Einstein condensation1, various condensates confined under different circumstances have been extensively studied theoretically and experimentally.  Mostly, the condensates are considered to be confined in a harmonic trap.  Condensates trapped by periodic potential have also been studied due to the appearance of optical lattices.2  It is believed that the appearance of condensates confined in particular geometries is possible. Experimentally, the particle interactions can now be tuned from very weak to very strong,3-8 it implies that the particle correlation may become important.  Theoretically, to respond, going beyond the mean field Gross-Pitaevskii (GP) theory is desirable, and the condensates confined in particular geometries are also deserved to be considered.

Along this line, in addition to the ground state, the yrast states have been studied both analytically and numerically.9-17 The condensation on a ring has also been studied recently.12  The present paper is also dedicated to the $N-$boson systems confined on a ring with weak interaction, its scope is broader and covers the whole low-lying spectra.  A similar system has been investigated analytically by Lieb and Liniger16,17. However, the emphasis of their papers is different from the present one, which is placed on analyzing the structures of the excited states to find out their distinctions and similarities, and to find out the modes of excitation.  Based on the analysis, an effort is made to classify the excited states. Traditionally, the particle correlation and its effect on the geometry of $N-$boson systems is a topic scarcely studied if $N$ is large.  In this paper, the correlation is studied intuitively so as the geometric features inherent in the excited states can be understood. Traditionally, a separation between the collective and internal motions is seldom to be considered if $N$ is large.  In this paper such a separation is made and leads to the establishment of a relation between the vortex states and the low-lying states.

It is assumed that the $N$ identical bosons confined on a ring have mass $m,$ spin zero, and square-barrier interaction. The ring has a radius $R$, $N$  is given at 100, 20 and 10000.   Let $G=\hbar^{2}/(2mR^{2})$ be the unit of energy. The Hamiltonian then reads

[TABLE]

where $\theta_{i}$ is the azimuthal angle of the i-th boson. $V_{ij}=V_{o}$ if $|\theta_{j}-\theta_{i}|\leq\theta_{range}$ , or $=0$ otherwise.  Let $\phi_{k}=e^{ik\theta}/\sqrt{2\pi}$ be a single particle state, $-k_{\max}\leq k\leq k_{\max}$ is assumed.  The $N-$body normalized basis functions in Fock-representation are $|\alpha\rangle\equiv|n_{-k_{\max}},\cdot\cdot\cdot\ n_{k_{\max}}\rangle,$ where $n_{j}$ is the number of bosons in $\phi_{j}$, $\sum_{j}n_{j}=N,$ and $\sum_{j}n_{j}j=L$, the total angular momentum. Then, $H$ is diagonalized in the space spanned by $|\alpha\rangle,$ the low-lying spectrum together with the eigen-wave-functions, each is a linear combination of $|\alpha\rangle$, are thereby obtained.  Let $K_{\alpha}=\sum_{j}n_{j}j^{2}$ be the total kinetic energy of an $|\alpha\rangle$ state. Evidently, those $|\alpha\rangle$ with a large $K_{\alpha}$ are negligible for low-lying states. Therefore, one more constraint $K_{\alpha}\leq K_{\max}$ is further added to control the number of $|\alpha\rangle$. In this procedure, the crucial point is the calculation of the matrix elements of $H$. This can be realized by using the fractional parentage coefficients18 (refer to eq.(6) below). Numerical results are reported as follows.

This paper concerns only the cases with weak interaction. Firstly, let $V_{o}=1,\theta_{range}=0.025$, and $N=100$. This is corresponding to $\gamma=0.00157$ , where $\gamma$ is introduced by Lieb and Liniger to measure the strength of interaction,16,17 this is shown later. When $k_{\max}$ and $K_{\max}$ are given at a number of values, the associated eigen-energies $E_{j}$ of the first, fifteenth, and sixteenth $L=0$ eigen-states are listed in Table I.  When $(k_{\max},K_{\max})$ is changed from $(3,50)$ to (5,60), the total number of $|\alpha\rangle$ is changed from 2167 to 8890. Table I demonstrates that the great increase of basis functions does not lead to a remarkable decrease of eigen-energies. Thus the convergency is qualitatively satisfying even for the higher states.

In the following the choice $k_{\max}=4$ and $K_{\max}=50$ are adopted, this limitation leads to a 3254-dimensional space.  Thereby the resultant data have at least three effective figures, this is sufficient for our qualitative purpose.

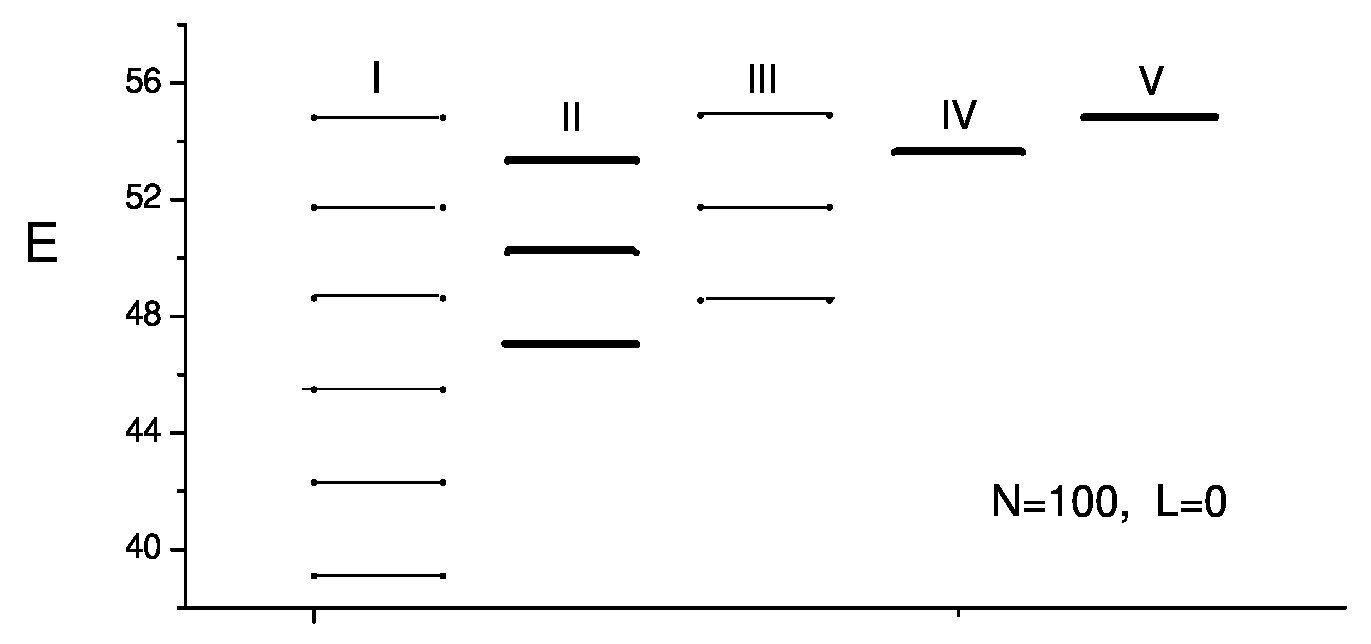

The low-lying spectrum is given in Fig.1, where the lowest fourteen levels are included. Twelve of them can be ascribed into three bands, in each band the levels are distributed equidistantly, this is a strong signal of harmonic-like oscillations. From now on the labels $\Psi_{Z,i}^{(L)}$ and $E^{(L,Z,i)}$ are used to denote the wave function and energy of the i-th state of the Z-th band (Z=I, II, III,$\cdot\cdot\cdot$).

It turns out that the excitation of a pair of particles both in p-wave but rotating reversely, namely, one particle in $\phi_{1}$ while the other one in $\phi_{-1},$ is a basic mode, the pair is called a basic pair in the follows. A number of such basic pairs might be excited.  When $2j$ particles are in basic pairs while the remaining $N-2j$ particles are in $\phi_{0}$, the associated $|\alpha\rangle$ is written as $|P^{(j)}\rangle$. For all the states of the $I-$band, we found $\Psi_{I,i}^{(0)}$ is mainly a linear combination of $|P^{(j)}\rangle$ together with a small component denoted by $\Delta_{I,i}$, i.e.,

[TABLE]

where $\Delta_{I,i}$ is very small as shown in Table II, while the coefficients $C_{j}^{(L,Z,i)}$ arise from the diagonalization. Thus the basic structure of the $I-$band is just a fluctuation of many of the basic pairs.

For lower states, $C_{j}^{(0,Z,i)}$ would be very small if $j$ is larger, e.g., for the ground state, $C_{0}^{(0,I,1)}=0.968$ and$\ C_{j\ \geq 2}^{(0,I,1)}\approx 0,$ it implies that the excitation of many pairs is not probable. It also implies that the ground state wave function obtained via mean-field theory might be a good approximation.  However, for higher states, many pairs would be excited.  E.g., for the third state of the $I-$band, $C_{j}^{(0,I,3)}=0.052$,$\ 0.406$,$\ 0.681,$ $-0.528,$ and $0.245$ when $j$ is from 0 to 4, it implies a stronger fluctuation.

When a $|\alpha\rangle$ has not only $2j$ particles in the basic pairs, but also$\ m$ particles in $\phi_{k}$, while the remaining particles in $\phi_{0}$, then it is denoted as $|(k)^{m}P^{(j)}\rangle$ (where $k=\pm 1$ are allowed)  Similarly, we can define $|(k_{1})^{m_{1}}(k_{2})^{m_{2}}P^{(j)}\rangle$, and so on.  For all the states of the $II-$band, we found

[TABLE]

where both the $+$ and $-$ signs lead to the same energy, thus the level is two-fold degenerate. Again, all the $\Delta_{II,i}$ are very small as shown in Table II,  thus the fluctuation of basic pairs is again the basic structure. However, the $II-$band is characterized by having the additional 3-particle-excitation (one in d-wave and two in p-wave).

For all the states of the third band, we found

[TABLE]

Thus, the $III-$band contains, in addition to the fluctuation of basic pairs, a more energetic pair with each particle in d-wave. It was found that the spacing $E^{(0,Z,i+1)}-E^{(0,Z,i)}$ inside all the bands are nearly the same, they are $\sim$3.15.  This arises because they have the same mechanism of oscillation, namely, the fluctuation of basic pairs.

When the energy goes higher, more oscillation bands can be found.  The two extra levels in Fig.1 at the right are the band-heads of higher bands.

Incidentally, the band-heads of the above three bands are dominated by $|P^{(0)}\rangle,$ $|(2)^{1}(-1)^{2}P^{(0)}\rangle\pm|(-2)^{1}(1)^{2}P^{(0)}\rangle$ and $|(2)^{1}(-2)^{1}P^{(0)}\rangle$, respectively, and their kinetic energies $K_{\alpha}=0,6,$ and 8.  Among all the basis functions with $L=0$ and without basic pairs, these three are the lowest three.  This explains why the band-heads are dominated by them. Once a band-head is fixed, the corresponding oscillation band would grow up via the fluctuation of basic pairs.

The particle correlations can be seen intuitively by observing the two-body densities

[TABLE]

Similar to the calculation of the matrix elements of interaction, the above integration can be performed in coordinate space by extracting the particles 1 and 2 from $|\alpha\rangle$ by using the fractional parentage coefficients18, namely,

[TABLE]

where $|\alpha_{k}\rangle$ is different from $|\alpha\rangle$ by replacing $n_{k}$ with $n_{k}-2$, $\ |\alpha_{k_{a}k_{b}}\rangle$ is different from $|\alpha\rangle$ by replacing $n_{k_{a}}$ and $n_{k_{b}}$ with $n_{k_{a}}-1$ and $n_{k_{b}}-1,$ respectively.

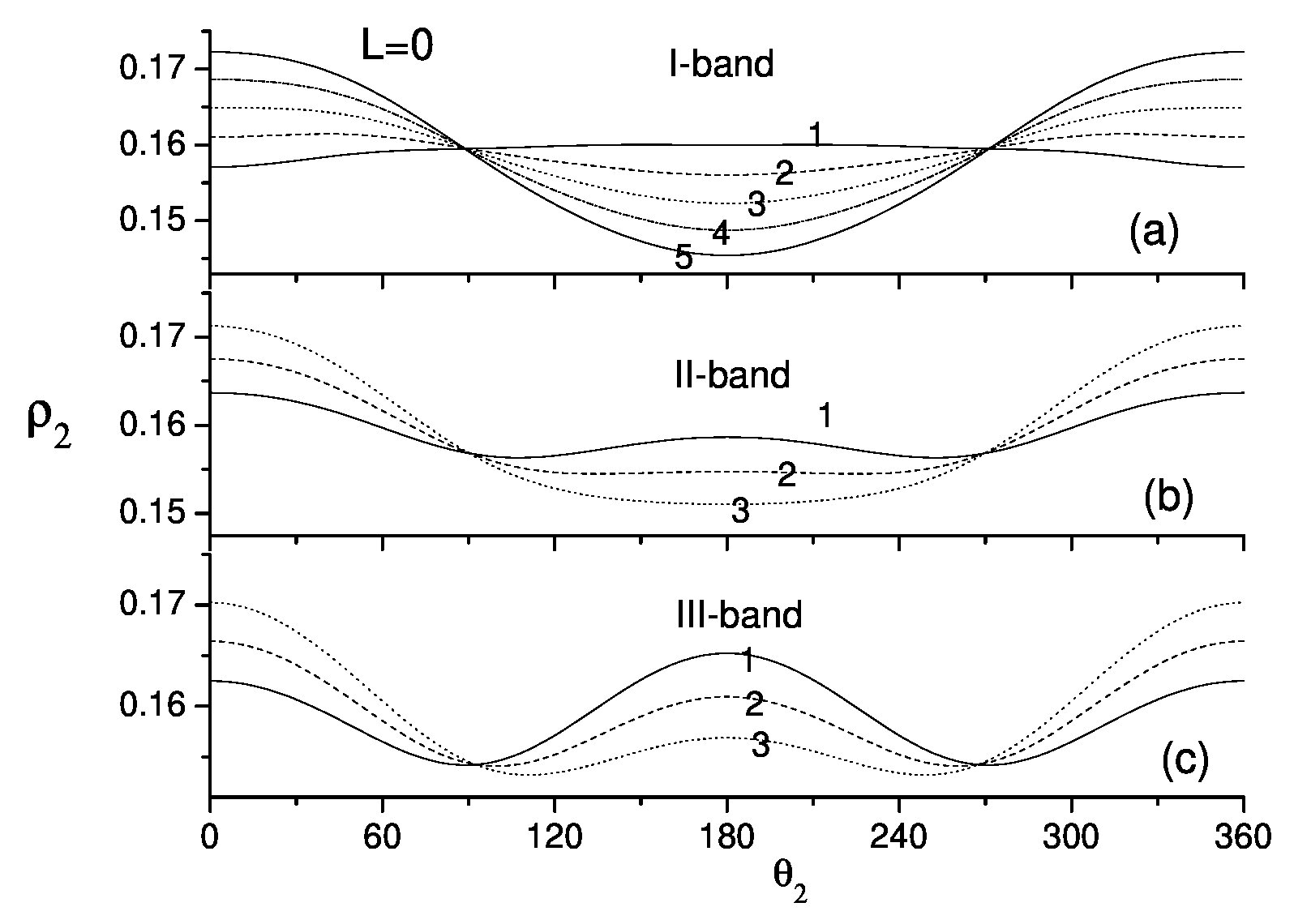

$\rho_{2}$ gives the spatial correlation between any pair of particles as shown in Fig.2. For the ground state $\Psi_{I,1}^{(0)}$, $\rho_{2}$ is flat implying that the correlation is weak. However, it is a little larger when the two particles are opposite to each other ($\theta_{1}=0$ and $\theta_{2}=\pi$). It implies the existence of a weak correlation which is entirely ignored by the mean field theory.  Thus, even the interaction adopted is weak and even for the ground state, there is still a small revision to the mean field theory. For higher states of the $I-$band, the fluctuation of basic pairs becomes stronger.  Due to the fluctuation, the particles tend to be close to each other to form a single cluster. This tendency is clearly shown in Fig.2a.

For the first state of the $III-band,$ $\Psi_{III,1}^{(0)}$ has two peaks in $\rho_{2}$ implying a 2-cluster structure. It arises from the two d-wave paticles inherent in the band.  The feature of $\Psi_{II,1}^{(0)}$ is lying between $\Psi_{I,1}^{(0)}$ and $\Psi_{III,1}^{(0)}$.  For all higher states of every band, due to the strong fluctuation of basic pairs, all the particles tend to be close to each other as shown in 2b and 2c.

To understand the physics why the particles tend to be close to each other, let us study the most important basis state $|P^{(j)}\rangle$.  By inserting $|P^{(j)}\rangle$ into eq.(5) to replace $\Psi_{Z,i}^{(L)}$ and by using (6), $\rho_{2}$ reads

[TABLE]

Where there are four terms at the right, the non-uniformity arises from the third and fourth terms. The third term causes the particles to be close to each other to form a single cluster, while the fourth term causes the two-cluster clustering. When $j$ is small, the fourth term can be neglected, and the particles tend to form a single cluster. However, when $j\approx N/2$ , the third term can be neglected, and the particles tend to form two clusters. It is noted that, if the symmetrization were dropped, the density contributed by $|P^{(j)}\rangle$ would be uniform. The appearance of the clustering originates from the symmetrization of the bosonic wave functions, therefore it can be called as bose-clustering.

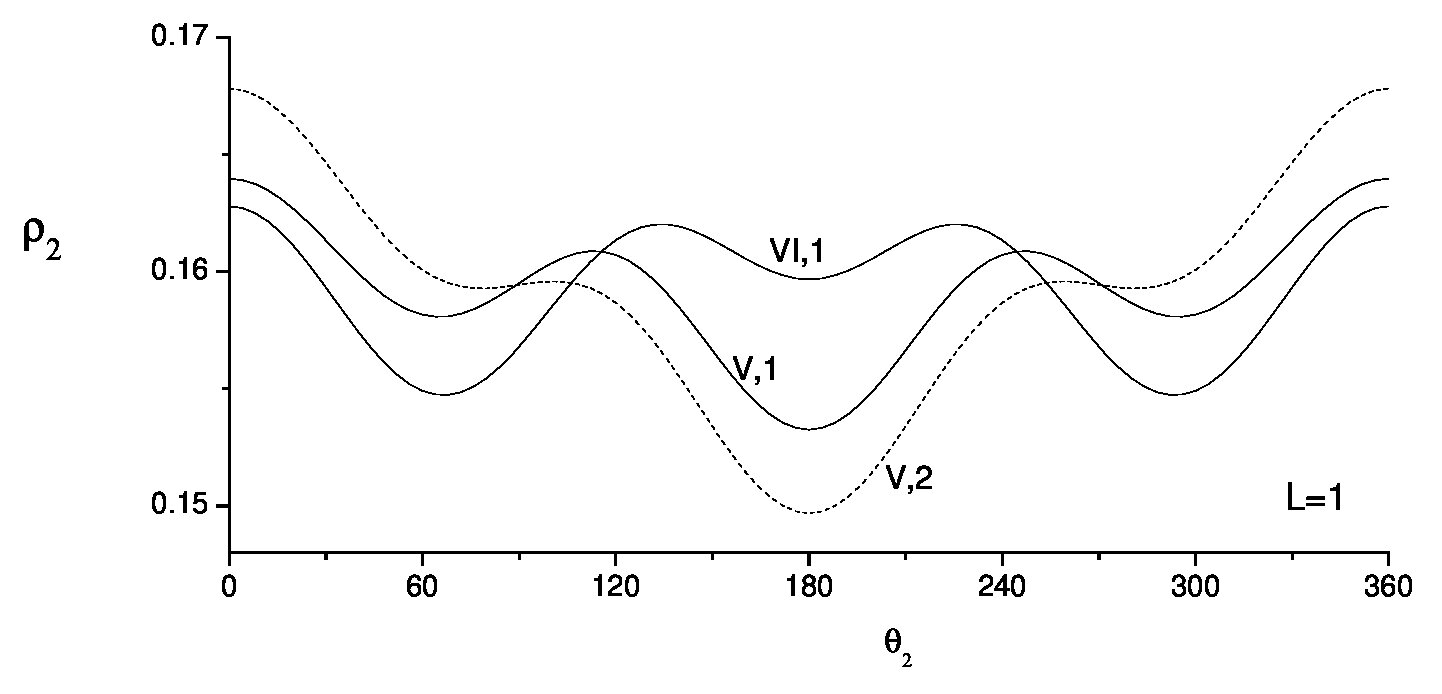

For $L=1$ states, the lowest energy $E^{(1,I,1)}$ is higher than $E^{(0,I,1)}$ by 1.606, but lower than $E^{(0,I,2)}$.  Thus $\Psi_{I,1}^{(1)}$ is the true  first excited state of the system. A number of oscillation bands exist as well, the wave functions of the lowest six bands are found as

[TABLE]

Where the weights of all the $\Delta_{Z,i}\leq$ 0.1 if $i\leq 4$.  Thus, just as the above $L=0$ case, all the bands have the common fluctuation of basic pairs, but each band has a specific additional few-particle excitation. The energies of the band-heads from $I$ to $VI$ are 40.70, 45.42, 48.58, 50.14, 52.04, and 53.58 respectively.  Furthermore, the spacing $\sim$3.15 found above is found again for all these bands due to having the same mechanism of oscillation.  The $I-$band is similar to the above $I-$band with $L=0$ but having an additional single p-wave excitation, the $\rho_{2}$ of them are one-one similar. Similarly, the $\rho_{2}$ of the $IV-$band is one-one similar to those of the above $III-$ band with $L=0$. The $\rho_{2}$ of the $II$ and $III-$bands are both similar to those of the above $II-$band with $L=0$.  However, the $V$ and $VI-$bands are special due to containing the f-wave excitation, the $\rho_{2}$ of their band-heads exhibit a 3-cluster structure as shown in Fig.3.   When the energy goes even higher, more higher oscillation bands will appear.  For the above six $L=1$ bands, their band-heads are dominated by the $|\alpha\rangle$ with $K_{\alpha}=1,5,7,9,11,$ and 13. Obviously, a higher $K_{\alpha}$ leads to a higher band.

In general, all the low-lying states can be classified into oscillation bands.  For all the lower bands disregarding $L$, it was found that each band-head is dominated by a basis function containing a specific few-particle excitation but not containing any basic pairs. The energy order of the bands is determined by the magnitudes of $K_{\alpha}$ associated with the dominant basis function $|\alpha\rangle$ of the band-heads. Once a band-head stands, an oscillation band will grow up from the band-head simply via the fluctuation of basic pairs. For examples, for $L=2$ states, the dominant $|\alpha\rangle$ of the band-heads of the four lowest oscillation bands are $|(1)^{2}P^{(0)}\rangle$, $|(2)^{1}P^{(0)}\rangle$, $|(-2)^{1}(1)^{4}P^{(0)}\rangle$, and $|(3)^{1}(-1)^{1}P^{(0)}\rangle$ with $K_{\alpha}=2,4,8,$ and $10,$ respectively.

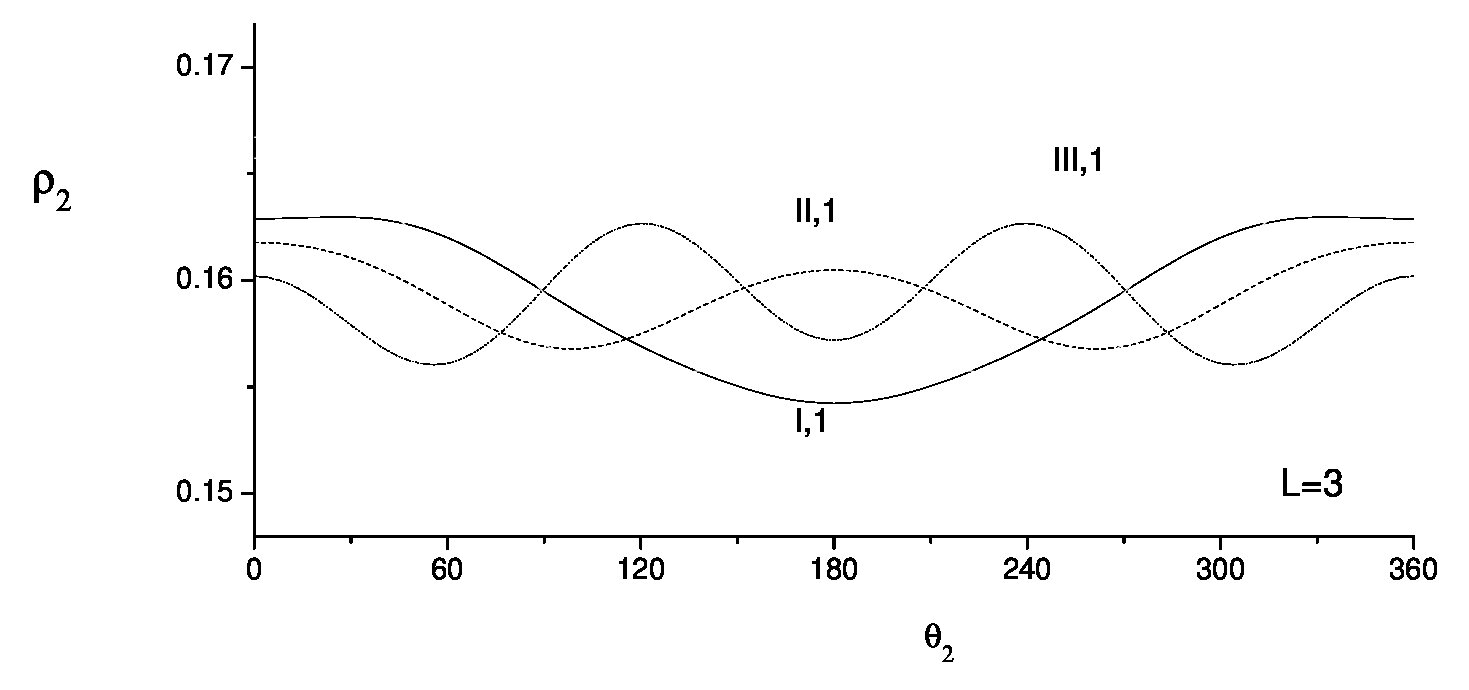

For $L=3$ states, the dominant $|\alpha\rangle$ of the band-heads of the three lowest bands are $|(1)^{3}P^{(0)}\rangle$, $|(2)^{1}(1)^{1}P^{(0)}\rangle$, and $|(3)^{1}P^{(0)}\rangle,$ with $K_{\alpha}=3,5,$ and $9,$ respectively.  Since the p-, d-, and f-wave appear successively, these band-heads exhibit 1-cluster, 2-cluster, and 3-cluster structures, respectively, as shown in Fig.4.

Furthermore, a $-L$ state can be derived from the corresponding $L$ state simply by changing every $k$ to $-k$, i.e., change the components $|(k_{1})^{m_{1}}(k_{2})^{m_{2}}P^{(j)}\rangle$ to $|(-k_{1})^{m_{1}}(-k_{2})^{m_{2}}P^{(j)}\rangle,$ and so on.  Therefore $\Psi_{Z,i}^{(-L)}=(\Psi_{Z,i}^{(L)})^{\ast}$, and $E^{(-L,Z,i)}=E^{(L,Z,i)}$.

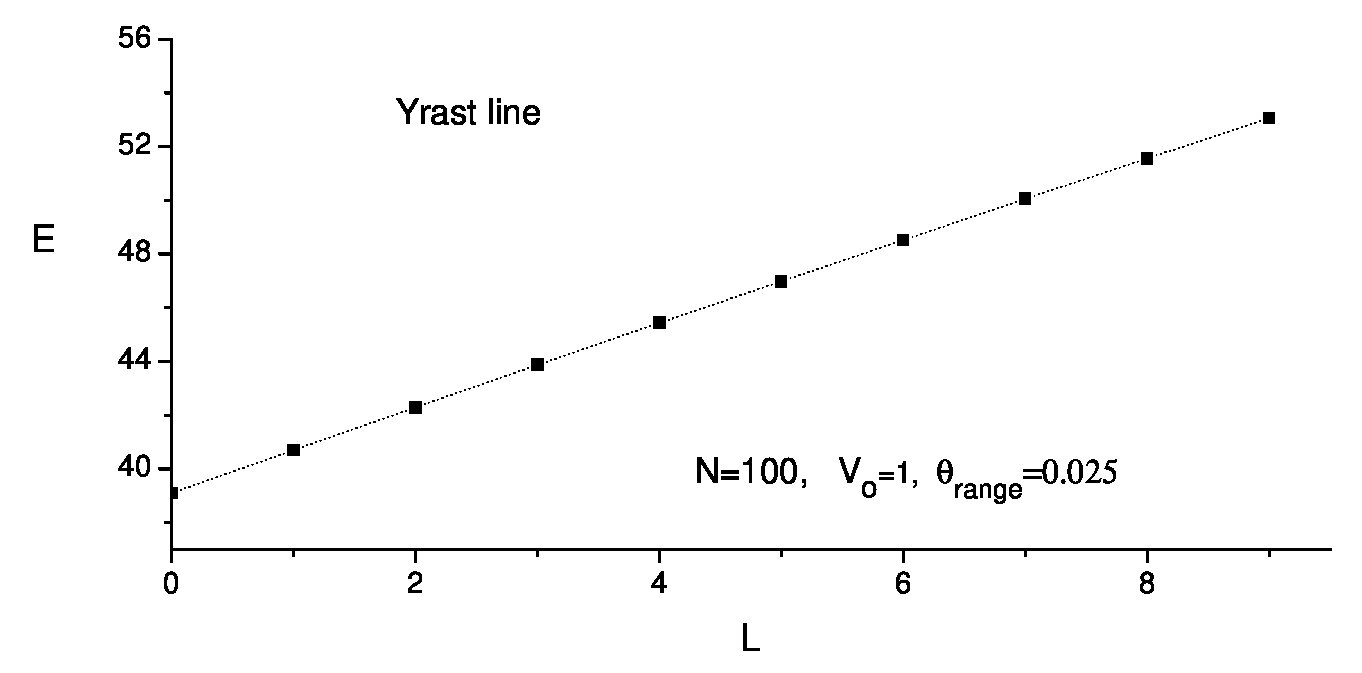

Let us study the yrast states $\Psi_{I,1}^{(L)}$, each is the lowest one for a given $L$. The energies of them are plotted in Fig.5, their wave functions are found as

[TABLE]

where $\Delta_{I,i}^{L}$ is very small.  When $L$ is small, the fluctuation of basic pairs is small, and the yrast states are dominated by the $j=0$ component $|(1)^{L}P^{(0)}\rangle.$ When $L$ is larger, the weight of the $|(1)^{L}P^{(0)}\rangle$ component becomes smaller.  E.g., when $L=0,2,4,$ and 10, the weights of $|(1)^{L}P^{(0)}\rangle$ are 0.94, 0.84, 0.75, and 0.54, respectively.  Evidently, the energy going up linearly in the yrast line in Fig.5 is mainly due to the linear increase of the number of p-wave particles.

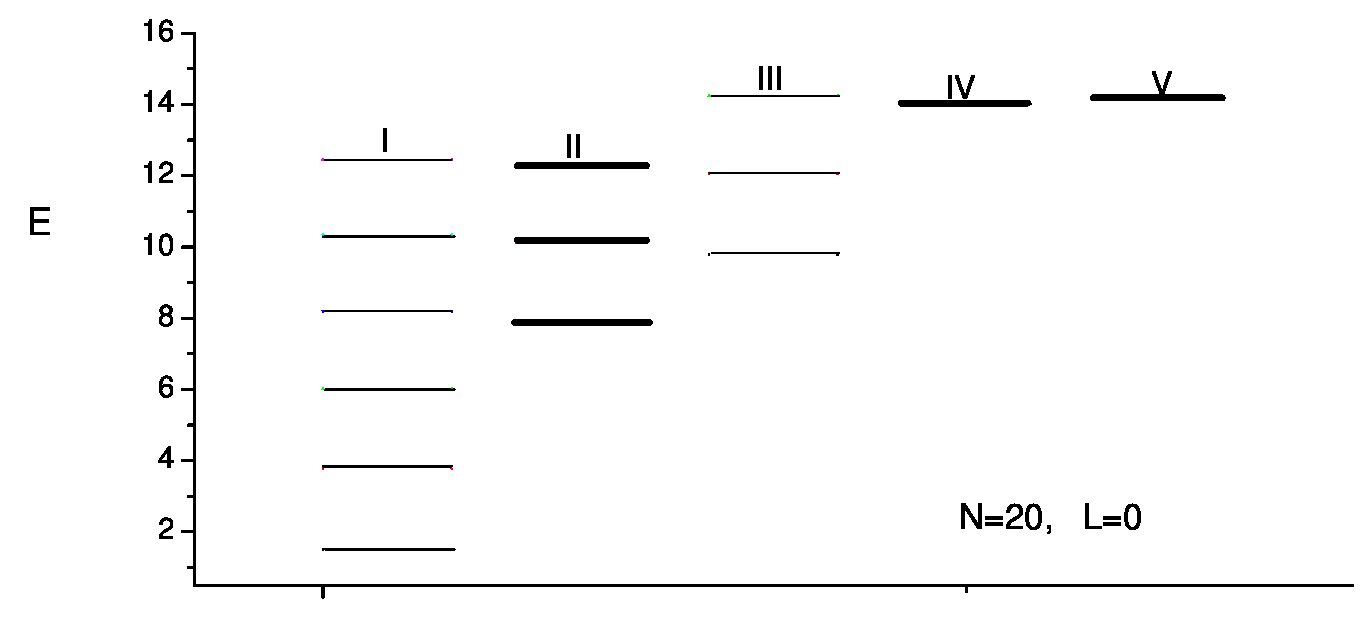

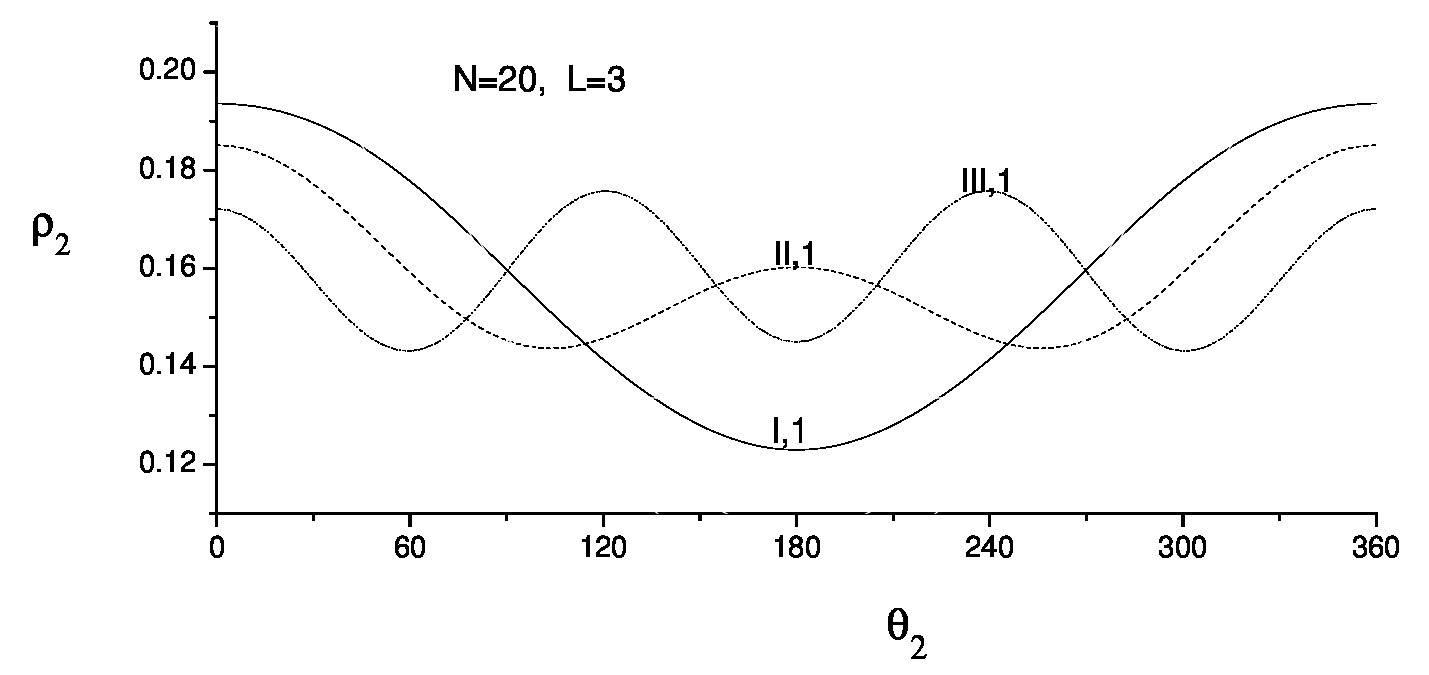

When $N=20$, all the above qualitative features remain unchanged. Examples are given in Fig.6 and 7 to be compared with Fig.1 and 4. Nonetheless, the decrease of $N$ implies that the particles have a less chance to meet each other, thus the particle correlation is expected to be weaker.  Quantitatively, it was found that (i) The spacing of adjacent oscillation levels becomes smaller, it is now $\sim$2.2 to replace the previous 3.15  (ii) The fluctuation becomes weaker.  E.g., the weights of $|P^{(j)}\rangle$ of the $\Psi_{I,3}^{(0)}$ state are 0.01, 0.95, and 0.03 for $j=1,2,$ and 3, respectively, while these weights would be 0.16, 0.46, and 0.28 if $N=100.$ (iii) When $N$ becomes small, the geometric features would become explicit.  E.g., for the 3-cluster structure, the difference between the maximum and minimum of $\rho_{2}$ is $\sim$0.007 in Fig.4, but $\sim$ 0.033 in Fig.7.

The decrease of $V_{o}$ or $\theta_{range}$ was found to cause an effect similar to the decrease of $N$, the spectra would remain qualitatively unchanged.  Quantitatively, when $V_{o}$ is changed from 1 to 0.1, the spacing inside a band is changed from $\sim 3.15$ to $\sim 2.14$, and the fluctuation becomes much weaker as expected.

In what follows we study the vortex states. For an arbitrary $L_{o}\leq N/2$, the spectra of the $\Psi_{Z,i}^{(N-L_{o})}$ and $\Psi_{Z,i}^{(L_{o})}$ states are found to be identical15, except the former shifts upward as a whole by $N-2L_{o}$, namely,

[TABLE]

Furthermore, their $\rho_{2}$ are found to be identical.

Let us define an operator $\overset{\wedge}{X}$ so that the state $\overset{\wedge}{X}|\alpha\rangle$ is related to $|\alpha\rangle$ by changing every $k_{i}$ in $|\alpha\rangle$ to $-k_{i}+1$, i.e., $\phi_{k_{i}}(\theta)$ to $\phi_{-k_{i}+1}(\theta)=e^{i\theta}\phi_{-k_{i}}(\theta)$.  We further found from the numerical data that

[TABLE]

holds exactly.  In fact, $\overset{\wedge}{X}$ causes a reversion of rotation of each particle plus a collective excitation. It does not cause any change in particle correlation, therefore $\rho_{2}$ remains exactly unchanged.  Thus the $L$ large states, including the vortex states $L=N$, can be known from the $L$ small states.

The underlying physics of this finding is the separability of the Hamiltonian (it is emphasized that the separability is exact as can be proved by using mathematical induction). Let $\theta_{coll}=\sum_{i}\theta_{i}/N,$ which describes a collective rotation.  Then $H=-\frac{1}{N}\frac{\partial^{2}}{\partial\theta_{coll}^{2}}+H_{int},$ where $H_{int}$ describes the relative (internal) motions and does not depend on $\theta_{coll}$. Accordingly, $E^{(L,Z,i)}=L^{2}/N+E_{int}^{(L,Z,i)}$, the former is for collective and the latter is for relative (internal) motions. The eigen-states can be thereby separated as $\Psi_{Z,i}^{(L)}=\frac{1}{\sqrt{2\pi}}e^{iL\theta_{coll}}\ \psi_{int}^{(L,Z,i)}$. The feature of the internal states $\psi_{int}^{(L,Z,i)}$ has been studied in [19]. Where it was found that, for an arbitrary $L_{o}$

[TABLE]

With these in mind, eq.(10) and (11) can be derived as follows.

From the separability

[TABLE]

When $\overset{\wedge}{X}$ acts on a wave function with $L$, from the definition of $\overset{\wedge}{X}$, $L$ should be changed to $-L$ and an additional factor $\prod\limits_{j}e^{i\theta_{j}}=e^{iN\ \theta_{coll}}$ should be added, thus

[TABLE]

Due to (12), the right hand sides of (13) and (14) are equal, thereby (11) is proved.

Furthermore, since $\psi_{int}^{(-L,Z,i)}=(\psi_{int}^{(L,Z,i)})^{\ast}$, the internal energy $E_{int}^{(N-L,Z,i)}=E_{int}^{(-L,Z,i)}=E_{int}^{(L,Z,i)}$.   Therefore, $E^{(N-L,Z,i)}-E^{(L,Z,i)}=(N-L)^{2}/N-L^{2}/N=N-2L$. This recovers eq.(10), the energy difference arises purely from the difference in collective rotation.

If the particles are tightly confined on the ring, rapidly rotating state with a large $L=JN-L_{o}$ would exist, where $J$ is an integer.  Their spectra would remain the same but shift upward by $J(JN-2L_{o})$ from the spectrum with $L=L_{o},$ while $\Psi_{Z,i}^{(JN-L_{o})}=\overset{\wedge}{X_{J}}\Psi_{Z,i}^{(L_{o})}$, where $\overset{\wedge}{X_{J}}$ changes each $\phi_{k_{i}}$ to $\phi_{-k_{i}+J}$.  Thus the rapidly rotating states have the same internal structure as the corresponding lower states but have a much stronger collective rotation.

When $N$ increases greatly while $V_{o}$ or $\theta_{range}$ decreases accordingly, the qualitative behaviors remain unchanged. E.g., when $N=10000$ and $V_{o}=0.01$ ($\theta_{range}$ remains unchanged), the spectrum and the wave functions are found to be nearly the same as the case $N=100$ and $V_{o}=1$, except that the spectrum has shifted upward nearly as a whole by 3939. This is again a signal that, for weak interaction and for the ground states, the mean-field theory is a good approximation.

It is noted that the confinement by a ring is quite different from a 2-dimensional harmonic trap.  In the latter, the energy of a particle in the lowest Landau levels is proportional to its angular momentum $k$. However, for the rings, it is proportional to $k^{2}$.  Consequently, higher partial waves are seriously suppressed and the p-wave excitation becomes dominant. For a harmonic trap it was found in [10,11] that d- and f-wave excitations are more important than the p-wave excitation when $L$ is small.  This situation does not appear in our case.

When the zero-range interaction $V_{ij}=g\delta(\theta_{i}-\theta_{j})$ is adopted, The results are nearly the same with those from the square-barrier interaction if the parameters are related as $g=2V_{o}\theta_{range}$ (in this choice both interactions have the same diagonal matrix elements). For an example, a comparison is made in Table III.  The high similarity between the two sets of data imply that the above findings are also valid for zero-range interaction.

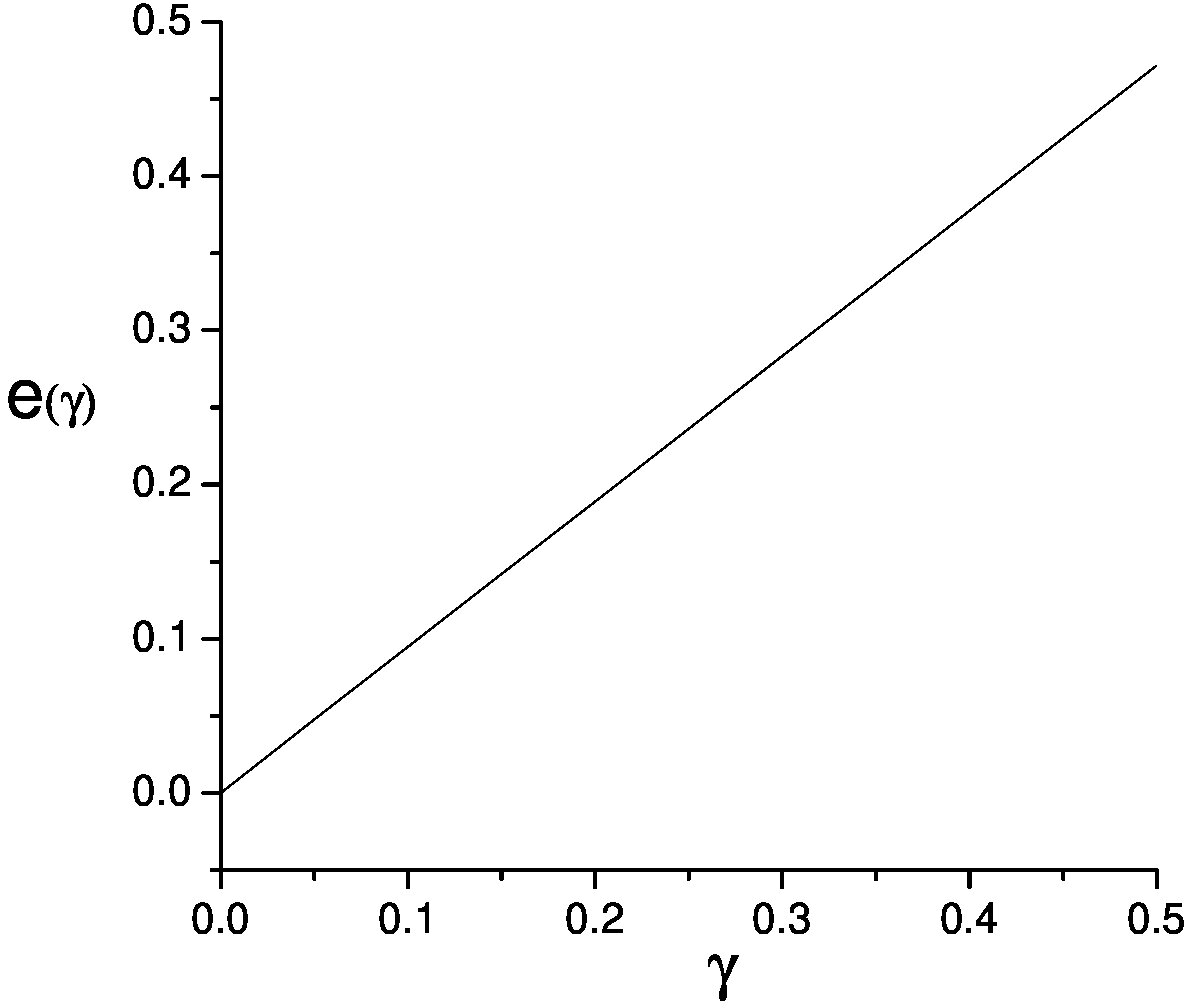

The numerical results from using zero-range interaction can be compared with the exact results from solving integral equations by Lieb and Liniger [16,17]. The variables $\gamma$ and $e(\gamma)$ introduced in [16] are related to those of this paper as $\gamma=g\pi/N$ and $e(\gamma)=4\pi^{2}E/N^{3}$ (the unit of $E$ is $G$). However, this paper concerns mainly the case of weak interaction, say, $g\leq 0.05,$or $\gamma\leq 0.00157$ (otherwise, the procedure of diagonalization would not be valid due to the cutoff of the space).  Nonetheless, even $\gamma$ is as large as 0.5 ($g=15.9$) the evolution of the ground state energy with $N=100$ against $\gamma$ obtained via diagonalization coincide, in the qualitative sense, with the exact results quite well .  This is shown in Fig.8 to be compared with Fig.3 of [16], where $\gamma$ is ranged from 0 to 10.  In Fig.8, the constraint $\gamma<e(\gamma)$ is recovered. Furthermore, when $\gamma$ is small, $e(\gamma)$ against $\gamma$ appears as a straight line.

In summary, a detailed analysis based on the numerical data of $N-$boson systems on a ring with weak interaction has been made. The main result is the discovery of the basic pairs, which exist extensively in all the excited states and dominates the low-lying spectra.  The fluctuation of basic pairs provides a common mechanism of oscillation, the low-lying states are thereby classified into oscillation bands. Each band is characterized by having its specific additional excitation of a few particles. Since the mechanism of oscillation is common, the level spacings of different bands are nearly equal in a spectrum.

To divide the motion into being collective and relative provides a better understanding to the relation between the higher and lower states.  The very high vortex states with $L\approx N$  can be understood from the corresponding low-lying states because they have exactly the same internal states.

The particle correlation has been intuitively studied. particle densities are found to be in general non-uniform, bose-clustering originating from the symmetrization of wave functions is found, which leads to the appearance of one, two, and three clusters. This phenomenon would become explicit and might be observed if $N$ is small.

Acknowledgment:  The support by NSFC under the grants 10574163 and 90306016 is appreciated.

REFERENCES

1, D.M. Stamper-Kurn, M.R. Andrews, A.P. Chikkatur, S. Inouye, H.-J. Miesner, J. Stenger, and W. Ketterle,  Phys. Rev. Lett. 80, 2027 (1998)

2, B.P. Anderson and M.A. Kasevich,  Science 281, 1686 (1998)

3, J.L. Roberts, et al, Phys. Rev. Lett. 81, 5159 (1998)

4, J. Stenger, et al, Phys. Rev. Lett. 82, 2422 (1999).

5, S.L. Cornish et al., Phys. Rev. Lett. 85, 1795 (2000)

6, M. Greiner et al., Nature (London) 415, 39 (2002)

7, B. Paredes et al., Nature (London) 429, 277 (2004)

8, G.T. Kinoshita, T. Wenger, and D.S. Weiss, Science 305, 1125 (2004)

9, N.K. Wilkin, J.M.F. Gunn, and R.A. Smith, Phys. Rev. Lett. 80, 2265 (1998)

10, B. Mottelson, Phys. Rev. Lett.  83, 2695 (1999)

11, G.F. Bertsch and T. Papenbrock, 83, 5412 (1999)

12, K. Sakmann, A.I. Streltsov, O.E. Alon, L.S. Cederbaum, Phys. Rev. A 72, 033613 (2005)

13, I. Romanovsky, C. Yannouleas, and U. Landman, Phys. Rev. Lett. 93, 230405 (2004)

14, I. Romanovsky, C. Yannouleas, L.O. Baksmaty, and U. Landman, Phys. Rev. Lett. 97, 090401 (2006)

15, Yongle Yu, cond-mat/0609711 v1.

16, E.H. Lieb and W.Liniger, Phys, Rev. 130, 1605 (1963)

17, E.H. Lieb, Phys, Rev. 130, 1616 (1963)

18, F. Bacher and S. Goudsmit, Phys. Rev., 46, 948 (1934)

19, C.G. Bao, G.M. Huang, and Y.M. Liu, Phys. Rev. B 72, 195310 (2005)
