Search for Heavy, Long-Lived Particles that Decay to Photons at CDF II

TL;DR

This paper reports the first search for heavy, long-lived particles decaying into photons at a hadron collider, using timing and event data from the CDF II detector, setting new mass limits in supersymmetric models.

Contribution

It introduces a novel search method based on photon arrival times and sets the first experimental limits on certain long-lived supersymmetric particles.

Findings

Observed 2 candidate events consistent with background

Set the world's best 95% CL lower limit on neutralino mass of 101 GeV/c^2

Placed constraints on supersymmetric particle properties

Abstract

We present the first search for heavy, long-lived particles that decay to photons at a hadron collider. We use a sample of photon+jet+missing transverse energy events in p-pbar collisions at \sqrt{s}=1.96 TeV taken with the CDF II detector. Candidate events are selected based on the arrival time of the photon at the detector. Using an integrated luminosity of 570 pb-1 of collision data, we observe 2 events, consistent with the background estimate of 1.3+-0.7 events. While our search strategy does not rely on model-specific dynamics, we set cross section limits in a supersymmetric model with \tilde{\chi}_1^0->\gamma\gravitino and place the world-best 95% C.L. lower limit on the \tilde{\chi}_1^0 mass of 101 GeV/c^2 at \tau_{\tilde{\chi}_1^0} = 5 ns.

Figures

Tables

Table 1. Table 1: The data selection criteria and the cumulative and individual requirement efficiencies for an example GMSB model point at m χ ~ 1 0 subscript 𝑚 superscript subscript ~ 𝜒 1 0 m_{\tilde{\chi}_{1}^{0}}  = 100 GeV/ c 2 superscript 𝑐 2 c^{2}  and τ χ ~ 1 0 subscript 𝜏 superscript subscript ~ 𝜒 1 0 \tau_{\tilde{\chi}_{1}^{0}}  = 5 ns. The efficiencies listed are, in general, model-dependent and have a fractional uncertainty of 10%. Model-independent efficiencies are indicated with an asterisk. The collision fiducial requirement of | z i | < 60 subscript 𝑧 𝑖 60 |z_{i}|<60  cm is part of the good vertex requirement (95%) and is estimated from data.

Preselection Requirements	Cumulative (individual)
	Efficiency (%)
$E_T^{\gamma }>30$ GeV, $E{/}_T>30$ GeV	54 (54)
Photon ID and fiducial,	39 (74)*
Good vertex, ${\sum }_{\mathrm{tracks}}{p}_T>15$ GeV/$c$	31 (79)
, $E_T^{\mathrm{jet}}>30$ GeV	24 (77)
Cosmic ray rejection	23 (98)*
Requirements after Optimization
$E{/}_T>40$ GeV, $E_T^{\mathrm{jet}}>35$ GeV	21 (92)
$\Delta \varphi$($E{/}_T$, jet) $>$ 1 rad	18 (86)
2 ns 10 ns	6 (33)

Equations

$$t_c^{\gamma }\equiv t_f-t_i-\frac{|{\vec{x}}_f-{\vec{x}}_i|}{c}.$$

Full text

††preprint: FERMILAB-PUB-06/yyy-E

Searches for events with final state photons and missing transverse energy ($E\!\!\!\!/_{T}$) rapdef at collider experiments are sensitive to new physics from a wide variety of models feng including gauge mediated supersymmetry breaking (GMSB) gmsb . In these models the lightest neutralino ($\widetilde{\chi}_{1}^{0}$) decays into a photon ($\gamma$) and a weakly interacting, stable gravitino ($\widetilde{G}$) that gives rise to $E\!\!\!\!/_{T}$ by leaving the detector without depositing any energy. The observation of an ee\gamma\gamma\mbox{E!!!!/_{T}} candidate event by the CDF experiment during Run I at the Fermilab Tevatron eeggmet has increased the interest in experimental tests of this class of theories. Most subsequent searches have focused on promptly produced photons ggmet ; d0ggmet , however the $\widetilde{\chi}_{1}^{0}$ can have a lifetime on the order of nanoseconds or more. This is the first search for heavy, long-lived particles that decay to photons at a hadron collider.

We optimize our selection requirements using a GMSB model with a standard choice of parameters snowmass and vary the values of the $\widetilde{\chi}_{1}^{0}$ mass and lifetime. However, the final search strategy is chosen to be sufficiently general and independent of the specific GMSB model dynamics to yield results that are approximately valid for any model producing the same reconstructed final state topology and kinematics prospects . In $p{\bar{p}}$ collisions at the Tevatron the inclusive GMSB production cross section is dominated by pair production of gauginos. The gauginos decay promptly, resulting in a pair of long-lived $\widetilde{\chi}_{1}^{0}$’s in association with other final state particles that can be identified as jets. For a heavy $\widetilde{\chi}_{1}^{0}$ decaying inside the detector, the photon can arrive at the face of the detector with a time delay relative to promptly produced photons. To have good sensitivity for nanosecond-lifetime $\widetilde{\chi}_{1}^{0}$’s prospects , we search for events that contain a time-delayed photon, $E\!\!\!\!/_{T}$, and $\geq 1$ jet. This is equivalent to requiring that at least one of the long-lived $\widetilde{\chi}_{1}^{0}$’s decays inside the detector.

This Letter summarizes pwt the first search for heavy, long-lived particles that decay to photons at a hadron collider. The data comprise 570$\pm$34 $\rm pb^{-1}$ of $p{\bar{p}}$ collisions collected with the CDF II detector CDFII at $\sqrt{s}=1.96$ TeV. Previous searches for nanosecond-lifetime particles using non-timing techniques yielded null results lep .

A full description of the CDF II detector can be found elsewhere CDFII . Here we briefly describe the aspects of the detector relevant to this analysis. The magnetic spectrometer consists of tracking devices inside a 3-m diameter, 5-m long superconducting solenoid magnet that operates at 1.4 T. An eight-layer silicon microstrip detector array and a 3.1-m long drift chamber with 96 layers of sense wires measure the position ($\vec{x}_{i}$) and time ($t_{i}$) of the $p{\bar{p}}$ interaction zvtime and the momenta of charged particles. Muons from collisions or cosmic rays are identified by a system of drift chambers situated outside the calorimeters in the region with pseudorapidity $|\eta|<1.1$ rapdef . The calorimeter consists of projective towers with electromagnetic and hadronic compartments. It is divided into a central barrel that surrounds the solenoid coil ($|\eta|<1.1$) and a pair of end-plugs that cover the region $1.1<|\eta|<3.6$. Both calorimeters are used to identify and measure the energy and position of photons, electrons, jets, and $E\!\!\!\!/_{T}$. The electromagnetic calorimeters were recently instrumented with a new system, the EMTiming system (completed in Fall 2004) nim , that measures the arrival time of electrons and photons in each tower with $|\eta|<2.1$ for all energies above $\sim$5 GeV.

The time and position of arrival of the photon at the calorimeter, $t_{f}$ and $\vec{x}_{f}$, are used to separate the photons from the decays of heavy, long-lived $\widetilde{\chi}_{1}^{0}$’s from promptly produced photons or photons from non-collision sources. We define the corrected arrival time of the photon as

[TABLE]

The $t_{c}^{\gamma}$ distribution for promptly produced, high energy photons is Gaussian with a mean of zero by construction and with a standard deviation that depends only on the measurement resolution assuming that the $p{\bar{p}}$ production vertex has been correctly identified. Photons from heavy, long-lived particles can have arrival times that are many standard deviations larger than zero.

The analysis preselection is summarized in Table 1. It begins with events passing an online, three-level trigger by having a photon candidate in the region $|\eta|<1.1$ with E_{T}$$>25 GeV and E\!\!\!\!/_{T}$$>25 GeV. Offline, the highest $E_{T}$ photon candidate in the fiducial region of the calorimeter is required to have $E_{T}$ $>30$ GeV and to pass the standard photon identification requirements ggmet with a minor modification photons . We require the event to have $E\!\!\!\!/_{T}$ $>30$ GeV where the trigger is 100% efficient. We require at least one jet with $|\eta^{\mathrm{jet}}|<2.0$ and $E^{\mathrm{jet}}_{T}>30$ GeV jets . Since a second photon can be identified as a jet, the analysis is sensitive to signatures where one or both $\widetilde{\chi}_{1}^{0}$’s decay inside the detector. To ensure a high quality $t_{i}$ and $\vec{x}_{i}$ measurement, we require a vertex with at least 4 tracks, $\sum_{\rm tracks}p_{T}>15$ GeV/$c$, and $|z_{i}|<$ 60 cm; this also helps to reduce non-collision backgrounds. For events with multiple reconstructed vertices, we pick the vertex with the highest $\sum_{\rm tracks}p_{T}$. To reduce cosmic ray background, events are rejected if there are hits in a muon chamber that are not matched to any track and are within 30∘ of the photon. After the above requirements there are 11,932 events in the data sample.

There are two major classes of background events: collision and non-collision photon candidates. Collision photons are presumed to come from standard model interactions, e.g., $\gamma$+jet+mismeasured $E\!\!\!\!/_{T}$, dijet+mismeasured $E\!\!\!\!/_{T}$ where the jet is mis-identified as a $\gamma$, and $W\rightarrow e\nu$ where the electron is mis-identified as a $\gamma$. Non-collision backgrounds come from cosmic rays and beam effects that can produce photon candidates, $E\!\!\!\!/_{T}$, and sometimes the reconstructed jet. We separate data events as a function of $t_{c}^{\gamma}$ into several control regions that allow us to estimate the number of background events in the final signal region by fitting to the data using collision and non-collision shape templates as shown in Fig. 1.

Collision photons are subdivided in two subclasses: correct and incorrect vertex selection nim . An incorrect vertex can be selected when two or more collisions occur in one beam bunch crossing, making it possible that the highest reconstructed $\sum_{\rm tracks}p_{T}$ vertex does not produce the photon. While the fraction of events with incorrect vertices depends on the final event selection criteria, the $t_{\rm c}^{\gamma}$ distribution for each subclass is estimated separately using $W\rightarrow e\nu$ data where the electron track is dropped from the vertexing. For events with a correctly associated vertex, the $t_{c}^{\gamma}$ distribution is Gaussian and centered at zero with a standard deviation of 0.64 ns nim . For those with an incorrectly selected vertex the $t_{\rm c}^{\gamma}$ distribution is also Gaussian with a standard deviation of 2.05 ns.

The $t_{c}^{\gamma}$ distributions for both non-collision backgrounds are estimated separately from data using events with no reconstructed tracks. Photon candidates from cosmic rays are not correlated in time with collisions, and therefore their $t_{\rm c}^{\gamma}$ distribution is roughly flat. Beam halo photon candidates are produced by muons that originate upstream of the detector (from the $p$ direction) and travel through the calorimeter, typically depositing small amounts of energy. When the muon deposits significant energy in the EM calorimeter, it can be misidentified as a photon and cause $E\!\!\!\!/_{T}$. These photons populate predominantly the negative $t_{\rm c}^{\gamma}$ region, but can contribute to the signal region. Since beam halo muons travel parallel to the beam line, these events can be separated from cosmic ray events by identifying the small energy deposited in the calorimeter towers along the beam halo muon trajectory.

The background prediction uses control regions outside the signal time window but well within the 132 ns time window that the calorimeter uses to measure the energy. The non-collision background templates are normalized to match the number of events in two time windows: a beam halo-dominated window at $\{-20$, $-6\}$ ns, selected to be 3$\sigma$ away from the wrong vertex collision background, and a cosmic rays-dominated window at $\{25$, $90\}$ ns, well away from the standard model and beam halo contributions. The collision background is estimated by fitting events in the $\{-10$, $1.2\}$ ns window with the non-collision contribution subtracted and with the fraction of correct to incorrect vertex events allowed to vary. In this way the background for the signal region is entirely estimated from data samples. The systematic uncertainty on the background estimate is dominated by our ability to calibrate the mean of the $t_{\rm c}^{\gamma}$ distribution for prompt photons. We find a variation of 200 ps on the mean and 20 ps on the standard deviation of the distribution by considering various possible event selection criteria. These contribute to the systematic uncertainty of the collision background estimate in the signal region and are added in quadrature with the statistical uncertainties of the final fit procedure.

We estimate the sensitivity to heavy, long-lived particles that decay to photons using GMSB models for different $\widetilde{\chi}_{1}^{0}$ masses and lifetimes. Events from all SUSY processes are simulated with the pythia Monte Carlo program pythia along with the detector simulation geant . The acceptance is the ratio of simulated events that pass all the requirements to all events produced. It is used in the optimization procedure and in the final limit setting and depends on a number of effects. The fraction of $\widetilde{\chi}_{1}^{0}$ decays in the detector volume is the dominant effect on the acceptance. For a given lifetime this depends on the boost of the $\widetilde{\chi}_{1}^{0}$. A highly boosted $\widetilde{\chi}_{1}^{0}$ that decays in the detector typically does not contribute to the acceptance because it tends to produce a photon traveling in the same direction as the $\widetilde{\chi}_{1}^{0}$. Thus, the photon’s arrival time is indistinguishable from promptly produced photons. At small boosts the decay is more likely to happen inside the detector, and the decay angle is more likely to be large, which translates into a larger delay for the photon. The fraction of events with a delayed photon arrival time initially rises as a function of $\widetilde{\chi}_{1}^{0}$ lifetime, but falls as the fraction of $\widetilde{\chi}_{1}^{0}$’s decaying outside the detector begins to dominates. In the $\widetilde{\chi}_{1}^{0}$ mass region considered ($65\leq m_{\tilde{\chi}_{1}^{0}}\leq 150$ GeV/$c^{2}$), the acceptance peaks at a lifetime of around 5 ns. The acceptance also depends on the mass as the boost effects are mitigated by the ability to produce high energy photons or $E\!\!\!\!/_{T}$ in the collision, as discussed in Ref. prospects .

The total systematic uncertainty of 10% on the acceptance is dominated by the uncertainty on the mean of the $t_{c}^{\gamma}$ distribution (7%) and on the photon ID efficiency (5%). Other significant contributions come from uncertainties on initial and final state radiation (3%), jet energy measurement (3%), and the parton distribution functions (1%).

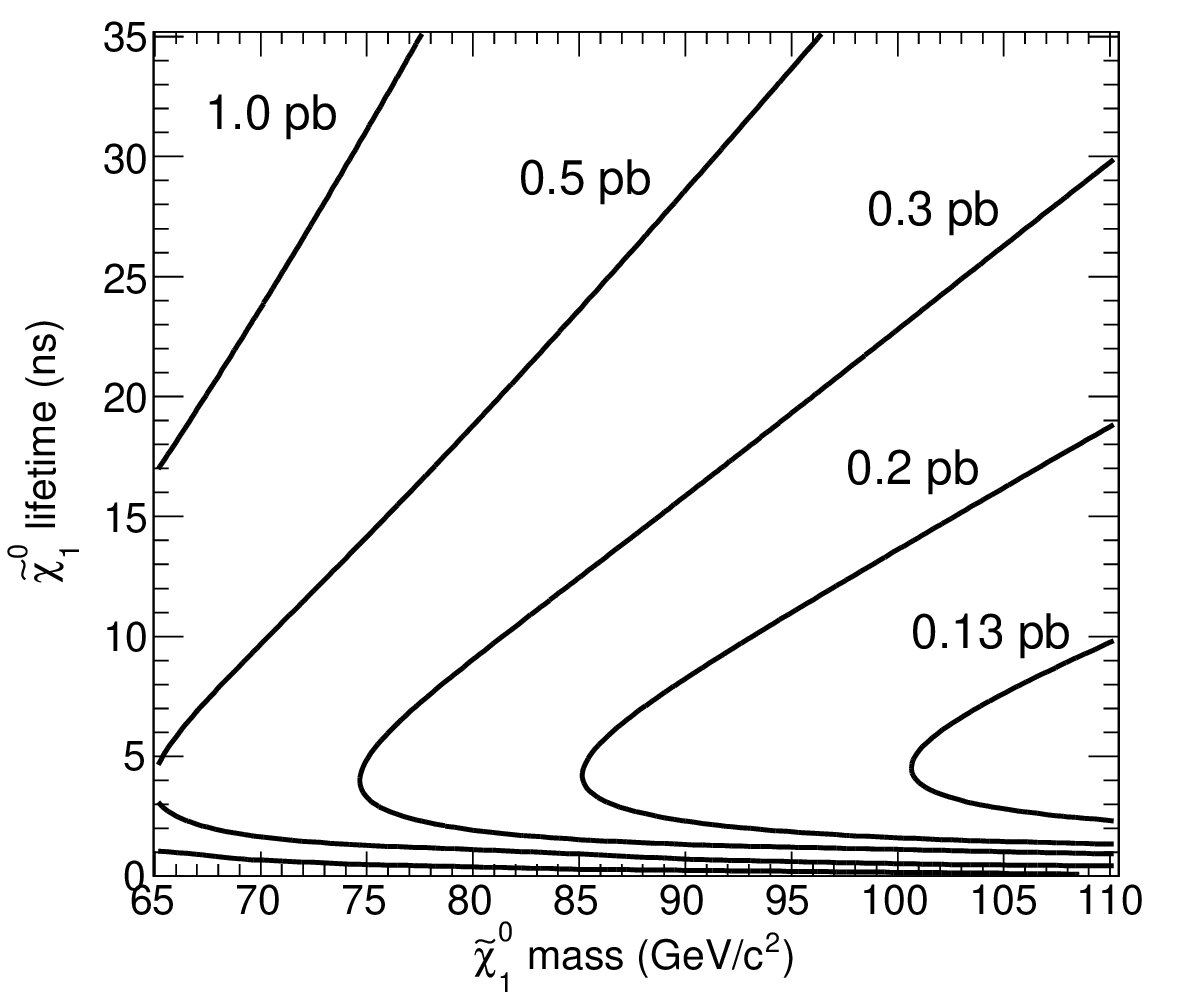

We determine the kinematic and $t_{c}^{\gamma}$ selection requirements that define the final data sample by optimizing the expected cross section limit without looking at the data in the signal region. To compute the expected 95% confidence level (C.L.) cross section upper limit Boos , we combine the predicted GMSB signal and background estimates with the systematic uncertainties using a Bayesian method with a flat prior Conway . The expected limits are optimized by simultaneously varying the selection requirements for $E\!\!\!\!/_{T}$, photon $E_{T}$, jet $E_{T}$, azimuth angle between the leading jet and $E\!\!\!\!/_{T}$ (\Delta\phi($$E\!\!\!\!/_{T}, jet)), and $t_{c}^{\gamma}$. The \Delta\phi($$E\!\!\!\!/_{T}, jet) requirement rejects events where the $E\!\!\!\!/_{T}$ is overestimated because of a poorly measured jet. While each point in $\widetilde{\chi}_{1}^{0}$ lifetime vs. mass space gives a slightly different optimization, we choose a single set of requirements because it simplifies the final analysis, while only causing a small loss of sensitivity. The optimized requirements are summarized in Table 1. As an example, the acceptance for $m_{\tilde{\chi}_{1}^{0}}$ = 100 GeV/$c^{2}$ and lifetime $\tau_{\tilde{\chi}_{1}^{0}}$ = 5 ns is estimated to be (6.3$\pm$0.6)%.

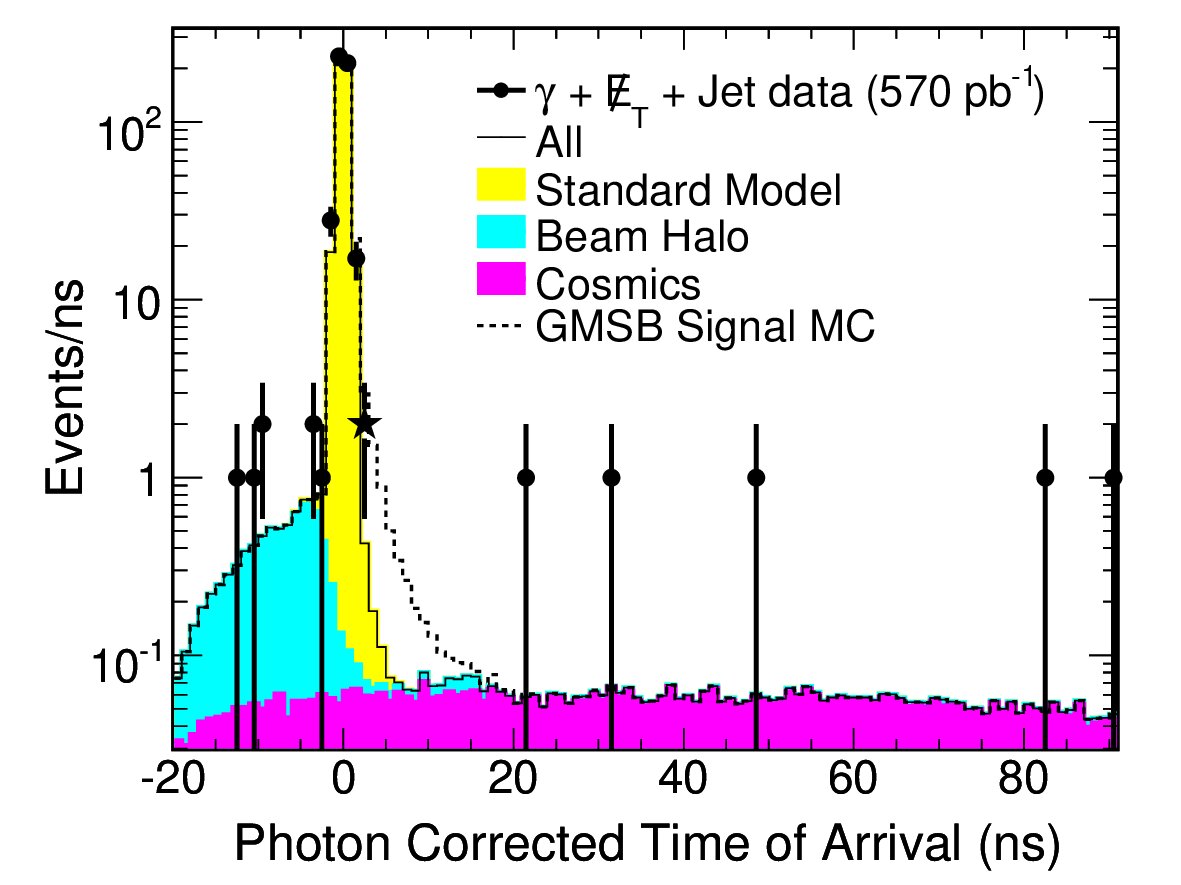

After all kinematic requirements, 508 events are observed in the data before the final signal region time requirement. Their time distribution is shown in Fig. 1. Our fit to the data outside the signal region predicts total backgrounds of 6.2$\pm$3.5 from cosmic rays, 6.8$\pm$4.9 from beam halo background sources, and the rest from the standard model. Inside the signal time region, $\{2$, $10\}$ ns, we predict 1.25$\pm$0.66 events: 0.71$\pm$0.60 from standard model, 0.46$\pm$0.26 from cosmic rays, and 0.07$\pm$0.05 from beam halo. Two events are observed in the data. Since the result is consistent with the no-signal hypothesis, we set limits on the $\widetilde{\chi}_{1}^{0}$ lifetime and mass. Figure 2 shows the contours of constant 95% C.L. cross section upper limit. Figure 3 shows the exclusion region at 95% C.L., along with the expected limit for comparison. This takes into account the predicted production cross section at next-to-leading order kfactors as well as the uncertainties on the parton distribution functions (6%) and the renormalization scale (2%). Since the number of observed events is above expectations, the observed limits are slightly worse than the expected limits. These limits extend at large masses beyond those of LEP searches using photon “pointing” methods lep .

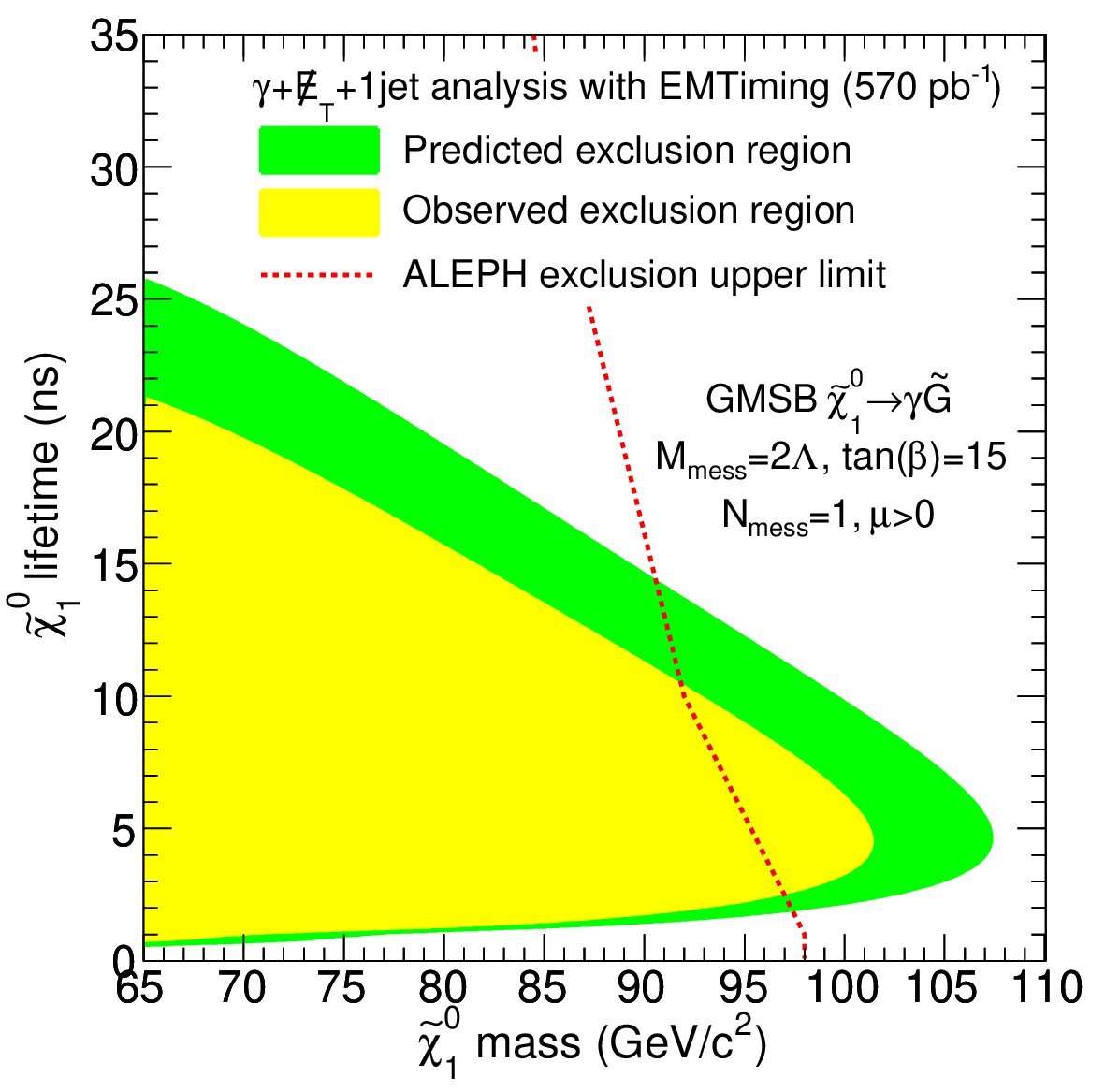

In conclusion, we have performed the first search for heavy, long-lived particles that decay to photons at a hadron collider using data collected with the EMTiming system at the CDF II detector. There is no excess of events beyond expectations. As our search strategy does not rely on event properties specific solely to GMSB models, we can exclude any $\gamma$+jet+$E\!\!\!\!/_{T}$ signal that would produce more than 5.5 events. We set cross section limits using a supersymmetric model with \mbox{\widetilde{\chi}_{1}^{0}}\rightarrow\gamma\widetilde{G}, and find a GMSB exclusion region in the $\widetilde{\chi}_{1}^{0}$ lifetime vs. mass plane with the world-best 95% C.L. lower limit on the $\widetilde{\chi}_{1}^{0}$ mass of 101 GeV/$c^{2}$ at $\tau_{\tilde{\chi}_{1}^{0}}$ = 5 ns. Future improvements with similar techniques should also provide sensitivity to new particle decays with a delayed electron signature feng . By the end of Run II, an integrated luminosity of 10 $\rm fb^{-1}$ is possible for which we estimate a mass reach of $\simeq 140$ GeV/$c^{2}$ at a lifetime of 5 ns.
