A very massive runaway star from Cygnus OB2

TL;DR

This study confirms that the massive star BD+43 3654 is a runaway star originating from Cygnus OB2, supported by spectroscopic, astrometric, and bow shock analyses, indicating a dynamical ejection origin.

Contribution

It provides the first detailed spectroscopic classification and kinematic analysis linking BD+43 3654 to Cygnus OB2, demonstrating its status as one of the most massive runaway stars.

Findings

BD+43 3654 is an O4If star with ~70 solar masses.

The star's motion aligns with an origin in Cygnus OB2.

It is one of the three most massive known runaway stars.

Abstract

Aims: We analyze the available information on the star BD+43 3654 to investigate the possibility that it may have had its origin in the massive OB association Cygnus OB2. Methods: We present new spectroscopic observations allowing a reliable spectral classification of the star, and discuss existing MSX observations of its associated bow shock and astrometric information not previously studied. Results: Our observations reveal that BD+43 3654 is a very early and luminous star of spectral type O4If, with an estimated mass of (70 +/- 15) solar masses and an age of about 1.6 Myr. The high spatial resolution of the MSX observations allows us to determine its direction of motion in the plane of the sky by means of the symmetry axis of the well-defined bow shock, which matches well the orientation expected from the proper motion. Tracing back its path across the sky we find that BD+43 3654 was located near the central, densest region of Cygnus OB2 at a time in the past similar to its estimated age. Conclusions: BD+43 3654 turns out to be one of the three most massive runaway stars known, and it most likely formed in the central region of Cygnus OB2. A runaway formation mechanism by means of dynamical ejection is consistent with our results.

Figures

Equations

$$M_V=K_S-A_K+(V-K_S{)}_0-DM=-6.3\pm 0.5$$

$$({\mu }_l\cos b{)}_0=0.211[A\cos 2l\cos b+B\cos b$$

$$+\frac{U}{D}\sin l-\frac{V}{D}\cos l]$$

$$({\mu }_b{)}_0=0.211[-A\sin 2l\sin b\cos b$$

$$+\frac{U}{D}\cos l\sin b+\frac{V}{D}\sin l\sin b-\frac{W}{D}\cos b]$$

$$\Delta {\mu }_l\cos b={\mu }_l\cos b-({\mu }_l\cos b{)}_0=(5.3\pm 1.1)\text{leavevmode}{\mathrm{mas}\text{leavevmode}\mathrm{yr}}^{-1}$$

$$\Delta {\mu }_b={\mu }_b-({\mu }_b{)}_0=(2.0\pm 0.9)\text{leavevmode}{\mathrm{mas}\text{leavevmode}\mathrm{yr}}^{-1}$$

$$\theta ={\tan }^{-1}\frac{\Delta {\mu }_l\cos b}{\Delta {\mu }_b}=69^{\circ }3\pm 9^{\circ }4$$

$$R_0=\sqrt{\frac{{\dot{M}}_w{v}_w}{4\pi {\rho }_a{v}_{\ast }^2}}$$

Full text

*Methods. *We present new spectroscopic observations allowing a reliable spectral classification of the star, and discuss existing MSX observations of its associated bow shock and astrometric information not previously studied.

*Results. *Our observations reveal that BD$+43^{\circ}\ 3654$ is a very early and luminous star of spectral type O4If, with an estimated mass of $(70\pm 15)$ M⊙ and an age of $\sim 1.6$ Myr. The high spatial resolution of the MSX observations allows us to determine its direction of motion in the plane of the sky by means of the symmetry axis of the well-defined bow shock, which matches well the orientation expected from the proper motion. Tracing back its path across the sky we find that BD$+43^{\circ}\ 3654$ was located near the central, densest region of Cygnus OB2 at a time in the past similar to its estimated age.

*Conclusions. *BD$+43^{\circ}\ 3654$ turns out to be one of the three most massive runaway stars known, and it most likely formed in the central region of Cygnus OB2. A runaway formation mechanism by means of dynamical ejection is consistent with our results.

††offprints: F. Comerón

1 Introduction

Current theories for the formation of massive stars stress the importance of the dense cluster environment in which most of them, if not all, form (Bonnell et al. bonnell07 (2007)). Dynamical interactions at the centers of massive star forming regions lead to captures forming binary systems, ejections, mass segregation, and possibly coalescence. A remarkable byproduct of the dynamical interactions in dense clusters of massive stars is the relatively large abundance of runaway O-type stars, which amount to almost $\sim 10$% of the known O-type stars in the solar vicinity (see Maíz-Apellániz et al. (maiz04 (2004)) for a recent census). Runaway stars, characterized by their large spatial velocities, can form either by dynamical ejection from a dense cluster (Poveda et al. poveda67 (1967), Leonard & Duncan leonard88 (1988), leonard90 (1990)) or by the explosion as supernova of a member of a close massive binary (Blaauw blaauw61 (1961), van Rensbergen et al. vanrensbergen96 (1996), de Donder et al. dedonder97 (1997)). Evidence for actual examples resulting from both mechanisms exists (Hoogerwerf et al. hoogerwerf00 (2000), hoogerwerf01 (2001)), and both are a consequence of the special conditions in which massive star formation takes place. On the one hand, the high stellar density of the parental cluster facilitates the dynamical ejection scenario. On the other hand, the supernova scenario is favored by the high frequency of binaries with high mass ratios among massive stars (Garmany et al. garmany82 (1982), Preibisch et al. preibisch99 (1999)), which may be a consequence of dynamical capture followed by accretion and orbital evolution (Bate et al. bate03 (2003)).

Cygnus~OB2, the most massive OB association of the solar neighbourhood (Knödlseder knodlseder00 (2000), knodlseder03 (2003), Comerón et al. comeron02 (2002), and references therein), should be the source of numerous runaway stars given its rich content in massive stars, which includes the massive multiple system Cyg OB2 8 near its center. Unfortunately, few studies to the date have addressed its possible runaway population, with the exception of the recent radial velocity survey of Kiminki et al. (kiminki07 (2007)) in which no runaway candidate has been identified until now. Comerón et al. (comeron94 (1994), comeron98a (1998)) pointed out the existence of large-scale kinematical peculiarities in the Cygnus region, most likely related to the presence of Cygnus OB2, as shown by Hipparcos proper motions. Although they interpreted their results in terms of triggered star formation (Elmegreen elmegreen98 (1998)), at least some of the stars that they identified as moving away from Cygnus OB2 might be actual runaways formed by either of the two mechanisms listed above.

In this paper we report the identification of a very high mass runaway star, BD$+43^∘ 3654$, very probably ejected from Cygnus OB2. The star had been already identified as a likely runaway by van Buren & McCray (vanburen88 (1988)) based on the existence of an apparent bow shock in IRAS images, caused by the interaction of its stellar wind with the local interstellar medium. Here we present the first spectroscopic observations of the star, which show it to be a very early Of-type supergiant. We also present proper motion data and higher resolution MSX images leading to a more detailed analysis, which strongly supports an origin at the core of Cygnus OB2.

2 Observations

The spectrum presented here was obtained in the course of a project aimed at producing spectral classifications of previously unknown, photometrically selected new OB stars in the surroundings of Cygnus OB2. The photometry in the $BRJHK_{S}$ bands was taken from the Naval Observatory Merged Astrometric Dataset (NOMAD) catalog (Zacharias et al. zacharias04 (2004)), which combines astrometry and photometry from the Hipparcos, Tycho-2, UCAC2, USNO-B1.0, and 2MASS catalogs. The spectroscopic observations were carried out with the 2.2m telescope at the German-Spanish Astronomical Center on Calar Alto (Spain) using the CAFOS visible imager and spectrograph. A 1”5 slit combined with the B-100 grism, providing a resolution $\lambda/\Delta\lambda=800$ in the blue part of the visible spectrum, were used. The exposure time was 900 s. The spectrum was reduced, extracted, and wavelength calibrated using standard IRAF111IRAF is distributed by NOAO, which is operated by the Association of Universities for Research in Astronomy, Inc., under contract to the National Science Foundation. tasks under the ONEDSPEC package, and it was ratioed by a sixth-degree polynomial fit to the continuum in order to remove the steep slope due to the strong extinction towards the star.

3 Results

3.1 Stellar classification, properties, and

kinematics

Although the identification of BD$+43^{\circ}\ 3654$ as a likely runaway star dates back to van Buren & McCray (vanburen88 (1988)), no spectral classification is available in that work. Subsequent papers by van Buren et al. (vanburen95 (1995)) and Noriega-Crespo et al. (noriega97 (1997)) refer to the star as a unspecified B-type but do not report dedicated observations, and no other spectroscopic classification appears to be available in the literature apart from a generic classification as ’OB reddened’ in the LS catalog (Hardorp et al. hardorp64 (1964)). The spectrum presented here is thus the first one allowing an accurate spectral classification of BD$+43^{\circ}\ 3654$ and the estimate of its physical parameters.

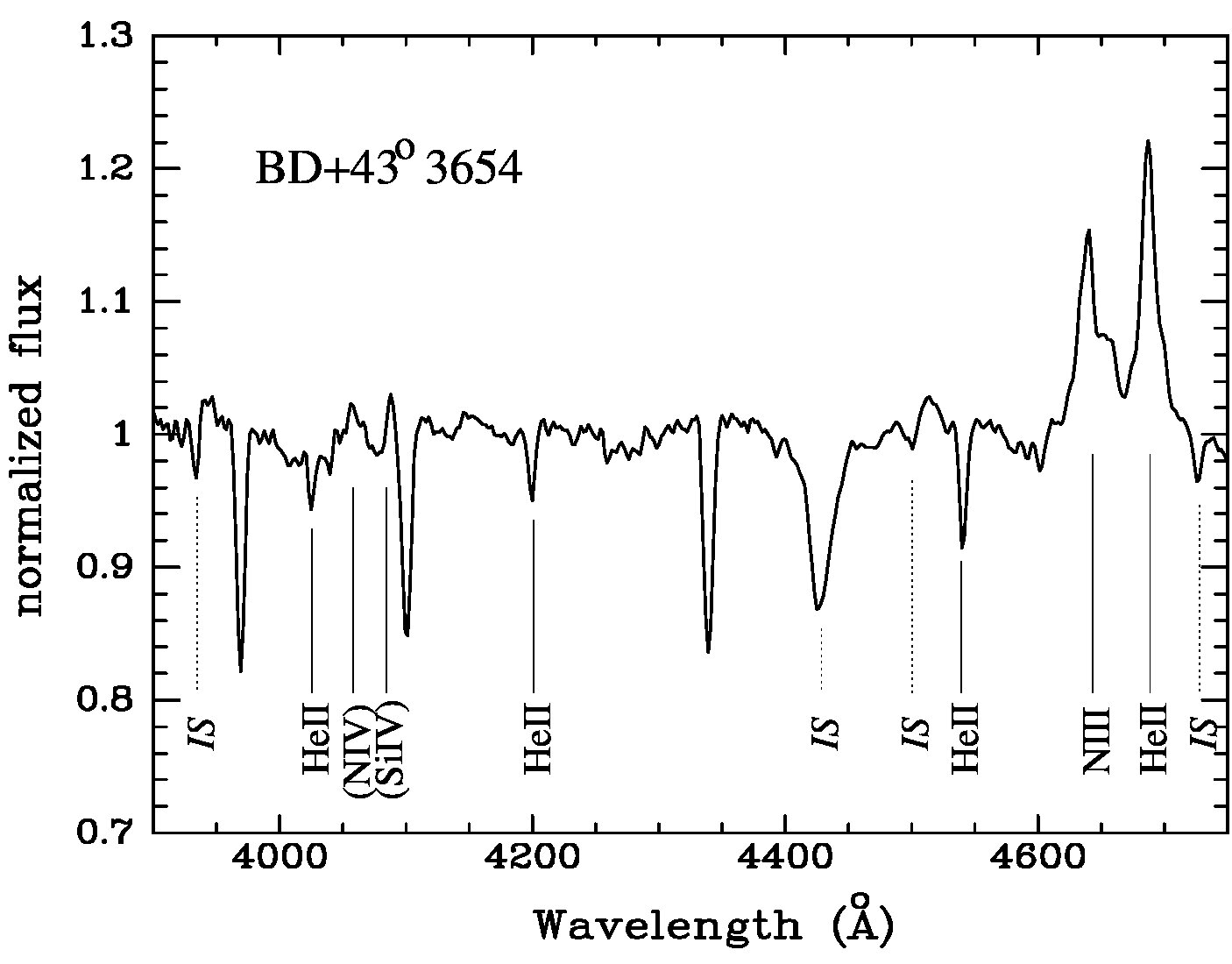

The most obvious spectroscopic feature of BD$+43^{\circ}\ 3654$ is the presence of intense emission in the NIII and HeII lines, and possibly also in NIV and SiIV, clearly indicating that it is a Of star. HeII lines are also prominent in absorption, and together with the absence of HeI lines indicates a spectral type earlier than O5. Absorption bands due to interstellar absorption, CaII and diffuse interstellar bands, are also strong due to the high extinction towards the star. Based on comparison with the atlas of Walborn & Kirkpatrick (walborn90 (1990)), we classify the star as O4If. Using intrinsic colors of early-type stars from Tokunaga (tokunaga00 (2000)) and the 2MASS $HK_{S}$ photometry from the NOMAD catalog, we estimate a $K$-band extinction $A_{K}=0.57$ mag.

A summary of previous distance determinations to Cygnus OB2 has been presented by Hanson (hanson03 (2003)). Based on her results, we adopt her favored distance modulus $DM=10.8$ corresponding to a distance of 1450 pc, with an estimated uncertainty of $\pm 0.4$ based on the results of previous determinations summarized in that work. Assuming that BD$+43^{\circ}\ 3654$ is approximately at the same distance from the Sun as Cygnus OB2, we derive its absolute magnitude as

[TABLE]

where the 0.5 mag uncertainty includes as the dominant source the quoted uncertainty in the distance modulus and the contribution of error in the derivation of the extinction. We estimate the latter to be 0.2 mag based on the quality of the fit of a reddened O4-type spectral energy distribution to the measured $BRJHK_{S}$ photometry. The contribution of the errors in the broad-band photometry is negligible as compared to those other two sources.

Different calibrations of the stellar parameters of O stars can be found in literature to estimate the mass and the age of BD$+43^{\circ}\ 3654$. These calibrations are based on a different treatment of the stellar model atmospheres, depending on whether non-LTE conditions, line-blanketing effects and stellar winds are taken into account. For an O4 supergiant in the Milky Way (i.e. of solar metallicity), Martins et al. (martins05 (2005)) provide an effective temperature $T_{eff}$ = 40702 K; Repolust et al. (repolust04 (2004)) estimate a colder $T_{eff}=39000$ K, while Vacca et al. (vacca96 (1996)) give $T_{eff}=47690$ K. We have adopted the average of those three calibrations, 42464 K, as the temperature for BD$+43^{\circ}\ 3654$, considering as the uncertainty the range of temperatures spanned by those models. This uncertainty is larger than the temperature difference between the subtypes O4 and O5, and between types O4I and O4V, for any given calibration (see e.g. Martins et al. martins05 (2005)). The same is true for the effects of metallicity, which are hardly noticeable even when metal abundances change by a factor of 10. This is clearly shown in Fig. 15 of Heap et al. (heap06 (2006)), where the temperature-spectral type relationships from different calibrations involving both galactic and Small Magellanic Cloud O stars are compared. Therefore, plausible uncertainties in either our spectral classification or in our assumption of solar metallicity for BD$+43^{\circ}\ 3654$ do not significantly alter the size of the error bars in Fig. 2. The absolute magnitudes $M_{V}$ obtained by all three models are very similar, with an average of $M_{V}=-6.36$ and individual determinations deviating by less than 0.05 mag from that value. This is remarkably close to the value that we obtain from the photometry of BD$+43^{\circ}\ 3654$ and the assumption that its distance modulus is the same obtained by Hanson (hanson03 (2003)) for Cygnus OB2, thus supporting our choice of that distance for the star.

The position of BD$+43^{\circ}\ 3654$ on the Herzsprung-Russell (HR) diagram is shown in Fig. 2, together with the isochrones computed by Meynet et al. (meynet94 (1994)) for solar metallicity and with enhanced stellar mass loss. These evolutionary tracks are preferable because they better reproduce the low-luminosity observed for some Wolf-Rayet stars, the surface chemical composition of WC and WO stars and the ratio of blue to red supergiants in the star clusters of the Magellanic Clouds. The isochrones plotted in Fig. 2 refer to a stellar mass of the progenitor on the main sequence of $M_{i}=20,25,40$ M⊙ (in grey) and $M_{i}=60,85$ M⊙ (in black). The comparison between the observed properties of BD$+43^{\circ}\ 3654$ and the isochrones allows us to estimate an initial mass $M_{i}\simeq(70\pm 15)$ M⊙ and an approximate age of 1.6 Myr. The isochrones do not take into account stellar rotation, which many studies in the past decade have found to greatly affect mixing and mass loss, and to be an important ingredient for stellar evolution (Meynet & Maeder meynet97 (1997), Langer et al. langer98 (1998), Heger & Langer heger00 (2000), Meynet & Maeder meynet00 (2000), and references therein). As shown by Meynet & Maeder (meynet00 (2000)), for an initial rotational velocity of 200-300 km s*-1* and solar metallicity isochrones become brighter by a few tenths of a magnitude and the lifetime in the H-burning phase increases by 20-30%. Given the observational errors on BD$+43^{\circ}\ 3654$, these changes do no affect significantly our estimates of the initial mass and age of the star.

Proper motions for BD$+43^{\circ}\ 3654$ are available from the NOMAD catalog, based on measurements by the Hipparcos satellite in the Tycho catalog further refined with previous ground-based observations. The values listed are $\mu_{\alpha}\cos\delta=(-0.4\pm 0.7)$ mas yr*-1* and $\mu_{\delta}=(+1.3\pm 1.0)$ mas yr*-1*. The corresponding values expressed in galactic coordinates, which are more convenient to derive the spatial velocity of the star with respect to its local interstellar medium, are $\mu_{l}\cos b=(+0.8\pm 0.9)$ mas yr*-1*, $\mu_{b}=(+1.1\pm 0.8)$ mas yr*-1*.

Assuming that the local interestellar medium in the surroundings of BD$+43^{\circ}\ 3654$ moves in a circular orbit around the galactic center, its proper motion $(\mu_{l}\cos b)_{0}$, $(\mu_{b})_{0}$ can be described by the first-order approximation to the local galactic velocity field; see e.g. Scheffler & Elsässer (scheffler87 (1987)):

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where $A$ and $B$ are the Oort constants in units of km s*-1* kpc*-1*; $U$, $V$, and $W$ are the components of the solar peculiar motion in the directions toward the galactic center, the direction of circular galactic rotation, and the North galactic pole respectively, in km s*-1*, and $D$ is the distance to the Sun in kpc. We have adopted $A=-B=12.5$ km s*-1* kpc*-1*, corresponding to a flat rotation curve with an angular velocity of 25 km s*-1* kpc*-1* and $(U,V,W)=(7,14,7)$ km s*-1*. The proper motion of BD$+43^{\circ}\ 3654$ with respect to its local interstellar medium is then

[TABLE]

[TABLE]

where the uncertainty allows for an error of 2 km s*-1* kpc*-1* in each of $A$, $B$, and 2 km s*-1* in each of $U$, $V$, and $W$. The position angle $\theta$ of the residual proper motion with respect to the North galactic pole, counted as positive in the direction of increasing galactic latitude, is then

[TABLE]

The component of the spatial velocity on the plane of the sky that we derive from the residual proper motion at the adopted distance of 1450 pc is $(39.8\pm 9.8)$ km s*-1*, which is several times the sound speed in a warm neutral interstellar medium at a temperature of $\sim 8000$ K, as expected from the fact that a clear bow shock is observed ahead of the star in the direction of its motion.

3.2 The bow shock

The original identification of a possible bow shock associated to BD$+43^{\circ}\ 3654$ was reported by van Buren & McCray (vanburen88 (1988)) based on 60 $\mu$m IRAS maps, and further details were given by van Buren et al. (vanburen95 (1995)) and Noriega-Crespo et al. (noriega97 (1997)). While indeed suggestive of a bow shock, the resolution of the IRAS 60 $\mu$m images presented by van Buren et al. (vanburen95 (1995)) is not sufficient to accurately determine the shape of the bow shock and its position with respect to the star.

Much improved images of the region around BD$+43^{\circ}\ 3654$ have been provided by the Midcourse Space Experiment (MSX) satellite (Price et al. price01 (2001)). The BD$+43^{\circ}\ 3654$ bow shock appears in them as a neat, well defined arc-shaped nebula in the $D$ (13.5-15.9 $\mu$m; see Fig. 3) and $E$ (18.2-25.1 $\mu$m) bands, and is absent in the $A$ (6.8-10.8$\mu$m) and $C$ (11.1-13.2 $\mu$m) bands. The position of the apsis of the bow shock with respect to BD$+43^{\circ}\ 3654$ can be well determined from those images, being located at 3.4 arcmin from the star in a direction that forms an angle of $62^{\circ}5\pm 10^{\circ}$ with the direction towards the north galactic pole. This position angle is in very good agreement with the position angle of the residual velocity vector of the star (Eq. (4)).

The position of the bow shock with respect to the star allows us to estimate the density of the interstellar medium through which BD$+43^{\circ}\ 3654$ is moving. The apsis of the bow shock is approximately located at the stagnation radius, which is the distance from the star where the ram pressure of the interstellar gas equals that of the stellar wind, given by (e.g. Wilkin wilkin96 (1996)):

[TABLE]

where ${\dot{M}}_{w}$ and $v_{w}$ are respectively the mass loss rate and terminal wind velocity of the star, $\rho_{a}$ is the ambient gas density, and $v_{*}$ is the spatial velocity of the star. The distance given in Eq. (5) assumes that the bow shock is bound by shock fronts on both sides. In reality, the non-zero cooling time of the shocked stellar wind builds up a thick layer of low-density, high-temperature gas between the reverse shock on the stellar wind and the bow shock. The existence of this thick layer moves the position of the apsis of bow shock to a greater distance from the star than that given by Eq. (5). This expression actually gives the position of the reverse shock ahead of the star, as shown in numerical simulations by Comerón & Kaper (comeron98b (1998)), and the actual position of the bow shock is normally $\sim 1.5R_{0}$, the precise distance depending on the quantities entering the right-hand side of Eq. (5) and the cooling curve of the stellar wind gas. Concerning the stellar wind, we have adopted ${\dot{M}}=10^{-5}$ M⊙ yr*-1* and $v_{*}=2300$ km s*-1* as typical values derived by Markova et al. (markova04 (2004)) and Repolust et al. (repolust04 (2004)) for the O4I stars in their samples. Finally, we use $v_{*}=39.8$ km s*-1* as derived in the previous Section, assuming for simplicity that most of the velocity of BD$+43^{\circ}\ 3654$ is on the plane of the sky and that there are no projection effects on the position of the bow shock. Introducing these values in Eq. (5), we obtain a number density of the local interstellar gas $n_{H}\simeq 6$ cm*-3*. It must be kept in mind that this is only a rough estimate of the density, mainly due to the large uncertainties in the values adopted for the different quantities intervening in Eq. (5) and the assumption that the residual motion of the star is in the plane of the sky. In particular, we note that Bouret et al. (bouret05 (2005)) find mass loss rates smaller by a factor of $\sim 3$ for the galactic O4If+ star HD190429A when taking into account wind clumping with respect to the homogeneous wind case, which may imply an overestimate of $n_{H}$ by a similar factor due to our adopted values. In any case, the estimated density clearly indicates that the star is moving in a tenuous medium whose density matches well that typical of the warm HI gas in the vicinity of the galactic midplane (e.g. Dickey & Lockman dickey90 (1990)).

4 Discussion: the origin of BD$+43^{\circ}\ 3654$

The spectral type and estimated mass of BD$+43^{\circ}\ 3654$ places it among the three most massive runaway stars known to date. The only other two comparable stars are $*ζ*$~Pup and $*λ*$~Cep (spectral types O4I(n)f and O6I(n)fp, respectively; Maíz Apellániz maiz04 (2004)), whose masses (65-70 M⊙, as estimated by Hoogerwerf et al. (hoogerwerf01 (2001)) from evolutionary models by Vanbeveren et al. (vanbeveren98 (1998))) are similar to the one that we estimate for BD$+43^{\circ}\ 3654$.

Although currently placed near the boundary separating Cygnus OB1 and OB9 (to the extent that this boundary may be real; see Schneider et al. (schneider07 (2007))), the proper motion of BD$+43^{\circ}\ 3654$ points away from the core of Cygnus OB2, which is approximately marked by the location of the multiple system of O stars CygOB28A-D. Other early O-type stars, most notably CygOB222A (O3If*), CygOB222B (O6V((f))), and CygOB29 (O5If+), are also within few arcminutes of that location. The position angle of BD$+43^{\circ}\ 3654$ with respect to this system is $58^{\circ}84$, very similar to the position angle of its residual proper motion vector (Sect. 3.1) and of the axis of the bow shock (Sect. 3.2). In view of the high density of very massive OB stars found in the central regions of Cygnus OB2 (Massey & Thompson massey91 (1991)), we thus consider as a very likely possibility that BD$+43^{\circ}\ 3654$ was formed there and subsequently expelled.

Assuming that BD$+43^{\circ}\ 3654$ was born in the close vicinity of Cyg OB2 8, of which is currently separated by an angular distance $\delta=2^{\circ}67$, the travel time to its current position is $\tau=\delta/\sqrt{(\Delta\mu_{l}\cos b)^{2}+(\Delta\mu_{b})^{2}}=1.7\pm 0.4$ Myr, which is close to the age of the star inferred from the evolutionary tracks and the position in the H-R diagram (Sect. 3.1). The coincidence between the age and the travel time supports dynamical ejection early in its life as the cause for its runaway velocity, since there would have been no time for a hypothetical massive companion to evolve, go through different mass transfer episodes (Vanbeveren et al. vanbeveren98 (1998)) and then explode as supernova. The spatial velocities of the other two massive runaways noted above are probably higher, unless the radial velocity of BD$+43^{\circ}\ 3654$ exceeds the projected velocity on the plane of the sky: Hoogerwerf et al. (hoogerwerf01 (2001)) measure a velocity of 62.4 km s*-1* for $\zeta$ Pup, and 74.0 for $\lambda$ Cep. High spatial velocities may be the signature of an origin by supernova ejection, since high ejection velocities by dynamical interaction become increasingly unlikely as the mass of the ejected star increases. The observed mass-velocity relationship for runaway stars (Gies & Bolton gies86 (1986)) clearly shows this trend. Hoogerwerf et al. (hoogerwerf01 (2001)) favor a supernova scenario for $\lambda$ Cep on the basis of the difference between its age and that of the likeliest parental association. The birthplace of $\zeta$ Pup is more uncertain according to Hoogerwerf et al. (hoogerwerf01 (2001)), but van Rensbergen et al. (vanrensbergen96 (1996)) also favor a supernova scenario. We note however that the velocities of all three stars is well below the upper limit for the ejection of very massive stars in encounters with massive binaries (Leonard leonard91 (1991)). We thus consider the similarity between the estimated age of BD$+43^{\circ}\ 3654$, and its kinematic age if it was born near the center of Cygnus OB2, as the strongest argument in support of a dynamical ejection, possibly from an original cluster containing in addition Cyg OB2 8, 9, and 22.

BD$+43^{\circ}\ 3654$ is the first runaway star from Cygnus OB2 identified thus far, but most likely it is not the only one in such a rich association. If the fraction of runaways among O-type stars is the same for Cygnus OB2 as for the more nearby population of O stars, we estimate that about ten more Cygnus OB2 runaways may remain to be discovered, having the potential of providing new information on their formation environments and on the mechanisms leading to the runaway ejection.
