Exploring the Variable Sky with the Sloan Digital Sky Survey

TL;DR

This study utilizes SDSS Stripe 82 data to analyze the variability of faint unresolved optical sources, revealing that a significant fraction of quasars and stars exhibit variability, and demonstrating the potential of variability studies for large-scale surveys.

Contribution

It provides a comprehensive catalog of variability for 1.4 million unresolved sources and assesses the effectiveness of variability as a method for identifying quasars and stars.

Findings

2% of unresolved sources brighter than g=20.5 are variable at 0.05 mag level.

At least 90% of quasars are variable at 0.03 mag level.

Rich halo substructure detected using RR Lyrae stars.

Abstract

We quantify the variability of faint unresolved optical sources using a catalog based on multiple SDSS imaging observations. The catalog covers SDSS Stripe 82, and contains 58 million photometric observations in the SDSS ugriz system for 1.4 million unresolved sources. In each photometric bandpass we compute various low-order lightcurve statistics and use them to select and study variable sources. We find that 2% of unresolved optical sources brighter than g=20.5 appear variable at the 0.05 mag level (rms) simultaneously in the g and r bands. The majority (2/3) of these variable sources are low-redshift (<2) quasars, although they represent only 2% of all sources in the adopted flux-limited sample. We find that at least 90% of quasars are variable at the 0.03 mag level (rms) and confirm that variability is as good a method for finding low-redshift quasars as is the UV excess color selection (at high Galactic latitudes). We analyze the distribution of lightcurve skewness for quasars and find that is centered on zero. We find that about 1/4 of the variable stars are RR Lyrae stars, and that only 0.5% of stars from the main stellar locus are variable at the 0.05 mag level. The distribution of lightcurve skewness in the g-r vs. u-g color-color diagram on the main stellar locus is found to be bimodal (with one mode consistent with Algol-like behavior). Using over six hundred RR Lyrae stars, we demonstrate rich halo substructure out to distances of 100 kpc. We extrapolate these results to expected performance by the Large Synoptic Survey Telescope and estimate that it will obtain well-sampled 2% accurate, multi-color lightcurves for ~2 million low-redshift quasars, and will discover at least 50 million variable stars.

Figures

Tables

Table 1. Table 1: The distribution of candidate variable sources in the g − r 𝑔 𝑟 g-r vs u − g 𝑢 𝑔 u-g diagram

Regiona	Nameb	% allc	% vard	var/alle	$N_{var}/N_{all}^f$	% allc	% vard	var/alle	$N_{var}/N_{all}^f$	% allc	% vard	var/alle	$N_{var}/N_{all}^f$
I	white dwarfs	0.14	0.59	4.25	3.50	0.24	0.40	1.69	3.34	0.28	0.45	1.64	4.51
II	low-redshift QSOs	0.45	30.88	68.83	56.58	1.90	62.90	33.03	65.10	4.07	70.01	17.22	47.30
III	dM/WD pairs	0.08	0.53	6.54	5.37	0.83	2.08	2.50	4.92	1.21	3.79	3.13	8.61
IV	RR Lyrae stars	1.28	16.81	13.11	10.78	1.33	7.95	5.99	11.81	1.48	6.41	4.33	11.90
V	stellar locus stars	96.27	48.77	0.51	0.42	94.49	25.15	0.27	0.52	91.89	18.33	0.20	0.55
VI	high-redshift QSOs	1.78	2.42	1.36	1.12	1.21	1.52	1.26	2.48	1.07	1.01	0.95	2.60
	total count	411,667	3,384			662,195	13,051			748,067	20,553

Table 2. Table 2: The fraction of variable main stellar locus stars as a function of the s 𝑠 s color

Bin	% $\sigma \left(g\right)⩾{0.05}^a$	% varb	${⟨\sigma \left(g\right)⟩}^c$	Countsd
	3.23	0.36	0.017	46,836
	2.92	0.28	0.017	136,910
	4.61	1.18	0.019	29,106
$s>0.06$	11.50	4.10	0.027	4,547

Table 3. Table 3: Approximate locations and properties of detected overdensities

Labela	Nb	${⟨R.A.⟩}^c$	${⟨d⟩}^d$	${⟨r⟩}^e$	${⟨u-g⟩}^f$	$⟨g-r^g⟩$	${⟨\gamma \left(g\right)⟩}^h$	$N_b/N_r^i$
A	84	330.95	21	17.02	1.14	0.18	-0.50	0.62
B	144	309.47	22	16.76	1.12	0.16	-0.57	0.64
C	54	33.69	25	17.61	1.13	0.20	-0.68	0.29
D	8	347.91	29	18.02	1.14	0.23	-0.50	0.38
E	11	314.06	43	18.84	1.09	0.20	-0.41	0.75
F	11	330.26	48	19.16	1.07	0.20	-0.46	0.38
G	10	354.81	55	19.46	1.10	0.22	-0.69	0.38
H	7	43.57	57	19.32	1.05	0.04	0.06	1.34
I	4	311.34	72	19.98	1.08	0.11	-0.10	2.0
J	26	353.58	81	20.21	1.11	0.20	-0.27	0.58
K	8	28.39	84	20.35	1.10	0.20	0.14	0.44
L	3	339.01	92	20.45	1.06	0.16	0.08	0.67
M	5	39.45	102	20.73	1.07	0.11	0.36	1.67

Equations

$${\chi }^2=\frac{1}{n-1}\sum _{i=1}^n\frac{(x_i-⟨x⟩{)}^2}{{\xi }_i^2}$$

$$\gamma =\frac{n^2}{(n-1)(n-2)}\frac{{\mu }_3}{{\Sigma }^3}$$

$${\mu }_3=\frac{1}{n}\sum _{i=1}^n(x_i-⟨x⟩{)}^3$$

$$\Sigma =\sqrt{\frac{1}{n-1}\sum _{i=1}^n(x_i-⟨x⟩{)}^2}$$

$$⟨\xi (m)⟩=a+b10^{0.4m}+c10^{0.8m}$$

$$\sigma =({\Sigma }^2-⟨\xi (m){⟩}^2{)}^{1/2}$$

$$P_1=0.91u-0.495g-0.415r-1.28$$

$$s=-0.249u+0.794g-0.555r+0.234$$

$$0.98<u-g<1.30$$

$$-0.05<D_{ug}<0.35$$

$$0.06<D_{gr}<0.55$$

$$-0.15<r-i<0.22$$

$$-0.21<i-z<0.25$$

$$D_{ug}=(u-g)+0.67(g-r)-1.07$$

$$D_{gr}=0.45(u-g)-(g-r)-\mathrm{0.12.}$$

Full text

Galaxy: halo — Galaxy: stellar content — quasars: general — RR Lyrae

11affiliationtext: University of Washington, Dept. of Astronomy, Box 351580, Seattle, WA 98195-158022affiliationtext: Princeton University Observatory, Princeton, NJ 08544-100133affiliationtext: Institute for Advanced Study, 1 Einstein Drive, Princeton, NJ 0854044affiliationtext: Dept. of Physics & Astronomy, Michigan State University, East Lansing, MI 48824-232055affiliationtext: Dept. of Physics & Astronomy, Austin Peay State University, Box 4608, Clarksville, TN 37044 66affiliationtext: Fermi National Accelerator Laboratory, Box 500, Batavia, IL 6051077affiliationtext: Institute of Astronomy, University of Tokyo, 2-21-1 Osawa,Mitaka, Tokyo 181-0015, Japan88affiliationtext: Dept. of Astronomy, Graduate School of Science, University of Tokyo, Hongo 7-3-1, Bunkyo-ku, Tokyo, 113-0033, Japan99affiliationtext: Institute for Cosmic Ray Research, University of Tokyo, Kashiwa, Chiba, Japan1010affiliationtext: New Mexico State University, Box 30001, 1320 Frenger St., Las Cruces, NM 880031010affiliationtext: Lawrence Berkeley National Laboratory, One Cyclotron Road, MS 50R5032, Berkeley, CA, 947201111affiliationtext: Harvard-Smithsonian Center for Astrophysics, 60 Garden Street, Cambridge, MA 021381212affiliationtext: University of California–Santa Cruz, 1156 High St., Santa Cruz, CA 950601313affiliationtext: School of Physics and Astronomy, University of Southampton, Highfield, Southampton, SO17 1BJ, UK 1414affiliationtext: U.S. Naval Observatory, Flagstaff Station, Box 1149, Flagstaff, AZ 860021515affiliationtext: Department of Astronomy, Case Western Reserve University, Cleveland, Ohio 441061616affiliationtext: Apache Point Observatory, 2001 Apache Point Road, Box 59, Sunspot, NM 88349-00591717affiliationtext: Department of Astronomy and Astrophysics, Pennsylvania State University, University Park, PA 168021818affiliationtext: University of Chicago, Astronomy & Astrophysics Center, 5640 S. Ellis Ave., Chicago, IL 60637 1919affiliationtext: Rochester Institute of Technology, Department of Physics, 84 Lomb Memorial Dr., Rochester, NY 14623-5603

1 Introduction

Variability is an important phenomenon in astrophysical studies of structure and evolution, both stellar and galactic. Some variable stars, such as RR Lyrae, are an excellent tool for studying the Galaxy. Being nearly standard candles (thus making distance determination relatively straightforward) and being intrinsically bright, they are a particularly suitable tracer of Galactic structure. In extragalactic astronomy, the optical continuum variability of quasars is utilized as an efficient method for their discovery (van den Bergh, Herbst & Pritchet, 1973; Hawkins, 1983; Koo, Kron & Cudworth, 1986; Hawkins & Veron, 1995), and is also frequently used to constrain the origin of their emission (Kawaguchi et al., 1998; Trevese et al., 2001; Martini & Schneider, 2003).

Despite the importance of variability, the variable optical sky remains largely unexplored and poorly quantified, especially at the faint end. To what degree different variable populations contribute to the overall variability, how they are distributed in magnitude and color, what the characteristic time-scales and the dominant mechanisms of variability are, are just some of the questions that still remain to be answered. To address these questions, several contemporary projects aimed at regular monitoring of the optical sky were started. Some of the more prominent surveys in terms of the sky coverage, depth, and cadence are:

• •

The Faint Sky Variability Survey (Groot et al., 2003) is a very deep ($17<V<24$) $BVI$ survey of 23 deg2 of sky, containing about 80,000 sources sampled at timescales ranging from minutes to years.

• •

The QUEST Survey (Vivas et al., 2001) monitors 700 deg2 of sky from $V=13.5$ to a limit of $V=21$.

• •

ROTSE-I (Akerlof et al., 2000) monitors the entire observable sky twice a night from $V=10$ to a limit of $V=15.5$. The Northern Sky Variability Survey (Woźniak et al., 2004) is based on ROTSE-I data.

• •

OGLE (most recently OGLE III; Udalski et al. 2002) monitors $\sim 100$ deg2 towards the Galactic bulge from $I=11.5$ to a limit of $I=20$. Due to the very high stellar density towards the bulge, OGLE II has detected about 270,000 variable stars (Woźniak et al., 2002; Żebruń et al., 2002).

• •

The MACHO Project monitored the brightness of $\sim 60$ million stars in $\sim 90$ deg2 of sky toward the Magellanic Clouds and the Galactic bulge for $\sim 7$ years to a limit of $V\sim 24$ (Alcock et al., 2001).

A comprehensive review of past and ongoing variability surveys can be found in Becker et al. (2004).

Recognizing the outstanding importance of variable objects, the last Decadal Survey Report (Astronomy and Astrophysics Survey Committee, Board on Physics and Astronomy, Space Studies Board, National Research Council, 2001) highly recommended a major new initiative for studying the variable sky, the Large Synoptic Survey Telescope (LSST; Tyson et al. 2002; Walker 2003). The LSST111See [HREF]http://www.lsst.org will offer an unprecedented view of the faint variable sky: according to the current designs it will scan the entire accessible sky every three nights to a limit of $V\sim 25$ with two observations per night in two different bands (selected from a set of six). One of the LSST science goals222For more details see [HREF]http://www.lsst.org/Science/science_goals.shtml will be the exploration of the transient optical sky: the discovery and analysis of rare and exotic objects (e.g. neutron star and black hole binaries), gamma-ray bursts, X-ray flashes, and of new classes of transients, such as binary mergers and stellar disruptions by black holes. The observed volume of space, and the requirement to recognize and monitor these events — in real time — on a “normally” variable sky, will present a challenge to the project.

Since LSST will utilize333LSST will also use the $Y$ band at $\sim 1$ $\mu m$. For more details see the LSST Science Requirement Document at [HREF]http://www.lsst.org/Science/lsst_baseline.shtml the Sloan Digital Sky Survey (SDSS; York et al. 2000) photometric system ($ugriz$, Fukugita et al. 1996), multiple photometric observations obtained by the SDSS represent an excellent dataset for a pre-LSST study that characterizes the faint variable sky and quantifies the variable population and its distribution in magnitude-color-variability space. Here we present such a study of unresolved sources in a region that has been imaged multiple times by the SDSS.

In Section 2 we give a brief overview of the SDSS imaging survey and repeated scans of a $\sim 290$ deg2 region called Stripe 82. In Section 3, we describe methods used to select candidate variable sources from the SDSS Stripe 82 data assembled, averaged and recalibrated by Ivezić et al. (2007), and present tests that show the robustness of the adopted selection criteria. In the same section, we discuss the distribution of selected variable sources in magnitude-color-variability space. The Milky Way halo structure traced by selected candidate RR Lyrae stars is discussed in Section 4, and in Section 5 we estimate the fraction of variable quasars. Implications for surveys such as the LSST are discussed in Section 6, and our main results are summarized in Section 7.

2 Overview of the SDSS Imaging and Stripe 82 Data

The quality of photometry and astrometry, as well as the large area covered by the survey, make the SDSS stand out among available optical sky surveys (Sesar et al., 2006). The SDSS is providing homogeneous and deep ($r<22.5$) photometry in five bandpasses ($u$, $g$, $r$, $i$, and $z$, Gunn et al. 1998; Hogg et al. 2002; Smith et al. 2002; Gunn et al. 2006; Tucker et al. 2006) accurate to 0.02 mag (root-mean-square scatter, hereafter rms) for unresolved sources not limited by photon statistics (Scranton et al., 2002; Ivezić et al., 2003a), and with a zeropoint uncertainty of 0.02 mag (Ivezić et al., 2004a). The survey sky coverage of 10,000 deg2 in the northern Galactic cap, and 300 deg2 in the southern Galactic cap will result in photometric measurements for well over 100 million stars and a similar number of galaxies (Stoughton et al., 2002). The recent Data Release 5 (Adelman-McCarthy et al., 2007)444Please see [HREF]http://www.sdss.org/dr5 lists photometric data for 215 million unique objects observed in 8000 deg2 of sky as part of the “SDSS-I” phase that ran through June 2005. Astrometric positions are accurate to better than $0.1\arcsec$ per coordinate (rms) for sources with $r<20.5$ (Pier et al., 2003), and the morphological information from the images allows reliable star-galaxy separation to $r\sim 21.5$ (Lupton et al., 2002). In addition, the 5-band SDSS photometry can be used for very detailed source classification; e.g. separation of quasars and stars (Richards et al., 2002), spectral classification of stars to within 1-2 spectral subtypes (Lenz et al., 1998; Finlator, 2000; Hawley et al., 2002), and even remarkably efficient color selection of the horizontal branch and RR Lyrae stars (Yanny et al., 2000; Sirko et al., 2004; Ivezić et al., 2005) and low-metallicity G and K giants (Helmi et al., 2003).

The equatorial Stripe 82 region (22h 24m $<\alpha_{J2000}<$ 04h 08m, $-1.27\arcdeg<\delta_{J2000}<+1.27\arcdeg$, $\sim 290$ deg2), observed in the southern Galactic cap, presents a valuable data source for variability studies. The region was repeatedly observed (65 imaging runs by July 2005, but not all cover the entire region), and it is the largest source of multi-epoch data in the SDSS-I phase. Another source of the large number of scans is the SDSS-II Supernova Survey (Frieman et al., 2007). By averaging the repeated observations of Stripe 82 sources, more accurate photometry than the nominal 0.02 mag single-scan accuracy can be achieved. This motivated Ivezić et al. (2007) to produce a catalog of recalibrated Stripe 82 observations. The catalog lists 58 million photometric observations for 1.4 million unresolved sources that were observed at least 4 times in each of the $gri$ bands (with a median of 10 observations obtained over $\sim 5$ years). The random photometric errors for PSF (point spread function) magnitudes are below 0.01 mag for stars brighter than 19.5, 20.5, 20.5, 20, 18.5 in $ugriz$, respectively (about twice as accurate for individual SDSS runs), and the spatial variation of photometric zeropoints is not larger than $\sim$0.01 mag (rms). Following Ivezić et al. (2007), we use PSF magnitudes because they go deeper at a given signal-to-noise ratio than aperture magnitudes, and have more accurate photometric error estimates than model magnitudes. In addition, various low-order statistics such as root-mean-square scatter ($\Sigma$), $\chi^{2}$ per degree of freedom ($\chi^{2}$), lightcurve skewness ($\gamma$), minimum and maximum PSF magnitude, were computed for each $ugriz$ band and each source. We compute $\chi^{2}$ per degree of freedom as

[TABLE]

and lightcurve skewness $\gamma$ as555We use equations from [HREF]http://www.xycoon.com/skewness_small_sample_test_1.htm.

[TABLE]

[TABLE]

[TABLE]

where $n$ is the number of detections, $x_{i}$ is the magnitude, $\langle x\rangle$ is the mean magnitude, and $\xi_{i}$ is the photometric error.

Separation of quasars and stars, as well as efficient color selection of horizontal branch and RR Lyrae stars, depend on accurate $u$ band photometry. To ensure this, we select 748,084 unresolved sources from the Ivezić et al. (2007) catalog with at least 4 detections in the $u$ band. A catalog of variable sources selected from this sample is analyzed in Section 3 below.

3 Analysis of Stripe 82 Catalog of Variable Sources

In this section we describe methods for selecting candidate variable sources, and present tests that show the robustness of the adopted selection criteria. The distribution of selected variable sources in magnitude-color-variability space is also presented.

3.1 Methods and Selection Criteria

Due to a relatively small number of observations per source and random sampling, we do not perform lightcurve fitting, but instead use low order statistics to select candidate variables and study their properties. There are four parameters (median PSF magnitude, root-mean-square scatter $\Sigma$, $\chi^{2}$, and lightcurve skewness $\gamma$) measured in five photometric bands ($u$, $g$, $r$, $i$, and $z$), for a total of 20 parameters. In the analysis presented here, we utilize eight of them:

• •

median PSF magnitudes in the $ugr$ bands (corrected for interstellar extinction using the map from Schlegel, Finkbeiner & Davis 1998) because the $g-r$ vs. $u-g$ color-color diagram has the most classification power (e.g. Smolčić et al. 2004 and references therein).

• •

$\Sigma$ and $\chi^{2}$ in the $g$ and $r$ bands, and

• •

lightcurve skewness $\gamma(g)$ (the $g$ band combines a high signal-to-noise ratio and large variability amplitude for the majority of variable sources).

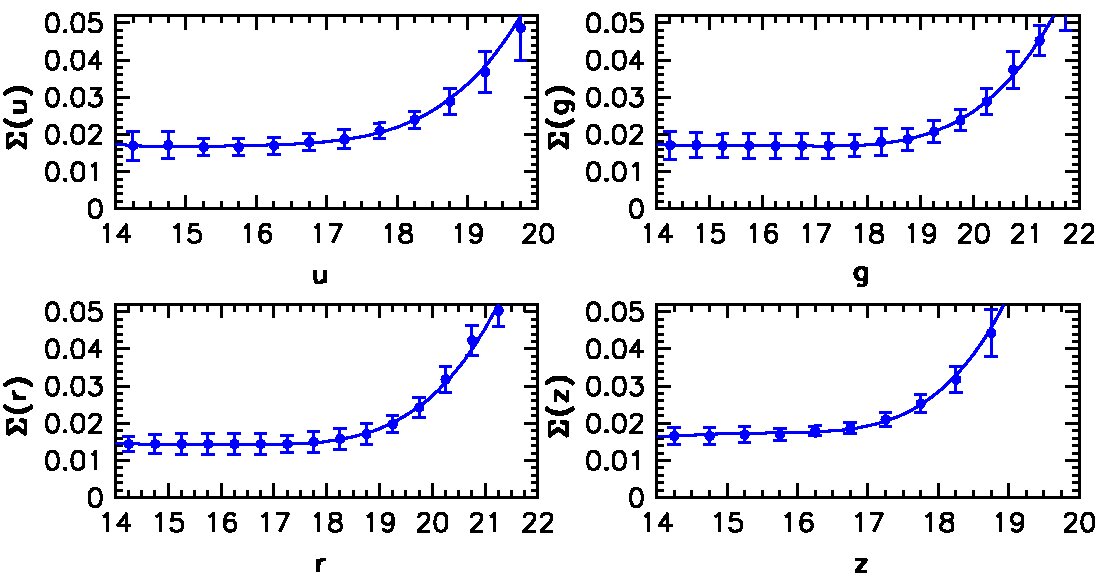

The observed root-mean-square scatter $\Sigma$ includes both the intrinsic variability $\sigma$ and the mean photometric error $\langle\xi(m)\rangle$ as a function of magnitude. The dependence of $\Sigma$ on magnitude in the $ugriz$ bands, is shown in Figure 1. For sources brighter than 18, 19.5, 19.5, 19, and 17.5 mag in the $ugriz$, respectively, the SDSS delivers $2\%$ photometry with little or no dependence on magnitude. We determine $\langle\xi(m)\rangle$ by fitting a fourth degree polynomial to median $\Sigma$ values in 0.5 mag wide bins (here we assume that the majority of sources are not variable). The theoretically expected $\langle\xi(m)\rangle$ function (Strateva et al., 2001)

[TABLE]

provides equally good fits. We define the intrinsic variability $\sigma$ (hereafter rms scatter $\sigma$) as

[TABLE]

for $\Sigma>\langle\xi(m)\rangle$, and $\sigma=0$ otherwise.

As the first variability selection criterion, we adopt $\sigma(g)\geqslant 0.05$ mag and $\sigma(r)\geqslant 0.05$ mag (hereafter written as $\sigma(g,r)\geqslant 0.05$ mag). At the bright end, this criterion is equivalent to selecting sources with rms scatter greater than $2.5\sigma_{0}$, where $\sigma_{0}=0.02$ mag is the measurement noise. Selection cuts are applied simultaneously in the $g$ and $r$ bands to reduce the number of “false positives” (intrinsically non-variable sources selected as candidate variable sources due to measurement noise). About $6\%$ of sources pass the $\sigma$ cut in each band separately, and $\sim 3\%$ of sources pass the cut in both bands simultaneously. By selecting sources with $\sigma(g,r)\geqslant 0.05$ mag, we also select faint sources that have large $\sigma$ due to large photometric errors at the faint end. To only select faint sources with statistically significant rms scatter, we apply the $\chi^{2}$ test as the second selection cut.

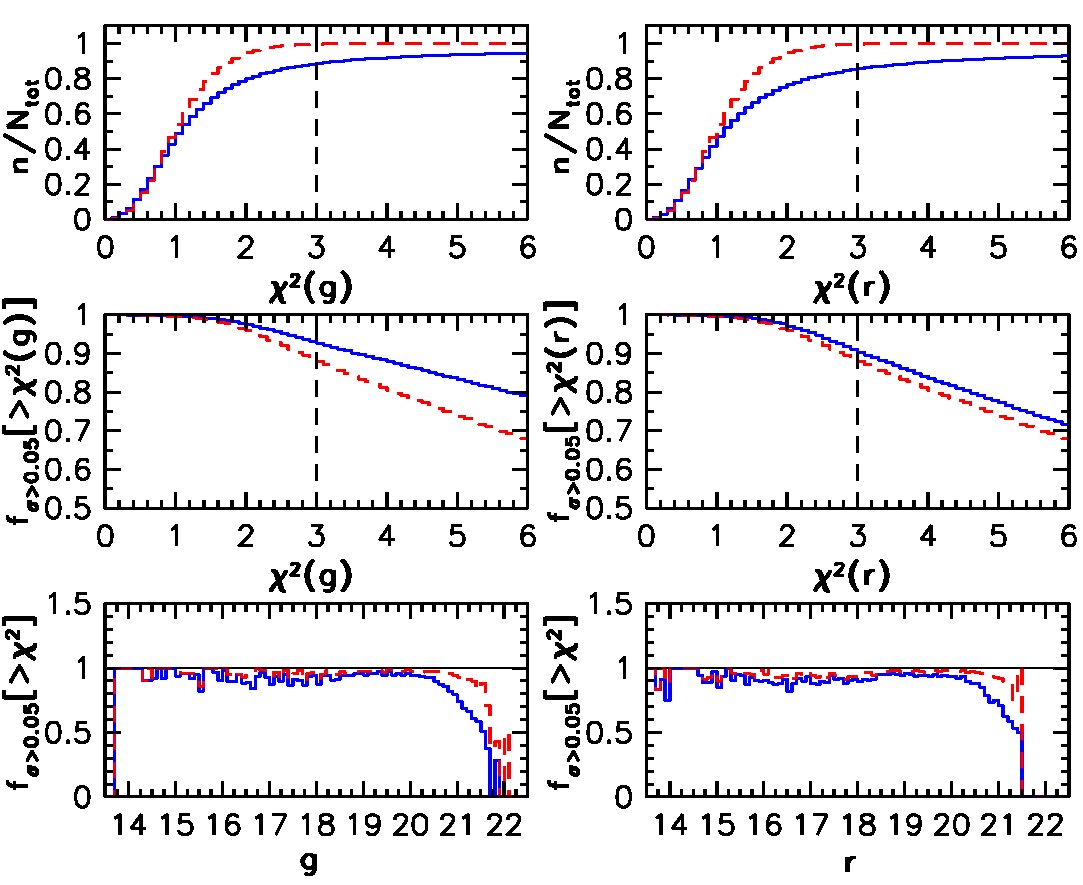

In the $\chi^{2}$ test, the value of $\chi^{2}$ per degree of freedom (calculated with respect to a weighted mean magnitude and using errors computed by the photometric pipeline) determines whether the observed lightcurve is consistent with the Gaussian distribution of errors. Large $\chi^{2}$ values show that the rms scatter is inconsistent with random fluctuations. Ivezić et al. (2003a, 2007) used multi-epoch SDSS observations to show that the photometric error distribution in the SDSS roughly follows a Gaussian distribution. A comparison of $\chi^{2}$ distributions in the $g$ and $r$ bands with a reference Gaussian $\chi^{2}$ distribution is shown in Figure 2. As evident, $\chi^{2}$ distributions in both bands roughly follow the reference Gaussian $\chi^{2}$ distribution for $\chi^{2}<1$, demonstrating that median photometric errors are correctly determined. The discrepancy for larger $\chi^{2}$ is due to variable sources rather than non-Gaussian error distributions, as we demonstrate below.

The second selection cut, $\chi^{2}(g)\geqslant 3$ and $\chi^{2}(r)\geqslant 3$ (hereafter written as $\chi^{2}(g,r)\geqslant 3$), selects $\sim 90\%$ of $\sigma(g,r)\geqslant 0.05$ mag sources, as shown in Figure 2 (middle panels). The effectiveness of the $\chi^{2}$ test is demonstrated in the bottom panel of Figure 2. For magnitudes fainter than $g=20.5$, the fraction of candidate variables decreases as photometric errors increase. The selection is relatively uniform for sources brighter than $g=20.5$, and we adopt this value as the flux limit for the selected variable sample.

There are 662,195 sources brighter than $g=20.5$ in the full sample. Using $\sigma(g,r)\geqslant 0.05$ mag and $\chi^{2}(g,r)\geqslant 3$ as the selection criteria, we select 13,051 candidate variable sources666A list of candidate variable sources and their data from Ivezić et al. (2007) are publicly available from [HREF]http://www.sdss.org/dr5/products/value_added/index.html. Therefore, at least $2\%$ of unresolved optical sources brighter than $g=20.5$ appear variable at the $\geqslant 0.05$ mag level (rms) simultaneously in the $g$ and $r$ bands. The fraction of selected variable sources is not a strong function of the minimum required number of observations, but it does depend on the stellar density because the number of stars increases at lower Galactic latitudes (see Fig. 5 in Ivezić et al. 2007) while the quasar count remains the same.

3.2 The Counts of Variable Sources

In this section we estimate the completeness and efficiency of the candidate variable sample, and discuss the dependence of counts, rms scatter, $\sigma(g)/\sigma(r)$ ratio, and the lightcurve skewness $\gamma(g)$ on the position in the $g-r$ vs. $u-g$ color-color diagram.

3.2.1 Completeness

The selection completeness, defined as the fraction of true variable sources recovered by the algorithm, depends on the lightcurve shape and amplitudes. Due to a fairly large number of observations (median of 10), and small $\sigma(g,r)$ cutoff compared to typical amplitudes of variable sources (e.g. most RR Lyrae stars and quasars have peak-to-peak amplitudes $\sim 1$ mag), we expect the completeness to be fairly high for RR Lyrae stars ($\gtrsim 95\%$, see Section 4) and quasars ($\sim 90\%$, see Section 5). The completeness for other types of variable sources, such as flares and eclipsing binaries, is hard to estimate, but is probably low due to sparse sampling.

3.2.2 Efficiency

The selection efficiency, defined as the fraction of true variable sources in the candidate variable sample, determines the robustness of the selection algorithm. The main diagnostic for the robustness of the adopted selection criteria is the distribution of selected candidates in the SDSS color-magnitude and color-color diagrams. The position of a source in these diagrams is a good proxy for its spectral classification (Lenz et al., 1998; Fan, 1999; Finlator, 2000; Smolčić et al., 2004).

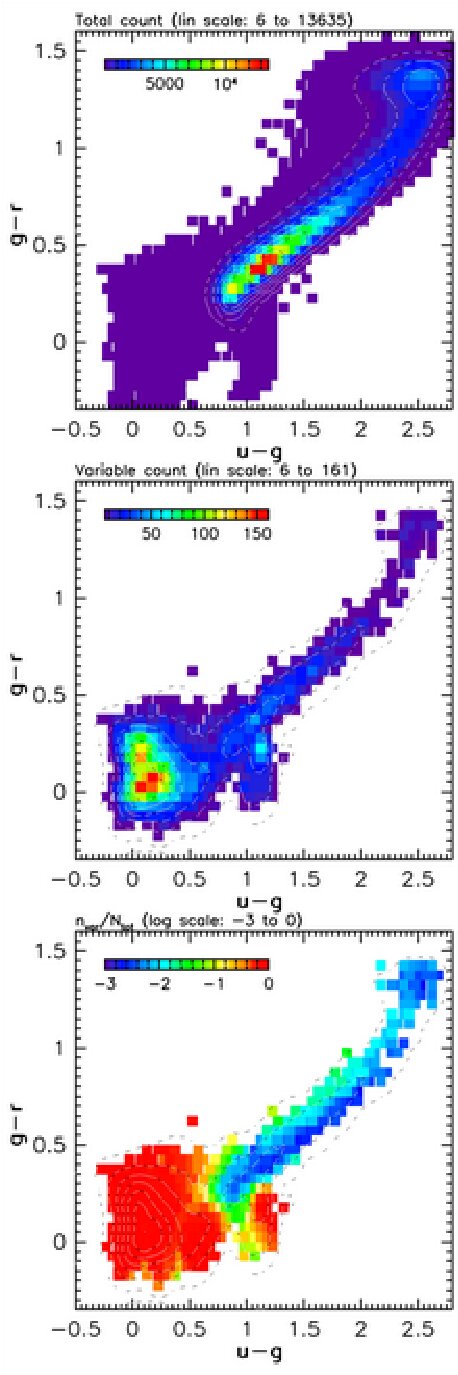

Figure 3 compares the distribution of candidate variable sources to that of all sources in the $g-r$ vs. $u-g$ color-color diagram. Were the selection a random process, the selected candidates would have the same distribution as the full sample. The distributions of candidate variables and of the full sample are remarkably different, demonstrating that the candidate variables are not randomly selected from the parent sample.

The three dominant classes of variable objects are quasars, RR Lyrae stars, and stars from the main stellar locus. The most obvious difference between the variable and the full sample distributions is a much higher fraction of low-redshift quasars ($<2.2$, recognized by their UV excess, $u-g<0.7$, see Richards et al. 2002) and RR Lyrae stars ($u-g\sim 1.15$, $g-r<0.3$, see Ivezić et al. 2005) in the variable sample, and vividly shown in the bottom panel of Figure 3.

Another interesting feature visible in this panel is a gradient in the fraction of variable main stellar locus stars (perpendicular to the main stellar locus). We investigate this gradient by first defining principal colors

[TABLE]

and

[TABLE]

where $P_{1}$ and $s$ are principal axis parallel and perpendicular to the main stellar locus, respectively (Ivezić et al., 2004a). The $s$ color is a measure of metallicity (Lenz et al., 1998), and $s>0.05$ stars are expected to be metal poor (Helmi et al., 2003). Sources with $r<19$ and $0<P_{1}<0.9$ are selected and binned in four $s$ bins. For each bin we calculate the fraction of source with $\sigma(g)\geqslant 0.05$ mag, the fraction of variable sources (selected with $\sigma(g,r)\geqslant 0.05$ mag and $\chi^{2}(g,r)\geqslant 3$), median $\sigma(g)$, and the total number of sources in the bin (see Table 2). A greater fraction of variable sources in the last bin ($s>0.06$) indicates that, on average, metal-poor main stellar locus stars are more variable than the metal-rich stars. This could be because this sample of metal-poor stars is expected to have a high fraction of giants.

In order to quantify the differences between the full and the variable sample, we follow Sesar et al. (2006) and divide the $g-r$ vs. $u-g$ color-color diagram into six characteristic regions, each dominated by a particular type of source, as shown in Figure 4. The fractions and counts of variable and all sources in each region are listed in Table 1 for $g<19$, $g<20.5$, and $g<22$ flux-limited samples. Notably, in the adopted $g<20.5$ flux limit, the fraction of Region II sources (dominated by low-redshift quasars) in the variable sample is $63\%$, or $\sim 30$ times greater than the fraction of Region II sources in the full sample ($\sim 2\%$). The fraction of Region IV sources (which include RR Lyrae stars) in the variable sample is also high when compared to the full sample ($\sim 6$ times higher).

As shown in Table 1, in the $g=20.5$ flux-limited sample, we find that low-redshift quasars and RR Lyrae stars (i.e. Regions II and IV) make $70\%$ of the variable population, while representing only $3\%$ of all sources. Quasars alone account for $63\%$ of the variable population. Stars from the main stellar locus represent $95\%$ of all sources and $25\%$ of the variable sample: about $0.5\%$ of the stars from the locus are variable at the $\geqslant 0.05$ mag level.

3.3 The Properties of Variable Sources

Various lightcurve properties, such as shape and amplitude, are expected to be correlated with stellar types. In this section we study the distribution of the rms scatter in the $u$ and $g$ bands, and $\sigma(g)/\sigma(r)$ ratio as a function of the $u-g$ and $g-r$ colors. To emphasize trends, we bin sources and present median values for each bin.

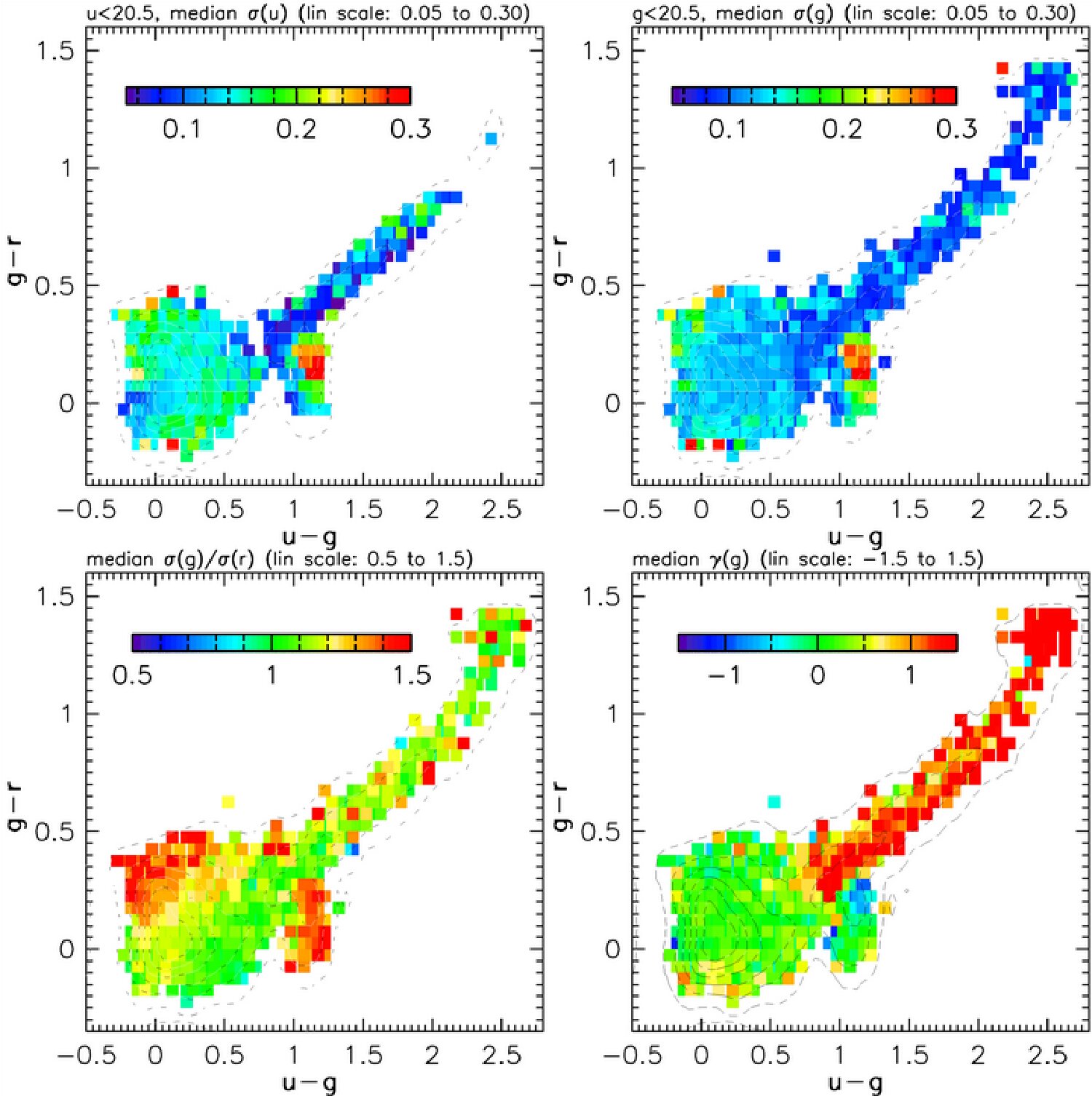

The distribution of the median $\sigma(u)$ and $\sigma(g)$ values in the $g-r$ vs. $u-g$ color-color diagram is shown in the top two panels of Figure 5. RR Lyrae stars show larger rms scatter ($\gtrsim 0.3$ mag) in the $u$ and $g$ bands, than low-redshift quasars or stars from the main stellar locus. Quasars also show slightly larger rms scatter in the $u$ band ($\sim 0.1$ mag) than in the $g$ band ($\sim 0.07$ mag), as discussed by Kinney et al. (1991),Ivezić et al. (2004b), and Vanden Berk et al. (2004). If we define the degree of variability as the root-mean-square scatter in the $g$ band, then on average RR Lyrae stars show the greatest variability, followed by quasars and the main stellar locus stars.

Another distinctive characteristic of variable sources is the ratio of flux changes in different bandpasses. This property can be used to select different types of variable sources. For example, RR Lyrae stars are bluer when brighter, a behavior used by Ivezić et al. (2000) to select RR Lyrae using 2-epoch SDSS data. Here we define a new parameter, $\sigma(g)/\sigma(r)$, to express the ratio of flux changes in the $g$ and $r$ bands, and study its distribution in the $g-r$ vs. $u-g$ color-color diagram. In particular, we examine this distribution and its median values for three dominant classes of variable sources: quasars, RR Lyrae stars, and stars from the main stellar locus.

The bottom left panel in Figure 5 shows the distribution of median $\sigma(g)/\sigma(r)$ values as a function of $u-g$ and $g-r$ colors. Using Fig. 5 we note that on average:

• •

RR Lyrae stars have $\sigma(g)/\sigma(r)\sim 1.4$

• •

Main stellar locus stars have $\sigma(g)/\sigma(r)\sim 1$, and

• •

Quasars show a $\sigma(g)/\sigma(r)$ gradient in the $g-r$ vs. $u-g$ color-color diagram.

The average value of $\sigma(g)/\sigma(r)\sim 1.4$ in Region IV indicates that RR Lyrae stars dominate the variable source count in this region. The ratio of 1.4 for RR Lyrae stars was also previously found by Ivezić et al. (2000). While Figure 5 only presents median values of the rms scatter, Figure 6 shows how the rms scatter in the $g$ and $r$ bands correlates with the $u-g$ color for individual sources. Variable sources that follow the $\sigma(g)=1.4\sigma(r)$ relation also correlate with the $u-g$ color, and have $u-g\sim 1$, as expected for RR Lyrae stars.

The average ratio of $\sigma(g)/\sigma(r)\sim 1$ (i.e. gray flux variations) for stars in the main stellar locus suggests that the variability could be caused by eclipsing systems. The distribution of $\gamma(g)$ for main stellar locus stars further strengthens this possibility, as discussed in Section 3.4 below.

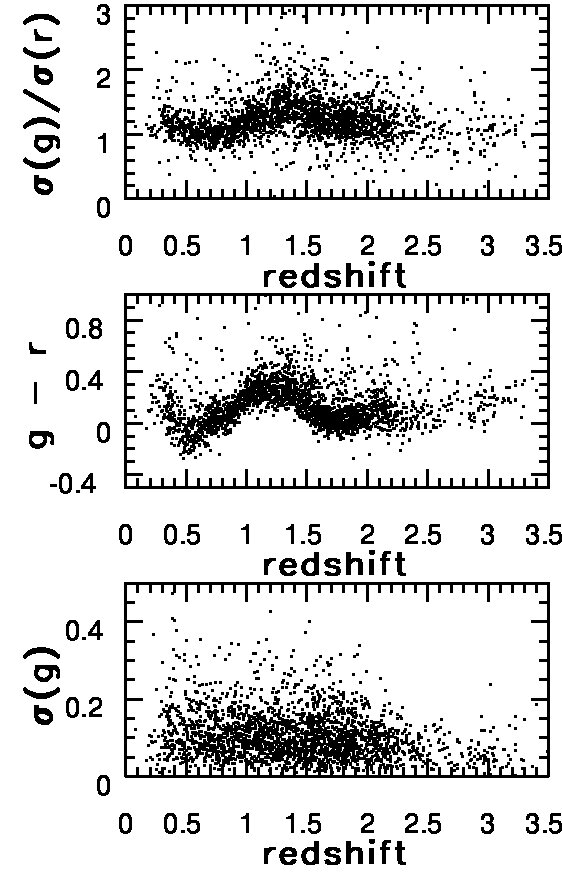

The gradient in the $\sigma(g)/\sigma(r)$ ratio observed for low-redshift quasars in the $g-r$ vs. $u-g$ color-color diagram suggests that the variability correlation between the $g$ and $r$ bands is more complex than in the case of RR Lyrae or main stellar locus stars. Wilhite et al. (2006) show that the photometric color changes for quasars depend on the combined effects of continuum changes, emission-line changes, redshift, and the selection of photometric bandpasses. They note that due to the lack of variability of the lines, measured photometric color is not always bluer in brighter phases, but depends on redshift and the filters used. To verify the dependence of broad-band photometric variability on redshift, we plot $\sigma(g)/\sigma(r)$ vs. redshift for all spectroscopically confirmed unresolved quasars from Schneider et al. (2005) which are in Stripe 82, as shown in Figure 7. We confirm that the broad-band photometric variability depends on the redshift, and that the $\sigma(g)/\sigma(r)$ gradient in the $g-r$ vs. $u-g$ color-color diagram can be explained by the increase in $\sigma(g)/\sigma(r)$ from $\sim 1$ to $\sim 1.6$ in the 1.0 to 1.6 redshift range. This effect is due to the Mg II emission line (more stable in flux than the continuum) moving through the $r$ band filter over this redshift range. The implied correlation of the $u-g$ and $g-r$ colors with redshift is consistent with the discussion by Richards et al. (2002). The lack of noticeable correlation of $\sigma(g)$ with redshift is due to the combined effects of the dependence of $\sigma(g)$ on the rest-frame wavelength and time which cancel out (for a detailed model see Ivezić et al. 2004b).

3.4 Skewness as a Proxy for Dominant Variability Mechanism

Lightcurve skewness, a measure of the lightcurve asymmetry, provides additional information on the type of variability. Negatively skewed, asymmetric lightcurves indicate variable sources that spend more time fainter than $(m_{min}+m_{max})/2$, where $m_{min}$ and $m_{max}$ are magnitudes at the minimum and maximum. Type $ab$ RR Lyrae stars, for example, have negatively skewed lightcurves ($\gamma\sim-0.5$, Wils, Lloyd & Bernhard 2006). Positively skewed, asymmetric lightcurves indicate variable sources that spend more time brighter than $(m_{min}+m_{max})/2$ (e.g. eclipsing systems). Sources with symmetric lightcurves will have $\gamma\sim 0$.

The bottom right panel in Figure 5 shows the distribution of the median $\gamma(g)$ as a function of the position in the $g-r$ vs. $u-g$ color-color diagram. On average, quasars and $c$ type RR Lyrae stars ($u-g\sim 1.15$, $g-r<0.15$) have $\gamma(g)\sim 0$, $ab$ type RR Lyrae ($u-g\sim 1.15$, $g-r>0.15$) have negative skewness ($\gamma(g)\sim-0.5$), and stars in the main stellar locus have positive skewness.

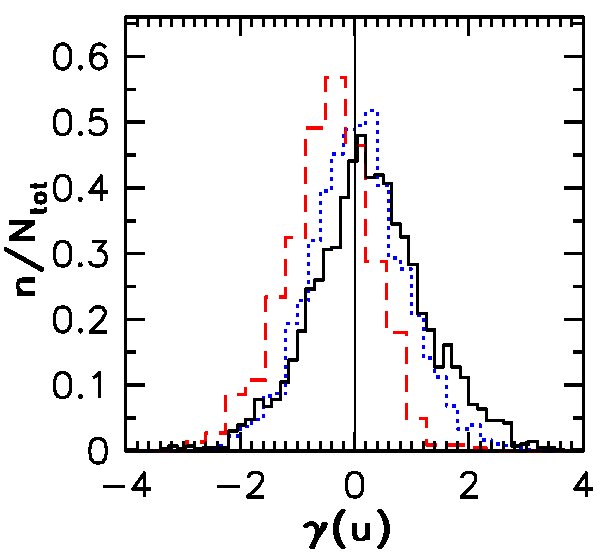

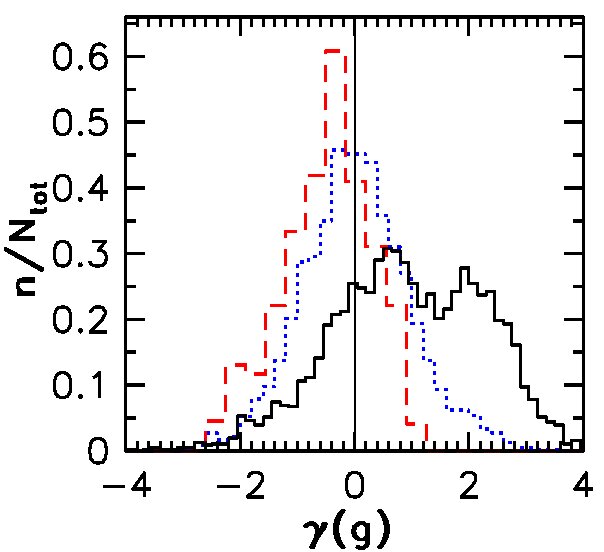

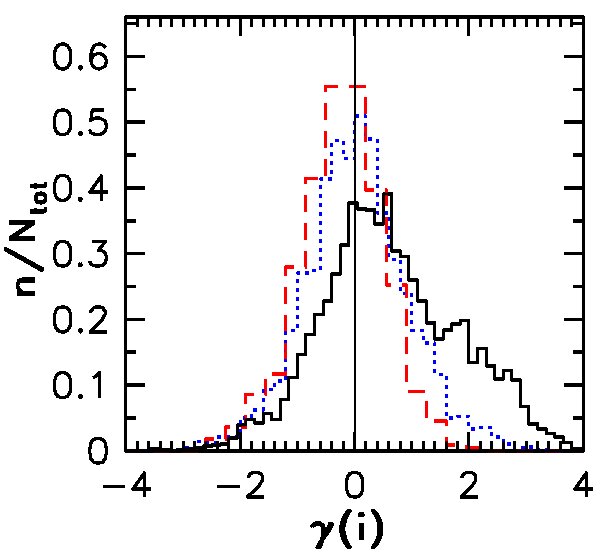

Figure 8 shows the distribution of the lightcurve skewness in the $ugi$ bands for spectroscopically confirmed unresolved quasars from Schneider et al. (2005) which are in Stripe 82, candidate RR Lyrae stars (selection details are discussed in Section 4 below), and main stellar locus stars from our variable sample. Stars in the main stellar locus show a bimodal $\gamma(g)$ distribution. This distribution suggests at least two, and perhaps more, different populations of variables. Indeed, when spectroscopically confirmed M dwarfs are selected, a third peak appears at $\gamma(g)~{}-2.5$, possibly associated with flaring M dwarfs (Kowalski et al., 2007). The bimodality similar to the one in the $g$ band is also discernible in the $r$ band, while it is less pronounced in the $i$ band and not detected in the $u$ and $z$ bands (the $r$ and $z$ data are not shown).

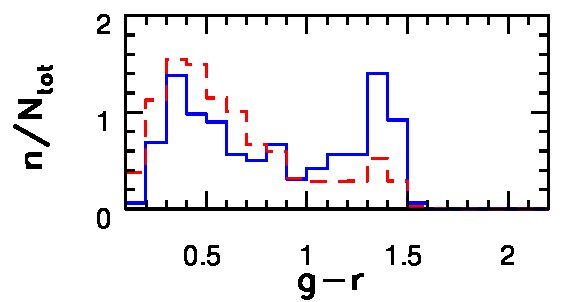

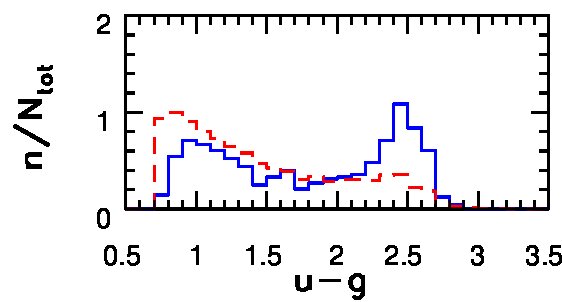

A comparison of the $u-g$ and $g-r$ color distributions for variable main stellar locus stars brighter than $g=19$ and a subset with highly asymmetric lightcurves ($\gamma(g)>2.5$) is shown in Figure 9. The subset with asymmetric lightcurves has an increased fraction of stars with colors $u-g\sim 2.5$ and $g-r\sim 1.4$, that correspond to M stars. This may indicate that M stars have a higher probability of being associated with an eclipsing companion than stars with earlier spectral types. However, the selection effects are probably important since a companion is easier to detect (due to the low luminosity of M dwarfs). Kowalski et al. (2007) examine these issues using lightcurve data on a sample of spectroscopically confirmed M dwarfs. Finally, quasars have symmetric lightcurves ($\gamma\sim 0$) and their distribution of skewness does not change between bands.

4 The Milky Way Halo Structure Traced by Candidate RR Lyrae Stars

Studies of substructures in the Galactic halo, such as clumps and streams, can constrain the formation history of the Milky Way. One of the best tracers to study the outer halo are RR Lyrae stars because they are nearly standard candles, are sufficiently bright to be detected at large distances ($5-100$ kpc for $14<r<20.7$), and are sufficiently numerous to trace the halo substructure with a high spatial resolution. The General Catalog of Variable Stars (GCVS; Kholopov et al. 1988) lists777A list of GCVS variability types can be found at [HREF]http://www.sai.msu.su/groups/cluster/gcvs/gcvs/iii/vartype.txt RR Lyrae stars as RR Lyrae type $ab$ (RRab) and type $c$ (RRc) stars. RRab stars have asymmetric lightcurves, periods from 0.3 to 1.2 days, and amplitudes from $V\sim 0.5$ to $V\sim 2$. RRc stars have nearly symmetric, sometimes sinusoidal, lightcurves, with periods from 0.2 to 0.5 days, and amplitudes not greater than $V\sim 0.8$. In this work we assume $M_{V}=0.7$ as the absolute $V$ band magnitude of RRab and RRc stars. A comprehensive review of RR Lyrae stars can be found in Smith (1995).

In this section we fine tune criteria for selecting candidate RR Lyrae stars, and estimate the selection completeness and efficiency. Using selected candidate RR Lyrae stars, we recover a known halo clump associated with the Sgr dwarf tidal stream, and find several new halo substructures.

4.1 Criteria for Selecting RR Lyrae Stars

Figures 3, 4, and 5 show that RR Lyrae stars occupy a well-defined region (Region IV) in the $g-r$ vs. $u-g$ color-color diagram, and Figure 6 shows how RR Lyrae stars follow the $\sigma(g)=1.4\sigma(r)$ relation. Motivated by these results, we introduce color and $\sigma(g)/\sigma(r)$ cuts to specifically select candidate RR Lyrae stars from the variable sample, and study their distribution in the rms scatter-color-lightcurve skewness parameter space.

RR Lyrae stars have distinctive colors and can be selected with the following criteria (Ivezić et al., 2005):

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where

[TABLE]

and

[TABLE]

We apply these cuts to our sample of candidate variables and select 846 sources. It is implied by Ivezić et al. (2005) that RR Lyrae should always stay within these color boundaries, even though their colors change as a function of phase. Their distribution in the $g-r$ vs. $u-g$ color-color diagram and rms scatter in the $g$ band are shown in Figure 10 (top left panel). The distribution of sources in the RR Lyrae region is inhomogeneous. Sources with large rms scatter in the $g$ band ($\gtrsim 0.2$ mag) are centered around $u-g\sim 1.15$, and are separated by $g-r\sim 0.12$ into two groups. A comparison with Figure 3 from Ivezić et al. (2005) suggests that these large rms scatter sources might be RR Lyrae type $ab$ (RRab, $g-r>0.12$) and type $c$ stars (RRc, $g-r<0.12$). Small rms scatter sources ($\lesssim 0.1$ mag) have a fairly uniform distribution, and are slightly bluer with $u-g\lesssim 1.1$.

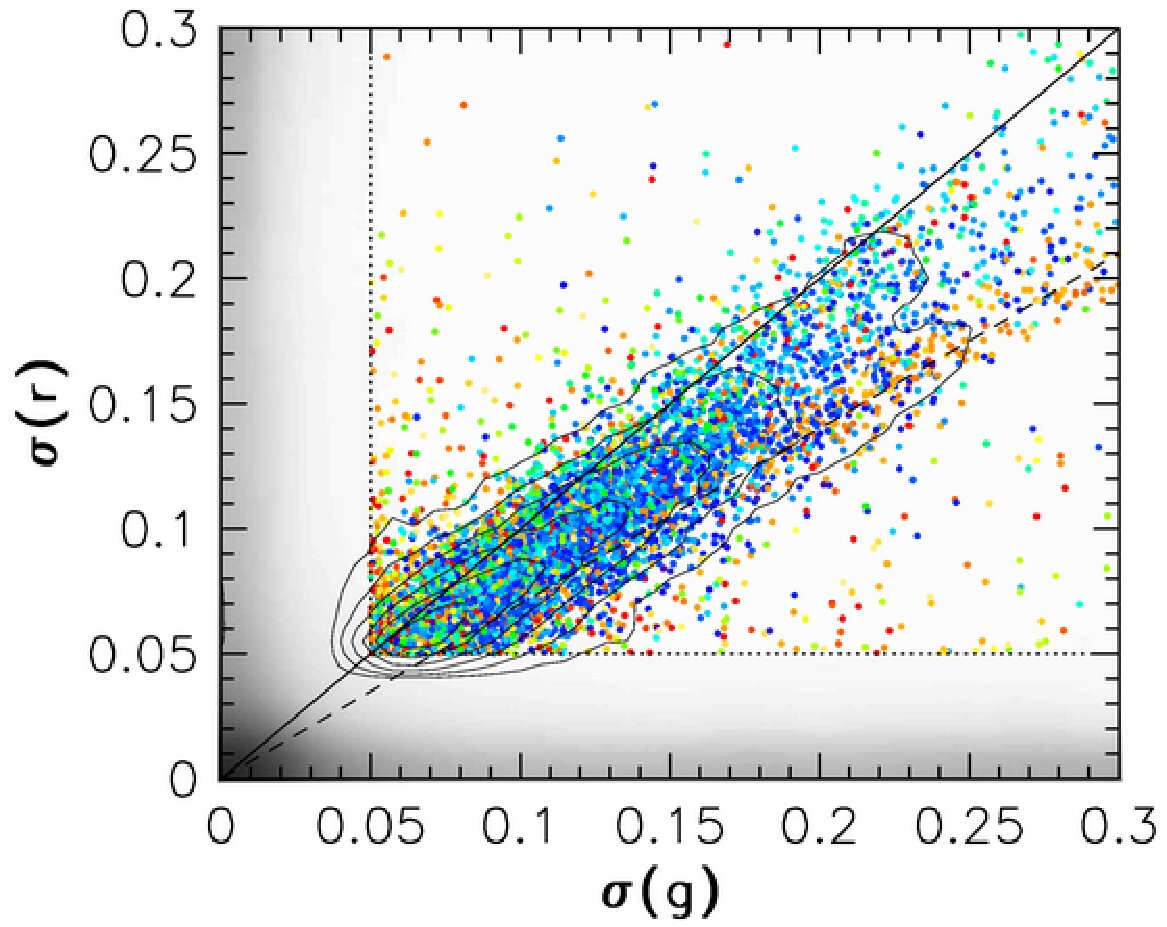

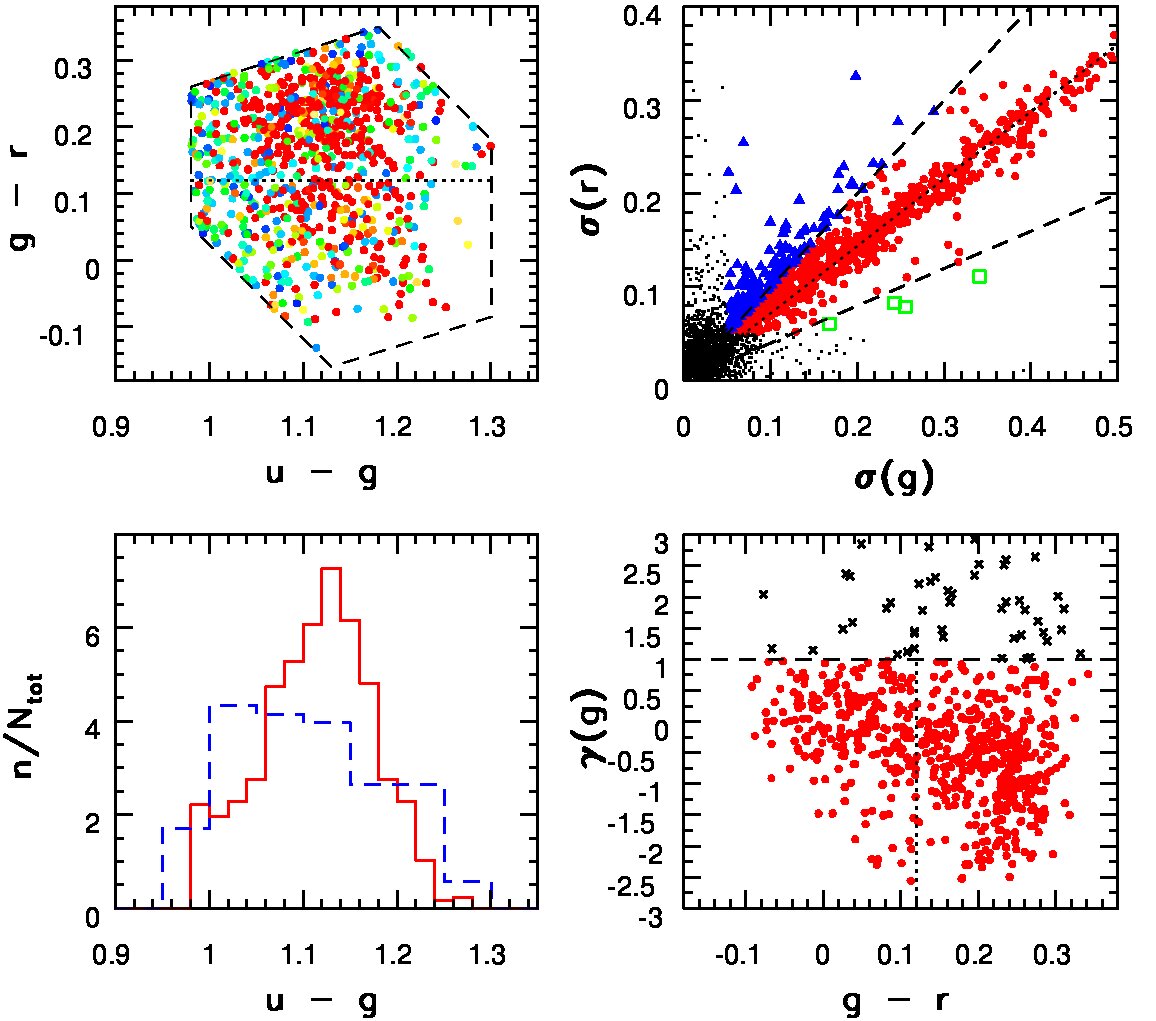

The distribution of sources from the RR Lyrae region in the $\sigma(r)$ vs. $\sigma(g)$ diagram is presented in the top right panel of Figure 10. The majority of large rms scatter sources follow the $\sigma(g)=1.4\sigma(r)$ relation, as expected for RR Lyrae stars. Since RR Lyrae stars are bluer when brighter, or equivalently, have greater rms scatter in the $g$ band than in the $r$ band, we require $1<\sigma(g)/\sigma(r)\leqslant 2.5$ and select 683 candidate RR Lyrae stars.

A comparison of $u-g$ color distributions for candidate RR Lyrae stars and of sources with RR Lyrae colors, but not tagged as RR Lyrae stars, presented in the bottom left panel of Figure 10, demonstrates the robustness of the RR Lyrae selection. The two distributions are very different (the probability that they are the same is $10^{-4}$, as given by the KS test), with the candidate RR Lyrae distribution peaking at $u-g\sim 1.15$, as expected for RR Lyrae stars.

One property that distinguishes RRab from RRc stars is the shape (or skewness) of their lightcurves (in addition to lightcurve amplitude and period). RRab stars have asymmetric lightcurves, while RRc lightcurves are symmetric. In the top left panel of Figure 10, we noted that $g-r\sim 0.12$ seemingly separates high rms scatter sources into two groups. If $g-r\sim 0.12$ is the boundary between the RRab and RRc stars, then the same boundary should show up in the distribution of lightcurve skewness as a function of the $g-r$ color. As shown in Figure 10 (bottom left panel), this is indeed the case. On average, sources with $g-r<0.12$ have $\gamma(g)\sim 0$ (symmetric lightcurves), as RRc stars, while $g-r>0.12$ sources have $\gamma(g)\sim-0.5$ (asymmetric lightcurves) typical of RRab stars.

We show in Section 4.2 that candidate RR Lyrae stars with $\gamma(g)>1$ are contaminated by eclipsing variables. Therefore, to reduce the contamination by eclipsing variables, we also require $\gamma(g)\leqslant 1$, and select 634 sources as our final sample of candidate RR Lyrae stars.

4.2 Completeness and efficiency

The selection completeness, defined as the fraction of recovered RR Lyrae stars, will depend on the color cuts, $\sigma(g,r)$ cutoff, and the number of observations. The color cuts (Eqs. 9 to 15) applied in Section 4.1 were chosen to minimize contamination by sources other than RR Lyrae stars while maintaining an almost $100\%$ completeness (Ivezić et al., 2005). With the $\sigma(g,r)$ cutoff at 0.05 mag (small compared to the $\sim 1$ mag typical peak-to-peak amplitudes of RR Lyrae stars), and a fairly large number of observations per source (median of 10), we estimate the RR Lyrae selection completeness to be $\gtrsim 95\%$ (see Appendix in Ivezić et al. 2000).

To determine the selection efficiency, defined as the fraction of true RR Lyrae stars in the RR Lyrae candidate sample, we positionally match 683 candidate RR Lyrae stars selected by $1<\sigma(g)/\sigma(r)\leqslant 2.5$ to a sample of RR Lyrae sources selected from the SDSS Light-Motion-Curve Catalog (LMCC; Bramich et al. 2007). This catalog covers the same region of the sky as the one discussed here, but includes more recent SDSS-II observations that allow the construction of lightcurves. We match 613 candidates, while 70 candidate RR Lyrae stars from our sample, for some reason, do not have a match in the LMCC (De Lee, private communication). Following the classification based on phased lightcurves by De Lee et al. (2007), we find that $71\%$ of sources in our candidate RR Lyrae sample are classified as RRab and RRc, $28\%$ are classified as variable non-RR Lyrae stars, and only $1\%$ are spurious, non-variable sources. The most significant contamination comes from a population of variable sources bluer than $u-g\sim 1.1$ (dotted line, bottom left panel Figure 11), possibly Population II $\delta$ Scuti stars, also known as SX Phoenicis stars (Hoffmeister, Richter & Wenzel, 1985).

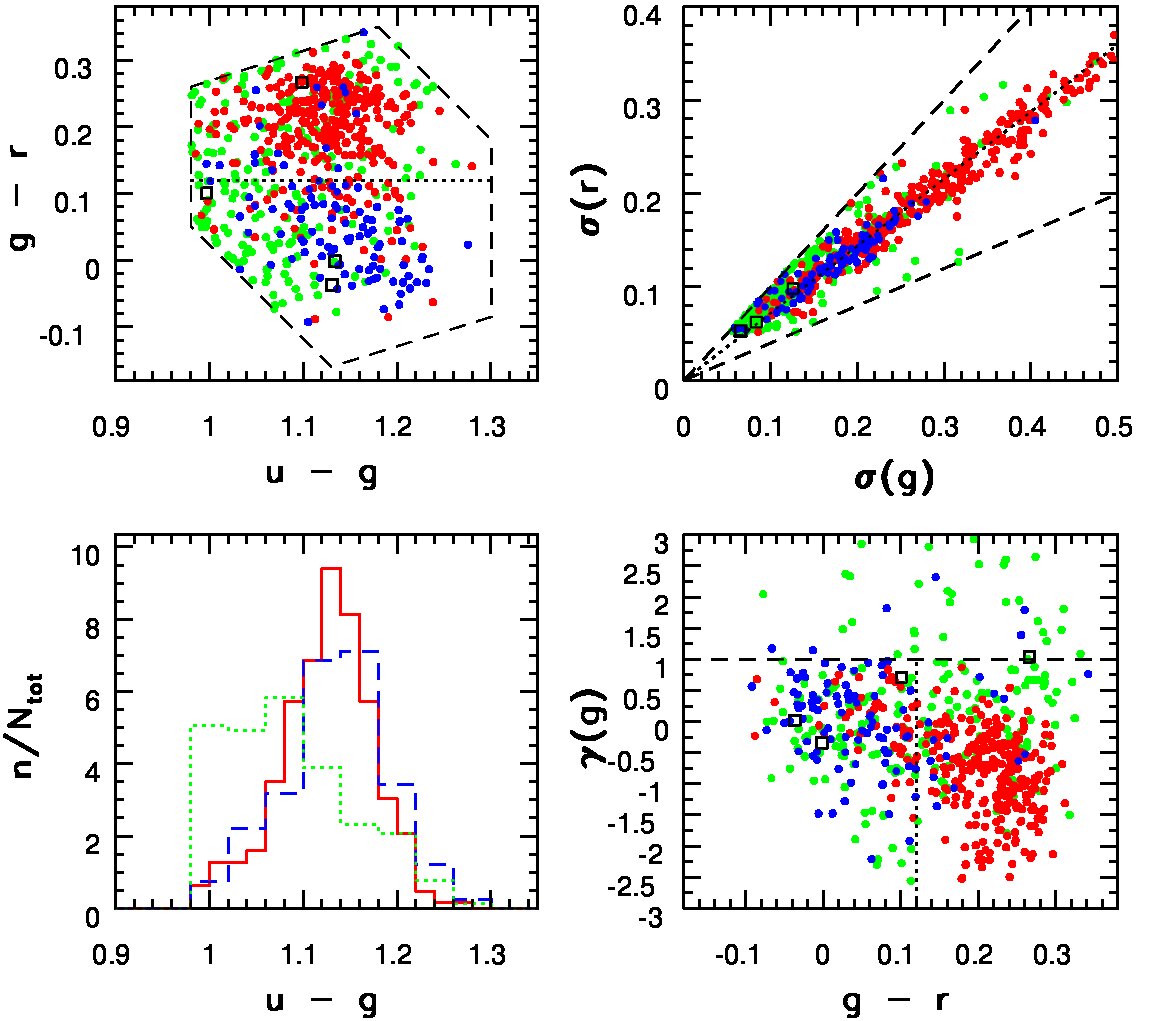

The top left and the bottom right panels in Figure 11, show that RRab and RRc-dominated regions are separated by $g-r\sim 0.12$, as already hinted in Figure 10. Also, variable non-RR Lyrae sources with $\gamma(g)>1$ are classified by De Lee et al. (2007) as eclipsing variables, justifying our $\gamma(g)\leqslant 1$ cut.

To summarize, using color criteria and criteria based on $\sigma(g)$, $\sigma(r)$, and $\gamma(g)$ RR Lyrae stars are selected with $\gtrsim 95\%$ completeness and $\sim 70\%$ efficiency.

4.3 The Spatial Distribution of Candidate RR Lyrae Stars

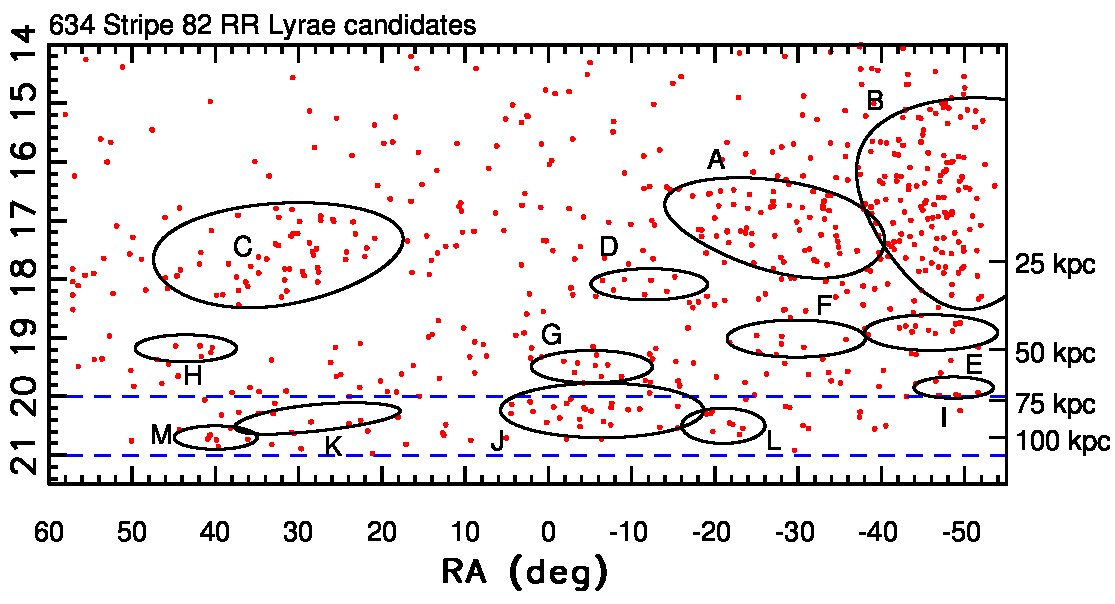

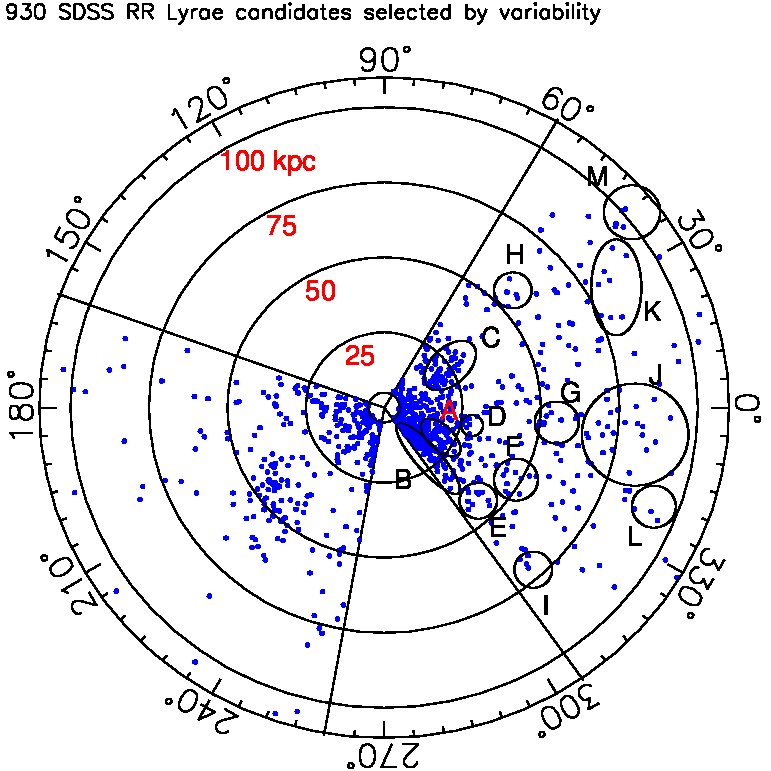

Using the selection criteria from Section 4.1 we isolate 634 RR Lyrae candidates. The magnitude-position diagram for these candidates within $2.5\arcdeg$ from the Celestial Equator is shown in Figure 12.

As discussed by Ivezić et al. (2005), an advantage of the data representation utilized in Figure 12 (magnitude–right ascension diagram) is its simplicity – only “raw” data are shown, without any post-processing. However, the magnitude scale is logarithmic and thus the spatial extent of structures is heavily distorted. In order to avoid these shortcomings, we have applied a Bayesian method for estimating continuous spatial density distribution developed by Ivezić et al. (2005) (see their Appendix B). The resulting density map is shown in the right panel in Figure 13. The advantage of that representation is that it better conveys the significance of various local overdensities. For comparison, we also show a map of the northern part of the equatorial strip constructed using 2-epoch data discussed by Ivezić et al. (2000).

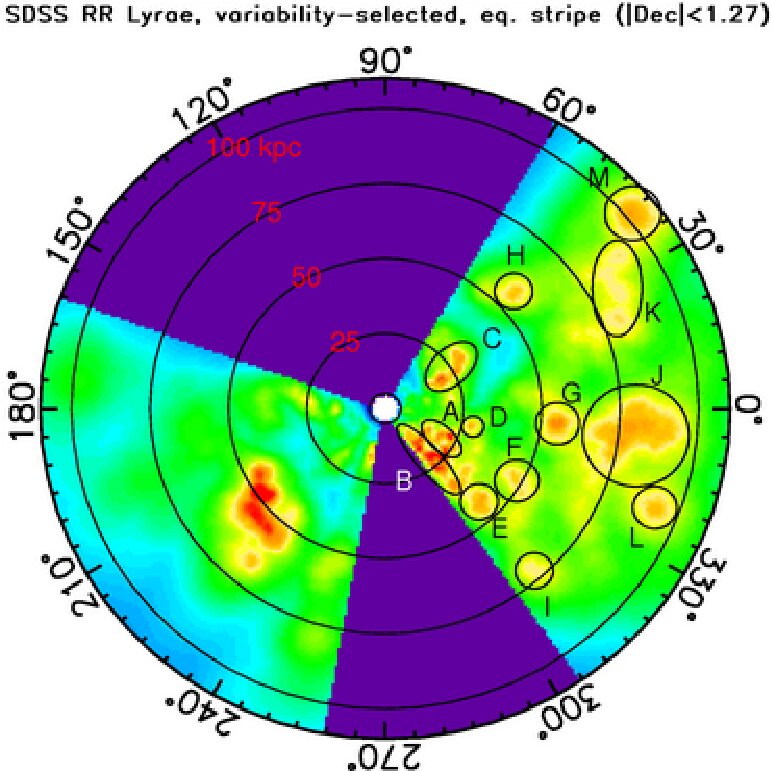

We detect several new halo substructures at $\gtrsim 3\sigma$ significance (compared to expected Poissonian fluctuations) and present their approximate locations and properties in Table 3. The most distant clump is at 100 kpc from the Galactic center. The strongest clump in the left wedge belongs to the Sgr dwarf tidal stream as does the clump marked by $C$ in the right wedge (Ivezić et al., 2003a). We note that the apparent “clumpiness” of the candidate RR Lyrae distribution increases with increasing radius, similar to CDM predictions by Bullock, Kravtsov & Weinberg (2001). A detailed comparison of their models with the data presented here will be discussed elsewhere (Sesar et al., in prep).

5 Are All Quasars Variable?

The optical continuum variability of quasars has been recognized since their first optical identification (Matthews & Sandage, 1963), and it has been proposed and utilized as an efficient method for their discovery (van den Bergh, Herbst & Pritchet, 1973; Hawkins, 1983; Koo, Kron & Cudworth, 1986; Hawkins & Veron, 1995). The observed characteristics of the variability of quasars are frequently used to constrain the origin of their emission (e.g. Kawaguchi et al. 1998 and references therein; Martini & Schneider 2003; Pereyra et al. 2006). Recently, significant progress in the description of quasar variability has been made by employing the SDSS data (de Vries, Becker & White, 2003; Ivezić et al., 2004b; Vanden Berk et al., 2004; de Vries et al., 2005; Sesar et al., 2006). Here we expand these studies by quantifying the efficiency of quasar discovery using variability.

A preliminary comparison of color and variability based methods for selecting quasars using SDSS data was presented by Ivezić et al. (2003b). They found that $47\%$ of spectroscopically confirmed unresolved quasars with UV excess have the $g$ band magnitude difference between two observations obtained two years apart larger than 0.15 mag. We can improve on their analysis because now there are significantly more observations obtained over a longer time period. Since quasars vary erratically and the rms scatter of their variability (the so-called structure function) increases with time (e.g. Vanden Berk et al. 2004 and references therein), the variability selection completeness is expected to be higher than $\sim 50\%$ obtained by Ivezić et al. (2003b).

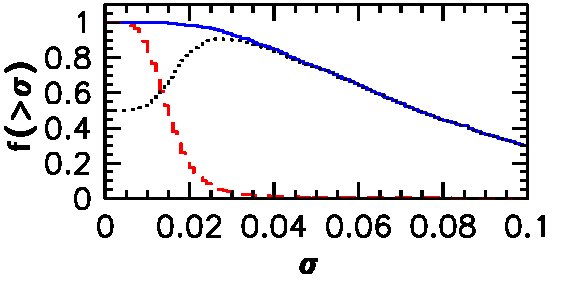

First, although the adopted variability selection criteria discussed above are fairly conservative, we find that at least $63\%$ of low-redshift quasars are variable at the $\geqslant 0.05$ mag level (simultaneously in the $g$ and $r$ bands over observer’s time scales of several years) in the $g<20.5$ flux-limited sample. Second, even this estimate is only a lower limit: given the spectroscopic confirmation for a large flux-limited sample of quasars, it is possible to relax the adopted variability selection cutoff without a prohibitive contamination by non-variable sources.

There are 2,492 unresolved quasars in the catalog of spectroscopically confirmed SDSS quasars (Schneider et al., 2005) from Stripe 82. The fraction of these objects that vary more than $\sigma$ in the $g$ and $r$ bands, as a function of $\sigma$, is shown in Figure 14. We also show the analogous fraction for stars from the stellar locus. About $93\%$ of quasars vary with $\sigma>0.03$ mag. For a small fraction of these objects the measured rms scatter is due to photometric noise, and the stellar data limit this fraction to be at most $3\%$. Conservatively assuming that none of these $3\%$ of stars is intrinsically variable, we estimate that at least $90\%$ of quasars are variable at the 0.03 mag level on time scales up to several years.

6 Implications for Surveys such as LSST

The Large Synoptic Survey Telescope (LSST) is a proposed imaging survey that aims to obtain repeated multi-band imaging to faint limiting magnitudes over a large fraction of the sky. The LSST Science Requirement Document888 Available at [HREF]http://www.lsst.org/Science/lsst_baseline.shtml calls for $\sim 1000$ repeated observations of a solid angle of $\sim 20,000$ deg2 distributed over the six $ugrizY$ photometric bandpasses and over 10 years. The results presented here can be extrapolated to estimate the lower limit on the number of variable sources that the LSST would discover.

The single-epoch LSST images will have a $5\sigma$ detection limit999An LSST Exposure Time Calculator is available at [HREF]www.lsst.org at $r\sim 24.7$. Hence, $2\%$ accurate photometry, comparable to the subsample with $g<20.5$ discussed here, will be available for stars with $r\lesssim 22$. The USNO-B catalog (Monet et al., 2003) shows that there are about $10^{9}$ stars with $r<21$ across the entire sky. About half of these stars are in the parts of the sky to be surveyed by the LSST. The simulations based on contemporary Milky Way models, such as those developed by Robin et al. (2003) and Jurić et al. (2007), predict that there are about twice as many stars with $r<22$ than with $r<21$ across the whole sky. Hence, it is expected that the LSST will detect about a billion stars with $r<22$. This estimate is uncertain to within a factor of two or so due to unknown details in the spatial distribution of dust in the Galactic plane and towards the Galactic center.

We found that at least $0.5\%$ of stars from the main stellar locus can be detected as variable with photometry accurate to $\sim 2\%$. This is only a lower limit because a much larger number of LSST observations obtained over a longer timespan than the SDSS data discussed here would increase this fraction. Hence, our results imply that the LSST will discover at least 50 million variable stars (without accounting for the fact that stellar counts greatly increase closer to the Galactic plane). Unlike the SDSS sample, where RR Lyrae stars account for $\sim 25\%$ of all variable stars, the number of RR Lyrae stars in the LSST sample will be negligible compared to other types of variable stars.

As estimated by Jurić et al. (2007) using deeper coadded SDSS photometry, there are about 100 deg*-2* low-redshift quasars with $r<22$ (see also Beck-Winchatz & Anderson 2007 and references therein). Therefore, with a sky coverage of $\sim 20,000$ deg2, the LSST will obtain well-sampled accurate multi-color lightcurves for $\sim 2$ million low-redshift quasars. Even at the redshift limit of $\sim 2$, this sample will be complete to $M_{r}\sim-24$, that is, almost to the formal quasar luminosity cutoff, and will represent an unprecedented sample for studying quasar physics.

7 Conclusions and Discussion

We have designed and tested algorithms for selecting candidate variable sources from a catalog based on multiple SDSS imaging observations. Using a sample of 13,051 selected candidate variable sources in the adopted $g<20.5$ flux-limited sample, we find that at least $2\%$ of unresolved optical sources appear variable at the $\geqslant 0.05$ mag level, simultaneously in the $g$ and $r$ bands. A similar fraction of variable sources ($\sim 1\%$) was also found by Sesar et al. (2006) using recalibrated photometric POSS and SDSS measurements, and by Morales-Rueda et al. (2006) using the Faint Sky Variability Survey data ($\sim 1\%$).

Thanks to the multi-color nature of the SDSS photometry, and especially to the $u$ band data, we can obtain robust classification of selected variable sources. The majority (2/3) of variable sources are low-redshift ($<2$) quasars, although they represent only $2\%$ of all sources in the adopted $g<20.5$ flux-limited sample. We find that about 1/4 of variable stars are RR Lyrae stars, and that only $0.5\%$ of stars from the main stellar locus are variable at the 0.05 mag level.

The distribution of $\gamma(g)$ for main stellar locus stars is bimodal, suggesting at least two, and perhaps more, different populations of variables. About a third of variable stars from the stellar locus show gray flux variations in the $g$ and $r$ bands ($\sigma(g)/\sigma(r)\sim 1$), and positive lightcurve skewness, suggesting variability caused by eclipsing systems. This population has an increased fraction of M type stars.

RR Lyrae stars show the largest rms scatter in the $u$ and $g$ bands, followed by low-redshift quasars. The ratio of rms scatter in the $g$ and $r$ bands for RR Lyrae is $\sim 1.4$, in agreement with Ivezić et al. (2000) results based on 2-epoch photometry. The mean lightcurve skewness for RR Lyrae stars is $\sim-0.5$, in agreement with Wils, Lloyd & Bernhard (2006). We selected a sample of 634 candidate RR Lyrae stars, with an estimated $\gtrsim 95\%$ completeness and $\sim 70\%$ efficiency. Using these stars, we detected rich halo substructure out to distances of 100 kpc. The apparent “clumpiness” of the candidate RR Lyrae distribution increases with increasing radius, similar to CDM predictions by Bullock, Kravtsov & Weinberg (2001).

Low-redshift quasars show a dependence of $\sigma(g)/\sigma(r)$ on redshift, consistent with discussions in Richards et al. (2002) and Wilhite et al. (2006). The lightcurve skewness distribution for quasars is centered on zero in all photometric bands. We find that at least $90\%$ of quasars are variable at the 0.03 mag level (rms) on time scales up to several years. This confirms that variability is as a good a method for finding low-redshift quasars at high ($|b|>30$) Galactic latitudes as is the UV excess color selection. The fraction of variable quasars at the $\geqslant 0.1$ mag level obtained here ($30\%$, see Figure 14) is comparable to 36% found by Rengstorf, Brunner & Wilhite (2006).

The multiple photometric observations obtained by the SDSS represent an excellent dataset for estimating the impact of surveys such as the LSST on studies of the variable sky. Our results indicate that the LSST will obtain well-sampled $2\%$ accurate multi-color lightcurves for $\sim 2$ million low-redshift quasars, and will discover at least 50 million variable stars. The number of variable stars discovered by the LSST will be of the same order as the number of all stars detected by the SDSS. With about 1000 data points in six photometric bands, it will be possible to recognize and classify variable objects using lightcurve moments of higher order than skewness discussed here, including lightcurve folding for periodic variables.

We acknowledge support by NSF grant AST-0551161 to the LSST for design and development activity. Funding for the SDSS and SDSS-II has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, the U.S. Department of Energy, the National Aeronautics and Space Administration, the Japanese Monbukagakusho, the Max Planck Society, and the Higher Education Funding Council for England. The SDSS Web Site is http://www.sdss.org/. The SDSS is managed by the Astrophysical Research Consortium for the Participating Institutions. The Participating Institutions are the American Museum of Natural History, Astrophysical Institute Potsdam, University of Basel, University of Cambridge, Case Western Reserve University, University of Chicago, Drexel University, Fermilab, the Institute for Advanced Study, the Japan Participation Group, Johns Hopkins University, the Joint Institute for Nuclear Astrophysics, the Kavli Institute for Particle Astrophysics and Cosmology, the Korean Scientist Group, the Chinese Academy of Sciences (LAMOST), Los Alamos National Laboratory, the Max-Planck-Institute for Astronomy (MPIA), the Max-Planck-Institute for Astrophysics (MPA), New Mexico State University, Ohio State University, University of Pittsburgh, University of Portsmouth, Princeton University, the United States Naval Observatory, and the University of Washington.
