X-ray Dichroism and the Pseudogap Phase of Cuprates

TL;DR

This paper critically examines x-ray dichroism experiments in cuprates, questioning the evidence for broken parity symmetry in the pseudogap phase and proposing further experiments to clarify the origin of observed signals.

Contribution

The study challenges previous interpretations of x-ray dichroism as evidence of parity breaking in cuprates and suggests alternative explanations and experimental tests.

Findings

Parity-breaking signal unlikely based on crystal structures

Alternative origins for the dichroism signal are plausible

Proposes specific x-ray scattering experiments for validation

Abstract

A recent polarized x-ray absorption experiment on the high temperature cuprate superconductor Bi2Sr2CaCu2O8 indicates the presence of broken parity symmetry below the temperature, T*, where a pseudogap appears in photoemission. We critically analyze the x-ray data, and conclude that a parity-breaking signal of the kind suggested is unlikely based on the crystal structures reported in the literature. Possible other origins of the observed dichroism signal are discussed. We propose x-ray scattering experiments that can be done in order to determine whether such alternative interpretations are valid or not.

Figures

Equations

$${\sigma }^{(\pm )}=\sum _{j=1}^8{\sigma }_j^{(\pm )},$$

$${\sigma }_j^{(\pm )}=4{\pi }^2\alpha \hslash \omega \sum _n|⟨{\Psi }_n^{(j)}|{\hat{O}}^{(\pm )}|{\Psi }_0^{(j)}⟩{|}^2\delta [\hslash \omega -(E_n-E_0)]$$

$$\sigma =2(1+{\hat{m}}_z)(1+{\hat{m}}_x){\sigma }_1$$

$$\sigma =2(1-{\hat{C}}_{2z})(1-{\hat{C}}_{2x}){\sigma }_1$$

Full text

I Introduction

Twenty years since the discovery of high-temperature cuprate superconductivity, there is still no consensus on its origin. As the field has evolved, more and more attention has been directed to the pseudogap region of the phase diagram in underdoped compounds and the possible relation of this phase to the superconducting one.norman Time-reversal breaking has been predicted to occur in this pseudogap phase due to the presence of orbital currents varma and a subsequent experiment kaminski using angle-dependent dichroism in photoemission has claimed to detect this. However, this result has been challenged by others borisenko and an independent experimental verification of this would be highly desirable.

Recently, Kubota et al.kubota performed Cu K edge circular and linear dichroism x-ray experiments for underdoped Bi2Sr2CaCu2O8+x (Bi2212), claiming no time-reversal breaking of the kind predicted in Ref. varma, exists, and that, on the contrary, a parity-breaking signal (but time-reversal even) is present with the same temperature dependence as the photoemission dichroism signal, that was interpreted as x-ray natural circular dichroism (XNCD) as seen in other materials.alagna

The aim of the present paper is to critically examine the conclusions of Kubota et al.kubota In particular, we find that the XNCD signal for the average average Bi2212 crystal structure should be zero along all three crystallographic axes, therefore casting doubt on the original interpretation of Ref. kubota, . To look into alternate explanations, we performed detailed numerical simulations aimed at explaining the observed signal. At the basis of our study is the simple observation (see, e.g., Ref. dimatoli, ) that circular dichroism in absorption can be generated either by a non-magnetic effect in the electric dipole-quadrupole (E1-E2) channel (XNCD, a parity-breaking signal), or by a magnetic signal in the E1-E1 channel (parity-even). Alternately, such a signal can be due to contamination from x-ray linear dichroism (XNLD). We propose x-ray experiments that could be used to investigate these matters further.

The structure of the paper is as follows. In Sec. II we show how symmetry constrains any possible XNCD signal that would be observed in Bi2212. We also perform numerical simulations for XNCD assuming an alignment displaced from the c-axis, using several crystal structure refinements proposed in the literature. We also calculate the XNLD signal and comment whether XNLD contamination could be responsible for the observed signal. In Sec. III we calculate the x-ray magnetic circular dichroism (XMCD) signal at both the Cu K and L edges assuming magnetic order on either the copper or oxygen sites. Finally, in Sec. IV, we draw some general conclusions from our work.

II Non-magnetic circular dichroism in Bi2212

The structure of Bi2212 is strongly layered, with insulating BiO blocks intercalated between superconducting CuO2 planes. Crystal structure refinements reveal the presence of an incommensurate modulation whose origin has been the subject of much debate. The presence of this modulation has complicated the determination of the average crystal structure. Two different average structures have been proposed in the literature for Bi2212: Bbmb bbmb ; miles and Bb2b pet ; kan ; glady ; glady2 , where $b$ is the modulation direction for the superstructure. We follow the general convention in the cuprate literature and use a rotated basis compared to those in the International Tables for Crystallography inttab (respectively, Cccm, No. 66, and Ccc2, No. 37). In this way, the $c$-crystallographic direction is orthogonal to the CuO2 planes.

The Bbmb structure is globally centrosymmetric and, as such, does not admit a non-zero value for the parity-odd operator ${\vec{L}}\cdot({\hat{\epsilon}^{*}}\times{\hat{\epsilon}})({\vec{\Omega}}\cdot{\hat{k}})$, whose expectation value determines the XNCD signal (${\vec{L}}$, ${\hat{k}}$, ${\hat{\epsilon}}$ and ${\vec{\Omega}}$ are, respectively, the angular momentum operator, the direction and polarization of the x-ray beam, and the toroidal momentum operator, see, e.g., Refs. benoist, ; dimatoli, ). Therefore, if the signal measured by Kubota et al.kubota were a true XNCD signal, this would imply a lower crystal symmetry than Bbmb. We note that most refinements in the literature suggest Bbmb, bbmb ; miles and this crystal structure is also consistent with recent photoemission data mans that indicate the presence of both a glide plane and a mirror plane based on dipole selection rules.

The other average structure that has been suggested by x-ray and neutron diffraction is Bb2b.pet ; kan ; glady ; glady2 This space group is not centrosymmetric and, therefore, a parity breaking signal like that of XNCD is in principle allowed. However, not all wave vector directions are compatible with the presence of a XNCD signal, as demonstrated below by symmetry considerations. In the last part of Section II, we numerically calculate the XNCD for a geometrical configuration allowing a signal - like $\vec{k}\|(101)$ - by means of the multiple-scattering subroutine in the FDMNES program.yvesfdm

In the context of this program, atomic potentials are generated using a local density approximation with a Hedin-Lundqvist form for the exchange-correlation energy. These potentials are then used in a muffin tin approximation to calculate the resulting XANES signal by considering multiple scattering of the photoelectron about the absorbing site within a one-electron approximation.natoli In the future, it would be desirable to repeat these calculations by using input from self-consistent band theory, as has recently been done for the Bbmb structure in regards to angle resolved photoemission spectra.lindroos

In the Bb2b setting, Cu ions belong to sites of Wyckoff multiplicity $8d$. These eight equivalent copper sites can be partitioned in two groups of four sites that are related by the vector (1/2,0,1/2). Within each group the four sites are related by the symmetry operations $\{{\hat{E}},{\hat{C}}_{2y},{\hat{m}}_{x},{\hat{m}}_{z}\}$, where ${\hat{E}}$ is the identity, ${\hat{C}}_{2y}$ is a two-fold axis around the $b$ crystallographic axis, and ${\hat{m}}_{x(z)}$ is a mirror-symmetry plane orthogonal to the $a(c)$-axis. The absorption at the Cu K edge, expressed in Mbarn, can be calculated through the equations:

[TABLE]

[TABLE]

The operator ${\hat{O}}^{(\pm)}\equiv{\hat{\epsilon}}^{(\pm)}\cdot\vec{r}(1+\frac{i}{2}\vec{k}\cdot\vec{r})$ in Eq. (2) is the usual matter-radiation interaction operator expanded up to dipole (E1) and quadrupole (E2) terms, with the photon polarization ${\hat{\epsilon}}$ and the wave vector $\vec{k}$, where we label left- and right-handed polarization by the superscript ±. $\Psi_{0}^{(j)}$ ($\Psi_{n}^{(j)}$) is the ground (excited) state of the crystal, and $E_{0}$ ($E_{n}$) its energy. The sum in Eq. (2) is extended over all the excited states of the system and $\hbar\omega$ is the energy of the incoming photon, with $\alpha$ the fine-structure constant. Finally, the index $j=1,...,8$ indicates the lattice site of the copper photoabsorbing atom in the unit cell. Eqs. (1) and (2) are the basis of the numerical calculations of the FDMNES program.yvesfdm The eight contributions can be written as the sum of two equal parts coming from the two subsets of four ions related by the (1/2,0,1/2) translation. Within each subset, the four absorption contributions are related to one another by the symmetry operations $\sigma_{2}={\hat{C}}_{2y}\sigma_{1}$, $\sigma_{3}={\hat{m}}_{x}\sigma_{1}$, and $\sigma_{4}={\hat{m}}_{z}\sigma_{1}$, implying that the total absorption is:

[TABLE]

The group from $\sigma_{5}$ to $\sigma_{8}$ is equivalent to the first group of four modulo a translation (this is the reason for the factor of two in Eq. (3)). Notice that the symmetry operators in Eq. (3) are meant to operate just on the electronic part of the operator ${\hat{O}}$ in Eq. (2).

In the case of circular dichroism, the signal is given by $\sigma=\sigma^{+}-\sigma^{-}$. If we suppose that no net magnetization is present in the material (we shall analyze the possibility of magnetism in Sec. III), then the dichroism is natural, i.e., necessarily coming from the interference E1-E2 contribution in Eq. (2). In this case the signal is parity-odd, which implies that ${\hat{m}}_{z(x)}\equiv{\hat{I}}{\hat{C}}_{2z(2x)}\rightarrow-{\hat{C}}_{2z(2x)}$ (${\hat{I}}$ is the inversion operator). Then Eq. (3) becomes

[TABLE]

which implies that, of the possible five second-rank tensors involved in XNCD, only the term $T^{(2)}_{1}-T^{(2)}_{-1}$ survives. To arrive at this result, we applied the usual operator rules on spherical tensors:varsha ${\hat{C}}_{2x}T^{(2)}_{m}=T^{(2)}_{-m}$ and ${\hat{C}}_{2z}T^{(2)}_{m}=(-)^{m}T^{(2)}_{m}$. This in turn leads to a zero XNCD along the three crystallographic axes of the Bb2b crystal structure where, e.g., along the $c$-axis, the signal is proportional to $T^{(2)}_{0}$.

Therefore, even in the Bb2b crystal structure, the XNCD is exactly zero by symmetry when the wave vector is directed along the $c$-axis (i.e., orthogonal to the CuO2 planes) as in the experiment of Ref. kubota, . This has been further checked by numerical calculations with cluster radii up to 6.5 Å, i.e., 93 atoms, centered on the Cu ion, based on the average crystal structures reported in Refs. pet, ; kan, ; glady, ; glady2, . The only possibility to justify theoretically the experimental evidence of circular dichroism of a non-magnetic nature is either by lowering of the orthorhombic Bb2b symmetry, a misalignment of the ${\hat{k}}$-direction with respect to the $c$-axis, or contamination from linear dichroism. We checked all of these possibilities.

If we take into account the monoclinic supercell proposed in Ref. glady, , with space group Cc, this implies a reduction of the symmetry operations, with the loss of the two-fold screw axis. Nonetheless, the glide plane containing the normal to the CuO2-planes is still present (${\hat{m}}_{x}$ in Eq. 3), which is responsible for the extinction rule of the quantity $\langle\Psi_{n}|{\vec{L}}\cdot({\hat{\epsilon}^{*}}\times{\hat{\epsilon}})({\vec{\Omega}}\cdot{\hat{k}})|\Psi_{n}\rangle$. Therefore the XNCD is again identically zero by symmetry, which we verified by direct numerical simulation of the supercell. Note that only a reduction to triclinic symmetry would allow for XNCD in the direction orthogonal to the CuO2 planes.

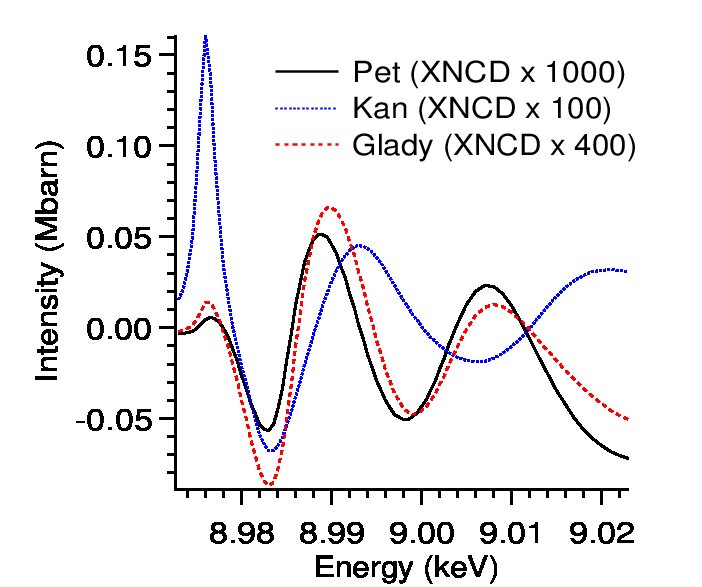

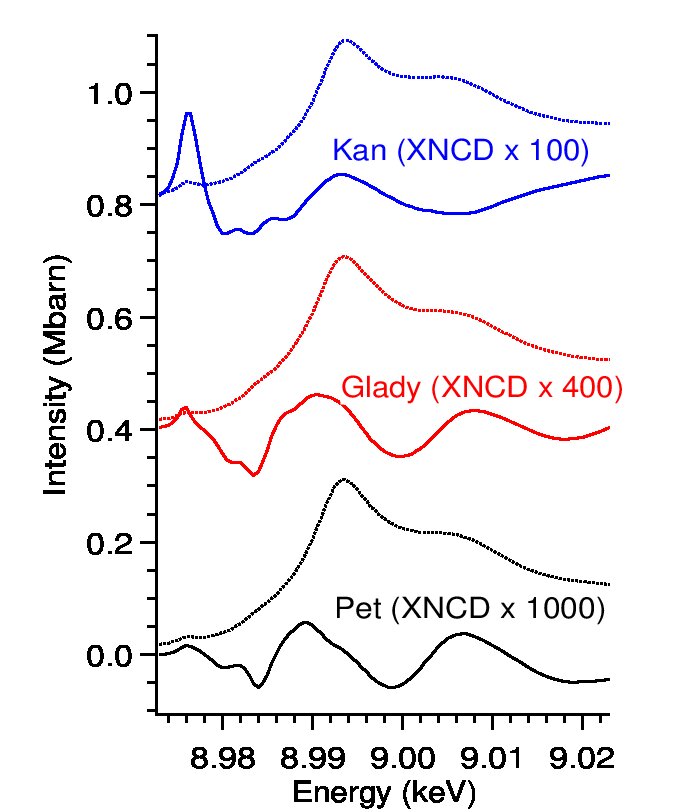

We also checked for the possibility of misalignment, as shown in Fig. 1, by a direct calculation with $\vec{k}\|(101)$, corresponding to a tilting $\theta\sim 10^{o}$ with respect to the $c$-axis (note that the $a$ lattice constant is $\sim 5.4$ Å, and the $c$ one $\sim 30.9$ Å). We first remark that the calculated XANES signal compares well to experiment (the XANES for $\vec{k}\|(001)$ and $\vec{k}\|(101)$ are identical on the scale of Fig. 1). Despite this, the energy profile of the XNCD signal is different from the one reported by Kubota et al.kubota The main difference is the energy extension of the calculated dichroic signal, whose oscillations persist, though with decreased intensity, more than 50 eV above the edge itself. This characteristic is present for all four Bb2b refinements we have looked at (and as well for the monoclinic supercell, which we do not show) and is at variance with the experimental results of Ref. kubota, , where the dichroic signal is confined to a small energy range around the edge.

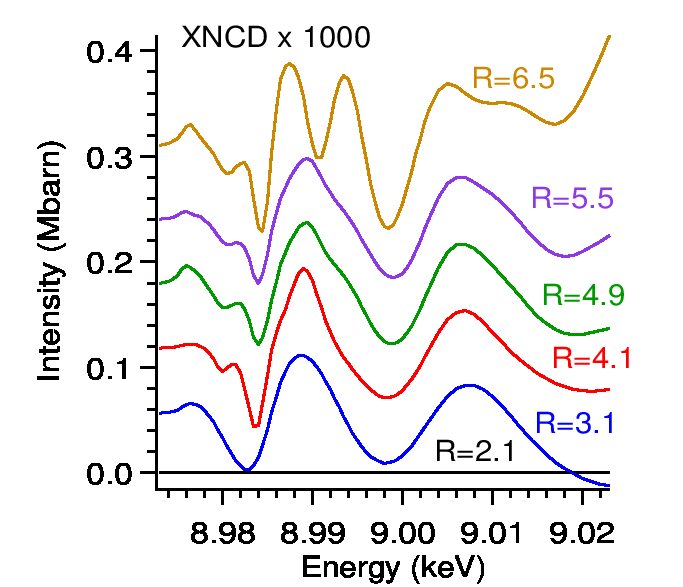

Some comments on the calculations are in order. Each refinement gives rise to a different XNCD signal, and their intensities are quite different as well. They are found to be strongly dependent on the magnitude of the deviation of the atoms from their Bbmb positions, which differs significantly among the various Bb2b refinements. Moreover, the structure of Kan and Moss leads to a manifestly different energy profile. This difference is seen even for CuO4 and CuO5 clusters (the results for a CuO5 cluster are shown in Fig. 2) and has to do with the large departure of this particular structure from the Bbmb one. Although there has been some criticism in the literature concerning this particular refinement,miles the point we wish to make is that each refinement has a different XNCD signal, showing how sensitive this signal is to the actual crystal structure. We note that Fig. 1 was done for a cluster radius of 4.9 Å, i.e., 37 atoms. In Fig. 3, we show results for the refinement of Petricek et al.pet up to a radius of 6.5 Å (93 atoms), showing the development of additional structure in the energy profile as more and more atoms are included in the cluster. In the real system, the effective cluster radius is limited by the photoelectron escape depth, which is energy dependent.escape

We also remark that the magnitude of the XNCD signal we calculated for a 10 degree misalignment is comparable to that measured in Ref. kubota, . On the other hand, the signal goes as $\sin(2\theta)$, where $\theta$ measures the displacement from the $c$-axis. We note that Kubota et al.kubota mention that their signal was insensitive to displacements from the $c$-axis of 5 degrees, which would argue against a misalignment given the strong angular dependence we predict. Moreover, we note that the size of the signal only depends on the projection of the $k$ vector onto the $a$-$c$ plane, i.e., a signal for $\vec{k}\|(111)$ is equivalent to that for $\vec{k}\|(101)$.

The above leads us to suspect that neither misalignment, nor symmetry reduction, are the basis of the signal detected in Ref. kubota, . We now turn to the third possibility for a non-magnetic signal, that due to intermixing of linear dichroism. All x-ray beams at a synchrotron have a linear polarization component (Kubota et al.kubota mention the possibility of up to 5% of linear admixture). The resulting linear dichroism, which vanishes for a uniaxial crystal, can swamp the intrinsic XNCD signal for a biaxial crystal where the $a$ and $b$ directions are inequivalent (like Bi2212). This was shown by Goulon et al. for a KTiOPO4 crystal with the same point group symmetry (mm2) as Bi2212.goulonL

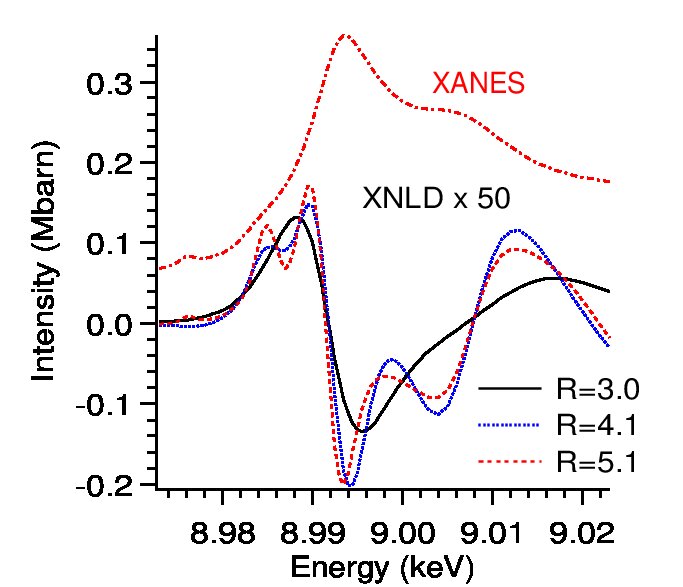

To analyze this further, we show the linear dichroism (the XANES signal for $\vec{E}\|(010)$ minus the one for $\vec{E}\|(100)$), calculated for the Bb2b refinement of Gladyshevskii et al., glady2 for various cluster radii, in Fig. 4. Similar results have been obtained for the other crystal structures, including the Bbmb refinement of Miles et al.miles

The energy profile, with a positive peak followed by a negative peak, and its location at the absorption edge, is very reminiscent of the data. Moreover, the size of the XNLD signal is large, meaning that only a few percent admixture is necessary to explain the size of the signal seen in Ref. kubota, . One issue is that Kubota et al.kubota did report the existence of an XNLD signal, but also claim that it is temperature independent. This is somewhat puzzling, as there are significant changes of the lattice constants with temperature.milesT One obvious question would be why such an XNLD contamination would only appear below T*, though it should be remarked that there are anomalies in the superstructure periodicity near T*.milesT A definitive test would be to rotate the sample under the beam, as any XNLD signal would vary as $\cos(2\phi)$ where $\phi$ is the in-plane angle relative to the $b$-axis. Any circular dichroism (XNCD or XMCD) is instead $\phi$-independent.

A final possibility would be a small energy shift between the left and right circularly polarized beams. Differentiating the absorption edge in Fig. 1 would indeed lead to a signal similar to that seen in Ref. kubota, (but with an enhanced positive peak relative to the negative peak). But such an energy shift is difficult to imagine with the particular experimental set up used.

The observed dichroism signal as a function of energy is also reminiscent of that typically seen for magnetic circular dichroism: in this case the signal would be of E1-E1 origin and its main features are indeed expected to be at the edge itself. In addition, the nature of the observed signal (a single sharp positive peak followed by a single sharp negative peak) is also much like a magnetic signal where the main features are expected to be more localized in energy starting from the rising edge of the absorption. Whether this possibility is realistic or not can only be determined by a quantitative calculation, which we offer in the next section.

III Magnetic dichroism in Bi2212

Over the years, there have been several claims of possible magnetic order in the pseudogap phase of cuprate superconductors. Recently, a magnetic signal at a (101) Bragg vector has been observed below T* for several underdoped YBa2Cu3O6+x (YBCO) samples by polarized neutron diffraction.bourges The signal, corresponding to a moment of order 0.05-0.1 $\mu_{B}$, is not simple ferromagnetism as it was not observed at the (002) Bragg vector. Even more recently, a Kerr rotation below T* has been detected in underdoped YBCO corresponding to a net ferromagnetic moment of 10*-4* $\mu_{B}$.kapitulnik

This motivates us to consider the possibility of a magnetic origin for the x-ray circular dichroism detected in Ref. kubota, . We restate that in absorption (see, e.g., Ref. dimatoli, ), circular dichroism can be generated either by a non-magnetic effect in the E1-E2 channel (XNCD, a parity-breaking signal), or by a magnetic signal in the E1-E1 channel (XMCD, parity-even). The first possibility, analyzed in the previous section, does not seem to be compatible with the experimental results. In order to analyze the second possibility, we need to provide the lattice with a magnetic structure that has a net magnetization (otherwise, the XMCD is zero). In what follows, we shall suppose two magnetic distributions, the first with the magnetic moments on the Cu sites, the second on the planar O sites. The numerical calculations are performed with the relativistic extension of the multiple-scattering program in the FDMNES code,yvesfdm and provide results that are an extension of those of the previous section.

The details of the calculations are as follows: we used again the average crystal structures discussed in Section II. For each magnetic configuration we employed clusters with radii ranging from 3.1 Å (a CuO5-cluster), to 4.9 Å (37 atoms) around the Cu photoabsorbing ion. In the first set of calculations, shown in Figs. 5 and 6, we built the input potential from a magnetic configuration of 4.55 $3d_{\uparrow}$ electrons and 4.45 $3d_{\downarrow}$ electrons (i.e., a moment of 0.1 $\mu_{B}$ per copper site). In the second set of calculations, shown in Fig. 7, we built the input potential from a magnetic configuration of 2.05 $2p_{\uparrow}$ electrons and 1.95 $2p_{\downarrow}$ electrons (i.e., a moment of 0.1 $\mu_{B}$ per planar oxygen site). The following results are noteworthy:

$a)$ Differently from the XNCD calculations shown in Fig. 1, all crystal structures give basically the same XMCD spectra. The reason for this behavior may be related to the fact that XMCD, when x-rays are orthogonal to the CuO2 planes, mainly depends on the in-plane magnetisation density and on the in-plane crystal structure, which is quite similar for the various refinements.

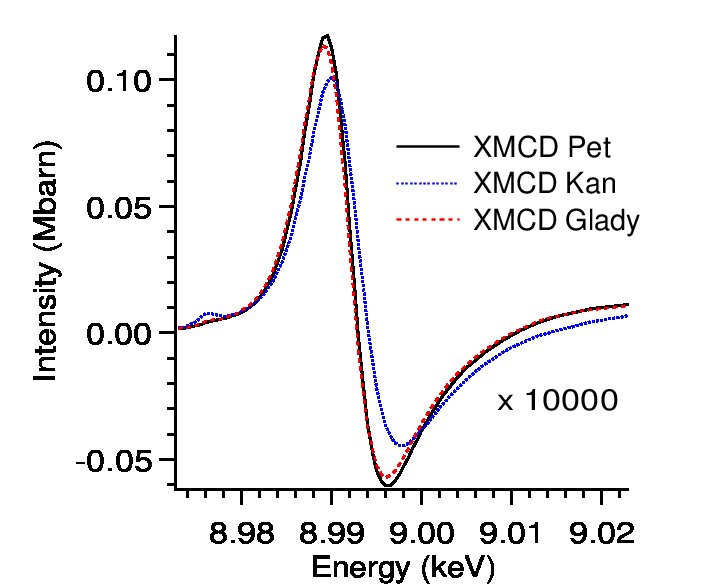

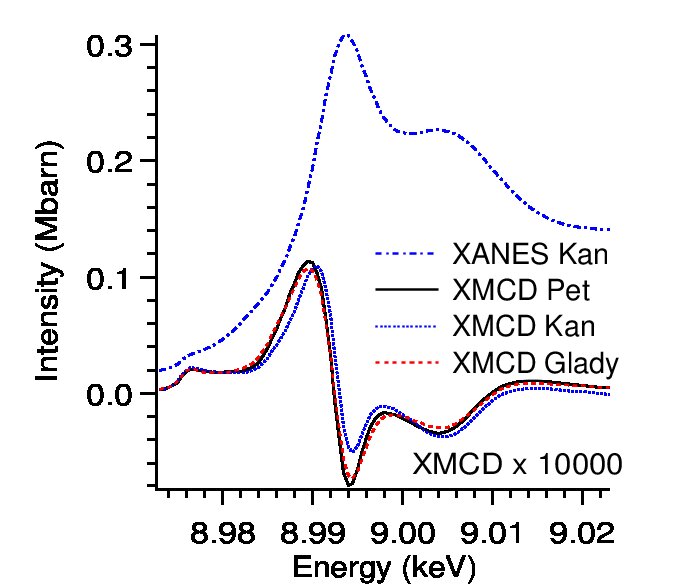

$b)$ There is a more marked dependence on the cluster radius compared to the XNCD, as shown by the comparison of Fig. 5 and Fig. 6. The calculations with a radius bigger than 4.1 Å (6 Cu, 9 O, 4 Sr, and 4 Ca), above the pre-edge energy, are basically equivalent to those shown in Fig. 5, with a positive peak at the edge energy, followed by a double negative peak, the latter at variance with the experimental results. On the contrary, the energy shape obtained for a radius of 3.1 Å is very close to the experimental one, with a single negative peak after the sharp positive one, with relatively good agreement in the energy position and width. We could be tempted to suppose, therefore, that the virtual photoelectron has a very small mean free path before decaying and it is sensitive just to the nearest neighbor oxygens. Indeed we checked that an identical XMCD profile is obtained with just the in-plane CuO4-cluster. On the other hand, the size of the signal we calculate is about an order of magnitude smaller than that seen in Ref. kubota, . Since the XMCD signal is proportional to the moment, then we would need a moment of $\sim$1 Bohr magneton per copper to have a comparable signal. Such a huge moment would have been observed previously by neutron scattering if it existed. Of course we cannot exclude that spurious effects, such as strain fields, could have influenced the measurement.

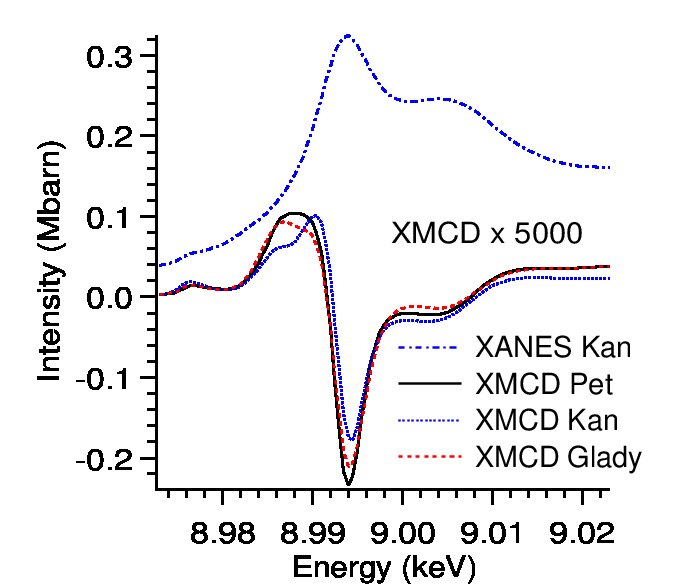

$c)$ The energy profile in the case of magnetization at the oxygen sites is not much different from the copper case, except for the deeper negative peak around E $\sim 8.994$ keV, as shown in Fig. 7. Also in this case the different crystal structure refinements give basically equivalent results, as again the CuO2 planes are practically equivalent in the various cases. Note that the relative intensity is equivalent to the copper case, as 0.1 Bohr magnetons per planar oxygen corresponds to 0.2 Bohr magnetons per CuO2 cell (note we multiply by 5000 in Fig. 7 as compared to 10000 in Fig. 5).

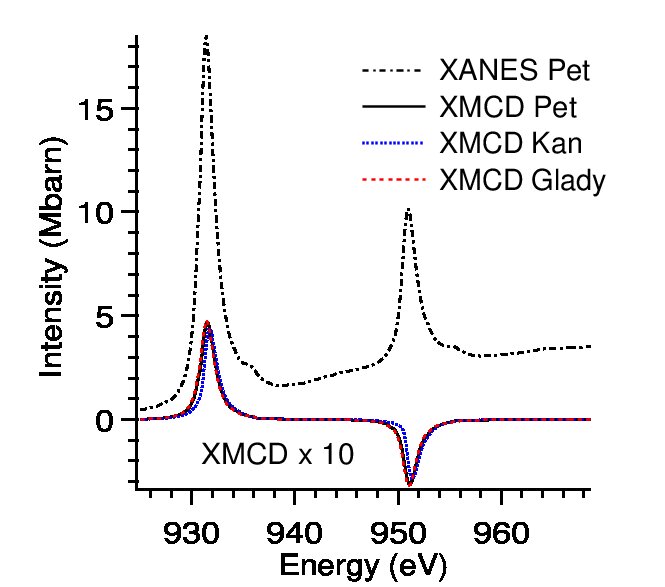

We also performed simulations for the Cu L2,3 edges foot1 for the magnetic configuration corresponding to Fig. 5, as shown in Fig. 8, which can be compared with future experimental investigations in order to confirm whether or not a net magnetization exists in this compound.

Finally, we remark that the dependence of the XMCD signal on the tilting angle $\theta$ (i.e., the displacement of the photon wave vector from the $c$-axis) goes like $\cos(\theta)$ and therefore the signal is not very sensitive to small displacements of 5 degrees, as noted by Kubota et al.kubota This different angular dependence from the XNCD signal suggests a relatively easy way to unravel the question experimentally: it is sufficient to measure the $\theta$ (azimuthal) dependence of the signal, noting that any XNLD contamination would be tested by the $\phi$ (polar) dependence of the signal.

IV Conclusions

In our opinion, the experiments of Kubota et al.kubota have raised more questions than they have answered. Although not treated in our paper, we believe that their results from the measurement of non-reciprocal linear dichroism are at this stage not conclusive, as only one direction for the toroidal moment has been investigated, of the two possible suggested by the orbital current pattern of Varma.varma The analysis performed in Section II showed, moreover, that the claimed XNCD signal is probably unjustified. In fact, even though the space group Bb2b is non-centrosymmetric, XNCD is absent by symmetry when the x-ray wave vector is chosen orthogonal to the CuO2 planes, as in the experimental measurement geometry of Ref. kubota, . The same extinction rule survives for the monoclinic supercell structure refined in Ref. glady, . Moreover, in both cases, it seems hard to mantain the hypothesis of misalignment, due to the experimental localization of the energy profile around the main absorption edge, which is absent in the calculations. We also note the difference of XNCD from the photoemission dichroism results of Kaminski et al.kaminski A direct comparison is however not immediate, as the former represents a $\hat{q}$-integrated version of the latter (here $\hat{q}$ is the solid angle in the space of the photoelectron wave-vector, see, e.g., Ref. dimatoli, ). A more likely explanation is an XNLD contamination (Fig. 4), but then the challenge is to understand why such an effect would only exist below T*. We note that an optics experiment for an optimal doped Bi2212 sample has seen a change in linear birefrigence below Tc, which was accompanied by a non-zero circular birefringence.koby In addition, both Bi2223 flukiger and the Fe analogue of Bi2212 lepage exhibit supercells with 222 space groups which would allow for dichroism. So, it is conceivable that there is a subtle structural transition associated with T* which we suggest could be looked for by diffraction experiments.

A final comment about the physical quantities detected by x-ray circular dichroism, either natural or magnetic, is in order. At the K edge of transition metal oxides, XMCD in the E1-E1 channel, at the excitation energy ${\cal E}=\hbar\omega-E_{\rm edge}$, gives information on the expectation value of ${\hat{L}}\cdot({\hat{\epsilon}^{*}}\times{\hat{\epsilon}})$ for the excited states at the energy ${\cal E}$. The orbital angular momentum is either induced from a spin moment via spin-orbit coupling (as calculated here) or directly by an orbital current (as in the scenario advocated in Ref. varma, foot3 ). No direct spin information is available at the K edge and therefore an XMCD measurement is not directly related to the ground state magnetic moment as for the L edge. Moreover, the observed states are those with $p$-like angular momentum projection on the photoabsorbing Cu ion, which are extended and therefore mainly sensitive to the influence of the oxygen atoms surrounding the Cu site. In this case, the main contribution to the XMCD energy profile is expected in an energy range of 10-20 eV from the main edge to the first shoulder in the XANES spectrum, as found in Ref. kubota, and in our own XMCD calculations.

Although the results of Section III are in principle consistent with Ref. kubota, , the size of the ferromagnetic moment necessary to get a signal of the magnitude seen by experiment, $\sim$1 Bohr magneton, is excessive. If such a large ferromagnetic moment existed, it would have surely been seen by neutron scattering. From this point of view, experiments performed at the Cu L edge and O K edge would be desirable as they are more sensitive to the presence of a magnetic moment.

Finally, we would like to remark that XNCD along the c-axis is insensitive to orbital currents. These latter, confined to the CuO2 planes, develop a parity breaking characterized by a toroidal moment ($\vec{\Omega}$) within the CuO2 planes. The XNCD experiment of Ref. kubota, would only be sensitive to the projection of the toroidal moment out of this plane (i.e., along the direction of the x-ray wavevector). Therefore, if performed as stated, it cannot tell us about any possible orbital current order.

To conclude, we believe that the various interpretations, XNCD, XNLD, or XMCD, have their drawbacks, and therefore the origin of the experimental signal of Ref. kubota, is still open. In this sense, further experimental checks of the energy extension of the dichroic signal would be highly desirable. Based on our results, the most stringent experimental test on the physical origin of the signal would come from the measurement of the dependence on the tilting (azimuthal) angle $\theta$, due to the different dependences of XNCD and XMCD, as well as the dependence on the in-plane (polar) angle $\phi$, which would test for any possible XNLD contamination.
